TIME-VARYING MULTIMODAL VOLUME RENDERING WITH 3D

TEXTURES

Pascual Abell´an, Sergi Grau and Dani Tost

Divisi´o Inform`atica CREB, UPC, Avda. Diagonal 647, 8, Barcelona 08028, Spain

Keywords:

Volume rendering, Multimodality, Time-varying Data, Frame-to-frame coherence, 3D texture mapping.

Abstract:

In this paper, we propose a rendering method for multimodal and time-varying data based on 3D texture

mapping. Our method takes as input two registered voxel models: one with static data and the other with time-

varying values. It visualizes the fusion of data through time steps of different sizes, forward and backward. At

each frame we use one 3D texture for each modality. We compute and compose a set of view-aligned texture

slices. For each texel of a slice, we perform a fetch to each 3D texture and realize fusion and shading using a

fragment shader. We codify the two shading transfer functions on auxiliary 1D textures. Moreover, the weight

of each modality in fusion is not constant but deﬁned through a 2D fusion transfer function implemented as

a 2D texture. We beneﬁt from frame-to-frame coherence to avoid reloading the time-varying data texture at

each frame. Instead, we update it at each frame using a 2D texture that run-length encodes the variation of

property values through time. The 3D texture updating is done entirely on the GPU, which signiﬁcantly speeds

up rendering. Our method is fast and versatile and it provides a good insight into multimodal data.

1 INTRODUCTION

The development of new medical imaging technolo-

gies, capable of generating different modality aligned

images within the setting of a single examination,

coupled with the enhancement of methods that reg-

ister datasets generated at different instants of time

and with different devices, has converted the use of

multimodal images in a standard practice in medicine

(Pietrzyk and al., 1996). Moreover,there is a growing

interest for time-varying data. For instance, the analy-

sis of the evolution through time of Positron Emission

Tomography (PET) functional images mapped onto

static anatomical data such as Magnetic Resonance

(MR) can provide valuable information on the behav-

ior of the human brain.

Physicians often analyze multimodal and time-

varying dataset by comparing 2D corresponding im-

ages of each modality at speciﬁc instants of time

(Rehm et al., 1994). However, three-dimensional ren-

dering and animation can provide a better understand-

ing of the spatial and temporal relationships of the

modalities (Hu and al., 1989).

Previous approaches on 3D multimodality render-

ing are mostly based on ray-casting (Cai and Sakas,

1999), and they address static datasets only. The

visualization of time-varying volume data with ray-

casting (Ma et al., 1998) (Shen and Johnson, 1994),

(Reinhard et al., 2002) as well as with texture map-

ping (Binotto et al., 2003) (Younesy et al., 2005) has

often been treated in the bibliography, specially for

ﬂuid dynamics datasets. However, the joint explo-

ration of static and time-varying datasets has not been

treated in depth.

In this paper, we propose a multimodal rendering

method that handles static and time-varying datasets.

It is based on 3D texture mapping and it uses a frag-

ment shader to perform shading and fusion. Our

method allows users to move forward and backward

through time with different time steps and to tune the

desired combination of modalities by deﬁning a 2D

fusion transfer function. In order to speed up render-

ing, we take advantage of frame-to-frame coherence

to update the time-varying 3D texture. This signiﬁ-

cantly accelerates rendering and increases the effec-

tiveness of data exploration.

223

Abellán P., Grau S. and Tost D. (2008).

TIME-VARYING MULTIMODAL VOLUME RENDERING WITH 3D TEXTURES.

In Proceedings of the Third International Conference on Computer Graphics Theory and Applications, pages 223-230

DOI: 10.5220/0001093802230230

 SciTePress

2 PREVIOUS WORK

There are several ways of combining 2D multimodal

images: compositing them using color scales and α-

blending (Hill et al., 1993); interleaving alternate pix-

els with independent color scales (Rehm et al., 1994)

and alternating the display of the two modality images

in synchronization with the monitor scanning so that

it induces the fusion of images in the human visual

system (Lee et al., 2000). Although these techniques

have proven to be useful, they leave to the observer

the task of mentally reconstructing the relationships

between the 3D structures. Three-dimensional mul-

timodal rendering provides this perception and it can

also be used to help users to freely select adequate

image orientations for 2D analysis.

Current 3D multimodality rendering methods can

be classiﬁed into four categories (Stokking et al.,

2003): weighted data fusion, multimodal window dis-

play, integrated data display and surface mapping.

The ﬁrst technique (Cai and Sakas, 1999), (Ferr´e

et al., 2004) merges data according to speciﬁc weights

at different stages of the rendering process: from

property values (property fusion) to ﬁnal colors (color

fusion). The second category is a particular case of

the ﬁrst one, that uses weight values of 0 and 1, in

order to substitute parts of one modality by the other

one (Stokking et al., 1994). The integrated data dis-

play consists of extracting a polygonal surface model

from one modality and rendering it integrated with the

other data (Viergever et al., 1992). The main limita-

tion of this method is the lack of ﬂexibility of the sur-

face extraction pre-process. Finally, surface mapping

maps one modality onto an isosurface of the other.

A typical example is painting functional data onto an

MR brain surface (Payne and Toga, 1990). The draw-

back of this approach is that it only shows a small

amount of relevant information. The Normal Fusion

technique (Stokking et al., 1997) enhances surface

mapping by sampling the functional modality along

an interval in rays perpendicular to the surface.

Most of these techniques have been implemented

with volume ray-casting (Zuiderveld et al., 1996)

(Cai and Sakas, 1999), because it naturally supports

pre-registered non-aligned volume models. An efﬁ-

cient splatting of run-length encoded aligned multi-

modalities has been proposed by Ferr´e et al. (Ferr´e

et al., 2006). The major drawback of these meth-

ods is that they are software-based, and therefore,

they are not fast enough to provide the interactiv-

ity needed by physicians to analyze the data. Tex-

ture mapping (Kr¨uger and Westerman, 2003) can pro-

vide this speed because it exploits hardware graphics

acceleration. Moreover, the programmability of to-

day’s graphic cards provides ﬂexibility to merge mul-

timodal data. Hong et al. (Hong et al., 2005) use

3D texture-based rendering for multimodality. They

use aligned textures in order to use the same 3D co-

ordinates to fetch the texture values in the two mod-

els and combine the texel values according to three

different operators. None of the previous papers treat

time-varying data. This is a strong limitation, because

each time there is major interest for the observation of

properties that vary through time, such as the cerebral

or cardiac activity.

The visualization of time-varying datasets has

been addressed following two main approaches: to

treat time-varying data as an n − D model with n = 4

(Neophytou and Mueller, 2002), or to separate the

time dimension from the spatial ones. In the sec-

ond approach, at each frame, the data values cor-

responding to that instant of time must be loaded.

Reinhard et al. (Reinhard et al., 2002) have ad-

dressed the I/O bottleneck of time-varying ﬁelds in

the context of ray-casting isosurfaces. They parti-

tion each time step into a number of ﬁles containing

a small range of iso-values. They use a multiproces-

sor architecture such that, during rendering, while one

processor reads the next time step, the other ones

render the data currently in memory. Binotto et al.

(Binotto et al., 2003) propose to compress highly co-

herent time-varying datasets into 3D textures using a

simple indexing scheme mechanism that can be im-

plemented using fragment shaders. Younesy et al.

(Younesy et al., 2005) accelerate data load at each

frame using a differential histogram table that takes

into account data coherence. Aside from data load-

ing, frame-to-frame coherence can also be taken into

account to speed up the rendering step itself. Sev-

eral authors have exploited it in ray-casting (Shen

and Johnson, 1994) (Ma et al., 1998) (Liao et al.,

2002), shear-warp (Anagnostou et al., 2000), texture-

mapping (Ellsworth et al., 2000) (Lum et al., 2002)

(Schneider and Westermann, 2003) (Binotto et al.,

2003) and splatting (Younesy et al., 2005).

In this paper, we propose to use 3D texture map-

ping to perform multimodal rendering for both sta-

tic and time-varying modalities. For the latter type of

data, we propose an efﬁcient compression mechanism

based on run-length encoding data through time.

3 OVERVIEW

Figure 1 shows the pipeline of our method. We codify

the time-varying data in a 2D texture (Time Codes 2D

Texture) that we use, at each frame, to update a 3D

texture (Time-Varying Data 3D Texture). This mech-

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

224

anism is explained in Section 5.

For the static data, once, at the beginning of the

rendering process we construct a second 3D texture

(Static Data 3D Texture). We load this texture directly

from the corresponding voxel model, or, if Normal

Fusion is applied, we construct it using in addition

an auxiliary distance-map voxel model. This is ex-

plained in Section 4. Each texture model has its own

local coordinate system. We assume that the geomet-

rical transformations that situate the two models in

a common reference frame are known or have been

computed in a registration pre-process.

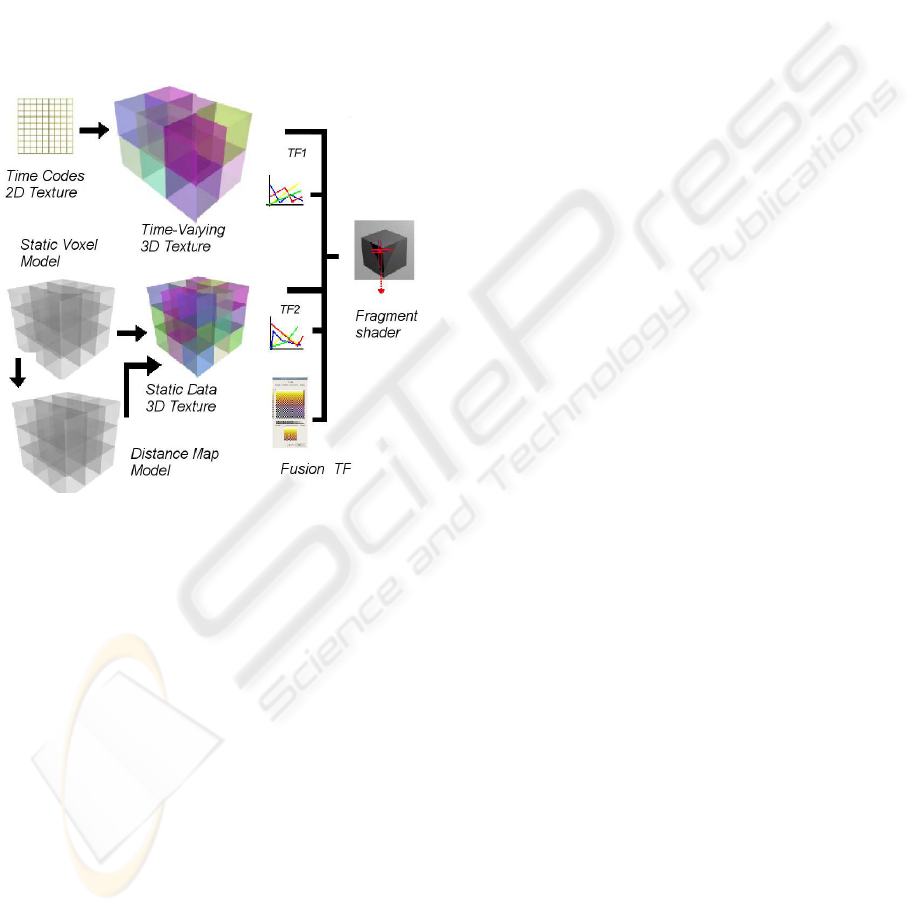

Figure 1: Pipeline of the proposed method.

For each modality we can deﬁne separately the shad-

ing model to be applied. We support three types of

shading: emission plus absorption, surface shading

and the mixture of both shading. The three cases are

based on the use of a look-up table implemented as a

1D texture that stores the emission and opacity or the

diffuse reﬂectivity of the surface kd ∗ Od. When both

types of shading are applied, we use the emission as

the diffuse reﬂectivity and the opacity for the volume

as well as the surface. This can be inconvenient be-

cause, in general, surface opacity needs to be higher

than volume opacity. In order to provide more ﬂexi-

bility, an extra 1D texture encoding the surface diffuse

reﬂexivity could be stored with each 3D texture.

Once the texture models are constructed and the

two transfer functions edited, we compute the bound-

ing box that encloses the two textures. Then, we

apply the classical methodology of texture mapping

(Meissner et al., 1999), i.e. composition of a set of

view-aligned depth-sorted slices of the bounding box.

Each slice is computed by rendering the polygon of

intersection between the bounding box and the corre-

sponding view-aligned plane. The fragment shader

applied at each pixel of the polygon’s rasterization

performs shading and merges the data using a 2D fu-

sion transfer function (see Section 4).

4 FUSION

Fusion is performed in a fragment shader. For each

rendered point p the shader checks if it falls inside

the two textures. If it falls only into one of them,

then shading is applied directly to that modality with

no fusion. Otherwise, fusion is applied according to

the weighted data fusion method, by merging the two

modalities according to a weight that varies depend-

ing on the combination of values. Being prop

, i =

1, 2 the ranges of the property values, we deﬁne the

fusion transfer function as: ft f : ∀(v

, v

) ∈ prop

prop

, ft f(v

, v

) = w, being w ∈ [0. . . 1]. This trans-

fer function is implemented as a 2D texture.

We can deﬁne this transfer function on the prop-

erty domain in order to perform fusion before shad-

ing, or on the color domain, to ﬁrst shade each modal-

ity separately and then merge them. In addition, we

are able to perform multimodal window display by

setting to 0.0 the weight of the region that should

be occluded by the other. Moreover, we can merge

modalities and avoid camouﬂage effects (Rehm et al.,

1994) by giving higher weights to low values of func-

tional modalities than to high ones.

We are also able to perform surface mapping, for

instance, to show intensity PET values only the MR

surface brain. To do so, we select surface shading for

MR, emission plus absorption for PET, and assign a

fusion weight of 0.5 to each modality in the range of

the brain property. We merge the data only where the

gradient valueof the MR is signiﬁcant, and we discard

the pixel otherwise.

In order to perform Normal-Fusion rendering, we

compute a distance map model of the relevant surface

in the static modality, using an algorithm based on a

scanning technique (Gagvani and Silver, 1999). We

have implemented a special texture loader than uses

the original voxel model and the distance map. This

loader computes the gradient values in the original

model but uses the distance map as the property value.

We deﬁne a fusion transfer function that sets for the

second modality a weight of 0.5 where the distance

map value is 0 (at the relevant surface), of 1.0 where

the distance map is within the desired width and of

0.0 everywhere else. We set surface shading for the

ﬁrst modality. Then, at the surface, both modalities

are merged, and only the second one is visible at a

TIME-VARYING MULTIMODAL VOLUME RENDERING WITH 3D TEXTURES

225

given distance of the surface.

5 TIME-VARYING DATA

HANDLING

5.1 Data Structures

We represent the time-varying modality accord-

ing to a Time Run-Length (TRL) encoding that

stores for every voxel v

a sequence of codes

composed of the voxel value and the number

of time steps in which this value remains con-

stant within a user-deﬁned error: codes(v

) =

< value

, nframes

>, k = 1. . . ncodes(v

). This in-

formation is stored in the Time Codes 2D Texture

sorted using the voxel coordinates as a primary key

and time as secondary key (see Figure 2). This cod-

iﬁcation is computed in a pre-process according to a

user-deﬁned error.

The Time-Varying Data 3D Texture used for ren-

dering stores the current value of all the voxels, their

next (fnext) and previous (fprev) instants of change

and an index to the current code in the Time Codes

2D Texture.

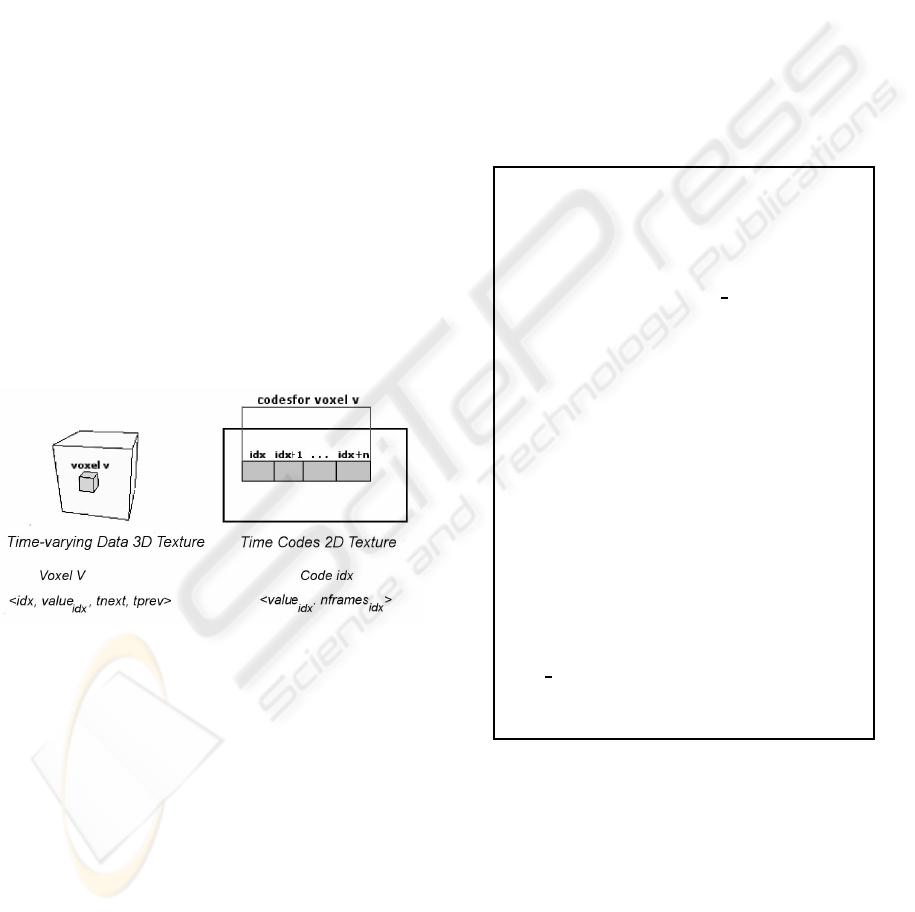

Figure 2: TRL structure in the GPU: Time-Varying Data 3D

Texture (left) and Time Codes 2D Texture (right).

The rate of compression provided by the TRL de-

pends of the coherency of the dataset. For the datasets

that we have used we achieve high compression levels

(between 0.02 and 0.04) as it is shown in Section 7.

5.2 Time-varying Data 3D Texture

Update

We use the glFramebufferTexture3DEXT extension to

update the Time-Varying Data 3D Texture by slicing

it by z-sorted planes. For each slice, we use two frag-

ment shaders: one that determines which voxels must

be updated, and the other that updates those. A voxel

must be updated, if the current frame is not between

its fnext and fprev values in the Time-Varying Data 3D

texture. The fragment shader modiﬁes the Z-value of

the modiﬁed voxels, so that in the second step, the Z-

Test restricts the update stage to the modiﬁed voxels.

For the second step, we need to take into ac-

count that the 3D texture holds absolute time steps

(fnext and fprev) whereas the 2D texture stores rel-

ative time lengths of the codes (nframes). There-

fore, given a voxel v and its current texture value <

idx, value

idx

, f prev, fnext > , when this texture value

is updated to the nextcode of the 2D texture it is set to:

< idx+ 1, value

idx+1

, fnext, fnext + n frames

idx+1

When it is set to the previous code idx − 1 it is: <

idx − 1, value

idx−1

, f prev − nframes

idx−1

, f prev >.

Figure 3 shows the fragment shader used to update

the 3D texture using the TRL.

uniform sampler2D curr;

uniform sampler2DRect codes;

uniform ﬂoat f;

void main(void)

{

vec4 v = texture2D(curr,gl

TexCoord[0].xy);

vec2 c;

ﬂoat idx = index(v);

ﬂoat fnext = next(v), fprev = prev(v);

while((f < fprev) || (f >= fnext))

{

if (f < fprev)

{

idx−−;

c = currCode(codes,idx);

fnext = fprev;

fprev = fprev - code(c);

} else {

idx++;

c = currCode(codes,idx);

fprev = fnext;

fnext = fnext + code(c);

}

FragColor = vec4(idx,value(c),fprev,fnext);

}

Figure 3: Fragment shader that updates the 3D texture.

5.3 Memory Management

The capacity of the GPU memory determines the size

of the voxel model and the number of consecutive

frames that can be handled in the GPU. Speciﬁcally,

the GPU memory must ﬁt the Static Data 3D Tex-

ture, the Time-Varying Data 3D Texture plus the Time

Codes 2D Texture, the two 1D transfer functions and

the 2D fusion transfer function.

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

226

Currently, our system is able to handle any type

of scalar valued voxel model: unsigned chars, inte-

gers and ﬂoats and it supports two types of textures:

INTENSITY and (GL RGBA). The ﬁrst type of

texture is the fastest to construct because it uses the

pixel transfer instruction in order to conﬁgure scale

and bias, and thus, it does not need any intermediate

buffer. We use it only for the Static Data 3D Tex-

ture, to store for each texel an index to an emission +

absorption look-up table. We use the GL RGBA tex-

ture for Static Data 3D Texture when surface shading

is applied. In this case, the texture stores the gradi-

ent vector scaled and biased between 0 and 1 in the

RGB channels and a value indexing a look-up table in

the α-channel. For the Time-Varying Data 3D texture

we always use GL RGBA and store index, value, fnext

and fprev in each channel respectively.

The size of the TRL is proportional to the number

of codes of all the voxels:

∑

codes(i). However, for

the voxels that are empty all time through, we store a

unique common empty code with zero value and in-

ﬁnite number of frames, this way, the occupancy of

the TRL is actually:

∑

codes(i), being m ≤ n the

number of non-empty voxels of the model. Generally,

we do not apply surface shading on the time-varying

modality, so we do not need to store gradient vectors.

Thus, a code occupies usually 2 ﬂoats (value, num-

ber of time steps) and we are able to store two codes

in one RGBA value. The maximum size for a 2D tex-

ture is currently 4096

RGBA, which is also the upper

limit for the total number of codes that we can store

at a time in one texture. Above this limit, we need to

split the TRL into various 2D textures up to the GPU

memory and, eventually, we will have to read the tex-

ture from the CPU. In any case, this is far much faster

than loading the voxel values at each frame.

6 USER INTERACTION

The interface of our system is shown in Figure 4. A

slider below the graphical area allows users moving

forward and backward through time. At any frame,

users can move the camera around the model and

zoom in and out using the mouse buttons. In addi-

tion, users can manipulate OpenGL clipping planes

to interactively remove parts of the volume. More-

over, depth cueing can be activated to enhance image

contrast. Finally, in order to specify the fusion trans-

fer function we use a widget such as the one shown in

Figure 4 (Abell´an and D.Tost, 2007). It consists ba-

sically of a matrix of colors. It shows in the x and y

axis a color scale that represents the shading transfer

function of each modality. The color matrix shows

color merging according to the weight value. A set

of rulers allows users to select a particular subrange

of the matrix and to vary the weight associated to that

range using a slider.

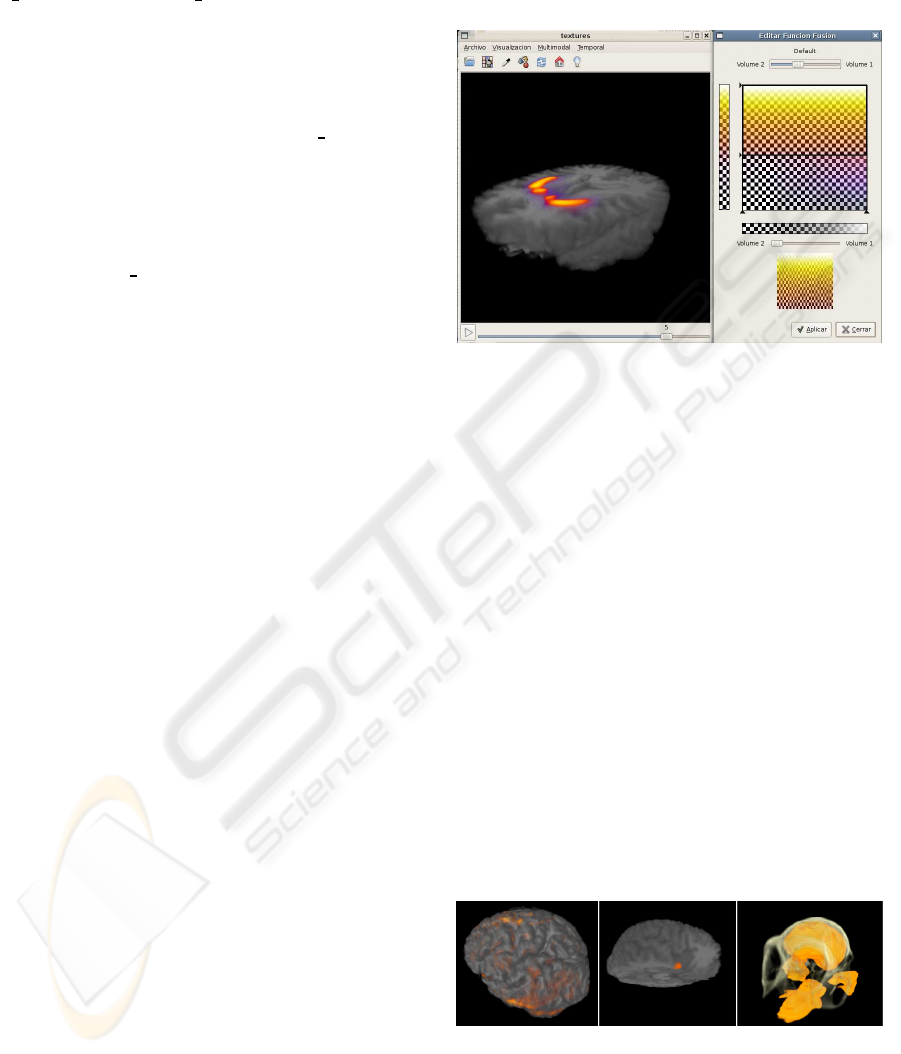

Figure 4: Snapshot of the application interface. Left: the

3D multimodal rendering area. The slider below the area

allows users moving forward and backward through time.

Right: the fusion widget is used for the speciﬁcation of the

2D fusion transfer function.

7 RESULTS

We have used our method with various multimodal

static/static (Table 1) and static/time-varying datasets

(Table 2). Figure 5 shows an example of the sta-

tic/static fusion of datasets Brain, Epilepsia and Mon-

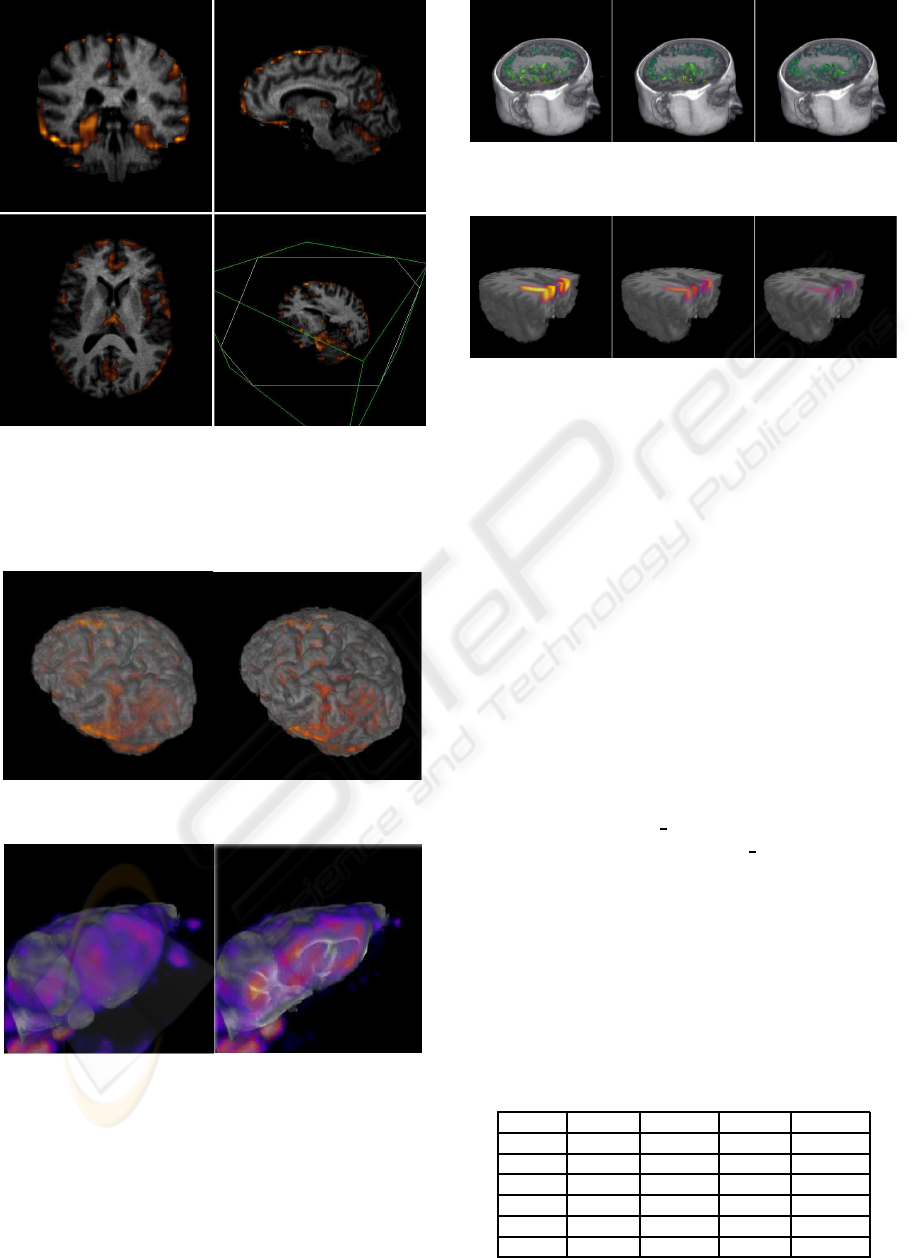

key. Figure 6 shows examples of 2D multimodal

slices deﬁned using the 3D model. Figures 7 and

8 illustrate the use of depth cueing and clipping re-

spectively. Figures 9 and 10 show three frames of a

multimodal time-throughvisualization of Tumor2 and

Receptors datasets. In the PET medical datasets, the

number of frames needed for medical analysis is gen-

erally low (between 5 and 28). Therefore, we have

also tested our method on a non-medical ﬂuid ﬂow

simulation dataset TJet.

Figure 5: Left to right: Brain, Epilepsia and Monkey multi-

modal rendering.

For the encoding of the time-varying datasets we have

used a precision of ε = 10

−3

. This means that voxel

values consecutive through time and normalized in

TIME-VARYING MULTIMODAL VOLUME RENDERING WITH 3D TEXTURES

227

Figure 6: Brain Dataset. Slides of the MRI-PET with dif-

ferent orientations. Top-Left: Coronal. Top-Right: Sagital.

Bottom-Left: Axial. Bottom-Right: Arbitrary orientation

showing the bounding box of the volumes and the resulting

polygon of intersection with the slide plane and the bound-

ing box.

Figure 7: Brain dataset without (left) and with (right) depth

cueing.

Figure 8: Mouse dataset using (right) or not (left) clipping

planes.

the range [0, 1] that have a difference less than ε are

compressed in one code. The number of TRL codes,

shown in Table 2, is very low in relation to the total

number of voxel values. This yield a high compres-

sion of the time-varying data, so that all the time steps

ﬁt into the GPU, even with the largest models recep-

Figure 9: Three frames of the Tumor2 dataset.

Figure 10: Three frames of the Receptors dataset.

tors and TJet.

We have measured the number of frames per second

(fps) of rendering on a Pentium D 3.2 Ghz with 4

GB of RAM. In all cases, the image size is 512x512

and the model occupies almost all the viewport. We

achieve frame rates between 6 and 10 fps. Table 3

shows the frame rates of the static/static datasets.

Table 4 shows a comparison of the time-varying

datasets frame rates using or not the TRL structure.

In both cases, we have measured the pure rendering

time without taking into account the texture load (or

update) and the total rendering time which includes

texture loading (or update) and rendering itself. It can

be observed that, in general, the pure rendering step

is slightly more costly with TRL than without it. This

is due to the fact that the 3D texture updated from

the TRL is always GL

RGBA, whereas, when con-

structed from scratch, it can be GL

INTENSITY, with

faster fetch operations. However, the total frame rate,

including texture loading or updating is much faster

with TRL than without it, between four to six times

more in the three medical datasets. Nevertheless, in

the ﬂuid ﬂow simulation dataset TJet, there is no ac-

tual speedup, because the model dimensions are small

and its loading time is only a small part of the effec-

tive rendering time.

Table 1: Static/static datasets characteristics: origin, size

and value type of each modality.

model epilepsia brain monkey mouse

modal.1 MR MR CT MR

size 1 256

x92 256

x116 256

x62 256

x28

type 1 short int ﬂoat uchar uchar

modal.2 SPECT PET PET SPECT

size 2 256

x92 128

x31 256

x62 256

x286

type 2 uchar ﬂoat uchar ﬂoat

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

228

Table 2: Static/time-varying datasets characteristics: origin,

size, value type of each modality, number of TRL codes (in

millions) of the time-varying data and size of TRL model in

comparison to all the time-varying model.

model tumor1 tumor2 receptors TJet

modal.1 MR MR MR simulation

size 1 512

x63 256

x116 256

type 1 short int ﬂoat ﬂoat ﬂoat

modal.2 PET PET PET simulation

size 2 512

x63 256

x116 256

x116 129

x104

frames 20 5 28 150

type 2 ﬂoat ﬂoat ﬂoat ﬂoat

trl codes 14.6 1.2 2.4 7.1

TRL/Total 0.044 0.031 0.037 0.027

Table 3: Frames per second of the static/static multimodal

rendering.

epilepsia brain monkey mouse

7.2 6.2 10.4 6.8

Table 4: Frame rates in frames per second (fps) of render-

ing using or not TRL: ﬁrst and third column only rendering,

without texture loading, second and fourth column total ren-

dering rate.

Without TRL Without TRL With TRL With TRL

pure effective pure effective

dataset rendering rendering rendering rendering

tumor1 12.4 1.2 9.4 7.2

tumor2 13.8 2.4 9.4 9.1

receptors 13.7 2.4 12.8 9.2

Tjet 11.2 10.4 10.4 10.2

8 CONCLUSIONS

We have designed and implemented a fast and ver-

satile tool to render 3D multimodal static and time-

varying images based on 3D textures and fragment

shaders. Our system uses a 2D fusion transfer func-

tion that allows users to modulate data merging. We

have also designed a widget for the speciﬁcation of

this transfer function. Our method takes advantage of

frame-to-frame coherence to update the time-varying

3D texture using a run-length codiﬁcation through

time of the data. Since this stage is done on the GPU,

it considerably speeds the loading step of rendering.

We plan to extend this work in several directions.

First, we need to perform usability tests of the appli-

cation. Second, we want to extend it to more than two

models. And third, we will investigate how to incor-

porate polygonal model of external objects in order to

provide multimodal, time-varying and hybrid render-

ing at a time.

ACKNOWLEDGEMENTS

Many thanks are due to Pablo Aguiar, Cristina Crespo

and Domenech Ros from the Unitat de Biofsica of the

Facultat de Medicina of the Universitat de Barcelona,

Deborah Pareto from the Hospital del Mar and Xavier

Setoian of the Hospital Clnic de Barcelona, who pro-

vided the datasets and helped us in their process-

ing and understanding. This work has been partially

funded by the project MAT2005-07244-C03-03 and

the Institut de Bioenginyeria de Catalunya (IBEC).

REFERENCES

Abell´an, P. and D.Tost (2007). Multimodal rendering

with 3D textures. In XVII Congreso Espa˜nol de In-

form´atica Gr´aﬁca 2007, pages 209–216. Thompson

Eds.

Anagnostou, K., Atherton, T., and Waterfall, A. (2000). 4D

volume rendering with the Shear-Warp factorization.

Symp. Volume Visualization and Graphics’00, pages

129–137.

Binotto, A. P. D., Comba, J., and Freitas, C. D. S. (2003).

Real-time volume rendering of time-varying data us-

ing a fragment-shader compression approach. 6th

IEEE Symposium on Parallel and Large-Data Visual-

ization and Graphics, pages 69–76.

Cai, W. and Sakas, G. (1999). Data intermixing and

multivolume rendering. Computer Graphics Forum,

18(3):359–368.

Ellsworth, D., Chiang, L. J., and Shen, H. W. (2000). Accel-

erating time-varying Hardware volume rendering us-

ing TSP trees and color-based error metrics. In IEEE

Visualization’00, pages 119–128.

Ferr´e, M., Puig, A., and Tost, D. (2004). A framework

for fusion methods and rendering techniques of multi-

modal volume data. Computer Animation and Virtual

Worlds, 15:63–77.

Ferr´e, M., Puig, A., and Tost, D. (2006). Decision trees for

accelerating unimodal, hybrid and multimodal render-

ing models. The Visual Computer, 3:158–167.

Gagvani, N. and Silver, D. (1999). Parameter-controlled

volume thinning. Graphical models and Image

Processing, 61(3):149–164.

Hill, D., Hawkes, D., and Hussain, Z. (1993). Accurate

combination of CTand MR data of the head: valida-

tion and application in surgical and therapy planning.

Computer Medical Imaging and Graphics, 17:357–

363.

Hong, H., Bae, J., Kye, H., and Shin, Y. G. (2005). Efﬁcient

multimodalty volume fusion using graphics hardware.

ICCS 2005, LNCS 3516, pages 842–845.

Hu, X. and al. (1989). Volumetric rendering of multimodal-

ity, multivariable medical imaging data. Proc. Chapel

Hill Workshop on Volume Visualization, pages 45–49.

TIME-VARYING MULTIMODAL VOLUME RENDERING WITH 3D TEXTURES

229

Kr¨uger, J. and Westerman, R. (2003). Acceleration tech-

niques for GPU-based volume rendering. In IEEE Vi-

sualization’03, pages 287–292.

Lee, J. S., Kim, B., Chee1, Y., Kwark, C., Lee2, M. C.,

and Park, K. S. (2000). Fusion of coregistered cross-

modality images using a temporally alternating dis-

play method. Medical and Biological Engineering

and Computing, 38(2):127–132.

Liao, S., Chung, Y., and Lai, J. (2002). A two-level differ-

ential volume rendering method for time-varying vol-

ume data. The Journal of Winter School in Computer

Graphics, 10(1):287–316.

Lum, E. B., Ma, K. L., and Clyne, J. (2002). A Hardware-

assisted scalable solution for interactive volume ren-

dering of time-varying data. IEEE Trans. on Visual-

ization and Computer Graphics, 8(3):286–301.

Ma, K., Smith, D., Shih, M., and Shen, H. W. (1998). Ef-

ﬁcient encoding and rendering of time-varying vol-

ume data. Technical Report ICASE NASA Langsley

Research Center, pages 1–7.

Meissner, M., Hoffmann, U., and Straßer, W. (1999). En-

abling classiﬁcation and shading for 3D texture map-

ping based volume rendering using OpenGL and ex-

tensions. IEEE Visualization’99, pages 207–214.

Neophytou, N. and Mueller, K. (2002). Space-time points:

4D splatting on efﬁcient grids. In IEEE Symp. on Vol-

ume Visualization and graphics, pages 97–106.

Payne, B. and Toga, A. (1990). Surface mapping brain func-

tion on 3D models. IEEE Computer Graphics & Ap-

plications, 10(5).

Pietrzyk, U. and al. (1996). Clinical applications of regis-

tration and fusion of multimodality brain images from

PET, SPECT, CT, and MRI. European Journal of Ra-

diology, pages 174–182.

Rehm, K., Strother, S. C., Anderson, J. R., Schaper, K. A.,

and Rottenberg, D. A. (1994). Display of merged mul-

timodality brain images using interleaved pixels with

independent color scales. Journal of Nuclear Medi-

cine, 35(11):1815–1821.

Reinhard, E., C.Hansen, and S.Parker (2002). Interac-

tive ray-tracing of time varying data. In EG Parallel

Graphics and Visualisation’02, pages 77–82.

Schneider, J. and Westermann, R. (2003). Compression

domain volume rendering. In IEEE Visualization’03,

pages 39–47.

Shen, H. W. and Johnson, C. R. (1994). Differential volume

rendering: a fast volume visualization tech for ﬂow

animation. In IEEE Visualization’94, pages 180–187.

Stokking, R., Zubal, G., and Viergever, M. (2003). Display

of fused images: methods, interpretation and diagn-

sotic improvements. Seminars in Nuclear Medicine,

33(3):219–227.

Stokking, R., Zuiderveld, K., and Hulshoff, P. (1994). In-

tegrated visualization of SPECT and MR images for

frontal lobe damaged regions. SPIE Visualization in

biomedical computing, 2359:282–292.

Stokking, R., Zuiderveld, K., Hulshoff, P., van Rijk, and

Viergever, M. (1997). Normal fusion for three-

dimensional integrated visualization of spect and

magnetic resonance brain images. The Journal of Nu-

clear medicine, 38(3):624–629.

Viergever, M. A., Maintz, J. B. A., Stokking, R., Elsen,

P. A., and Zuiderveld, K. J. (1992). Integrated presen-

tation of multimodal brain images. Brain Topography,

5:135–145.

Younesy, H., M¨oller, T., and Carr, H. (2005). Visualiza-

tion of time-varying volumetric data using differential

time-histogram table. In Volume Graphics’05, pages

21–29.

Zuiderveld, K. J., Koning, A. H. J., Stokking, R., Maintz,

J. B. A., Appelman, F. J. R., and Viergever, M. A.

(1996). Multimodality visualization of medical vol-

ume data. Computers and Graphics, 20(6):775–791.

GRAPP 2008 - International Conference on Computer Graphics Theory and Applications

230
