A STORE OF JAVA OBJECTS ON A MULTICOMPUTER

Mariusz Bedla

Department of Computer Science, Kielce University of Technology

al. 1000-lecia Pa´nstwa Polskiego 7, 25 - 314 Kielce, Poland

Krzysztof Sapiecha

Department of Computer Science, Cracow University of Technology

ul. Warszawska 24, 31 - 155 Kraków, Poland

Keywords:

Object store, Java, Scalable distributed Data structures.

Abstract:

The research deals with Object Oriented versions of Scalable Distributed Data Structures (OOSDDS) to store

Java objects in serialized form. OOSDDS can be used as a part of distributed object store. In the paper an

architecture for object version of RP* is introduced and its implementation for Java objects is given. Finally

performance of the new architecture is evaluated.

1 INTRODUCTION

Object-Oriented Database Management System

(OODBMS) relies on Object Store (OS) which

implements system and transaction related functions,

particularly manages physical objects (Lobry et al.,

1997). Future OS should allow for storing and

maintaining huge number of objects. As such the OS

requires powerful and scalable computer platform.

To this end a multicomputer could be used as it

may connect many PCs through fast network. It

implements parallel architecture shared-nothing

(Stonebraker, 1986) in not expensive way. Parallel

architecture shared-nothing is the most scalable

for very large databases (Lo et al., 2001). In such

architecture every computer owns memory and disk,

and acts as a server for data (DeWitt and Gray, 1992).

Communication is based on message passing.

Scalable Distributed Data Structure (SDDS)

(Litwin et al., 1996) is one of the most promising

ideas for implementation of distributed and scalable

data storage. SDDS is a ﬁle of records, a ﬁle which

expands to computers of a multicomputer. Data are

stored in so called buckets localized in main memo-

ries of the computers called servers.

The research concerns the development of Object-

Oriented versions of SDDS (OOSDDS) to store Java

objects in serialized form. OOSDDS can be used as

a part of distributed OS. A brief description of SDDS

is given in the next section. In section 3 main ob-

jectives of the research are stated. An architecture of

object version of RP* (OORP*) is introduced in sec-

tion 4. In section 5 its implementation for Java objects

is given. In section 6 a performance of the new archi-

tecture is evaluated. The paper ends with conclusions

and directions of further research.

2 SCALABLE DISTRIBUTED

DATA STRUCTURES

A record is the least of components of SDDS. Each

record is equipped with a unique key. Records with

keys are stored in buckets. Each bucket’s capacity is

limited. If a bucket’s load reaches some critical level,

it performs a split. A new bucket is created and a half

of data from the splitting bucket is moved into a new

one.

A client is another component of SDDS ﬁle. It

is a front-end for accessing data stored in SDDS ﬁle.

The client may be a part of an application. There may

be one or more clients operating on the ﬁle simulta-

neously. The client may be equipped with so called

ﬁle image (index) used for addressing data. Such ﬁle

image not always reﬂects actual ﬁle state, so client

may commit addressing error. Incorrectly addressed

bucket forwards such message to the correct one, and

sends Image Adjustment Message (IAM) to the client,

updating his ﬁle image, so he will never commit the

374

Bedla M. and Sapiecha K. (2008).

A STORE OF JAVA OBJECTS ON A MULTICOMPUTER.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 374-379

DOI: 10.5220/0001726003740379

 SciTePress

same addressing error again.

All components of SDDS ﬁle are connected

through a network. Usually, one node of the multi-

computer maintains single bucket or a client, but there

may be more components maintained by single node,

too. If all the buckets are stored in RAM memory then

SDDS highly improves data access efﬁciency.

There are numerous architectures of SDDS

(Litwin et al., 1996; Litwin et al., 1994; Devine,

1993). In general they fall into two categories: RP*

and LH*. In RP* data are partitioned according to

their ranges (Litwin et al., 1994). In LH* modi-

ﬁed linear hashing is used for addressing data in dis-

tributed ﬁle (Litwin et al., 1996).

3 PROBLEM STATEMENT

SDDS has many advantages like scalability, high

speed of operation and fault tolerance (Litwin et al.,

1996; Litwin et al., 1994; Litwin and Neimat, 1997;

Sapiecha and Łukawski, 2006). Using OOSDDS as a

part of distributed OS should increase performance of

OODBMS. Developing an architecture preserving all

advantages of SDDS but applicable to object-oriented

model would be very useful.

In principle SDDS architectures assume constant

size of records and constant number of records in a

bucket (though some of the architectures could be

adopted for records of various sizes). Objects of the

same class can contain tables of different sizes what

makes their sizes different. Hence, the buckets should

store various numbers of objects. Split algorithms for

all OOSDDS are the ﬁrst objective of the research.

Next is what architectures of OOSDDS should be.

There are at least two feasible solutions:

1. An architecture for regular objects. It could be

based on remote invocation of methods and could

be similar to RMI (Remote Method Invocation).

Objects are stored in buckets on servers. All meth-

ods of an object are invoked remotely. Arguments

are transmitted to the object and a method is in-

voked. An result of an execution of the method is

transmitted back to the client. An access to ﬁelds

of remote objects could be done by invocation of

auto-generated methods.

2. Objects in serialized form are stored in buckets.

When a client adds or updates an object in OOS-

DDS the object is serialized and then transmitted

and stored in a bucket. The bucket splits using the

same algorithm as during insertion of an object if

there is not enough free space in the bucket. When

a client invokes a method of the object the bucket

ﬁnds a serialized form of the object and transmits

it to the client. Next the object is deserialized and

the method is invoked.

Finally, SDDS stores all data in main memory, which

is not durable. Persistence of objects in a store is re-

quired. Hence, in OOSDDS a backup of the store on

hard drive should be available.

4 RP* FOR OBJECTS

In OORP* addressing algorithm is same as in RP*.

The address of a bucket where a record should be

stored is calculated on the basis of ranges of the buck-

ets (Litwin et al., 1994). However, the buckets should

store various numbers of objects as the objects differ

in sizes. In original RP* architecture every record has

the same size and bucket’s load factor is calculated on

the basis of the number of records. During a split half

of records are moved to a new bucket. In OOPR* ev-

ery object may have different size and bucket’s load

factor is calculated on the basis of total size of all

objects stored in the bucket. During a split objects

which total size is approximately equal to half size of

the bucket are moved to a new bucket. To calculate a

load factor a bucket should know total size of all ob-

jects stored in the bucket. The total size of all objects

must be updated when an object is added, updated or

deleted.

OORP* split algorithm is like original RP* one.

However, in OORP* middle key is calculated in dif-

ferent way (see Algorithm 1).

Algorithm 1 Middle key calculation algorithm for

OORP*.

size ← 0;

hal fBucketSize ← bucketSize/2;

while size < hal fBucketSize do

object ← nextObject(B);

← c(object);

end while

where:

- bucketSize denotes sum of all objects in the

bucket B,

- c and c

denote key and middle key respec-

tively.

In SDDS used for storing records a size of the record

can be chosen to place a record in a single data-

gram. A client sends a request in one datagram and

the bucket answers in one datagram. If the bucket is

overloaded it splits. During the split the record may

A STORE OF JAVA OBJECTS ON A MULTICOMPUTER

375

be moved to another bucket. One record is stored in

one bucket.

In OOSDDS an object may be bigger than a size

of the datagram. Hence, an overﬂow of a bucket may

occur when n-th slice of the object is transmitted. It

complicates a control of the bucket and the split algo-

rithm. There are at least two feasible solutions of this

problem. These are as follows:

1. To allow for storing slices of an object in many

buckets. Object ID must be supplemented by slice

ID. A bucket should control a pair of slice ID’s

identifying the ﬁrst and to the last slice of stored

objects. The objects might be placed at the top

and the bottom of the bucket. Client image and a

kernel must be modiﬁed: for every bucket maxi-

mal value of slice ID must be added to maximal

value of object ID. This solution can be applied

only when objects are stored in buckets in serial-

ized form.

2. To allow for storing all slices of an object only

in one bucket. Overloading of the bucket might

be checked after transmission of the ﬁrst or of

the last slice of the object. However, when more

(than one) clients add objects concurrently and

the checking is done after transmission of the last

slice of the object then the bucket can be over-

loaded too much. This does not happen when

the checking is done after transmission of the ﬁrst

slice of the object. If the bucket would be over-

loaded after addition of the whole object this is

postponed. The bucket splits and then the object

is added to the proper bucket.

OOSDDS should be transparent for users. It should

work properly no respect whether an object moves

from one server to another or not. Therefore, the

architecture for serialized objects is chosen in OOS-

DDS. For the other architecture a transparency is un-

feasible because the results might rely on a server. Se-

rialization can also be used to ensure persistence.

5 IMPLEMENTATION OF RP*

FOR JAVA OBJECTS

An implementation of OOSDDSRP architecture for

Java objects should allow for storing, updating, re-

trieving and deleting individual objects of a class de-

ﬁned by a user, with such restrictions on classes which

might be easy accepted (i.e. classes must be serializ-

able).

Objects stored in OOSDDS are distributed among

many servers. Hence, they should have some ex-

tra features. This can be achieved in different ways.

These are as follows:

- modiﬁcation of a source code of a class, what re-

quires an access to this source code,

- modiﬁcation of Java Virtual Machine (JVM), but

not all licenses allow to do that, additionally per-

manent modiﬁcation of JVM affects other appli-

cations,

- modiﬁcation of compiled byte code to gain re-

quired features, what means that the source code

is not necessary and is left unchanged.

To store objects of some class in OOSDDS the class

must contain its own mandatory methods and at-

tributes. A solution based on inheritance can not

be applied here as Java class can only extend one

base class. A programmer could probably add these

method and attributes manually but it excludes trans-

parency. For these reasons the last from the above

options that is modiﬁcation of a byte code is chosen.

The program called SDDSModiﬁer modiﬁes com-

piled class and adds all required features. Objects are

stored in serialized form. They are converted into ta-

bles of bytes, transmitted and then stored in the buck-

ets on servers. Because of its popularity and univer-

sality Java collection is chosen as a method of ac-

cessing objects. The collections, besides tables, are

probably the second primary method of arranging ob-

jects. All collections implement one of two inter-

faces: Collection which is basis for lists and sets, and

Map which is used to map keys to values. Interface

SDDSCollection, which extends Collection, and class

SDDSFile, which implements it are then developed.

Summarizing, the development of scalable, dis-

tributed store of Java objects consists of two steps.

First a programmer develops an application which

uses SDDSFile to store objects. The application may

use classes which are stored in OOSDDS and other

classes not related with OOSDDS. Next, the classes

are compiled using a standard Java compiler and then

modiﬁed by SDDSModiﬁer. SDDSModiﬁer does

what follows:

- add an implementation of required interface,

- add or modify an implementation of required

methods,

- add an implementation of required attributes,

- modify the way of accessing speciﬁc attributes

(access by references is replaced by invocation of

auto-generated static methods).

Finally, after starting servers the application may be

launched. Every server may work in textual or graph-

ical mode.

ICEIS 2008 - International Conference on Enterprise Information Systems

376

A kernel in RP*S architecture is deployed on the

ﬁrst server of a multicomputer, where the bucket 0

is placed.

6 PERFORMANCE EVALUATION

In the experiment three OOSDDS architectures:

RP*N, RP*C and RP*S were evaluated. OOSDDS

ﬁle was stored on eight servers. The only one client

of OOSDDS ﬁle was assumed. Objects were added

(A in the Figures) and retrieved (R in the Figures).

Performances of these operations were measured

and compared. During the experiment a class contain-

ing tables of bytes (512 kB) was used. The number of

stored objects was from 1000 up to 6000 (from about

512MB up to about 3GB). Every test was repeated

three times on the same servers (Athlon 3.0GHz,

1,5GB RAM and hard disk - ST380211AS)connected

through gigabit Ethernet network. Then an average

value was calculated.

For the ﬁrst part of the experiment a distinguished

segment of the network was used (the multicomputer

was separated from remaining part of the network - S

in the Figures). Results of the experiment are shown

on Figures 1 and 2.

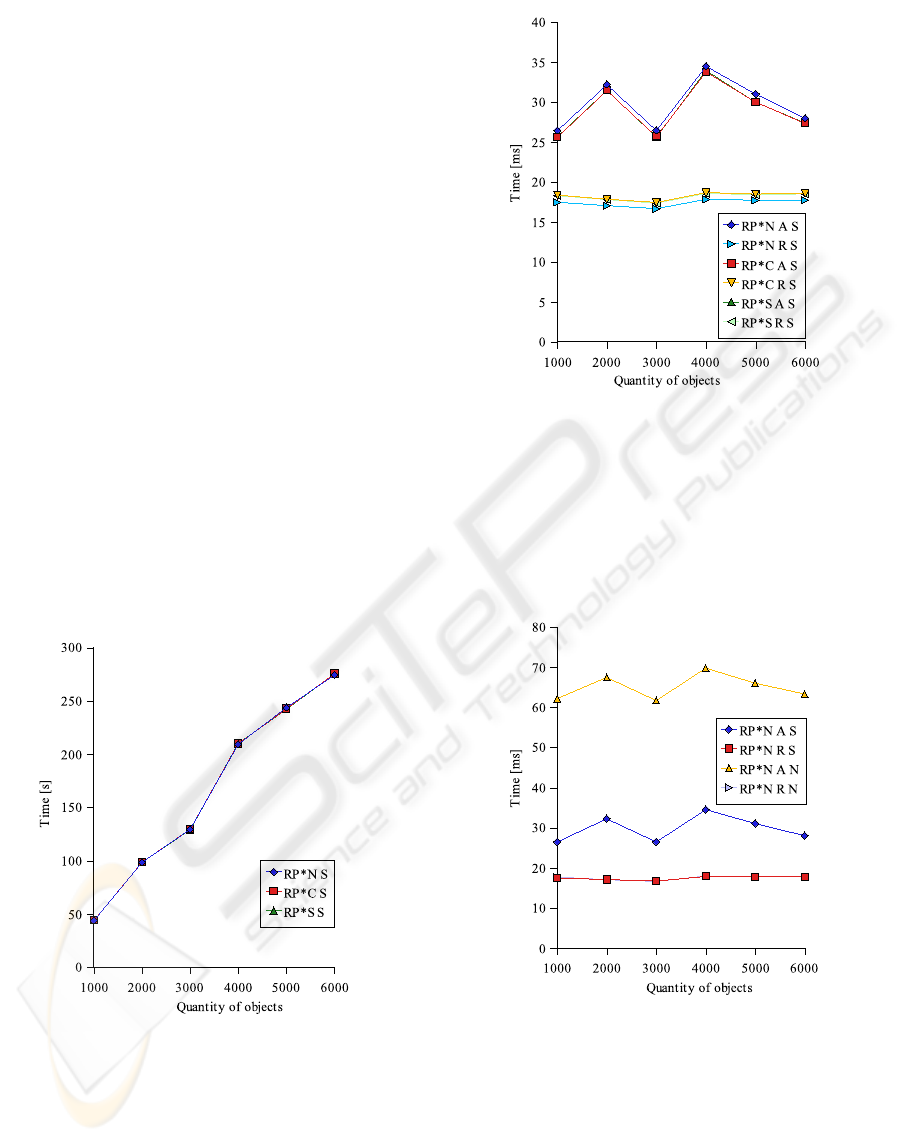

Figure 1: Total time of adding and retrieving all objects in

separated segment of the network.

When the servers and the client operated in distin-

guished segment of the network then times of adding

and retrieving of single objects for RP*N, RP*C and

RP*S were almost equal. Only RP*N had longer time

of adding (about 2.6%) and shorter time of retrieving

(about 4.3%). Performances of RP*C and RP*S were

very similar.

Figure 2: Average time of adding and retrieving of single

objects in separated segment of the network.

For the second part of the experiment there was no

distinguished segment of the network (the multicom-

puter was embedded into the network - N in the Fig-

ures). Results of the experiment are shown on Figures

3, 4 and 5.

Figure 3: Average time of adding and retrieving of single

objects for RP*N.

When the servers and the client were embedded into

the network then RP*N differed signiﬁcantly from the

others. Multicast messages were sent to other seg-

ments of the network, what took considerable amount

of time. The only average time of adding objects was

approximately twice longer. The most similar values

had RP*C and RP*S as in the ﬁrst part of the exper-

iment. Any signiﬁcant difference in RP*S and RP*C

A STORE OF JAVA OBJECTS ON A MULTICOMPUTER

377

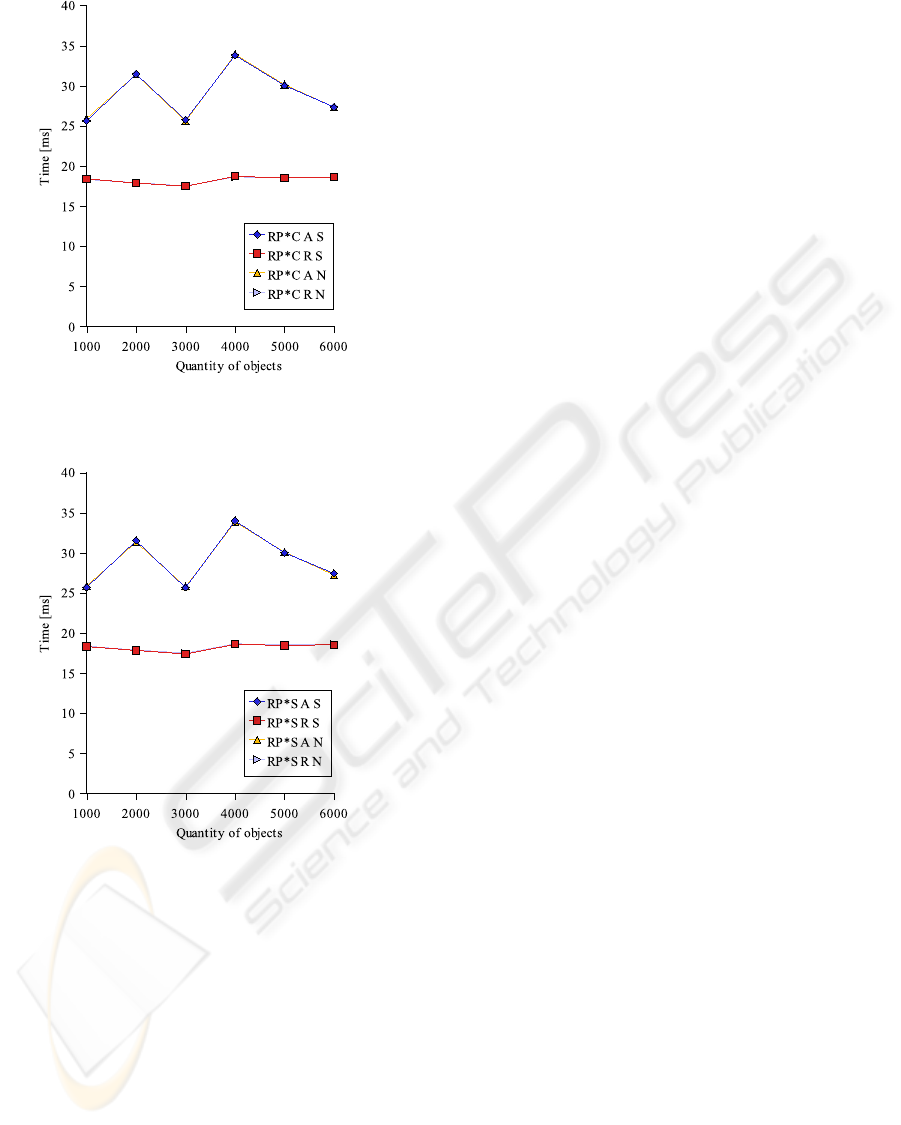

Figure 4: Average time of adding and retrieving of single

objects for RP*C.

Figure 5: Average time of adding and retrieving of single

objects for RP*S.

operated on separated or not separated segment of the

network was noticed. These architectures do not use

multicast transmission at all or very rarely.

7 CONCLUSIONS

The paper presents partial results of the research con-

cerning development of object-oriented versions of

Scalable Distributed Data Structures, namely OORP*

and OOLH*. It concentrates on main aspects of

OORP*. In the research Java was chosen as a plat-

form for implementation of OORP*. Java is safe,

portable and well known programming language. It

allows for developing distributed applications easily

and rapidly. Java makes it also possible to integrate

an application with another ones and distribute it in

the Internet.

The OOSDDS can be used as a part of distributed

object store. It can store Java objects in serialized

form. In OORP* addressing algorithm is same as in

RP*. However, buckets can store various numbers

of objects. The split algorithm is then modiﬁed and

based not on the number of objects but on the size of

objects.

As far as performances is concerned all OORP*

architectures are similar when operate in separated

segments of a network. However, RP*N works signif-

icantly slower than RP*S and RP*C when all operate

in not separated segments of a network. Moreover,

not always architectures using multicast transmission

can be applied here because not all software and hard-

ware conﬁgurations support correctly multicast trans-

mission. Not separated segments of a network may

be more difﬁcult to control what could affect a per-

formance of OOSDDS.

Evaluation of the other version of OOSDDS,

namely OOLH* which is under development now, is

the subject of further research.

REFERENCES

Devine, R. (1993). Design and Implementation of DDH:

A Distributed Dynamic Hashing Algorithm. In 4th

International Conference on Foundations of Data Or-

ganization and Algorithms (FODO), pages 101–114.

DeWitt, D. and Gray, J. (1992). Parallel Database Systems:

The Future of High Performance Database Systems.

Communications of the ACM, 35(6):85–98.

Litwin, W. and Neimat, M.-A. (1997). LH*s: A high-

availability and high-security scalable distributed data

structure. In 7th International Workshop on Research

Issues in Data Engineering.

Litwin, W., Neimat, M.-A., and Schneider, D. (1994). RP*:

A Family of Order Preserving Scalable Distributed

Data Structures. In Twentieth International Confer-

ence on Very Large Databases.

Litwin, W., Neimat, M.-A., and Schneider, D. (1996). LH*

- a scalable, distributed data structure. ACM Transac-

tions on Data Base Systems, 21(4):480–525.

Lo, Y.-L., Hua, K., and Young, H. (2001). GeMDA: A

multidimensional data partitioning technique for mul-

tiprocessor database systems. Distributedand Parallel

Databases, 9(3):211–236.

Lobry, O., Collet, C., and Déchamboux, P. (1997). The

VIRTUOSE Distributed Object Store. In DEXA work-

shop, pages 482–487.

ICEIS 2008 - International Conference on Enterprise Information Systems

378

Sapiecha, K. and Łukawski, G. (2006). Fault-tolerant Pro-

tocols for Scalable Distributed Data Structures. In 6-th

International Conference on Parallel Processing and

Applied Mathematics PPAM, pages 1018–1025.

Stonebraker, M. (1986). The Case for Shared Nothing.

Database Engineering Bulletin, 9(1):4–9.

A STORE OF JAVA OBJECTS ON A MULTICOMPUTER

379
