ENHANCING VIRTUAL ENVIRONMENT-BASED SURGICAL

TEAMWORK TRAINING WITH NON-VERBAL COMMUNICATION

Stefan Marks, Burkhard W

unsche

Department of Computer Science, The University of Auckland, Auckland, New Zealand

John Windsor

Department of Surgery, The University of Auckland, Auckland, New Zealand

Keywords:

Virtual environment, Non-verbal communication, Image processing, Training.

Abstract:

Virtual reality simulations for training surgical skills are increasingly used in medical education and have been

shown to improve patient outcome. While advances in hardware and simulation techniques have resulted in

many commercial applications for training technical skills, most of these simulators are extremely expensive

and do not consider non-technical skills like teamwork and communication. This is a major drawback since

recent research suggests that a large percentage of mistakes in clinical settings are due to communication

problems. In addition, training teamwork can also improve the efﬁciency of a surgical team and as such

reduce costs and workload.

We present an inexpensive camera-based system for capturing aspects of non-verbal communication of users

participating in virtual environment-based teamwork simulations. This data can be used for the enhancement

of virtual-environment-based simulations to increase the realism and effectiveness of team communication.

1 INTRODUCTION

In 1999, the Committee on Quality of Health Care in

America released a report estimating that each year,

98,000 people die because of medical errors occurring

in hospitals (Kohn et al., 1999). This report caused

massive changes in the medical education system, in-

cluding the increased use of medical simulation for

training and assessment. As a result, the market now

offers a variety of simulators, ranging from inexpen-

sive bench models made of rubber for training sutur-

ing and other basic technical skills to expensive man-

nequins that can be used for the training of whole

emergency response teams.

With realism improving through increasing com-

putational and graphics power, computer based tools

have also secured their position among medical simu-

lators (Scott et al., 2008). Numerous research projects

have contributed to mathematical models for the re-

alistic simulation and manipulation of soft tissue.

Based on these models and increasingly realistic ren-

dering capabilities of modern graphics cards, com-

mercially available products offer training opportuni-

ties in areas like endoscopic procedures (Undre and

Darzi, 2007), obstetrics, cardiology or other related

ﬁelds.

But regardless of the technical features, these sim-

ulators only serve the purpose of training a single per-

son at a time. Surgery and other medical procedures

are always performed as a team and thus, among the

technical skills, require non-technical skills like com-

munication, teamwork, leadership, and decision mak-

ing (Yule et al., 2006). Research indicates that failure

in communication occurs in 30% of team exchanges

and that one third to 70% of these failures result in

situations putting the patient’s life at risk. (Lingard

et al., 2004; Guise and Segel, 2008). To increase pa-

tient safety, training and improvement of communi-

cation among team members has to be an important

aspect of clinical simulation.

2 RELATED WORK

Computer based teamwork simulation has been used

by the military and the aviation industry for years.

Only recently, this kind of simulation has addressed

the area of healthcare and medicine.

3DiTeams (Taekman et al., 2007) simulates a mil-

itary operating theatre, including all necessary de-

361

Marks S., WÃijnsche B. and Windsor J.

ENHANCING VIRTUAL ENVIRONMENT-BASED SURGICAL TEAMWORK TRAINING WITH NON-VERBAL COMMUNICATION.

DOI: 10.5220/0001793703610366

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications (VISIGRAPP 2009), page

ISBN: 978-989-8111-67-8

vices, medical instruments, and the patient. In the

virtual environment (VE), team members are repre-

sented by avatars and can interact with each other, the

devices, and the patient. Each user operates at an in-

dividual client computer that is connected to a central

server by a network. This server receives all actions

and movements of the users from the clients, runs the

physical simulation of objects and medical simulation

of the patient’s physiology, and synchronises the up-

dated state of every user and object on the clients.

The simulation uses a game engine as underlying

framework. Such an engine provides a well-tested

and stable base capable of realistic graphics, anima-

tion, sound, physics and networking support (Marks

et al., 2007). The principle of exchanging the content

of a computer game by content with educational or

training purpose is referred to as “Serious Gaming”

(Serious Games Initiative, 2007).

With the focus on teamwork and communication

aspects, it is important to examine the amount of

communication channels that the simulation provides

for the users (see table 1 in section 3.1). Modern

game engines support verbal communication via mi-

crophones and headsets or speakers or predeﬁned tex-

tual commands that are accessible by pressing certain

keys.

Despite the advances in technology, the support

for other communication channels is still limited.

This renders communication and interaction within

VEs inefﬁcient and unnatural (Vertegaal et al., 2001;

Garau et al., 2001). Without gaze direction and head

orientation, for example, communication suffers from

a decrease of 50% in deictic references to persons,

like “you” or “him/her” (Vertegaal et al., 2000). The

lack of non-verbal communication channels has to be

compensated by other channels, for example, by re-

placing deictic references to objects and persons by

explicitly saying their names and positions (see ﬁg-

ure 1).

Alice, can you please

give me the tool

on the table

to your left?

Figure 1: Without gaze direction and head orientation, com-

munication has to use unnatural verbal reference to objects

or people.

Another method of compensation is described in

(Manninen, 2001). Without the implementation of

gestures in the game “Counter Strike”, users can-

not refer to a location or a direction by, for exam-

ple, pointing a ﬁnger into a certain direction. In this

case, the lack of gesture is compensated by turning the

avatar into the desired direction and moving then for-

wards and backwards in rapid succession. Asked for

improvements of the game, the introduction of ges-

ture was an important aspect for the users.

By introducing, for example, head orientation and

gaze direction, users can simply look at objects or

other users instead of referring to them by voice (see

ﬁgure 2).

“Can you please give me that tool?”

Figure 2: With gaze direction and head orientation, the ver-

bal reference to objects and people is not necessary any

more.

Other capabilities of modern game engines or VEs

allow for even more non-verbal communication chan-

nels that can be used to increase the bandwidth. De-

tailed animation systems in the avatar’s face models

enable the rendering of ﬁnely controlled facial ex-

pressions like joy, anger, fear (see Figure 3). Partial

animations that can be applied independently could

be used for the control of hand or body gestures like

pointing, turning, or shrugging shoulders.

Figure 3: Changing an avatar’s facial expression to repre-

sent emotions like joy, anger, fear.

Instead of using explicit user interface controls

for changing facial expression, triggering gestures, or

controlling gaze direction (Slater et al., 2000), we pro-

pose the use of a camera to extract the necessary data

in real-time. This has several advantages. Manual

control of the aspects of non-verbal communication is

only possible if the user is aware of them, which is not

necessarily the case. The camera requires no control

from the user and can capture conscious and uncon-

scious elements. In addition, the user can completely

concentrate on the simulation content instead of get-

ting distracted by the additional controls. A second

advantage is the temporal immediacy of the captured

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

362

data. Momentarily raised eyebrows during an empha-

sis in a spoken sentence can be perceived by all others

users at the same time. If the optical clue would fol-

low the verbal clue with a delay, for example, when

using manual control, it would degrade or even coun-

teract the purpose of the gesture.

We present a method for the enhancement of VE

based teamwork simulations with aspects of non-

verbal communication that can be captured simply by

using an inexpensive camera.

3 METHODOLOGY

Client Computer

- Face detection

- Head tracking

- Eye tracking

- Expression recognition

- ...

User Monitor

Game Engine: Client

Plug-In

Training Scenario

- Head orientation

- Gaze direction

- Facial expression

- ...

Data

Network

Server

Training Scenario

Game Engine: Server

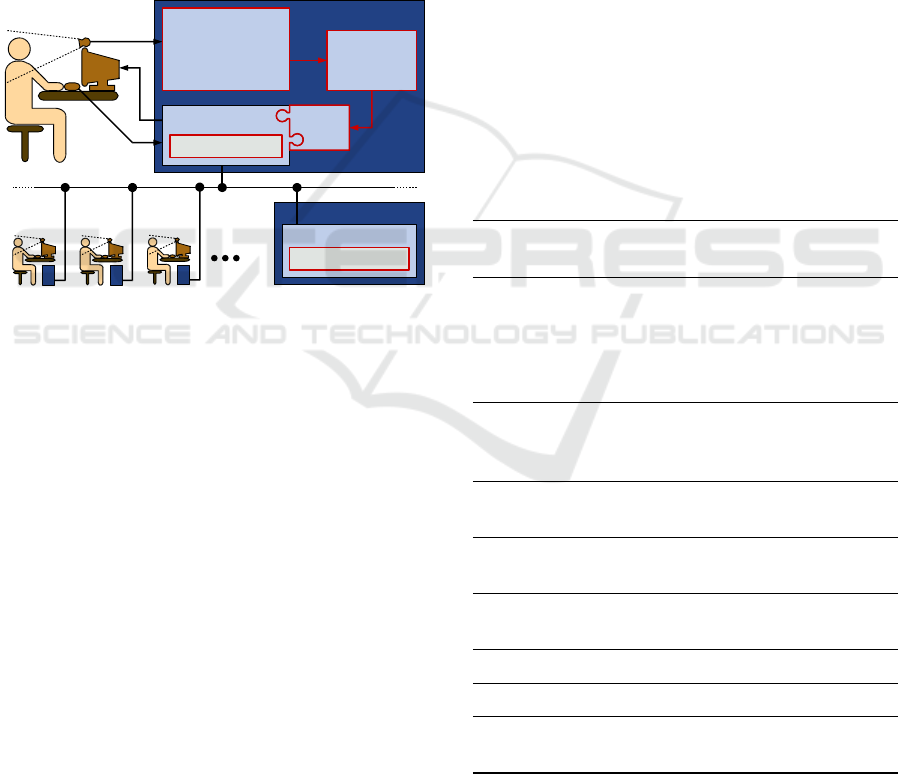

Figure 4: The functional blocks of our framework. Red

borders indicate the parts that have been developed by us.

A schematic design of our system is depicted in

ﬁgure 4. The user participating in the simulation is

captured by a webcam, mounted close to the moni-

tor. A user monitor application detects the user’s face

in the video and calculates parameters like head ori-

entation, gaze direction, and facial expression. Via

an extension, called plug-in, the application provides

this data to the simulation client, in this case a game

engine. The client sends this information to the sim-

ulation server together with other data, for example,

mouse movement, or pressed keys. The server re-

ceives the data from all clients, applies it to the sim-

ulation and in turn synchronises all clients with the

updated information, including the aspects of non-

verbal communication. The clients receive these up-

dates and display it in form of changed positions of

objects, a changed patient state, and changed gaze di-

rections and facial expressions of the avatars.

3.1 DataModel

Based on the Rich Interaction Model (Manninen,

2004), we have derived a list of aspects of commu-

nication in real and virtual environments and con-

structed a data model deﬁning parameters necessary

to represent these aspects. The model also provides

the data in different levels of abstraction to allow for

a wider range of simulation engines to be connected

to (see section 4).

Table 1 lists the components of this model, their

occurrence in reality, and the technical feasibility in

VEs, given the current state of computer technology.

Not all aspects of the real world can be implemented

in the virtual world, for example, olfactics. Also, not

all aspects are equally important and we have to weigh

the beneﬁt of adding an aspect against the technolog-

ical challenge in acquiring the data.

Table 1: Aspects of communication and their appearance

in reality (“+”: used naturally, “-”: could be used, but un-

natural) and technical feasibility in virtual environments

(“+”: available using standard equipment, “-”: requires spe-

cial hardware and software).

Component Reality VE

Occulesics

- gaze direction, duration, focus + +

Language

- text based chat - +

- sound effects - +

- speech + +

- paralanguage (tone, pitch, . . . ) + +

Facial expression

- Facial Action Coding System + +

- emotion (anger, joy, . . . ) + +

Spatial Behaviour

- orientation, proximity, . . . + +

Kinesics

- head movement, gestures, . . . + +

Physical appearance

- skin, hair, clothes, . . . + +

Physical contact/Haptics + -

Olfactics (scent, odour) + -

Environment

- artefacts (use, exchange, . . . ) + +

Depending on the choice of the simulation plat-

form we are connecting our user monitor application

to, several aspects of the data model are already im-

plemented. A modern game engine usually enables

ENHANCING VIRTUAL ENVIRONMENT-BASED SURGICAL TEAMWORK TRAINING WITH NON-VERBAL

COMMUNICATION

363

verbal communication by support of headsets and mi-

crophones, spatial behaviour by the movement and

orientation of avatars, physical appearance by a selec-

tion of avatars that can be adjusted to the user’s needs,

and environment by physically simulated objects that

can be grabbed or moved. Data input for these as-

pects comes from the keyboard or mouse movement,

and does not have to be provided by our user monitor

application.

Our framework adds occulesics, kinesics, and fa-

cial expression by deﬁning an interface between the

application and the simulation that exchanges data

about the gaze direction, the head orientation and the

facial expression of the user.

By increasing the viewing angle of the camera or

placing it further away from the user, an additional

module in the user monitor application could capture

not only the face but the upper body movement and

hand gestures. This could add support for gestures

like shrugging of shoulders or pointing to the simula-

tion and increase the communication bandwidth even

further.

3.2 Image Acquisition and Processing

Our system utilises an inexpensive camera, for exam-

ple a webcam, to capture the user’s face. The video

stream is handled by the user monitor application that

allows modular processing of each frame. The modu-

larity enables us to plug in a variety of pre-processing

ﬁlters to measure their inﬂuence on the performance

of different feature tracking algorithms.

In a ﬁrst step, we are applying a colour space con-

version from RGB to normalised RGB, as this enables

us to use simpler models for the distinction between

skin colour and non-skin colour pixels for face detec-

tion (Terrillon et al., 1999). Colour changes caused by

different lighting, are compensated by an improved

Grey World algorithm, described in (Chen and Gre-

cos, 2005).

For the detection of features in the video stream,

we implemented a fast normalised cross correlation

module (Briechle and Hanebeck, 2001). This algo-

rithm uses the concept of the integral image together

with the decomposition of the feature template into a

sum of k basis functions to achieve a computational

complexity of O(M

· M

· k). Further reduction of the

computation time is achieved by reducing the Region

of Interest (ROI) for each template (see the coloured

regions in ﬁgure 5).

Using the input of the cross correlation module,

we are able to calculate a rough estimate of the spa-

tial orientation of the head. This estimate can be

reﬁned by applying advanced mathematical models

like Kalman ﬁltering, applying constraints that take

into account the symmetry of a face, and additionally

tracked features.

If the head orientation is known, the captured im-

age of the face can be normalised and gaze direction

and facial expression features can be extracted (Ham-

mal et al., 2005; Whitehill and Omlin, 2006).

The game engine we connected the user monitor

application to (see section 3.3) supports facial anima-

tion in high detail. Based on the FACS (Facial Action

Coding System) (Ekman et al., 2002), a range of con-

trollers enables ﬁne grained control of the face of the

avatar. But not all simulation engines are able to sup-

port facial animation in such detail. In that case, it

might be necessary to interpret the acquired data and

to create an abstract representation of the facial ex-

pression, like, for example, “happy”, “angry”. Our

data model is designed for these different levels of

abstraction.

3.3 Interfacing with the Simulator

Client

When the user monitor application has processed a

camera frame and calculated a set of data, it passes

this set on to the simulation client, using a plug-in.

The plug-in is an addition to the simulation engine

that translates the data model into a speciﬁc represen-

tation that considers the graphical and other capabili-

ties of the engine.

We connected the user monitor application to the

Source Engine (Valve Corporation, 2004), a modern,

versatile, commercial game engine with advanced

graphical features, allowing us to make full use of the

potential of our data model.

The client receives the data and sends it, together

with the input from the mouse and the keyboard,

in form of a compressed data packet to the server.

Each server entity of a user’s avatar gathers the input

from its speciﬁc client entity. Then the simulation of

the movement of the avatars, the interaction with the

simulated physical environment and other simulation

modules, for example for the patients biological pa-

rameters, are executing one simulation time step. Af-

terwards, networked variables automatically synchro-

nise the state of the simulation on each client. The

clients then display the updated state of the VE.

In order to minimise network trafﬁc and to max-

imise the simulation frame rate, game engines gener-

ally optimise data transfer between server and clients

by compression, either by reducing the precision of

variables or by transferring only changes. In the case

of the Source Engine and the majority of other VEs,

the data model has to be transferred three times in

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

364

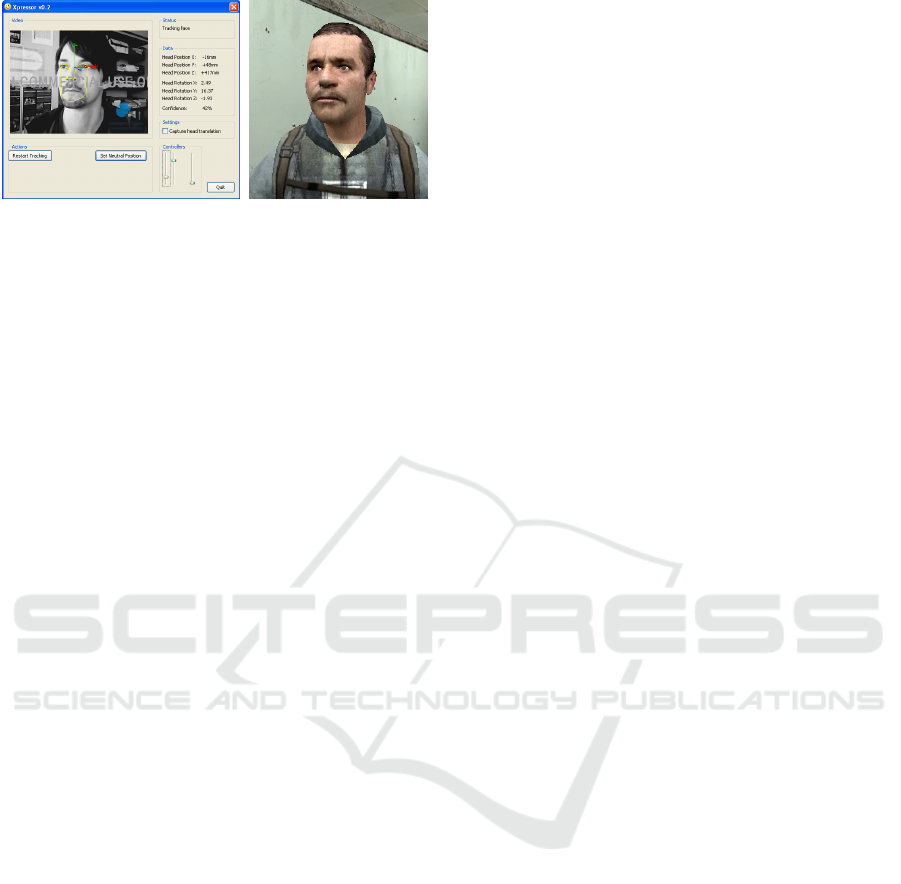

Figure 5: Screenshot of the video capture of the user par-

ticipating in the VE simulation. The head tilt and eye gaze

are transferred onto the avatar representing the user in the

simulation.

different levels of compression (user monitor appli-

cation to client, client to server, server to clients). A

high level of complexity would result in having to ex-

tend the data exchange mechanisms of the engines.

To maximise the re-use of components the VE en-

gine provides, we constructed the data model from

non-complex data types. As a result, the necessary

changes to the code of the Source Engine were min-

imal, but nevertheless allow for ﬂexibility of the data

model to include future changes or extensions.

4 RESULTS

Figure 5 depicts our user monitor application con-

nected to a simple dummy simulation. In the left im-

age, the position and the orientation of the face is in-

dicated by the yellow overlay and the coordinate axes.

This information and additional parameters, like gaze

direction or facial expression, are transferred to the

simulation. The right screenshot shows how other

users participating in the simulation can see the head

tilt and gaze direction projected on the avatar.

Our data model is universal and independent of

the VE it is connected to. If support for detailed fa-

cial expression is provided, for example, if the VE

implements FACS or the MPEG-4 standard, the cor-

responding parameters of the data model can be used

with only minor adaptions. This is the case for the

majority of modern game engines, for example, the

Source Engine (Valve Corporation, 2004) or the Un-

real Engine 3 (Epic Games, 2006). If the support is

not as ﬁne, another abstraction layer, for example,

interpreted data model parameters (see sections 3.1

and 3.2) can be used for an alternative way of dis-

playing the emotional state of the user, for example

by changing the texture of the avatar’s face. This ﬂex-

ibility of our data model enables the connection to a

wide range of VEs and game engines.

An example for limited support of facial expres-

sions is Second Life (Linden Research, Inc, 2008).

This VE has gained much popularity in the last years

and is also increasingly used for teamwork training

(Ullberg et al., 2007). The control provided by Sec-

ond Life over the avatar’s facial animation is not as

ﬁne grained as for modern game engines and is lim-

ited to displaying pre-deﬁned animations. In this case,

the interpreted parameters of our data model can be

used to display basic emotions in form of short ani-

mations.

5 CONCLUSIONS AND FUTURE

WORK

We have presented a framework that allows the en-

hancement of VE based teamwork simulations by

non-verbal communication. The necessary data is

captured in real-time by an inexpensive webcam. Our

framework is ﬂexible, extendible and independent of

the used simulation engine.

We have received positive feedback from medi-

cal professionals and developers of teamwork simu-

lations in Second Life about the use and the potential

of our application. and will perform a more detailed

user study to measure the increase of communication

bandwidth, to verify the ease of use of the camera

based data acquisition, and to improve and extend our

data model.

In cooperation with researchers and educators

from the medical school, we are going to design sur-

gical training scenarios to be used with our applica-

tion. Furthermore, our user monitor application and

the data model is suitable for teamwork training ap-

plications beyond the ﬁeld of medicine and surgery.

For this reason, we are also in cooperation with de-

velopers for emergency response teamwork training

in Second Life, giving us the opportunity to collect

valuable information with their simulation scenarios.

The stability of the facial recognition and feature

tracking algorithms will be subject to further investi-

gation. Several facial recognition algorithms require

an extensive training phase that we would like to elim-

inate or at least hide as much as possible from the end

user. Also, we will examine how to overcome difﬁcul-

ties in the image processing caused by non-ideal light-

ing, users wearing glasses, or other circumstances.

Another goal is the integration of our application

with the Unreal Engine that is increasingly used for

simulations (Virtual Heroes, 2008). The recent ver-

sion 3 of this engine is capable of displaying very

realistic facial animation and human skin, allowing

us to fully apply the range of parameters of our data

model.

ENHANCING VIRTUAL ENVIRONMENT-BASED SURGICAL TEAMWORK TRAINING WITH NON-VERBAL

COMMUNICATION

365

REFERENCES

Briechle, K. and Hanebeck, U. D. (2001). Template match-

ing using fast normalized cross correlation. Proceed-

ings of the Society of Photo-Optical Instrumentation

Engineers (SPIE), 4387(95):95–102.

Chen, L. and Grecos, C. (2005). A fast skin region detec-

tor for colour images. IEE Conference Publications,

2005(CP509):195–201.

Ekman, P., Friesen, W. V., and Hager, J. C. (2002). The

Facial Action Coding System – Second Edition. Wei-

denfeld & Nicolson.

Epic Games. Unreal Engine 3 [online]. (2006)

[cited 17.08.2007]. Available from:

http://www.unrealtechnology.com/html/technology/

ue30.shtml.

Garau, M., Slater, M., Bee, S., and Sasse, M. A. (2001). The

impact of eye gaze on communication using humanoid

avatars. In CHI ’01: Proceedings of the SIGCHI

conference on Human factors in computing systems,

pages 309–316, New York, NY, USA. ACM.

Guise, J.-M. and Segel, S. (2008). Teamwork in obstetric

critical care. Best Practice & Research Clinical Ob-

stetrics & Gynaecology, 22(5):937–951.

Hammal, Z., Massot, C., Bedoya, G., and Caplier, A.

(2005). Eyes Segmentation Applied to Gaze Direction

and Vigilance Estimation. In Pattern Recognition and

Image Analysis, volume 3687/2005 of Lecture Notes

in Computer Science, pages 236–246. Springer Berlin,

Heidelberg.

Kohn, L. T., Corrigan, J. M., and Donaldson, M. S.,

editors (1999). To Err is Human: Building

a Safer Health System. National Academy

Press, Washington, DC, USA. Available from:

http://www.nap.edu/catalog.php?record id=9728

[cited 17.04.2007].

Linden Research, Inc. Second Life [online]. (2008) [cited

08.09.2008]. Available from: http://secondlife.com/.

Lingard, L., Espin, S., Whyte, S., Regehr, G., Baker, G. R.,

Reznick, R., Bohnen, J., Orser, B., Doran, D., and

Grober, E. (2004). Communication failures in the op-

erating room: An observational classiﬁcation of re-

current types and effects. Quality & Safety in Health

Care, 13(5):330–334.

Manninen, T. (2001). Virtual Team Interactions in Net-

worked Multimedia Games – Case: “Counter-Strike”

— Multi-player 3D Action Game. In Proceedings of

PRESENCE2001 Conference.

Manninen, T. (2004). Rich Interaction Model for Game and

Virtual Environment Design. PhD thesis, University

of Oulu, Finland.

Marks, S., Windsor, J., and W

unsche, B. (2007). Evalua-

tion of Game Engines for Simulated Surgical Train-

ing. In GRAPHITE ’07: Proceedings of the 5th in-

ternational conference on Computer graphics and in-

teractive techniques in Australia and Southeast Asia,

pages 273–280, New York, NY, USA. ACM.

Scott, D. J., Cendan, J. C., Pugh, C. M., Minter, R. M., Dun-

nington, G. L., and Kozar, R. A. (2008). The Changing

Face of Surgical Education: Simulation as the New

Paradigm. Journal of Surgical Research, 147(2):189–

193.

Serious Games Initiative. Serious Games Initiative [on-

line]. (2007) [cited 17.08.2007]. Available from:

http://www.seriousgames.org.

Slater, M., Howell, J., Steed, A., Pertaub, D.-P., and Gaurau,

M. (2000). Acting in Virtual Reality. In Proceedings

of the Third International Conference on Collabora-

tive Virtual Environments, pages 103–110.

Taekman, J., Segall, N., Hobbs, E., and Wright, M. (2007).

3DiTeams – Healthcare Team Training in a Virtual

Environment. Anesthesiology, 107(A2145):A2145.

Terrillon, J.-C., Fukamachi, H., Akamatsu, S., and Shirazi,

M. N. (1999). Comparative Performance of Differ-

ent Chrominance Spaces for Color Segmentation and

Detection of Human Faces in Complex Scene Images.

In Proceedings of the Fourth IEEE International Con-

ference on Automatic Face and Gesture Recognition

2000, pages 54–61.

Ullberg, L., Monahan, C., and Harvey, K. (2007). The

New Face of emergency preparedness training: us-

ing Second Life to save ﬁrst lives. In Living-

stone, D. and Kemp, J., editors, Second Life Educa-

tion Workshop 2007, pages 96–99. Available from:

http://www.simteach.com/slccedu07proceedings.pdf.

Undre, S. and Darzi, A. (2007). Laparoscopy Simulators.

Journal of Endourology, 21(3):274–279.

Valve Corporation. Valve Source Engine Features [on-

line]. (2004) [cited 17.08.2007]. Available from:

http://www.valvesoftware.com/sourcelicense/engine

features.htm.

Vertegaal, R., Slagter, R., van der Veer, G., and Nijholt, A.

(2001). Eye gaze patterns in conversations: there is

more to conversational agents than meets the eyes. In

CHI ’01: Proceedings of the SIGCHI conference on

Human factors in computing systems, pages 301–308,

New York, NY, USA. ACM.

Vertegaal, R., van der Veer, G., and Vons, H. (2000). Effects

of Gaze on Multiparty Mediated Communication. In

Graphics Interface, pages 95–102.

Virtual Heroes. Virtual Heroes Inc – Serious Games

and Andvanced Learning Systems [online].

(2008) [cited 04.09.2008]. Available from:

http://www.virtualheroes.com

Whitehill, J. and Omlin, C. W. (2006). Haar Features for

FACS AU Recognition. Proceedings of the 7th Inter-

national Conference on Automatic Face and Gesture

Recognition (FGR06), pages 97–101.

Yule, S., Flin, R., Paterson-Brown, S., and Maran, N.

(2006). Non-technical skills for surgeons in the op-

erating room: A review of the literature. Surgery,

139(2):140–149.

GRAPP 2009 - International Conference on Computer Graphics Theory and Applications

366
