THROTTLING DDoS ATTACKS

Saraiah Gujjunoori, Taqi Ali Syed, Madhu Babu J, Avinash D

Radhesh Mohandas and Alwyn R. Pais

Information Security Lab, Department of Computer Engineering, NITK, Surathkal, Karnataka, India

Keywords: Source throttling, Distributed denial of service, Integer factorization, CPU stamps, Request stamping.

Abstract: Distributed Denial of Service poses a significant threat to the Internet today. In these attacks, an attacker

runs a malicious process in compromised systems under his control and generates enormous number of

requests, which in turn can easily exhaust the computing resources of a victim web server within a short

period of time. Many mechanisms have been proposed till date to combat this attack. In this paper we

propose a new solution to reduce the impact of a distributed denial of service attack on a web server by

throttling the client’s CPU. The concept of source throttling is used to make the client pay a resource stamp

fee, which is negligible when the client is making a limited number of requests but becomes a limiting

restriction when he is making a large number of requests. The proposed solution makes use of the integer

factorization problem to generate the CPU stamps. We have packaged our solution as an API so that

existing web applications can easily deploy our solution in a layer that is transparent to the underlying

application.

1 INTRODUCTION

In modern web applications, the web client makes a

request which takes very little effort to compose, but

causes the server to process lots of data and compose

the response. This disparity in the computation

efforts of the server and the client is usually of an

order of magnitude and works very well in the

favour of an attacker when he modifies a web client

to launch an application level attack against a server.

Hence a bunch of compromised machines in the

hands of an attacker can easily launch a denial of

service attack against even the biggest server farms

and succeed. The fundamental flaw in such a web

transaction is that the entire cost of processing the

request falls more or less on the server end and very

little is shared by the client. Hence learning from the

postal system, we can impose a cost to a web client

to make each such request. This cost can be

collected in different ways and in our work we

propose to collect it in terms of CPU cycles and call

them CPU stamps which have to accompany each

request. Collection of these CPU stamps has a

source throttling effect on the web application,

thereby reducing the impact of the attack by an order

of magnitude.

For such a scheme to work, we have to exploit an

algorithm that takes lot of CPU cycles to calculate a

stamp (which the client has to pay) but very few

cycles to verify the stamp (which the server

computes). In our solution we propose to use the

popular integer factorization problem as the

mathematical complexity to impose and tune the

computation difficulty on the client. Any system that

uses a server and a client that can be subjected to a

denial of service attack can use our solution, but for

our study we take a web application server which

has some unique needs making it difficult to use

existing solutions.

A web server is designed to accept requests from

multiple clients across the internet which makes it

difficult to filter requests based on IP address which

can be easily accomplished in hardware. In most

cases the clients are unauthenticated and even if we

impose certain kind of authentication, most

applications allow creation of users on the internet

which involves little or no manual verification of

end-user information provided. Even if we manually

verify all the end-users of the application, a single

user who bears malice in his heart can inflict all the

necessary damage to bring the web application to a

grinding halt by sending valid requests through his

authenticated account by tweaking the web client a

121

Gujjunoori S., Ali Syed T., Babu J. M., D. A., Mohandas R. and R. Pais A. (2009).

THROTTLING DDoS ATTACKS.

In Proceedings of the International Conference on Security and Cryptography, pages 121-126

DOI: 10.5220/0002229001210126

 SciTePress

bit. Our solution aims to make the web server

responsive to legitimate users with reasonable

overhead and tolerable failure rates when the server

is actively being subject to a denial of service attack.

In this paper we propose a technique to generate

CPU stamps, force an attacker to recompute the

stamp when the source address or the request

changes. We provide a heuristic to guard replay

attack by discarding requests at the beginning of

processing.

The rest of the paper is organised as follows.

Section 2 will describe about the problem. Related

work is presented in section 3. Section 4 shows the

working of the proposed solution. Section 5

describes about the application of the proposed

solution. Implementation results will be presented in

section 6 and section 7 will conclude this paper.

2 PROBLEM DESCRIPTION

To clarify our idea, we will use the following

hypothetical profile and work with some

hypothetical numbers. Suppose

http://www.mysearch.com is designed to handle a

maximum of 4000 searches per second (sps). A

search requires the application server to talk to a

database server. Serving a search request is more

expensive than serving a static page. During peak

day times the traffic reaches around 3000 requests

per second (rps) and drops to 500 in the early hours

of morning. There are roughly 2000 searches and

1000 main page accesses every second. A valid

search request for a nonexistent keyword in the

database is probably the most expensive as it misses

all caches and in the worst attack, the attacker

creates the keyword dynamically. Now a distributed

attack is launched against the website and it starts

receiving 40,000 sps. The website will be able to

respond to only 1 out of 11 requests and the number

of valid users who get a response will be lesser than

10%. Now instead of wasting valuable resources to

respond to the fake requests, we propose a solution

to filter them out so that after a period of time, the

site will be able to service at least 2500 genuine rps.

3 RELATED WORK

Adam Back (Adam Back, 2002) proposed a

Hashcash based solution for Denial of Service. He

computes a token which can be used as a proof-of-

work.

XiaoFeng Wang (XiaoFeng Wang and Michael

K. Reiter, 2003) proposed a puzzle mechanism

called puzzle auction. In this, the auction lets each

client determine the difficulty of the puzzle it solves

and allocates server resources first to the client that

solved the difficult puzzle when the server is busy.

T.Aura (Tuomas Aura, Pekka Nikander and

Jussipekka Leiwo, 2000) showed how the robustness

of authentication protocols against DoS attacks can

be improved by asking the client to commit its

computational resources to the protocol run before

the server allocates its resources.

M.Abadi (Martin Abadi, Mike Burrows, Mark

Manasse, and Ted Wobber, 2003) proposed memory

bound functions for use in cryptographic puzzles.

Drew Dean (Drew Dean and Adam Stubblefield,

2001) implemented puzzles for protection of SSL

against DoS attacks.

Ari Juels (Ari Juels and John Brainard, 1999)

had proposed a cryptographically based

countermeasure against connection depletion attacks

like TCP SYN flooding.

4 PROPOSED SOLUTION

Prime Factoring is the act of splitting an integer

into the unique set of primes (factors) which, when

multiplied together, form the original integer. No

good algorithms exist to solve this problem in

polynomial time and the best algorithm which solves

this problem in less complexity is general number

field sieve in O(exp((64/9b)

1/3

.(log b)

2/3

)) for a b-bit

integer.

Threshold Value is the number of requests that

a server can handle without straining its resources. It

is defined as a predetermined percentage of the

maximum number of requests that a server can

handle.

4.1 Proposed Solution

Notations:

• N: An integer and a product of two primes

• p, q: prime factors of N.

• Ndigits, pdigits, qdigits: Number of digits in

N,p,q.

The sequence of operation is as follows.

• A client sends a request to the web server for a

webpage.

• The Server starts a session and sends ‘N’ along

with the JavaScript to factorize it.

• The Client computes p and q values and sends

‘N, p, q’ values to the server.

SECRYPT 2009 - International Conference on Security and Cryptography

122

• The server verifies whether the product of the

factors sent by the client is equal to the ‘N’

value sent by the server (N=p*q). If this

condition is not satisfied or the values not sent

by the client, the server will drop the request.

4.1.1 Description of our Solution

When the server is facing normal flow of traffic, we

do not interfere with the web application. When the

number of requests arriving at the server crosses the

threshold value, our solution is invoked and the

server starts sending ‘N’ to all the clients.

A user using a web browser will experience a

momentary delay when the JavaScript calculates the

values ‘p’ and ‘q’ on his client machine but then his

request gets through when presented to the server.

An attacker who is using a malicious client will

not send these ‘p’ and ’q’ values and his requests get

dropped. If he now modifies his client to read the

JavaScript and compute ‘p’ and ‘q’, the number of

requests that he can send will drop down drastically.

If the distributed attack sustains or deepens, we can

increase the number of digits in ‘N’ and this will

throttle the malicious clients further without

increasing any load on the server.

4.1.2 Countermeasures Against the

Throttling

The strength of our solution lies in the mathematical

complexity of the integer factorization problem.

Since no algorithms exist to solve this problem in

polynomial time the attacker will not try to optimize

this computation but will try to get around the

computation by finding a hole in the protocol. In this

section we discuss various scenarios where the

attacker actively modifies his malicious client and

tries to tweak the hosts launching the distributed

attack and the countermeasures that we need to have

in place to defend against such modifications.

Case 1: At this case the attacker observes that

the server is sending the same ‘N’ for all requests.

He computes the prime factors once and appends

these factors to every request. This is a form of

replay attack. To counter this we will dynamically

generate ‘p’, the first factor of the prime from a

variable that changes with time.

Case 2: Now if the attacker has full control over

the zombies which he is using to launch the DDoS

attack, he can compute the value of ‘p’ on one

system and propagate it quickly to all the remaining

systems and launch a replay attack in the time slot.

To guard against this our solution generates ‘q’

dynamically as a function of client’s IP address.

Fixed cost functions are used to generate these

values dynamically so that there is no over head on

the server. Such attacks are extremely unlikely as the

communication delay to propagate the computation

to all the systems will be comparable to the cost of

computing it at the individual node itself.

Case 3: He may try to pre compute the primes in

the entire prime space. As per Table 1, the number

of primes (NP) increases with the number of digits

and becomes too huge and storage becomes a

limiting factor and such attacks are difficult with

zombie machines which have limited amount of

resources. The communication overhead of drawing

it from a central database will make such attacks

infeasible.

Case 4: The attacker might try to guess the value

of ‘N’ from its previous values, the IP address, the

server time and other variables that he can find out.

He may even get access to the exact code or

algorithm that we use to generate ‘p’ and ‘q’. So we

select a random combination of primes from the set

of primes and design the mapping functions such

that the selected primes are uniformly chosen across

this combination. We further change this

combination periodically to prevent the attacker

from tabulating the combination restriction the

usefulness of such tabulation further.

Case 5: In this extreme case when the attacker

has access to fast interconnects and resources if he

successfully launches the attack in case 2 and also

has access to all the mapping functions in case 4, he

may find out that the value of ‘q’ is reused on

individual nodes. To ward off this attack we can

compute ‘q’ from a different source with sufficient

entropy or flush the combination at a much faster

rate. As a result of this flushing all existing

connections will need to be reset and hence we

would not suggest this to be applied unless needed.

Case 6: In this case the attacker satisfies the

condition N=p*q, but the factors sent by the attacker

are bluffed. To counter this we generate ‘

q’ from the

IP address using a hash function that is changed

periodically. The server then verifies that the ‘q’

value sent in the request is not bluffed by

recalculating it from the source IP after verifying

‘N’. The drawback of this algorithm is that once the

value of ‘q’ is computed by the client, he can reuse

the same in further requests thereby necessitating a

periodic change of algorithm to compute ‘q’. In

another countermeasure to this type of attack the

server maintains a table in which the ‘N’ values sent

to every client for every request has to be stored. But

this will be a memory storage load on the server and

can be a problem at the server if the attacker is

THROTTLING DDoS ATTACKS

123

sending large number of rps. We have implemented

this step for the sake of completeness but this part of

the algorithm is not activated unless this particular

attack profile is matched.

4.1.3 Algorithms

The two algorithms that can be used to generate the

‘p’ and ‘q’ dynamically are presented in this section.

The first algorithm is for selecting the ‘q’ which is

based on the client’s IP address (cip) and the second

algorithm is for selecting the ‘p’ which is based on

the time in milliseconds from when the server is

booted to the current time (st).

The server should select the ‘Ndigits’ based on

the number of requests coming to the server and this

should be varying between 8 to16 digits. Based on

the selection of ‘Ndigits’, ‘pdigits’ and ‘qdigits’

should be selected on the following criteria.

pdigits = Ndigits/2, qdigits = (Ndigits+1)/2 (1)

The above criterion (1) is to ensure that there are

no easy factors served out. To implement the

dynamically generation of ‘p’ and ‘q’ values we first

stored pre-computed primes between 4 and 8 digits

in a two dimensional array called primes. The

number of primes (NP) in each digit (i.e., 4, 5, 6, 7,

and 8) is tabulated below in Table 1.

Table 1: Number of primes in each digit.

Ndigits 4 5 6 7 8

NP 1061 8363 68906 586081 5096871

Algorithm 1: Generate q

GenerateQ(qdigits,NP,primes,cip)

{

cip=”A.B.C.D”

ipMapValue=2

*A+2

*B+2

*C+D

qMapValue=(ipMapValue) mod NP

return primes[qdigits][qMapValue]

}

In the above algorithm the cip represents the

clients IP address and it is in the form of A.B.C.D.

ipMapValue is the value that is generated from the

client IP address and this value is unique for each

client. From the total set of primes, we choose a

random combination and call it ‘selectedPrimes’

array. So the ‘q’ value generated for each client will

be unique. The ‘NP’ in the above algorithm

represents the number of primes in ‘selectedPrimes’

array.

Algorithm 2: Generate p

GenerateP(pdigits,NP,primes,st)

{

pMap=(st) mod NP

return primes[pdigits][pMap]

}

In the above algorithm the st represents the

number of milliseconds since the server boot. As st

differs for every millisecond the ‘p’ value generated

will be unique for each client.

5 APPLICATION

Now continuing the http://www.mysearch.com

example that we used earlier in section 2, we are

serving 2000 dynamic plus 1000 static rps during the

normal traffic profile. In the worst case, the attacker

is sending an additional 40,000 void searches. So we

are receiving 42,000 search requests and 1000 static

requests. We now respond to the attack by

prepending a JavaScript that does the stamping

computation and sets a valid stamp in the HTTP

header to every request received. So out of the

42,000 search requests, we should be able to respond

with a static redirect page with the JavaScript for at

least 39,000 of them. A genuine user should be able

to get this new page by repeating his requests to the

main page. Now the attacker usually would have

stored the old request and will not be able to modify

his request to include the stamp and all his requests

will be redirected only to a static page. The genuine

users will be using popular browsers and will be

able to get a new page with the JavaScript within a

few refreshes. Now the JavaScript does a second

long computation for every request that the browser

sends and the user will be able to continue working

with a tolerable latency. When this new search

request comes in with the stamp, we treat it with

higher priority and open up the server resources to it.

Eventually we will converge to a point around which

we will be able to serve all the stamped search

requests while using the remaining resources to

serve the requests without a stamp with a new page.

If we are serving 2000 searches, we can still serve

20,000 static pages. Over a period of time the

genuine users cross the filter after a few retries. If

the attacker is able to reconfigure his resources to

calculate the stamp, then he will be able to send only

a fraction of his original requests. He will be able to

send in something like 400 search requests instead

of 40,000 and the damage will be contained if not

eliminated. Now, if the attacker attaches an invalid

stamp, he may pass through the initial filter, but we

can still verify the stamp with a fraction of the cost

of serving the request and drop it pretty early in the

pipeline. Once the attack stops, we can remove the

JavaScript attachment and restore normalcy. We also

have the flexibility of changing the JavaScript to

invalidate any pre-computation efforts by the

SECRYPT 2009 - International Conference on Security and Cryptography

124

attacker. Further a simple inexpensive hardware can

be installed to send this static redirect, reducing the

load on the server almost completely.

6 IMPLEMENTATION RESULTS

In this section we present the results obtained by

implementing the proposed solution.

• Clients: Intel core2 Duo CPU with processor

speed 3.00 GHz and 2.99 GHz, 2 GB RAM,

Windows XP professional operating system.

• Server: Intel Xeon Quad CPU, processor speed

3.60 GHz each, 4 GB RAM, Win 2003 server.

To study the effectiveness of the proposed

solution, we developed a website that represents a

typical portal. We developed a version incorporating

the solution (WSolution) and other without it

(WoSolution). The WoSolution website consists of

27 pages each having multiple database connections

in it. The WSolution website consists of an extra

HTML page with of a JavaScript which makes the

client browser to factorize ‘N’. When a request

comes to the website without the proper cookies,

this static page is served and the client is then

redirected to the proper web page. The server

retrieves the number of rps from the Windows

performance counters, and when it exceeds a

threshold value the server invokes the proposed

solution and starts sending out a ‘N’ value using

cookies in each response. The client responds with

the factors and the server will verify it. If the

proposed condition (N=p*q) is satisfied by the

client, the server will then respond with the actual

page and the ‘N’ value in the session variable will be

flushed out.

Table 2: Latency in milliseconds of browsers to calculate

factors.

Ndigits IE Mozilla Opera Chrome CCB

5 0 0.2 0 0.2 0

6 0 0.2 0 0.2 0

7 0 0.2 0 0.4 0

8 0 1.8 0 2.2 0.01

9 6 1.8 3 2.2 0.05

10 34 16 22 18 0.05

11 44 23 28 25 0.07

12 265 134 147 147 0.43

13 318 163 169 173 5.60

14 2512 1269 1347 1398 6.62

15 4975 2475 2659 2866 44.6

16 49820 25069 19859 28173 67.5

We measured the latencies of different web

browsers to factor the primes and tabulated it in

Table 2. CCB in the above table represents a custom

command line browser written in C#.Net. By

measuring the latencies of the JavaScript

computation on most popular browsers, we observe

that a 14 digit ‘N’ values give about 2 seconds

latencies on the browsers, which should be tolerable

to an end-user.

500

1000

1500

2000

2500

3000

8 9 10 11 12 13 14 15 16

Number of rps

Number of digits in N

Max Client Req/sec Vs Ndigit

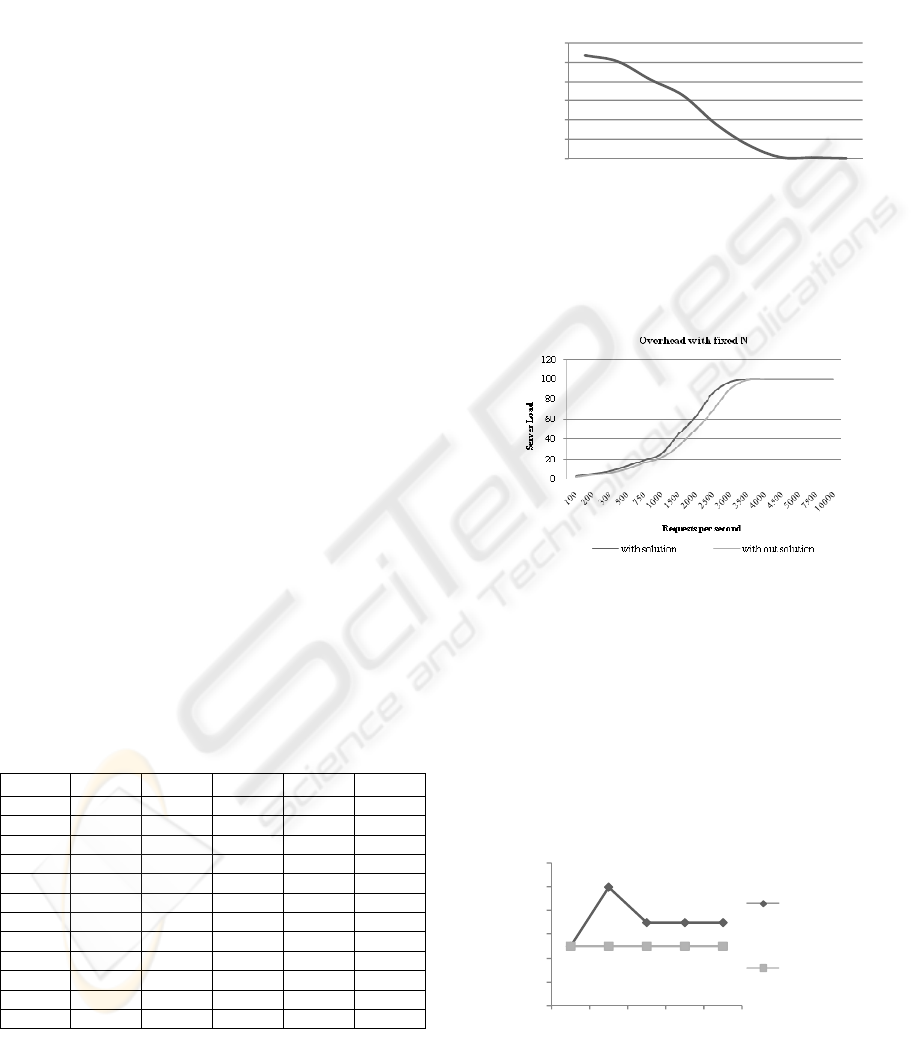

Graph 1: Overhead on requests/sec with fixed N.

From Graph 1 we can see that the overhead of

our solution is not significant when ‘N’ is fixed.

Graph 2: Server load relief on server.

In the Graph 2 we sent a steady 1000 rps through

client 1 which can compute ‘p’ and ‘q’. This causes

a steady load of about 25% on the server. After 1

minute we sent an attack traffic of about 2000 rps

from client 2 which does not compute ‘p’ and ‘q’.

The server load increases till our threshold limit is

hit. Then our solution is invoked and we start

serving ‘N’. The server drops the attack traffic and

treats them as static pages. We can see that the

server load falls down once our solution kicks in.

12345

Server load

Time (minutes)

Server load relief

Mixed traffic

(1000 good

traffic + 2000

bad traffic)

Good traffic

(1000 req/sec)

Graph 3: Max client requests/sec Vs Number of digits in

THROTTLING DDoS ATTACKS

125

From Graph 3 we can clearly the throttling effect

on the malicious clients where in the total number of

requests that they can send can be made to fall down

by a factor of 100 by increasing the number of digits

to 14. This means that an attacker who has

compromised 100 zombies will be able to inflict

only the damage possible by one such machine

thereby loosing the effectiveness of the attack.

Now in graphs numbered 4, 5, and 6 we list the

overhead on the server in terms of reduced number

of dynamic requests that are served at 100% CPU

load. As expected this loss does not increase

significantly even when we are generating the values

‘p’ and ‘q’ dynamically for every request. The

overhead is bounded by 120 rps in all cases which is

less than 4% for our application.

100

120

8 9 10 11 12

Overhead (req/sec)

Number of digits in N

Overhead with dynamic p (timestamp)

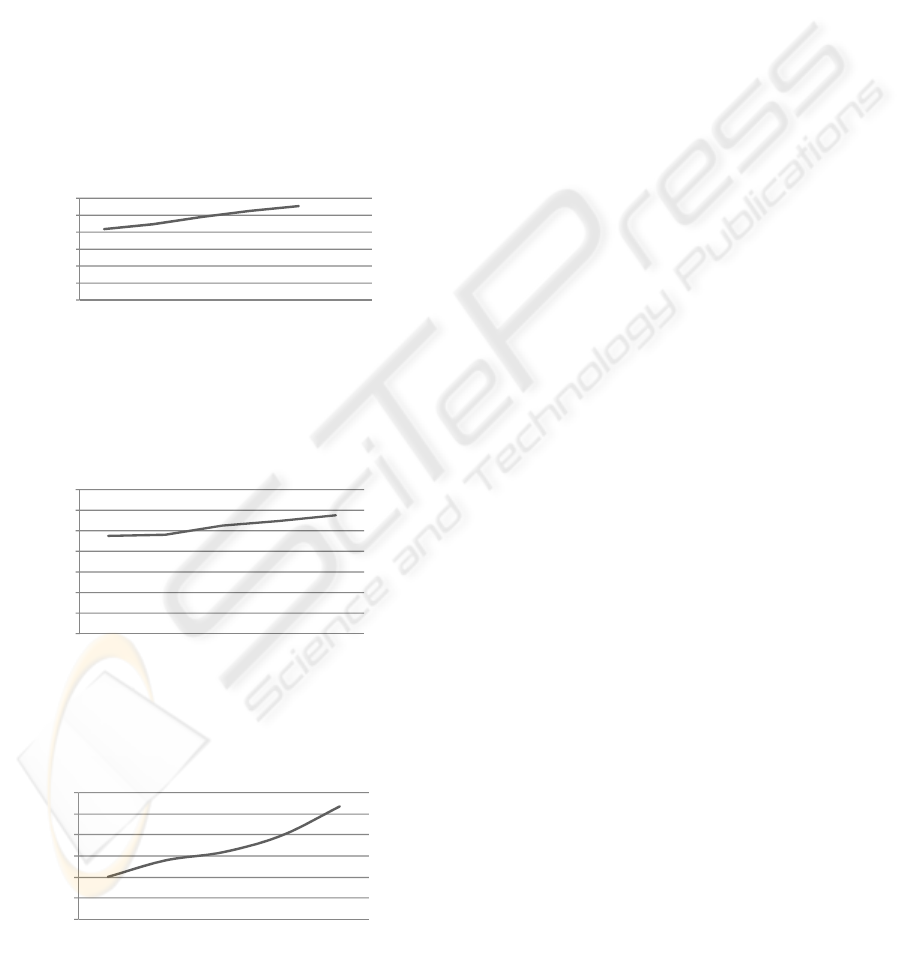

Graph 4: Overhead at server when p is generated

dynamically.

100

120

140

8 9 10 11 12

Overhead (req/sec)

Number of digits in N

Overhead with dynamic p and q

Graph 5: Overhead at server when p and q are dynamic.

100

105

110

115

8 9 10 11 12

Overhead (req/sec)

Number of digits in N

Number of request/sec with 30 sec flush

Graph 6: Overhead on number of rps with p and q

generated dynamically from selected primes.

7 CONCLUSIONS

In this paper we proposed an approach to contain a

DDoS attack at the application level. We came up

with a solution to generate stamps on the web

browsers that are easily verifiable at the server. Our

algorithm is further tuneable to throttle the client

CPU when the attack deepens. We come up with a

strategy to distinguish between genuine requests and

malicious requests and drop the later much earlier in

the transaction during a DDoS attacks. We proposed

two different algorithms for dynamic generation of

primes. There is no considerable overhead on the

web server because of deploying the proposed

solution. As a whole we saw less than 5% overhead

on the server to verify the timestamp and serve the

additional JavaScript.

REFERENCES

L. Stein, 2002. The World Wide Web security faq,

http://www.w3.org/Security/Faq/

Rob Malda, 1997. Slash dot faq. http://slashdot.org/faq/

slashmeta.shtml#sm600

B. Clifford Neuman and Stuart G. Stubblebine, 1993. A

Note on the Use of Timestamps as Nonce.

Roger M. Needham and Michael D.Schroeder, 1978.

Using encryption for authentication in large networks

of computers.

Adam Back, 2002. Hashcash - A Denial of Service

Counter-Measure.

XiaoFeng Wang and Michael K. Reiter, 2003. Defending

against denial-of-service attacks with puzzle auctions.

Tuomas Aura, P Nikander and Jussipekka Leiwo, 2000.

DOS-Resistant Authentication with Client Puzzles.

Martin Abadi, M Burrows, Mark Manasse, and T Wobber,

2003. Moderately hard, memory-bound functions.

Drew Dean and Adam Stubblefield, 2001. Using client

puzzles to protect TLS.

Cynthia Dwork and Moni Naor, 1992. Pricing via

processing or combatting junk mail.

Ari Juels and John Brainard, 1999. Client puzzles: A

cryptographic countermeasure against connection

depletion attacks.

A. J. Menezes, P. C. van Oorschot, and S. A. Vanstone,

1996. Handbook of Applied Cryptography.

D. J. Bernstein, 2006. Integer factorization.

SECRYPT 2009 - International Conference on Security and Cryptography

126
