AN ADVANCED HYBRID P2P BOTNET 2.0

Ta-Te Lu, Hung-Yi Liao and Ming-Feng Chen

Department of Computer Science & Information Engineering, Ching Yun University

Chung-Li, Taoyuan County 320, Taiwan, China

Keywords: Peer-to-peer, Botnets, Botnet 2.0, Hybrid peer-to-peer.

Abstract: Recently, malware attacks have become more serious over the Internet by e-mail, denial of service (DoS) or

distributed denial of service (DDoS). The Botnets have become a significant part of the Internet malware

attacks. The traditional botnets include three parts – botmaster, command and control (C&C) servers and

bots. The C&C servers receive commands from botmaster and control the distributions of computers

remotely. Bots use DNS to find the positions of C&C server. In this paper, we propose an advanced hybrid

peer-to-peer (P2P) botnet 2.0 (AHP2P botnet 2.0) using web 2.0 technology to hide the instructions from

botmaster into social sites, which are regarded as C&C servers. Servent bots are regarded as sub-C&C

servers to get the instructions from social sites. The AHP2P botnet 2.0 can evaluate the performance of

servent bots, reduce DNS traffics from bots to C&C servers, and achieve harder detection bots actions than

IRC-based botnets over the Internet.

1 INTRODUCTION

The Internet is a communication infrastructure that

interconnects the global community of end users and

content servers. In recent years, malware attacks

become more serious over the Internet by e-mail,

denial of service (DoS) or distributed denial of

service (DDoS). The Botnets become a significant

part of the Internet malware attacks.

The traditional botnets consist of three parts -

botmaster, command and control (C&C) servers and

bots. (1) The botmaster sends commands to C&C

servers and do malware attacks. (2) The C&C

servers receive commands from botmaster and

control the distributions of computers remotely. (3)

Bots use DNS to find the positions of C&C server,

and then communicate with C&C servers,

periodically. However, the C&C server is easily

detected or blocked by network manager or firewall

in that the C&C server is a bottleneck in traditional

botnets. Morales et al. (2009) analyze the DNS

traffic to find infected hosts when the infected hosts

first join a botnet. Peer-to-peer (P2P) botnets consist

of three parts – botmaster, servent bots and client

bots. The P2P botnets are distinctive from traditional

botnets in that there is no central C&C server for a

P2P botnet.

The current researchers have focused on

monitoring and detecting the traffic of existing bot-

nets. Jang et al. (2009) and Grizzard et al. (2007)

monitored the Waldac and the Trojan.Peacomm

botnet traffic to detect malicious peer-to-peer botnet,

respectively. Chang et al. (2009) discussed some

mechanisms to detect the existing P2P botnets. Jian

et al. (2010) proposed a neighbour list selecting

mechanism to decrease the connection time from

control nodes to bots in P2P Botnet. Some of

researchers presented specific peer-to-peer botnets

(Wang, Sparks, Zou, 2010; Xie and Tan, 2009;

Hung and Tan, 2009) that they are harder to be

monitor than traditional botnets.

The social websites use Web 2.0 technology to

interact and collaborate with each other in virtual

community, such as blog, video sharing, instant

messaging. Nguyen and Josef (2009) named Bot 2.0

the bots that use Web 2.0 communication methods,

such as when the attacker uses public blog service as

an information temporary storage for C&C server.

Therefore, the motivation of this paper is to

reduce the DNS traffics from bots to C&C servers

and achieve harder detection than traditional botnets

over the Internet. To achieve this, we use social

websites regarded as C&C server to hide the

encryption malware information and index factors to

select the candidates of servent bots. Then, P2P

botnet 2.0 mechanism is applied for botnet structure

to achieve harder detection.

The paper is organized as follows: Section 2 pre-

273

Lu T., Liao H. and Chen M..

AN ADVANCED HYBRID P2P BOTNET 2.0.

DOI: 10.5220/0003504102730276

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 273-276

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

sents the proposed of hybrid P2P botnet 2.0 structure

(AHP2P botnet 2.0). Simulation results are given in

Section 3. Finally, the conclusions are drawn in

Section 4.

2 HYBRID P2P BOTNET 2.0

STRUCTURE

The proposed advanced hybrid P2P botnet 2.0

structure (AHP2P botnet 2.0) is illustrated in Figure-

1. The AHP2P botnet 2.0 consists of three parts –

botmaster, social websites, bot groups. Bot groups

consist of servent bots and client bots. Malware

Information from botmaster is embedded into social

websites. The servent bots in bot groups will link

with the social website to get the malware

information from the social websites and send to

client bots. Client bots attack target after they

receive malware information from servent bot. The

details of the process of embedding social website,

the process of servent bots, and the process of client

bots are described separately as follows.

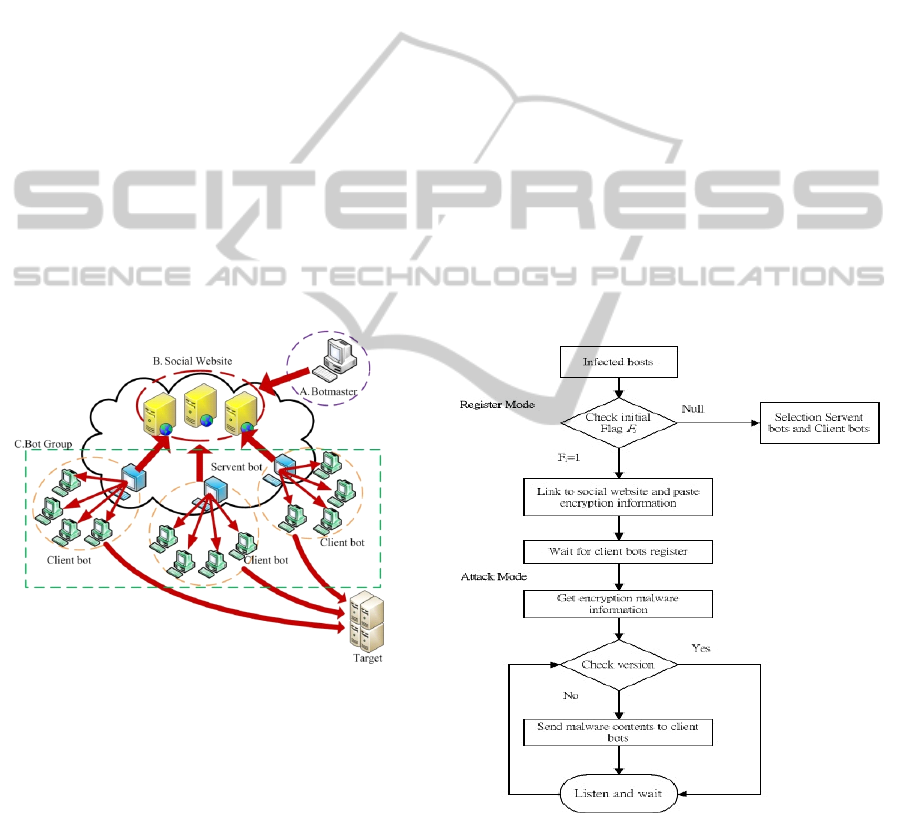

Figure 1: The proposed hybrid P2P botnet 2.0 structure.

2.1 The Process of Embedding Social

Website

The encryption malware information is embedded

into blog service after the malware information is

encrypted by Message-Digest algorithm 5 (MD5).

The malware information includes an attack version,

malware contents, attack time and peer list about IP

address of servent bots. Attack version is used to

check whether the malware attack has been executed

or not. Malware contents include target’s MAC and

IP address, etc. Peer list addresses the IP address of

existence servent bots.

2.2 Selection Servent Bots and Client

Bots Process

Hardware configuration, online time, and social

websites visiting times are important index factors to

select the servent bots from infected host i.

























(1)

where IF

is index factor for host i, WF

CPU

is number

of process weighting value, WF

FREQ

is CPU

frequency weighting value, WF

MEM

is a weighting

value for memory size, WF

is a weighting value

for online time, WF

is a weighting value for

visiting social websites times

(2)

Initial flag F

is null for each infected host i. If the

index factor IF

is larger than threshold T

, then the

host i set as a servent bot, F

=1. Otherwise, the host

set as a client bot, F

=0. The next sections describe

the servent bots and client bots process.

2.3 The Process of Servent Bots

Figure 2: Steps of servent bots process: register mode and

attack mode.

The steps of servent bots process include register

mode and attack mode are shown in Figure 2. Step 1

to step 3 is register mode and step 4 to step 5 is

attack mode that all of the steps are described as

follows:







≥=

clientisihostTIFF

serventisihostTIFF

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

274



Step 1: Check initial flag F

. If F

=1 go to step 2.

Otherwise, F

=null return to section 2.2;

Step 2: Link to social website to paste the peer list

about encryption IP address information;

Step 3: Save MAC and IP address about client bot

and go to step 4 if client bot register is succeed;



Attack mode

Step 4: Link to social website to get encryption

malware information from botmaster;

Step 5: Check attack version and send malware

contents to client bots in bot group if attack version

hasn’t been executed; Otherwise, the servent bot

goes to step6;

Step 6: Wait for the next malware commands from

botmaster and go to step 4;

2.4 The Process of Client Bots

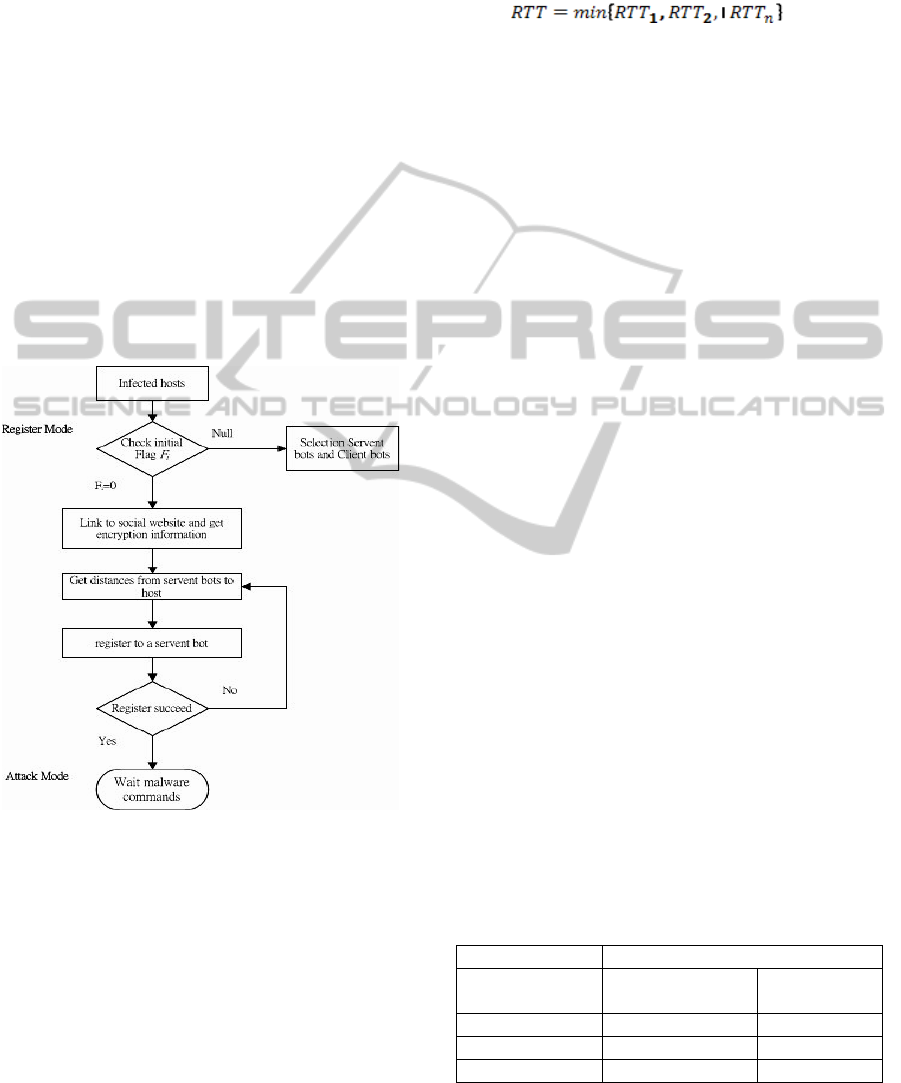

Figure 3: Steps of client bots process: register mode and

attack mode.

The steps of client bots process include register

mode and attack mode as shown in Figure 3. Step 1

to step 4 is register mode and step 5 is attack mode.

All of the steps are described as follows:



Step 1: Check initial flag F

. If F

=0 go to step 2.

Otherwise, F

=null return to section 2.2;

Step 2: Link to social website to get the peer list

about IP address of servent bots from encryption

information;

Step 3: Round-trip time (RTT) represents the

distances between client bot and servent bots. RTT

mechanism is applied to get the minimum distance

of servent bot from peer list;

(3)

Step 4: Each client bot will register to a servent bot

from step 3 and get one ID’s number;

(4)

The client bot i joins into the bot group i and go to

step 5 if register succeeds. Otherwise, the client bot

returns to step 3 and gets the next IP address of

servent bot.



Attack mode

Step 5: Wait malware commands from servent bot;

3 EXPERIMENT RESULTS

Index factor IF is used to evaluate the performance

for each infected host. If the number of process is

larger than 2, WF

CPU

=3. If CPU frequency is larger

than 3.0 GHz, WF

FREQ

=1. If memory size is larger

than 2 G, WF

MEM

=2. If online time exceed 24 hours,

=3. If visiting social websites times exceed 2,

=4. The threshold T

= 10 and T

= 300 are

chosen for the simulation test.

Table 1 shows the

percentage of CPU used and P2P traffic in

each servent

bot to control numbers of client bots.

Table 2

compares the percentage of CPU used for

AHP2P botnet

2.0 and Hung and Tan, 2009. Simulation results

show that AHP2P botnet 2.0 has better performance

than Hung and Tan for the percentage of CPU used

over 50 client bots. Table 3 compares the numbers

of DNS queries in 24 hours for AHP2P botnet 2.0,

Waledac. 5, and Waledac. D.gen. In our simulation

results, AHP2P botnet 2.0 has the lowest DNS

queries than Waledac. 5 and Waledac. D. gen.

AHP2P botnet 2.0 actually

achieves harder detection

than traditional botnets.

Table 1: AHP2P botnet 2.0 simulation results.

AHP2P botnet 2.0

Numbers of client

bots / servent bot

Percentage of CPU

used

P2P traffic (

byte /sec)

50 0.4% 10.5 K

100 0.77% 17 K

150 1.15% 27.5 K







≤

failregisterTID

succeedregisterTID

AN ADVANCED HYBRID P2P BOTNET 2.0

275

Table 2: Comparison the percentage of CPU used for

AHP2P botnet 2.0 and Hung and Tan.

AHP2P botnet 2.0 Hung and Tan

Numbers of client

bots / servent bot

Percentage of

CPU used

Percentage of

CPU used

50 0.4% 5%

64 0.5% 50%

100 0.77% -

150 1.15% -

Table 3: Numbers of packet in DNS queries.

AHP2P botnet 2.0 Waledac.5 Waledac.D.gen

DNS

Packets/24ur

4 360 792

4 CONCLUSIONS

This work presents an advanced hybrid peer-to-peer

(P2P) botnet 2.0 mechanism using web 2.0

technology to instruct social sites. The approach is

particularly suitable for hiding the encryption

malware information. Simulation results show that

the proposed method reduces DNS traffics from bots

to C&C servers and achieves harder detection than

traditional botnets.

ACKNOWLEDGEMENTS

The authors would like to thank the National

Science Council for financially supporting this

research under Contract No. NSC 99-2221-E-231-

031.

REFERENCES

Morales, J. A., Xu, S. and Sandhu, R., 2009, ‘Analyzing

DNS Activities of Bot Processes’, in Proc. IEEE Int.

Conf. Malicious and Unwanted Software, pp. 98-103.

Jang, D. I., Kim, M., Jung, H. C. and Noh, B. N., 2009,

‘Analysis of HTTP2P Botnet: Case Study Waledac’,

in Proc. IEEE Int. Conf. Communications, pp. 409-

412.

Gizzard, J. B., Sharma, V., Nunnery, C., Kang, B. B. and

Dagon, D., 2007, ‘Peer-to-peer botnets: Overview and

case study’, in Proce. Hot Topics in Understanding

Botnets, pp. 1-8.

Chang, S., Zhang, L., Guan, Y. and Daniels, T. E., 2009,

‘A Framework for P2P Botnets’, in Proc. IEEE Int.

Conf. Communications and Mobile Computing, pp

594-599.

Jian, G., Yang, Y., Zheng, K. F. and Hu, Z. M., 2010,

‘Research of An Innovative P2P-Based Botnet’, in

Proc. IEEE Int. Conf. Machine Vision and Human-

machine Interface, pp 214-218.

Wang, P., Sparks, S. and Zou, C. C., 2010, ‘An Advanced

Hybrid Peer-to-Peer Botnet’ IEEE Trans. Dependable

and Computing, vol. 7, no. 2, pp. 113-127

Xie, J. and Tan, L., 2009, ‘Detection Methods Research of

Half Distributed P2P Botnet’, Application Research of

Computers, vol. 26, no. 10, pp. 3925-3928

Hung, P. and Tan, L., 2009, ‘Design and Implementation

of Partially Decentralized P2P Botnet Control’,

Journal of Computer Applications, vol. 29, no. 9, pp.

2446-2449.

Nguyen, H., Josef, P., 2010, ‘Protecting Web 2.0 Services

from Botnet Exploitations’, in Proc. IEEE Int. Conf.

Cybercrime and Trustworthy Computing Workshop,

pp.18-28.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

276
