Generating Applications

Framework Reuse Supported by Domain-Speciﬁc Modeling Languages

Matheus C. Viana, Ros

angela A. D. Penteado and Ant

onio F. do Prado

Department of Computing, Federal University of S

ao Carlos (UFSCar), P.O. Box 676, 13565-905, S

ao Carlos - SP, Brazil

Keywords:

Reuse, Framework, Domain-Speciﬁc Modeling Language, Template, Domain Feature.

Abstract:

Applications can be developed with efﬁciency and quality when supported by frameworks. However,

framework reuse is a complex task and its advantages may not be reached if it is not correctly done. In

order to mitigate this difﬁculty, this work proposes an approach that identiﬁes the domain features of a

framework to build a Domain-Speciﬁc Modeling Language (DSML) for this framework. This DSML can

be used to create application models, whose information is mapped into templates aiming to generate the code

of these applications. Framework reuse supported by a DSML provides greater efﬁciency and quality on the

development of applications, since it provides a more abstract way to instantiate the framework and generates

code from application models. We illustrate our approach using the GRENJ framework, which can be reused

in applications in the domain of rental, purchase, sale and maintenance transactions.

1 INTRODUCTION

Frameworks are reusable artifacts which act as

skeletons that can be instantiated in applications

(Johnson, 1997). The reuse of frameworks provides

higher quality and efﬁciency to software development

process, since the classes of frameworks have

been previously tested and the applications are not

developed from scratch. However, frameworks

require the developer to have detailed knowledge

about their internal structure and their hot spots so that

they can be properly used (Abi-Antoun, 2007)(Fayad

and Schmidt, 1997).

Some solutions have been applied in order to

ease the difﬁculties in reusing frameworks, such as

manuals, cookbooks and pattern languages. These

solutions can guide the application developer through

framework instantiation. However, the task of

identifying and conﬁguring the hot spots according

to the application requirements is still executed by the

developer and relies on his/her skills and knowledge.

In order to use a more effective solution, this

paper proposes an approach promoting the building

of a Domain-Speciﬁc Modeling Language (DSML) to

facilitate the reuse of frameworks on the development

of applications. DSML can protect the developer

from the framework hot spots complexity. The use of

a DSML is focused on creating models that consider

the features of a domain. Instead of trying to identify

which classes must compose an application, when the

developer uses a DSML, he/she concentrates his/her

efforts on identifying which domain features such

application should have.

The proposed approach is divided in two phases:

Domain Engineering and Application Engineering. In

Domain Engineering, a DSML and a set of templates

are created based on the domain features and the hot

spots of the framework. In Application Engineering,

this DSML is used to create an application model,

which is combined with the templates of the

framework in order to generate the application code

and other artifacts. Although the developer has

to implement some parts of the application code

manually, due to the fact that the framework and its

DSML cannot predict application-speciﬁc functions,

this approach improves the efﬁciency and the quality

on the development of the applications that reuse

a framework by generating most of the code of

the applications and avoiding mistakes made by the

developer while reusing the framework.

The idea of dividing an approach into Domain

and Application Engineering is not new (Weiss

and Lai, 1999). There are also other works

which propose approaches for building DSML of

frameworks (Oliveira et al., 2007)(Antkiewicz et al.,

2009)(Amatriain and Arumi, 2011). However,

they do not explain clearly how they identify the

features of the frameworks. Our approach presents a

Viana M., Penteado R. and Prado A..

Generating Applications - Framework Reuse Supported by Domain-Speciﬁc Modeling Languages.

DOI: 10.5220/0003990000050014

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 5-14

ISBN: 978-989-8565-11-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

systematic way to identify the domain features of the

framework and the information which is necessary to

reuse its classes.

The remainder of this paper is organized as

follows: Sections 2 and 3 present, respectively,

frameworks and Domain-Speciﬁc Modeling

Languages. Section 4 presents some related works.

Section 5 presents the approach of framework reuse

supported by Domain-Speciﬁc Modeling Language.

Section 6 presents the use of the proposed approach

to build the GRENJ Framework DSML. Section 7

presents the conclusions about this work.

2 FRAMEWORKS

Frameworks support software development by

providing reuse of code and design. They are

composed of two parts (Brugali and Sycara, 2000):

frozen spots, which constitute unchangeable parts,

regardless of the application that is being developed;

and hot spots, which represent classes that are

directly reused by the applications. The classes that

are hot spots and their superclasses can contain hook

methods that need to be overridden or invoked in

order to customize the framework according to the

application requirements.

A framework is classiﬁed according to the way

its hot spots are accessed: 1) white box, when

such access occurs through inheriting their classes

and overriding their methods, 2) black box, when

the access occurs through composition, and 3) gray

box, when it occurs through the two previous

ways. According to their purpose, frameworks

can also be classiﬁed as: 1) System Infrastructure

Frameworks (SIF), which simplify the development

of software that controls low-level operations; 2)

Middleware Integration Frameworks (MIF), which

increase the modularization of applications; 3)

Enterprise Application Frameworks (EAF), which are

used to instantiate applications for speciﬁc domains

(Abi-Antoun, 2007)(Fayad and Schmidt, 1997).

In this paper, we used the GRENJ Framework to

exemplify our approach. The GRENJ Framework is

a white box EAF that addresses the domain of rental,

purchase, sale and maintenance transactions of goods

or services (Durelli et al., 2010). The main reasons for

choosing the GRENJ Framework are: 1) it contains

all kind of features, e. g., mandatory, optional and

variable; 2) applications within its domain are widely

adopted by industry and academia; 3) its code is open;

4) we have developed applications reusing it, so we

have full knowledge about its code, hot spots and

functionality.

3 DOMAIN-SPECIFIC

MODELING LANGUAGES

Modeling is the act of creating a model to get a

better understanding of what is to be built and a

more abstract view of a problem solution. It aims

at facilitating the comprehension of the solution and

serves as documentation (Gronback, 2009).

A modeling language is formed by: an abstract

syntax, that deﬁnes the elements and the rules of the

language and usually is represented by metamodel;

and a concrete syntax, which deﬁnes its notation.

The most common notations for modeling languages

are textual, graphical and tree-view. (Cuadrado and

Molina, 2009).

In place of general-purpose modeling languages,

such as UML, a Domain Speciﬁc Modeling Language

(DSML) can be used to model applications with

elements that are appropriate to the addressed

domain. Since there is a greater similarity between

the DSML elements and the application features,

mapping the application requirements is easier (Turki

et al., 2004) and transformations from application

models are more effective. Templates can be

used as skeletons to generate several kinds of

artifacts (Gronback, 2009), such as application code,

documentation, test code and other models.

The main advantages provided by the use

of DSMLs are (France and Rumpe, 2007): 1)

better separation between the logic of the software

and the details of the technologies employed in

its implementation, 2) greater facility in creating

reusable artifacts, and 3) better quality of the software

that are produced since their features are well deﬁned

and their code can be generated.

4 RELATED WORKS

In this section, some studies reporting the difﬁculties

during the reuse of frameworks and suggesting

possible solutions to this problem are presented and

compared with the approach proposed in this paper.

Braga and Masiero (2003) proposed building a

wizard for the development of applications reusing an

EAF. In this process, the developer ﬁlls out the wizard

forms according to the application requirements and

the wizard generates the application code. It is similar

to the approach supported by a DSML. However, it

does not generate code directly from the application

model.

Oliveira et al. (2007) presented a systematic

approach for framework reuse based on the Reuse

Description Language (RDL), a language designed

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

by these authors to specify framework instantiation

processes. In their approach, RDL is used to

ﬁle and a tool, denominated RDL execution

environment, accesses this ﬁle for the execution of

reuse processes and framework instantiations that

lead to domain-speciﬁc applications. Therefore, their

approach depends on the RDL and the RDL execution

environment. The main advantage of our approach

over theirs is that our approach does not depend on

any speciﬁc tool or language so that developers can

use their favorite tool to construct the DSML.

Antkiewicz et al. (2009) proposed a method for

engineering new framework DSMLs by specializing

existing approaches to domain analysis, software

development, and quality evaluation of models and

languages. Besides their work was focused on the

reuse of MIF, it does not explain in details how the

features of the framework are identiﬁed.

Amatriain and Arumi (2011) proposed an

approach in which the construction of a DSML

occurs in parallel to the development of its framework

through iterative and incremental activities. Our

approach differs from theirs, mainly, because our

approach can be applied on frameworks that were

previously developed by other people.

5 THE PROPOSED APPROACH

Figure 1 shows the two phases of the approach that

promotes framework reuse supported by a DSML:

Domain Engineering and Application Engineering.

Subsections 5.1 and 5.2 present the processes of

Domain Engineering and Application Engineering in

details.

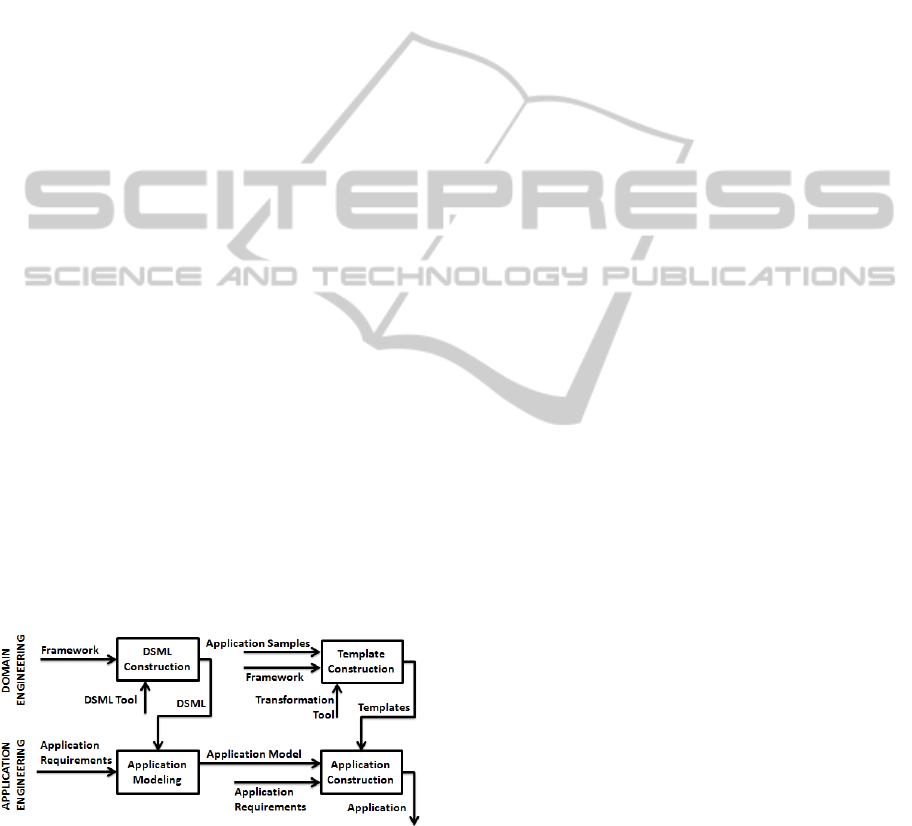

Figure 1: The proposed approach phases and their activities.

5.1 Domain Engineering

The Domain Engineering process aims at preparing

an environment that facilitates framework reuse in the

development of applications. In this process, DSML

Construction and Template Construction activities are

carried out.

DSML Construction activity starts with the

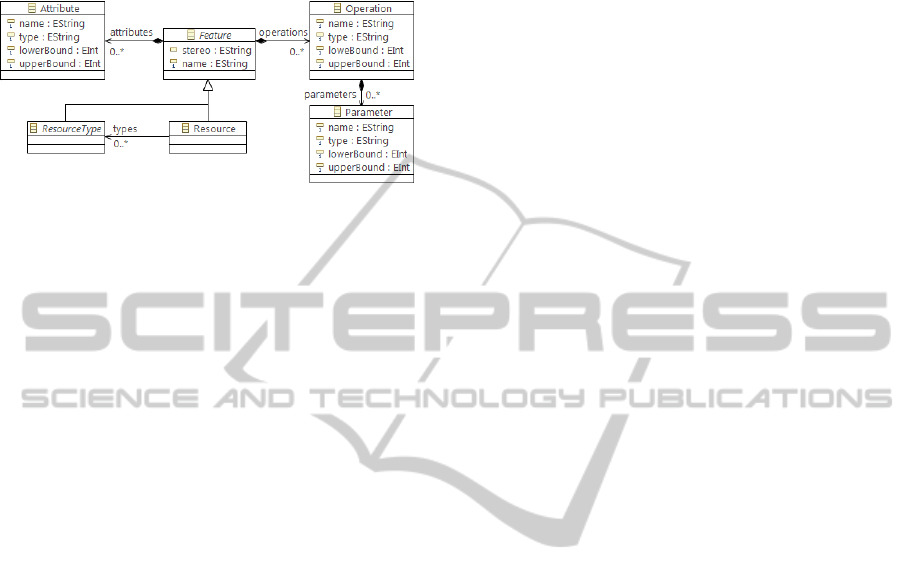

creation of a metamodel which contains metaclasses

representing the domain features of the framework

and stores the information required by its hot spots.

The domain features of the framework are identiﬁed

by analyzing its documentation and its code through

the following steps:

1. Identify a class that represents a domain feature.

In an EAF, a domain feature is identiﬁed by a class

which can be directly extended (white box) or

instantiated (black box) by the applications. This

class is a hot spot and deﬁne a functionality of the

framework;

2. Identify the superclasses of the class identiﬁed in

step 1;

3. Identify the classes targeted by association

relationships coming from the classes identiﬁed in

steps 1 and 2;

4. Analyze the hook methods of the class identiﬁed

in step 1 in order to identify the information that

is necessary to reuse it;

5. Include a metaclass in the metamodel to represent

the class identiﬁed in step 1. Also include

attributes and/or relationships in this metaclass to

store the necessary information to reuse the class

it represents;

6. Repeat the steps 1 to 5 until all domain features of

the framework have been identiﬁed.

Class models are the ﬁrst artifacts to be analyzed,

because they provide a wide vision of the framework

classes. A framework may also be documented by

a Pattern Language (PL), which speciﬁes the classes

representing the domain features of the framework

(Kirk et al., 2007). The framework code also needs

to be analyzed to conﬁrm the classes identiﬁed in the

documentation, as models may be inconsistent with

the current state of the code. Moreover, class models

in analysis level contain only the main classes of the

framework and the hot spots cannot be identiﬁed from

these models.

Figure 2 shows part of the GRENJ framework

DSML metamodel as an example. Feature,

Attribute, Operation and Parameter metaclasses are

domain-independent and provide common properties

to domain-speciﬁc features. The applications which

reuse GRENJ framework need to contain a class that

extends Resource class. This class is a hot spot of the

GRENJ Framework and represents a feature which

is concerned with the goods or services involved

in transactions. Therefore, Resource metaclass was

included in the metamodel to represent it. As one

GeneratingApplications-FrameworkReuseSupportedbyDomain-SpecificModelingLanguages

of the information required by the hook methods

of Resource class is the classes which represents

the resource types in the applications, the types

relationship was created to store this information.

Figure 2: An example of a framework DSML metamodel.

The metamodel represents the abstract syntax of

the DSML in which the domain features are deﬁned.

The concrete syntax, which deﬁnes the graphical

notation of the DSML, must also be built so that

developers can use it to model applications (Cuadrado

and Molina, 2009). How the concrete syntax is built

depends on the tool used to construct the DSML.

After DSML Construction activity, Template

Construction activity begins with the use of a

transformation language. The templates depend on

both the DSML metamodel and the content that

they may originate. Therefore, each template is

usually linked to an existing metaclass in the DSML

metamodel.

A template is formed by: ﬁxed parts, consisting

of parts of code that remains the same in all

applications generated from the template; variable

parts, corresponding to parts that change from one

application to another. Usually, in XML-based

template languages, such as Java Emitter Templates

(JET) (Gronback, 2009), the ﬁxed parts consist of

texts and the variant parts consist of tags. The best

tactic to create templates is to analyze the classes

of applications that reuse the framework in order to

identify its ﬁxed and variable parts.

Taking the GRENJ Framework as an example,

an application class that extends the Resource class

should be similar to this:

public class Movie extends Resource {

private int year;

public Class[] typeClasses() {

return new Class[]

{ Category.class, Genre.class };

}

The JET template that was implemented to

generate subclasses of Resource class is:

public class <c:get select="$feature/@name"/>

extends Resource {

<c:iterate

select="$feature/attributes" var="attr">

private <c:get select="$attr/@type"/>

<c:get select="$attr/@name"/>;

</c:iterate>

public Class[] typeClasses() {

return new Class[] {

<c:iterate select="$feature/types"

var="rtype" delimiter=", ">

<c:get select="$rtype/@name"/>.class

</c:iterate> };

}

In the template for Resource subclasses, the ﬁxed

parts consist mainly of Java keywords, annotations,

operators, punctuations and signatures of required

methods, while its variant parts consist of tags

indicating the attributes and references of the

metaclasses presented in Figure 2.

In addition to the templates which are responsible

for generating application code, other templates

can indicate to the transformation tool to generate

the database script, create the application package,

include a copy of the framework, and so on. These

templates are essential for the functioning of the

generated application code.

Templates can be tested to check if they generate

the correct code and if the generated code is correct.

It can be done by creating automated unit tests for the

classes that are generated by these templates. There

can also be tests which verify if the code generated

by a template is similar or even equal to the code of

the classes from which this template was created. The

technique applied to create these unit tests is beyond

the scope of this work.

5.2 Application Engineering

The Application Engineering process comprehends

Application Modeling and Application Construction

activities with the use of the DSML and the templates

constructed in the Domain Engineering phase, as

shown in Figure 1.

In Application Modeling activity, the developer

uses the DSML to create an application model

based on the application requirements. Due

its domain-speciﬁc aspect, DSML prevents the

developers from creating relationships that are not

deﬁned in its metamodel and it provides a validation

mechanism of the application models, which veriﬁes

if all obligatory classes were instantiated among other

things.

In Application Construction activity, templates

are implemented to generate code and other artifacts

from the application model. As code generation is

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

automated, it provides the efﬁciency in the application

development. Although all code responsible to reuse

the framework can be generated, it may be necessary

to add code because a framework cannot predict all

the particularities of the applications, whether using a

DSML or not. Generally, the code which is added is

responsible for behavioral aspects of the application

such as the content of application-speciﬁc operations.

Application-speciﬁc attributes and methods

should be inserted into the application model to

avoid inconsistency between the model and the code.

Moreover, methods which are added or modiﬁed

need protection so that their contents can remain

in case of the application code is generated again.

Usually, transformation tools provide mechanisms

that keep the alterations made by the developer, such

as the implementation of the body of a method, even

when the application code is regenerated.

6 USE CASE: GRENJ

FRAMEWORK

We used the GRENJ Framework in order to exemplify

the use of the approach of framework reuse supported

by a DSML. The GRENJ Framework DSML was

built by using the Graphical Modeling Framework

(GMF) and Java Emitter Templates (JET), both

available in the Eclipse IDE. Although we have

chosen these tools, others could be used as well,

such as xPand (Gronback, 2009) and Generic

Modeling Environment (GME) (Institute for Software

Integrated Systems, 2012). The proposed approach is

intended to be tool-independent.

This section is divided as follows: Subsection 6.1

presents the GRENJ Framework Domain Engineering

process; Subsection 6.2 presents the Car Rental Shop

Application Engineering process; Subsection 6.3

presents a study with the development of applications

in the domain of rental transactions reusing the

GRENJ Framework with and without its DSML.

6.1 GRENJ Domain Engineering

In DSML Construction activity, the features were

identiﬁed by analyzing models with the GRENJ

framework classes that must be extended in the

applications. The information required by the GRENJ

Framework hot spots were identiﬁed by analyzing the

code of the hook methods.

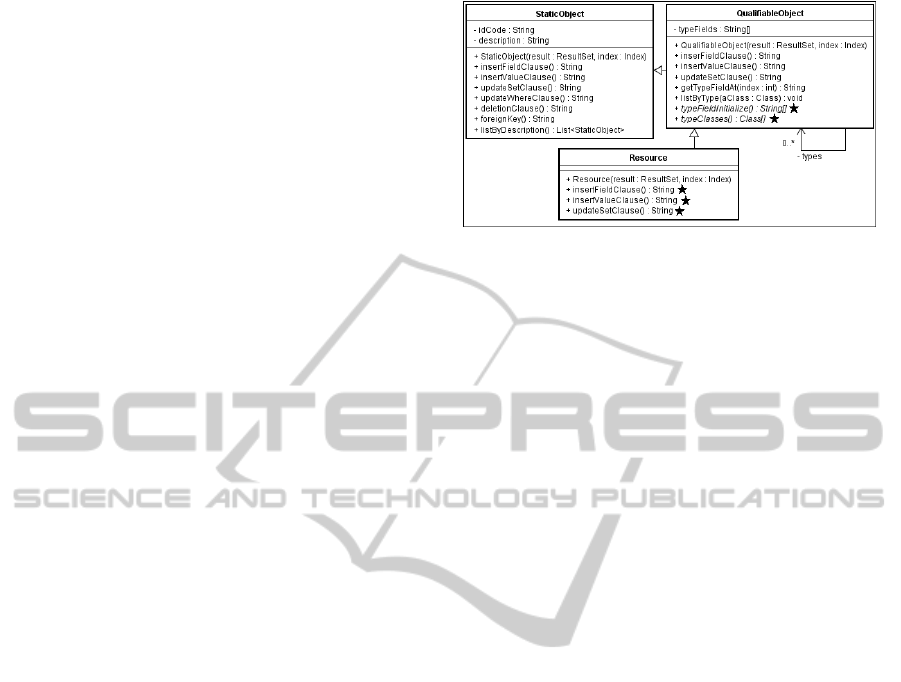

Figure 3 shows a GRENJ Framework model with

the classes related to the resource feature. The hook

methods that need to be overridden by an application

Figure 3: Classes related to the Resource feature.

class which extend the Resource class are highlighted

by stars.

Hook methods, such as the insertFieldClause

method, were analyzed in order to identify the

information required to the hot spots.

public String insertFieldClause() {

StringBuilder strb = new StringBuilder(

super.insertFieldClause() );

String clause =

quantification.insertFieldClause();

if ( clause != null ) {

strb.append( ", " + clause );

}

return strb.toString();

}

Table 1 shows a list with some of the features

identiﬁed in the GRENJ Framework domain. These

features are the minimum necessary to develop

applications that deal with rental transactions reusing

the framework GRENJ. Resource type is used to

deﬁne classes that classify the resources. If the

resource type has subtypes, it is a nested type.

Otherwise, it is a simple type. Resource quantiﬁcation

identiﬁes whether the resource is unique or can have

copies. Resource rental transaction represents the

leasing transaction of resources and destination party

represents who orders the resource rental.

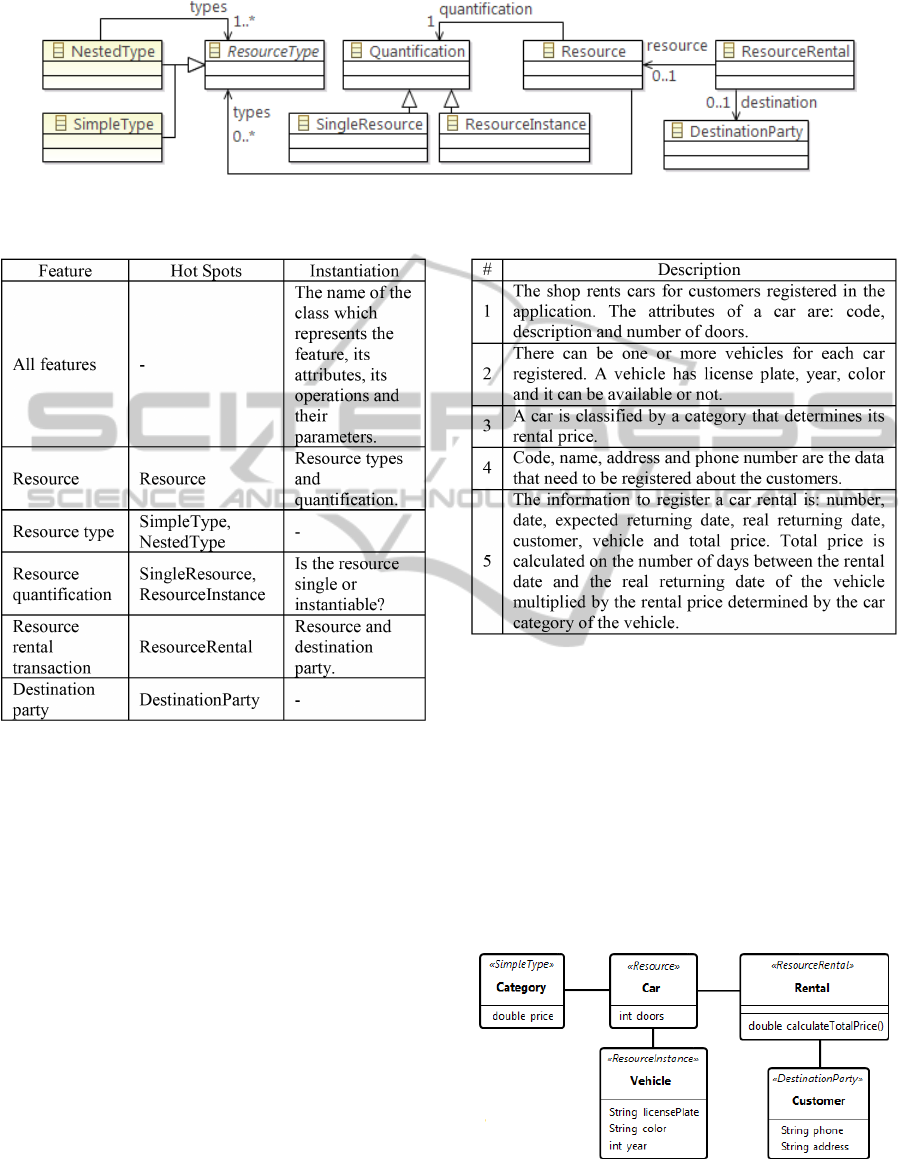

Figure 4 shows the GRENJ Framework DSML

metamodel with the features described in Table 1. All

metaclasses that represent domain features extend the

Feature metaclass shown in Figure 2. The multiplicity

of the relationships deﬁnes how many subclasses of

the targeted feature can associate with a subclass of

the source feature in the application models.

GRENJ Framework Template Construction

activity was accomplished with use of JET

transformation language (Gronback, 2009). This

language allows the domain engineer to implement

a set of templates and compile it as an Eclipse IDE

plug-in that can access the application models and

generate code and other artifacts.

GeneratingApplications-FrameworkReuseSupportedbyDomain-SpecificModelingLanguages

Figure 4: DSML metamodel which addresses the subdomain of resource rental of GRENJ framework.

Table 1: Some of the GRENJ Framework features.

A JET template is a XML-format ﬁle whose text

represents the ﬁxed part of the ﬁle that it originates

and the variant part is formed by tags which refer

to the information to be obtained from the models.

Samples of classes of applications that reuse the

GRENJ Framework were analyzed, such as it was

described in Section 5.1, so that the ﬁxed and the

variant parts of the templates could be identiﬁed.

6.2 GRENJ Application Engineering

In order to exemplify the Application Engineering

process, the Car Rental Shop application were

developed by using the DSML and the templates

that were created in the Domain Engineering process

described in Section 6.1.

The GRENJ Framework DSML and templates

originate a set of plug-ins for the Eclipse IDE. The

integration of these plug-ins in Eclipse IDE result

in a CASE tool that supports the developing of

applications with the reuse of the GRENJ Framework.

In Car Rental Shop Application Modeling activity,

Table 2: Car Rental Shop Application requirements.

the developer creates a model selecting the domain

features of the GRENJ framework based on the

application requirements listed in Table 2. This is

similar to create a class model in analysis level.

Figure 5 presents the model of the Car Rental

Shop Application which was created with the use

of the GRENJ Framework DSML based on the

requirements of Table 2. In this model, the classes

of the GRENJ framework that are being reused by

the Car Rental Shop application are identiﬁed by the

stereotypes and the names of the subclasses are in

bold.

Figure 5: Car Rental Shop Application model created with

the GRENJ Framework DSML.

Figure 6 shows a class model of the Car Rental

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

Shop Application, in which the classes highlighted

in grey are from the GRENJ Framework. This class

model is equivalent to the model created with the

GRENJ Framework DSML shown in Figure 6. Most

of the attributes speciﬁed in the requirements in Table

2 were not added to the classes of the application

model shown in Figure 5 because these attributes

are inherited from the GRENJ Framework classes

and makes no sense to repeat them on the models.

Our approach assumes that the application developer

knows the framework.

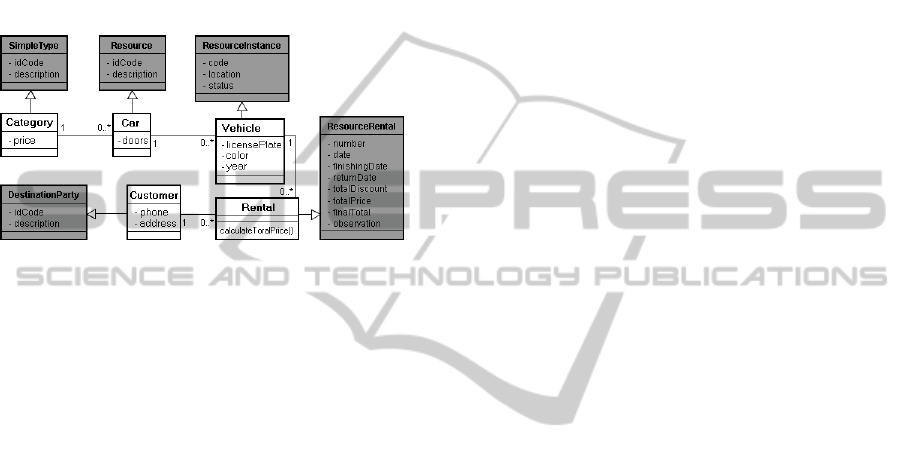

Figure 6: Car Rental Shop Application class model.

In Application Construction activity, the Car

Rental Shop application model was integrated with

the templates. Thus the code and all the ﬁle structure

of the application was generated. The code of the

framework was also copied to the application code.

A combination of the application model presented

in Figure 5 with the JET template for Resource

subclasses, presented in Section 5.1, generates the

code of the Car class:

public class Car extends Resource {

private int doors;

public Class[] typeClasses() {

return new Class[] { Category.class };

}

The total price of the rental in this application

is based on the price established by the category

multiplied by the number of days the customer rented

the car. As the framework cannot predict this

calculation, it needs to be manually implemented.

The calculateTotalPrice method was generated

in the Rental class with an empty body by the

transformation tool. It was modiﬁed in order to

calculate the total price in the instances of the Rental

class. The method was marked as “generated NOT”

to avoid its code to be erased in case of the application

code is generated again.

The code of the calculateTotalPrice method after

it was manually modiﬁed is:

/**

* @generated NOT

public double calculateTotalPrice() {

Category category = (Category)

getResource().getTypes().get(0);

int numDays =

Period.numberOfDays(

getDate(), getReturningDate());

return category.getPrice() * numDays;

}

6.3 GRENJ DSML Evaluation

In order to evaluate the proposed approach, a

study was performed to compare the time spent

on the development of applications with the reuse

of the GRENJ Framework. Two approaches were

applied in this study: 1) an approach in which

application-speciﬁc code was manually implemented;

and 2) the approach supported by DSML, in which the

application-speciﬁc code was generated with the use

of the GRENJ Framework DSML and templates, such

as it was described in the Section 6.1.

26 Computer Science undergraduate students

were trained to develop applications reusing the

GRENJ Framework through both approaches in order

to get knowledge about the framework and the tools

used in each approach. The students that participated

in this study had previous knowledge about Java

programming and UML modeling.

In the study, the students should develop two

applications involving resource rental transactions:

the ﬁrst one to check books out from a library and

the second one for checking guests in a hotel. These

applications have the same level of complexity of

the Car Rental Shop application (Section 6.2). The

students were divided into two teams, T1 and T2, with

13 students each one. The teams should carry out the

following tasks:

• T1 development of the application for the hotel

with the reuse of the GRENJ Framework through

manual programming and development of the

application for the library with the reuse of the

GRENJ Framework supported by its DSML;

• T2 development of the application for the library

with the reuse of the GRENJ Framework through

manual programming and development of the

application for the hotel with the reuse of the

GRENJ Framework supported by its DSML.

To perform the study, the students received

a document containing the requirements of the

applications they had to develop. Each student

also received a class model in analysis level of

GeneratingApplications-FrameworkReuseSupportedbyDomain-SpecificModelingLanguages

the application he/she had to develop by manual

programming. The applications were developed

by using the Eclipse IDE, whose workspace were

conﬁgured with one project for each application with

set of JUnit tests. All the computers the students used

had the same conﬁguration of software and hardware.

Each student has developed the applications

referent to his/her team individually and measured the

time spent in the development of each application.

After ﬁnishing the development of an application, the

students had to pause the chronometer and run its

JUnit tests to verify whether or not the application

worked correctly. In case of test fail, the students

had to write in a form a description of the fail and

activate the chronometer again to correct the defects

they found. The application was considered ﬁnished

only after the tests had shown no fail.

To evaluate the approaches, the study worked with

two hypotheses:

• Null Hypothesis, H0 - the DSML does not make

the process of application development with the

reuse of frameworks easier and faster; and

• Alternative Hypothesis, H1 - the DSML make the

process of application development with the reuse

of frameworks easier and faster.

The applications developed by the students had

approximately 18,400 lines of code, from which

18,000 correspond to the GRENJ Framework code

and only 400 belong to the code generated or

implemented during the application development.

Due to idiomatic patterns imposed by the GRENJ

Framework, the codes of the applications developed

by the students are similar, whether they were

manually implemented or generated. Moreover, the

number of lines of the code generated or implemented

during the application development was small due to

the reuse of code provided by the GRENJ Framework.

Table 3 presents the averages (AVG) and the

standard deviation (SD) of the time spent by students

of each team (T1 and T2) in the development

of the applications. It was possible to observe

that there was an average reduction of about

89.3% for Library Application and 87.5% for Hotel

Application. It results in a general reduction of

88.5% in the time spent on developing applications

with reuse of the GRENJ Framework through its

DSML when compared to time spent on the manual

implementation approach. The times in Table 3

are measured in minutes (‘) and seconds (“) and

consider the development of the applications and the

successful execution of the application tests.

This study shown that the development of

applications with reuse of frameworks spends less

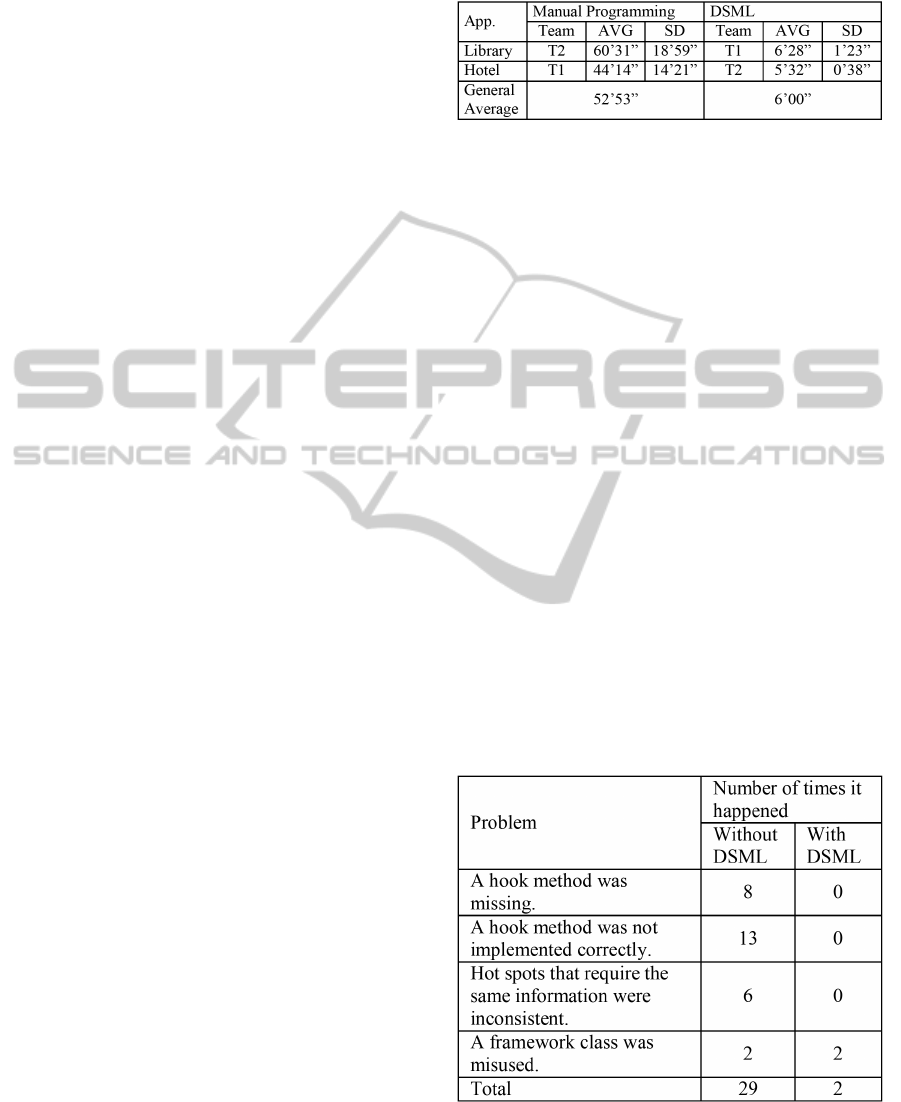

Table 3: Average of time spent on the development of the

applications.

time when performed with the use of a DSML

than when it is done through manual programming.

However, a long time is spent in the execution

of the Domain Engineering process in order to

construct the DSML and the templates of the

framework. Therefore, the approach supported by

DSML represents an advantage only when several

applications are developed, making the sum of the

time spent on Domain Engineering phase and the

time spent on the engineering of the applications

lesser than the time spent developing these same

applications manually. For example, the Domain

Engineering process of the GRENJ Framework was

accomplished in, approximately, 5 hours. The sum of

5 hours and the times shown in Table 3 demonstrates

that, considering the GRENJ Framework, the

approach supported by DSML becomes worthwhile

when 6 or more applications are developed.

Besides the time spent in the development of the

applications, the problems shown by the application

tests were analyzed in order to identify when the

students made more mistakes: with or without the

use of the DSML. This analysis were based on the

information the students wrote in the form after they

had run the tests.

Table 4: The number of times which some problems was

found in the applications developed by the students.

Table 4 shows the number of times which some

problems was found in the applications developed

by all students in the study. These problems

does not include compilation errors, because the

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

applications were tested only when they could be

run. The students made more mistakes while reusing

the framework without the use of the DSML. This

occurred due to the fact that, in the approach

through manual programming, there is a higher

probability of defect insertions in the code, e.g.,

mistyping, misuse of the controls, lack of methods

required by the framework and so on. In some

cases, multiple hot spots of the GRENJ framework

require the same information, usually, when many

classes has the same hook method. Some students

implemented these hook methods returning different

values, resulting in inconsistencies. It cannot occur

with the DSML because it requires each information

only once. However, the correct selection of a

framework class to implement a requirement of the

application relies on the knowledge the developer

has about the framework. This statement could be

conﬁrmed, when some students misused the same

framework class both in the manual programming

approach and in the DSML approach.

Some restrictions and threats to the validity of this

study should be taken into consideration:

• In the development of the applications with the

DSML, all students used the DSML and the

templates created in the Domain Engineering

process described in Section 6.1. In this manner,

there would be no difference among students on

the way that the applications were modeled and

the codes were generated.

• It can be argued that the examples developed

by the students are simple. However, the

applications which were described access most

types of GRENJ Framework hot spots. If two

or more hot spots request similar information, for

example, class names, then these hot spots are the

same type.

• The addition of functionality not predicted by

the GRENJ Framework was not veriﬁed in this

experiment because this activity can be done only

by a manual programming approach.

7 CONCLUSIONS

In this paper, an approach to framework reuse

supported by Domain-Speciﬁc Modeling has been

presented. This approach improves the efﬁciency

and the quality on the development of applications

in a speciﬁc domain, since it generates code from

application models and prevents the developer from

incorrectly accessing the hot spots of the framework.

The proposed approach requires effort in Domain

Engineering phase to build the environment for

the development of applications that reuse the

framework. However, in Application Engineering

phase, the total effort comes down to the effort for

modeling the application as well as the effort for the

reﬁnement of the code, if it occurs. The time to

generate the application code is irrelevant compared

to the total effort, because it is generated.

The quality of the DSML depends on the

identiﬁcation of the domain features of the framework

in the same way as the quality of an application

depends on the identiﬁcation of its classes. The

proposed approach mainly aims to provide a sequence

of steps which the developer should follow in order to

identify the domain features of the framework, model

them and create templates. The use of tools only

supports these activities, so that the developer can

choose his/her favorite tools for each activity.

The DSML does not eliminate the necessity of

the developer to know the framework. He/She has

to know the hot spots and the attributes and the

operations provided by them in order to add to the

classes of the applications only properties that are

not provided by the framework or even modify the

generated code correctly. The DSML is useful to

liberate the developer from implementing the code to

reuse the framework, saving time and avoiding some

mistakes. Thus, the developer can dedicate more

effort to implement the functionality not provided by

the framework.

Our work focused on developing DSMLs

for Enterprise Application Frameworks, whose

domain features are related to social and economic

aspects. Although we have not applied our approach

to develop DSMLs for System Infrastructure

Frameworks or Middleware Integration Frameworks,

there is no theoretical impediment to do it. The most

important thing is identify the features from the hot

spots and the information necessary to instantiate the

framework.

In future works, we intend to extend the

proposed approach to include the development of

the framework from domain features models. We

also intend to include in the proposed approach

mechanisms to generate behavioral aspects, such as

the code of application-speciﬁc operations.

ACKNOWLEDGEMENTS

We would like to thank the students of Computer

Science Course of UFSCar for participating in our

study. We also thank CAPES for ﬁnancial support.

GeneratingApplications-FrameworkReuseSupportedbyDomain-SpecificModelingLanguages

REFERENCES

Abi-Antoun, M. (2007). Making Frameworks Work:

a Project Retrospective. In Companion to the

22nd ACM SIGPLAN conference on Object-Oriented

Programming Systems and Applications, OOPSLA

’07, pages 1004–1018, New York, NY, USA. ACM.

Amatriain, X. and Arumi, P. (2011). Frameworks Generate

Domain-Speciﬁc Languages: A Case Study in the

Multimedia Domain. Software Engineering, IEEE

Transactions on, 37(4):544–558.

Antkiewicz, M., Czarnecki, K., and Stephan, M.

(2009). Engineering of Framework-Speciﬁc Modeling

Languages. Software Engineering, IEEE Transactions

on, 35(6):795–824.

Braga, R. and Masiero, P. (2003). Building a Wizard

for Framework Instantiation Based on a Pattern

Language. In Konstantas, D., L

eonard, M., Pigneur,

Y., and Patel, S., editors, Object-Oriented Information

Systems, volume 2817 of Lecture Notes in Computer

Science, pages 95–106. Springer Berlin / Heidelberg.

Brugali, D. and Sycara, K. (2000). Frameworks and Pattern

Languages: an Intriguing Relationship. ACM Comput.

Surv., 32(1).

Cuadrado, J. and Molina, J. (2009). A Model-Based

Approach to Families of Embedded Domain-Speciﬁc

Languages. Software Engineering, IEEE Transactions

on, 35(6):825–840.

Durelli, V. H. S., Borges, S. S., Penteado, R. A. D., and

Viana, M. C. (2010). An Iterative Reengineering

Process Applying Test-Driven Development and

Reverse Engineering Patterns. INFOCOMP Journal

of Computer Science, Special Edition(1):1902–1929.

Fayad, M. and Schmidt, D. C. (1997). Object-Oriented

Application Frameworks. Communications of ACM,

40(10):32–38.

France, R. and Rumpe, B. (2007). Model-driven

Development of Complex Software: A Research

Roadmap. In Future of Software Engineering, 2007.

FOSE ’07, pages 37–54.

Gronback, R. C. (2009). Eclipse Modeling Project:

A Domain-Speciﬁc Language (DSL) Toolkit.

Addison-Wesley.

Institute for Software Integrated Systems (2012). Generic

Modeling Environment.

Johnson, R. E. (1997). Frameworks = (Components +

Patterns). Communications of ACM, 40(10):39–42.

Kirk, D., Roper, M., and Wood, M. (2007). Identifying

and Addressing Problems in Object-Oriented

Framework Reuse. Empirical Software Engineering,

12(3):243–274.

Oliveira, T. C., Alencar, P. S. C., Lucena, C. J. P. D.,

and Cowan, D. D. (2007). RDL: A language for

framework instantiation representation. Journal of

Systems and Software, 80(11):1902–1929.

Turki, S., Soriano, T., and Sghaier, A. (2004). An MDA

Application for a Virtual Reality Environment. In

Industrial Technology, 2004. IEEE ICIT ’04. 2004

IEEE International Conference on, volume 2, pages

807–812.

Weiss, D. M. and Lai, C. T. R. (1999). Software

Product Line Engineering: A Family-Based Software

Development Process. Addison-Wesley.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems
