HelpMe!: A Serious Game for Rehabilitation

of Children Affected by CVI

Matteo Ciman

, Ombretta Gaggi

1,3

, Laura Nota

2,3

, Luisa Pinello

, Nicola Riparelli

and Teresa Maria Sgaramella

2,3

Dept. of Mathematics, University of Padua, Padua, Italy

Dept. of Developmental Psychology and Socialisation, University of Padua, Padua, Italy

University Center for Research and Services on Disability, Rehabilitation and Inclusion, University of Padua, Padua, Italy

Pediatric Low Vision Center of the Veneto Region, Dept. of Women’s and Children’s Healths,

University of Padua, Padua, Italy

Keywords:

Serious Games, Game-based Rehabilitation, HTML5, Web Technologies.

Abstract:

CVI (Cerebral Visual Impairment) is the leading cause of visual impairment in the United States and the

Western Europe. Due to the high number of different inabilities that children could have when affected by

CVI, it is crucial for the rehabilitation process to start from a good assessment, especially at early ages. In

this paper we present HelpMe!, a serious game to improve the rehabilitation process for these children with a

system able to adapt the exercises to each particular child and to his/her improvements. The system integrates

an eye tracker system to correctly measure the performances of the child and his/her capability to watch and

touch a moving object at the same time.

1 INTRODUCTION

Cerebral Visual Impairment (CVI)

is a disability that

entails a visual deﬁcit, due to a brain damage (Roman-

Lantzy, 2007). People affected by this disability need

that an object is moving to be able to see it, have a

reduced ocular ﬁeld and ocular delay, and they ﬁnd

difﬁculties to understand complex images. Moreover

they are not able to see and touch an object at the same

time: they usually watch the object ﬁrst, and then they

try to touch it, often loosing the eye contact. A child

affected by CVI can experience all (or a set of) this

difﬁculties, with different level of graveness. In addi-

tion, since this disability is originated into the brain,

these children could often experience other disorders,

i.e. motor disabilities.

As shown by Malkowicz at al., an early interven-

tion can increase the possibility for children to drasti-

cally reduce the effects of this disability (Malkowicz

et al., 2006). For this reason, it is very important to

identify this problem at early ages, to perform a diag-

nosis and a personalized rehabilitation program.

A good diagnosis can be achieved only with the

total collaboration and attention of the patient. It is

Also known as Cortical Visual Impairment.

not easy to capture children attention during a visual

acuity test, because test exercises (like Lea symbols)

are extremely boring and children usually do not pay

much attention to the questions of the doctor and so to

the answers they give. As a result, the diagnosis may

become inaccurate.

In this paper we propose a game for a personalized

rehabilitation of children affected by CVI. We pro-

pose the serious games paradigm to get attention and

a touch interface for a more natural interaction with

the system. The use of a serious game allows to obtain

as much attention as possible from the child and to

reduce the drop-out-from-therapy phenomenon: the

more the child has fun, the more attention he/she will

pay to the game-exercises and he/she will spend much

more time doing the rehabilitation exercises.

The game interface must be ﬂuid to adapt itself to

different situations: the child could play the game us-

ing different devices, e.g., a tablet, a computer with

or without a touch monitor, etc. The game must work

even in absence of the network connection. Finally

the game must be conﬁgurable to adapt itself to any

child with different difﬁculties, and must evolve to-

gether with the improvement of the child.

The paper is organized as follows: Section 2 dis-

cusses background and related works. The usage sce-

257

Ciman M., Gaggi O., Nota L., Pinello L., Riparelli N. and Sgaramella T..

HelpMe!: A Serious Game for Rehabilitation of Children Affected by CVI.

DOI: 10.5220/0004371002570262

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 257-262

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

narios and the developed game are presented in Sec-

tion 3 and Section 4. The architecture of the system is

deﬁned in Section 5. Section 6 discusses implemen-

tation issues. Finally, we conclude in Section 7.

2 RELATED WORKS

When we talk about serious games, we talk about

games or applications which are developed not only

for fun, but to hide, under the games, some exercises

to develop particular skills of the user. Actually there

are a lot of different applications of serious games,

e. g., military ﬁeld, educational ﬁeld or governmental

ﬁeld (Michael and Chen, 2006).

Serious games are becoming very important, ei-

ther for doctors, e. g., for their training or to simulate

real-life experiences, and for patients, e. g., to hide

rehabilitative exercises under a game. Esteban at al.

developed a system to combine 3D computer simula-

tion to the learning process for new doctors, to teach

them particular procedures (Esteban et al., 2011).

Other approaches show the goodness of the us-

age of serious games with children. De Bortoli and

Gaggi showed how a visual acuity test can be hidden

under a much more interesting game, with the conse-

quence that children pay much more attention to the

exercises, and so to the answer for the doctor, with

the result that the diagnosis will be more accurate (De

Bortoli and Gaggi, 2011).

Other authors ((Di Loreto and Gouaich, 2011),

(Gaggi et al., 2012)) showed that not expensive

equipment and serious games can open opportunities

for home rehabilitation, reducing the drop-out-from-

therapy phenomenon, even with children, and for re-

habilitation programs that could last several months.

To the best of our knowledge, the ﬁrst attempt to

use a game for rehabilitation of children affected by

CVI was carried out by Laura Campa

na of the Junior

Blind of America. She has shown, that if traditional

rehabilitation tools are replaced by iPads with some

simple games, even without any speciﬁc goal and

which are not created for this particular kind of chil-

dren (i. e., Bubbles Magic) that present some words

or pictures and play different sounds, the result is that

the child is attracted by the pictures and the sounds

on the device, he/she pays lot of attention to the tablet

and to what happens on the screen (Campa

na, 2012).

Tap-n-see Zoo is an application speciﬁc for children

with CVI which moves a teddy bear on the screen and

plays a sound when the child taps on it.

Our solution improves this ﬁrst approach since it

integrates the serious game with an eye-tracker sys-

tem to record the child’s eyes movement during the re-

habilitation program and to better measure his/her im-

provements and it proposes a game to train a speciﬁc

skill: the problem-solving capabilities of the child.

3 USAGE SCENARIOS

Our goal is to train the ability to see and touch an

object at the same time. This kind of rehabilitation

requires a long period of training, which must be per-

formed every day, therefore not only in the hospital,

but also at child’s home.

To measure if the training process has a positive

result, the doctor needs a precise way to measure the

performance of the children during all the rehabilita-

tion program. For this reason, we need to be able to

acquire as much data as possible about the behavior

of the child, therefore our system uses an eye-tracker

system to record the eyes gaze during all the game

session. Two problems arise: the eye tracker system

costs, therefore we cannot assume that every child has

it at home. Moreover, it requires a sufﬁciently illumi-

nated environment with a neutral background.

Since the rehabilitation program, for being effec-

tive, needs to be performed almost every day, we must

allow the child to play the game with any device. For

this reason,the application has to be portable over sev-

eral platforms and devices, e.g. with different screen

resolutions, and must support different input methods,

e.g. touch interfaces and standard input interfaces.

Further, the system has to be robust to the absence

of a component, i.e., the eye tracker system, in order

to reduce the minimum cost of the needed equipment,

and to the absence of Internet connectivity, to allow

children to play the game even with a tablet. Even

in this cases, the system has to collect data, though

incomplete, but still sufﬁcient for further analysis.

For this reasons, our system was developed to be

adaptable to any possible scenario, without the need

to develop different speciﬁc-scenario applications. As

well known, web interfaces are the best candidates to

ensure the highest portability over different devices.

4 GAME DESCRIPTION

The developed game was called Help Me! and has

two goals: to train the ability to see and touch an ob-

ject at the same time and to train the problem-solving

capabilities of the child.

The location of the game is the North Pole, in par-

ticular at Santa Claus’ laboratory. The child has to

help a pixie to ﬁll, on time, the bag of Santa Claus

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

258

with proper gifts. Each level of the game has a differ-

ent family of objects as target, e. g., “musical instru-

ments”, “clothes for dolls”, “cars” and so on, each of

which is composed by a set of different images that

show objects belonging to that particular family.

HelpMe! proposes to the child a set of images;

the child has to discriminate between target images,

i. e. images that belong to the target family, and dis-

tractors, i. e., images which belong to other fami-

lies, putting the ﬁrsts inside the Santa Claus’ bag, and

throwing out of the screen the last ones. Therefore,

the main tasks that the child has to complete are to

understand what is presented on the screen, to decide

the operation to perform and to move the object in the

right position, i. e., in the bag or out of the screen.

The game is challenging for children affected by

CVI because the ﬁrst operation requires the child to

be able to focus on an object, the second one involves

his/her problem-solving capabilities, and the last op-

eration requires the child to be able to see and touch

an object at the same time. To avoid that the child be-

comes more interested on the background image in-

stead of the objects presented on the screen, we try

to keep the background image as easier as possible,

avoiding the usage of lot of details.

Every level is described inside the system by a

target family, the number of target images and dis-

tractors which compose that level and the maximum

amount of time (in seconds) the child can use to give

an answer. The system allows to conﬁgure every level

with a sequence of images, both target and distractors,

organized according to a speciﬁc pattern deﬁned by

the doctor and to adapt these pattern for each child.

Furthermore, the system provides a lot of sounds

and audio to guide the child during the game, i.e. to

give the ﬁrst instructions, to tell to the child which is

the target family of each level, to provide live feed-

back about child behavior and choices etc.

If the child fails to discriminate one of the images

of a particular level, the game asks to the child to re-

peat that level. After three failures in the same level,

the game proposes the next level anyway.

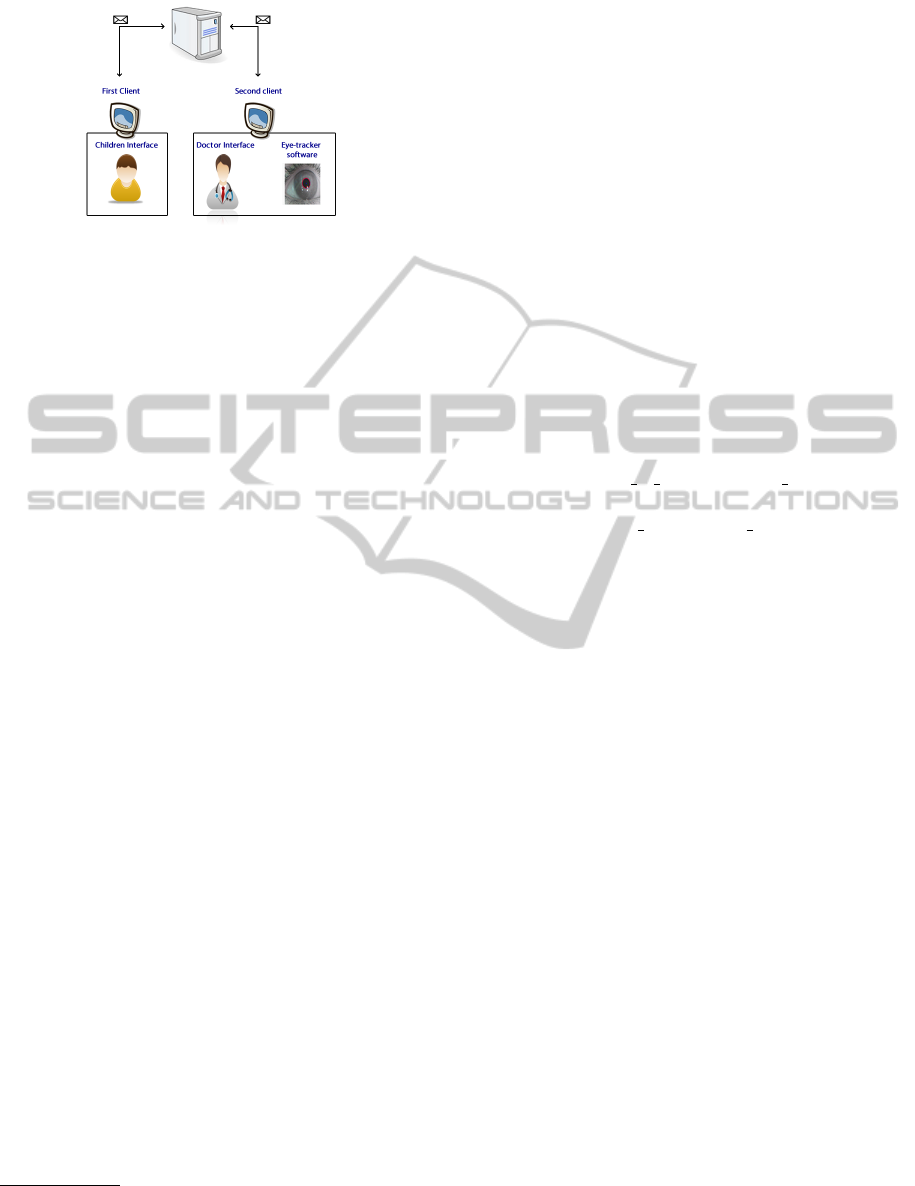

5 ARCHITECTURE OF THE

SYSTEM

The design of the system architecture has been deeply

inﬂuenced by the requirement, discussed in Section 3,

that the system can be used in very different scenarios,

and has to transform its user interfaces gracefully, in

order to adapt itself to the different characteristics of

each environment and to remain usable by all the chil-

dren with any kind of devices. We must note here that

the system does not need to provide all its features in

all situations, but it must be robust to the absence of

some component, e. g., even if the eye tracker is not

available when a child is at home, the system must

provide the possibility to play the game even with the

child computer or tablet. In this case the system will

record only the touch interactions of the child and not

the movement of the eyes.

For this reason, the system has been structured in

four different components, following a client-server

architecture. In particular our system includes:

1. a server, which manages, synchronizes and stores

data produced from the other components;

2. an eye-tracker system that produces information

relative to eyes position;

3. the user interface for the children, i. e., a compo-

nent responsible to present the game and manage

child interactions;

4. the user interface for the doctor, i. e., a compo-

nent which is able to present data collected on the

child performances. Moreover, it gives to the doc-

tor the possibility to change the game behavior to

better adapt it to a speciﬁc patient.

All the components have been developed as much

independent as possible, so that they can be removed,

or replaced in the future. This is particular important

both to adapt the system to particular situations, e. g.,

the absence of the eye tracker system or if the child

uses a tablet instead of a computer to perform his/her

rehabilitation exercises, and to allow an easy recon-

ﬁguration of the system. As an example, we use an

open source eye tracker system. Commercially avail-

able eye tracker systems are more accurate but also

more expensive. If the budget allows to buy one of

this system, it can be easily integrated in our system.

The server component is the more important com-

ponent of the system. It must be accessible through

the net in order to receive and manage the packets

from the other components. It even stores several in-

formation, like child performances or game settings.

The eye-tracker system is responsible to manage

all the tasks necessary to determine where the child

is watching on the screen during the exercises. The

system is composed by a ThorLab web cam (Thor-

labs, 2012), two infrared lamps and a software de-

veloper by the ITU GazeGroup from Denmark (ITU

GazeGroup, 2012) that analyzes the information that

comes from the camera.

Before the tracking process, the software requires

a calibration step in which the system asks the child

to focus on some speciﬁc points of the screen, deﬁned

by the software itself. We use some funny pictures, in-

stead of a red dot in the original software, to maintain

HelpMe:ASeriousGameforRehabilitationofChildrenAffectedbyCVI

259

Figure 1: System architecture implemented for HelpMe!

the serious game paradigm also in this phase.

Users interfaces are managed by two speciﬁc com-

ponents: a client for the child to play the game, and

one for the doctor to manage the game settings and to

provide online information about children behavior.

Given the particular type of users, children af-

fected by CVI, the choice of the interaction modal-

ity is very important. As shown by Forlines at al.,

the touch interfaces are a really natural paradigm

for children; indeed they interact with the screen as

they would interact with a real object (Forlines et al.,

2007). For this reason, the interaction method pre-

ferred for the children interface component is a touch

interface, to better involve the children to the game

and naturalize the interaction with it, through a tablet

or a touch monitor. However, it is possible to interact

with a mouse if a touch device is not available.

6 IMPLEMENTATION OF THE

SYSTEM

As discussed in Section 3, to address portability, the

game and the child interface must be usable on any

device. For this reason, the application has been de-

veloped as a Rich Internet Application (RIA), a web

application that works with lots of data elaborated

both by the client and the server, exchanged in an

asynchronous way, with a look and feel similar to

desktop application.

Our application has been developed using the new

HTML5 standard, that does not requires to download

a speciﬁc plugin, but only to use a browser that sup-

ports it. Unfortunately, not all the versions of the

browsers support HTML5 standard, but its support is

widespread over the actual browsers

Another requirement for this system was to take

up little space, so that it can be used in a doctor’s

Internet Explorer v. 9 (current 10), Chrome v. 10 (cur-

rent 23), Firefox v. 3.6 (current 17), Safari v. 5 (current 6)

and Opera v. 11.1 (current 12.1)

ofﬁce. For this reason, we managed to use the min-

imum number of computers and other devices. The

ﬁnal architecture of the system is composed, when all

the components are available, by the server and two

computers, one dedicated only for the child (which

could be replaced by a tablet) and one for the doc-

tor interface and the eye-tracker system (the last one

will work in background), as shown in Figure 1. We

cannot use only one device, because, even if we do

not consider performances degradation, this solution

would require to the doctor and the child to compete

to get the focus on their own window to interact with

the proper software interface.

6.1 Communication Protocol

The client-server communication is based on a sim-

ple protocol of packets exchanging encoded into the

JSON format. Every packet is composed by a “type”

ﬁeld, which speciﬁes which is the meaning of that

packet, e. g., “ready to play” or “game settings”, and

other ﬁelds, that depends on the “type” ﬁeld, e. g.,

“data”, “time”, “pos top” or “pos left”, that contain

the real information of that packet.

Communication between the clients and the server

has been developed using WebSocket API, a new fea-

ture of HTML5 which allows to deﬁnes a new com-

munication protocol that creates a full-duplex single

socket connection between server and client (IETF,

Internet Engineering Task Force, 2012).

The WebSocket protocol is implemented, at client

side, by the browser, therefore, we only needed to de-

velop a server. At the time of the development of this

project, a only Java implementation of the server sup-

ported the last speciﬁcation of the WebSocket hand-

shake and the WebSocket protocol. For this reason,

the server component was written in Java 7.

The usage of the WebSocket protocol provides

several improvements in real-time application per-

formances. Firstly, it reduces the amount of over-

head introduced in each information packet, reduc-

ing the throughput necessary to send all the packets.

Secondly, it reduces latency, because after the initial

handshake between the client and the server, every

time the server has new data for the client it can send it

immediately, without waiting for a new request from

the client (like the polling technique).

The use of WebSocket allows to provide to the

doctor a real-time feedback about the behavior of the

child, with information packets sent every 40 ms (lim-

ited by eye-tracker performances). Figure 2 shows

the doctor interface: the server receives, records and

sends to the doctor client the movements of the image

(the red line), of the user touch (the light green line)

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

260

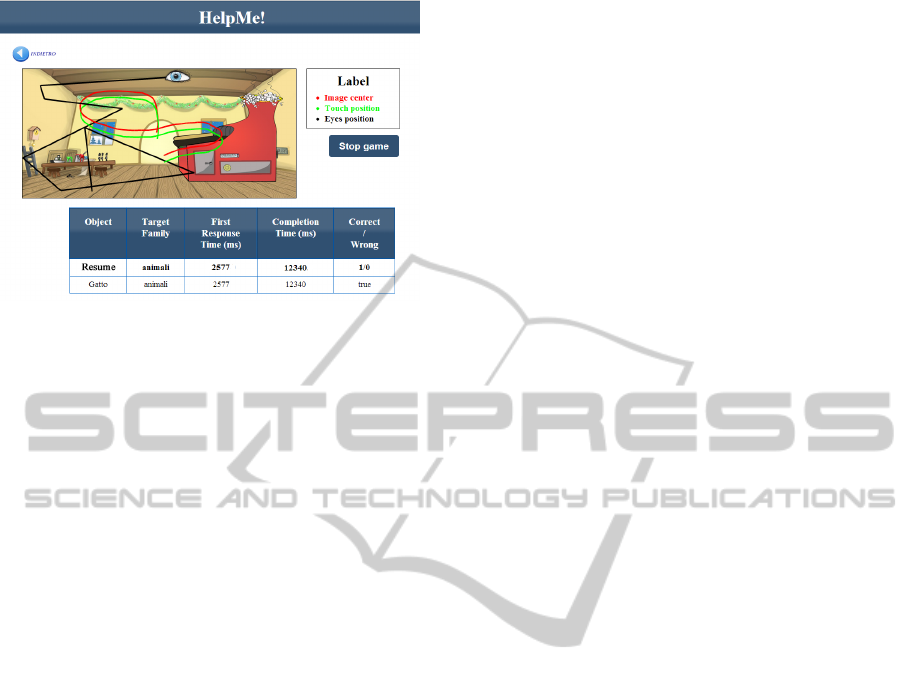

Figure 2: Simple feedback of child interaction with the sys-

tem provided to the doctor in real-time way

and of the gaze (the black line) along the time. In this

way, the doctor is able to watch what is happening on

the child side, viewing where the child is touching,

how he/she is moving the image on the screen, and

where he/she is watching. Furthermore, we provide

several summary information about child choices and

interaction with the game.

6.2 Data Storage

The doctor can consult data during the child exercises

or ofﬂine, for further analysis. For each session game

a .ini ﬁle stores information about the used device, the

screen size, etc. Information about the image position

on the screen, the touch interaction of the child and

where the eyes are watching on the screen are stored

into three different text ﬁles, in which each entry, i.

e., a packet, follows the pattern h∆T, le f t, topi where

∆T is the timestamp, and left and top contains the left

position and the top position of the recorded element

(the touch position, the center of the image or where

the eyes are watching) on the screen.

Even the exercises settings used by the doctor for

each child are stored in the server with an XML ﬁle

(every child has his own settings associated), provid-

ing the possibility to the doctor to use several times

the same exercise with the same child, avoiding him

to insert every time the same settings (this is particular

important for performances analysis for the doctor).

6.3 Portability Issues

To improve the portability of the system, we use other

two important features of HTML5: local storage and

cache manifest. When a cache manifest ﬁle is asso-

ciated to an HTML page, the browser reads this ﬁles

and downloads all the ﬁles listed in its cache, that are

all the ﬁles necessary to provide the requested page.

In this way, we have a performance improvement (the

browser does not need to download all the ﬁle ev-

ery time) and the browser can provide the application

even without Internet connectivity.

The Internet connectivity is necessary only to send

to the server the information stored during the reha-

bilitation made at home. The server receives this in-

formation, saves them and calculates an evaluation of

each exercise. All the information are stored in the

database to provide to the doctor the possibility to

watch a simulation of the rehabilitation program per-

formed by the user and his/her progress.

At the current state of art, browsers available on

tablet are not able to reproduce mode than one audio

at the same time, for this reason, we used the Phone-

Gap (Adobe Systems, 2012) framework to carry out

the conversion from a web application to a native ap-

plication for any available tablet.

The application has been successfully tested with

Chrome from version 14.0, Firefox from version 11.0,

Safari from version 5.0 and Opera from version 12.0.

6.4 Synchronization of the Components

The goal of the system is to train the child and to pro-

vide information useful to the doctor. This informa-

tion are: the image position, where the child is touch-

ing and where he/she is watching on the screen. This

information comes from two different sources: the

ﬁrst two from the client dedicated to the child inter-

action, and the last one from the eye-tracker compo-

nent. Therefore, the main task of the server is to syn-

chronize and store this information during the session

game, in order to avoid loss of data.

To align all the packets along a common time line,

every packet is timestamped with a value ∆T , repre-

senting the offset with referent to a common initial

time zero which represents the beginning of the game

or the beginning of the eye-gaze tracking.

Due to the natural difference between clocks in

different autonomous computers, the starting time for

the game and the eye-tracking software will be differ-

ent. But this different times have to represent the same

UCT time, in order to start their operation at the same

moment. In this way, if two packets have the same ∆T

(or with a difference less than 40ms) the information

provided are relative to the same moment.

The server calculates the starting time for every

session of the game using its own clock (basically, ﬁve

seconds after the entire system is ready to start). Then

it converts the starting time to the corresponding time

for the each client. At this point, the two clients can

start their job at the time received by the server. Every

clients calculate the ∆T values based on the start time

HelpMe:ASeriousGameforRehabilitationofChildrenAffectedbyCVI

261

value received by the server.

The algorithm used to calculate the starting times

for the two clients is based on the work by Sichitiu

and Veerarittiphan, that deﬁnes the time of a client

as a linear function of the server time based on two

parameters, previously calculated during a synchro-

nization phase where lots of packets that contains

time information are exchanged between server and

client (Sichitiu and Veerarittiphan, 2003). We use

500 packet for the estimation of the Round Trip Time

(RTT). This synchronization step usually requires less

then a minute

and must be performed only once for

each client, the ﬁrst time it is connected to the system.

7 CONCLUSIONS AND FUTURE

WORKS

This paper presents a system for rehabilitation of chil-

dren affected by CVI with a serious game, called

HelpMe!. The game aims at training the problem

solving capabilities of these children and their ability

to watch, touch and move an object at the same time.

To the best of our knowledge, this system represents

the ﬁrst integration of an eye-tracker system with a

serious game to train some capabilities. The game is

adaptable to any kind of device, and robust to the ab-

sence of internet connection. Unfortunately, even if

the game can be played, potentially, in any device, we

must note that devices with very small screen, like the

cell phones, strongly reduce the usability of the game.

We asked to an oculist and two psychologists to

review the system, in order to evaluate the usability

of the game for children affected by CVI. They sug-

gested to remove some details from the background

image of the game, initially crowded with gifts and

Christmas decorations, that may act as distractors for

children affected by CVI that can experience some

difﬁculties in understanding the image itself and in

recognizing the object to analyze for the game. This

suggestion has been implemented in the system.

Moreover, a small group of children, with the

same age of the target users, but not affected by CVI,

play with the game, without the eye tracker system. In

this second test, we wanted to study if the children got

engaged with the game, and the result was positive.

The use of HTML5 standard and the PhoneGap

framework has deeply inﬂuenced the development of

The time required for the synchronization phase de-

pends on the network bandwidth. We made some test using

LAN, but since this process is performed only once for each

client, this value does not affected the overall performance

of the system.

the project since they allow to develop a unique ap-

plication that can be made available on line, or built

for different devices without the need to re-implement

the game into another programming language.

Future works will be dedicated to study the pre-

cision of the system, which may depend on the cali-

bration step. In this step, the system asks to the child

to focus on an image placed in ﬁve different places of

the screen, the four corners and its midpoint. Depend-

ing on the graveness of CVI, some children could not

perform precisely the calibration step, reducing the

quality of the eye gaze calculated. We plan to add

an evaluation system of the training phase, in order to

provide a measure of the precision of the child.

REFERENCES

Adobe Systems (2012). Phonegap framework, http://

phonegap.com/.

Campa

na, L. (2012). iPad Apps for Children with Visual

Impairments. In Proc. of CTEVH, 2012.

De Bortoli, A. and Gaggi, O. (2011). PlayWithEyes: A new

way to test children eyes. In Proc. of SeGAH, 2011,

pages 1–4.

Di Loreto, I. and Gouaich, A. (2011). Mixed reality serious

games: The therapist perspective. In Proc. of SeGAH,

2011, pages 1–10.

Esteban, G., Fernandez, C., Matellan, V., and Gonzalo,

J. (2011). Computer surgery 3D simulations for a

new teaching-learning model. In Proceedings of 1st

SeGAH, 2011, pages 1–4.

Forlines, C., Wigdor, D., Shen, C., and Balakrishnan, R.

(2007). Direct-touch vs. mouse input for tabletop dis-

plays. In Proc. of ACM CHI, 2007, pages 647–656.

Gaggi, O., Galiazzo, G., Palazzi, C., Facoetti, A., and

Franceschini, S. (2012). A serious game for predict-

ing the risk of developmental dyslexia in pre-readers

children. In Proc. of ICCCN, 2012, pages 1–5.

IETF, Internet Engineering Task Force (2012). The web-

socket protocol, RFC 6455.

ITU GazeGroup (2012). ITU Gaze Tracker, http://

www.gazegroup.org/home.

Malkowicz, D., Myers, G., and Leisman, G. (2006). Re-

habilitation of cortical visual impairment in children.

Journal of Neuroscience, pages 116–135.

Michael, D. R. and Chen, S. (2006). Serious games: games

that educate, train and inform. Thomson Course

Technology, 1st edition.

Roman-Lantzy, C. (2007). Cortical Visual Impairment: An

Approach to Assessment and Intervention. American

Foundation for the Blind, 1st edition.

Sichitiu, M. and Veerarittiphan, C. (2003). Simple, accurate

time synchronization for wireless sensor networks. In

Proc. of IEEE WCNC, 2003, pages 1266–1273.

Thorlabs (2012). High Resolution USB 2.0 CMOS Cam-

eras, http://www.thorlabs.de.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

262
