Simulation of Real-time Multiprocessor Scheduling with Overheads

Maxime Ch´eramy

1,2

, Anne-Marie D´eplanche

and Pierre-Emmanuel Hladik

1,2

CNRS, LAAS, 7 avenue du Colonel Roche, F-31400 Toulouse, France

Univ de Toulouse, INSA, LAAS, F-31400 Toulouse, France

LUNAM Universit´e - Universit´e de Nantes,

IRCCyN UMR CNRS 6597 (Institut de Recherche en Communications et Cybern´etique de Nantes), ECN,

1 rue de la Noe, BP92101, F-44321 Nantes cedex 3, France

Keywords:

Real-time, Scheduling, Simulation, Multiprocessor, Overheads, Cache.

Abstract:

Numerous scheduling algorithms were and still are designed in order to handle multiprocessor architectures,

raising new issues due to the complexity of such architectures. Moreover, evaluating them is difﬁcult without

a real and complex implementation. Thus, this paper presents a tool that intends to facilitate the study of

schedulers by providing an easy way of prototyping. Compared to the other scheduling simulators, this tool

takes into account the impact of the caches through statistical models and includes direct overheads such as

context switches and scheduling decisions.

1 INTRODUCTION

The study of real-time scheduling had regained inter-

est this last decade with the continuous introduction

of multiprocessor architectures. Multiple approaches

have been used to handle those architectures (Davis

and Burns, 2011). A ﬁrst approach, called partition-

ing, consists of splitting the task set into subsets. Each

of these subsets is allocated to a unique processor on

which a mono-processor scheduler is then run. In

contrast, a second approach, called global schedul-

ing, allows tasks to migrate from processor to proces-

sor. In that case, there is a single queue of ready tasks

and a single scheduler for all the processors. Finally,

as a compromise that aims to alleviate limitations of

partitioned (limited achievable processor utilization)

and global (non-negligibleoverheads) algorithms, hy-

brid policies such as semi-partitioned and clustered

scheduling have been proposed more recently (Bas-

toni et al., 2011).

By far the greatest focus on multiprocessor real-

time scheduling has been put on algorithmic and theo-

retical issues. Indeed, for the various scheduling poli-

cies, a lot of attention has been paid to deﬁne analyti-

cal schedulability tests. However,those results rely on

general and simple models of the considered software

and hardware architectures quite far away from the

practical ones. Such research must now address im-

plementation concerns as well. Actually, multiproces-

sor architectures bring more complexity with shared

caches and memory, new communication buses, inter-

processor interrupts, etc. They also raise new imple-

mentation issues at the operating system level: which

core should run the scheduler?, what data should be

locked?, etc.

Thus, new scheduling policies that try to take ben-

eﬁts from the speciﬁcities of the hardware architec-

ture (such as the caches) must be designed and tools

for studying them must be made available. One way

for this is to use a cycle-accurate simulator or even

a real multiprocessor platform, and to execute real

tasks. In that case, the results are very accurate, how-

ever it requires developing the scheduler in a low-

level language and integrating it into an operatingsys-

tem. This work can potentially take a lot of time. Fur-

thermore, the generation of various and realistic tasks

for a massive evaluation is laborious.

In consequence, it is preferable to use an

“intermediate-grained” simulator able to simulate

with a certain level of accuracy the behavior of those

(hardware and software) elements that act upon the

performances of the system. Such a simulator allows

fast prototypingand does not require a real implemen-

tation of the tasks nor the operating system. More-

over, extensive experiments can be easily conducted

and various metrics are available for analysis. Its in-

trinsic drawback is that it will never reﬂect exactly

how a scheduler behaves in details on a real system

Chéramy M., Déplanche A. and Hladik P..

Simulation of Real-time Multiprocessor Scheduling with Overheads.

DOI: 10.5220/0004455200050014

In Proceedings of the 3rd International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2013),

pages 5-14

ISBN: 978-989-8565-69-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

but it should be enough to give good insights on gen-

eral tendencies.

Our contribution is a simulation tool, called

SimSo (“SImulation of Multiprocessor Scheduling

with Overheads”), that is designed to be easy to use

and able to take into account the speciﬁcities of the

system, starting with LRU caches, context-save/load

overheads and scheduling overhead. SimSo

is an

open source tool, actively developed, designed to fa-

cilitate the study of the behavior of schedulers for a

class of task systems and a given hardware architec-

ture. For that, we propose to extend the Liu and Lay-

land model (Liu and Layland, 1973) to bring enough

information to characterize how the tasks access the

memory. This allows us to use statistical models to

calculate the cache miss rates and to deduce job exe-

cution times. Moreover, our simulator has been con-

ceived as ﬂexible as possible to be able to integrate

other task and architecture models.

This paper is organized as follows. First, we ex-

plain our motivation in section 2. The main principles

of real-time scheduling are explained in section 3.

Then we explain how the simulator has been imple-

mented in section 4. Section 5 presents the scheduler

component and section 6 deals with the integration of

the hardware models. We present the simulation soft-

ware in section 7 and we compare it to the existing

similar tools in section 8. To conclude, we summa-

rize our contribution and present our future works in

section 9.

2 MOTIVATION

Most of the multiprocessor real-time scheduling

strategies have been designed without taking into ac-

count the presence of caches and their effects on the

system behavior. Though, interferences on the cache

of preempted and preempting tasks allocated to the

same processor may cause additional delays (Mogul

and Borg, 1991). In the same way, when a cache

is shared by multiple processors, the execution of a

task can have a signiﬁcant impact on another task

running on another processor. Furthermore, schedul-

ing overheads and context switch overheads are often

regarded as negligible. However, on a multiproces-

sor system, schedulers tend to generate more preemp-

tions, more migrations and even more rescheduling

points in order to achieve a high utilization of the pro-

cessors (Devi and Anderson, 2005).

Signiﬁcant research effort has been focused on

the problem of real-time multiprocessor scheduling

Available at http://homepages.laas.fr/mcheramy/simso/.

since the late 1990’s, in particular in the area of

global scheduling. It led to a number of optimal al-

gorithms (PFair and its variants PD and PD

, ERFair,

BF, SA, LLREF, LRE-TL, etc.) that are very attrac-

tive because theoretically able to correctly schedule

all feasible task sets without processing capacity un-

used (Davis and Burns, 2011). However their prac-

tical use can be problematic due to the potentially

excessive overheads they cause by frequent schedul-

ing decisions, preemptions and migrations. There-

fore, being able to take them into account helps in the

predictability analysis of such real-time systems for

which the ﬁrst requirementis to meet time constraints.

Moreover, reducing the overall execution time of the

tasks can also bring signiﬁcant beneﬁts (for instance,

better response times or less power consumption).

Following these observations, recent research has

emerged and new scheduling algorithms appeared

which aim to reduce the overheads by bounding the

amount of preemptions (Bastoni et al., 2011; Nelis-

sen et al., 2012). Also, a few studies have shown that

avoiding co-schedulingtasks that heavily use a shared

cache can reduce the overall execution time (Fedorova

et al., 2006; Anderson et al., 2006). Finally, other re-

searches focus on cache space isolation techniques to

avoid cache contention on shared caches (Guan et al.,

2009; Berna and Puaut, 2012).

Our primary objective is the comparison of those

numerous scheduling policies and their associated

variants. Currently, the only way to compare them

is by far to try to put in relation the properties exhib-

ited by their authors: computational complexity,num-

ber of scheduling points, utilization bound, number of

task preemptions, number of task migrations. Such a

task is quite intractable since evaluations have been

made under separate conditions. Instead our intention

is to make available a framework allowing to study as

precisely as possible the performance of a scheduler

and to establish relevant comparisons between dif-

ferent scheduling policies based on the same bench-

marks. For instance, given a system correctly schedu-

lable with multiple scheduling policies, we would like

to pick the one that should be the most efﬁcient (less

overhead). For that, we would aim to identify general

trends for classes of tasks and hardware architectures.

A typical result could be: scheduler A is better than

B in most cases, except when the shared cache is too

small given the characteristics of the tasks.

We expect from these results to help the real-

time community to better understandthe cache effects

on scheduling, and bring new ideas that could help

to conceive schedulers which take beneﬁts from the

caches.

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

3 CONTEXT

In this part, we brieﬂy present the context of real-time

multiprocessor scheduling and its relevant models in

order to facilitate the understanding of the following.

This also precises a few assumptions made for the

simulation.

A real-time application is composed of tasks, i.e.

programs, to be run on a hardware architecture made

of a limited number of processors. Real-time means

that the computing of tasks has to meet time con-

straints (typically release times and deadlines). The

scheduler is a software system component whose pur-

pose is to decide at what time and on which processor

tasks should execute. Therefore, a real-time sched-

uler takes its decisions according to the urgency of

the tasks.

Tasks. The model most commonly used to describe

the tasks is the Liu and Layland one (Liu and Layland,

1973). In this model, a great abstraction is made since

a task is simply viewed as a computation time. This

means that its functional behavior is ignored as it will

be discussed in section 6. In our simulation, when

the caches are taken into consideration, some extra

parameters are necessary as explained in 6.2.1.

A task can be respectively periodic, sporadic, or

aperiodic depending on its inter-activation delay, re-

spectively constant, minimum, or unknown. A task

activation gives rise to the release of a job (an instance

of the task) that must complete before a given dead-

line date.

The tasks neither share memory nor communicate

between each other but precedence relations between

tasks may be speciﬁed so that the activation of an ape-

riodic task follows the end of another task.

Processors. We consider symmetric multiprocess-

ing hardware architectures (SMP) which are the most

common multiprocessor design nowadays. In such

architecture, the processors are identical and share a

single main memory. Private and/or shared caches are

associated to them in a hierarchical way. The model-

ing of the cache hierarchy as well as their time ac-

cess costs are given in section 6.2.2. Note that we

focus our work on architectures with less than a few

dozen processors. Thus, Network On Chip (NoC) ar-

chitectures, which present an interest for many-core

systems, are not considered.

Scheduler. Among the various scheduling strate-

gies, one distinguishes time- and event-triggered ones

depending on the conditions in which the scheduler is

invoked: a rescheduling has to be made either at spec-

iﬁed instants, or when a job completes or a new one is

released. In addition, the scheduler may be preemp-

tive and decide to interrupt the execution of a job and

to resume it later. In the same way, schedulers may

allow tasks and their jobs to partly or freely migrate

and execute on multiple processors.

4 IMPLEMENTATION

4.1 Discrete-event Simulation

The core of the simulator is implemented using

SimPy (SimPy Developer Team, 2012), a process-

based discrete-event simulation library for Python.

The advantage of a discrete-event simulation over a

ﬁxed-step one is that it is possible to handle short du-

rations (such as a context-switch overhead) as well as

long durations(such as a job execution) with the same

computational cost. We have chosen SimPy because

it can be easily embedded as part of a software, it is

well-documented and easy to use.

According to SimPy’s vocabulary, a Process is an

entity that can wait for a signal, a condition or a cer-

tain amount of time. When it is not waiting, a Process

can execute code, send signals or wake up other pro-

cesses. This Process state is called “active”, opposed

to “passive”. A Process is activated by another Pro-

cess or by the simulation main class itself.

The simulation unit is the processor cycle to al-

low a great precision. However, for user convenience,

the attributes of the tasks, such as the period or the

deadline, are deﬁned in milliseconds (ﬂoating-point

numbers) and converted in cycles using a parameter

named cycles

per ms.

4.2 Architecture

The main classes and their mutual interactions are

represented in Figure 1 and described below:

• Model is the simulation entry point, it will instan-

tiate and launch the processors and the tasks as

active Processes. It will also call the init method

of the scheduler so that it can initialize its data

structures and launch timers if needed.

• A Task handles the activations of its jobs. The

activations are either periodic or triggered by an

other task (aperiodic). Depending on a property

of the task, the jobs that exceed their deadline can

be aborted.

• A Job simulates, from a time-related aspect only,

the execution of the task code. Its progression is

SimulationofReal-timeMultiprocessorSchedulingwithOverheads

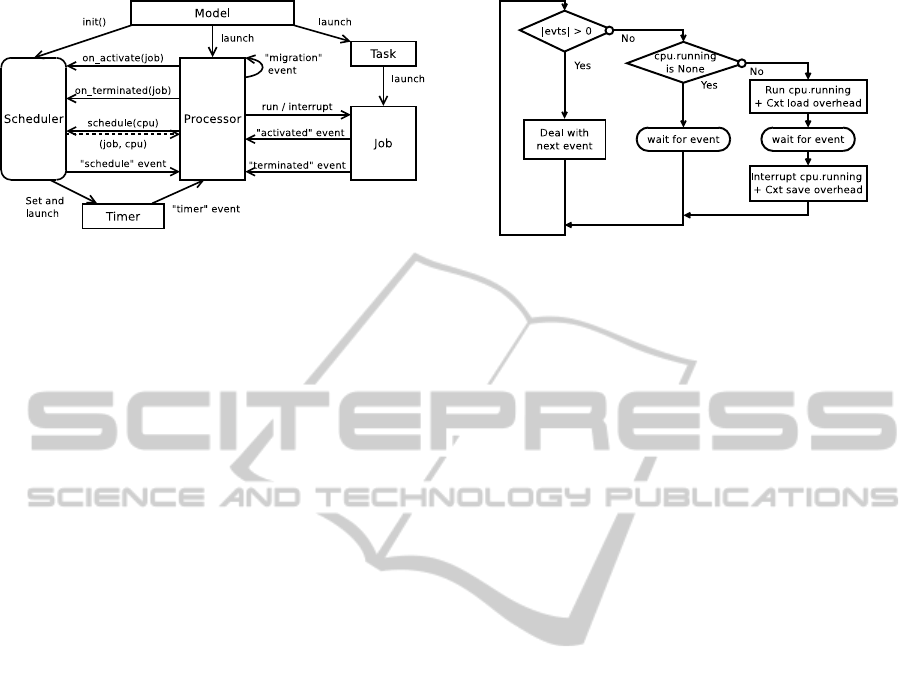

Figure 1: Interactions between main class instances. Pro-

cessor, Task, Job and Timer are Process objects and can

have multiple instances.

computed by the execution time model (see sec-

tion 6). A signal is sent to its running processor

when it is readyand when its execution is ﬁnished.

• A Processor is the central part and simulates the

behavior of the operating system running on a

physical processor. There is one Processor for

each physical processor. It controls the state of the

jobs (running or waiting) in accordance with the

scheduler decisions. It also deals with the events:

activation or end of a job, timer timeout, sched-

ule request, etc. The attribute “running” of a pro-

cessor points to the job that is running (if any).

Figure 2 provides a very simpliﬁed diagram rep-

resenting what a processor does. Similarly, as a

real system, some actions can induce overheads

(e.g. context switch or scheduling decision) and

only affect the concerned processor.

• A Timer allows the execution of a method after

a delay, periodically or not. On a real system,

this method would run on a physical processor,

thereby inducing a context switch overhead if a

job were running on the same processor. This be-

havior is reproduced by sending a “timer” event to

the processor.

• The Scheduler is described in section 5. Unlike

the previous elements, the scheduler is not a Pro-

cess object, all its methods except the init method

are called by the Processor objects.

5 SCHEDULER COMPONENT

5.1 Scheduler Interface

In order to implement a scheduler, the user has to de-

velop a class that inherits from the abstract Scheduler

class. The scheduler interface is partly inspired by

what can be found on real operating systems such as

Figure 2: Simpliﬁed execution workﬂow of a Processor.

The “terminated” event is a particular event that will not

cause a context save overhead.

Linux but kept as simple as possible. This interface

allowed us to develop partitioned, global and hybrid

schedulers. The scheduler interface is shown in Fig-

ure 1.

When the simulation is started, the init method is

called. It is then possible to initialize data structures

and set timers if required. When the scheduler needs

to make a scheduling decision, it sends a “schedule”

event to the processor that will execute the schedule

method. This event is sent as a consequence of a

job activation, termination or through a timer. This

lets the possibility to write schedulers that are either

time-driven, event-driven or both. The processor is

in charge of applying the scheduling decision (which

includes an inter-processor interrupt if needed).

5.2 Handling Various Kinds of

Scheduling

In order to deal with multiprocessor scheduling, vari-

ous strategies are possible: a global scheduler for all

the processors, a scheduler for each processor,or even

intermediate solutions. The support of any kind of

scheduler is done at a user level.

Take a partitioned scheduling as an illustration of

this, we deﬁne a “virtual” scheduler that will be in-

stantiated by the simulation and called by the proces-

sors. This scheduler will then instantiate one mono-

processor scheduler for each processor and allocate

each task to one scheduler. The links between the

processors and the schedulers as well as the links be-

tween the tasks and the schedulers are saved. Thus,

when a processor calls a method of the “virtual”

scheduler, the latter retrieves the concerned scheduler

and forwards the method call to it.

By generalizing this example by allocating one

scheduler to any number of processors and by allow-

ing a task to migrate from one scheduler to another,

we see that any kind of scheduling is feasible. Thus,

this approach has the advantageof being very ﬂexible.

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

Moreover, we provide a few examples to guide.

5.3 Lock

For global or hybrid strategies, some scheduler vari-

ables (such as the list of ready tasks) are shared be-

tween the processors. As a consequence, a protection

mechanism can be required to avoid inconsistencies.

Such protections form a bottleneck which induces ex-

tra overheads.

A mechanism of lock is provided by the simulator

in order to reproduce these overheads. This lock is

intended to prevent to run the scheduler at the same

simulation time on two or more different processors.

The developer of a scheduler can decide to deactivate

the lock by overriding the get

lock method.

5.4 Example

In this section, we present what a user could de-

velop to simulate a global EDF. The source code is

in Python.

A detailed explanation of this example is available

in the documentation of the tool. Instead we would

like to draw the reader’sattentionon the small number

of lines required. An actual implementation of this

policy in an operating system would require hundreds

of lines.

from core import Scheduler

class G_EDF(Scheduler):

"""Global Earliest Deadline First"""

def init(self):

self.ready_list = []

def on_activate(self, job):

self.ready_list.append(job)

# Send a "schedule" event to the processor.

job.cpu.resched()

def on_terminated(self, job):

# Send a "schedule" event to the processor.

job.cpu.resched()

def schedule(self, cpu):

decision = None # No change.

if len(self.ready_list) > 0:

# Get a free processor or the processor run-

# ning the job with the latest deadline.

key = lambda x: (1 if not x.running else 0,

x.running.absolute_deadline

if x.running else 0)

cpu_min = max(self.processors, key=key)

# Get the job with the highest priority

# within the ready list.

job = min(self.ready_list,

key=lambda x: x.absolute_deadline)

# If the selected job has a higher priority

# than the one running on the selected cpu:

if (cpu_min.running is None or

(cpu_min.running.absolute_deadline >

job.absolute_deadline)):

self.ready_list.remove(job)

if cpu_min.running:

self.ready_list.append(cpu_min.running)

# Schedule job on cpu_min.

decision = (job, cpu_min)

return decision

6 JOB COMPUTATION TIME

6.1 A Generic Approach

Generally, scheduling simulation tools consider only

the worst-case execution time (WCET) for the execu-

tion time of the jobs. Depending on the tool, the user

may also have the possibility to conﬁgure the simu-

lator to use the average-case execution time (ACET)

or a random duration between the best-case execution

time (BCET) and the WCET.

One of our objectives is to take into consideration

the impact of the memory accesses on the computa-

tion time in order to be as accurate as possible. A sig-

niﬁcant difference with the classical approach is that

the total execution time of a job can only be known

when it ﬁnishes. Indeed, the execution time depends

on the scheduling decisions (which tasks were execut-

ing on the other processors, was it preempted, etc.).

The components needed to compute the execution

time are purposely isolated from the rest of the sim-

ulator and implement a generic interface to interact

with the simulator. As shown in Figure 3, the model

receives an event when the state of a job is changed.

The job uses the get

ret method to get a lower bound

of its remaining execution time. While this duration

is strictly positive, the job is not ﬁnished.

For example, a computation time model based on

the WCET is trivial. The get

ret method simply re-

turns the WCET minus the duration already spent to

run the job. The remaining methods of the interface

have nothing to do because that duration is given and

kept up-to-date by the job itself.

This design is sufﬁciently generic to easily swap

the models used to compute the execution time of the

jobs. Hence, alternative models could be developed to

simulate a different hardware or to adjust the accuracy

of the results.

SimulationofReal-timeMultiprocessorSchedulingwithOverheads

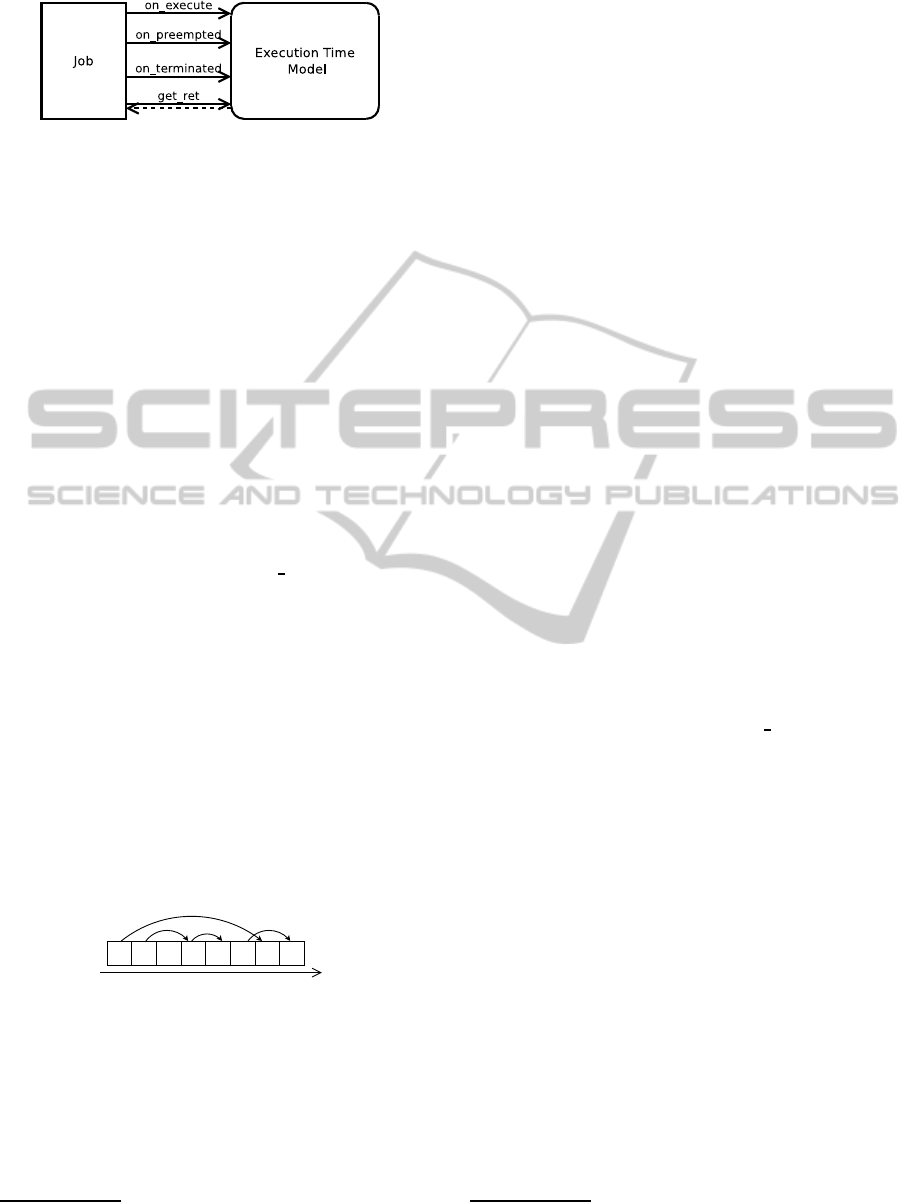

Figure 3: Interface of any execution time model.

6.2 Modeling Memory Behaviors

In this section, we brieﬂy present how the impact of

the caches is implementedas an execution time model

as explained above.

6.2.1 Memory Behavior of a Task

In order to characterize the memory behavior of the

tasks, we extended the model of Liu-Layland with ad-

ditional information. For each task τ, the user must

provide:

• Number of instructions: the average number of

instructions executed by a job of τ.

• Base CPI: the average number of cycles required

to execute an instruction without considering the

memory access penalties (base

cpi

• Memory access rate: mix

is deﬁned as the pro-

portion of instructions that access the memory

among all.

• Stack distance proﬁle (SDP): the distribution of

the stack distances for all the memory accesses

of a task τ is the stack distance proﬁle (sdp

where a stack distance is by deﬁnition the number

of unique cache lines accessed between two con-

secutive accesses to a same line (Mattson et al.,

1970). An illustration of this distance is provided

by Figure 4. Such metric can be captured for

both fully-associative and N-way caches (Chan-

dra et al., 2005; Babka et al., 2012).

A B C B B D A D

Figure 4: Memory accesses sequence. A, B, C and D are

cache lines and numbers indicate the stack distances.

These information can be automatically generated

or retrieved from a real application. The number of

instructions, the memory access rate and the stack dis-

tance proﬁle can be generated using tools such as an

extension to CacheGrind (Babka et al., 2012), Stat-

Stack (Eklov and Hagersten, 2010) or MICA

(Hoste

MICA does not generate complete SDP so we had to

patch it.

and Eeckhout, 2007). The base CPI requires a cycle

accurate simulator. It is the computation time in cy-

cles divided by the number of instructions.

6.2.2 Cache Hierarchy

We consider hierarchical cache architectures. A list

of caches (e.g. [L1, L2, L3]) can be associated to

each processor. Caches can be shared between several

processors while it respects the inclusive

property.

A cache is deﬁned by a name, its associativity, its

size, and the time needed to reach it (in cycles).

For now, only data caches with Least Recently

Used (LRU) as replacement policy is considered, the

generalization to instruction caches is left for future

work. Hence, a few modiﬁcations in the cache de-

scription are likely to occur in order to make the dis-

tinctions between instruction caches, data caches and

uniﬁed caches.

6.2.3 Cache Models

Depending on which tasks are running in concurrency

and the initial state of the caches, the execution speed

of the jobs varies.

The goal of the cache models is to determine, on a

given time interval, the average number of cycles per

instructions (CPI) of a job, taking in consideration the

impact of the various tasks on the caches. Using the

CPI, it is then possible to determine the number of

instructions executed by a job during that interval.

The duration returned by the get

ret method (see

Figure 3) is simply the time required to execute the re-

maining number of instructions if the job was running

alone on the system without any interruption.

Cache sharing induces two kinds of extra cache

misses:

• Following a preemption: a job may have lost its

cache afﬁnity when another job is running on the

same processor. Some of the evicted lines should

then be reloaded.

• Shared between multiple processors: two or more

tasks that are simultaneously running on differ-

ent processors with a shared cache, do not tend

to share this cache equally.

For the ﬁrst case, we have taken the simplifying

assumption that the cache ﬁlling follows an exponen-

tial distribution and we use the SDP of the task to de-

termine the number of lines that should be reloaded.

However, other models exist (Liu et al., 2008) and we

Caches are inclusives if any data contained in a level of

cache is contained on the upper level.

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

are also currently working on better estimations of the

cache loading using Markov chains.

For the second case, we used the FOA

model (Chandra et al., 2005) that has fast running

times and gives reasonable results according to the

authors. Obviously, other models (Eklov et al., 2011;

Chandra et al., 2005; Babka et al., 2012) could be im-

plemented as well.

The state of the caches (the number of lines for

each task) is kept up-to-date at each change in the sys-

tem (start, interruption or end of a job).

7 SIMULATION TOOL

7.1 Features

Open Source. The source code, the documen-

tation and the examples are freely available at

http://homepages.laas.fr/mcheramy/simso/.

Conﬁguration. The user interface of the simulator

(Figure 5) provides a straightforward graphical inter-

face to load the scheduler class and to deﬁne the tasks,

the processors, the caches and their hierarchy, and the

various parameters for the simulation. The resulting

conﬁguration is saved into an XML ﬁle. However,

such a ﬁle could also be generated automatically by

an external tool without using the graphical user in-

terface. This is important in order to run extensive

simulations with auto-generated properties.

Output. When the conﬁguration is completed and

checked, the user can launch the simulation and ob-

tain a Gantt chart representing the result of the sim-

ulation or a textual equivalent representation. Some

metrics are provided to the user such as the number of

preemptions, migrations, the time spent in the sched-

uler, the computation time of each job, etc.

Speed and Limitations. The simulation runs very

fast, as an example, simulating a global EDF with 4

processors, 10 tasks, 2 levels of caches for a duration

of 100ms (10

cycles) takes less than one second on

an Intel Core i5. There are no technical limitations on

the number of processors but the cache models imple-

mented in the present version have not been validated

by their authors for a large number of processors.

7.2 Use as an Educational Tool

The user interface of the simulator has been designed

keeping in mind it could also be used for an educa-

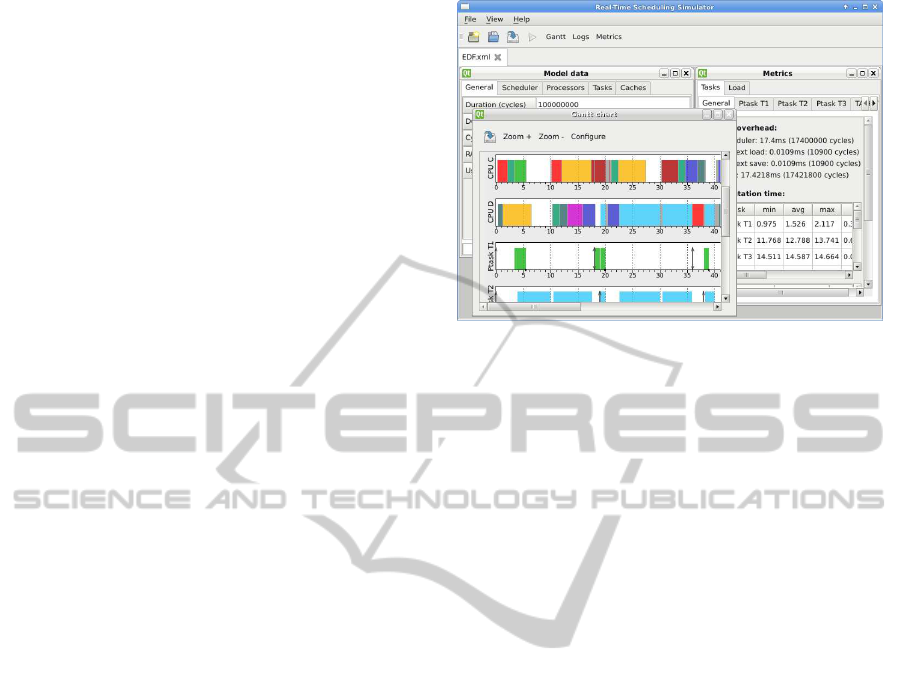

Figure 5: User interface of the tool showing the simulation

of a global EDF.

tional purpose. This is the main reason why all the

inputs can be set through a graphical user interface

and the results displayed in a Gantt chart.

As shown in the previous example, it allows a

fast prototyping of schedulers in Python. This lan-

guage is easy to learn and yet very powerful and ef-

fective (Radenski, 2006).

Regarding the simulation, it is also possible to

consider WCETs as effective task computation times.

Thus, the input is simpler and more usual.

This tool is already used by Master’s students in a

real-time systems course at INSA Toulouse. From an

applicative real-time project, students have to model

its various tasks and then use the simulator to under-

stand how the processors are shared between the tasks

using a ﬁxed priority scheduler.

7.3 Application Example

As a reminder, our primary goal is the study of

scheduling policies. In the following, we present

through a simple case study, how our tool could be

used to better understand the real behavior of a sys-

tem.

Problem Description. In this example, we would

like to compare the scheduling of a system using the

Earliest Deadline First algorithm with a global (G-

EDF) and a partitioned (P-EDF) strategy. G-EDF is

a generalization of EDF for multiprocessor that uses

a single ready task queue whereas P-EDF starts with

a deﬁnitive allocation of the tasks on the processors

and then runs multiple mono-processor EDF sched-

ulers for handling each processor.

SimulationofReal-timeMultiprocessorSchedulingwithOverheads

Input. The eight considered tasks are all periodic

and synchronous with the start of the simulation.

Their SDP was taken from the MiBench bench-

mark (Guthaus et al., 2001), the ﬁrst ﬁve tasks are

making more accesses to the memory than the last

three (according to their value of mix).

For the task partitioning phase (P-EDF only), a

WCET for each task is mandatory. WCET values

were chosen by boundingwith a safety gap the experi-

mental times given by the simulation. Table 1 synthe-

sizes the period and WCET values of the tasks. Task

partitioning was done using the First Fit algorithm.

The result of the partitioning is: {T1, T2}, {T3, T4,

T5}, {T6, T7}, {T8}.

Table 1: List of tasks (total utilization is 82.5%).

T1 T2 T3 T4 T5 T6 T7 T8

Period (ms) 20 20 15 15 10 10 10 10

WCET (ms) 11 9 7 5 2 6 4 3

The simulated hardware architecture, including

four processors and a cache hierarchy, is summa-

rized in Figure 6. Each L1-cache is an LRU fully-

associative cache of 2KiB (32 lines of 64 bytes). The

L2 cache is an LRU fully-associative cache of 16KiB

(256 lines of 64 bytes). The second level of cache is

relatively small when compared to what can usually

be found on modern architectures. This choice is jus-

tiﬁed by the small memory footprint of the selected

benchmarks and the will to show the impact of cache

contention through this example.

Figure 6: Simulated hardware architecture. Numbers repre-

sent the access time in cycles (10

−9

s).

The scheduling overhead is set to 0.1ms (100.000

cycles) and a context save or load overhead to

0.0001ms (100 cycles).

The duration of the simulation is ten seconds.

Observations. Table 2 shows the load using both

strategies. The payload corresponds to the time spent

executing the tasks (including cache overheads) and

the system load is the time wasted in the system

(scheduler and context-switch overheads). Because

of the order of magnitude of a scheduling overhead

compared to the overhead of a context save or load,

the system load is mostly the time spent waiting for

A periodic task releases a job every period time units.

a scheduler decision. The number of scheduling de-

cisions remains similar in both cases, however, the

global lock required for G-EDF adds an additional

overhead. We can assume that this gap in system load

between the two strategies will increase with more

processors. This is in accordance with the results of

Bastoni et al stating that G-EDF is not a viable choice

for hard real-time systems with a large number of pro-

cessors (24 in their study) (Bastoni et al., 2010).

Table 2: Load for both schedulers.

Total load Payload System load

G-EDF 72.2 % 68.0 % 4.2 %

P-EDF 68.3 % 65.1 % 3.2 %

The computation time of the jobs are shorter with

P-EDF compared to G-EDF as shown in Figure 7. In

proportion to G-EDF, the payload for P-EDF is 4.2%

lower in this example. The ﬁrst reason is that the tasks

that use the more the memory are merged in the ﬁrst

two processors, partly avoiding co-scheduling. The

second reason is the reduction of the number of pre-

emptions (1501 for G-EDF against only 666 for P-

EDF) and task migrations (3500 against 0) which led

to less cache reloading.

This result seems compatible with the work done

by Fedorova et al that shows in their case study an

improvement of the system throughput of 16-32% for

a non-real-time system (Fedorova et al., 2006).

T1 T2 T3 T4 T5 T6 T7 T8

min (G-EDF)

avg (G-EDF)

max (G-EDF)

min (P-EDF)

avg (P-EDF)

max (P-EDF)

Figure 7: Effective task Computation times.

Obviously, in order to conﬁrm these results, we

shall conduct larger studies. Because the duration of

a simulation run is very short, it is then possible to

run thousands of experiments with different conﬁgu-

rations. Such complete studies are in progress but out

of scope of this paper.

8 RELATED WORK

Most of the work on real-time multiprocessor

scheduling addresses the theory only. Davis and

Burns give a good insight of the current state of the

researches in their survey (Davis and Burns, 2011).

A ﬁrst approach for considering real-world over-

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

heads in the study of such scheduling policies is to

use a cycle-accurate simulator or a real system.

There are two major simulator available. The ﬁrst

one, Gem5 is the merger of the M5 and GEMS simu-

lators (Binkert et al., 2011). It simulates a full system

with various CPU models and a ﬂexible memory sys-

tem that includes caches. The second one, Simics, is a

commercial product able to simulate full-systems but

it is not cycle-accurate (Magnusson et al., 2002).

LITMUS

(Calandrino et al., 2006), developed

at the University of North Carolina (UNC), offers a

different approach. It is not a simulator but an exten-

sion of the Linux Kernel which provides an exper-

imental platform for applied real-time research and

that supports a large number of real-time multipro-

cessor schedulers.

With both kind of tools, a substantial investment

in time is required to learn how to use them and to

write some new scheduler components.

There are also several tools emerging from the

academic community and dedicated to the simula-

tion of real-time systems such as Cheddar (Singhoff

et al., 2004), MAST (Harbour et al., 2001),

Storm (Urunuela et al., 2010) and others (Rodr´ıguez-

Cayetano, 2011; Chandarli et al., 2012). Most of

these tools are designed to validate, test and analyze

systems. Storm is probably the most advanced tool

focusing on the study of the scheduler itself. However

it does not handle direct overheads such as context-

switches or scheduling overheads. Nor does it handle

the impact of caches.

9 CONCLUSIONS

This paper presents a simulator dedicated to the study

of real-time scheduling. It was designed to be easy

to use, fast and ﬂexible. Our main contribution,

when compared to the existing scheduling simulators,

is the integration of overheads linked to the system

(context-switching, scheduling decision) and the im-

pact of the caches.

We have shown in this paper that it is possible

to take the impact of the caches into consideration.

However, the models we currently use could proba-

bly be replaced by better ones. This replacement can

easily be done as explained in section 6. We are al-

ready thinking about new models but they have to be

validated using cycle accurate simulators.

Once our cache models will be validated and inte-

grated into the simulator, we will launch a large cam-

paign of simulations. As a reminder, our long term

goal is the classiﬁcation of the numerous scheduling

policies with practical considerations. We hope that it

will also help the researchers to spot the weaknesses

and the strengths of the various strategies. We would

be pleased if our simulation tool could be the source

of innovative ideas.

ACKNOWLEDGEMENTS

The work presented in this paper was conducted

under the research project RESPECTED (http://anr-

respected.laas.fr/) which is supported by the French

National Agency for Research (ANR), program

ARPEGE.

REFERENCES

Anderson, J., Calandrino, J., and Devi, U. (2006). Real-

time scheduling on multicore platforms. In Proc. of

the 12th IEEE Real-Time and Embedded Technology

and Applications Symposium (RTAS).

Babka, V., Libiˇc, P., Martinec, T., and T˚uma, P. (2012). On

the accuracy of cache sharing models. In Proc. of the

third joint WOSP/SIPEW International Conference on

Performance Engineering (ICPE).

Bastoni, A., Brandenburg, B., and Anderson, J. (2010). An

empirical comparison of global, partitioned, and clus-

tered multiprocessor edf schedulers. In Proc. of the

IEEE 31st Real-Time Systems Symposium (RTSS).

Bastoni, A., Brandenburg, B., and Anderson, J. (2011). Is

semi-partitioned scheduling practical? In Proc. of

the 23rd Euromicro Conference on Real-Time Systems

(ECRTS).

Berna, B. and Puaut, I. (2012). Pdpa: period driven task and

cache partitioning algorithm for multi-core systems.

In Proc. of the 20th International Conference on Real-

Time and Network Systems (RTNS).

Binkert, N., Beckmann, B., Black, G., Reinhardt, S. K.,

Saidi, A., Basu, A., Hestness, J., Hower, D. R., Kr-

ishna, T., Sardashti, S., Sen, R., Sewell, K., Shoaib,

M., Vaish, N., Hill, M. D., and Wood, D. A. (2011).

The gem5 simulator. SIGARCH Computer Architec-

ture News.

Calandrino, J. M., Leontyev, H., Block, A., Devi, U. C., and

Anderson, J. H. (2006). Litmus

: A testbed for em-

pirically comparing real-time multiprocessor sched-

ulers. In Proc. of the 27th IEEE International Real-

Time Systems Symposium (RTSS).

Chandarli, Y., Fauberteau, F., Masson, D., Midonnet, S.,

and Qamhieh, M. (2012). Yartiss: A tool to visual-

ize, test, compare and evaluate real-time scheduling

algorithms. In 3rd International Workshop on Analy-

sis Tools and Methodologies for Embedded and Real-

time Systems (WATERS).

Chandra, D., Guo, F., Kim, S., and Solihin, Y. (2005). Pre-

dicting inter-thread cache contention on a chip multi-

processor architecture. In Proc. of the 11th Inter-

national Symposium on High-Performance Computer

Architecture (HPCA).

SimulationofReal-timeMultiprocessorSchedulingwithOverheads

Davis, R. I. and Burns, A. (2011). A survey of hard real-

time scheduling for multiprocessor systems. ACM

Computing Surveys, 43(4).

Devi, U. and Anderson, J. (2005). Tardiness bounds under

global edf scheduling on a multiprocessor. In Proc. of

the 26th IEEE Real-Time Systems Symposium (RTSS).

Eklov, D., Black-Schaffer, D., and Hagersten, E. (2011).

Fast modeling of shared caches in multicore systems.

In Proc. of the 6th International Conference on High

Performance and Embedded Architectures and Com-

pilers (HiPEAC).

Eklov, D. and Hagersten, E. (2010). StatStack: efﬁcient

modeling of LRU caches. In Proc. of the IEEE Inter-

national Symposium on Performance Analysis of Sys-

tems Software (ISPASS).

Fedorova, A., Seltzer, M., and Smith, M. (2006). Cache-

fair thread scheduling for multicore processors. Tech-

nical Report TR-17-06, Division of Engineering and

Applied Sciences, Harvard University.

Guan, N., Stigge, M., Yi, W., and Yu, G. (2009). Cache-

aware scheduling and analysis for multicores. In Proc.

of the 7th ACM international conference on Embedded

Software (EMSOFT).

Guthaus, M., Ringenberg, J., Ernst, D., Austin, T., Mudge,

T., and Brown, R. (2001). Mibench: A free, commer-

cially representative embedded benchmark suite. In

Proc. of the IEEE International Workshop on Work-

load Characterization (WWC-4).

Harbour, M. G., Garc´ıa, J. J. G., Guti´errez, J. C. P., and

Moyano, J. M. D. (2001). Mast: Modeling and

analysis suite for real time applications. In Proc. of

the 13th Euromicro Conference on Real-Time Systems

(ECRTS).

Hoste, K. and Eeckhout, L. (2007). Microarchitecture-

independent workload characterization. Micro, IEEE,

27(3).

Liu, C. L. and Layland, J.(1973). Scheduling algorithms for

multiprogramming in a hard-real-time environment.

Journal of the ACM, 20.

Liu, F., Guo, F., Solihin, Y., Kim, S., and Eker, A. (2008).

Characterizing and modeling the behavior of context

switch misses. In Proc. of the 17th international

conference on Parallel architectures and compilation

techniques (PACT).

Magnusson, P., Christensson, M., Eskilson, J., Forsgren, D.,

Hallberg, G., Hogberg, J., Larsson, F., Moestedt, A.,

and Werner, B. (2002). Simics: A full system simula-

tion platform. Computer, 35(2).

Mattson, R., Gecsei, J., Slutz, D., and Traiger, I. (1970).

Evaluation techniques for storage hierarchies. IBM

Systems Journal, 9(2).

Mogul, J. C. and Borg, A. (1991). The effect of context

switches on cache performance. SIGOPS Oper. Sys-

tems Review, 25.

Nelissen, G., Funk, S., and Goossens, J. (2012). Reducing

preemptions and migrations in ekg. In IEEE 18th In-

ternational Conference on Embedded and Real-Time

Computing Systems and Applications (RTCSA).

Radenski, A. (2006). “python ﬁrst”: a lab-based digital in-

troduction to computer science. In Proc. of the 11th

annual SIGCSE conference on Innovation and Tech-

nology In Computer Science Education (ITICSE).

Rodr´ıguez-Cayetano, M. (2011). Design and development

of a cpu scheduler simulator for educational purposes

using sdl. In System Analysis and Modeling: About

Models. Springer Berlin / Heidelberg.

SimPy Developer Team (2012). http://simpy.

sourceforge.net/.

Singhoff, F., Legrand, J., Nana, L., and Marc´e, L. (2004).

Cheddar: a ﬂexible real time scheduling framework.

Ada Lett., XXIV(4).

Urunuela, R., D´eplanche, A.-M., and Trinquet, Y. (2010).

Storm a simulation tool for real-time multiprocessor

scheduling evaluation. In Proc. of the Emerging Tech-

nologies and Factory Automation (ETFA).

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications
