Model-Based Systems Engineering Tools
Devoloping the GUILTE System
Ana Luísa Ramos and José Vasconcelos Ferreira
Department of Economics, Management and Industrial Engineering, GOVCOPP Research Unit, University of Aveiro,
Campo de Santiago, 3810-193 Aveiro, Portugal
Keywords: GRAPHITE Matrices, GUILTE System, LITHE Methodology, Model-based Systems Engineering, Systems
Engineering, Traffic & Environment.
Abstract: The GUILTE (Guiding Urban InteLligent Traffic & Environment) system is part of a large, complex,
interdisciplinary, socio-technical domain at the agenda of world leaders, local authorities, academia, and
society-at-large. The main purposes of the system are to provide an integrated development framework for
the municipalities, and to support the operations of the urban traffic through Intelligent Transportation
Systems, highlighting two fundamental aspects: the evaluation of the related environmental impacts, and the
dissemination of information to the citizens, endorsing their involvement and participation. The
development process of the GUILTE system was supported by a novel Model-Based Systems Engineering
methodology, the LITHE (Agile Systems Modelling Engineering), which aims to lightening the complexity
and burdensome of the existing methodologies by emphasizing agile principles such as continuous
communication, feedback, stakeholders involvement, short iterations and rapid response, and also by a
graphical tool, the GRAPHITE matrices, developed to support model-based cooperative development
environments.
1 INTRODUCTION
The modern world is crowded of large,
interdisciplinary, complex systems made of other
systems, personnel, hardware, software, information,
processes, and facilities. The Systems Engineering
(SE) field proposes an integrated holistic approach
to tackle these socio-technical systems that is crucial
to take proper account of their multifaceted nature
and numerous interrelationships, providing the
means to enable their successful realization. The
Model-Based Systems Engineering (MBSE)
paradigm is an emerging approach in the SE field
and can be described as the formalized application
of modelling principles, methods, languages, and
tools to the entire lifecycle of those systems,
enhancing communications and knowledge capture,
shared understanding, improved design precision
and integrity, better development traceability, and
reduced development risks (Friedenthal et al, 2008).
A modern MBSE environment involves several
interacting elements (e.g., standards, methods,
modelling tools, applications) that must work
together to achieve a successful system which fulfils
the stakeholders’ expectations (Figure 1).

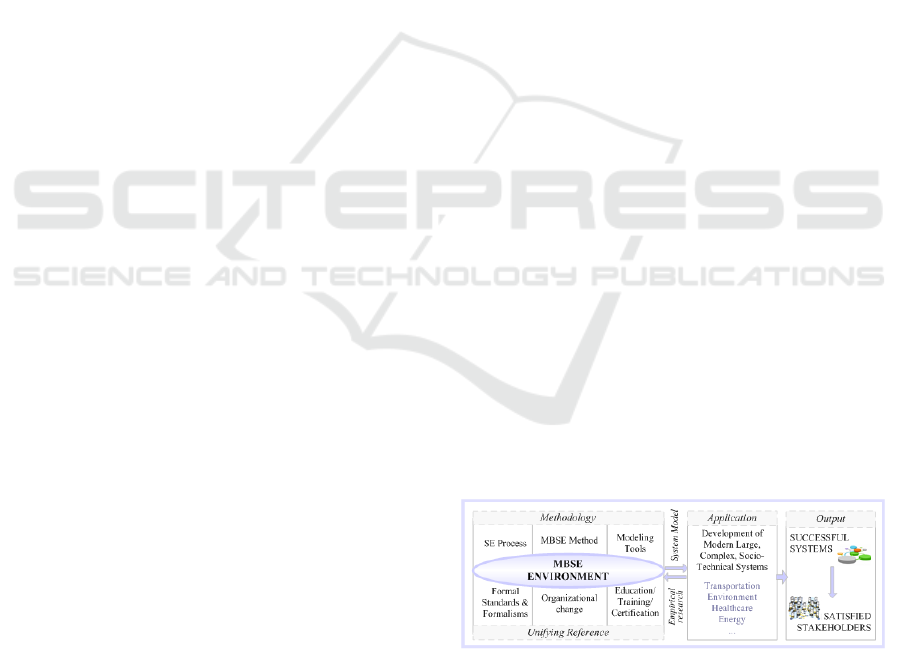

Figure 1: Integrated MBSE environment.
It is also characterized by a human-centric
perspective where the human role is regarded as
particularly important not only as a component of
the system but also as an integrative/decision-maker
element, enforcing the consideration of cognitive
aspects and human systems integration (HSI)
concerns throughout the engineering process and the
system life cycle (Ramos et al, 2013).
This work intends to present some MBSE tools
that can be used to support the agile development of
large, complex, and multidisciplinary systems. The
existing SE processes, methods, and tools to support
a MBSE environment were evaluated regarding their
adequacy to tackle the development of modern,
166
Luísa Ramos A. and Vasconcelos Ferreira J..
Model-Based Systems Engineering Tools - Devoloping the GUILTE System.
DOI: 10.5220/0004695501660173
In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 166-173
ISBN: 978-989-758-007-9
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
large, complex, interdisciplinary, socio technical
systems; it is proposed an agile graphical tool to
enhance MBSE methodologies and to facilitate the
work of systems engineers in cooperative
development environment and the GUILTE System
(a case study) was designed using a Model-Based
Systems Engineering approach supported by the
appropriated agile tools.
2 MBSE FUNDAMENTAL TOOLS
A MBSE methodology is a set of related processes,
methods, and tools used to support the discipline of
SE in a model-based context. It implements a given
process (“the what” activities are to be performed),
which is supported by a given method (“the how” to
execute), which is enhanced by a set of tools (the
resources used to improve the efficiency of the
tasks). The capabilities and limitations of the
surrounding environment enable or disable the
methodology and the resulting success or failure of
system’s development (Ramos et al, 2012). One of
the primary artefacts of a MBSE methodology is the
System Model. The modelling methodology must be
chosen from the problem in analysis so, the systems
engineer must be aware of the problem domain to
understand which methodology will be more
appropriate (Bahill and Szidarovsky, 2009).
The existing methodologies (in fact, informal
methodological principles) for MBSE are well
described in Ramos et al (2012), Estefan (2009) and
Estefan (2008) and include: Harmony SE from IBM
Telelogic, Object-Oriented Systems Engineering
Method (OOSEM) from INCOSE, Rational Unified
Process for Systems Engineering (RUP SE) from
IBM, Vitech Model-Based Systems Engineering
Methodology from Vitech Corporation, and Object
Process Methodology (OPM) from Dov Dori. They
are particularly focused on the implementation of the
concept and development phases of the SE process,
where they can provide considerable value-added.
According to Ramos and colleagues (2013),
these methodologies are quite complex and intricate
and reveal some shortages in terms of utilization of
standard modelling languages (e.g., Systems
Modeling Language – SysML) and incorporation of
HSI concerns. To overcome these limitation they
propose a new methodology (LITHE) with simple,
lean, and customizable processes, methods, and tools
to enable the widened utilization of MBSE practices.
2.1 Lithe Methodology
The LITHE (Agile Systems Modelling Engineering)
methodology (Ramos et al, 2013), aims to be a more
agile methodology than the existing ones, using a
universal and intuitive SE process (a revised version
of the well-known SIMILAR process (Bahill and
Gissing, 1998), reducing the complexity and
intricacy of the supporting method, emphasizing the
agile human-centred development principles such as
continuous communication, feedback, and
stakeholders’ involvement, short iterations and rapid
response, and rousing the utilization of a coherent
model of the system developed through the
benchmark SE graphical modelling languages
(SysML and OPM). As the authors state, LITHE is
an agile methodology (Figure 2) for human-centric
MBSE cooperative development environments.

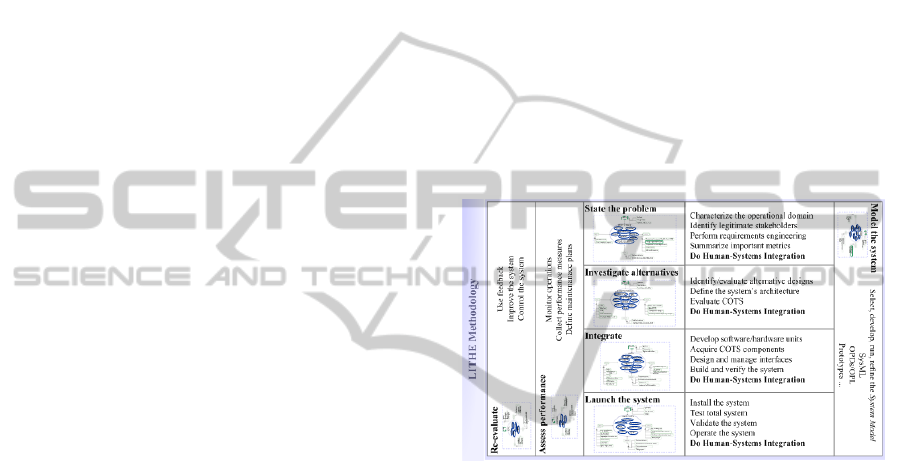

Figure 2: LITHE methodology for MBSE environments.
The inherent method provides a systematic approach
to support the different stages of the process and
includes, explicitly, the HSI considerations. Given
that SE deals with socio technical systems, this
aspect (highlighted in Figure 2) is crucial to attain a
usable successful system. The activities within each
function should be performed iteratively, with
successive refinements like in a spiral development
approach, with continuous support provided by the
Assess performance and Re-evaluate transversal
functions. The Model the system is the key function
in a MBSE environment and holds up all the other
functions (State the problem, Investigate
alternatives, Integrate, Launch the system) by
implementing the System Model. The LITHE
methodology is simple and flexible enough to be
customized for each concrete MBSE development
scenario.
2.2 GRAPHITE Matrices
The methodology also embraces a novel supporting
Model-BasedSystemsEngineeringTools-DevolopingtheGUILTESystem
167
graphical tool, the GRAPHITE (GRAPHIcal Tools
for stakEholders’ interaction), which is a set of
matrices with the rows standing for the type of
stakeholders involved in the development process,
the columns standing for the activity to perform, and
the entries symbolizing the model(s) more suitable
for that given circumstance. The matrices are an
easy-to-use graphical representation for MBSE
cooperative development environments where the
systems engineer is the “glue” central person
(Ramos et al, 2013; Ramos, 2011). Figure 3 depicts,
as an example, the “STATE” matrix for the State the
problem development stage.

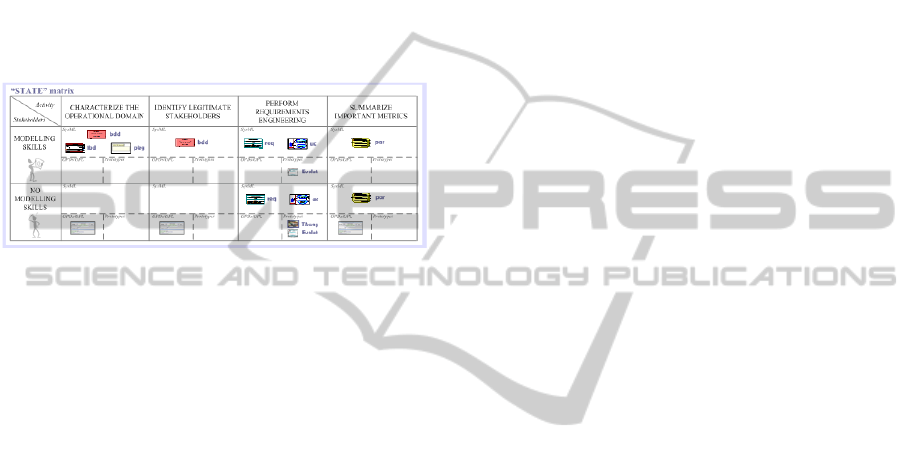

Figure 3: STATE matrix from GRAPHITE tool.
The models used in the GRAPHITE matrices
correspond to the diagrams from the reference
systems modelling languages and to prototype
models, namely: i) SysML diagrams pkg (package),
bdd (block definition), ibd (internal block), req
(requirements), uc (use case), par (parametric), sd
(sequence), act (activity), and stm (state machine),
and allocation matrix (am) (Friedenthal et al, 2008),
ii) OPDs (object-process diagrams) with the
corresponding OPL (object-process language) (from
OPM) and animated OPDs (running the OPCAT
simulation engine) (Dori, 2002), and iii) prototypes
(throw away and evolutionary).
The LITHE methodology and the supporting
GRAPHITE matrices were applied to engineer the
GUILTE system in order to evaluate its adequacy to
be used in a modern MBSE context and to support
the development of large, complex, interdisciplinary,
socio technical systems. This development process is
described in the following sections.
3 GUILTE SYSTEM: GENERAL
DESCRIPTION
The GUILTE (Guiding Urban InteLligent Traffic &
Environment) system is, simultaneously, a
framework and a system. Is a framework since it is a
logical structure or an organizational skeleton that
enables the planning, development and deployment
of traffic & environment intelligent operations by
integrating and coordinating several “building
blocks” that need to be interrelated to generate the
emergent properties of the “whole”. In this sense,
the framework gives the “big picture” to guide the
future developments. Is a system because it is a
collection of different parts or elements (people,
hardware, software, facilities, policies, documents)
that together, by their interconnections, produce the
system level results (characteristics, functions,
behaviour, performance) achieving one or more
stated purposes. Given that the system concept is
more extensive and encloses the concept of
framework, the GUILTE will be referred, from this
point forward, as a system.
The main purposes of the GUILTE are to provide
an integrated development framework for the
municipalities, and to support the (short and real
time) network operations of the urban traffic,
through Intelligent Transportation Systems (ITS),
highlighting two fundamental aspects: the evaluation
of the related environmental impacts (in particular,
the air pollution and the noise) and the dissemination
of information to the citizens, endorsing their
involvement. These purposes are obviously related
with the high level complex and multifaceted
challenge of developing sustainable urban
transportation networks. The GUILTE aims to
support the contemporary challenge of “green”
management of the network with a qualitative
improvement (“quality of roads” instead of “quantity
of roads”) based on timely information, personalized
traffic & environment services, and high quality
guidance provided to the entities moving on the
roads. The networking technologies, the real time
based interactive systems, and the service packaging
are the perspectives that support this “quality” and
are the basis of the proposed system.
The major elements of GUILTE are:
Urban Traffic & Environment Real System: it
refers to the actual system being analyzed or
managed that is, in this case, the urban transport
network and specifically, its traffic operations and
related environmental impacts; the area under
analysis can be a hotspot, a link, an area or the
entire city;
Data Acquisition: it is the element that gathers the
different ways of attain data from the real system
in order to feed the “brain” platform;
Database, Modelling & Simulation Platform: it is
the system’s central part and is based on three
fundamental pieces: a Geographical Information
System for Transportation (GIS T), a traffic
microsimulation tool, and a set of environmental
MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment
168
models;
Applications for Municipalities: it is the element
that congregates and manages the relevant
functions or applications that the municipalities
need to carry out Urban Intelligent Traffic &
Environment Operations; the municipality is taken
as the major local authority in these matters;
Sensing & Surveillance, Communications,
Information & Control: it is a transversal element
that includes technologies like, for example,
sensors, GPS, wireless communications, mobile
devices, and web, which can be grouped into the
three clusters enumerated in its name and that are
used by all the other elements; it also represents
the “physical” support of ITS;
Stakeholders: it is also a crosswise element that
considers the different parties that have a right, a
share, a claim, a need, or an expectation in the
system or in part of it like, for example, local
authorities, technicians, citizens, and academics;
this element, which interacts with all the other
elements of the GUILTE, highlights the Human
factor in SE by modelling, explicitly, people as
inherent parties of the system.
The main output of the GUILTE system is a
collection of traffic & environment information
services that are based on the information provided
by the Applications for Municipalities element to the
different Stakeholders (e.g., local governors, general
public). These services should act like inputs when
converted into actions or decisions (which,
desirably, should be increasingly sustainable
actions) including, for example, political resolutions,
regulatory measures, modal and route choices, or
even do nothing. These actions are executed on the
Urban Traffic & Environment Real System by the
Stakeholders thus, closing the loop. Each of the
mentioned elements (the parts) serves a specific
purpose but they must work together (the
dependencies/interrelationships) to achieve the
system’s overall principle (the whole).
The GUILTE can be considered as a system-of-
interest for the Systems Engineering field because it
is a large system, a complex and interdisciplinary
system, and a socio-technical system. It is also a
network centric system since it is characterized by a
complex set of people, devices, information, and
services (the nodes) which are interconnected by a
communications network to achieve optimal benefit
of resources and a better synchronization of events
and their consequences. Furthermore, “it comprises
the so-called “Super Systems” such as Intelligent
Transportation and Sustainable Environment
(involve large interdisciplinary teams and
considerable infrastructures which are globally
connected), and considering an extensive set of “
ilities” like flexibility, modularity, sustainability,
real time capability, interoperability, expandability,
reliability, usability, and delivery of value to
society” (Ramos et al, 2013).
4 GUILTE SYSTEM: MODEL
BASED DEVELOPMENT
Table 1 displays the mapping of the GUILTE system’s
development process to the SIMILAR process (the base
process of the LITHE methodology). This mapping is a
roadmap model that defines a set of iterative high level
activities which are closely related with the system life
cycle stages (Concept, Development, Production,
Utilization, Support and Retirement). The art of systems
engineers is to tailor this recipe to the concrete situation
never overlooking the big picture.
Table 1: GUILTE system mapped to the SIMILAR
process.
As expected, the Model the system function and the
fundamental role of the modern MBSE paradigm are
emphasized. In fact, the Model function is
transversal to the entire process being used to define
the users needs, the system functionalities, the
system architecture, the interfaces, etc.
The LITHE methodology was applied
horizontally to different subsystems and components
within a given element (subsystem 1, subsystem
2,…, component 1, component 2,…), and vertically
to the different levels (system, elements, subsystems,
components) of a one well defined system
alternative. The following subsections will describe
the key functions of the methodology but, due to
space constraints, only the Investigate alternatives
function will be explained and illustrated in detail.
4.1 State the Problem
The State the problem function of the methodology
is supported by the following iterative method:
characterize the operational domain, identify
legitimate stakeholders, perform requirements
SIMILAR Process GUILTE System
State the p rob lem
Assess the need for the system and the relevant stakeholders, and do
requirements en gi neeri ng
Investigate alternatives Design the architecture of the system
Model the system Appl y a Mod el -Based Sys tems E ngin eerin g met h od ol og y
Integrate Integrate the different subsystems and interfaces and verify the system
Launch the system Install, validate, operate and manage the system
Assess performance Monitor operations, measure and evaluate the system
Re-evaluate Use feedback, upgrade, enhance, extend, and dispose the system
Model-BasedSystemsEngineeringTools-DevolopingtheGUILTESystem
169
engineering, summarize important metrics, and do
Human Systems Integration. Its key objectives are to
define the problem/opportunity to address, the high
level capabilities of the system, and the general
system’s performance measures agreed by the
various stakeholders. This function is supported by
the transversal functions: Model the system, Assess
performance and Re-evaluate.
Using the STATE matrix of the GRAPHITE tool
the systems engineering team decided to use a
SysML bdd and an OPD (a model more easily
interpreted without formal modelling aptitudes) to
communicate an initial high-level solution to discuss
and to develop with the relevant stakeholders, a
SysML bdd to identify legitimate stakeholders,
several SysML req, SysML uc, and throwaway
prototypes to formalize the requirements engineering
stage, and SysML par to define measures of
effectiveness for the system and constraints on the
physical and performance properties.
This stage was developed incremental and
iteratively until it was found an accepted solution
(agreed by the key stakeholders) which was
considered appropriate to guide the concept
development: the Concept of Operations (ConOps)
model.
4.2 Investigate Alternatives
The Investigate alternatives function of the
methodology supported by the following
incremental and iterative method: identify/evaluate
alternative designs, define the system’s architecture,
evaluate COTS components, and do Human Systems
Integration. Its key objectives are to explore
alternative concepts for the GUILTE final solution
and to design its baseline architecture that is, the
system’s elements, their characteristics, their
arrangement, and their interactions. The architecture
establishes a framework for the development of the
system that will satisfy the requirements, and its
definition is one of the systems engineer most
critical and creative tasks. This function is supported
by the transversal functions: Model the system,
Assess performance and Re-evaluate.
4.2.1 Identify/Evaluate Alternative Designs
As suggested by the INVESTIGATE matrix of the
GRAPHITE tool, the identification/evaluation of
alternative designs was accomplished through a set
of collaborating diagrams: SysML req (to define
requirements and their relationships), SysML ibd (to
clarify key actors and interaction flows), and SysML
sd (to describe critical functionalities). It were also
used several OPDs since OPM has a simulation
engine that enables the time-dependent execution
and testing of processes (particularly helpful to
communicate with nontechnical stakeholders).
The following pictures illustrate some of these
diagrams (the SysML diagrams were developed in
the Artisan
®
software tool). Figure 4 depicts the
SysML req for GUILTE system’s requirements,
Figure 5 shows a SysML sd for a critical
functionality of the system, Figure 6 illustrates two
snapshots for a SysML sd, and Figure 7 shows an
OPD for the top-level functionalities of the system.

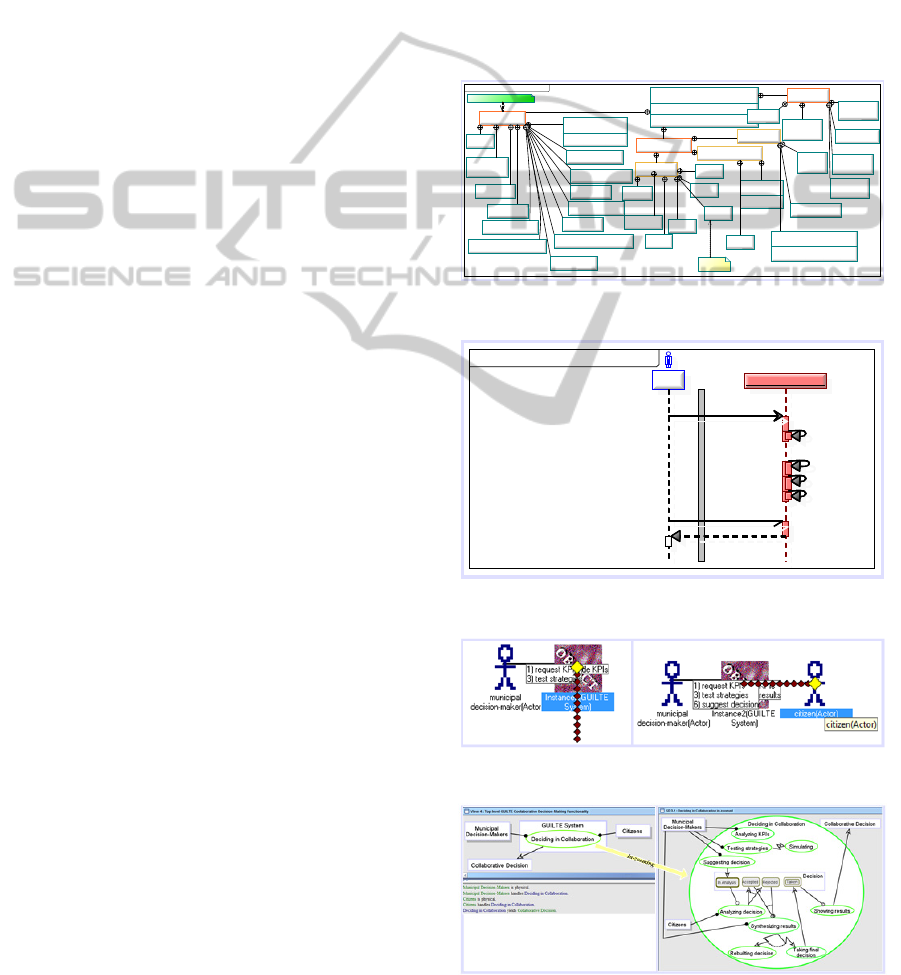

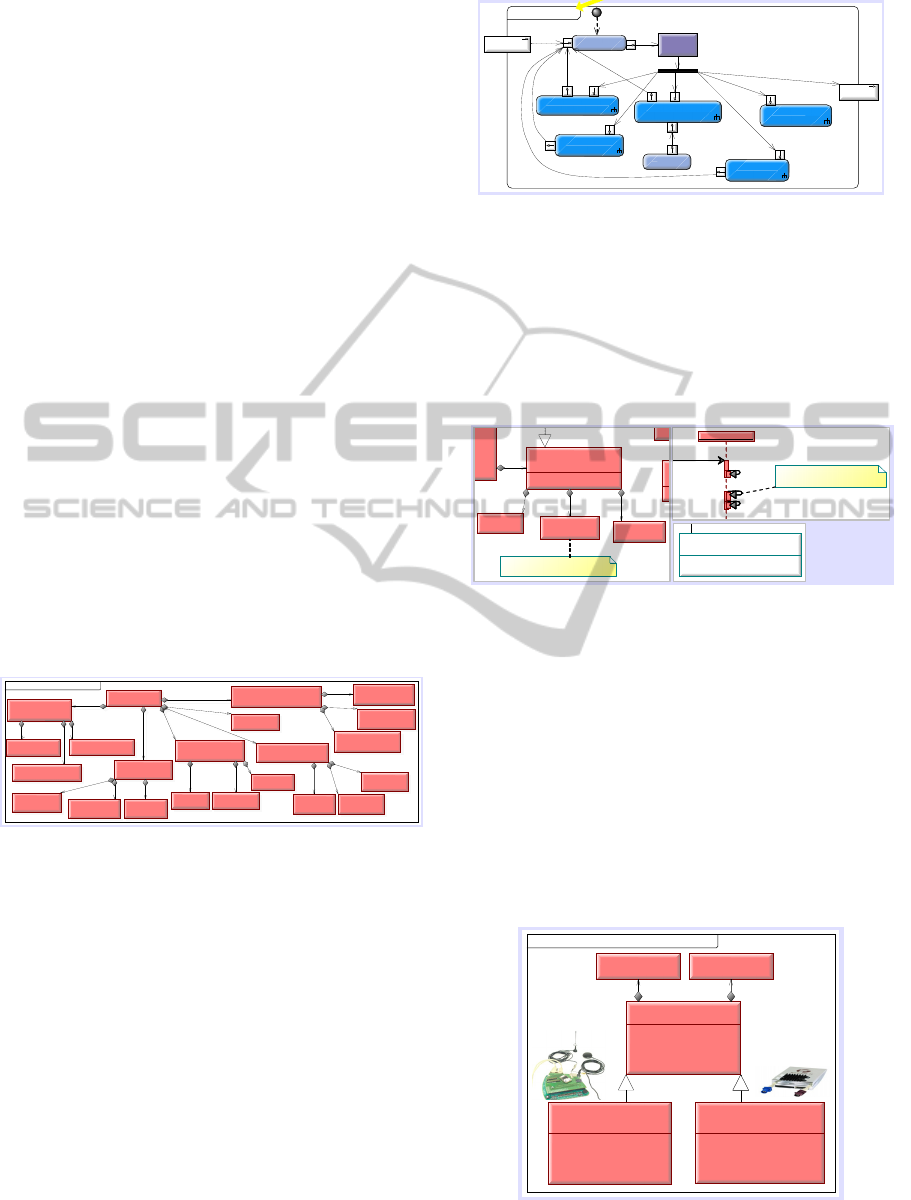

Figure 4: SysML req for GUILTE system’s requirements.
Figure 5: SysML sd for a top-level critical functionality.
Figure 6: Animation snapshots for a SysML sd.
Figure 7: OPD for the top-level functionalities of the
GUILTE system.
req
[Package] GUILTE_SystemRequirements
«requirement»
derivedFrom
«requirement» Sta keholders Requir ements
refinedBy
«requirement» DataAcquisition Mechanisms Requirements
System Requirements
«req uiremen t»
Functional Req uirements
«requirement»
Non-Functiona l Requirements
«requirement»
Domain Requirements
«requirement»
Product Requirements
«requirement»
Organiz ational Requi rements
«requirement»
Externa l Requirements
«requirement»
Input Actions
[block] GU ILTE System Interfaces
«requirement»
derivedFrom
«requirement» Da ta Acquisition
Input Online D ata Acqui sition
«requirement»
Input Offline Data Acquisition
«requirement»
Input Feedback Data
Acquisition
«requirement»
Output T&E Public Info Services
«requirement»
Output T&E KPIs
«requirement»
Output Real-time Tra ffic Data
«requirement»
Output ITS strategies
«requirement»
Output Attractive and Intelligible Interfaces
«requirement»
Output Persona lized Info
«requirement»
Processing Stora ge
«requirement»
Processing Modelling
«requirement»
Processing Simulate Str ategies
«requirement»
Processing Colla borative Decision-Ma king
«requirement»
Interoperability
«requirement»
Scalability
«requirement»
Modularity
«requirement»
Usability
«requirement»
Real-time capability
«requirement»
Reliability
«requirement»
Portability
«requirement»
derivedFrom
«requirement» Budget
Affordability
«requirement»
Outsourcing
«req uiremen t»
satisfiedBy
«valueType» Regulati ons and Directives
Compliance with Directives and Regulations
«requirement»
Compliance with Standards
«requirement»
Input Monitoring
«requirement»
Processing
Geographical Data
«req uiremen t»
Processing Micr o
Modelling
«requirement»
Processing Health
Exposure
«requirement»
Processing Driver Style
«requirement»
Output Dissemination
Means
«requirement»
Data Privacy
and Ethics
«testCase»
Usability Test
«refine»
«verify»
:GUILTE System
citizen
loop
p
erform sustainable actions
: "Sustainable" Actions
attain data
attain data
p
a
r
store data
store data
develop models
develop models
test strategies
test strategies
end par
request service
request service
p
rovide service
provide service
end loop
p
erform sustainable actions
: "Sustainable" Actions
attain data
attain data
p
a
r
store data
store data
develop models
develop models
test strategies
test strategies
end pa
r
store data
store data
develop models
develop models
test strategies
test strategies
request service
request service
p
rovide service
provide service
sd
Output T&E Public Information Services
MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment
170
The involvement of the relevant stakeholders in the
requirements engineering process highlights, once
more, the HSI concerns taken into account
throughout the project. The agreed set of Systems
Requirements (reflecting the ConOps) was the basis
to start developing the architecture of the system.
4.2.2 Define GUILTE Architecture
The architecture of the system is a key element of
modern SE providing conceptual integrity. The
logical architecture and the physical architecture
enable the definition of an integrated architecture
(known as allocated architecture) that shall meet the
system’s requirements. The development of these
architectures was accompanied by performance
analysis studies and trade off decisions. Being the
GUILTE a software intensive system, like the bulk
part of the modern systems, the development of the
architecture should take into account the principles
underlying computer-based system architectures.
The software architecture considered for the
GUILTE was a distributed client-server where the
system can be thought of as a collection of services,
provided by the servers, and a set of clients that
make use of those services.
The first diagrams to be used were SysML bdd to
illustrate the main logical components and the main
physical components (Figure 8) of the GUILTE.
Figure 8: SysML bdd for the physical architecture of the
GUILTE system.
Then, it were developed some SysML ibd to specify
the connections between the different logical
components and their interfaces. In order to specify
the behaviour or the functional activity of the system
and to provide details on the internal flow based
behaviour of block operations, it were developed
SysML act. These diagrams are similar to the
traditional EFFBDs but provide additional
capabilities such as the modelling of continuous
flows and the establishment of relationships with
structural elements of the system. The activities are
based on token flow semantics (identical to Petri
nets). Figure 9 shows a SysML act for the call action
‘Store, model and simulate’.
Figure 9: SysML act for the physical architecture of the
GUILTE system.
The integrated Allocated Architecture involves the
mapping of functions and requirements to resources.
This allocation can be modelled, in SysML, through
several mechanisms known as cross cutting
constructs, and can be depicted graphically (Figure
10) or in a tabular format.
Figure 10: System requirements allocation to model
elements of GUILTE.
For this particular stage, the representations through
OPM are not as expressive and detailed as the ones
provided by SysML.
4.2.3 Evaluate COTS Components
The evaluation of COTS components was
accomplished when the physical architecture was
instantiated. The GUILTE embraces several COTS
components that were instantiated and selected
through SysML bdd (Figure 11) and par diagrams.
Figure 11: SysML bdd for the instantiation of a physical
resource.
bdd
[Package] GUILTE_Physical Architecture
«block»
GUILTE System
«block»
Urban Traffic &
Environment Real System
«block»
Data Acquisition
Mechanisms
«bloc k»
Database, Modelling &
Simulation Platform
«block»
Applications for Munici palit ies
«block»
Stakeholders
«block»
Sensing & Surveillance, Communications,
Information & Control
«block»
Environmental Impacts
«block»
Road Infrastructure
«block»
Traffic Management & Control
«block»
Sensing & Sur veil lance
Technologies
«block»
Communicatio n
Technologies
«block»
Information & Control
Technologies
«block»
Applicati ons for
Knowledge
«block»
Applications for
Decision-Making
«block»
Applications for
Public Information
«block»
Database
«block»
T&E Models
«block»
Microsimulations
«block»
Online Sources and
Mechanisms
«block»
Offline Sources and
Mechanisms
«block»
Feedback Sources
and Mechanisms
resy
dac
pltf
appl
stk
its
infr
tmc
envimp
sst
cmt
ict
api
adm
aknw
temod
micr
dtb
onsm
ofsm
fesm
«Data Store»
Stored Data
Store attained data
Test strategies
: Develop air quality micro
modelling
: Develop noise micro
modelling
: Develop exposure
modelling
: Develop other T&E
modelling
: Develop traffic
microsimulation modelling
: formatted data
: information
Store, model and simulate
«Data Store»
Stored Data
Store attained data
Test strategies
: Develop air quality micro
modelling
: Develop noise micro
modelling
: Develop exposure
modelling
: Develop other T&E
modelling
: Develop traffic
microsimulation modelling
: formatted data
: information
«block»
allocatedFrom
Store, model and simulate (in Form ...
Database, Modelling & Simulation
Platfor m
Outp
u
K
P
A
«block»
Database
«block»
T&E Models
«block»
Microsimulations
pltf
temod
micr
dtb
satisfies
«requirement» Processing Micro Modelling
:GUILTE System
"
Sustainable" Actions
attain data
store data
develop models
"
Sustainable" Actions
attain data
store data
develop models
store data
develop models
satisfies
«requirement» Processing Storage
«requirement»
satisfiedBy
«valueType» Regulations and Directives
Compliance with Directives and Regulations
bdd
KOM Vehicle and Communications Module Alternatives
«block»
GPS
«block»
GSM/GPRS
«block»
values
cost : €
GPS channels : Integer
Port for PDA connect : Boolean
RAM : K
Integrated AVL Unit
«block»
values
cost : € = 150
GPS channels : Integer = 12
Port for PDA connect : Boolean = yes
RAM : K = 512
XF55-TriBand GSM/GPRS&GPS
Receiver Falcom
«block»
values
cost : € = 120
GPS channels : Integer = 12
Port for PDA connect : Boolean = no
RAM : K = 512
StepII TriBand GSM/GPRS Modem
and GPS Receiver Falcom
Model-BasedSystemsEngineeringTools-DevolopingtheGUILTESystem
171
Several other components of the system were
developed internally and, in this case, the prototypes
(as suggested by the corresponding GRAPHITE
matrix) were also a working valuable tool to interact
with the different stakeholders. Figure 12 shows
maps developed in the ArcMap application (from
ArcGIS® software tool, from ESRI) belonging to
the prototype GeoMoving. This evolutionary
prototype is a geodatabase schema for a
Geographical Information System that will help the
municipalities to organize their geographical
information and to create a complete traffic &
environment data repository.

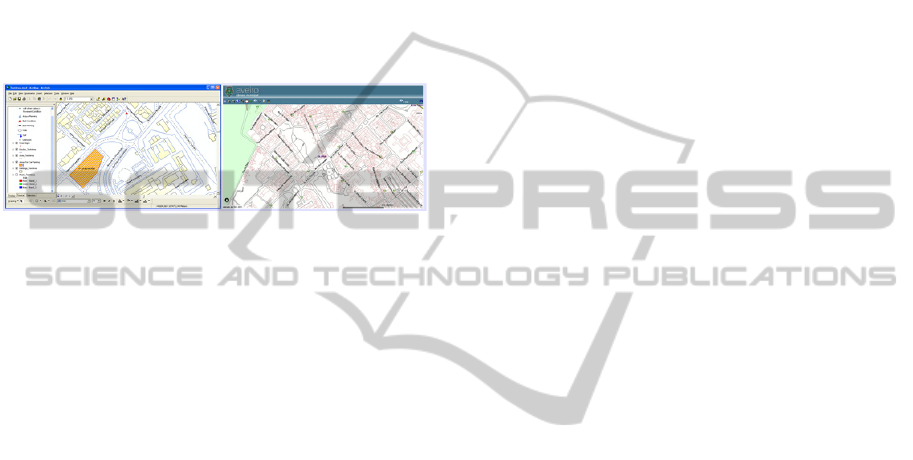

Figure 12: Thematic maps from GeoMoving prototype.
The Investigate alternatives function outputs “the
best” architecture for the system, and the associated
specifications to develop the hardware and software
components, during the integration of the system.
4.3 Integrate
The Integrate function of the methodology is
supported by the following method: develop
software/hardware units, acquire COTS components,
design and manage interfaces, build and verify the
system, and do Human Systems Integration. Its key
objectives are to bring things together so they work
as a whole (system) and produce emergent
behaviour. This function is supported by the
transversal functions: Model the system, Assess
performance and Re-evaluate. This function is
intimately related with the previous ones since a
MBSE approach implies an integrated design
process with interactions prominence. For example,
the establishment of Integration Requirements, in the
early stages of the development process, is a critical
aspect to ensure successful holistic end-to-end
operation.
Using the INTEGRATE matrix of the
GRAPHITE tool the systems engineering team
decided to use SysML bdd, SysML req, SysML us,
and evolutionary prototypes to develop
hardware/software units. To design and manage
interfaces between the different components of the
system and between other external systems, SysML
ibd were very effective. The SysML dedicated
stereotype «testCase» and the SysML sd were very
useful to verify the system, elements, subsystems,
components and ensure that they were built right.
The HSI concerns were considered throughout the
system’s development process but, they were critical
in this Integrate function where the interfaces man-
machine were completed. After this stage, the
system was able to be launched in its real
operational environment.
4.4 Launch the System
The Launch the system function of the LITHE
methodology is supported by the following method:
install the system, do Human Systems Integration,
test total system, validate the system, and operate the
system. Its key objectives are to install the
developed system in its operational environment and
to guarantee that the system is producing the desired
outputs being working according to the key
stakeholders’ requirements (ConOps). This function
is supported by the transversal functions: Model the
system, Assess performance and Re-evaluate.
Due to budget constraints, the GUILTE system is
being installed in stages (in some Portuguese
municipalities), with progressive association of
components under the control of the defined
system’s architecture. The HSI concerns, present
throughout the development process, are involving
the definition of new jobs, the establishment of new
working processes and training schemes in order to
guarantee that the system will work properly. The
operation of the system corresponds to its utilization
under ordinary conditions and according to the
stakeholders’ needs, producing the desired outputs.
The supporting Assess performance and Re-evaluate
functions will ensure continuous system’s
monitoring, control, maintenance, preservation,
improvement, and, eventually, system’s disposal.
5 CONCLUSIONS
The LITHE methodology encloses a process, a
method, and a set of tools that, due to their
simplicity, flexibility, and compliance with
standards, are believed to be customizable to each
situation thus, allowing the systems engineer to put
creativity into the process and introduce his/her
unique perspective. The methodology was applied to
the development of the GUILTE system, revealing
an effortless utilization and great flexibility to use
the functions, the activities, and the tools when
needed and how intended. The emphasis on the
MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment
172
continuous and concurrent functions Model the
system, Assess performance, and Re-evaluate was
critical to ensure constant communication with the
stakeholders, intense involvement and feedback, and
rapid response. The Human Systems Integration
concerns had guaranteed the permanent
consideration of the human element, as well as the
synergetic interaction between man-machine. The
GUILTE is not completed (in full effective
operation) and consequently, it cannot be concluded
that the LITHE methodology had supported the
development of a “successful system” but the
intermediate deliveries are fulfilling stakeholders’
expectations (these stakeholders have been involved
during all the design and development stages of the
system).
As suggested by the supporting GRAPHITE tool,
the benchmark SE modelling languages, SysML and
OPDs/OPL, were used to develop a coherent and
integrated model of the system, along with
prototypes. The utilization of graphical models had
incited intense interactions and efficient
communication with stakeholders. The synergies
between the different types of models provided
considerable value-added to the model-based
engineering process.
The LITHE methodology and the GRAPHITE
tool are examples of effective MBSE tools that can
be used to develop large, complex, socio technical
systems in agile modern environments, facilitating
the work of systems engineers. This area offers
significant research opportunities since the existing
MBSE tools are still immature and require a proof of
value in real world contexts.
REFERENCES
Bahill, A. and Guissing, B., 1998. Re-evaluating systems
engineering concepts using systems thinking, IEEE
Transactions on Systems, Man, and Cybernetics: Part
C – Applications and Reviews, vol. 28, no. 4,
pp. 516-527.
Bahill, A. and Szidarovsky, F., 2009. Comparison of
dynamic system modelling methods, Systems
Engineering, vol. 12, no. 3, pp. 183–200.
Dori, D., 2002. Object Process Methodology: A Holistic
Systems Paradigm. New York: Springer.
Estefan, J., 2008. Survey of Model-Based Systems
Engineering (MBSE) Methodologies. INCOSE
Technical Document INCOSE-TD-2007-003-01,
INCOSE, Pasadena, CA.
Estefan, J., 2009. MBSE methodology survey, INSIGHT-
INCOSE Journal, vol. 12, no. 4, pp. 16–18.
Friedenthal, S., Moore, A. and Steiner, R., 2008. A
Practical Guide to SysML, The Systems Modeling
Language. Burlington, MA: OMG Press, 2008.
Ramos, A., 2011. Model-Based Systems Engineering: A
System for Traffic & Environment, PhD Thesis,
University of Aveiro, Portugal.
Ramos, A., Ferreira, J. and Barceló, J., 2012. Model-based
systems engineering: An emerging approach for
modern systems, IEEE Transactions on Systems, Man,
and Cybernetics: Part C – Applications and Reviews,
vol. 42, no. 1, pp. 101–111.
Ramos, A., Ferreira, J. and Barceló, J., 2013. LITHE: an
agile methodology for human-centric model-based
systems engineering, IEEE Transactions on Systems,
Man, and Cybernetics: Systems, vol. 43, no. 3,
pp. 504–521.
Model-BasedSystemsEngineeringTools-DevolopingtheGUILTESystem
173
