Model Composition for Biological Mathematical Systems

Mandeep Gill

, Steve McKeever

and David Gavaghan

Department of Computer Science, University of Oxford, Parks Road, Oxford, U.K.

Department of Informatics and Media Studies, Uppsala University, Uppsala, Sweden

Keywords:

Modules, Collaborative Modelling, Biological Mathematical Systems, Heart Models, Generics.

Abstract:

Mathematical models are frequently used to model biological process, such as cardiac electrophysiological

systems. In order to separate the models from the implementations, and to facilitate curation, domain speciﬁc

languages (DSLs) have become a popular and effective means of specifying models (Lloyd et al., 2004; Hucka

et al., 2004). In previous papers (Gill et al., 2012a; Gill et al., 2012b; McKeever et al., 2013) we have argued for

including parameterised modules as part of such DSLs. We presented our prototype Ode language and showed

how models could be created in a generic fashion. In this paper we extend our work with concrete examples

and simulation results. We show how complex heart models can be constructed by aggregation, encapsulation

and subtyping. Our use-case retraces the steps taken by (Niederer et al., 2009), which investigated the common

history between cardiac models, and shows how they can be cast in our language to be reused and extended.

Our DSL enables ‘physiological model engineering’ through the development of generic modules exploiting

high cohesion and low coupling.

1 INTRODUCTION

We are investigating the application of system engi-

neering methods to mathematical continuous models

of biological systems, where the complexity of such

models prohibits the use of discrete modelling and

simulation methods. The mathematics within a model

lends itself to a textual representation, traditionally this

has been accomplished in an operational manner using

numerical languages such as MATLAB and Python.

Research has also resulted in the development of the

Systems Biology Markup Language (SBML) (Hucka

et al., 2004) and CellML (Lloyd et al., 2004) domain

speciﬁc formats for common interchange and archiv-

ing. This modelling approach has a successful his-

tory (Noble and Rudy, 2001) that can be seen through

the large number of individual models curated within

the CellML model repository (Lloyd et al., 2004).

Such modelling is collaborative. With the advent of

domain speciﬁc languages for describing models we

are looking at incorporating features from program-

ming language theory to improve collaborative design

of physiological models. Modular programming in-

volves describing a system in terms of encapsulated

modules and the interactions between them through

well-deﬁned interfaces. Such modular program de-

sign is commonly used in software engineering when

designing large-scale reusable systems, with the key

tenets including encapsulation, abstraction, reuse and

extensibility (Booch, 2006).

We have been developing our own prototype

modelling language, Ode, to investigate modularity

and structured software engineering concepts (Som-

merville, 2010) that may facilitate collaborative design

within this domain. Ode is inﬂuenced by the men-

tioned biological DSLs and functional programming

languages rooted in the lambda calculus (Barendregt,

1985). Figure 1 presents the Ode grammar.

odeStmt ← componentDe f | valueDe f | odeDe f

componentDe f ← component f (id

,...,id

)

{exprStmt

,...,exprStmt

, return (E

,...,E

)}

valueDe f ← val id

,...,id

= E

E ← t

∗t

|...|t

&& t

t ← (E) | number | boolean | piecewise

| f (E

,...,E

) | time | id

piecewise ← piecewise {E

: E

T 1

,...,E

: E

T n

default : E

de f

}

odeDe f ← ode {init : id

, [ deltaVal : id

delta

] } = E

Figure 1: Abbreviated syntax of the core Ode language using

a simpliﬁed variant of EBNF that assumes common rules.

The semantics of this core language have been

217

Gill M., McKeever S. and Gavaghan D..

Model Composition for Biological Mathematical Systems.

DOI: 10.5220/0004699202170224

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 217-224

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

described in a previous paper (Gill et al., 2012a). Con-

stant values may be deﬁned as the result of mathe-

matical expressions; the syntax for such expressions

is similar to most programming languages. Compo-

nents are a means to group, abstract and parameterise

repeated computations. However they are inlined at

compile-time in a manner similar to C++ templates.

Piecewise terms enable conditional control-ﬂow sim-

ilar to a switch statement. A deliberate limitation is

the lack of looping control-ﬂow constructs that, when

coupled with a recursive restriction on components,

ensures termination during model simulation.

The basic expression language is extended with

several constructs to support the mathematical mod-

elling of (biological) systems over time, including or-

dinary differential equations (ODEs). ODEs require

an initial value y(0), and a derivative expression y

The focus of this research has been to apply soft-

ware engineering techniques that allow models de-

veloped in Ode to be highly reusable and extensible,

facilitating rapid composition to investigate certain pa-

rameters of interest. To the best of our knowledge,

these characteristics have eluded the majority of bio-

logical modelling software frameworks to date.

Our paper in outlined as follows. Section 2 mo-

tivates modular model design. In Section 3 we pro-

vide a precise description of our module system and

motivating example. In Section 4 we present re-

sults from simulating composite models derived from

experimentally-related model modules. Finally in Sec-

tion 5 we conclude our work and discuss current re-

search. We demonstrate the utility of the module

system using examples from a modular form of the

Hodgkin-Huxley (HH52) electrophysiological model

of the squid giant-axon (Hodgkin and Huxley, 1952).

2 MODULAR MODEL DESIGN

AND DEVELOPMENT

Modelling biological systems is an integrative, interdis-

ciplinary process, drawing on work from researchers

in a global environment from a variety of ﬁelds, in-

cluding physiologists, mathematicians, and computer

scientists. Models themselves are comprised from data

collected through various studies and are developed it-

eratively, with newer, generally more realistic, models

derived from existing ones (Niederer et al., 2009).

As such a need exists to efﬁciently facilitate the

collaborative development and reuse of models. This

would allow for the safe construction of models, guar-

anteeing the validity of models developed collabora-

tively and derived from multiple sources, and ensuring

that they may be composed successfully. We believe

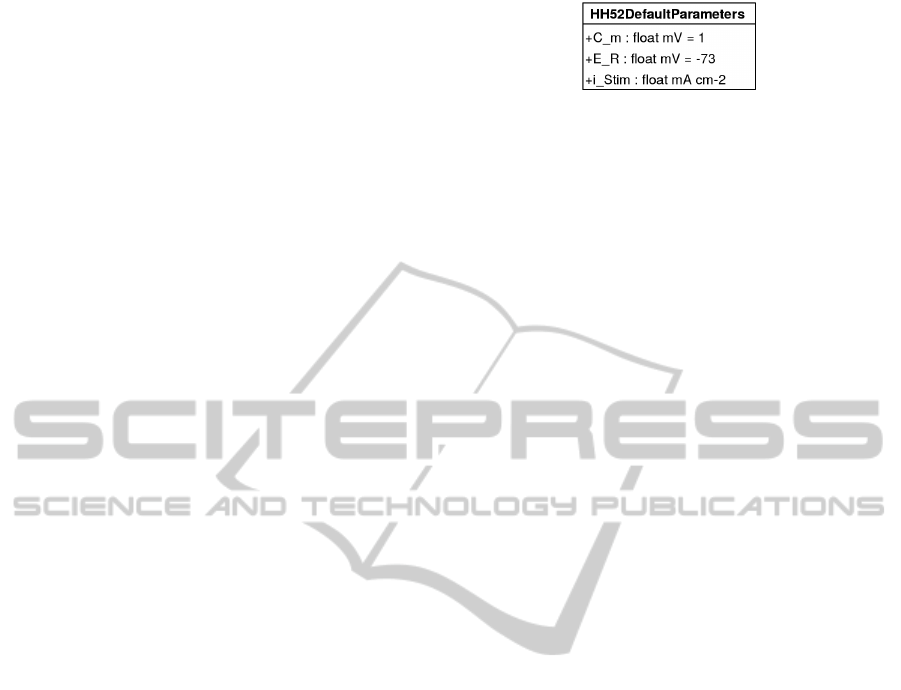

Figure 2: Cell and stimulus parameters for the HH52 model

grouped and encapsulated into a single parameters module.

our research provides features that facilitate such col-

laborative modelling in a structured and safe manner.

We present a summation of the methodologies

used to structure and develop large-scale reusable bi-

ological mathematical models using Ode, inspired

by many techniques utilised in software engineer-

ing (Sommerville, 2010; Booch, 2006).

Encapsulation is the wrapping up of operations

and attributes into a module, so that those attributes

may only be manipulated through or accessed via the

operations provided by the module.

We can view modules as similar to objects, repre-

senting a convenient data-centric manner to decom-

pose systems into understandable and manageable

units/building blocks. Good encapsulation hides the

details of a module’s internal attributes and operations

from its users. These techniques are known as infor-

mation hiding and implementation hiding, and their

use is essential for promoting the understandability

of code within a reusable domain-speciﬁc modelling

framework. It allows abstracting away the low-level

details and providing a high-level interface to the mod-

ule functionality. Explicit export deﬁnitions within

module declarations facilitate implementation hiding

and help to achieve this goal. Figure 2 provides an

example encapsulating several HH52 cell-level param-

eters into a module.

Generic modules allow modellers to operate on en-

capsulated objects in an abstracted manner, enabling

polymorphic reuse and substitutability, similar to C++

templates. It is a style of programming in which al-

gorithms are written in terms of to-be-speciﬁed-later

constructs that are then instantiated when needed by

replacing the generic variables with appropriate con-

crete parameters. In the context of heart modelling,

we show that this technique enables module reuse, the

creation of alternative implementations, and the mixed

usage of ion channel models from a variety of sources.

Structural subtyping is implemented at the module

level, where we say that module

is a subtype of

module

, the supertype. This occurs when module

has the same (or a superset of the) interface as

yet may contain a different implementation. In this

case modules of type

can be substituted by modules

of type

. This occurs because methods written to

operate on elements of the supertype can also operate

on elements of the subtype; in a manner similar to

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

218

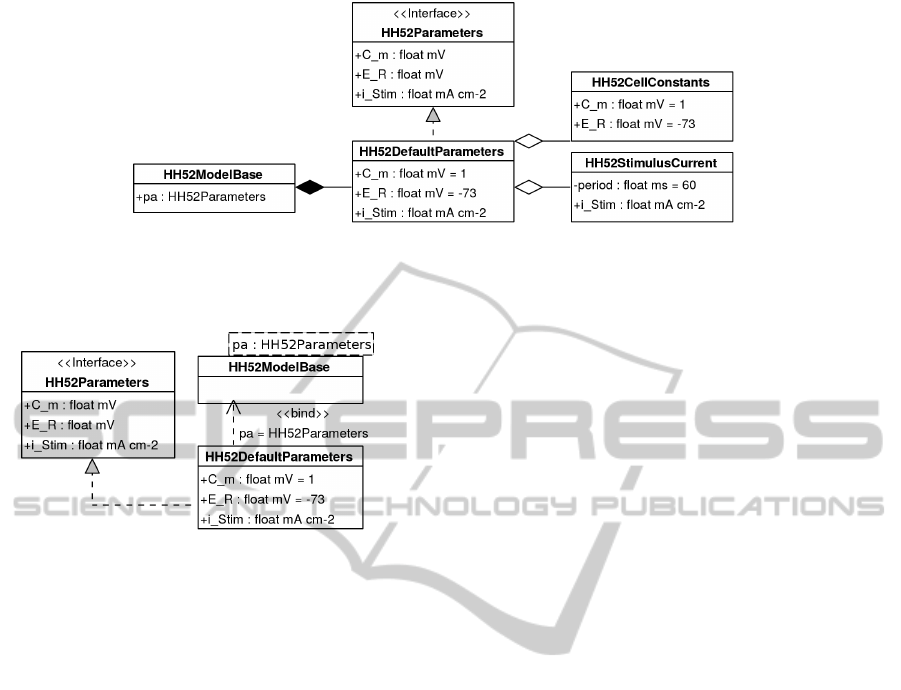

Figure 4: Diagram indicates use of containment and aggregation to provide code structure and reuse. We compose the parameters

module with the main model, whilst specifying that it is a subtype of

HH52Parameters

. The

HH52DefaultParameters

module

implements this interface via the aggregation and reuse of two sub-modules containing the required code.

Figure 3: Application of a parameterised module, the bind-

ing relationship indicates the assignment of a module as an

argument, generating a new module. The applied module

must implement the parameters interface.

inheritance in object-orientated programming (OOP).

However it is implemented at compile-time with-

out any performance penalty and does not require a

direct, nominative relation between the supertype and

subtype. Any modules that have a similar ‘shape’ can

be considered a subtype, providing low-coupling be-

tween modules and allowing rapid development and

substitution of alternate implementations. If used prop-

erly, subtyping, coupled with generics, can improve

the understandability of model code by reducing the

conceptual distance between code and the real-world

system which the code models. For instance, Figure 3

presents a use of both generics and subtyping to pro-

duce a parameterised module of a given supertype.

In software development, code reuse provides

many beneﬁts — the code has already been developed,

tested and potentially deployed. A similar effect is

observed with model code, where equations and deﬁni-

tions are often similar and should be reused if possible.

However in both domains, code often requires modi-

ﬁcations speciﬁc to each particular instance of reuse.

Containment-based relationships, such as composition

and aggregation, can be implemented by modules to

enable lightweight and ﬂexible code reuse.

Modules may be imported and wrapped within con-

taining modules to re-implement and augment existing

functionality, delegating to existing code as needed.

This provides code-reuse through composition and ag-

gregation rather than OO inheritance.

This technique works hand-in-hand with the substi-

tutability property of modules and structural subtyping

mechanism to allow modellers to create model imple-

mentations which are both malleable and extensible.

It enables type-safe substitution whilst avoiding deep

inheritance hierarchies often seen in systems imple-

mented using traditional OO-languages (Booch, 2006).

When parameterised modules are utilised with ag-

gregation they allow generic code reuse, abstracting

the particular instances until simulation time. This

provides compile-time substitutability and a powerful

mechanism for rapid model construction and modiﬁ-

cation. Figure 4 demonstrates aggregation to structure

and reuse code with the HH52 parameters module.

3 MODULE SYSTEM – SYNTAX

AND SEMANTICS

In this section we describe the Ode module system

used to structure models into modules consisting of

collections of related value and component deﬁnitions

that form some logical (and potentially biological)

grouping. We describe the syntax and semantics; the

grammar for the module language is provided in Fig-

ure 5.

moduleStmt ← moduleDe f | importStmt | applyModule

moduleDe f ← module id moduleBody |

module id (id

,. .., id

) moduleBody

moduleBody ← { odeStmt

,. .., odeStmt

}

importStmt ← import id

[as id

]

exportStmt ← export [id

,. .., id

]

applyModule ← id = f (id

,. .., id

) | id

Figure 5: Module extensions to Ode DSL.

ModelCompositionforBiologicalMathematicalSystems

219

We discuss parameterised modules, enabling

compile-time substitution of components and generic,

interface-driven development that provides further op-

portunities for abstraction and model reuse.

The module system was inspired by OCaml,

where it is effectively a higher-level language that en-

ables the programmable creation of independent mod-

ules (Leroy, 2000). The Ode module system operates

similarly; providing variable deﬁnitions, references,

function abstraction and application (i.e. parametrised

modules), and limited computation, all at the typed

module level. This provides extensive power to recon-

ﬁgure models for particular tasks.

3.1 Module Deﬁnition

module Parameters {

val E_R = -75 { unit : mV }

val Cm = 1 { unit : mF.cmˆ-2 }

val period = 60 { unit : ms }

val i_Stim = piecewise {

time >= 10 and time <= 10.5:

20 { unit : mA.cmˆ-2 },

default: 0 { unit : mA.cmˆ-2 }

} }

A standard module in Ode consists of a collection of

expressions, i.e. value and component deﬁnitions, that

form a grouping. This may be a logical or biological

grouping, e.g. an ion channel within a cardiac model.

The code fragment above presents the syntax for cre-

ating a module encapsulating several HH52 cell-level

parameters, as was illustrated in Figure 2.

Several modules may be deﬁned within a single

ﬁle, where the directory path in which the ﬁles are

placed creates a module hierarchy. Modules may be

referenced using a dot-notation that corresponds to

lookup within the module hierarchy. This structure

enables the creation of multiple repositories of mod-

elling components, each with their own hierarchy, that

can be shared, reused and uniquely identiﬁed.

3.2 Importing & Using Modules

module HH52Model {

import Cardiac.HH52.Parameters as Pa

// leakage current

val E_L = Pa.E_R + 10.613 { unit : mV }

val i_L = 0.3 { unit : mS.cmˆ-2 } * (V - E_L)

// ... channels i_Na & i_K ...

init V = -75 { unit : mV }

ode { init : V } =

-(-Pa.i_Stim + i_Na + i_K + i_L) / Pa.Cm

}

A module may reference another module’s expressions

through an

import

declaration. This is demonstrated

in the above code sample, illustrating the composi-

tion of the HH52 parameters module with the HH52

base model, as in Figure 2. The declaration uses a

dot-notation to reference a ﬁlepath within the module

hierarchy and a module within the speciﬁed ﬁle. Thus,

in the above example the HH52 base model imports

a module

Parameters

from a ﬁle

HH52

within the

Cardiac

directory of an available module repository.

When processing the import, the module is retrieved

and loaded into the global module environment.

The visible deﬁnitions of an imported module are

again accessed using a dot-notation on the qualiﬁed

module name, demonstrated by references to

above.

3.3 Module Interface

Modules expose an interface, or signature, comprised

from the collection of identiﬁers and their types vis-

ible from outside the module. The uses of a module

within a model also leads to the implicit creation of

a required interface that any imported modules must

implement. When importing a module, interfaces are

matched and checked by the module type-system to

ensure successful composition.

A modeller may conﬁgure the visibility of cer-

tain deﬁnitions to modify the interface. This may

be achieved by structuring the model code such that

only exportable deﬁnitions are visible, or by explicitly

declaring the deﬁnitions to export (similar to the pub-

lic/private access modiﬁers in OO languages) through

the use of an export command.

In this manner only the vital information is ex-

ported in the interface, mimicking biological mecha-

nisms of compartmentalisation and containment.

3.4 Parametrised Modules

Grouping related deﬁnitions into modules enables

modularity and code reuse, however the modules and

the abstractions within them are ﬁxed rather than

generic. When creating reusable components it is desir-

able to conﬁgure them according to a speciﬁc use-case,

for instance altering the parameters of a reusable ion

channel or creating protocols to compare simulations

against experimental data.

In several languages parameterised modules

present a ﬂexible and powerful means for accomplish-

ing this. They are implemented as compile-time con-

struct used to create generic components in a similar

manner to ML functors (Leroy, 2000) and C++ tem-

plates, allowing type-safe substitutability of compo-

nents with differing implementation details.

Modules may be parameterised by other modules

leading to the creation of complex, specialised mod-

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

220

ules via a form of aggregation. This ﬂexibility and

abstraction enables rapid investigations into parameter

variations, including parameter sweeps and sensitivity

analysis from a single code-base (O’Hara et al., 2011).

3.5 Parameterised Module Deﬁnition

module HH52ModelBase(Pa) {

// leakage channel

val E_L = Pa.E_R + 10.613 { unit : mV }

val i_L = 0.3 { unit : mS.cmˆ-2 } * (V - E_L)

// ... channels i_Na & i_K ...

init V = -75 { unit : mV }

ode { init : V } =

-(-Pa.i_Stim + i_Na + i_K + i_L) / Pa.Cm

}

The above example demonstrates parameterised mod-

ules within Ode, where the speciﬁc parameters mod-

ule utilised by the HH52 base model is parameterised

and made generic. The syntax extends module deﬁni-

tions to include a list of module parameters, these are

generic module arguments that are determined during

application. Parameterised modules can be considered

analogous to functions over modules, they take a set

of input module arguments and return a new module.

Parameterised modules enable a form of interface-

based model construction that allows for the special-

isation of reusable module components. They facil-

itate several component based modelling techniques

through the modiﬁcation of parameters and equations

used within a module, for instance the creation of mul-

tiple model subcomponents ranging in complexity and

accuracy to minimise computational demands.

3.6 Parameterised Module Application

module HH52Model = HH52ModelBase(Parameters)

The above code fragment demonstrates applying a

concrete version of the HH52 parameters module to

the base module, resulting in a complete version of the

HH52 model, as was illustrated in Figure 3.

Applying a functor is the process of replacing the

generic module parameters with real modules, the ef-

fect of which is to instantiate a new module derived

from applying the parameters to the functor body. This

new, concrete module can then be used elsewhere.

We can dynamically apply functors, enabling the

run-time conﬁguration of models that exhibit certain

behaviours and investigation of effects using particular

parameters. This provides a ﬂexible means for rapidly

constructing families of specialised models that can be

controlled by an external process at run-time.

4 MODULAR CARDIAC

SIMULATIONS

In this section we utilise the module system and

DSL abstractions previously described to design a

component-based modular modelling framework. We

hope this will eventually enable the agile develop-

ment, reuse and investigation/experimentation of car-

diac electrophysiological models in a collaborative

fashion (Noble and Rudy, 2001).

Our use case is inﬂuenced by research in (Niederer

et al., 2009) that investigated the common history be-

tween cardiac and ion channel models, but we conduct

similar simulations through programmable modular

composition rather than manual model construction.

Our sample framework is used to conduct several sim-

ulations, generating action potential (AP) membrane

voltage curves for cardiac models created from the

dynamic substitution of ion channel modules. This is

intended to show the ease at which a well-designed

framework lends itself to reuse, extensibility and ﬂexi-

bility for modellers to investigate particular phenom-

ena. Furthermore it demonstrates the use of the type

system to ensure subsequent model validity.

4.1 Methodology

We investigate and construct a modelling architecture

suitable for creating models in a ﬂexible and extensi-

ble manner comprised from individual modules. This

framework is used to develop a repository of cardiac

models to help qualitatively determine the DSL’s effec-

tiveness in the large-scale structure and rapid, collab-

orative development, modiﬁcation and reuse of mod-

els. Several cardiac models are safely composed in a

scripted manner from modules in the repository.

4.1.1 Cardiac Models

The cardiac models are listed in Table 1, and are cho-

sen to demonstrate the iterative development process

and reuse of parameters and equations.

4.1.2 Model Structure & Development

We separate the cell models into reusable and substi-

tutable ion channel objects that each model the ﬂow

of a particular charged ion across the cell membrane,

resulting in the generation of an AP. We abstract and

modularise at this point as most cardiac cell exper-

iments, and subsequent research data, occurs at the

ion channel level. As more information is derived

regarding their function we hope that their differing

representations within cell models may be used inter-

changeably and gradually unify into single canonical

ModelCompositionforBiologicalMathematicalSystems

221

Table 1: Cardiac ventricular electrophysiological models used within study, where the base model is denoted with a *.

Model Year Species Ion Channels State Variables

BR77 * (Beeler and Reuter, 1977) 1977 Mammalian 4 8

LR91 (Luo and Rudy, 1991) 1991 Guinea Pig 6 8

LRd94 (Luo and Rudy, 1994) 1994 Guinea Pig 11 12

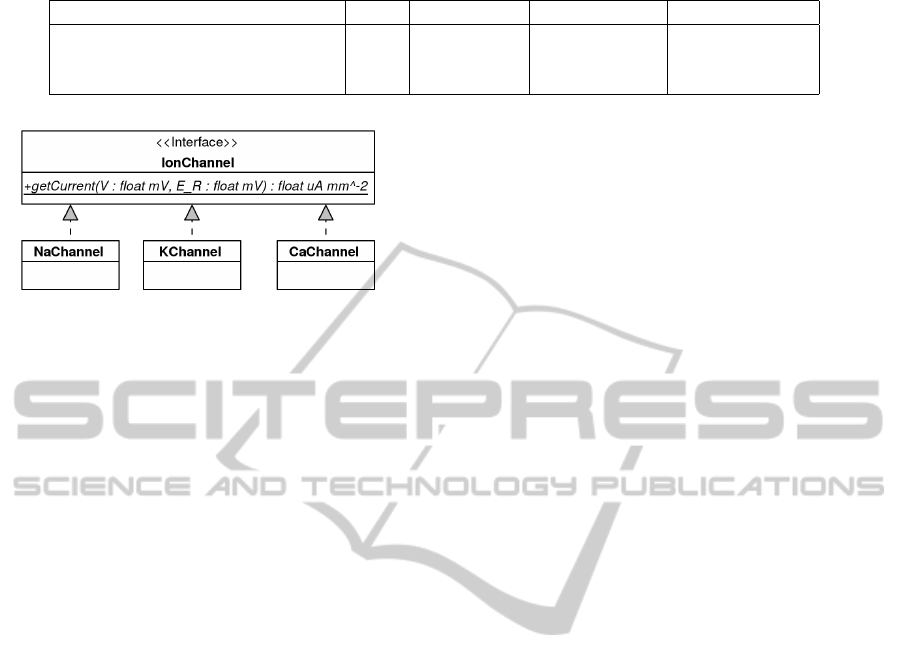

Figure 6: Interface for reusable ion channel models, con-

sists of component,

getCurrent

, that computes I

Ion

for

calculating the membrane voltage. All ion channel models

implement this interface, as NaChannel and KChannel do.

form. This abstraction can be expressed neatly within

our module system; multiple modules representing the

same ion channel may be created, coexist and be sub-

stituted within existing and ever more complex newer

models. In this way, appropriate relationships, which

mimic real-world relationships, are deﬁned between

modules in our modelling domain.

A standardised interface for ion channels mod-

els was determined that enables their use and re-

placement within cell models. This interface is illus-

trated in Figure 6, and consists of a single component,

getCurrent

. The input parameters represent the mem-

brane potential and equilibrium potential respectively,

and the output is the current generated by ionic ﬂow.

A cardiac model structurally depends upon and

contains the ion channel modules, requiring that they

expose the

IonChannel

signature to be compatible.

This signature is checked at compile-time by the type

system to ensure that only valid ion channel objects are

used. The structure used to associate a cardiac model

and its related ion channels is illustrated in Figure 7.

We have used encapsulation to separate deﬁnitions

for ion channels into modules that expose a speciﬁed

interface. We now demonstrate how aggregation, en-

capsulation and subtyping may be used to abstract out

common functionality and enable code reuse. From a

cardiac modelling perspective, we can deﬁne common

functionality for ion channels. These are then encap-

sulated and extended in later, more complex channel

model subtypes through aggregation (mirroring the

real life development of such models), as was demon-

strated in Figure 2. We can thus delegate to existing

code, and override and specialise as needed within the

newer encapsulated module, whilst ensuring it exposes

the same interface to enable substitutability.

We use generics to specify the input ion channels

to each model via parameterised modules, allowing

simulation-time conﬁguration and instantiation of con-

crete modules. Generics provide a standardised man-

ner to alter models and parameters, providing substi-

tutability without incurring a performance penalty. For

example, in Figure 8 the model,

BR77Model

, contains

the generic module reference

NaChannel

that exposes

the

IonChannel

interface. We do not need to specify

during model development which speciﬁc

NaChannel

implementation we are referring to.

We utilise encapsulation, aggregation, subtyping

and generics to abstract behaviour and provide substi-

tutability of reusable model components. This beneﬁts

modellers by enabling model reuse, component-driven

development, and type-checked model composition.

These techniques orthogonally help model develop-

ment by increasing cohesion and decreasing coupling.

4.2 Results

module BR77NaChannel {

export (getCurrent)

component getCurrent(V, E_R) {

// ... channel constants & computations ...

// calculate current

val i_Na = (g_Na*pow(m, 3.0)*h*j+g_Nac)

* (V - E_Na)

return (i_Na)

} }

The above listing contains a segment from the BR77

model (Beeler and Reuter, 1977), this segment

includes the top-level component that comprises the

module interface and implements the type-signature

required for reusable channels within our framework.

module BR77Model(NaChannel) {

// membrane voltage

init V = -84.624 { unit : mV }

// ... model constants and computations ...

val i_Na = NaChannel.getCurrent(V, E_R)

// Membrane Voltage ODE

ode { initVal : V, deltaVal : dV } =

(i_Stim - (i_Na+i_s+i_x1+i_K1))/C

}

Similarly, the listing above contains a segment from a

cardiac model within the framework. It shows a BR77

cell model parametrised by a module representing I

this may be provided by any ion channel model that

implements the correct module signature.

We ran a series of simulations that demonstrate the

substitution and impact of the NaChannel within the

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

222

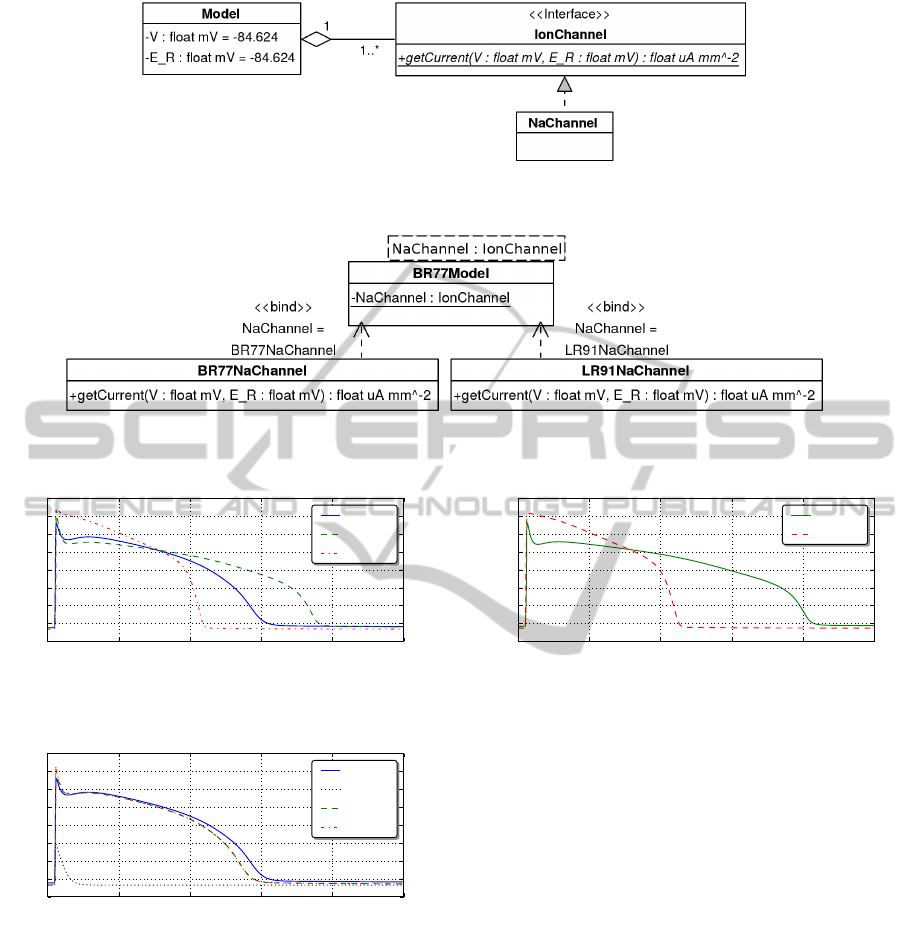

Figure 7: Modular structure of a cardiac model in the repository. The base model represents the cell membrane and calculates

the membrane voltage through references to many ionic channels that implement the IonChannel interface.

Figure 8: Using generics within the model framework — either

BR77NaChannel

LR91NaChannel

can be applied as module

argument to the base BR77Model cardiac model to represent the generic NaChannel.

1000 1100 1200 1300 1400

1500

Time (ms)

−100

−80

−60

−40

−20

Voltage (mV)

BR77

LR91

LRd94

Figure 9: AP curves from applying original I

channels

into models using modules.

1000 1100 1200 1300 1400

1500

Time (ms)

−100

−80

−60

−40

−20

Voltage (mV)

BR77

`Zero'

LR91

LRd94

Figure 10: AP curves from applying alternate I

channels

into BR77 cardiac cell model using modules.

models in a fully scripted manner. This was inspired

by the work in (Niederer et al., 2009) and the modular

framework was structured to safely enable such rapid-

modiﬁcations and experimentation. We initially com-

posed each cardiac base model with its corresponding

sodium channel and simulated the resulting complete

model to generate the reference AP curves depicted

in Figure 9. The sodium channels from the alternate

models were then applied to the BR77 cell model to

generate a new family of models whose AP curves

are presented in Figure 10. This plot shows that the

1000 1100 1200 1300 1400

1500

Time (ms)

−100

−80

−60

−40

−20

Voltage (mV)

LR91

LRd94

Figure 11: AP curves from applying BR77 I

channel into

alternate models using modules.

LR91 and LRd94 I

models slightly shortens the AP

duration of the BR77 cell model. I

Zero

, implementing

the same module signature but returning a zero current,

fails to trigger an AP. This is expected as sodium ions

are responsible for AP initialisation.

We performed the inverse operation, applying the

BR77 model into the remaining cellular models

to investigate its inﬂuence. The AP curves from simu-

lating these models are presented in Figure 11, where

replacing the I

from the LR91 and LRd94 models

increases the AP duration and alters the peak AP. We

do not consider these results particularly important in

terms of their biological meaning, instead they serve

to demonstrate the application and beneﬁts of modular

programming and architecture to developing reusable,

extensible and dynamic models. The results were ob-

tained from a high-performance DSL implementation

that we intend to discuss in future publications.

ModelCompositionforBiologicalMathematicalSystems

223

5 CONCLUSIONS

Our use-case driven design process has yielded a mod-

ular framework which allows a family of cardiac elec-

trophysiological models to be extended both intuitively

and easily. This extensibility was achieved by utilis-

ing features such as generics and subtyping which

exploit the substitutability property of module hierar-

chies along with encapsulation for code structure and

aggregation for reuse. This is a common approach

used to structure large-scale software projects. New

cardiac models may utilise existing ion channel mod-

els, enabling the DSL to naturally capture the reuse

of models and experimental data. Thereby increasing

robustness which is important if these models are ever

used in a predictive pharmaceutical or clinical setting.

We can create hybrid models that include ion chan-

nel representations from several models. This can

be undertaken automatically simply by utilising ion

channel modules from different models when instanti-

ating a generic cell model. Generic modules may be

used to perform sensitivity analysis of the model to

parameter ﬂuctuations. They can be used to alter equa-

tions, for example to model ion channel changes and

resulting effect on the AP caused by mutation or drug

block (O’Hara et al., 2011) in an abstracted manner.

Models created in the fashion that we have illus-

trated do not depend on each other explicitly. They do

not communicate with one another either. Parameteri-

sation only requires the type signature of the parameter

object to be known. Consequently they demonstrate

low coupling and high cohesion, an aspect of model

design that we feel is important for reusability and

extensibility (McKeever et al., 2013).

We are currently developing a repository to repro-

duce existing models. Our notation is textual but as

we have shown the modularity constructs trialled in

Ode have equivalent UML-style graphical representa-

tions. Therefore visual physiological modelling envi-

ronments could also be developed to support collabo-

rative efforts to construct future models.

REFERENCES

Barendregt, H. (1985). The lambda calculus: Its syntax and

semantics, volume 103. Access Online via Elsevier.

Beeler, G. and Reuter, H. (1977). Reconstruction of the

action potential of ventricular myocardial ﬁbres. The

Journal of physiology, 268(1):177.

Booch, G. (2006). Object Oriented Analysis and Design

with Applications. Pearson.

Gill, M., McKeever, S., and Gavaghan, D. (2012a). Modular

Mathematical Modelling of Biological Systems. In

Symposium on Theory of Modeling and Simulation

(TMS’12).

Gill, M., McKeever, S., and Gavaghan, D. (2012b). Modules

for Reusable and Collaborative Modelling of Biologi-

cal Mathematical Systems. In 21ST IEEE International

WETICE Conference (WETICE-2012).

Hodgkin, A. and Huxley, A. (1952). A quantitative de-

scription of membrane current and its application to

conduction and excitation in nerve. The Journal of

physiology, 117(4):500.

Hucka, M., Finney, A., Bornstein, B., Keating, S., and

Shapiro, B. (2004). Evolving a lingua franca and as-

sociated software infrastructure for computational sys-

tems biology: the Systems Biology Markup Language

(SBML) project. Systems Biology.

Leroy, X. (2000). A modular module system. Journal of

Functional Programming, 10(3):269–303.

Lloyd, C., Halstead, M., and Nielsen, P. (2004). CellML: its

future, present and past. Progress in Biophysics and

Molecular Biology, 85:433–450.

Luo, C. and Rudy, Y. (1991). A model of the ventricular

cardiac action potential. Depolarization, repolarization,

and their interaction. Circulation research, 68(6):1501.

Luo, C. and Rudy, Y. (1994). A dynamic model of the

cardiac ventricular action potential. II. Afterdepolariza-

tions, triggered activity, and potentiation. Circulation

research, 74(6):1097–113.

McKeever, S., Gill, M., Connor, A., and Johnson, D. (2013).

Abstraction in physiological modelling languages. In

Symposium on Theory of Modeling & Simulation

(TMS’13).

Niederer, S., Fink, M., Noble, D., and Smith, N. (2009). A

meta-analysis of cardiac electrophysiology computa-

tional models. Experimental physiology, 94(5):486–95.

Noble, D. and Rudy, Y. (2001). Models of cardiac ven-

tricular action potentials: iterative interaction between

experiment and simulation. Philosophical Transac-

tions of the Royal Society A: Mathematical, Physical

and Engineering Sciences, 359(1783):1127–1142.

O’Hara, T., Vir

ag, L., Varr

o, A., and Rudy, Y. (2011). Simula-

tion of the undiseased human cardiac ventricular action

potential: model formulation and experimental valida-

tion. PLoS computational biology, 7(5):e1002061.

Sommerville, I. (2010). Software Engineering. Addison

Wesley.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

224
