Context-aware Cloud Application Management

Uwe Breitenb

ucher, Tobias Binz, Oliver Kopp, Frank Leymann and Matthias Wieland

Institute of Architecture of Application Systems, University of Stuttgart, Stuttgart, Germany

Keywords:

Application Management, Context, Automation, Cloud Computing.

Abstract:

The automation of application management is one of the most important issues in Cloud Computing. However,

the steadily increasing number of different services and software components employed in composite Cloud

applications leads to a higher risk of unexpected side effects when different technologies work together that

bring their own proprietary management APIs. Due to unknown dependencies and the increasing diversity

and heterogeneity of employed technologies, even small management tasks on single components may com-

promise the whole application functionality for reasons that are neither expected nor obvious to non-experts.

In this paper, we tackle these issues by introducing a method that enables detecting and correcting unintended

effects of management tasks in advance by analyzing the context in which tasks are executed. We validate the

method practically and show how context-aware expert management knowledge can be applied fully automat-

ically to running Cloud applications.

1 INTRODUCTION

In recent years, Cloud Computing gained a lot of at-

tention due to its economical and technical beneﬁts.

Especially properties such as pay-on-demand com-

puting, self-service, and elasticity enable enterprises

to outsource IT (Leymann, 2009). These properties

are key success factors for both Cloud providers as

well as customers. To exploit these properties reli-

ably for their offerings, Cloud providers have to au-

tomate their internal processes for application provi-

sioning, conﬁguration, and management. Therefore, a

lot of tools, methods, and technologies have been de-

veloped in the past years: Script-centric DevOps com-

munities support automated conﬁguration manage-

ment, guidelines such as the Information Technology

Infrastructure Library (ITIL) (Malone et al., 2008)

help applying best practices to IT service manage-

ment, and standards such as TOSCA (OASIS, 2013)

enable application developers to describe applications

and their management in a portable way—to name

a few examples. However, automating management

tasks on complex Cloud applications becomes a more

and more difﬁcult challenge: The increasing number

and diversity of employed Cloud services on various

layers offered by different Cloud providers leads to

a higher risk of unexpected side effects when they

are combined with each other or integrated with tradi-

tional software components and middleware systems.

Additional complexity arises from the heterogeneity

of management technologies: Cloud providers, mid-

dleware systems, and software components often pro-

vide proprietary management APIs, security mecha-

nisms, and data formats (Breitenb

ucher et al., 2013b).

Thus, if a task affects multiple different parts of an ap-

plication, also the management technologies of these

parts may need to be integrated. This requires (i) a

deep technical insight in each part and management

technology as well as (ii) an overall understanding of

the whole system and possible impacts to avoid errors.

In these scenarios, often only experts of the respective

technology are able to execute management tasks cor-

rectly. However, also experts reach their limits when

a management task has to be executed on a complex

application whose exact structure and runtime infor-

mation are not documented: Unknown relations and

dependencies between components that directly inﬂu-

ence each other’s functionality lead to a serious man-

agement challenge. Even if only a small operation has

to be executed on a single component, its impact on

other components is not predictable seriously if the

application’s structure is not known exactly. Thus,

if the context, in which a management task is ex-

ecuted, is not known, understood, and considered,

there is a high risk of unexpected side effects that

may compromise the application’s functionality. In

addition, as executing management task manually is

slow, costly, and error prone, Cloud application man-

agement must be automated to enable Cloud proper-

ties (Fehling et al., 2012; Oppenheimer et al., 2003).

499

Breitenbücher U., Binz T., Kopp O., Leymann F. and Wieland M..

Context-aware Cloud Application Management.

DOI: 10.5220/0004949204990509

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 499-509

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

As a result, in case multiple heterogeneous Cloud ser-

vices, software components, and middleware systems

are involved and different management technologies

have to be orchestrated, it’s of vital importance to

(i) apply expert management knowledge, (ii) consider

the context in which tasks are executed, and (iii) auto-

mate management processes to avoid manual errors.

In this paper, we tackle these issues. We present

an approach that enables applying expert manage-

ment knowledge for tasks in a certain context auto-

matically to running Cloud applications. Therefore,

we introduce an abstract (i) Context-Aware Applica-

tion Management Method and (ii) present a fully au-

tomated realization of this method for Cloud Comput-

ing to validate its practical feasibility. The method in-

troduces Declarative Management Description Mod-

els (DMDM) to describe management tasks declar-

atively including their context in a formal model.

This enables experts to detect unintended impacts and

side effects of management tasks through analyzing

them in the context in which they are executed. We

show that an individual context analysis is required

for many management tasks on Cloud applications

due to the heterogeneous nature of the involved com-

ponents and management technologies—which is not

possible having traditional imperative models such as

workﬂows or scripts as these models describe only the

task-speciﬁc information but not the context in which

they are executed. The presented automated realiza-

tion of the method for Cloud application management

validates the method’s practical feasibility. It enables

Cloud providers to offer a variety of different Cloud

applications consisting of heterogeneous components

without the need to employ or educate specialized

experts that have the required technical management

knowledge.

The remainder of this paper is structured as fol-

lows: In Section 2, we describe a motivating scenario

to explain the method, which is introduced in Sec-

tion 3. Section 4 presents the automated realization

of the method to validate its practical feasibility for

Cloud application management. In Section 5 we give

an overview on related work. Section 6 concludes the

paper and gives an outlook on future work.

2 MOTIVATION

In this section, we describe the problem tackled by

our approach in detail and introduce a motivating sce-

nario that is used throughout the paper to explain the

presented method and its realization.

2.1 Problem Statement

In this section, we describe the major issues of Cloud

application management and why context considera-

tion is of vital importance in this area. Due to different

functional as well as non-function requirements on

services, Cloud offerings of different providers often

have to be integrated as using a single Cloud provider

for the complete application landscape of a company

is often not possible (Fehling et al., 2012). The focus

of this paper lies, therefore, on the management of

Complex Composite Cloud Applications, which con-

sist of multiple heterogeneous Cloud services, soft-

ware components, and middleware systems of differ-

ent vendors and Cloud providers.

The management of such applications is quite dif-

ﬁcult as it requires a deep technical understanding of

the involved components, the dependencies between

them, and their management technologies—which

are most often proprietary implementations providing

heterogeneous management interfaces (Leonhardt,

2013). As a consequence, human-induced failures

account for a signiﬁcant number of outages as hu-

man errors accompany even the simplest system op-

eration and management tasks (Brown and Patter-

son, 2001). The management ﬂexibility recently in-

troduced by Cloud Computing has additionally in-

creased this effect as management tasks, such as the

provisioning of new virtual machines, are literally at

the systems manager’s ﬁngertips and often handled

completely via proprietary management interfaces of-

fered by Cloud providers (Fehling et al., 2012). Due

to this management evolution, human errors are more

likely to occur since the physical infrastructure and

thereon deployed software systems are often virtual-

ized and, therefore, obfuscating the actual structure of

an application. Thus, it becomes more and more dif-

ﬁcult to consider the context, in which management

tasks are executed, correctly as application structures,

system boundaries, and dependencies are becoming

increasingly blurred by the Cloud. In addition, due

to the lack of interoperability between Cloud services

of different providers and traditional software com-

ponents, most often complex conﬁguration manage-

ment is needed to integrate heterogeneous systems.

As a result, executing management tasks which affect

multiple parts of an application at once requires spe-

cial management expertise. These problems impede

automating Cloud application management, which is

a major requirement for efﬁcient use of Cloud re-

sources and to avoid manual human errors (Fehling

et al., 2012; Oppenheimer et al., 2003). Therefore,

we need a means to capture and apply context-aware

management expertise fully automatically to running

Cloud applications.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

500

2.2 Management Automation

To automate application management, the execu-

tion of management tasks is often described imper-

atively using executable processes implemented as

workﬂows (Leymann and Roller, 2000) in languages

such as BPEL (OASIS, 2007) or BPMN (OMG,

2011), scripts such as bash, or programs imple-

mented in a computer programming language such as

Java. Especially the more and more emerging script-

centric conﬁguration management technologies such

as Chef (Nelson-Smith, 2013) are prime examples

for this kind of imperative management descriptions.

However, if an application is crucial to the business

of an enterprise, errors that possibly result in sys-

tem downtime are not acceptable. Therefore, before

executing such management processes, they must be

veriﬁed by experts to ensure correctness. Unfortu-

nately, one of the most important problems of this

approach is that the context, in which the manage-

ment tasks are executed, is not explicitly described

and, thus, not visible in such processes. As a result,

management processes cannot be analyzed by experts

in consideration of the management tasks’ context as

only operation calls, service invocations, or script ex-

ecutions on the directly affected components are de-

scribed, but not the surrounding environment: Experts

see only the directly affected part of the application,

not the whole application structure. Thus, other ap-

plication components that may be affected indirectly,

too, cannot be considered in this analysis. For exam-

ple, if the database of a Web-based application shall

be replaced by a database from a different vendor,

the application’s Web server may require a certain

database connector to be installed for connecting to

the new database. If this dependency is not considered

and handled by the management process replacing the

database through installing the required new connec-

tor, too, the application cannot connect to its database

anymore. This quickly results in system downtimes

caused by errors that are neither easy to ﬁnd nor to

ﬁx. Thus, the most important requirement to enable

context-aware management is a formal model that de-

scribes both the tasks and the context.

2.3 Motivating Scenario

In this section, we describe the motivating scenario

that is used throughout the paper to explain the pro-

posed method and its realization. The scenario de-

scribes a business application that consists of a PHP-

based Web frontend and a PostgreSQL database. The

frontend should be migrated from one Cloud to an-

other. Because the application evolved over time, it

is currently distributed over two Clouds: The PHP

frontend is hosted on Microsoft’s public Cloud of-

fering “Windows Azure”

, the PostgreSQL database

on Amazon’s PaaS offering “Relational Database Ser-

vice (RDS)”

, which enables hosting databases di-

rectly as a service. The PHP frontend runs on an

Apache HTTP Server (including the PHP-module)

which is installed on an Ubuntu Linux operating sys-

tem that runs in a virtual machine hosted on Azure.

The management task that has to be executed is mi-

grating the PHP frontend to Amazon’s IaaS offering

“Elastic Compute Cloud (EC2)”

in order to reduce

the number of employed Cloud providers. This mi-

gration results in two issues that compromise the ap-

plication’s functionality if they are not considered by

experts having the knowledge to recognize the follow-

ing two problems in advance: (i) missing database

driver and (ii) missing conﬁguration of the database

service. To migrate the PHP frontend, we have to

create a new virtual machine on Amazon EC2, in-

stall the Apache HTTP Server and the PHP-module,

and deploy the corresponding PHP ﬁles on it. This

works without further conﬁguration issues. However,

connecting the PHP application to the database is

not as easy as it seems to be: Simply deﬁning the

database conﬁguration of the PHP frontend by set-

ting the database’s endpoint, username, and password

is not sufﬁcient. Here, a technical detail of the un-

derlying infrastructure needs to be considered: The

PHP-module of the Apache HTTP Server needs dif-

ferent database drivers to connect to different types of

databases. Thus, if the PostgreSQL driver gets not in-

stalled explicitly on the server, the Moodle PHP fron-

tend is not able to connect to the database. However,

this is not easy to recognize as applications often em-

ploy MySQL databases whose drivers are typically

installed together with the PHP-module. Thus, in-

stalling the required driver for PostgreSQL might be

forgotten. The second issue is even more difﬁcult to

foresee if the administrator is not an expert on Ama-

zon RDS: Databases running on Amazon RDS are per

default not accessible from external components. To

allow connections, a so-called “Security Group” must

be deﬁned to conﬁgure the ﬁrewall. This group spec-

iﬁes the IP-addresses which are allowed to connect to

the database. Both issues result in breaking the ap-

plication’s functionality as the frontend cannot con-

nect to the database. The reason for both problems

lies in ignoring the context in which the tasks are exe-

cuted: First, if an application shall connect to a certain

type of database, the runtime environment hosting the

http://www.windowsazure.com/

http://aws.amazon.com/rds/

http://aws.amazon.com/ec2/

Context-awareCloudApplicationManagement

501

application must support connecting to this kind of

database. It is not enough to simply set the conﬁgu-

ration as the underlying infrastructure, i. e., the con-

text, needs to be considered, too. Second, accessing a

database hosted on Amazon RDS requires also more

than simply writing endpoint information into a con-

ﬁguration ﬁle as also the ﬁrewall of the service has to

be conﬁgured. Thus, also for this task, the context in

the form of the infrastructure that hosts the database

has to be considered to recognize the problem.

However, both problems cannot be detected by

experts if the migration is implemented using tradi-

tional approaches such as management workﬂows or

scripts: The processes would only model the steps for

(i) shutting down the old virtual machine on Azure,

(ii) creating the new virtual machine on Amazon EC2,

(iii) installing the Apache Web Server and the PHP-

module, (iv) deploying the frontend, and (v) setting

the database’s IP-address, username, and password in

the frontend’s conﬁguration. The process neither pro-

vides information about the database’s type nor which

infrastructure is used to host the database—the con-

text is not described. In addition, if administrators

execute this migration manually, they require a lot of

technical expertise and background information about

the different APIs and employed technologies. Thus,

we need a means to (i) capture expert management

knowledge for a certain context and (ii) make it appli-

cable fully automatically in order to help administra-

tors avoiding unintended mistakes.

3 CONTEXT-AWARE

MANAGEMENT METHOD

In this section, we introduce the Context-Aware Ap-

plication Management Method that provides a means

to consider the context in which management tasks on

application components or relationships are executed.

The method separates between a declarative descrip-

tion of the management tasks to be executed and the

ﬁnal executable management process. It consists of

six steps which are shown in Figure 1: First, (1)

we capture all runtime information and the structure

of the application to be managed in a formal model

which is extended in the second step (2) by declaring

tasks on components and relations. In the third step,

(3) experts analyze this model for unintended side ef-

fects and (4) adapt the model afterwards if necessary

to resolve the found problems. In the ﬁfth step, (5)

this declarative model is translated into an imperative

process model that is executed in the last step (6) to

perform the tasks on the running application. We ex-

plain each step in the following subsections and start

Context-Aware

Application Management

Method

1. Capture

Application as

Formal Model

2. Create

Declarative

Management

Description

Model

3. Analyze

Declarative

Management

Description

Model

4. Adapt

Declarative

Management

Description

Model

5. Create

Imperative

Management

Description

Model

6. Execute

Imperative

Management

Description

Model

Figure 1: Context-Aware Application Management

Method.

each description with a short summary of the step in

italic text to provide a compact overview that is de-

tailed afterwards.

3.1 Step 1: Capture Application as

Formal Model

Describe all components of the application and their

relations in a formal model that speciﬁes their types

and current runtime information.

First, the application to be managed is described

as a formal model. This model captures the ap-

plication structure and its state, i. e., all compo-

nents such as Web servers, virtual machines, or

installed applications, the relations between them,

e. g., database connections, and their runtime infor-

mation. The semantics of components and rela-

tions (we call both model elements in the follow-

ing) are described using types, e. g., a component

may be of type “ApacheHTTPServer”, a relation-

ship of type “SQLConnection”. To enable a pre-

cise deﬁnition of the model elements, types can be

inherited: the “ApacheHTTPServer” type is a sub-

type of “HTTPServer”. Runtime information are

described as model element properties, e. g., the

“ApacheHTTPServer” has properties “IP-Address”

and “Port” that specify the server’s endpoint. The

property schema is deﬁned by the type of the model

element. This formalization of the running applica-

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

502

tion provides a detailed, structured, and machine read-

able means to document a current snapshot of the ap-

plication structure and all runtime information.

3.2 Step 2: Create Declarative

Management Description Model

Create a Declarative Management Description

Model that declaratively describes the management

tasks to be executed on components and relations.

In the second step, the desired management tasks are

described based on the formal model. Therefore, we

introduce the Declarative Management Description

Model (DMDM) that extends the formal model cap-

tured in Step 1 by a declarative description of the

management tasks to be executed on components and

relations of the application. This model declares man-

agement tasks in an abstract manner without technical

implementation details and speciﬁes the target com-

ponent or relation of each task. A DMDM is not

executable as it describes only what has to be done,

but not how—all technical details are missing. For

example, a DMDM may declare a “Create” task on

a relation of type “SQLConnection” between a PHP

application and an SQL database, which means that

the connection has to be established. However, it

provides neither technical implementation details nor

speciﬁes the control ﬂow between multiple different

tasks.

3.3 Step 3: Analyze Declarative

Management Description Model

Analyze the impact of tasks in consideration of the

context deﬁned by the components, relations, and

runtime information described by the DMDM.

The DMDM created in the previous step captures a

snapshot of the application and the abstract manage-

ment tasks to be executed. The model describes the

whole context in which tasks are executed by mod-

elling all components and adjacent relations of the ap-

plication that are possibly affected. In the third step,

management tasks are analyzed in their context by ex-

perts of different domains to detect unexpected im-

pacts leading to unintended side effects. DMDMs en-

able cooperation between different experts and sepa-

rate concerns based on a uniform, structured, and for-

mal model: Experts on the “ApacheHTTPServer” are

able to detect that the installation of a certain database

connector is required, experts on the Amazon Cloud

are able to conﬁgure the Security Group in order to

allow connections from the external PHP frontend of

the application. Thus, DMDMs can be analyzed by

multiple experts of different domains in a cooperative

manner.

3.4 Step 4: Adapt Declarative

Management Description Model

Adapt the analyzed Declarative Management De-

scription Model if necessary to solve the analyzed

problems.

After the expert analysis, found problems have to be

resolved in order to achieve the desired management

goals. Therefore, the DMDM is adapted in this step

by the respective experts to enable correct execution

of the management tasks. Therefore, components, re-

lations, and tasks of the DMDM may be added or re-

conﬁgured. For example, the missing database con-

nector found in the analysis of the previous step is

resolved by adding the task to install the required con-

nector on the Web Server. Thus, each task was veri-

ﬁed in its respective context in the previous step and

gets corrected if necessary in this step. However, if

tasks are added or reconﬁgured, all tasks have to be

analyzed again for correctness as the context changed

by this adaptation. This may lead to new problems

and unintended side effects on other components or

relations that have to be found. Therefore, Step 3 and

Step 4 are repeated until no new problems are found

and all tasks were considered in the ﬁnal context. This

ensures that also the adaptations are checked by man-

agement experts.

3.5 Step 5: Create Imperative

Management Description Model

Create an Imperative Management Description

Model in the form of an executable process to per-

form the management tasks declared in the DMDM.

The veriﬁed and adapted Declarative Management

Description Model resulting from the previous step

describes the tasks to be performed declaratively in

an abstract manner—only what management tasks

have to be performed, but not how. Thus, the model

is not executable as the technical realization is not

described. Therefore, an executable process model

that implements the management tasks declared in

the DMDM must be created. As this process model

describes how the tasks have to be executed imper-

atively, we call these management processes Imper-

ative Management Description Models (IMDM). An

IMDM can be executed using an appropriate process

engine and describes also the control ﬂow and data

Context-awareCloudApplicationManagement

503

handling between the management tasks. The IMDM

has to implement exactly the semantics of the man-

agement tasks described by the adapted Declarative

Management Description Model resulting from the

previous step.

3.6 Step 6: Execute Imperative

Management Description Model

Execute the created Imperative Management De-

scription Model to manage the running application.

In the last step, the IMDM is executed to perform the

desired management tasks on the real running appli-

cation. Therefore, a process engine is employed to

run the process. As a result, the changes described

by the tasks are applied to the running application in

consideration of the context. Afterwards, the method

may start from the beginning to execute further tasks.

4 VALIDATION

The presented method enables combining declara-

tive management descriptions, which include all rel-

evant context information to verify the management

tasks, and imperative processes, which are employed

to actually perform the tasks on running applications.

Thus, it combines two different types of Management

Description Models which enables beneﬁting from

advantages of both worlds. Therefore, the presented

method provides a theoretic basis for enabling auto-

mated context-aware application management. In this

section, we validate the proposed method by showing

a fully automated practical implementation using ex-

isting frameworks. We describe the realization of the

prototype for all steps of the method in the following.

4.1 Formalizing Applications Using

Enterprise Topology Graphs

In Step 1, the application’s structure and runtime in-

formation needs to be captured in a formal model. We

use Enterprise Topology Graphs (ETG) (Binz et al.,

2012) as model language as they are a common way

to capture such information formally. ETGs are di-

rected, possibly acyclic, graphs that describe the ap-

plication’s structure as topology model that contains

each component as typed node and each relationship

as typed edge between the nodes. Runtime informa-

tion of nodes and relations are captured as properties

of the respective element. Thus, ETGs can be used

to model the context in which a management task is

File: BA_Frontend.zip

URL: 129.78.43.72:8080/BA

Frontend

(PHP)

HttpPort: 8080

Username: Admin

Password: w1j4vg!osb

PHPModule: Installed

(ApacheHTTPServer)

SSHCredentials: [….]

IP-Address: 129.78.43.72

(Ubuntu12.04VM)

User: MyAzureAccount

Password: h94jfds!fg3

(WindowsAzure)

(hostedOn)

(SQLConnection)

Legend:

DBName: BA_DB

DBUser: u4001

DBPassword: a7ju2vf!b

Database

(PostgreSQLDB)

Port: 5432

User: MyAccount

Password: a8u8u29uer8u234

(AmazonRDS)

Figure 2: ETG of the running application.

executed. As ETGs support the XML-format, they

are machine readable. Figure 2 shows the motivating

scenario as ETG example, graphically rendered using

the visual topology notation “Vino4TOSCA” (Bre-

itenb

ucher et al., 2012). Each component is de-

picted as rounded rectangle, relations as arrows be-

tween these rectangles, and runtime information as

key-value properties. Element IDs are undecorated

text, element types are enclosed by parentheses. Binz

et al. showed that ETGs of running applications can

be discovered fully automatically using the ETG Dis-

covery Framework (Binz et al., 2013). Thus, the ﬁrst

step of formalizing the application to be managed can

be automated by using this framework.

4.2 Automating DMDM Creation Using

Automated Management Patterns

Capturing running application snapshots in such for-

mal ETG models provides a structured means to de-

scribe the context in which a management task is ex-

ecuted. Therefore, to create the DMDM in the sec-

ond step, we use the discovered ETG and annotate

the management tasks to be executed directly at the

affected components and relations of the ETG. In Bre-

itenb

ucher et al. (Breitenb

ucher et al., 2013a), we in-

troduced so-called Desired Application State Models,

which provide exactly this type of model for describ-

ing tasks to be executed declaratively in the context in

which they have to be executed based on ETGs.

Figure 3 shows the Desired Application State

Model that describes our migration motivating sce-

nario. The colored circles with the symbols inside

represent the management tasks to be executed in the

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

504

(hostedOn)

(SQLConnection)

Legend:

File: BA_Frontend.zip

URL: 129.78.43.72:8080/BA

Frontend

(PHP)

HttpPort: 8080

Username: Admin

Password: w1j4vg!osb

PHPModule: Installed

(ApacheHTTPServer)

SSHCredentials: […]

IP-Address: 129.78.43.72

(Ubuntu12.04VM)

User: MyAzureAccount

Password: h94jfds!fg3

(WindowsAzure)

DBName: BA_DB

DBUser: u4001

DBPassword: a7ju2vf!b

Database

(PostgreSQLDB)

Port: 5432

User: MyAccount

Password: a8u8u29uer8u234

(AmazonRDS)

File: BA_Frontend.zip

URL:

Frontend

(PHP)

HttpPort: 8080

Username: Admin

Password: w1j4vg!osb

PHPModule: Installed

(ApacheHTTPServer)

SSHCredentials: […]

IP-Address:

(Ubuntu12.04VM)

User: MyAccount

Password: a8u8u29uer8u234

(AmazonEC2)

Figure 3: Desired Application State Model resulting from applying the Automated Management Pattern to the discovered

ETG.

form of so-called Management Annotations (Breit-

enb

ucher et al., 2013a). A Management Annotation

describes a task to be performed in a declarative way:

It deﬁnes only the type of the task and possible con-

ﬁguration properties, but not how to execute it. The

green colored “Create-Annotations” with the star in-

side declare that the corresponding element it is at-

tached to has to be created, while the red colored

“Destroy-Annotations” with the “x” inside declare

that the model element has to be destroyed. Manage-

ment Annotations can be also bound declaratively to

non-functional requirements in the form of policies

that must be fulﬁlled when executing the task (Breit-

enb

ucher et al., 2013c).

Annotating management tasks to ETGs, i. e., cre-

ating a DMDM, can be automated, too: Desired Ap-

plication State Models can be created automatically

by applying so-called Automated Management Pat-

terns to ETGs (Breitenb

ucher et al., 2013a). An Au-

tomated Management Pattern captures management

expertise through implementing a transformation that

annotates management tasks in the form of Man-

agement Annotations fully automatically to an in-

put ETG. This transformation attaches, conﬁgures, or

removes nodes, relations, and Management Annota-

tions. In addition, Automated Management Patterns

can be conﬁgured via input parameters. For example,

the Desired Application State Model shown in Fig-

ure 3 is the result of applying the “Migrate PHP-based

Application to Amazon Pattern”, which was conﬁg-

ured to use Amazon’s IaaS offering EC2 for hosting

the PHP frontend. The only manual step is selecting

and conﬁguring the pattern. Thus, Step 2 can be au-

tomated, too.

4.3 Context-aware Task Analyzer

After the Desired Application State Model was cre-

ated automatically by applying an Automated Man-

agement Pattern, it has to be analyzed by experts in

Step 3 and adapted if necessary in Step 4. As we

aim at automating the whole method realization, also

these two steps need to be automated. Therefore, we

introduce the concept of Context-Aware Management

Task Analyzers (CAMTA) that provides a means to

capture context-aware expert management knowledge

in a form that enables a fully automated application to

the Desired Application State Model resulting out of

the previous step. The notion of CAMTAs is detect-

ing and correcting problems by analyzing the tasks in

their context and adapting the model if necessary fully

automatically without manual interaction. Therefore,

a CAMTA consists of two parts: (i) An Annotated

Topology Fragment and a (ii) Transformation, simi-

larly to Automated Management Patterns. The An-

notated Topology Fragment is a small topology that

speciﬁes the management tasks in a certain context

for which the CAMTA is able to (i) analyze correct-

ness and (ii) may provide expert management knowl-

edge required to adapt the model if necessary. The

fragment is used for matchmaking of CAMTAs and

Desired State Models: If all elements in a CAMTA’s

Context-awareCloudApplicationManagement

505

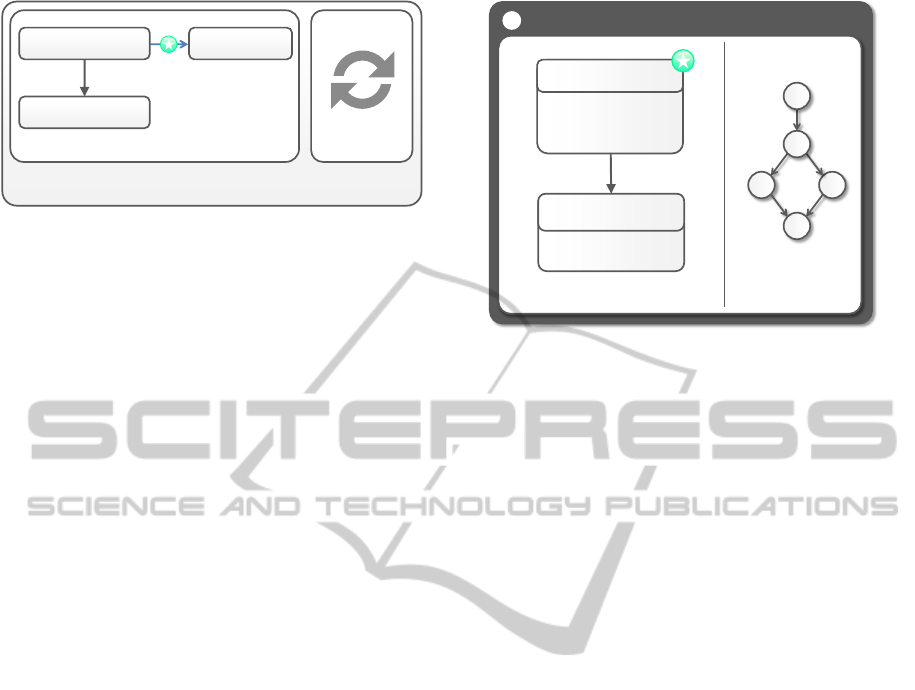

Resolving Missing Database Driver CAMTA

Transformation

Annotated Topology Fragment

(ApacheHTTPServer)

(hostedOn)

(PostgreSQLDB) (PHP)

Figure 4: CAMTA that recognizes the problem of missing

PostgreSQL database connector driver.

fragment match elements in the model, the Context-

Aware Management Task Analyzer is able to analyze

exactly that part. Thus, the Annotated Topology Frag-

ment is used to select the CAMTAs that have to be

applied to analyze the DMDM in Step 3 fully auto-

matically. For adapting the model in Step 4, each

CAMTA implements a context-aware transformation

that transforms the input Desired State Model fully

automatically if necessary. Therefore, the transfor-

mation checks if the tasks speciﬁed in the CAMTA’s

Topology Fragment can be executed safely: If yes, the

transformation returns the unmodiﬁed model. If not,

the transformation adds or conﬁgures components, re-

lationships, or tasks for correcting the Desired State

Model. Figure 4 shows a CAMTA that analyzes the

tasks of establishing a SQL connection from a PHP

application hosted on an Apache HTTP Server to a

PostgreSQL database. The shown CAMTA is able

to analyze if establishing a SQL-Connection in the

context of a PHP Application running on the Apache

HTTP Server to a PostgreSQL database is possible.

This is expressed by its Topology Fragment on the

left. The transformation shown on the right ana-

lyzes the Desired State Model and ﬁnds out that the

PostgreSQL connector driver is missing. Therefore,

it adds the corresponding elements and tasks to the

model. Thus, based on two CAMTAs, the Desired

State Model, which results from applying the auto-

mated migration pattern in Step 2, gets adapted fully

automatically for resolving the issues of the missing

database connector and Security Group conﬁguration.

Therefore, the respective CAMTAs insert two differ-

ent Management Annotations into the Desired State

Model: (i) a “ConﬁgureSecurityGroup-Annotation”

that is attached to the AmazonRDS node and an

“InstallDriver-Annotation” attached to the Apache

HTTP Server node. The ConﬁgureSecurityGroup-

Annotation conﬁgures the AmazonRDS instance in

a way that the database is accessible by the Apache

HTTP Server, the InstallDriver-Annotation declares

that the required connector for PostgreSQL databases

must be installed.

Create Ubuntu12.04VM on AmazonEC2

(AmazonEC2)

User: *

Password: *

SSHCredentials: *

Type: *

…

(Ubuntu12.04VM)

(hostedOn)

Annotated Topology Fragment Workflow

Figure 5: Management Planlet that creates an Ubuntu12.04

virtual machine on Amazon EC2.

As Desired State Models typically specify multi-

ple management tasks to be executed in the form of

Management Annotations that need to be analyzed in

their context, multiple different CAMTAs are needed

to check the correctness of the whole model. As they

may add or conﬁgure elements, all CAMTAs need

to be applied every time after one transformed the

model to ensure that all tasks are validated in the cur-

rent context that may be changed by formerly applied

CAMTAs. As soon as input and output model do not

change anymore after applying all matching CAM-

TAs, Step 4 is ﬁnished. The approach is similar to Au-

tomated Management Patterns (Breitenb

ucher et al.,

2013a) that also use transformations to modify mod-

els.

4.4 Management Plan Generation

After the DMDM was analyzed and adapted for cor-

rectness in Step 3, the resulting model is not exe-

cutable directly as it describes the tasks to be per-

formed only declaratively, i. e., without implementa-

tion or control ﬂow: The Declarative Management

Description Model has to be transformed into an ex-

ecutable Imperative Management Description Model

in Step 5. Therefore, we employ the management

framework presented by Breitenb

ucher et al. (Bre-

itenb

ucher et al., 2013a) that employs Management

Planlets to translate Desired Application State Mod-

els fully automatically into executable BPEL work-

ﬂows. Management Planlets provide the low-level

imperative management logic to execute the declar-

ative Management Annotations used in Desired Ap-

plication State Models and support deﬁning func-

tional as well as non-functional requirements (Breit-

enb

ucher et al., 2013c). They serve as generic man-

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

506

Management

Workflow

Planlet Repository

Plan

Generator

Adapted Desired

Application State Model

Pattern Repository

Pattern

Applier

Desired Application

State Model

CAMTA Repository

CAMTA

Applier

Enterprise

Topology Graph

Figure 6: Conceptual Architecture of the method’s realization.

agement building blocks that can be orchestrated to

implement a higher-level management task. A Man-

agement Planlet consists of two parts: (i) Annotated

Topology Fragment and (ii) a workﬂow. The frag-

ment exposes the Planlet’s functionality and is used

to ﬁnd Planlets that are capable of executing the spec-

iﬁed management tasks in the speciﬁed context. For

example, the Planlet shown in Figure 5 is capable

of executing the Create-Annotation attached to an

Ubuntu12.04VM node if this node has to be hosted

on AmazonEC2. The Planlet’s executable workﬂow

implements exactly the management logic required to

create this virtual machine on EC2. Based on these

fragments, different Planlets can be orchestrated to

implement an overall management plan that performs

all management tasks deﬁned in the Desired Applica-

tion State Model. Therefore, the framework employs

a Plan Generator that transforms Desired Application

State Models into executable management workﬂows.

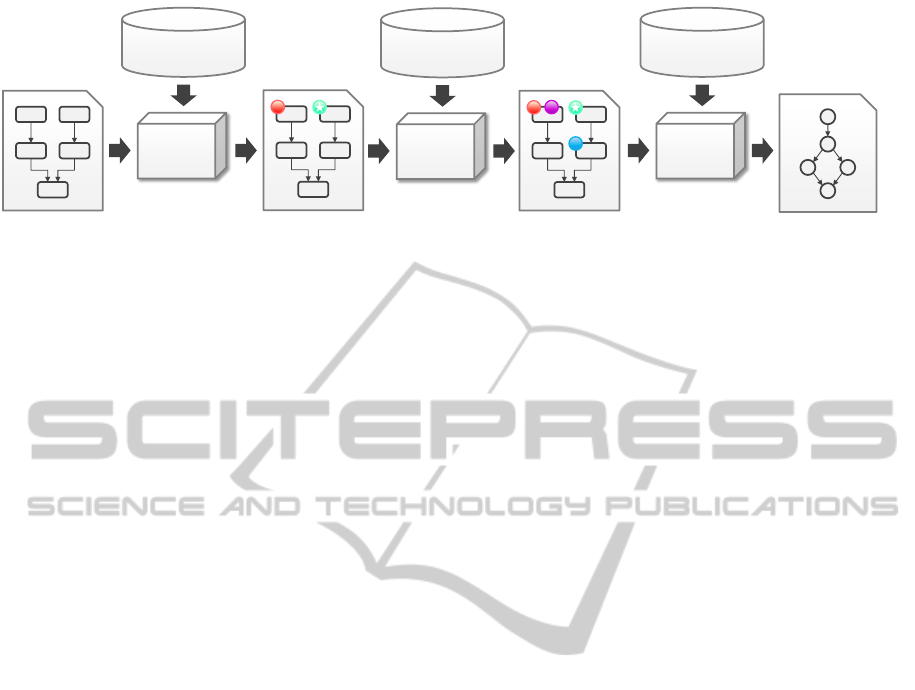

The whole method realization is shown in Figure 6: A

discovered ETG is transformed into a Desired Appli-

cation State Model by applying an Automated Man-

agement Pattern. This model is analyzed and possi-

bly adapted by several CAMTAs. The Plan Genera-

tor gets the resulting model as input, searches Plan-

lets that are able to execute the speciﬁed Management

Annotations, and orchestrates the matching Planlets’

workﬂows to an overall management workﬂow. This

workﬂow implements all management tasks declared

by the Desired Application State Model and can be

executed in Step 6 to perform the tasks on the real

running application.

4.5 Evaluation of the Realization

The introduced declarative model layer describing

tasks in its formal context that encompasses all ap-

plication components, their relations, and runtime in-

formation enables experts to detect dependencies that

are not visible in traditional imperative management

processes such as workﬂows. The reason is that these

traditional processes describe only logic for the di-

rectly affected components, not the surrounding envi-

ronment context: Details of the application structure,

i. e., the context, are not contained in such process

models and can, thus, not be analyzed. However, es-

pecially workﬂow technology and script-centric tech-

nologies such as Chef are well-established technolo-

gies used in systems management due to the provided

features and properties: Workﬂow technology pro-

vides features, such as recoverability and compensa-

tion mechanisms, that enable correct and complete

execution of long running processes, which is often

a major requirement (Leymann and Roller, 2000). On

the other side, the script-centric DevOps communi-

ties provide a lot of templates and implementations

that can be used for conﬁguration management with-

out further modiﬁcations. The method enables us-

ing these technologies for the actual execution of the

management tasks in the form of IMDMs. Thus,

it enables combining both types of management de-

scription models to support both consideration of con-

text and proﬁting from features provided by common

technologies.

The presented realization is limited in terms of

completeness: Management tasks in a Desired Appli-

cation State Model are analyzed and possibly adapted

only if there are CAMTAs that provide the required

knowledge for analyzing and adapting the tasks in the

actual context. The approach could be extended by

marking all veriﬁed management tasks, i. e., all Man-

agement Annotations that were considered by one or

more CAMTAs. In addition, a description of the task

analysis could be added by CAMTAs to provide in-

formation about the analyzed issues and determined

problems. This may help users to understand the per-

formed analysis and enables drawing their attention

to the tasks that were not considered by the system.

These tasks could be then analyzed manually by ex-

perts before generating the ﬁnal management work-

ﬂow.

Context-awareCloudApplicationManagement

507

5 RELATED WORK

Context-aware systems adapt their functionality and

behaviour using context information about the envi-

ronment. An often used deﬁnition for context was

given by Dey (Dey et al., 2000): “Context is any in-

formation that can be used to characterize the situ-

ation of an entity, where an entity can be a person,

place, physical or computational object”. An impor-

tant type of context information, which is often ne-

glected, is the state and structure of an application to

be managed. In this paper, we use this type of context

information to verify, conﬁgure, and execute manage-

ment tasks on applications and their infrastructure.

The automated realization of the presented manage-

ment method provides, therefore, the basis to imple-

ment Context-aware Cloud Application Management

Systems.

To model and manage context information, many

frameworks have been developed in the past years.

There are simple, widget-like frameworks for sensor

information such as the Context Toolkit (Dey et al.,

2001) and systems that support smart environments

like Aura (Judd and Steenkiste, 2003) or Gaia (Roman

and Campbell, 2000). Different types of development

frameworks, e. g., the framework of Henricksen and

Indulska (Henricksen and Indulska, 2004), and con-

text management platforms, e. g., the Nexus Platform

(Großmann et al., 2005), were developed that aim at

efﬁcient provisioning of context information within a

global scope. These frameworks use Context Models

as an abstraction layer between applications and the

technical infrastructure that gathers the context data.

However, there is no framework that manages context

information for application management in the form

of topology models. The Declarative Management

Description Model introduced in this paper provides

a kind of Context Model that (i) enables to capture

the environment in which management tasks are ex-

ecuted and (ii) the management tasks themselves de-

scribed in a declarative fashion. The context is cap-

tured in a domain-speciﬁc data structure in the form

of ETGs. Furthermore, no sensors integration has to

be achieved because the context is detected on the

ﬂy using the ETG Discovery Framework (Binz et al.,

2013). Thus, the context is always up to date and

does not have to be stored or managed using addi-

tional tooling.

There are several approaches that enable de-

scribing application topologies including runtime in-

formation and dependencies. Scheibenberger and

Pansa (Scheibenberger and Pansa, 2008) present a

generic meta model to describe resource dependen-

cies among IT infrastructure components. They sep-

arate the static view, which captures functional and

structural aspects, from the dynamic operational view,

which captures runtime information. In contrast to the

employed concept of ETGs in the validation, their ap-

proach enables to model dependencies between com-

ponent properties. The method’s realization may be

extended to capture also such ﬁne-grained depen-

dencies if necessary that may help experts to ana-

lyze possible impacts of a certain management task.

The Common Information Model (CIM) (Distributed

Management Task Force, 2010) is a standard that pro-

vides an extensible, object-oriented data model used

to capture information about different parts of an en-

terprise. It also provides a speciﬁcation to describe

application structures including dependencies. How-

ever, all these works may be used to formalize the

application structure, dependencies, and runtime in-

formation, but they provide no means to model also

the management tasks to be executed as required to

implement a DMDM.

There are several frameworks that employ declar-

ative descriptions to generate workﬂows such as

Eilam et al. (Eilam et al., 2011), Maghraoui et

al. (Maghraoui et al., 2006), and Keller et al. (Keller

et al., 2004). The ﬁrst two focus mainly on provi-

sioning of applications whereas the third also consid-

ers application management. In general, the proposed

method can be applied to approaches and frameworks

that transform declarative descriptions into impera-

tive processes. However, it must be ensured that the

declarative descriptions (i) provide the whole context

and (ii) that the management tasks to be executed

are described by this model somehow. In a former

work (Breitenb

ucher et al., 2014), we showed how

declarative provisioning descriptions can be trans-

formed automatically into imperative provisioning

workﬂows based on the TOSCA standard (OASIS,

2013). The application to be provisioned is described

as a topology, which models all components and re-

lations of the application. As the tasks to be executed

are clear (create each application component and in-

stantiate the relations between the components) and

the whole context of the provisioning is provided by

this model in the form of the application topology,

the presented method can be applied to this standards-

based provisioning approach, too.

6 CONCLUSIONS

In this paper, we introduced an abstract Context-

Aware Application Management Method that enables

applying context-aware management expertise to run-

ning Cloud applications. We showed that separat-

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

508

ing models for context-aware analysis and manage-

ment execution provides a powerful means to ben-

eﬁt from advantages of both worlds. Therefore, we

employed abstract Declarative Management Descrip-

tion Models for describing the context as well as the

management tasks to be executed themselves that are

transformed into Imperative Management Description

Models. The presented method is validated by an

automated prototypical realization for Cloud Appli-

cation Management using existing frameworks and

technologies. In future, we plan to integrate non-

functional requirements into the method and its re-

alization and to apply both to the OASIS standard

TOSCA.

ACKNOWLEDGEMENTS

This work was partially funded by the BMWi project

CloudCycle (01MD11023).

REFERENCES

Binz, T., Breitenb

ucher, U., Kopp, O., and Leymann, F.

(2013). Automated Discovery and Maintenance of

Enterprise Topology Graphs. In SOCA, pages 126–

134. IEEE.

Binz, T., Fehling, C., Leymann, F., Nowak, A., and

Schumm, D. (2012). Formalizing the Cloud through

Enterprise Topology Graphs. In CLOUD, pages 742–

749. IEEE.

Breitenb

ucher, U., Binz, T., K

epes, K., Kopp, O., Leymann,

F., and Wettinger, J. (2014). Combining Declarative

and Imperative Cloud Application Provisioning based

on TOSCA. In IC2E. IEEE.

Breitenb

ucher, U., Binz, T., Kopp, O., and Leymann,

F. (2013a). Pattern-based Runtime Management

of Composite Cloud Applications. In CLOSER.

SciTePress Digital Library.

Breitenb

ucher, U., Binz, T., Kopp, O., Leymann, F., and

Wettinger, J. (2013b). Integrated cloud applica-

tion provisioning: Interconnecting service-centric and

script-centric management technologies. In CoopIS,

pages 130–148. Springer.

Breitenb

ucher, U., Binz, T., Kopp, O., Leymann, F., and

Wieland, M. (2013c). Policy-Aware Provisioning of

Cloud Applications. In SECURWARE, pages 86–95.

Xpert Publishing Services.

Breitenb

ucher, U. et al. (2012). Vino4TOSCA: A Vi-

sual Notation for Application Topologies based on

TOSCA. In CoopIS, pages 416–424. Springer.

Brown, A. B. and Patterson, D. A. (2001). To err is human.

In EASY, page 5.

Dey, A. K., Abowd, G., and Salber, D. (2000). A context-

based infrastructure for smart environments. In Man-

aging Interactions in Smart Environments, pages 114–

128. Springer.

Dey, A. K., Abowd, G. D., and Salber, D. (2001). A

conceptual framework and a toolkit for supporting

the rapid prototyping of context-aware applications.

Hum.-Comput. Interact., 16:97–166.

Distributed Management Task Force (2010). Common In-

formation Model.

Eilam, T. et al. (2011). Pattern-based composite applica-

tion deployment. In Integrated Network Management.

IEEE.

Fehling, C., Leymann, F., R

utschlin, J., and Schumm, D.

(2012). Pattern-based development and management

of cloud applications. Future Internet, 4:110–141.

Großmann, M., Bauer, M., H

onle, N., K

appeler, U.-P.,

Nicklas, D., and Schwarz, T. (2005). Efﬁciently Man-

aging Context Information for Large-Scale Scenarios.

In PerCom. IEEE.

Henricksen, K. and Indulska, J. (2004). A Software En-

gineering Framework for Context-Aware Pervasive

Computing. In PerCom. IEEE.

Judd, G. and Steenkiste, P. (2003). Providing contextual

information to pervasive computing applications. In

PerCom. IEEE.

Keller, A., Hellerstein, J. L., Wolf, J. L., Wu, K.-L., and

Krishnan, V. (2004). The champs system: change

management with planning and scheduling. In NOMS,

pages 395–408. IEEE.

Leonhardt, S. (2013). A generic artifact-driven approach

for provisioning, conﬁguring, and managing infras-

tructure resources in the cloud. Diploma thesis, Uni-

versity of Stuttgart, Germany.

Leymann, F. (2009). Cloud Computing: The Next Revo-

lution in IT. In The Photogrammetric Record, pages

3–12.

Leymann, F. and Roller, D. (2000). Production workﬂow:

concepts and techniques. Prentice Hall PTR.

Maghraoui, K. E. et al. (2006). Model driven provision-

ing: Bridging the gap between declarative object mod-

els and procedural provisioning tools. In Middleware,

pages 404–423. Springer.

Malone, T., Blokdijk, G., and Wedemeyer, M. (2008). ITIL

V3 Foundation Complete Certiﬁcation Kit. Art of Ser-

vice Pty Limited.

Nelson-Smith, S. (2013). Test-Driven Infrastructure with

Chef. O’Reilly Media, Inc.

OASIS (2007). Web services business process execution

language (WS-BPEL) version 2.0.

OASIS (2013). Topology and Orchestration Speciﬁcation

for Cloud Applications Version 1.0.

OMG (2011). Business Process Model and Notation

(BPMN), Version 2.0.

Oppenheimer, D., Ganapathi, A., and Patterson, D. A.

(2003). Why do internet services fail, and what can

be done about it? In USITS. USENIX Association.

Roman, M. and Campbell, R. H. (2000). Gaia: Enabling

active spaces. In SIGOPS, pages 229–234. ACM.

Scheibenberger, K. and Pansa, I. (2008). Modelling depen-

dencies of it infrastructure elements. In BDIM, pages

112–113. IEEE.

Context-awareCloudApplicationManagement

509
