Secure Virtual Machine Migration (SV2M) in Cloud Federation

Muhammad Awais Shibli, Naveed Ahmad, Ayesha Kanwal

and Abdul Ghafoor

National University of Sciences and Technology,

School of Electrical Engineering and Computer Science, Islamabad, Pakistan

Keywords: Virtualization, Virtual Machine, Secure Migration, Cloud Computing.

Abstract: Virtual Machine (VM) migration is mainly used for providing high availability, hardware maintenance,

workload balancing and fault takeover in Cloud environment. However, it is susceptible to active and

passive security attacks during migration process, which makes IT industry hesitant to accept this feature in

Cloud. Compromising the VM migration process may result in DOS attacks, loss of data integrity and

confidentiality. To cater different attacks such as unauthorized access to images and injecting malicious

code on VM disk images, Cloud Providers store images in encrypted form. Therefore, security of VM

migration along encrypted disk images keys becomes necessary. Previously, research focus was on the

performance of VM migration, leaving security aspects of migration process completely explored. This

paper proposes a comprehensive solution for Secure VM Migration (SV2M) in Cloud environment, which

ensures authorization, mutual authentication, confidentiality, replay protection, integrity and non-

repudiation with minimal changes in existing infrastructure. We have extended the key manager of Cloud

provider and introduced new features for management and storage of keys involved in our proposed SV2M

solution. In addition to this, we have integrated the proposed solution with OpenStack, which is an open

source Cloud platform used by large community for research in Cloud computing. We also evaluated the

security of SV2M system using well known automatic protocol verification tool AVISPA.

1 INTRODUCTION

Cloud technology has changed the IT industry in last

decade and it is gaining attention in enterprises

because of scalability, increased efficiency, lower

infrastructural cost and better utilization of hardware

resources. It enables ubiquitous, handy, on-demand

access to a shared pool of configurable computing

resources (e.g. applications, networks, storage and

services) that can be quickly provisioned and

released with minimal management effort or service

provider involvement (Hashizume et al. 2013; Mell

2013). The delivery models of Cloud technology are,

Platform as a Service (PaaS), Software as a Service

(SaaS) and Infrastructure as a Service (IaaS). From

the Cloud service provider (CSP) perspective, both

delivery models SaaS and PaaS are dependent on

IaaS for their services. Similarly any security

violation in IaaS delivery model will have an effect

on SaaS and PaaS security and vice versa

(Hashizume et al. 2013).

Cloud computing is a combination of several

other technologies such as virtualization, Service

Oriented Architecture (SOA) and web.

Virtualization is one of the most critical technologies

of Cloud and it enables the abstraction of hardware

resources for the purpose of improved and better

hardware utilization leads to reduce operational and

investment costs. CSP allocates VM to consumers

from pool of virtualized computing resources such

as storage, network, processing and others in IaaS

delivery model. Security constraints of

virtualization technology are also inherited in the

Cloud along with their benefits. VM security

becomes critical for overall security of Cloud

because virtualization introduces new attacks and

challenges (Hashizume et al.2013;Mell 2013;

Vaidya 2009).

VM migration or mobility is the key feature of

virtualization technology which is used to provide

hardware/system maintenance, work load balancing,

and transparent management in conventional data

centers as well as in Cloud infrastructure (Anala et

al. 2012). Apart from providing major features, VM

migration provided by VMware,XEN and Hyper-V

hypervisors is prone to security risks. XenMotion,

which is migration module of Xen, exposes the

sensitive and critical information of guest OS

344

Awais Shibli M., Ahmad N., Kanwal A. and Ghafoor A..

Secure Virtual Machine Migration (SV2M) in Cloud Federation.

DOI: 10.5220/0005057103440349

In Proceedings of the 11th International Conference on Security and Cryptography (SECRYPT-2014), pages 344-349

ISBN: 978-989-758-045-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

because migration does not provide security features

such as confidentiality and authentication (Cooke et

al. 2008). Currently, CSPs are using different

security mechanisms for securing VMs in Cloud

such as encryption of disk images to counter attacks

(Kazim et al. 2013). However, VM migration with

metadata (keys of encrypted disk mages) is not

secure because of unavailability of strong security

features in hypervisors.VM migration without

security becomes single point of failure for Cloud

environment because intruder can inject malicious

code or modify the VM content. Successful attack

on migration process may cause denial of service

(DOS), loss of data integrity and confidentiality in

transmitted VM (Cooke et al. 2008).

The latest research on resource migration is

performance oriented, therefore, security issues have

not received much attention. This paper presents the

holistic solution on Securing VM migration in

Cloud. Our proposed solution provides mutual

authentication between the CSPs, authorization,

confidentiality, integrity, replay resistance and non-

repudiation. After successful migration of VM, CSP

updates key manager with encrypted disk images

keys (EIK). In addition, load monitoring module is

used to continuously monitor resources on

sender/receiver CSPs and intimate them for the

acceptance/rejection of VM migration requests. The

remaining paper is organized as follows: section 2

presents background of VM migration and its

different types. Section 3 presents related and

existing work on VM migration security. Section 4

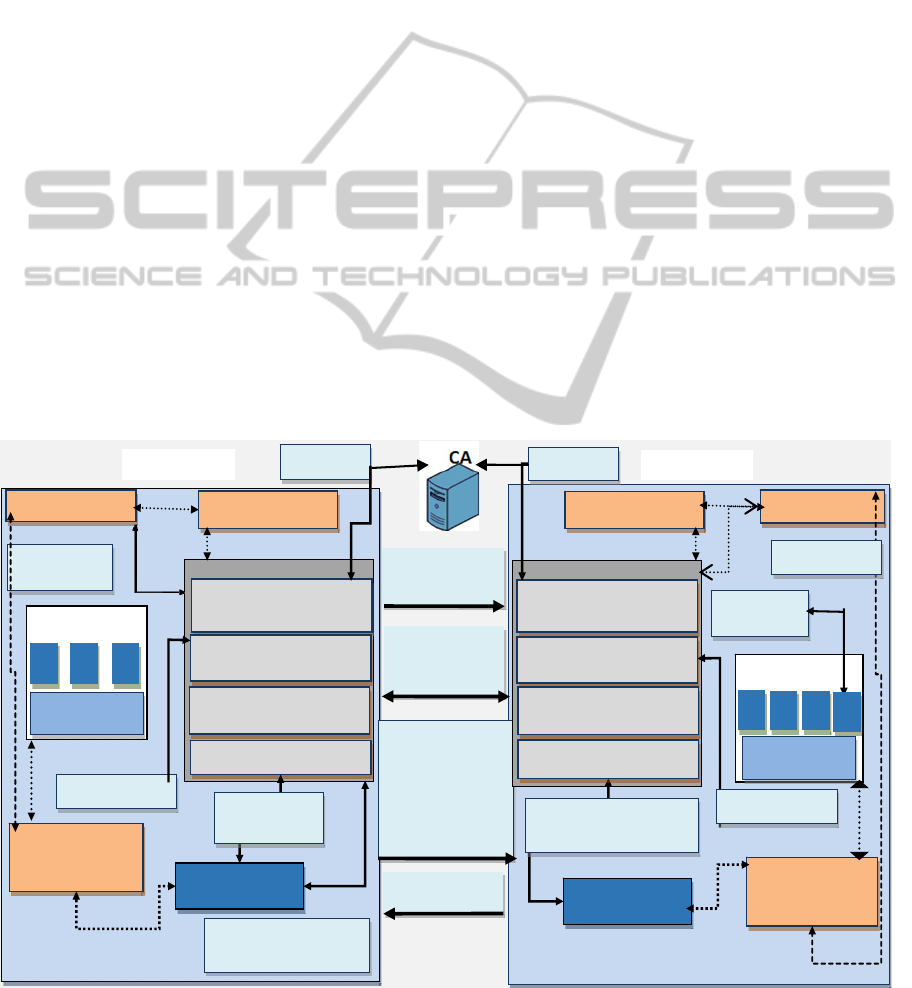

presents proposed architecture and workflow of

secure VM migration process. Section 5 presents the

verification of protocol using AVISPA and Section

6 concludes the paper along with future work

directions.

2 BACKGROUND

This section provides some background information

about VM migration and its different types which

are supported by well-known hypervisors. Migration

is the useful feature of Virtualization technology

which is used to transfer a VM from one physical

server to another or from one data centre to another.

This feature provides efficient system maintenance,

load balancing and proactive fault tolerance in

enterprises infrastructures (Anala et al. 2012; Cooke

et al.2008). VM migration is also used in Cloud

Federation to provide Cloud bursting feature

(Kenneth et al. 2011).

2.1 Types of VM Migration

VM migration is categorized into cold and hot

migration. In cold migration, also known as offline

migration, first VM is shutdown and then transferred

to other host or data centre (VMware Migrating

VM). In hot migration, VM is transferred without

shutting down the machine and it is used to

minimize the downtime. Both live and

suspended/paused VM migrations are placed in this

category. Live migration is defined as transfers of

running VMs from one physical server to another

with minimum downtime and without interrupting

the services running in VM (Anala et al. 2012). Live

migration is further classified into memory

migration and block/storage migration. In memory

migration, only contents of volatile memory of VM

are migrated and in block migration, the storage of

VM is also migrated along with memory and it takes

longer as compared to memory migration. However,

in suspended/pause migration technique, contents of

VM is stored in disk or in memory (RAM)

respectively before transfer from one Cloud to

another (OpenStack documentation, pausing &

suspending instances 2013).

3 RELATED WORK

This section discusses in more detail some of the

existing solutions or approaches for secure VM

migration in Cloud environment. Many existing

solutions are using Trusted Platform Module (TPM)

in their solution and only support offline

migration.TPM dependent solutions require changes

in software (virtualization of TPM in hypervisor)

and hardware of current Cloud infrastructure.

Approaches which provide security in live VM

migration are not comprehensive and do not fulfil all

the essential security features (such as Mutual

Authentication, Authorization, Replay Resistance ,

Confidentiality and Integrity of VM contents during

migration process and Non-Repudiation) of Live

migration process (Anala et al. 2012; Zhang et al.

2012).

Isolated/segregated migration uses Virtual LAN

(VLAN) to isolate migration traffic from other

network traffic because it reduces the risk of

exposure. However, it does not provide any security

feature and cost of VLAN management is also

linked with population of VM's (Anala et al. 2012;

OpenStack security guide, 2013). In Network

Security Engine-Hypervisor based approach,

firewall and IDS/IPS functionalities become part of

SecureVirtualMachineMigration(SV2M)inCloudFederation

345

hypervisor for protection against intrusions.

However, it does not provide security features

during the VM migration process (Anala et al.

2012). In Policy or Role based secure migration

approach, only offline VM migration is supported

and it requires changes at software and hardware

level for linking in existing infrastructure (Anala et

al. 2012; Wang et al. 2010). Security requirements

such as replay resistance is not part of this approach.

Secure VM-vTPM migration protocol provides

mutual authentication and establishes secure session

for subsequent communication. However, this

approach does not support live migration and keys

of vTPM are also stored outside the TPM, therefore

prone to leakage and unauthorized modification

(Anala,et al. 2012; Danev et al. 2011). Another such

approach includes vTPM migration protocol, where

both parties mutually authenticate each other and

then property based remote attestation is performed

by source host to verify the integrity of destination.

Key exchange is performed using Diffie-Hellman

which is used to achieve confidentiality during

migration process. This approach only supports

offline migration and vTPM state is also migrated

(Zhang et al. 2012). In this paper, author (Kenneth et

al 2011) proposed solution that uses proxy and

secure shell (SSH) to ensure security while VM

migration. Proxies are used to restrict access to end

nodes which are involved in VM mobility and SSH

tunnel is established between both proxies to achieve

confidentiality. However it does not provide

authorization and non-repudiation security features

and port forwarding is require on all intermediate

devices and firewalls (Kenneth et al 2011).

RSA with secure shell (SSL) based approach

provides authentication, encryption, and reply

resistance during migration process. For

authentication, it requires public keys of all other

hypervisors for VM migration however it includes

the difficulties of public key management (Patil &

Patil 2012). Fengzhe et al. (2008) proposed

Protection Aegis for Live Migration of VM's using

customized Virtual Machine Monitor called VMM

enforced protection system which provides security

to running processes in VM. In this approach,

protected memory pages also transfer as metadata

along VM. Furthermore it does not provide

authentication and authorization security features.

4 PROPOSED SYSTEM

Our proposed solution provides protection against

active and passive attacks during the migration

process. The solution introduces strong security

features such as mutual authentication between

CSPs, authorization before initiation of migration

operation, confidentiality, integrity, replay resistance

and non repudiation. The architecture of proposed

system is shown in Figure 1.

Figure 1: Proposed Architecture of SV2M system.

Proposed SV2M solution encompasses

different components. At its core part is SV2M

module, which is further divided into sub modules

such as i) Certificate Management Module (CMM)

ii) Authorization Module (AZM) iii) Mutual

Authentication Module (MAM) iv) Encryption and

Decryption Module (EDM). Other components are

Load Monitoring Module (LMM) for continuous

monitoring of Cloud resource and Key Manager

(KM) for storing the keys, which include encrypted

disk image keys (EIK) and VM encryption keys

(VMK). All these modules communicate with other

components of Cloud platform. The detailed

functionalities of each module are described below.

4.1 SV2M Module

It consists of four sub modules: CMM, AZM, MAM

and EDM, each described in following subsections.

4.1.1 Certificate Management Module

This module is used to generate certificate request to

Trusted Third Party for CSP and also store

certificate in the Cloud platform. This certificate is

later used by the authentication module for entity

authentication using FIPS-196.

CSP B

Authorization

Module

VM Encr/Decr

Module

Key Manager

Load Monitoring

Module

SV2M

Certificate

Management

Module

Mutual

Authentication

Module

CSP A

Authorization

Module

VM Encr/Decr

Module

Key Manager

Load Monitoring

Module

SV2M

Certificate

Management

Module

Mutual

Authentication

Module

SECRYPT2014-InternationalConferenceonSecurityandCryptography

346

4.1.2 Authorization Module

This module checks the authorization of current

user/operator before initiating VM migration

operation. It can be initiated by those roles which are

allowed by Cloud administrator.

4.1.3 Mutual Authentication Module

This module ensures that source and destination

CSPs are ready to perform migration. In this

module, CSPs send X.509 certificates to each other

and perform authentication. We are using FIPS-196

to achieve mutual authenticity between CSPs before

VM transfer (entity authentication using Fips196,

1997).

4.1.4 VM Encryption & Decryption Module

After successful mutual authentication between

CSP's, the next step is encryption and digital

signature of suspended/paused VM at sender CSP

end. We are using XML Encryption and Signature in

this module. First of all, XML signature of

suspended VM is created and signed with private

key (Priv_KA) of Cloud A. In the next step,

encryption key (VMK) for suspended VM is

retrieved from key manager and used for XML

Encryption of VM using AES algorithm. In final

step, both VMK and EIK are encrypted using the

Public Key (Pub_KB) of Cloud Band transferred

along XML encryption and signature of VM, as

shown in Figure 2.

Figure 2: Encryption of message at sender side.

After the encrypted VM is received, the

decryption module extracts the VMK and EIK using

the private key (Priv_KB) of Cloud B. The EI key of

received VM is stored in the Key Manager, whereas

VMK is used to decrypt the migrated VM. For XML

signature verification, ED module decrypt the signed

XML signature of VM using Public key of Cloud A

(Pub_KA) and compare it with newly created XML

signature of decrypted VM, as shown in Figure 3.

After successful verification, suspended VM is

resumed on receiver Cloud for providing services.

Figure 3: Decryption of message at receiver side.

4.2 Key Manager

Key Manager provides key management such as

generation, their secure storage, update and deletion.

CSP uses KM for server side encryption such as

Object Storage transparent encryption by Google

and Amazon (OpenStack, Key Manager, 2013). CSP

also use it for storage of encrypted disk images keys

(EIK) which are used to protect disk images in

Cloud repositories (Kazim et al. 2013 ;Oleg Gelbukh

2012 ;HighCloud Security, Encrypt VM images

2011; HighCloud Security 2013). It is also used for

generation and storage of VM encryption keys

(VMK) for ED module. In secure migration module,

EIK and VMK are transferred to the receiver Cloud

Provider along with encrypted VM. After successful

resumption of VM, disk image key (EIK) is stored

on the key manager at the receiver end.

4.3 Load Monitoring Module

This module is used to monitor the Cloud resources

which include the unused random access memory

(RAM), storage and virtual CPU (vCPU) etc. and

linked to SV2M module. It intimates the source

Cloud (Cloud A) operator about the migration of

VM due to unavailability of resources for new VMs.

It also intimates the destination or receiver Cloud

(Cloud B) whether it can accept or reject the VM

migration request based on available resources.

Complete workflow of proposed system is shown in

Figure 4. Description of each step is given below.

1 As a first step, source & destination CSPs

request trusted CA for certificates. These

certificates and their private keys are stored in

Cloud platform.

2 In this step, AZM checks whether the Cloud

operator can initiate request for VM migration

operation or not.

3 After the successful authorization, CSP A

initiates VM migration request toward CSP B.

Request will be accepted by CSP if enough

unused resources are available for migrated

VM. Acceptance and rejection of migration

request depends upon Load monitoring module

because it intimates the SV2M module about

the available resources. In this step, both CSPs

mutually authenticate each other using FIPS196

entity authentication. Both parties share their X-

509 certificate in this mechanism.

4 Cloud providers have repositories of VM disk

images which are encrypted to protect against

offline attacks while at rest. Whenever the

Verify VM

xml sig

Decr of VM

& create Hash

Decr of {VMK

+ EIK}

Priv_Kb

Xml Encr of

Signed xml

sig of VM

Encr of {VMK

+ EIK}

Pub_Kb

SecureVirtualMachineMigration(SV2M)inCloudFederation

347

customer requests for VM, CSP first decrypt the

disk image using key (EIK) which is stored in

key manager and run it using hypervisors such

as KVM/VMware on Cloud. EI key is also

migrated along with the suspended VM.

Therefore, Cloud Provider A first suspends

running VM and retrieve corresponding EIK.

XML signature of suspended VM are created

and signed by the sender. XML encryption is

also performed on VM using key VMK. Finally,

VMK& EIK are also encrypted using the public

key of Cloud B and sent to Cloud B.

5 When Cloud B receives the encrypted VM with

signatures and encrypted Keys (EIK &VMK),

first it decrypts the encrypted keys using Private

Key of Cloud B. EIK is stored in the key

manager and VMK is used for decryption of

encrypted VM. In parallel, Cloud B also

decrypts the XML signatures of VM using

Public key of Cloud A and compare it with

XML signature of received VM. Migrated VM

is resumed on Cloud B hypervisor after

successful verification.

6 Cloud B acknowledges the Cloud A after

successful execution of VM so that it is

removed from sender CSP.

5 AVISPA VERIFICATION

AVISPA is a web based automated tool for the

validation of security protocols and application. It

uses a formal language known as High Level

Protocol Specification Language (HLPSL) for the

specification of protocols and their security goals

and integrates different back-ends such as SATMC,

TA4SP ,CL-AtSe and OFMC for implementation of

range of analysis techniques. It is assumed in

analysis that the protocol meets cryptography and

also network over message exchanged is controlled

by Dolev-Yao intruder as an active intruder

(AVISPA, User manual 2006).

AVISPA analysed the protocol against security

goals such as secrecy of key, weak/strong

authentication. We analysed the secure migration

protocol against security requirements such as

strong authentication (G1, G5),Non-repudiation

(G18) secrecy (G12), integrity (G2), reply protection

(G3) (AVISPA, User manual 2006). The result of

back end analysis techniques against

abovementioned security properties is shown in

Figure 5.

The output summary of AVISPA indicates that

a SV2M protocol is safe under analysis of back-ends

and no attack is found on it.

Key Manager

boa

d/C

Encrypted Images

Store, Windows8,

Ubuntu

Xen/KVM

1. Cert Req

run instance

3 Migration

Request

4. Mutual

Authentication

[VM_xml_ds]

+ [VM]

VMK

[VMK + EIK]

PUB_B

7. ACK

Certificate Management

Module

Authorization Module

Mutual Authentication

Module

VM Encr/Decr Module

Cloud A

Active VM

Cloud B

Certificate Management

Module

Authorization Module

Dashboard/CLI

Load Monitoring

Encrypted Images

Store, Windows8,

Ubuntu

Xen/KVM

Active VM

5a) retrieve encr disk

image key(EIK)

Key Manager

6b) migrated

SV2M

2. AuthZ check

5b) retrieve

key (VMK)

VM Encr/Decr Module

2. AuthZ check

Mutual Authentication

Module

3 2

6a) store migrated disk

image key (EIK)

run instance

SV2M

Load Monitoring

Figure 4: Overall workflow of SV2M module.

SECRYPT2014-InternationalConferenceonSecurityandCryptography

348

6 CONCLUSIONS

VM migration is valuable feature for Cloud

environment; however, it also introduces new

security concerns such as illegal modification of VM

content during migration. In this paper we proposed

a holistic solution for VM migration which provides

strong security features such as mutual

authentication between Cloud Providers,

authorization of migration operation, confidentiality

and integrity of VM content, replay resistance and

non-repudiation of source Cloud. Our solution

requires minimum changes in existing Cloud

infrastructures because it is not dependent on any

hardware chip (TPM). In future, we will evaluate its

performance with other existing solutions and

decrease the encryption/decryption time of SV2M

module. Security aspects of receiver Cloud after

successful migration is also potential research area.

Cloud providers are also using snapshots for

instance migration; therefore, security in snapshot

migration is our future goal.

Figure 5: Result summary of AVISPA.

REFERENCES

K. Hashizume, Fernández 2013. An analysis of security

issues for cloud computing In Journal of Internet

Services and Applications Production.

P. Mell, Grance,2013. 'The NIST definition of cloud

computing". NIST, Special Publication 800–145

V. Vaidya, 2009. Virtualization vulnerabilities and threats

:<http://www.redcannon.com/vDefense/VM_secuity_

wp.pdf >.

J. Shetty, Anala R, Shobha 2012. A survey on techniques

of secure live migration of virtual machine. In Intl

Journal of Computer Applications, vol. 39,no.12.

J. Oberheide, E. Cooke and F. Jahanian, 2008. Empirical

exploitation of live VM migration In Proceeding of

BlackHat DC convention

M. Kazim, Rahat Masood & M. Awais,2013. Securing

the vm images in cloud In Proceedings of the 6th

International Conference on Security of

Information and Networks.

K. Nagin, D. Hadas, Z. Dubitzky, and Schour, 2011.Inter-

cloud mobility of virtual machines. In Intl Conference

on Systems and Storage,Haifa, Israel.

Migrating VM Available from <http ://pubs . vmware.com

/vsphere-4-esxvcenter/index.jsp?topic=/com

vmware.vsphere.dcadmin.doc_41/vsp_dc_admin_guid

e/migrating_virtual_machines/c_migrating_virtual_ma

chines>

Pausing and Suspending Instances ,2013. Available from

<http://docs.openstack.org/grizzly/openstack-

compute/admin/content/pausing-and-suspending-

instances.html>

X. Wan, X. Zhang and J.Zhu, 2012. An improved vTPM

migration protocol based trusted channel. In Conf

erence on Systems and Informatics, pp. 871-875.

OpenStack Security guide, 2013.Available from: <ht

tp://docs.openstack.org/security-guide/security

guide.pdf>

W. Wang, Y. Zhang, B. Lin and K.Miao,2010.Secured

VM migration in personal cloud. In 2nd Intl

Conference on Computer Engineering &Tech

B. Danev, R. J. Masti, and S. Capkun 2011, Orlando,

Florida. Enabling secure VM-vTPM migration in

private clouds. In Proceedings of the 27th Annual

Computer Security Applications Conference.

Y. Chen, Q. Shen, P. Sun, Y. Li 2012. Reliable migration

module in trusted cloud based on security level design

and implementation. In International Parallel and

Distributed Processing Symposium Workshops &PhD

Forum.

V. P. Patil and G.A. Patil, 2012. Migrating process and

vm in the cloud: In International Journal of

Advanced Computer Science and Information

Technology , vol. 1, pp. 11-19.

Zhang, Y. Huang, 2008.PALM: security preserving VM

live migration for systems with VMM-enforced

protection. In Third Asia-Pacific Trusted

Infrastructure Technologies Conference.

Key Manager, 2013.Availabe from:<https://wiki

.openstack.org/wiki/KeyManager>

Oleg Gelbukh, 2012, OpenStack Swift Available from:

<http://www.mirantis.com/blog/ openstack-swift-

encryption-architecture/>

HighCloud Security, Encrypt VM images, 2011.Available

from: <http://www.net-security.org/secworld.php

?id=11825>

HighCloud Security 2013. Available from:<http://www .

highcloudsecurity.com/blog/secure-vmbackups-w hat-

is-different-and-why-should-you-care/>

Entity Authentication using PKCS, FIPS Publication 196 ,

1997.

AVISPA User Manual,2006Available from: <http://www.

avispa-project.org/p ackage/user-manual.pdf>

SecureVirtualMachineMigration(SV2M)inCloudFederation

349
