The XACML Standard

Addressing Architectural and Security Aspects

Óscar Mortágua Pereira, Vedran Semenski, Diogo Domingues Regateiro and Rui L. Aguiar

Instituto de Telecomunicações, DETI – University of Aveiro, Aveiro, Portugal

Keywords: XACML, ABAC, Access Control, Information Security, Software Architecture, IoT.

Abstract: The OASIS XACML (eXtensible Access Control Markup Language) standard defines a language for the

definition of access control requests and policies. It is intended to be used with ABAC (Attribute Based

Access Control). Along with the language, the standard defines an architecture, workflow and evaluation

mechanism. When implementing real scenarios, developers can come across with the missing of several

issues not addressed by the standard. For example, the architecture proposed defines the workflow but does

not define the way components should be distributed over different machines. Additionally, the standard

does not include any information about how securing communications between components. This paper

proposes a solution to deal with the aforementioned gaps. A proof of concept is also presented in an IoT use

case in the context of the European project: SMARTIE – secure and smarter cities data management.

1 INTRODUCTION

There is an increasing number of information

systems, applications and services that are

interconnected and dependant on each other. They

use a variety of data, cover many domains and are

very often used or integrated in more and more

businesses (Keleta et al. 2005). These systems run

on different technologies and different platforms.

They can utilize many different workflows,

methodologies, storage systems, etc.. Using many

different services over different platforms is often a

requirement. Security in these systems is often an

issue and dealing with different platforms presents a

significant challenge. Other challenges include

lower maintenance, ease of integration, and

performance. These security issues and requirements

can be associated in many areas including: Web

applications, IoT (Internet of Things) applications,

mobile applications, business information systems as

well as services, etc. (Addie & Colman 2010) (Qing

& Adams 2006). These issues are solved by

developing and/or integrating security components

and implementing security mechanisms.

Custom security components developed for

solving security issues require significant effort to

develop. They are not unified and cannot be used in

other systems and have significant problems in the

long terms. Depending on how complex the business

layer of an application is, the security component

can become complex and less flexible. Organisations

can have many departments, use many services,

databases, etc. Depending on how much the

structure, architecture or date model changes or

expands, issues can occur if the developed

component is not flexible enough to deal with those

changes.

The OASIS (Organization for the Advancement

of Structured Information Standards) XACML

(eXtensible Access Control Markup Language) is a

platform independent standard that defines a

language for writing policies and requests along with

an architecture, workflow and methodology of

evaluation requests against policies. It is based

around ABAC (Attribute Based Access Control) but

RBAC (Role Based Access Control) and other

access control methodologies can also use XACML

(Xu et al. 2011)(Stepien et al. 2011)(Ferrini &

Bertino 2009). Because it is standardised and it is

made around the ABAC methodology, it offers great

potential, flexibility and a standardised way of

dealing with security issues in applications. Its main

use is managing access to resources, which can be

anything that the user defines (data, actions,

services, etc.). It is not meant to deal with

connection or communication issues in networks

(like for instance security protocols). It is more

suited for application and business layer security

issues. While ABAC together with XACML offers

Pereira, Ó., Semenski, V., Regateiro, D. and Aguiar, R.

The XACML Standard - Addressing Architectural and Security Aspects.

DOI: 10.5220/0006224901890197

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 189-197

ISBN: 978-989-758-245-5

189

great potential, flexibility and many advancements

along with a uniformed solution, some aspects are

not addressed. The issues that this paper addresses

are ones that come from an implementation

perspective, and not the XACML standard itself. Put

more precisely, it will describe issues that were

encountered while developing a security component

based on the ABAC and the OASIS XACML

standard, propose solutions for these issues and

present a proof of concept. This paper deals mainly

with internal and external communication,

connection and architecture issues.

A security component with the proposed

architecture was developed and tested in an IoT

Smart City (European Project: SMARTIE – secure

and smarter cities data management) (FP7 2016)

use-case scenario. The security component uses a

PDP evaluation engine and other basic XACML

functionalities from an open source project (AT&T

XACML 3.0 implementation).

The increasing need for integrating security

components in systems is a reason to modify the

existing architecture from a implementation

perspective (Keleta et al. 2005) (Addie & Colman

2010) (Brown et al. 2012). It is because of this that

the security component was viewed as a "black box"

component that should be easy to integrate into other

systems, easy to use and manage. This should

therefore result in a more secure system and requires

significant changes to the existing proposed solution

for the XACML architecture (Brown et al. 2012).

This paper is organized in six additional main

chapters. Chapter 2 presents the background

technologies and terminologies that are related to

this work. Chapter 3 presents the related work.

Chapter 4 presents the issues that were found in the

current proposal in the standard XACML (Brown et

al. 2012). Chapter 5 describes the proposed solutions

for the issues identified in Chapter 3. Chapter 6

presents a proof of concept and test results. Chapter

7 contains an overview of the work that was done

and a final conclusion.

2 BACKGROUND

Before elaborating on the issues that were identified,

a brief description of concepts relevant for this work

needs to be given.

Access Control Access Control is a general term

that can be described as a way of securely granting,

limiting or denying access to resources therefore

protecting the resources from potentially malicious

parties (Priebe et al. 2006)(Samarati & Di Vimercati

2001).

Before continuing, some key terms need to be

explained as they will be used throughout this work:

Subject - entity that is trying to access a certain

resource. Example: person, process, device, etc.

Resource/Object - anything that access control is

being enforced upon. Example: database data, access

to an application, service, access to sensors, etc.

Request - the subject's request for a resource. It can

be formatted in some way (document, file, string)

and represent an actual "physical" request (database

query, call to a service) or it can also be the actual

"physical" request. Policy - set of rules that an

access control based security system needs to

enforce.

Access control is a security technique that

enforces security over resources by limiting access

to them. The access is given only to authorised

subjects which can be people or other systems,

depending on the implementation. A typical

workflow with access control would consist of:

receiving a request for a certain resource, evaluating

the request against one or more policies, and

allowing or denying the request depending on the

evaluation result. The systems enforcing access

control must have an architecture to facilitate

enforcement of access control, an evaluation

methodology and well defined policies (or rules) for

evaluating the requests. The significance,

complexity and size of these, of course, varies from

implementation to implementation and can depend

heavily on the business layer of the system that is

integrating access control.

ABAC ABAC (Attribute Based Access Control) is a

type of access control that evaluates requests against

policies according to attribute values (Priebe et al.

2007)(Priebe et al. 2006). Attributes are typically

divided into three categories: subject - subject/user

attributes (examples: age, postal code, IP address,

etc.); object - resource attributes (examples: type,

value, age, etc.); environment (examples: day of the

week, hour of the day, etc.).

These attributes therefore contain data from the

subject trying to access the resource, data from the

resource that is being accessed and environmental

data which represent current conditions. When a

request is being evaluated, the decision is made

according to these values and conditions/rules

defined in policies.

XACML XACML (eXtensible Access Control

Markup Language) is a declarative access control

policy language implemented in XML and created

by OASIS (Organization for the Advancement of

Structured Information Standards) (OASIS 1993). It

defines a way to evaluate requests for resources

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

190

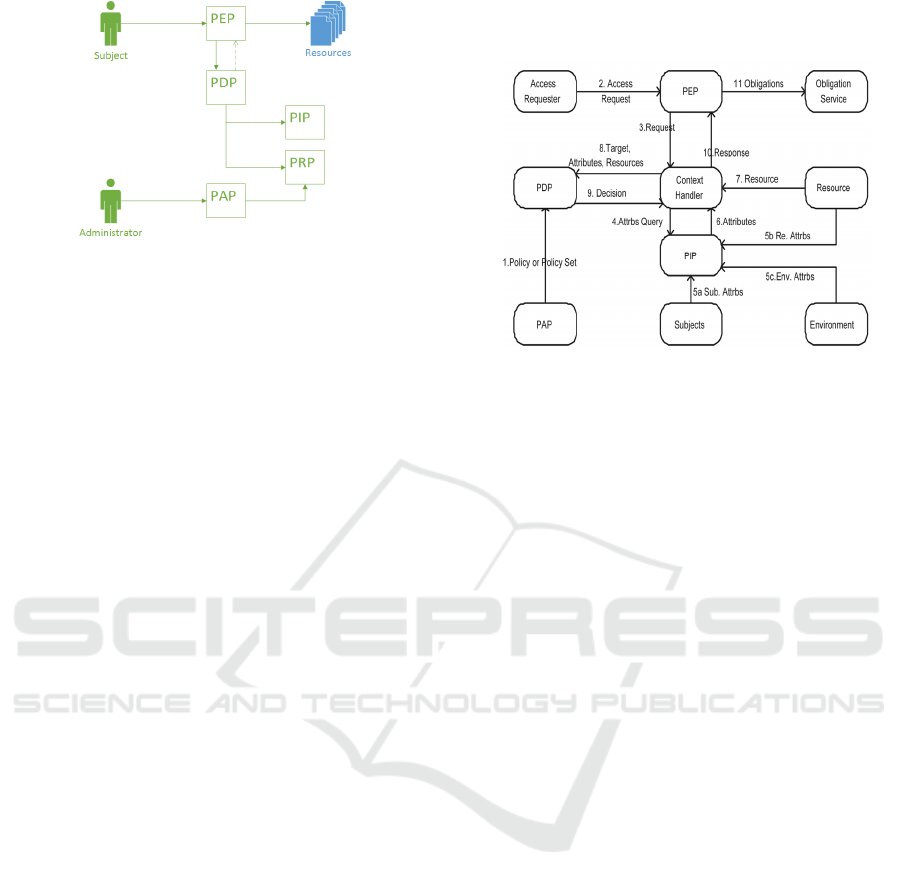

Figure 1: Reference XACML architecture.

according to rules defined in policies. Put simply it

is a thought out and standardized solution for

implementing access control in software applications

(Lin et al. 2013)(Liu et al. 2011). It provides a

common ground regarding terminology and

workflow between multiple vendors building

implementations of access control using XACML

and interoperability between the implementations

(Fisler et al. 2005)(Lorch et al. 2003). It is primarily

intended for ABAC but can also be used for RBAC

and others. The XACML reference architecture can

be seen in Figure 1. This architecture is built out of

basic components: PEP (Policy Enforcement point)

- component that performs access control by

performing the decision provided by the response.

This may also mean fulfilling obligations that come

in the response. PDP (Policy Decision Point) - this

component is responsible for evaluating the request

against a policy. It contains all the functionality to

make the evaluation and produce a response. PIP

(Policy Information point) - This component is

responsible for retrieving attributes. The attributes in

ABAC are split into three types: subject,

environment and resource attributes. PRP (Policy

Retrieval Point) - component used for retrieving of

policies. PAP (Policy Administration Point) - the

component contains the functionality required for

managing policies. Typically this means adding,

removing and modifying policies. Figure 2 shows

the architecture proposed in the OASIS XACML

standard. Compared to the reference XACML

architecture this proposed architecture contains some

additional components.

These components are as follows. Context Handler

- this entity controls the workflow of the system. It

communicates with the PEP, PDP, PIP and resource.

As it controls the workflow it has many

responsibilities. Mainly, it has to forward requests

from the PEP to the PDP and return the responses

from the PDP to the PEP. Additionally it has to fetch

attributes when the PDP requests and fetch resource

content. Access requester - entity that is requesting

a resource. Obligations service - service that

executes any obligations after the evaluation is

complete. Resource - entity containing one or more

Figure 2: Data workflow proposed by XACML standard.

resources and resource attributes that the access

requester is trying to access. Subjects - entity

containing subject attributes. Typically the subject

attributes are attributes of the access requester.

Environment - entity containing one or more

environmental attributes.

It can be seen that, compared to the reference

XACML architecture, the PRP has been removed

and the functionality of the PRP has been merged

with the PAP. This can be concluded because the

PDP fetches policies over the PAP.

3 RELATED WORK

The architecture proposed in the OASIS XACML

has been a basis for many modifications as many

implementations have different requirements. As the

architecture is somewhat openly defined and leaves

many aspect unaddressed, some issues have already

been addressed. Many implementations and

proposals presented in (Kehlenbeck et al.

2010)(Sardinha et al. 2007)(Brown et al. 2012)

demonstrate that there are many possibilities and

areas of implementation with XACML but also that

the architecture and data flow are often modified to

fit specific needs.

The work done by Y. Keleta in (Keleta et al.

2005) has addressed some security issues with the

data flow proposed in the standard. The connections

between components were recognized as one of the

aspects where security mechanisms were not

defined. This of course leaves the connection open

to various attacks if a malicious party gains access to

that connection. The solution that was proposed was

based on having a central entity that would distribute

a token over SSL to other components and generate

a security key for encrypting the data. Although this

The XACML Standard - Addressing Architectural and Security Aspects

191

work also uses SSL/TLS, other aspects like the

central entity, tokens and security keys are not

needed, as explained in Chapter 5.

In (Xu & Duminda 2009) concurrency issues

between the evaluation and the administration parts

were identified. A lock manager is proposed that

would give permission to access policies by locking

them with write-locks or read-locks.

In (Díaz-López et al. 2015) a proposal for

managing XACML systems in a distributed

environments and connection between central

entities and subsidiaries in a distributed system is

presented. It proposes a solution that incorporates

SSL connections and message encryption similar to

work done in (Keleta et al. 2005).

On the other hand, other related work focuses

more on expanding the standard (Ferrini & Bertino

2009)(Ardagna et al. 2009)(Demchenko et al.

2009)(Kabbani et al. 2014), providing it even with

more functionality and flexibility. They do this by

integrating it with other methodologies and other

systems. In (Kabbani et al. 2014) a Situation-

Oriented Authorization Architecture is presented

that combines a situation management architecture

and the OASIS XACML architecture for the purpose

of Specification and Enforcement of Dynamic

Authorization Policies. These works demonstrate

that the development of the XACML standard is not

finalized and is likely to continue evolving.

4 IDENTIFIED ISSUES

While developing a security component based on the

OASIS XACML standard, a number of issues were

identified. These issues were related to the

architecture proposed in the standard and security of

connections between components and external

services.

Removal of PRP By comparing the reference

XACML architecture to the one proposed in the

OASIS XACML standard v3.0 (OASIS 2013) it can

be seen that in addition to new components, the PRP

has been merged with the PAP. Put differently, the

functionality of the PRP has been added to the PAP

and it is now used for retrieving policies. An issue

with removing the PRP and integrating its

functionality in the PAP is that the PDP has access

to other functionality of the PAP that is outside the

scope of what would be in a PRP. This means it can

potentially add, remove or modify policies. This is

of course an issue as the PDP should not be allowed

to do those actions. Separating the PRP from the

PAP will remove any possibility of the PDP to

misuse the PAP. Additionally, as the PAP is an entry

point for system administrators, separation of the

PAP means that that workflow is also completely

separated from the normal workflow of evaluating

policies. This completely removes the system

administrator from the rest of the system.

Differences Between the Defined

Architecture and an Implementation Looking

at the architecture from an implementation

perspective, other questions come up, such as some

kind of storage solution is needed for storing

policies. Commonly this would either be a database

or the policies could be stored in a file storage

system.

Reviewing the functionality of the PEP, it can be

defined as a simple component that needs to act

accordingly to the response that comes from the

PDP. This means that it needs to fulfil all obligations

and pass the request in case of a positive or

terminate the request in case of a negative response.

The connection between the Context Handler and

the resource is an issue because all information that

the PDP needs for evaluation has to be formed as

attributes. The fetching of information therefore

should be through the PIP because the PIP is

responsible for providing additional attributes. By

removing that connection, the role of the Context

Handler (from an implementation perspective)

becomes a trivial "middle man" in between the

PDP's communication with the PIP and the PEP.

The role that the Context Handler can still assume is

the initialisation/manager role, handling all other

aspects that the other components are not

responsible for handling. This would mainly mean

taking care of the initialisation and possibly handling

multiple instances. By removing the Context

Handler from the PDP-PIP connection but still

leaving it in between the PEP and PDP allows it to

have some management functionality. These would

include initialisation and configuration, managing

multiple instances for a parallel execution scenario

and leave it open for expansion if needed.

Another issue is the division of attributes by

type. This is regarding the division of attributes in

categories as: environment, subject and resource.

This is a good way of dividing them when viewing

the problem from a logical and functional

standpoint. Looking it from a PIP implementation

perspective the difference between attributes are not

in the information they represent but the type of

source they have to fetch it from. For the perspective

of the PIP it is not important if the PIP is fetching

resource, subject or environment data if it's all

coming from the same source or the way of fetching

them is the same. For example: if a person is a

registered user on a website and wants to change

some data on its user profile e.g. telephone number.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

192

The resource that the user is trying to access and

change, and the attributes of that resource come

from the same source as the subject attributes. The

methodology of fetching those attributes is also the

same. The differentiation of these is therefore

pointless from an implementation or PIP

functionality perspective. As another example, the

environment attributes can easily come from

different sources and have much different

methodologies for acquiring those attributes. Simple

time based environmental attributes can be

generated by the system and looked up at the time of

evaluation. They do not need any kind of storage or

external connections. On the other hand fetching

attributes like: legal age limits, tax rates, currency

conversion rates etc., is much different and could

evolve external connections and special procedures.

Because of this the differentiation of connections

for the PIP by attribute type is pointless and a

differentiation by source or methodology of

acquiring is much more appropriate. The PIP

therefore can be split into many PIPs depending on

the way the attributes are acquired and the source. A

simple example would be having three PIPs

organized as hereafter indicated: Generated

Attributes PIP - responsible for fetching all

attributes that can be generated locally without the

need to contact any database or external service.

Local Attributes PIP - responsible for fetching

attributes that are located on local databases of can

be fetched from other local services. External

Attributes PIP - responsible for fetching attributes

by contacting external services. These would for

example be REST services.

The PIPs also need to know which attributes they

can acquire and which attributes, if any, are needed

to fetch those attributes. The PIPs can be organized

in a group and the PDP can than go through the

group asking which attributes they can provide and

which are needed. When it finds a match, it requests

the attributes and the evaluation continues. Along

with dividing the functionality of the PIP by

functionality as opposed to type of attributes, this

means that the PIPs are modular as one or several

can easily be removed or added to the list.

Communication Communication between

components and the distribution of components on

several machines is not defined in the standard

(OASIS 2013). Without enforcing some security

measures this leaves the system vulnerable to attacks

and may jeopardize the confidentiality of the access

requests and the authorization decisions. It is

important to put appropriate safeguards in place to

protect the system from such attacks. Examples of

such attacks include (Keleta et al. 2005):

unauthorized disclosure, message replay, message

insertion, message deletion and modification.

Considering a simple scenario in a XACML-based

security component or system, the PEP sends an

XACML request to the PDP (Keleta et al. 2005).

The standard does not define any mechanism which

would ensure that messages were not changed

during communication or that the sender and

receiver are indeed the ones they represent to be.

Without any that connection is not safe from attacks.

For example, if a malicious party manages to gain

access to the communication channel between the

PDP and the PEP, that party would be able to

intercept requests and results. This means that it

could monitor, modify or even fake requests and

responses. Effectively this means that it could

potentially gain control over all decisions made,

control who gets access to the resources, monitor the

traffic, gain insight into what is happening and

collect information that is potentially confidential.

This unauthorized disclosure of information causes a

compromise to the privacy of the users and the

system itself. Disclosure of information such as the

requestor’s identity in the decision request has a

huge impact to the privacy of the users in the

system. Appropriate safeguards should be

adequately put into force to prevent the

communication channel between the PDP and the

PEP from being intercepted by unauthorised

malicious third parties. In addition the storage

mechanism for policies has to be protected against

any unwanted connections. Connections need to be

limited only to other components that need to access

the policies (PRP, PAP).

5 PROPOSED SOLUTION

After identifying the issues not addressed in the

OASIS XACML architecture, a new architecture

was made. Tests of a security component

implementation were done and are presented in

Chapter 6. This Chapter will present the proposed

architecture as well as solutions for connection

issues. The proposed architecture can be seen in

Figure 3. The changes do not change the "outside"

view of the system but are more of an internal

change and more refined solution. The connections

to the PIP and PRP are moved from the Context

Handler to the PDP so it can fetch policies and all of

the attribute information as it needs, while

evaluating policies. The PIP is not a single entity but

rather a list of PIPs that all have the same interface,

and all fulfil the same purpose of fetching attributes.

Because some attributes are located on different

locations and need to be fetched using different

services they need to implement different means of

The XACML Standard - Addressing Architectural and Security Aspects

193

Figure 3: New Proposed architecture.

fetching that information. This allows for easy

expansion of the PIP functionality and better

configuration options. This architecture therefore

deals with the issues identified in the initial one. The

Context Handler maintains only an initialisation and

configuration role rather that handling the workflow

and being the "middle man". This was established as

being more efficient and was adopted because of

that. The PDP now fetches the policies and

additional attributes directly from the PRP and list of

PIPs, only when it needs to.

The PEP The PEP is the point where access control

is enforced. This means that this point needs to be

located in the system that wants to enforce access

control at the exact place inside the workflow where

access control is needed. It therefore needs to be

robust enough to ensure correct execution and

flexible to be implemented on various types of

systems. Because of this the PEP can be used in

multiple ways. It can be implemented by providing it

with only a XACML request and depending on the

response given act appropriately. This way the

system that is implementing the PEP decides what

the resulting action will be after the evaluation is

finished. The other way is to along with the request,

provide the PEP with an object that implements a

defined interface IResourceFetcher. This is, of

course the safer and more straightforward way

because it removes any decision making from the

implementation because the decisions are made

automatically in the PEP. In Figure 4 the class

diagram for the PEPs can be seen. The

IResourceFetcher is used to ensure that the object

provided has methods available for both the

positive and negative results of the requests

evaluation. With this, the PEP executes the execute()

in case the evaluation result is positive and executes

terminate() in case of a negative result. The purpose

of this is to remove the decision making part from

the system that implements the PEP and have it

already built in and working. In the case of specific

scenarios, the other method of simply getting the

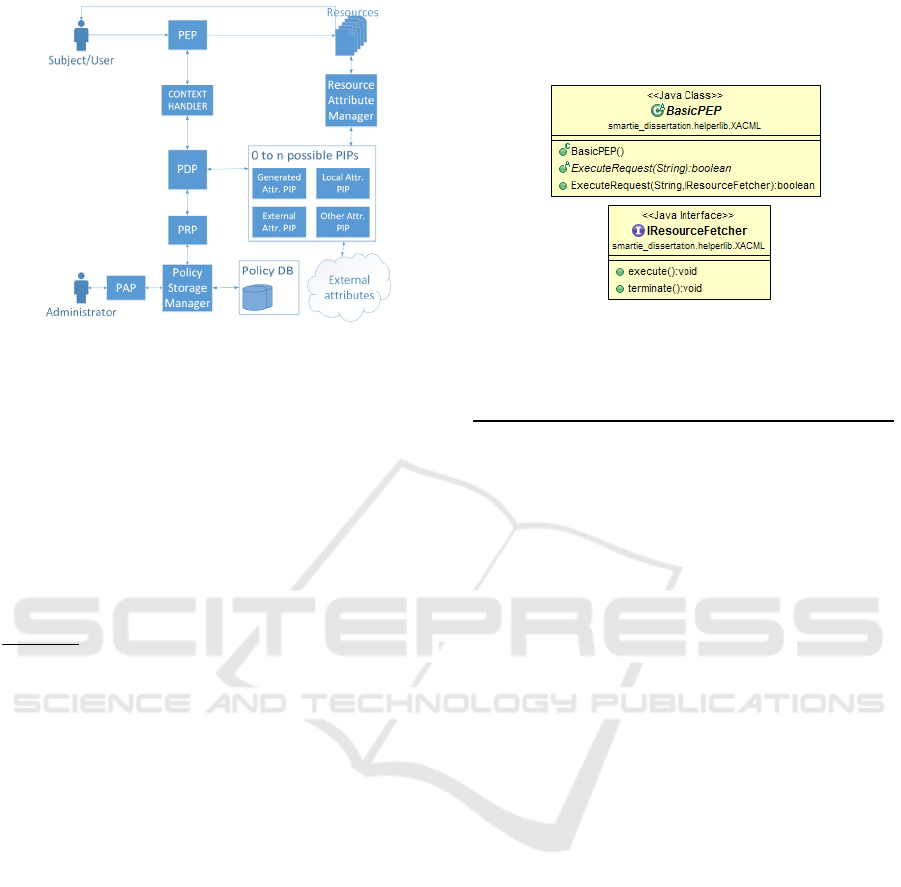

Figure 4: Class diagram of the PEP and additional

interface.

the evaluation result is also available.

Solving the distribution and securing connections

The components that should be grouped together,

i.e. be deployed together, are: PDP, Context

Handler, PRP and PIPs, as shown in Figure 5. These

components are the essential components needed for

evaluating the requests. Separation of these

components would not bring any benefits, instead it

would bring only connection issues and possibly

diminished performance. The PIPs can be connected

to external services and fetch attributes from outside

the system but should not be separated. Additionally,

connection points to outside components should also

be added to this group. These would include

components like web interfaces for the PAP, REST

service components and any other component over

which the communication with the access control

service is done. Although this group is not an

essential part to the evaluation process they are

endpoints that revolve around the database

containing policies. Keeping these together with the

rest of the group means keeping communication

between components simple, fast and safe without

the need of implementing additional safety

measures. The PEP needs to be on the machine that

is integrating access control.

This method of grouping these components brings

up issues regarding scalability. Normally, a

distributed system scales much better than a non-

distributed system and if the components cannot be

separated it is hard to have a distributed system. The

solution to this would revolve around the replication

capabilities of the database used to store policies.

The database can be replicated on multiple machines

and multiple instances of the solution can run on all

of those machines. This would then scale as needed

(Díaz-López et al. 2015). For this to work with the

REST service an additional component would be

needed. It would have functionality for handling

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

194

Figure 5: Distribution of components in a use-case.

multiple instances and delegating the workload

efficiently. Because this can be viewed as a service

for evaluating requests against policies, it is

therefore a single "black box". Along with

scalability, the parallelisation of the process is an

issue that has to be considered. This can be achieved

using the same principle as before. Having multiple

instances of a PDP and providing each one with a

subset of policies and running everything parallel

is an easy and straightforward way to deal with the

parallelisation issue. Long evaluation times in the

case of a large set of policies can therefore be split in

a fraction of the time by dividing the work and

aggregating the result at the end.

Some of the issues with connections were

identified in (Keleta et al. 2005) and explained more

in Chapter 3. The proposed solution was to have a

centralized entity that would connect to every

component over TLS and distribute a token and

encrypt messages. This would ensure that the

message is unmodified and that the request comes

from a authorised and verified source. Because the

components are grouped together this is

unnecessary, not to mention that encrypting these

tokens can add unwanted overhead.

As mentioned, the internal communication

between the PDP, Context Handler, PRP and PIPs

are no longer an issue if those components are

grouped together. The remaining connections that

present an issue are the connection between the PEP

and the Context Handler and between the PIPs and

external sources (including the resource when

fetching resource attributes). The problems with

these connections are regarding message integrity

and validity of both sides. As these communications

are most likely be over some kind of internet

connection (for example, over a REST service) the

technology to secure them already exist and are

proven to work well. A simple and effective way of

securing these connections and solving these issues

is over a HTTPS connection (SSL/TLS) (Díaz-

López et al. 2015) (Keleta et al. 2005). Using this

method provides the authentication to both parties

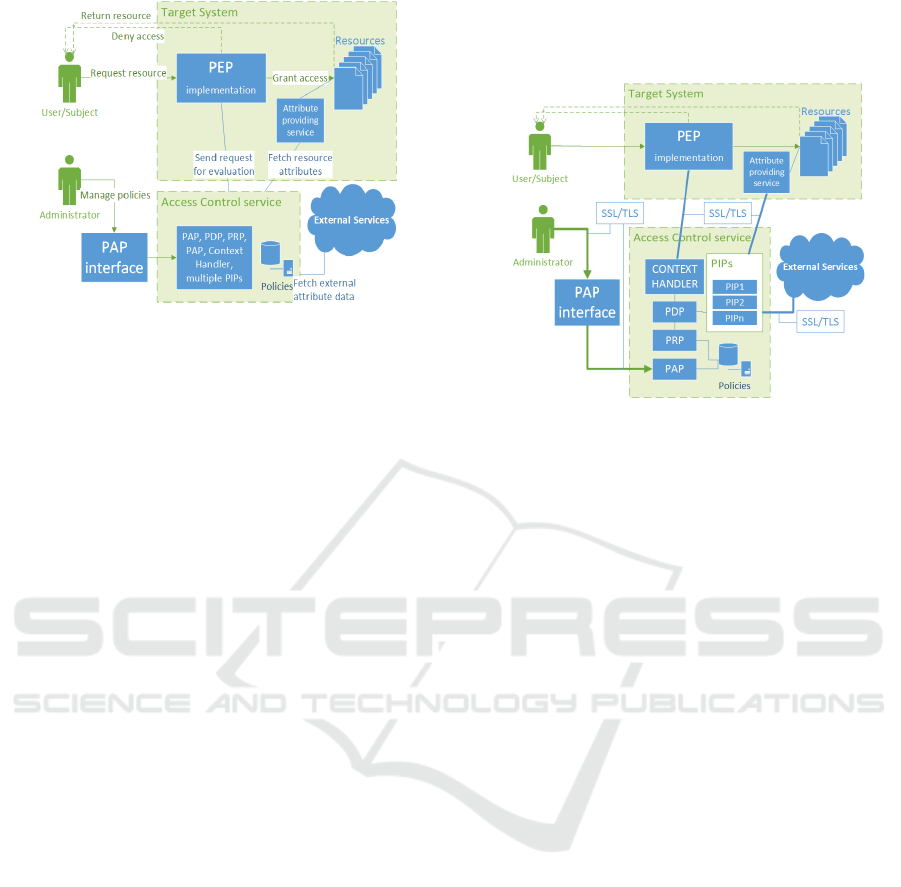

Figure 6: Architecture with marked SSL/TLS connections.

involved in the communication and protects the

privacy and integrity of the data being exchanged

between them. This would be sufficient to solve

these issues because the Server and Clients could

trust they are communicating with one another and

that the messages are not being tampered

with.Figure 6 shows the architecture, distribution of

components and has the SSL/TLS connections

marked where they are required to be for a secure

system. Other options like OAuth 2 and OpenID

Connect can be used on-top of TLS and provide

additional benefits when considering connection

with other systems but this work will not go into a

detailed analysis of those options or of TLS as those

technologies are already familiar and known

solution for these types of problems. The additional

benefits include delegation of the evaluation process

and utilizing the tokens used by OAuth and Open ID

Connect when connecting to other systems and , for

example, fetching attribute data.

6 PROOF OF CONCEPT

The use case scenario that the test was simulating

was using the security component as an external

service and communicating with it over a REST

service. The use case is an IoT application in the

context of the European project: SMARTIE – Secure

and smarter cities data management.

As stated in (Nam & Pardo 2011), the term smart

city is widely used, often outside of the computer

science context but rather in a more social and

cultural context. Definitions therefore vary and

many exist, but the final aim is to make a better use

The XACML Standard - Addressing Architectural and Security Aspects

195

of the public resources, increasing the quality of the

services offered to the citizens, while reducing the

operational costs of the public administrations

(Shelton et al. 2015).

SMARTIE (Smart City) is a European project

with the goal of solving security, privacy and trust

issues in IoT, with a Smart City implementation.

SMARTIE is still in the development stages and was

used as a use case scenario for testing an

implementation of the architecture proposed in

Chapter 5. The security component which was tested

was built using an AT&T XACML implementation

(XACML 2013) open source project. The PDP

engine was used for evaluating requests and policies

and custom PIPs were implemented from basic PIP

interfaces to communicate with the PDP. All other

components (PRP, PAP, Context Handler, Policy

Storage Manager, etc.) were developed and

organizes in an architecture shown in Figure 3. The

schema of the test scenario is equal to the one shown

in Figure 3 but without connection in between the

Access Control service and the resource (for

fetching resource attributes) .This means that the

PEP is integrated in the target solution and it

communicates to the access control service over a

REST service and the PIPs fetch additional attributes

both from internal and external sources. The

requests that were sent vary in the complexity as

some require all of the PIPs while others do not

require any. Additionally, half of the requests result

in a positive (P-Permit) result and half in a negative

(D-Deny). The response time and the average were

calculated. It also has to be noted that the test does

not incorporate any type of caching so the repetition

of the requests did not result in inaccurate results.

The purpose of this test is to verify that the

developed solution gives results as predicted and

that the evaluation process is working as intended.

These tests in Table 1showed that the developed

solution performed as intended from a functional

perspective and satisfactory from a performance

perspective, meaning that the overhead for the

response times is acceptable for integrating in other

systems. The tests that were done by making calls

from the SMARTIE component were also a "proof

Table 1: Test results (R-Result, P-Permit, D-Deny).

# R (ms) # R (ms) # R (ms) # R (ms)

1 P 55 11 P 118 21 D 50 31 D 59

2 P 58 12 P 75 22 D 46 32 D 60

3 P 72 13 P 83 23 D 50 33 D 48

4 P 99 14 P 132 24 D 75 34 D 58

5 P 80 15 P 121 25 D 49 35 D 56

6 P 79 16 P 73 26 D 48 36 D 43

7 P 86 17 P 57 27 D 57 37 D 48

8 P 102 18 P 58 28 D 51 38 D 47

9 P 127 19 P 72 29 D 39 39 D 65

10 P 85 20 P 59 30 D 47 40 D 47

Avg: 68.4

of concept" test as the primary targeted system was

SMARTIE. As the test shows, the solution

performed as predicted using requests and policies

from the target system.

7 CONCLUSION

The ABAC model together with the XACML

standard has great potential and offers great benefits.

A finalized open source implementation that

implements every aspect of the standard along with

connectivity options with many types of services

would offer great benefits for many

implementations, not only IoT applications as

mentioned before, but also for many others. A

significant benefit of having this kind of system for

enforcing security is that the initial requests made by

the target system do not require to have many

attributes, therefore they do not need to fetch all the

information needed for evaluation They can rely on

the access control service to fetch all additional

attributes when and if needed in an efficient manner.

After building and having a secure system,

verifying that it works correctly and predictably, the

potential failure point is no longer directly a point in

the system but the interfaces that system

administrator and people implementing the solution

have to use. The system's security relies primarily on

correctly defined policies, making requests that

correctly mirror the true requests and integration that

is done correctly. This, of course is not a trivial task

and it requires precision.

This work has shown that the architecture

proposed in the standard (OASIS 2013) does not

cover all aspects that need to be considered when

deploying such a solution, and implementations

require some extensions to keep it secure. This is

often the case as not all issues can be predicted in

the planning stages. The architecture proposed in

this work is an integration oriented proposal aimed

to make XACML easier to use by other systems.

Although the architecture is not a significant

departure from the one defined in the standard it

offers benefits as it defines the implementation

scenario and solves distribution and connection

issues that are sure to arise when deploying such a

system.

ACKNOWLEDGEMENTS

This work is funded by National Funds through FCT

Fundação para a Ciência e a Tecnologia under the

project UID/EEA/50008/2013.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

196

REFERENCES

Addie, R.G. & Colman, A., 2010. Five Criteria for Web-

Services Security Architecture. In 4th International

Conference on Network and System Security (NSS),.

pp. 521–526.

Ardagna, C.A. et al., 2009. An XACML-based privacy-

centered access control system. In Proceedings of the

first ACM workshop on Information security

governance - WISG ’09. p. 49.

Brown, K.P. et al., 2012. Fine-grained filtering of data

providing Web Services with XACML. In Proceedings

of the Workshop on Enabling Technologies:

Infrastructure for Collaborative Enterprises, WETICE.

pp. 438–443.

Demchenko, Y., Cristea, M. & De Laat, C., 2009.

XACML policy profile for multidomain network

resource provisioning and supporting authorisation

infrastructure. In Proceedings - 2009 IEEE

International Symposium on Policies for Distributed

Systems and Networks, POLICY 2009. pp. 98–101.

Díaz-López, D. et al., 2015. Managing XACML systems

in distributed environments through Meta-Policies.

Computers and Security, 48, pp.92–115.

Ferrini, R. & Bertino, E., 2009. Supporting RBAC with

XACML+OWL. In Proceedings of the 14th ACM

symposium on Access control models and

technologies SE - SACMAT ’09. pp. 145–154.

Available at: citeulike-article-id:9252058%5Cnhttp://

dx.doi.org/10.1145/1542207.1542231.

Fisler, K. et al., 2005. Verification and Change-Impact

Analysis of Access-Control Policies. Proceedings of

the 27th International Conference on Software

Engineering, pp.196–205.

FP7, 2016. SMARTIE - secure and smarter cities data

management. Available at: http://www.smartie-

project.eu/ [Accessed October 25, 2016].

Kabbani, B. et al., 2014. Specification and enforcement of

dynamic authorization policies oriented by situations.

In 2014 6th International Conference on New

Technologies, Mobility and Security - Proceedings of

NTMS 2014 Conference and Workshops.

Kehlenbeck, M., Sandner, T. & Breitner, M.H., 2010.

Managing internal control in changing organizations

through business process intelligence - A service

oriented architecture for the XACML based

monitoring of supporting systems. In Proceedings of

the Annual Hawaii International Conference on

System Sciences.

Keleta, Y., Eloff, J.H. & Venter, H., 2005. Proposing a

Secure XACML architecture ensuring privacy and

trust, Available at: http://icsa.cs.up.ac.za/issa/

2005/Proceedings/Research/093_Article.pdf.

Lin, D. et al., 2013. A similarity measure for comparing

XACML policies. IEEE Transactions on Knowledge

and Data Engineering, 25(9), pp.1946–1959.

Liu, A.X. et al., 2011. Designing fast and scalable

XACML policy evaluation engines. IEEE

Transactions on Computers, 60(12), pp.1802–1817.

Lorch, M. et al., 2003. First experiences using XACML

for access control in distributed systems. In

Proceedings of the 2003 ACM workshop on XML

security. pp. 25–37.

Nam, T. & Pardo, T. a., 2011. Conceptualizing smart city

with dimensions of technology, people, and

institutions. Proceedings of the 12th Annual

International Digital Government Research

Conference on Digital Government Innovation in

Challenging Times - dg.o ’11, p.282. Available at:

http://dl.acm.org/citation.cfm?id=2037556.2037602%

5Cnhttp://dl.acm.org/citation.cfm?id=2072069.207210

0%5Cnhttp://dl.acm.org/citation.cfm?doid=2037556.2

037602.

OASIS, 2013. eXtensible Access Control Markup

Language (XACML) Version 3.0. Available at:

http://docs.oasis-open.org/xacml/3.0/xacml-3.0-core-

spec-os-en.pdf [Accessed October 25, 2016].

OASIS, 1993. OASIS. Available at: https://www.oasis-

open.org/org [Accessed October 23, 2016].

Priebe, T. et al., 2007. Supporting attribute-based access

control in authorization and authentication

infrastructures with ontologies. Journal of Software,

2(1), pp.27–38.

Priebe, T., Dobmeier, W. & Kamprath, N., 2006.

Supporting attribute-based access control with

ontologies. In Proceedings - First International

Conference on Availability, Reliability and Security,

ARES 2006. pp. 465–472.

Qing, X. & Adams, C., 2006. XACML-Based Policy-

Driven Access Control for Mobile Environments. In

Canadian Conference on Electrical and Computer

Engineering. pp. 643–646.

Samarati, P. & Di Vimercati, S.D.C., 2001. Access

Control: Policies, Models, and Mechanisms.

Foundations of Security Analysis and Design, 2171,

pp.137–196. Available at: http://

www.springerlink.com/index/80wrewj7j1a716wb.pdf.

Sardinha, A., Rao, J. & Sadeh, N., 2007. Enforcing

context-sensitive policies in collaborative business

environments. In Proceedings - International

Conference on Data Engineering. pp. 705–714.

Shelton, T., Zook, M. & Wiig, A., 2015. The “actually

existing smart city.” Cambridge Journal of Regions,

Economy and Society, 8, pp.13–25. Available at:

http://cjres.oxfordjournals.org/lookup/doi/10.1093/cjre

s/rsu026.

Stepien, B., Matwin, S. & Felty, A.P., 2011. Advantages

of a non-technical {XACML} notation in role-based

models. In Ninth Annual Conference on Privacy,

Security and Trust. pp. 193--200.

XACML, 2013. AT&T XACML 3.0 Implementation.

Available at: https://github.com/att/XACML

[Accessed October 23, 2016].

Xu, M. & Duminda, W., 2009. A role-based XACML

administration and delegation profile and its

enforcement architecture. In ACM workshop on

Secure web services. pp. 53–60.

Xu, M., Wijesekera, D. & Zhang, X., 2011. Runtime

administration of an RBAC profile for XACML. IEEE

Transactions on Services Computing, 4(4), pp.286–

299.

The XACML Standard - Addressing Architectural and Security Aspects

197
