Experimental Assessment of Private Information Disclosure

in LTE Mobile Networks

Stig F. Mjølsnes and Ruxandra F. Olimid

Department of Information Security and Communication Technology,

NTNU, Norwegian University of Science and Technology, Trondheim, Norway

Keywords:

4G/LTE Security, Mobile Networks Security, IMSI Catcher, Privacy, Software Deﬁned Radio.

Abstract:

Open source software running on SDR (Software Deﬁned Radio) devices now allow building a full-ﬂedged

mobile network at low cost. These novel tools open up for exciting possibilities to analyse and verify by

experiments the behaviour of existing and emerging mobile networks in new lab environments, for instance at

universities. We use SDR equipment and open source software to analyse the feasibility of disclosing private

information that is sent over the LTE access network. We verify by experiments that subscriber identity infor-

mation can be obtained both passively, by listening on the radio link, and actively, by running considerable low

detectable rogue base stations to impersonate the commercial network. Moreover, we implement a downgrade

attack (to non-LTE networks) with minimal changes to the open source software.

1 INTRODUCTION

Disclosure of sensitive information in mobile com-

munications networks has important consequences

for both the privacy of subscribers and the secu-

rity of commercial services. Although LTE (Long

Term Evolution) implements improved mechanisms

and protocols that provide better protection than pre-

vious generations of mobile networks, nevertheless

4G has turned out susceptible too. LTE was proved di-

rectly vulnerable to privacy exposure, location track-

ing, DoS (Denial of Service), or communication

eavesdropping (Jover, 2013; Shaik et al., 2016; Jover,

2016; Lichtman et al., 2016; Rupprecht et al., 2016;

The Register, 2016; Mjølsnes and Olimid, 2017).

Open source software running on SDR (Software

Deﬁned Radio) devices allow the emulation of mo-

bile networks at low cost. These tools have opened

up the possibility to analyse by experiment the be-

haviour of all generations of cellular networks. Us-

age of such devices in academia leads to a better un-

derstanding of the standards and research results that

would have been previously possible in industrial en-

vironments only. Making use of available SDR equip-

ment and open source software, we analyse the feasi-

bility of gathering sensitive information exchanged by

radio communication in the access network in LTE.

Disclosure of private identiﬁers and parameters is the

ﬁrst step to take advantage of security breaches in 4G.

More precisely, the adversary usually ﬁrst reconnoi-

ters the network operation in the eavesdropped area of

attack and then use the gathered information to con-

ﬁgure a rogue base station for an active attack that

might severely damage the privacy of the user (e.g.:

interception of personal communication) or the cred-

ibility of the network operator (e.g.: DoS attacks).

1.1 Related Work

Academic works implement IMSI Catchers - active

attack devices against the radio link protocols in mo-

bile networks with the main goal of collecting IM-

SIs - by modifying the code of open-source software

projects, such as OpenLTE (OpenLTE, 2017), srsLTE

(srsLTE, 2017; Gomez-Miguelez et al., 2016), or gr-

LTE (gr-LTE, 2017). We have very recently showed

that Open Air Interface (OAI) (Open Air Interface,

2017) can be used to build an out-of-the-box IMSI

Catcher (Mjølsnes and Olimid, 2017). The attack re-

quires no changes to the software, making the IMSI

Catcher accessible to adversaries with absolutely no

programming skills, but only publicly accessible soft-

ware and COTS (Commercial-out-of-the-Shelf) hard-

ware at an affordable price. Rupprecht et al. have also

used OAI, but for another purpose: to test compliance

of some UE (User Equipment) with the LTE standard

with respect to encryption mechanisms, under the as-

sumption that the UE automatically tries to connect

Mjølsnes, S. and Olimid, R.

Experimental Assessment of Private Information Disclosure in LTE Mobile Networks.

DOI: 10.5220/0006462305070512

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 507-512

ISBN: 978-989-758-259-2

507

to the rogue base station by re-selection (Rupprecht

et al., 2016). New vulnerabilities arise continuously,

LTE being a hot topic for top security conferences

(Borgaonkar et al., 2017). A theoretical analysis has

been conducted to understand the threats in LTE net-

works (Bhattarai et al., 2014). Some work has been

done to detect or mitigate IMSI Catchers, both at the

subscriber (Dabrowski et al., 2014) and at the network

level (Dabrowski et al., 2016).

1.2 Motivation and Contribution

We investigate, by experiment, information disclosure

in LTE, which has important consequences on the pri-

vacy of subscribers and the security of commercial

networks. We analyse disclosure of sensitive infor-

mation by both passive and active attacks:

Passive Attacks. We exemplify by experiment how

the adversary can sniff parameters that are broad-

casted in clear by the commercial network. These

data give an overview of the network operation that

is valuable in implementing more advanced attacks

(e.g.: the list of cells in a given area, the uplink and

downlink frequencies used in the area and their as-

sociated priority). All experiments were performed

in the wireless security lab at the university and the

measurements were conducted on commercial mobile

networks. To succeed our goals, we used open source

software (LTE Cell Tracker) running on SDR device

(Hack RF One). We performed minimal changes to

the Matlab scripts of the open source software to al-

low correct decoding of the captured messages. This

required basic programming skills, such as reading

and understanding the Matlab code. Previous work

describes similar passive attacks, but the authors use

changes in the software of other LTE tools (Jover,

2016). Our attacks proves how easy it is to gather

information about commercial networks, without any

specialised hardware or software.

Active Attacks. The out-of-the box IMSI Catcher

built by Mjølsnes and Olimid generates a DoS attack

(the UE will only allow reconnection to the commer-

cial network after rebooting), which makes the at-

tack easily detectable by the end user (Mjølsnes and

Olimid, 2017). We now make the UE reconnect to

the commercial network immediately after disclos-

ing the IMSI to the rogue base station. This miti-

gates the detection of the attack at the subscriber level,

because UE loses connectivity for a very short time

only. Moreover, we show how to deny LTE services

to the subscriber, by performing a downgrade attack

to previous generation mobile networks. Both re-

sults are obtained with minimal changes in the OAI

open source software, running on SDR device (Et-

tus B200mini). To the best of our knowledge, we

are the ﬁrst to verify by experiment the feasibility of

low-detectable IMSI Catchers and downgrade attacks

using the OAI open source software. Moreover, in

the same experimental settings, we test compliance to

standard with respect to IMEI (International Mobile

Equipment Identiﬁer) disclosure. We ﬁnd that the test

devices are standard compliant, in the sense that they

do not send the IMEI over the network. To get the

desired behaviour, we performed small changes to the

code. These changes must be performed by an at-

tacker to launch the attack, but require only some fa-

miliarity with the LTE standard and basic C program-

ming skills.

2 PRELIMINARIES

2.1 LTE Architecture

The LTE architecture consists of the EUTRAN

(Evolved Universal Terrestrial Radio Access Net-

work) and the EPC (Evolved Packet Core). The user

terminal, called UE (User Equipment), communicates

with an eNodeB (enhanced NodeB), which is the ac-

cess point to the operator’s core network. To identify

itself, authenticate and establish secure communica-

tion to the network, UE makes use of unique iden-

tiﬁers and keys stored in the USIM (Universal Sub-

scriber Identity Module) and at the mobile operator

side. Table 1 lists identiﬁers that we will refer to

later in the paper. Some of these identiﬁers are sent

in clear, before the secure communication is estab-

lished. The mobile operator broadcasts some conﬁgu-

ration information in clear also, such as the SIB (Sys-

tem Information Blocks) messages. Examples of SIB

messages include SIB1 that contains cell access re-

lated parameters, and SIB5 that contains information

regarding inter-frequency reselection.

2.2 Experimental Setup

The experimental setup consists of computers run-

ning open source software, attached with SDR and

antennas (Figure 1). We used 2 computers: one In-

tel NUC D54250WYK (i5-4250U CPU@1.30GHz)

and one Lenovo ThinkPad T460s (i7-6600U CPU@

2,30GHz), both running 64-bit Kubuntu 14.04 kernel

version 3.19.0-61-low latency and 2 types of hand-

sets: Nexus 5 (Android v6.0.1) and Nexus 5X (An-

droid v7.0).

SECRYPT 2017 - 14th International Conference on Security and Cryptography

508

Table 1: Identities and Parameters.

UE (User Equipment)

IMSI International Mobile Subscriber Identity A unique long-time identiﬁer for the USIM.

IMEI International Mobile Equipment Identiﬁer A unique identiﬁer for the user hardware device (e.g.: phone, modem).

Mobile Network

MCC Mobile Country Code A unique identiﬁer for the country a mobile subscriber belongs to.

MNC Mobile Network Code A unique identiﬁer for the network a mobile subscriber belongs to.

TAC Tracking Area Code A code for a geographical region of a network operator served

by the same Mobile Management Entity.

EARFCN EUTRA Absolute Radio-Frequency A uniquely identiﬁer for the LTE band and carrier frequency.

Channel Number

In the passive attacks scenario (Section 3.1), we

used HackRF One (Great Scott Gadgets, 2017) as

SDR and LTE Cell Tracker (Jiao Xianjun, 2017) soft-

ware to sniff cells and decode broadcast messages.

In the active attacks scenario (Section 3.2), we used

B200mini (Ettus Research, 2017b) as SDR and OAI

software (Open Air Interface, 2017) to build the rogue

eNodeBs. Detailed information about the hardware

and software for each of the two scenarios follows.

2.2.1 Passive Attacks

Hack RF One is a SDR (Software Deﬁned Radio)

peripheral capable of transmission and reception of

radio signals from 1 MHz to 6 GHz, communicat-

ing in half duplex. The technical speciﬁcations of

the HackRF One are available at (Great Scott Gad-

gets, 2017). We used HackRF One to sniff informa-

tion about the target mobile network (Section 3.1).

Our reason for using a HackRF device is that it is

compatible with existing open-source software LTE

Cell Tracker that allows to capture and decode unen-

crypted LTE trafﬁc.

LTE Cell Scanner and Tracker is an open source

software that can be used to sniff an LTE mobile ac-

cess network and obtain information on the network

topology and design (Jiao Xianjun, 2017). We used

this software for scanning cells and capture trafﬁc at

selected frequencies. The LTE Cell Tracker uses Mat-

lab scripts to decode the 20MHz bandwidth downlink

LTE messages sent in clear, thus revealing important

information sent in SIB messages.

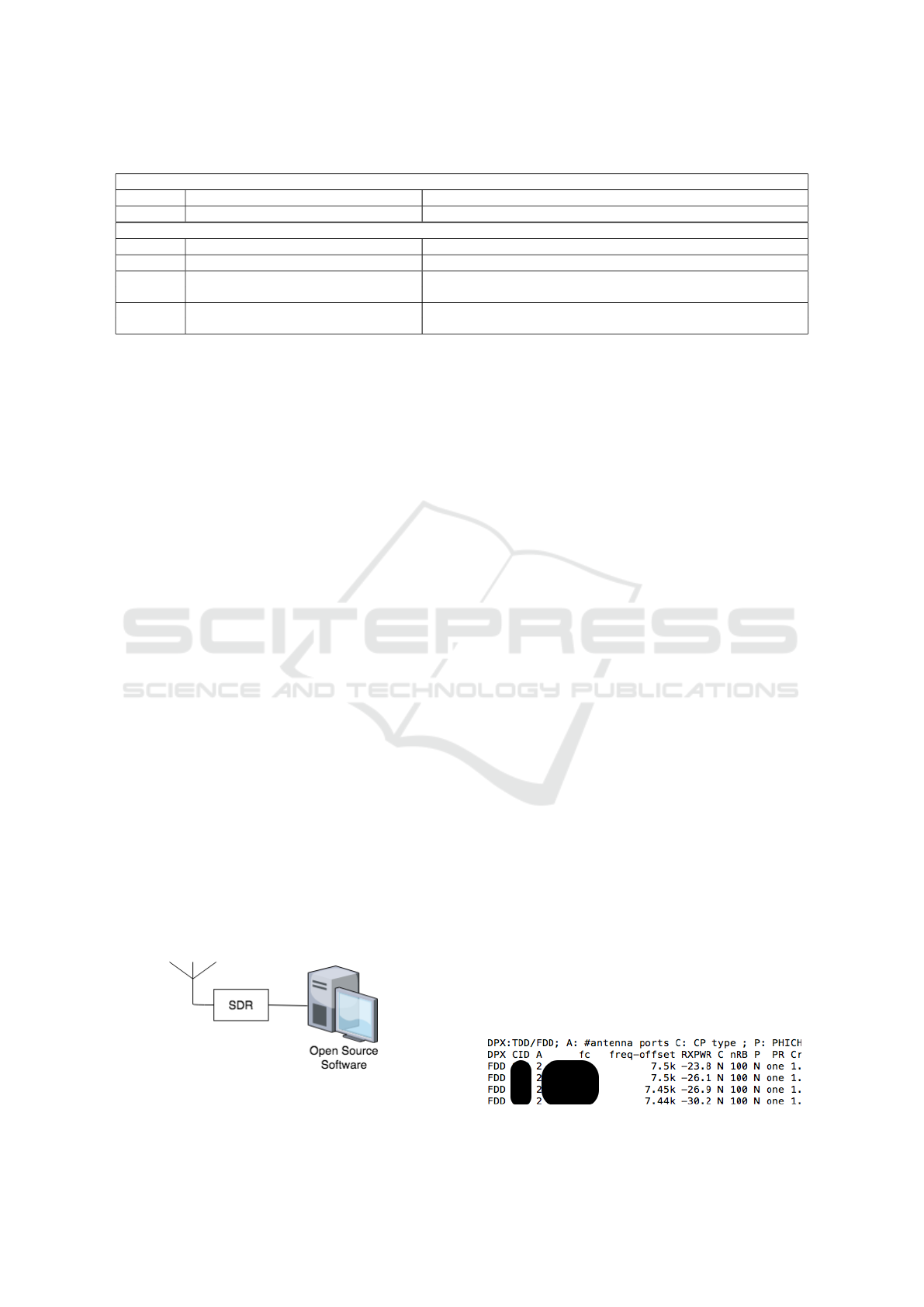

Figure 1: Experimental Architecture using SDR.

2.2.2 Active Attacks

USRP B200mini is a USRP (Universal Software

Radio Peripheral) from Ettus Research (Ettus Re-

search, 2017a). The B200mini device is capable

of transmission and reception of radio signals from

70MHz to 6GHz, communicating in full duplex. The

technical speciﬁcations of the B200mini are available

at (Ettus Research, 2017b). B200mini can be used for

all LTE frequency bands, which allows high ﬂexibil-

ity. It is easy to handle with (due to its small dimen-

sions), affordable in price for academic experiments

and satisﬁes all the technical requirements for our ex-

periments, being compatible with the OAI software.

Open Air Interface (OAI) is an open source soft-

ware that allows LTE emulation by running on a sin-

gle computer with SDR attached (Open Air Interface,

2017). It is compatible with the B200mini and imple-

ments LTE control plane compliant to standard.

3 EXPERIMENTAL RESULTS

3.1 Passive Attacks

As explained in Section 2, an eNodeB broadcasts net-

work parameters in clear. The trafﬁc sent over the

downlink channel can therefore be captured and de-

coded by an adversary to gain knowledge on the de-

sign of the network. We used LTE Cell Tracker to

discover and track cells in the area of the univer-

sity. Embedded Matlab scripts can be used to decode

messages broadcast at 20MHz downlink bandwidth.

However, we encountered some errors at running the

scripts, so we had to perform basic corrections in the

Figure 2: Commercial LTE Cells.

Experimental Assessment of Private Information Disclosure in LTE Mobile Networks

509

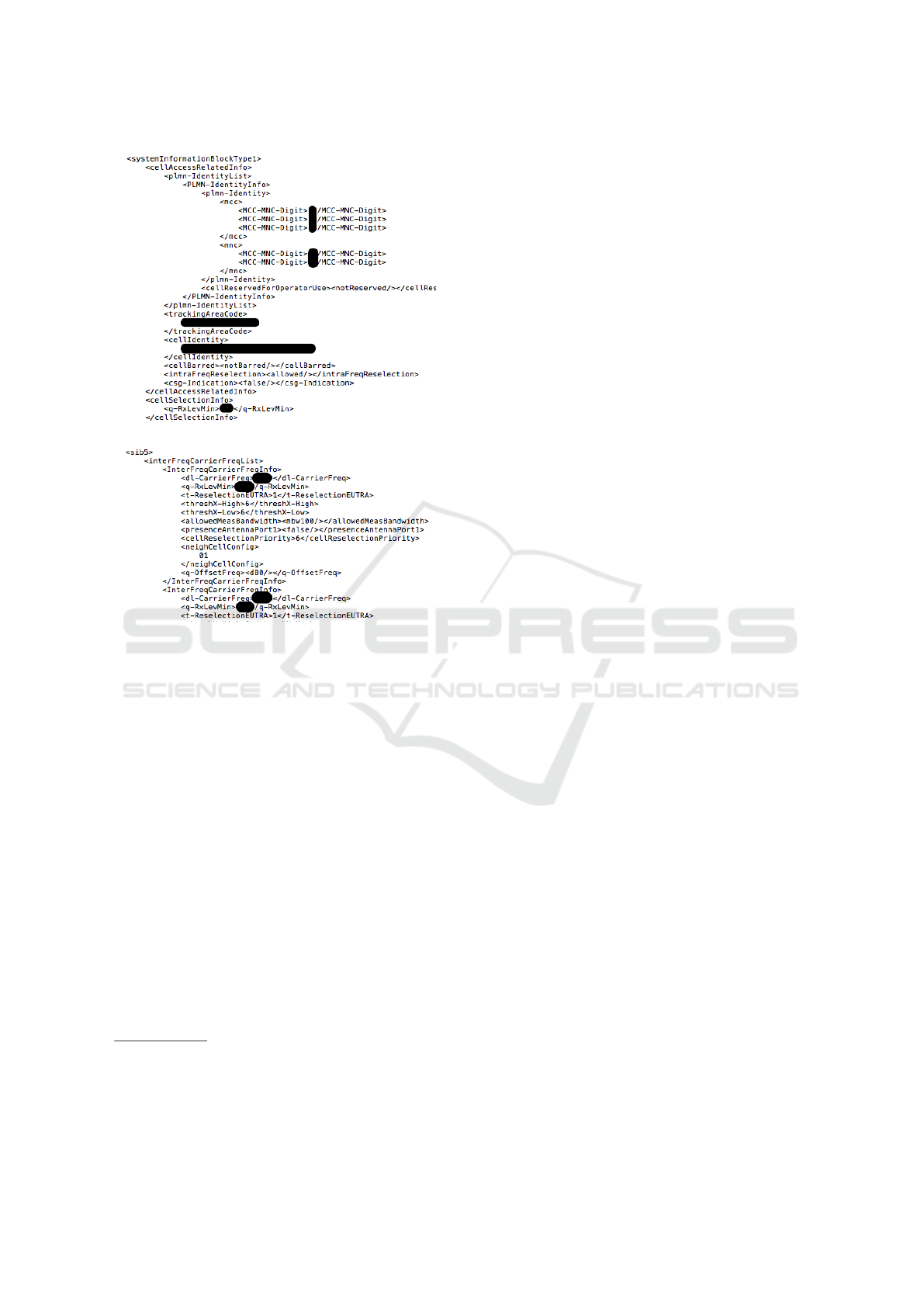

Figure 3: Real capture of SIB1 (fragment).

Figure 4: Real capture of SIB5 (fragment).

code to succeed

. The following examples show re-

sults of intercepting real trafﬁc, broadcast by one of

the commercial mobile operators:

• Figure 2 shows an example of cell search on a

given frequency, listing cells that correspond to

commercial eNodeBs in the area. Each cell is

identiﬁed by a CID (Cell ID).

• Figure 3 exempliﬁes a successfully decoded

SIB1 message. Notice the network identiﬁ-

cation parameters MCC and MNC (<MCC-

MNC-Digit>), the location area identiﬁer

(<trackingAreaCode>) and the cell iden-

tity (<cellIdentity>). The cell is not barred

(<cellBarred>) and allows intra frequency rese-

lection (<intraFreqReselection>). Threshold on

the signal level for cell selection is also speciﬁed

(<RxLevMin>).

• Figure 4 exempliﬁes a decoded SIB5 message. By

capturing and decoding a SIB5 message, the ad-

versary learns the frequencies used in the area

The errors were easy to ﬁx and might have been depen-

dent on the version of the software. For example, we en-

countered a Matrix dimensions must agree error, which we

solved by simply changing the starting index of a matrix

from 2 to 1.

(<dl-CarrierFreq>) and their associated priori-

ties (<cellReselectionPriority>). Hence, the ad-

versary gains an overview of the network in the

eavesdropped area and might subsequently use

the gathered information to setup an active attack.

More precisely, the attacker uses the results to

conﬁgure the rogue base station (e.g.: setting up

an IMSI Catcher by jamming the highest prior-

ity frequency and collecting IMSIs on the second

highest priority frequency (Mjølsnes and Olimid,

2017)).

3.2 Active Attacks

3.2.1 IMSI Catcher

We base our work on the out-of-the box IMSI Catcher

given in (Mjølsnes and Olimid, 2017). The rogue base

station collects the IMSIs, but the experiment ends

up in a DoS attack, which makes the attack easily

detectable. We now make the UE reconnect to the

commercial network immediately after disclosing the

IMSI, which mitigates the detection of the attack at

the user side. The user might still recognise an im-

proper behaviour if it is in the middle of a conversa-

tion, but the probability of detection in practice is sig-

niﬁcantly lower. Moreover, in a second experiment

we add an additional behaviour: the UE returns to the

commercial network, but it denies LTE services. This

results in a downgrade attack to 2G/3G, making the

UE susceptible to the attacks in previous generation

mobile networks.

The change in the OAI source code is minimal,

and consists in changing the EMM Cause returned

in the Attach Reject message from Cause #3 - Ille-

gal UE to Cause #15 - No suitable cells in tracking

area, respectively to Cause #7 - EPS services not al-

lowed (ETSI TS 124 301 V12.6.0 (2014-10), 2014).

We have tested both scenarios with successful results:

UE disclosed the IMSI and returned to the commer-

cial LTE network, respectively UE disclosed the IMSI

and downgraded to a non-LTE service of the commer-

cial network in a few seconds of operation. Figure 5

exempliﬁes an Identity Response message displayed

in Wireshark (Wireshark, 2017) containing the IMSI,

while Figures 6 and 7 illustrate the EMM causes in

the two scenarios. In our experiments, Cause #7 -

EPS services not allowed triggered downgrade to the

commercial network to WCDMA.

3.2.2 IMEI Catcher

By default, in the Identiﬁcation Request message, the

rogue mobile network asks the UE device to identify

SECRYPT 2017 - 14th International Conference on Security and Cryptography

510

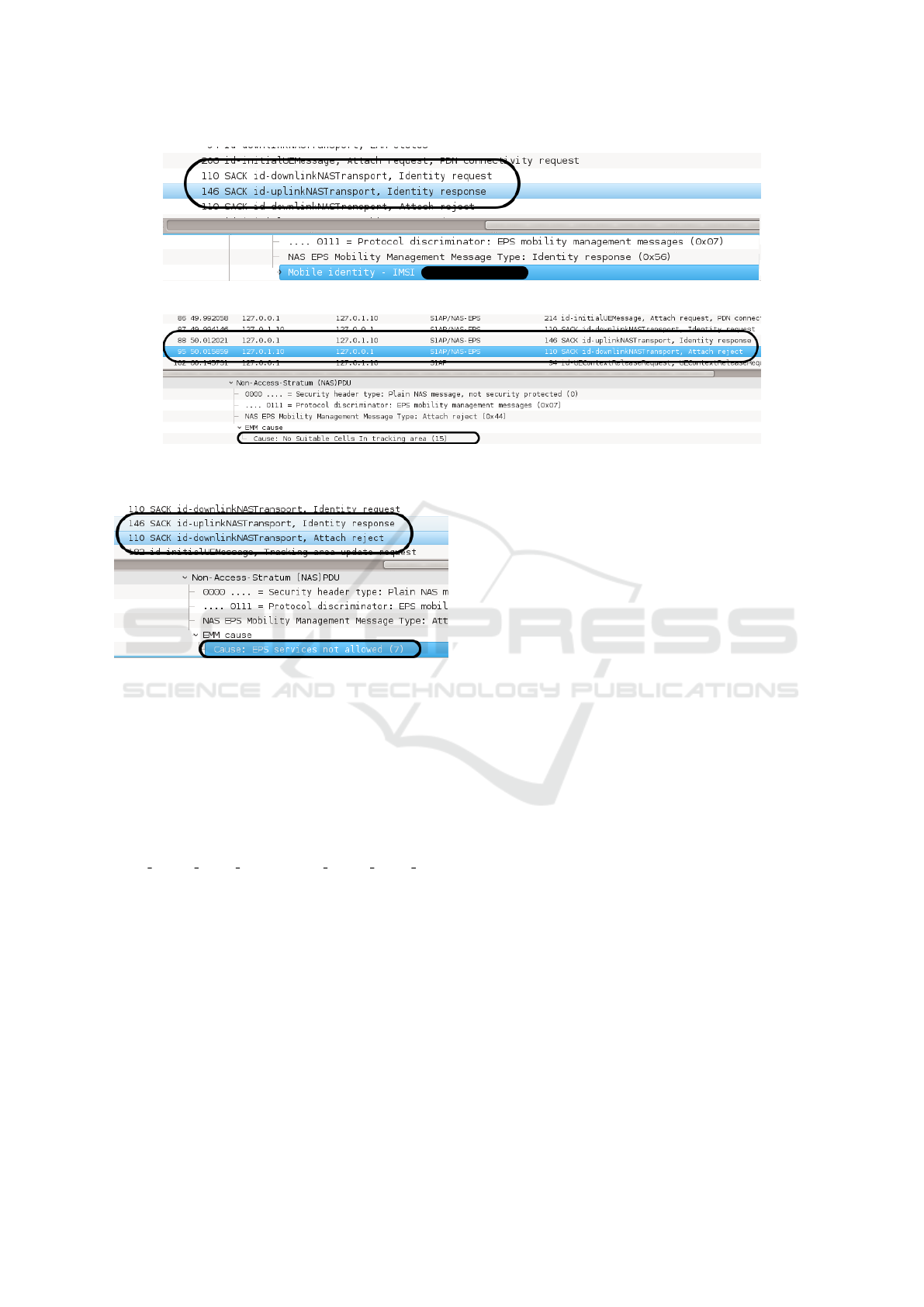

Figure 5: IMSI capture.

Figure 6: Trigger reconnection to commercial network.

Figure 7: Trigger downgrade to non-LTE services in com-

mercial network.

itself using the IMSI. We change the request to ask for

IMEI instead. By this, we test compliance of UE to

standard: IMEI should never be sent over the network

in clear, except during the emergency calls, or when

the UE has no IMSI, or no valid temporary identiﬁer

(ETSI TS 133 401 V10.3.0 (2012-07), 2012).

The change in the OAI source code needed

is again minimal and consists in changing the

EMM IDENT TYPE IMSI to EMM IDENT TYPE IMEI

in the identiﬁcation request function. Both devices

that we tested proved to be standard compliant: they

do not reply with an Identity Response message, and

hence they do not disclose the IMEI. Figure 8 illus-

trates an example of IMEI request, followed by the

Attach Reject message. Notice that there is no Identity

Response message.

To make the IMEI request experiment less time

consuming, we kept the EMM cause changed to

Cause #15 - No suitable cells in tracking area, which

allows the IMEI experiment to run several times with-

out the necessity to reboot the UE, but only change the

value of the TAC in the rogue network.

4 CONCLUSIONS

We argue the simplicity of breaking privacy in LTE

networks. We show by experiment how to collect

sensitive identiﬁers and parameters both at the sub-

scriber level and the network level. Examples include

the IMSI (permanent identiﬁer of the subscriber) and

the the list of high priority frequencies (parametrised

at the network side). First, we show the possibility of

eavesdropping on the LTE downlink using publicly

available open source software and low cost hard-

ware. Second, we improve existing work by mitigat-

ing the detection of rogue eNodeBs by subscribers

and show that the downgrade attack can be imple-

mented in LTE using OAI software too. Finally, we

give a method to test compliancy to the standard with

respect to IMEI disclosure. Our work shows that LTE

security is still an open problem and that new vulner-

abilities arise. Future research should focus on miti-

gating methods and countermeasures, with the goal to

make mobile communication more secure.

ACKNOWLEDGEMENTS

The authors would like to thank post doc David Palma

at our department for providing some of the equip-

ment necessary for the experiments and master stu-

dents Christoffer E. Ottesen and Christian Sørseth for

their help with some of the experiments.

Experimental Assessment of Private Information Disclosure in LTE Mobile Networks

511

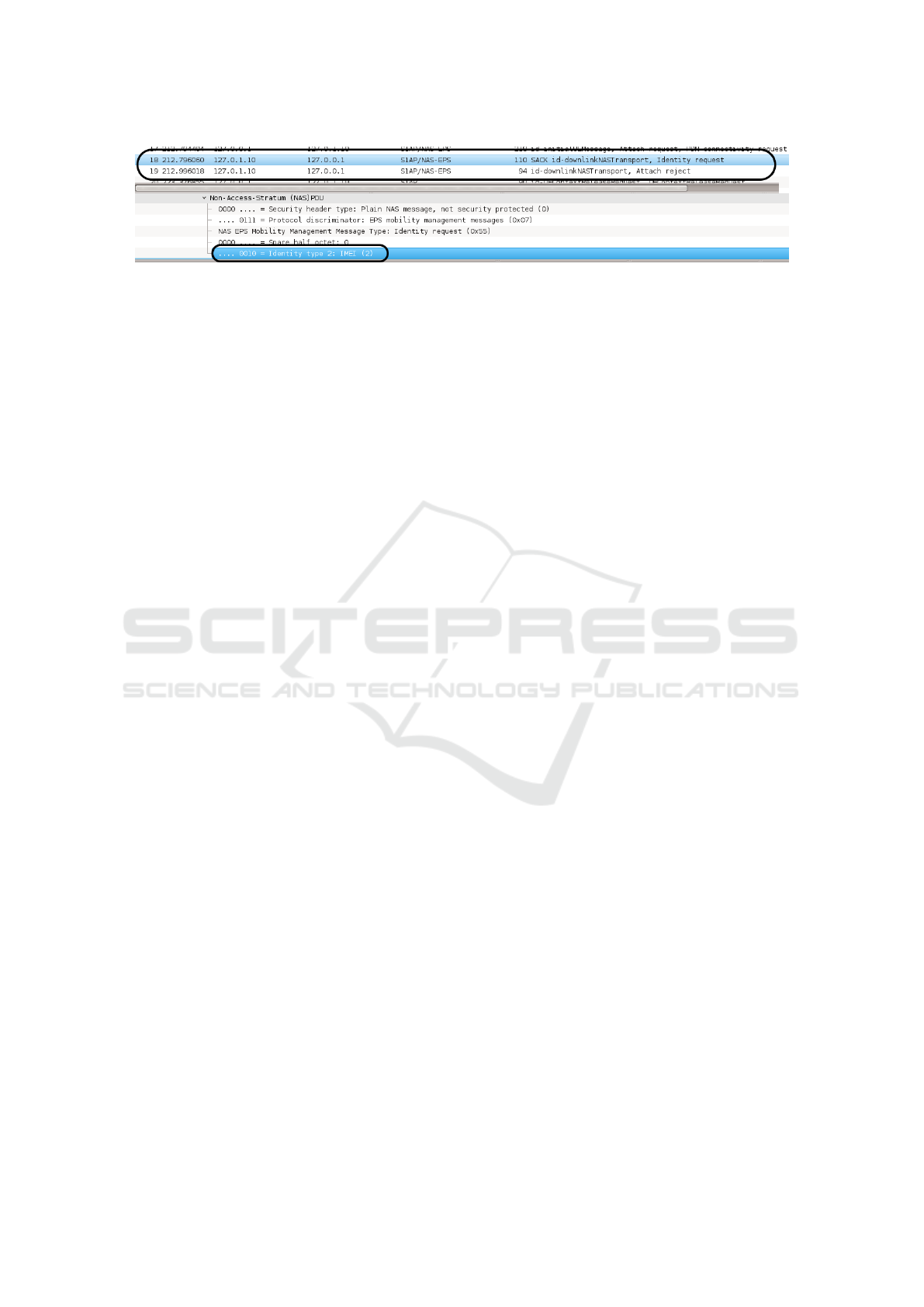

Figure 8: Identity Request (IMEI) followed by Attach Reject (no Identity Response).

REFERENCES

Bhattarai, S., Rook, S., Ge, L., Wei, S., Yu, W., and Fu, X.

(2014). On simulation studies of cyber attacks against

LTE networks. In 2014 23rd International Confer-

ence on Computer Communication and Networks (IC-

CCN), pages 1–8. IEEE.

Borgaonkar, R., Martin, A., Hirschi, L., Park, S., Shaik, A.,

and Seifert, J.-P. (2017). New adventures in spying 3G

and 4G users: Locate, track & monitor. Blackhat Las

Vegas Conference (to be presented).

Dabrowski, A., Petzl, G., and Weippl, E. R. (2016). The

messenger shoots back: Network operator based IMSI

catcher detection. In International Symposium on Re-

search in Attacks, Intrusions, and Defenses, pages

279–302. Springer.

Dabrowski, A., Pianta, N., Klepp, T., Mulazzani, M.,

and Weippl, E. (2014). IMSI-catch me if you can:

IMSI-catcher-catchers. In Proceedings of the 30th

annual computer security applications Conference,

pages 246–255. ACM.

ETSI TS 124 301 V12.6.0 (2014-10) (2014). Universal

Mobile Telecommunications System (UMTS); LTE;

Non-Access-Stratum (NAS) protocol for Evolved

Packet System (EPS); Stage 3 (3GPP TS 24.301 ver-

sion 12.6.0 Release 12).

ETSI TS 133 401 V10.3.0 (2012-07) (2012). Universal

Mobile Telecommunications System (UMTS); LTE;

3GPP System Architecture Evolution (SAE); Security

architecture (3GPP TS 33.401 version 10.3.0 Release

10).

Ettus Research (2017a). A National Instruments Company.

https://www.ettus.com/ Last accessed: April 2017.

Ettus Research (2017b). USRP B200mini (Board

only). https://www.ettus.com/product/details/USRP-

B200mini Last accessed: April 2017.

Gomez-Miguelez, I., Garcia-Saavedra, A., Sutton, P. D.,

Serrano, P., Cano, C., and Leith, D. J. (2016). srsLTE:

an open-source platform for LTE evolution and exper-

imentation. arXiv preprint arXiv:1602.04629.

gr-LTE (2017). GNU Radio LTE receiver.

https://github.com/kit-cel/gr-lte Last accessed:

April 2017.

Great Scott Gadgets (2017). HackRF One.

https://greatscottgadgets.com/hackrf/ Last accessed:

April 2017.

Jiao Xianjun (2017). Cell Scanner and Tracker.

https://github.com/JiaoXianjun/LTE-Cell-Scanner

Last accessed: April 2017.

Jover, R. P. (2013). Security attacks against the availability

of LTE mobility networks: Overview and research di-

rections. In Wireless Personal Multimedia Communi-

cations (WPMC), 2013 16th International Symposium

on, pages 1–9. IEEE.

Jover, R. P. (2016). LTE security, protocol exploits and loca-

tion tracking experimentation with low-cost software

radio. CoRR, abs/1607.05171.

Lichtman, M., Jover, R. P., Labib, M., Rao, R., Maroje-

vic, V., and Reed, J. H. (2016). LTE/LTE-a jamming,

spooﬁng, and snifﬁng: threat assessment and mitiga-

tion. IEEE Communications Magazine, 54(4):54–61.

Mjølsnes, S. F. and Olimid, R. F. (2017). Easy 4G/LTE

IMSI Catchers for Non-Programmers. arXiv preprint

arXiv:1702.04434.

Open Air Interface (2017). 5G software al-

liance for democratising wireless innovation.

http://www.openairinterface.org Last accessed: April

2017.

OpenLTE (2017). An open source 3GPP LTE implementa-

tion. https://sourceforge.net/projects/openlte/ Last ac-

cessed: April 2017.

Rupprecht, D., Jansen, K., and P

opper, C. (2016). Putting

LTE security functions to the test: A framework

to evaluate implementation correctness. In 10th

USENIX Workshop on Offensive Technologies, WOOT

16, Austin, TX, August 8-9, 2016.

Shaik, A., Seifert, J., Borgaonkar, R., Asokan, N., and

Niemi, V. (2016). Practical attacks against privacy and

availability in 4G/LTE mobile communication sys-

tems. In 23nd Annual Network and Distributed System

Security Symposium, NDSS 2016, San Diego, Califor-

nia, USA, February 21-24, 2016.

srsLTE (2017). Open source 3GPP LTE library.

https://github.com/srsLTE/srsLTE Last accessed:

April 2017.

The Register (2016). Every LTE call, text, can

be intercepted, blacked out, hacker ﬁnds.

http://www.theregister.co.uk/2016/10/23/ Last

accessed: April 2017.

Wireshark (2017). https://www.wireshark.org/ Last ac-

cessed: April 2017.

SECRYPT 2017 - 14th International Conference on Security and Cryptography

512
