Using Artificial Intelligence to Improve the Evaluation of Human

Blastocyst Morphology

José Celso Rocha

, Diogo Lima Bezerra da Silva

, João Guilherme Cândido dos Santos

Lucy Benham Whyte

2,3

, Cristina Hickman

2,4

, Stuart Lavery

2,4

and Marcelo Fábio Gouveia Nogueira

Laboratório de Matemática Aplicada, FCL, Universidade Estadual Paulista (Unesp),

Av. Dom Antonio 2100, Assis, Brazil

Boston Place Clinic, 20 Boston Place, NW16ER, U.K.

University of Oxford, U.K.

Imperial College London, U.K.

Laboratório de Micromanipulação Embrionária, FCL, Unesp, Av. Dom Antonio 2100, Assis, Brazil

Keywords: Artificial Intelligence, Human Embryo, Embryo Classification, Image Digital Processing.

Abstract: The morphology of the human embryo produced by in vitro fertilized (IVF) is historically used as a

predictive marker of gestational success. Although there are several different proposed methods to improve

determination of embryo morphology, currently, all methods rely on a manual, optical and subjective

evaluation done by an embryologist. Given that tiredness, mood and distinct experience could influence the

accuracy of the evaluation, the results found are very different from embryologist to embryologist and from

clinic to clinic. We propose the use of an objective evaluation, with repeatability and automatization, of the

human blastocyst by image processing and the use of Artificial Neural Network (i.e., Artificial Intelligence).

1 INTRODUCTION

Since the establishment of assisted reproduction

techniques (ART) in humans the quality of the

embryos in the blastocyst stage has been shown to

be able to predict the efficacy of the implantation

and the probability of the embryo to generate

pregnancy (della Ragione et al., 2007; Ahlstrm et al.,

2011). The predominant technique currently used to

determine embryo quality is the morphological

analysis by means of optical microscopy; this

method, despite being able to establish predictive

relations with the pregnancy rate, is still subjective

and, in many cases, with limited reproducibility. The

main problem of this method lies in the subjectivity

in the interpretation of the results by the

embryologists, resulting in low interobserver

agreement and intraobserver reproducibility (Arce et

al., 2006; Sundvall et al., 2013; Richardson et al.,

2015)

According to Gardner and Schoolcraft (1999) the

embryo classification is made according to three

parameters: i) stage of expansion and hatching (EE),

classified from 1 to 6, being 1 the embryo without

any inner cavity (blastocoel) meaning that it not

reached the blastocyst stage yet and 6 the blastocyst

fully hatched; ii) quality of the inner cell mass

(ICM) classified from A to C, being A the ICM with

the highest quality and C the worst and; iii) quality

of the trophectoderm (TE), also classified as A to C

and in the same way as ICM. Examples of

blastocysts classified by the Gardner & Schoolcraft

system are shown in Figure 1.

For Gardner and Schoolcraft classification

(1999), the technique used is the morphological

assessment by stereomicroscopy that is non-

invasive, however there are several other methods to

classify blastocysts such as metabolism

measurement (Tejera et al., 2016) and time-lapse

(Tejera, Aparicio-Ruiz and Meseguer, 2017) which

are also non-invasive methods. In addition, there are

techniques such as blastocyst transcriptome analysis

(Kakourou et al., 2013) and chromosomal screening

by array comparative genomic hybridization (aCGH)

(Yang et al., 2012) that are invasive. Invasive

techniques are not appropriate to classify human

embryos as they may jeopardize the integrity of the

embryo and, consequently, decrease the probability

of his implantation.

Rocha J., Bezerra da Silva D., dos Santos J., Whyte L., Hickman C., Lavery S. and Gouveia Nogueira M.

Using Artiﬁcial Intelligence to Improve the Evaluation of Human Blastocyst Morphology.

DOI: 10.5220/0006515803540359

In Proceedings of the 9th International Joint Conference on Computational Intelligence (IJCCI 2017), pages 354-359

ISBN: 978-989-758-274-5

Figure 1: Illustrative images of human blastocysts

classification. The first number is referred to the presence

and size of the blastocoel as well as the degree of embryo

expansion. The first letter is referred to the quality of the

inner cell mass and (second letter) of the trophectoderm.

(a) 3AA; (b) 3AB; (c) 3BA; (d) 4AA; (e) 4AB; (f) 4BA;

(g) 4CC; (h) 5AA; (i) 5CA. From Van den Abbeel, p.357,

2013.

One of the ways to reduce the subjectivity

involved in that process and to make a more

objective classification is the use of digital image

processing and artificial intelligence (AI) techniques

such as artificial neural networks (ANNs) and

genetic algorithms (GAs). With these methods, it is

possible to obtain a high reproducibility independent

of experience, attention to detail and systematic

approach of the examiner, factors which are

confounding with visual morphological assessment

of human embryos. Such techniques have already

been used to classify mammalian embryos, obtaining

promising results (Matos, Rocha and Nogueira,

2014; Rocha et al., 2016).

The technique of digital image processing

consists of extracting information of size, colour

scale and saturation using mathematical methods

(Gonzalez and Woods, 2007). This technique allows

the extraction of several variables such as

circularity, radius, uniformity, texture, luminosity,

and colour scale from the photos of the blastocysts

(Rocha et al., 2016), which are important for the use

in ANN technique.

Genetic algorithms are algorithms of global

optimization of functions, based on the theory of

natural selection proposed by Charles Darwin. In

this theory, individuals whose phenotype is better

fitted to the environment are more likely to achieve

reproductive success, so they are more likely to

propagate their genes to the next generation. In

addition to this, processes such as recombination,

crossing over and mutation imply in differentiation

between the chromosomes of the offspring and the

parents promoting genetic variation and thus they

evolve increasingly adapting to the environment to

which they are inserted (Lacerda and Carvalho,

1999). In this case the individuals are the ANNs and

the genes are the various parameters that define the

network architecture.

The algorithm works with iterations that are

called generations and for each generation, the

principles of selection, migration, replication and

repopulation are applied to a population of ANN

architectures.

ANNs are based on the biological neuron model,

which can to learn through experience and error. The

main characteristic of a biological neuron is the

ability to receive and interpret stimuli, transmitting

information to nearby neurons (Kovács, 2002). This

learning capacity is achieved through interconnected

neurons in layers that upon receiving a stimulus,

process this information through a weighted value,

called weight, that ends up storing the knowledge of

the ANN. The weights indicate the influence of the

signal at the output of each neuron (Haykin, 2001).

Currently, the greatest difficulty is the determination

of the number of neurons and layers to be used, so

that these are usually obtained through exhaustive

case studies (Jayas, Paliwal and Visen, 2000).

However, with a statistically relevant database

and evolutionary algorithms (like the GAs) the

architecture that best fits the classification problem

can be found more effectively (Schaffer, Whitley

and Eshelman, 1992).

Tools such as time-lapse monitoring - present in

some equipment as EmbryoScope

- have been used

for observation and data retrieval from human

embryos, without limiting the number of

observations made (i.e., images obtained). By this

technology, coupled with an appropriate software, a

video is produced and it reports the embryonic

development during the in vitro culture period.

Through this, much information is provided on the

whole process of morphological transformations

occurring in the embryo, such as kinetics and

asymmetry of cleavages (Kovacs, 2014).

The aim of the present work is to use the time-

lapse monitoring to extract images of human

blastocysts at a specific moment post-insemination

and submit these images to the digital processing

techniques to obtain mathematical variables

representatives of the embryos. After this step and

using AI techniques, we intend to obtain, through a

computer software, an automatized classification of

human blastocysts images as already developed for

the bovine species (Rocha et al., 2016, 2017).

The images of human blastocysts used in the

digital processing, as well as their classification, that

will be used for the AI technique, were provided by

the London-based Boston Place Clinic, which is our

partner in the development of this work.

2 METHODOLOGY

2.1 Digital Image Processing

Images of human blastocysts, obtained through

EmbryoScope

by the Boston Place Clinic, were

standardized to have the same resolution and

illumination characteristics. The proposed algorithm

automatically imports the image into the MatLab

software environment, and standardizes the image

by converting the image into grayscale, adjusting the

resolution and the aspect ratio. Conversion to

grayscale allows for avoidance of the variation due

to colour, thus all images are converted to 8-bit gray

scale. This process provides a higher speed in the

processing of the next steps, as it decreases the

spectral dimension of the image. To solve the

problem of the different illuminations of the images,

a histogram adjustment was made. In the image, 1%

of all information was saturated between light and

dark pixels, increasing the contrast of the image and,

thus, facilitating the next step of segmentation.

Figure 2 shows the standardization of a human

blastocyst.

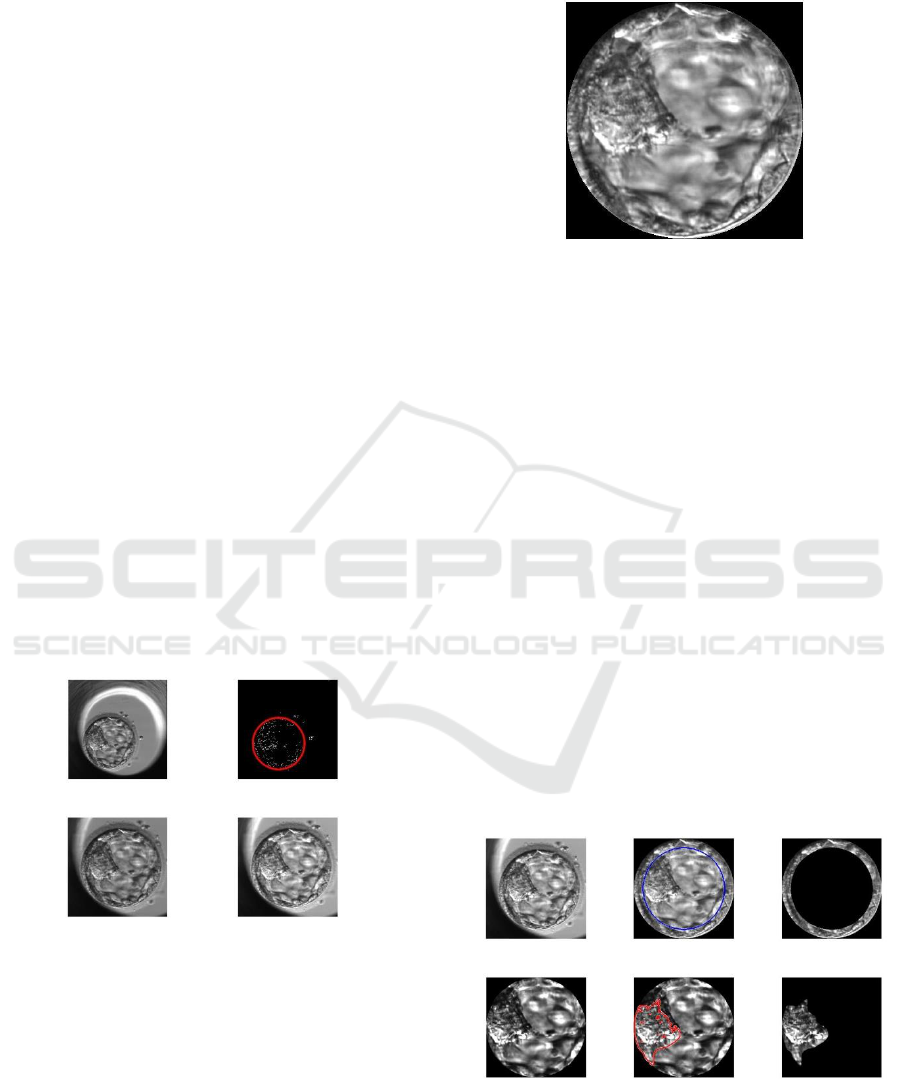

Figure 2: Human blastocyst standardization.

After standardization, the blastocyst was isolated

from the rest of the image (i.e., background) before

the extraction of the variables. This process consists

in altering the image gradient so that the limits of the

blastocyst become more evident. For this step, the

Hough's Transform function was used (Atherton and

Kerbyson, 1999), which delineates the

circumference that best characterizes the blastocyst.

An example of the isolated blastocyst is shown in

Figure 3.

Figure 3: Isolated human blastocyst by Hough’s

Transform.

The complete image processing is performed

using several algorithms that act individually as

Gray Level Co-Occurrence Matrix (GLCM)

(Haralick, Shanmugam and Dinstein, 1973) for

texture analysis, the Watershed Transform, which

seeks to segment the image (Beucher, 1992) in

addition to the Gabor filter that differentiates the

various textures of the image through the

characterization of a signal simultaneously in the

time domain and in the domain of the spatial

frequencies (Marmol, 2011). After the application of

these techniques, the TE and the ICM were

separately identified, whilst isolating the blastocyst

completely. The complete processing of an

illustrative image of the human blastocyst is

demonstrated in Figure 4.

Following the process of image segmentation, a

numerical vector is derived that will represent the

extracted characteristics of the images. This vector

will be used as input variable for the ANN, thus

making the image-derived information proper for

use in computational techniques.

Figure 4: An illustrative sequence of the complete

processing of the human blastocyst image. In the upper

row (left) it is the original image without processing. In

the right column, it is shown the trophectoderm mask

(upper) and the inner cell mass (lower) after segmentation.

2.2 Artificial Intelligence

After obtaining the variables, that identify the

human embryo and that will be used for the GA

technique, a population of individuals will be

constructed – which represent several architectures

of the ANNs in their chromosomes. The

chromosomes will be randomly generated forming

an initial population of individuals. Each population

will contain from 100 to 200 individuals. Each

chromosome, which will represent a specific ANN,

will contain in its genes the maximum and minimum

number of neurons per layer, the number of layers to

be used, the learning rate, the transfer functions to be

used (logsig, purelin, tansig, hardlim, tribas, radbas

or satlin) and the learning functions (trainrp,

trainscg, traincgb, traincgf, traincgp, traingdm or

traingd) (Beale, Hagan and Demuth, 2017). The

entire process will be developed in the MatLab

environment (MATLAB 2017a, The MathWorks

Inc., Natick, MA) that has tools for creating and

modelling ANNs.

After the generation of the ANNs (individuals),

the entire population will be trained, validated, and

tested using the blastocyst images database, which

will be divided into training (from 50% to 70% of

the data), validation and test (can be 15% to 25%

each) sets.

For the following generations, 20% of the

selected individuals will be kept as the fittest, 60%

will be composed by the recombination and

mutation of the individuals of the previous

population and the remaining 20% will come from

the migration. The number of generations will be a

maximum of 1000. The most fitted individuals will

be chosen from the smallest error of the test set

when applying the ANN technique.

It is intended that at the end of the iterations,

previously established, the software will present an

optimized ANN architecture that classifies the

human embryos in a less subjective way and with

greater reproducibility and assertiveness. Of course,

the whole processing will be in an automatized way

(i.e., without human intervention unless the upload

of the original image).

3 DISCUSSION

Currently, we have observed that the human

blastocyst images, in terms of digital processing, is

quite different from the mouse and bovine

blastocysts already studied in previous research

(Van Soom et al., 2003; Matos, Rocha and

Nogueira, 2014; Rocha et al., 2016, 2017)

Differently from murine and bovine blastocysts,

which present well defined ICM and blastocoel at

the time of implantation, human blastocysts have a

huge ICM variation in terms of shape that,

consequently, decreases the accuracy of ICM

masking by digital processing (Figure 5).

Figure 5: Illustrative images of mouse, bovine and human

blastocysts (from left to right) to show the differences

found on the inner cell mass shape mainly on the human

embryos. Asterisk (*) marks the inner cell mass on each

image.

This fact can difficult in the determining the

mathematical variables that characterize the human

embryo and, consequently, the ANN inputs. Those

inputs, if not properly extracted from the image, will

not be representative of the blastocyst and thus the

ANN will be wrongly trained.

The next step is to enhance the way to obtain the

fittest mask of the isolated ICM since the mask of

isolated TE already seems fitted. In this way, it is

essential to choose carefully what frame coming

from the time-lapse record will be used on the image

processing, since the same embryo in a short time

frame could be registered with different images by

the equipment.

4 CONCLUSIONS

Although in its early steps of development, the

automatized, reproducible, and objective evaluation

of human blastocysts by AI, is a promising tool to

improve the way that in the future the embryologist

could choose which embryo should be transferred to

the patient. Since this proposed method is based on a

long previous study with mouse and bovine

blastocysts, to adapt the knowledge previously

obtained to the human scope would be not a

hindrance.

ACKNOWLEDGEMENTS

Grants supporting the authors’ research

#2012/50533-2, #2013/05083-1, #2006/06491-2,

#2011/06179-7 and 2012/20110-2 from São Paulo

Research Foundation (FAPESP). We also thank

Agência UNESP de Inovação (AUIN) for processing

the national and international patents of the

invention.

REFERENCES

Ahlstrm, A. et al. (2011) ‘Trophectoderm morphology: An

important parameter for predicting live birth after

single blastocyst transfer’, Human Reproduction,

26(12), pp. 3289–3296. doi: 10.1093/humrep/der325.

Arce, J. et al. (2006) ‘Interobserver agreement and

intraobserver reproducibility of embryo quality

assessments’, 21(8), pp. 2141–2148. doi: 10.1093/

humrep/del106.

Atherton, T. J. and Kerbyson, D. J. (1999) ‘Size invariant

circle detection’, Image Vision Computing, 17, pp.

795–803.

Beale, M. H., Hagan, M. T. and Demuth, H. B. (2017)

Neural Network ToolboxTM User’s Guide.

Beucher, S. (1992) ‘The watershed transformation applied

to image segmentation’, Scanning Microscopy

Supplement, 6, pp. 299–314.

Gardner D. K., Schoolcraft W. B. (1999) In vitro culture

of human blastocyst. In: Janson R, Mortimer D, eds.

Towards Reproductive Certainty: Infertility and

Genetics Beyond. Carnforth: Parthenon Press. p.378-

88.

Gonzalez, R. C. and Woods, R. E. (2007) Digital Image

Processing. 3rd edn. Pearson Prentice Hall.

Haralick, R. M., Shanmugam, K. and Dinstein, I. (1973)

‘Textural Features for Image Classification’, IEEE

Transactions on Systems, Man and Cybernetics, 3, pp.

610–621.

Haykin, S. (2001) Redes Neurais: princípios e prática.

2nd edn. Porto Alegre: Bookman.

Jayas, D. S., Paliwal, J. and Visen, N. S. (2000) ‘Review

Paper (AE—Automation and Emerging

Technologies)’, Journal of Agricultural Engineering

Research, 77(2), pp. 119–128. doi: 10.1006/

jaer.2000.0559.

Kakourou, G. et al. (2013) ‘Investigation of gene

expression pro fi les before and after embryonic

genome activation and assessment of functional

pathways at the human metaphase II oocyte’, Fertil

Steril. doi: 10.1016/j.fertnstert.2012.10.036.

Kovacs, P. (2014) ‘Embryo selection: the role of time-

lapse monitoring’, Reproductive Biology and

Endocrinology, 12, p. 124.

Kovács, Z. L. (2002) Redes Neurais Artificiais. Editora

Livraria da Fisica.

Lacerda, E. G. M. De and Carvalho, A. C. P. L. F. de

(1999) Introdução aos Algoritmos Genéticos.

Marmol, U. (2011) ‘Use of Gabor filters for texture

classification of airborne images and LIDAR data’,

Archiwum Fotogrametrii, Kartografii i Teledetekcji,

22, pp. 325–336. Available at: http://ptfit.sgp.

geodezja.org.pl/wydawnictwa/krakow2011/APCRS

vol. 22 pp. 325-336.pdf5-336.pdf.

Matos, F. D., Rocha, J. C. and Nogueira, M. F. G. (2014)

‘A method using artificial neural networks to

morphologically assess mouse blastocyst quality’,

Journal of Animal Science and Technology, 56.

MATLAB R2017a. Natick, MA: MathWorks, 2017.

Computer software.

della Ragione, T. et al. (2007) ‘Developmental stage on

day-5 and fragmentation rate on day-3 can influence

the implantation potential of top-quality blastocysts in

IVF cycles with single embryo transfer.’,

Reproductive biology and endocrinology : RB&E, 5, p.

2. doi: 10.1186/1477-7827-5-2.

Richardson, A. et al. (2015) ‘A clinically useful simplified

blastocyst grading system’, Reproductive BioMedicine

Online, 31, pp. 523–530.

Rocha, J. C. et al. (2016) ‘Methods for assessing the

quality of mammalian embryos: How far we are from

the gold standard?’, JBRA Assisted Reproduction,

20(3), pp. 150–158.

Rocha, J. C. et al. (2017) ‘A method based on artificial

intelligence to fully automatize the evaluation of

bovine blastocyst images’, Scientific Reports,

7(Article number: 7659).

Schaffer, J. D., Whitley, D. and Eshelman, L. J. (1992)

‘Combinations of genetic algorithms and neural

networks: a survey of the state of the art’,

[Proceedings] COGANN-92: International Workshop

on Combinations of Genetic Algorithms and Neural

Networks, pp. 1–37. doi: 10.1109/

COGANN.1992.273950.

Van Den Abbeel. et al. (2013) ‘Association between

blastocyst morphology and outcome of single-

blastocyst transfer’, Reproductive biomedicine online,

v. 27, n. 4, p. 353-361.

Van Soom, A. et al. (2003) ‘Assessment of mammalian

embryo quality: what can we learn from embryo

morphology?’, Reproductive biomedicine online.

Reproductive Healthcare Ltd, Duck End Farm, Dry

Drayton, Cambridge CB23 8DB, UK, 7(6), pp. 664–

70. doi: 10.1016/S1472-6483(10)62089-5.

Sundvall, L. et al. (2013) ‘Inter- and intra-observer

variability of time-lapse annotations’, 28(12), pp.

3215–3221. doi: 10.1093/humrep/det366.

Tejera, A. et al. (2016) ‘Combination of metabolism

measurement and a time-lapse system provides an

embryo selection method based on oxygen uptake and

chronology of cytokinesis timing’, Fertility and

sterility, 106, pp. 119–126. doi: 10.1016/

j.fertnstert.2016.03.019.

Tejera, L., Aparicio-Ruiz, B. and Meseguer, M. (2017)

‘The use of morphokinetic as a predictor of

implantation’, MINERVA GINECOLOGICA. doi:

10.23736/S0026-4784.17.04098-9.

Yang, Z. et al. (2012) ‘Selection of single blastocysts for

fresh transfer via standard morphology assessment

alone and with array CGH for good prognosis IVF

patients: results from a randomized pilot study’,

Molecular Cytogenetics, 5(1), p. 24. doi:

10.1186/1755-8166-5-24.
