A Modular Workﬂow Management Framework

Jo˜ao Rafael Almeida, Ricardo Ribeiro and Jos´e Lu´ıs Oliveira

University of Aveiro, DETI/IEETA, Portugal

Keywords:

Task Management, Workﬂow Management, Clinical Studies.

Abstract:

Task management systems are crucial tools in modern organizations, by simplifying the coordination of teams

and their work. Those tools were developed mainly for task scheduling, assignment, follow-up and account-

ability. Then again, scientiﬁc workﬂow systems also appeared to help putting together a set of computational

processes through the pipeline of inputs and outputs from each, creating in the end a more complex processing

workﬂow. However, there is sometimes a lack of solutions that combine both manually operated tasks with

automatic processes, in the same workﬂow system. In this paper, we present a web-based platform that incor-

porates some of the best functionalities of both systems, addressing the collaborative needs of a task manager

with well-structured computational pipelines. The system is currently being used by a European consortium

for the coordination of clinical studies.

1 INTRODUCTION

Time and resource management is one of the most

important issues in organizations, groups and even

at the individual level. It is especially relevant in

the corporate environment, where tasks’ duration may

have a direct impact on a company’s performance

and its results. As such, task optimization has al-

ways been a key aspect for management teams. This

process has been facilitated by the adoption of ded-

icated computer programs that helped simplify team

and task management, by decomposing projects into

tasks, which can be assigned, analysed, performed

and reﬁned, over time.

The evolution of software engineering solutions

also opened the path for the appearance of micro-

services distributed architectures, e.g., SOA and Web

services (Papazoglou, 2003; Sheng et al., 2014),

which allow the construction of new applications and

processing pipelines based on the reuse of existing

services. This can be implemented through workﬂow

management systems (Liu et al., 2015).

While workﬂow systems tend to focus on the re-

lations between services and the execution pipeline,

dismissing users and manually operated tasks, task

management systems focus almost exclusively on the

tasks and their assignees. Thus, the relation between

tasks, their inputs/outputs, and how they relate to each

other are disregarded. Besides, most existing software

solutions tend to be problem-speciﬁc, being focused

on a particular speciality. Thus, these solutions are

usually very context-speciﬁc and unable to cope with

a more generalised environment.

On the other hand, solutions such as business-

process managers end up not being usable for sev-

eral use cases, since they are too generic (vom Brocke

et al., 2016), creating a layer of complexity that makes

it difﬁcult for the average user to utilize and compre-

hend. This shortcoming in systems favours the devel-

opment of a solution that brings together the best of

both task managers and workﬂow systems.

Despite the previous discussion of the broader sce-

nario, the original motivation for this work was to

contribute to simplifying the management of clini-

cal research studies, based on multiple and hetero-

geneous Electronic Health records (EHR) (Oliveira

et al., 2013; Gini et al., 2016). The quantity of clin-

ical information and disease-speciﬁc data has been

continuously increasing in the past years. This in-

formation is fragmented over dispersed databases in

different clinical silos around the world. However, as

awareness about the potential of these data for clinical

research increases, there is a growing need for solu-

tions for secure exploration of these data across differ-

ent centres (Basti˜ao et al., 2015). This re-use of data

may lead to many health beneﬁts, mainly for clini-

cal and pharmacological researchers (Burgun et al.,

2017). However, due mostly to ethical and legal is-

sues, it is still very difﬁcult to integrate these data

into a single repository, or even to obtain access to

414

Almeida, J., Ribeiro, R. and Oliveira, J.

A Modular Workﬂow Management Framework.

DOI: 10.5220/0006583104140421

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 5: HEALTHINF, pages 414-421

ISBN: 978-989-758-281-3

them (Lopes et al., 2015). To overcome these chal-

lenges, researchers have to deal with complex pro-

cesses that include study submission, governance ap-

proval, data harmonization, data extraction, statistical

analysis and many other tasks. From this scenario,

the need emerged for a task/workﬂow management

system that simpliﬁes execution of these processes,

among many centres and users.

In this paper we describe a system that addresses

the above-mentioned issues. It consists of a modu-

lar platform that allows collaboration between differ-

ent users through a user-friendly web-based interface,

while keeping a strong focus on the relation between

the tasks that users perform. This system was devel-

oped in the context of EMIF (http://www.emif.eu), a

European project that aims to create a common tech-

nical and governance frameworkto facilitate the reuse

of health data.

2 BACKGROUND AND RELATED

WORK

The use of a software application to manage projects,

teams and tasks is not new. Indeed, this idea has

been explored and has been progressively growing in

several areas. For instance, managing business pro-

cesses is crucial in any efﬁcient organization, and as

such, they naturally adopt or develop systematised so-

lutions to manage those processes. On the other hand,

a workﬂow is normally perceived as the orchestration

of repeatable business processes that process informa-

tion in a systematic fashion. Workﬂow management

platforms allow us to re-engineer business and infor-

mation processes, facilitating the ﬂow of information,

and notifying actors whenever their input is needed

(Georgakopoulos et al., 1995).

In this section, we will analyse some of the task

and workﬂow management solutions that are cur-

rently available, following two perspectives: 1) end-

user applications, which are ready to use; and 2) soft-

ware engines, that can be used to integrate in more

complex solutions.

2.1 Fully-ﬂedged Solutions

There are a large number of web and cloud-based

ready-to-use solutions that fulﬁl part of our require-

ments. However, most of them are commercial.

Moreover, they do not allow integration with other

systems, so it is not possible to extend their interface

to integrate with external applications.

Wrike

, for instance, is a cloud-based collabora-

tive platform, where users can assign tasks, and track

deadlines and schedules. It follows the workﬂow con-

cept and it allows integration with document manage-

ment solutions, allowing use in project management

and social cooperation.

Asana

is another cloud-based solution, targeted

at project and task management, which can be helpful

for teams that handle multiple projects at the same

time, and it can serve teams of any size.

When seeking a scientiﬁc workﬂow management

system, Taverna

takes the lead, among many oth-

ers. This system is available as a suite of open-source

tools to facilitate computer simulation of repeatable

scientiﬁc experiments (Wolstencroft et al., 2013). It

can be executed in a self-hosted server or as a desk-

top client, after proper installation. The system fol-

lows an SOA approach, which makes the various web

interfaces available for external software integration.

The learning curve seems steeper for new users than

in other platforms, but it is widely adopted in scien-

tiﬁc studies, namely in the bioinformatics area.

Another relevant tool in this domain is

Galaxy (Afgan et al., 2016), a python-based

platform aimed to facilitate computational biomed-

ical research over big datasets. One of the main

goals of this platform is to be easily used by those

without technical knowledge. It allows the repetition

and sharing of studies, the interface is concise with

a good visual editor, but the tasks deﬁned in the

workﬂow belong typically to a restricted domain.

2.2 Workﬂow Engines

Conceptually, workﬂow engines only manage the au-

tomated aspects of a workﬂow process for each item,

determining which activities are executed, and next,

when pre-requisites are achieved, attributing these

tasks. The idea of these tool-kits is that they can

be customised, integrated and extended in larger soft-

ware projects. A workﬂow management engine does

not offer a ready-to-use solution, but only the base

blocks to build a new system. Although this brings the

obvious disadvantage of having to develop the end-

user system, it also brings several advantages, mainly

due to the ﬂexibility to integrate other software mod-

ules.

Activity

is a lightweight workﬂow management

platform focused on the needs of business profession-

als, developers and system administrators. This plat-

https://www.wrike.com

https://www.asana.com

https://taverna.incubator.apache.org

https://www.activiti.org/

A Modular Workﬂow Management Framework

415

form allows complex repeatable workﬂows with dif-

ferent kinds of tasks, but with only one assignee at a

time, even though it allows reassignments in the mid-

dle of a process.

FireWorks

is another open-source project, which

is focused on the management and execution of scien-

tiﬁc workﬂows. Most of the system focuses on paral-

lel work execution and on job scripting and process-

ing, even having integration with popular task queu-

ing platforms.

GoFlow

is a python-based workﬂow engine that

is provided as a module component for the Django

framework. The engine is activity-based, allowing the

speciﬁcation of a ﬂow between activities, distributed

to different users. Although this fulﬁls the basic needs

of our project, and seems easy to integrate in a more

complex solution, it has the main problem of not al-

lowing background tasks by default.

jBPM

is an open-source business process man-

agement suite, embedded in the KIE group, which ex-

ecutes repeatable workﬂows. This solution is Java EE

based and it runs as a Java EE application. The sys-

tem supports multi-user collaboration, using groups

of users, but its conﬁguration is rather complex for

users without technical skills.

Current fully-ﬂedged web platforms lack essen-

tial features such as allowing asynchronous tasks and

easy integration with external tools. Furthermore,

existing workﬂow engines do not support multi-user

features such as easy collaboration over the same

workﬂows, discussion of collected results, and work-

ﬂow sharing between different users, greatly impair-

ing collaboration efforts.

Therefore, we decided to build a new web plat-

form that allows easy collaboration between partners,

with multi-user interactions and features such as re-

sult discussion and workﬂow sharing.

3 SYSTEM REQUIREMENTS

From the previous section, there is seen to be a wide

range of solutions in this ﬁeld. However, as previ-

ously discussed, it is hard to ﬁnd a solution that com-

bines the potential of a task and workﬂow manage-

ment system, i.e. allows deﬁning workﬂows that mix

computational processes with human-oriented tasks.

To build this speciﬁc solution, we needed a care-

fully planned set of requirements that allow fulﬁlment

of users’ needs. A core idea guiding this develop-

https://github.com/materialsproject/ﬁreworks

https://goﬂow.me/

http://www.jbpm.org/

ment was that any user should be able to work eas-

ily with the system, without needing to be an expert

in task or workﬂow management systems. Moreover,

we also envisaged adopting the best and most updated

software engineering practices, to ensure the system’s

modularity and extensibility.

Building on our previous experience in observa-

tional data projects, and in close collaboration with

EMIF partners and potential users, we devised a set

of functional requirements that guided the system de-

velopment from the beginning, although some others

were incorporated along the way, following an agile

methodology. Here, we describe some key ones:

• The user interaction must be performed entirely

through an HTML5 web interface;

• Allow management of users, activities and roles,

using RBAC policies (Ferraiolo et al., 1995);

• Private workspace for each user to manage their

assigned tasks. Here, it should also be possible to

create tasks and workﬂows;

• Different types of tasks, namely manual, ques-

tionnaire, and service;

• The workﬂow may be private (only the owner can

edit and execute), or public (can be executed, or

copied for further reﬁnements);

• The user should be able to duplicate a workﬂow

and edit the copy as they wish without affecting

the original workﬂow;

• Creation of workﬂows combining any sequence of

tasks, pipelining the previous outputs to the fol-

lowing tasks’ inputs;

• Workﬂows can be started on any given date, and

repeated, with different deadlines;

• Workﬂow tasks may be assigned to different ac-

tors and with different deadlines and require-

ments;

• All users involved in the study should also be able

to give feedback about their own tasks;

• The manager should be able to ask for reﬁnements

and to reassign tasks to other users;

• The system needs to notify users about task dead-

lines and progress;

• The workﬂow manager (the one who started the

workﬂow) must be able to follow and share the

pipeline execution;

• The system must follow a service-oriented archi-

tecture, based on REST web services, so that it

can be easily reused in multiple platforms, as a

server engine. This implies that, besides the web

HEALTHINF 2018 - 11th International Conference on Health Informatics

416

interface for end-users, it must be able to be exe-

cuted entirely through REST services.

Several non-functionalrequirements were also de-

ﬁned, namely cross-platform deployment, modularity

and portability.

4 SYSTEM ARCHITECTURE

To address the initial requirements and to obtain

high maintainability and scalability, we developedour

task/workﬂow management system in a two-layered

architecture. The decision for a default REST engine

aimed for the possibility of partial or full integration

in other clients in the future. We followed the micro-

kernel pattern (Richards, 2015) to allow easy incor-

poration of new types of tasks.

In the following sub-sections we will detail the

technological approach. Firstly, from the backend en-

gine perspective (Backend Core) which ensures the

application’s business logic and works independently

from the others. Secondly, from the frontend client

perspective (Web Client Core), built upon HTML5

frameworks and relying on the backend web services.

And ﬁnally, from a deployment perspective, the at-

tempts made to ensure effortless installation of new

instances in all systems.

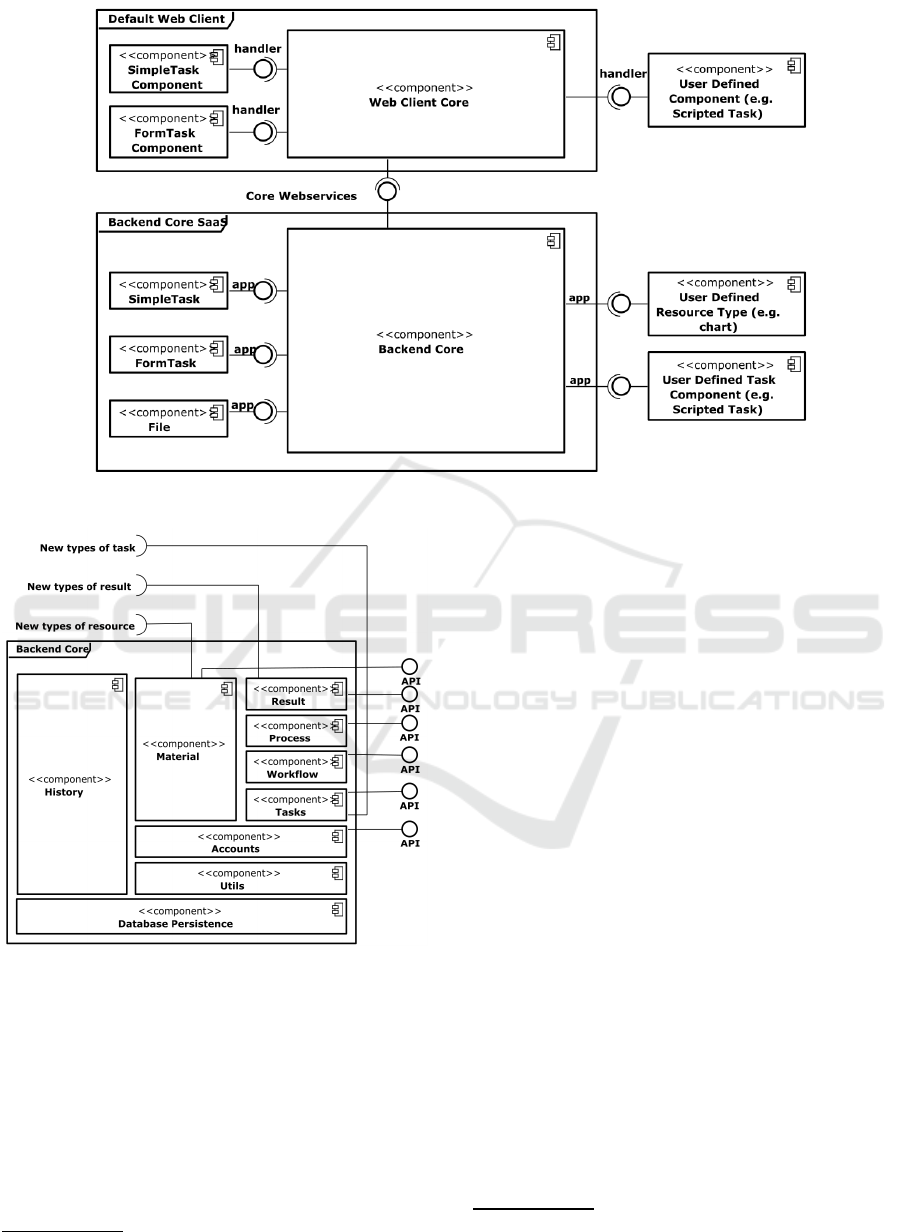

Figure 1 presents a generalised view of the over-

arching architecture components for the system envi-

ronment.

4.1 Backend Engine

This sub-section describes the technologies and archi-

tecture of the server, including the services provided

through the web services API.

4.1.1 Technologies

The server was developed in python language using

the Django framework

. For the web services, wealso

used the Django REST API, a powerful and ﬂexible

library built over Django.

To support asynchronous jobs, namely modules

which have long execution times, we used Celery

and RabbitMQ

. Celery supports direct integration

with Django, which made it the perfect ﬁt for han-

dling background processes in our system, such as

scheduled actions and long-running events like send-

ing notiﬁcations through emails.

https://www.djangoproject.com

http://www.celeryproject.org

https://www.rabbitmq.com

The representation of data in Excel spreadsheets

simpliﬁes its analysis, because it has more advanced

features than text and CSV ﬁles. The change of task

results to this format is handled through Openpyxl

For data persistence we used PostgreSQL

together with Django object-relational mapping

(ORM). Finally, for error tracking we rely on Sen-

try

, since it provides good mechanisms for logging

and analysis.

4.1.2 Architecture

One of the technical goals was to keep the application

modular and extensible, reducing the core to the mini-

mum possible. As such, the server follows the layered

architecture pattern, mixed with the micro-kernel pat-

tern for including new types of tasks, results and re-

sources.

The ﬁnal server organization is depicted in Figure

2 where we can see how components relate with each

other, namely the modules that provide services and

the modules accepting core extensions through new

applications, without having to interact with the rest

of the system. In this diagram, History works as a

transversal component that serves all the other mod-

ules, being responsible for recording all the actions

and events that occur in the backend. The system

resources are managed through the Material compo-

nent, which also moderates the allocation of resources

required by the other modules. The Result is responsi-

ble for handling the different types of results that can

be generated by each task. The Process and Workﬂow

components are inter-related and responsible for the

workﬂow instances management (i.e. study templates

and running instances).

As already mentioned, the system is able to work

only using REST web services. All of them are JSON

based, except ﬁle uploads which are handled as binary

data.

4.2 Frontend Client

This sub-section will contain a detailed explanation

of all technologies used for building the frontend de-

fault client which consume the backend web services

and display the information in a pleasant, easy-to-use

interface, which makes workﬂow management avail-

able by visual interaction.

https://openpyxl.readthedocs.io/

https://www.postgresql.org

https://sentry.io/

A Modular Workﬂow Management Framework

417

Figure 1: General architecture.

Figure 2: Backend Architecture.

4.2.1 Technologies

To develop the front-end of the application, we use

ReactJS

as the basis of our solution. Some aspects

inﬂuenced this choice, namely the very active com-

munity and successive improvements over time, and

also allowing faster development cycles.

As the solution was based on consuming backend

web services, it was necessary to combine ReactJS

https://github.com/reactjs

with another technology. For this, we used Reﬂux

a uni-directional dataﬂow application toolkit.

For the frontend, a critical aspect is the layout

structure and web appearance. We decide to rely

on Bootstrap

a popular open-source solution frame-

work for layout development. Still, some components

had to be developed since they were not included in

the default Bootstrap package.

Finally, we developed our own workﬂow edition

schema, a key piece of the ﬁnal solution, since we

could not ﬁnd a good enough open-source solution

to address the requirements. This workﬂow editing

scheme supports the creation and editing of study

templates through a visually attractive and intuitive

interface.

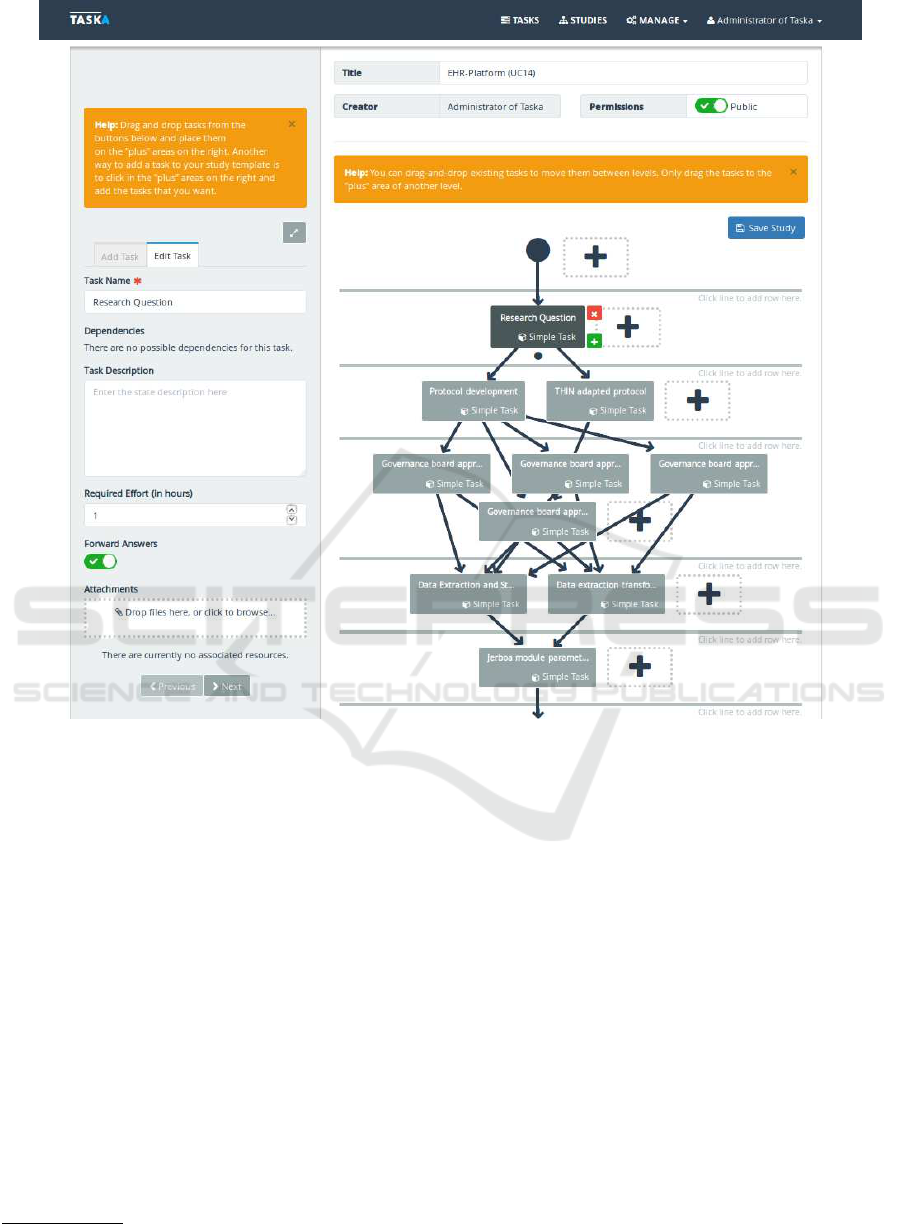

In Figure 3, it is possible to visualize the edition

of a study already constituted with several tasks. It is

possible to see a panel on the left side, which contains

all the information related to the selected task. On the

right, the workﬂow is represented with its tasks and

the relationships between them.

4.2.2 Architecture

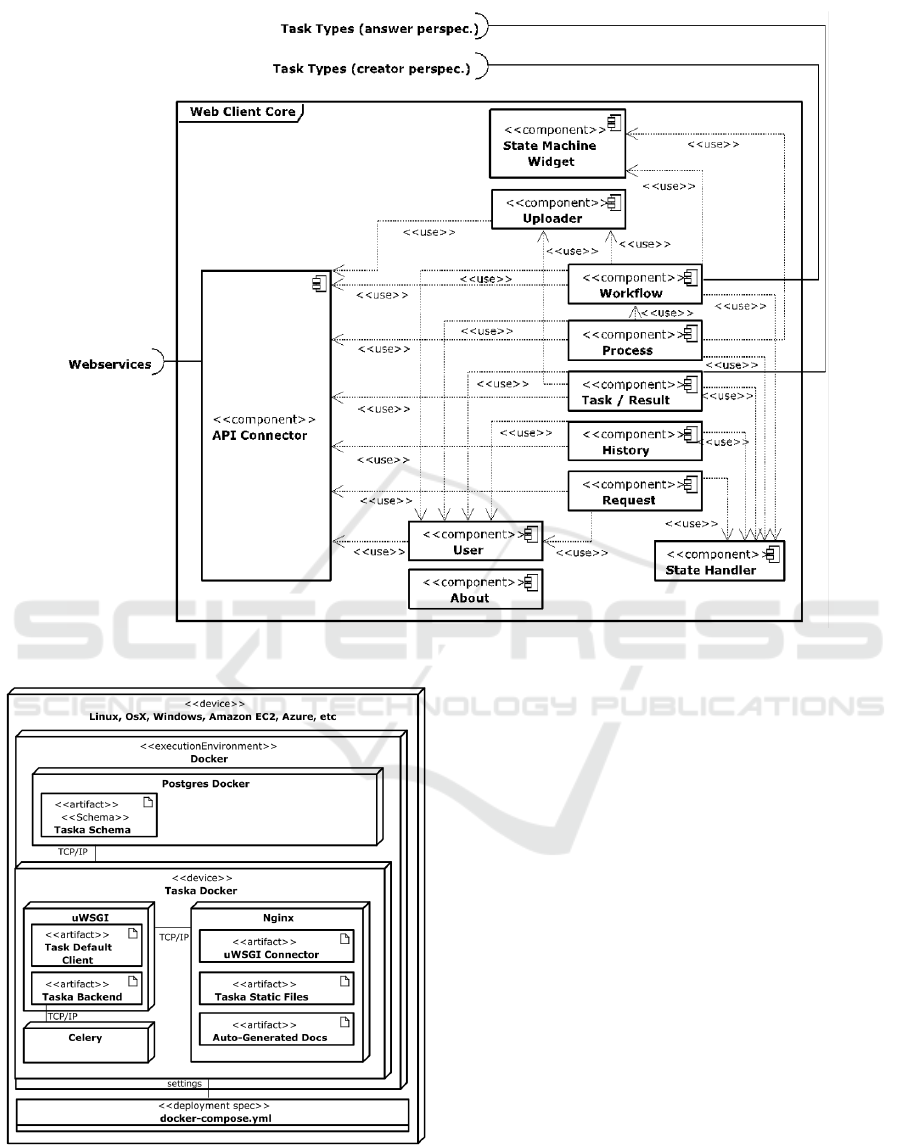

The diagram presented in Figure 4 is a resumed ver-

sion of the frontend architecture, its components and

the way they communicate with each other.

Similarly to the backend core, the client side was

designed as a modular and extensible solution, where

https://github.com/reﬂux/reﬂuxjs

http://getbootstrap.com

HEALTHINF 2018 - 11th International Conference on Health Informatics

418

Figure 3: Study template - edit view.

the central element is a task. The combination of Re-

actJS and Reﬂux generates a three-tier structure com-

posed of Actions, Store and View, which is fundamen-

tal for all the applications. To allow communication

to the backend, all the main components of our client

applications have these three sub-components.

4.3 Deployment

Building software solutions based on multiple li-

braries can make deployment very complex. Al-

though it is not a development problem, optimizing

deployment is one of the biggest challenges from a

system manager perspective. To simplify this job, we

decided to virtualise the application in containers, us-

ing the Docker

technology. This software container

platform introduces just a small overhead in the host

machine, allowing more applications in the same ma-

https://www.docker.com

chine, or even splitting them across several contain-

ers. With this kind of deployment, it is very easy to

get a running instance in a few minutes, for any oper-

ating system (Figure 5).

5 DISCUSSION

The user interface is undoubtedly the most important

feature of any application. Users generally evaluate

software’s usability and functionality by brieﬂy ex-

ploring the user interface. Our system went through

several changes over time so that it could be a simple,

dynamic and useful software.

To facilitate navigation we associated each con-

cept model with a proper workspace, e.g. Tasks and

Studies, and adopt familiar interface metaphors, such

as the one used in a common mail reader. Figure 3

presents an example of one workﬂow.

The task/workﬂow management solution pre-

A Modular Workﬂow Management Framework

419

Figure 4: Client-side Architecture.

Figure 5: Deployment organization.

sented is currently being used in the EMIF project to

manage research study over European patient regis-

ters, for cohorts and observation data (Vaudano et al.,

2015). From this experience, we will analyse the ﬁnal

result aiming for the best user interface and broader

use.

6 CONCLUSIONS

The secondary use of health records, observational

and disease speciﬁc, has been the goal of many re-

search initiatives. However, the procedures that me-

diate between the initial research question and the ﬁ-

nal result are still very complex and time-consuming,

and normally take several months or even years to be

completed. To address this scenario, we developed

a task/workﬂow management system aiming to sim-

plify and speed up these processes.

The platform developed fulﬁls a set of predeﬁned

requirements and its hybrid approach, of an object-

documented system with a state machine structure,

opens the door to new ﬁelds besides health studies

management. Its decoupled architecture, with REST

web services, allows the core system to be reused in

different applications and for distinct goals.

Currently, it is a platform in development where

HEALTHINF 2018 - 11th International Conference on Health Informatics

420

there are functionalities to be implemented, such as

the existence of other types of tasks and the possi-

bility of existing user groups. The creation of a new

type of task is due to the need, in some situations, to

repeat a task several times, producing in this way dif-

ferent outputs. In order to avoid this complexity in

the workﬂow, and because the system is prepared to

create new types of tasks, the next step will be to im-

plement a task that can be completed several times.

The possibility of groups of users is a necessity that

is beginning to be felt due to the growth of registered

users, and with the existence of groups, the creation

of studies becomes faster, because the study manager

can simply create a group and reuse it whenever nec-

essary.

ACKNOWLEDGEMENTS

This work has received support from the EU/EFPIA

Innovative Medicines Initiative Joint Undertaking

(EMIF grant n. 115372)

REFERENCES

Afgan, E., Baker, D., Van den Beek, M., Blankenberg,

D., Bouvier, D.,

Cech, M., Chilton, J., Clements, D.,

Coraor, N., Eberhard, C., et al. (2016). The galaxy

platform for accessible, reproducible and collabora-

tive biomedical analyses: 2016 update. Nucleic acids

research, 44(W1):W3–W10.

Basti˜ao, S. L., D´ıas, C., van der Lei, J., and Oliveira, J. L.

(2015). Architecture to summarize patient-level data

across borders and countries. Studies in health tech-

nology and informatics, 216:687–690.

Burgun, A., Bernal-Delgado, E., Kuchinke, W., van Staa,

T., Cunningham, J., Lettieri, E., Mazzali, C., Oksen,

D., Estupi˜nan, F., Barone, A., et al. (2017). Health

data for public health: Towards new ways of combin-

ing data sources to support research efforts in europe.

Yearbook of Medical Informatics, 26(01):235–240.

Ferraiolo, D., Cugini, J., and Kuhn, D. R. (1995). Role-

based access control (rbac): Features and motivations.

In Proceedings of 11th annual computer security ap-

plication conference, pages 241–48.

Georgakopoulos, D., Hornick, M., and Sheth, A. (1995).

An overview of workﬂow management: From process

modeling to workﬂow automation infrastructure. Dis-

tributed and parallel Databases, 3(2):119–153.

Gini, R., Schuemie, M., Brown, J., Ryan, P., Vacchi,

E., Coppola, M., Cazzola, W., Coloma, P., Berni,

R., Diallo, G., et al. (2016). Data extraction and

management in networks of observational health care

databases for scientiﬁc research: a comparison of

eu-adr, omop, mini-sentinel and matrice strategies.

eGEMs, 4(1).

Liu, J., Pacitti, E., Valduriez, P., and Mattoso, M. (2015). A

survey of data-intensive scientiﬁc workﬂow manage-

ment. Journal of Grid Computing, 13(4):457–493.

Lopes, P., Silva, L. B., and Oliveira, J. L. (2015). Chal-

lenges and opportunities for exploring patient-level

data. BioMed research international, 2015.

Oliveira, J. L., Lopes, P., Nunes, T., Campos, D., Boyer, S.,

Ahlberg, E., Mulligen, E. M., Kors, J. A., Singh, B.,

Furlong, L. I., et al. (2013). The eu-adr web platform:

delivering advanced pharmacovigilance tools. Phar-

macoepidemiology and drug safety, 22(5):459–467.

Papazoglou, M. P. (2003). Service-oriented computing:

Concepts, characteristics and directions. In Proceed-

ings of the Fourth International Conference on Web

Information Systems Engineering, WISE 2003, pages

3–12. IEEE.

Richards, M. (2015). Software architecture patterns.

O’Reilly Media, Incorporated.

Sheng, Q. Z., Qiao, X., Vasilakos, A. V., Szabo, C., Bourne,

S., and Xu, X. (2014). Web services composition:

A decades overview. Information Sciences, 280:218–

238.

Vaudano, E., Vannieuwenhuyse, B., Van Der Geyten, S.,

van der Lei, J., Visser, P. J., Streffer, J., Ritchie,

C., McHale, D., Lovestone, S., Hofmann-Apitius,

M., et al. (2015). Boosting translational research

on alzheimer’s disease in europe: The innovative

medicine initiative ad research platform. Alzheimer’s

& dementia: the journal of the Alzheimer’s Associa-

tion, 11(9):1121–1122.

vom Brocke, J., Zelt, S., and Schmiedel, T. (2016). On

the role of context in business process management.

International Journal of Information Management,

36(3):486–495.

Wolstencroft, K., Haines, R., Fellows, D., Williams, A.,

Withers, D., Owen, S., Soiland-Reyes, S., Dunlop,

I., Nenadic, A., Fisher, P., et al. (2013). The taverna

workﬂow suite: designing and executing workﬂows

of web services on the desktop, web or in the cloud.

Nucleic acids research, 41(W1):W557–W561.

A Modular Workﬂow Management Framework

421
