Superpixel-based Road Segmentation for Real-time Systems using CNN

Farnoush Zohourian

, Borislav Antic

, Jan Siegemund

, Mirko Meuter

and Josef Pauli

University of Duisburg-Essen, Department of Computer Science and Applied Cognitive Science,

47048, Duisburg, Germany

Delphi Electronics & Saftey, D-42119, Wuppertal, Germany

Keywords:

Superpixel, Semantic Segmentation, CNN, Deep Learning, Road Segmentation.

Abstract:

Convolutional Neural Networks (CNN) contributed considerable improvements for image segmentation tasks

in the ﬁeld of computer vision. Despite their success, an inherent challenge is the trade-off between accuracy

and computational cost. The high computational efforts for large networks operating on the image’s pixel grid

makes them ineligible for many real time applications such as various Advanced Driver Assistance Systems

(ADAS). In this work, we propose a novel CNN approach, based on the combination of super-pixels and high

dimensional feature channels applied for road segmentation. The core idea is to reduce the computational

complexity by segmenting the image into homogeneous regions (superpixels) and feed image descriptors

extracted from these regions into a CNN rather than working on the pixel grid directly. To enable the necessary

convolutional operations on the irregular arranged superpixels, we introduce a lattice projection scheme as

part of the superpixel creation method, which composes neighbourhood relations and forces the topology to

stay ﬁxed during the segmentation process. Reducing the input to the superpixel domain allows the CNN’s

structure to stay small and efﬁcient to compute while keeping the advantage of convolutional layers. The

method is generic and can be easily generalized for segmentation tasks other than road segmentation.

1 INTRODUCTION

One of the long-lasting goals of computer vision is the

automated scene understanding from a variety of ima-

ges. Exposing image speciﬁcation is useful for appli-

cations, like image editing, image search and environ-

ment perception for autonomous vehicles. Detecting

objects like roads, pedestrians, vehicles, trafﬁc signs,

etc. is important for many driver-less cars and driver

assistance systems. Due to the variability of different

factors like colour, shape, illumination and shadows

or obstacles on the road surface, the road detection is

a challenging problem. The state of arts techniques to

solve this problem are mainly based on deep learning

and Convolutional Neural Networks (CNNs) (LeCun

et al., 2015; Schmidhuber, 2015). These methods ena-

ble towards better visual understanding by applying a

semantic segmentation process in which each pixel is

assigned to an object category. The segmentation re-

sult provides meaningful information to support hig-

her level scene understanding tasks.

Currently, there are two major approaches to train

CNN-based image processing systems. The two ap-

proaches differ with respect to the input data mo-

del. One of the approaches is based on a patch-wise

analysis of the images, i.e. an extraction and clas-

siﬁcation of rectangular regions having a ﬁxed size

for every single image (Ciresan et al., 2012; Farabet

et al., 2013; Ganin and Lempitsky, 2014; Ning et al.,

2005). The other one is based on full image reso-

lution, wherein all pixels of an image in the original

size are analyzed (Long et al., 2015). Most recent

improvements in both CNN-based methods were ac-

complished by increasing the network size (Simonyan

and Zisserman, 2014; He et al., 2016), whereas dee-

per networks provoke large computational costs that

make them unsuitable for embedded devices in driver

assistance systems.

In the current work we apply a superpixel-based

CNN method for the speciﬁc application of pixel-wise

road segmentation that uses superpixels as input data

model. To the best of our knowledge, it is the ﬁrst

time that irregular superpixels with regular lattice pro-

jection for Convolutional purpose is given as input

data model into a CNN network. The proposed met-

hod comprises the following steps: ﬁrst, segmenting

the image into superpixels, wherein the superpixels

are coherent image regions comprising a plurality of

Zohourian, F., Antic, B., Siegemund, J., Meuter, M. and Pauli, J.

Superpixel-based Road Segmentation for Real-time Systems using CNN.

DOI: 10.5220/0006612002570265

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

257-265

ISBN: 978-989-758-290-5

257

pixels having similar image features. Then determi-

ning image descriptors for the superpixels, wherein

each image descriptor comprises a plurality of image

features. The superpixels are assigned to correspon-

ding positions of a regular grid structure extending

across the image. This lattice together with the image

descriptors are fed to the convolutional network ba-

sed on the assignment to classify the superpixels of

the image according to semantic categories.

Feeding a network with almost well segmented

”superpixel” units enables the network to learn local

information like contrast, shape, texture, etc. much

better rather than using raw image pixels. In Compa-

rison to (Long et al., 2015) that is based on full re-

solution input data and has a deep convolutional net-

work layering (e.g: vgg-19), our method combines

larger basic units ”super-pixels” with simple network

structure. This results in signiﬁcant reduction of the

computational costs for a densely labelled map pre-

diction. Contrary to patch-based semantic segmen-

tation approaches (Farabet et al., 2013), information

about spatial context in the proposed method can be

preserved preferably due to the usage of superpixels.

The remainder of this paper is organized as fol-

lows. Sec.2 presents an overview over related work.

Sec.3 focuses on the proposed superpixel-based Con-

volutional Neural Network approach. We describe the

superpixel segmentation method and how it is embed-

ded in Sec. 3.1. Then the feature selection is discus-

sed in Sec. 3.4. The network architecture and para-

meters is argued further in Sec.3.5. Sec.4 presents ex-

periments and results. Sec.5 draws a conclusions and

discusses future works and required improvements.

2 RELATED WORK

Deep Learning is a machine learning concept to mo-

del higher level features by learning hierarchies of

lower-level features (LeCun et al., 2015). Convo-

lutional neural network is a deep learning technique

which has been effectively applied in different com-

puter vision applications, such as n image classiﬁca-

tion (Krizhevsky et al., 2012), object detection (Girs-

hick et al., 2014; P. Sermanet, 2013), scene labeling

(Farabet et al., 2013; Chen et al., 2014). The state of-

the-art methods for semantic segmentation are gene-

rally fully convolutional networks (Long et al., 2015)

which are directly applied to the whole image. This

method has been improved further in several newer

approaches such as ”DeepLab” (Chen et al., 2014).

However, most of the per pixel labeling methods are

too expensive for embedded applications and they re-

quire powerful GPUs to be fast enough for achieving

the real-time performance.

In this paper we combine superpixels segmenta-

tion with convolutional neural network. Several other

methods beneﬁt from this combination too. Gadde

(Gadde et al., 2016) embedded superpixels into a ne-

wly deﬁned layer that he names ”Bilateral Inception”

which acts as an edge preserving ﬁlter. This layer is

substituted with a fully connected layer and propaga-

tes label information between superpixels. This re-

sults in better segmentation than in exclusively pixel-

wise approaches. However, this network still uses full

resolution images as the inputs. SuperCNN (He et al.,

2015) is a neural network based approach for salient

object detection. A sequence of superpixels, instead

of a 2D image pattern, is fed into this network. Con-

trary to this 1-D inputs, our proposed method uses a

2D-grid of superpixels as input to the network which

allows for easier extraction of the neighborhood in-

formation by convolutional network.

3 SUPERPIXEL-BASED

CONVOLUTIONAL NEURAL

NETWORK

This work addresses the task of road segmentation

from urban scene images. We tackle the problem by

segmenting the images into superpixels, deriving road

relevant features, and constructing a rational feature

model fed into CNN to segment road regions. Fi-

gure 1 displays the architecture of our method. Su-

perpixels are extracted using the Simple Linear Itera-

tive Clustering (SLIC) algorithm (See Sec.3.1). The

main features extracted from the superpixels are co-

lour, texture, location and histogram of gradients (See

Sec.3.4). The applied Convolutional neural network

(CNN) model used to segment road and non-road

parts is described in Sec. 3.5.

3.1 Superpixel Extraction

Superpixel segmentation methods partition an image

into homogeneous regions. Comparing to pixels, su-

perpixels are perceptually more meaningful (Ren and

Malik, 2003). Two main beneﬁts of well extracted su-

perpixel properties, that encourage us to choose them

as basic units in our approach, are described as fol-

lows:

• Accuracy. Well segmented superpixels can store

more compact information about the color, tex-

ture, etc. and they are less ambiguous and sensi-

tive to noise than features extraction at pixel level.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

258

Output

Handcrafted

Local

Descriptor

CNN

Input

Original image

Superpixel Segmentation

overlaid with lattice

Figure 1: The Proposed SP-CNN Architecture: The original image is segmented into superpixels. Then local descriptors for

the superpixels are extracted. The superpixel descriptors are assigned to the respective node in the lattice projection and are

fed into a CNN to classify the superpixel according to the semantic categories.

They can preserve the object structures and adjust

well to the object contours.

• Efﬁciency. Dealing with millions of pixels and

their parameters in large systems can be costly,

whereas using superpixels can greatly reduce the

model complexity and computation cost especi-

ally for real time systems.

On the one hand, using regular superpixel seg-

mentation (superpixels are arranged in a grid struc-

ture) methods can preserve the topology. Howe-

ver,regularity mostly inhibits maximum homogeneity

of the ’texture’ inside each superpixel. On the ot-

her hand using irregular superpixel segmentation met-

hods result in different sizes and irregularly shaped

boundaries which are not directly applicable as in-

put data for a convolutional network. Therefore, a

regular topology is needed to convolve the input data

with kernels, and irregular superpixels need to be ”re-

aligned” such that a proper input into a convolutional

network is possible.

3.2 Original SLIC Method

We used SLIC algorithm (Achanta et al., 2010) for

superpixel segmentation. SLIC initiates with equally-

sized superpixels arranged in a grid structure. The

similarity between pixels is calculated based on two

criteria: spectral similarity and spatial proximity that

enforces compactness and regularity in the superpixel

shapes. The main idea of this approach is to limit the

search space to a region proportional to the desired SP

size which reduces considerably the calculation time.

Superpixels grow by measuring the (spectral-spatial)

distance between each pixel to its cluster center and

then update the cluster centers based on K-means al-

gorithm. Input parameters of this method are input

images with N pixels, a desired number of approx-

imately equally-sized superpixels K and a weighted

distance m that combines spectral and spatial prox-

imity to control the compactness of the superpixels.

The superpixels are initiated with roughly equal size

of S =

N/K and the spatial extent of any superpixel

is approximately in S

neighborhood.

SLIC only computes distances from each cluster

center to pixels within 2S × 2S area that assures us

pixels that are associated with this cluster center lie

within a 2S × 2S area around the superpixel center on

the xy plane and not farther.It leads to reduction of

complexity and distance computations and indepen-

dence from the number of superpixels (Achanta et al.,

2010).

For K desired superpixel each cluster centers are

speciﬁed with a 5D vector. C

= [l

] with

i = [1,K] at regular grid intervals S. Distance measu-

rement for the pixels nearest to each cluster center is

based on measuring the Euclidean distances in CIE-

LAB color space and spatial pixel distances, howe-

ver inconsistency in clustering behavior for different

superpixel sizes should be controlled (m in Eq.3.1).

Larger m resulting superpixels are more compact and

smaller m aimed better segmentation but more irregu-

lar size and shape. Euclidean distances in CIELAB

color space are visually meaningful for small distan-

ces. Outweighing pixel color similarities (m) prevents

the spatial pixel distances from exceeding this percep-

tual color distance limit. Hence, instead of using a

Superpixel-based Road Segmentation for Real-time Systems using CNN

259

Figure 2: Super-Pixel Segmentation (After) Enforcement Connectivity.

simple Euclidean distance in the 5D space, distance

measure D

from each pixel K to the cluster center i

deﬁned as follows:

color

− l

)

+ (a

− a

)

+ (b

− b

)

Spatial

− x

)

+ (y

− y

)

= d

color

Spatial

(3.1)

where D

is the sum of the lab color space dis-

tance and the xy spatial distance normalized by the

grid interval S. After superpixel segmentation, SLIC

uses a method to enforce all superpixels to be con-

nected and prevent too small areas or any islands or

disconnected area. This method leads to non constant

numbers of created superpixels making them unsuita-

ble as direct CNN input model. This inconsistency in

number of created superpixel would cause trouble for

our proposed approach. To prevent this problem, we

used a modiﬁed version of SLIC. This version chan-

ges the connectivity enforcement algorithm provided

by SLIC to keep the number of superpixels constant.

This help us to provide the same size of input data for

our network while keep the strength of SLIC method

for having almost homogeneous superpixels.

3.3 Adapted SLIC Method

In the modiﬁed version, we perform following steps

for each superpixel. First we ﬁnd the whole adjacent

superpixels, and the label-connected components in

2-D for each superpixel. Then if a certain superpixel

has more than one segment with the same label, we

keep the larger one and merge the rest into the nea-

rest superpixel which is picked up from neighborhood

The nearest superpixel is computed based on eucli-

dean distance between the center of sub-segment to

the center of each adjacent segment. Contrary to the

original version we do not remove any too small re-

gion with only one label-connected area.

The necessity to having a regular topology to be

able to convolve the input data with kernels, motiva-

ted us to propose a superpixel lattice projection. The

lattice is centered in the rectangular structure extrac-

ted from the ﬁrst iteration of SLIC method (deﬁned by

the centers of the superpixels). This grid is directly

used to establish a regular topology for the ﬁnal su-

perpixels, i. e. the superpixels generated by the last

iteration step.

Figure 3: Superpixel segmentation before and after enforce

connectivity. It embeds disconnected superpixels into the

nearest neighburhood.

3.4 Feature Selection

Feature selection acts as a preprocessing step that ena-

bles us to model relevant object characteristics in the

image. We tested different combinations of features

and decided on a particular combination, which gives

the best performance. We considered three different

feature groups.

Color Feature. It probably is one of the most infor-

mative features often applied by the human visual sy-

stem for object and scene image classiﬁcation. We

used different color spaces RGB, Lab, HSV and com-

puted the average values of all pixels within each su-

perpixel for each color channel separately. Deﬁning

descriptors in different color spaces usually improves

the description of object and texture image categories

(Verma et al., 2010). They are more robust against

image variations such as lighting changes, rotation,

and occlusions (Burghouts and Geusebroek, 2009).

Position Feature. Generally, road area can be de-

tected from its surroundings based on the color fea-

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

260

ture, however the appearance of shadows or similar

pattern to the roads like sidewalks, leads to the rela-

tively difﬁcult adequate prediction. As the color to

class distribution may vary for different positions and

road is typically located in the bottom, we considered

”position” as a second type of representative feature

addition to the color feature. The average of vertical

coordinates of pixels in each superpixel is selected as

the location feature.

Local Binary Pattern (LBP). Some local informa-

tion like texture and shape can contribute to object

and scene image classiﬁcation. Investigation of our

images represent signiﬁcant changes between the tex-

ture of a road and its surroundings, especially compa-

red to houses and trees. Roads tend to be ﬂat and

smooth, whereas trees and houses have more com-

plex and compound textures. We use Local Binary

Patterns (LBP)(Ojala et al., 1994) to computes corre-

lation and disparity among pixels inside each super-

pixel. LBP showed to be promising for recognition

and classiﬁcation of texture images.

For each superpixel a high dimensional feature

descriptor is deﬁned. Each of the image descriptors

comprises 69 image features consisting of 9 color, 1

position and 59 LBP. This provides for high accuracy

and reliability. The provided data model is fed to a

simple convolutional network presented in the follo-

wing.

3.5 Network Architecture and Choice of

Hyper-parameters

Contrary to most state of the art CNN-based se-

mantic segmentation approaches, our proposed met-

hod does not require a complex network architec-

ture to handle large image context, due to the pre-

segmentation which improves computational time.

Our proposed network structure consists of two con-

volutional layers, two fully connected layers and one

drop-out layer with non-linear activation function af-

ter each convolutional and fully connected layer. The

input of our method is deﬁned by the superpixel lat-

tice (See Sec.3.1) on each image with size of H/S and

W /S,where S is initial superpixel size and W, H are

image width and hight. The output is a set of three

numbers to indicate which of the three classes of the

road, non-road or un-labeled they belong to. We ex-

plain them more in detail in Sec. 4

The weights in the fully connected layers as well

as the weights of the convolution masks are initiali-

zed randomly with setting bias to zero. Softmaxlog

is used as loss function and optimization is done with

stochastic gradient descent. The learning rate and all

other hyper-parameters are optimized on a validation

set (learning rate is set to 0.1 × 10

−4

, and weight de-

cay is set to 0.0001). We used momentum 0.9 and

mini-batches of size 50. All of the above parameters

are empirically set to achieve a reasonably good re-

construction loss and error rate and are held constant

across all datasets.

4 EXPERIMENTS AND RESULTS

We evaluate our method using two widely-used chal-

lenging datasets comprising urban scenarios, i.e.,

the KITTI (Fritsch et al., 2013) and the Cityscapes

(M. Cordts, 2016) datasets. In the following we give

a brief description of the datasets followed by the eva-

luation results.

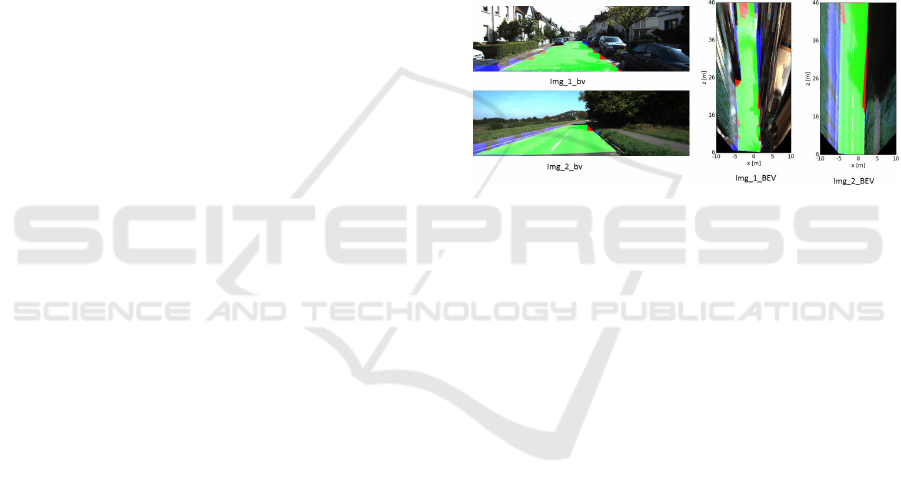

Figure 4: Road segmentation result from ofﬁcial KITTI test

set in baseline and bird eye view perspectives. Here, red

denotes false negatives, blue is false positives and green re-

presents true positives.

4.1 Datasets

KITTI Dataset

KITTI Road Estimation data set comprises 502 8-

bits RGB images splits in train, validation and test

sets with ground truth label for three semantic clas-

ses. KITTI is one of the most popular datasets for

road segmentation in urban scene applications. The

training set has 289 images (95 images with urban

markings (UM), 96 images with multiple urban mar-

kings (UMM) and 98 images where the street has

no urban markings (UU). The test set has 290 ima-

ges including (96 UM, 94 UMM and 100 UU) ima-

ges. The image dimensions vary with the width

lying in [1226, 1238,1241,1242] and their height in

[370,374, 375,376]. We selected 20% of train set

images from 3 different categories UM,UMM,uu for

the validation set. These images are completely from

different video sequences which are not part of the

train set.

For KITTI dataset experiment, we chose SLIC pa-

rameters K = 400,m = 35 resulting in 396 superpixels

in each image projected to a 11 × 36 lattice for CNN

input.

Superpixel-based Road Segmentation for Real-time Systems using CNN

261

Cityscape Dataset

Cityscapes is another new dataset for scene under-

standing in urban environments (M. Cordts, 2016),

comprising pixel-wise ground truth label for nineteen

semantic categories including road, car, pedestrian,

bicycle, etc. The dataset contains 2975 training, 500

validation, and 1525 test images. All of the images in

this dataset are in the same size of 1024 ×2048 pixels.

For evaluation, we report our results on the validation

set. In this paper we focused only on road segmenta-

tion. Therefore we changed all labels except road to

background’s label and evaluated our approach only

for road segmentation.

Experiment on Cityscape is done by choosing SLIC

parameters K = 2000,m = 10 on half resolution ima-

ges resulting in 2048 superpixels for each image and

projected to a 32 ×64 lattice as the input data to CNN.

4.2 Evaluation Results

For training and testing we used the following har-

dware speciﬁcations, CPU: Intel(R) Core(TM) i7-

4790K @4GHz. The feature vectors extracted from

superpixels were normalized by mean and standard

deviation for each channel before fed into the CNN.

For this, mean and standard deviation was computed

on the training set and applied for both, training and

evaluation. Our original task was to segment road

from non-road (background). We have evaluated the

potential of the proposed approach based on its accu-

racy in two domains. These are the accuracy on the

native pixel gird and the super pixel grid evaluated on

the image perspective and a birds eye projection pro-

vided by KITTI dataset (Sec.4.1). For evaluation in

the superpixel domain, the ground truth for each Su-

perpixel is deﬁned based on the majority pixel-labels

inside the superpixel. If the majority reaches less then

80% we assigned new label named Un-labeled to our

class labeling, yielding three classes in total: road,

non-road, unlabeled.

Figure 5: Road segmentation with SP-CNN for two sam-

ples: the ﬁrst horizontal row shows input images. Ground-

truth based on pixels and superpixels are shown in the se-

cond and third lines.The last row shows the predicted results

based on superpixel labeling.

Figure 6: Wrong-predicted area is shown as non-red super-

pixels.

Evaluation on Image Perspective. We followed

the evaluation scheme presented in the KITTI dataset

(See (Fritsch et al., 2013)). The ground truth for the

test data of the KITTI data set is not publicly availa-

ble, hence we used the validation set to be able to eva-

luate our approach on the image perspective. Table 1

shows the average evaluation results on the validation

set for all urban categories in KITTI , and cityscape

regarding to both superpixel and pixel ground-truths

using proposed model and parameters as described in

sections 3 and 3.5. We consider road as the posi-

tive class and non-road and un-labeled as the negative

class.

Figure 5 shows two representative results. Whilst

street is nicely segmented, there are a few false de-

tections on the road border. The more detailed view

in ﬁgure 6 reveals that they originate mostly from in-

accurately formed superpixels, which stayed to com-

pact in this scenario rather than clinging to the road

border. Further, one superpixel was fooled by a

shadow covering the street. These deﬁciencies are re-

solved by a reﬁnement step which is not covered in

the current paper.

We compared our results by the idea of ﬁtting the

super pixels to a preﬁxed size of super pixels (Patch).

To do so, we ﬁrst segmented all images in KITTI data-

set with the same number of irregular superpixel seg-

mentation (396 SP for each image) and then extracted

the proposed feature vector from each patch. Table 2

summarized the experiment results. Small difference

of around 5% between the overall F-measurement in

both cases, happened due to the high correctness of

the non-road segmentation, whereas a large gap of al-

most 14% of average precision emphasizes the low

ability of the road segmentation in patch-wise met-

hod. This gets even worse by existing shadow or ob-

stacle on the road surface (See Figure:7).

The idea of using resized image as an input mo-

del instead of feeding with super-pixels would have

two drawbacks. First, you loose more information by

decreasing the resolution which makes the prediction

worse specially for images with shadow on the road

or distinguishing road from sidewalks. Especially if

you want to reach the small size of 11x36 of projected

lattice. Secondly, our ﬁnal aim is not only segmenta-

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

262

Table 1: Evaluation Results on KITTI and Cityscape validation sets.For the evaluation of the following experiments we used

these metrics: accuracy (ACC), F-measure (MaxF), precision (PRE), recall (REC), false positive rate (FPR), false negative

rate (FNR).

Dataset Benchmark ACC MaxF PRE REC FPR FNR

KITTI

Superpixel 97.37% 92.57% 94.21% 91.62% 5.79% 1.86%

pixel 96.50% 90.08% 92.80% 88.07% 7.20% 2.65%

CityScape

Superpixel 95.75% 92.44% 89.08% 96.76% 10.92% 1.14%

pixel 94.10% 90.01% 84.41% 97.14% 15.59% 1.89%

Table 2: Evaluation results on both regular and irregular shape of superpixels on KITTI validation set.

Method Benchmark MaxF PRE REC

Fixed-size SP

Superpixel 87.52% 80.46% 98.07%

pixel 85.19% 78.85% 94.70%

irregular AP

Superpixel 92.57% 94.21% 91.62%

pixel 90.08% 92.80% 88.07%

Table 3: Evaluation Results on KITTI Test set.

Benchmark MaxF AP PRE REC FPR FNR

UM ROAD 81.60 % 69.62 % 78.13 % 85.40 % 10.89 % 14.60 %

UMM ROAD 85.07 % 79.86 % 85.97 % 84.20 % 15.11 % 15.80 %

UU ROAD 78.47 % 65.18 % 74.20 % 83.25 % 9.43 % 16.75%

URBAN ROAD 82.36 % 72.31 % 80.48 % 84.33 % 11.27 % 15.67 %

Table 4: CPU-based Computational Run-Time in seconds per frame for both KITTI and City-scape image resolution: 1)num-

ber of superpixels(No SP) 2)superpixel segmentation(SP),3)Feature Extraction(FE), and 4)Network (CNN).

Dataset No SP SP FE CNN Total

KITTI 396 0.2s 0.2s 0.01s 0.41s

CityScape 2048 0.3s 0.6s 0.2s 1.1s

Table 5: Kitti road benchmark results (in %) on urban road category. only results of published methods are reported. LODNN:

(Caltagirone et al., 2017), UP CONV POLY (Oliveira et al., 2016), DDN (Mohan, 2014).

Method Processor MaxF AP Runtime(s)

LODNN NVIDIA GTX980Ti GPU, 6GB memory 94.07 % 92.03% 0.018

UP CONV POLY NVIDIA Titan X GPU. 93.83 % 90.47 0.083

DDN NVIDIA GTX980Ti GPU, 6GB memory 93.43 % 89.67 % 2

Ours (un-Optimized runtime) Intel(R) Core(TM) i7-4790K CPU @4GHz 82.36 % 72.31 % 0.41

Ours (Optimized runtime) Intel(R) Core(TM) i7-3770 CPU @ 3.40GHz 82.36 % 72.31 % 0.019

Table 6: Intersection of union(IoU) results for road class on Cityscapes testing set. CRF-RNN (Zheng et al., 2015), Deep-Lab

(Chen et al., 2016), FCN (Long et al., 2015).

Method road (IoU)

DeepLab 97.9%

FCN 97.4%

CRF-RNN 96.3%

Ours 90.08%

tion road but also more objects in the images which

are currently out of scope of this paper. Resizing of

the image is not a suitable solution to segment small

object like vehicle, pedestrian, etc. Even if you do

this resizing via the down/up sampling you put much

effort on computational time.

Evaluation on Birds Eye Perspective. For evalu-

ation in birds-eye perspective in the KITTI bench-

mark the images are projected on the ground plane

via the known camera geometry. The projection is re-

sampled into a regular grid to provide the ﬁnal image

for pixel-wise comparison (Sec.4.1).

We expected the accuracy to drop compared to the

image perspective evaluation, as the error induced by

inaccurate superpixels on the road border (as menti-

oned above) spreads over a much larger region due

to the ground projection. Table 3 shows the results

which are split into the different road types (UM,

UMM, UU, URBAN). The accuracy dropped as ex-

pected. We can observe the mentioned projection ef-

fect on the example results depicted in Figure 4.

Superpixel-based Road Segmentation for Real-time Systems using CNN

263

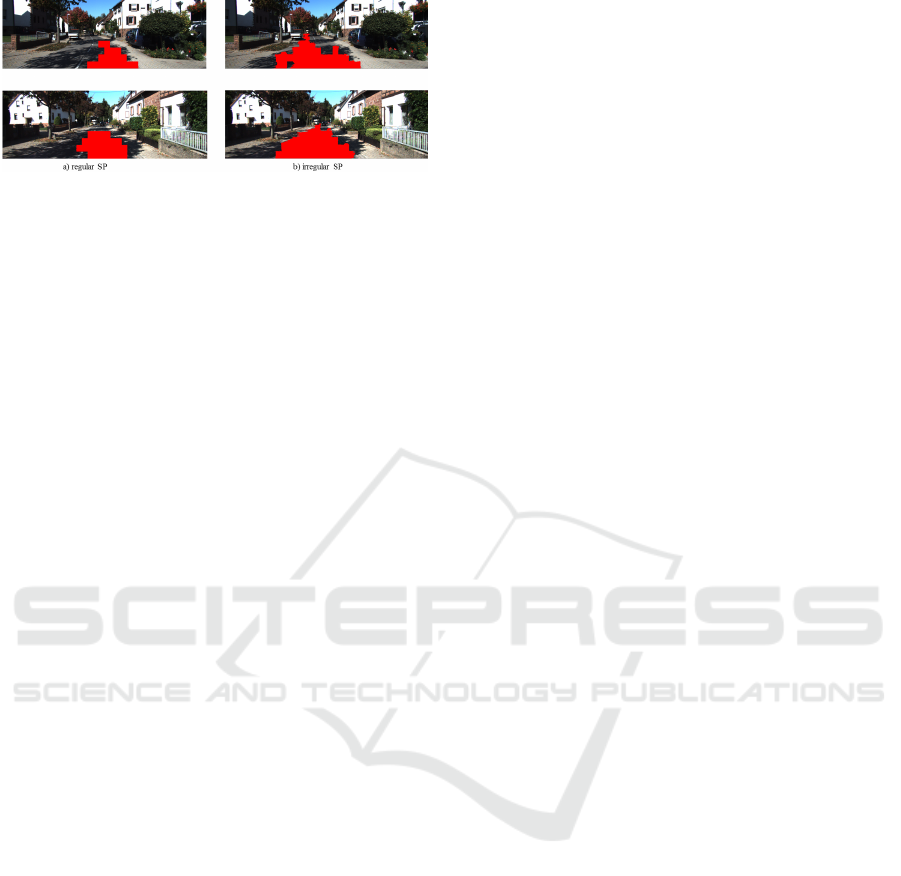

Figure 7: Road segmentation prediction with SP-CNN for

two samples based on: a) ﬁxed-size superpixels (Patches),

b) irregular superpixels.

Cityscape Evaluation. We ﬁrst evaluate our ap-

proach on Cityscape validation set. The results are

collected in Table 1. Since, the publicly available

Cityscape benchmark evaluates 19 classes, compari-

son of the average result between our approach (with

only road class) and the state of art methods is not

fair. Therefore, we compare Per-class scores on Ci-

tyscapes testing set. Table 6 presents the results

of intersection-over-union metric (IOU) (M. Cordts,

2016) for some of latest approaches on Cityscape.

Although, we achieved lower performance among the

state of art methods, but it is still comparable while

achieved impressive low computational time.

Runtime. Most of the state of the art methods in

semantic segmentation are based on GPU and power-

ful hardware facilities which limit their application to

CPU based embedded systems. Our approach using

superpixels and simple CNN network aimed real-time

performance, which reduces the computational com-

plexity to ease the integration of proposed method

into ADAS and autonomous driving systems. We eva-

luated the computational time for both KITTI and Ci-

tyscape datasets in both train and test time. Experi-

ments conducted on KITTI ROAD dataset required

only 4.3s training time per epoch for one image (see

Sec. 3.5). For testing it achieved the total run-time

of 0.41s per image including SP segmentation(0.2s),

Feature extraction(LBP 0.2s + position 0.002s) and

CNN(0.009s) based on CPU speciﬁcation and Mat-

lab implementation without any parallel processing

(Sec.4.2). For the preprocessing steps (superpixel

segmentation and feature extraction), we used non

optimized Matlab implementations for experimental

reasons. However, runtime optimized versions for

superpixel segmentation in CPU processor (Neubert,

2015) reach a performance of 0.008s for an image

segmentation into 400 superpixels. Further, an op-

timized version for LBP feature extraction (L

opez

et al., 2014) can reach 0.001s. Using both bears

the potential to squeeze the total runtime to 0.019s,

which is very fast for semantic segmentation without

no usage of GPU and thus, allows for embedding

in real time systems. In Table 5 we compared our

approach with some of the state of the art methods

in semantic segmentation in both accuracy and com-

putational time. All results provided in KITTI UR-

BAHN ROAD test set. Although, the state-of-the-

art method (Caltagirone et al., 2017) have a run-time

0.018s, but their method implemented in torch and

uses NVIDIA GTX980Ti GPU with 6GB memory,

which is quite fast processor, whereas the proposed

method uses 4core CPU. The reasoning of low eva-

luated MaxF of the proposed approach which is hap-

pened due to the evaluation on Birds Eye Perspective

4.2 could be improved by a post processing step up to

the 96% for KITTI and 94% for cityscape dataset that

is out of scope of this paper.

To sum up, we can emphasize this point that our

approach is compatible for real-time systems with

a reasonable trade-off between accuracy and timing

cost based on very cheap hardware facilities that make

it very fast in both training and testing parts.

5 CONCLUSION AND FUTURE

WORKS

We have presented a superpixel-based convolutional

neural network for road segmentation. Our main goal

focuses on a strategy to reduce the runtime for a pixel-

wise classiﬁcation while still achieving a high level of

accuracy to make our approach suitable for deploy-

ment on embedded devices for ADAS applications.

The core idea is to use superpixel units instead of

pixel units as input for a CNN. The proposed method

projects a superpixel segmentation on a regular lat-

tice structure to preserve the topology and allow for

convolution operations. The object characteristics are

extracted from almost homogeneous and irregular-

shaped superpixel units. Evaluation show promising

accuracy and efﬁciency in segmentation tasks and sig-

niﬁcantly reduces the required number of predictions

in runtime. This proposed superpixel-wise mecha-

nism can be applied not only for road segmentation

but also for semantic understanding of general ob-

jects. Future work will initially focus to eliminate

the limitation introduced by the so far non-revisable

decision of the superpixel segmentation, especially at

the road boundary. This might be done by a post pro-

cessing reﬁnement of either all border superpixels or

those marked by the CNN via an attention control.We

further plan to improve the discrimination of the road

pattern in special examples with challenging condi-

tions; such as shadow on road surface, illumination

changes or similarity with neighboring patterns like

sidewalks. It is also promising to evaluate this ap-

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

264

proach for more than 2 classes and extend the pixel-

wise classiﬁcation to different objects such as side-

walks,lane, trafﬁc sign, vehicles, etc.

REFERENCES

Achanta, R., Shaji, A., Smith, K., Lucchi, A., Fua, P., and

usstrunk, S. (2010). Slic superpixels. Technical re-

port.

Burghouts, G. J. and Geusebroek, J.-M. (2009). Perfor-

mance evaluation of local colour invariants. Computer

Vision and Image Understanding, 113(1):48–62.

Caltagirone, L., Scheidegger, S., Svensson, L., and Wa-

hde, M. (2017). Fast lidar-based road detection

using convolutional neural networks. arXiv preprint

arXiv:1703.03613.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2014). Semantic image segmentation

with deep convolutional nets and fully connected crfs.

arXiv preprint arXiv:1412.7062.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2016). Deeplab: Semantic image seg-

mentation with deep convolutional nets, atrous con-

volution, and fully connected crfs. arXiv preprint

arXiv:1606.00915.

Ciresan, D., Giusti, A., Gambardella, L. M., and Schmid-

huber, J. (2012). Deep neural networks segment neu-

ronal membranes in electron microscopy images. In

Advances in neural information processing systems,

pages 2843–2851.

Farabet, C., Couprie, C., Najman, L., and LeCun, Y.

(2013). Learning hierarchical features for scene labe-

ling. IEEE transactions on pattern analysis and ma-

chine intelligence, 35(8):1915–1929.

Fritsch, J., Kuehnl, T., and Geiger, A. (2013). A new per-

formance measure and evaluation benchmark for road

detection algorithms. In International Conference on

Intelligent Transportation Systems (ITSC).

Gadde, R., Jampani, V., Kiefel, M., Kappler, D., and Gehler,

P. V. (2016). Superpixel convolutional networks using

bilateral inceptions. In European Conference on Com-

puter Vision, pages 597–613. Springer.

Ganin, Y. and Lempitsky, V. (2014). Nˆ 4-ﬁelds: Neural

network nearest neighbor ﬁelds for image transforms.

In Asian Conference on Computer Vision, pages 536–

551. Springer.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In Proceedings of the

IEEE conference on computer vision and pattern re-

cognition, pages 580–587.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resi-

dual learning for image recognition. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 770–778.

He, S., Lau, R. W., Liu, W., Huang, Z., and Yang, Q. (2015).

Supercnn: A superpixelwise convolutional neural net-

work for salient object detection. International Jour-

nal of Computer Vision, 115(3):330–344.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Advances in neural information pro-

cessing systems, pages 1097–1105.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep lear-

ning. Nature, 521(7553):436–444.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 3431–3440.

opez, M. B., Nieto, A., Boutellier, J., Hannuksela, J., and

Silv

en, O. (2014). Evaluation of real-time lbp com-

puting in multiple architectures. Journal of Real-Time

Image Processing, pages 1–22.

M. Cordts, M. Omran, S. R. T. R. M. E. R. B. U. F. S. R.

B. S. (2016). The cityscapes dataset for semantic ur-

ban scene understanding. In Proc. of the IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR).

Mohan, R. (2014). Deep deconvolutional networks for

scene parsing. arXiv preprint arXiv:1411.4101.

Neubert, P. (2015). Superpixels and their application for

visual place recognition in changing environments.

Ning, F., Delhomme, D., LeCun, Y., Piano, F., Bottou, L.,

and Barbano, P. E. (2005). Toward automatic phe-

notyping of developing embryos from videos. IEEE

Transactions on Image Processing, 14(9):1360–1371.

Ojala, T., Pietikainen, M., and Harwood, D. (1994). Perfor-

mance evaluation of texture measures with classiﬁca-

tion based on kullback discrimination of distributions.

In Computer Vision & Image Processing, pages 582–

585. IEEE.

Oliveira, G. L., Burgard, W., and Brox, T. (2016). Efﬁcient

deep models for monocular road segmentation. In

Intelligent Robots and Systems (IROS),, pages 4885–

4891. IEEE.

P. Sermanet, D. Eigen, X. Z. M. M. R. F. Y. L. (2013).

Overfeat: Integrated recognition, localization and de-

tection using convolutional networks. arXiv preprint

arXiv:1312.6229.

Ren, X. and Malik, J. (2003). Learning a classiﬁcation mo-

del for segmentation. In ICCV, volume 1, pages 10–

17.

Schmidhuber, J. (2015). Deep learning in neural networks:

An overview. Neural networks, 61:85–117.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Verma, A., Banerji, S., and Liu, C. (2010). A new color sift

descriptor and methods for image category classiﬁca-

tion. In International Congress on Computer Applica-

tions and Computational Science, pages 4–6.

Zheng, S., Jayasumana, S., Romera-Paredes, B., Vineet, V.,

Su, Z., Du, D., Huang, C., and Torr, P. H. (2015). Con-

ditional random ﬁelds as recurrent neural networks. In

Proceedings of the IEEE International Conference on

Computer Vision, pages 1529–1537.

Superpixel-based Road Segmentation for Real-time Systems using CNN

265
