A Hybrid Pedestrian Detection System based on Visible Images and

LIDAR Data

Mohamed El Ansari

, Redouan Lahmyed

and Alain Tremeau

LabSIV, Department of Computer Science, Faculty of Science, University of Ibn Zohr, Agadir, Morocco

Hubert Curien Laboratory, University Jean Monnet, Saint-Etienne, France

Keywords:

Pedestrian Detection, LIDAR Sensor, Visible Camera Sensor, Support Vector Machines (SVMs), Adaboost,

Histogram of Oriented Gradients (HOG), Local Self-similarity (LSS).

Abstract:

This paper presents a hybrid pedestrian detection system on the basis of 3D LIDAR data and visible images

of the same scene. The proposed method consists of two main stages. In the ﬁrst stage, the 3D LIDAR data

are classiﬁed to obtain a set of clusters, which will be mapped into the visible image to get regions of interests

(ROIs). The second stage classiﬁes the ROIs (pedestrian/non pedestrian) using SVM as classiﬁer and color

based histogram of oriented gradients (HOG) together with the local self-similarity (LSS) as features. The

proposed method has been tested on LIPD dataset and the results demonstrate its effectiveness.

1 INTRODUCTION

Advanced Driver Assistance Systems (ADAS) is an

active research area that has attracted a lot of inter-

est in the recent years, due to the fact that it plays

an important role at enhancing vehicle systems for

safety and better driving to avoid collisions and ac-

cidents. There are various sensors upon which ADAS

technology is based, such as the visible cameras (Lim

and Kim, 2013; Zhang et al., 2016), thermal cameras

(Yang et al., 2016; Elguebaly and Bouguila, 2013),

LIDAR sensors (Lahmyed and El Ansari, 2016; Pre-

mebida and Nunes, 2006) and so on. The diverse

kinds of data acquired from those sensors could be

exploited in many ADAS ﬁelds such as pedestrian de-

tection (Zhu and Peng, 2017), trafﬁc sign detection

and recognition (Ellahyani and El Ansari, 2017; El-

lahyani et al., 2016), vehicle environment perception

(Ilyas El Jaafari et al., 2017; El Jaafari et al., 2016;

Mazoul et al., 2014; El Ansari et al., 2010) and so

on. One of the major challenges that ADAS face is

the comprehension of the environment and directing

the vehicles in real outdoor scenes (Prieto and Allen,

2009). For that, the requirement of determining and

identifying the presence of pedestrians in the scene is

considered as a crucial task.

The purpose of a pedestrian detection system is

to ﬁnd out the presence of both moving and station-

ary humans in a particular area of interest around the

moving vehicle in order alert the driver. However,

there are many factors that make the pedestrian de-

tection problem difﬁcult such as:

• The appearance of pedestrians shows very wide

variability: High variety of poses, wear different

clothes, carry diverse objects and have a consider-

able range of sizes.

• Complex backgrounds: the pedestrians must be

well detected in outdoor urban scenarios despite

the wide range of illumination and weather condi-

tions that affect the quality of the sensed informa-

tion.

• Occlusions and different scales between pedestri-

ans as well as the appearance of the pedestrians at

different viewing angles.

In this paper, we present a new pedestrian de-

tection approach that includes both LIDAR and vi-

sion sensors. The proposed approach is an extension

of that early presented in (Lahmyed and El Ansari,

2016) by the same authors. It takes as input a 3D LI-

DAR data and its corresponding visible image. The

proposed approach is composed of two major stages.

The ﬁrst stage clusters the 3D LIDAR data into con-

nected components using the DBSCAN (Ester et al.,

1996) technique. The obtained clusters are projected

on the corresponding visible image to generate ROIs.

The second stage identiﬁes the pedestrians from the

extracted ROIs using the Color-based HOG feature

combined with LSS feature that they are provided to

the SVM classiﬁer.

Ansari, M., Lahmyed, R. and Tremeau, A.

A Hybrid Pedestrian Detection System based on Visible Images and LIDAR Data.

DOI: 10.5220/0006620803250334

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

325-334

ISBN: 978-989-758-290-5

325

The rest of the paper is organized as follows. Sec-

tion 2 presents an overview of recent works on pedes-

trian detection. Section 3 details the new proposed

pedestrian detection method. Experimental results are

presented in Section 4. Section 5 concludes the paper.

2 RELATED WORK

Different pedestrian methods have been suggested in

the literature. Comparing between those approaches

is a challenging task since they use different data

recorded from various sensors such as visible cam-

era (Lim and Kim, 2013; Zhang et al., 2016), infrared

camera (Yang et al., 2016; Elguebaly and Bouguila,

2013), LIDAR sensor (Lahmyed and El Ansari, 2016;

Premebida and Nunes, 2006), and so on.

Compared to other sensors, visible cameras (Lim

and Kim, 2013) are more suited for pedestrian de-

tection approaches due to its low cost. Those works

could be classiﬁed into two main categories. The ﬁrst

one is based on the idea of presenting the human body

as a set of parts (Cho et al., 2012; Wu and Nevatia,

2005; Mikolajczyk et al., 2004) called part-based de-

tection. The second one tries to detect the whole body

without modelling it as collection of parts, named

Holistic detection (Dalal and Triggs, 2005; Papageor-

giou and Poggio, 1999). Both categories adopted for

pedestrian detection share the same direction in the

aim of creating robust features (Tang and Goto, 2010;

Mu et al., 2008; Dalal and Triggs, 2005; Lowe, 2004)

using ad-hoc features or learning features (Sch

olkopf

and Smola, 2002; Viola and Jones, 2001; Friedman

et al., 2000).

In the ﬁrst direction, different features have been

exploited including Haar (Viola et al., 2003), Lo-

cal Binary Pattern (LBP) (Ojala et al., 1996), Local

Self-Similarity (LSS) (Shechtman and Irani, 2007),

Histogram of Oriented Gradient (HOG) (Dalal and

Triggs, 2005) and so on. Histogram of oriented gradi-

ents (HOG) features has been widely utilized in many

studies and being the basis of many current detectors

due to its robustness for the variation of human shape,

height as well as clothes color. Local Binary Patterns

(LBP) (Ojala et al., 1996) was ﬁrst proposed for tex-

ture classiﬁcation. LBP-based features for human de-

tection have been suggested in (Tang and Goto, 2010;

Mu et al., 2008).

In the second direction, different learning al-

gorithms have been introduced. Boosting (Fried-

man et al., 2000) and SVM methods (Sch

olkopf and

Smola, 2002) are two famous training methods in the

ﬁeld. Boosting methods (Viola and Jones, 2001) are

generally utilized in cascade detector. They provide a

satisfying performance by constructing a strong clas-

siﬁer using a set of weak ones. In SVM methods, the

simplicity of the training phase can grant the possi-

bility of accelerating the SVM based detection using

a Multi-core CPU and a GPU in the feature extrac-

tion part. Zhang et al. (Zhang et al., 2010) intro-

duced HOG feature and linear SVM-based human de-

tection system. Zhu et al. (Zhu et al., 2006) presented

a system that integrates the cascade of rejectors con-

cept with the HOG feature and the Adaboost. Miko-

lajczyk et al. (Mikolajczyk et al., 2004) suggested

a system for human detection using probabilistic as-

sembly of robust part detectors. They used the Ad-

aboost classiﬁer to combine the weak classiﬁers to

produce a fast and strong one. The Adaboost clas-

siﬁer has been used to construct a cascade of simple

features to create a system for detecting faces (Viola

and Jones, 2004) and to build a pedestrian detection

system (Viola et al., 2003) using appearance and mo-

tion information.

In order to alleviate difﬁculties related to visible

cameras, some relevant works on object classiﬁcation

in urban scenarios suggest to use data acquired from

the laser detection and ranging (LIDAR) (Gidel et al.,

2008; Premebida and Nunes, 2006; Streller and Di-

etmayer, 2004; Dietmayer et al., 2001). Premebida

and Nunes (Premebida and Nunes, 2006) proposed

the utilization of a GMM classiﬁcation system over

a set of geometric features for pedestrian detection in

outdoor environments. In (Xavier et al., 2005), the au-

thors proposed a new type of features named inscribed

angle variance (IAV), which performs a leg-segment

feature correspondence to detect persons in indoor en-

vironments. In (Arras et al., 2007), Arras et al. used a

set of statistical primitives such as number of points,

mean average deviation from median, standard devi-

ation and eleven more, supplying them as an input to

Adaboost classiﬁer.

Some works propose combining the information

acquired by both the LIDAR and the visible camera to

increase the detection performance (Premebida et al.,

2009b; Spinello and Siegwart, 2008; Douillard et al.,

2007). In (Spinello and Siegwart, 2008), a pedes-

trian detection method based on combining visible

and LIDAR sensors information has been presented.

A Bayesian fusion is called together with linear SVM

to perform the detection task. Douillard et al. (Douil-

lard et al., 2007) introduced a system to detect and

recognize the objects using vision and laser informa-

tion in outdoor environments by taking advantage of

the spatial and temporal dependencies.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

326

3 PROPOSED METHOD

The proposed algorithm takes as input a set a 3D LI-

DAR data and one visible image of the same scene.

The 3D LIDAR data is used to extract ROIs while the

visible image image is used to classify each of the ex-

tracted ROIs as pedestrian or non pedestrian. The pro-

posed method is achieved in two main steps: (1) ROIs

extraction based on the LIDAR data and ROIs classi-

ﬁcation based on the information issued from the vis-

ible image. Here, we detail each of the two steps.

3.1 ROIs Extraction

The 3D points acquired by the LIDAR sensor are clus-

tered into a set of groups using DBSCAN cluster-

ing technique, which was introduced in (Ester et al.,

1996). It is a density-based clustering algorithm.

Starting from a set of points in some space, the DB-

SCAN algorithm groups together points with many

nearby neighbours. It considers as outliers points

whose nearest neighbours are too far away. The al-

gorithm requires two important input parameters such

as MinPts the minimum number of points required to

form a dense region and EPS the maximum radius

of the neighbourhood from a point p. More details on

how the DBSCAN works can be found in (Ester et al.,

1996).

The DBSCAN clustering stage provides a set of

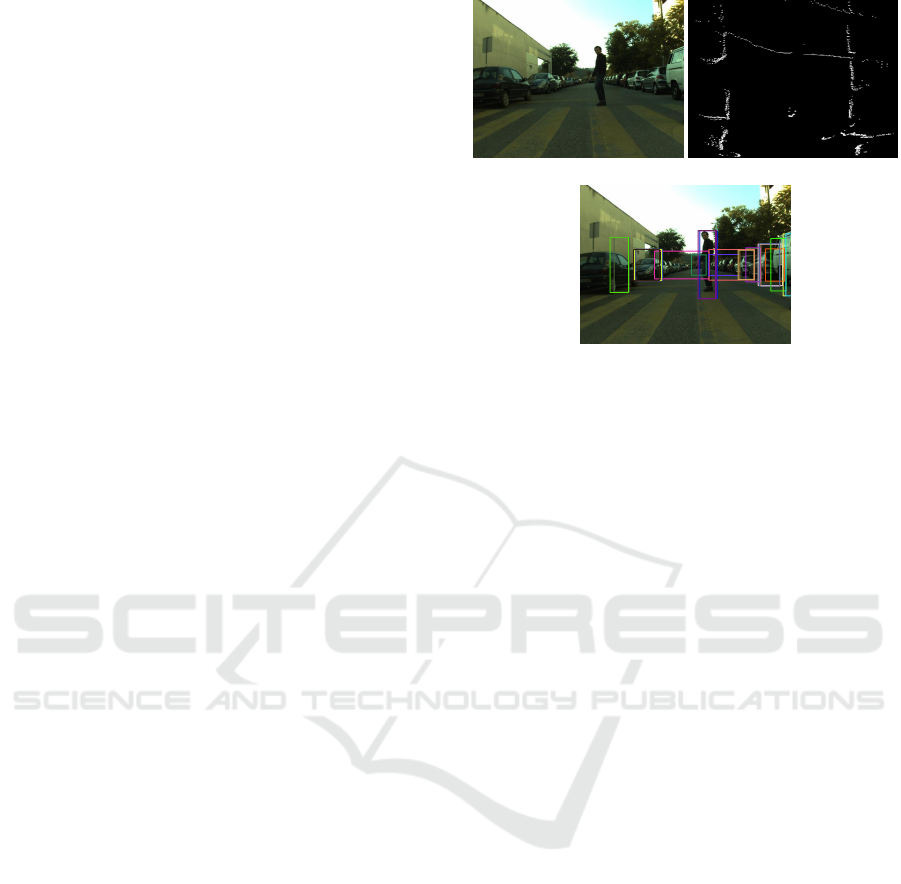

clusters. As shown in Figure 1, the obtained clus-

ters are represented with white spots. The points in

the border of the clusters are projected to their equiv-

alent pixels in the image captured by camera. Each

cluster will generate a ROI in the corresponding im-

age. To transform the points in the border of a cluster

to their equivalent pixels, the calibration method pro-

posed in (Zhang and Pless, 2004) is used by consider-

ing the camera extrinsic and intrinsic parameters and

the LIDAR-camera coordinate transformation matrix.

3.2 ROIs Classiﬁcation

Once the candidate ROIs are generated, they are given

to the classiﬁcation module to classify them as pedes-

trians or non-pedestrians. In the classiﬁcation mod-

ule, the computed features describing the pedestrian

are fed to a classiﬁer in order to identify. The features

and classiﬁer we adopt for the proposed method are

selected based on the experiments we perform on the

LIPD dataset (Premebida and Nunes, 2016).

3.2.1 Adaboost

Adaboost ”Adaptive Boosting” was introduced ﬁrst

by Yoav Freud and Robert Schapire (Freund et al.,

(a) (b)

(c)

Figure 1: (a) A visible image. (b) Its corresponding clus-

ters of range points using DBSCAN algorithm as seen from

above (upside view). (c) The mapped clusters on the visible

image.

1999) in an attempt to select a small number of critical

visual features from a very large set of potential ones.

It provides an effective learning algorithm and strong

bounds on generalization performance. Adaboost fo-

cuses new experts on examples that others get wrong

and it trains experts sequentially. The errors of early

experts indicate the hard examples. It focuses later

classiﬁers on getting these examples right. In the end,

the whole set is combined into one class, i.e., many

weak learners are converted into one complex classi-

ﬁer.

3.2.2 Support Vector Machine (SVM)

SVM is a classiﬁer derived from statistical learning

theory by Vapnik (Vapnik and Vapnik, 1998), and

some extensive introductions were presented later in

(Burges, 1998) and (Christiannini and Shawe-Taylor,

2000). SVM aims to separate the positive samples

(pedestrian) from negative ones (non-pedestrian). It

was introduced in the purpose of solving binary clas-

siﬁcations. The training data are labelled {x

where i = 1,...,nb, y

∈ {−1,1} , x

∈ {R

} .

In our case, the x

are the vectors computed by apply-

ing our proposed descriptor on the samples described

above. The values y

are “1“ for one class (pedestrian)

and “-1“ for the others, d is the dimension of the vec-

tor, and nb is the number of training vectors.

If a hyperplane {w, b} separates the two classes, the

points that lie on it satisfy x.w

+ b = 0 where w is

normal to the hyperplane, |b|/kwk is the perpendic-

ular distance from the hyperplane to the origin, and

kwk is the Euclidean norm of w.

In the separable case, the following constraints are

A Hybrid Pedestrian Detection System based on Visible Images and LIDAR Data

327

veriﬁed:

+ b) − 1 ≥ 0 ∀i = 1..nb. (1)

The points for which the equality in (1) holds are

located on the two hyperplanes: H1 : x

+ b = 1

and H2 : x

+ b = −1. Consequently, the margin

between the two data sets is equals 2/kwk. The mar-

gin can be maximized by minimizing between both

sets kwk

/2 under the constraints (1).

If we set positive Lagrange multipliers (α

,where

i = 1,...,nb) one for every of the inequality con-

straints, the objectif now will be to reduce or mini-

mize Lp given by:

Lp =

kwk

−

∑

i=1

+ b) +

∑

i=1

. (2)

Once the optimization is done, we can easily decide

on which part of the hyperplane a given test vector x

belongs.

The decision function is given by:

f (x) = sgn(x.w

+ b). (3)

Figure 2: The margin between the two datasets.

In this paper, we have utilized not only a linear

function but we used a Gaussian kernel as well, as

follows:

K(x

) = e

−

−x

2σ

(4)

and the decision function for a new input vector is :

f (x) = sgn(

∑

i=1

K(s

,x)+ b). (5)

3.2.3 Feature Extraction

Here we describe the features (HOG, LBP and LSS)

utilized in the second step of the proposed approach.

To decide which of those features could be used in the

pedestrian detection problem, a comparison is made.

The HOG (Dalal and Triggs, 2005) is one of the fea-

ture descriptors used in computer vision and image

processing aiming to detect an object in the image.

The fundamental idea behind the HOG descriptor is

that the local object appearance and shape within an

image can be depicted pretty well by the distribution

of intensity gradients or edge directions, even with-

out accurate knowledge of the corresponding gradient

or edge positions. A preprocessing step is performed

before the HOG computation by converting the image

into grayscale for the purpose of simplifying the com-

putations. However there are many disadvantages of

this conversion. This process removes all color in-

formation, leaving only the luminance of each pixel,

which means that the speciﬁc information captured in

the three color channels has been permanently lost,

affecting the quality of the HOG features. We believe

that extracting HOG from color images could enhance

the quality of the classiﬁcation. The classical man-

ner of using the color information in HOG descrip-

tor is based on concatenating the obtained three HOG

vectors derived separately from the three color chan-

nels to create RGB-HOG descriptor. However, the

computed RGB-HOG is three times longer than the

grayscale HOG descriptor. Therefore, the required

computational time is proportionally increased.

In this paper, we introduce a new approach in

which we compute the HOG features using the color

components in such a way that the ﬁnal descriptor

has the same size as the HOG descriptor computed

from grayscale images. As a result, we preserve the

color information without increasing the computa-

tional time. The new HOG descriptor, named HOG-

Color, will be computed by following the same steps

as the classical one (HOG derived from grayscale im-

age) excluding the gradient magnitude and orientation

step, where we use those corresponding to the color

component that maximizes the gradient magnitude.

Contrary to the grayscale-base HOG, the new

HOG descriptor is generated for the gradient values

computed based on the color information of the image

while preserving the same size as the classical HOG.

The second feature adopted in our experiments is

the LBP, which was introduced in (Ojala et al., 1996).

It describes the surrounding of a pixel by generating

a bit-code from the binary derivatives of a pixel. The

LBP operator labels the pixels of an image by thresh-

olding the 3 × 3 neighborhood of each pixel with the

center value and converts the result into a binary num-

bers deﬁned by equation (6).

LBP(x

) =

∑

i=1

s(I

− I

(6)

such that

s(I

− I

) =



1 I

− I

≥ 0

0 I

− I

≤ 0

. (7)

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

328

where I

and I

are the grey value of image and T

is the total number of involved neighbours.

The performance of the HOG decreases when the

background is cluttered with noisy edge points (Ojala

et al., 1996). To avoid that, the concatenation be-

tween the HOG and LBP features is made in order

to create new features named HOG+LBP that allow

reducing the effect of the noise on the classiﬁcation

results. Given that the result obtained by HOG-Color

is better than the classic grayscale HOG and RGB-

HOG, the concatenation HOG-Color with LBP called

HOG-Color+LBP is used instead of HOG+LBP and

RGB-HOG+LBP, respectively.

The third feature involved in this paper is LSS

(Shechtman and Irani, 2007). This feature has the

ability of capturing the internal geometric layouts of

local self-similarities within image, while accounting

for small local afﬁne deformations as well as captur-

ing self-similarity of edges, color, repetitive patterns

and complex textures in a single uniﬁed manner. In

LSS features, we divide the chosen image into sev-

eral patches which, efﬁciently compared with a cell

located at center of the image. Then, we normalize

the obtained distance and we project it into the space

intervals divided by radial intervals and the number

of angle intervals. We take the extreme value in an

interval space as the value of the feature.

LSS features was concatenated with the HOG-

Color features to build a descriptor, called HOG-

Color+LSS. This descriptor is used by a classiﬁer to

classify pedestrians.

In this paper, a comparison between many fea-

tures is made to determine which ones gives the best

results. First, we used a simple HOG on grayscale

image. Then, we computed the HOG from the col-

ored image named HOG-Color. Furthermore, the new

HOG-Color is combined with LBP to build an aug-

mented feature vector. Another combination of HOG-

Color with LSS is made to create one more feature

vector.

4 EXPERIMENTAL RESULTS

This section presents the results obtained by the pro-

posed approach. Different experiments have been per-

formed on the LIPD dataset to evaluate the perfor-

mances of the classiﬁers as well as the features intro-

duced in the preceding section. All the experiments

have been performed using the processor Intel (R)

core (TM) i5-2430M CPU 2.4 GHz.

4.1 Dataset

The Laser and Image Pedestrian Detection Dataset

(LIPD) (Premebida and Nunes, 2016) has been used

to test the performance of the proposed system.

The LIPD Dataset was collected in outdoor condi-

tions (the Coimbra Univeristy/ISR Campus zone). It

was recorded using Yamaha-ISR electric vehicle (IS-

RobotCar), equipped with a multilayer automotive

laserscanner Alasca-XT from Ibeo, a TopCon Hyper-

Pro GPS device in RTK mode, one IMU Mti from

Xsens and a monocular Guppy camera. The LIPD

dataset contains 4823 frames (one frame is composed

of one visible image and its corresponding LIDAR

data). The images format is 24-bit color jpg and their

size is 640 x 480 pixels.

4.2 Parameters Setting

The parameters involved in the various modules of

the proposed system were selected empirically using

images from LIPD dataset. In the ﬁrst stage, two

parameters of DBSCAN clustering algorithm were

utilized: EPS and the minimum number of points

needed to compose a dense region (MinPts). Fig-

ure 3 (a) clariﬁes the number of true positives (TPs)

and Figure 3 (b) shows the computing time, while

varying these two parameters over 900 images chosen

from the LIPD dataset. Notice that a correct detected

person is counted true positive if its corresponding

bounding box overlaps with at least 70 % of the area

covered by the person present in the image. We ob-

serve that the number of true positives is not quite

sensitive to EPS parameter. However, the computing

time increments with these two parameters. EPS = 5,

and MinPts = 400 are chosen since they guarantee

high accuracy (more than 890 true positives) while

the computational time is at its lowest value (less than

40 ms).

To get the optimal parameters of the classiﬁers

utilized in the system, cross-validation experiments

have been achieved on a training dataset. The images

of the dataset are divided into a training and valida-

tion subsets. By training and testing the classiﬁers

on the two subsets using various parameters settings,

the parameters that enable to get the high classiﬁ-

cation accuracy have been selected. The classiﬁers

have been retrained again using the chosen parame-

ters on the LIPD training dataset. In this work, we

use SVM with radial basis function (RBF) kernel with

C=2 and G=0.03. The classiﬁcation accuracy varies

while changing the value of these two parameters and

become higher as these parameters reach the values 2

and 0.03, respectively, for all the features used.

A Hybrid Pedestrian Detection System based on Visible Images and LIDAR Data

329

(a)

(b)

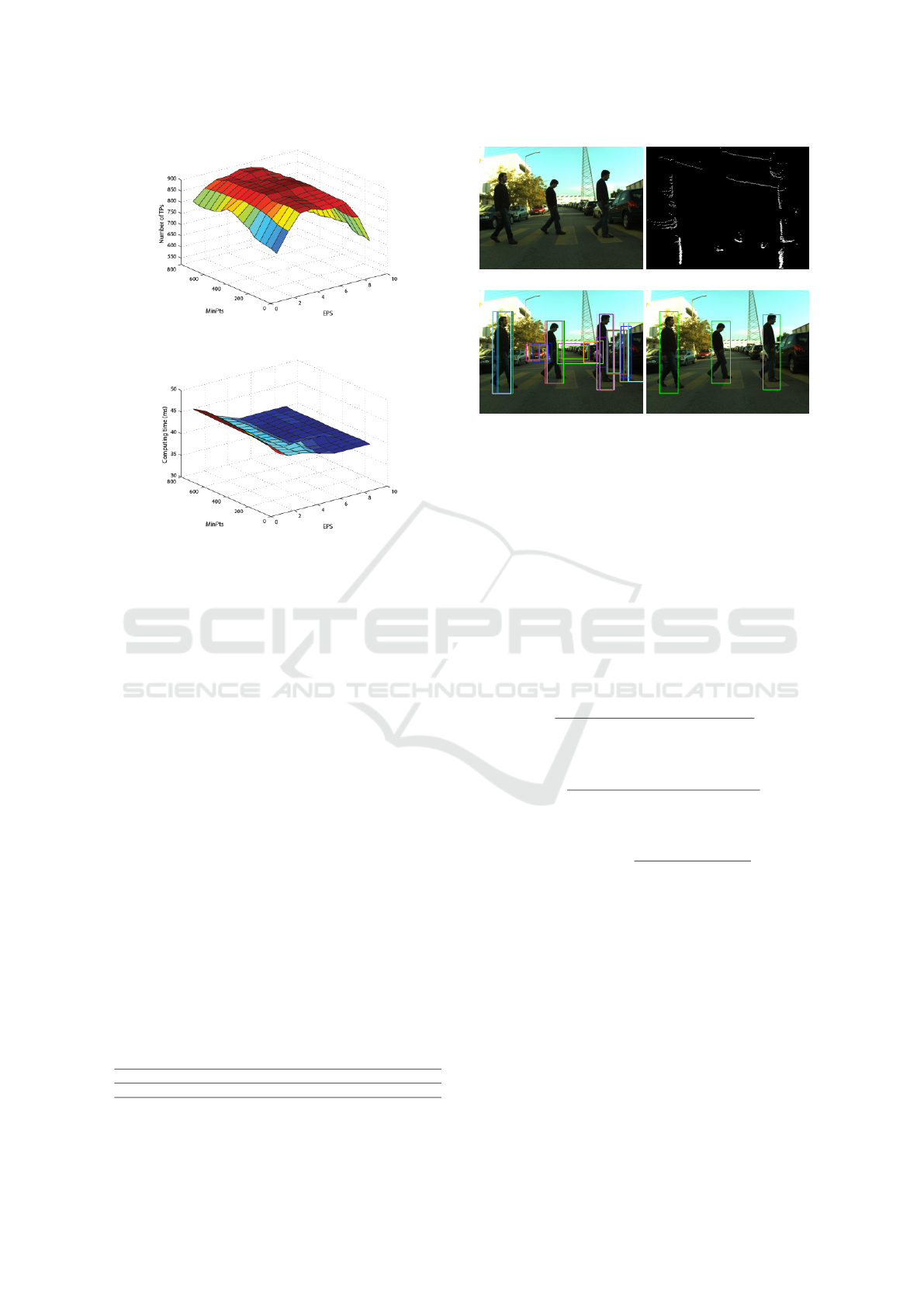

Figure 3: Number of TPs and the computing time while

changing EPS and MinPts.

4.3 Results

An example of detection results is provided in Figure

4. The algorithm takes an image (Figure 4 (a)) and

its corresponding 3D LIDAR data as input. The clus-

tering results are depicted in Figure 4 (b). The ROIs

obtained based on the mapping of the clusters (Fig-

ure 4 (b)) on the image (Figure 4 (a)) are showed in

Figure 4 (c). A number of ROIs were detected even

if they did not represent pedestrians meanwhile they

represented other objects in the road scene. In the aim

of rejecting these ROIs, we refer to the classiﬁcation

step. The detected ROIs are classiﬁed into pedestri-

ans or non-pedestrians using the HOG-Color and LSS

features together with SVM classiﬁer. The classiﬁca-

tion results are illustrated in Figure 4 (d). Only three

ROIs have been classiﬁed as pedestrians, while the

other ROIs have been discarded. The green bound-

ing boxes correspond to the detected pedestrians. The

running time of each one of the previous steps is rep-

resented in Table 1. The required time for the whole

detection method is 39.82 + 49.11= 88.93 ms.

Table 1: The computing time of each step of the proposed

approach in ms/f.

ROIs extraction ROIs classiﬁcation

Consuming time (ms) 39.82 49.11

(a) (b)

Figure 4: (a) Original image. (b) Its corresponding clusters

generated from LIDAR data. (c) Clustering results mapped

into the visible image (ROIs). (d) Pedestrian detection re-

sults.

Three evaluations have been included in this pa-

per. First, to evaluate the performance of the pro-

posed HOG-Color and compare it with the classical

grayscale HOG and RGB-HOG. The second one eval-

uates the combination of the proposed HOG-Color

with each of LBP and LSS features to look for possi-

ble improvements. A comparison between the results

provided by the SVM and Adaboost classiﬁers is also

done. The precision, recall and F-measure, given be-

low, are used for the different evaluations.

Recall =

TruePositives

TruePositives + FalseNegatives

× 100

(8)

Precision =

TruePositives

TruePositives + FalsePositives

× 100

(9)

F − measure = 2 ×

Precision × Recall

Precision + Recall

(10)

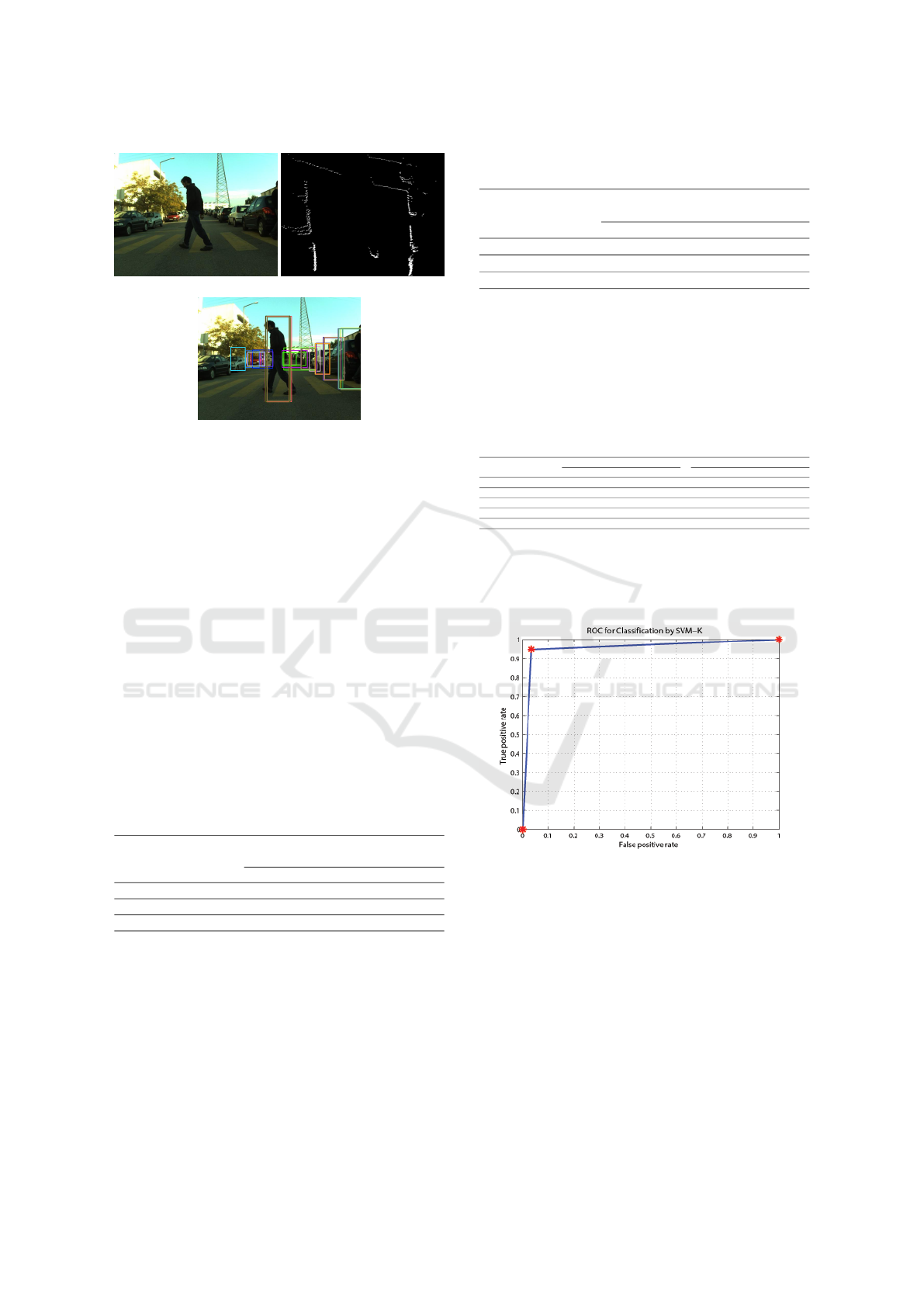

Figure 5 (a) shows a sample input image used to

test the proposed pedestrian detection approach. The

clustering results we get when we apply the DBSCAN

technique to the corresponding LIDAR data are illus-

trated in Figure 5 (b). The generated ROIs after pro-

jecting the obtained clusters on the image are shown

in Figure 5 (c). To validate the detected ROIs, a clas-

siﬁcation was performed on the basis of the features

we have presented above. The classiﬁcation results

helped us to select the appropriate feature as well as

the classiﬁer to consider for the proposed method.

Table 2 illustrates the F-measure, the precision

and the recall values while using the various versions

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

330

(a) (b)

(c)

Figure 5: Example of ROIs extraction step results. (a) Orig-

inal image. (b) DBSCAN algorithm results. (c) ROIs ob-

tained in the ROIs extraction step.

of the HOG features with the SVM classiﬁer. Table 3

shows the results we get while using : (a) the HOG-

Color feature; (b) the combination HOG-Color and

LBP and (c) the combination HOG-Color and LSS. It

is obvious form table 2 that the HOG-Color outper-

forms the other features which conﬁrms the impor-

tance of color information. The required time to com-

pute the HOG-Color feature is 46.98 ms. However,

the rates illustrated in Table 3 show that the combina-

tion HOG-Color and LSS has the best performance

compared to the other features and their combina-

tions. It achieves 95.47% recall, 94.83% precision

and 95.15% F-measure in only 49.11 ms/f. Therefore,

we take advantage of this combination in the classiﬁ-

cation step of the proposed approach.

Table 2: Performance of each feature descriptor on LIPD

dataset.

Feature Performance on LIPD

dataset

Precision Recall F-measure

GRAYSCALE-HOG 93.33% 93.80% 93.56%

RGB-HOG 93.83% 94.94% 94.38%

HOG-Color 94.33% 94.97% 94.65%

In order to justify the utilization of the SVM with

radial basis function (RBF) kernel as classiﬁer, a com-

parison with SVM linear and Adaboost classiﬁers is

made. Table 4 shows the comparison results in terms

of F-measure and consuming time. We notice that

the combination HOG-Color and LSS outperforms all

the other features. It achieves 95.15%, 94.51% and

92.61% using SVM-K , SVM-L and Adaboost classi-

ﬁers, respectively. The Adaboost classiﬁer gives the

best consuming time (only 47.08 ms), however, the

Table 3: Performance of each feature descriptor on LIPD

data set.

Feature Performance on LIPD

dataset

Precision Recall F-measure

HOG-Color 94.33% 94.97% 94.65%

HOG-Color+LBP 94.50% 95.13% 94.81%

HOG-Color+LSS 94.83% 95.47% 95.15%

F-measure rate of the combination HOG-Color and

LSS feature is low (92.61%) compared to the other

classiﬁer. Therefore, the SVM-K classiﬁer is adopted

as classiﬁer in the classiﬁcation step of the proposed

method.

Table 4: The F-measure and the average running time of the

classiﬁers used in this work.

Feature F-measure(%) of all data set Run time (ms/frame)

SVM-K SVM-L Adaboost SVM-K SVM-L Adaboost

GRAYSCALE-HOG 93.56 92.60 91.00 47.02 47.76 45.95

RGB-HOG 94.38 93.30 91.29 50.82 57.73 48.85

HOG-Color 94.65 93.92 92.12 46.98 47.74 45.92

HOG-Color+LBP 94.81 94.17 92.28 49.81 50.61 47.83

HOG-Color+LSS 95.15 94.51 92.61 49.11 49.95 47.08

Figure 6 shows the Receiver Operating Character-

istic curve obtained by the new system for pedestrian

detection. It attains 95.86% AUC for LIPD dataset on

average run time of 8-10 frames per second.

Figure 6: ROC curve of the proposed method when applied

to LIPD dataset.

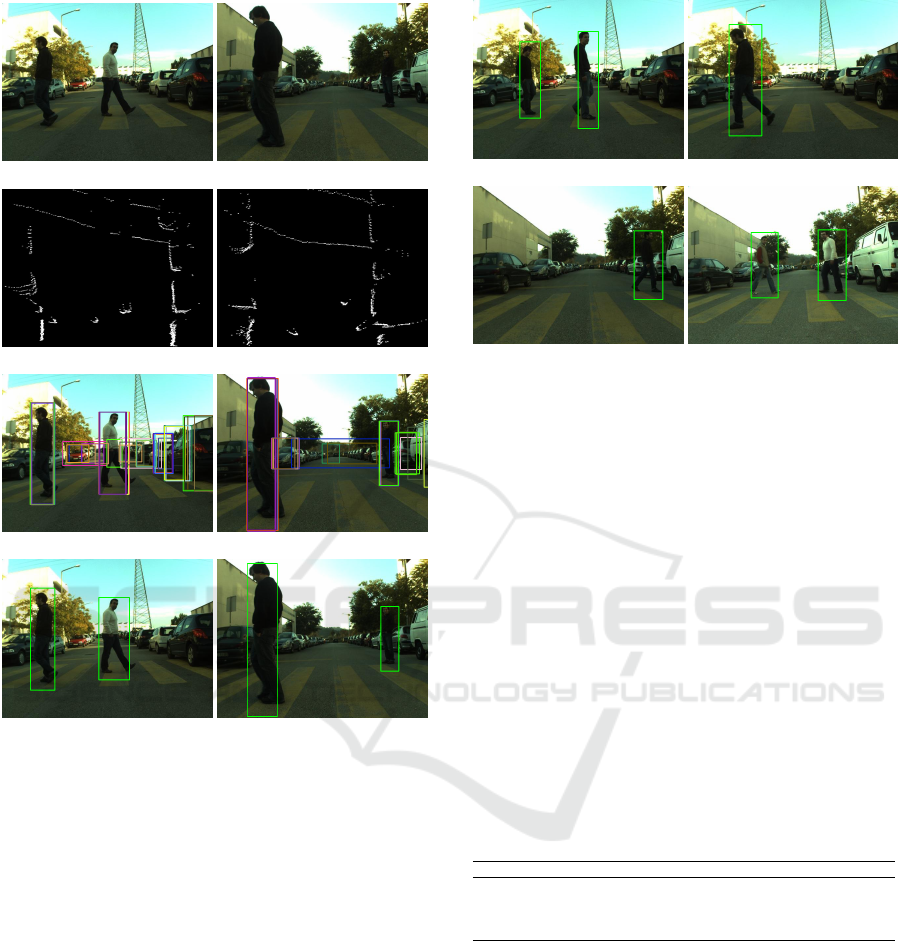

More detection results are represented in Figure 7.

Figures 7 (a) and (b) depict the test images. The cor-

responding clustering results using the LIDAR points

are shown in Figures 7 (c) and (d). Figures 7 (e) and

(f) show the extracted ROIs after projecting the deter-

mined clusters on the images in Figures 7 (a) and (b),

respectively. Among all generated ROIs, only two at

each image are considered as pedestrians (Figures 7

(g) and (h)). The other ROIs are rejected in the classi-

ﬁcation step. The detected pedestrians are shown on

the corresponding test images by the means of green

bounding boxes.

A Hybrid Pedestrian Detection System based on Visible Images and LIDAR Data

331

(a) (b)

(e) (f)

(g) (h)

Figure 7: Example of detection results. (a) and (b) Original

images. (c) and (d) The corresponding clusters of range

points using DBSCAN algorithm. (e) and (f) Extracted

ROIs. (g) and (h) ROIs classiﬁcation results.

4.4 Performance Comparison with

State of the Arts

A comparison versus some state-of-the-art works is

given to evaluate the performance of the proposed

method. Such a comparison has been conducted with

the methods illustrated in (Gao et al., 2015; Preme-

bida et al., 2009a; Premebida et al., 2009b) using the

LIPD dataset. The classiﬁcation accuracies achieved

by the earlier methods as well as the proposed method

are presented in the Table 5. The method illustrated in

(Premebida et al., 2009b) presents a system to detect

pedestrians using the trainable fusion method FGMM

as combination of Gaussian Mixture Model (GMM)

and Fisher’s Linear Discriminated Analysis classiﬁers

(FLDA). A layered graph model in D-depth domains

(a) (b)

Figure 8: Detection results.

and RGB-image are used in (Gao et al., 2015) to

detect and track the pedestrians. The last approach

(Premebida et al., 2009a) included in the table per-

forms the detection using only LIDAR-based features

with Minimization of InterClass Interference (MCI)

for Neural Networks (NN) classiﬁer (MCI-NN).

We can notice from the table that the proposed

method achieves a higher accuracy than the other sys-

tems (95.86 %). The accuracy of the method pre-

sented in (Premebida et al., 2009a) is 93.10%. Al-

though the computational cost of the methods pro-

posed in (Premebida et al., 2009b) and (Gao et al.,

2015) is much higher compared to the proposed sys-

tem as a result of using the LIDAR-based features and

vision-based features simultaneously, their accuracies

is only 89.92% and 87.70%, respectively.

Table 5: Comparison between the proposed method and

other published methods using LIPD data set.

Method CCR (%)

LIDAR-GMMC/vision-FLDA (Premebida et al., 2009b) 89.92

LGM (Gao et al., 2015) 87.70

MCI-NN (Premebida et al., 2009a) 93.10

The new method 95.86

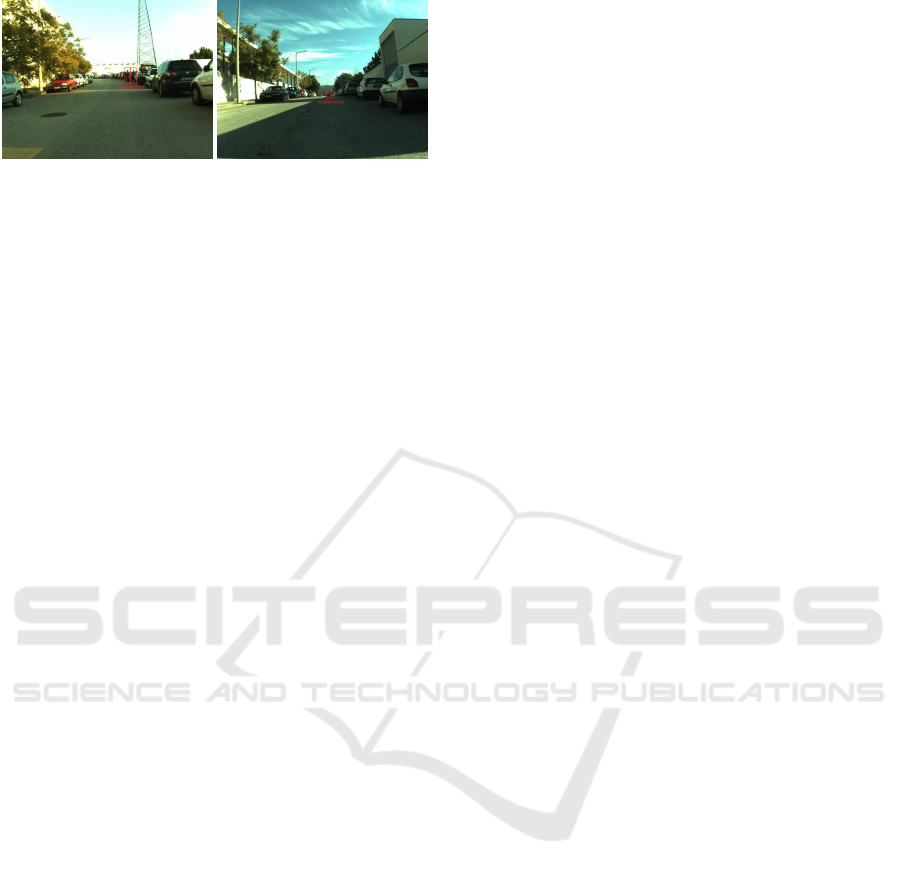

Figures 8 and 9 illustrate some other examples of

detection results while using the proposed method to

images of LIPD dataset. In Figure 8, the pedestrians

included in the four images have been successfully

detected. In Figure 9, the pedestrians could not be de-

tected due to different reasons. The pedestrians were

too far which make the LIDAR sensor incapable to

measure properly their distances. Consequently, their

corresponding ROIs won’t extracted.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

332

(a) (b)

Figure 9: Examples of misdetections.

5 CONCLUSION AND

PERSPECTIVES

In this paper, a two steps pedestrian detection system

is presented. In the ﬁrst step, we generate ROIs based

on clustering the data provided by a LIDAR sensor.

Next, we project the obtained clusters on the corre-

sponding visible image. In the second step, we com-

bine the so-called HOG-Color with LSS feature to

build a new descriptor. This descriptor is then used

with the SVM classiﬁer to detect pedestrians from

the ROIs. Experimental results illustrate that the pro-

posed system achieves AUC of 95.86% on the LIPD

dataset.

Although the proposed method proves its effec-

tiveness compared to recent state of-art ones, we are

planning in the future to extend it by using the 3D LI-

DAR data not only to generate the ROIs but to im-

prove classiﬁcation step as well. Furthermore, we

aim to ameliorate the system by employing other ma-

chine learning techniques to accelerate the classiﬁca-

tion process.

REFERENCES

Arras, K. O., Mozos, O. M., and Burgard, W. (2007). Us-

ing boosted features for the detection of people in

2d range data. In Robotics and Automation, 2007

IEEE International Conference on, pages 3402–3407.

IEEE.

Burges, C. J. (1998). A tutorial on support vector machines

for pattern recognition. Data mining and knowledge

discovery, 2(2):121–167.

Cho, H., Rybski, P. E., Bar-Hillel, A., and Zhang, W.

(2012). Real-time pedestrian detection with de-

formable part models. In Intelligent Vehicles Sympo-

sium (IV), 2012 IEEE, pages 1035–1042. IEEE.

Christiannini, N. and Shawe-Taylor, J. (2000). Support vec-

tor machines and other kernel-based learning meth-

ods.

Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-

dients for human detection. In Computer Vision and

Pattern Recognition, 2005. CVPR 2005. IEEE Com-

puter Society Conference on, volume 1, pages 886–

893. IEEE.

Dietmayer, K. C., Sparbert, J., and Streller, D. (2001).

Model based object classiﬁcation and object tracking

in trafﬁc scenes from range images. In Proceedings of

IV IEEE Intelligent Vehicles Symposium, volume 200.

Douillard, B., Fox, D., and Ramos, F. (2007). A spatio-

temporal probabilistic model for multi-sensor object

recognition. In Intelligent Robots and Systems, 2007.

IROS 2007. IEEE/RSJ International Conference on,

pages 2402–2408. IEEE.

Elguebaly, T. and Bouguila, N. (2013). Finite asymmetric

generalized gaussian mixture models learning for in-

frared object detection. Computer Vision and Image

Understanding, 117(12):1659–1671.

Ellahyani, A. and El Ansari, M. (2017). Mean shift and log-

polar transform for road sign detection. Multimedia

Tools and Applications, pages 1–19.

Ellahyani, A., El Ansari, M., and El Jaafari, I. (2016). Traf-

ﬁc sign detection and recognition based on random

forests. Applied Soft Computing, 46:805–815.

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996).

A density-based algorithm for discovering clusters in

large spatial databases with noise. In Kdd, pages 226–

231.

Freund, Y., Schapire, R., and Abe, N. (1999). A short in-

troduction to boosting. Journal-Japanese Society For

Artiﬁcial Intelligence, 14(771-780):1612.

Friedman, J., Hastie, T., Tibshirani, R., et al. (2000). Addi-

tive logistic regression: a statistical view of boosting

(with discussion and a rejoinder by the authors). The

annals of statistics, 28(2):337–407.

Gao, S., Han, Z., Li, C., Ye, Q., and Jiao, J. (2015). Real-

time multipedestrian tracking in trafﬁc scenes via an

rgb-d-based layered graph model. IEEE Transactions

on Intelligent Transportation Systems, 16(5):2814–

2825.

Gidel, S., Checchin, P., Blanc, C., Chateau, T., and

Trassoudaine, L. (2008). Pedestrian detection method

using a multilayer laserscanner: Application in urban

environment. In Intelligent Robots and Systems, 2008.

IROS 2008. IEEE/RSJ International Conference on,

pages 173–178. IEEE.

Lahmyed, R. and El Ansari, M. (2016). Multisensors-based

pedestrian detection system. In AICCSA.

Lim, J. and Kim, W. (2013). Detecting and tracking of mul-

tiple pedestrians using motion, color information and

the adaboost algorithm. Multimedia tools and appli-

cations, 65(1):161–179.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International journal of computer

vision, 60(2):91–110.

Mazoul, A., El Ansari, M., Zebbara, K., and Bebis,

G. (2014). Fast spatio-temporal stereo for intelli-

gent transportation systems. Pattern Anal. Appl.,

17(1):211–221.

El Ansari, M., Mousset, S., and Bensrhair, A. (2010). Tem-

poral consistent real-time stereo for intelligent vehi-

cles. Pattern Recognition Letters, 31(11):1226–1238.

A Hybrid Pedestrian Detection System based on Visible Images and LIDAR Data

333

El Jaafari, I., El Ansari, M., Koutti, L., Mazoul, A., and El-

lahyani, A. (2016). Fast spatio-temporal stereo match-

ing for advanced driver assistance systems. Neuro-

computing, 194:24–33.

Ilyas El Jaafari, Mohamed El Ansari, and Koutti, L. (2017).

Fast edge-based stereo matching approach for road

applications. Signal, Image and Video Processing,

11(2):267–274.

Mikolajczyk, K., Schmid, C., and Zisserman, A. (2004).

Human detection based on a probabilistic assembly of

robust part detectors. Computer Vision-ECCV 2004,

pages 69–82.

Mu, Y., Yan, S., Liu, Y., Huang, T., and Zhou, B. (2008).

Discriminative local binary patterns for human detec-

tion in personal album. In Computer Vision and Pat-

tern Recognition, 2008. CVPR 2008. IEEE Confer-

ence on, pages 1–8. IEEE.

Ojala, T., Pietik

ainen, M., and Harwood, D. (1996). A com-

parative study of texture measures with classiﬁcation

based on featured distributions. Pattern recognition,

29(1):51–59.

Papageorgiou, C. and Poggio, T. (1999). Trainable pedes-

trian detection. In Image Processing, 1999. ICIP 99.

Proceedings. 1999 International Conference on, vol-

ume 4, pages 35–39. IEEE.

Premebida, C., Ludwig, O., and Nunes, U. (2009a). Ex-

ploiting lidar-based features on pedestrian detection

in urban scenarios. In Intelligent Transportation Sys-

tems, 2009. ITSC’09. 12th International IEEE Confer-

ence on, pages 1–6. IEEE.

Premebida, C., Ludwig, O., and Nunes, U. (2009b). Lidar

and vision-based pedestrian detection system. Journal

of Field Robotics, 26(9):696–711.

Premebida, C. and Nunes, U. (2006). A multi-target track-

ing and gmm-classiﬁer for intelligent vehicles. In

Intelligent Transportation Systems Conference, 2006.

ITSC’06. IEEE, pages 313–318. IEEE.

Premebida, C. and Nunes, U. (2016). Laser and

image pedestrian detection dataset - lipd.

http://www2.isr.uc.pt/ cpremebida/dataset/.

Prieto, M. S. and Allen, A. R. (2009). Using self-organising

maps in the detection and recognition of road signs.

Image and Vision Computing, 27(6):673–683.

Sch

olkopf, B. and Smola, A. J. (2002). Learning with ker-

nels: support vector machines, regularization, opti-

mization, and beyond. MIT press.

Shechtman, E. and Irani, M. (2007). Matching local self-

similarities across images and videos. In Computer Vi-

sion and Pattern Recognition, 2007. CVPR’07. IEEE

Conference on, pages 1–8. IEEE.

Spinello, L. and Siegwart, R. (2008). Human detection

using multimodal and multidimensional features. In

Robotics and Automation, 2008. ICRA 2008. IEEE In-

ternational Conference on, pages 3264–3269. IEEE.

Streller, D. and Dietmayer, K. (2004). Object tracking and

classiﬁcation using a multiple hypothesis approach.

In Intelligent Vehicles Symposium, 2004 IEEE, pages

808–812. IEEE.

Tang, S. and Goto, S. (2010). Histogram of template for hu-

man detection. In Acoustics Speech and Signal Pro-

cessing (ICASSP), 2010 IEEE International Confer-

ence on, pages 2186–2189. IEEE.

Vapnik, V. N. and Vapnik, V. (1998). Statistical learning

theory, volume 1. Wiley New York.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In Computer Vi-

sion and Pattern Recognition, 2001. CVPR 2001. Pro-

ceedings of the 2001 IEEE Computer Society Confer-

ence on, volume 1, pages I–I. IEEE.

Viola, P. and Jones, M. J. (2004). Robust real-time face

detection. International journal of computer vision,

57(2):137–154.

Viola, P., Jones, M. J., and Snow, D. (2003). Detecting

pedestrians using patterns of motion and appearance.

In null, page 734. IEEE.

Wu, B. and Nevatia, R. (2005). Detection of multiple, par-

tially occluded humans in a single image by bayesian

combination of edgelet part detectors. In Computer

Vision, 2005. ICCV 2005. Tenth IEEE International

Conference on, volume 1, pages 90–97. IEEE.

Xavier, J., Pacheco, M., Castro, D., Ruano, A., and Nunes,

U. (2005). Fast line, arc/circle and leg detection from

laser scan data in a player driver. In Robotics and Au-

tomation, 2005. ICRA 2005. Proceedings of the 2005

IEEE International Conference on, pages 3930–3935.

IEEE.

Yang, T., Fu, D., and Pan, S. (2016). Pedestrian tracking

for infrared image sequence based on trajectory man-

ifold of spatio-temporal slice. Multimedia Tools and

Applications, pages 1–15.

Zhang, G., Gao, F., Liu, C., Liu, W., and Yuan, H. (2010).

A pedestrian detection method based on svm classi-

ﬁer and optimized histograms of oriented gradients

feature. In Natural Computation (ICNC), 2010 Sixth

International Conference on, volume 6, pages 3257–

3260. IEEE.

Zhang, J., Li, F.-W., Nie, W.-Z., Li, W.-H., and Su, Y.-T.

(2016). Visual attribute detction for pedestrian detec-

tion. Multimedia Tools and Applications, pages 1–18.

Zhang, Q. and Pless, R. (2004). Extrinsic calibration

of a camera and laser range ﬁnder (improves cam-

era calibration). In Intelligent Robots and Systems,

2004.(IROS 2004). Proceedings. 2004 IEEE/RSJ In-

ternational Conference on, volume 3, pages 2301–

2306. IEEE.

Zhu, C. and Peng, Y. (2017). Discriminative latent semantic

feature learning for pedestrian detection. Neurocom-

puting, 238:126–138.

Zhu, Q., Yeh, M.-C., Cheng, K.-T., and Avidan, S. (2006).

Fast human detection using a cascade of histograms

of oriented gradients. In Computer Vision and Pat-

tern Recognition, 2006 IEEE Computer Society Con-

ference on, volume 2, pages 1491–1498. IEEE.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

334
