DETCIC: Detection of Elongated Touching Cells with Inhomogeneous

Illumination using a Stack of Conditional Random Fields

A. Memariani

, C. Nikou

1,2

, B. T. Endres

, E. Bass

eres

, K. W. Garey

and I. A. Kakadiaris

Computational Biomedicine Lab, Department of Computer Science, University of Houston, Houston, TX, U.S.A.

Department of Computer Science and Engineering, University of Ioannina, Greece

Department of Pharmacy Practice and Translational Research, University of Houston, Houston, TX, U.S.A.

Keywords:

Cell Detection, Conditional Random Fields, Clostridium Difﬁcile Infection.

Abstract:

Automated detection of touching cells in images with inhomogeneous illumination is a challenging problem.

A detection framework using a stack of two conditional random ﬁelds is proposed to detect touching elongated

cells in scanning electron microscopy images with inhomogeneous illumination. The ﬁrst conditional random

ﬁeld employs shading information to segment the cells where the effect of inhomogeneous illumination is re-

duced. The second conditional random ﬁeld estimates the cell walls using their estimated cell wall probability.

The method is evaluated using a dataset of Clostridium difﬁcile cells. Finally, the method is compared with

two region-based cell detection methods, CellDetect and DeTEC, improving the F-score by at least 20%.

1 INTRODUCTION

Developments in scanning electron microscopy

(SEM) have facilitated the acquisition of digital im-

ages of micron level cells, leading to improvements in

cell quantiﬁcation for pharmaceutical and medical re-

search studies (Endres et al., 2016). However, micro-

scopic images may have inhomogeneous illumination

and are often degraded due to noise. Furthermore,

the cells have various sizes and are clustered together,

making the problem of cell detection challenging.

Recent cell detection methods fall into two cat-

egories. The ﬁrst category assumes that the cells

are easily separable from the background. In this

family of methods, features are extracted from im-

age patches and are forwarded to a classiﬁer, such as

random forests, to identify the cell centroids (Kainz

et al., 2015) using several distance metrics for the

classiﬁcation score (Wu and Nevatia, 2009; Way-

alun et al., 2012; Saiyod and Wayalun, 2014; Minaee

et al., 2014). The second category includes region-

based detection methods. At ﬁrst, cell candidate re-

gions are detected based on shape or statistical texture

descriptors. Then, the best candidates are selected

based on correlation clustering (Zhang et al., 2014),

optimization-based (Arteta et al., 2012; Arteta et al.,

2016; Memariani et al., 2016; Browet et al., 2016), or

heuristic methods (Keuper et al., 2011; Santamaria-

Pang et al., 2015).

DeTEC (Memariani et al., 2016) applied a se-

quence of two Markov random ﬁelds (MRF) to detect

touching elongated cells. The ﬁrst MRF segments the

cells from the background using texture features. The

second MRF separates the touching cells by estimat-

ing the cell walls. However, DeTEC has the follow-

ing drawbacks: (i) It relies only on texture features

and cell wall probabilities to separate cells from their

background. Since the algorithm is unsupervised, the

features have the same level of importance. However,

inhomogeneous illumination may alter the local tex-

ture and hence decrease the accuracy of the segmen-

tation. (ii) It applies a number of edge detectors to

train a random forest, estimating the cell wall prob-

abilities. However, edge detectors are not robust to

noise. In case a cell is eroded due to a laboratory

treatment, the random forest detects the erroneous cell

walls. (iii) Noisy estimation of cell wall probabilities

leads to poor classiﬁcation of cell walls. (iv) It relies

on superpixels; Inhomogeneous illumination hinders

the extraction of superpixels whose boundaries match

with the cell walls.

Deep neural networks have been applied to mi-

croscopy images. DeepCell (Van Valen et al., 2016)

applied convolutional neural networks (CNN) to learn

the features. However, training a CNN requires a

large dataset to tune the parameters and hyperpa-

rameters of the networks, which remains a challenge

574

Memariani, A., Nikou, C., Endres, B., Bassères, E., Garey, K. and Kakadiaris, I.

DETCIC: Detection of Elongated Touching Cells with Inhomogeneous Illumination using a Stack of Conditional Random Fields.

DOI: 10.5220/0006623305740580

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 4: VISAPP, pages

574-580

ISBN: 978-989-758-290-5

(i) (ii) (iii)

(iv) (v) (vi)

(vii) (viii) (ix)

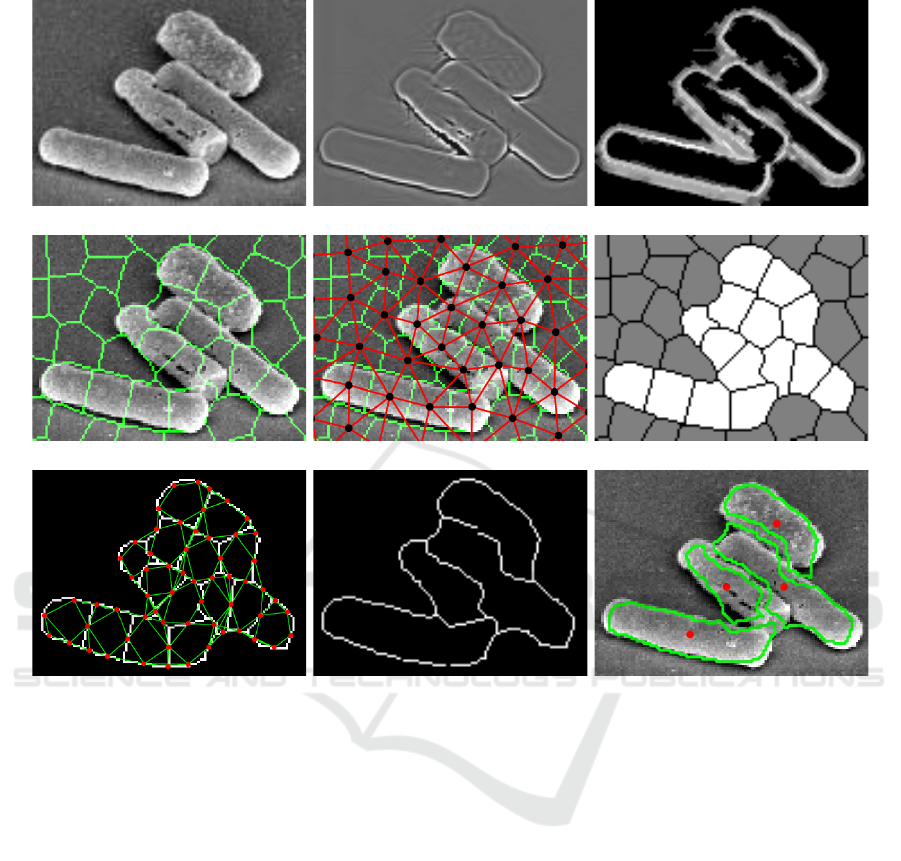

Figure 1: Application of DETCIC to a Clostridium difﬁcile cell image acquired via SEM imaging with 10,000x magniﬁcation.

(i) Depiction of original image. (ii) Illumination normalization is applied on original image. (iii) A random forest estimates

the cell wall probabilities. (iv) Image is divided into superpixels. (v) The ﬁrst CRF is deﬁned onto superpixels, which

segments the cells from their background. (vi) The ﬁrst CRF segments the cells from their background. (vii) The second CRF

is imposed on superpixel boundary components to estimate the cell walls. (viii) The second CRF estimates the cell walls. (ix)

Detected cell centroids and their boundaries are shown.

speciﬁcally for images obtained by scanning electron

microscopy (SEM).

In this paper, DETCIC a detector of elongated

cells is proposed which improves the performance

of DeTEC with respect to the drawbacks mentioned

above. Speciﬁcally, (i) DETCIC considers shading

along with texture for feature extraction. (ii) it em-

ploys a shearlet based edge detector (King et al.,

2015) that is robust to noise to enhance the detection

of the cell wall pixels. (iii) DETCIC applies a stack

of two conditional random ﬁelds, which is a super-

vised method, in contrast to the MRF formulation of

DeTEC. (iv) DETCIC applies illumination normaliza-

tion, reducing the effect of inhomogeneous illumina-

tion.

The rest of the paper is organized as follows.

Section 2 describes the proposed algorithm. Exper-

imental results are presented in Section 3, comparing

the performance of DETCIC with the state-of-the-art

cell detection methods DeTEC and CellDetect (Arteta

et al., 2012). Finally, conclusions are drawn in Sec-

tion 4.

2 METHODS

DETCIC consists of a stack of two conditional ran-

dom ﬁelds (CRF): the ﬁrst CRF selects the cell can-

didates from the background while the second CRF

separates the touching cells. Estimating the cell walls

is an important step for both CRFs. Figure 1 depits

the steps of the algorithm. This section describes how

DETCIC: Detection of Elongated Touching Cells with Inhomogeneous Illumination using a Stack of Conditional Random Fields

575

(a) (b) (c) (d) (e)

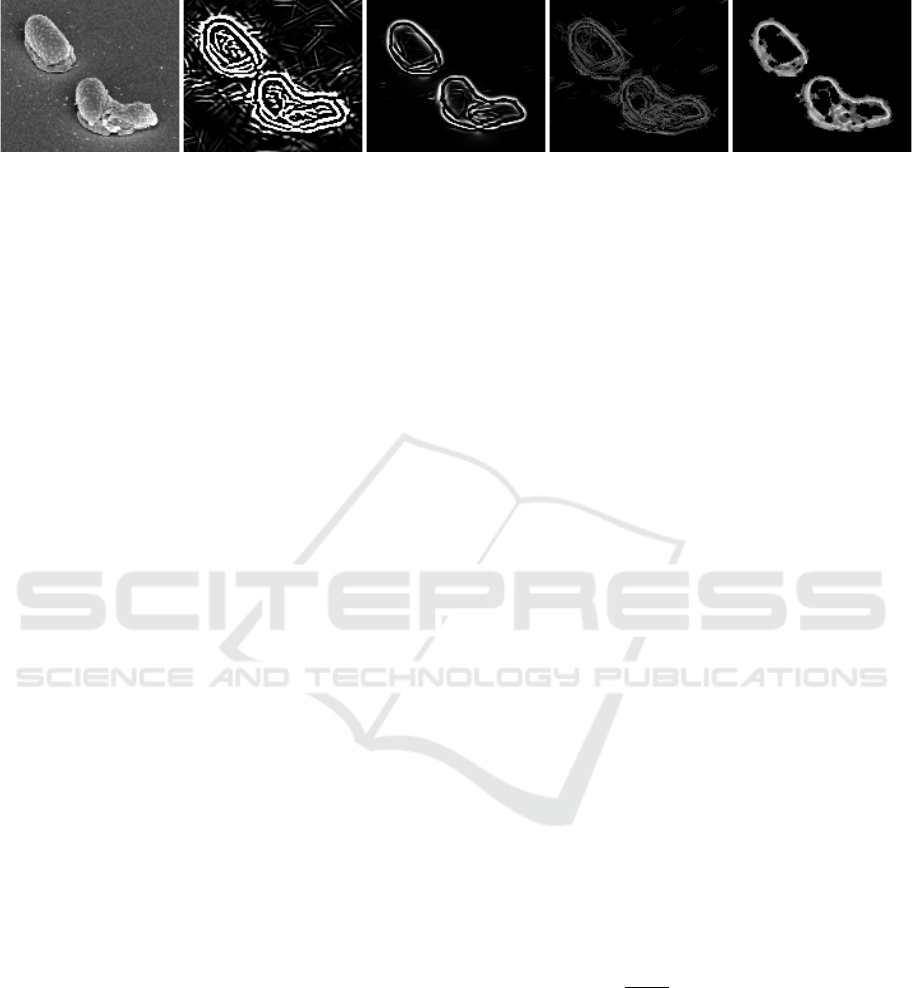

Figure 2: Depiction of edge detector features used for estimation of cell wall probabilities: (a) Original image, (b) Difference

of Gaussians, (c) Application of a vessel enhancement ﬁlter (Frangi et al., 1998), (d) Roberts edge detector, and (e) A shearlet-

based edge detector (King et al., 2015).

the cell walls can be estimated and how the cell wall

probabilities can be applied to form the potentials of

the two CRFs.

2.1 Estimation of the Cell Walls

Inhomogeneous illumination hampers the detection of

the cell walls. The illumination component is esti-

mated by smoothing the original image in the loga-

rithmic domain using a Gaussian ﬁlter. Then, the il-

lumination normalized image is obtained by dividing

the image intensities with the estimated illumination

in every image I:

= exp(log(I + 1) − log (I + 1) ∗ G), (1)

where, G is a Gaussian ﬁlter with standard devia-

tion σ

. The underlying assumption in Eq (1) is the

Retinex model (Zosso et al., 2013) of illumination

which states that an acquired image I is a pointwise

product of illumination and reﬂectance. The illumi-

nation component is present mainly in coarse scales

and it can be estimated by appropriately smoothing

the image. The reﬂectance component captures struc-

tures lying, in general, in ﬁner scales.

The illumination normalization highlights the cell

walls, reducing the effect of inhomogeneous illumi-

nation. A shearlet-based total variation method is ap-

plied to obtain the denoised image D, retaining the

cell boundaries (Easley et al., 2009).

A random forest estimates the probability of a

pixel belonging to a cell wall in D. We compute a

matrix of edge detector features F

, including, differ-

ence of Gaussian, a vessel enhancement ﬁlter (Frangi

et al., 1998), Roberts, and a shearlet-based edge de-

tectors (King et al., 2015). The ﬁrst two edge detec-

tors are selected because they create a narrow line for

cell walls though they may include some noise. On

the contrary, the last two features preserve the edges,

which have the shape of a curve, but they cover a

thicker area around the actual cell walls (Figure 2).

The random forest combines all the edge detectors to

provide robust boundaries representing the cell walls.

Next, a sequence of two CRFs is describe in which

the ﬁrst CRF ﬁnds the cell candidate regions and the

second CRF separates cells by estimating their cell

walls.

2.2 Cell Candidate Segmentation

The denoised image D is divided into superpixels

(Mori, 2005). A CRF is applied onto the superpix-

els with the following objective function:

∑

, λ

) +

∑

j∈G

ti j

(λ

, λ

t j

, P

ti j

)





. (2)

The unary u

and pairwise v

ti j

potentials are con-

sidered linear in the parameter w

. The feature vec-

tor f

contains the mean of the shading (Zosso et al.,

2013) and intensity values of the i

superpixel.

The pairwise potential v

ti j

adds a penalty if the

neighboring superpixels have different labels. The

pairwise penalty is reduced if the boundary segment

between the superpixels i and j has a high probability

of belonging to cell wall:

ti j

∑

x∈N

ti j

. cos α

ti j

, (3)

where N

ti j

is the set of all pixels separating the su-

perpixels i and j in the image t of the training set,

and p

is the probability of a pixel at position x be-

longing to a cell wall obtained by the trained random

forest. The angle α

ti j

is the angle between the su-

perpixel boundary component (SBC) and the corre-

sponding connected component estimated by the ran-

dom forest when the cell wall probability map is su-

perimposed onto the superpixel map (Figure 3).

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

576

(a) (b) (c) (d)

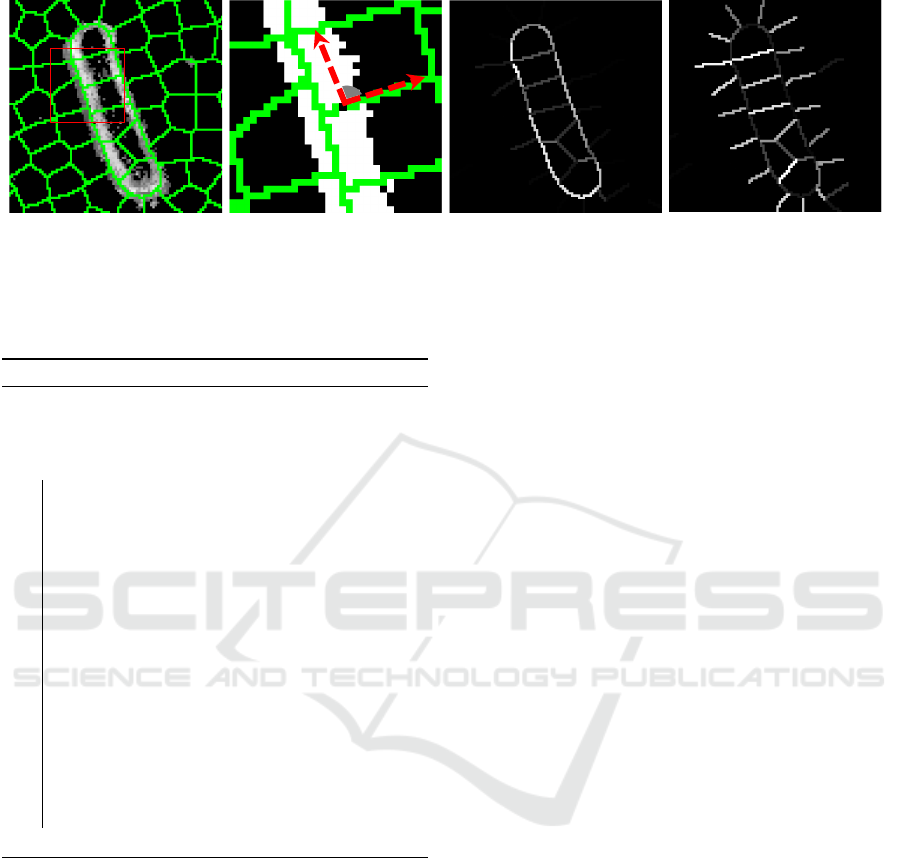

Figure 3: (a) Superpixel map (green color) is overlaid onto the cell wall probability map. (b) Zoomed visualization of the area

inside the red square in (a). The gray angle is determined by the largest connected component in the probability map (white

color) and the superpixel boundary segments (green color). (c) The mean cell wall probabilities of the image depicted in (a).

(d) Depiction of the standard deviations of cell wall probabilities.

Algorithm 1: DETCIC training.

Input : Training images, cell annotations

Output: Trained random forest, CRF weight

parameters

1 begin

2 For every image I

(t = 1, ..., n

) in the

training set, compute the illumination

normalized image I

, shearlet denoised

image D

, superpixel map S

, and edge

detector feature map F

3 Given the feature map F

train a random

forest to estimate the cell wall

probability P

4 Given P

and S

train the ﬁrst CRF on

superpixels, minimizing E

to obtain

weights w

5 For every S

(t = 1, ..., n

), extract SBCs

that belong to a cell wall.

6 Train the second CRF on SBCs,

minimizing E

to learn the weights w

7 end

The ﬁrst CRF separates the cell regions from the

background by predicting the superpixel labels λ

However, the cells may be clustered together. Thus,

A second CRF is imposed onto the SBCs of the se-

lected superpixels to estimate the cell walls and sepa-

rate cells.

2.3 Elongated Cell Separation

The second CRF is deﬁned over the SBCs extracted

from the ﬁrst CRF. The objective function aims to se-

lect SBCs that are probable to belong to a cell wall

and are elongated:

∑

, λ

, w

) +

∑

r∈G

tqr

(λ

, λ

, f

, B

tqr

, w

)





. (4)

Similar to the ﬁrst CRF, the unary and the pair-

wise terms are linear combinations of features and

weight parameters that minimize the energy function

. The unary feature vector f

includes the mean

and standard deviation of the cell wall probabilities

t pq

. The pairwise feature vector includes the differ-

ence between the two unary features and the cosine

of the angle B

tqr

between SBCs q and r. The pair-

wise potential v

tqr

penalizes the objective function if

the predicted labels λ

and λ

are different. However,

the penalty is reduced if the two SBCs have different

unary features or do not form an elongated structure.

2.4 DETCIC Training and Inference

The DETCIC training set includes images

(t = 1, ..., n

), which are annotated manually.

Cell wall labels to train the random forest are the

boundaries of the annotations.

Moreover, the CRF objective function

is trained with the superpixel label set

= {l

∈ {0, 1}|i = 1, ..., n

}, where n

is the

number of superpixels in the image. The ﬁrst CRF

selects superpixels that are likely to belong to a

cell. The second CRF is trained with the label set

= {l

t p

∈ {0, 1}|p = 1, ..., n

}, where n

is the

number of SBCs extracted from the cell candidate

superpixels in the image t in the training set. Label

sets L

and L

are computed from the manual

annotations. Algorithm 1 outlines the training steps

for both CRFs. A graph cut provides the labels

DETCIC: Detection of Elongated Touching Cells with Inhomogeneous Illumination using a Stack of Conditional Random Fields

577

(a) (b) (c) (d)

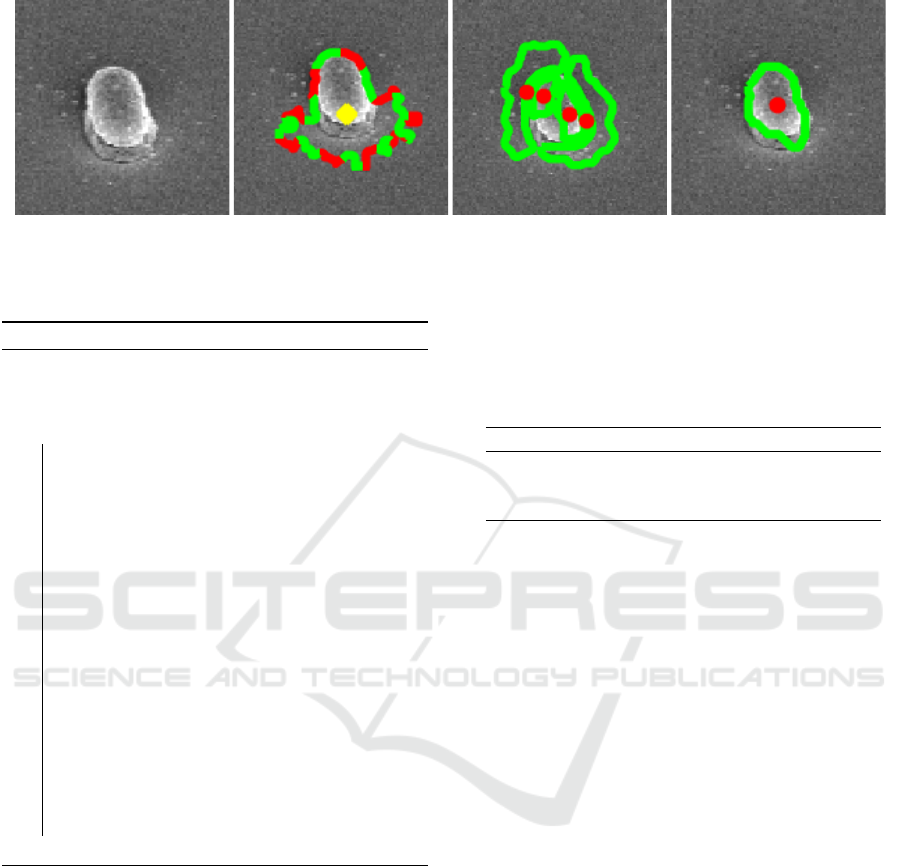

Figure 4: Depiction of the effect of inhomogenous illumination: (a) Original image, (b) CellDetect (Arteta et al., 2012),

Algorithm 2: DETCIC inference.

Input : A new image I

, the parameters of

the random forest and CRFs

Output: Cell centroids

1 begin

2 For the cell image I

, compute the

illumination normalized image I

, the

shearlet denoised image D

, the

superpixel map S

, and the edge

detector features F

3 Input F

to the trained random forest to

compute the cell wall probability map

4 Given P

, S

, and w

, apply graph cut to

obtain a segmentation on superpixels.

5 Extract the SBCs from the selected

superpixels.

6 Given P

, and w

, apply graph cut on

SBCs to estimate cell walls.

7 Use the estimated cell walls to create

morphological connected components.

8 Compute the cell centroids.

9 end

for each CRF while a gradient-based optimization

method selects the best parameter conﬁguration w

that minimizes the objective function E .

Algorithm 1 learns the parameters (w

, w

Given a new image I

, computing the cell wall prob-

abilities P

requires computing the illumination nor-

malized image I

and denoised image D

similar to

the training images.

Then, DETCIC performs two graph cuts: the ﬁrst

is applied to a rough segmentation of the cells from

the background and the second is applied to the SBCs

to determine the cell walls (Algorithm 2).

Table 1: Comparative results between DETCIC, DeTEC

(Memariani et al., 2016), and CellDetect (Arteta et al.,

2012), where the acceptable distance of detected centroids

from the ground truth is set to the length of the major axis

of the smallest cell in the dataset.

Method Precision Recall F-score

CellDetect 0.80 0.23 0.36

DeTEC 0.50 0.88 0.63

DETCIC 0.68 0.83 0.75

3 EXPERIMENTAL RESULTS

A dataset of Clostridium difﬁcile cell images was ac-

quired via SEM imaging with 10,000x magniﬁcation

and 411×711 pixel resolution. A set of 19 images

(211 cells) with similar contrast and cell density were

selected for the experiments. The cells are inhomoge-

nously illuminated. Furthermore, cell densities are

low in most images but many cells are clustered to-

gether, making the detection challenging. In some

cases, the cells are partially destroyed due to a lab-

oratory treatment. A GUI is developped for the anno-

tating the cells and the annotations were veriﬁed by

the expert.

Cell centroids are manually annotated to provide

the ground truth. A cell is considered to be detected

if the detected centroid lies within a distance d from

the ground truth. The distance is set to the length of

the smallest cell in the dataset. Precision, recall, and

F-score are computed to measure the performance of

detection.

Table 1 provides the comparison of the perfor-

mance of DETCIC with CellDetect and DeTEC. The

training was based on a leave-one-out cross valida-

tion. CellDetect is a supervised region-based cell de-

tection method which applies extremal regions to de-

tect candidate cell regions (Matas et al., 2004). Then,

a statistical model selects the best extremal regions.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

578

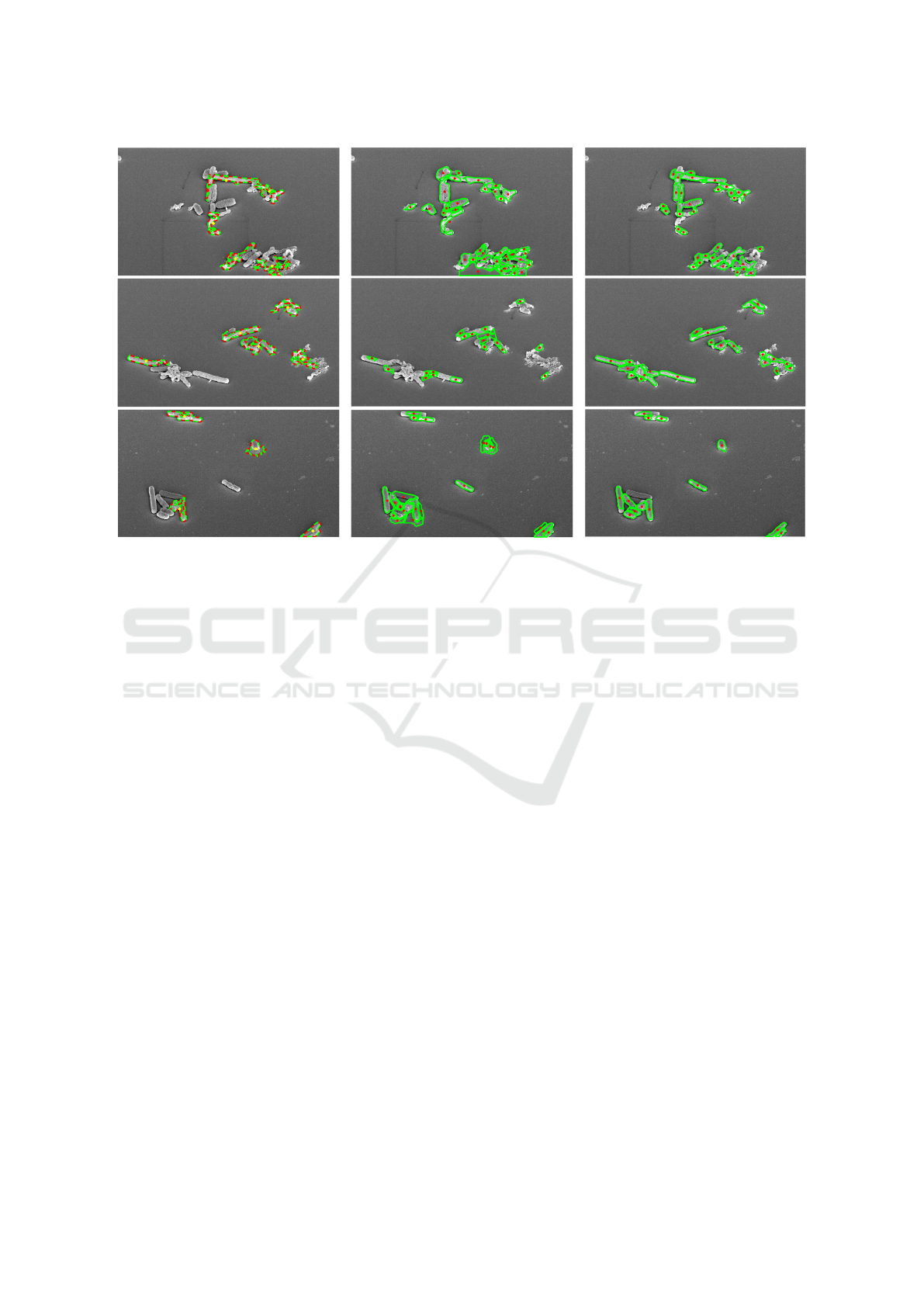

Figure 5: Depiction of the detected cell centroids and their estimated cell walls for CellDetect (Arteta et al., 2012) (Left),

DeTEC (Memariani et al., 2016) (Middle), and DETCIC (Right).

However, CellDetect fails to detect a fair amount of

cells, assuming there should exist some extremal re-

gions that can represent the cells (Arteta et al., 2016).

Therefore, CellDetect achieves a lower recall index

compared to the other two methods. DeTEC is an un-

supervised region-based method that applies an MRF

to segment the cell candidates, and a second MRF to

separate the best cell walls to detect the centroids. Al-

though DeTEC detects most cells, the detected cell

walls are sensitive to erosion which may be caused by

a pharmaceutical treatment. Therefore, some cells are

broken into smaller pieces, increasing the number of

false positives which leads to low precision. DETCIC

signiﬁcantly improves the cell break downs due to a

better estimation of cell wall probabilities which are

used to train the second CRF.

Figure 4 depicts an instance where inhomoge-

neous illumination created shadows on the cell body

as well as the area around the cell. CellDetect falsely

includes shadows around the cell as part of the cell

body. Furthermore, the shadow on the cell body cre-

ate two bright side on both sides of the cell. DeTEC

considers these sides as separate cells and fails to de-

tect the entire cell. However, DETCIC is able to re-

duce the effect of illumination and detect the cell wall

accurately.

Figure 5 depicts examples of detected cells.

CellDetect does not detect many cells while failing

to separate clusters of touching cells. On the contrary

DETCIC is able to detect most cells. However, a few

cells are missing due to large shadows which make

the cells merge into the background.

DeTEC is able to detect most cells or a portion of

them. However, DeTEC fails to estimate the correct

boundaries in many cases. Also, DeTEC fails to dis-

tinguish between cells and small background regions

surrounded by cells due to its unsupervised nature.

Furthermore, DeTEC is more sensitive to inho-

mogeneous illumination compared to DETCIC. More

speciﬁcally, DeTEC fails to clearly distinguish be-

tween cells and background in image regions where

cell walls are covered by shadows. Figure 4 depicts

the detection of a cell effected by inhomogeneous il-

lumination.

4 CONCLUSIONS

A cell detection method (DETCIC) is proposed, that

can be used to extract cell meta-data (e.g., number of

cells, cell length, cell deformation, etc.). DETCIC is

applied on SEM images with inhomogeneous illumi-

nation to detect clostridium difﬁcile cells. DETCIC

successfully separates touching elongated cells by es-

timating their cell walls.

DETCIC: Detection of Elongated Touching Cells with Inhomogeneous Illumination using a Stack of Conditional Random Fields

579

ACKNOWLEDEMENTS

This work was supported in part by the National Insti-

tutes of Health (NIH/NIAID 1UO1 AI-24290-01) and

by the Hugh Roy and Lillie Cranz Cullen Endowment

Fund. All statements of facts, opinion or conclusions

contained herein are those of the authors and should

not be construed as representing ofﬁcial views or poli-

cies of the sponsors.

REFERENCES

Arteta, C., Lempitsky, V., Noble, A., and Zisserman,

A. (2016). Detecting overlapping instances in mi-

croscopy images using extremal region trees. Medical

Image Analysis, 27:3–16.

Arteta, C., Lempitsky, V., Noble, J. A., and Zisserman, A.

(2012). Learning to detect cells using non-overlapping

extremal regions. In Proc. Medical Image Computing

and Computer Assisted Intervention, pages 348–356,

Berlin, Heidelberg.

Browet, A., Vleeschouwer, C. D., Jacques, L., Mathiah, N.,

Saykali, B., and Migeotte, I. (2016). Cell segmenta-

tion with random ferns and graph-cuts. In Proc. IEEE

International Conference on Image Processing, pages

4145–4149, Phonix, AZ.

Easley, G. R., Labate, D., and Colonna, F. (2009). Shearlet-

based total variation diffusion for denoising. IEEE

Transactions on Image Processing, 18(2):260–268.

Endres, B. T., Bassres, E., Memariani, A., Chang, L., Alam,

M. J., Vickers, R. J., Kakadiaris, I. A., and Garey,

K. W. (2016). A novel method for imaging the phar-

macological effects of antibiotic treatment on clostrid-

ium difﬁcile. Anaerobe, 40:10–14.

Frangi, A., Niessen, W., Vincken, K., and Viergever, M.

(1998). Multiscale vessel enhancement ﬁltering. In

Proc. Medical Image Computing and Computer As-

sisted Intervention, volume 1496, pages 130–137,

Cambridge, MA.

Kainz, P., Urschler, M., Schulter, S., Wohlhart, P., and

Lepetit, V. (2015). You should use regression to de-

tect cells. In Proc. Medical Image Computing and

Computer-Assisted Intervention, pages 276–283, Mu-

nich, Germany. Springer.

Keuper, M., Schmidt, T., Rodriguez-Franco, M., Schamel,

W., Brox, T., Burkhardt, H., and Ronneberger, O.

(2011). Hierarchical markov random ﬁelds for mast

cell segmentation in electron microscopic recordings.

In Proc. IEEE International Symposium on Biomedi-

cal Imaging: From Nano to Macro, pages 973–978,

Chicago, IL.

King, E., Reisenhofer, R., Kiefer, J., Lim, W., Li, Z., and

Heygster, G. (2015). Shearlet-based edge detection:

ﬂame fronts and tidal ﬂats. In Proc. SPIE Applications

of Digital Image Processing, volume 9599, pages 1–

11, San Diego, CA.

Matas, J., Chum, O., Urban, M., and Pajdla, T. (2004).

Robust wide-baseline stereo from maximally stable

extremal regions. Image and Vision Computing,

22(10):761–767.

Memariani, A., Nikou, C., Endres, B. T., Bass

eres, E.,

Garey, K. W., and Kakadiaris, I. A. (2016). DeTEC:

detection of touching elongated cells in sem images.

In Proc. International Symposium on Visual Comput-

ing, pages 288–297, Las Vegas, NV.

Minaee, S., Fotouhi, M., and Khalaj, B. (2014). A geomet-

ric approach to fully automatic chromosome segmen-

tation. In Proc. IEEE Signal Processing in Medicine

and Biology Symposium, pages 1–6, Philadelphia, PA.

Mori, G. (2005). Guiding model search using segmenta-

tion. In IEEE International Conference on Computer

Vision, pages 1417–1423.

Saiyod, S. and Wayalun, P. (2014). A hybrid technique

for overlapped chromosome segmentation of g-band

mataspread images automatic. In Proc. International

Conference on Digital Information and Communica-

tion Technology and its Applications, pages 400–404,

Bangkok, Thailand.

Santamaria-Pang, A., Rittscher, J., Gerdes, M., and Pad-

ﬁeld, D. (2015). Cell segmentation and classiﬁcation

by hierarchical supervised shape ranking. In Proc.

IEEE International Symposium on Biomedical Imag-

ing, pages 1296–1299, Brooklyn, NY.

Van Valen, D. A., Kudo, T., Lane, K. M., Macklin, D. N.,

Quach, N. T., DeFelice, M. M., Maayan, I., Tanouchi,

Y., Ashley, E. A., and Covert, M. W. (2016). Deep

learning automates the quantitative analysis of indi-

vidual cells in live-cell imaging experiments. PLoS

Computational Biology, 12(11):e1005177.

Wayalun, P., Chomphuwiset, P., Laopracha, N., and Wan-

chanthuek, P. (2012). Images enhancement of g-band

chromosome using histogram equalization, OTSU

thresholding, morphological dilation and ﬂood ﬁll

techniques. In Proc. 8

International Conference on

Computing and Networking Technology, pages 163–

168, Gueongju, China.

Wu, B. and Nevatia, R. (2009). Detection and segmentation

of multiple, partially occluded objects by grouping,

merging, assigning part detection responses. Interna-

tional Journal of Computer Vision, 82:185–204.

Zhang, C., Yarkony, J., and Hamprecht, F. A. (2014). Cell

detection and segmentation using correlation clus-

tering. In Proc. Medical Image Computing and

Computer-Assisted Intervention, pages 9–16, Boston.

Springer.

Zosso, D., Tran, G., and Osher, S. (2013). A unifying

retinex model based on non-local differential opera-

tors. In Proc. SPIE Computational Imaging, volume

8657, pages 865702–865702–16, Burlingame, CA.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

580
