Towards a Pre-diagnose of Surgical Wounds through the Analysis of

Visual 3D Reconstructions

Neus Muntaner Estarellas

, Francisco Bonin-Font

, Juan J. Segura-Sampedro

Andres Jim

enez Ram

ırez

, Pep L. Negre Carrasco

, Miquel Massot Campos

Francesc X. Gonzalez-Argent

and Gabriel Oliver Codina

Department of Mathematics and Computer Engineering, University of the Balearic Islands,

Ctra. Valldemossa Km 7.5, 07122 Palma de Mallorca, Spain

Department of General and Digestive Surgery, University Hospital Son Espases,

07122 Palma de Mallorca, Spain

Group of Ingenier

ıa Web y Testing Temprano, Department of Languages and Computing Systems, University of Sevilla,

c/ San Fernando 4, 41004 Sevilla, Spain

Keywords:

3D Visual Reconstruction, Structure From Motion, Post-surgical Wound, Telemedicine.

Abstract:

This paper presents a new methodology to pre-diagnose the state of post-surgical abdominal wounds based

on visual information. The process consist of four major phases: a) building dense 3D reconstruction of the

abdominal area around the wound, b) selecting an area close to the wound to ﬁt a plane, c) calculating the

distance from each point of the 3D model to the plane, d) analyzing this map of distances to infer if the wound

is inﬂamed or not. This method needs to be wrapped in an application to be used by patients in order to save

unnecessary visits to the medical center.

1 INTRODUCTION

The emergency and the outpatient facilities of the

Spanish public health care system are usually col-

lapsed by the numerous of unnecessary visits to the

assistance centers that could be solved at home with

several indications given by the corresponding spe-

cialist.

In 2017, more than 3000 operations were done

in the University Hospital Son Espases, in Palma de

Mallorca, from which, only approximately the half of

them were programmed. That makes a mean of 250

patients per month, 63 patients per week, and 13 pa-

tients per day. If the consult mean time in Spain is

intended to range between 6 and 10 minutes, it makes

a mean of 2 hours a day dedicated only to take care

of post surgery wounds, without taking into consid-

eration the rests of tasks, such as, new patients, non

surgery patients, management meetings or emergen-

cies.

Every surgery patient is evaluated twice after the

surgical procedure. The ﬁrst review is at the health

center after a week. And it is evaluated again one

month later as outpatient, at the hospital. One of the

main reasons for this evaluation is to check the surgi-

cal wound and detect its infection. However the rate

of infection is low and when it happens it is usually

detected in the emergency department.

This face-to-face consultations, where most of

them present no anomalies, could be easily managed

remotely, having a cheaper cost and affecting less

the patients’ quality of life, as they require unneces-

sary transfers to the health facility and absences from

work. Moreover, if the patient is unable to suspect

the wound infection on time, as it usually happens, an

increase of the emergency department consultations

is produced, normally with a delay in the wound in-

fection diagnosis which results in an increase of visit

time per patient.

Consequently, every technological progress in the

ﬁeld of health care management, in general, and in the

post-surgery assistance in particular, is very useful to

reduce the costs, to improve the quality of assistance

time and thus to increase the quality of life of the

patients. Medical computer and mobile applications

focused on remote automatic diagnose and patient

management/monitoring have been advancing in the

last years citenephroﬂow, (Topdoctors, 2017). Lately,

some studies in telemedicine support the feasibility

and safety of remote follow-up in surgical wounds

Estarellas, N., Bonin-Font, F., Segura-Sampedro, J., Ramírez, A., Carrasco, P., Campos, M., Gonzalez-Argenté, F. and Codina, G.

Towards a Pre-diagnose of Surgical Wounds through the Analysis of Visual 3D Reconstructions.

DOI: 10.5220/0006628505890595

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 4: VISAPP, pages

589-595

ISBN: 978-989-758-290-5

589

and the patients satisfaction (Segura-Sampedro et al.,

2017). In this later reference as well as in similar

studies (Nordheim et al., 2014), photos or videos of

the wound and ﬁlled questionnaires constitute the ex-

changed data between the patient and the doctor, but

is the doctor who always analyzes and evaluates the

received information. However, to our knowledge,

none of the revised methods or Apps is able to esti-

mate, automatically, a reliable pre-diagnose based on

visual data, and to ﬁlter out those wounds that clearly

present a good evolution, without the intervention of

the physician. Following this line, the Department of

General and Digestive Surgery of the University Hos-

pital Son Espases is collaborating with the Systems,

Robotics and Vision group of the University of the

Balearic Islands, in order to go one step forward in the

design and implementation of a vision-based mobile

App for telemedicine that can help in the estimation

of a pre-diagnose of abdominal post surgery wounds.

The objective is ﬁltering, automatically, those wounds

that potentially present inﬂammation as sign of infec-

tion and need a face-to-face evaluation in the hospital

from those that course a normal evolution and can be

managed at home, saving time and medical resources.

The novelty of this work is more in the methodology

itself and the application than in the pipeline of visual

algorithms designed to get the objective. This method

needs to be wrapped into a future compact mobile

App, which will contain additional functionalities to

increase the communication and data exchange be-

tween doctors and patients.

The wound analysis process consists of a pipeline

that involves the next steps: a) grab a video sequence,

with the mobile, of the abdominal zone around the

wound, from side to side, viewing the same area but

from different perspectives and viewpoints, b) extract

images of the video sequence, c) extract and track

common visual features in all the images, d) build a

3D sparse point cloud using a Structure From Motion

(SFM) (Hartley and Zisserman, 2003) algorithm, e)

build a dense point-cloud and a textured meshed sur-

face, f) establish a polyline and a plane ﬁtted in this

polyline in a selected portion of the 3D model; this

plane is intended to be, either tangent to the abdomen

surface, or crossing the abdominal area, below the

wound, g) compute the distance between each point

of the 3D model and the plane, and emit a diagnose

function of these distances.

2 METHODOLOGY

Firstly, the patient must record with the mobile tele-

phone a video of the wound, from side to side of the

abdominal area, in order to have views from different

perspectives and viewpoints. The second step is au-

tomatic and consist of extracting all the images from

the video sequence. Once the images have been ex-

tracted, the process of 3D reconstruction starts auto-

matically with the feature tracking process. The SFM

geometric theory (Hartley and Zisserman, 2003) is

based on the tracking of a set of world points pro-

jected in several images taken by the same camera

from different viewpoints. These projected points

and their correspondences in the subsequent images

are obtained thanks to a process of a classical visual

feature detection and matching (Hartley and Zisser-

man, 2003) using two reputed detectors invariant to

rotation and scale: one detector with scalar descrip-

tor, SIFT (Lowe, 2004), and one detector with binary

descriptors, ORB (Rublee et al., 2011). Both tech-

niques have proved extendedly his excellent perfor-

mance in terms of number of features, robustness and

traceability. Invariance to scale and rotation is impor-

tant for this kind of application since the image key

points must be identiﬁed in all frames of the video se-

quence, which show the affected area from different

viewpoints. Figure 1 shows an image provided by the

University Hospital Son Espases of a surgical wound,

with the visual features obtained using the 2 different

detectors.

(a) (b)

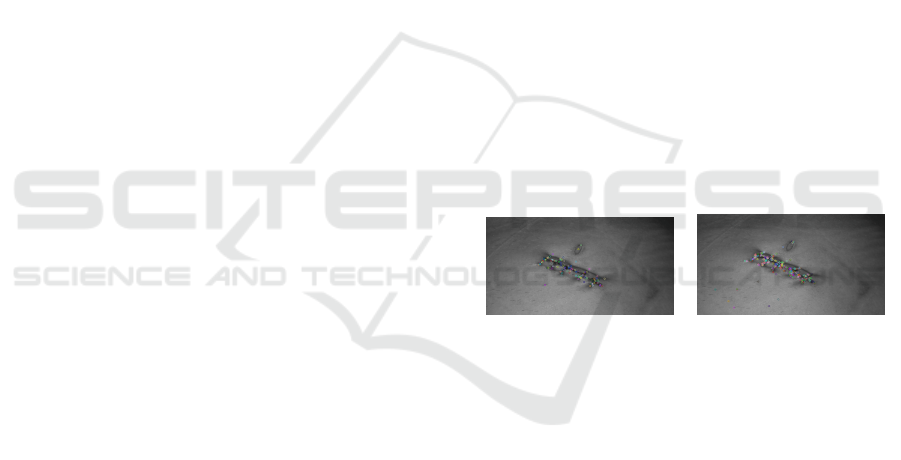

Figure 1: Feature detection with: (a) SIFT, (b) ORB.

The feature detection with the 2 tested features has

been implemented with the feature detector OpenCv2

functions. The descriptor matching has been imple-

mented with the FLANN (Muja and Lowe, 2009)

matcher library. Good matches (inliers) are consid-

ered to be those which distance between correspon-

dences in different images is under a certain threshold

(typically, either 0.02 or 2 times the minimum dis-

tance between all the matches). Bad matches are dis-

carded.

Given the projection matrices, the 3D coordinates

of a world point can be obtained from its correspond-

ing image points (in this case visual features) identi-

ﬁed in several views (matching) using triangulation.

Ideally, the 3D point should lie in the intersection of

all back-projected rays. But, in general, these rays

will not intersect in a single point due to the errors in-

herent to the feature matching process. The 3D coor-

dinates of the world point are obtained minimizing the

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

590

sum of squared errors between the measured and the

predicted image positions of the 3D point projected

in all involved views where the world point is visible:

X = argmin

∑

− ˆu

, where u

is the predicted

image point and ˆu

is the corresponding measured im-

age point, for all the i images where the 3D point is

projected. The predicted image point can be obtained,

for example, from the feature matching process, and

the measured point is directly the projection of the

world point on the image.

The library OpenMVG (Moulon et al., 2017) im-

plements the point triangulation and the 3D recov-

ery applying the SFM and the epipolar theories, re-

covering also the camera displacement, and has been

used to form sparse 3D point-clouds from input sets

of images. OpenMVS (cDcSeacave, 2017) provided

us with a complete set of algorithms to recover a full,

ﬁne and textured surface from a set of camera poses

and a sparse point-cloud.

Figure 2 illustrates the image processing pipeline

designed and implemented to obtain a dense 3D

model of the recorded area. The four ﬁrst steps have

been programmed with OpenMVG, and the last four

steps with OpenMVS. The SFM implementation is

based on (Moulon et al., 2013). This process is incre-

mental, which means that, the ﬁrst reconstruction is

done only with two views, and at every iteration a new

view is incorporated adding features, some match-

ing with the previous and needing triangulation, some

new in the scene. The reconstruction with known

poses refers to the process of reﬁning the 3D model

using the camera poses and the 3D point position rel-

ative to the know camera poses, once the SFM and

the camera motion have been computed. The point

cloud densiﬁcation is based on (Barnes et al., 2009),

the mesh reconstruction is based on (Jancosek and

Pajdla, 2014), the mesh reﬁnement is based on (Vu

et al., 2012), and ﬁnally, the mesh texturing is based

on (Waechter et al., 2014).

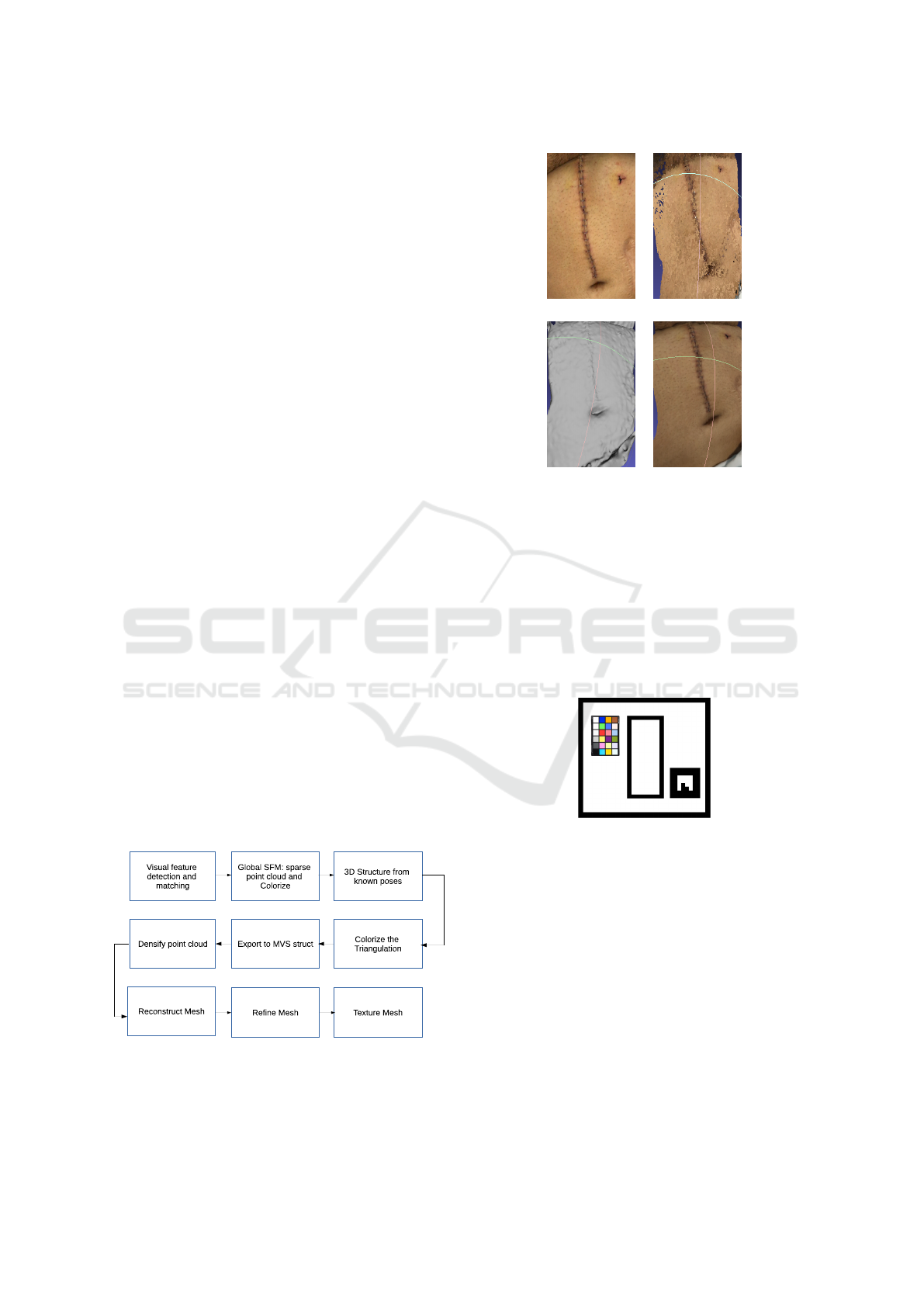

Figure 2: Image processing pipeline for wound 3D recon-

struction.

A 3D reconstruction of an abdominal area with

a post surgical wound is presented in ﬁgure 3 as

(a) (b)

Figure 3: A result of the 3D reconstruction pipeline: (a) a

frame of the recorded video, (b) the dense point cloud, (c)

reﬁned mesh, (d) reﬁned and textured mesh.

a sample of the pipeline performance. 130 frames

were extracted from the video. One sample image is

shown in ﬁgure 3-(a) and the video can be seen in

https://youtu.be/XW18WMFZPTw. The appearance

of the reconstructed abdomen is highly realistic, but

without a metric scale it is impossible to infer the 3D

structure dimensions.

Figure 4: Template used to scale the obtained 3D model.

The obtained 3D model has no metrical units,

since it is computed from the images and the vi-

sual feature coordinates which are expressed in pix-

els. Converting these data into metrical data was nec-

essary to estimate the wound state from the 3D re-

construction. To this end, the geometric template of

ﬁgure 4 was designed. This template contains one

color calibration pattern, not yet used in this work,

one geometrical marker which side measures 3.1cm

and a rectangular hole in between. The template must

be placed on the abdomen with the wound falling

just inside the rectangular hole. Once the template

is correctly placed, the video can be recorded. The

scale ratio applicable to all reconstructed 3D points

can be calculated dividing the marker side real metric

Towards a Pre-diagnose of Surgical Wounds through the Analysis of Visual 3D Reconstructions

591

by its length measured in the 3D model. A sample

of a video recorded with the template can be seen at

https://youtu.be/INtkQlNXbu0.

In order to perform the last steps of the pipeline

which include the plane ﬁtting and the distance calcu-

lation, the resulting 3D point cloud was opened with

Cloud Compare (Girardeau-Montaut, 2017). Using

this application, the 3D volume was cropped around

the wound and scaled according to the measures pro-

vided by the marker of the template (if it was avail-

able). Afterwards, a polyline was created inside the

processed 3D volume to ﬁt a plane inside it. This

plane was intended to be, either coincident with the

plane of the marker, or parallel to it, tangent to the

abdomen surface, just at the wound base, or cutting

the abdomen surface in four points, below the wound.

Finally, the distance of each point of the cloud to the

ﬁtted plane was calculated and exported to a csv ﬁle.

The analysis of these distances for each case leads to

an attempt of estimated diagnose.

3 EXPERIMENTS

In order to evaluate the complete procedure, some

simulated experiments were initially performed using

the template and a small cable with a diameter of 4mm

simulating an inﬂamed wound. Figure 5-(a) shows an

image of one simulated scene.

(a) (b)

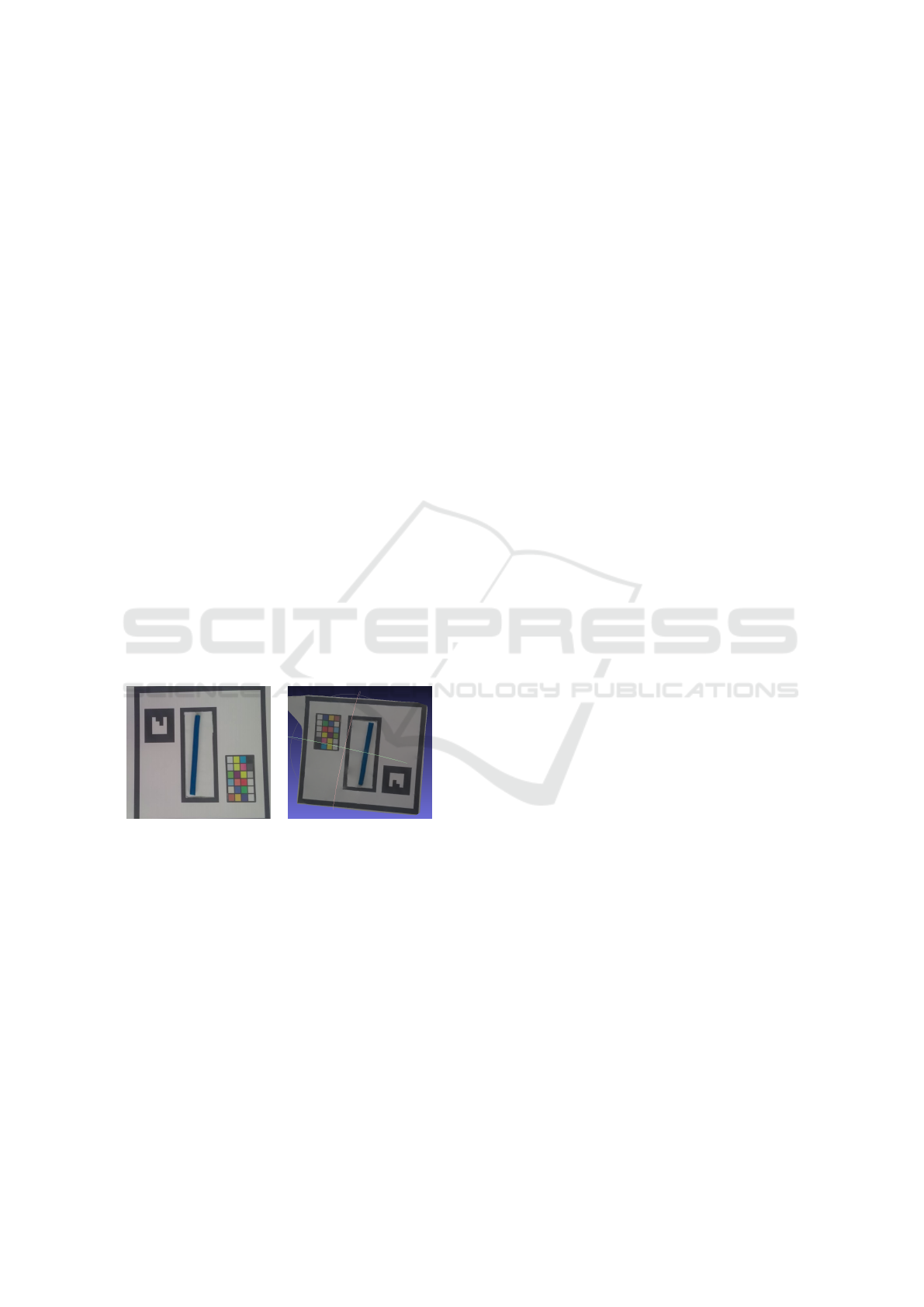

Figure 5: Simulated wound: (a) an image of the simulated

scene, (b) the textured mesh.

The length of the marker side in the 3D recon-

struction, measured in Cloud Compare was 0.122898

units. Knowing that the real length of the marker side

is 3.1cm, the scale factor set in Cloud Compare for

the 3 directions (x, y, z) was 0.031(m)/0.122898 =

0.25224169m. In this case, the ﬁtted plane was co-

incident with the plane of the marker. Figure 5-(b)

shows the textured mesh.

Figure 6 shows the selected volume in yellow (a),

the same volume with the ﬁtted plane (border in white

and plane area in blue) in (b), and the spatial map

of distances between all points of the selected vol-

ume and the ﬁtted plane, in (c). Notice how the pos-

itive (yellow-orange) distances range between 2mm

and 4mm, along the rectangle, clearly differentiating

the cable proﬁle from the surrounding area (blue). Ly-

ing the ﬁtted plane on the template, these positive dis-

tances coincide approximately with the cable diame-

ter.

Figure 7-(a) shows an image of another inﬂamed

wound simulated with a small cable. Figures 7-(b), 7-

tured mesh, the selected volume in yellow with the

polyline ﬁtting plane in white and the map of dis-

tances from points to the plane. The scale factor re-

sulted in 0.031m/0.0611679 = 0.50680177m, being

0.0611679 the marker side length measured in Cloud

Compare. The map of distances shows clearly the

linear shape of the simulated inﬂamed wound in the

center of the rectangle with positive distances around

3mm surrounded by points that mark negative dis-

tances below −4mm.

Figure 8-(a) shows the selected volume in yellow

around the wound of ﬁgure 3 with the polyline ﬁtting

the plane in white. In this case, the plane intersects the

abdomen below the wound, in one part, and above,

in another. This is a case of a wound with a good

evolution, without inﬂammation. Figure 8-(b) shows

the corresponding map of distances to the ﬁtted plane.

The central area in yellow indicates where the plane

is below the wound and the distance is bigger while

the extremes which tend to blue indicate where the

distance is smaller. In this case, the metric units and

values have no relevance. Since there are no points

in the center of the map that mark the shape of the

wound, one can conclude that most likely there is no

inﬂammation on the explored area.

Figure 9-(a) shows an image extracted from a

video of another example of post surgical wound with

a good evolution and no inﬂammation. In this case

the scale is also irrelevant. 35 images were extracted

to build the reﬁned and textured 3D model, shown

in ﬁgure 9-(b). In this experiment, the plane was

ﬁtted below the abdomen as shown in white in ﬁg-

ure 9-(c). The map of distances is show in ﬁgure 9-

(d). The later shows clearly the difference between

the central area with positive distances corresponding

to the zone with maximum curvature of the abdomen

(maximum distance to the plane), and both sides (top

and bottom) where the distance between the plane and

the abdomen is minimum, without any part suggest-

ing the presence of any inﬂamed area in the form of

a transversal line of distances clearly above the rest.

These type of resulting plot would suggest to the pa-

tient and to the doctor, in principle, an unnecessary

face-to-face revision.

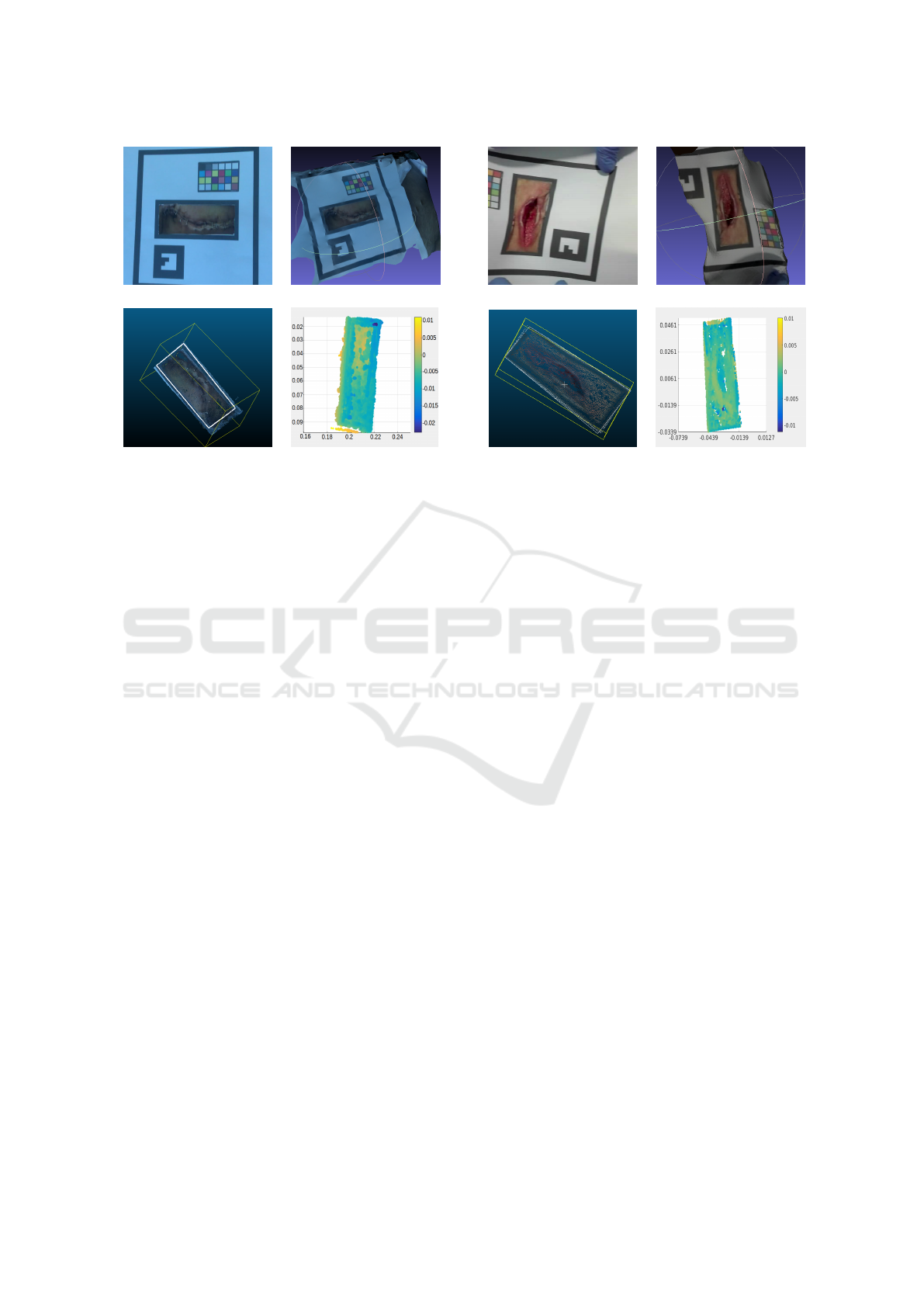

Figure 10-(a) shows an image extracted from

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

592

(a) (b) (c)

Figure 6: Simulated wound: (a) the selected volume and the polyline around it depicted in yellow, (b) the polyline in yellow

and the ﬁtted plane in white, (c) map of distances from each point to the ﬁtted plane.

(a) (b)

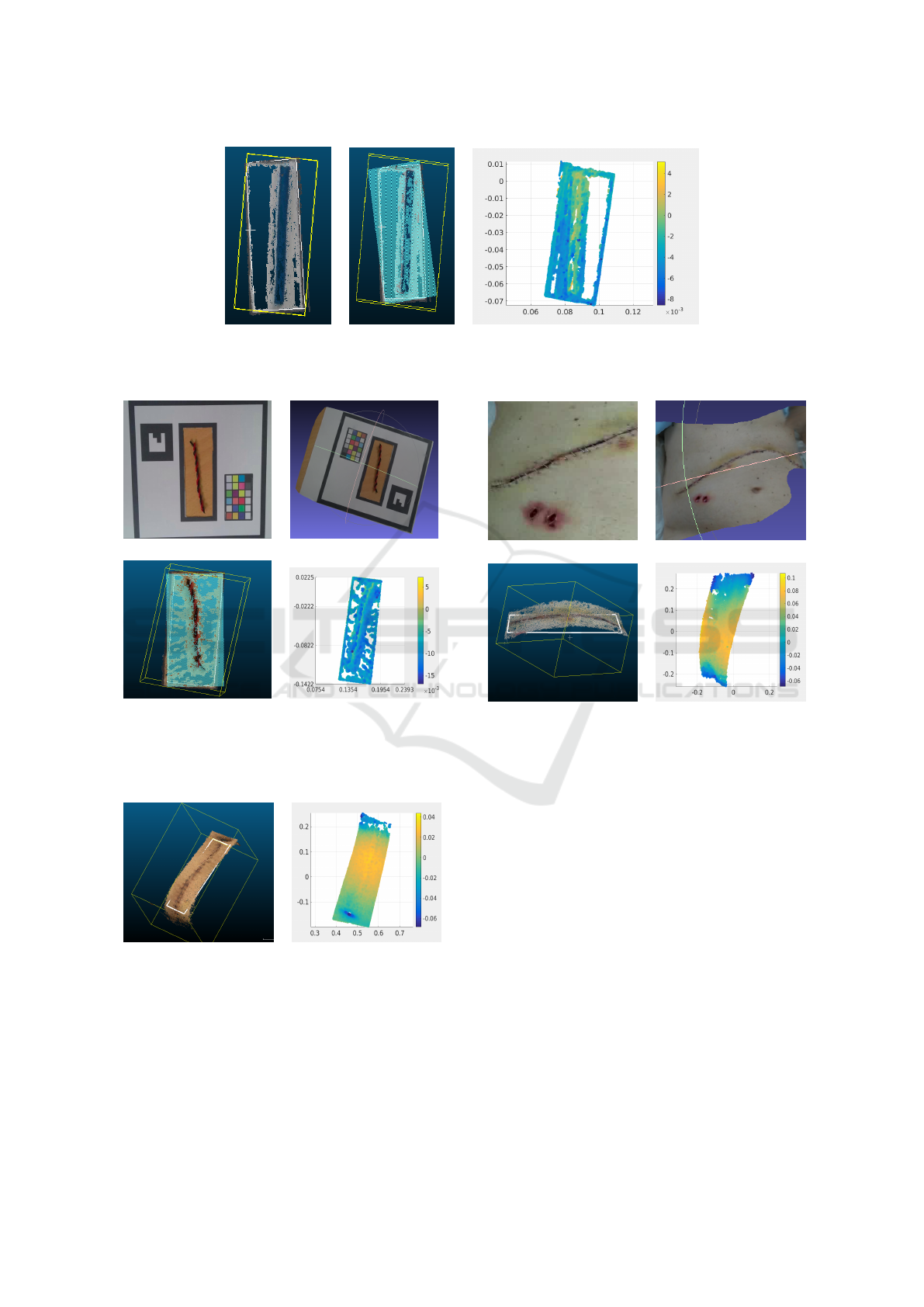

Figure 7: Experiment 2: (a) an image extracted from the

video sequence, (b) reﬁned and textured mesh, (c) the

wound with the ﬁtted plane depicted in white, (d) Map of

distances from each point to the ﬁtted plane.

(a) (b)

Figure 8: Experiment 3: wound of ﬁgure 3: (a) the wound

with the polyline and the ﬁtted plane, (b) Map of distances

from each point to the ﬁtted plane.

another experiment on a real post-surgical wound

grabbed with the template. In this case, the wound

presents an evident inﬂammation of several milime-

ters. 17 images were extracted from the video to

build the 3D model. The scaling factor turned out

(a) (b)

Figure 9: Experiment 4: (a) an image extracted from the

video sequence, (b) reﬁned and textured mesh, (c) the

wound with the ﬁtted plane, (d) Map of distances from each

point to the ﬁtted plane.

to be 0.359m in all directions. Figures 10-(b), 10-

mesh, the 3D model with the polyline in white ﬁt-

ting the plane, coincident with the template central

hole, and the corresponding graphic of distances. The

later shows how the points located in the borders of

the rectangle present distances between −5mm and

−10mm, while in the middle, especially in the upper

part which coincides with the side of the wound that

has the marker at its left and it is clearly below the

plane, point distances range between 0mm and 5mm.

Although there is a clear gradient of distances be-

tween some parts of the center and the sides of the

evaluated area, susceptible of being pre-diagnosed as

inﬂamed, the shape of the wound is not clearly iden-

tiﬁed, being necessary a ﬁnal and deﬁnitive diagnose

given by the doctor.

Towards a Pre-diagnose of Surgical Wounds through the Analysis of Visual 3D Reconstructions

593

(a) (b)

Figure 10: Experiment 5: (a) an image extracted from

the video sequence, (b) reﬁned and textured mesh, (c) the

wound with the ﬁtted plane, (d) map of distances from each

point to the ﬁtted plane.

Finally, ﬁgure 11-(a) shows one frame of a wound

which was opened due to an internal infection. Fig-

ure 11-(b), ﬁgure 11-(c) and ﬁgure 11-(d) show, re-

spectively, the reﬁned and colored mesh, the 3D area

with the polyline ﬁtting the plane, in white, and the

map of distances. The template was put just on the

skin, and the plane was ﬁtted around the hole. The

distance map evidences a blue zone in the middle cor-

responding to the opened wound with distances be-

low the plane around 3mm (−3mm), surrounded by

a orange area with distances between 1mm and 4mm

above the plane corresponding to the skin. This gradi-

ent of distances marks clearly an anomaly in the area.

The position in which the template is placed on

the wound, its adjustment to the abdomen, and the

way the plane it ﬁtted in the selected volume affects

clearly the obtained results. The procedure needs to

be reﬁned, but the initial results are clearly encourag-

ing.

4 CONCLUSIONS

This paper has presented an innovative methodology

to estimate a previous diagnose of post-surgical ab-

dominal wounds using visual data. Although experi-

ments with simulated scenes reveal a clear difference

between the simulated infected wound and the back-

ground, results of experiments with real wounds are

still on a preliminary stage, but pointing in a clear

good direction. Now the challenge lies, mainly, in

(a) (b)

Figure 11: Experiment 6: (a) an image from the video se-

quence, (b) reﬁned and textured mesh, (c) the wound with

the ﬁtted plane, (d) map of distances.

two different issues: a) reﬁne the current process to

get clearer results, basically testing several possibili-

ties in the positioning of the template and in the gen-

eration of the ﬁtted plane, and b) integrating this me-

thodology in a software package, which automatizes

all the stages of the process run manually with Cloud

Compare to be integrated in a users application.

ACKNOWLEDGEMENTS

This work is partially supported by Ministry of

Economy and Competitiveness under contracts

TIN2014-58662-R, DPI2014-57746-C3-2-R and

FEDER funds.

REFERENCES

Barnes, C., Shechtman, E., Finkelstein, A., and Goldman,

D. (2009). PatchMatch: A Randomized Correspon-

dence Algorithm for Structural Image Editing. ACM

Transactions on Graphics, 28(3):24:1–24:11.

cDcSeacave (2017). OpenMVS. Open Multi-

View Stereo Reconstruction Library.

https://github.com/cdcseacave/openMVS.

Girardeau-Montaut, D. (2017). Cloud Compare, 3D Point

Cloud and Mesh Processing Software Open Source

Project. http://www.danielgm.net/cc/.

Hartley, R. and Zisserman, A. (2003). Multiple View Geom-

etry in Computer Vision. Cambridge University Press.

Jancosek, M. and Pajdla, T. (2014). Exploiting Visibil-

ity Information in Surface Reconstruction to Preserve

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

594

Weakly Supported Surfaces. International Scholarly

Research Notices, 2014.

Lowe, D. G. (2004). Distinctive Image Features from Scale-

Invariant Keypoints. Int. Journal on Computer Vision,

60(2):91–110.

Moulon, P., Monasse, P., and Marlet, R. (2013). Global

Fusion of Relative Motions for Robust, Accurate and

Scalable Structure from Motion. In Proceedings of the

International Conference on Computer Vision.

Moulon, P., Monasse, P., Marlet, R., and Others (2017).

OpenMVG. An Open Multiple View Geometry Li-

brary. https://github.com/openMVG/openMVG.

Muja, M. and Lowe, D. (2009). Fast Approx-

imate Nearest Neighbors with Automatic Algo-

rithm Conﬁguration. Source code available at

https://github.com/mariusmuja/ﬂann/.

Nordheim, L., Haavind, M., and Iversen, M. (2014). Ef-

fect of Telemedicine Follow-up Care of Leg and Foot

Ulcers: a Systematic Review. BMC Health Services

Research, 14(565):58–62.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.

(2011). ORB: An Efﬁcient Alternative to SIFT or

SURF. In Proceedings of the 2011 International Con-

ference on Computer Vision, pages 2564–2571.

Segura-Sampedro, J., I.Rivero-Belench

on, Pino-D

ıaz, V.,

anchez, M. R., Pareja-Ciur

o, F., Padillo-Ruiz, J., and

Rodr

ıguez, R. J. (2017). Feasibility and Safety of Sur-

gical Wound Remote Follow-up by Smart Phone in

Appendectomy: A Pilot Study. Annals of Medicine

and Surgery, 21:58–62.

Topdoctors (2017). Topdoctors. www.topdoctors.es/.

Vu, H., Labatut, P., and Pons, J. (2012). High Accuracy and

Visibility-Consistent Dense Multiview Stereo. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 34(5):889–901.

Waechter, M., Moehrle, N., and Goesele, M. (2014). Let

There Be Color! Large-Scale Texturing of 3D Recon-

structions. In Proceedings of the European Confer-

ence on Computer Vision, pages 836–850.

Towards a Pre-diagnose of Surgical Wounds through the Analysis of Visual 3D Reconstructions

595
