Combined Framework for Real-time Head Pose Estimation using Facial

Landmark Detection and Salient Feature Tracking

Jilliam Mar

ıa D

ıaz Barros

1,2,∗

, Frederic Garcia

, Bruno Mirbach

Kiran Varanasi

and Didier Stricker

PTU Optical, IEE S.A., Contern, Luxembourg

German Research Center for Artiﬁcial Intelligence (DFKI), Kaiserslautern, Germany

Keywords:

Head Pose Estimation, Real Time, Fusion.

Abstract:

This paper presents a novel approach to address the head pose estimation (HPE) problem in real world and

demanding applications. We propose a new framework that combines the detection of facial landmarks with

the tracking of salient features within the head region. That is, rigid facial landmarks are detected from a given

face image, while at the same time, salient features are detected within the head region. The 3D coordinates of

both set of features result from their intersection on a simple geometric head model (e.g., cylinder or ellipsoid).

We then formulate the HPE problem as a perspective-n-point problem that we separately solve by minimizing

the reprojection error of each 3D features set and their corresponding facial or salient features in the next face

image. The resulting head pose estimations are then combined using Kalman Filter, which allows us to take

advantage of the high accuracy when using facial landmarks while enabling us to handle extreme head poses

by using salient features. Results are comparable to those from the related literature, with the advantage of

being robust under real world situations that might not be covered in the evaluated datasets.

1 INTRODUCTION

Monitoring the attention of human users by automatic

tracking of their head pose is of fundamental impor-

tance in many areas: psychological analysis, assist-

ing patients with disability, behavior understanding

of children with autism, driver monitoring, etc. It

is also relevant in assessing human performance in

areas which warrant critical attention: factory moni-

toring, production pipelines, security, among others.

For some of these applications, automatic head pose

estimation (HPE) can be followed by gaze analy-

sis, e.g., for driver monitoring, as it can help to de-

tect when the person is drowsy or distracted and assist

the driver by alerting with an immediate warning.

However, computer vision systems for HPE still face

serious challenges in deployment for real world situa-

tions.

Firstly, any HPE system has to work for a wide

range of human users, without any requirement for

an additional calibration step. Secondly, it needs to

use simple hardware that does not consume a lot of

∗

This work is funded by the National Research Fund,

Luxembourg. Project ID 9235599.

power. This currently rules out computationally in-

tensive models that require GPUs. Thirdly, the system

has to be extremely fast in order to assess the situation

in real-time. Fourthly, it should be able to launch the

estimation task without pose constraints, e.g., that the

person should be facing the camera. Finally, the sys-

tem has to work for a wide range of head pose orien-

tations, face occlusions, and external lighting condi-

tions. Hence, a fast and efﬁcient HPE system remains

an active area of research.

In the recent past, several HPE approaches have

been proposed using RGB to depth data, as well

as thermal IR cameras, in monocular and stereo se-

tups (Baker et al., 2004; Borghi et al., 2017; Cheng

et al., 2007; Guo et al., 2006; Murphy-Chutorian

and Trivedi, 2010; Zhu and Fujimura, 2004). Apart

from estimating 3D head pose, some systems are also

able to track human facial expressions in real-time.

However, many of these approaches still suffer from

limitations such as sensitivity to illumination changes,

increasing costs, or difﬁculty to integrate into a real

scenario. The latter is the case of depth cameras,

that has also the downside of not being suitable for

gaze estimation. Keeping that in mind, we focus our

investigation on HPE from intensity (monochrome)

Barros, J., Garcia, F., Mirbach, B., Varanasi, K. and Stricker, D.

Combined Framework for Real-time Head Pose Estimation using Facial Landmark Detection and Salient Feature Tracking.

DOI: 10.5220/0006628701230133

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

123-133

ISBN: 978-989-758-290-5

123

images, where gaze could also be recovered in a

separate follow-up project.

We present a novel HPE approach which inte-

grates a tracking-by-detection scheme using facial

landmarks, with a salient-features tracking method.

Facial landmarks are detected using a machine

learning system, that effectively provides the co-

rresponding 2D pixel locations of these points. How-

ever, these locations may be inaccurate or missing due

to certain head poses or (self-)occlusions. To address

these cases, we introduce a scheme that detects and

tracks salient features on the acquired video frame se-

quences. These features can be person-speciﬁc facial

birthmarks, wrinkles, hair or accessories that can pro-

vide alternative source of information for head pose

estimation.

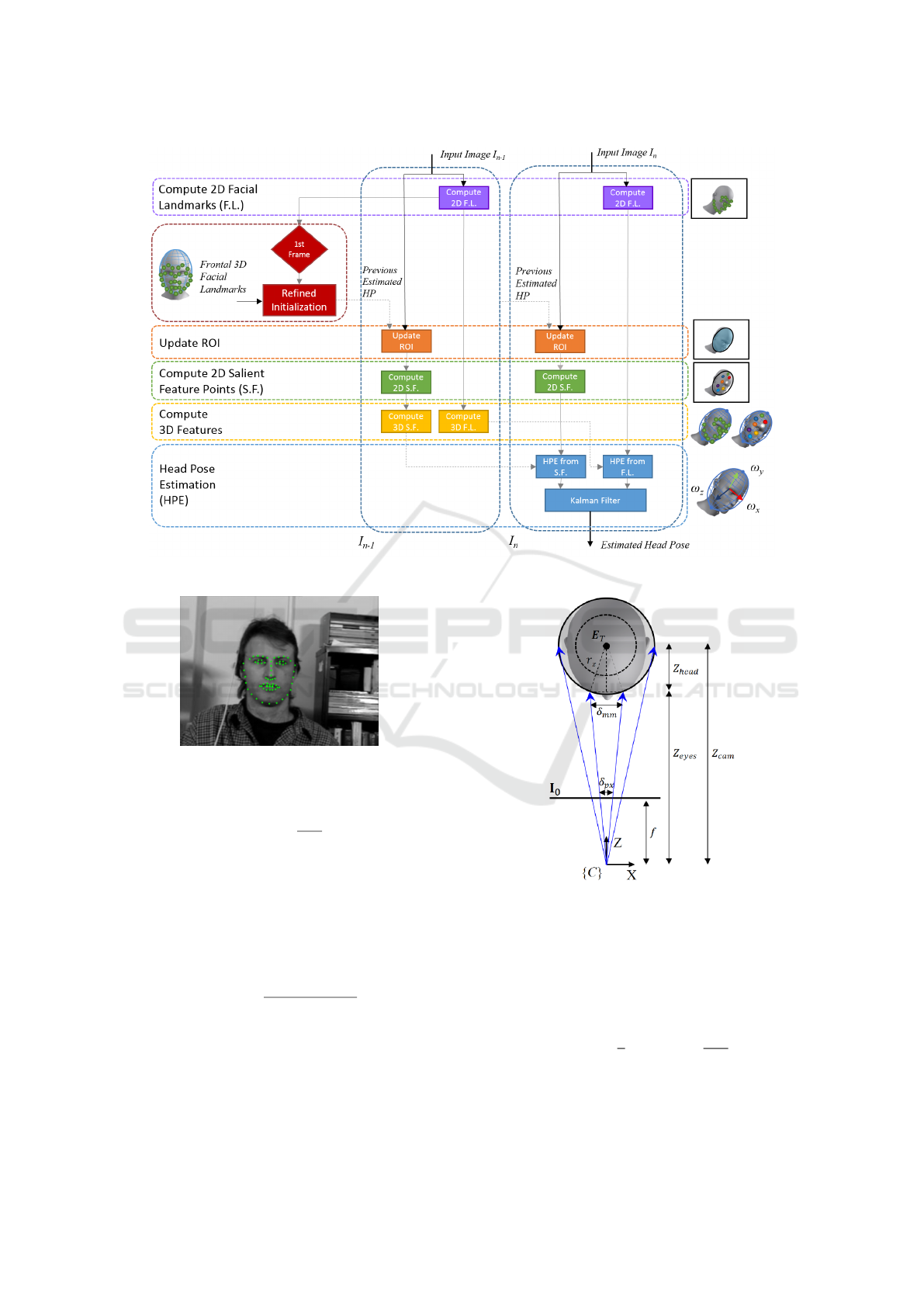

More in detail, we extract two sets of 2D features,

one of 2D facial landmarks and one of salient features

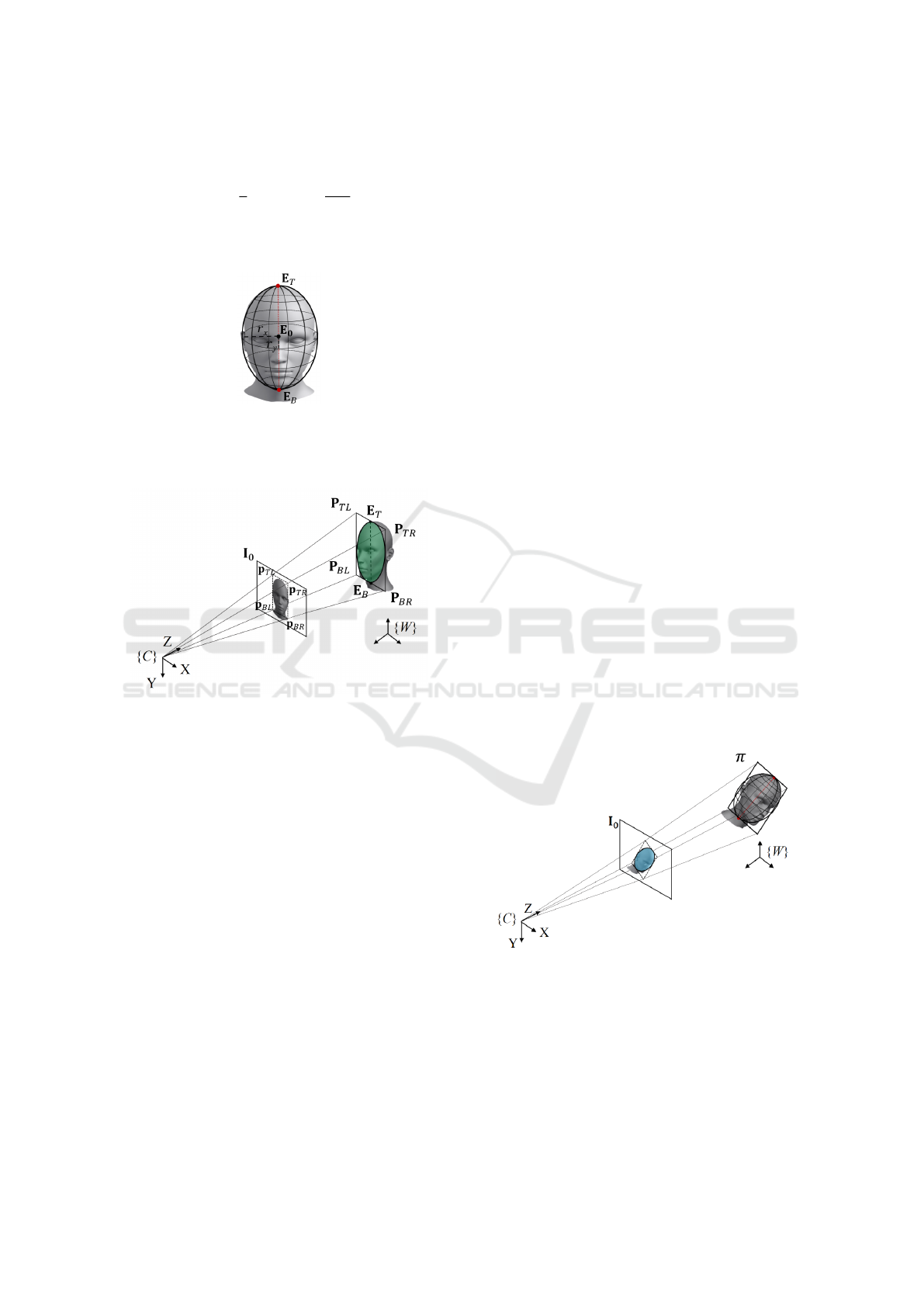

on the detected face. The two sets are projected onto a

simple geometric 3D model through ray-tracing, and

thus hypothesized in 3D space. Then, the respective

2D correspondences are computed on the next frame,

running face alignment for the ﬁrst set and optical

ﬂow for the second. Consequently, two head poses

are estimated, by minimizing the image reprojection

error with the 3D-2D correspondences, each with six

degrees of freedom (DoF). Finally, we combine both

poses using a dedicated Kalman ﬁlter.

The main contributions of our work are:

• A novel framework for HPE combining the rela-

tive strengths of facial landmark detection and

salient feature tracking, through fusion with a

dedicated Kalman ﬁlter.

• A novel approach for reﬁned initialization of the

head pose when it is different to frontal, using the

2D facial landmarks detected in the input image

and a set of 3D facial landmarks, when the pose is

frontal.

2 RELATED WORK

HPE is an extended researched topic in computer vi-

sion, spanning in the literature approaches based on

diverse technologies. Video-based methods are com-

prised in the survey conducted in (Murphy-Chutorian

and Trivedi, 2009). New approaches based on depth

data have been proposed in (Fanelli et al., 2011;

Fanelli et al., 2013; Meyer et al., 2015; Papazov et al.,

2015; Borghi et al., 2017), as well as combined me-

thods using both RGB and depth data (Baltru

saitis

et al., 2012; Saeed and Al-Hamadi, 2015), or IR and

depth data (Schwarz et al., 2017).

Following the categorization used in (Borghi

et al., 2017), we classify the HPE approaches in three

groups: model-based, appearance-based and 3D head

model registration approaches. This classiﬁcation

should not be considered absolute, as there might be

methods that fall in more than one category.

Model-based Approaches. They utilize prior infor-

mation regarding the geometry of the head, including

detection of facial landmarks and the use of rigid or

non-rigid face models. Feature-based HPE me-thods

that rely on facial landmarks, e.g., nose tip or eyes

corners, need them to be detected in every frame and

can be sensitive to extreme head poses, partial occlu-

sions, facial expressions and low resolution images.

(La Cascia et al., 2000) presented a method for 3D

HPE using a cylindrical head model, based on regis-

tration of texture map images. (Kumano et al., 2009)

presented an approach which used a face model given

by a variable-intensity template with a particle ﬁlter,

to estimate the pose and facial expression simultane-

ously. (Jang and Kanade, 2008; Jang and Kanade,

2010) proposed an user-speciﬁc head tracking frame-

work using a cylinder head model (CHM). The es-

timated motion and a pose retrieved from a dataset

of SIFT feature points were combined into a pipeline

with Kalman Filter. (Choi and Kim, 2008) introduced

a framework using templates, combining a particle ﬁl-

ter with an ellipsoidal head model (EHM). The 3D

motion parameters were initialized using active ap-

pearance model (AAM) and an online appearance

model was used as the observation model. (Sung

et al., 2008) presented a pipeline combining the AAM

with a CHM. (An and Chung, 2008) used an EHM

for HPE and face recognition. The pose estimation

was formulated as a linear system assuming a rigid

body motion under perspective projection. (Valenti

et al., 2009; Valenti et al., 2012) introduced a pipeline

for HPE with CHM and eye tracking. They were cal-

culated and updated based upon a crossed feedback

mechanism, which compensated the estimated val-

ues and allowed to re-initialize the head pose tracker.

(Asteriadis et al., 2010) performed the estimation task

using a facial-feature tracker with Distance Vector

Fields (DVFs). (Kun et al., 2013) estimated 2D

salient points and their location on the 3D space with

an EHM. The face was detected in each frame, in or-

der to set the area for feature extraction and corre-

spondences estimation. POSIT and the Perspective-

n-Point problem were employed to estimate the pose

from the 3D-2D correspondences. (Prasad and Ar-

avind, 2010) implemented a parametrized 3D face

mask to model the head and extract feature points us-

ing SIFT. Similarly to the previous method, the pose

was estimated with POSIT from the 3D-2D corre-

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

124

spondences. (Diaz Barros et al., 2017), random fea-

ture points were employed to estimate the pose. The

features were tracked using optical ﬂow and the re-

spective 3D points were computed using a geometric

model. The pose was recovered by minimizing the

reprojection error of the 3D features and the 2D cor-

respondences. (Vicente et al., 2015) proposed an ap-

proach oriented to driver’s activities monitoring. Fa-

cial landmarks were detected and tracked using a fa-

cial alignment scheme with parameterized appearance

models (PAMs). The head pose was estimated by

minimizing the reprojection error, in this case from

a 3D deformable head model and the tracked facial

landmarks. (Yin and Yang, 2016) introduced a real-

time HPE method optimized for on-board computers.

The face was detected using pixel intensity binary

test, while pose regression along with local binary

feature were utilized for the alignment. The pose is

retrieved by solving the 2D-3D correspondences us-

ing a rigid face model.

Appearance-based Approaches. These methods use

machine learning techniques to estimate the pose,

based on visual features of the face appearance.

The methods are robust to large head rotation, but

generally the output comes from a classiﬁer which

uses discrete head poses for training and thus assigns

the pose to a speciﬁc range, instead of continuous

estimation. These methods usually perform better

for low-resolution face images (Ahn et al., 2014;

Drouard et al., 2015). (Wang et al., 2012) introduced

a head tracking approach using invariant keypoints.

A learning scheme was implemented, combining

simulation techniques with normalization. In (Fanelli

et al., 2011), the head pose as well as some facial fea-

tures were estimated with random regression forests

from depth data. A voting scheme was implemented,

where patches from different parts of the depth face

image were used to recover the pose. A large dataset

with annotated data was necessary for training.

(Ahn et al., 2014) proposed a deep-learning-based

approach for HPE from RGB images. A particle

ﬁlter was included to reﬁne and increase stability on

the estimated pose. (Liu et al., 2016) presented a

pipeline for head pose estimation from RGB images

using convolutional neural networks, where HPE was

formulated as a regression problem. The network

was trained using a large synthetic dataset obtained

from rendered 3D head models. Both (Ahn et al.,

2014) and (Liu et al., 2016) required a GPU to

achieve real-time performance. (Borghi et al., 2017)

introduced a real time deep learning approach for

upper-body and head pose estimation from depth

images. The proposed regression neural network,

POSEidon, integrated depth with motion features

and appearance. On the other hand, (Schwarz et al.,

2017) presented a deep learning method for HPE

under driving conditions, by fusing IR and depth data

with cross-stitch units.

3D Head Model Registration Approaches. They

data. (Ghiass et al., 2015) presented an approach

for HPE from RGB-D data. The pose estimation

was performed through a ﬁtting process employing a

3D morphable model. (Papazov et al., 2015) intro-

duced a method for HPE from depth data using tri-

angular surface patch (TSP) descriptors. The input

head data is divided in several patches and each one

is matched with TSP descriptors from synthetic head

models stored in a database. A voting scheme is then

implemented from the patches to recover the head

pose. (Jeni et al., 2017) presented an approach for

3D registration of a dense face mesh from 2D images

through a cascade regression framework. This frame-

work was trained using a database of high-resolution

3D face scans. The head pose and the 3D shape

were iteratively reﬁned, by registering a part-based

deformable 3D model on 2D facial landmarks.

Other methods formulate an optimization prob-

lem to estimate the pose. For instance, (Morency

et al., 2008) proposed a probabilistic scheme,

GAVAM: Generalized Adaptive View-based Appear-

ance Model, using an EHM. Pose was extracted by

solving a linear system with normal ﬂow constraint

(NFC). (Baltru

saitis et al., 2012) proposed an exten-

sion of GAVAM, by combining a head pose tracker

with a 3D constrained local model. The framework

used both depth data and intensity information to

track facial feature points, but it was also tested us-

ing only intensity images. (Saragih et al., 2011)

presented a method for HPE by ﬁtting a deformable

model, using an optimization strategy through a non-

parametric representation of the likelihood maps of

landmarks locations. In (Drouard et al., 2015), a

Gaussian mixture of locally-linear mapping model is

used to map HOG features extracted on a face region

to 3D head poses. The approach was suitable for HPE

from low-resolution data.

We propose a model-based HPE approach using

only intensity images, where facial landmarks are ex-

tracted in each frame and salient features on the area

of the face are tracked through the entire video se-

quence. Thus, we extend the working range of facial-

landmarks-based approaches to extreme head poses,

being able to handle (self-)occlusions. Moreover, our

method does not require the person to perform an ini-

tialization step, e.g., face the camera frontally, an im-

portant constraint in several applications.

Combined Framework for Real-time Head Pose Estimation using Facial Landmark Detection and Salient Feature Tracking

125

3 PROPOSED HPE FRAMEWORK

HPE approaches based on facial landmarks seem to

reach high HPE performances (Baltru

saitis et al.,

2012; Jeni et al., 2017), as reported in Section 4.

However, some of these approaches fail as soon as

the face is partially or totally occluded. On the other

side and despite the cumulated error along frames,

the use of salient features (Diaz Barros et al., 2017)

seems to be an appropriate solution in case the face

detector fails. We thus propose a new framework for

HPE (see Figure 1) that combines the use of both fa-

cial landmarks (purple box in Figure 1) and salient

features (green box). By doing so, we take advan-

tage of the HPE accuracy given by the use of facial

landmarks while being able to handle extreme head

poses, in which the face might be partially or totally

occluded. Each set of feature points are back pro-

jected onto a simple 3D geometric shape, either an

EHM or a CHM (yellow box in Figure 1). Moreover,

we compute the 2D correspondences for each set of

features in the next frame.

We formulate the HPE as a Perspective-n-Point

problem, that we separately solve by minimizing the

reprojection error between each set of features, facial

landmarks and salient features, with their correspond-

ing locations in the 3D space. The ﬁnal HPE results

from the combination of the resulting head poses us-

ing a dedicated Kalman Filter (blue box in Figure 1).

3.1 Robust Facial Landmarks

Facial landmarks p

result from the alignment of fa-

cial features (Kazemi and Sullivan, 2014) on a de-

tected face image. Only those facial landmarks that

are less prone to be affected by facial expressions

or self-occlusion are considered in the set of facial

landmarks, i.e., eye corners, nostrils, and nose tip.

The reader is free to use any available face detector

method, being the Viola and Jones face detector (Vi-

ola and Jones, 2001) one of the most commonly em-

ployed, e.g., in (Baltru

saitis et al., 2012; Ghiass et al.,

2015; Diaz Barros et al., 2017). With regards to

the alignement of the facial landmarks, we propound

to use regression trees as in (Kazemi and Sullivan,

2014), from a sparse subset of intensity values in-

dexed to an initial estimate of the shape. By doing

so, we are able to retrieve in real-time the set of fa-

cial landmarks displayed in Figure 2, as long as the

face is detected. However, a problem might arise for

extreme head rotations or (self-)occlusions, since the

pose cannot be retrieved in case the facial landmarks

are not available.

3.2 Robust Salient Features

Salient features p

are the result of a machine

learning-based corner-detection algorithm on the re-

gion of interest (ROI), corresponding to the bound-

ing box enclosing the human head. From our experi-

ence, FAST (Rosten et al., 2010) seems to be an ap-

propriate approach since, aside from being very well

suited for real-time applications, it provides accurate

enough corners. Similarly to (Diaz Barros et al.,

2017), we also weight each feature according to its lo-

cation within the ROI. That is, salient features further

away from the ROI border are treated as more reliable

and with greater weight, enabling us to reject outliers

and/or non-reliable features. This feature weighted

scheme results from applying the distance transform

onto the ROI, i.e., each pixel within the ROI has a

normalized weight related to the Euclidean distance

to the closest boundary.

3.3 System Initialization

More recent HPE estimation approaches are based on

adaptive 3D face models (Baltru

saitis et al., 2012;

Meyer et al., 2015) that despite they might provide

a better performance, they are more computationally

and hardware demanding. We propose instead to use

a simple geometric head model such as a cylindrical

(CHM) or an ellipsoidal (EHM) head model, avoiding

the use of dedicated hardware devices, e.g., GPUs,

while still having a very decent performance. Since

the EHM has a better representation of the human

head than the CHM, in the following we will only re-

fer to the EHM as geometric head model.

In order to initialize the suggested EHM, we need

ﬁrst to detect the facial landmarks described in Sec-

tion 3.1. Indeed, the EHM dimensions are linked to

the width and height of the detected face.

The second step corresponds to the initialization

of the 3D geometric model using the aligned facial

landmarks. This model is scaled with regard to the

detected face. The scaling and the initial location of

the head in the 3D space are based on the assumption

that the distance between the eyes is 60 mm. This

value is an approximative distance obtained from an-

thropometric measurements, which average the mean

interpupillary distance δ

to 64.7 mm for men and

62.3 mm for women (Dodgson, 2004; Gordon et al.,

1989). From the detected facial landmarks, we extract

the midpoint of the outline of each eye and measure

the interpupillary distance in pixels δ

between

them. We then compute the distance Z

eyes

from the

optical center of the camera C to the baseline of the

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

126

Figure 1: Pipeline of the proposed HPE approach.

Figure 2: Facial landmarks aligned to a detected face.

eyes, which is given by:

eyes

= f ·

, (1)

with f being the focal length of the camera (see

Figure 3).

The distance from C to the vertical axis of the

ellipsoid results from the sum of Z

eyes

and the dis-

tance from the eyes’ baseline to the axis of the ellip-

soid Z

head

, i.e., Z

cam

= Z

eyes

+ Z

head

(Figure 3). Z

head

corresponds to:

head

− (δ

/2)

, (2)

where r

is the radius of the ellipsoid in the Z axis.

The 2D bounding box of the face, enclosed by

points {p

T L

, p

T R

, p

}, is computed from the outer

facial landmarks. We use this box to calculate the

width and height of the EHM. The radii r

and r

are

Figure 3: EHM Depth Estimation.

set equal to half of the width of the detected face, and

to half of the height of the face, having as a result

a prolate ellipsoid, or spheroid, as shown in Figure 4.

That is,

= r

T R

− p

T L

| ·

, (3)

where p

T R

and p

T L

correspond to the top right and top

left corners of the bounding box. On the other hand,

Combined Framework for Real-time Head Pose Estimation using Facial Landmark Detection and Salient Feature Tracking

127

is given by:

T R

− p

| ·

(4)

with p

being the bottom right corner of the bound-

ing box.

Figure 4: Ellipsoidal head model.

The initialization of the EHM is depicted in Fi-

gure 5.

Figure 5: Initialization of EHM.

As can be observed, the estimation of the head

pose is given by its location (t = [t

]), and its ori-

entation (ω = [ω

,ω

]) with respect to the X, Y

and Z perpendicular axes of a known coordinate sys-

tem. The rotation angles, ω

, ω

, and ω

are com-

monly termed as pitch, yaw, and roll angles.

In our framework, HPE is formulated as a

Perspective-n-Point problem, using features com-

puted in each frame. Therefore, the calibration of the

camera is required in advance.

3.4 Initial Pose Estimation

Model-based and appearance-based HPE approaches

in which the face must be detected require the user

to be facing the camera during the initialization stage.

However, in any real scenario this constraint results in

a strong limitation, especially for assistive technolo-

gies that need to compute the head pose on the ﬂy.

We instead propose a novel scheme to provide an

approximate initialization of the head pose as soon

as the head is detected and the facial landmarks are

visible. The scheme utilizes the 2D facial landmarks

retrieved in the ﬁrst frame along with a prior set of

the corresponding 3D facial landmarks on a geometric

model when the face is frontal (red box in Figure 1).

This set is initially normalized and later re-scaled ac-

cording to the detected face in the 3D space.

Similarly to our approach for pose estimation, we

estimate the head pose from the 3D-2D correspon-

dences, by formulating the system as a Perspective-n-

Point problem and minimizing the reprojection error

in the image plane.

3.5 ROI Update

As depicted in Figure 1, one of the cornerstone of our

HPE framework is the use of salient features, which

extend the working range of our approach to extreme

head poses. These features are extracted only in a

region of interest (ROI) in the input image, that corre-

sponds to the head of the user.

The ROI is calculated from the projection of the

3D geometric model onto the 2D image plane, as

shown in Figure 6, and it is updated in each frame

as soon as a new head pose is recovered (orange box

in Figure 1). To do so, we ﬁrst ﬁnd the plane paral-

lel both to the axis of the ellipsoid and to the X-axis

of the image plane, and which cuts the EHM in two

equal parts. Secondly, we extract the surface that re-

sults from the intersection of the computed plane and

the ellipsoid. Finally, we project the surface onto the

image plane, assuming a perspective camera model.

For the EHM, the projection corresponds to an ellip-

tical ROI that covers the area of the face.

Figure 6: Projection of EHM on the image plane.

3.6 Feature Detection and Tracking

The backbone of our HPE approach is given by the

detection of facial landmarks and the tracking of

salient features on the ROI of the face. Therefore,

we divide the 2D feature estimation step in two main

tasks, detailed below.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

128

In the case of facial landmarks, we proceed sim-

ilarly to the initialization stage, where each facial

landmark p

is aligned on the detected face us-

ing (Kazemi and Sullivan, 2014), as described in 3.1.

With this method, we can ﬁnd the 2D facial landmarks

correspondences in each pair of frames, as long as the

face is detected.

We compensate the limitation of facial-

landmarks-based approaches, by integrating a

set of salient features which can track the pose of

the head, even when the facial landmarks are not

available. The extraction of these features are detailed

in 3.2. In order to track the salient features and ﬁnd

the correspondences, the iterative Lucas-Kanade

feature tracker with pyramids (Bouguet, 2001) is

used.

3.7 Sparse 3D Reconstruction

In the following, we describe the process to compute

the 3D feature points P

from each set of 2D features:

facial landmarks p

and salient feature points p

, by

means of ray tracing. To do so, we compute the in-

tersection point on the ellipsoidal model from the ray

that start at the optical center of the camera C and

pass through each 2D feature p in the image plane.

This line is given by P = C + kV, where V is a vector

parallel to the ray. k is the scalar parameter obtained

from the quadratic equation of the ellipsoid, given by:

+ 2(W • X) k +

− 1 = 0 (5)

with W = MR

V and X = MR

(C − E

). M is

the diagonal matrix of the inverses of the ellipsoid

radii {

}, R is the rotation matrix and E

the center of the ellipsoid.

As a result, we obtain two set of 3D features, one

of 3D facial landmarks P

and the other of 3D salient

features P

3.8 HPE and Measurement Fusion

Similarly to the initial HPE process described in 3.4,

we estimate the pose after formulating a Perspective-

n-Point problem from the 3D-2D correspondences

and solve by minimizing the reprojection error on the

image plane, using the global Levenberg-Marquardt

algorithm. To deﬁne the 3D-2D correspondences, we

use the set of 3D features P

that were calculated from

the previous frame and the 2D features obtained at the

current frame. This procedure is applied using both

set of features, salient features {P

} and facial

landmarks {P

}. Consequently, we obtain two

measured head poses: ω

and t

from the salient

features and ω

and t

from the facial landmarks.

We introduce a method for combining both mea-

surements using a dedicated Linear Kalman Filter.

Although Kalman Filter is a very common approach

in sensor fusion, it is the ﬁrst time, to the best of our

knowledge, that it is used for fusing measurements

given by facial landmarks and by salient features. As

long as we have two different head pose measure-

ments from the two sets of feature points, it is pos-

sible to apply this framework. In general, Kalman

Filter is deﬁned on the state-space representation of

the system, where the dynamical system is given by

the following state equation:

= Ax

k−1

+ Bu

k−1

+ w

k−1

. (6)

represents the state of the system at time k, u

k−1

the deterministic inputs to the system at time k −1 and

k−1

is the random noise affecting the system at time

k − 1, commonly termed as process noise.

The measurement equation is deﬁned as:

= Hx

+ v

, (7)

where v

corresponds to the measurement noise, i.e.,

the random noise in the observation z

and v

are assumed to be independent, white

and having Gaussian zero mean, with covariance ma-

trices given by Eq. 8 and 9.

E[w

] =

(

, for n = k

0, otherwise

(8)

E[v

] =

(

, for n = k

0, otherwise

(9)

In our framework, the state vector x contains the

position t and orientation ω of the head, with their re-

spective ﬁrst and second derivatives, i.e., the velocity

and acceleration. The measurement (or observation)

vector z

is composed of both estimated poses. The

observation model is given by:

H =





(10)

being H

and H

the respective observation models

from the salient features and the facial landmarks.

The covariance matrix of the observation noise is

then deﬁned by:

R =



∑



(11)

It is important to note that facial landmarks are

not always detected in every frame. In order to ad-

dress this problem, we propose to include a dynamic

Kalman Filter framework that corrects the state vector

from the available measurements. In case the face is

Combined Framework for Real-time Head Pose Estimation using Facial Landmark Detection and Salient Feature Tracking

129

Table 1: Results. Comparison of the RMSE, STD and MAE errors with other methods of the SoA using the BU dataset.

Method

RMSE ± STD MAE Time

Roll Pitch Yaw Roll Pitch Yaw (FPS)

(Sung et al., 2008) 3.1 5.6 5.4 - - - -

(Morency et al., 2008) - - - 2.91 3.67 4.97 6

(An and Chung, 2008) - - - -

Ellipsoid - - - 2.83 3.95 3.94 -

Cylinder - - - 3.22 7.22 5.33 -

Plane - - - 2.99 7.32 18.08 -

(Choi and Kim, 2008) - - -

Ellipsoid - - - 2.82 3.92 4.04 14

Cylinder - - - 2.45 4.43 5.19 14

(Jang and Kanade, 2008) - - - 2.1 3.7 4.6 -

(Kumano et al., 2009) - - - 2.9 4.2 7.1 -

(Jang and Kanade, 2010) - - - 2.07 3.44 4.22 -

(Prasad and Aravind, 2010) - - - 3.6 2.5 3.8 -

(Asteriadis et al., 2010) 3.56 4.89 5.72 - - - -

(Saragih et al., 2011) - - - 2.55 4.46 5.23 8

(Valenti et al., 2012)

Fixed template with eye cues 3.00± 2.82 5.26± 4.67 6.10± 5.79 - - - -

Fixed template w/o eye cues 3.85±3.43 6.00±5.21 8.07±7.37 - - - -

Updated template with eye cues 3.93±3.57 5.57±4.56 6.45±5.72 - - - -

Updated template w/o eye cues 4.15±3.72 5.97±4.87 6.40±5.49 - - - -

(Wang et al., 2012) - - - 1.86 2.69 3.75 15

(Baltru

saitis et al., 2012) - - - 2.08 3.81 3.00 -

(Vicente et al., 2015) - - - 3.2 6.2 4.3 25

(Diaz Barros et al., 2017)

Ellipsoid 3.36±2.98 4.46±3.84 5.09±4.56 2.56 3.39 3.99 56

Cylinder 3.66±3.35 5.73±4.54 6.16±5.42 2.80 4.58 4.87 42

(Jeni et al., 2017) - - - 2.41 2.66 3.93 50

Our approach

Integration SF+FL 3.44±3.11 4.51±3.97 5.84±4.98 2.62 3.59 4.73

Integration with KF 3.37±3.00 4.31±3.60 5.30±4.70 2.56 3.29 4.13

Fusion with dynamic KF 3.36±2.99 4.32±3.62 5.25±4.70 2.54 3.27 4.07 23

not detected, the Kalman Filter is updated using only

the pose estimated from the salient features, that is:

H = H

(12)

and the observation noise covariance as:

R =

∑

. (13)

Otherwise, the fusion scheme deﬁned by Eq. 10

and 11 is employed. From this framework, we are

able to update the ﬁlter and estimate the new pose

having either one or two measurements.

4 EVALUATION AND RESULTS

In this section, we describe the methodology imple-

mented to evaluate our HPE approach and the analy-

sis of the results in comparison to other methods of

the state of the art.

4.1 Evaluation and Experiments

We evaluated our framework using the Boston Uni-

versity dataset with uniform illumination proposed

by (La Cascia et al., 2000). This dataset comprises

a set of 45 videos recorded with a RGB camera,

from 5 different persons on an ofﬁce setup. The

ground truth was acquired using a Flock of Birds

magnetic sensor, with nominal accuracy of 1.8 mm

in translation and 0.5 degrees in rotation. With this

dataset, we also investigated the effect of combining

facial landmarks with salient features using two other

pipelines than the fusion-based framework described

in Subsection 3.8. These two pipelines are described

below.

Integrating Feature Points in Common

Pipeline: For this ﬁrst method, we integrated the

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

130

set of 2D salient features p

along with the set of

2D facial landmarks p

, to create one combined

set of 2D features points p

SF+FL

. The set of 3D

feature points P

SF+FL

, composed as well of 3D salient

features P

and 3D facial landmarks P

, were com-

puted as described in Subsection 3.7, by using ray

tracing. The head pose was also retrieved by ﬁnding

the 3D-2D correspondences and minimizing the

reprojection error from the combined set of features,

SF+FL

}. Similarly to the fusion approach,

the face ROI was updated as detailed in 3.5. This

method is listed in the results as Integration SF+FL.

Integrating Feature Points and Adding

Kalman Filter: For the second pipeline (Integration

with KF), we proceeded similarly to the previous

method, Integration SF+FL, but we included an extra

step to incorporate a Kalman Filter to update the state

vector using the pose obtained by minimizing the

reprojection error in the image plane.

4.2 Results

Three different metrics, the root mean square errors

(RMSE), standard deviation (STD) and mean abso-

lute error (MAE), were used to compare our results

with alternatives methods of the state of the art. Not

only we compare the approach proposed in Section 3,

but also the two other pipelines described in Subsec-

tion 4.1. The results are reported in Table 1.

As can be noted from Table 1, our current results

are comparable to the state of the art approaches. Al-

though the low MAE from (Baltru

saitis et al., 2012),

this method is not suitable for real-time applications.

The same applies to methods proposed in (Jang and

Kanade, 2010; Prasad and Aravind, 2010). (Jeni

et al., 2017) on the other hand, can perform on

real time, but a large dataset of high-resolution 3D

face scans are required for training (the method used

around 300,000).

4.3 Runtime Analysis

For many applications, it is of great importance the

approach performs in real time. We measured the

average time to execute each step of the proposed

pipeline using a CPU with an Intel Core(TM) i5-

4210U processor. The results are presented in Table 2.

From Table 2 we can observe the average runtime

of the proposed framework. At the ﬁrst frame, it re-

quires around 50 ms to detect the face and provide an

initial estimation of the head pose using only facial

landmarks. For the rest of the frames, the pipeline is

also suitable for real time applications, as it can run

Table 2: Averaged runtime for 100 launches.

Process Time in ms

Face detection & Init. EHM 31.61

Initial HPE 17.87

Runtime for ﬁrst frame 49.48

ROI Update 0.49

Feature detection and tracking 23.84

3D Reconstruction 0.27

Head pose estimation 18.6

Runtime of other frames 43.2

at 23fps. This is an important advantage with respect

to methods of the state of the art that do not perform

in real time, as (Ahn et al., 2014; Prasad and Aravind,

2010; Wang et al., 2012) (see last column of Table 1).

5 CONCLUSIONS

We introduced a new framework to estimate the 6

DoF head pose from 2D images, by combining the

head poses estimated from facial landmarks detected

in each frame and tracked salient features, through a

dedicated Kalman Filter. It performs in real time, with

no need for parallel computing.

We extend the application of feature-based HPE

methods that rely on facial landmarks detected in ev-

ery frame, to cases where the face is not detected,

but the head is still visible. In this way, our ap-

proach can handle extreme pose variations and (self-)

occlusion. On the other hand, we avoid the drifting

which might results from cumulative error on salient-

feature-based methods, by considering the head pose

estimated from facial landmarks.

We also propose a method for initializing the head

pose when it is different to frontal. To do so, we

use the facial landmarks detected in the ﬁrst frame

and their corresponding 3D points on a synthetic head

model that is facing the camera. We then compute the

initial pose by minimizing the reprojection error from

the 3D-2D correspondences.

An ellipsoidal model provides a good representa-

tion of the human head. However, it might add ap-

proximation errors when estimating the pose. For that

reason, we are interested in exploring in the future

the performance of the pipeline with a reﬁned head

model, that adjusts better to the shape of the head.

We have also discussed about improving the

framework by replacing the linear Kalman Filter by

an Extended Kalman Filter (EKF), as it provides a

more accurate modelling of the 3D motion of the

head, and thus a better estimation of the rotation an-

gles.

Combined Framework for Real-time Head Pose Estimation using Facial Landmark Detection and Salient Feature Tracking

131

REFERENCES

Ahn, B., Park, J., and Kweon, I. S. (2014). Real-time head

orientation from a monocular camera using deep neu-

ral network. In Asian Conference on Computer Vision

(ACCV), pages 82–96. Springer.

An, K. H. and Chung, M. J. (2008). 3d head tracking and

pose-robust 2d texture map-based face recognition us-

ing a simple ellipsoid model. In IEEE/RSJ Interna-

tional Conference on Intelligent Robots and Systems

(IROS), pages 307–312. IEEE.

Asteriadis, S., Karpouzis, K., and Kollias, S. (2010). Head

pose estimation with one camera, in uncalibrated en-

vironments. In Workshop on Eye Gaze in Intelligent

Human Machine Interaction, pages 55–62. ACM.

Baker, S., , Matthews, I., Xiao, J., Gross, R., Kanade, T.,

and Ishikawa, T. (2004). Real-time non-rigid driver

head tracking for driver mental state estimation. In

11th World Congress on Intelligent Transportation

Systems.

Baltru

saitis, T., Robinson, P., and Morency, L.-P. (2012). 3d

constrained local model for rigid and non-rigid facial

tracking. In International Conference on Computer

Vision and Pattern Recognition (CVPR). IEEE.

Borghi, G., Venturelli, M., Vezzani, R., and Cucchiara, R.

(2017). Poseidon: Face-from-depth for driver pose

estimation. In International Conference on Computer

Vision and Pattern Recognition (CVPR). IEEE.

Bouguet, J. Y. (2001). Pyramidal implementation of the

afﬁne lucas kanade feature tracker description of the

algorithm. Intel Corporation, 5:1–10.

Cheng, S. Y., Park, S., and Trivedi, M. M. (2007). Multi-

spectral and multi-perspective video arrays for driver

body tracking and activity analysis. Computer Vision

and Image Understanding, 106(2):245–257.

Choi, S. and Kim, D. (2008). Robust head tracking using

3d ellipsoidal head model in particle ﬁlter. Pattern

Recognition, 41(9):2901–2915.

Diaz Barros, J. M., Garcia, F., Mirbach, B., and Stricker, D.

(2017). Real-time monocular 6-dof head pose estima-

tion from salient 2d points. In International Confer-

ence on Image Processing (ICIP). IEEE.

Dodgson, N. A. (2004). Variation and extrema of human

interpupillary distance. In Stereoscopic Displays and

Virtual Reality Systems XI, volume 5291, pages 36–

46. SPIE.

Drouard, V., Ba, S., Evangelidis, G., Deleforge, A., and

Horaud, R. (2015). Head pose estimation via proba-

bilistic high-dimensional regression. In International

Conference on Image Processing (ICIP), pages 4624–

4628. IEEE.

Fanelli, G., Dantone, M., Gall, J., Fossati, A., and Van Gool,

L. (2013). Random forests for real time 3d face

analysis. International Journal of Computer Vision,

101(3):437–458.

Fanelli, G., Gall, J., and Van Gool, L. (2011). Real time

head pose estimation with random regression forests.

In International Conference on Computer Vision and

Pattern Recognition (CVPR), pages 617–624. IEEE.

Ghiass, R. S., Arandjelovi

c, O., and Laurendeau, D. (2015).

Highly accurate and fully automatic head pose estima-

tion from a low quality consumer-level rgb-d sensor.

In 2nd Workshop on Computational Models of Social

Interactions: Human-Computer-Media Communica-

tion, pages 25–34. ACM.

Gordon, C. C., Bradtmiller, B., Clauser, C. E., Churchill,

T., McConville, J. T., Tebbetts, I., and Walker, R. A.

(1989). Anthropometric survey of u.s. army person-

nel: Methods and summary statistics. In Technical re-

port 89-044. Natick MA: U.S. Army Natick Research,

Development and Engineering Center.

Guo, Z., Liu, H., Wang, Q., and Yang, J. (2006). A fast

algorithm face detection and head pose estimation for

driver assistant system. In 8th International Confer-

ence on Signal Processing, volume 3. IEEE.

Jang, J. S. and Kanade, T. (2008). Robust 3d head track-

ing by online feature registration. In 8th International

Conference on Automatic Face & Gesture Recognition

(FG’08). IEEE.

Jang, J. S. and Kanade, T. (2010). Robust 3d head track-

ing by view-based feature point registration. Techni-

cal report, People Image Analysis (PIA) Consortium,

Carnegie Mellon University.

Jeni, L. A., Cohn, J. F., and Kanade, T. (2017). Dense 3d

face alignment from 2d video for real-time use. Image

and Vision Computing, 58:13–24.

Kazemi, V. and Sullivan, J. (2014). One millisecond face

alignment with an ensemble of regression trees. In In-

ternational Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 1867–1874. IEEE.

Kumano, S., Otsuka, K., Yamato, J., Maeda, E., and Sato,

Y. (2009). Pose-invariant facial expression recogni-

tion using variable-intensity templates. International

Journal of Computer Vision, 83(2):178–194.

Kun, J., Bok-Suk, S., and Reinhard, K. (2013). Novel back-

projection method for monocular head pose estima-

tion. International Journal of Fuzzy Logic and Intelli-

gent Systems, 13(1):50–58.

La Cascia, M., Sclaroff, S., and Athitsos, V. (2000). Fast,

reliable head tracking under varying illumination: An

approach based on registration of texture-mapped 3d

models. Transactions on Pattern Analysis and Ma-

chine Intelligence, 22(4):322–336.

Liu, X., Liang, W., Wang, Y., Li, S., and Pei, M. (2016). 3d

head pose estimation with convolutional neural net-

work trained on synthetic images. In International

Conference on Image Processing (ICIP), pages 1289–

1293. IEEE.

Meyer, G. P., Gupta, S., Frosio, I., Reddy, D., and Kautz,

J. (2015). Robust model-based 3d head pose estima-

tion. In International Conference on Computer Vision

(ICCV), pages 3649–3657. IEEE.

Morency, L., Whitehill, J., and Movellan, J. (2008). Gen-

eralized adaptive view-based appearance model: In-

tegrated framework for monocular head pose esti-

mation. In 8th International Conference on Auto-

matic Face & Gesture Recognition (FG’08), pages 1–

8. IEEE.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

132

Murphy-Chutorian, E. and Trivedi, M. M. (2009). Head

pose estimation in computer vision: A survey. Trans-

actions on Pattern Analysis and Machine Intelligence,

31(4):607–626.

Murphy-Chutorian, E. and Trivedi, M. M. (2010). Head

pose estimation and augmented reality tracking: An

integrated system and evaluation for monitoring driver

awareness. Transactions on Intelligent Transportation

Systems, 11(2):300–311.

Papazov, C., Marks, T. K., and Jones, M. (2015). Real-time

3d head pose and facial landmark estimation from

depth images using triangular surface patch features.

In International Conference on Computer Vision and

Pattern Recognition (CVPR). IEEE.

Prasad, B. H. and Aravind, R. (2010). A robust head pose

estimation system for uncalibrated monocular videos.

In 7th Indian Conference on Computer Vision, Graph-

ics and Image Processing, pages 162–169. ACM.

Rosten, E., Porter, R., and Drummond, T. (2010). Faster and

better: A machine learning approach to corner detec-

tion. Transactions on Pattern Analysis and Machine

Intelligence, 32:105–119.

Saeed, A. and Al-Hamadi, A. (2015). Boosted human head

pose estimation using kinect camera. In International

Conference on Image Processing (ICIP), pages 1752–

1756. IEEE.

Saragih, J. M., Lucey, S., and Cohn, J. F. (2011). De-

formable model ﬁtting by regularized landmark mean-

shift. International Journal of Computer Vision,

91(2):200–215.

Schwarz, A., Haurilet, M., Martinez, M., and Stiefelhagen,

R. (2017). Driveahead - a large-scale driver head pose

dataset. In International Conference on Computer Vi-

sion and Pattern Recognition Workshops (CVPRW).

IEEE.

Sung, J., Kanade, T., and Kim, D. (2008). Pose robust face

tracking by combining active appearance models and

cylinder head models. International Journal of Com-

puter Vision, 80(2):260–274.

Valenti, R., Sebe, N., and Gevers, T. (2012). Com-

bining head pose and eye location information for

gaze estimation. Transactions on Image Processing,

21(2):802–815.

Valenti, R., Yucel, Z., and Gevers, T. (2009). Robustifying

eye center localization by head pose cues. In Inter-

national Conference on Computer Vision and Pattern

Recognition (CVPR), pages 612–618. IEEE.

Vicente, F., Huang, Z., Xiong, X., De la Torre, F., Zhang,

W., and Levi, D. (2015). Driver gaze tracking and

eyes off the road detection system. Transactions on

Intelligent Transportation Systems, 16(4):2014–2027.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In International

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), volume 1, pages I–511. IEEE.

Wang, H., Davoine, F., Lepetit, V., Chaillou, C., and Pan,

C. (2012). 3-d head tracking via invariant keypoint

learning. Transactions on Circuits and Systems for

Video Technology, 22(8):1113–1126.

Yin, C. and Yang, X. (2016). Real-time head pose estima-

tion for driver assistance system using low-cost on-

board computer. In 15th ACM SIGGRAPH Confer-

ence on Virtual-Reality Continuum and Its Applica-

tions in Industry, volume 1, pages 43–46. ACM.

Zhu, Y. and Fujimura, K. (2004). Head pose estimation for

driver monitoring. In Intelligent Vehicles Symposium,

pages 501–506. IEEE.

Combined Framework for Real-time Head Pose Estimation using Facial Landmark Detection and Salient Feature Tracking

133
