Segmentation of Cell Membrane and Nucleus

by Improving Pix2pix

Masaya Sato

, Kazuhiro Hotta

, Ayako Imanishi

, Michiyuki Matsuda

and Kenta Terai

Meijo University, Siogamaguchi, Nagoya, Aichi, Japan

Kyoto University, Kyoto, Japan

Keywords: Semantic Segmentation, Generative Adversarial Network, Pix2pix, Cell Membrane and Cell Nucleus.

Abstract: We propose a semantic segmentation method of cell membrane and nucleus by improving pix2pix. We use

pix2pix which is an improved method of DCGAN. Pix2pix generates good segmentation result by the

competition of generator and discriminator but pix2pix uses generator and discriminator independently. If

generator knows the criterion for classifying real and fake images, we can improve the accuracy of

generator furthermore. Thus, we propose to use the feature maps of the discriminator into generator. In

experiments on segmentation of cell membrane and nucleus, our proposed method outperformed the

conventional pix2pix.

1 INTRODUCTION

In the field of cell biology, cell biologists segment

cell membrane and cell nucleus manually now.

Manual segmentation takes cost and time. In

addition, the segmentation results become subjective.

Therefore, an automatic segmentation method is

desired. In recent years, segmentation accuracy is

much improved by the progress of deep learning.

Thus, we can develop an automatic segmentation

method with high accuracy now.

The effectiveness of encoder-decoder

convolutional neural network (CNN) such as the

SegNet (Vijay Badrinarayanan et al., 2017) and the

U-net (Olaf Ronneberger et al., 2015) for semantic

segmentation is reported. At first, we tried to use

encoder-decoder CNN for segmentation of cell

membrane and cell nucleus. However, segmentation

accuracy is not sufficient. Therefore, we tried to use

pix2pix (Phillip Isola et al., 2017) which is the

improved version of Generative Adversarial

Networks (GAN) ((Ian Goodfellow at el., 2014),

(Emily Denton at el., 2015)). Since pix2pix can train

the transformation between input and output images,

we can use it for segmentation (Masaya Sato et al.,

2017).

Pix2pix consists of generator and discriminator.

Generator produces an output image from the input

image. Discriminator classifies whether the output

image of the generator is real or fake. Two networks

are adversarial relationship. Pix2pix generates the

good segmentation result by the competition

between generator and discriminator in comparison

with the encoder-decoder CNN. However, the

accuracy of cell membrane is still low. Further

improvement is required.

In this paper, we try to improve the generator in

pix2pix. The goodness of the generator is evaluated

by the discriminator. Thus, knowing the important

features in discriminator is important for improving

the generator. For example, cell membrane is not

broken. If discriminator judges real and fake images

by using the knowledge, the information is effective

for generator to generate good segmentation result.

Thus, we use the feature maps of discriminator in

generator. Concretely, we concatenate the feature

maps of discriminator with the encoder part of the

generator. Generator can learn how discriminator

judges real or fake and use the information to

improve the accuracy.

In experiments, we used 50 fluorescence images

of the liver of transgenic mice that expressed

fluorescent markers on the cell membrane and in the

cell nucleus. 40 images are used for training and

remaining 10 images are used for evaluating the

accuracy. Ground truth images are made by human

experts. Therefore, the number of images is small.

216

Sato, M., Hotta, K., Imanishi, A., Matsuda, M. and Terai, K.

Segmentation of Cell Membrane and Nucleus by Improving Pix2pix.

DOI: 10.5220/0006648302160220

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 4: BIOSIGNALS, pages 216-220

ISBN: 978-989-758-279-0

We confirmed that the segmentation accuracy is

improved in comparison with conventional pix2pix.

The effectiveness of generator using the feature

maps of discriminator is demonstrated.

This paper is organized as follows. In section 2,

we explain our proposed method. Experimental

results on segmentation of cell membrane and cell

nucleus are shown in section 3. Section 4 describes

conclusion and future works.

2 PROPOSED METHOD

As described previously, we improve pix2pix by

using the feature maps of discriminator in generator.

At first, we explain pix2pix in section 2.1. After

that, we explain the proposed method in section 2.2.

2.1 Pix2pix

Pix2pix is an improved version of DCGAN. The

difference from standard DCGAN is the input of

generator. The input of standard DCGAN is a vector

(e.g.100 dimensions) but the input of pix2pix is an

image. Pix2pix trains the transformation from input

image to output image (e.g. from gray scale to color

image).

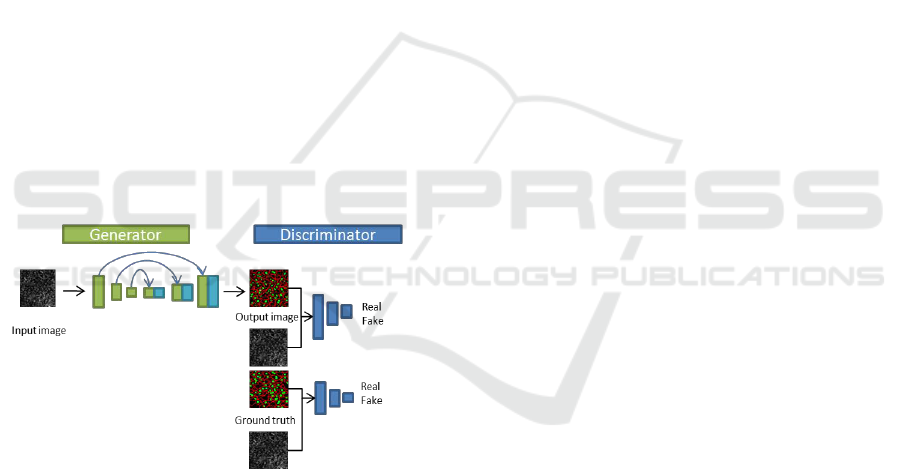

Figure 1: The structure of pix2pix.

The structure of pix2pix is shown in Figure 1.

Figure shows that generator makes the output image

from an input image and the discriminator classifies

it into real or fake class. In pix2pix, CNN is used as

the discriminator and the U-net is used as the

generator.

U-net is a kind of encoder-decoder CNN. The

main difference is the paths from encoder to decoder.

The paths prevent to lose small objects by encoder.

In other words, the multi-scale information is used to

generate an output image effectively.

Discriminator evaluates the goodness of

generator in pix2pix. However, they are independent

of each other, and the information in discriminator is

not used effectively in generator. Thus, we use

feature maps of discriminator in generator to make

good segmentation result which is similar as real

ground truth.

2.2 Our Method

In our method, the information in discriminator is

used into generator. To teach the generator how the

discriminator classifies real or fake, the feature maps

in discriminator are concatenated with encoder part

in generator. To do so, the paths are added to the

encoder part in generator from discriminator like U-

net.

Figure 2 shows the structure of our method.

Lower blue dot square shows the detail of blue dot

square in upper figure. In our method, two

generators and discriminators are used because we

want to use the feature maps of discriminator in

generator. The blue rectangles show the feature

maps of discriminator and green rectangles show the

feature maps of generator. At first, the 1st generator

which is the same as pix2pix makes an output image,

and the output image is fed into the 1st discriminator.

The feature maps of the 1st discriminator are used in

the 2nd generator. The output image is fed into the

2nd discriminator. The structure of both

discriminators is the same though that of two

generators is different.

The paths are added to the feature maps with the

same size between the 1st discriminator and the 2nd

generator. Since the size of feature map at the 1st

convolution layer in the 1st discriminator is 128 x

128 x 64, it is concatenated with the 1st convolution

layer of the encoder in the 2nd generator with 128 x

128 x 128. Thus, the size of the concatenated feature

map is 128 x 128 x (64+128). In the following

experiments, we concatenated all feature maps in the

1st discriminator to the encoder part of the 2nd

generator.

3 EXPERIMENTS

We used fluorescence images of the liver of

transgenic mice that expressed fluorescent markers

on the cell membrane and in the cell nucleus. There

are 50 images in total. The size of the image is 256 x

256 pixels. We divided those images into 40 training

images and 10 test images. We use two evaluation

measures; Global accuracy and Class average

accuracy. Global accuracy is correct classification

rate in all pixels. This is influenced by objects with

Segmentation of Cell Membrane and Nucleus by Improving Pix2pix

217

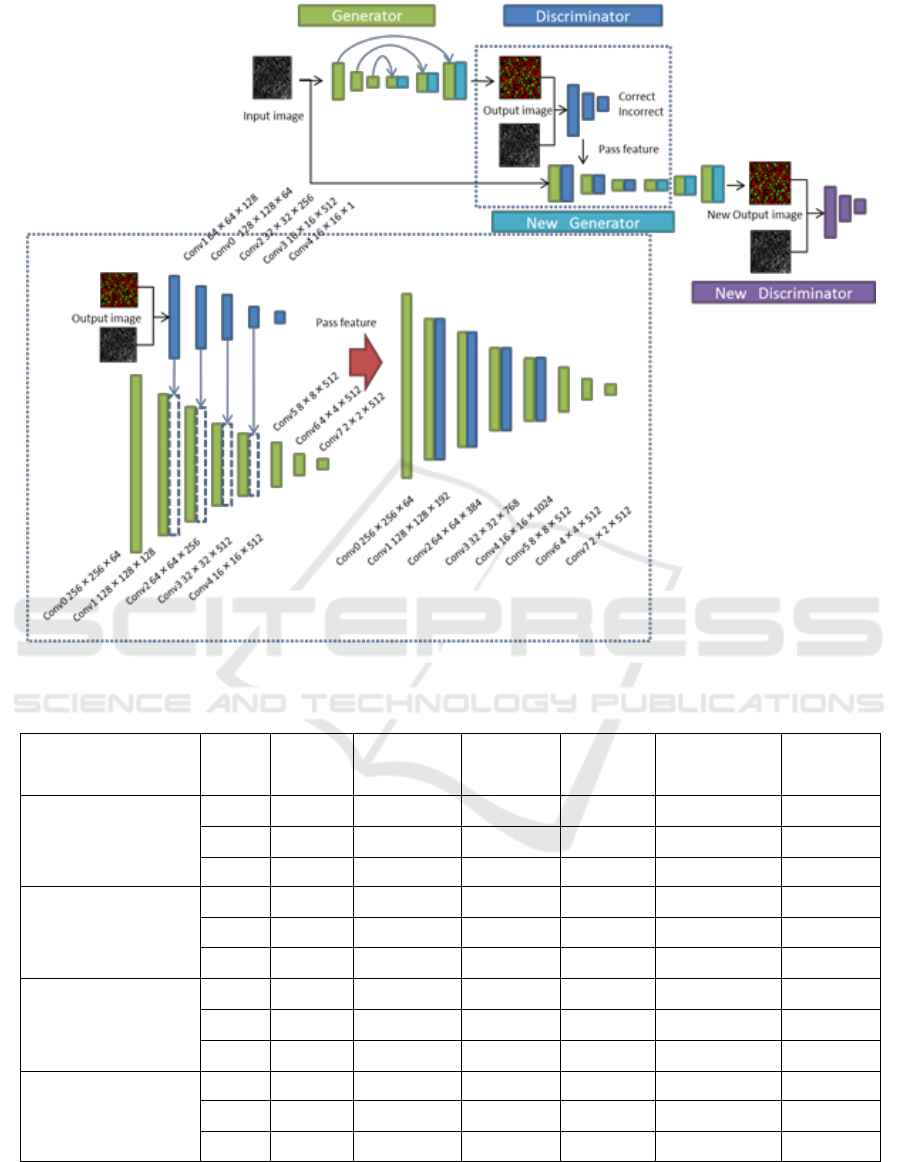

Figure 2: The structure of our method.

Table 1: The accuracy of our method.

Method

Try

time

Epoch

Global

accuracy

Class

average

Back

ground

Cell

membrane

Cell

nucleus

pix2pix

1438

77.15%

71.49%

86.86%

54.46%

73.14%

1124

77.01%

71.30%

86.77%

54.26%

72.87%

1102

77.11%

71.10%

87.31%

53.50%

72.48%

our

method

(N=2)

1490

77.24%

72.01%

85.98%

57.36%

72.69%

1440

77.43%

72.40%

85.94%

57.76%

73.51%

1442

77.34%

72.30%

85.75%

58.22%

72.92%

our

method

(N=3)

1402

76.99%

71.59%

85.99%

56.53%

72.24%

1390

76.89%

71.86%

85.33%

57.65%

72.60%

1446

76.95%

71.95%

85.40%

57.52%

72.94%

our

method

(N=0,1,2,3)

1458

78.00%

72.50%

87.08%

57.64%

72.78%

1468

77.96%

72.74%

86.81%

57.43%

73.98%

1500

78.02%

72.97%

86.50%

58.56%

73.85%

BIOSIGNALS 2018 - 11th International Conference on Bio-inspired Systems and Signal Processing

218

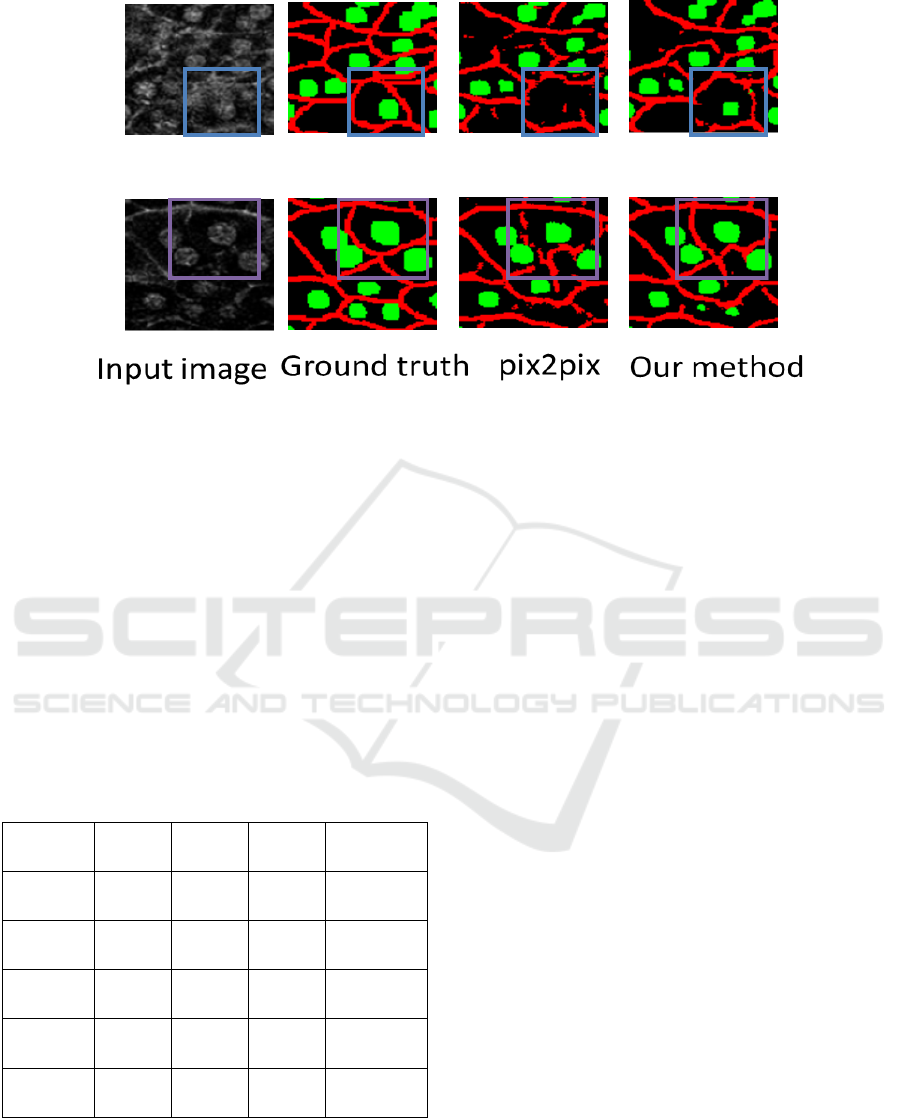

Figure 3: Partial view of the segmentation result.

large area such as background. Class average

accuracy is the mean classification rate of each class.

This is influenced by objects with small area such as

cell membrane and nucleus.

The number of epoch in training is set to 1500.

The best model is determined by the minimum loss

of generator.

We evaluate each method three times because

the accuracy changes slightly depending on the

random number. Table 1 shows the accuracy of three

times evaluations. N=2 means that only the 2nd

layer of generator uses feature maps of discriminator.

N=0,1,2,3 means that all feature maps of

discriminator are used in generator.

Table 2: The mean accuracy.

Pix2pix

Ours

(N=2)

Ours

(N=3)

Ours

(N=0,1,2,3)

Global

accuracy

77.09%

77.34%

76.95%

77.99%

Class

average

71.30%

72.24%

71.80%

72.74%

Back

ground

86.98%

85.89%

85.57%

86.80%

Cell

membrane

54.08%

57.78%

57.24%

57.88%

Cell

nucleus

72.83%

73.04%

72.59%

73.53%

Tables show that the usage of feature maps of

discriminator in generator is effective. However,

when only the 2nd or 3rd layer of the generator uses

the features maps of discriminator, the accuracy

improvement is not so large. The results show that

feature maps with multi-resolution in discriminator

are effective to improve the accuracy of generator.

In class average accuracy, our method using all

feature maps improved 1.44% in comparison with

standard pix2pix. Cell membranes are difficult

because of their complicated shapes. However, our

method improved 3.80%. This result demonstrated

the effectiveness of our method.

Figure 3 shows the segmentation results. The

segmentation accuracy of cell membrane by the

proposed method is much better than the

conventional method. Figure 4 shows partial views

of the segmentation results. The images in the upper

row are the enlarged view of a part of the image in

the upper row of Figure 3. When we focus on the

blue rectangles in Figure 4, the cell nucleus is

detected more correctly by our method. The images

in the lower row are the enlarged view of a part of

the image in the second row of Figure 3. When we

focus on the purple rectangles, the segmentation

accuracy of cell membrane by our method is better

than the conventional method. These results

demonstrated the effectiveness of our method using

feature maps of discriminator in generator.

4 CONCLUSIONS

We used feature maps of discriminator in generator

in order to improve the segmentation accuracy. By

teaching the information of discriminator to

generator, the accuracy of cell membrane is much

improved in comparison with standard pix2pix.

However, current accuracy is not sufficient for

automatic segmentation of cell membranes and

Segmentation of Cell Membrane and Nucleus by Improving Pix2pix

219

nucleus. Thus, we must improve segmentation

accuracy further. When we use the feature maps of

discriminator in generator, we just concatenate the

feature maps with the encoder part of generator. We

should use convolution before concatenation. This is

a subject for future works.

ACKNOWLEDGEMENTS

This work is partially supported by MEXT/JSPS

KAKENHI Grant Number 16H01435 “Resonance

Bio”.

REFERENCES

Badrinarayanan, V., Kendall, A. and Cipolla, R. （2017).

SegNet: A Deep Convolutional Encoder-Decoder

Architecture for Image Segmentation. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, Vol.39, No.12, pp.2481-2495.

Ronneberger, O., Fischer, P. and Brox, T. (2015). U-Net:

Convolutional Networks for Biomedical Image

Segmentation. Proc. Medical Image Computing and

Computer-Assisted Intervention, pp.234-241.

Isola, P., Zhu, J., Zhou, T. and Efros, A. A. (2017). Image-

to-Image Translation with Conditional Adversarial

Networks. Proc. IEEE conference on Computer Vision

and Pattern Recognition, pp.5967-5976.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A. and Bengio,

Y. (2014). Generative adversarial nets. Advanced in

Neural Information Processing Systems, Vol.27,

pp.2672-2680.

Denton, E., Chintala, S., Szlam, A. and Fergus, R. (2015).

Deep Generative Image Models using a Laplacian

Pyramid of Adversarial Networks. Advanced in

Neural Information Processing Systems, Vol.28, pp.

1486-1494.

Sato, M., Hotta, K., Imanishi, A., matsuda, M., and Terai,

K. (2017). Segmentation of cell membrane and cell

nucleus Using pix2pix of Local Regions. International

Symposium on Imaging Frontier, p.77

BIOSIGNALS 2018 - 11th International Conference on Bio-inspired Systems and Signal Processing

220
