Object Detection Featuring 3D Audio Localization for Microsoft

HoloLens

A Deep Learning based Sensor Substitution Approach for the Blind

Martin Eckert, Matthias Blex and Christoph M. Friedrich

University of Applied Sciences and Arts Dortmund, Department of Computer Science, 44227 Dortmund, Germany

Keywords:

Sensor Substitution, Spatial Audio, Object Detection, Convolutional Neural Networks, Mixed Reality.

Abstract:

Finding basic objects on a daily basis is a difﬁcult but common task for blind people. This paper demonstrates

the implementation of a wearable, deep learning backed, object detection approach in the context of visual

impairment or blindness. The prototype aims to substitute the impaired eye of the user and replace it with

technical sensors. By scanning its surroundings, the prototype provides a situational overview of objects

around the device. Object detection has been implemented using a near real-time, deep learning model named

YOLOv2. The model supports the detection of 9000 objects. The prototype can display and read out the name

of augmented objects which can be selected by voice commands and used as directional guides for the user,

using 3D audio feedback. A distance announcement of a selected object is derived from the HoloLens’s spatial

model. The wearable solution offers the opportunity to efﬁciently locate objects to support orientation without

extensive training of the user. Preliminary evaluation covered the detection rate of speech recognition and the

response times of the server.

1 INTRODUCTION

According to World Health Organization (WHO,

2014), 285 million people worldwide are estimated to

be visually impaired; a subset of this estimated pop-

ulation which amounts to 39 million people are diag-

nosed blind.

This paper aims to use modern technology to help

people with visual impairment and blindness. This

can improve everyday life quality and help with en-

vironmental orientation and interaction. Blind people

face many challenges when navigating and interacting

with objects and other beings. Particularly in unfamil-

iar environments, this may prove difﬁcult with unpre-

dictable and uncertain events such as the misplace-

ment of an object. What simply seems like forgetting

the location of your coffee cup, is suddenly an ordeal

of sorted interactions to ﬁnd the missing object.

Within this work, a prototype to detect and iden-

tify objects in digital images, using deep learning

technologies was developed. The prototype, features

a HoloLens setup for the user and can be used to

identify objects in the users environment and describe

them via voice output.

To improve usability of the framework, Microsoft

HoloLens provides not only a mobile mixed real-

ity solution that covers image capturing, microphone

and 3D audio playback functionalities. Furthermore,

it provides a spatial model of the user surroundings

which can be used for distance calculation between

an object in the spatial model and the HoloLens. This

hardware was used within the scope of rapid proto-

typing, the use of less expensive consumer oriented

devices is possible for the ﬁnal implementation.

The user can issue a voice command to initiate an

environment scan that is analyzed by the server run-

ning a deep learning network. Following this analysis,

the identiﬁed objects are articulated in the form of a

voice output or “spatial hearing” for the user. Single

objects are selectable by voice commands and aug-

mented with additional information on direction and

distance.

The 3D audio playback functionality of the

HoloLens enables the user to locate a selected object

by audio signals, virtually emitted from the object.

The possibility of spatial hearing that the HoloLens

offers, enables the user to navigate in relation to the

object of interest.

The paper is structured as follows, section 2 cov-

ers signiﬁcant research in the ﬁeld of sensor substitu-

Eckert, M., Blex, M. and Friedrich, C.

Object Detection Featuring 3D Audio Localization for Microsoft HoloLens - A Deep Learning based Sensor Substitution Approach for the Blind.

DOI: 10.5220/0006655605550561

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 5: HEALTHINF, pages 555-561

ISBN: 978-989-758-281-3

555

tion with a focus on blind and visually impaired peo-

ple. Section 3 describes the approach and program-

matic design. In section 4 a preliminary evaluation of

the device is given. The last section 5 lists pros and

cons of the developed prototype and provides ideas

for future possibilities.

2 RELATED WORK

Bach-y-Rita conducted a study that shows how

quickly blind people can train and develop a vi-

sual understanding of the environment around them

through the substitution with other senses, e.g. au-

dio or haptics (Bach-y-Rita, 2004). In this way, his

statement justiﬁes that the eyes are not used to see,

but serve only to absorb information. The brain then

assembles the information into an internal image. In

light of this research, it is arguable that the source of

data is irrelevant and can be replaced.

2.1 Orientation Aids for People with

Impaired Vision

In (Meijer, 1992), an experimental system named

“The vOICe” translated image representations into

time-multiplexed sound patterns. The system worked

with a standard video camera and the image was

translated into a gray-scale image.

The acquired image is processed column by col-

umn from left to right and an audio output is gener-

ated for each column. Each pixel is assigned a tone

and the pitch is determined by the y-coordinate, the

volume by the intensity. When the ﬁrst column is

played, an acoustic signal sounds. This beep tells the

user that scanning of the image starts from the left

edge. Thus, the user can estimate which horizontal

position the individual elements have in the picture

and at which point in time the picture is played back.

The solution is solid but requires the user to be trained

on the system for a longer time. It is offered free

of charge as Android, Windows and Web application

(Meijer, 2017).

Another system is “SoundView”, it detects objects

by means of attached bar-codes and returns the in-

formation (Nie et al., 2009). Found objects are an-

nounced by speech output. The implementation is fa-

cilitated through a camera, an element that provides

digital signals and a pair of headphones. The bar-

codes on the objects must have a ﬁxed size. This al-

lows the calculation of the distance to found objects.

With the development of smaller communication

devices, (Sudol et al., 2010) presented a mobile

computer-aided visual assistance device. Based on a

regular cell phone, the image is sent via network to

a computer, the image recognition takes place and is

fed back to the user by using a text-to-speech engine.

With this technique the user can identify numbers on

a dollar bill or CD covers.

”EyeCane”, ﬁrst introduced by (Maidenbaum

et al., 2012), measures the real-world distance be-

tween the device and the object it is pointed at. The

development was inﬂuenced by the previous works of

(Meijer, 1992). To measure the distance, the device

uses an Infra-red (IR) beam and creates a correspond-

ing audio signal. Maidenbaum goes a step further and

improves the idea that with point-distance informa-

tion in a virtual 3D setting. This development means

the cane can also be used to make virtual environ-

ments accessible for the blind.

”EyeMusic” on the other hand uses tones from

musical instruments to represent colors of objects. It

extends the work of (Meijer, 1992) by the use of a

musical representation of the image. Five musical in-

struments are used, each of which is represented by

one color. Red for Reggae Organ, Green for Rapmans

Reed, Blue for Brass Instruments, White for Choir

and Yellow for String Instruments (Abboud et al.,

2014). The project heavily collaborated with psychol-

ogists to ﬁt the needs of blind and visually impaired

people.

“Sonic Eye” is a portable device that sends ultra-

sound waves through a speaker attached to the head

(Sohl-Dickstein et al., 2015). These are reﬂected from

objects in the direction of sound and recorded by

a stereo microphone. The normally inaudible ultra-

sound signal is slowed down and played as a hearable

sound to the user.

The App “Be-my-Eyes” helps users send pictures

into a distributed network of people who volunteer to

classify images and report the information back to the

original users (Wiberg, 2015). Instead of Artiﬁcal In-

telligence (AI), the system uses human intelligence to

detect objects. This, however, is not without delay as

estimated waiting times for object detection is gener-

ally two minutes.

2.2 Convolutional Neural Networks for

Object Detection

Computational object detection is used to identify re-

gions of an image that belong to a real-world object.

Classic methods for object detection make use of al-

gorithms like Histogram of oriented gradients (HOG)

(Dalal and Triggs, 2005) and Scale-invariant feature

transform (SIFT) (Lowe, 1999) features. The recent

development in deep learning had also inﬂuenced the

ﬁeld of computational object detection. Nowadays,

HEALTHINF 2018 - 11th International Conference on Health Informatics

556

Convolutional Neural Networks (CNNs) are used to

detect and classify objects within an image or video

stream in nearly real-time (Girshick, 2015).

The You Only Look Once (YOLO) approach to

object detection was developed by (Redmon et al.,

2016) and offers real-time object detection.

Opposed to the traditional procedure where re-

gions are identiﬁed and classiﬁed, YOLO recognizes

the regions and calculates class probabilities in a sin-

gle step. In this work an improved version of You

Only Look Once v2 (YOLOv2) is used (Redmon and

Farhadi, 2017).

3 METHOD

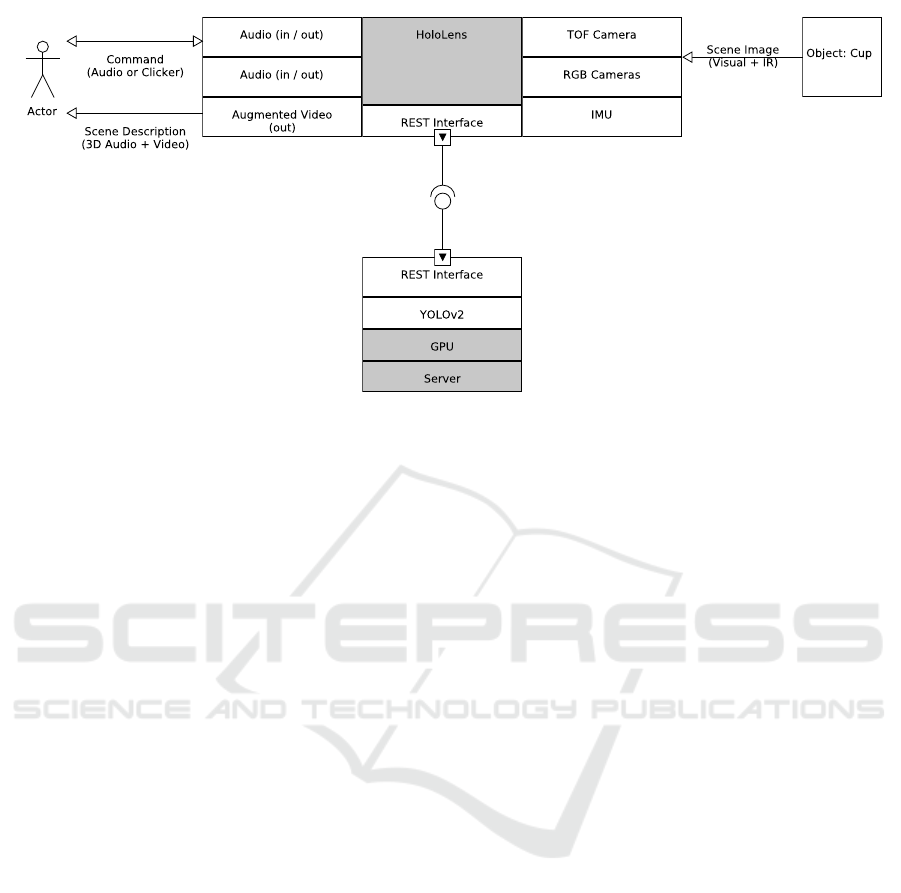

The software design is based on a client-server ar-

chitecture and depicted in ﬁgure 1. To calculate

predictions for the classiﬁcation of objects, a con-

sumer grade Graphic Processing Units (GPUs) (e.g.

NVIDIA Titan X) is required for this prototype. Thus

a client-server architecture is necessary.

Trough it speciﬁcation the HoloLens proved to be

a suitable platform for the proof of concept. The hard

and software speciﬁcation allowed quick implemen-

tation and offered necessary debugging options.

On the client side, the HoloToolkit (Microsoft,

2017a) integrates with Unity3D (Unity Technologies,

2017) and Visual Studio Integrated Development En-

vironment (IDE) (Microsoft, 2017b). The Holo-

Toolkit controls cameras, audio input, 3D audio out-

put, as well as server-communication.

Additional to the audio and gesture control the

HoloLens provides a ”Clicker”, a small gray device

with a button, connected via Bluetooth.

The server runs YOLOv2 (Redmon, 2017b), on

top of darknet (Redmon, 2017a) implemented in C

and Compute Uniﬁed Device Architectur (CUDA)

(NVIDIA, 2017).

For the best results in the indoor-setting, a pre-

trained YOLOv2 model is used. The details of the

software stack and further resources are indicated in

the table 1.

3.1 Server-side Object Detection

After the integrated Camera takes a regular Red Green

Blue (RGB) image, in JPG format with the resolution

of 896 × 504, the image is sent to the server for anal-

ysis.

When the server receives the image, it performs

object detection. A pre-trained model of YOLOv2 is

used and the results are converted to JavaScript Object

Table 1: Software stack showing the software used to create

the prototype. Development IDEs and server-side CNNs are

included.

Development stack

Visual Studio (Microsoft, 2017b)

Unity3D (Unity Technologies, 2017)

HoloToolkit (Microsoft, 2017a)

Server stack

CentOS (Red Hat, Inc., 2017)

Flask (Ronacher, 2017)

darknet (Redmon, 2017a)

Pexpect (Quast and Thomas, 2017)

YOLOv2 (Redmon, 2017b)

Client

Windows Holographic Plat-

form

(Microsoft, 2017c)

Notation (JSON) format (El-Aziz and Kannan, 2014)

and returned to the client.

YOLOv2 follows the approach of “only look

once” for object recognition applied to each image.

As a result, bounding boxes are created and the prob-

ability that an object belongs to a certain class inside

the bounding box is calculated.

YOLOv2, trained on the 2007 and 2012 PASCAL

Visual Object Classes (VOC) datasets, has proven to

be the fastest detector based on the VOC dataset (Red-

mon et al., 2016), demonstrating a solid detection re-

sult that is twice as precise as real-time detectors such

as 100Hz Deformable Parts Model (DPM) (Girshick

et al., 2015) and 30Hz DPM.

The server is returning 2D coordinates to the

HoloLens, then 3D real-world coordinates of the ob-

ject are calculated on the device based on the received

2D data and the virtual 3D model, generated by the

HoloLens. The virtual 3D model is mapped by a real-

time process, supported by the HoloLens Time-of-

Flight (TOF) system and visible light cameras. This is

necessary to provide distance announcements for the

individual recognized objects.

The estimation of real world coordinates is

achieved by using the spatial model of the Holo-

Toolkit. While moving, the TOF and RGB cameras

are mapping the surroundings and create a spatial

model of the room. Based on this model the dis-

tance to the selected object can be calculated. How-

ever through the low resolution of the spatial model

the distance can only be estimated.

If the user chooses an individual object by voice

command, a pink virtual cube is placed in the virtual

scene of the HoloLens display to mark the selected

object. The virtual scene is generated by scanning and

mapping the environment while HoloLens is active.

Object Detection Featuring 3D Audio Localization for Microsoft HoloLens - A Deep Learning based Sensor Substitution Approach for the

Blind

557

Figure 1: Diagram of the technical architecture. HoloLens gathers Images and Information through sensors. Information is

forwarded to the server running object detection with YOLOv2. Information is transferred back to HoloLens. User receives

3D audiovisual feedback on scanned scene and can continue to interact with the system. The Inertial measurement unit (IMU)

is used for head tracking.

This scene is then accessed to place objects within the

virtual environments, respecting real-live boundaries

and create a higher immersion factor while using the

device. This enables the software to ﬁx an object in

the virtual world even if the user moves the device.

Within this work this function is used to calculate dis-

tances to objects and highlight selected objects to sup-

port people with visual impairments.

Client communication is implemented with a

server via Internet connection. This communica-

tion has been implemented via Representational State

Transfer (REST) interface (Costa et al., 2014) which

also ensures that multiple clients can communicate

with the server.

3.2 User Interaction

In order to make the operation of the program suitable

for everyday use, the possibility of control via voice

commands has been integrated. All functions of the

program can be executed by voice command.

Firstly, the user must be given an opportunity

to take a photo so that it can be processed. This

action is triggered by activating the HoloLens via

voice command “Scan” or pressing of the “Clicker”,

a bluetooth-connected button device, as an alternative

robust hardware trigger.

If objects are found in the recorded image, their

names are played back as voice output. Table 2 shows

the voice commands that can be issued by the user and

following actions taken on client- and server-side.

Understanding of audio commands is imple-

mented by using the Speech Recognition Platform,

which is part of Microsoft’s Universal Windows Plat-

form (UWP). The audio speech output is realized

on the UWP SpeechSynthesizer which is bridged to

Unity3D. Spatial 3D audio playback is also imple-

mented by using the UWP SpatialSoundManager. All

three functionalities can be used in Unity3D by using

the Microsoft HoloToolkit (Microsoft, 2017a).

At the moment only English is supported, which

limits recognition performance for non-native speak-

ers.

The voice output informs the user between indi-

vidual steps and guide him through the program. For

example, if a photo has been taken, the user is in-

formed that there is a short waiting time for object

detection. As soon as results are returned, the list of

found objects with their names is announced automat-

ically. Figure 2 represents a situation where the user

issues a voice command to initiate the object detec-

tion.

The locate function, triggered by naming the cor-

responding object, positions a virtual sound source in

the position of the found object. Using the placed

sound source, the loudspeakers of HoloLens are used

to determine the direction and distance of the selected

object.

4 EVALUATION

The following section covers the preliminary evalu-

ation of the prototype. For this position paper, the

HEALTHINF 2018 - 11th International Conference on Health Informatics

558

Table 2: User, Client and Server interaction. First column contains the voice commands issued by the user. Second and third

column describe the actions executed by client and server.

∗

Note that in the fourth line the identiﬁer “Cup” can be replaced

by any other Object recognized by YOLOv2 in the scene.

User Client Server

“Scan” • records image • receives picture

• sends it to server • start object detection

• reads list of objects aloud • return list of recognized objects

“Objects” • rereads list of objects aloud

“Cup”

∗

• highlights cup with pink cube

“Distance” • announces distance to selected object

• start 3D audio ping

“All” • selects or deselects all found objects

Figure 2: User issuing the “Scan” command using voice or

the HoloLens Clicker to detect objects in the ﬁeld of view.

The detected objects are announced by the HoloLens voice

output. The Debug interface can be seen in the background.

quality of the speech recognition, the efﬁciency of the

object detection and the response times of the system

have been evaluated.

4.1 Speech Recognition

In order to test how well voice commands are recog-

nized and processed, the debug output for each rec-

ognized voice command has been used. The voice

commands that should be recognized were limited to

“Scan”, “Start”, “Stop” and “Chair”. Each word was

pronounced 25 times by a non-native speaker. The

word “Chair” is only a placeholder and could be re-

placed by any other object known in the set of object

classes. In this test, 83 % of the voice commands were

detected correctly and processed immediately. There

is a problem with multi-word terms such as “potted

plant” or “edible fruit” being pronounced. The multi-

word term problem has not been part of this evalua-

tion.

4.2 Object Detection

The object detection of YOLOv2 as tested in the pub-

lication (Redmon, 2017b) is 65.5 % correct on the

VOC 2007 dataset.

The remaining 34.5 % of errors are split into

19.0 % Localization errors, 6.75 % similar object

class detection errors, 4.75 % background detection

errors and lastly, 4 % of errors are classiﬁed as other.

The YOLO9000 model features 9000 object

classes (Redmon and Farhadi, 2017) and enables the

object detection to ﬁnd a larger variety of everyday

objects. The detection data for objects has been de-

rived from Microsoft’s Common Object in Context

(COCO) and the detection task is based on the Im-

ageNet dataset (Russakovsky et al., 2015).

YOLO9000 gets 19.7 mAP on the ImageNet de-

tection validation set (Redmon and Farhadi, 2017).

4.3 Response Times

In order to measure the processing time of the results

on the client, the time between the reception of results

and processing was run 100 times on a NVIDIA Titan

X GPU. The image is 896 × 504 pixels in size and

contains three objects that are found. During the test

runs, the position of the HoloLens was not changed.

The results are summarized as the median of 100 runs.

The accumulated response time was approximately

one second. This result can be divided into an av-

erage of 627 ms for network transport, 312 ms for

object detection and client processing took 101 ms.

5 CONCLUSION

This paper shows, that recent technology advances in

deep learning and mixed reality hardware allow faster

development of assistive technologies. The proposed

Object Detection Featuring 3D Audio Localization for Microsoft HoloLens - A Deep Learning based Sensor Substitution Approach for the

Blind

559

system offers many possibilities to simplify the every-

day life of those who are visually impaired or blind

and can be used without any previous training on the

device.

The following section discusses problems and op-

portunities on how a continuation of this work could

evolve. The augmented scene shows inaccuracies, es-

pecially on small objects. This leads to inaccurate

highlighting of some selected objects due to missing

calibration.

Another problem is that the compact hardware of

the HoloLens is rather unpleasant and uncomfortable

after long periods of wear. Limited battery capacity

and a permanently required network connection also

limit the mobility of the prototype.

The next version of the HoloLens is suppos-

edly deep learning capable (Microsoft Research Blog,

2017). Considering that the computing power of the

new version is strong enough, object detection could

be performed directly on the HoloLens.

For this reason the HoloLens was used during

the prototyping process, the use of less costly and

more durable hardware with well attuned speciﬁca-

tions needs to be considered.

In order to provide a quicker overview for peo-

ple with less severe visual impairment, texts with the

names of object classes could be displayed in the ﬁeld

of view.

In addition to object recognition, there is extra in-

formation that can be obtained from captured images.

Furthermore, the spatial awareness of the HoloLens

would make it possible to warn the user if he/she is

standing in front of a wall or obstacle at a certain dis-

tance. As proven by (Garon et al., 2016), the resolu-

tion of depth information can be increased using an

external depth sensor.

Other applications already recognize signs or bank

notes (Sudol et al., 2010), using various Optical Char-

acter Recognition (OCR) frameworks. OCR software

could be combined into the prototype to extend these

functionalities. The program could also be extended

to include recognition of humans, signs or texts in

real-time.

AUTHORS CONTRIBUTION

MB implemented the software and co-authored the

paper, ME authored the manuscript and tested the im-

plementation. CMF coined the idea, supervised the

work and co-authored the manuscript. All authors ap-

proved the ﬁnal version.

REFERENCES

Abboud, S., Hanassy, S., Levy-Tzedek, S., Maidenbaum,

S., and Amedi, A. (2014). EyeMusic: Introducing a

“visual” colorful experience for the blind using audi-

tory sensory substitution. Restorative Neurology and

Neuroscience, 32(2):247–257.

Bach-y-Rita, P. (2004). Tactile sensory substitution studies.

Annals-New York Academy Of Sciences, 1013:83–91.

Costa, B., Pires, P. F., Delicato, F. C., and Merson, P. (2014).

Evaluating a representational state transfer (REST) ar-

chitecture: What is the impact of rest in my architec-

ture? In Proceedings of the IEEE/IFIP Conference on

Software Architecture, (ICSA), pages 105–114.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, (CVPR), pages 886–893.

El-Aziz, A. A. and Kannan, A. (2014). JSON encryption. In

Proceedings of the International Conference on Com-

puter Communication and Informatics (ICCCI), pages

1–6.

Garon, M., Boulet, P.-O., Doironz, J.-P., Beaulieu, L., and

Lalonde, J.-F. (2016). Real-Time High Resolution 3D

Data on the HoloLens. In Proceedings of the IEEE In-

ternational Symposium on Mixed and Augmented Re-

ality (ISMAR-Adjunct), 2016, pages 189–191.

Girshick, R. (2015). Fast R-CNN. In Proceedings of

the IEEE International Conference on Computer Vi-

sion,(ICCV), pages 1440–1448.

Girshick, R., Iandola, F., Darrell, T., and Malik, J. (2015).

Deformable part models are convolutional neural net-

works. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition (CVPR),

pages 437–446.

Lowe, D. G. (1999). Object recognition from local scale-

invariant features. In Proceedings of the 7

IEEE In-

ternational Conference on Computer Vision, (ICCV),

volume 2, pages 1150–1157.

Maidenbaum, S., Arbel, R., Abboud, S., Chebat, D., Levy-

Tzedek, S., and Amedi, A. (2012). Virtual 3D shape

and orientation discrimination using point distance in-

formation. In Proceedings of the 9

International

Conference on Disability, Virtual Reality & Associ-

ated Technologies, (ICDVRAT), pages 471–474.

Meijer, P. B. (1992). An experimental system for auditory

image representations. IEEE Transactions on Biomed-

ical Engineering, 39(2):112–121.

Meijer, P. B. (2017). Augmented reality and

soundscape-based synthetic vision for the blind.

https://www.seeingwithsound.com [Accessed: Octo-

ber 6, 2017].

Microsoft (2017a). HoloToolkit.

http://www.webcitation.org/6u0tUB8dz [Accessed:

October 5, 2017].

Microsoft (2017b). Microsoft Visual Studio.

https://www.visualstudio.com/ [Accessed: Octo-

ber 5, 2017].

HEALTHINF 2018 - 11th International Conference on Health Informatics

560

Microsoft (2017c). Windows Holographic Platform.

https://www.microsoft.com/de-de/hololens [Ac-

cessed: October 5, 2017].

Microsoft Research Blog (2017). Second ver-

sion of HoloLens HPU will incorporate

AI coprocessor for implementing DNNs.

http://www.webcitation.org/6u0iWSp42 [Accessed:

October 5, 2017].

Nie, M., Ren, J., Li, Z., Niu, J., Qiu, Y., Zhu, Y., and Tong,

S. (2009). SoundView: an auditory guidance system

based on environment understanding for the visually

impaired people. In Proceedings of the IEEE Confer-

ence on Engineering in Medicine and Biology Society,

(EMBC), pages 7240–7243.

NVIDIA (2017). CUDA Zone — NVIDIA Devel-

oper. https://developer.nvidia.com/cuda-zone [Ac-

cessed: October 5, 2017]”.

Quast, J. and Thomas, K. (2017). pexpect.

https://pexpect.readthedocs.io/en/stable/# [Accessed:

October 5, 2017].

Red Hat, Inc. (2017). CentOS 7. https://www.centos.org/

[Accessed: October 5, 2017].

Redmon, J. (2017a). darknet. https://pjreddie.com/darknet/

[Accessed: October 5, 2017].

Redmon, J. (2017b). YOLOv2.

https://pjreddie.com/darknet/yolo/ [Accessed: Octo-

ber 5, 2017].

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time object

detection. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition, (CVPR),

pages 779–788.

Redmon, J. and Farhadi, A. (2017). YOLO9000: Better,

Faster, Stronger. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), Honolulu, USA.

Ronacher, A. (2017). ﬂask - A microframework

based on Werkzeug, Jinja2 and good intentions.

https://github.com/pallets/ﬂask [Accessed: October 6,

2017].

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., et al. (2015). ImageNet large scale visual

recognition challenge. International Journal of Com-

puter Vision, 115(3):211–252.

Sohl-Dickstein, J., Teng, S., Gaub, B. M., Rodgers,

C. C., Li, C., DeWeese, M. R., and Harper, N. S.

(2015). A device for human ultrasonic echoloca-

tion. IEEE Transactions on Biomedical Engineering,

62(6):1526–1534.

Sudol, J., Dialameh, O., Blanchard, C., and Dorcey, T.

(2010). Looktel — A comprehensive platform for

computer-aided visual assistance. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition Workshops (CVPRW), pages 73–80.

Unity Technologies (2017). Unity3D. https://unity3d.com/

[Accessed: October 5, 2017].

WHO (2014). WHO factsheets: Vi-

sual impairment and blindness.

http://www.who.int/mediacentre/factsheets/fs282/en/

[Accessed: October 5, 2017].

Wiberg, H. J. (2015). Be My Eyes. http://bemyeyes.com

[Accessed: October 5, 2017].

Object Detection Featuring 3D Audio Localization for Microsoft HoloLens - A Deep Learning based Sensor Substitution Approach for the

Blind

561
