Dual-channel Geometric Registration of a Multispectral-augmented

Endoscopic Prototype

O. Zenteno

, A. Krebs

, S. Treuillet

, Y. Lucas

, Y. Beneze th

and F. Marzani

PRISME, Universite d’Orleans, F-45072 Orleans, France

Le2i FRE2005, CNRS, Arts et M´etiers, Univ. Bourgogne Franche-Comt´e, F-21000 Dijon, France

Keywords:

Gastroendoscopy, Multispectral Imaging, Optical Biopsy.

Abstract:

Multispectral measurement and analysis have proven to be useful to detect and monitor gastric pathologies at

early stages. We developed a multispectral-augmented endoscopic prototype which allows exploration in the

visible and near infrared range (400-1000 nm), increasing the common number of bands under analysis. The

prototype comprises a ﬁberscope connected to two multispectral snapshot cameras which is inserted through

the instrument channel of a commercial endoscope. However, due to aseptic practices, the system must be

sterilized between exams, forcing physicians to remove and reintroduce it on each examination and leading

to different relative positions between modalities. In the present work, we introduce an axial displacement

correction function for dual-channel registration (i.e., RGB and multispectral) based on the insertion depth of

the ﬁberscope. The performance was assessed using a chessboard pattern and its corner coordinates as ground

truth. The mean RMSE error of the control points after registration using our method was 2.3 ± 0.7 pixels,

whereas the RMSE error using a frame by frame homographic registration was 1.2 ± 0.4 pixels. In addition,

the technique was tested on mouth exploration samples to simulate in-vivo acquisition. The results reveal

that our method provides similar results when compared to a homographic transformation which would be

impossible to perform in-vivo.

1 INTRODUCTION

Gastric inﬂammation is an invariable ﬁnding in pa-

tients infected with Helicobacter pylori and represents

the host immune response to the organism. It pro-

duces surface epithelial degeneration and inﬁltra tion

of the gastric mucosa by acute and chro nic inﬂamma-

tory cells. The prompt detection and diagnosis of gas-

tric inﬂammation enables the initiation of early-stage

therapy an d can signiﬁcantly increase the treatment

quality among patients who develop further compli-

cations.

Current endoscopic systems can provide radially

distorted RGB images of the sto mach wall. Howe-

ver, spectral measurem ent and analysis, which pro-

vide accurate quantiﬁcations of morphology and mi-

crovascularity, are better to detect and monitor the

progression of these pathologies at an e a rly stage. Se-

veral commercial multispectral imaging approaches

have been proposed to improve g astric exploration.

Typical examples are Fuji Intelligent Chromo En-

doscopy (FICE), proposed by Fuji and Narrow Band

Imaging (NBI), propo sed by Olympus (Song et al.,

2008). These techniques have shown the beneﬁts of

using multiple wavelengths for diagnosis. However

they are limited in the number of wavelengths proces-

sed. We believe that using a larger number of bands in

the visible and near infrared (400-1000 nm) could im-

prove gastro-e ndoscopic exploration and diagnosis.

The common standard in the literature for in- a nd

ex-vivo multispectral exploration is the use of ﬁlter

wheels or p ush broom systems, respectively. Howe-

ver, both system s are ineffective for mapping moving

inﬂamed a reas due to the tempora l lag between wave-

lengths. In contrast, snapshot multispectral systems

can easily acquire reﬂectan ce data f rom the same area

in all wavelengths simultaneously. The downside of

this type of systems is their low resolution wh ich ex-

tends into small scanning areas.Therefore, it is reaso-

nable to believe that a larger frame of reference in the

image is n eeded. Moreover, the majority of endosco-

pic systems are built-in with a instrument channel into

which different tools (i.e., biopsy sampler, clamp tool,

etc.) can be inserted. This makes it possible to insert

a ﬁbe rscope into this instrument channel. H owever

both modalities nee d to be post-processed and regis-

Zenteno, O., Krebs, A., Treuillet, S., Lucas, Y., Benezeth, Y. and Marzani, F.

Dual-channel Geometric Registration of a Multispectral-augmented Endoscopic Prototype.

DOI: 10.5220/0006721200750082

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 4: VISAPP, pages

75-82

ISBN: 978-989-758-290-5

tered in order to provide medically relevant informa-

tion. This is not a trivial task, since due to the asep-

tic practices during medica l and surgical proced ures,

the ﬁberscope mu st be sterilized between exams, for-

cing the physician to remove and reintroduce the ﬁ-

berscope into the instrument channel on each exami-

nation. The procedure leads to different relative posi-

tions between the ﬁberscope and endoscope for each

new vid eo.

In addition, it is impossible to estimate the r elation

between coordinate systems using calibration patterns

before the insertion of the ﬁberscope because, du-

ring the medical examination, the physician introdu-

ces ﬁrst the endoscope into the patient for exploration

and then the ﬁb e rscope into the instrument channel

for localized screening. Thus, registration cannot be

performed with conventional approa c hes (e.g., by ma-

tching singular points). Moreover, once the probe is

inside the patient, the relative position be twe en the

two sensors is not ﬁxed. In fact, two sources of re-

lative movement are present: ro ta tion an d insertion.

Rotation can be neglected if the introduction of the

ﬁberscope into the endosco pe is contr olled so as to

be performed always in the same position. Howe-

ver, the physician continuously inserts and retracts the

ﬁberscope during exploration making it necessary to

estimate a real time relation between the two sensors.

Nevertheless the end-tip o f the ﬁberscop e is vi-

sible throughout the endoscopic exploration. There-

fore, it can be used as a featu re for probe tracking

if it is properly segmented. In the present work, we

introdu ce an axial displacement correctio n fu nction

for the prototype of a multispectral-augmented en-

doscopic system based on the relative position bet-

ween the two cameras. Th e prototype is inten ded to

provide physicians with multispectral (MS) in forma-

tion in small regions of interest overlaid to endoscopic

images with a wider range of vision. Th e remainder

of this document is organized as follow: Section 2

summarizes current related work, Section 3 describes

the system setup and its components, Section 4 pre-

sents the method, Section 5 th e results ob ta ined and

ﬁnally Sections 6 and 7 the discussion and conclusion

respectively.

2 RELATED WORK

In the gastrointestinal ﬁeld, most multispectral and

hypersp ectral (HS) imaging stu dies have involved ex-

vivo biopsies, resected tumor tissues, or organ s such

as the sk in, tongue, or larynx. (Clancy et al., 2012) de-

veloped a laparoscopic HS system based on a liquid-

crystal tunable ﬁlter (LCTF), (Martin et al., 2006 )

and (Martin et a l., 2012 ) developed an HS sy stem

with ﬂuorescence for ima ging of the larynx. (D ohi

et al., 2005) used a micro Fabry-Perot interference ﬁl-

ter placed at the tip of a ﬂexible endoscope to cr eate

a wavelength-adjustable spectral endoscope. Nevert-

heless, this ha s not been used clinically yet. (Gale-

ano et al., 2012) an d (Kiyotoki et al., 2013), repor-

ted certain differences observed between healthy and

pre-can c erous ex-vivo colon tissues. However, the

color of the resected sampling tissues differed from

what is nor mally observed in v ivo, which suggests

that the spectral properties of tissue may change after

the resection process. In a recent study, (Martinez-

Herrera et al., 2016) assessed the difference in the in

vivo spectral response of malignant colorectal tumors

and norma l muc osa. Nevertheless, the acquisition sy-

stems u sed a co lor ﬁlter wheel, which makes tempo-

ral registration in different wavelengths a non-trivial

task. Therefore, the main challeng e we face is the re-

gistration between the different modalities (i.e. MS

and RGB). Although some solutions for similar pr o-

blems have been implemented in the past, they do not

necessarily aim at quantitative measurements but rat-

her to improve the visual perception of the surgeon

to facilitate handling of the endoscope. For exam-

ple: a non-tracked calibrated endoscope for 3D re -

construction and motion estimation fro m endo-nasal

images was used in (Burschka et al., 2005) to regis-

ter computerized tom ography scans to the endoscopic

video. Another navigation aid using photogramme-

try during endoscopic surgery was studied in (Koppel

et al., 200 4). Here, structural information was used

to prevent the endosco pe image fro m ﬂippin g when

the camera rotates. In (Westwood et al., 2004), the

position of a marked tool inside the surgical scene

was determined from laparoscopic images and used

to cr e ate 3D re nderings from different views fo r the

surgeon. In (Deligianni, 2006), (Scholz et al., 1998),

(Sauer et al., 2002) externally tracked camera s we re

used to augment the surgeon’s view by fusing preope-

rative data with the actual endoscopic view. As men-

tioned befo re, none of them enhance the e ndoscopic

image with MS information.

3 MULTISPECTRAL IMAGING

PROTOTYPE

3.1 Experimental Setup

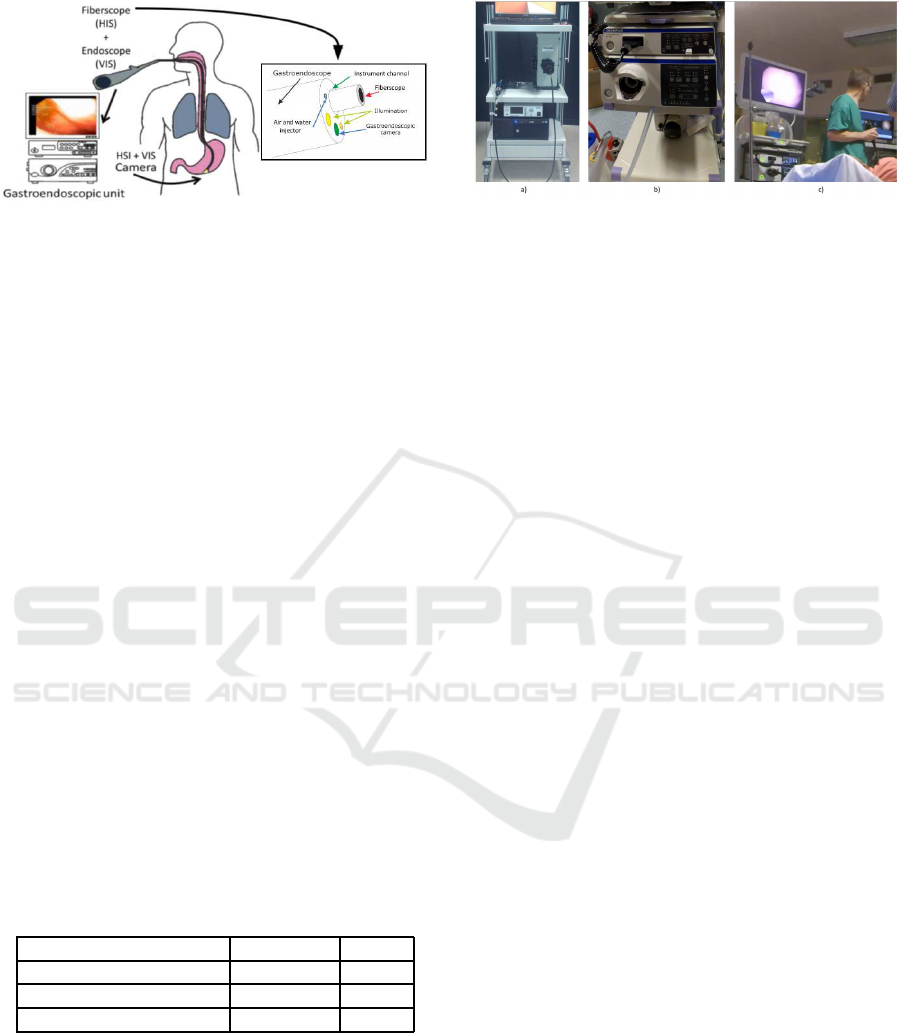

Figure 1 depicts a diagram of the ﬂexible multis-

pectral gastro-in testin a l prototype, which can be used

to obtain a series of reﬂected MS image s in a con-

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

Figure 1: Concept diagram of the multispectral prototype.

tactless manner in the wavelength range of 470 to 975

nm.

The system c omprises six units: a mercury (Xe-

non) light source, an endoscop e imaging unit, a visi-

ble (VIS) range multispectral camera, a Near Infrared

(NIR) range multispectral camera, a ﬁberscope and

a twin-cam camera splitter. IT was implemented as a

modiﬁcation of the commercialized Olympu s (Tokyo,

Japan) EVIS EXERA III endoscopic system by in-

troducing an ITConcepts (Lahnau , Germany) microf-

lex m2.5-2500 ﬁberscope in the instrument channel

for dual simultaneous exploration. The ﬁberscope is

connected at one side to a Cairn research (Kent, UK)

TwinCam camera splitter by an optical adaptor and

at the other to a mercury (Xenon) light source unit

from Oriel Instruments (California, USA). Finally,

the VIS range camera MQ022HG-IM-SM4X4-VIS

and the N IR camera model MQ022HG-IM-SM5X5-

NIR f rom Ximea (Munster, Germany) are connected

to both ends of the splitter respectively. Figure 2

depicts the multispectral system including the light

source, TwinCam system and ﬁberscope (left), the en-

doscopic system including the light source, proces-

sing system and endoscope (center) and an example

of data acquisition using the prototype (right). The

detailed spec iﬁca tions of the three cameras are pre-

sented in Table 1.

Table 1: Camera speciﬁcation.

Camera Resolution Bands

XIMEA SM5X5-NIR 409x216 25

XIMEA SM4X4 -VIS 512x256 16

OLYMPUS EX ERA III 720x576 3

3.2 Acquisition Interface

A custom user inte rface was developed for data acqui-

sition. The interface allows the user to capture the se-

quence of raw multispectra l images and the gastroen-

doscopic video stream simultaneously. The three ca-

meras mu st be connected to the computer. The en-

doscope is connected through a ﬁrewire interface and

Figure 2: Experimental setup: (a) multispectral system, (b)

endoscopic system, (c) in-vivo acquisition.

the multispectral cameras are connected via USB 3.0

interface. Currently the interface captures two ima-

ges per second due to the exposure time required for

the multispectral system. However, the interface is

intended to be able to captu re at the same frame rate

as the endoscope (e.g., 25FPS). The complete proces-

sing pipeline of the images is currently done off-line

(i.e., image matching, ﬁltering, spectral a nalysis).

4 METHODS

To estimate the co rrection function and c alibration of

all the cameras at the same time, we used a comm on

chessboard pattern of 17x15 squares of 1 mm. with

an isosceles triangle in its center. The pattern allo-

wed us to establish a relation between the geometri-

cal coordinates of the two systems through a discrete

measurement of how the triangle and its sur roundings

translate and expand in the image at different inser-

tion depths. The proposed methodology is divided in

ﬁve stages: Pre-processing, camera calibration, cont-

rol point selection, parametric correction, and multis-

pectral image enhancement. The ﬁrst four are execu-

ted off-line and only once as pa rt of a training phase.

The la st one can be executed in dependently, also off-

line, at any time using the previously saved images.

The correction transformation (C

) where n is the

selected frame can be formalized as a multiple se-

quential transformation matrix (as shown in Eq. (1))

composed by homographic (H

), scaling ( S

) and

translation (T

) transformations. (H

) is calculated

only on ce during the training stage and is continu-

ously used as the initial transformation at any depth.

and T

are estimated for each frame and are linearly

dependent on the de te cted insertion distance.

= H

∗ S

∗ T

(1)













1 1

1 s

1 1 1









1 1 t

1 1 1





Dual-channel Geometric Registration of a Multispectral-augmented Endoscopic Prototype

4.1 Data Preprocessing

The raw images acquired from the multispectral sen-

sors have to be preprocessed to remove noise and un-

wanted a rtifacts (i.e., the moire effect or honeycomb

patterns) produced by the disposition of ﬁbers. Af -

ter acquiring sequential MS images containing diffe-

rent spectral information, we performe d image pre-

processing to reduce imperfections that arose during

imaging and to generate images suitable for analysis.

Noise reduc tion, contrast enhanceme nt and illumi-

nation normalization were performed using commo n

homomorphic ﬁltering and de-vign e tting tech niques

(Georgieva, 2015) and (Nair and Govindan, 2014).

4.2 Dual Camera Calibration

Camera calibration is divided in two phases (i.e., spa-

tial and spectral calibra tion). The ﬁrst is applied be-

fore registration and th e latter can be applied after re-

gistration for spectral data analysis. The spatial cali-

bration was performed using MATLAB’s built-in ca-

mera calibration toolbox which is a modiﬁed version

of the method presented in (Bouguet, 2000). This

method uses the pin-hole camera model. The initial

estimation o f the planar homographies is based on the

method presented in (Zhang, 1999) and the closed-

form estimation of the internal pa rameters was per-

formed using orthogonality of vanishing points. The

intrinsic mode l was similar to the on e presented in

(Heikkila and Silven, 1997). The spectral calibration

was performe d using a color matrix. With this ma-

trix, a set of images with known spectral response was

acquired to estimate the required linear transforma-

tion from raw data into real multispectral reﬂectance.

A set of endoscopic a nd mu ltispectral (ﬁberscope)

images b efore and after geometrical correctio n are

presented in Fig 3.

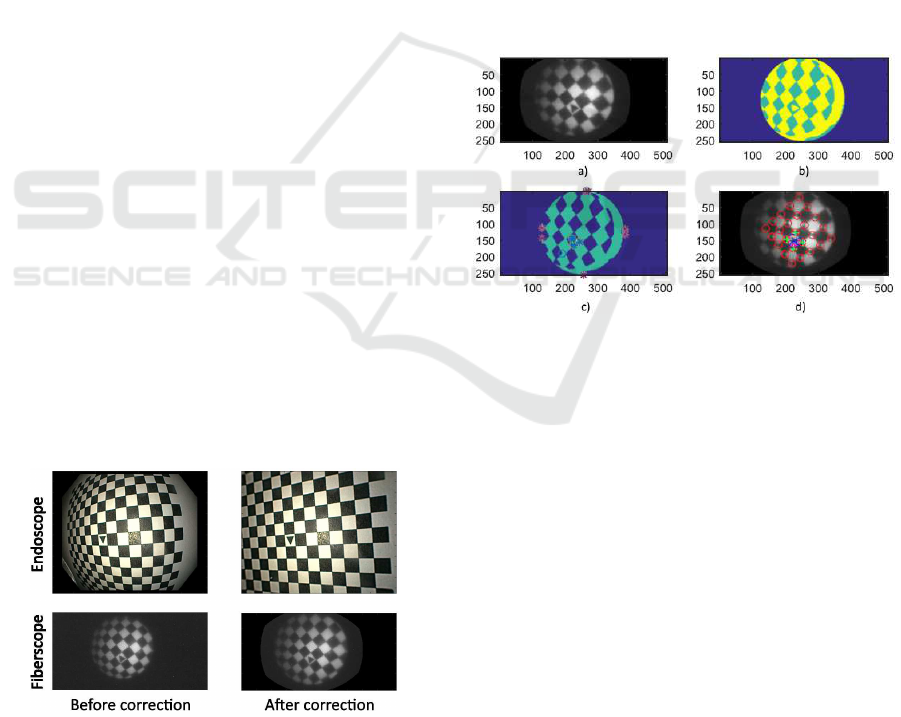

Figure 3: Endoscopic and ﬁberscopic images: Before (left)

and after (right) radial distortion correction.

4.3 Control Point Detection and

Selection

The training homographic registration was per formed

using a initial grid of common points betwee n the

two undistorted modalities. T he initial grid identi-

ﬁcation is executed in four steps; the complete pro-

cess is depicted in Fig 4. First, an adaptive histogram

equalization is applied on the pattern’s image to en-

hance the dynamic range.Then, automatic threshol-

ding and morphological operations a re performed in

order to obtain single Binary Large Objects (BLOB).

After this, each BLOB is analyzed to ﬁnd common

characteristics to differentiate between triangles and

rectangles (Number of vertices, extrema distribution

and area relations). After identiﬁcation of the cen-

tral triangular pattern, the four proximate corners are

identiﬁed ba sed on their relative Euclidean distance.

Finally, a new reference axis is deﬁned based on the

location of each triangle vertex.

Figure 4: Pattern identiﬁcation and creation of new axis on

ﬁberscopic images. (a) Histogram equalization, (b) Thres-

holding, (c) BLOB analysis, (d) New reference axis cente-

red in the triangle vertex.

After the new axial reference has been deﬁne d a

common set of control points is identiﬁed in the two

images. This is based on two-dimensional exploratio n

of the p oint grid and intersection of coordinate points

(as shown in Fig 5). The discrimination criteria con-

sists in maximizing the nu mber of common detected

corners starting from the new origin and expa nding to

the four cardinal points of the new coo rdinate system.

The ﬁnal projective transform matrix is calculated

as the homogra phy between the two set of coordinate

points. Due to the different size and resolution of the

images a new global coordinate system is applied to

the scaled ﬁberscopic image .

4.4 Parametric Correction Model

The estimation of the correction function is divided

in two steps: Insertion measurement and estimatio n

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

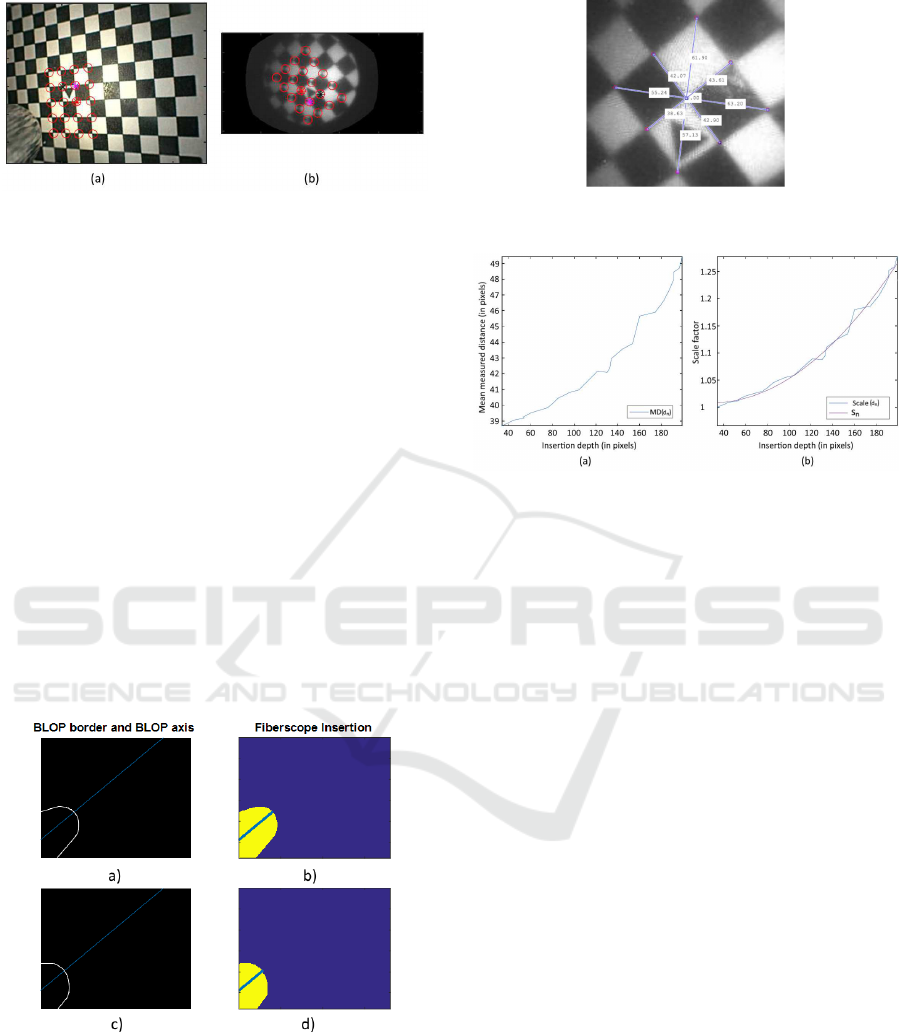

Figure 5: Common grid creation on the new axis on (a)

endoscopic images, (b) ﬁberscopic images.

of the transformation matrix. Bo th steps are initially

performed on a training set consisting of 15 endosco-

pic and 15 multispectral images, each one with the

ﬁberscope at a different insertion depth. To measure

this depth during exploration the depth of the tip in

the color images is tr acked. As the present study fo-

cuses particularly on the relation between depth and

transformation, we dec ided to perform manual seg-

mentation of the ﬁberscope tip to guar antee the hig-

hest measurement p recision possible. Further seg-

mentation techniques need to be explored after vali-

dation. The depth measurement procedure is depicted

in Fig.6. First, the resulting BLOP from the segmen-

tation is initially ﬁtted to an ellipsoid an d its two axes

are calculated. T he ellipsoid’s horizontal axis is then

projected into inﬁnity. Finally, the Euclidian distance

between the intersections of the projected line w ith

the borders of the segmented BLOB and the left la te -

ral limit of the image is measured in pixels.

Figure 6: (a),(c): Segmentation of the ﬁberscope tip and

(b),(d): BLOP’s axis intersection measurement.

For the transformation m a trix estimation, we ana-

lyzed the mean of the distances from the center of

the triangle to 8 points in the borders of the central

2x2 pattern on all the images in the data base. Fig

7. depicts the eight c orners, the center of the pattern

and the distance between each of them on a sample

Figure 7: Measurement of distances to the center of the 2x2

central pattern.

Figure 8: Relation graphs between i nsertion depth and: (a)

mean measured distance, (b) normalized scaling factor.

ﬁberscopic fram e . We used this information to evalu-

ate the relation between the insertion depth and how

the mean distance between c orners and center scales

through different frames.To estimate the scaling fac-

tor, a normalization o f the measured distance based on

the ﬁrst sampling frame was performed. After this, a

quadra tic ﬁt was applied to obtain a function of sca-

ling based on dep th (Fig. 8).

However, the cen tral axis of the tra nsformation

was not always located in the center of the image.

Therefore, the center of the displacement needed to be

measured fr ame by frame based on the locatio n of the

center on the triangle from the pattern. This measure-

ment was also c ompared to the insertion depth and ﬁt-

ted to a qua dratic function correspo nding to each a xis.

The corresponding functio ns for the x and y axes are

shown in Fig. 9.

In addition, the scaling and translatio n correction

functions (i.e., s

, t

and t

) are forma lize d as a

function of the insertion depth (d

) as sh own in Eq.

(2),(3) and (4).

= 8.8x10

−6

− 5x10

−4

+ 1 (2)

= 2x1 0

−3

− 9.4x10

−2

+ 0.52 (3)

= 1.5x10

−3

− 6.6x10

−2

− 0.055 (4)

Dual-channel Geometric Registration of a Multispectral-augmented Endoscopic Prototype

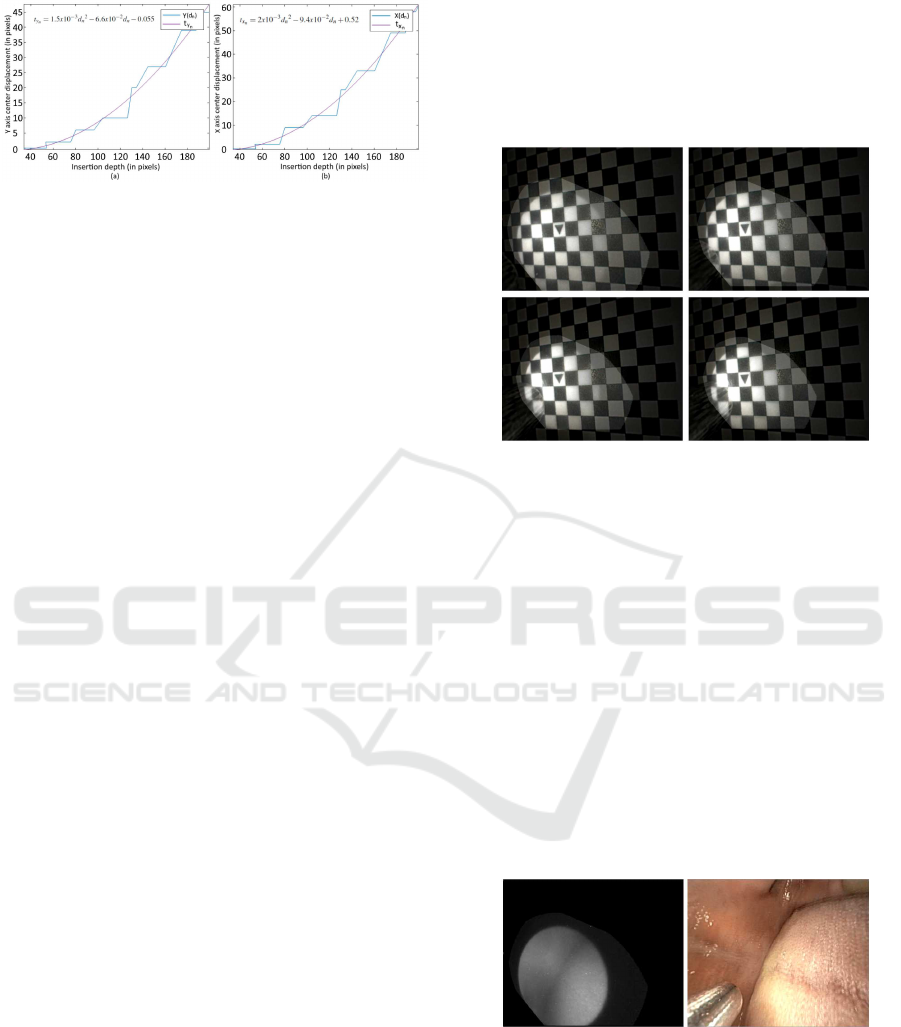

Figure 9: Relation graph between insertion depth and: (a)

x-axis translation, (b) y-axis translation.

4.5 Multispectral Enhancement

Finally, once the correction functions have been es-

timated the ﬁberscope-to-endoscope registered image

can be performed at any continuous point on the

insertion d e pth range. This is done by replacing the

values of the scaling and translation factor s

and t

obtained from Eq . (2) , ( 3) and (4) in the correction

transformation described in Eq. (1) and applying it to

the original image I

as follows:





′





= T

∗ S

∗ H

∗









, where (5)





1 1

1 s

1 1 1





and T





1 1 t

1 1 1





4.6 Performance Assessment

The performance test was executed using a chessbo-

ard pattern as sample and the coordinates of its cor-

ners as gr ound truth. The test sample comprised 2 5

MS and endoscop ic frames in which the ﬁb e rscope

is at different insertion depths. The ﬁberscope is al-

ways observable in the endoscopic image. For eva-

luation, the mea n RMSE error and standard deviation

(when compared to the ground truth coordinates) on

each corner of the pattern after registration with our

method were compared to those obtained whe n using

a fram e-by-frame homograph ic registration. In addi-

tion, the registration was also tested on mouth explo-

ration samples to simulate in-vivo acquisition. In all

cases, the acquisition on all cameras was performed

simultaneou sly

5 RESULTS

An example of the registration results is depicted on

Fig. 10. Four different r egistered ﬁberscope and

endoscope image overlays at a different position of

the ﬁberscope for each frame are shown. The en-

doscopic image appears in the background in a dar-

ker tone, while the transformed ﬁberscopic ima ge ap-

pears highlighted. While observing the images it is

easy to recognize the progressive transformation of

the ﬁberscopic image at different depths.

Figure 10: E xamples of registered images where the ﬁ-

berscope is at different depths.

Performance statistics for e a ch set of ima ges are

presented in Table 2. The mean RMSE error bet-

ween ground-truth coordinate poin ts and the resulting

transformed coordinates using frame-by-frame homo-

graphy and our correction transformation matrix were

1.2 ± 0.4 and 2.3 ± 0.7 respectively.

In addition, the qualitative performance of the pro-

posed method on mouth sam ples revealed a high level

of coherence between the registered images. Figure

11 depicts a sample frame of the resulting video. The

registered spectral information of a single wavelength

and a frame of a mouth exploration endo scopic video

are presented on the left and right of the image re-

spectively. Although the data of a single band is not

enoug h to characterize the tissue, the image illustrates

the pote ntial o f the techniq ue for in-vivo applicatio ns.

Figure 11: Qualitative results on in-vivo mouth samples.

6 DISCUSSION

The results are enc ouraging. Visually, the registered

pattern ﬁts seamlessly into the endoscopic image at

different insertion depths. Statistically, the error in all

cases was lower than 4 pixels. AS the resolution of

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

Table 2: Comparison of the performance of control point

homography vs the proposed method.

Frame H

RMSE C

RMSE

1 0.9 3.1

2 1.2 2.6

3 1 3.3

4 1 3.2

5 1.7 3.8

6 1.1 3.1

7 1.2 2.7

8 0.9 3.1

9 0.9 2.1

10 1.1 1.8

11 1.2 2.2

12 0.9 1.9

13 1.4 2.1

14 1.3 1.8

15 1. 2

16 0.8 2.5

17 1 1.7

18 2.3 2.5

19 1 2

20 2 1.7

21 1.2 1.5

22 1 1.2

23 1.5 1.7

24 1.1 1.1

25 1.2 1.9

MEAN 1.2 ± 0.4 2.3 ± 0.7

the endoscopic images is 726x576p, a 2-3 pixel e rror

is less than 1% o n each dir ection. Moreover, the sim-

plicity of the proposed pipeline and the use of com-

mon image processing tools make it ideal for future

real-time implementations.

However, althou gh the presented method has pro-

ven to effectively correct the difference between the

relative position of the two c amera axes, some limita-

tions are still present. First, in the current impleme n-

tation the insertion of the endoscope was controlled to

ensure that it was always performed in the same posi-

tion. Even though it is a trivial task, it would be ideal

to relieve the physician of this constraint. The rotati-

onal problem can be easily solved by performing an

afﬁne transformation. However, we have not yet been

able to identify a marker which can be used to mea -

sure the degrees require d in the rotation. Secondly,

we detected a thir d source of movement which we

call precession th at is produced by the circular mo-

vement of the ﬁberscope through the small surroun-

ding space between the endoscope and the ﬁber. Furt-

her exploration of the effects of precession in a wi-

der range of positions should be carried out. Thirdly,

the correction functio n will always be system depen-

dent, this means that the initial discrete homography

process should always be executed if the physician

changes the endoscope or video system. However, if

the video system is modiﬁed, a camera calibration is

always requ ired and the two processes (i.e., calibra-

tion and correction) can be performed simultaneously

with similar data. Fina lly, the current f rame rate of the

multispectral system is two images per second. This

may produce motion artifacts intr oduced by either the

probe operator or target movement and is not id e al to

perform in-vivo acquisitions.In contrast, the endo sco-

pic video frame rate is much higher with the standard

25 images per second. Further development is being

performed in the interface on a real-time implementa-

tion of these steps, which will not only overlaid single

endoscope images but will also be able to show real

time spectral information to physician s. Also, a re al

gastro-endoscopic sample is required for further ex-

ploration of the spectral data.

7 CONCLUSIONS

This paper has presented a method for com pensa-

tion o f the insertion and retraction motion of a ﬁ-

berscope inserted in the instrument channel of an en-

doscope by using simple geometrical transformati-

ons. The technique relies o n applying a linear afﬁne

transformation over a one-time c ontrol point homo-

graphy. Manual segmentation of the ﬁber scope in the

endoscopic images is performed for precise estima-

tion of the position and orientation of the ﬁberscope

camera. Experimental results using real endoscopic

images showed that the method can track the camera

insertion and retraction motion. Although the pipelin e

is cur rently executed off-line, this pa per demonstrates

the potential of ima ge-based tracking of a ﬁberscope.

The incorporation of more degrees of freedom in the

proposed method m ay enable us to achieve real-time

and ro bust tracking in the future.

ACKNOWLEDGEMENTS

The au thors would like to thank M.D. Dominique La-

marque, for his assistance in mouth data acquisition

and endoscope handling. This work was supported

by the EMMIE (Endoscopie MultiMod a le pour les

l´esions Inﬂammatoires de l’Estomac) project funded

by the ANR-15-CE17-0015 grant.

Dual-channel Geometric Registration of a Multispectral-augmented Endoscopic Prototype

REFERENCES

Bouguet, J.-Y. (2000). Matlab camera calibration toolbox.

Caltech Technical Report.

Burschka, D., Li, M., Ishii, M., Taylor, R. H., and Hager,

G. D. (2005). Scale-invariant registration of mono-

cular endoscopic images to ct-scans for sinus surgery.

Medical Image Analysis, 9(5):413–426.

Clancy, N. T., Stoyanov, D., James, D. R., Di Marco, A.,

Sauvage, V., Clark, J., Yang, G.-Z., and Elson, D. S.

(2012). Multispectral image alignment using a three

channel endoscope in vivo during minimally invasive

surgery. Biomedical optics express, 3(10):2567–2578.

Deligianni, F. (2006). VISUAL AUGMENTATION FOR

VIRTUAL ENVIROMNENTS IN SURGICAL TRAI-

NING. PhD thesis, Imperial College London.

Dohi, T., Matsumoto, K., and Shimoyama, I. (2005). The

micro fabry-perot interferometer for the spectral en-

doscope. In Micro Electro Mechanical Systems, 2005.

MEMS 2005. 18th IEEE International Conference on,

pages 830–833. IEEE.

Galeano, J., Jolivot, R., Benezeth, Y., Marzani, F., Emile,

J.-F., and Lamarque, D. (2012). Analysis of multis-

pectral images of excised colon tissue samples based

on genetic algorithms. In Signal Image Technology

and Internet Based Systems (SITIS), 2012 Eighth In-

ternational Conference on, pages 833–838. IEEE.

Georgieva, V. (2015). Homomorphic ﬁltering approach for

narrow band i mages enhancement. Journal of Applied

Electromagnetism (JAE), in print.

Heikkila, J. and Silven, O. (1997). A four-step camera ca-

libration procedure with implicit image correction. In

Computer Vision and Pattern Recognition, 1997. Pro-

ceedings., 1997 IEEE Computer Society Conference

on, pages 1106–1112. IEEE.

Kiyotoki, S., Nishikawa, J., Okamoto, T., Hamabe, K.,

Saito, M., Goto, A., Fujita, Y., Hamamoto, Y., Ta-

keuchi, Y., Satori, S., et al. (2013). New method

for detection of gastric cancer by hyperspectral ima-

ging: a pilot study. Journal of biomedical optics,

18(2):026010–026010.

Koppel, D., Wang, Y.-F., and Lee, H. (2004). Image-based

rendering and modeling in video-endoscopy. In Bio-

medical Imaging: Nano to Macro, 2004. IEEE Inter-

national Symposium on, pages 269–272. IEEE.

Martin, M. E., Wabuyele, M. B., Chen, K., Kasili, P., Pan-

jehpour, M., Phan, M., Overholt, B., Cunningham, G.,

Wilson, D., DeNovo, R. C., et al. (2006). Develop-

ment of an advanced hyperspectral imaging (hsi) sy-

stem with applications for cancer detection. Annals of

biomedical engineering, 34(6):1061–1068.

Martin, R., Thies, B., and Gerstner, A. O. (2012). Hyper-

spectral hybrid method classiﬁcation for detecting al-

tered mucosa of the human larynx. International jour-

nal of health geographics, 11(1):21.

Martinez-Herrera, S. E., Benezeth, Y., Boffety, M., Emile,

J.-F., Marzani, F., Lamarque, D., and G oudail, F.

(2016). Identiﬁcation of precancerous l esions by mul-

tispectral gastroendoscopy. Signal, Image and Video

Processing, 10(3):455–462.

Nair, J. J. and Govindan, V. (2014). Intensity inho-

mogeneity correction using modiﬁed homomorphic

unsharp masking. Journal of Medical Imaging and

Health Informatics, 4(2):285–290.

Sauer, F. , Khamene, A., and Vogt, S. (2002). An augmented

reality navigation system wi th a single-camera trac-

ker: System design and needle biopsy phantom trial.

Medical Image Computing and Computer-Assisted In-

terventionMICCAI 2002, pages 116–124.

Scholz, M., Konen, W., Tombrock, S., Fr icke, B., Adams,

L., Von Duering, M., Hentsch, A., Heuser, L., and

Harders, A. (1998). Development of an endoscopic

navigation system based on digital image processing.

Computer Aided Surgery, 3(3):134–143.

Song, L. M. W. K., Adler, D. G., Conway, J. D., Diehl,

D. L., Farraye, F. A., Kantsevoy, S. V., Kwon, R ., Ma-

mula, P., Rodriguez, B., Shah, R. J., et al. (2008). Nar-

row band imaging and multiband imaging. Gastroin-

testinal endoscopy, 67(4):581–589.

Westwood, J. et al. (2004). Reconstruction and enhan-

cement in monocular laparoscopic imagery. Medi-

cine Meets Virtual Reality 12: Building a Better You:

the Next Tools for Medical Education, Diagnosis, and

Care, 98:37.

Zhang, Z. (1999). Flexible camera calibration by viewing

a plane from unknown orientations. In Computer Vi-

sion, 1999. The Proceedings of the Seventh IEEE In-

ternational Conference on, volume 1, pages 666–673.

Ieee.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications
