ScaleNet: Scale Invariant Network for Semantic Segmentation

in Urban Driving Scenes

Mohammad Dawud Ansari

1,2

, Stephan Krauß

, Oliver Wasenm

uller

and Didier Stricker

1,2

German Research Center for Artiﬁcial Intelligence (DFKI), Germany

University of Kaiserslautern, Germany

Keywords:

Semantic Segmentation, Autonomous Driving, Labeling, Automotive, Scale.

Abstract:

The scale difference in driving scenarios is one of the essential challenges in semantic scene segmentation.

Close objects cover signiﬁcantly more pixels than far objects. In this paper, we address this challenge with a

scale invariant architecture. Within this architecture, we explicitly estimate the depth and adapt the pooling

ﬁeld size accordingly. Our model is compact and can be extended easily to other research domains. Finally,

the accuracy of our approach is comparable to the state-of-the-art and superior for scale problems. We evaluate

on the widely used automotive dataset Cityscapes as well as a self-recorded dataset.

1 INTRODUCTION

One basic technology for Autonomous Driving and

Advanced Driver Assistance Systems (ADAS) is a se-

mantic segmentation of the scene in front of the car.

This segmentation is used to understand the surroun-

ding of the car and adapt its actions accordingly. Such

a segmentation should be able to differentiate between

the road and the sidewalk as well as detect pedestri-

ans, cars, vegetation, trafﬁc signs and many more.

The Computer Vision community applies for this

task so-called per-pixel semantic labeling algorithms

to images captured by a front-facing camera of the car.

These algorithms are usually based on Convolutional

Neural Network (CNN), and each pixel in the image

is labeled with an identiﬁer (ID) indicating the seman-

tic class. The networks are trained with a huge dataset

like Cityscapes (Cordts et al., 2016) and achieve rea-

sonable accuracy.

One essential challenge in the context of driving

scenarios is the scale of objects. When looking at a

street similar objects can appear very close to the ca-

mera as well as very far. Since the depth of the objects

is inversely proportional to their scale, these objects

can cover a very different amount of pixels. The scale

difference can be multiple dozens. Thus, these scale

differences need to be explicitly considered in the net-

work architecture.

In this paper, we propose a new architecture for se-

mantic scene segmentation called Scale Invariant Net-

work (ScaleNet). Within this network, we explicitly

estimate the depth out of the input image and adapt

the pooling ﬁeld size accordingly. With this appro-

ach, ﬁne details in high distance can be preserved as

well as large objects in short range.

The main contributions of the paper are two-fold:

First, a quantized depth network is utilized to estimate

sufﬁcient depth information which is further used by

the segmentation network to adjust the pooling ﬁeld

size. Second, we describe a scale invariant seman-

tic segmentation neural network model, which can

cope with difﬁcult scale changes for similar objects.

This model is found to perform robustly in challen-

ging automotive scenarios, like the Cityscapes data-

set (Cordts et al., 2016). One can use the same net-

work for much simpler datasets, such as PASCAL

VOC (Everingham et al., 2015) and MS COCO (Lin

et al., 2014). Finally, we provide a qualitative and

quantitative evaluation of our approach on the Citys-

capes dataset as well as a self-captured dataset.

2 RELATED WORKS

Semantic segmentation as dense per pixel labeling has

been studied from different perspectives for over a de-

cade. The algorithms in the state of the art can be ca-

tegorized into three groups. The ﬁrst group is based

on using image pyramid methods. It is done by ge-

nerating a multi-scale input image, feeding it to the

CNN and then fusing all the feature maps from every

Ansari, M., Krauß, S., Wasenmüller, O. and Stricker, D.

ScaleNet: Scale Invariant Network for Semantic Segmentation in Urban Driving Scenes.

DOI: 10.5220/0006723003990404

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 5: VISAPP, pages

399-404

ISBN: 978-989-758-290-5

399

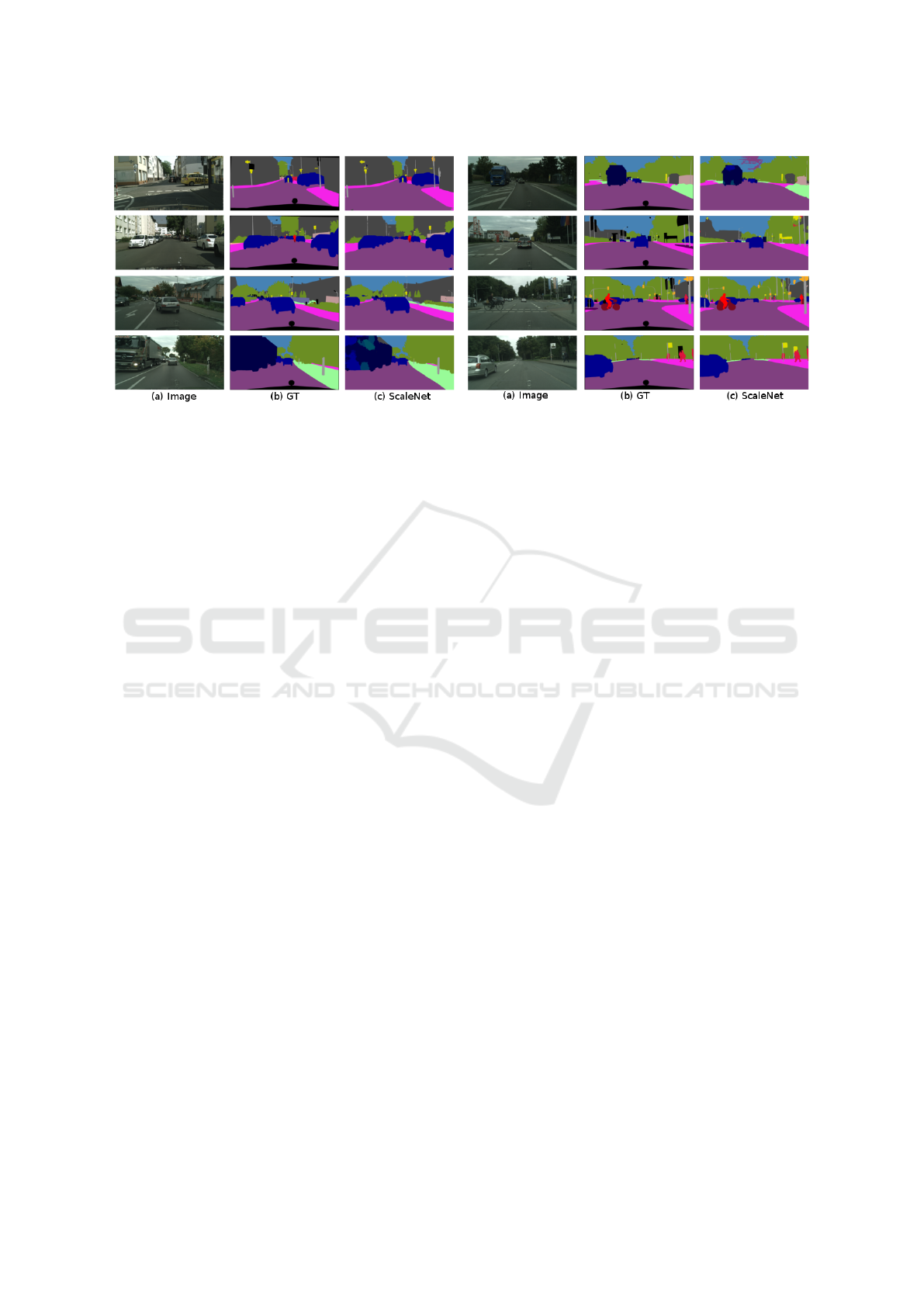

Figure 1: Qualitative evaluation of ScaleNet (ours) compared to the ground truth of the benchmark dataset Cityscapes (vali-

dation set).

scale. Small-scale input will encode contextual infor-

mation while the larger scale will encode small ob-

ject details. There are several implementation details:

(Farabet et al., 2013) converts input images to multi-

scale images through a Lapalacian pyramid and feeds

them to a CNN. In contrast, (Lin et al., 2016b), (Chen

et al., 2016b) and (Chen et al., 2016a) pre-process in-

put images by directly resizing them to different sca-

les. However, the limitation of this type of methods

is the amount of memory required for deeper/larger

models, especially to the high-resolution datasets (i.e.

Cityscapes), hence resizing can be done during infe-

rence phase only (Briggs et al., 2000).

The second group of approaches use encoder-

decoder networks. In the encoder the features map

are reduced by sets of convolution and max/average

pooling computation, while the spatial dimension and

object details of the input images are recovered in the

decoder. Several methods are proposed, for example

(Long et al., 2015a; Noh et al., 2015) use deconvolu-

tion layers to up-sample low resolution features map.

Another approach is to use skip connections (Ronne-

berger et al., 2015). The effectiveness of this met-

hod has been demonstrated by ReﬁneNet (Lin et al.,

2016a), which achieves comparable results on several

benchmarks of semantic segmentation. Another vari-

ant is atrous convolution to up-sample feature maps

by using the decoder. DeepLab-v2(Res101) (Chen

et al., 2016a) proposes atrous convolution, which ex-

plicitly controls the resolution of the feature maps in

the CNN layers. It inserts a ’hole’ to the convolu-

tion kernel to enhance the receptive ﬁeld in the feature

maps. Atrous convolution or dilation convolution has

been explored for semantic segmentation. For exam-

ple, (Wu et al., 2016) are experimenting with different

dilation rates to get better results.

The third group of approaches is motivated by spa-

tial pyramid pooling (Grauman and Darrell, 2005; La-

zebnik et al., 2006) to capture context from different

ranges. DeepLab-v2(Res101) (Chen et al., 2016a)

employs atrous convolution layers with different ra-

tes in parallel as in spatial pyramid pooling to capture

information from multi-scale feature maps. Pyramid

Scene Parsing Net (PSPNet) (Zhao et al., 2016) pro-

duces outstanding results in several benchmarks by

employing spatial pooling at several grid scales.

3 ADAPTIVE POOLING

Since the scale of distant objects is smaller compa-

red to an identical object close by, an ambiguity in the

appearance is created. We aim to resolve this shor-

tcoming of segmentation algorithms by utilizing the

depth of the scene as an additional modality to cope

with the changes in appearance following the work

of (Kong and Fowlkes, 2017). This can be stated

as depth is inversely proportional to scale. We esti-

mate depth out of the color input image to account

for the scale changes within the scene since depth ca-

meras are known to be error proven in automotive

context (Yoshida et al., 2017). Each depth estima-

tion corresponding to a pixel serves as an approxima-

tion for the scale of the pooling ﬁeld that covers this

pixel. Unlike the conventional depth estimation net-

works where the accuracy of per-pixel depth affects

the overall performance of the algorithm, we quan-

tize the depth range in a small set, e.g., four. These

depth sets are then used to adapt the pooling ﬁeld

size in the network during training. One can also use

raw depth value. As shown by (Kong and Fowlkes,

2017) using estimated depth boosts the performance

of the model. One reason for this increased perfor-

mance can be that the parameters are tuned in such a

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

400

Figure 2: Architecture of the desired model is shown. This

model generates depth as the intermediate result, which is

used for adaptive pooling.

way that they predict depth which overall elevates the

performance of the segmentation network. Following

DeepLab-v2(Res101) (Chen et al., 2016a) atrous con-

volution is used to match the pooling ﬁeld size. The

depth prediction network is a classiﬁcation network

with a ﬁxed number of classes. We used a simple re-

gression model which minimizes the Euclidean dis-

tance between the actual and the predicted depth for

all the valid pixels available in the ground truth data,

which is given as

depthReg

(D, D

∗

) =

∑

(i, j)∈V



i j

− D

∗

i j



. (1)

4 DILATED CONVOLUTION

Semantic segmentation is obtained using CNN in

a fully connected fashion and max/average pooling

(Long et al., 2015a; Li et al., 2016). A stack of these

operations reduces the resolution of the feature map

up to 32 times compared to the original size of the

image input (Chen et al., 2016a). This issue leads to

the diminishing response in a feature map as we go

deeper in the network. One remedy for this issue is

proposed by (Chen et al., 2016a). We follow a si-

milar method, which adjusts the pooling ﬁeld size by

matching the dilation rate of the atrous convolution

(Kong and Fowlkes, 2017). This algorithm allows us

to compute the responses of any layer at any desired

resolution. This technique has proven to be very in-

tuitive and natural in the sense that we do not need to

tune any parameters manually.

Table 1: Quantitative evaluation of several state-of-the-art

approaches and ScaleNet (ours) for benchmark dataset Ci-

tyscapes (validation set). We use average IoU as the evalu-

ation metric. The metric is multiplied by 100.

Method IoU

FCN-8s (Long et al., 2015b) 65.3

ReﬁneNet (Chen et al., 2016a) 73.6

RecurrentParsing (Kong and Fowlkes, 2017) 78.2

DeepLab-v2(Res101) (Chen et al., 2016a) 70.4

ScaleNet (ours) 75.1

Initially designed for wavelet transform in the

”algorithme

atrous” scheme of (Holschneider et al.,

1990), the method can also be used to ﬁnd the

response of any feature map. Considering two-

dimensional signals, for each location i on the output

y and a ﬁlter w, atrous convolution is applied over the

input feature maps x as

y[i] =

∑

x[i + r · k]w[k], (2)

where r is the rate parameter that corresponds to the

stride with which the input is sampled (Chen et al.,

2016a).

5 MODEL ARCHITECTURE

The model architecture is shown in Figure 2 consists

of two sub-networks: An adaptive pooling, which is

controlled by a depth regression network, and a net-

work which fuses the responses of the atrous convo-

lution with different self-adjusting dilation rates. We

use a pre-trained ResNet101 model for feature gene-

ration with some modiﬁcations for maintaining the re-

solution of the output score maps according to (Chen

et al., 2016a; Kong and Fowlkes, 2017). The top glo-

bal 7 × 7 pooling layer and the last two 2 × 2 pooling

layers are removed, and an atrous convolution layer

with dilation rate of two is inserted. This will gene-

rate the

size of the output score map compared to

the input image size. Finally, a bilinear interpolation

is applied on the output score map to obtain the iden-

tical resolution as input. As a result, the feed-forward

network remains the same as DeepLab-v2(Res101),

but with two additional 3 × 3 kernel (without atrous

convolution) added above the generated feature maps

from the ResNet101 feature generation model. Af-

ter this, one 3 × 3 atrous convolution layer is added

whose rate is adjusted using adaptive pooling module.

Implementation. For the implementation we reused

parts of the open-source software

of (Kong and Fo-

wlkes, 2017), who uses the MatConvNet (Vedaldi and

https://github.com/aimerykong/Recurrent-Scene-

Parsing-with-Perspective-Understanding-in-the-loop

ScaleNet: Scale Invariant Network for Semantic Segmentation in Urban Driving Scenes

401

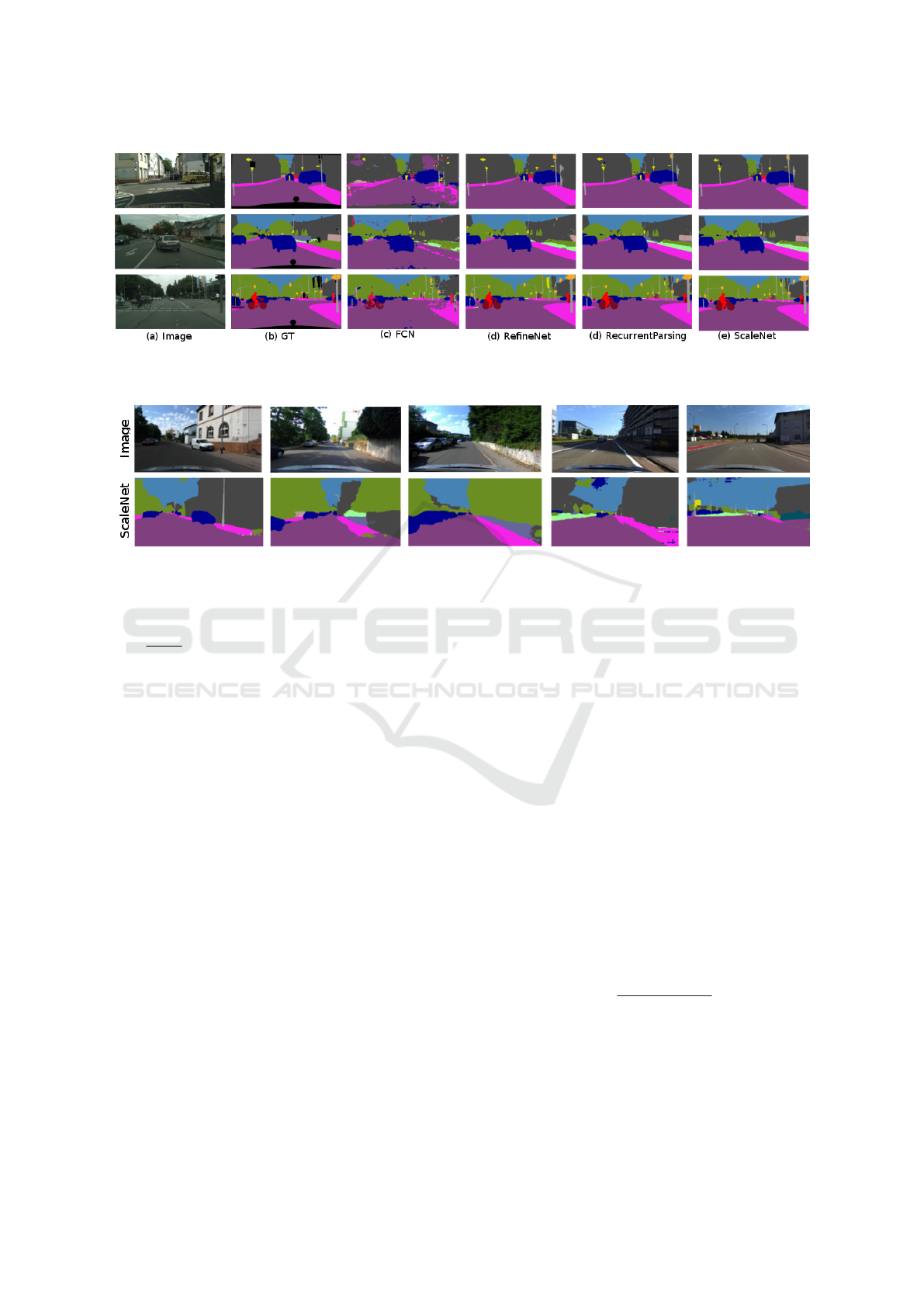

Figure 3: Qualitative evaluation of FCN-8s (Long et al., 2015b), ReﬁneNet (Lin et al., 2016a), RecurrentParsing (Kong and

Fowlkes, 2017) and ScaleNet (our) for benchmark dataset Cityscapes (validation set).

Figure 4: Qualitative evaluation of ScaleNet (ours) for self captured ZED dataset.

Lenc, 2015) framework for designing the model. For

training, the batch size is set to one, and the learning

rate has a base value of 2.0 · 10

−5

which is scaled as

(1 −

iter

maxiter

)

0.7

. We trained the model by augmenting

extra datasets. Different data augmentation is perfor-

med for model training. A small image per object is

generated out of Cityscapes (Cordts et al., 2016) ima-

ges with an additional padding of 50px, and later we

create rotating inputs with additional zero-padded va-

lues to keep the input image a rectangular shape. The

rotation is performed in the range [−15

◦

, 15

◦

]. For

additional training coarse annotations including the

train-extra data is also available in Cityscapes. We

start the training with the ﬁne annotated images, fol-

lowed by the coarse annotated images of Cityscapes

dataset. Later, augmented datasets are used in a se-

quence of small images followed by the rotated ima-

ges. Finally, the model is ﬁne-tuned for ten more epo-

chs using ﬁne annotation of Cityscapes. We trained

our model for 180 epochs.

6 EXPERIMENTS

We perform an experimental evaluation on the recog-

nized and widely used automotive semantic segmen-

tation dataset Cityscapes (Cordts et al., 2016). It con-

tains 2975 training, 1525 test and 500 validation set

images, which compose the ﬁne annotation part of

the dataset. This dataset contains images from se-

veral German cities captured from a camera integra-

ted into a moving car. This dataset has been a stan-

dard for benchmarking an automotive semantic seg-

mentation algorithm, which is the reason why we also

choose this benchmark for our evaluation. We pro-

vide the quantitative results of our architecture on the

complete test set and provide our comparison with ot-

her well-known approaches such as FCN-8s (Long

et al., 2015b), ReﬁneNet (Lin et al., 2016a), Recur-

rentParsing (Kong and Fowlkes, 2017) and DeepLab-

v2(Res101) (Chen et al., 2016a).

Additionally, we recorded a dataset ourselves.

This dataset is captured using a ZED stereo camera

installed on top of a car. We drive on multiple road

types with single and double lanes. For qualitative

evaluation, we take the images captured from the left

camera only.

For measuring the accuracy of our results we uti-

lize the intersection-over-union (IoU) metric, which

is well-known for the Cityscapes (Cordts et al., 2016)

and PASCAL VOC (Everingham et al., 2015) dataset.

The metric is deﬁned as

IoU =

T P

T P + FP + FN

, (3)

where TP, FP, and FN are the numbers of true posi-

tive, false positive, and false negative pixels, respecti-

vely, determined over the whole test set (Cordts et al.,

2016). In Table 1 we compare our ScaleNet against

other approaches listed in Cityscapes. With an IoU

of 75.1% we achieve state-of-the-art performance. In

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

402

Table 2: Quantitative evaluation of FCN-8s (Long et al., 2015a), ReﬁneNet (Lin et al., 2016a), RecurrentParsing (Kong and

Fowlkes, 2017), DeepLab-v2(Res101) (Chen et al., 2016a) and ScaleNet (ours) for benchmark dataset Cityscapes (validation

set). We use IoU as the evaluation metric. The metric is multiplied by 100.

Object FCN-8s ReﬁneNet RecurrentParsing DeepLab-v2(Res101) ScaleNet (ours)

road 97.40 98.20 98.50 97.86 98.32

sidewalk 78.40 83.21 85.44 81.32 84.82

building 89.21 91.28 92.51 90.35 92.25

wall 34.93 47.78 54.41 48.77 50.05

fence 44.23 50.40 60.91 47.36 59.61

pole 47.41 56.11 60.17 49.57 62.75

trafﬁc light 60.08 66.92 72.31 57.86 71.79

trafﬁc sign 65.01 71.30 76.82 67.28 76.68

vegetation 91.41 92.28 93.10 91.85 93.16

terrain 69.29 70.32 71.58 69.43 71.35

sky 93.86 94.75 94.83 94.19 94.62

person 77.13 80.87 85.23 79.83 83.63

rider 51.41 63.28 68.96 59.84 65.15

car 92.62 94.51 95.70 93.71 95.05

truck 35.27 64.56 70.11 56.50 56.01

bus 48.57 76.07 86.54 67.49 71.64

train 46.54 64.27 75.49 57.45 59.88

motorcycle 51.56 62.20 68.30 57.66 66.28

bicycle 66.76 69.95 75.47 68.84 73.62

Table 2 we show the IoU for each class separately.

One can see that we achieve superior accuracy for

objects with ﬁne geometry compared to other state-

of-the-art algorithms. This can be seen especially in

classes like fence, pole, trafﬁc light, vegetation, bicy-

cle and many more. While we achieve superior accu-

racy for these classes, the remaining classes still have

comparable accuracies. Thus, we veriﬁed the scale

invariance of our network and showed the proper per-

formance of the adaptive pooling.

In Figure 1 we compare the labeling results of

ScaleNet with the ground truth of Cityscapes vali-

dation set. It can be seen that it highly matches the

ground truth labels in different driving scenarios. Ex-

cept for a few misclassiﬁcations ScaleNet provides

a decent accuracy comparable to state-of-the-art seg-

mentation algorithms. Homogeneous regions are cor-

rectly classiﬁed as well as objects with ﬁne geometry.

In Figure 3 we qualitatively compare ScaleNet with

other state-of-the-art methods. First of all, ScaleNet

provides comparable accuracy since most labels are

classiﬁed correctly. When looking at objects with ﬁne

structure – like poles or trafﬁc lights – one can see

that we achieve higher accuracy there. This conﬁrms

again the effectiveness of the scale invariant architec-

ture.

In Figure 4 we apply ScaleNet on the dataset we

recorded using the ZED camera. One can see that the

network performs well also on this dataset, although

it was trained on Cityscapes. Fine structures as well

as homogeneous regions are classiﬁed correctly. With

that we can verify that the network generalized well

to unknown images and scenes.

One remaining challenge in our approach is sharp

boundaries in the segmentation results – like for many

algorithms in the state-of-the-art. We tested several

approaches like edge-aware ﬁltering (Wasenm

uller

et al., 2015) with limited accuracy improvement.

7 CONCLUSION

In this paper, we proposed ScaleNet – a network ar-

chitecture for semantic scene segmentation – to ad-

dress scale differences. These scale differences occur

especially in driving scenarios, since objects can ap-

pear at very different distances. We showed that this

effect could be handled by an adaptive pooling depen-

ding on the depth of the respective pixel. In our evalu-

ation, we veriﬁed the state-of-the-art performance of

ScaleNet and showed the effect of the featured scale

handling.

Future work could be a combination of scene ﬂow

(Schuster et al., 2018) or ego-motion (Wasenm

uller

et al., 2016) estimation together with semantic seg-

mentation to support each estimation jointly while

computation.

ACKNOWLEDGEMENTS

This work was partially funded by the Euro-

pean project Eyes of Things under contract number

ScaleNet: Scale Invariant Network for Semantic Segmentation in Urban Driving Scenes

403

GA643924. Furthermore, we want to thank Alwi Hu-

sada for the fruitful discussions.

REFERENCES

Briggs, W. L., Henson, V. E., and McCormick, S. F. (2000).

A multigrid tutorial. SIAM.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2016a). Deeplab: Semantic image seg-

mentation with deep convolutional nets, atrous con-

volution, and fully connected crfs. arXiv preprint

arXiv:1606.00915.

Chen, L.-C., Yang, Y., Wang, J., Xu, W., and Yuille, A. L.

(2016b). Attention to scale: Scale-aware semantic

image segmentation. In Computer Vision and Pattern

Recognition (CVPR), pages 3640–3649.

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., and Schiele,

B. (2016). The cityscapes dataset for semantic urban

scene understanding. In Computer Vision and Pattern

Recognition (CVPR).

Everingham, M., Eslami, S. M. A., Van Gool, L., Willi-

ams, C. K. I., Winn, J., and Zisserman, A. (2015).

The pascal visual object classes challenge: A retro-

spective. International Journal of Computer Vision

(IJCV), 111(1):98–136.

Farabet, C., Couprie, C., Najman, L., and LeCun, Y.

(2013). Learning hierarchical features for scene la-

beling. Pattern Analysis and Machine Intelligence

(PAMI), 35(8):1915–1929.

Grauman, K. and Darrell, T. (2005). The pyramid ma-

tch kernel: Discriminative classiﬁcation with sets of

image features. In International Conference on Com-

puter Vision (ICCV), volume 2, pages 1458–1465.

IEEE.

Holschneider, M., Kronland-Martinet, R., Morlet, J., and

Tchamitchian, P. (1990). A real-time algorithm for

signal analysis with the help of the wavelet transform.

In Wavelets, pages 286–297. Springer.

Kong, S. and Fowlkes, C. (2017). Recurrent scene parsing

with perspective understanding in the loop. arXiv pre-

print arXiv:1705.07238.

Lazebnik, S., Schmid, C., and Ponce, J. (2006). Beyond

bags of features: Spatial pyramid matching for re-

cognizing natural scene categories. In Computer Vi-

sion and Pattern Recognition (CVPR), volume 2, pa-

ges 2169–2178. IEEE.

Li, Y., Qi, H., Dai, J., Ji, X., and Wei, Y. (2016). Fully

convolutional instance-aware semantic segmentation.

arXiv preprint arXiv:1611.07709.

Lin, G., Milan, A., Shen, C., and Reid, I. (2016a). Reﬁ-

nenet: Multi-path reﬁnement networks with identity

mappings for high-resolution semantic segmentation.

arXiv preprint arXiv:1611.06612.

Lin, G., Shen, C., van den Hengel, A., and Reid, I. (2016b).

Efﬁcient piecewise training of deep structured models

for semantic segmentation. In Computer Vision and

Pattern Recognition (CVPR), pages 3194–3203.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Doll

ar, P., and Zitnick, C. L. (2014).

Microsoft coco: Common objects in context. In Eu-

ropean conference on computer vision (ECCV), pages

740–755. Springer.

Long, J., Shelhamer, E., and Darrell, T. (2015a). Fully

convolutional networks for semantic segmentation. In

Computer Vision and Pattern Recognition (CVPR).

Long, J., Shelhamer, E., and Darrell, T. (2015b). Fully con-

volutional networks for semantic segmentation. In

Computer Vision and Pattern Recognition (CVPR),

pages 3431–3440.

Noh, H., Hong, S., and Han, B. (2015). Learning deconvo-

lution network for semantic segmentation. In Interna-

tional Conference on Computer Vision (ICCV), pages

1520–1528.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

net: Convolutional networks for biomedical image

segmentation. In International Conference on Medi-

cal Image Computing and Computer-Assisted Inter-

vention, pages 234–241. Springer.

Schuster, R., Wasenm

uller, O., Kuschk, G., Bailer, C., and

Stricker, D. (2018). Sceneﬂowﬁelds: Dense interpo-

lation of sparse scene ﬂow correspondences. In IEEE

Winter Conference on Computer Vision (WACV).

Vedaldi, A. and Lenc, K. (2015). Matconvnet – convoluti-

onal neural networks for matlab. In Proceeding of the

ACM Int. Conf. on Multimedia.

Wasenm

uller, O., Ansari, M. D., and Stricker, D. (2016).

Dna-slam: Dense noise aware slam for tof rgb-d ca-

meras. In Asian Conference on Computer Vision

Workshop (ACCV workshop). Springer.

Wasenm

uller, O., Bleser, G., and Stricker, D. (2015). Com-

bined bilateral ﬁlter for enhanced real-time upsam-

pling of depth images. In International Conference on

Computer Vision Theory and Applications (VISAPP),

pages 5–12.

Wu, Z., Shen, C., and Hengel, A. v. d. (2016). Bridging

category-level and instance-level semantic image seg-

mentation. arXiv preprint arXiv:1605.06885.

Yoshida, T., Wasenm

uller, O., and Stricker, D. (2017).

Time-of-ﬂight sensor depth enhancement for automo-

tive exhaust gas. In IEEE International Conference on

Image Processing (ICIP).

Zhao, H., Shi, J., Qi, X., Wang, X., and Jia, J. (2016).

Pyramid scene parsing network. arXiv preprint

arXiv:1612.01105.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

404
