The Effectiveness of Data Augmentation for Detection of Gastrointestinal

Diseases from Endoscopical Images

Andrea Asperti and Claudio Mastronardo

Department of Informatics: Science and Engineering (DISI), University of Bologna,

Mura Anteo Zamboni 7, 40127, Bologna, Italy

Keywords:

Data Augmentation, Deep Learning, Gastrointestinal Disease, Endoscopy, Kvasir.

Abstract:

The lack, due to privacy concerns, of large public databases of medical pathologies is a well-known and ma-

jor problem, substantially hindering the application of deep learning techniques in this ﬁeld. In this article,

we investigate the possibility to supply to the deﬁciency in the number of data by means of data augmen-

tation techniques, working on the recent Kvasir dataset (Pogorelov et al., 2017) of endoscopical images of

gastrointestinal diseases. The dataset comprises 4,000 colored images labeled and veriﬁed by medical endo-

scopists, covering a few common pathologies at different anatomical landmarks: Z-line, pylorus and cecum.

We show how the application of data augmentation techniques allows to achieve sensible improvements of the

classiﬁcation with respect to previous approaches, both in terms of precision and recall.

1 INTRODUCTION

Gastrointestinal diseases affect 60 to 70 million of

people every year in the United States (NID, 2017).

Diagnosis of such diseases has to be done by a trained

gastroenterologist. Such diagnosis often involves one

or more invasive and not invasive endoscopic exami-

nations enabling a direct and visual feedback of the

status of internal organs. In this case, it is essen-

tial to be able to perform a detailed image analysis

in order to diagnose the disease. For example, the

degree of inﬂammation directly affects the choice of

therapy in inﬂammatory bowel diseases (IBD) (Walsh

et al., 2014). In recent years, automatic elaboration

of digital images has seen an enormous increment

of research interest due to latest impressive results

on many computer vision sub-related tasks. Such

results almost always involved deep learning based

algorithms. Notoriously, deep learning techniques

frequently require a very large amount of training

examples, and the availability of several such large

datasets(Deng et al., 2009)(Krizhevsky et al., ) has

heavily contributed to the evolution of the ﬁeld. To

make an example, ImageNet is composed of over 14

million images, spread over 22K different categories.

Since automatic detection, recognition and assess-

ment of pathological ﬁndings can provide a valid as-

sistance for doctors in their diagnosis, there is a grow-

ing demand for medical datasets, especially in rela-

tion with the application of deep learning techniques

in this ﬁeld.

A recent example of such a dataset for gastroin-

testinal diseases is Kvasir (Pogorelov et al., 2017),

comprising about 4,000 colored images labeled and

veriﬁed by medical endoscopists (for details on the

dataset and the pathologies see Section 3).

Unfortunately, the dataset is quite small for the

purposes of deep learning. This is a well-known prob-

lem of this ﬁeld: building large databases of labeled

information is not only an expensive operation, re-

quiring the supervision of an expert, but in the case

of medical pathologies, it is even more difﬁcult due to

the privacy constraints preventing the publication of

sensible data.

In this article, following similar successful at-

tempts made on different datasets (see Section 2), we

show that data augmentation can provide a valid pal-

liative to the small dimension of the above mentioned

dataset, proving that the problem of automatic diag-

nosing of gastrointestinal diseases from images can be

successfully addressed by means of deep learning al-

gorithms. Speciﬁcally we make use of transfer learn-

ing (Bengio, 2012), Convolutional Neural Networks

(CNNs) (LeCun et al., 1989), data augmentation tech-

niques (see e.g. (Wong et al., 2016) for a recent sur-

vey) and snapshot ensembling (Huang et al., 2017a),

obtaining sensible improvements in the classiﬁcation

with respect to previous approaches, both in terms of

Asperti, A. and Mastronardo, C.

The Effectiveness of Data Augmentation for Detection of Gastrointestinal Diseases from Endoscopical Images.

DOI: 10.5220/0006730901990205

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 2: BIOIMAGING, pages 199-205

ISBN: 978-989-758-278-3

199

precision and recall.

The structure of the article is the following. In

Section 2 we discuss related works, especially from

the point of view of data augmentation. Section 3

contains a detailed description of the Kvasir dataset,

used for our experiments. In Section 4, we explain our

methodology. The experimental results are reported

in Section 5. Section 6 is devoted to our plans for fu-

ture research on this topic. Finally, a few concluding

remarks are given in Section 7.

2 RELATED WORK

Data augmentation is a key technique of machine

learning. It consists in increasing the number of data,

by artiﬁcially synthesizing new samples from existing

ones, usually via minor perturbations. For instance,

in the case of images, typical operations are rotation,

lighting modiﬁcations, rescaling, cropping and so on;

even adding random noise can be seen as a form of

data augmentation. Usually deployed as a means for

reducing overﬁtting and improving the robustness of

systems (see e.g. (Prisyach et al., 2016) for a re-

cent application to sound recognition), it frequently

proved to be also useful for improving the perfor-

mance of deep learning techniques, especially in pres-

ence of a low number of training data. In the ﬁeld of

image processing, a sophisticated form of data aug-

mentation (the so called fancy PCA technique) was

a key ingredient of the famous AlexNet (Krizhevsky

et al., 2012). More recently, massive data augmen-

tation was exploited in (Farfade et al., 2015), where

for the ﬁrst time a single deep architectural network

was trained to detect faces under unconstrained con-

ditions, and in a wide range of different orientations.

Similarly, addressing a problem of relational classi-

ﬁcation in Natural Language Processing, (Xu et al.,

2016) have been able to outperform previous shallow

neural nets by just augmenting the number of input

sentences by means of simple grammatical manipu-

lations. In the ﬁeld of medicine, data augmentation

has been very recently applied in (Vasconcelos and

Vasconcelos, 2017) in relation with the ISBI 2017

Melanoma Classiﬁcation Challenge (named Skin Le-

sion Analysis towards Melanoma Detection), success-

fully overcoming the small dimension and biased na-

ture of the biological database.

A large number of different augmentation tech-

niques has been recently compared in (Wang and

Perez, 2017), comprising sophisticated techniques

based on Generative Adversarial Networks (Goodfel-

low et al., 2014), using the CycleGan tool (Zhu et al.,

2017). According to this study, traditional augmenta-

(a) Ulcerative colitis (b) Dyed lifted polyp

Figure 1: Some images extracted from the KVASIR dataset.

tion techniques remain the most successful, motivat-

ing our choice of sticking to them in this work.

3 DATASET

For our experiments, we worked on the recently pub-

lished Kvasir dataset (Pogorelov et al., 2017). The

Kvasir dataset has been created in order to be used to

improve applications involving automatic detection,

classiﬁcation and localization of endoscopic patho-

logical ﬁndings in images captured in the gastroin-

testinal tract. This new dataset comprises of 4,000

colored images

labeled and veriﬁed by medical en-

doscopists. It has 8 classes representing several dis-

eases as well as normal anatomical landmarks. The

dataset has 500 examples for each class, making it

perfectly balanced.

The anatomical landmarks are: Z-line, pylorus

and cecum. Diseases: esophagitis, polyps and ulcer-

ative colitis. There are also images representing dyed

and lifted polyps and dyed resection margins. Images

across the dataset have resolution from 720x576 up to

1920x1072 pixels. Some extracted images are shown

in Figure 1.

4 APPROACH

Our approach is an ensemble of models created by

using transfer learning from previously trained con-

We used the ﬁrst version of the dataset. In date

17/10/2017 a second version of the Kvasir dataset has been

released. This new version has 8,000 images.

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

200

volutional neural nets and data augmentation.

4.1 Transfer Learning

In order to save computation time and focus on the

high level representations learned by CNNs we used

a transfer learning approach(Bengio, 2012). We used

Inception v3 model(Szegedy et al., 2016) and Keras

library(Chollet et al., 2015) with Tensorﬂow(Abadi

et al., 2015) as backend. We loaded pre-trained

weights learned on the Imagenet(Deng et al., 2009)

dataset and cut the last dense layers. After the last

convolutional layer we added a global averaging pool-

ing layer, a dense layer with 1024 neurons with

ReLU(Nair and Hinton, 2010) as activation function

and ﬁnally a softmax layer of 8 neurons, one for every

class. All images have been resized to a resolution of

299x299 in order to be fed to Inception v3.

We froze all Inception’s already trained layers and

used Adam optimizer(Kingma and Ba, 2014) to tune

last dense layers’ weights. Categorical cross-entropy

has been used as the loss function.

After several epochs we started modifying both

last dense layers’ weights and convolutional layers

from the top 2 inception blocks from Inception v3.

We switched to stochastic gradient descent(Zhang,

2004) with momentum, enabling us to use a very

small learning rate (0.0001) in order to make sure

that the magnitude of the updates stays very small

and does not break previously learned features. We

trained for about 17 epochs (losses for the ﬁne tuning

phase in Figure 5). In both ﬁne-tuning phases a batch

size of 16 instances has been used.

4.2 Data Augmentation

A key role in our results has been represented by us-

ing several data augmentation techniques. In order to

make our model more robust, prevent overﬁtting and

enabling it to generalize better we used Keras’ util-

ities to augment training instances by applying sev-

eral random transformations. Values for parameters’

based transformations have been picked randomly in

deﬁned ranges. A list of data augmentation transfor-

mations (and their chosen range of action) used dur-

ing training is reported in the table 1.

Since images were black bordered we didn’t use

much of zooming out to prevent the generation of im-

ages having too much black component. When hav-

ing to ﬁll pixels due to zooming out and shifting we

adopted a nearest pixel policy, repeating nearest pixel

value across the axis. Moreover we used random hor-

izontal ﬂips and vertical ﬂips.

Table 1: Data augmentation transformations and their range

values.

Type Range

Rotation [-30

◦

, +30

◦

]

Width shift 0.1

Height shift 0.1

Shear 0.2

Zoom [0.8, 1.1]

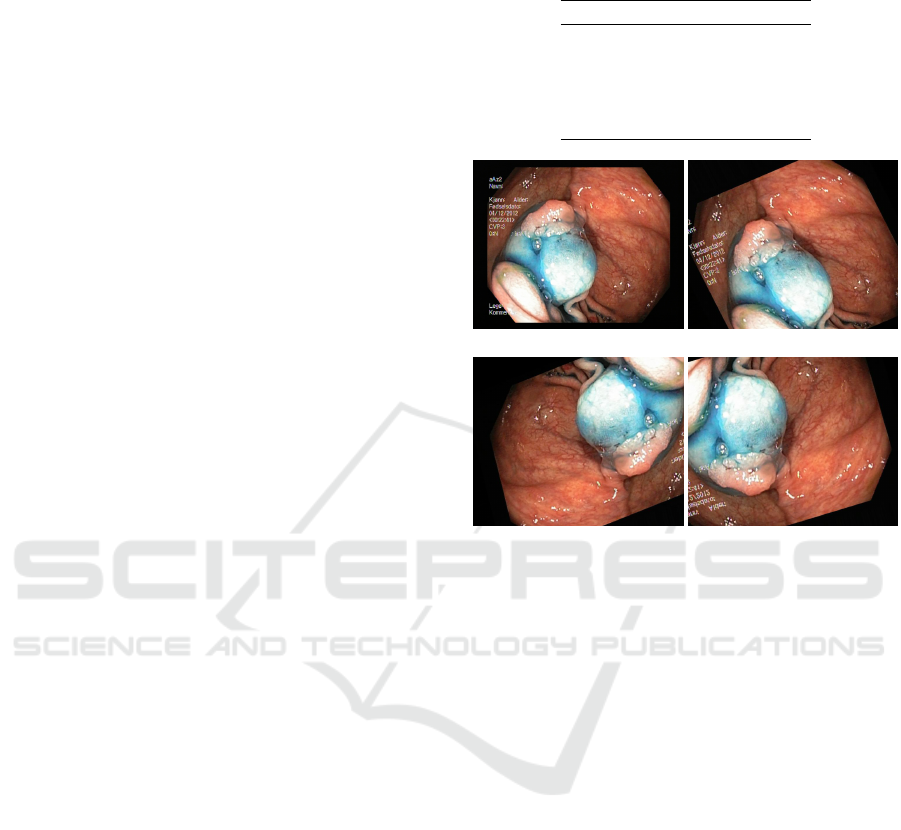

(a) Original image (b) Shearing and rotation

Figure 2: Augmented examples.

To normalize both training and test data we di-

vided every pixel’s color value by 255 in order to have

all pixel values in the range [0,1].

During training we kept generating new images

following this data augmentation policy, never feed-

ing the same images to the network. Some examples

of augmented images are reported in ﬁgure 2.

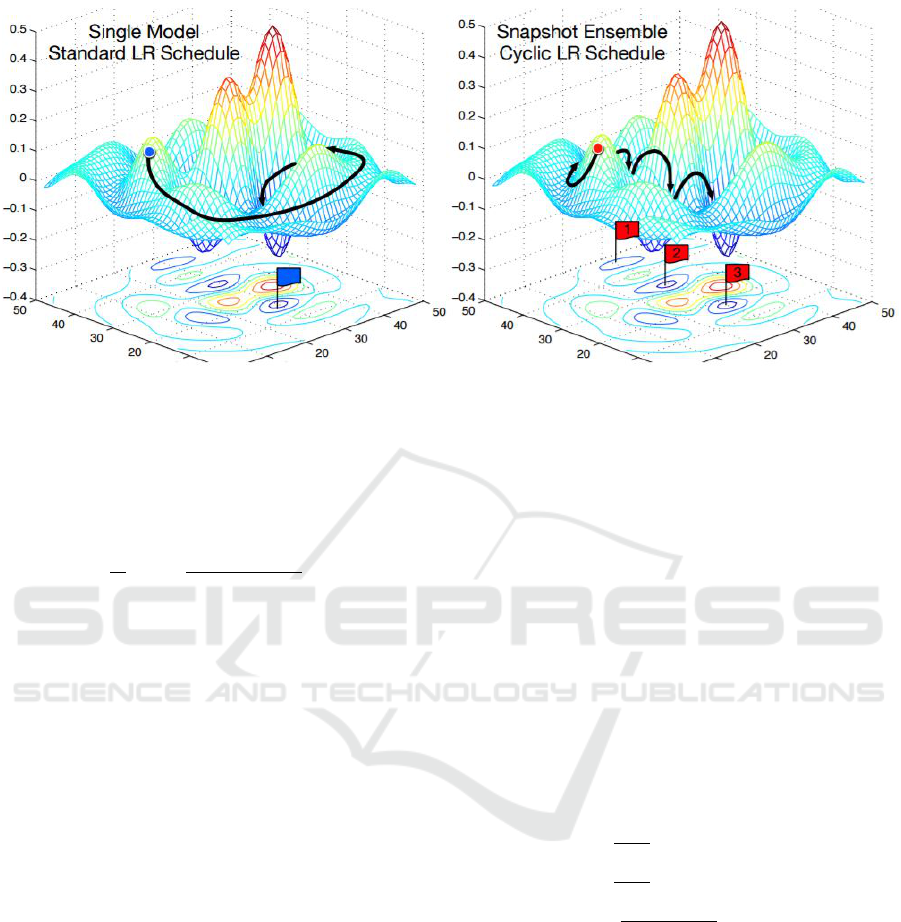

4.3 Snapshot Ensembling

To improve classiﬁcation precision and avoid to be

trapped in local minima, we adopted an ensembling

approach. In particular, we used Snapshot ensembling

(Huang et al., 2017a) allowing us to execute one train-

ing but getting several models. Snapshot Ensembling

is a method to obtain multiple neural networks at no

additional training cost. This is achieved by letting

a single model converge into several different local

minima along its optimization path on the error sur-

face. Saving network weights at certain epochs con-

stitutes saving several ”snapshots” (see Figure 3 for a

visual representation). Since, in general, there exist

multiple local minima, snapshot ensembling let’s the

current model dive into a minima using a decreasingly

learning rate value, save the snapshot at that minimum

and then increase the learning rate in order to escape

The Effectiveness of Data Augmentation for Detection of Gastrointestinal Diseases from Endoscopical Images

201

Figure 3: Left: Classic SGD. Right: Snapshot ensembling converging to several minima and taking snaphots. Image bor-

rowed from (Huang et al., 2017a).

the local minima and attempt to ﬁnd another possi-

bly better minima. This repeated rapid convergence

is achieved taking advantage of cosine annealing cy-

cles as the learning rate schedule. The learning rate is

achieved by :

α(t) =



cos



π mod(t−1,

T /M



+ 1



where α

stands for the initial learning rate, t is the

current epoch, T is the total number of epochs and M

is the chosen number of models in the ensemble. For

our experiments we used an initial learning rate of 0.1,

we trained for about 22 epochs and we’ve chosen an

ensemble with 5 models (T = 5).

5 EXPERIMENTAL RESULTS

5.1 Classiﬁcation Metrics

Following (Pogorelov et al., 2017), classiﬁcation has

been tested using traditional metrics like precision, re-

call, F1 score and accuracy. Precision is the fraction

of relevant instances (True Positives) among the re-

trieved instances, while recall (or sensitivity) is the

fraction of relevant instances that have been retrieved

over the total amount of relevant instances; F1-score

is a simple combination of precision and recall ex-

pressed in terms of their harmonic mean; ﬁnally, ac-

curacy is simply the fraction of correctly classiﬁed

samples.

While the notions of precision and recall are clear

in the case of a binary classiﬁcation problem, their

generalization to multiclass classiﬁcation is not en-

tirely straightforward. There are several possible

ways to combine results across labels, and unfortu-

nately (Pogorelov et al., 2017) are not explicit about

the method they used. For this reason, we tested sev-

eral of them, whose precise deﬁnition is given below.

Fortunately, results are very similar, and we shall only

report them for the so called ”micro” averaging.

Let us introduce the following notation

• let y be the set of predicted (input, label) pairs

• let ˆy be the set of true (input, label) pairs

• let L be the set of labels

• let S be the set of samples

• let y

( ˆy

) be the subset of y (resp. ˆy) with sample

• let y

( ˆy

) be the subset of y (resp. ˆy) with label l

• let P(A,B) =

|A∩B|

• let R(A,B) =

|A∩B|

• let F

(A,B) =

P(A,B)×R(A,B)

P(A,B)+R(A,B)

In Figure 4, we give the formal deﬁnition of the

most typical forms of averaging.

5.2 Evaluation

We computed the metrics from the produced confu-

sion matrix (see 2), in order to compare our approach

to the previous ones (Pogorelov et al., 2017) splitting

the dataset into training and test sets.

Results are reported in table 3. All

metrics have been computed using the

precision_recall_fscore_support function

of scikit-learn (Pedregosa et al., 2011).

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

202

Average Precision Recall F

micro P(y, ˆy) R(y, ˆy) F

(y, ˆy)

samples

|S|

∑

s∈S

P(y

, ˆy

)

|S|

∑

s∈S

R(y

, ˆy

)

|S|

∑

s∈S

, ˆy

)

macro

|L|

∑

l∈L

P(y

, ˆy

)

|L|

∑

l∈L

R(y

, ˆy

)

|L|

∑

l∈L

, ˆy

)

weighted

∑

l∈L

| ˆy

∑

l∈L

| ˆy

|P(y

, ˆy

)

∑

l∈L

| ˆy

∑

l∈L

| ˆy

|R(y

, ˆy

)

∑

l∈L

| ˆy

∑

l∈L

| ˆy

, ˆy

)

Figure 4: Typical averaging techniques for classiﬁcation metrics.

Table 2: Confusion matrix produced by the ensem-

ble. A=Dyed lifted polyps, B=Dyed resection mar-

gins, C=Esophagitis, D=Normal cecum, E=Normal py-

lorus, F=Normal z-line, G=Polyps and H=Ulcerative coli-

tis.

Actual class

Predicted class

A B C D E F G H

A 46 8 0 0 0 0 0 0

B 4 42 0 0 0 0 0 0

C 0 0 39 0 0 7 0 0

D 0 0 0 50 0 0 1 0

E 0 0 0 0 50 0 1 0

F 0 0 11 0 0 43 0 0

G 0 0 0 0 0 0 47 1

H 0 0 0 0 0 0 1 49

(a) Training loss (b) Test loss

Figure 5: Categorical cross-entropy error in function of

training and test epochs.

Our model achieves better scores for precision, re-

call and f-measure while essentially preserving the

same accuracy with respect to the previous tested so-

lutions(Pogorelov et al., 2017). We found that the

model is particularly precise in classifying examples

belonging to normal cecum and normal pylorus.

Misclassiﬁcations mostly involve dyed lifted

polyps and dyed resection margins (e.g. see ﬁgure

6 for some examples). In fact, these two classes are

made up of very similar images, having the same

amount of blue color. Moreover some other misclas-

siﬁed instances belong to normal z-line and esophagi-

tis. This is reasonable since some cases of esophagi-

tis are not so clearly spotted in images, where it may

be confused with the gastroesophageal junction that

Table 3: Our metrics compared to the best ones reported in

(Pogorelov et al., 2017). All metrics are micro averaged.

Method PREC REC ACC F1 MCC

2 GF Logistic Model Tree 0.706 0.707 0.926 0.705 0.664

6 GF Random Forest 0.732 0.732 0.933 0.727 0.692

6 GF Logistic Model Tree 0.748 0.748 0.937 0.747 0.711

Ensemble of Inception+

ﬁne tuning+

data augmentation 0.915 0.915 0.915 0.915 0.903

(a) predicted: lifted polyp

actual: resection margin

(b) predicted: resection margin

actual: lifted polyp

actual: normal z-line

Figure 6: Some misclassiﬁed samples.

joins the esophagus to the stomach. An example is

reported in ﬁgure 6 (c) where the classiﬁer predicted

esophagitis instead of z-line. This error might be re-

lated to speciﬁc z-line tissues being visually similar to

an esophagitis of grade A (Lundell et al., 1999) (low-

est inﬂammatory grade).

Misclassiﬁcations could be possibly overcame try-

ing to train the network for a greater number of

epochs, or working with the new extended version of

The Effectiveness of Data Augmentation for Detection of Gastrointestinal Diseases from Endoscopical Images

203

the dataset. Prediction confusion might be improved

increasing the number of samples from the dyed lifted

polyps and dyed resection margins as well as from z-

line and esophagitis classes.

6 FUTURE WORK

Several deep convolutional neural networks have been

published since Inception v3, such as (Huang et al.,

2017b), (He et al., 2015) (Zhu et al., 2017), (Wong

et al., 2016), (Xu et al., 2016). Experiments can be

done using these newly proposed architectures in con-

junction with data augmentation techniques.

Stacking additional dense layers can be another

direction worth to be investigated, as well as mak-

ing a more exhaustive experimentation with different

activation functions such ELU (Clevert et al., 2015),

LeakyRelu (Zhu et al., 2017), Swish (Ramachandran

et al., 2017) etc.

A different investigation might consist in visual-

izing high level learned features from the last convo-

lutional layers, in order to improve our grasp of the

discriminative characteristics learned by the network.

All our experiments have been conducted over the

ﬁrst version of the Kvasir dataset; repeting training

and validation on the recently released extended ver-

sion would provide an important additional validation

of our methodology.

Finally, it would be particularly useful to further

extend the Kvasir dataset with new classes, in order to

meet diagnosis needs in the direction of several other

very known and diffused diseases such as Chron’s dis-

ease. We are currently exploring the possibility to co-

operate with the gastroenterology department of the

Sant’Orsola Hospital in Bologna to extend the dataset

along these lines.

7 CONCLUSIONS

In this work we addressed the problem of gastroin-

testinal disease detection and identiﬁcation. By a sim-

ple combination of Convolutional Neural Networks,

transfer learning, and data augmentation we outper-

fomed previous techniques in terms of precision, re-

call, and f-measure, while essentially preserving the

same accuracy. Our experimentation conﬁrms once

more that data augmentation is a viable technique for

boosting deep learning in presence of small dataset.

REFERENCES

(2017). Digestive diseases statistics for the united states.

Accessed: 2017-11-03.

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Corrado, G. S., Davis, A., Dean, J., Devin,

M., Ghemawat, S., Goodfellow, I., Harp, A., Irving,

G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kud-

lur, M., Levenberg, J., Man

e, D., Monga, R., Moore,

S., Murray, D., Olah, C., Schuster, M., Shlens, J.,

Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Van-

houcke, V., Vasudevan, V., Vi

egas, F., Vinyals, O.,

Warden, P., Wattenberg, M., Wicke, M., Yu, Y., and

Zheng, X. (2015). TensorFlow: Large-scale machine

learning on heterogeneous systems. Software avail-

able from tensorﬂow.org.

Bengio, Y. (2012). Deep learning of representations for

unsupervised and transfer learning. In Guyon, I.,

Dror, G., Lemaire, V., Taylor, G., and Silver, D., edi-

tors, Proceedings of ICML Workshop on Unsupervised

and Transfer Learning, volume 27 of Proceedings of

Machine Learning Research, pages 17–36, Bellevue,

Washington, USA. PMLR.

Chollet, F. et al. (2015). Keras.

Clevert, D., Unterthiner, T., and Hochreiter, S. (2015). Fast

and accurate deep network learning by exponential

linear units (elus). CoRR, abs/1511.07289.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). ImageNet: A Large-Scale Hierarchical

Image Database. In CVPR09.

Farfade, S. S., Saberian, M. J., and Li, L. (2015). Multi-

view face detection using deep convolutional neural

networks. CoRR, abs/1502.02766.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative Adversarial Networks.

ArXiv e-prints.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep resid-

ual learning for image recognition. arXiv preprint

arXiv:1512.03385.

Huang, G., Li, Y., Pleiss, G., Liu, Z., Hopcroft, J. E.,

and Weinberger, K. Q. (2017a). Snapshot ensembles:

Train 1, get M for free. CoRR, abs/1704.00109.

Huang, G., Liu, Z., van der Maaten, L., and Weinberger,

K. Q. (2017b). Densely connected convolutional net-

works. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition.

Kingma, D. P. and Ba, J. (2014). Adam: A method for

stochastic optimization. CoRR, abs/1412.6980.

Krizhevsky, A., Nair, V., and Hinton, G. Cifar-10 (canadian

institute for advanced research).

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Pereira, F., Burges, C. J. C., Bottou,

L., and Weinberger, K. Q., editors, Advances in Neu-

ral Information Processing Systems 25, pages 1097–

1105. Curran Associates, Inc.

LeCun, Y., Boser, B., Denker, J. S., Henderson, D., Howard,

R. E., Hubbard, W., and Jackel, L. D. (1989). Back-

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

204

propagation applied to handwritten zip code recogni-

tion. Neural Computation, 1(4):541–551.

Lundell, L. R., Dent, J., Bennett, J. R., Blum, A. L., Arm-

strong, D., Galmiche, J. P., Johnson, F., Hongo, M.,

Richter, J. E., Spechler, S. J., Tytgat, G. N. J., and

Wallin, L. (1999). Endoscopic assessment of oe-

sophagitis: clinical and functional correlates and fur-

ther validation of the los angeles classiﬁcation. Gut,

45(2):172–180.

Nair, V. and Hinton, G. E. (2010). Rectiﬁed linear units im-

prove restricted boltzmann machines. In F

urnkranz, J.

and Joachims, T., editors, Proceedings of the 27th In-

ternational Conference on Machine Learning (ICML-

10), pages 807–814. Omnipress.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Pogorelov, K., Randel, K. R., Griwodz, C., Eskeland, S. L.,

de Lange, T., Johansen, D., Spampinato, C., Dang-

Nguyen, D.-T., Lux, M., Schmidt, P. T., Riegler, M.,

and Halvorsen, P. (2017). Kvasir: A multi-class im-

age dataset for computer aided gastrointestinal disease

detection. In Proceedings of the 8th ACM on Multime-

dia Systems Conference, MMSys’17, pages 164–169,

New York, NY, USA. ACM.

Prisyach, T., Mendelev, V., and Ubskiy, D. (2016). Data

augmentation for training of noise robust acoustic

models. In Analysis of Images, Social Networks and

Texts - 5th International Conference, AIST 2016, Yeka-

terinburg, Russia, April 7-9, 2016, Revised Selected

Papers, pages 17–25.

Ramachandran, P., Zoph, B., and Le, Q. V. (2017). Search-

ing for activation functions. CoRR, abs/1710.05941.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wojna,

Z. (2016). Rethinking the inception architecture for

computer vision. In 2016 IEEE Conference on Com-

puter Vision and Pattern Recognition, CVPR 2016,

Las Vegas, NV, USA, June 27-30, 2016, pages 2818–

2826.

Vasconcelos, C. N. and Vasconcelos, B. N. (2017). Increas-

ing deep learning melanoma classiﬁcation by classical

and expert knowledge based image transforms. CoRR,

abs/1702.07025.

Walsh, A., Ghosh, A., Brain, A., Buchel, O., Burger, D.,

Thomas, S., White, L., Collins, G., Keshav, S., and

Travis, S. (2014). Comparing disease activity indices

in ulcerative colitis. Journal of Crohn’s and Colitis,

8(4):318–325.

Wang, J. and Perez, L. (2017). The effectiveness of data

augmentation in image classiﬁcation using deep learn-

ing. Technical report, Stanford University.

Wong, S. C., Gatt, A., Stamatescu, V., and McDonnell,

M. D. (2016). Understanding data augmentation for

classiﬁcation: when to warp? CoRR, abs/1609.08764.

Xu, Y., Jia, R., Mou, L., Li, G., Chen, Y., Lu, Y., and Jin, Z.

(2016). Improved relation classiﬁcation by deep recur-

rent neural networks with data augmentation. CoRR,

abs/1601.03651.

Zhang, T. (2004). Solving large scale linear prediction prob-

lems using stochastic gradient descent algorithms. In

Proceedings of the Twenty-ﬁrst International Confer-

ence on Machine Learning, ICML ’04, pages 116–,

New York, NY, USA. ACM.

Zhu, J., Park, T., Isola, P., and Efros, A. A. (2017). Unpaired

image-to-image translation using cycle-consistent ad-

versarial networks. CoRR, abs/1703.10593.

The Effectiveness of Data Augmentation for Detection of Gastrointestinal Diseases from Endoscopical Images

205
