Adopting Semantic Information of Grayscale Radiographs for Image

Classiﬁcation and Retrieval

Obioma Pelka

1,2

, Felix Nensa

and Christoph M. Friedrich

Department of Computer Science, University of Applied Sciences and Arts Dortmund,

Emil-Figge-Strasse 42, 44227 Dortmund, Germany

Faculty of Medicine, University of Duisburg-Essen, Germany

Department of Diagnostic and Interventional Radiology and Neuroradiology,

University Hospital Essen Hufelandstrasse 55, 45147 Essen, Germany

Keywords:

Biomedical Imaging, Deep Learning, Keyword Generation, Machine Learning, Multi-modal Representation,

Transfer Learning, Radiographs.

Abstract:

As the number of digital medical images taken daily rapidly increases, manual annotation is impractical,

time-consuming and prone to errors. Hence, there is need to create systems that automatically classify and

annotate medical images. The aim of this presented work is to utilize Transfer Learning to generate image

keywords, which are substituted as text representation for medical image classiﬁcation and retrieval tasks.

Text preprocessing methods such as detection and removal of compound ﬁgure delimiters, stop-words, special

characters and word stemming are applied before training the keyword generation model. All images are

visually represented using Convolutional Neural Networks (CNN) and the Long Short-Term Memory (LSTM)

based Recurrent Neural Network (RNN) Show-and-Tell model is adopted for keyword generation. To improve

model performance, a second training phase is initiated, where parameters are ﬁne-tuned using the pre-trained

deep learning network Inception-ResNet-V2. For the image classiﬁcation tasks, Random Forest models trained

with Bag-of-Keypoints visual representations were adopted. Classiﬁcation prediction accuracy was higher for

all classiﬁcation schemes and on two distinct radiology image datasets using the proposed approach.

1 INTRODUCTION

Due to advances in software, hardware, and digital

imaging in the medical domain, the number of images

taken per patient scan has rapidly increased (Rah-

man et al., 2007; Tagare et al., 1997). To decrease

the burden on radiologists and maintain the maxi-

mum interpretation of these radiology images, there

is need to create automatic computer-aided interpre-

tation, which can be further applied for image anno-

tation and semantic information extraction.

An important criteria for creating an effective

classiﬁcation system, is the selection and combina-

tion of features for an adequate representation of the

images. As shown in (Pelka and Friedrich, 2015;

Codella et al., 2014; Valavanis et al., 2016; Kalpathy-

Cramer et al., 2015; Pelka and Friedrich, 2016),

multi-modal representation achieves higher classiﬁca-

tion rates in biomedical annotation tasks. This is the

combination of visual and text representations which

sufﬁciently represents these biomedical images.

However, for real clinical cases and some image

classiﬁcation tasks such as ImageCLEF2009 Medical

Annotation Task (Tommasi et al., 2009) and Image-

CLEF 2015 Medical Clustering Task (Amin and Mo-

hammed, 2015), corresponding text representations

are not available. In this paper, Transfer Learning

(Pan and Yang, 2010) is utilized to generate keywords

(Pelka and Friedrich, 2017), which are combined with

visual features to obtain multi-modal image represen-

tations. These text features are further adopted for the

medical image classiﬁcation tasks mentioned above

and semantic tagging.

As deep learning techniques (LeCun et al., 2015)

have improved prediction accuracies in object detec-

tion (Huang et al., 2017), speech recognition (Hinton

et al., 2012) and in domain application such as med-

ical imaging (Abrao et al., 2007; Xu et al., 2014), a

deep learning architecture is used to create the key-

word generation model. Deep Convolutional Neu-

ral Networks (dCNN) (Szegedy et al., 2017) are ap-

plied to encode the medical images to a feature rep-

Pelka, O., Nensa, F. and Friedrich, C.

Adopting Semantic Information of Grayscale Radiographs for Image Classiﬁcation and Retrieval.

DOI: 10.5220/0006732301790187

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 2: BIOIMAGING, pages 179-187

ISBN: 978-989-758-278-3

179

resentation which is decoded using a Long Short-

Term Memory (LSTM) (Hochreiter and Schmidhu-

ber, 1997) based Recurrent Neural Network (RNN)

(Bengio et al., 1994) to generate appropriate key-

words for a given image.

For the image classiﬁcation tasks, Random For-

est (Breiman, 2001) models trained with visual and

text representations were adopted. Bag-of-Keypoints

(Csurka et al., 2004; Lazebnik et al., 2006) computed

with dense SIFT descriptors (Dalal and Triggs, 2005)

were combined with text representations obtained by

vector quantization on a Bag-of-Words (Salton and

McGill, 1983) codebook. The codebook was created

with words from the keyword generation model.

Figure 1 shows the complete workﬂow for the ap-

proach presented in this paper. PART 1 displays nec-

essary steps for creating a keyword generator. This

is a distinct and stand-alone process which does not

need PART 2 for application. The keyword genera-

tor can be further adopted for several purposes, such

as image classiﬁcation and retrieval. In PART 2,

the keyword generator is used to create keywords for

medical datasets that lack text representations. This

second part is dependable on the ﬁrst part. Two

datasets containing grayscale radiographs were uti-

lized in PART 2, however there are no restrictions,

as the keyword generator was created using biomed-

ical literature ﬁgures. The rest of this paper is struc-

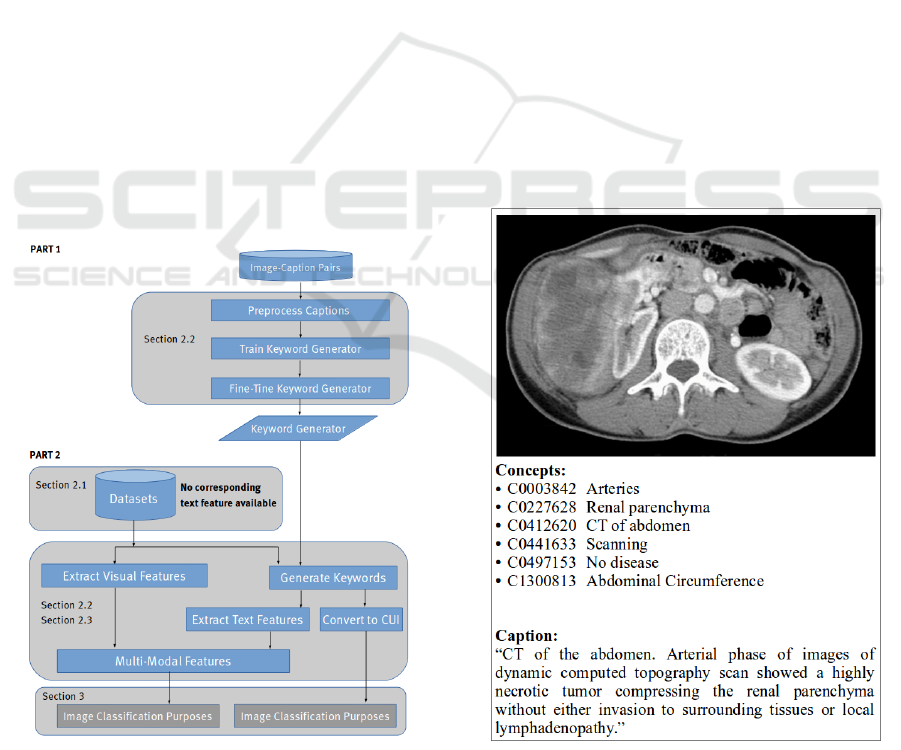

Figure 1: Overview of the proposed approach workﬂow.

tured as follows: Section 2.1 lists the adopted dataset

for keyword generation and the two datasets used

for evaluating the proposed approach. In subsec-

tions 2.2 and 2.3, applied deep learning networks, vi-

sual representation and machine learning methods for

keyword generation and image classiﬁcation are de-

scribed. The achieved results are stated in section 3.

Finally, results are discussed in section 4 and conclu-

sions are drawn in section 5.

2 MATERIAL AND METHOD

2.1 Datasets

Three datasets are applied for this proposed work:

• ImageCLEFcaption Prediction 2017: For key-

word generation model

• ImageCLEF 2009 Medical Image Annotation

Task: For image classiﬁcation and evaluation

• ImageCLEF 2015 Medical Clustering Task: For

image classiﬁcation and evaluation

ImageCLEFcaption Prediction 2017. This dataset

was distributed at the ImageCLEFcaption 2017 Task

(Eickhoff et al., 2017). ImageCLEFcaption 2017

Figure 2: Example of a medical image with corresponding

caption and Concept Unique Identiﬁers (CUI). The com-

puter tomography scan was randomly chosen from the vali-

dation set of the ImageCLEFcaption 2017 Task.

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

180

consisted of two subtasks: Concept Detection and

Caption Prediction. All distributed ﬁgures originate

from open access biomedical journal articles pub-

lished in PubMed Central (PMC) (PubMed Central,

2017). The objective of the concept detection task

was to retrieve clinical concepts present in the med-

ical images whereas for the caption prediction task,

meaningful captions to the images had to be predicted

(Eickhoff et al., 2017). Figure 2 shows an example

of an image with the corresponding information pro-

vided in the distributed dataset. The same datasets

were distributed for both Concept Detection and Cap-

tion Prediction tasks and includes a variety of content

and situations, ranging from ultrasound images and x-

rays to charts and clinical photographs, which can be

seen in ﬁgure 3.

For the Caption Prediction Task, a training set

containing 164,614 image - caption pairs and an ad-

ditional validation set of 10,000 biomedical image -

caption pairs for evaluation purposes in the develop-

ment stage were distributed. Ofﬁcial evaluation was

computed using BLEU scores (Papineni et al., 2002)

on a test set with 10,000 biomedical images. For the

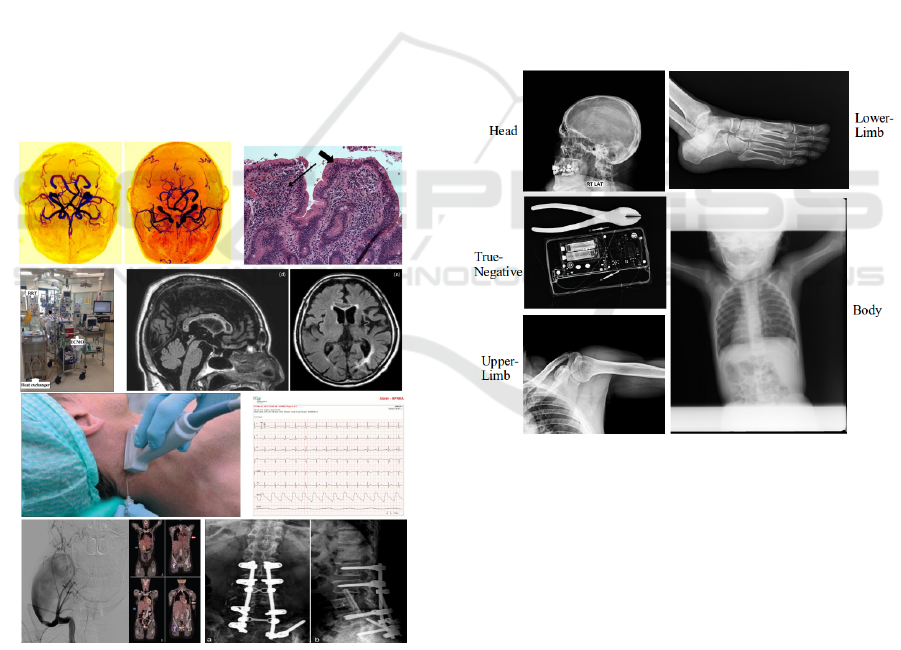

Figure 3: Examples of biomedical images showing variety

of content and situation. All images were randomly cho-

sen from the validation set of the ImageCLEFcaption 2017

Task.

Concept Detection Task, a set of UMLS



(Uniﬁed

Medical Language System) Concept Unique Identi-

ﬁers (CUIs) (Bodenreider, 2004) were provided for

each of the 164,614 biomedical images. These UMLS

concepts were identiﬁed using the QuickUMLS li-

brary (Soldaini and Goharian, 2016) from the original

captions published with the images (Eickhoff et al.,

2017). F

-Score was used as evaluation metric.

ImageCLEF 2015 Medical Clustering Task. This

dataset was distributed at the Medical Clustering Task

held at ImageCLEF 2015 and contains high resolu-

tion x-ray images collected from a hospital in Dhaka,

Bangladesh (Amin and Mohammed, 2015). X-rays

of both male and female patients aged 6 months to 72

years were present in the distributed dataset (Amin

and Mohammed, 2015). The training set included

500 images and the test set distributed for evalua-

tion contained 250 images. For each of the classes,

’Body’, ’Head-Neck’, ’Upper-Limb, ’Lower-Limb’

and ’True-Negative’, 100 images were present in the

training set. An example of the x-rays is shown in

ﬁgure 4.

Figure 4: Examples of x-rays with corresponding classiﬁ-

cation. All images were randomly chosen from the training

set of the ImageCLEF 2015 Medical Clustering Task.

ImageCLEF 2009 Medical Image Annotation

Task. The dataset was distributed at the Image-

CLEF 2009 Medical Annotation task (Tommasi et al.,

2009). The training set consists of 12,671 grayscale x-

rays and the ofﬁcial evaluation set has 1,732 grayscale

x-rays. Each radiograph in the training set is anno-

tated with a 13 character string denoting the Image

Retrieval in Medical Applications (IRMA) (Lehmann

et al., 2004) classiﬁcation code.

The IRMA-code describes the modality of the im-

ages, orientation of the image, examined body re-

gion and the biological system investigated. This

Adopting Semantic Information of Grayscale Radiographs for Image Classiﬁcation and Retrieval

181

classiﬁcation scheme contains 193 distinct classes.

Figure 6 shows two radiographs with annotations

1121-127-732-500 and 1121-410-620-625, represent-

ing ”xray overview image; coronal anteroposterior;

middle right abdomen; gastrointestinal system” and

”xray analog low beam energy; other oblique orienta-

tion; left breast; Reproductive female system breast”.

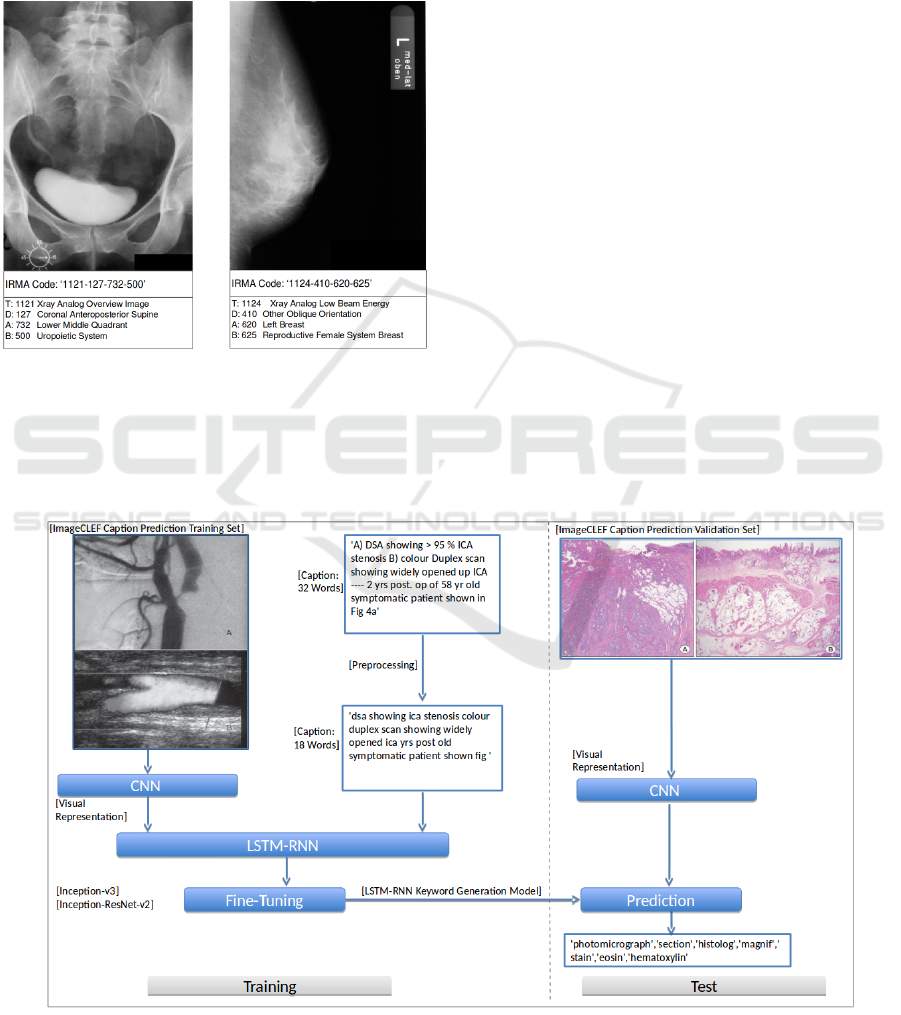

Figure 6: Example of two grayscale radiographs annotated

with the 13-digit IRMA classiﬁcation code. Both images

are from the ImageCLEF 2009 Medical Annotation Task

Training Set.

2.2 Keyword Generation

For keyword generation, a combination of encod-

ing and decoding using Convolutional Neural Net-

works (CNN) and Long Short-Term Memory (LSTM)

(Hochreiter and Schmidhuber, 1997) based Recur-

rent Neural Networks (RNN) (Bengio et al., 1994) is

adopted. This approach, also known as Show-And-

Tell model was proposed in (Vinyals et al., 2015) and

further improved in (Vinyals et al., 2017).

To produce rich visual representations of the im-

ages, CNN is used as an image encoder by pre-

training it for an image classiﬁcation task. The

LSTM-RNN utilized as caption decoder generates the

image keywords, using the CNN last hidden layer as

input (Vinyals et al., 2015).

Figure 5 shows the keyword generation model

training setup. In the ﬁrst training phase, the LSTM

is trained using a corpus of paired image and cap-

tions generated from the biomedical ﬁgures in the

ImageCLEF 2017 Caption Prediction Task Training

Set (Eickhoff et al., 2017). No further dataset was

used for training. In the second phase, parameters

of the image model and LSTM are ﬁne-tuned us-

ing the deep learning network Inception-ResNet-V2

(Szegedy et al., 2017). The parameters for the image

keyword generation model are:

• Batch size = [1. Trainingphase = 32; 2. Training-

Figure 5: Overview of Long Short-Term Memory based Recurrent Neural Network Model applied for biomedical image

keyword generation.

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

182

phase = 32]

• Number of Epochs = [1. Trainingphase = 194; 2.

Trainingphase = 583]

• Vocabulary size = 23,000 {Minimum word occur-

rence ≥ 4}

• Initial learning rate = 2

• Model optimizer = stochastic gradient descent

• Learning rate decay factor = 0.5

• Number of epochs per decay = 8

• Inception learning rate = 0.0005

• Inception model initialization = Inception-

ResNet-V2

• LSTM embedding size = 512

• LSTM units number = 512

• LSTM initializer scale = 0.08

• LSTM dropout keep probability = 0.7

For all other parameters not mentioned above, the de-

fault values as proposed in (Vinyals et al., 2015) and

implemented in the Tensorﬂow-Slim im2txt-model

(Abadi et al., 2015; Shallue, 2017) were adopted.

Several text preprocessing methods such as reduc-

tion of image captions to nouns and adjectives, re-

moval of stopwords (Bird et al., 2009) and special

characters, and word stemming (Porter, 1980) were

performed. These text preprocessing steps are further

detailed in (Pelka and Friedrich, 2017).

2.3 Classiﬁcation

Visual Representation. For whole-image classiﬁ-

cation tasks, the Bag-of-Keypoints (BoK) (Csurka

et al., 2004) approach has achieved high classiﬁca-

tion accuracy results (Lazebnik et al., 2006; Zhang

et al., 2006). BoK is based on vector quantization of

afﬁne invariant descriptors of image patches (Csurka

et al., 2004). The simplicity and invariance to afﬁne

transformation are advantages that come with this ap-

proach.

All functions applied for visual representation

computation are from the VLFEAT library (Vedaldi

and Fulkerson, 2010). Dense SIFT (dSIFT) (Li and

Perona, 2005) applied at several resolutions were uni-

formly extracted with an interval of 4 pixels using the

VL-PHOW function. Computational time was sped

up by computing k-means clustering with Approxi-

mated Nearest Neighbor (ANN) (Indyk and Motwani,

1998) on randomly chosen descriptors using the VL-

KMEANS function. This partitions the observations

into k clusters so that the within-cluster sum of square

is minimized.

A maximum number of 20 iterations was deﬁned

to allow the k-means algorithm converge and clus-

ter centers were initialized using random data points

(Hartigan and Wong, 1979). A codebook containing

1,000 keypoints was generated as k = 1,000. Using

the VL-KDTREEBUILD function, the codebook was

further optimized by adapting a kd-tree with metric

distance L

for quick nearest neighbor lookup.

Text Representation. Utilizing the keyword gener-

ation model described in subsection 2.2, keywords

were generated for all radiology images in both Im-

ageCLEF 2009 Medical Annotation Task and Image-

CLEF 2015 Medical Clustering Task datasets. Fig-

ures 7 and 8 show generated keywords for randomly

chosen radiographs from the ImageCLEF 2009 Med-

ical Annotation Task Training Set and ImageCLEF

2015 Medical Clustering Task Training Set, respec-

tively. No further text preprocessing methods were

applied to the generated keywords, as this was done

before creating the keyword generation model.

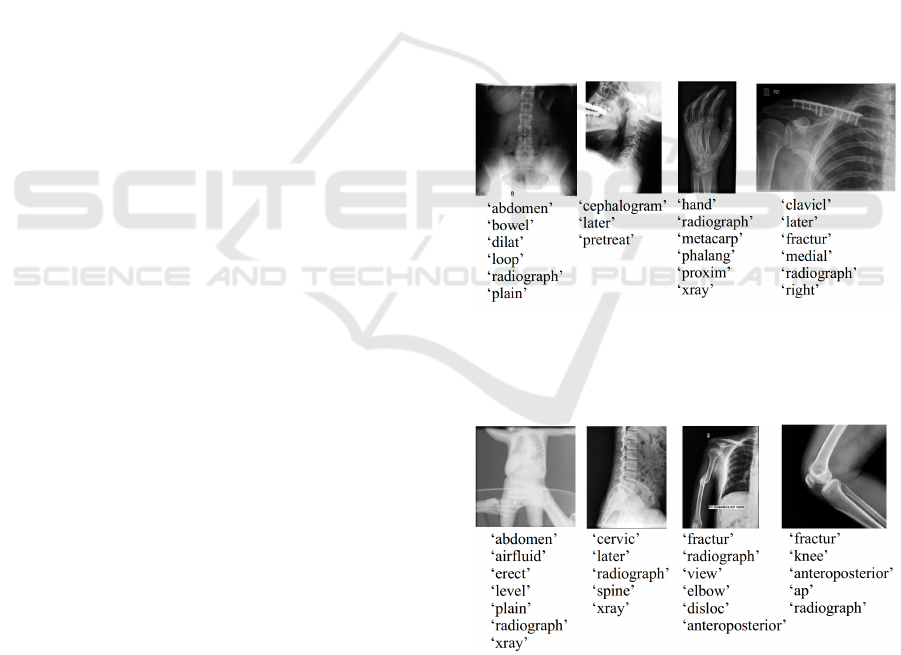

Figure 7: Examples of keywords generated. All images are

from the ImageCLEF 2009 Medical Annotation Task Train-

ing Set. Keyword generation model was created using the

ImageCLEFcaption Prediction Task Training Set.

Figure 8: Examples of keywords generated. All images are

from the ImageCLEF 2015 Medical Clustering Task Train-

ing Set. Keyword generation model was created using the

ImageCLEFcaption Prediction Task Training Set.

For text representation, the Bag-of-Words (BoW)

(Salton and McGill, 1983) approach was adopted.

The basic concept is to extract features by counting

Adopting Semantic Information of Grayscale Radiographs for Image Classiﬁcation and Retrieval

183

the frequency or presence of words in the text to be

classiﬁed. These words have to be ﬁrst deﬁned in

a dictionary or codebook. The ﬁfty words with the

highest occurrence were used as dictionary, hence ob-

taining a feature vector size of 50. Several dictionary

sizes as well the beneﬁt of Information Gain (Guyon

and Elisseeff, 2003) were investigated, but not further

used as no relevant advantage was detected.

Random Forest. Random forest (RF) (Breiman,

2001) models with 1,000 deep trees were created as

image classiﬁers. These RF-models were trained us-

ing multi-modal image representation. This is the

concatenation of visual features derived with the BoK

approach and the text features computed using BoW.

To reduce computational time, feature dimension and

noise, Principal Component Analysis (PCA) (Jolliffe,

2011) was applied on the visual representation. Pa-

rameters used to tune BoK and RF are:

• Codebook size: 1,000

• Number of descriptors extracted: 1,000

• Visual representation size: 4,000 (2x2 grid)

• Feature size reduction: 4000 to 100 (Principal

Component Analysis)

• Number of trees (RF): 1,000

• Ensemble method (RF): Bag

Support Vector Machines. Multi-class Support

Vector Machine (SVM) (Burges, 1998) image clas-

siﬁcation models were created for comparison. These

SVM-models were trained using the same multi-

modal image representation applied with the Random

Forest models. Parameters used to tune the SVM-

Models are:

• Kernel type: Radial basis function

• Cost parameter: 10

• Gamma: 1 / Number-Of-Features

Classiﬁcation Schemes. For the ImageCLEF 2009

Medical Annotation Task, 4 different classiﬁcation

schemes were used for evaluation. These schemes are

derived by using the complete IRMA code, mentioned

in subsection 2.1, as well splitting the code to its’ four

axes.

• (T) Technical-Code: 6 classes

• (D) Directional-Code: 34 classes

• (A) Anatomical-Code: 97 classes

• (B) Biological-System-Code: 11 classes

For the ImageCLEF 2015 Medical Clustering Task, a

classiﬁcation scheme of four (4) classes was used.

3 RESULTS

Table 2 shows generated keywords grouped to the Im-

ageCLEF 2015 Medical Clustering Task classiﬁcation

scheme. Figure 9 displays the keywords and corre-

sponding UMLS CUIs, and prediction performance

of the random forest classiﬁcation model is shown in

table 1.

Table 2: Keywords frequently generated for radiology im-

ages of the ImageCLEF 2015 Medical Clustering Task

Training Set. The keywords are grouped to the classiﬁca-

tion scheme accordingly.

Body Head-

Neck

Lower-

Limb

Upper-

Limb

bodi massiv ray posterior

obstruct right ulna acromion

level neck union ulna

lesion effus humerus shoulder

plain pleural shaft carpus

abdomen disc radius end

distal fractur embrochag midshaft

Table 1: Prediction accuracies obtained using the random forest classiﬁcation and support vector machine models. Column

’Visual Features’ shows accuracy with visual representation whereas ’Multi-Modal’ shows performance accuracies obtained

with the combination of visual and text representations.

Classiﬁcation Scheme Visual Features Multi-Modal Test Set

Random Forest SVM Random Forest SVM

Technical-Code 97.00% 86.84% 97.75% 95.35% 1,732

Directional-Code 61.64% 55.31% 62.41% 61.26% 1,732

Anatomical-Code 51.15% 54.16% 54.62% 57.79% 1,732

Biological-Code 90.76% 81.12% 91.74% 82.47% 1,732

Medical Clustering 65.60% 66.40% 70.40% 68.80% 250

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

184

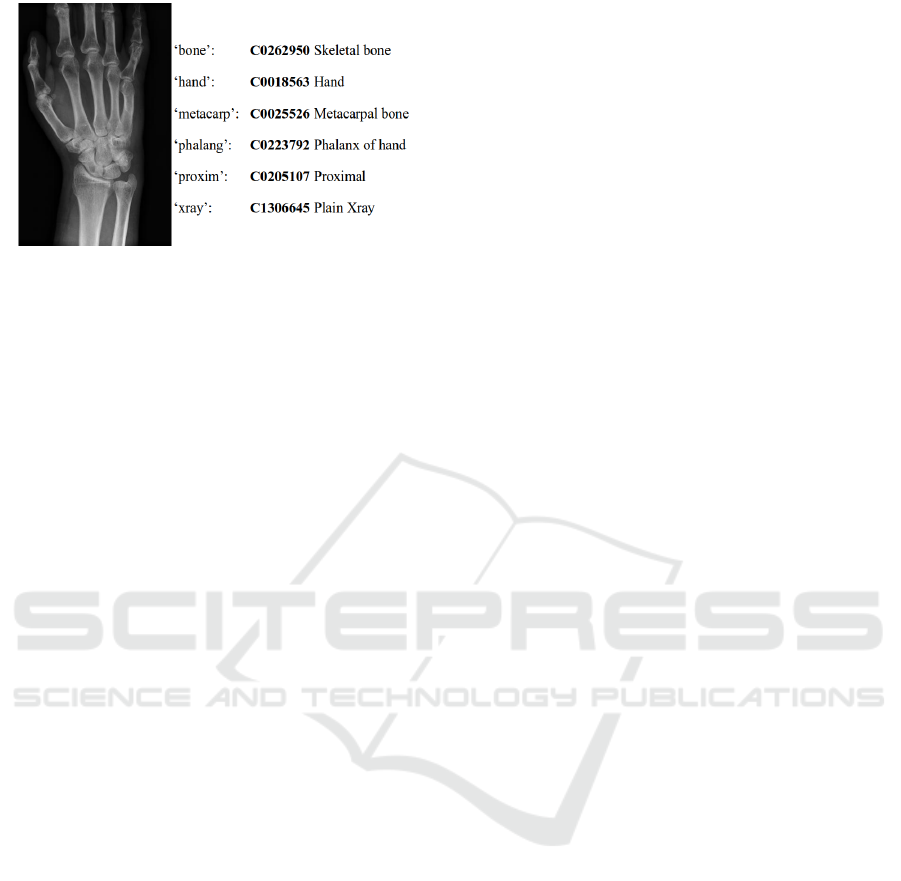

Figure 9: Generated keywords and the corresponding Uni-

ﬁed Medical Language Systems (UMLS) Concept Unique

Identiﬁers (CUI). The radiograph used for demonstration

was randomly chosen from the ImageCLEF 2009 Medical

Annotation Task Training Set.

4 DISCUSSION

It can be seen from table 1, that substituting the gen-

erated keywords as text representation improves the

classiﬁcation prediction accuracy in both datasets and

all classiﬁcation schemes. This positive increase is

obtained regardless of the classiﬁcation method, as

both RF-models and SVM-models predicted better

with multi-modal representations.

The prediction performance varies to classiﬁca-

tion scheme and method. The hierarchical approach

of splitting the IRMA-code to its four axes, proved

to be the better way to address this image annotation

task.

As Deep Convolutional Neural Networks have

proven the obtain improved prediction accuracies, an

approach combining generated keywords with fea-

tures extracted from the activation of a deep convo-

lutional network (DeCAF) (Donahue et al., 2014) is

intended. Positive results regarding biomedical image

classiﬁcation using DeCAF were reported in (Koitka

and Friedrich, 2016).

The presented approach can be utilized for image

structuring and tagging of semantic information. The

generated keywords can be transformed to Uniﬁed

Medical Language Systems (UMLS) Concept Unique

Identiﬁers (CUIs), which is displayed in ﬁgure 9. The

conversion was obtained by applying QuickUMLS

(Soldaini and Goharian, 2016). The converted CUIs

are valuable and essential in terms of image retrieval

purposes.

5 CONCLUSION

As multi-modal image representation has proven to

obtain higher prediction results and some image

dataset lack text representation, an approach to gener-

ate keywords utilizing transfer learning was proposed.

To create a keyword generation model, image-caption

pairs of 164,614 biomedical ﬁgures distributed at

the ImageCLEFcaption 2017 Caption Prediction Task

was adopted to train Long Short-Term Memory based

Recurrent Neural Network models. The image cap-

tions were preprocessed by removing compound ﬁg-

ure delimiters, single digits, special characters, word

stemming and reducing the captions to nouns and ad-

jectives.

Utilizing the keyword generation model, text rep-

resentation were created for two distinct radiology

datasets: ImageCLEF 2009 Medical Annotation Task

and ImageCLEF 2015 Medical Clustering Task. The

ImageCLEF 2015 Medical Clustering Task training

set contains 500 high resolution radiographs, 250 in

the test set and has a classiﬁcation scheme with 4

classes. The ImageCLEF 2009 Medical Annotation

Task has 12,671 radiographs in the training set, 1,732

radiographs in the test set, and four classiﬁcation

schemes with 5, 34, 97, 11 classes, respectively.

The generated keywords were further applied for

image classiﬁcation purposes. In both image datasets

and all classiﬁcation schemes, the prediction accura-

cies obtained with multi-modal image representation

outperformed those achieved using just visual fea-

tures. Using these generated keywords, semantic in-

formation in form of Uniﬁed Medical Language Sys-

tems (UMLS) Concept Unique Identiﬁers (CUIs) can

be tagged to the images, which is beneﬁcial and of

assistance to image retrieval solutions. The proposed

work can be further enhanced by extracting image vi-

sual representation using Deep Convolutional Neural

Networks and optimized Bag-of-Words.

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Corrado, G. S., Davis, A., Dean, J., Devin,

M., Ghemawat, S., Goodfellow, I., Harp, A., Irving,

G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kud-

lur, M., Levenberg, J., Man

e, D., Monga, R., Moore,

S., Murray, D., Olah, C., Schuster, M., Shlens, J.,

Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Van-

houcke, V., Vasudevan, V., Vi

egas, F., Vinyals, O.,

Warden, P., Wattenberg, M., Wicke, M., Yu, Y., and

Zheng, X. (2015). TensorFlow: Large-Scale Machine

Learning on Heterogeneous Systems. Software avail-

able from tensorﬂow.org.

Adopting Semantic Information of Grayscale Radiographs for Image Classiﬁcation and Retrieval

185

Abrao, M. S., Gonc¸alves, M. O. d. C., Dias Jr, J. A.,

Podgaec, S., Chamie, L. P., and Blasbalg, R. (2007).

Comparison between clinical examination, transvagi-

nal sonography and magnetic resonance imaging for

the diagnosis of deep endometriosis. Human Repro-

duction, 22(12):3092–3097.

Amin, M. A. and Mohammed, M. K. (2015). Overview

of the ImageCLEF 2015 Medical Clustering Task. In

Working Notes of CLEF 2015 - Conference and Labs

of the Evaluation forum, Toulouse, France, September

8-11, 2015.

Bengio, Y., Simard, P. Y., and Frasconi, P. (1994). Learn-

ing long-term dependencies with gradient descent is

difﬁcult. IEEE Transactions on Neural Networks,

5(2):157–166.

Bird, S., Klein, E., and Loper, E. (2009). Natural Language

Processing with Python. O’Reilly, ﬁrst edition.

Bodenreider, O. (2004). The Uniﬁed Medical Lan-

guage System (UMLS): integrating biomedical ter-

minology. Nucleic Acids Research, 32(Database-

Issue):267–270.

Breiman, L. (2001). Random Forests. Machine Learning,

45(1):5–32.

Burges, C. J. C. (1998). A tutorial on support vector ma-

chines for pattern recognition. Data Mining Knowl-

edge Discovery, 2(2):121–167.

Codella, N. C. F., Connell, J. H., Pankanti, S., Mer-

ler, M., and Smith, J. R. (2014). Automated med-

ical image modality recognition by fusion of visual

and text information. In Medical Image Computing

and Computer-Assisted Intervention - MICCAI 2014

- 17th International Conference, Boston, MA, USA,

September 14-18, 2014, Proceedings, Part II, pages

487–495.

Csurka, G., Dance, C. R., Fan, L., Willamowski, J., and

Bray, C. (2004). Visual categorization with bags of

keypoints. In Workshop on Statistical Learning in

Computer Vision, European Conference on Computer

Vision, ECCV 2004, Prague, Czech Republic, May 11-

14, 2004, pages 1–22.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In Proceedings of the

2005 IEEE Computer Society Conference on Com-

puter Vision and Pattern Recognition (CVPR’05) -

Volume 1 - Volume 01, CVPR ’05, pages 886–893,

Washington, DC, USA. IEEE Computer Society.

Donahue, J., Jia, Y., Vinyals, O., Hoffman, J., Zhang, N.,

Tzeng, E., and Darrell, T. (2014). Decaf: A deep con-

volutional activation feature for generic visual recog-

nition. In Proceedings of the 31th International Con-

ference on Machine Learning, ICML 2014, Beijing,

China, 21-26 June 2014, pages 647–655.

Eickhoff, C., Schwall, I., de Herrera, A. G. S., and M

uller,

H. (2017). Overview of ImageCLEFcaption 2017

- Image Caption Prediction and Concept Detection

for Biomedical Images. In Working Notes of CLEF

2017 - Conference and Labs of the Evaluation Forum,

Dublin, Ireland, September 11-14, 2017.

Guyon, I. and Elisseeff, A. (2003). An Introduction to

Variable and Feature Selection. Journal of Machine

Learning Research, 3:1157–1182.

Hartigan, J. A. and Wong, M. A. (1979). A k-means cluster-

ing algorithm. JSTOR: Applied Statistics, 28(1):100–

108.

Hinton, G., Deng, L., Yu, D., Dahl, G., Mohamed, A.-

a., Jaitly, N., Senior, A., Vanhoucke, V., Nguyen, P.,

Sainath, T., and Kingsbury, B. (2012). Deep Neural

Networks for Acoustic Modeling in Speech Recog-

nition: The Shared Views of Four Research Groups.

IEEE Signal Processing Magazine, 29(6):82–97.

Hochreiter, S. and Schmidhuber, J. (1997). Long Short-

Term Memory. Neural Computation, 9(8):1735–1780.

Huang, G., Liu, Z., van der Maaten, L., and Weinberger,

K. Q. (2017). Densely Connected Convolutional

Networks. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, CVPR

2017, Honolulu, USA, July 22-25, 2017.

Indyk, P. and Motwani, R. (1998). Approximate Near-

est Neighbors: Towards Removing the Curse of Di-

mensionality. In Proceedings of the 30th Annual

ACM Symposium on Theory of Computing, STOC ’98,

pages 604–613, New York, NY, USA. ACM.

Jolliffe, I. T. (2011). Principal Component Analysis. In In-

ternational Encyclopedia of Statistical Science, pages

1094–1096. Springer Berlin Heidelberg.

Kalpathy-Cramer, J., de Herrera, A. G. S., Demner-

Fushman, D., Antani, S. K., Bedrick, S., and M

uller,

H. (2015). Evaluating performance of biomedical im-

age retrieval systems - An overview of the medical im-

age retrieval task at ImageCLEF 2004-2013. Comput-

erized Medical Imaging and Graphics, 39:55–61.

Koitka, S. and Friedrich, C. M. (2016). Traditional Fea-

ture Engineering and Deep Learning Approaches at

Medical Classiﬁcation Task of ImageCLEF 2016. In

Working Notes of CLEF 2016 - Conference and Labs

of the Evaluation forum,

Evora, Portugal, 5-8 Septem-

ber, 2016., pages 304–317.

Lazebnik, S., Schmid, C., and Ponce, J. (2006). Beyond

Bags of Features: Spatial Pyramid Matching for Rec-

ognizing Natural Scene Categories. In Proceedings of

the 2006 IEEE Computer Society Conference on Com-

puter Vision and Pattern Recognition, CVPR 2006,

Ney York, USA, June 17-22 2006, pages 2169–2178.

LeCun, Y., Bengio, Y., and Hinton, G. E. (2015). Deep

Learning. Nature, 521(7553):436–444.

Lehmann, T. M., G

uld, M. O., Thies, C., Plodowski, B.,

Keysers, D., Ott, B., and Schubert, H. (2004). IRMA

- Content-Based Image Retrieval in Medical Applica-

tions. In MEDINFO 2004 - Proceedings of the 11th

World Congress on Medical Informatics, San Fran-

cisco, California, USA, September 7-11, 2004, pages

842–846.

Li, F.-F. and Perona, P. (2005). A Bayesian Hierarchi-

cal Model for Learning Natural Scene Categories.

In Proceedings of the 2005 IEEE Computer Society

Conference on Computer Vision and Pattern Recogni-

tion, CVPR 2005, San Diego, USA, June 20-26, 2005,

pages 524–531.

Pan, S. J. and Yang, Q. (2010). A Survey on Transfer Learn-

ing. IEEE Transactions on Knowledge and Data En-

gineering, 22(10):1345–1359.

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

186

Papineni, K., Roukos, S., Ward, T., and Zhu, W. (2002).

BLEU: a Method for Automatic Evaluation of Ma-

chine Translation. In Proceedings of the 40th An-

nual Meeting of the Association for Computational

Linguistics, July 6-12, 2002, Philadelphia, PA, USA.,

pages 311–318.

Pelka, O. and Friedrich, C. M. (2015). FHDO Biomedi-

cal Computer Science Group at Medical Classiﬁcation

Task of ImageCLEF 2015. In Working Notes of CLEF

2015 - Conference and Labs of the Evaluation forum,

Toulouse, France, September 8-11, 2015.

Pelka, O. and Friedrich, C. M. (2016). Modality prediction

of biomedical literature images using multimodal fea-

ture representation . GMS Medizinische Informatik,

Biometrie und Epidemiologie, 12(2):1345–1359.

Pelka, O. and Friedrich, C. M. (2017). Keyword Generation

for Biomedical Image Retrieval with Recurrent Neural

Networks. In Working Notes of CLEF 2017 - Confer-

ence and Labs of the Evaluation Forum, Dublin, Ire-

land, September 11-14, 2017.

Porter, M. (1980). An algorithm for sufﬁx stripping.

Program-electronic Library and Information Systems,

14:130–137.

PubMed Central (2017). National institutes of health

NIH, US National Library of Medicine. In

https://www.ncbi.nlm.nih.gov/pmc/ Last accessed:

2017-11-30.

Rahman, M. M., Bhattacharya, P., and Desai, B. C. (2007).

A Framework for Medical Image Retrieval Using Ma-

chine Learning and Statistical Similarity Matching

Techniques With Relevance Feedback. IEEE Trans-

actions on Information Technology in Biomedicine,

11(1):58–69.

Salton, G. and McGill, M. J. (1983). Introduction to Mod-

ern Information Retrieval. McGraw-Hill computer

science series. McGraw-Hill, New York.

Shallue, C. (2017). Im2txt github. In

https://github.com/tensorﬂow/models/tree/master/

research/im2txt, Last accessed: 2017-11-30.

Soldaini, L. and Goharian, N. (2016). QuickUMLS: a

fast, unsupervised approach for medical concept ex-

traction. In Medical Information Retrieval (MedIR)

Workshop in SIGIR Conference on Research and De-

velopment in Information Retrieval 2016, Pisa, Italy,

July 17-21, 2016.

Szegedy, C., Ioffe, S., Vanhoucke, V., and Alemi, A. A.

(2017). Inception-v4, Inception-ResNet and the Im-

pact of Residual Connections on Learning. In Pro-

ceedings of the Thirty-First AAAI Conference on Arti-

ﬁcial Intelligence, February 4-9, 2017, San Francisco,

California, USA., pages 4278–4284.

Tagare, H. D., Jaffe, C. C., and Duncan, J. S. (1997).

Synthesis of research: Medical image databases: A

content-based retrieval approach. Journal of the

American Medical Informatics Association JAMIA,

4(3):184–198.

Tommasi, T., Caputo, B., Welter, P., G

uld, M. O., and De-

serno, T. M. (2009). Overview of the CLEF 2009

Medical Image Annotation Track. In Multilingual In-

formation Access Evaluation II. Multimedia Experi-

ments - 10th Workshop of the Cross-Language Evalu-

ation Forum, CLEF 2009, Corfu, Greece, September

30 - October 2, 2009, Revised Selected Papers, pages

85–93.

Valavanis, L., Stathopoulos, S., and Kalamboukis, T.

(2016). IPL at CLEF 2016 Medical Task. In Work-

ing Notes of CLEF 2016 - Conference and Labs of

the Evaluation forum,

Evora, Portugal, 5-8 Septem-

ber, 2016., pages 413–420.

Vedaldi, A. and Fulkerson, B. (2010). VLFEAT: an open

and portable library of computer vision algorithms. In

Proceedings of the 18th International Conference on

Multimedia 2010, Firenze, Italy, October 25-29, 2010,

pages 1469–1472.

Vinyals, O., Toshev, A., Bengio, S., and Erhan, D. (2015).

Show and Tell: A neural image caption generator.

In IEEE Conference on Computer Vision and Pattern

Recognition, CVPR 2015, Boston, MA, USA, June 7-

12, 2015, pages 3156–3164.

Vinyals, O., Toshev, A., Bengio, S., and Erhan, D. (2017).

Show and Tell: Lessons Learned from the 2015

MSCOCO Image Captioning Challenge. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

39(4):652–663.

Xu, Y., Mo, T., Feng, Q., Zhong, P., Lai, M., and Chang,

E. I. (2014). Deep learning of feature representa-

tion with multiple instance learning for medical image

analysis. In IEEE International Conference on Acous-

tics, Speech and Signal Processing, ICASSP 2014,

Florence, Italy, May 4-9, 2014, pages 1626–1630.

Zhang, H., Berg, A. C., Maire, M., and Malik, J. (2006).

SVM-KNN: Discriminative Nearest Neighbor Classi-

ﬁcation for Visual Category Recognition. In Proceed-

ings of the 2006 IEEE Computer Society Conference

on Computer Vision and Pattern Recognition, CVPR

2006, Ney York, USA, June 17-22 2006, pages 2126–

2136.

Adopting Semantic Information of Grayscale Radiographs for Image Classiﬁcation and Retrieval

187
