Investigating Random Forest Classiﬁcation on Publicly Available

Tuberculosis Data to Uncover Robust Transcriptional Biomarkers

Carly A. Bobak

1,2

, Alexander J. Titus

1,3

and Jane E. Hill

1,2

Program in Quantitative Biomedical Sciences, Dartmouth School of Graduate and Advanced Studies, Hanover, NH, U.S.A.

Thayer School of Engineering, Dartmouth School of Graduate and Advanced Studies, Hanover, NH, U.S.A.

Department of Epidemiology, Dartmouth Geisel School of Medicine, Hanover, NH, U.S.A.

Keywords:

Tuberculosis, Random Forest, Machine Learning, Transcriptional Signatures, Data Integration.

Abstract:

There has been increasing concern amongst the scientiﬁc community of a reproducibility crisis, particularly

in the ﬁeld of bioinformatics. Often, published research results do not correlate with clinical success. One

theory explaining this phenomenon is that ﬁndings from homogeneous cohort studies are not generalizable

to an inherently heterogeneous population. In this work, we integrate data from 4 distinct tuberculosis (TB)

cohorts, for a total of 1164 samples, to ﬁnd common differentially regulated genes which may be used to

diagnose active TB from latent TB, treated TB, other diseases, and healthy controls. We selected 25 genes

using random forest to get an AUC of 0.89 in our training data, and 0.86 in our test data. A total of 18 out of

25 genes had been previously associated with TB in independent studies, suggesting that integrating data may

be an important tool for increasing micro-array research reproducibility.

1 INTRODUCTION

Reproducibility of research ﬁndings is paramount to

scientiﬁc endeavors. However, there is increasing

concern in the scientiﬁc community that published re-

search ﬁndings are frequently irreproducible (Good-

man et al., 2016). In fact, in 2016 a survey of 1576

scientiﬁc researchers found that 90% of respondents

believed there is some degree of a reproducibility

crisis, with 52% believing this crisis is ‘signiﬁcant’

(Baker, 2016). Biomedical research is not immune

to this crisis (Goodman et al., 2016). The National

Institute of Health (NIH) noted the failure of many

biomedical studies to present reproducible ﬁndings,

and is leading a variety of interventions to ameliorate

this phenomenon (Collins and Tabak, 2014).

Many factors have been implicated in contribut-

ing to the reproducibility crisis. An investigation

into whether false ﬁndings represent the majority of

scientiﬁc research identiﬁed that bias is often intro-

duced in experimental design, data collection, and

analysis. The study concluded that scientiﬁc results

need to be externally validated from many distinct

research groups before the ﬁndings can be consid-

ered truth (Ioannidis, 2005). Other studies have im-

plicated imperfect animal and cell models as causes

to the low correlation between research ﬁndings and

clinical success (Begley and Ellis, 2012; Mestas and

Hughes, 2004; Sweeney et al., 2016b). The empha-

sis on achieving statistical signiﬁcance has been criti-

cized in the literature as well (Sweeney et al., 2016b;

Nuzzo, 2014).

While careful experimental design and increased

emphasis on external validation play important roles

in increasing the reproducibility of published research

ﬁndings, other solutions include sharing research data

(Collins and Tabak, 2014). A recent editorial in

Nature made recommendations for “improv(ing) the

transparency and reproducibility of research by means

of data accessibility” (Nature, 2017).

The Khatri Lab of Stanford University has taken

this notion one step further; they’ve proposed a frame-

work for meta-analysis using data from publicly avail-

able resources such as the NIH Gene Expression

Omnibus (GEO) (Sweeney et al., 2016a). Khatri

argues that part of the reason why clinical studies

cannot recapitulate biomarkers from research is due

to the inevitable heterogeneity in actual populations.

By embracing such heterogeneity, we can search for

biomarkers which are present above the noise, and

that these markers should be more robust in clinical

settings (Sweeney et al., 2016a; Titus et al., 2017).

Thus, by investigating biomarkers which have dis-

criminatory potential across many studies, the irrepro-

Bobak C., Titus A. and Hill J.

Investigating Random Forest Classiﬁcation on Publicly Available Tuberculosis Data to Uncover Robust Transcriptional Biomarkers.

DOI: 10.5220/0006752406950701

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (HEALTHINF 2018), pages 695-701

ISBN: 978-989-758-281-3

Figure 1: A brief overview of the data analysis methodology.

ducibility due to study speciﬁc observations is miti-

gated. This meta-analysis framework has been suc-

cessfully applied on a variety of clinical settings, in-

cluding tuberculosis (Sweeney et al., 2016a).

Tuberculosis is a top 10 cause of death world-

wide, partly attributable to a signiﬁcant gap in TB di-

agnosis (WHO, 2016). In 2015, only 6.1 million cases

of TB were reported to the WHO, leaving a 4.3 mil-

lion gap between incident and reported cases. More-

over, only 57% of cases were bacterially-conﬁrmed,

most other cases were clinically diagnosed given the

symptoms presented (WHO, 2016). As such, there

has been signiﬁcant scientiﬁc interest in alternative

diagnostic tools for TB, particularly in the realm of

transcriptional biomarkers, to allow for faster diag-

nosis and treatment (Sweeney et al., 2016a; Prada-

Medina et al., 2017; Sambarey et al., 2017).

In this work, we use Khatri’s idea of integrating

publicly shared datasets from previous TB research

to identify a transcriptional signature which is robust

to variations in study population. Instead of applying

the Khatri meta-analysis framework, we investigate

the potential of random forest to classify patients with

active TB from healthy controls, latent TB, and other

diseases. We hypothesize that by integrating publicly

available transcriptomic data sets and using machine

learning algorithms, we will be able fully leverage

data from individual samples in such a way that we

can capture more nuanced patterns for feature selec-

tion. These patterns may provide important insight

into the pathogenesis of TB. The work presented here

is a proof-of-concept exercise and the results will be

used to guide the design of a more comprehensive

study.

2 METHODS

Figure 1 gives an overview of the data analysis

methodology. Data was collected from the NIH GEO

depository (https://www.ncbi.nlm.nih.gov/gds) using

both ‘tuberculosis’ and ‘TB’ as search terms, and lim-

ited to studies using human subjects that collected ex-

pression array data. Eligibility for inclusion required

that the dataset include healthy controls, have at least

100 samples, and was from distinct institutions. The

studies accompanying these datasets can be found in

(Firszt and Vickery, 2011; Maertzdorf et al., 2011;

Bloom et al., 2013; Blankley et al., 2016). A brief

summary of the samples available in these datasets

is presented in Table 1. The datasets included pa-

tients aged 16-87 from from the UK, South Africa,

The Gambia, and France. This particular group of

data does not include any HIV+ patients. The other

diseases included in these studies are Streptococcal

Pharyngitis, Staphylococcus infection, Still’s disease,

Systemic Lupus Erythematosus, Sarcoidosis, Pneu-

monia, and Lung Cancer. In total, 1164 samples are

included in this analysis.

For the purposes of developing a diagnostic tran-

scriptional signature for TB, a “1 vs. The Rest” algo-

rithm was trained to separate active TB from latency,

healthy controls, treated TB, and other diseases. A

binary classiﬁcation model (active TB vs. the rest) is

most relevant in a clinical context.

All expression and phenotype sets were down-

loaded to R using the ‘MetaIntegrator’ package

(Haynes et al., 2016). Expression sets were checked

to ensure that they had been log

transformed, but

were otherwise used as deposited. GSE19491,

GSE42834, and GSE83456 were all analyzed using

Illumina systems, but GSE28623 was analyzed us-

ing an Agilent system. Integrating datasets requires

a unique identiﬁer which can be used to match infor-

mation from each set. Since data could not be merged

on Probe ID, we ﬁrst matched probes to their gene an-

notation, calculated the median expression value for

Table 1: Dataset by number of available samples. “LTB”

denotes latent TB, “treated” denotes treated TB, “HC” de-

notes healthy controls, and “OD” denotes other diseases.

GSE

Number of Samples

TB LTB Treated HC OD

19491 89 69 14 133 193

28623 46 25 - 37 -

42834 65 - - 143 148

83456 92 - - 61 49

each gene, and then combined datasets based on the

unique gene annotation.

To adjust for batch effect, COmbat CO-

Normalization Using conTrols (COCONUT) was ap-

plied to the data. This method was implemented in

R using the ‘COCONUT’ package (Sweeney et al.,

2016c). COCONUT normalizes the data in an unbi-

ased way while maintaining the distribution of genes

both within and between studies. To achieve this, con-

trol samples are normalized using ComBat empiric

Bayes normalization method and the parameters from

the control samples are then applied to the diseased

components.

A random forest model was ﬁt using the ‘ran-

domForest’ package in R (Liaw and Wiener, 2002).

Random forest algorithms generate many classiﬁca-

tion trees, using randomly selected samples. A boot-

strapped sample of the data is selected, and each split

of the tree considers a random subset of candidate

variables. Features are selected based on which vari-

ables best divide the data according to class at each

split. By averaging over many classiﬁcation trees,

the method demonstrates low bias and variance. This

method has proven to be particularly resilient for the

classiﬁcation of microarray data (Diaz-Uriarte and

de Andres, 2006).

The data was split into a training (

) and test set

(

) at random. Five hundred trees were used, at which

point the classiﬁcation error had stabilized. We chose

to use 25 genes as our cut off for initial analysis and

comparison to the current literature. While previous

methods have emphasized using a small gene signa-

ture, we intend to examine a larger set to drive hy-

potheses regarding TB pathogenesis in future work.

The top 25 genes were selected from this model using

the Gini Impurity Index. We then reﬁt a model using

only those features on our training data, and used the

reﬁt model to predict classiﬁcation on our test set.

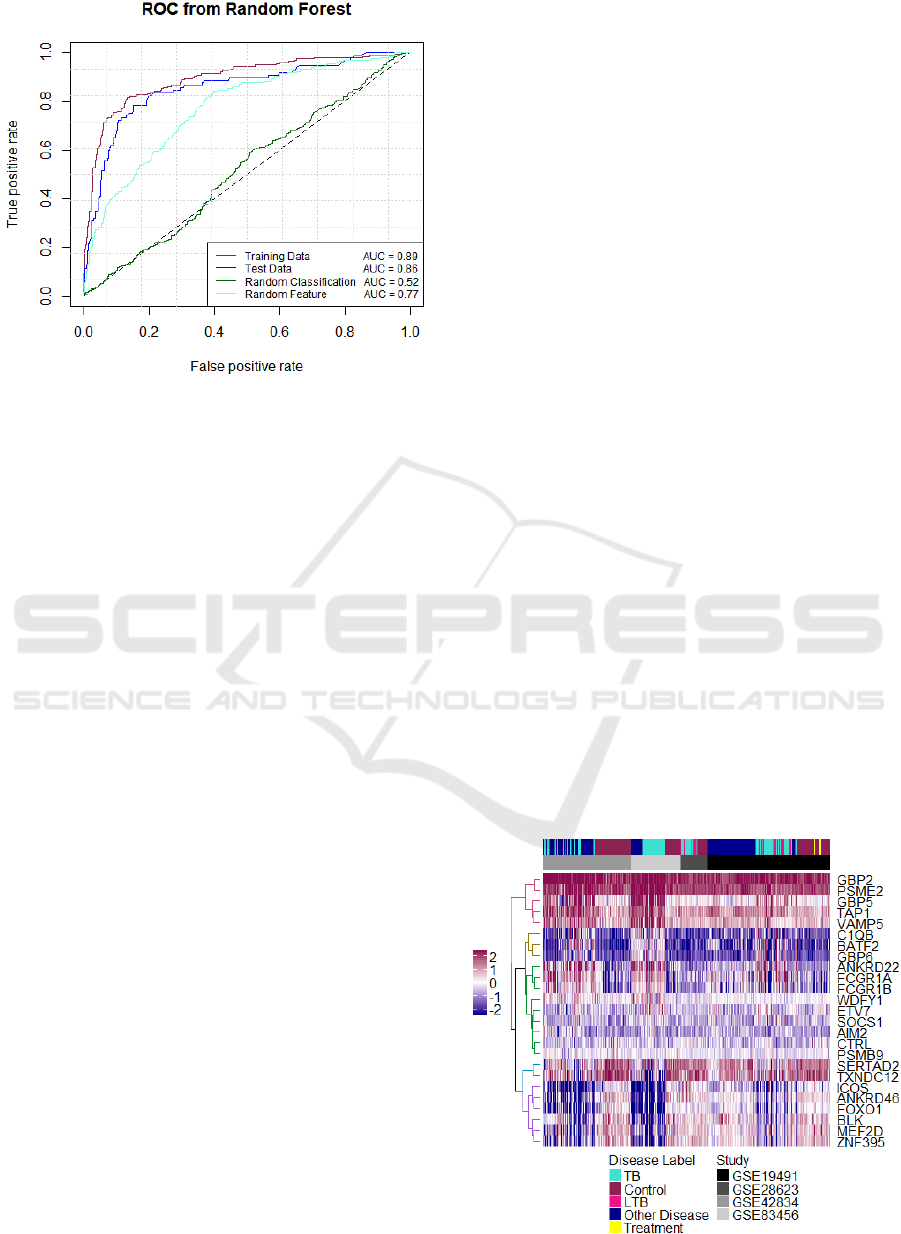

To assess model performance, Area Under the

Receiving Operator Characteristic (AUROC) curves

are examined, as well as sensitivity, speciﬁcity, Posi-

tive Predictive Value (PPV), and Negative Predictive

Value (NPV) of the resulting model. A heat map

with hierarchical clustering using Jaccard’s index, a

distance metric which has demonstrated to be robust

to noise, is visualized to assess unsupervised cluster-

ing among the selected features. (Toldo and Fusiello,

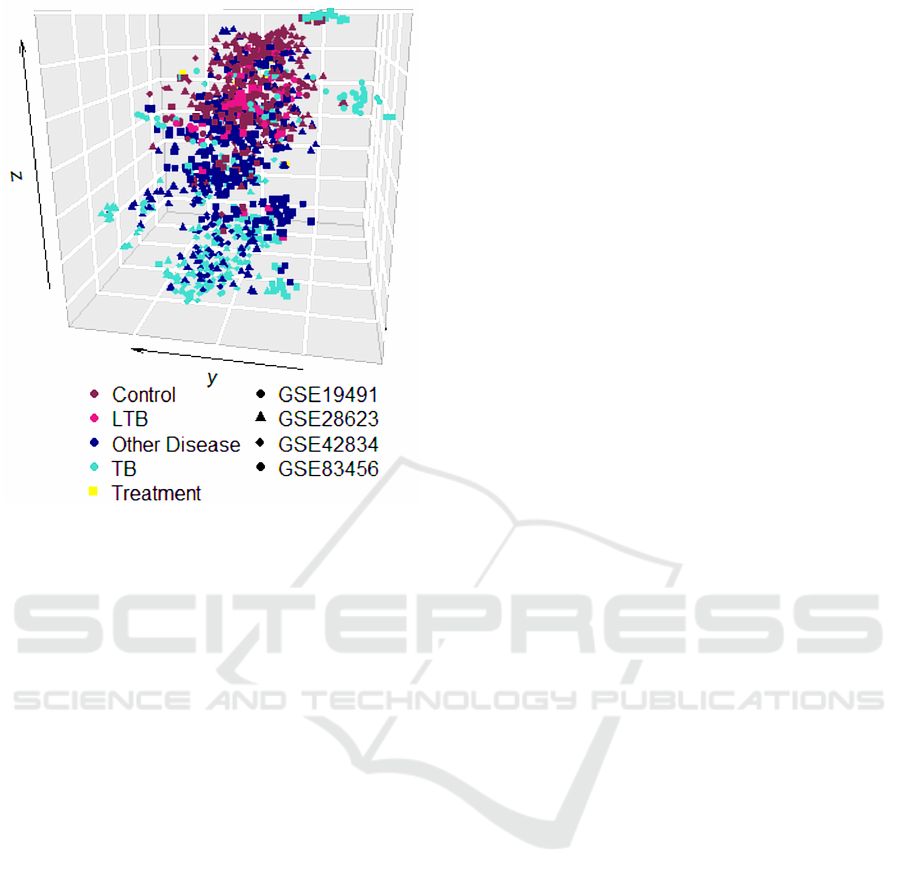

2008). Second, an unsupervised dimensionality re-

duction using a t-distributed Stochastic Nearest Esti-

mate (t-SNE) is conducted, which allows for a non-

parametric and non-linear mapping of the features to

a reduced dimensional latent space (Maaten and Hin-

ton, 2008). While features were selected using a “One

vs. the Rest” algorithm, the unsupervised clustering

(a) PCA before Corrections

(b) PCA after Corrections

Figure 2: Applying COCONUT to adjust for batch affect.

methods are coloured using all categories in order to

better visualize how the selected features discriminate

between active TB and each subcategory.

3 RESULTS

RNA was analyzed using three different platforms:

Illumina HumanHT-12 V3.0 expression beadchip,

llumina HumanHT-12 V4.0 expression beadchip,

Agilent-014850 Whole Human Genome Microarray

4x44K G4112F (Feature Number version). This,

in conjunction with other within study similarities

(such as differences in normalization techniques be-

tween studies) introduced considerable batch effect

with the merged data. This is demonstrated using

a PCA in Figure 2. Note that data sets GSE42834

and GSE83456 both were analyzed using llumina

HumanHT-12 V4.0 expression beadchip, and hence

are clustered together. Data was adjusted using CO-

CONUT, the results of which are shown in Figure 2.

Note that while more of our data overlaps, we can still

see distinct projections from each unique platform.

The top 25 genes returned from the initial ran-

dom forest model, ordered by ranked importance,

are: FCGR1A, GBP6, ANKRD22, VAMP5, C1QB,

GBP2, FOXO1, ANKRD46, MEF2D, FCR1B,

WDFY1, ETV7, PSME2, TXNDC12, BATF2, GBP5,

TAP1, BLK, ZNF395, SOCS1, ICOS, PSMB9, SER-

TAD2, CTRL, and AIM2.

The Out-Of-Bag (OOB) error from the model ﬁt

with the 25 selected genes is ∼12%, with a total mis-

classiﬁcation rate of ∼8%. The model has speciﬁcity

of ∼94%. However, sensitivity was low, at a ∼69%.

Figure 3: ROC curves from random forest model classify-

ing active TB vs. the rest.

The positive predictive value (PPV) and negative pre-

dictive value (NPV) are ∼80% and ∼90% respec-

tively. The AUC for the training set is ∼0.89 (95%

CI:0.87-0.92), and ∼0.86 (0.81-0.90) for the test set.

The ROC curves from this model are shown in

Figure 3. For reference to a null model, the ROC

curves from randomly assigning our cases and con-

trols as well as from ﬁtting a random forest model on

a randomly selected set of 25 genes are also shown.

The AUCs from these null models are ∼ 0.52 (0.49-

0.57) and ∼ 0.77 (0.74-0.81) respectively.

Figure 4 shows a heat map with hierarchical clus-

tering using the selected features. Clustering still pre-

dominantly occurs based on study, but given the re-

sults of Figure 2 this is unsurprising. However, within

studies, active TB consistently clusters away from

healthy controls, with some mixing between active

TB and latent TB, as well as active TB and other dis-

eases.

The data was projected into a 3-D space using a t-

SNE embedding, the results of which are visualized in

Figure 5. Similar to Figure 4, Figure 5 shows cluster-

ing of active TB with separate clusters of TB related

to original study. As well, Figure 5 demonstrates mix-

ing between active TB cases and other diseases, high-

lighting that distinguishing these two classes remains

a complicated problem to be tackled in future work.

4 DISCUSSION

Our results demonstrate that data integration across

heterogenous studies is possible, and may lead to

identiﬁcation of important biomarkers which are con-

sistent in patients with active TB. Unsurprisingly,

classifying TB from other diseases and LTB is more

difﬁcult. The Khatri lab has shown that including ad-

ditional data sets improves the classiﬁcation accuracy

of their models (Sweeney et al., 2016b). Similarly,

further inclusion of more studies, particularly those

with additional LTB and other disease samples, may

improve classiﬁcation accuracy of machine learning

models built on integrated data. Future model itera-

tions will consider weighting a classiﬁcation penalty

higher for misclassiﬁcations between TB and LTB,

or TB and other diseases. Balancing between cases

and controls may also improve classiﬁcation accu-

racy, as cross validation techniques and more sophis-

ticated feature selection.

The results from our unsupervised heat map and

t-SNE suggest that despite using COCONUT, the in-

tegrated data clusters by study to some degree. Future

work will investigate other methods for accounting

for study-speciﬁc batch effect. As well, integrating

raw data where applicable may negate the effect of

some study-speciﬁc similarities.

The current analysis presented here has some lim-

itations. In order to use COCONUT, healthy controls

need to be included in the dataset. This limitation

prevented the inclusion of TB datasets collected on

youths and infants, as well as those which include

HIV+ co-infection. There is some suggestion that

instead of viewing datasets as distinct batches, each

distinct platform could be considered a batch. This

would allow the inclusion of datasets without healthy

controls, as long as another dataset with healthy

controls has been processed on the same platform

(Sweeney et al., 2016c).

The Khatri meta-analysis framework uses a Der-

Simonian Laird random effects model in order to

Figure 4: Heat map using selected genes.

Figure 5: a t-SNE of the selected gene features.

compare gene expression from multiple studies which

extracted total RNA from whole blood (Sweeney

et al., 2016b; Sweeney et al., 2016a). Genes are iden-

tiﬁed in a discovery set, and later tested against inde-

pendent validation sets. In order to reduce the number

of features, genes are ﬁrst ﬁltered based on presence

in all studies in the discovery set, FDR adjusted p-

value, and effect size. They then reduce this set fur-

ther by using a greedy forward search to maximize

AUC, and built a gene score based on a geometric

mean (Sweeney et al., 2016b; Sweeney et al., 2016a).

While this method has shown promising results,

we hypothesized that model performance can be im-

proved by employing other data analysis machin-

ery. The pre-ﬁltering step of the Khatri meta-analysis

framework may exclude genes with small but impor-

tant differences for discrimination between active TB

and other classes. Moreover, the Khatri meta-analysis

framework emphasizes selecting a small number of

genes which limits the ability to explore biological

mechanisms through pathway analysis.

Random forest models have a variety of strengths

which lend them well to biomarker discovery from

microarray data. For instance, random forest algo-

rithms are robust to feature sets where there are many

more potential predictor variables than there are out-

comes (ie, p  n). As well, random forest incorpo-

rates interactions between predictor variables, which

can often be a concern with microarray data. Perhaps

most importantly, random forest models generate a

ranked list of important features which can illumi-

nate biological signiﬁcance of features, but can also

be leveraged for feature selection (Diaz-Uriarte and

de Andres, 2006).

The reported mean AUC across all datasets in

Khatri’s model was 0.9 as compared to our mean AUC

of 0.89 in our training data, and 0.86 in our test data

(Sweeney et al., 2016a). Both models had lower accu-

racy when classifying active TB cases from other dis-

eases, suggesting more data may be needed to identify

TB speciﬁc gene responses.

In comparison to the results Khatri’s work pre-

sented in (Sweeney et al., 2016a), both models se-

lected GBP5. Two datasets assessed here overlap with

those in Khatri’s discovery set (used for feature se-

lection). However, the Khatri’s analysis included pa-

tients who were HIV+ as well as very young children

(Sweeney et al., 2016a). One dataset he used did not

include healthy controls, and hence was not eligible

for this analysis. This may, in part, explain why out

selected features excluded his ﬁndings of DUSP3 and

KLF2 (Sweeney et al., 2016a). Future work will aim

to include infants, youths, and HIV+ cases as part of

the analysis. As well, future models will be tested

against independent validation sets in order to demon-

strate generalizability of the transcription signature.

Notably, of the 25 selected genes, 18 have been

previously linked to TB in other studies. FCGR1A

was associated with TB in (Prada-Medina et al., 2017;

Jenum et al., 2016), GBP6 in (Kim et al., 2011),

ANKRD22 in (Matsumiya et al., 2014), VAMP5 in

(Sambarey et al., 2013), C1QB in (Cai et al., 2014;

Sambarey et al., 2017), GBP2 in (Sambarey et al.,

2017), FOXO1 in (Liu et al., 2013; Lu and Huang,

2011), FCGR1B (Prada-Medina et al., 2017), ETV7

in (Matsumiya et al., 2014), PSME2 in (Maji et al.,

2015), BATF2 in (Prada-Medina et al., 2017), GBP5

in (Matsumiya et al., 2014; Sweeney et al., 2016a),

TAP1 in (Fang et al., 2017), ZNF395 in (Matsumiya

et al., 2014), SOCS1 in (Masood et al., 2012), ICOS

in (Moguche et al., 2015), PSMB9 in (Sambarey

et al., 2017), and AIM2 in (Prada-Medina et al.,

2017). The remaining genes will be investigated as

potential new ﬁndings for future TB research.

Importantly, all these studies are distinct from the

data used to obtain our results. In a single integrated

model, we have managed to reproduce at least par-

tial results from 14 discrete studies. Not only does

this address the issue of reproducibility in expression

array studies of TB, but it is our belief that these re-

sults will add to the validity of current TB knowledge.

Many of theses genes presented here have been pre-

viously implicated in adaptive immunity, and further

pathway analysis may illuminate the biological mech-

anisms present in TB infection.

5 CONCLUSIONS

The initial analysis of integrated data shown here

provides evidence that feature selection and model

training based on heterogeneous integrated datasets

is a potential tool to address the reproducibility cri-

sis of array expression experiments. We intend to

thoroughly investigate a variety of classiﬁcation tech-

niques to explore the possibility of using data inte-

gration to develop robust disease biomarkers. Com-

bining datasets in this way should ameliorate much

of the reproducibility problem in diagnostic research,

and lead to a greater correlation between academic

research and clinical success. It is our hope that this

direction in research will not only lead to future diag-

nostic development, but to advancements in drug and

vaccine development as well.

ACKNOWLEDGEMENTS

Dartmouth College holds an Institutional Program

Unifying Population and Laboratory Based Sciences

award from the Burroughs Wellcome Fund, and C.

Bobak was supported by this grant (Grant#1014106).

A. Titus was supported by the Ofﬁce of the U.S. Di-

rector of the National Institutes of Health under award

number T32LM012204. The content is solely the re-

sponsibility of the authors and does not necessarily

represent the ofﬁcial views of the National Institutes

of Health.

REFERENCES

Baker, M. (2016). 1,500 scientists lift the lid on repro-

ducibility. Nature, 533(7604):452–454.

Begley, C. G. and Ellis, L. M. (2012). Drug development:

Raise standards for preclinical cancer research. Na-

ture, 483(7391):531–533.

Blankley, S., Graham, C. M., Turner, J., Berry, M. P. R.,

Bloom, C. I., Xu, Z., Pascual, V., Banchereau, J.,

Chaussabel, D., Breen, R., Santis, G., Blankenship,

D. M., Lipman, M., and O’Garra, A. (2016). The

transcriptional signature of active tuberculosis reﬂects

symptom status in extra-pulmonary and pulmonary tu-

berculosis. PLOS ONE, 11(10):e0162220.

Bloom, C. I., Graham, C. M., Berry, M. P. R., Roza-

keas, F., Redford, P. S., Wang, Y., Xu, Z., Wilkinson,

K. A., Wilkinson, R. J., Kendrick, Y., Devouassoux,

G., Ferry, T., Miyara, M., Bouvry, D., Dominique, V.,

Gorochov, G., Blankenship, D., Saadatian, M., Van-

hems, P., Beynon, H., Vancheeswaran, R., Wickre-

masinghe, M., Chaussabel, D., Banchereau, J., Pas-

cual, V., pei Ho, L., Lipman, M., and O’Garra,

A. (2013). Transcriptional blood signatures distin-

guish pulmonary tuberculosis, pulmonary sarcoido-

sis, pneumonias and lung cancers. PLoS ONE,

8(8):e70630.

Cai, Y., Yang, Q., Tang, Y., Zhang, M., Liu, H., Zhang,

G., Deng, Q., Huang, J., Gao, Z., Zhou, B., Feng,

C. G., and Chen, X. (2014). Increased complement

c1q level marks active disease in human tuberculosis.

PLoS ONE, 9(3):e92340.

Collins, F. S. and Tabak, L. A. (2014). Policy: NIH plans to

enhance reproducibility. Nature, 505(7485):612–613.

Diaz-Uriarte, R. and de Andres, S. A. (2006). Gene selec-

tion and classiﬁcation of microarray data using ran-

dom forest. BMC Bioinformatics, 7(1):3.

Fang, K., Liu, F., Wen, J., Liu, H., Xiao, S., and Li,

X. (2017). Association of tap1 and tap2 poly-

morphisms with risk and prognosis of pediatric

spinal tuberculosis. INTERNATIONAL JOURNAL

OF CLINICAL AND EXPERIMENTAL MEDICINE,

10(3):5769–5777.

Firszt, R. and Vickery, B. (2011). An interferon-inducible

neutrophil-driven blood transcriptional signature in

human tuberculosis. Pediatrics, 128(Supplement

3):S145–S146.

Goodman, S. N., Fanelli, D., and Ioannidis, J. P. (2016).

What does research reproducibility mean? Science

translational medicine, 8(341):341ps12–341ps12.

Haynes, W. A., Vallania, F., Liu, C., Bongen, E., Tomczak,

A., Andres-Terre, M., Lofgren, S., Tam, A., Deis-

seroth, C. A., Li, M. D., Sweeney, T. E., and Khatri,

P. (2016). Empowering multi-cohort gene expression

analysis to increase reproducibility. bioRxiv.

Ioannidis, J. P. (2005). Why most published research ﬁnd-

ings are false. PLoS medicine, 2(8):e124.

Jenum, S., Bakken, R., Dhanasekaran, S., Mukherjee, A.,

Lodha, R., Singh, S., Singh, V., Haks, M. C., Otten-

hoff, T. H. M., Kabra, S. K., Doherty, T. M., Ritz, C.,

and Grewal, H. M. S. (2016). BLR1 and FCGR1a

transcripts in peripheral blood associate with the ex-

tent of intrathoracic tuberculosis in children and pre-

dict treatment outcome. Scientiﬁc Reports, 6(1).

Kim, B.-H., Shenoy, A. R., Kumar, P., Das, R., Tiwari, S.,

and MacMicking, J. D. (2011). A family of IFN-

-inducible 65-kD GTPases protects against bacterial

infection. Science, 332(6030):717–721.

Liaw, A. and Wiener, M. (2002). Classiﬁcation and regres-

sion by randomforest. R News, 2(3):18–22.

Liu, Y., Jiang, J., Wang, X., Zhai, F., and Cheng, X. (2013).

miR-582-5p is upregulated in patients with active tu-

berculosis and inhibits apoptosis of monocytes by tar-

geting FOXO1. PLoS ONE, 8(10):e78381.

Lu, H. and Huang, H. (2011). FOXO1: A potential

target for human diseases. Current Drug Targets,

12(9):1235–1244.

Maaten, L. v. d. and Hinton, G. (2008). Visualizing data

using t-sne. Journal of Machine Learning Research,

9(Nov):2579–2605.

Maertzdorf, J., Ota, M., Repsilber, D., Mollenkopf, H. J.,

Weiner, J., Hill, P. C., and Kaufmann, S. H. E. (2011).

Functional correlations of pathogenesis-driven gene

expression signatures in tuberculosis. PLoS ONE,

6(10):e26938.

Maji, A., Misra, R., Mondal, A. K., Kumar, D., Bajaj, D.,

Singhal, A., Arora, G., Bhaduri, A., Sajid, A., Bhatia,

S., Singh, S., Singh, H., Rao, V., Dash, D., Shalini,

E. B., Michael, J. S., Chaudhary, A., Gokhale, R. S.,

and Singh, Y. (2015). Expression proﬁling of lymph

nodes in tuberculosis patients reveal inﬂammatory mi-

lieu at site of infection. Scientiﬁc Reports, 5(1).

Masood, K. I., Rottenberg, M. E., Carow, B., Rao, N.,

Ashraf, M., Hussain, R., and Hasan, Z. (2012).

SOCS1 gene expression is increased in severe pul-

monary tuberculosis. Scandinavian Journal of Im-

munology, 76(4):398–404.

Matsumiya, M., Harris, S. A., Satti, I., Stockdale, L., Tan-

ner, R., O’Shea, M. K., Tameris, M., Mahomed, H.,

Hatherill, M., Scriba, T. J., Hanekom, W. A., Mc-

Shane, H., and Fletcher, H. A. (2014). Inﬂamma-

tory and myeloid-associated gene expression before

and one day after infant vaccination with MVA85a

correlates with induction of a t cell response. BMC

Infectious Diseases, 14(1).

Mestas, J. and Hughes, C. C. W. (2004). Of mice and

not men: Differences between mouse and human im-

munology. The Journal of Immunology, 172(5):2731–

2738.

Moguche, A. O., Shaﬁani, S., Clemons, C., Larson, R. P.,

Dinh, C., Higdon, L. E., Cambier, C., Sissons, J. R.,

Gallegos, A. M., Fink, P. J., and Urdahl, K. B. (2015).

ICOS and bcl6-dependent pathways maintain a CD4

t cell population with memory-like properties during

tuberculosis. The Journal of Experimental Medicine,

212(5):715–728.

Nature (2017). Empty rhetoric over data sharing slows sci-

ence. Nature, 546(7658):327–327.

Nuzzo, R. (2014). Scientiﬁc method: Statistical errors. Na-

ture, 506(7487):150–152.

Prada-Medina, C. A., Fukutani, K. F., Kumar, N. P., Gil-

Santana, L., Babu, S., Lichtenstein, F., West, K.,

Sivakumar, S., Menon, P. A., Viswanathan, V., An-

drade, B. B., Nakaya, H. I., and Kornfeld, H. (2017).

Systems immunology of diabetes-tuberculosis comor-

bidity reveals signatures of disease complications.

Scientiﬁc Reports, 7(1).

Sambarey, A., Devaprasad, A., Baloni, P., Mishra, M., Mo-

han, A., Tyagi, P., Singh, A., Akshata, J., Sultana, R.,

Buggi, S., and Chandra, N. (2017). Meta-analysis of

host response networks identiﬁes a common core in

tuberculosis. npj Systems Biology and Applications,

3(1).

Sambarey, A., Prashanthi, K., and Chandra, N. (2013). Min-

ing large-scale response networks reveals ‘topmost ac-

tivities’ in mycobacterium tuberculosis infection. Sci-

entiﬁc Reports, 3(1).

Sweeney, T. E., Braviak, L., Tato, C. M., and Khatri, P.

(2016a). Genome-wide expression for diagnosis of

pulmonary tuberculosis: a multicohort analysis. The

Lancet Respiratory Medicine, 4(3):213–224.

Sweeney, T. E., Haynes, W. A., Vallania, F., Ioannidis,

J. P., and Khatri, P. (2016b). Methods to increase re-

producibility in differential gene expression via meta-

analysis. Nucleic Acids Research, 45(1):e1–e1.

Sweeney, T. E., MD, and PhD (2016c). COCONUT: COm-

bat CO-Normalization Using conTrols (COCONUT).

R package version 1.0.1.

Titus, A. J., Way, G. P., Johnson, K. C., and Christensen,

B. C. (2017). Deconvolution of DNA methylation

identiﬁes differentially methylated gene regions on

1p36 across breast cancer subtypes. bioRxiv.

Toldo, R. and Fusiello, A. (2008). Robust multiple struc-

tures estimation with j-linkage. In Lecture Notes in

Computer Science, pages 537–547. Springer Berlin

Heidelberg.

WHO (2016). Global tuberculosis report 2016. Technical

report, World Health Organization.
