Security Considerations for Microservice Architectures

Daniel Richter, Tim Neumann and Andreas Polze

Hasso Plattner Institute at University of Potsdam, P.O.Box 90 04 60, D-14440 Potsdam, Germany

Keywords:

Security, Dependability, Cloud Infrastructure, Microservices.

Abstract:

Security is an important and difﬁcult topic in today’s complex computer systems. Cloud-based systems adop-

ting microservice architectures complicate that analysis by introducing additional layers. In the test system

analyzed, base layers are combined into three groups (compute provider, encapsulation technology, and de-

ployment) and possible security risks introduced by technologies used in these layers are analyzed. The

application layer focuses on security concerns that concern authorization and authentication. The analysis is

based on a microservice-based rewritten version of the seat reservation system of the Deutsche Bahn using

technologies such as Amazon Web Services, Docker, and Kubernetes. The comparison concludes that the

security of communication in the test system could be signiﬁcantly improved with little effort. If security is

not considered as an integral part from the beginning of a project, it can easily be neglected and be expensive

to add later on.

1 INTRODUCTION

In microservice architectures, a complex system is

split into multiple, small and mostly independently

operating components, which communicate only via

well-deﬁned interfaces. This allows each compo-

nent to be developed, tested, and scaled independently

((Richardson, 2017; Newman, 2015; Horsdal, 2016;

Fowler, 2016)). While microservice architectures can

reduce the complexity of a given system, it usually in-

troduces – in comparison to monolithic applications –

additional complexity through dependencies to sup-

porting technology e.g. for deployment, scaling and

management of containerized applications. In addi-

tion, the use of additional technologies increases the

surface attack area ((Dragoni et al., 2017)).

To get an overview of technologies dependencies

that a introduced in cloud-based applications that

adopt a microservice architecture, we built an appli-

cation based on Amazon Web Services, Docker, and

Kubernetes, which is experimental, microservice-

enabled reimplementation of the electronic seat reser-

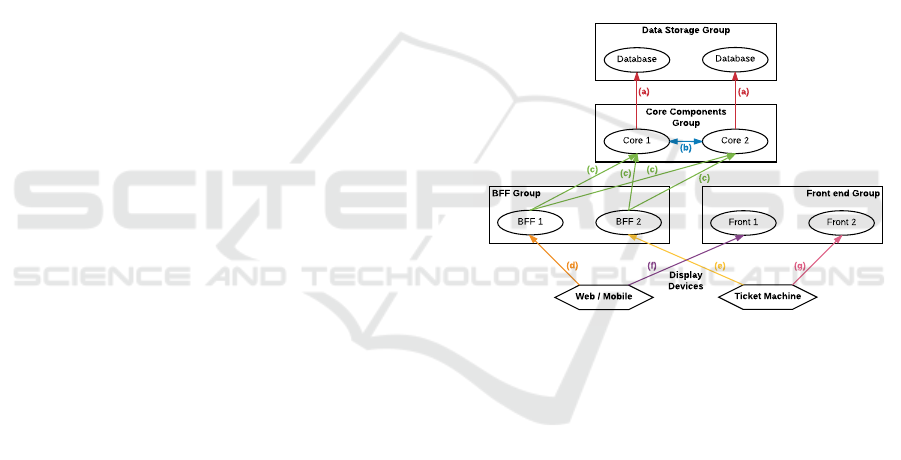

vation system of the Deutsche Bahn. It consists of a

customer component (responsible for managing login

data), a seat component (providing queryable train

schedules and available seats) and a booking compo-

nent (managing all booking data). Additionally, each

of these components is backed by a separate data-

base. The front-ends were developed for two display

devices (single-page web/mobile application and

ticket machine) for which four additional services

were introduced (two front-end services and two

Backend-for-Frontend services).

Our test system is deployed to Amazon Web Ser-

vices (AWS). AWS introduces a variety of additio-

nal layers into the system: Firstly, the actual physical

computers in an AWS data center. This is followed by

three core AWS compute resources: Elastic Compute

Cloud (EC2)

, which provides and manages virtual

machines; Elastic Block Storage (EBS)

, which pro-

vides networked data storage volumes to EC2 instan-

ces; and Virtual Private Cloud (VPC)

, which offers

isolated networks for EC2 instances. Inside AWS, the

test system consists of several EC2 instances. All EC2

Kubernetes nodes run the Kubernetes node adminis-

tration software, responsible for further running ot-

her software on the node. The other important piece

of software running on Kubernetes nodes is Docker,

which manages the individual containers used to run

the actual software deployed by Kubernetes.

To simplify the analysis, we split our testbed into

three base layer groups: compute provider, encapsu-

lation technology and deployment. The highest layer,

the application layer, is the most complex layer in the

https://aws.amazon.com/ec2/details/

https://aws.amazon.com/ebs/details/

https://aws.amazon.com/vpc/details/

608

Richter, D., Neumann, T. and Polze, A.

Security Considerations for Microservice Architectures.

DOI: 10.5220/0006791006080615

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 608-615

ISBN: 978-989-758-295-0

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

system. Our focus was to secure the communication

between individual application components (authen-

tication and authorization).

2 THE BASE LAYERS

In this section, the base layers – all layers except the

application layer – are analyzed. Since multiple lay-

ers often work together to provide one function, the

layers have been organized into the three groups com-

pute provider, encapsulation technology and deploy-

ment. Following that comparison, the security of the

chosen technologies is analyzed.

2.1 Technologies for Layer Groups

As the technology used in each layer can directly im-

pact its security analysis, we ﬁrst compare multiple

alternative technologies for each layer group. Our test

system’s layers are grouped as follows:

The compute provider group consists of all AWS

related layers and generally provides some kind of

computing infrastructure consisting of either phy-

sical or virtual machines, some networking solu-

tion, and some ﬁle storage system.

The encapsulation technology group mainly con-

sists of the Docker layer and the Weave layer.

Both can be used independently of each other;

here, they work together to provide a distributed

runtime environment for containers. This group is

responsible for isolating services from each other

so they cannot interfere with each other (except

by predeﬁned communication).

The deployment group contains the Kubernetes lay-

ers and is responsible for taking software in source

or binary format and ensuring its execution and

conﬁguration.

2.1.1 Compute Provider

A compute provider is required to provide the infra-

structure to run some software. The core functiona-

lities are: Starting a new machine (based on some

template) and connect it to some network. This usu-

ally involves assigning some kind of computing capa-

city to the new machine, conﬁguring it and starting it.

There are two types of machines which can be distin-

guished:

To start a physical machine, some hardware is allo-

cated and conﬁgured. In some situations, this may

involve purchasing and installing the hardware be-

forehand.

A physical machine itself can run multiple virtual

machines. Starting a virtual machine usually in-

volves allocating some capacity on an existing

physical machine and then starting it from some

predeﬁned image.

Another important classiﬁcation is the type of pro-

vision: A data center owned by the company plan-

ning to use the compute provider, a data center opera-

ted by a third party, or a cloud provider (provider of

mostly virtual machines with the additional restriction

that new machines can be requested in an automated

fashion, using an API).

Since cloud providers are much more modern

than the data center-based approaches, they were the

technology of choice for our testbed. The most com-

monly known commercial cloud providers are AWS,

Google Cloud Platform (GCP)

and Microsoft Azure

((Coles, 2017)). The most popular self-hosted cloud

provider is OpenStack

((Buest, 2014)), although it is

also offered in hosted form by various third parties.

Even though the cloud providers are mostly equal in

functionality, AWS was chosen for two reasons: AWS

was by far the largest cloud provider ((Coles, 2017)),

and it was also the cloud provider of choice of Deut-

sche Bahn, our project partner.

2.1.2 Encapsulation Technology

Encapsulation could be achieved by running each ser-

vice on a separate machine. The decision to use a

separate encapsulation layer was made to achieve a

higher degree of ﬂexibility. In microservice architec-

tures services usually are very lightweight and may

only run for a short period of time. This makes for

example the use of machines provided by AWS une-

conomical: AWS bills at least one hour for a started

instance and even the smallest EC2 instance type is

was too large for a single service. Therefore, an en-

capsulation technology which allows running multi-

ple services on one EC2 instance was needed.

On modern operating systems, there are generally

two different encapsulation technologies:

VM-based encapsulation Each encapsulated pro-

cess runs in its own virtual machine. This involves

some overhead, since hardware such as storage

devices needs to be simulated. Since a virtual ma-

chine requires an entire operating system running

inside it, they are generally rather heavy-weight.

Container-based encapsulation Operating system-

provided methods are used to isolate processes

https://cloud.google.com/

https://azure.microsoft.com/en-us/

https://www.openstack.org/

Security Considerations for Microservice Architectures

609

on the host system. This imposes a smaller over-

head than a VM-based approach and also allows

resources to be easily shared between encapsula-

ted processes or with the host. As a limitation,

only encapsulating software for the same opera-

ting system as the host is supported.

Each technology has several advantages and disad-

vantages; the most important arguments are listed be-

low:

(a) VM-based solutions provide greater isolation than

container-based solutions. A vulnerability in the

encapsulated software could thus have a greater

impact when using containers.

(b) Container-based solutions have a lower overhead,

which allows for more efﬁcient usage of compu-

ting resources ((Felter et al., 2015)).

dently from the host operating system, whereas

container-based solutions only support software

written for the host operating system.

(d) There is an abundance of tools, infrastructure,

and pre-built software available for mainstream

container-encapsulation technology. This is not

necessarily applicable for VM-based solutions.

For our testbed, the choice fell on Docker – a

container-based approach –, which has been widely

used in IT projects in recent years and for which a lot

of tools and pre-built software is available.

One further layer is part of the encapsulation group:

The networking layer. If containers or virtual ma-

chines are used, multiple network addresses (one for

each encapsulated piece of software) are needed. Ad-

ditionally, it may is desirable to allow encapsulated

applications to communicate with each other but nit

with the machines they are running on. As such, a

separate network is usually required for encapsula-

ted applications. Some technologies require special

support from the host’s networking hardware, whe-

reas others build so-called overlay networks ((Galuba

and Girdzijauskas, 2009)) where each machine runs a

special software which wraps network packets des-

tined for another machine with some metadata and

sends the wrapped packets to the other machine using

a physical network.

Our testbed uses Weave Net that provides a virtual

network, available on all nodes, which is used by the

software deployed by Kubernetes to communicate.

2.1.3 Deployment

Deployment refers to the action of taking a piece of

software, conﬁguring it, and ensuring it is running on

some machine. While this can be done “by hand”,

an automated system was required to allow smooth

operation of the testbed and avoid an error-prone, ma-

nual process: The project’s continuous integration in-

frastructure required setting up entirely new environ-

ments, each with about half a dozen services.

There are several technologies which can be used

to distribute containers among multiple nodes, with

popular choices being Docker Swarm

and Kuberne-

tes.

2.2 Security Evaluation of Base Layer

Technologies

Given our testbed, we shortly discuss selected secu-

rity aspects of the chosen base layer technologies.

2.2.1 Compute Provider

As the data center is managed by Amazon, the se-

curity there cannot be inﬂuenced by its customers.

However, Amazon states that its data centers comply

with various commercial and governmental security

guidelines ((Amazon Web Services, 2017)) such as

PCI DSS Level 1 (Payment Card Industry Data Se-

curity Standard). Among others, PCI DSS requires

a) “Restricting physical access to cardholder data”

(which, in the context of AWS, means that physi-

cal access to the actual hardware must be restricted),

b) “Track and monitor all access to network resour-

ces and cardholder data” and c) “Regularly test secu-

rity systems and processes” ((PCI Security Standards

Council, 2016)). Given this certiﬁcation and others,

for the scope of this analysis it can be assumed that a

AWS data center and hardware is set-up and managed

in a secure manner.

AWS allows the modiﬁcation of resources by

using either a web interface (AWS Management Con-

sole) or an API. Access to the Management Console

is secured using a username and password and, de-

pending on the conﬁguration, a two-factor authenti-

cation token. Accessing the API requires an access

key. AWS offers a ﬁne-grained permission system

and the CloudTrail

service which, if conﬁgured, re-

cords all access to AWS resources along with which

user accessed the resource and how they authenticated

to do so.

AWS allows the creation of detailed rules for com-

munication between EC2 instances. This feature is

used extensively in the test system. Figure 1 shows

inbound network rules for an ingress node – which

ports are open is tightly restricted with only those ab-

https://docs.docker.com/engine/swarm/

https://aws.amazon.com/de/cloudtrail/

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

610

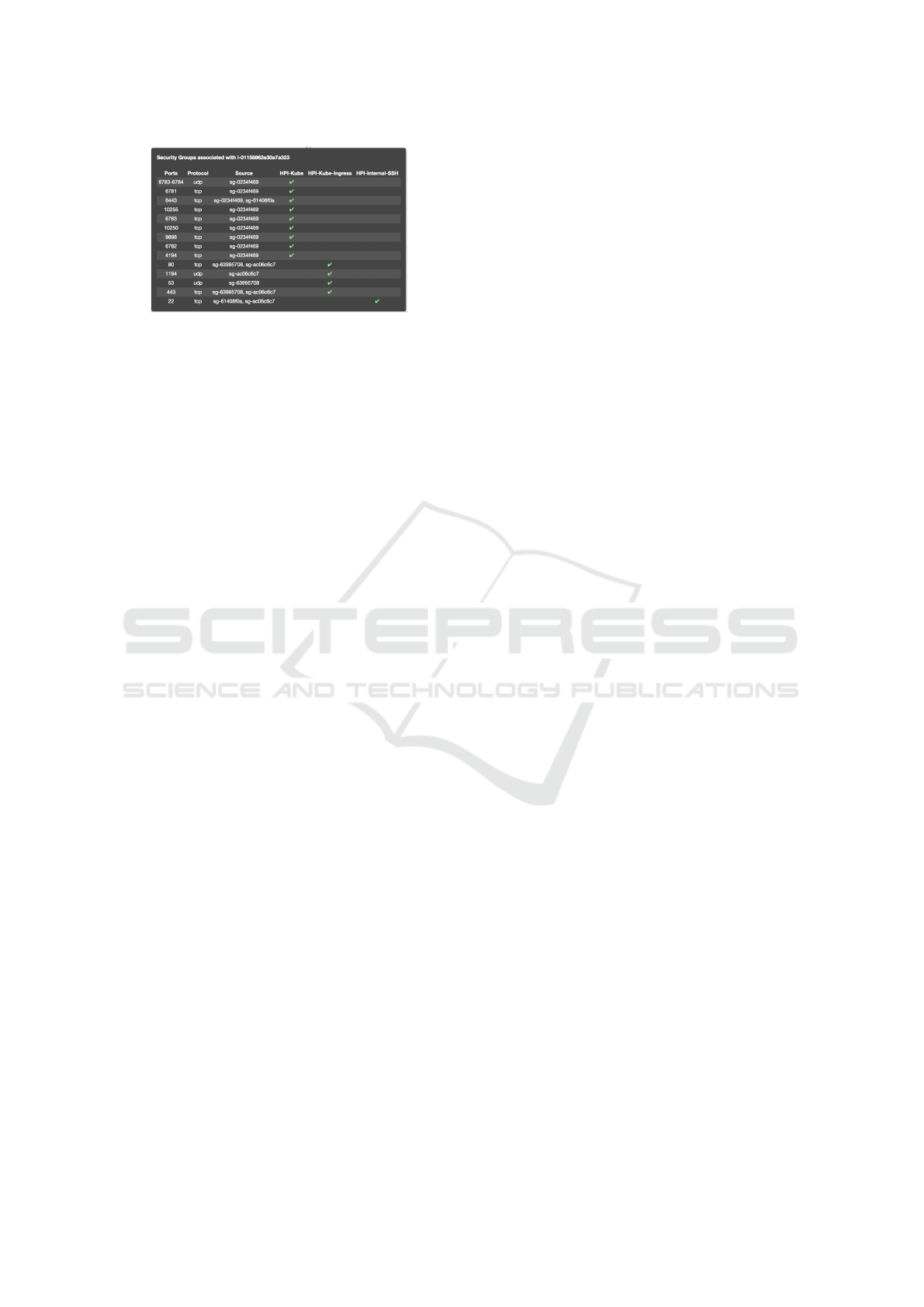

Figure 1: Screenshot of the inbound network rules

of an ingress node: The ingress node is part of three

security groups: The HPI-Internal-SSH security group

(sg-63995708) allows SSH access from the bastion ser-

ver (sg-ac06c6c7) and any ingress nodes. The HPI-Kube

security group (sg-0234f469) allows communication bet-

ween all Kubernetes nodes. The HPI-Kube-Ingress security

group (sg-61408f0a) allows ingress nodes to receive net-

work requests from the bastion server as well as members

of the HPI-Internal-SSH security group.

solutely necessary to operate the test system being

made available.

The EC2 instances should be secured as any other

Linux server, however for simplicity we limited our-

selves to just a small number of steps: a) we relied on

Amazon VPC to act as a ﬁrewall instead installing one

on-machine, b) we logged-in into a non-root account

using the sudo program for privileged operations, and

c) we have disabled password-based SSH access.

2.2.2 Encapsulation Technology

The encapsulation technology group contains two

layers, Docker and Weave Net. Both were used in

their default conﬁguration: Docker allowed certain

users full access to the computer on which it is instal-

led, as it is required by Kubernetes. Weave Net was

conﬁgured and managed by Kubernetes. Security-

wise, the Weave Net default conﬁguration could be

improved by specifying a password to encrypt com-

munication between the Weave Net instances running

on each node.

2.2.3 Deployment

Kubernetes and Weave Net provide one network to all

applications running in Kubernetes, allowing them to

communicate without restrictions by default. By em-

ploying so-called Network Policies, communication

can be limited to speciﬁc applications (similar to the

inbound network rules of AWS VPC).

The Kubernetes API server allows the creation

and modiﬁcation of resources in the Kubernetes clus-

ter. Kubernetes 1.5 – the current version when the

testbed was initially set-up – provides very coarse-

grained access control mechanisms (essentially either

full or no access to the cluster, the API server even

provided an unauthenticated and unencrypted end-

point); This changed with Kubernetes 1.6, which in-

troduced Role-Base Access Control (RBAC), a ﬁne-

grained permission system.

3 THE APPLICATION LAYER

The application layer contains the individual appli-

cation components and is the most complex layer in

the test system. The security analysis of this layer

will focus on securing the communication between

those individual components. To simplify that analy-

sis, the application components are grouped together

into another set of layers, based on how information

ﬂows through the system.

The most important aspect of securing the com-

munication between application components is pre-

venting unauthorized access, which usually involves

the processes of authentication and authorization.

3.1 Authentication and Authorization

Methods

Various methods exist to implement authentication

and authorization in IT systems, some common ones

are listed below:

Trust The implemented service trusts that it is only

accessed by those parties who should access it.

Network policy A network policy which prevents all

but authorized parties from communicating with

the service is enforced.

IP-based The service itself makes a decision based

on the IP address where the request to the service

originates from.

Key/token-based An access key, or access token, is

transmitted with each request and only if a known

and correct key is passed, access is granted to the

service.

MAC-based (Message Authentication Code) The

contents of the request, as well as the access key,

are passed through a cryptographic hash function

and then transmitted.

Signing-based & Certiﬁcate-based Asymmetric

cryptography is used to sign the request.

Session-based & Password-based The ﬁrst request

to a service is unauthenticated and initiates the

session. Subsequent requests identify the session

they belong to by, for example, using one of the

previous methods.

Security Considerations for Microservice Architectures

611

Table 1: Authentication Method Summary.

Method

Fine-grained

access control

Secret-

based

Session-

based

Network-

based Stack Level

Trust No No No No N/A

Network policy No No No Yes Network

IP-based Yes No No Yes

Network/

Application

Key/token-based Yes

Yes, pre-shared

No No Application

MAC-based Yes

Yes, pre-shared

No No Application

Signing-based Yes

Yes, asymmetric

No No Application

Certiﬁcate-based Yes

Yes, asymmetric

No No Transport

Session-based

Yes, within

a session

Yes, after

session start

Yes No Application

Password-based Yes

Yes,

pre-shared and

after session start

Yes No Application

To properly compare authentication and authorization

methods and to analyze their applicability for the dif-

ferent communication channels in the next section,

Table 1 gives a summary of all the methods based on

various criteria. Each column corresponds to one of

the criteria listed below:

Support of ﬁne-grained access control classiﬁes

whether a method supports more granular permis-

sions than either no access or unrestricted access.

The addition “within a session” means that

users can gain (exclusive) access to additional

resources valid for the duration of their session.

Secret-based classiﬁes whether a method requires

clients to store and manage some kind of secret.

The following types of secrets are distinguished:

pre-shared A secret which must be known to the

client and server before the initial request.

asymmetric A secret for use with asymmetric

cryptography – the client stores a secret key and

the server recognizes the associated public key

(based on a list of known public keys or using

another level of asymmetric cryptography)

after session start During the initiation of a ses-

sion, a secret is sent to or generated on the

client. This secret is used during subsequent

requests.

Session-based classiﬁes whether a method makes

use of, or requires, sessions.

Network-based classiﬁes whether a method is

network-based.

Stack level classiﬁes at which level in the technology

stack a method operates. Three values are used:

Network The method is implemented as part of,

or relies on, the network.

Application The method is implemented in the

application itself.

Transport The method is implemented in the

transport layer (somewhere between the net-

work and the actual application).

The following investigation of the individual commu-

nication channels is simpliﬁed by ordering the diffe-

rent authentication and authorization methods based

on the level of security they provide.

To avoid dupli-

cating that analysis, a conditional ordering is deﬁned

and given below:

Trust vs. network-based: Since trust provides no

authentication and authorization, network-based

methods are more secure than the trust method.

Network policy vs. IP-based The network policy-

based method is generally preferable, as it is inde-

pendent of the application. The IP-based method

however, has the advantage that it supports ﬁne-

grained access control, so if that is needed, the IP-

based method is the only possible network-based

method.

Network-based vs. secret-based For both methods,

the application itself is vulnerable: If an attac-

ker is able to compromise the application, they

can gain access to secrets available to the appli-

cation and act on behalf of the application, using

the available network interfaces. For the network-

based methods, the network is additionally vul-

nerable: If an attacker gains sufﬁcient access to

Often multiple methods will be equally applicable to a

channel, in which case the method of choice should be the

most secure authentication and authorization method.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

612

the network, they can impersonate the applica-

tion. For the secret-based method, the secret dis-

tribution mechanism is an additional vulnerability.

Thus, which method is more secure depends on

whether a compromise of the network or the se-

cret distribution mechanism is more likely.

Token-based vs. MAC-based Both methods work

similarly, however for the MAC-based methods

the token is never transmitted over the network,

which decreases the risk of it being intercepted.

Mac-based vs. signing-based A signing-based met-

hod uses different keys on the client and server,

reducing the risk of compromise. Additionally,

depending on the exact implementation, keys can

be generated independently of the server, which

decreases the complexity and attack surface of the

server.

Signing-based vs. certiﬁcate-based While they

should offer the same security as signing-based

methods, certiﬁcate-based methods have the ad-

vantage of standardization. This standardization

makes it easier to replace an application using the

certiﬁcate-based methods and also means a lower

likelihood of introducing security vulnerabilities

compared to implementing custom signing-based

methods.

Session-based A session-based method is usually

used in different situations: It can be used when

using a secret is impossible and identiﬁes one user

over several consecutive requests, but not between

sessions.

Password-based This method is mostly the same as

the token-based method. However, instead of sen-

ding the token on every request, it is sent only on

the ﬁrst request; afterwards, some kind of session

identiﬁer is sent with each request. This makes it

more secure than the token-based method, as the

risk of leaking the token is reduced.

3.2 Evaluation of Authentication and

Authorization in our Testbed

Our testbed is a simpliﬁed reimplementation of the

Elektronische Platzbuchungsanlage (EPA, “electronic

seat reservation and booking system”) of Deutsche

Bahn, that is responsible for managing seat reserva-

tions in trains all across Germany. It consists of:

Customer component This component is responsi-

ble for managing login data. It is mostly unused

in the current project, as it focused on the ticket

purchase and seat reservation process.

Seat component “Seat & schedule component”

would probably be a more appropriate name for

this component, however the name assigned by

the previous project was kept for consistency.

This component provides a queryable schedule of

all trains, as well as the ability to access which

seats are available on a given train.

Booking component This component manages all

booking data: which routes were booked and

which seats are reserved on which trains.

Additionally, each of those three components is bac-

ked by a separate database. The front-ends for those

components were developed for two display devices:

A single-page web/mobile application and a ticket

machine user interface, which was also based on web

technologies and built as a single-page web applica-

tion.

Data Storage Group

Database

Core Components

Group

Core 1 Core 2

BFF Group

BFF 1

BFF 2

Front end Group

Front 1

Front 2

Ticket Machine

Web / Mobile

Display

Devices

(a)

(b)

(c)

(d)

(f)

(e) (g)

Figure 2: Overview of Communication Groups: The four

rectangles represent the four communication groups, con-

taining example services illustrated as ellipses. Each colo-

red/labelled arrow represents one communication channel,

with the arrowhead indicating the receiver of the commu-

nication request. The display devices are not part of any

group and are represented as hexagons.

The components of our testbed have been grouped

together in the following groups/layers to reduce the

amount of communication channels which need to be

considered:

Data Storage Group contains only the database

backing the customer, seat and booking compo-

nents. It is only accessed by the core components

group, and there is no inter-group communication

in the test set-up, although that is certainly possi-

ble in other situations.

Core Components Group contains the three core

components, customer, seat and booking. These

are accessed by the BFF group and do access the

data storage group. Additionally, some requests

Security Considerations for Microservice Architectures

613

trigger inter-group communication between the

components in the group.

Backend-for-Frontend (BFF) Group consists of

the two BFFs,(Newman, 2015) one for each

display device. These are accessed directly by the

display devices and communicate with the core

components group, if necessary. No inter-group

communication happens between the different

BFFs.

Front-End Group consists of the static web servers

for the two front-ends. They are accessed by the

display devices as well, however, they perform no

other communication.

As shown in Figure 2, there are seven different com-

munication channels between, within, and with the

four groups. This number is further increased by the

fact that the two display devices have not been com-

bined, as they have different communication patterns

depending on the version: The web/mobile front-end

and BFF are open to the public. In this respect, no

assumptions can be made about the requests sent to

these services. It cannot be assumed that communi-

cation with these services will only take place from

the ofﬁcial application and in the manner intended by

the application developers. The BFF and the fron-

tend must be able to handle all requests, including

those made directly by a malicious third party, cor-

rectly. The opposite is the case with ticket vending

machines: The team controls the hardware and possi-

bly the network that is used for communication with

the frontend and the BFF. Therefore, if necessary, it

can be assumed that the communication from the tic-

ket machine will only take place in the way intended.

But even without this assumption, the hardware of the

ticket vending machine is still controlled by the team

and can be regarded as trustworthy – at least with a

sufﬁciently secure hardware design – which enables

additional security-relevant operations such as cryp-

tography with pre-shared keys.

The communication channels distinguish themsel-

ves as follows:

(a) This communication channel interacts with

third-party software, therefore the team did not

have full control over the authentication and aut-

horization methods used.

(b) Communication between different core compo-

nents can usually be assumed to happen over a

trusted network.

components is very similar to (b) except that they

may reside on separate networks and that the

BFFs may be considered untrusted since they are

directly accessible from a public network.

(d) Communication takes place over a public net-

work and originates from an untrusted device.

(e) Following the defense-in-depth approach, it was

assumed, that communication takes place over a

public network here as well. However, contrary

to (d), communication originates from a trusted

device.

(f) Once again communication happens over a pu-

blic network from an untrusted device. Since

the front-end services only offer static resources

which must all be publicly accessible due to the

nature of a web application, no authorization or

authentication is required or possible here.

(g) As opposed to (f), resources accessed using this

channel do not have to be publicly accessible. As

such, some form of authorization and authentica-

tion can be implemented if the resources should

remain inaccessible to the public. Similar to (e)

it was again assumed that communication takes

place over a public network.

In total, two authentication and authorization met-

hods were used: Token-based authentication and aut-

horization was used to connect to the database ser-

vers; session-based authentication and authorization

was used for connections between the display devices

and BFFs.

4 CONCLUSION AND

FUTURE WORK

This paper evaluated the security of a microservice

architecture: It ﬁrst analyzed the security of the base

layers, before focusing on authentication and aut-

horization in the application layer. The practicality

of multiple authentication and authorization methods

was analyzed in the context of a reimplementation of

the Elektronische Platzbuchungsanlage of Deutsche

Bahn.

In comparison to monolithic applications, the use

of cloud-infrastructure (compute provider layer) in-

troduces additional complexity as well as additional

attack vectors. Compared to classic VM-based cloud

applications, technologies introduced in the encapsu-

lation technology layer lead to the fact that more sa-

fety requirements have to be met. Currently, the ana-

lysis of additional security concerns is only limited

to aspects regarding authorization and authentication

(A2:2017; number two of ((Open Web Application

Security Project, 2017)). But an increasing number

of used technologies affects other risks, too: secu-

rity misconﬁguration (A6:2017), vulnerable compo-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

614

nents (A9:2017) or insufﬁcient logging and monito-

ring (A10:2017). Also, Dev-ops, a software engineer-

ing culture and practice aimed at unifying develop-

ment and operation that is often used in conjunction

with microservices, introduces non-production envi-

ronment exposure as a microservice-speciﬁc risk.

The main conclusions of this paper are that 1) mo-

dern computer systems are very complex, due to the

many layers they are made up from, and 2) security

is hard, takes effort, and should be an important con-

sideration from the beginning of a project instead of

an afterthought. At many points, security measures

were not taken “for simplicity” or because “(human)

resources were unavailable”. While this may have

been acceptable in the test system, a real-world pro-

duct should never be launched with this many issues

or areas of improvement.

We believe this shows very clearly why security is

such a difﬁcult topic: The beneﬁts are hidden and the

costs are high. The implementation of security in se-

veral microservices and in all system levels requires

effort and careful planning. Once a project has star-

ted, security can easily be neglected for more immedi-

ately pressing concerns and may be difﬁcult and even

more expensive to add later. Even if security is a con-

sideration from the beginning, there is often a choice

between complexity and practicality. For example, to

increase security, it would be possible to implement

not only certiﬁcate-based authentication and authori-

zation, but network policy-based authentication and

authorization as a second layer of security. However,

this would increase costs and complexity. Although

the certiﬁcate-based method is clearly more secure

than the certiﬁcate-based method, it is also more com-

plex to implement than a token-based method because

an additional infrastructure is required to manage all

cryptographic keys.

As a ﬁnal summary, we conclude that security

should be a consideration from the very beginning of

planning a system, to be able to implement effective

and comprehensive security measures throughout the

project – especially if monolithic applications are to

be realized based on microservice applications.

ACKNOWLEDGEMENTS

The authors would like to thank Lena Feinbube, Leo-

nard Marschke, Cornelius Pohl, Robert Beilich, Tim

Basel, Timo Traulsen, Henry H

ubler, Dr. Stephan

Gerberding, Wolfgang Schwab, and Ingo Schwarzer

for their support and assistance with this project.

REFERENCES

Amazon Web Services (2017). AWS Cloud Compli-

ance. https://aws.amazon.com/compliance/. (visited

on 2017/07/16).

Buest, R. (2014). Top 15 open source cloud compu-

ting technologies 2014. http://analystpov.com/

cloud-computing/top-15-open-source-cloud-

computing-technologies-2014-24727. (visited

on 2017/07/16).

Coles, C. (2017). AWS vs Azure vs Google Cloud Market

Share 2017. https://www.skyhighnetworks.com/

cloud-security-blog/microsoft-azure-closes-iaas-

adoption-gap-with-amazon-aws/. (visited on

2017/07/16).

Dragoni, N., Giallorenzo, S., Lafuente, A. L., Mazzara,

M., Montesi, F., Mustaﬁn, R., and Saﬁna, L. (2017).

Microservices: Yesterday, today, and tomorrow. In

Present and Ulterior Software Engineering, pages

195–216. Springer, Cham. DOI: 10.1007/978-3-319-

67425-4 12.

Felter, W., Ferreira, A., Rajamony, R., and Rubio, J. (2015).

An updated performance comparison of virtual machi-

nes and linux containers. In 2015 IEEE International

Symposium on Performance Analysis of Systems and

Software (ISPASS), pages 171–172. DOI: 10.1109/IS-

PASS.2015.7095802.

Fowler, S. J. (2016). Production-Ready Microservices:

Building Stable, Reliable, Fault-Tolerant Systems.

O’Reilly Media. ISBN: 978-1-4919-6597-9.

Galuba, W. and Girdzijauskas, S. (2009). Overlay Network,

pages 2008–2008. Springer US, Boston, MA. DOI:

10.1007/978-0-387-39940-9 1231.

Horsdal, C. (2016). Microservices in .NET Core: With C#,

the Nancy Framework, and Owin Middleware. Man-

ning Publications. ISBN: 978-1-61729-337-5.

Newman, S. (2015). Building Microservices. O’Reilly Me-

dia. ISBN: 978-1-4919-5035-7.

Open Web Application Security Project (2017). OWASP

top 10 security risks 2017. https://www.owasp.org/

index.php/ Top 10-2017 Top 10. (visited on

2018/01/24).

PCI Security Standards Council (2016). Payment

card industry (pci) data security standard, v3.2.

https://www.pcisecuritystandards.org/document

library?category=pcidss&document=pci dss. (visited

on 2017/07/16).

Richardson, C. (2017). Microservice Patterns. Manning

Publications Co. ISBN: 978-1-61729-454-9.

Security Considerations for Microservice Architectures

615
