Elcano: A Geospatial Big Data Processing System based on

SparkSQL

Jonathan Engélinus and Thierry Badard

Centre for Research in Geomatics (CRG), Laval University, Québec, Canada

Keywords: Elcano, ISO-19125, Magellan, Spatial Spark, GeoSpark, Geomesa, Simba, Spark SQL, Big Data.

Abstract: Big data are in the midst of many scientific and economic issues. Furthermore, their volume is continuously

increasing. As a result, the need for management and processing solutions has become critical.

Unfortunately, while most of these data have a spatial component, almost none of the current systems are

able to manage it. For example, while Spark may be the most efficient environment for managing Big data,

it is only used by five spatial data management systems. None of these solutions fully complies with ISO

standards and OGC specifications in terms of spatial processing, and many of them are neither efficient

enough nor extensible. The authors seek a way to overcome these limitations. Therefore, after a detailed

study of the limitations of the existing systems, they define a system in greater accordance with the ISO-

19125 standard. The proposed solution, Elcano, is an extension of Spark complying with this standard and

allowing the SQL querying of spatial data. Finally, the tests demonstrate that the resulting system surpasses

the current available solutions on the market.

1 INTRODUCTION

Today, it becomes crucial to develop systems able to

manage efficiently huge amounts of spatial data.

Indeed, the convergence of the Internet and

cartography has brought forth a new paradigm called

“neogeography”. This new paradigm is

characterized by the interactivity of location based

contents and the possibility for the user to generate

them (Mericksay and Roche, 2010). This

phenomenon, in conjunction with the arrival in the

market of new captors like the GPS chips in

smartphones, resulted in the inflation of production

and retrieval of spatial data (Badard, 2014). This

new interest for cartography makes the process more

complex as it becomes more and more difficult to

manage and represent such large quantities of data

by use of conventional tools (Evans et al, 2014).

The Hadoop environment (White, 2012),

currently one of the most important projects of the

Apache Foundation, is a de facto standard for the

processing and management of Big data. This very

popular tool, involved in the success of many start-

ups (Fermigier, 2011), implements MapReduce

(Dean and Ghemawat, 2008), an algorithm that

allows the distribution of data processing among the

servers of a cluster for a faster execution. The data to

process are also distributed among the servers by the

Hadoop Distributed File System (HDFS), which is

provided by default with Hadoop. The result is a

high degree of horizontal scalability, which can be

defined as the ability to linearly increase the

performances of a multi-server system to meet the

user’s requirements in terms of processing time. A

real ecosystem of interoperable elements has been

built up around Hadoop, which enables the

management of such various aspects as streaming

(e.g. Storm), serialization (e.g. Avro) and data

analysis (e.g. Hive).

In 2014, the University of Berkeley's AMPLab

started to develop a new element of the Hadoop

ecosystem, which has since been taken over by the

Apache Foundation, namely Spark

(http://spark.apache.org/), which offers an

interesting alternative to HDFS and MapReduce. In

Spark, data and processing codes are distributed

together in small blocks called RDD (“Resilient

Distributed Dataset”) on the whole cluster RAM.

This architectural choice, which strongly limits hard

drive accesses, makes Spark up to ten times faster

than conventional Hadoop use, in some cases

(Zaharia et al, 2010), although at the cost of a

greater RAM load (Gu and Li, 2013). Furthermore, a

Engélinus, J. and Badard, T.

Elcano: A Geospatial Big Data Processing System based on SparkSQL.

DOI: 10.5220/0006794601190128

In Proceedings of the 4th International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM 2018), pages 119-128

ISBN: 978-989-758-294-3

119

part of Spark called Spark SQL (Armbrust et al,

2015) dress up Spark RDD with a supplementary

level called “DataFrames” which allows to organize

received data from Spark into temporary tables and

to query them with SQL language. Spark SQL

minimizes as well the duration of Spark processes,

thanks to the strategic optimization of queries and

the serialization of data. Finally, it allows the

definition of personalized data types (UDT: “User

Defined Type”) and personalized functions (UDF:

“User Defined Function”), which permit

respectively to get new kinds of data and processing

available from SQL.

This opportunity to query Big data thanks to

SQL is of paramount importance as it helps in their

analysis, with the goal of a better understanding of

the phenomena they represent on the ground. It also

empowers analysts with new analytical capabilities,

using a query language they already master on the

day to day. Together with the availability of a

growing amount of geospatial data, it is profitable to

use these capabilities to analyze the spatial

component of this huge amount of information,

which, according to Franklin, is present in 80% of

all business data (Franklin and Hane, 1992).

According to a frequently mentioned research of the

McKinsey cabinet (Manyika et al, 2011), a better

use of Big data spatial localization could grant 100

billion USD to services providers and in the range of

700 billion USD to final users. Lastly, spatial Big

data management finds itself in the midst of many

important economical, scientific and societal issues.

In this respect, Spark appears again as a promising

solution, because it processes the spatial data at least

more than 7 times faster than Impala, another

Hadoop element managing the SQL (You, et al,

2015).

Today, some systems relying on Hadoop enable

the management of massive spatial data, such as

Hadoop GIS (Aji et al, 2013), Geomesa (Hugues et

al, 2015) and Pigeon (Eldawy and Mokbel, 2014).

But they are mainly about prototypes than mature

technologies (Badard, 2014). In addition, most of

them only relies on the core version of Hadoop

without fully scaling the processing power of the

RAM like it is achieved by Spark. For example,

Spatial Hadoop (Eldawy and Mokbel, 2013) only

uses the Map Reduce algorithm of Hadoop.

Among these systems, only five propose a

management of spatial data relying on Spark. The

first two systems, Spatial Spark (You, et al, 2015)

and GeoSpark (Yu et al, 2015) only add a

management of the spatial component to the basic

version of Spark, which do not fully take advantage

of all the capabilities (e.g. SQL querying) and

performance of Spark. Hence, the current Spatial

Spark version can only interact with data in

command line mode instead of managing SQL

queries. GeoSpark only uses its own spatial

extension of the Spark RDD type, which does not

directly comply with Spark SQL (Yu, 2017). The

third, Magellan (Ram, 2015), defines spatial data

types directly available in Spark SQL, but without

correctly managing some spatial operations like the

union of disjointed polygons, the symmetric

differences involving more than a geometry and the

creation of an envelope. The fourth, Simba (Xie et

al, 2016), enables the querying of data in SQL for

points only and without the possibility to trigger

standard spatial functions. At last, the fifth prototype

is the Geomesa extension, which can be used from

Spark. The system is anyway limited in the spatial

operations that it offers because it has been natively

designed only for the research of points included in

an envelope. Furthermore, it presents limited

performances (Xie et al, 2016) in comparison with

other solutions. That apparently could be explained

by the fact that it imposes the use of a key store

technology (Accumulo, https://accumulo.apache.

org/) to store the spatial data to process.

As a conclusion, there is presently no system for

the management of geospatial data that fully

manages all kinds of 2D geometry data types and

that enables their efficient and actionable SQL

querying. Each model implemented in the five

studied prototypes which pursue a similar goal

presents limited capacities both on the types of

geometry they support as well as on the spatial

processing capabilities they offer. Details about this

last point are given in the next section.

2 LIMITS IN THE GEOSPATIAL

CAPABILITIES SUPPORTED

BY CURRENT SOLUTIONS

In order to assess the capabilities of the different

geospatial Big data management systems currently

relying on Spark to fully manage the 2D spatial

component, the ISO-19125 standard can profitably

be used as a guideline. Indeed, the two parts of this

standard respectively describe the 2D geometry

types and the geospatial functions and operators

(ISO 19125-1, 2004) and their expression in the

SQL language (ISO 19125-2, 2004) that a system

must implement to basically store 2D geospatial data

and support its querying and its analysis in an

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

120

interoperable way. In this context, we will first

introduce the geometry types supported by the

different systems. Then we will analyze which

spatial functions they give access to and whether

they can be extended to easily implement the

missing ones. Finally, we will study how they

manage the spatial indexation issue, which is crucial

when dealing with geospatial data.

2.1 Geometry Data Types

A system complying with ISO 19125-1 is supposed

to handle the seven main 2D geometry types that can

be built by linear interpolation. These can be divided

into three simple types (point, polyline and polygon)

and into four composite types (multipoint,

multipolyline, multipolygon and geometry

collection). Here is a study of how the current

systems meet this standard.

Spatial Spark and GeoSpark integrate all these

types of geometries because their model relies on the

use of the JTS (“Java Topology Suite”,

https://www.locationtech.org/proposals/jts-topology-

suite) library, which has been designed to meet ISO

standards and OGC recommendations (Davis and

Aquino, 2003). Geomesa also manages all the

geometries in its current version (Commonwealth

Computer Research, 2017), while Simba only

manages the point.

The case of the HortonWorks Magellan system is

more mixed. It enables the processing of points,

polylines and polygons. This may seem sufficient if

one assumes, as one of the designers of the system

(Sriharasha, 2016) does, that compound geometries

are reducible to tables of geometries. But in reality,

such an approach can only lead to a dysfunctional

system. Indeed, by not being able to explicitly create

actual complex geometry, such arrays are not

allowed as operands of a spatial function and their

return as a result of a spatial operation like the union

of disjoint polygons causes a type error.

In addition to its development, Magellan's

limitations are also due to the use of ESRI Tools as a

spatial library. The latter does not make it possible

to process all the 2D geometry types defined by the

ISO-19125 standard. It lacks the geometry collection

type, while the multi-polygon type is only partially

implemented. Furthermore, the adaptation of WKT

(“Well-Known Text”) provided by ESRI Tools does

not comply with the ISO standards and the OGC

recommendations.

The limitations of the different solutions studied

in relation to the requirements of ISO-19125-1 are

summarized in Table 1. Those related to ESRI Tools

have been added to give an idea of the limits that

they involve on the evolution of Magellan.

Table 1: Coverage of the different 2D geometry types

specified by ISO-19125 in studied prototypes.

Geo

Spark

Spatial

Spark

Simba Geomssa Magellan ESRI

Point Yes Yes Yes Yes Yes Yes

Polyline Yes Yes No Yes Yes Yes

Polygon Yes Yes No Yes Yes Yes

Multi-Point Yes Yes No Yes No Yes

Multi-polyline Yes No Yes No Yes Yes

Multi-polygon Yes Yes No Yes No In part

Collection Yes Yes No Yes No No

2.2 Spatial Functions and Operators

(ISO 19125-2, 2004) specifies how the spatial

functions (relations, operations, metric functions and

methods), a spatial data management system should

implement in SQL to comply with the ISO 19125-1

standard. It does not specify the way these methods

have to be implemented. It only defines their

signatures. These functions define the minimal set of

operations a system must implement to enable basic

and advanced spatial analysis capabilities. Even if

these functions have been defined for querying data

in classic spatial DBMS, their usage in geospatial

Big data management systems still pertain.

Nevertheless, the application of the ISO-19125-2

standard requires a system allowing SQL queries

and personalized SQL functions. This section details

how the five studied systems partly implement the

standard and describes their extension capabilities.

Spatial Spark only uses the core of Spark.

Indeed, it allows to work with RDD’s but not with

DataFrames or SQL queries. In this context, the

application of the ISO 19125-2 standard to Spatial

Spark seems impossible without a full

reimplementation.

As we saw, GeoSpark extends the RDD type of

Spark, and is therefore not directly compatible with

Spark SQL. Nevertheless, one of its developers

indicates that the integration of this point is planned

for a future version of the system and that there

would be an indirect way of changing these RDD’s

in DataFrames (Yu, 2017). But neither does he

describe a general process for it, nor how to apply

SQL queries afterwards. Indeed, the current version

of GeoSpark does not seem to be compliant with the

ISO 19125-2 standard because all geometry types

cannot be managed from SQL queries.

Simba released its own adaptation of Spark SQL,

which might enable the use of SQL queries and the

Elcano: A Geospatial Big Data Processing System based on SparkSQL

121

creation of User Defined Functions. In practice

however, the only accessible geometry is the point.

Furthermore, the syntactic analyzer does not always

work properly. By example, it forces to write “IN”

before “POINT(x, y)” even without a context of

inclusion. Simba is therefore not a mature and reliable

solution that could meet the ISO 19125-2 standard.

Until recently, Geomesa’s Spark extension only

used Spark’s core. But a recent version tries to

integrate Spark SQL. However, this solution remains

restrained by the mandatory use of the CQL format

and the Accumulo database (Commonwealth

Computer Research, 2017). Indeed, Geomesa does

not allow an autonomic and agnostic implementation

of ISO-19125-2.

Magellan does not directly manage SQL either.

But it defines User Data Types for the point. It is

therefore tempting to assume that the addition of

Used Defined Functions to its model should be

enough to allow the SQL functions of the ISO-

19215-2 standard. In practice however, the extension

of Magellan with these functions only covers two

thirds of spatial relations, half of the spatial

operations and a small part of spatial methods

specified by the ISO-19125-2 standard. These

limitations are due to both implementation errors

and the choice of the ESRI Tools library, which only

partially meets the ISO-19125-2 standard.

In their current states therefore, none of the

studied systems totally comply with the ISO-19125

standard.

2.3 Spatial Indexation Management

Spatial indexation can be defined as the

reorganization of spatial data, typically by using

their proximity relations, with the purpose of

accelerating their processing (Eldawy and Mokbel,

2015). Four of the studied systems provide a spatial

indexation component, but which is never both

efficient and extensible.

The spatial indexation component of Spatial

Spark uses directly the methods of the JTS spatial

library, which is not conceived for Big data

processing in a multi-server environment. GeoSpark

proposes a more integrated and efficient spatial

indexation module (Yu, 2017), but without the

possibility of managing it with SQL queries. The

indexation component of Simba is described as more

efficient by its developers (Xie et al, 2016), but has

important limitations and bugs we already covered.

Finally, Geomesa offers poor performances because it

relies on a specific database system (Xie et al, 2016),

which drastically increases the processing time.

2.4 Synthesis of Limitations

Table 2 sums up the main limitations of the studied

systems. It first recalls their most problematic

limitations. Then it reminds the geometry types they

support and as a result their degree of conformance

to the ISO 19125 standard. Next, it indicates

whether they manage SQL and whether they comply

with the ISO-19125-2 standard.

Table 2: Limitations of current spatial Big data processing

systems.

Magellan

Spatial

Spark

GeoSpark

Simba Geomesa

Main

limitation

Use a

limited

spatial

library

Inextensib

le to SQL

Syntactic

bugs, ́ no

extensible

Force to

use a

NoSQL

database

Types of

geometries

Only

simples

All Only point All

ISO-19125-1

In part Yes In part Yes

SQL

management

No, but

extensible

Yes

(replace

Spark

SQL)

Yes,

limited bý

CQL

ISO-19125-2

In part (by

extension)

No No In part

Spatial

indexation

Yes, but not efficient

or not extensible

Next section presents a new system designed for

the efficient and interoperable management and

rapid processing of geospatial Big data (vector data

only). It relies on Spark and overcomes identified

limitations present in current state-of-the-art

solutions. This prototype is named Elcano. Its

release as an open source project has not yet been

performed but it is envisaged.

3 PRESENTATION OF ELCANO

The main objective leading the design of Elcano is

to model a spatial Big data processing and

management system that surpasses the other systems

studied here. It must then integrate each 2D

geometry types defined in the ISO-19125 standard.

It must also enable the use of associated spatial

functions, in order to improve the analysis of spatial

phenomena. All spatial relations, operations and

methods defined by the ISO-19125-2 standard must

then be implemented by Elcano. For example, a call

to the SQL function ST_Intersects has to indicate if

two generic geometry objects intersect or not. The

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

122

system must also allow to load spatial data in a

simple and generic way, for it to be easy to feed and

to extend toward other formats. It also must ensure

data persistence in memory, in a compact manner so

that it enables a faster processing of the geospatial

component. It has to be easily extensible in order to

potentially support new geometry types or

extensions to the geometry types defined in the ISO-

19125 standard (for example the inclusion of

elevation in geometric features definition, i.e. 2.5D

data). Finally, it must offer good processing

performances in comparison with current processing

systems. A model seeking to meet these objectives is

presented and justified below.

3.1 Architecture

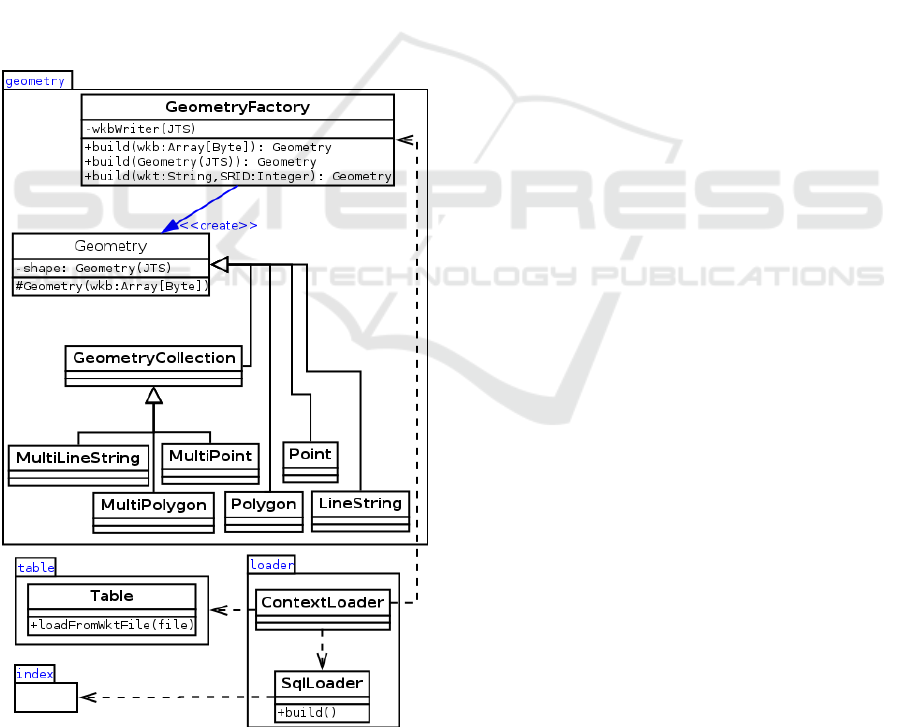

Figure 1 illustrates the model on which Elcano is

based. In this model, classes of the geometry

package integrate the elementary geometries and

spatial functions linked to Elcano.

Figure 1: Elcano’s model.

The loader package enables the use of SQL

spatial functions. Data persistence for processing

and data retrieval is managed by the “Table” class,

together with the support of the conversion methods

from the GeometryFactory class. Finally, the index

package deals with the indexation of spatial data for

its faster processing. Details on the way these

different capabilities are implemented are given in

the next sections.

3.1.1 2D Geometry Types Management

The geometry package of Elcano contains a concrete

class for each geometry type described in the ISO

19125 standard. These classes use the JTS spatial

library, which is specifically conceived to comply

with many ISO standard (including ISO 19125) and

the OGC recommendations (Davis and Aquino,

2003). This choice avoids the problems faced by

Magellan, which are due to the integration of an

inadequate spatial library like stated above. The

system could have used JTS classes directly, as

Spatial Spark and GeoSpark do, but for optimization

purposes, it seemed interesting not to be constrained

by the implementation of a chosen spatial library. To

this end, the Elcano geometry package uses a JTS-

independent class hierarchy by applying the “proxy”

design pattern (Gamma et al, 1994). This choice of

conception allows also to accelerate, whenever

possible, the JTS methods by overwriting them.

3.1.2 Spatial SQL Functions Management

In order to make the spatial functions and operators

defined in ISO 19125 available as SQL functions in

Elcano, different User Defined Functions (UDF) has

been defined. All these functions are in fact

shortcuts to the different methods supported by the

different geometry types (i.e. classes included in the

geometry package) and specified in the ISO 191125

standard. The build() method of the SqlLoader class

in the loader package is in charge of declaring all

these functions at the initialization stage of the

application.

3.1.3 Spatial Data Persistence

Elcano provides a unified procedure for the loading

of all 2D geometry types and their persistence. The

Table class of Elcano enables the definition of

geometric features in WKT. WKT is a concise

textual format defined in the ISO 19125 standard.

Elcano thus allows to load tabular data (for example

from a CSV file where the geometry component of

each row is defined in WKT) in the form of an SQL

temporary table. The management of more specific

formats like JSON (Bray, 2014), GeoJSON or

Elcano: A Geospatial Big Data Processing System based on SparkSQL

123

possible spatial extensions to Big data specific file

formats like Parquet (Vorha, 2016) could also be

easily added to the system by simply inheriting the

Table class.

3.1.4 Data Types Extensibility

The GeometryFactory class implements the “abstract

factory” design pattern (Vlissides et al, 1995) and

allows the extensibility of Elcano. Other geometry

types than those defined in the ISO-19215 standard

could thus be added in the future, such as Triangles

and TINs in order to manage DTMs (Digital Terrain

Models).

3.1.5 Spatial Indexation

The index package of Elcano contains all classes in

charge of the spatial indexation of data stored in

Elcano. It drastically speeds up all spatial processes.

This component is inspired from the one

implemented in Spatial Spark but with some hooks

for better performance. Its use is illustrated in the

benchmark section. Its detailed description is though

out of the scope of the present paper. It will be

described and detailed later in another publication.

4 BENCHMARK

The present section compares the performances of

Elcano with another spatial data management and

processing systems using Spark, aka. Spatial Spark.

They are also compared with a well-known and

widely used classical spatial database management

system (DBMS): PostGIS (Obe and Hsu, 2015).

Spatial Spark has been chosen among the studied

systems that manage spatial indexation because it is

the only one that could be extended to support SQL

queries (by performing an important reimplementa-

tion though). So, it is the only one of the tested

prototype that really compares to Elcano. As for

PostGIS, it is to our point of view, a reference

implementation of the ISO 19125 standard with

which we can compare. In addition, it proposes

efficient and reliable spatial indexation methods.

For the needs of this benchmark, Elcano and

Spatial Spark have been installed on a cluster of

servers using a master server with 8 Go of RAM and

nine slave servers with 4 Go of RAM. Each of these

computers uses the CentOS 6.5 operating systems

and height Intel Xeon 2.33 GHz processors. PostGIS

has been optimized with the pgTune library

(https://github.com/le0pard/pgtune) and tested in

comparable conditions.

In each of the 3 tests performed, we count the

number of resulting elements from a spatial join

between two tables. We group the elements of these

tables by pair, according to a given spatial relation,

namely the intersection. This spatial relation has

been chosen because it implies complex and

sometimes time consuming processing. The use of a

fast and reliable spatial indexation system is also of

importance in such a process. The contents of the

tables used in the test is fixed. The management of

changing data is out of the scope of the tests.

Test 1 compares the execution time of the three

systems with a raise in data volume. It consists in

counting the intersections between an envelope

around Quebec province and seven sets of points

randomly dispatched in an envelope around Canada.

These seven sets contain respectively 1000, 10 000,

100 000, 1 million, 100 million and one billion

points.

Table 3 presents a synthesis of the first test

results for the three studied systems. In order to

facilitate their comparison, the duration cumulates

the indexation time and the first query time. It

appears that performances of Elcano performances

are better than those of PostGIS and Spatial Spark

beyond one million points. PostGIS is the best

choice for lower volumes but encounter a significant

slowdown after a certain threshold: it requires many

hours to process 100 million points against five

minutes for Elcano. The difference between Spatial

Spark and Elcano is more tenuous but increases in

favor of Elcano as data volume increases.

The drop in PostGIS performances when data

volume increases is probably explained by its weak

horizontal scalability: this system is not designed for

Big data management. In return, performances of

Elcano when compared to Spatial Spark can be

explained by its usage of Spark SQL. Indeed, the

latter uses specific query optimizations and Spark’s

caching system (Armbrust et al, 2015). But for low

data volumes (under one million points), the

classical PostGIS solution is better, probably

because of its simpler distributed treatments

architecture. In a similar way, the best performances

of Spatial Spark between one and ten million points

can probably be explained by the additional

treatments imposed by the use of Spark SQL by

Elcano.

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

124

Table 3: Test 1 – Processing time with a raise of the data

volume.

Volume

(points)

PostGIS

(ms)

Spatial Spark

(ms)

Elcano

(ms)

1000 234 6 543 9 516

10 000 326 6 622 9 714

100 000 3 783 8 301 9 030

1 000 000 29 898 8 301 10 747

10 000 000 269 257 20 487 17 099

100 000 000 5 752 821 55 017 37 378

1 000 000

000

than 10

hours

399 100 273 074

Test 2 compares the horizontal scalability of

Elcano and Spatial Spark for a number of servers

from one to nine. It compares the count of the

intersections between the envelope of the Quebec

province and one billion points randomly dispatched

in a bounding box of Canada. PostGIS performance

is not measured for this test because the previous test

clearly underlies its poor performances for large data

volumes and there is no way to distribute the

processing between many servers as PostgreSQL has

not been designed for horizontal scalability.

The table 4 presents a synthesis of the results of

this second test. Spatial Spark and Elcano both

appear to have a good horizontal scalability.

Furthermore, the execution time of the two systems

presents a similar drop from one to nine servers:

87,4% for Spatial Spark and 87,2% for Elcano. But

Elcano remains approximately 1.5 faster than Spatial

Spark regardless of the number of servers.

Table 4: Test 2 – Horizontal scalability when the number

of server increases.

Servers Spatial Spark (ms) Elcano (ms)

1 3 349 414 2 196 344

2 1 718 672 1 123 153

3 1 143 790 762 536

4 875 284 588 401

5 696 195 473 635

6 586 211 391 297

7 511 111 340 784

8 456 446 314 796

9 423 647 280 761

Elcano’s superior brute speed in this second test

can probably be explained by its using of Spark

SQL. Otherwise the rates of scalability of the two

systems are very close, maybe because both rely on

the JTS spatial library for the implementation of the

spatial analysis algorithms.

Test 3 compares more finely the performances of

PostGIS, Spatial Spark and Elcano. It counts the

intersections between one million points in an

envelope of Canada and the points in a copy of this

set. Therefore, a total of 100 billion intersection tests

(spatial join) are processed. The execution time is

spread between indexation time, first query time

(cold start) and second query time (hot start). Hot

start queries are more representative of the response

times in a running environment in production.

Indeed, while indexing is only necessary once for

the two given tables, an SQL query must be started

for each spatial join operation applied to them.

Table 5 offers a summary of the results for this

third test. PostGIS presents a spatial indexation time

a bit shorter than Spatial Spark, but the execution

time of its first SQL query is then much longer.

Elcano presents the best performances in all cases:

its indexation time is five time lower than with

PostGIS and the execution of its first query is two

times faster than with Spatial Spark. Elcano is also

the only solution to execute a second SQL query on

the same data significantly faster than the first: the

second execution is 26 times faster.

The last point can probably be explained by

Spark SQL’s caching system.

Table 5: Test 3 – Execution time is spread between

indexation time, first query time and second query time.

Solution

Indexation

time (ms)

First

query (ms)

Second

query (ms)

PostGIS 29 756 100 742 100 742

Spatial

Spark

36 824 36 824 36 824

Elcano 13 578 15 754 1 393

So, to sum up, above a given data volume,

Elcano surpasses PostGIS and Spatial Spark in terms

of execution speed. It presents a scalability similar to

the one of Spatial Spark, but a better execution time

when the number of servers increases.

Elcano: A Geospatial Big Data Processing System based on SparkSQL

125

5 CONCLUSION AND

PERSPECTIVES

In conclusion, while Big data with a spatial

component are in the midst of many scientific,

economical and societal issues and while Hadoop

has become a mature de facto standard for Big data

processing, the number of processing and

management systems for this type of data using the

Hadoop environment and available in the market is

limited. All available solutions are only prototypes

with limited capabilities. Moreover, only five

solutions are managing spatial data from Spark,

which is perhaps the most promising Hadoop

module for this type of processing, and none of these

systems can entirely handle the geometry types and

SQL spatial functions specified in the ISO 19125

standard.

To tackle this issue, the present paper proposes a

new spatial Big data processing and management

system relying on Spark: Elcano. It is based on the

SQL library of Spark and uses the JTS spatial library

for its compliance with the ISO’s standards. Thanks

to this approach, all SQL functions and operators

defined by the ISO 19125 standard are fully

supported.

The proposed model on which Elcano relies is

not a simple implementation of JTS. It comes with

the possibility to use SQL spatial queries with a data

model that can evolve. Furthermore, it integrates the

geometric types on a context of Big data and comes

with a scalable spatial indexation system which will

be detailed in an upcoming article.

In addition, Elcano offers better performances

than Spatial Spark and a similar scalability. The

detailed study of all the possibilities in term of

spatial indexation management remains however to

be done. A way to address it could be to adapt the no

Hadoop solution defined by (Cortés et al, 2015) to

the Spark environment, but there is also many

classical spatial data indexation modes that could be

explored and adapted in order to fulfill the big data

processing requirements.

In a larger perspective, it could be interesting in a

near future to enable the management of the

elevation together with dedicated data types such as

Triangles and TINs in the current model. Raster data

types, maybe via the use of RasterWKT, are also

considered for inclusion. That would allow to apply

the model to many new challenging situations such

as the processing of large collection of images

coupled with vector data analytics capabilities or the

building and analysis of high resolution digital

elevation models (DEM) or DTM without being

compelled to split them into tiles in order to be able

to process them at a whole.

The current version of Elcano manages only

batches of data, but adding the possibility of

processing and displaying continuously received

data (in streaming) could be very interesting

(Engélinus and Badard, 2016). Such an extension

could indeed enable the design of real time

geospatial analytical tools that will help in users

(analysts, decision makers, …) in making more

informed decisions on more up-to-date data and in a

shorter period of time. Furthermore, it could provide

some advanced features that deals with the temporal

dimension of the data, as for example by excluding

all data outside of a defined temporal window

(Golab, 2006). Such extensions could allow the

modelling of such data as a spatiotemporal event or

flow and maybe to dynamically detect “hot spots”

(Maciejewsky et al, 2010) in the stream.

But, if Spark can technically handle streaming,

taking it into account would induce several

conceptual and technical problems. It would be

necessary to define a mode of spatial indexation able

to manage fluctuating data. Furthermore, what

would be the visual variables to use for this type of

data in order to represent their dynamic structure?

Those defined by Bertin in 1967 (Bertin, 1967) and

widely used since are inappropriate because of their

strict limitation to a static spatiotemporal context.

More recent works have tried to add visual variables

to Bertin’s models in order to represent motion

(MacEachren, 2001; Fabrikant and Goldsberry,

2005), but their application in a context of Big data

remains unaddressed. Furthermore, once these

conceptual issues are solved, the definition of a

system that is effectively able to represent and

manage streamed data remains to be done. This

could not be a simple add-on to the classic

geographic information systems (GIS): they are

designed to be efficient for classical data only and

are not able to deal with the huge amount of data and

velocity that Big data implies. How then is it

possible to manage and to represent fluctuating Big

data in an efficient way, without losing the

horizontal scalability offered by Hadoop? This rich

problematic seems to require the definition of a new

type of GIS. This will be the bottom line of our

future research works.

ACKNOWLEDGEMENTS

We acknowledge the support of the Natural Sciences

and Engineering Council of Canada (NSERC),

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

126

funding reference number 327533. We also thank

Université Laval and especially the Center for

Research in Geomatics (CRG) and the Faculty of

Forestry, Geography and Geomatics for their support

and their funding. Thanks to Cecilia Inverardi and

Pierrot Seban for their thorough proof reading and to

Judith Jung for her advices in the writing of this

paper.

REFERENCES

A. Aji et al, 2013. “Hadoop GIS: a high performance

spatial data warehousing system over mapre- duce”.

In: Proceedings of the VLDB Endowment 6.11, p.

1009–1020.

M. Armbrust et al, 2015. “Spark SQL: Relational data

processing in spark”. In: Proceedings of the 2015

ACM SIGMOD International Conference on

Management of Data, p. 1383–1394.

T. Badard, 2014. “Mettre le Big Data sur la carte : défis et

avenues relatifs à l’exploitation de la localisation”. In:

Colloque ITIS - Big Data et Open Data au coeur de la

ville intelligente. Québec : CRG.

A. Eldawy, M. F. Mokbel, 2013. "A Demonstration of

SpatialHadoop: An Efficient MapReduce Framework

for Spatial Data." Proceedings of the VLDB

Endowment.

J. Bertin, 1967. “Semiologie Graphique: Les Diagrammes,

Les Reseaux, Les Cartes”.

T. Bray, 2014. The javascript object notation (json) data

interchange format, RFC 7158.

R. Cortés et al, 2015. “A Scalable Architecture for Spatio-

Temporal Range Queries over Big Location Data”. In:

Network Computing and Applications, IEEE 14th

International Symposium, p. 159–166.

M. Davis, J. Aquino, 2003. Jts topology suite technical

specifications.

J. Dean, S. Ghemawat, 2008. “MapReduce: simplified

data processing on large clusters”. In:

Communications of the ACM 51.1, p. 107–113.

J. Engélinus, T. Badard, 2016. “Towards a Real-Time

Thematic Mapping System for Strea-ming Big Data”.

In: GIScience, Montreal.

E. Gamma et al, 1994. Design Patterns: Elements of

Reusable Object-Oriented Software.

A. Eldawy, M. F. Mokbel, 2014. “Pigeon: A spatial

mapreduce language”. In: Data Engineering, 2014 30th

International Conference on IEEE, p. 1242–1245.

A. Eldawy et M. F. Mokbel, 2015. “The Era of Big Spatial

Data: A Survey”. In: Information and Media

Technologies 10.2, p. 305–316.

M. R. Evans et al, 2014. “Spatial big data”. In: Big Data:

Techniques and Technologies in Geoinformatics, p.

149.

S. I. Fabrikant, K. Goldsberry, 2005. “Thematic relevance

and perceptual salience of dynamic geovisualization

displays”. In: Proceedings, 22th ICA/ACI

International Cartographic Conference, Coruna.

S. Fermigier. 2011. Big data et open source: une

convergence inevitable? URL: http: //projet-

plume.org.

C. Franklin, P. Hane, 1992. “An Introduction to

Geographic Information Systems: Linking Maps to

Databases [and] Maps for the Rest of Us: Affordable

and Fun.” In: Database 15.2, p. 12–15.

L. Golab, 2006. “Sliding window query processing over

data streams”. Doctorate thesis. University of

Waterloo.

L. Gu, H. Li, 2013. “Memory or time: Performance

evaluation for iterative operation on hadoop and

spark”. In: High Performance Computing and

Communications & IEEE 10th International

Conference, Embedded and Ubiquitous Computing.

2013, p. 721–727.

J. N. Hugues et al, 2015. “GeoMesa: a distributed

architecture for spatio-temporal fusion”. In: SPIE

Defense + Security. International Society for Optics et

Photonics. 94730F.

ISO 19125-1, 2004. Geographic information -- Simple

feature access -- Part 1: Common architecture. ISO/TC

211, 42 pages. URL: https://www.iso.org/standard/

40114.html.

ISO 19125-2, 2004. Geographic information -- Simple

feature access -- Part 2: SQL option. ISO/TC 211, 61

pages. URL: https://www.iso.org/standard/40115.html.

A. M. MacEachren, 2001. “An evolving cognitive-

semiotic approach to geographic visualization and

knowledge construction”. In: Information Design

Journal 10.1, p. 26–36.

R. Maciejewsky et al, 2010. “A visual analytics approach

to understanding spatiotemporal hots- pots”. In: IEEE

Transactions on Visualization and Computer Graphics

16.2 p. 205– 220.

J. Manyika et al, 2011. “Big data: The next frontier for

innovation, competition, and productivity”. In: The

McKinsey Global Institute.

B. Mericksay, S. Roche, 2010. “Cartographie numérique en

ligne nouvelle génération: impacts de la néogéographie

et de l’information géographique volontaire sur la

gestion urbaine participative”. In: Nouvelles

cartographie, nouvelles villes, HyperUrbain.

R. O. Obe et L. S. Hsu, 2015. PostGIS in action. Manning

Publications Co..

Commonwealth Computer Research, 2017. Apache Spark

Analysis. URL: http://www.geomesa.org/documenta

tion/tutorials/spark.html.

S. Ram, 2015. Magellan: Geospatial Analytics on Spark.

URL: http://hortonworks.com/blog/magellan-geospati

al-analytics-in-spark/.

R. Sriharasha, 2016. Magellan’s Github - issue 30. URL:

https://github.com/harsha2010/magellan/issues.

J. Vlissides et al, 1995. “Design patterns: Elements of

reusable object-oriented software”. In: Reading:

Addison-Wesley 49.120, p. 11.

D. Vorha, 2016. “Apache Parquet”. In: Practical Hadoop

Ecosystem. Springer, p. 325–335.

Elcano: A Geospatial Big Data Processing System based on SparkSQL

127

T. White, 2012. Hadoop: The definitive guide. O’Reilly

Media, Inc.

D. Xie et al, 2016. Simba: Efficient In-Memory Spatial

Analytics. URL: https://www.cs.utah.edu/~lifeifei/

papers/simba.pdf.

S. You, et al, 2015. “Large-scale spatial join query

processing in cloud”. In: Data Engineering Workshops

(ICDEW), 31st IEEE International Conference, p. 34–

41.

J. Yu, 2017. GeoSpark’s Github- issue 33. URL:

https://github.com/DataSystemsLab/GeoSpark/ issues.

J. Yu et al, 2015. “Geospark: A cluster computing

framework for processing large-scale spatial data”. In:

Proceedings of the 23rd SIGSPATIAL International

Conference on Advances in Geographic Information

Systems, p. 70.

M. Zaharia et al, 2010. “Spark: cluster computing with

working sets”. In: Proceedings of the 2nd USENIX

conference on Hot topics in cloud computing. T. 10, p.

10.

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

128
