Graph Convolutional Matrix Completion for Bipartite Edge Prediction

Yuexin Wu, Hanxiao Liu and Yiming Yang

Carnegie Mellon University, 5000 Forbes Ave, 15213, Pittsburgh, PA, U.S.A.

Keywords:

Matrix Completion, Graph Convolution, Deep Learning.

Abstract:

Leveraging intrinsic graph structures in data to improve bipartite edge prediction has become an increasingly

important topic in the recent machine learning area. Existing methods, however, are facing open challenges in

how to enrich model expressiveness and reduce computational complexity for scalability. This paper addresses

both challenges with a novel approach that uses a multi-layer/hop neural network to model a hidden space, and

the ﬁrst-order Chebyshev approximation to reduce training time complexity. Our experiments on benchmark

datasets for collaborative ﬁltering, citation network analysis, course prerequisite prediction and drug-target

interaction prediction show the advantageous performance of the proposed approach over several state-of-the-

art methods.

1 INTRODUCTION

Many machine learning applications can be formula-

ted as the problem of predicting the missing edges in a

bipartite graph (Kunegis et al., 2010). For example, in

collaborative ﬁltering users and items in a training set

form a bipartite graph with partially observed (rated)

edges, and the task is to predict the unobserved ones

in the graph. Another example is in the biomedical

domain, where we want to ﬁnd out unknown pathogen

candidates for a new drug given the known effective

pathogens in the drug history (Yamanishi et al., 2008;

Yamanishi et al., 2010). We call those the bipartite

edge prediction (BEP) problems.

A large body of work has been devoted to sol-

ving the BEP challenge. Typical approaches treat it

as a matrix completion problem (Candes and Recht,

2012; Salakhutdinov and Mnih, 2007; Lee and Seung,

2001). By representing observed edges using an ad-

jacency matrix, the unobserved entries in the matrix

can be discovered by imposing a low-rank constraint

on the underlying model of the data. In other words,

by learning a low-dimensional vector representation

for each vertex, the missing entries (edges) in the ad-

jacency matrix can be approximated using the linear

combination of the observed edges. A primary draw-

back, or limitation, of such methods is that the pre-

diction is solely based on the observed edges, not

leveraging additional information about the vertices.

For example, users’ demographical information could

be useful for inference about the similarity among

users in collaborative ﬁltering, and such similarity

would be informative for propagating our beliefs from

observed edges to unobserved edges. However, stan-

dard matrix completion methods do not leverage such

side information.

Recent efforts for addressing the above limitation

of BEP methods include the Graph Regularzied Ma-

trix Factorization (GRMF) method (Cai et al., 2011;

Gu et al., 2010) which adds a graph Laplacian regu-

larizer in its objective function for utilizing the ver-

tex similarities on both sides of a bipartite graph.

Transductive Learning over Product Graphs (TOP)

(Liu and Yang, 2015; Liu and Yang, 2016) is anot-

her remarkable approach, which projects the vertex-

similarity graphs on both sides of the bipartite graph

onto a uniﬁed product graph for semi-supervised be-

lief propagation. Namely, by representing bipartite

edges as the vertices in the product graph and by esta-

blishing the similarity among edges based on the side

information, TOP propagates its beliefs from obser-

ved edges to unobserved edges over the product graph

under smooth assumptions. Both GRMF and TOP im-

prove the performance of standard matrix completion

methods, according to the published evaluations; ho-

wever, both have their own limitations or weaknes-

ses. For instance, the Laplacian regularizer in GRMF

is equivalent to one-hop belief propagation from each

vertex to its neighbor vertices, which ignores the ef-

fects of multi-hop belief propagation as a natural phe-

nomenon. As for TOP, although it models multi-hop

propagation explicitly in various ways (using Kronec-

ker product and spectral transformation for example),

the hidden vector space of the graph product is re-

Wu, Y., Liu, H. and Yang, Y.

Graph Convolutional Matrix Completion for Bipartite Edge Prediction.

DOI: 10.5220/0006900000510060

In Proceedings of the 10th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2018) - Volume 1: KDIR, pages 51-60

ISBN: 978-989-758-330-8

stricted within the linear combination of the eigen-

vectors of the input similarity graphs, which could be

too restrictive for some applications. Moreover, TOP

requires the eigendecomposition of each input graph

and the multiplication of the eigenvectors as a neces-

sary step, which could be a computation bottleneck

for scalability (see Section 3.2).

In order to address the aforementioned limitati-

ons of existing BEP methods, we propose a novel ap-

proach which employs a neural network architecture

to model graph convolutions in a dimension-reduced

hidden space. Speciﬁcally, by allowing the hidden

representations of vertices to be located in the non-

linear space that combines the original bases of the

input similarity graphs, our method captures multi-

hop effects with a more ﬂexible/expressive model,

and at the same time enjoys its simplicity and com-

putational efﬁciency by avoiding the eigendecompo-

sition step in TOP. We also demonstrate a simple

low-rank prior as the input of convolution for robust

prediction. In our experiments on BEP benchmark

datasets in the application domains of collaborative

ﬁltering, citation network analysis, course prerequi-

site prediction and drug-target interaction prediction,

the proposed approach showed advantageous perfor-

mance over GRMF, TOP and other representative ba-

seline methods in most cases.

2 RELATED BACKGROUND

Let us introduce a generic formulation for graph-

convolution based matrix completions, based on that

of (Liu and Yang, 2015). We use bold upper cases for

matrices, and bold lower cases for vectors.

For graphs G and H , denote by B the bipartite

graph over the node sets of G and H with V

} and E

= V

×V

, and by m = |V

| and

n = |V

| the sizes of V

and V

, respectively. As-

sume Y is the set for edge values and edges E

∈

m×n

can be divided into the labeled part E

and the

unlabeled one E

. Then, the BEP problem is deﬁned

as:

Problem 1. given G, H and E

, ﬁnd f : E

→ Y

such that f predicts E

as accurately as possible.

An illustration can be found in Figure 1.

Let us write G

G and H

H for the adjacency matrices

of G and H , respectively, and Y

Y ∈ R

m×n

as the com-

plete adjacency matrix of E

. Also we use indicator

matrix I

I ∈ {0,1}

m×n

for the observed edges in E

and F

F ∈ R

m×n

for the predicted bipartite edges by

the system. Then we can formulate our objective in

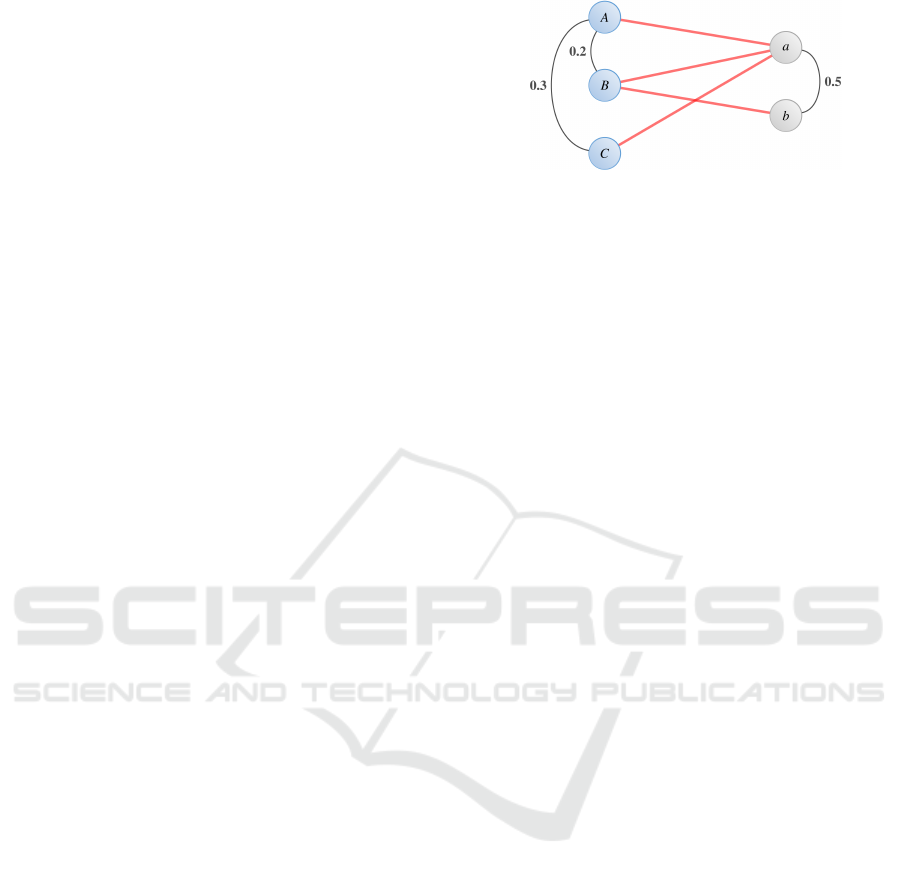

Figure 1: Illustration of the BEP problem. Given the intrin-

sic structures of G (left) and H (right) about the similarity

information and partially observed edges (labeled in red),

we want to predict whether the missing edges are valid.

matrix completion as the following:

min

F,Y

Y ) (1)

such that F

F = U

(2)

U,V

V ∈Ω

G,H

(3)

The objective denotes the empirical loss between pre-

diction F

F and ground truth Y

Y based on observed data

I. The ﬁrst constraint assumes that F

F should have a

low-rank representation with U

U ∈ R

m×d

, V

V ∈ R

n×d

and d < min{m,n}. This dimension constraint which

pushes the hidden space to focus only on the prin-

cipal components allows the possibility of projecting

two vertices into similar embeddings even if they have

minor disagreed linkages. The second constraint re-

quires the embeddings of vertices U

U,V

V to lie within

the subspace which is induced by the manifold struc-

tures of G

G and H

H (i.e. Ω

G,H

). Here we slightly

abuse the notation of G

G to refer to the structure of

G. This constraint basically inﬂuences the ﬁnal pre-

diction through injecting similarity information into

the hidden representations, such that vertices have to

be close in the latent space if the vertices themselves

are similar based on the information from G

G,H

It is important to notice that how to further spe-

cify Equation 3 would make fundamental differences

among methods and their performance in BEP tasks.

In TOP (Liu and Yang, 2016), for example, U

U,V

V ∈

Ω

G,H

lies in the linear span of the (top-ranking) ei-

genvectors of G

G and H

H. In our approach in this paper,

U,V

V ∈ Ω

G,H

lies in an enriched space which is both

more expressive in terms of modeling and more efﬁ-

cient with respect to the training-time complexity (see

more discussions in Section 4).

3 RELATED MATRIX

COMPLETION METHODS

We outline several competing methods in matrix com-

pletion, focusing on their constraints in Equation 3.

KDIR 2018 - 10th International Conference on Knowledge Discovery and Information Retrieval

3.1 Hyper-ball Constraint

One common type of constraints is the ball-shape

constraint. In Probabilistic Matrix Factorization (Sa-

lakhutdinov and Mnih, 2007) (PMF), for instance, the

authors specify the priors of U

U and V

V to be Gaussian:

≤ c

,kV

V k

≤ c

(4)

where k·k

is the Frobenius norm and c

are ma-

nually set hyperparameters. This form suggests that

the columns of U

U and V

V reside within hyper-balls of

radii

√

and

√

respectively. Though effectively li-

miting the size of the factorized representations, such

constraints do not utilize any prior information from

the intrinsic structures of G

G and H

H, which makes it

unable to produce valid embeddings for vertices that

have cold-start problems (vertices having few or no

linkages).

One ﬁx for this limitation is to employ a different

graph-related ball-shape constraint. Graph Regulari-

zed Matrix Factorization (Cai et al., 2011; Gu et al.,

2010) (GRMF), therefore, deﬁnes the constraint as

follows:





≤ c

,Tr





≤ c

(5)

where Tr(·) denotes the trace, L

is the unnormali-

zed graph Laplacian deﬁned as L

= D

−G

G, where

)

∑

i j

and L

has similar meanings. Since





∑

, it is meaningful to con-

sider the effect of each individual term in the summa-

tion. Actually, we can show that:

∑

j j

−U

)

j j

(6)

This indicates that vertices j and j

should have close

embeddings with respect to the i-th dimension. And

this graph Laplacian plays as a smooth measure along

such dimension.

Meanwhile, we can also relate this constraint to

Equation 4. It is easy to prove that L

and L

are

positive semi-deﬁnite, which means we can write the

constraint similarly as:

≤ c

V k

≤ c

(7)

This suggests that the constraint is still of a hyper-

ball shape after a linear transformation of columns in

U and V

V .

One drawback of this constraint is that the pen-

alty is based on the one-hop similarity alone (i.e. j’s

coordinates are inﬂuenced only by its direct neighbors

as indicated by G

j j

). The information may not be

enough to make effective regularization if the number

of a vertex’s neighbors is limited. e.g. in collaborative

ﬁltering, a person is hard to get enough useful recom-

mendation if he/she has a short item-review history

and few similar friends.

3.2 Subspace Constraints

Other constraints can also be used to limit the sub-

space, instead of that on the hyper-balls. Transductive

Learning over Product Graphs (Liu and Yang, 2016)

(TOP), for example, imposes eigen-space related con-

straints:

∈ img(eigen(G

G)), v

∈ img(eigen(H

H)) (8)

where u

is any column of U

U and v

is any column

of V

V . Here img (eigen(G

G)) denotes the image or

equivalently the subspace spanned by the columns

of eigen(G

G). These constraints are imposed as a

result of the eigen-transformation in TOP. Different

from the one-hop penalty in Equation 7, TOP enables

multi-hop information propagation through spectral

transforming which generally amounts to exponen-

tial transformation of the eigen-space eigen(G

G) and

eigen(H

H). Eigen-vectors u

and v

typically have

small coefﬁcients within the coordinate system, simi-

lar to that with the hyper-ball constraint.

One drawback of TOP is the running time. That

is, it requires computation for eigen-decompositions

of G

G and H

H which are very costly when the graphs

are large. Evaluating u

in Equation 8 is also expen-

sive, i.e. given a set of coordinates in the space of

eigen(G

G), the evaluation for u

will take O(m

) since

the eigen-matrix is always dense even if G

G is sparse.

Another limitation of TOP is that it only takes a linear

transformation of the eigensystems, which may not be

sufﬁciently expressive. Our proposed approach (next

section) addresses both of the issues in TOP.

4 OUR APPROACH

In this section, we propose a new model which is

more ﬂexible and expressive for multi-hop nonlinear

modeling of graph convolution. We start with a rather

simple linear constraint on the sub-spaces (Section

4.1), and then show how to generalize it to a richer

nonlinear multi-hop framework via graph convolution

(Section 4.2) and nonlinear transformation (Section

4.4), with the ﬁrst order Chebyshev approximation for

efﬁcient computation (Section 4.3). In addition, we

show how to construct the initial input signals for the

convolution in Section 4.5, and the over-all algorithm

in Section 4.6.

Graph Convolutional Matrix Completion for Bipartite Edge Prediction

4.1 Simple Subspace Constraints

Our method resides in the category of subspace con-

straints. Instead of requiring the embedding U and

V to lie within the eigen-spaces of G

G or H

H, we only

require it to be in the span of the column space. For-

mally, we deﬁne the constraint to be: for any column

of U

U and column v

of V

∈ img(G

G),v

∈ img(H

H) (9)

Alternatively, we can use a normalized version:

∈ img(D

−1/2

),v

∈ img(D

−1/2

)

(10)

We could observe that our method is computatio-

nally less costly than TOP. That is, given the coordi-

nates (e.g. x

x) for img(G

G), the multiplication of G

G and

x (i.e. u

= G

x) only costs O(nnz(G

G)) where nnz is

the number of non-zero entries. Besides, when G

G is

nearly fully-rank, the column space would have close

similarity as the eigen-space, which means our met-

hod could enjoy similar spectral transformation power

at less cost.

4.2 Generalization via Graph

Convolution

For more expressive embeddings, we can extend the

constraint in Equation 10 through graph convolution.

First, note that Equation 10 could be viewed as

a transformation over a given signal x

x ∈ R

(scaler

features on each node of of graph G):

= D

−1/2

x (11)

= U

x (12)

where U

and Λ

are the corresponding eigen-vector

matrix and eigen-value matrix for normalized G

G. The

part speciﬁes the scaling factor, which is ﬁxed for

a given G

G. It is thus beneﬁcial to replace this factor

with a parameter to be learnt for more varied expres-

siveness:

= g

∗x

x = U

diag(g

x (13)

where diag(g

) denotes the diagonal matrix parame-

terized by vector g

∈ R

(called ﬁlter in the later

literature).

This is called a one-hop generalized graph convo-

lution over G

G (Hammond et al., 2011).

The beneﬁts for this replacement are two-fold.

First, by using a parameter diag(g

), we could go

beyond for a richer representation and even stack the

expressions for multi-hop convolutions (Section 4.4).

Second, the introduction of new parameter diag(g

)

separates the coordinate x

x and the learning parame-

ters, which enables our model to use x

x to represent

auxiliary information (Section 4.5).

However, before we continue with the beneﬁts

of generalized graph convolution, we ﬁrst do an ap-

proximation in order to drop the cost in decompo-

sing graph G

G, which keeps the time complexity to be

O(nnz(G

G) + m).

4.3 First Order Chebyshev

Approximation

The original deﬁnition of graph convolution (Equa-

tion 13) requires to solve the eigen-decomposition for

G in the ﬁrst place (e.g. in TOP), which can be expen-

sive for large graphs. Even if G

G is sparse, its eigen-

matrix will not be sparse. Hence the evaluation of

Equation 13 will take time O(m

) for the dense matrix

multiplication. This will lead to a computation bottle-

neck, as for optimizing g

through gradient descent,

we need to perform this evaluation in every iteration.

In order to ﬁx this problem, (Kipf and Welling,

2016) proposed a ﬁrst order Chebyshev approxima-

tion for this calculation. Denoting by

G = G

G + I

I the

adjacency matrix of the graph with self-loops added,

and by

the diagonal matrix with (

)

∑

i j

the approximated convolution operation can be writ-

ten as:

= g

∗x

x ≈g

−1/2

x (14)

where g

is the ﬁrst component of g

. We see

that this approximation no longer requires the eigen-

decomposition and the computation time is reduced

from O(m

) to O(nnz(

G)) ≤ O(nnz(G

G) + m).

Moreover, we can naturally write a compact ma-

trix representation for U

U convoluting over multiple ﬁl-

ters as:

U =

−1/2

XΘ

Θ (15)

where X

X ∈ R

m×c

is a input signal matrix and Θ

Θ ∈

c×d

is the concatenated ﬁlter parameter matrix.

Note this expression enjoys the advantage of

fast computation without doing decomposition on G

while approximately reserving the ﬂexible representa-

tion power as in Equation 13. We can further enhance

such representation power through the following non-

linear multi-hop mechanisms.

4.4 Nonlinear Multi-hop Convolution

The formulation of Equation 15, can be regarded as

one linear layer of feed-forward neural networks if

KDIR 2018 - 10th International Conference on Knowledge Discovery and Information Retrieval

we view X

X as the input and U

U as the feature map con-

voluted through graph G

G. Therefore, natural exten-

sions will be to add in nonlinear activation functions

and stack multiple layers (LeCun et al., 2015), which

will enhance the expressiveness of the model. And

each layer can be regarded as an intermediate repre-

sentation. For simplicity, denote

G =

−1/2

Then, an example of the 2-layer model for the embed-

ding of U

U can take the form of:

U = tanh



Gtanh



XΘ



(16)

where Θ

and Θ

are the ﬁlter parameters on each

layer. Note the ﬁnal layer has to be tanh instead of

ReLU or sigmoid, as we need to allow the coordina-

tes of the hidden embeddings to have negative values

in order for the ﬁnal product of U

to predict ne-

gative entries (or zero entries). We denote the whole

structure of Equation 16 as Net

, that is,

U = Net

X). (17)

The network Net

for V

V can be deﬁned similarly. We

use such 2-layer structure in our experiments (Table

3).

In order to distinguish between the signals on G

and H

H, we use notations X

and X

in the following

literature. Similarly, Θ

and Θ

are used to repre-

sent parameters (concatenation of Θ

and Θ

) in the

corresponding multi-layer networks.

4.5 Construction of Input Matrices

As shown in equation 16, graph convolution starts

with input signals. This means that for all the no-

des in G and H , we need to have input matrices X

and X

whose rows are the feature vectors of the cor-

responding nodes. We construct these matrices using

the observed bipartite matrix Y

= Y

Y ⊗I

I, where ⊗ is

the Hadamard product

One natural way is to use the rows (or columns) of

for X

(or X

), which essentially views the edge

proﬁles as node features. Such an approach leverages

all given information in Y

. However, the computa-

tion would be too expensive when G

G and H

H are very

large (e.g. with thousands of node). Moreover, this

would lead to over-ﬁtting of our model as the obser-

ved edges are typically highly sparse in the bipartite

graph, not sufﬁcient for robust estimation of models

with too many free parameters.

Our framework allow the ﬂexibility of using X

and

to represent other types of node features as well, such as

vectorized demographical information about users or meta

features about movies. However, in this paper we only focus

on the node features induced based on the observed bipartite

matrix.

Therefore, for robust induction of node features

and for efﬁcient computation, we take a simple stra-

tegy: use the top left/right singular vectors (those cor-

responding to the largest singular values) of Y

to con-

struct X

and X

, respectively. Since we only need

to compute the top few eigenvectors of a sparse matrix

instead of its full spectrum, the time/space complexi-

ties are linear in the non-zero elements in matrix Y

The dimension-reduced representation of node featu-

res should also effectively avoid overﬁtting.

4.6 Overall Algorithm

We summarize the overall training procedure and ar-

chitecture in Algorithm 1 and Figure 2. Note that we

do not use any regularization tricks (dropout/L1 regu-

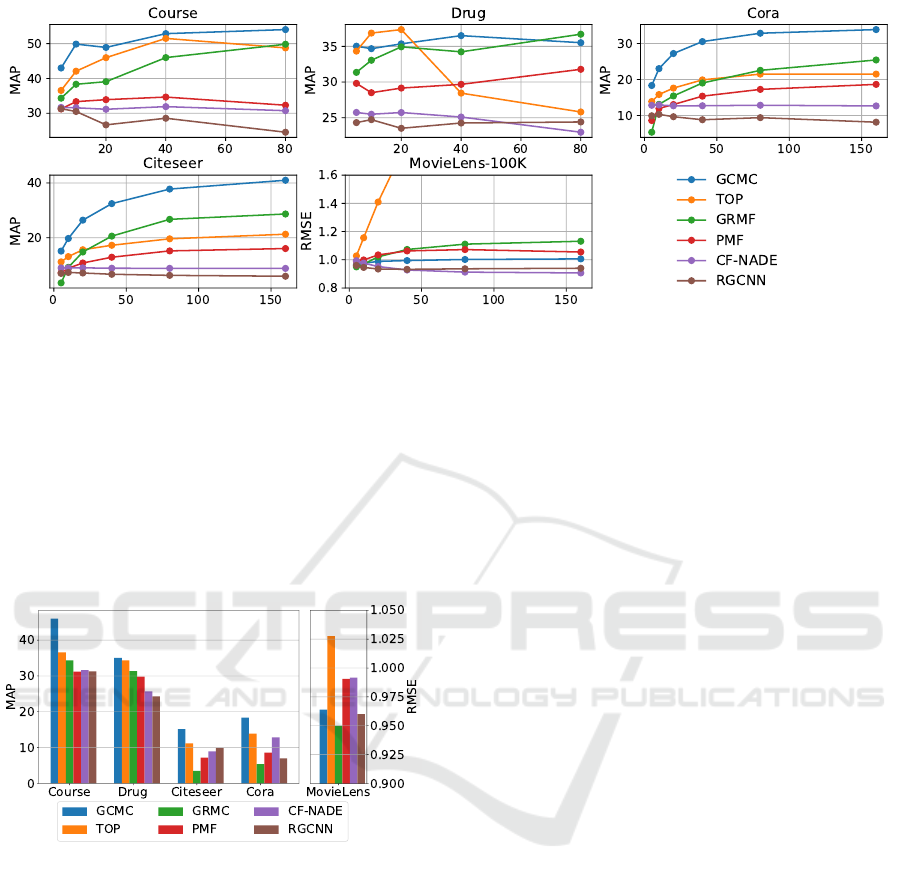

larization). The result shows that graph convolution

and constructed low-rank input matrices have such re-

gularization ability and performs robustly with regard

to the hidden dimension (Figure 3).

Algorithm 1 : Training procedure for Graph Convolution

Matrix Completion (GCMC) network.

Input: Bipartite Matrix Y

Y , Indicator Matrix I

I for training

set, Adjacency Matrices G

G and H

= Y

Y ⊗I

Perform low-rank SVD on Y

s.t. X

≈Y

Initialize parameters Θ

, Θ

for Net

, Net

deﬁned in

Eq. 16

Set learning rate α

while not converging do

U = Net

)

V = Net

)

F = U

= Θ

−α∇

F,Y

Y )

= Θ

−α∇

F,Y

Y )

end while

5 EXPERIMENTS

We used four benchmark datasets for evaluations in

bipartite edge detection, including the applications

to collaborative ﬁltering, citation network analysis,

course prerequisite prediction and drug-target inte-

raction prediction.

5.1 Datasets

• Collaborative Filtering: MovieLens-100K

(Harper and Konstan, 2016) is a collaborative

ﬁltering benchmark where the intrinsic graphs are

https://grouplens.org/datasets/movielens/100k/. We do

not use any larger MovieLens dataset since no user demo-

graphic features are provided.

Graph Convolutional Matrix Completion for Bipartite Edge Prediction

Input Graph ℬ

Feature Extraction

generate signals on each node of 𝒢 and ℋ

Graph Convolution

transform signals

Predict by 𝑼𝑽

⊤

predict missing edges

Net

𝑮

Output New Graph

𝑿

𝑮

𝑿

𝑯

𝑼

𝑽

[𝟏, 𝟎. 𝟐, … ]

[𝟎, 𝟎. 𝟏, … ]

[𝟎. 𝟑, 𝟐, … ]

[𝟏, 𝟎. 𝟑, … ]

[𝟐, 𝟎. 𝟑, … ]

[𝟏, 𝟎. 𝟒, … ]

[𝟎. 𝟐, 𝟎, … ]

[𝟎. 𝟏, 𝟐, … ]

[𝟏, 𝟎. 𝟑, … ]

[𝟎. 𝟏, 𝟎, … ]

[𝟐, 𝟎. 𝟑, … ]

[𝟏, 𝟎. 𝟐, … ]

[𝟎. 𝟒, 𝟏, … ]

[𝟑, 𝟎. 𝟏, … ]

Net

𝑯

Figure 2: Architecture of the Graph Convolutional Matrix Completion (GCMC) network. The input bipartite graph B (equi-

valently observed bipartite matrix Y

) is used to extract features/signals X

and X

on G and H . Graph convolutions are

performed to transform the signals into hidden representations U

U and V

V on G and H respectively. The prediction is made by

doing product between U

U and V

V : F

F = U

. U

U = Net

) is deﬁned in Equation 16. Net

can be deﬁned similarly.

within users and movies. Speciﬁcally, we have

with 943 users and V

with 1682 movies.

The task is to predict user-movie ratings ranging

from 1 to 5. Each user is provided with a binary

vector indicating the gender, occupation and zip

code; for each movie, the corresponding genres

are provided.

• Citation Networks: in Cora (Sen et al., 2008)

and Citeseer (Lawrence et al., 1999): Each dataset

uses the publications as its V

and V

, which are

identical. The task is to predict the missing citati-

ons for a given publication. Each publication has

a sparse binary feature vector, indicating whether

or not a speciﬁc word is present within the pu-

blication. Cora contains 2708 publication records

and 5429 citations and Citeseer contains a slig-

htly larger publication set with 3312 documents

and sparser citation records with 4715 links.

• Course Prerequisite Prediction: with the

Course dataset (Yang et al., 2015). This dataset

is comprised of course prerequisite data from the

course sites of Massachusetts Institute of Techno-

logy (2322 courses, 1173 links), California In-

stitute of Technology (1048 courses, 761 links),

Princeton University (56 courses, 90 links) and

Carnegie Mellon University (83 courses and 150

links). The task is to predict missing prerequisite

dependencies among courses. Similar to citation

network, V

and V

are identical, and for each

course, a bag-of-words vector from the course

description is provided.

• Drug-target Interaction Prediction: We use

Drug dataset (Yamanishi et al., 2008). This da-

taset contains drug-target interaction data, which

can be divided into 4 categories based on the cor-

responding target protein types: Enzymes (664

target proteins, 445 drugs), Ion Channels (204 tar-

get proteins, 210 drugs), GPCRs (95 target pro-

teins, 223 drugs) and Nuclear Receptors (26 target

proteins and 54 drugs). In this dataset, the task is

to predict missing interaction pairs between tar-

get proteins and drugs. Speciﬁcally, we use V

to denote the target protein node set and V

for

the drug node set. The similarity measures bet-

ween target proteins/drugs are calculated by SIM-

COMP (Hattori et al., 2003) directly on their che-

mical structures.

Table 1 summarizes the detailed dataset statistics.

Table 1: Dataset Statistics. V

and V

are the vertex sets

and E

denotes the edge set of the bipartite graph.

Datasets |V

| |V

| |E

| Edge Value

MovieLens-100K 943 1,682 100,000 {1. . . 5}

Cora 2,708 2,708 5,429 {0,1}

Citeseer 3,312 3,312 4,715 {0,1}

Course-MIT 2,322 2,322 1,173 {0,1}

Course-CalTech 1,048 1,048 761 {0,1}

Course-CMU 83 83 150 {0,1}

Course-Princeton 56 56 90 {0,1}

Drug-Enzyme 664 445 2926 {0,1}

Drug-Ion Channel 204 210 1476 {0,1}

Drug-GPCR 95 223 635 {0,1}

Drug-Nuclear Receptor 26 54 90 {0,1}

5.2 Methods to Compare

We compare our method with other major matrix

completion methods from the categories of both

hyper-ball constraints and subspace constraints. Also,

two state-of-the-art neural network methods tailored

for collaborative ﬁltering are added as baselines.

• GCMC: graph convolutional matrix completion.

This is our method

Code available at https://github.com/CrickWu/GCMC

KDIR 2018 - 10th International Conference on Knowledge Discovery and Information Retrieval

• TOP (Liu and Yang, 2015; Liu and Yang, 2016):

transductive learning over product-graph. This

method adopts a subspace constraint in the span

of eigen-matrices of G

G and H

H. It utilizes spectral

transformation for multi-hop feature representati-

ons.

• GRMF (Cai et al., 2011): graph regularized ma-

trix factorization. This method employs a hyper-

ball constraint. The ball shape is induced by the

intrinsic structures of G and H , which projects si-

milar vertices into close proximity. This method

considers only one-hop relations.

• PMF (Salakhutdinov and Mnih, 2007): probabi-

listic matrix factorization. PMF uses a hyper-

ball constraint which is equivalent to imposing

uniform Gaussian priors to the ﬁnal embeddings.

PMF does not utilize the information within G

and H .

• CF-NADE (Zheng et al., 2016): a state-of-the-art

neural network based method. This framework

uses a feed-forward, multilayer autoregressive ar-

chitecture for collaborative ﬁltering with an ordi-

nal cost, which also uses nonlinear mechanism. It

embeds the vertices on G into a lower-dimension

representation. The embedding is then multiplied

with a weight matrix as the prediction scores for

new linkages. This method does not utilize the

information of G and H either.

• RGCNN (Monti et al., 2017): another state-of-

the-art neural network based method for collabo-

rative ﬁltering. This framework only uses side

information as initialization embeddings through

graph convolution, which are then ﬁnalized by a

recurrent network. Side information is not utili-

zed during the updating process of the recurrent

network.

We summarize the detailed properties of compa-

ring methods in Table 2.

Table 2: Method comparison. Side-info denotes the ap-

proach uses side information (intrinsic information from G

and H ). Multi-hop/nonlinear denotes the approach sup-

ports multi-hop/nonlinear mechanisms. No-eigen denotes

the approach does not need to perform expensive eigen-

decomposition on G

G and H

H. * using side-info partially

through graph convolution as initialization.

Methods Side-info Multi-hop Nonlinear No-eigen

GCMC 3 3 3 3

TOP 3 3 7 7

GRMF 3 7 7 3

PMF 7 7 7 3

CF-NADE 7 7 3 3

RGCNN 3

∗

3 3 3

5.3 Evaluation Metrics

In the all datasets except MovieLens-100K, the ed-

ges to be predicted have a binary value. Therefore,

by treating each vertex in G as a query, we used the

standard metric of Mean Average Precision (MAP) to

measure the returned ranked list by the algorithm. On

the other hand, for the collaborative ﬁltering task on

the MovieLens-100K dataset, MAP is no longer ap-

propriate for prediction with multiple values. Instead,

we used the Root Mean Square Error (RMSE) to me-

asure the performance, which has been widely used in

collaborative ﬁltering evaluations (Zheng et al., 2016;

Bennett et al., 2007; Sedhain et al., 2015). We also

reported NDCG@3 on all datasets in order to evalu-

ate the ranking properties of high-scored prediction

for all methods.

We run a 5-fold cross validation for each method

on each dataset. Each time 20% of the data is used for

testing, 20% is used for hyper-parameter tuning, and

the remaining is used for training. The results on the

test sets are then averaged.

5.4 Empirical Settings and Parameter

Tunning

Using the features of vertices in each graph, we con-

struct sparse kNN graphs for both G and H , and ﬁx

them for all methods to ensure they all utilize the same

information.

We use the regularized versions of TOP, GRMF

and PMFin our experiments. That is, instead of speci-

fying the size of the hyper-balls, we add the Lagran-

gian multiplier to the original loss function. The pa-

rameter for the ratio between the original loss (Equa-

tion 1) and the constraint (Equation 3) is tunned on

the validation set. Squared loss is adopted as the

objective function for these 3 methods. We report

the best performance from the set of {1e −3,1e −

2,1e −1, 1e0,1e1}. For CF-NADE, we use the im-

plementation from the authors

. The learning rate

and weight decay are set by cross-validation among

{0.001,0.0005, 0.0002} and {0.015,0.02} as sugge-

sted in the paper (Zheng et al., 2016). For RGCNN

we use default parameters for MovieLens-100K, and

tune the feature numbers on validation set in other da-

tasets.

For our proposed method (GCMC), we used the

major singular-vectors (singular vectors correspon-

ding to the largest singular values) from random SVD

as the input signals for X

and X

. We use squa-

red loss as the objective function and Adam (Kingma

https://github.com/Ian09/CF-NADE

https://github.com/fmonti/mgcnn

Graph Convolutional Matrix Completion for Bipartite Edge Prediction

Figure 3: Performance of methods vs. the model dimensions (matrix column sizes for U

U and V

V ). For MAP, higher scores

indicate better performances. For RMSE, lower scores indicate better performances.

and Ba, 2014) with default parameters (b

= 0.1,b

0.001 and ε = 10

−8

) for optimization. For binary edge

prediction tasks, (citation networks, course prerequi-

site prediction and drug-target interaction prediction),

we multiply the loss of positive edges by a factor of

10, which has a similar effect as negative sampling

strategy in most neural network algorithms and en-

courages more accurate prediction on the positive in-

stances.

Figure 4: Result summary on all datasets when the hidden

dimension is set to 5. For MAP, higher scores indicate bet-

ter performances. For RMSE, lower scores indicate better

performances. GCMC outperforms all the other methods in

all binary prediction tasks (left sub-ﬁgure).

5.5 Main Results

The main results of our experiments are summarized

in Table 3 and Figure 4. Clearly, our approach strictly

outperforms all the other methods in the binary pre-

diction tasks on Cora, Citeseer, Course and Drug both

on MAP and NDCG@3. And the advantage is pro-

nounced when the dataset is large enough (Cora and

Citeseer), which justiﬁes the expressiveness of our

framework in data-sufﬁcient settings. On MovieLens-

100K, we see that our algorithm achieves compara-

ble second best result in RMSE (as collaborate ﬁlte-

ring tailored RGCNN), which is the metric all algo-

rithms choose to optimize except CF-NADE. Since

the similarity information between users and movies

is highly limited, it is reasonable that simpler method

GRMF which concentrates on combining major simi-

larity features performs better. And not surprisingly,

methods that utilize the intrinsic structures of graphs

(GCMC and TOP) dominate the performance of the

methods that do not use such information (PMF and

CF-NADE) in most cases.

5.6 Effect of Latent Dimensions

Figure 3 shows how the performance (in MAP or

RMSE) of all methods change when the hidden di-

mensions (i.e., the ranks of the matrices) vary. It can

be seen that GCMC consistently outperforms the ot-

her methods on Cora, Citeseer and Course data, and

performs as the second best method on Drug. Recall

that Cora and Citeseer have highly sparse networks,

i.e., with many unknown links. The excellent perfor-

mance of GCMC on these datasets suggests that our

approach successfully addresses the data sparse issue

by effectively leveraging graph-structure based know-

ledge and regulating the latent representations in the

model.

We also ﬁnd that comparing with the other com-

plex multi-hop algorithm, TOP, our method is more

robust when the hidden dimension size changes. For

instance, in datasets Course and Drug, GCMC can al-

most get better performance when the hidden dimen-

sion increase, while TOP easily achieves the highest

score at a small dimension (40 for Course and 20 for

Drug) and drops quickly. Note this phenomenon is

justiﬁed since we introduce the low-rank prior in the

input signals, which is effective in preventing over-

ﬁtting (Section 4.5).

KDIR 2018 - 10th International Conference on Knowledge Discovery and Information Retrieval

Table 3: Result summary on benchmark datasets. The hidden dimension was set to 5 for all the methods. The bold faces

indicate the approach with the best score on each dataset. We include the detailed statistics of Drug and Course in the

appendix.

Datasets Metric GCMC TOP GRMF PMF CF-NADE RGCNN

MovieLens-100K

RMSE 0.9641 1.0276 0.9498 0.9907 0.9917 0.9600

NDCG@3 73.52 75.00 74.88 74.73 66.84 74.45

Cora

MAP 18.34 13.89 5.38 8.62 12.85 9.94

NDCG@3 16.80 12.17 4.27 7.67 10.99 9.45

Citeseer

MAP 15.14 11.20 3.53 7.22 8.97 7.00

NDCG@3 13.82 9.84 2.49 6.24 7.19 6.22

Course

MAP 46.02 36.56 34.32 31.23 31.62 31.30

NDCG@3 44.62 34.09 31.00 27.82 26.77 26.67

Drug

MAP 35.02 34.33 31.35 29.81 25.73 24.31

NDCG@3 30.96 30.03 26.77 24.78 20.97 19.27

6 CONCLUSION

In this paper we presented a new approach to the bi-

partite edge prediction problem, which uses a multi-

hop neural network structure to effectively enrich

the model expressiveness, and the ﬁrst-order Chebys-

hev approximation to substantially reduce the com-

plexity of training time. We also employ a low-

rank prior in the input signals so as to make ro-

bust prediction. Our approach consistently outper-

formed several state-of-the-art methods in our expe-

riments on the benchmark datasets for collaborative

ﬁltering, citation network analysis, course prerequi-

site prediction and drug-target interaction prediction

in most cases.

ACKNOWLEDGEMENTS

This work is supported in part by the National Science

Foundation (NSF) under grant IIS-1546329.

REFERENCES

Bennett, J., Lanning, S., et al. (2007). The netﬂix prize.

In Proceedings of KDD cup and workshop, volume

2007, page 35. New York, NY, USA.

Cai, D., He, X., Han, J., and Huang, T. S. (2011). Graph

regularized nonnegative matrix factorization for data

representation. IEEE Transactions on Pattern Analy-

sis and Machine Intelligence, 33(8):1548–1560.

Candes, E. and Recht, B. (2012). Exact matrix comple-

tion via convex optimization. Communications of the

ACM, 55(6):111–119.

Gu, Q., Zhou, J., and Ding, C. (2010). Collaborative ﬁl-

tering: Weighted nonnegative matrix factorization in-

corporating user and item graphs. In Proceedings of

the 2010 SIAM International Conference on Data Mi-

ning, pages 199–210. SIAM.

Hammond, D. K., Vandergheynst, P., and Gribonval, R.

(2011). Wavelets on graphs via spectral graph the-

ory. Applied and Computational Harmonic Analysis,

30(2):129–150.

Harper, F. M. and Konstan, J. A. (2016). The movielens

datasets: History and context. ACM Transactions on

Interactive Intelligent Systems (TiiS), 5(4):19.

Hattori, M., Okuno, Y., Goto, S., and Kanehisa, M. (2003).

Development of a chemical structure comparison met-

hod for integrated analysis of chemical and genomic

information in the metabolic pathways. Journal of the

American Chemical Society, 125(39):11853–11865.

Kingma, D. and Ba, J. (2014). Adam: A method for sto-

chastic optimization. arXiv preprint arXiv:1412.6980.

Kipf, T. N. and Welling, M. (2016). Semi-supervised clas-

siﬁcation with graph convolutional networks. arXiv

preprint arXiv:1609.02907.

Kunegis, J., De Luca, E. W., and Albayrak, S. (2010). The

link prediction problem in bipartite networks. In Inter-

national Conference on Information Processing and

Management of Uncertainty in Knowledge-based Sy-

stems, pages 380–389. Springer.

Lawrence, S., Giles, C. L., and Bollacker, K. D. (1999).

Autonomous citation matching. In Proceedings of the

third annual conference on Autonomous Agents, pages

392–393. ACM.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep lear-

ning. Nature, 521(7553):436–444.

Lee, D. D. and Seung, H. S. (2001). Algorithms for non-

negative matrix factorization. In Advances in neural

information processing systems, pages 556–562.

Liu, H. and Yang, Y. (2015). Bipartite edge prediction via

transductive learning over product graphs. In Procee-

dings of the 32nd International Conference on Ma-

chine Learning (ICML-15), pages 1880–1888.

Liu, H. and Yang, Y. (2016). Cross-graph learning of multi-

relational associations. In Proceedings of the 33nd In-

ternational Conference on Machine Learning, ICML

Graph Convolutional Matrix Completion for Bipartite Edge Prediction

2016, New York City, NY, USA, June 19-24, 2016, pa-

ges 2235–2243.

Monti, F., Bronstein, M., and Bresson, X. (2017). Geo-

metric matrix completion with recurrent multi-graph

neural networks. In Advances in Neural Information

Processing Systems, pages 3700–3710.

Salakhutdinov, R. and Mnih, A. (2007). Probabilistic matrix

factorization. In Nips, volume 1, pages 2–1.

Sedhain, S., Menon, A. K., Sanner, S., and Xie, L. (2015).

Autorec: Autoencoders meet collaborative ﬁltering.

In Proceedings of the 24th International Conference

on World Wide Web, pages 111–112. ACM.

Sen, P., Namata, G., Bilgic, M., Getoor, L., Galligher, B.,

and Eliassi-Rad, T. (2008). Collective classiﬁcation in

network data. AI magazine, 29(3):93.

Yamanishi, Y., Araki, M., Gutteridge, A., Honda, W., and

Kanehisa, M. (2008). Prediction of drug–target inte-

raction networks from the integration of chemical and

genomic spaces. Bioinformatics, 24(13):i232–i240.

Yamanishi, Y., Kotera, M., Kanehisa, M., and Goto, S.

(2010). Drug-target interaction prediction from che-

mical, genomic and pharmacological data in an inte-

grated framework. Bioinformatics, 26(12):i246–i254.

Yang, Y., Liu, H., Carbonell, J., and Ma, W. (2015). Con-

cept graph learning from educational data. In Procee-

dings of the Eighth ACM International Conference on

Web Search and Data Mining, pages 159–168. ACM.

Zheng, Y., Tang, B., Ding, W., and Zhou, H. (2016). A neu-

ral autoregressive approach to collaborative ﬁltering.

In Proceedings of the 33nd International Conference

on Machine Learning, pages 764–773.

APPENDIX

Statistics for the sub-tasks in Course and Drug data-

sets. Our method achieves the best performance on

all sub-tasks except Drug-GPCR.

Table 4: Results in MAP and NDCG@3 on the subsets of

the Course data: the hidden dimension was set to be 5 for

all the methods. The bold faces indicate the approach with

the best score on each dataset.

Datasets Metric GCMC TOP GRMF PMF CF-NADE RGCNN

Course-MIT

MAP 35.39 33.64 31.12 26.10 30.76 24.16

NDCG@3 34.51 32.25 30.47 25.37 27.50 22.86

Course-CalTech

MAP 45.17 31.70 33.48 29.12 32.79 23.66

NDCG@3 43.62 30.45 32.47 27.79 29.58 33

Course-CMU

MAP 53.24 49.68 34.11 41.25 49.84 40.46

NDCG@3 51.26 46.65 26.92 37.43 48.29 33.68

Course-Princeton

MAP 50.29 31.21 38.55 28.46 13.06 36.9

NDCG@3 49.08 27.01 34.16 20.68 1.71 27.11

Average

MAP 46.02 36.56 34.32 31.23 31.62 31.30

NDCG@3 44.62 34.09 31.00 27.82 26.77 26.67

Table 5: Results in MAP and NDCG@3 on the subsets of

the Drug data: the hidden dimension was set to be 5 for all

the methods. The bold faces indicate the approach with the

best score on each dataset.

Datasets Metric GCMC TOP GRMF PMF CF-NADE RGCNN

Drug-Enzyme

MAP 12.71 8.81 6.46 7.60 6.29 9.94

NDCG@3 6.72 5.79 2.23 4.61 2.98 4.35

Drug-Ion Channel

MAP 24.90 21.34 14.86 13.53 13.36 12.26

NDCG@3 19.96 13.87 7.21 7.42 6.17 6.32

Drug-GPCR

MAP 38.16 45.54 44.96 45.59 31.60 23.98

NDCG@3 33.95 44.78 44.58 44.72 28.97 21.18

Drug-Nuclear Receptor

MAP 64.30 61.64 59.13 52.53 51.67 51.04

NDCG@3 63.21 55.68 53.07 42.36 45.74 45.24

Average

MAP 35.02 34.33 31.35 29.81 25.73 24.31

NDCG@3 30.96 30.03 26.77 24.78 20.97 19.27

KDIR 2018 - 10th International Conference on Knowledge Discovery and Information Retrieval
