Blockchain for IoT: The Challenges and a Way Forward

Imran Makhdoom

, Mehran Abolhasan

and Wei Ni

University of Technology Sydney, Australia

Data61-CSIRO, Australia

Keywords:

Blockchain for IoT, Blockchain Consensus Protocols, Transaction Validation Rules, Blockchain Challenges,

IoT Security.

Abstract:

Bitcoin has revolutionized the decentralized payment system by excluding the need for a trusted third party,

reducing the transaction (TX) fee and time involved in TX conﬁrmation as compared to a conventional bank-

ing system. The underlying technology of Bitcoin is Blockchain, which was initially designed for ﬁnancial

TXs only. However, due to its decentralized architecture, fault tolerance and cryptographic security beneﬁts

such as user anonymity, data integrity and authentication, researchers and security analysts around the world

are focusing on the Blockchain to resolve security and privacy issues of IoT. But at the same time, default

limitations of Blockchain, such as latency in transaction conﬁrmation, scalability concerning Blockchain size

and network expansion, lack of IoT-centric transaction validation rules, the absence of IoT-focused consen-

sus protocols and insecure device integration are required to be addressed before it can be used securely and

efﬁciently in an IoT environment. Therefore, in this paper we analyze some of the existing consensus pro-

tocols used in various Blockchain-based applications, with a focus on investigating signiﬁcant limitations in

TX (Transaction) validation and consensus mechanism that make them inappropriate to be implemented in

Blockchain-based IoT systems. We also propose a way forward to address these issues.

1 INTRODUCTION

Millions of embedded devices are being used today in

safety and security critical applications such as ICS

(Industrial Control Systems), VANET (Vehicular Ad-

hoc Network), disaster management and critical in-

frastructure (Cam-Winget et al., 2016). A massive

number of these devices have been interconnected to

each other and further connected to the internet to

form an Internet of Things (IoT). It is estimated that

by 2020, the number of IoT connected devices will

exceed to 30 billion (Lund et al., 2014) and M2M

trafﬁc ﬂows are also expected to constitute up to 45%

of the whole internet trafﬁc (Evans, 2011). However,

due to interconnection with the internet, IoT devices

are vulnerable to various security and privacy threats

(Cam-Winget et al., 2016; Poulsen, 2003; Greenberg,

2015; Kumar et al., 2016; Sadeghi et al., 2015; Bor-

gohain et al., 2015).

It is also expected that by the end of 2020, more

than 25% of corporate attacks would be because

of compromised IoT devices (AT&T, 2016). Sim-

ilarly, the successful launch of sophisticated cyber-

attacks like Mirai (Ducklin, 2016), Ransomware

(Brewer, 2016), Xafekopy (Kaspersky-Lab, 2017),

Night Dragon (Miller and Rowe, 2012), Havex

(FSecure-Labs, 2014), and Stuxnet (Langner, 2013)

in recent past have rendered existing IoT protocols in-

effective.

Moreover, despite centralization and controlled

access to data, even the cloud-supported IoT is vul-

nerable to security and privacy issues (Puthal et al.,

2016). Security ﬂaws in IoT are thus leading to at-

tacks on device integrity, data secrecy and privacy, at-

tacks on the availability of network and attacks on the

availability and integrity of services, e.g., DoS and

DDoS Attacks (Borgohain et al., 2015). The current

security issues in IoT can be attributed to centralized

network architecture, lack of application layer secu-

rity, inadequate standardization on IoT products con-

cerning security, i.e., hardware and software, and the

wide gap between manufacturers and security ana-

lysts. According to IBM Institute for Business value

(Brody and Pureswaran, 2014), it is critical for the fu-

ture of IoT that its operational model is revived from

costly, trusted and over-arched centralized architec-

ture to a self-regulating and self-managed decentral-

ized model. Such a transformation will provide scal-

ability, reduced cost of infrastructure, autonomy, se-

cure operations in a trustless environment, user-driven

privacy, access control, data integrity and redundancy

against network attacks.

428

Makhdoom, I., Abolhasan, M. and Ni, W.

Blockchain for IoT: The Challenges and a Way Forward.

DOI: 10.5220/0006905604280439

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 428-439

ISBN: 978-989-758-319-3

Although Blockchain-based Bitcoin is a ﬁnancial

transaction protocol, but due to its decentralized ar-

chitecture and cryptographic security beneﬁts such as

user anonymity, fault tolerance, data integrity and au-

thentication, researchers and security analysts around

the world are focusing on Blockchain to resolve secu-

rity and privacy issues of IoT. No doubt there has been

a surge in the development of new Blockchain plat-

forms including Ethereum, Hyperledger, Multichain,

NEO, and IOTA. However, current Blockchain plat-

forms have some distinct weaknesses that forbid an

impromptu implementation of the Blockchain in an

IoT environment.

The main contribution of this paper is to high-

light peculiar weaknesses in current Blockchain tech-

nologies, which are critical for the design and de-

velopment of a secure Blockchain-based IoT System.

These challenges include lack of IoT-centric transac-

tion validation rules, the absence of IoT-oriented con-

sensus protocol and secure integration of IoT devices

with the Blockchain. To reach the desired conclu-

sions, we have carried out a comprehensive analy-

sis of some of the prominent Blockchain consensus

protocols and have implemented a test scenario of a

Blockchain-supported IoT-based environment moni-

toring system. A prudent solution to these issues

would beneﬁt the entire IoT ecosystem.

The rest of the paper is organized as follows. In

Section-2, we describe the impact of progression in

the Blockchain technology and its impact on IoT.

Challenges to the Blockchain's adoption in IoT are ex-

plained in Section-3. A way forward to solve some of

the challenges is proposed in Section-4, and the paper

is concluded with a hint of future work in Section-5.

2 PROGRESSION OF

BLOCKCHAIN TECHNOLOGY

AND ITS IMPACT ON IoT

Bitcoin-Blockchain has revolutionized the distributed

ledger technology with its signiﬁcant cryptographic

security and immutability. As a result, a new

Blockchain platform is being introduced every other

day, claiming to be better than the others. IoT being a

Blockchain use case is not astonishing at all. IoT can

leverage the key beneﬁts of Blockchain to resolve its

ever-growing security and privacy issues. Blockchain

with its decentralized architecture and an unforgeable

attribute, provides an ideal solution for IoT systems

that are most of the time deployed in a hostile envi-

ronment without any physical security. IoT systems

can use Blockchain technology as a secure, unforge-

able and auditable log of data. It can also be used

to set policies, control and monitor access rights to

user/sensor data and execute various actions based on

certain conditions using smart contracts.

Due to a large number of Blockchain platforms

currently available, we have carried out a compari-

son of some of the most prominent ones including

Bitcoin, Ethereum, Hyperledger-Fabric and IOTA.

They are compared for the suitability of their func-

tionality and security and performance features con-

cerning IoT environment. As shown in Table-1, the

main security and performance considerations to as-

certain the most suitable Blockchain platform for an

IoT system are as follows; the Blockchain platform

should provide a hybrid network concerning validat-

ing nodes' participation. As some IoT networks such

as smart cities may have a large number of stakehold-

ers willing to contribute to the security of the Public

Blockchain network and on the other side there may

be a private network such as a smart home, where the

owner would be validating the transactions via a cou-

ple of home miners/validators. Currently, Ethereum

(Buterin et al., 2014) and Hyperledger (The-Linux-

Foundation, 2017) provide such a hybrid technol-

ogy. Whereas, Bitcoin (Nakamoto, 2008) and IOTA

(Popov, 2016) support public participation. It is also

imperative to mention here that as you deviate from

the public Blockchain the more you go away from

the decentralization. Hence, the factor of trust will

come into play, the more private a Blockchain net-

work becomes. IoT systems are deployed for multiple

applications varying from smart watches to ICS, and

again its the Ethereum and Hyperledger that support

multiple Blockchain applications beyond ﬁntech (ﬁ-

nancial technology). An important factor for an IoT

system is the speedy transaction conﬁrmation which

leads to the requirement of instant consensus agree-

ment without Blockchain forks. It is evident from

Table-1 that BFT-based consensus protocols address

this issue with greater reliability. Another vital con-

sideration is that IoT systems especially the sensors

operating in a smart city environment would be gen-

erating millions of transactions per day. Therefore,

an ideal IoT-oriented Blockchain platform should not

have a transaction fee or gas requirement, such as we

have in Ethereum. However, Hyperledger-Fabric has

kept this factor optional.

Modern-day IoT systems not only require M-2-

M payment methods only but also need to share

data, control access rights, set sensor policies and

a lot more. In this regard, IOTA has been de-

signed purely for M-2-M micro or even nano pay-

ments without any TX fee. However, it does not

support execution of smart contracts, which facili-

Blockchain for IoT: The Challenges and a Way Forward

429

Table 1: Comparison of Blockchain Platforms.

Ser

Features Bitcoin Ethereum

Hyperledger-

Fabric

IOTA

Fully developed

√ √ √

In Transition

Miner participation Public

Public, Private,

Hybrid

Private Public

Trustless operation

√ √

Trusted validator

nodes

√

Multiple applications Financial only

√ √

Currently ﬁnancial

only

Consensus PoW

PoW, PoS

(“Casper”)

PBFT

Currently a coordina-

tor approves the TXs

through a Tip Selec-

tion Algorithm

Consensus ﬁnality X X

√

Blockchain forks

√ √

Not exactly forks, but

a tangle can be faded

out later

Fee less X X Optional

√

Run smart contracts X

√ √

X (Currently)

10.

TX integrity and au-

thentication

√ √ √ √

11.

Data Conﬁdentiality X X

√

12.

ID management X X

√

13.

Key management X X

√

(through CA) X

14.

User authentication

Digital Signa-

tures

Digital Signa-

tures

Based on enrol-

ment certiﬁcates

Digital Signatures

15.

Device authentication X X X X

16.

Vulnerability to attacks

51%, linking

attacks

51%

> 1/3 faulty

nodes

34% attack

17.

TX throughput 7 TPS 8-9 TPS

Can achieve

thousands TPS

(depending upon

number of en-

dorsers, orderers

and committers)

Currently, the Coor-

dinator being the bot-

tleneck, the through-

put varies between 7-

12 TPS

18.

Latency in single con-

ﬁrmation for a TX

10 mins (60

mins for a

conﬁrmed TX)

15-20 secs

Less than Bitcoin

and Ethereum

Being in transition

phase the TX conﬁr-

mation time varies

from minutes to

hours

19.

Is it Scalable? X X X

Yes (Scalability im-

proves with the in-

crease in the size of

the network)

20.

(Nakamoto,

2008; Bitcoin-

Developer,

2017; Bitcoin-

Org, 2017)

(James, 2018a;

Wood, 2014;

Buterin et al.,

2014; Ether-

scan, 2018)

(The-Linux-

Foundation,

2017; Hyper-

ledger, 2016;

Cachin, 2016;

Hyperledger-

Docs, 2018;

Hyperledger-

Fabric, 2018;

Hyperledger-

Gas, 2016)

(IOTA, 2017; Popov,

2016)

tate the user-driven policy setting and access control

rights. The smart contract feature is supported by

Ethereum and Hyperledger-Fabric. IoT systems do

require TX integrity and authentication, which is en-

sured by most of the Blockchain platforms. Out of the

four, only Hyperledger provides data conﬁdentiality

SECRYPT 2018 - International Conference on Security and Cryptography

430

through in-band encryption and ensures the privacy

of user data by allowing the creation of private chan-

nels (Hyperledger-Fabric, 2018). It also supports ID

(Identity) management, anonymity, audit-ability, TX

integrity and authorization through public-key cer-

tiﬁcates (from a trusted CA (Certiﬁcate Authority)).

Both the factors, i.e., conﬁdentiality and ID manage-

ment, are important requirements from IoT perspec-

tive.

From performance and efﬁciency point of view

Hyperledger provides a high TX throughput without

any risk of Blockchain forks, thus, minimizing la-

tency in TX conﬁrmation. Hyperledger uses PBFT

(Practical Byzantine Fault Tolerance) for validation

of TXs utilizing minimal resources, i.e., low energy

and computation cost (Hyperledger, 2016). Unlike

Ethereum-Blockchain, it does not require any gas to

process the TXs. However, there are some limita-

tions in permissioned Blockchains. Being partially-

decentralized, the trust is placed in some known

miner/validator nodes. Hence, in case of a success-

ful malware attack such as Mirai (Ducklin, 2016)

which can infect and compromise a large number

of nodes for malicious purposes, the integrity of TX

and Block validation process would be questionable.

Moreover, the user enrolment, authentication, and au-

thorization based on public-key certiﬁcates is depen-

dent on a trusted CA, which brings some degree of

centralization. Also, most of the private/permissioned

Blockchains incorporate BFT-based consensus algo-

rithms. Such algorithms are prone to DoS attacks.

They can usually tolerate only f = (n − 1)/3 faulty

nodes. BFT-based algorithms such as PBFT are be-

lieved to have high communication complexity, and

they perform very poorly in adverse network con-

ditions. Moreover, BFT-based consensus protocols

have poor scalability, as the TX throughput decreases

badly with an increase in the number of validator

nodes, e.g., if the number of endorser nodes is in-

creased from 1 to 14 in Hyperledger-Fabric, the TX

throughput decreases from 6000 TPS to less than

1500 TPS (Mattias, 2017).

With the advancements in the Blockchain technol-

ogy and development of some prominent Blockchain

platforms (as shown in Table-1), there is a hope that

some issues concerning IoT security and performance

can be easily resolved. These issues include security

of data in storage, transparency in logging events and

transactions, ability to operate in a trustless environ-

ment, fault tolerance, data conﬁdentiality, user enrol-

ment, ID management, audit-ability, key management

and access control. However, there is still a number

of performance and security challenges in public and

permissioned Blockchains that need considerable re-

search. Therefore, currently it is not possible to just

copy and paste a particular type of Blockchain plat-

form for IoT.

3 CHALLENGES TO

BLOCKCHAIN’S ADOPTION IN

IoT ENVIRONMENT

To identify some real issues concerning Blockchain's

adoption in IoT, we implemented a test case scenario

of an IoT-based supply chain monitoring system of

a frozen food company. The customer orders frozen

food products and also decides a temperature thresh-

old that has to be maintained during shipment by the

seller. For this test scenario, we used (Raspberry Pi)

Rpi-3 with a DS18B20 temperature sensor. The sen-

sor monitors the temperature of the product and peri-

odically sends the sensor data to a private Ethereum

Blockchain through a smart contract. An alert is

generated for the customer, whenever the tempera-

ture threshold policy is violated during shipment. We

would describe every aspect in chronological order,

as labelled from 1 to 14 in Figure-1;

1. As discussed in Section-2, the Blockchain is a dis-

tributed ledger that provides state machine repli-

cation (SMR), ensures data integrity, avoids a sin-

gle point of failure and tolerates faults in a trust-

less environment.

2. In scenario-1, the Rpi-3 with a temperature sensor

can be a full node or a lite Blockchain client. A

full node can validate all TXs but does not mine.

Whereas, a lite client can only keep track of its

TXs. Hence, we can run a Geth (GO Ethereum)

full node in Rpi-3.

3. The temperature sensor senses the environment

and its value is extracted via JavaScript in a Web

UI (User Interface) or a mobile App (Applica-

tion).

4. The Web UI or the Mobile App needs a Web3.js

library to get and push data to the Blockchain.

5. The Web UI connects with the Blockchain Node

running on the Rpi-3 via Web3 provider which

can be an HTTP, WS (web socket) or an IPC

provider. The Web UI (User Interface) posts the

sensor reading to the Blockchain through smart

contract methods called via the Web3.js library.

Hence, a mobile or a Web App is the interface be-

tween IoT devices and the Blockchain.

6. In scenario-2 an IoT device can be a resource con-

strained Arduino device or other embedded sys-

Blockchain for IoT: The Challenges and a Way Forward

431

Figure 1: Challenges for a Blockchain-based IoT System.

tems capable of just sensing and transmitting the

temperature sensor readings to a gateway device.

7. The Arduino sensor node communicates with the

gateway device through slower and less secure

wireless communication media such as 802.15.4,

802.11a/b/g/n/p, LoRa, ZigBee, NB-IoT, and Sig-

Fox. Resultantly, IoT systems are prone to data

leakage and other privacy attacks (Jing et al.,

2014).

8. The gateway device is capable of deploying a

Geth full node.

9. It pushes sensor data to the Blockchain through a

Web or a Mobile App and Web3.js library.

10. Just like in scenario-1, the gateway also connects

to the Geth node through a Web3 provider.

11. However, there is a question of how to ensure the

secure input of sensor data to the Blockchain?

12. The intermediary between the sensor node and

the Blockchain is the UI, which cannot lever-

age the cryptographic security provided by the

Blockchain. Instead, additional device, web and

application security measures have to be taken.

13. The point discussed in Ser.12 is also applicable to

the gateway device in scenario-2.

14. Another major weakness observed is that

currently, none of the Blockchain platforms

implements IoT-focused TX validation rules and

IoT-oriented consensus protocol.

The primary challenge is non-availability of IoT cen-

tric consensus protocol. It also has some embedded

issues such as TX/block validation rules, consensus

ﬁnality, resistance to DoS attacks, low fault tolerance

and scalability concerning high TX volume, protec-

tion against Sybil Attack, and communication com-

plexity. Another related issue is the secure integration

of IoT devices with the Blockchain. These issues are

being discussed in detail in succeeding paras.

3.1 Lack of IoT-centric Consensus

Protocol

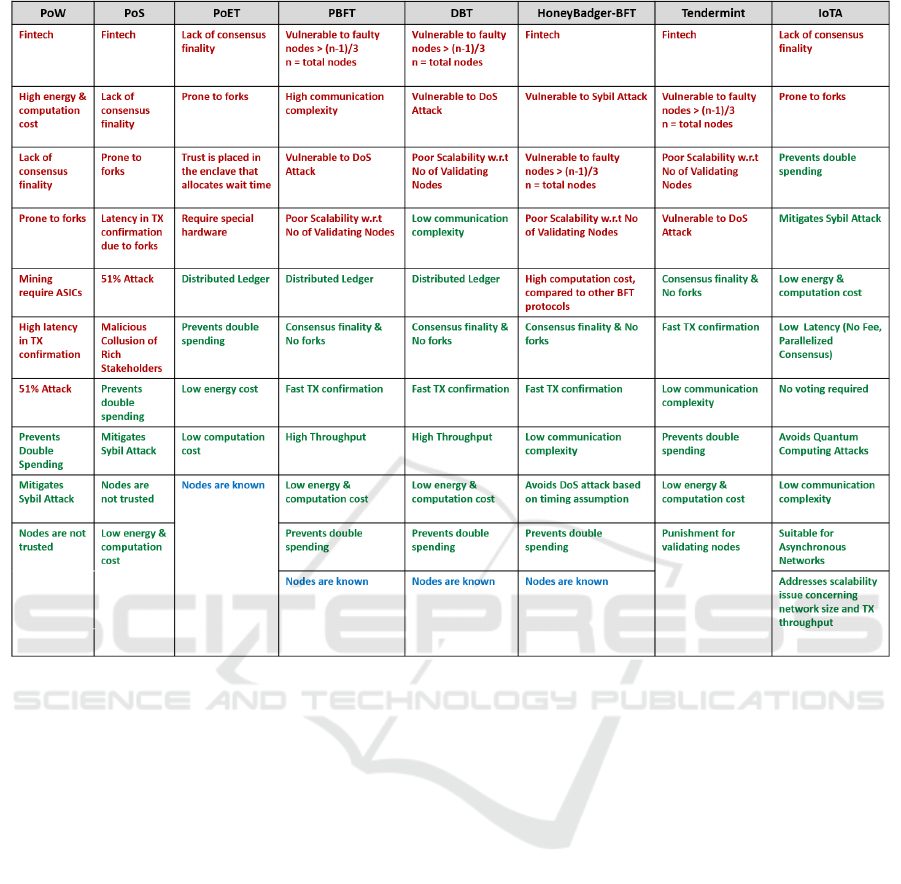

A detailed comparison of some noteworthy consen-

sus protocols is shown in Figure-2. The points shown

in red color are not suitable for IoT environment,

whereas, points shown in green color are beneﬁcial

for an IoT system. The current consensus protocols

such as PoW (Nakamoto, 2008), PoS (Szabo, 2004),

PoET (Kastelein, 2016), and IOTA (Popov, 2016) are

designed for public blockchains with a focus on ﬁnan-

cial value transfer. These consensus protocols share a

common issue that consensus process does not end

in a permanently committed block instead, blocks are

ﬁnalized over a period based upon next few blocks

extending the chain and then the longest chain is ac-

cepted as the valid chain. Hence, they are prone to

blockchain forks (EconoTimes, 2017). The lack of

consensus ﬁnality results into delayed TX conﬁrma-

tion which is not suitable for most of the real/near

real-time IoT systems requiring instant TX conﬁr-

SECRYPT 2018 - International Conference on Security and Cryptography

432

Figure 2: Comparison of Consensus Protocols.

mation. Moreover, PoET requires special hardware

and the enclave that allocates wait time has to be the

trusted entity. In addition, as IOTA is currently in

open-beta testing phase, it is assumed that some ques-

tions related to its security and performance efﬁciency

will be answered in due course of time. E.g., Firstly,

will it be an efﬁcient IoT micro-payment system only?

or Will it also support smart contracts like in the

Ethereum and Hyperledger-Fabric blockchains? Sec-

ondly, does it provide conﬁdentiality of data? and

lastly, what is its faulty node tolerance level ?

On the other hand PBFT (Castro and Liskov,

2002; Decker and Wattenhofer, 2013), DBFT (NEO,

2017), HoneyBadger-BFT (Miller et al., 2016) and

Tendermint (Tendermint, 2017) are BFT-based pro-

tocols. BFT is considered to be the desired protocol

for permissioned blockchains in which ID of nodes

is required to be known (Vukoli

c, 2015), but it also

has certain drawbacks; Except for HoneyBadger-BFT

rest of the BFT-based protocols are prone to DoS at-

tacks due to weak timing assumptions (Miller et al.,

2016). Whereas, the protocols based on timing as-

sumptions are not suitable for unreliable networks,

as liveness property of weakly synchronous protocols

can fail when the weak timing assumptions are vio-

lated due to malicious network adversary capable of

launching DoS attacks (Miller et al., 2016).

The weak synchrony also adversely affects the

throughput of such systems (Miller et al., 2016). An-

other major issue with BFT protocols is scalabil-

ity since they are not usually tested thoroughly be-

yond 20 nodes (Vukoli

c, 2015). It can be attributed

to the intensive network communication which of-

ten involves as many as O(n

) messages per block

(Castro and Liskov, 2002). The issue of scalability

is there even in the crash-tolerant replication proto-

cols such as Paxos (Lamport, 1998), Zab (Junqueira

et al., 2011) and Raft (Ongaro and Ousterhout, 2014),

which are used in many large-scale systems but prac-

tically never across more than a handful of repli-

cas. Additionally, BFT protocols are only capable

of masking non-deterministic faults occurring on at

the most f = (n − 1)/3 replicas (Castro and Liskov,

2002). Where f is the number of faulty nodes and n is

the number of total nodes. Hence, there is a little ben-

eﬁt in using the BFT library or any other replication

technique when there is a strong positive correlation

between the failure probabilities of the replicas.

Blockchain for IoT: The Challenges and a Way Forward

433

As far as TX latency is conﬁrmed, all full and

miner nodes in a blockchain network validate every

TX. The block size and the interval between blocks

impacts the computation power required to validate

all the TXs with minimum latency. Hence, consen-

sus protocols should have high throughput. In this

regard, BFT-based protocols can sustain tens of thou-

sands of TXs with practically network-speed laten-

cies (Bessani et al., 2014). Nakamoto Consensus, i.e.,

PoW is one of the better solutions in a network of

untrusted peers that may not be reliable with Byzan-

tine fault tolerance consensus problems. On the con-

trary, having selected servers or nodes make a deci-

sion is sufﬁcient if all the nodes can be trusted. But it

is a dangerous principle to rely on, even for in-house

“trusted” nodes as they can be compromised. Another

major difference between PoW and BFT-based proto-

cols is the notion of availability, which is a critical

requirement in realtime IoT systems, i.e., PoW being

an incentive-based protocol, does not guarantee that a

pending TX will be included in the next block, as it

is mostly at the discretion of the miners to select TXs

based on their fee. However, this is usually not the

case with BFT-based protocols.

PBFT is considered to be an expensive protocol

concerning message complexity (Luu et al., 2015).

Whereas, bandwidth efﬁciency and communication-

complexity are also critical requirements, because,

most of the devices in an IoT system use wireless

communication protocols and a typical smart city

IoT network may comprise hundred thousand sensors.

Therefore, any current or future blockchain-based so-

lution must be able to sustain a large number of IoT

devices and comply with the regulations of wireless

communications as per respective country's law. E.g.,

In Europe for LoRaWAN protocol that operates on the

868 MHz frequency band, the allowable duty cycle

is 1% for any user (Adelantado et al., 2016). More-

over, despite reduced communication complexity and

suitability for asynchronous networks, Honeybadger-

BFT is not considered appropriate for IoT systems be-

cause of its cryptocurrency centric approach and low

fault tolerance of f = n/4 faulty nodes only.

To summarize, certain aspects concerning the

blockchain consensus protocols are required to be im-

proved for its application in IoT. These aspects in-

clude IoT centric TX/block validation rules, resis-

tance to DoS attacks (exploiting timing assumptions),

increased fault tolerance (> 1/3 faulty nodes), and

low communication complexity.

3.2 TX Validation

The TX validation process in Bitcoin (Figure-3) val-

idates a TX by checking its format, signatures and

the fact that the input to the TX has not been previ-

ously spent (Buterin et al., 2014; Bitcoin-Developer,

2018). Whereas, Ethereum-Blockchain checks the

format, signatures, nonce, gas, and account balance of

the sender's account (Buterin et al., 2014). Ethereum

TX validation rules are shown in Figure-4. However,

there is a question to the applicability of the same TX

validation mechanism to the IoT systems that usually

comprise heterogeneous devices, thus sending sen-

sory values or data in distinct formats and different

range of values. Also, a targeted or even a generic

malware attack can compromise a lot of IoT devices.

Subsequently, these devices may be turned into bots

and used for further attacks. Therefore, TX validation

rules of cryptocurrency centred Bitcoin protocol and

general purpose Ethereum-Blockchain may not be ap-

propriate for IoT systems.

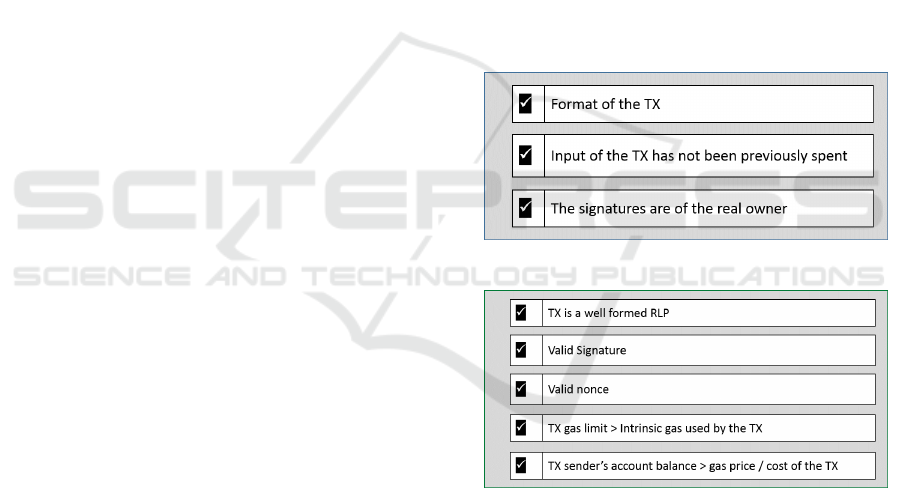

Figure 3: Bitcoin TX Validation Rules.

Figure 4: Ethereum TX Validation Rules.

3.3 The Requirement of Huge

Resources

According to (Bitcoin.Org, 2017), currently the mini-

mum requirements for a Bitcoin full-node include 177

GB hard disk space, 1 GB RAM, 1 GHz of processing

speed and enough network bandwidth to upload 5 GB

data per day. Although, the 177 GB size of Bitcoin-

Blockchain has reached to its present state over a pe-

riod of nine years, but this aspect has to be kept in

mind while designing a Blockchain-based IoT sys-

tem. IoT systems comprise resource constraint em-

SECRYPT 2018 - International Conference on Security and Cryptography

434

bedded devices. Therefore, it is a challenge to design

a Blockchain-based solution which does not put sub-

stantial memory and processing requirements on IoT

nodes.

3.4 IoT Device Integration

In the experimental scenario shown in Figure-1, the

IoT device pushes sensor data to the Blockchain

through a smart contract called in a Web UI or a

Mobile App or simply by running a JavaScript in

the shell. Currently, Bitcoin-Blockchain and IOTA

do not support execution of smart contracts. Hence,

the only reliable option is Ethereum Blockchain and

Hyperledger-Fabric. Although Ethereum Blockchain

is currently the most tested and a reliable platform for

multiple DApps (Distributed Applications), however,

it has a major limitation, i.e., the smart contracts exe-

cute in EVM (Ethereum Virtual Machine) and do not

communicate directly with the outside world. There-

fore, Web3.js library is used as an interface.

In such a situation, the Blockchain is only use-

ful as a secure distributed database once the sensor

data is stored in it. However, before that data in-

tegrity is dependent on the security of the device, Web

UI and Mobile App itself. Keeping in view the cur-

rent threat scenario, where, IoT devices can easily

be hacked, and malicious code can be executed re-

motely, the integrity of IoT devices unless validated

frequently, would always be questionable. Currently,

the only solution available is “Oraclize” (Oraclize,

2018). Which extracts data from various sources in-

cluding web pages, WolframAlpha, IPFS, and any se-

cure application running on Ledger Nano S. To prove

the legitimacy of data, it provides proof of authenti-

cation along with the requested data, i.e., the proof

that data has not been changed and is in its original

form as obtained from the source. However, it does

not cater for the IoT devices.

4 A WAY FORWARD

4.1 IoT-centric Consensus Protocol

Development of an ideal consensus algorithm for an

IoT environment demands that ﬁrstly, the require-

ments of a consensus algorithm for a Blockchain-

based IoT system (shown in Figure-5) be distin-

guished from other applications especially, the ﬁn-

tech. The foremost requirement for IoT systems is

IoT-centric TX validation rules. It is important as ev-

ery new TX is independent of the previous TX and an

incident or change in environmental conditions can

inﬂuence the change in the sensor readings. Hence,

IoT TX validation rules need to be carefully scripted

and must incorporate environmental context, e.g., in a

smart home, the ﬁreplace is only ignited if another

sensor, e.g., a motion sensor also detects the pres-

ence of a human in that room. The consensus pro-

tocol should be robust against Sybil Attack and must

have consensus ﬁnality to avoid forks. It is vital for

the minimum possible delay in TX conﬁrmation and

the ultimate high TX throughput.

A typical IoT system is prone to physical or cyber

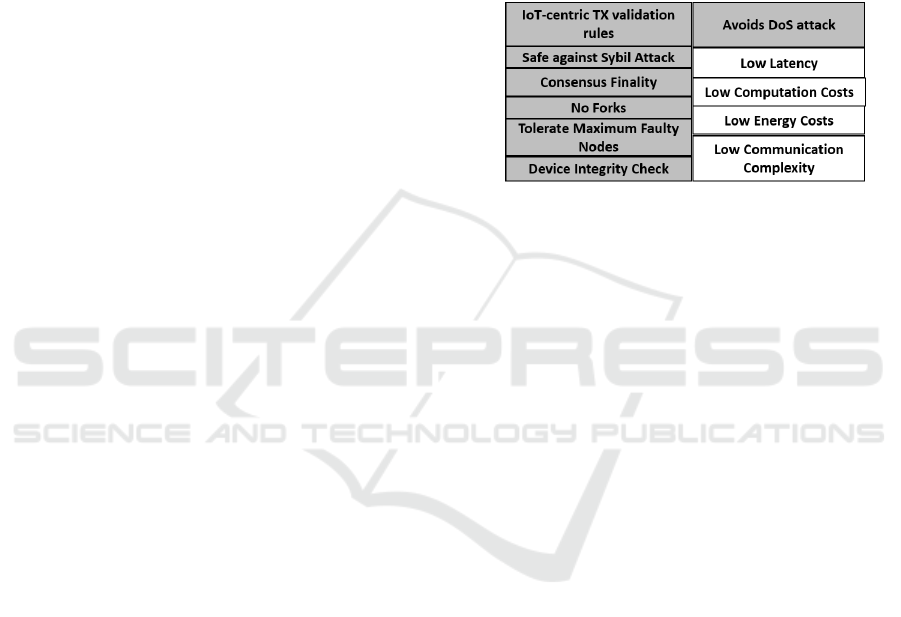

Figure 5: Considerations for IoT Consensus Protocol.

attacks. An example of such an attack on IoT devices

in recent past is Mirai Attack in which a large num-

ber of IoT devices including DVR and CCTV cameras

were compromised and turned into bots. These bots

were then used to launch a DDoS attack on a DNS

service provider DYN by directing 620 Gbps data in

the form of millions of DNS lookup requests (Duck-

lin, 2016). Whereas, most of the BFT-based protocols

can tolerate only f = (n − 1)/3 faulty nodes. There-

fore, an IoT-centric consensus protocol must tolerate

maximum possible faulty/dishonest nodes. An impor-

tant consideration to lessen the effect of faulty nodes

is to carry out random integrity check of the valida-

tor/mining nodes so that no dishonest node participate

in the consensus process. Along with security, there

are some performance requirements as well. These

include low computation overhead, low energy con-

sumption and less communication complexity.

4.2 Scalability

It not only affects the Blockchain-size but also in-

directly inﬂuences the consensus process. E.g., the

increase in the number of users will also increase

the number of TXs. Hence, if the consensus proto-

col has less throughput then the latency in TX con-

ﬁrmation will be increased. To address the issue

of scalability concerning the management of ever-

increasing Blockchain size on light/embedded IoT de-

vices, various Blockchain architectures are being pro-

posed such as sidechains and treechains. An exam-

ple of a sidechain is a decentralized P-2-P network

designed for multi-party privacy-preserving data stor-

Blockchain for IoT: The Challenges and a Way Forward

435

age and processing (Zyskind et al., 2015a; Zyskind

et al., 2015b). The proposed model implicitly im-

proves the issue of Blockchain scalability by storing

user data on an off-chain network of private nodes in

the form of DHT. The Blockchain only contains the

pointers/references to data and not all the nodes repli-

cate all TXs.

IBM (IBM-ADEPT, 2015) also addresses the is-

sue of Blockchain size by introducing a concept of

universal and regional Blockchains. It is achieved by

categorizing the network nodes into light peers, stan-

dard peers and peer exchanges depending upon their

processing, storage, networking and power capabil-

ities. The light peers consist of embedded devices,

such as Arduino and Raspberry Pi based sensor nodes,

These nodes only store own Blockchain address and

balance. They rely on other trusted peers to obtain

TXs relevant to them. Whereas, the standard peers

have more processing power and storage capacity

than the light peers. They can store some of the recent

TXs of their own and the light peers in their neigh-

bourhood. Finally, the peer exchanges have high stor-

age and computing capabilities, and they can replicate

complete Blockchain data with an additional feature

of data analytic services. In addition, as per NIST

(Konstantinos et al., 2016), resource-constrained de-

vices may maintain a compressed ledger containing

only their TXs.

In another development, to address Bitcoin-

Blockchain's problems of scalability, high TX fee

and requirement of substantial hardware resources, a

blockless architecture named “IOTA” have been in-

troduced (IOTA, 2017). Instead of a conventional

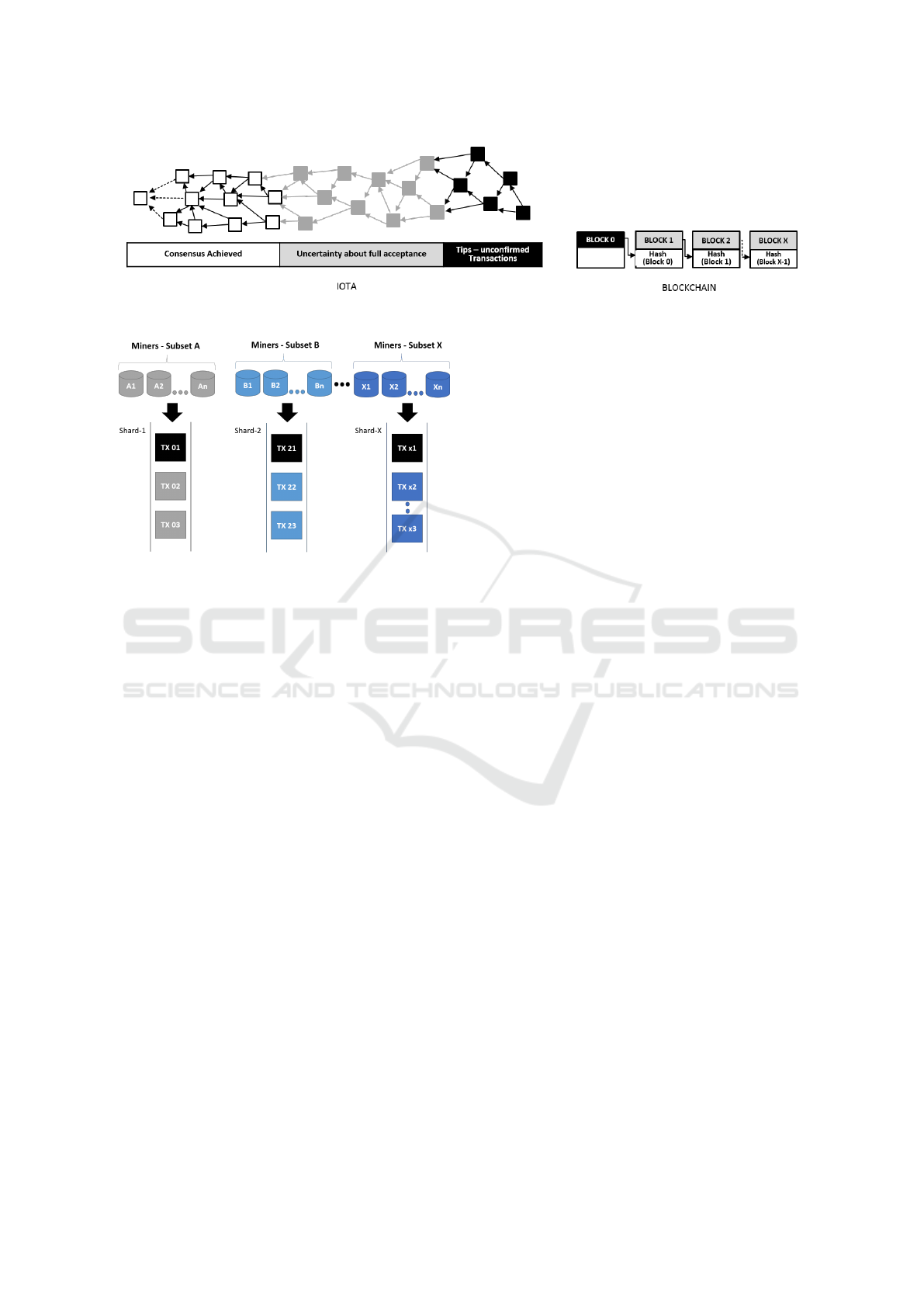

Blockchain, IOTA is a distributed architecture based

on DAG called Tangle (Popov, 2016). It aims to pro-

mote machine economy, in which smart devices can

interact with each other by making smallest possible,

nano-payments. To ensure fast TXs, IOTA does not

require TX fee. Moreover, the consensus (TX vali-

dation) and normal TX process are also inter-knitted,

i.e., before making a new TX each user randomly ap-

proves/validates previous two TXs. IOTA achieves

high throughput by parallelizing the TX validation

process. Hence, an increase in the number of new

TXs on the Tangle is inversely proportional to the

TX settlement time (IOTA-Support, 2017). There-

fore, an expanding network contributes well to the

overall security and fast TX settlement. The two TXs

to be approved by every new TX are randomly se-

lected based on MCMC (Markov Chain Monte Carlo)

method. A TX getting more and more direct/indirect

approvals is considered to be more accepted by the

network. Hence, it would be difﬁcult for anyone to

double-spend that particular TX. The difference be-

tween IOTA and a typical Blockchain architecture is

shown in Figure-6 (IOTA-Support, 2017).

Another solution proposed for the scalability of

Ethereum-Blockchain is called “Plasma” (Poon and

Buterin, 2017). It uses a series of smart contracts

to create hierarchical trees of sidechains, which can

be thought of as “subchains”. The subchains live

within a parent-Blockchain and periodically commu-

nicate with the root-chain (Ethereum). The subchains

are off-line, hence, theoretically there can be as many

subchains as desired (REX-Blog, 2017).

4.3 Improving Upon TX Conﬁrmation

Time

TX conﬁrmation time can also be associated with the

problem of Blockchain scalability. In current public

Blockchains such as Bitcoin and Ethereum, the miner

nodes store the complete Blockchain and validate ev-

ery TX in an order. It does improve security but also

creates a bottleneck in case of high TX volume. As

the Blockchain cannot process more transactions than

a single node can. One of the methods being re-

searched to reduce TX conﬁrmation time is “Shard-

ing” (James, 2018b). It means a subset of miner nodes

process a subset of TXs (as shown in Figure-7). The

subset of miner nodes should be populated in a way

that the system is still secure and at the same time

several TXs can be processed simultaneously (James,

2018b; REX-Blog, 2017). In its purest form, each

shard has its own transaction history and it is effected

only by the TXs it contains. E.g., say in a multi-asset

Blockchain, there are n shards and each shard is as-

sociated with one particular asset. In more advanced

forms of sharding, TXs on one shard can also trigger

events on some other shard. This is usually termed as

cross-shard communication. However, currently be-

ing in a novice state, there are numerous challenges

that should be resolved before sharding is adopted

publicly. Some of these challenges include; cross-

shard communication, fraud detection, single-shard

manipulation, and data availability attacks (James,

2018b).

Another approach to reducing TX processing time

is “Raiden”. It proposes the use of state channel tech-

nology to scale the Ethereum network off-chain and

to facilitate micro-TXs between IoT devices(REX-

Blog, 2017). The off-chain TXs will allow a set of

nodes to establish payment channels between each

other, without directly transacting with the Ethereum-

Blockchain. Hence, Off-chain TXs would be faster

and cheaper than on-chain TXs because they can be

recorded immediately, and there is no need to wait

for block conﬁrmations. However, it is believed that

SECRYPT 2018 - International Conference on Security and Cryptography

436

Figure 6: IOTA vs Blockchain.

Figure 7: Sharding.

Channel-based strategies can scale transaction capac-

ity only but cannot scale state-storage. Moreover, they

are vulnerable to DoS attacks (James, 2018b).

4.4 IoT Device Integration

In addition to Web and Mobile App security, device

security can be augmented to ensure the integrity of

sensor data, to be pushed to the Blockchain. The

ﬁrst in device security measures is device enrolment,

in which only approved devices be allowed to com-

municate with the Blockchain and call smart contract

methods. Smart contracts can restrict calling of var-

ious methods to a speciﬁc node only. Secondly, all

the unnecessary ports on the device should be blocked

such as JTAG and UART. Since any open port can be

used by an adversary to access the device and make

malicious changes. Thirdly, most of the commercially

available IoT devices such as sensing devices do not

have secure execution environment to keep the cost

low. Therefore, the device integrity check should fre-

quently be performed to ensure its legitimacy.

5 CONCLUSIONS

Blockchain has revolutionized the technological

world with its distributed network architecture, de-

centralized control and ability to sustain autonomous,

self-regulating, self-managed and fault tolerant IoT

systems. However, still there exist some open re-

search challenges that need to be resolved to lever-

age Blockchain's beneﬁts at the optimum. These

challenges include, IoT-centric TX and block val-

idation rules, IoT-oriented consensus protocol, fast

TX conﬁrmation for real-time IoT systems, scalabil-

ity, and secure device integration to the Blockchain.

In future, we plan to develop a secure IoT-focused

Blockchain consensus protocol with some embedded

features such as device integrity check, maximum

faulty nodes tolerance level and IoT-oriented TX val-

idation rules. A judicious research in this regard will

beneﬁt entire IoT ecosystem.

REFERENCES

Adelantado, F., Vilajosana, X., Tuset-Peiro, P., Martinez,

B., and Melia, J. (2016). Understanding the limits of

lorawan. arXiv preprint arXiv:1607.08011.

AT&T (2016). The CEO’s Guide to Data Secu-

rity. Protect your data through innovation -

AT&T Cybersecurity Insights (Vol 5). Avail-

able at https://www.business.att.com/

cybersecurity/docs/vol5-datasecurity.pdf,

Viewed 8 January 2018.

Bessani, A., Sousa, J., and Alchieri, E. E. (2014). State

machine replication for the masses with bft-smart.

In 44th Annual IEEE/IFIP International Conference

on Dependable Systems and Networks (DSN), pages

355–362. IEEE.

Bitcoin-Developer (2017). Bitcoin developer guide. Avail-

able at https://bitcoin.org/en/developer-

guide\#block-chain, Viewed 17 December 2017.

Bitcoin-Developer (2018). Transactions. Available

at https://bitcoin.org/en/developer-guide#

transactions, Viewed 17 March 2018.

Bitcoin-Org (2017). Warning: Better security has costs.

Available at https://bitcoin.org/en/bitcoin-

core/features/requirements, Viewed 28 Decem-

ber 2017.

Bitcoin.Org (2017). System reqirements. Avail-

able at https://bitcoin.org/en/bitcoin-core/

features/requirements, Viewed 17 December

2017.

Blockchain for IoT: The Challenges and a Way Forward

437

Borgohain, T., Kumar, U., and Sanyal, S. (2015). Survey of

security and privacy issues of internet of things. arXiv

preprint arXiv:1501.02211.

Brewer, R. (2016). Ransomware attacks: detection, preven-

tion and cure. Network Security, (9):5–9.

Brody, P. and Pureswaran, V. (2014). Device democracy:

Saving the future of the internet of things. Avail-

able at https://www-935.ibm.com/services/

multimedia/GBE03620USEN.pdf, Viewed 14

December 2017.

Buterin, V. et al. (2014). A next-generation smart contract

and decentralized application platform. Whitepaper.

Cachin, C. (2016). Architecture of the hyperledger

blockchain fabric. In Workshop on Distributed Cryp-

tocurrencies and Consensus Ledgers.

Cam-Winget, N., Sadeghi, A. R., and Jin, Y. (2016). Can

IoT be secured: Emerging challenges in connect-

ing the unconnected. In Design Automation Confer-

ence (DAC), 2016 53nd ACM/EDAC/IEEE, pages 1–6.

IEEE.

Castro, M. and Liskov, B. (2002). Practical byzantine fault

tolerance and proactive recovery. ACM Transactions

on Computer Systems (TOCS), 20(4):398–461.

Decker, C. and Wattenhofer, R. (2013). Information prop-

agation in the bitcoin network. In Thirteenth Interna-

tional Conference on Peer-to-Peer Computing (P2P),

pages 1–10. IEEE.

Ducklin, P. (2016). Mirai “Internet of Things” malware

from krebs ddos attack goes open source. Naked

Security. Available at https://nakedsecurity.

sophos.com/2016/10/05/mirai/, Viewed 12

February 2018.

EconoTimes (2017). Blockchain project antshares explains

reasons for choosing dbft over pow and pos. Available

at http://www.econotimes.com/Blockchain-

project-Antshares-explains-reasons-for-

choosing-dBFT-over-PoW-and-PoS-659275,

Viewed 18 December 2017.

Etherscan (2018). Ethereum transaction chart 2018. Avail-

able at https://etherscan.io/chart/tx, Viewed

5 February 2018.

Evans, D. (2011). The Internet of Things: How the

next evolution of the internet is changing everything.

CISCO Whitepaper, 1(2011):1–11.

FSecure-Labs (2014). Havex Hunts For ICS/SCADA Sys-

tems. Available at https://www.f-secure.com/

weblog/archives/00002718.html, Viewed 9 De-

cember 2017.

Greenberg, A. (2015). Hackers remotely kill a jeep on the

highway—with me in it. Wired, 7:21.

Hyperledger (2016). Hyperledger whitepaper. Avail-

able at https://github.com/hyperledger/

hyperledger/wiki/Whitepaper-WG, Viewed 19

February 2018.

Hyperledger-Docs (2018). Introduction to hyperledger fab-

ric. Available at https://hyperledger-fabric.

readthedocs.io/en/latest/blockchain.html,

Viewed 13 February 2018.

Hyperledger-Fabric (2018). Hyperledger-fabric

documentation. Available at https:

//media.readthedocs.org/pdf/hyperledger-

fabric/latest/hyperledger-fabric.pdf,

Viewed 18 February 2018.

Hyperledger-Gas (2016). Gas with hyperledger fab-

ric? Available at https://stackoverflow.com/

questions/38635778/gas-with-hyperledger-

fabric, Viewed 15 February 2018.

IBM-ADEPT (2015). An internet of things practi-

tioner perspective. Technical report, IBM. Avail-

able at https://archive.org/details/pdfy-

esMcC00dKmdo53-_, Viewed 21 March 2018.

IOTA (2017). What is iota? Available at https://iota.

readme.io/v1.2.0/docs, Viewed 24 March 2018.

IOTA-Support (2017). An introduction to iota. Available

at http://www.iotasupport.com/whatisiota.

shtml, Viewed 27 March 2018.

James, R. (2018a). Ethereum/wiki - mining. Available

at https://github.com/ethereum/wiki/wiki/

Mining, Viewed 5 February 2018.

James, R. (2018b). On sharding blockchains. Available

at https://github.com/ethereum/wiki/wiki/

Sharding-FAQs, Viewed 27 April 2018.

Jing, Q., Vasilakos, A. V., Wan, J., Lu, J., and Qiu, D.

(2014). Security of the internet of things: perspectives

and challenges. Wireless Networks, 20(8):2481–2501.

Junqueira, F. P., Reed, B. C., and Seraﬁni, M. (2011).

Zab: High-performance broadcast for primary-backup

systems. In 41st International Conference on De-

pendable Systems & Networks (DSN), pages 245–256.

IEEE.

Kaspersky-Lab (2017). Trojans exploit WAP sub-

scriptions to steal money 2017. Available

at https://www.kaspersky.com/blog/wap-

billing-trojans/18080/, Viewed 15 February

2018.

Kastelein, R. (2016). Intel jumps into blockchain

technology storm with ‘sawtooth lake’ distributed

ledger. Available at http://www.the-blockchain.

com/2016/04/09/, Viewed 21 March 2018.

Konstantinos, K., Angelos, S., Irena, B., Jeff, V., and

Grance, T. (2016). Leveraging blockchain-based pro-

tocols in iot systems. NIST-Computer Security Re-

source Center.

Kumar, S. A., Vealey, T., and Srivastava, H. (2016). Secu-

rity in internet of things: Challenges, solutions and fu-

ture directions. In 49th Hawaii International Confer-

ence on System Sciences (HICSS), pages 5772–5781.

IEEE.

Lamport, L. (1998). The part-time parliament. ACM Trans.

Comput. Syst., 16(2):133–169.

Langner, R. (2013). To kill a centrifuge: A technical analy-

sis of what stuxnet’s creators tried to achieve. Avail-

able at https://www.langner.com/wp-content/

uploads/2017/03/to-kill-a-centrifuge.pdf,

Viewed 11 December 2017.

Lund, D., MacGillivray, C., Turner, V., and Morales, M.

(2014). Worldwide and regional Internet of Things

(IoT) 2014–2020 forecast: A virtuous circle of proven

value and demand. International Data Corporation

(IDC), Tech. Rep.

SECRYPT 2018 - International Conference on Security and Cryptography

438

Luu, L., Narayanan, V., Baweja, K., Zheng, C.,

Gilbert, S., and Saxena, P. (2015). Scp: A

computationally-scalable byzantine consensus proto-

col for blockchains. IACR Cryptology ePrint Archive,

2015:1168.

Mattias, S. (2017). Performance and scalability of

blockchain networks and smart contracts. Master’s

thesis, Umea University, Sweden.

Miller, A., Xia, Y., Croman, K., Shi, E., and Song, D.

(2016). The honey badger of bft protocols. In Pro-

ceedings of the 2016 ACM SIGSAC Conference on

Computer and Communications Security, pages 31–

42. ACM.

Miller, B. and Rowe, D. (2012). A survey SCADA of

and critical infrastructure incidents. In Proceedings of

the 1st Annual conference on Research in information

technology, pages 51–56. ACM.

Nakamoto, S. (2008). Bitcoin: A peer-to-peer electronic

cash system.

NEO (2017). Whitepaper. Available at http://docs.neo.

org/en-us/, Viewed 18 December 2017.

Ongaro, D. and Ousterhout, J. K. (2014). In search of an un-

derstandable consensus algorithm. In USENIX Annual

Technical Conference, pages 305–319.

Oraclize (2018). How it works. Available at http://www.

oraclize.it/, Viewed 6 May 2018.

Poon, J. and Buterin, V. (2017). Plasma: Scalable au-

tonomous smart contracts. Whitepaper.

Popov, S. (2016). The tangle. Whitepaper. Avail-

able at http://iotatoken.com/IOTAWhitepaper.

pdf, Viewed 26 March 2018.

Poulsen, K. (2003). Slammer worm crashed ohio nuke plant

net. The Register, 20.

Puthal, D., Nepal, S., Ranjan, R., and Chen, J. (2016).

Threats to networking cloud and edge datacenters

in the internet of things. IEEE Cloud Computing,

3(3):64–71.

REX-Blog (2017). Sharding, raiden, plasma: The scaling

solutions that will unchain ethereum. Available at

https://blog.rexmls.com/sharding-raiden-

plasma-the-scaling-solutions-that-will-

unchain-ethereum-c590e994523b, Viewed 21

April 2018.

Sadeghi, A. R., Wachsmann, C., and Waidner, M. (2015).

Security and privacy challenges in industrial Internet

of Things. In Design Automation Conference (DAC),

2015 52nd ACM/EDAC/IEEE, pages 1–6. IEEE.

Szabo, N. (2004). The idea of smart contracts. IEEE Inter-

national Workshop on Electronic Contracting (WEC).

Tendermint (2017). Byzantine consensus algorithm.

Available at https://tendermint.readthedocs.

io/en/master/specification/byzantine-

consensus-algorithm.html, Viewed 15 February

2018.

The-Linux-Foundation (2017). Hyperledger business

blockchain technologies. Available at https://www.

hyperledger.org/projects, Viewed 19 February

2018.

Vukoli

c, M. (2015). The quest for scalable blockchain fab-

ric: Proof-of-work vs. bft replication. In Interna-

tional Workshop on Open Problems in Network Secu-

rity, pages 112–125. Springer.

Wood, G. (2014). Ethereum: A secure decentralised gen-

eralised transaction ledger. Ethereum Project Yellow

Paper, 151:1–32.

Zyskind, G., Nathan, O., et al. (2015a). Decentralizing pri-

vacy: Using blockchain to protect personal data. In

Security and Privacy Workshops (SPW), pages 180–

184. IEEE.

Zyskind, G., Nathan, O., and Pentland, A. (2015b). Enigma:

Decentralized computation platform with guaranteed

privacy. arXiv preprint arXiv:1506.03471.

Blockchain for IoT: The Challenges and a Way Forward

439
