Transformation Method from Scenario to Sequence Diagram

Yousuke Morikawa, Takayuki Omori and Atsushi Ohnishi

Department of Computer Science, Ritsumeikan University, Kusatsu, Shiga, Japan

Keywords: Scenario, Sequence Diagram, Transformation between Scenario and Sequence Diagram.

Abstract: Both scenario and sequence diagram are effective models for specifying behaviours of the target systems.

Scenarios can be used for requirements elicitation in the requirements definition. Sequence diagrams can be

used for interactions between a system user and system, and between objects. If these two models

specifying behaviours of the same system, these models should be consistent. In this paper, we propose a

transformation method from a scenario written with a structured scenario language named SCEL to a

sequence diagram written with PlantUML. The transformation method will be illustrated with an example.

1 INTRODUCTION

Scenarios are important in software development,

particularly in requirements engineering, by

providing concrete system description

(Weidenhaupt, 1998). Especially, scenarios (or use

case descriptions) are useful in defining system

behaviours by system developers and validating the

requirements by customers.

Sequence diagrams may be used to specify

software behaviours in the later phases of the object-

oriented software development. In such a case,

because scenarios and sequence diagrams represent

behaviours of the same target software system, these

two models should be consistent. If there exist

inconsistent parts of these models, software cannot

be successfully developed.

In this paper, we propose a transformation

method from a scenario to a sequence diagram. This

method enables to eliminate or lessen the

inconsistency between these two models and

improve the efficiency and the correctness of

generated models. We adopt SCEL as a scenario

description language and PlantUML as a language

for describing a sequence diagram. PlantUML is a

text-base language for describing UML models

(PlantUML, 2018).

The paper is organized as follows. The next

section briefly introduces a scenario description

language named SCEL. In section 3, PlantUML will

be briefly introduced. In section 4, we describe a

transformation method between a scenario written

with SCEL and a sequence diagram written with

PlantUML. In section 5 we discuss the proposed

method and a prototype system based on the method.

In section 6, we discuss related works. In the last

section we give concluding remarks.

2 SCENARIO DESCRIPTION

LANGUAGE: SCEL

A scenario can be regarded as a sequence of events.

Events are behaviours employed by users or the

system for accomplishing their goals. We assume

that each event has just one verb, and that each verb

has its own case structure (Fillmore, 1968). The

scenario language has been developed based on this

concept. Verbs and their own case structures depend

on problem domains, but the roles of cases are

independent of problem domains. The roles include

agent, object, recipient, instrument, source, etc.

(Fillmore, 1968; Ohnishi, 1996). Verbs and their

case structures are provided in a dictionary of verbs.

If a scenario describer needs to use a new verb, he

can use it by adding the verb and its case structure in

the dictionary.

We adopt a requirements frame in which verbs

and their own case structures are specified. The

requirements frame depends on problem domains.

Each action has its case structure, and each event

can be automatically transformed into internal

representation based on the frame. In the

transformation, concrete words will be assigned to

pronouns and omitted indispensable cases. With

136

Morikawa, Y., Omori, T. and Ohnishi, A.

Transformation Method from Scenario to Sequence Diagram.

DOI: 10.5220/0006915001360143

In Proceedings of the 10th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2018) - Volume 3: KMIS, pages 136-143

ISBN: 978-989-758-330-8

Requirements Frame, we can detect both the lack of

cases and the illegal usage of noun types (Ohnishi,

1996). Our scenario language defines the semantics

of verbs with their case structure. For example, data

flow concept has source, goal, object, and

instrument cases.

Figure 1 shows a scenario of reservation of train

seat written with our scenario language, SCEL.

[Title: reservation of a train seat]

[Viewpoints: passenger, clerk, reservation

system]

1. A passenger passes his itinerary to a

clerk.

2. The clerk retrieves empty seats to

reservation system.

3. The system shows a list of empty seats

to the clerk.

4. The clerk shows the list to the passenger

5. The passenger selects his seat from the

list.

6. The clerk sends request for seat

reservation to the system,

7. The system reserves the seat

8. The system sends a successful message

to the clerk.

9. The passenger passes his credit card to

the clerk.

10. The clerk charges the fare to the credit

card.

11. If the credit card is valid then the clerk

issues train ticket with seat reservation.

12. The clerk passes the credit card and

ticket to the passenger.

13. fi

Figure 1: Scenario example.

A title of the scenario is given at the first line of

the scenario in Figure 1. Viewpoints of the scenario

are specified at the second line. In this paper,

viewpoints mean active objects such as human, and

system appearing in the scenario. There exist three

viewpoints, namely “passenger,” “clerk,” and

“reservation system.” The order of the specified

viewpoints means the priority of the viewpoints. In

this example, the first prior object is “passenger,”

and the second is “clerk,” and the third one is

“reservation system.” If two or more objects in the

list of viewpoints exist in an event, the prior object

becomes a subject of an event.

In this scenario, all of the events are sequential

except for the 11th conditional event. Actually,

event number is for reader’s convenience and not

necessary.

Each event is automatically transformed into

internal representation. The details of transformation

mechanism is in (Ohnishi, 1996). For example, the

1st event “A passenger passes his itinerary to clerk”

can be transformed into internal representation

shown in Table 1. In this event, the verb “pass”

corresponds to the concept “data flow.” The data

flow concept has its own case structure with four

cases, namely to say, source case, goal case, object

case and instrument case. Sender corresponds to the

source case and receiver corresponds to the goal

case. Data transferred from source case to goal case

corresponds to the object case. Device for sending

data corresponds to the instrument case.

In this event, “(his) itinerary” corresponds to the

object case and “passenger” corresponds to the

source case. “Clerk” corresponds to goal case. The

instrument case is optional, while the other cases are

indispensable.

Table 1: Internal representation of the 1st event in Figure 1.

Concept: DFLOW (Data Flow)

source goal object instrument

passenger clerk itinerary NOT

Specified

Scenarios with SCEL can include not only

sequence of events, but also scenario title, and

viewpoints. The first line in Figure 1 shows title of

the scenario. The second line shows viewpoints of

the scenario. Viewpoints mean active objects, such

as human, system, function in the scenario. In Figure

1, the first and primary viewpoint is “passenger,”

and the second and secondary one is “clerk,” and

“reservation system” is the third priority object.

These viewpoints become subjects of events.

Actually, subjects of events in Figure 1 are

“passenger,” “clerk,” or “(reservation) system.”

We assume seven kinds of time sequences

among events: 1) sequence, 2) selection, 3) iteration,

4) AND-fork, 5) OR-fork, 6) XOR(exclusive OR)-

fork, 7) AND/OR/XOR-join (Zhang 2004). Because

most events are sequential, so a list of events means

sequential events like the scenario shown in Figure 1.

The main reason why we use SCEL as a scenario

description language is to keep the abstraction level

of scenarios with SCEL as a certain level. Suppose a

scenario of purchasing a train ticket. One scenario

may consist of just one event of buying a train ticket.

Another scenario may consist of several events, such

as 1) informing date, destination, the number of

passengers, and class of cars, 2) retrieving train data

Transformation Method from Scenario to Sequence Diagram

137

base, 3) issuing a ticket, 4) charging ticket fee to a

credit card, and so on. If the abstract levels of

scenarios are too high, it is quite difficult to

transform them to proper sequence diagrams.

SCEL language for writing scenarios solves this

problem, because SCEL provides limited actions and

their case structure for a specific domain, and

scenarios with SCEL keep a certain abstract level of

actions. As for a system for processing a train ticket,

we can provide several verbs and their case structure

as shown in Table 2.

Table 2: Concepts, verbs and cases for train ticket system.

Concept(Verbs) Cases

DFLOW(pass, send, ask

receive, transfer, enter,)

source, goal, object,

instrument*

RET(retrieve)

agent, object goal,

key*

SHOW(show, provide) agent, object, goal

SELECT(select,

choose)

agent, source, object

RESERVE(reserve) agent, object

CHARGE(charge) agent, object1, object2

PRINT(issue, print) agent, object

PAY(pay)

agent, object, goal,

instrument*

VALIDATE(validate) agent, object1, object2

*: optional case

We can use several different verbs to represent

data flow concept, such as “pass,” “send,” and

“receive,” and so on. The first event in Figure 1, “a

passenger passes his itinerary to clerk” can be

differently represented as follows. “Clerk receives

passenger’s itinerary from the passenger” or

“passenger’s itinerary are entered from the

passenger to clerk,” and so on.

The surface representations of these events are

different, but they have the same meaning. These

events are transformed into the same internal

representation as shown in Table 1. We regard

events have the same meaning, if their internal

representations are the same.

Available nouns in scenarios are limited to be

registered in dictionary where nouns and their types

are specified. Six noun types (human, function, data,

file, control, and device) are provided.

We have to prepare noun dictionary and verb

dictionary where concepts, verbs, and their case

structures are specified.

3 PlantUML FOR SEQUENCE

DIAGRAM

PlantUML is a text-based modelling language for

UML models (PlantUML 2018). Figure 2 shows an

example of a sequence diagram of reservation of a

train seat and purchasing ticket. In Figure 2, “title”

shows a title of the diagram, “hide footbox” means

that objects will be suppressed at the bottom of the

diagram, “actor” shows a human object in the

diagram, such as a user, “participant” shows a

system object, “->” shows a message passing, left-

side of the arrow means a sender, right-side of the

arrow means a receiver of the message, “activate”

shows the start of lifeline of objects, and “deactivate”

shows the end of the lifeline of objects, respectively.

@startuml{plantuml_train.png}

title reservation of a train seat

hide footbox

actor passenger as user1

actor clerk as user2

participant “reservation system” as object1

user1 -> user2: travel information

activate user1

activate user2

user2 -> object1: travel information

activate object1

object1 -> object1: retrieve train database

with travel information

object1 -> user2: retrieval result

user2 -> user1: a list of train seats

and corresponding trains

user1 -> user1: select train seat number

and train id from the list

user1 -> user2: train seat number, train id,

credit card number

user2 -> object1: train seat number,

train id, credit card number

object1 -> object1: reserve the seat

deactivate object1

user2 -> user2: issue train ticket with

reserved seat

user1 -> user2: train ticket, credit card

deactivate user1

deactivate user2

@enduml

Figure 2: Train seat reservation with PlantUML

KMIS 2018 - 10th International Conference on Knowledge Management and Information Sharing

138

4 TRANSFORMATION FROM A

SCENARIO TO SEQUENCE

DIAGARM

A scenario written with SCEL consists of title,

viewpoints, sequence of events. Events can be

categorized into events of data flow and other events.

A sequence diagram written with PlantUML consists

of title, objects, message passing, activation of

objects, and deactivation of objects. Table 3 shows

corresponding elements between these two models.

Table 3: Corresponding elements between scenario and

sequence diagram.

Scenario with SCEL Sequence diagram

with PlantUML

Title Title

Viewpoints (human type

noun)

Objects (actor)

Viewpoints (function type

noun)

Objects (Participant)

Event (data flow from A to

Message passing

(from source to goal)

Event (actions to B) Action + object (from

agent to goal)

Event (actions by itself) Action + object (Self-

message)

The scenario title will be copied to the title of

sequence diagram in the transformation. Viewpoints

in a scenario can be classified into viewpoints of

human type and viewpoints of others. We transform

viewpoints of human type in a scenario into objects

of actor in a sequence diagram, while viewpoints of

non-human type are transformed into objects of

participant.

An event of data flow consists of source case,

goal case, object case, and instrument case. In the

transformation of a data flow event, noun of object

case corresponds to a message, noun of source case

corresponds to sender of the message, and noun of

goal case corresponds to receiver of the message.

In the transformation of an event whose action

has goal case, action and its object will be

transformed into a message, agent case noun can be

transformed into sender of the message, and goal

case noun will be transformed into receiver of the

message.

In the transformation of an event without goal

case, action and its object will be transformed into

self-message, and the agent case noun can be

transformed into sender/receiver of the message.

Most events in a scenario are sequential events,

but selective, iterative, or parallel events can be

described with SCEL. These time sequences can be

transformed using combined fragments of sequence

diagram as shown in Table 4.

The sequence of viewpoints in a scenario is used

for placing objects (actors and participants) in a

transformed sequence diagram. A user can change

the order of objects in the transformed diagram later.

In Table 2, we provided concepts and their case

structures for train ticket system. These concepts can

be classified into three categories, namely to say, (1)

DFLOW(data flow), (2) RET, SHOW, PAY (actions

with goal case), and (3) SELECT, RESERVE,

CHARGE, PRINT, VALIDATE (actions by itself.)

Table 4: Time sequences in scenario and corresponding

combined fragments of sequence diagram.

Time sequence Combined fragment

Selection (if…then…) Opt

Selection

(if…then…else…)

Alt

Iteration

(while do, do…until...)

Loop

AND-fork…join Par

OR-fork…join Par with guard condition

XOR-fork…join Par with guard condition

In Figure 1, verbs, “pass,” and “send”

correspond to data flow concept. Events with these

verbs are transformed into internal representation in

Table 5. Verbs “show,” and “retrieve” are actions

with goal case. Events with one of these verbs can

be transformed as shown in Table 6(a) and (b),

respectively. Verbs “select,” “reserve,” “charge,”

and “issue” are actions by itself. Events with one of

these verbs will be transformed in transformed as

shown in Table 7(a), (b), (c), (d), respectively.

In Table 5, instrument cases are omitted, because

the instrument case is optional and ignored in the

transformation. The events with DFLOW will be

transformed into messages passing whose senders

correspond to source case nouns, receivers

correspond to goal case nouns, and messages

correspond to object case nouns, respectively.

By applying our transformation method to the

internal representations, we can get a sequence

diagram with PlantUML shown in Figure 3.

“Hide footbox” in the fourth line in Figure 3 is

inserted in order to suppress to display objects at the

bottom of the diagram.

“If <condition> then <event>” statement in a

scenario can be transformed into combined fragment

of “opt <condition>; <transformed event>.” For

example, the eleventh event in Figure 1 will be

Transformation Method from Scenario to Sequence Diagram

139

transformed into “opt credit card is valid” and self-

message passing of “issue train ticket with seat

reservation” as shown in Figure 3.

Figure 4 shows a sequence diagram created by the

PlantUML viewer. Users can review transformed

sequence diagrams and correct them, if there exist

errors in the diagrams. When train seat reservation

system sends a successful message to clerk, the

system should send seat number and train information.

If these information should be added, sequence

diagrams and correct them, if there exist errors in the

diagrams. When train seat reservation system sends a

successful message to clerk, it should send seat

number and train information. If these information

should be added, user can modify the scenario and get

a revised sequence diagram by the transformation.

Table 5: Internal representations of events of DFLOW

(data flow).

event no. source goal object

1 customer clerk itinerary

6 clerk system request for seat

reservation

8 system clerk successful message

9 customer clerk credit card

12 clerk customer credit card and

ticket

Table 6(a): Internal representations of events of SHOW.

event no. agent goal object

3 system clerk list of empty seats

4 clerk customer list of empty seats

Table 6(b): Internal representation of event of RET

(retrieve).

event

no.

agent goal object key

2 clerk seat reservation

system

empty

seats

NOT

specified

Table 7(a): Internal representation of event of SELECT

event no. agent source object

5 customer list seat

Table 7(b): Internal representation of event of RESERVE.

event no. agent object

7 system seat

Table 7(c): Internal representation of event of CHARGE.

event no. agent object1 object2

10 clerk fare credit card

Table 7(d): Internal representation of event of

PRINT(issue).

event no. agent object

11 clerk train ticket with

seat reservation

In the transformation, activate statement of

objects should be inserted, just after the first

message passing of the object occurs. Similarly,

deactivate statement of objects should be inserted,

just after the last message passing of the object

occurs. For example, the first message passing of

“user1” and “user2” occurs in the ninth line in

Figure 3, so activate statement of these objects are

inserted after the message passing in the tenth and

eleventh lines, respectively.

@startuml{plantuml_train.png}

title purchase a train ticket with seat

reservation

hide footbox

actor customer as user1

actor clerk as user2

participant train seat reservation system as

object1

user1 -> user2: itinerary

activate user1

activate user2

user2 -> object1: retrieve empty seats

activate object1

object1 -> user2: show list of empty seats

user2 -> user1: show list of empty seats

user1 -> user1: select seat from list

user2 -> object1: request for seat reservation

object1 -> object1: reserve seat

object1 -> user2: successful message

deactivate object1

user1 -> user2: credit card

user2 -> user2: charge fare to credit card

opt credit card is valid

user2 -> user2: issue train ticket with seat

reservation

user2 -> user1: credit card and ticket

end

deactivate user1

deactivate user2

@enduml

Figure 3: Transformed sequence diagram from scenario in

Figure 1.

We have developed a prototype system based on

our transformation method with Java on Eclipse 4.4

Luna. This tool is a 3 man-month product.

KMIS 2018 - 10th International Conference on Knowledge Management and Information Sharing

140

In Figure 5, we have already developed the

scenario analyser which transforms a scenario with

SCEL into internal representation. Our developed

prototype transforms a scenario of internal

representation into a sequence diagram with

PlantUML. Using PlantUML viewer, we can get a

sequence diagram as shown in Figure 4.

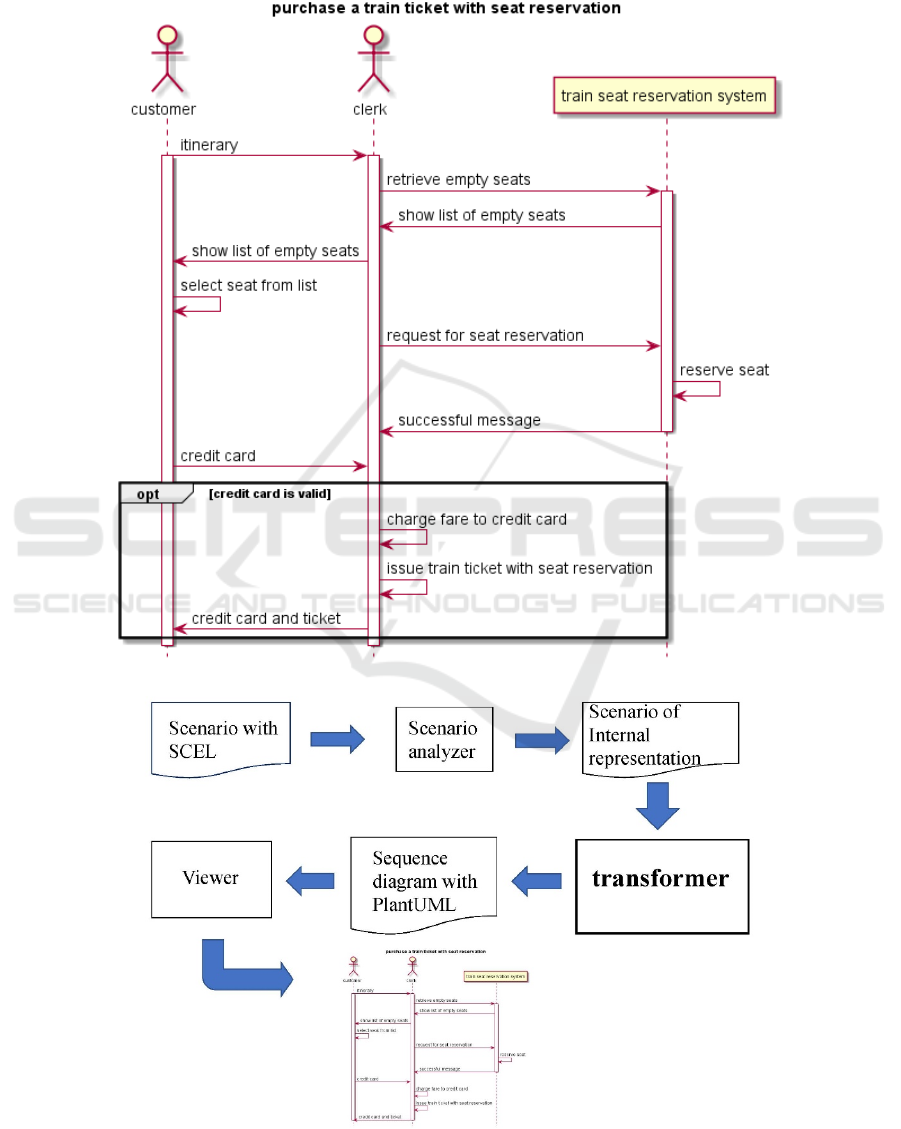

Figure 4: Transformed sequence diagram for purchasing a train ticket with seat reservation.

Figure 5: Transformer and related systems.

Transformation Method from Scenario to Sequence Diagram

141

5 DISCUSSION

We applied our transformation method to several

scenarios with SCEL such as hotel reservations,

modification of reserved train ticket, borrowing

books in library, and successfully got sequence

diagrams. Some problems are found in our

transformations as follows.

1) Objects are sometimes wrongly placed:

In the transformation, objects in sequence

diagram are placed according to the priority of

viewpoints in scenarios. For example, “viewpoints:

A, B, C” in a scenario means that the top priority

object is A, the second one is B, and the third one is

C. In the transformed sequence diagram, object A, B

and C are placed from left to right. If the first

message passing occurs from C to A, the direction of

this message is from right to left. We think the

direction of the first message should be from left to

right and the placement of object A and C should be

exchangeable.

2) Lifetime of objects may be wrong:

We insert “activate” statement of an object just

after it firstly appears and insert “deactivate”

statement just after it lastly appears. In this sense,

each object has just one “activate” and “deactivate”

statements. However, some objects should have a

few “activate” and “deactivate” statements.

3) Transformation from sequence diagrams with

PlantUML to scenarios with SCEL

The reverse transformation can be applied, but

some time sequences in sequence diagrams cannot

be represented in scenarios. The time sequences,

“break,” “critical,” and “par with guard condition”

of sequence diagram cannot be represented in

scenarios. Other time sequences of sequence

diagrams can be represented in scenarios as shown

in Table 4. In the reverse transformation, the

problem of wrong priority of viewpoints is still left

just like the first problem described above. Another

problem is lack of dictionaries of nouns and verbs

for scenarios. Verbs in scenario should be registered

in verb dictionary where its concept and case

structure should be specified. Nouns in scenario

should be registered in noun dictionary. Because

describer of sequence diagrams does not mind such

dictionaries, it is difficult to produce internal

representation in the reverse transformation.

It is difficult to automatically solve these

problems. As for the first problem, we manually

change the order of objects in the diagram with

PlantUML if necessary. As for the second problem,

we manually modify the “activate” and “deactivate”

statements in the sequence diagram.

As for the third problem, we consider that a

scenario with SCEL should be transformed into a

sequence diagram with PlantUML. Then, the

sequence diagram which may be modified slightly

will be reversely transformed into scenario. In such

transformations, noun and verb dictionaries of

scenarios can be provided and reverse

transformation can be successfully processed.

4) Scenarios may be wrongly specified

Our method transforms scenarios into sequence

diagram, but sometimes scenario may be wrongly

written. The correctness of scenarios (Achour, 1998)

is out of our research scope.

6 RELATED WORKS

There exist several researches for generating

sequence diagrams from scenarios or use case

descriptions.

Li, L. proposed a translation method of use cases

to sequence diagrams (Li, 2000). First, he

normalizes a use case description. Then, based on 25

verb patterns for English sentences in the Oxford

Advanced Learner’s Dictionary, he syntactically

classifies sentences into 13 types. Some types of

sentences are transformed into message passing in a

sequence diagram. The normalization and

classification are not automatic tasks, so his

approach is too hard to transform use case

descriptions into sequence diagrams, while our

approach enables to automatically transform

scenarios into sequence diagram.

Jali, N. et al. proposed a generation method of

sequence diagram from requirements written by

users (Jali, 2014). They extract classes, attributes,

methods, and relationships between classes from

requirements document based on template rules

using natural language processing technique.

Derived classes, methods and attributes are mapped

respectively with nouns, verbs and adjectives and

are then translated into UML sequence diagram

constructs. Their aim is to clear the system

behaviours and visualize them as sequence diagrams,

while our aim is to visualize interactions between

actors and system in a scenario as sequence

diagrams.

Sawprakhon, P. et al. proposed a model-driven

approach to transform UML class diagram and use

case description to sequence diagram (Sawprakhon,

2014). Since they adopt use case description written

with natural language, problems of the ambiguity of

natural language occur in analysis of use case

description. They use table of mapping

KMIS 2018 - 10th International Conference on Knowledge Management and Information Sharing

142

transformation from class diagram and use case

description to sequence diagram, but there exist the

ambiguity in the table, for example, different

elements of sequence diagram are generated from

same input items of class diagram and use case

description. Our approach does not provide such

ambiguous transformations.

Mason, P.A.J. et al. proposed a paraphrasing

method between use case descriptions (scenarios)

and sequence diagrams (Mason, 2009). They

classify events in scenarios into 6 types, that is to

say, Communication events (Service Request type,

Service Provision type, Information Request type,

and Information Provision type), Action type, and

Timing type. They give types of elements in

scenarios, such as “sender,” “receiver,” “message,”

“action,” and “timer” with a data dictionary. Using

the information in scenarios, sequence diagram can

be generated. It seems a labour to classify events and

add types to elements in scenarios, while our

approach does not require such a labour.

Segundo, L.M. et al. proposed a generation

system of sequence diagrams from use case

description (Segundo et al., 2007). They gave

several grammatical rules for use case descriptions,

such as “the use case description is built by simple

sentences separated by periods,” “the sentences must

begin with an article,” “the actor must include an

article at the beginning,” “the system will

considerate that the first noun found in the sentence

is the originator subject,” and so on. Since they use

simple sentences without complex time sequence,

generated sequence diagrams do not contain

combined fragments.

El-Attar, M. proposed a method for assembling

sequence diagrams from use case scenarios (El-Attar,

2011). In his approach, scenarios can be represented

as sequence diagrams. His approach is not a

transformation from scenarios to sequence diagram

but combining sequence diagrams (or scenarios) into

an integrated sequence diagram.

7 CONCLUSIONS

We proposed a transformation method from

scenarios written with SCEL to sequence diagrams.

We have developed a prototype system based on the

method. Through evaluation of the method and

prototype, we found our method and system

contributes to generate sequence diagrams from

scenarios efficiently and correctly.

Scenarios in SCEL can provide pre-conditions

and post-conditions, but we ignore them in this

paper. Using combined fragment, we will transform

these conditions in sequence diagram. This is left as

a future work.

ACKNOWLEDGEMENTS

We thank to Dr. H. Itoga and Mr. H. Nobuhira,

members of Software Engineering Laboratory,

Ritsumeikan University for their contributions to

this research. This research is partly supported by

Grant-in-Aid for Scientific Research, Japan Society

for the Promotion of Science, No.16K00112.

REFERENCES

Achour, C. B., 1998. Writing and correcting textual

scenarios for system design. In Proc. 9

International

Workshop on Database and Expert Systems

Applications, pp.166-170.

EL-Attar, M., 2011. A systematic approach to assemble

sequence diagrams from use case scenarios. In Proc.

International Conference on Computer Research

and Development, pp.171-175.

Fillmore C. J., 1968. The Case for Case, Universals in

Linguistic Theory, ed. Bach & Harrms, Holy, Richard

and Winston Publishing, Chicago.

Jali, N., Grer, D., Hanna, P., 2014. Behavioral Model

Generation from Use Cases Based on Ontology

mapping and GRASP Patterns, In Proc. 26

SEKE2014, pp.324-329.

Li, L., 2000. Translating use cases to sequence diagrams.

In Proc. 15

IEEE ASE, pp.293-296.

Mason, P.A.J., Supsrisupachai, S., 2009. Paraphrasing use

case descriptions and Sequence Diagrams: An

approach with tool support. In Proc. 6

International

Conference on Electrical Engineering/Electronics,

Computer, Telecommunications and Information

Technology, pp.722-725.

Ohnishi, A., 1996. Software Requirements Specification

Database based on Requirements Frame Model, In

Proc. IEEE 2

ICRE96, pp.221-228.

PlantUML, 2018. Language Reference Guide, http://

http://plantuml.com/PlantUML_Language_Reference_

Guide.pdf (Date of access, April 19, 2018)

Sawprakhon, P., Limpiyakom, Y., 2014. Model-driven

Approach to Constructing UML Sequence Diagram. In

Proc. ICISA, pp.1-4.

Segundo, L.M., Herrera, R.R., Herrera, Y.P., 2007. UML

Sequence Diagram Generator System from Use case

Description Using Natural Language. In Proc.

CERMA, pp.360-363.

Weidenhaupt, K., Pohl, K., Jarke, M., Haumer, P., 1998:

Scenarios in System Development: Current Practice,

IEEE Software, March, pp.34-45.

Zhang, H., Ohnishi, A., 2004. Transformation Method of

Scenarios from Different Viewpoints. In Proc. 11

APSEC 2004, pp.492-501.

Transformation Method from Scenario to Sequence Diagram

143
