Big Data Scalability of BayesPhylogenies on Harvard’s Ozone 12k Cores

M. Manjunathaiah

1,2

, A. Meade

, R. Thavarajan

, P. Protopapas

and R. Dave

IACS, SEAS, Harvard University, U.S.A.

CS, SMPCS, University of Reading, U.K.

SBS, University of Reading, U.K.

Keywords:

Big Data, Phylogenetics, Exascale.

Abstract:

Computational Phylogenetics is classed as a grand challenge data driven problem in the fourth paradigm of

scientiﬁc discovery due to the exponential growth in genomic data, the computational challenge and the poten-

tial for vast impact on data driven biosciences. Petascale and Exascale computing offer the prospect of scaling

Phylogenetics to big data levels. However the computational complexity of even approximate Bayesian meth-

ods for phylogenetic inference requires scalable analysis for big data applications. There is limited study on

the scalability characteristics of existing computational models for petascale class massively parallel comput-

ers. In this paper we present strong and weak scaling performance analysis of BayesPhylogenies on Harvard’s

Ozone 12k cores. We perform evaluations on multiple data sizes to infer the scaling complexity and ﬁnd that

strong scaling techniques along with novel methods for communication reduction are necessary if computa-

tional models are to overcome limitations on emerging complex parallel architectures with multiple levels of

concurrency. The results of this study can guide the design and implementation of scalable MCMC based

computational models for Bayesian inference on emerging petascale and exascale systems.

1 INTRODUCTION

Computational Phylogenetics is classed as a grand

challenge data driven problem in the fourth paradigm

of scientiﬁc discovery due to the exponential growth

in genomic data, the computational challenge and

the potential for vast impact on data driven bio-

sciences(Warnow, 2017). Constructing the ”tree of

life” in the orders of 100k taxa and beyond is a big

data computational grand challenge. Such trees offer

insights into evolutionary processes at deep spatio-

temporal scales. Constructing the tree of life with

millions of species each with genomes in the order

of millions of nucleotides will depend on methods,

analysis and computational systems that are radically

scaled to offer new scalable solutions.

Given n species (or taxa) a phylogenetic tree

T (V,E) is a representation of inter-relationship

amongst the taxa using any data: molecular or mor-

phological. The tree T is typically rooted and binary

(bifurcating) with: n ∈ V the leaves, the degree of

internal nodes is 3, except for the root. The phyloge-

netic inference problem is to construct T such that the

labellings of the leaves correspond to the evolutionary

history of the given set of species. The computational

challenge of constructing the tree is apparent from the

number of possible topologies for n species.

(2n − 3)!

n−2

(n − 2)!

For a rooted tree, the number of possible topolo-

gies is 8 ∗ 10

for just n = 20 taxa. Thus the tractable

approaches are invariably heuristic based involving

some form of a search of the combinatorial search

space of possible trees.

State-of-the-art computational techniques are

rooted in Bayesian Inference following the ﬁrst for-

mulation that cast the phylogeny as a random variable,

thereby enabling the inference problem to be studied

in well-founded statistical frameworks(Felsenstein,

2004). BayesPhylogenies incorporates a general

analysis framework for inferring phylogenies with

the Metropolis-coupled Markov chain Monte Carlo

(MCMCMC) method(Pagel and Meade, 2006). An

integrated software system, BayesPhy and BayesTrait

has been implemented with the goal of generating sta-

tistically robust results for phylogenetic inference and

comparative analysis. These modelling and analysis

software systems have been made available to the bio-

science research community, available on Harvard’s

Supercomputer Odyssey(RC-FAS, 2018a), adopted

Manjunathaiah, M., Meade, A., Thavarajan, R., Protopapas, P. and Dave, R.

Big Data Scalability of BayesPhylogenies on Harvard’s Ozone 12k Cores.

DOI: 10.5220/0007249601430148

In Proceedings of the 12th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2019), pages 143-148

ISBN: 978-989-758-353-7

143

by the scientiﬁc community, cited over 3000 times in

the literature.

Phylogenetic inference (PI), constructing evolu-

tionary histories, and Phylogeny Comparative Meth-

ods (PCM) a complementary statistical framework for

analysing data in a phylogenetic context, are funda-

mental and universal methods for studying biological

systems(Pagel and Meade, 2008). With large volumes

of data produced by next generation sequencing large

phylogenies have been created: these include a near

complete phylogeny of the birds (9000 taxa) and a

large ﬁsh phylogeny (8000 taxa), these phylogenies

join a near complete mammal phylogeny (5000 taxa),

a mega-phylogeny of plants (55,000+ taxa). PCM

analysis has also been applied to discover many evo-

lutionary processes.

Despite these advances, the Phylogenetic problem

remains far from being considered as ’solved’ and

in fact has become acute at big data scale. It was

hoped that access to large data sets would make phy-

logenetic inference universally available, robust and

accurate, surprisingly the opposite appears to be the

case(Salichos and Rokas, 2013). Analysing big data

is therefore much more than redesigning current mod-

elling used for traditional analysis to work with data

sets orders of magnitude larger. New generations of

models, methods and software are needed to fully ex-

ploit the power of these data sets. Scalability is a

deﬁning feature of big data analysis. Overly simple

statistical models do not scale, software designed to

work with data sets orders of magnitude larger than it

was originally designed are not scalable, and compu-

tational methods to convert the results to biologically

relevant information also have scalability limitations.

These can be deﬁned as model scalability, software

scalability, and data visualisation scalability. Big

data phylogenetic inference and comparative meth-

ods offer much more than the challenge of analysing

larger data sets: they offer new opportunities to exam-

ine evolutionary processes and the prospect of gaining

new insights at both micro and macro levels.

In this paper we present evaluation of scalabil-

ity of Bayesphylogenies across two petascale class

architectures on ﬁsh big data data sets (3k and 5k).

Analysis of strong and weak scaling on large proces-

sor counts from 4k to 12k gives insights into hybrid

parallel program efﬁciencies, scalability limitations

across large taxa sets and algorithmic characteristics

of MCMCMC. From these insights we make sev-

eral conclusions on scaling phylogenetic analysis to

next generation from hierarchical parallelisation and

emerging algorithmic adaptations based on machine

learning techniques.

2 BIG DATA BAYESIAN

PHYLOGENETICS

2.1 Bayesian Phylogenetics

2.1.1 Search Procedure

Algorithmic approaches to Bayesian inference of

phylogenies have two components: a scoring metric

and a search procedure.

Let D denote the DNA sequence data from n taxa.

An analysis is typically performed over 10,000 nu-

cleotides drawn from multiple genes. The phyloge-

netic analysis seeks to infer the tree τ

that is most

consistent with the observed data D. As the space of

possible trees is exponential in the number of taxa the

problem is framed as search of plausible trees condi-

tional on the observation in a statistical framework:

P(τ

|D). A computational procedure is then formu-

lated using Bayes rule as follows:

P(τ

| D) =

P(τ

) · P(D/τ

)

∑

B(n)

j=1

P(τ

) · P(D/τ

)

(1)

where P(τ

| D) gives a score for the i

tree,

P(D/τ

) the likelihood and P(τ

) the prior probaba-

bility.

Instead of computing one tree as in maximum-

likelihood method the formulation in equation 1 com-

putes a distribution of trees by applying a MCMC

search procedure (Meade, 2011). Under the assump-

tion of un-informative priors, the main computation

then is the likelihood P(D/τ

). The procedure thus

searches for a set of plausible trees that are weighted

by their probabilities. In practice a speciﬁc tree

is modelled by M = {τ, υ,Q,γ}: topology, branch

lengths, DNA substitution parameters and gamma

shape parameter respectively.

2.1.2 Nucleotide Substitution Model

For a particular tree the transition probabilities from

root to all the leaf nodes needs to be deﬁned. The

problem speciﬁcation therefore includes a concrete

model of evolution. An evolutionary mechanism re-

sponsible for sequence change can be quantiﬁed in

terms of (rate of) nucleotide substitution as a sub-

stitution matrix Q. A number of models have been

proposed and it has been shown that different mod-

els are subsumed in the General Time Reversal (GTR)

model(Felsenstein, 2004). The GTR model states that

each character may be substituted for any other, and

this can be speciﬁed with a 4 × 4 instantaneous rate

matrix Q.

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

144

2.1.3 BayesPhylogenies

BayesPhylogenies implements a data driven MCMC

method for inferring phylogenetic trees incorporating

heterogeneous models of evolution in which P(D/τ

the likelihood, accounts for rate and pattern hetero-

geneity(Meade, 2011):

P(D | Q

,τ) =

∏

∑

P(D

| γ

,τ) (2)

where j is the number of independent models of

evolution, w is a weighting vector of length j, which

sums to 1. γ is a discretised gamma distribution, with

k categories. The addition of rate and pattern hetero-

geneity requires j × k passes over the tree. A typi-

cal analysis can consists of 40 independent runs when

multiple data sets, chains and models are considered.

Current implementation require weeks of compu-

tational time to analyse a model run for 1k taxa on

1k core (Meade, 2011). Our goal is to advance solu-

tions to big data levels with emerging Exascale com-

putation — from analysis of 10k to 100k taxa and

beyond. We investigated scalability of BayesPhylo-

genies on Harvard’s Ozone, a 0.5 Petaﬂop, 15k cores

cluster as a ”Tier 3” pre-production conﬁguration to

execute a Grand Challenge run that uses the full sys-

tem (RC-FAS, 2018b). Scalability analysis was per-

formed on big data sets of 3k and 5k ﬁsh taxa, con-

sisting of 11621 nucleotides at a number of levels:

• scalability analysis to replicate the U.K. runs for

Ozone.

• strong and weak scaling runs on larger nodes

(128) and an exploration of the optimal number

of threads per task.

• scaling characteristics for model complexity i.e,

patterns 4 vs 10.

• a full scale run on 12880 cores over 12 hours.

3 SCALABILITY ANALYSIS ON

HARVARD’S OZONE 12K

CORES

BayesPhylogenies incorporates a number of models

and applying a combination for a given data set will

magnify the computational complexity by orders of

magnitude. We investigated scalability for various

model conﬁgurations as discussed below. We use a

scalability run across Ozone and UK clusters as a ref-

erence point from which the relative weak scaling is

then evaluated.

BayesPhylogenies implements a hybrid strategy

with two-level SIMD(openMP) and SPMD(MPI) par-

allelisation for scalable performance on hierarchi-

cal parallel architectures. SPMD (MPI) partitions

the gene data (11621 nucleotides) into independent

blocks and a model parallelisation then computes the

two summation in equation 2 in parallel for each site

in the partition.

3.1 Scaling Comparison with U.K. Runs

The U.K. analysis is run on a 40 node conﬁguration

with 12 cores per node (named SBS in ﬁgures). Since

convergence of MCMC can take months of compute

time for a 3k data set, scalability analysis is performed

by executing a ﬁxed number of iterations, 20,000 and

with model parameters pattern=4 and gamma=4.

!"!!

#"!!

$!"!!

$#"!!

%!"!!

%#"!!

&!"!!

! ' ( $% $) %! %' %( &% &)

*+,-./0

123/ 0

&456+07538.8

9:2,/

;<;

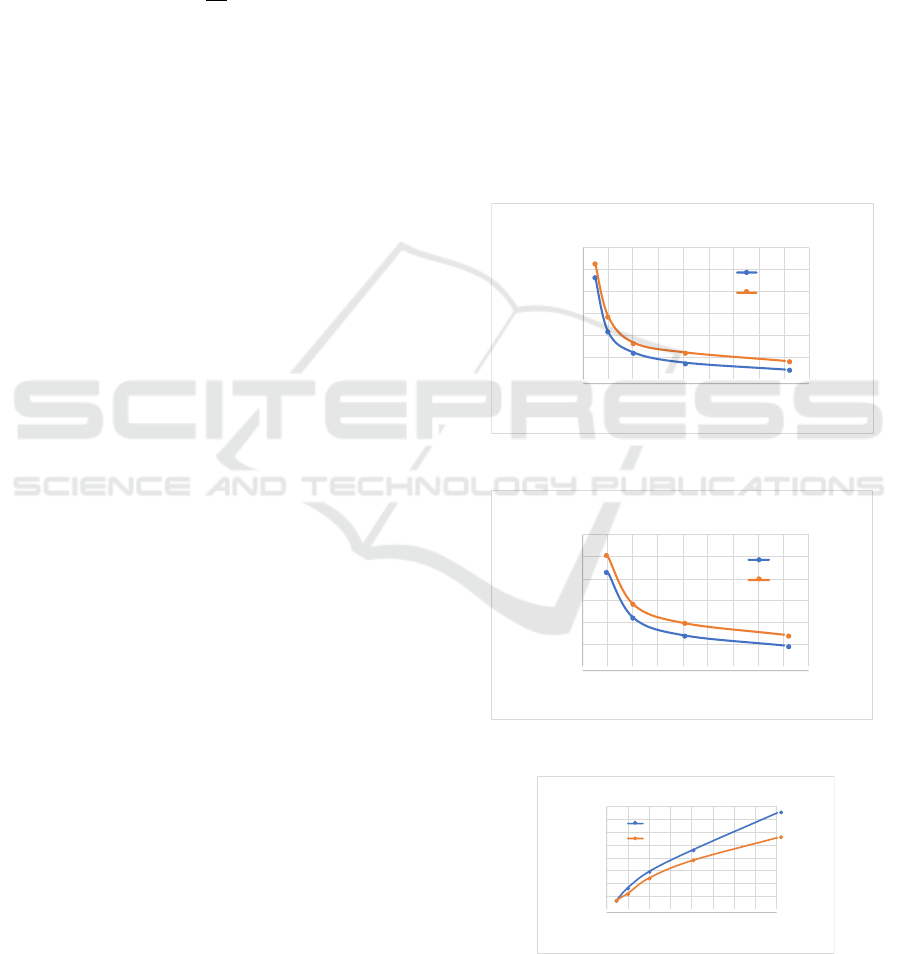

Figure 1: a: Comparison of Ozone and SBS.

!"!!

#"!!

$!"!!

$#"!!

%!"!!

%#"!!

&!"!!

! ' ( $% $) %! %' %( &% &)

*+,-./0

123/ 0

#456+075.898

:;2,/

<=<

Figure 2: b: Comparison of Ozone and SBS.

! # % &" &$ "! "# "% '"

()**+,)

-.+*/

()**+,)0 .1023.1*

'45/)**+,)

645/)**+,)

Figure 3: Big data sets speedup.

On both architectures the software scales for 3k

and 5k data sets with similar speed-ups as shown in

Big Data Scalability of BayesPhylogenies on Harvard’s Ozone 12k Cores

145

ﬁgures 1, 2, 3. However Ozone has 32 cores per node

against 12 cores of SBS and hence similar MPI tasks

to OpenMP threads ratio are evaluated for a fair com-

parison. The best MPI, OpenMP combination is cho-

sen for comparison as MPI=2, OpenMP=6 for SBS

and 2 × Nodes MPI tasks on Ozone in the graphs

shown in ﬁgure 1. Although the speed-ups are mod-

est at the node level (16 for 32 nodes) as in ﬁgure 3,

the parallel efﬁciency drops signiﬁcantly when mul-

tiple cores per node are taken into account. Hence,

simple metrics are not adequate to deduce scalability

limitations.

3.2 Strong and Weak Scaling on 4k

Cores

Here the interest is in a number of scaling characteris-

tics on Ozone with a large node (128) and core count

(4k) relative to SBS cluster. The runs are performed

for 40,000 iterations with default models parameters

(pattern=4, gamma=4) as above and a variant (pat-

tern=10) to evaluate model scaling.

1. Hybrid Parallelisation: In this we are interested

in tasks to threads ratios that gives the best perfor-

mance which can only be determined empirically

due to the data dependent nature of MCMC based

inference. The evaluation on 128 nodes gives an

optimal ratio of MPI tasks to OpenMP threads as

256:16 for 1k, 3k and 5k taxa. The hybrid scal-

ing however saturates at 256 MPI tasks due to in-

creased MPI communication overheads.

2. Strong Scaling: In strong scaling a parallel pro-

gram is deﬁned as scaling linearly if the speed-up

equals the number of processing elements N. We

set the threads per task to the optimum value of

16 and varied the node count for a ﬁxed workload

of 3k taxa. The strong scaling efﬁciency drops

below 50% beyond 20 nodes as shown in ﬁgure

4. This is largely due to limited parallelism of

model parallelisation (openMP) on a single node

(32 cores) combined with increase in communica-

tion overhead from a ﬁne grain decomposition at

large node count (128).

3. Weak Scaling: Analysis was performed by dou-

bling the workload from 500, 1k, 3k to 5k taxa

whilst doubling the number of nodes 16, 32,

64 and 128. With 2 MPI tasks per node and

16 threads per task the execution times are as

in ﬁgure 4. The execution time increases due

to data dependent nature of bayesian phyloge-

nies analysis and the iterative nature of MCMC

sampling from large posterior distributions as the

taxa size increases (equation 2). Additionally, as

noted above the communication overheads begin

to dominate beyond 64 nodes.

4. Model Scaling: results of strong and weak scal-

ing analysis with increased model complexity by

setting pattern=10 (k in equation 2) is shown in

ﬁgure 4. Due to multiple passes in calculating

the likelihood the strong scaling effects are more

pronounced. Thus improving strong scaling for

multi-cores is an important parallel efﬁciency op-

timization for big data analysis.

"!!

! "' $# %) '% )! *' ""# "#) "%%

+,-,../.0 /1123/4250,6070 810.34/,-0 62,.349

:8;/6

<=-849062,.3490

>,==/-4?%

>,==/-4?"!

! &$ '" #% $# %! ($ &&" &"%

)*+,-./

012./3

4.5637859*+:3

;<#

;<&!

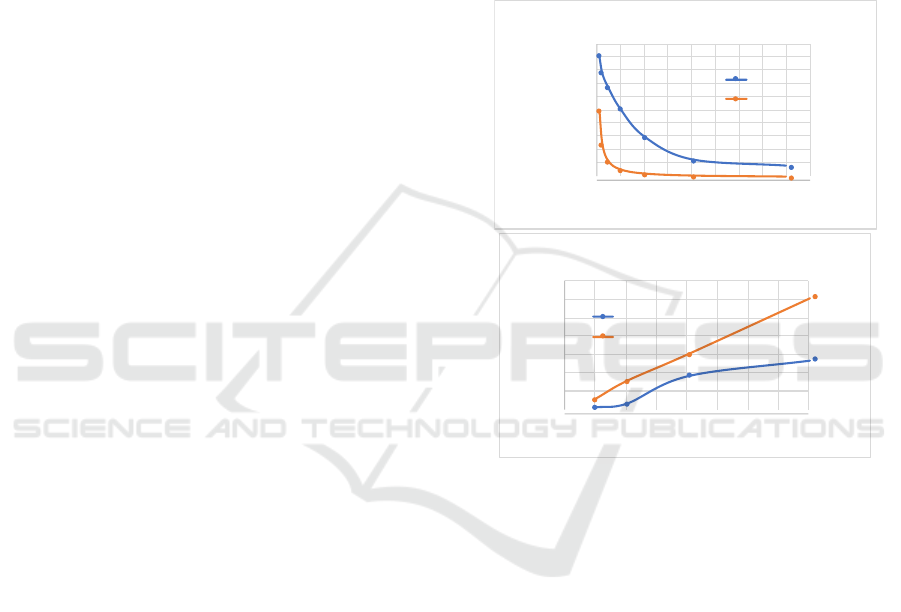

Figure 4: Strong and weak scaling for different models (p=4

and p=10).

3.3 Scaling at 12k Cores on Ozone

A full scale run to assess how well the parallelisa-

tion leverages the capacity of 12880 cores on 400

nodes was performed for the 3k ﬁsh data with de-

fault model parameters. With optimal threads of 16

per MPI task derived from above scalability analysis,

with 1600 MPI ranks the large scale run completed 7

million iterations in 12 hours. However in order to

achieve convergence of MCMC we need the analysis

to be run for 500M iterations for these types of big

data sets.

For parallel runs at this scale a number of factors

impact on the scaling. The parallel formulation be-

comes ﬁne grained as each node now gets a smaller

fraction of the data set. This results in increased MPI

communication overheads and as in the previous anal-

ysis of strong scaling (ﬁgure 4) the efﬁciency drops

beyond 64 nodes. The iterative nature of MCMC sam-

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

146

pling, the schedules involved in perturbing the tree

topologies in computing likelihood and the non-linear

memory access patterns in propagating likelihood val-

ues on trees all contribute to lower efﬁciency. Scaling

to big data therefore requires radical approaches to

parallel algorithm design and optimizations, in par-

ticular in strong scaling techniques.

4 DISCUSSION

The evaluation study focuses on the scalability char-

acteristics of the Bayesian computational procedure

and its parallelisation and not the generation of ﬁnal

trees. Hence the quality of output is not the focus of

the study as that requires the computation to be run

to convergence as noted earlier. However the study

provides insight into parallel algorithm implementa-

tion for any Bayesian phylogenetic analysis that is

MCMC based. Any parallelisation has to consider the

multi-level parallelisation available in heterogenous

massively parallel architectures and therefore has to

consider strong and weak scaling.

Two communication complexity, from data move-

ment across the memory hierarchy and across the dis-

tributed memory, impact on the scalability as shown.

Even though the current implementation already im-

plements multi-level SIMD/SPMD parallelisation the

data dependent nature of the computation requires

more complex program analysis and tranformation to

overcome scalability limitations.

To make a step change to the next generation of

exascale ready Computational Phylogenetics a num-

ber of models of parallelisation run-time optimiza-

tions and algorithmic adaptations will be required:

• A hierarchical SPMD parallelisation and radical

approaches to minimizing data movement in the

memory hierarchy are approaches to improving

strong scaling for tree-based computations(Kamil

and Yelick, 2014).

• Dynamic parallel computations with asyn-

chronous task parallelisation combined with

dynamic load balancing, MPI+PGAS or

MPI+OpenMPtask, with supporting run-time

for automatic thread migration across nodes are

alternative algorithm design formulations that can

enhance scalability(J. Hashmi, 2016).

• Radical scaling can also be obtained from fun-

damental algorithmic adaptations with better con-

vergence properties than MCMCMC.

The scalability study although uses ﬁsh data set

is generalisable from parallelisation and algorithmic

viewpoint with the emerging approaches discussed

above. Nevertheless, other factors such as evolution-

ary diameter of a particular data set should be con-

sidered in designing effective parallel algorithm if

it affects the convergence of MCMC computational

models. This aspect further re-enforces the require-

ment for data driven nature of applications to consider

both algorithmic and emerging strong and weak scal-

ing strategies in the implementation of computational

models for phylogenetics.

5 CONCLUSION

The performance of data dependent computational

models are characterized by an interplay of the al-

gorithm, architecture and data sets as shown by the

evaluation studies above. The scalability analysis pro-

vides insights into the importance of strong-scaling

for multi-core systems for parallel applications that

are memory bound. Unlike in data decomposition

of typical data parallel applications where workload

per processor can be characterised in terms of prob-

lem size, data dependent computations as in MCMC

bayesian inference pose considerable challenges in

optimizing the computations for high parallel efﬁ-

ciency and in evaluating their performance with more

sophisticated metrics. The design of effective com-

putational procedures therefore needs to consider al-

gorithmic and problem domain characteristics as dis-

cussed above. Several alternative parallelisation and

algorithm strategies as proposed above are steps to-

wards realising next generation scalable models that

are ’exascale ready’. With sophisticated computa-

tional techniques this grand challenge problem can,

for the ﬁrst time, be addressed at large scale.

ACKNOWLEDGEMENTS

Thanks to RC, FAS at Harvard for allocating Ozone

for this scalability study. Prof. Manjunathaiah was

a visiting faculty at IACS/SEAS, Harvard University,

USA, in 2017 during this research.

REFERENCES

Felsenstein, J. (2004). Inferring phylogenies. Sinauer As-

sociates, Inc.

J. Hashmi, K. Hamidouche, D. P. (2016). Enabling

performance efﬁcient runtime support for hybrid

mpi+upc++ programming models.

Kamil, A. and Yelick, K. (2014). Hierarchical computation

in the spmd programming model. In Cas

caval, C. and

Big Data Scalability of BayesPhylogenies on Harvard’s Ozone 12k Cores

147

Montesinos, P., editors, Languages and Compilers for

Parallel Computing, pages 3–19, Cham. Springer In-

ternational Publishing.

Meade, A. (2011). Scalable methods for bayesian phyloge-

netic inference. In (unpublished). University of Read-

ing, U.K.

Pagel, M. and Meade, A. (2006). Bayesian analysis of cor-

related evolution of discrete characters by reversible-

jump markov chain monte carlo. The American Natu-

ralist, 167(6):808–825.

Pagel, M. and Meade, A. (2008). Modelling hetero-

tachy in phylogenetic inference by reversible-jump

markov chain monte carlo. Philosophical Transac-

tions of the Royal Society B: Biological Sciences,

363(1512):3955–3964.

RC-FAS ((retrieved 2018)a). Bayesphylogenies.

https://portal.rc.fas.harvard.edu/apps/modules/-

BayesPhylogenies.

RC-FAS ((retrieved 2018)b). Odyssey 3, the next gener-

ation. https://www.rc.fas.harvard.edu/odyssey-3-the-

next-generation/.

Salichos, L. and Rokas, A. (2013). Inferring ancient diver-

gences requires genes with strong phylogenetic sig-

nals. Nature, 497(7449):327.

Warnow, T. (2017). Computational challenges in construct-

ing the tree of life. In 2017 IEEE International Paral-

lel and Distributed Processing Symposium (IPDPS),

pages 1–1.

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

148
