Colorization of Grayscale Image Sequences using Texture Descriptors

Andre Peres Ramos and Franklin Cesar Flores

Departamento de Informatica, Universidade Estadual de Maringa, Maringa, Brazil

Keywords:

Colorization, Segmentation, Tracking.

Abstract:

Colorization is the process of adding colors to a monochromatic image or video. Usually, the process involves

to segment the image in regions of interest and then apply colors to each one, for videos, this process is repeated

for each frame, which makes it a tedious and time-consuming job. We propose a new assisted method for video

colorization, the user only has to colorize one frame and then the colors are propagated to following frames.

The user can intervene at any time to correct eventual errors in the color assignment. The method consists

of extract intensity and texture descriptors from the frames and then perform a feature matching to determine

the best color for each segment. To reduce computation time and give a better spatial coherence we narrow

the area of search and give weights for each feature to emphasize texture descriptors. To give a more natural

result we use an optimization algorithm to make the color propagation. Experimental results in several image

sequences, compared to others existing methods, demonstrates that the proposed method perform a better

colorization with less time and user interference.

1 INTRODUCTION

Colorization is the process of add colors to monochro-

matic images and videos. Although colorization ap-

pears to be a recent process, there are registries da-

ting from 1.842 and possibly early (Yatziv and Sapiro,

2006), making the processes as old as photography

itself. However, even now, with digital images, the

process is extremely tedious, costly and slow. The

manual process consist in the user manually to seg-

ment all object of interest in regions, then assign a

color to each region of image until reach the desired

result, for videos this steps are repeated for all frames

until all of them are colored.

Because of the process complexity, several met-

hods addresses the colorization problem in attempt

to reduce the amount of work involved. However,

the number methods that addresses video colorization

is very small compared to those that addresses sta-

tic image, perhaps because of its complexity and high

processing cost(Paul et al., 2017).

Broadly, the state-of-the-art colorization methods

for videos and images, in the literature, can be divi-

ded in two big classes: assisted colorization methods

and automatic colorization methods. Mostly of as-

sisted methods (Levin et al., 2004), (Yatziv and Sa-

piro, 2006), (Qu et al., 2006), (Luan et al., 2007),

(Irony et al., 2005), (Huang et al., 2005), (Hyun et al.,

2012), (Paul et al., 2017), are based on work of Levin

et al(Levin et al., 2004), they require that the user put

marks in the image using colored scribbles, then the

algorithm propagates the colors from these scribbles

to the whole image. The major problem with scribbles

oriented methods are that they usually require many

user interventions, where the user has to add a high

number of scribbles to archive a good result. Some

methods like (Luan et al., 2007; Qu et al., 2006) uses

texture descriptors in order to reduce the amount of

scribbles, others, as (Yatziv and Sapiro, 2006) aims

the reduction of processing time.

The automatic methods (Zhang et al., 2016; Ii-

zuka et al., 2016; Bugeau et al., 2014; Gupta et al.,

2012), (Irony et al., 2005) perform the colorization

without any user input. Some (Gupta et al., 2012;

Irony et al., 2005), (Bugeau et al., 2014) uses similar

images, provided by the user, as reference, to make

the color transfer; others (Zhang et al., 2016; Iizuka

et al., 2016) utilizes Convolution Neural Networks

(CNN). The networks are trained using a set of ima-

ges, after reached some accuracy level, it is used to

guess the color of a given grayscale image. Both au-

tomatics approaches have limitations residing on the

fact that there are ambiguity when determining the co-

lor of a grayscale image.

Although these methods have good results in sta-

tic images, none of them has proved to be efﬁcient

for videos, in order to reduce the work and time spent

Ramos, A. and Flores, F.

Colorization of Grayscale Image Sequences using Texture Descriptors.

DOI: 10.5220/0007252203030310

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 303-310

ISBN: 978-989-758-354-4

303

in the colorization process while maintaining a good

visual result. The use of assisted image colorization

methods in videos require that the user repeats the en-

tire process for each frame, which ends up making the

process time consuming and tiring. In its turns, auto-

matic image colorization methods does not perform

well in videos, since it treats each frame individually,

it is possible that the same object receive different co-

lors in two frames which will cause artifacts in the

ﬁnal result.

In this paper, we propose a novel assisted colo-

rization method for grayscale videos that the user,

through a tool developed for this purpose, perform the

colorization of the ﬁrst frame, according to his taste.

After that, texture and intensity descriptors are extrac-

ted from the frames to carry out the color propagation

from the manually colored frame to the following fra-

mes, the user can intervene at any time, correcting any

errors in the process or adding colors to new objects

in the scene. Automating part of the process while gi-

ving full control to the user on the desired result, ea-

sily solving common problems in video colorization

such as occlusion and scene changes.

2 PROPOSED COLORIZATION

METHOD

The proposed method colorizes a sequence of images

through the matching of texture, intensity and region

features between two consecutive frames of the same

sequence. The user only has to fully colorize a ﬁrst

frame, even so, using a tool made to speed up the pro-

cess thought an interactive segmentation method, like

Watershed segmentation. Then, the method automati-

cally transfer color from the ﬁrst frame to the second

using feature matching. The user can interact with the

result, approving or making the desired changes, ap-

plying new colors or change the designated ones, after

that, the process repeats using the new colored frame

as reference to colorize the next one, these steps con-

tinue until all frames are fully colorized.

We can split our method in six stages: (a) seg-

mentation, (b) manual colorization of the ﬁrst frame,

transfer and propagation, and (f) user evaluation and

interference.

2.0.1 Algorithm

For a best understand of out proposed method we des-

cribe a simple implementation of it in algorithm 1

which demonstrate the simplicity of the presented so-

lution.

Let be E ⊂ Z × Z a rectangular ﬁnite subset of

points and x ∈ E one of these points. Let K = [0, k] be

a totally ordered set. Denote by Fun[E, K] the set of

all functions f : E → K, a grayscale image is one of

these functions.

Let C

: E → Chr the chrominance information of a

colored image where Chr = a × b and a = [−1, ..., 1],

b = [−1, ..., 1], being a the green to red light intensity

and b the blue to yellow color intensity, according to

CIE L*a*b* color space.

Let I : {I

, I

, ..., I

} : I

∈ Fun[E, K] be the original

grayscale image sequence.

Let C : {C

, C

, ..., C

} : C

∈ Fun[E, Chr] be the

set of chrominance information for sequence S and

O : {O

, O

, ..., O

} : O

→ Chr ×K the ﬁnal colorized

image.

Let S the segmented I sequence, being S

the frame

but segmented by an automatic segmentation algo-

rithm and r a segment from S

Let U (i, r, rad) = {r

: ∃x ∈ r

: DE(x, CP(r)) ≤

rad} be the set of all segments from S

i−1

that has

points within a predetermined radius rad from the

center coordinates of segment r ∈ S

. Where r

∈

i−1

, DE(x, CP(r)) is the euclidean distance between

a point x and CP(r) being CP(r) the center point of a

segment r.

Let FD

(t) a function that computes the sum of

the weighted distances between the features of seg-

ments t and r.

Let MD

(r) = t ∈ S

i−1

: FD

(t) = min

{FD

) :

∈ U(i, r, rad)} the function that will return the best

matching from the candidates segments for the seg-

ment r.

Let segment(I) be a function that perform an au-

tomatically segmentation for every frame I

. Let be

Propagate(I

, C

) a function that perform the ﬁnal co-

lor propagation through the usage of the algorithm

proposed in (Levin et al., 2004).

The details of all these functions will be described

in the following sections.

2.1 Segmentation

We start the process using a super-segmentation algo-

rithm on the image set I to generate the segmented set

S, in order to break down every frame in smalls seg-

ments. We need to use a super-segmentation method

that make segments enough to properly separate the

objects in the scene, but, at the same time, make regi-

ons big enough to extract relevant texture descriptor,

give a good spatial coherency, a homogeneous result

and avoid an excessive processing.

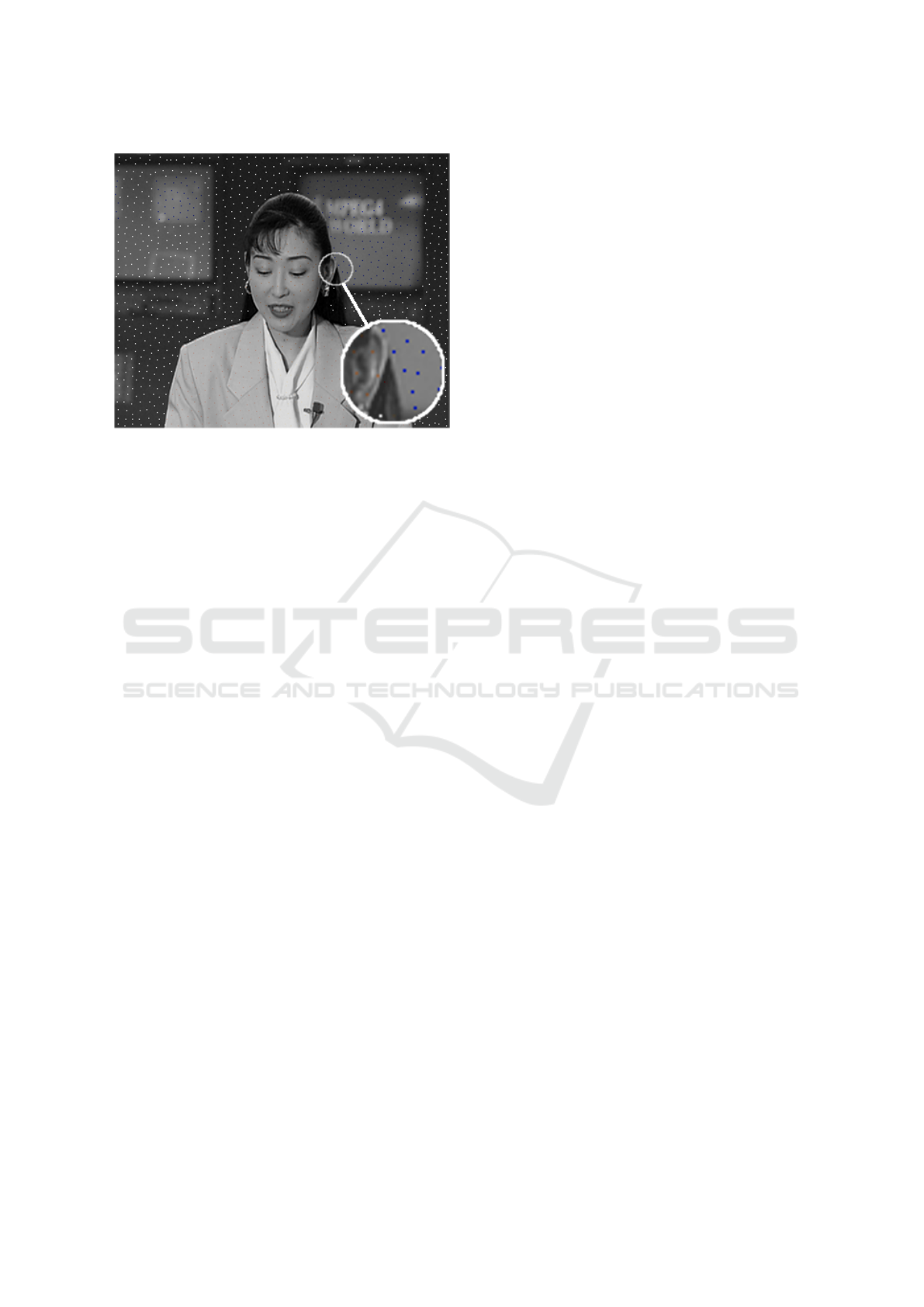

In ours experiments, we utilize the Superpixel seg-

mentation algorithm, also called as Superpixel repre-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

304

Algorithm 1: Algorithm for the proposed method.

Input - Grayscale image sequence I

Output - Colored image sequence

S ← segment(I)

for all segment r ∈ S

//User manually colorize the frame S

deﬁne chrominance (a,b) for region r : a ∈ a, b ∈

(x) ← (a, b), ∀x ∈ r;

end for

for i in [2..n] do

for all segment r in S

t ← MD

(r);

(x) ← C

i−1

(y), ∀x ∈ r, y ∈ t;

end for

//User can change the colors of segments in C

← Propagate(I

, C

);

end for

sentation. As the algorithm group adjacent similar

pixel based on a predetermined grid, it avoids very

small and insigniﬁcant regions as give control on how

many regions it is desired. We utilize SEEDS Super-

pixel implementation(Van den Bergh et al., 2012) in

ours experiments. As parameters, we use 5,000 for

the number of Superpixel, 4 for the Number of Levels

and 10 Iterations.

2.2 Manual Colorization of First Frame

For the method to be able to colorize the sequence, an

initial a color information is necessary, this informa-

tion is provided by a colored frame, usually the ﬁrst

frame of the sequence.

As our goal is to colorize monochromatic image

sequences, normally, there are no prior color infor-

mation available, so we ask the user to colorize an

initial frame. The manual colorization of even of a

single frame, without any assisted method, is a time-

consuming process and demand a lot of work. The-

refore, we develop a simple tool to assist the segmen-

tation process. We utilize an implementation of wa-

tershed segmentation algorithm(Vincent and Soille,

1991; Vincent, 1992) using markers. Through this

tool, the user create custom regions and assign colors

to it, the user also can freely colorize the image ma-

king strokes, where each region r of the image that is

touched by the stroke will receive the selected color.

2.3 Feature Extraction

One of the most important stage of the method is to

extract descriptive features to get good matching re-

sult. In our method, we use three distinct features,

generating a 101-dimensional feature vector by each

Superpixel segment, composed of a 2-dimensional in-

tensity vector, a 40-dimensional Gabor Feature vector

and a 59-dimensional LBP histogram used as texture

descriptor feature. These features are computed as

follow:

2.3.1 Intensity

The two-dimensional intensity feature is extracted for

each segment, the ﬁrst dimension is composed by the

simple average of pixels intensities belong to the seg-

ment. The second dimension is computed by the sim-

ple average of intensity of all pixels belong to the

neighbor segments.

For a frame i, be n the number of pixel in segment

r and I

(x) the intensity of pixel x, the ﬁrst dimension

is computed by equation 1.

(r) =

∑

x∈r

(x) (1)

For the second dimension, be M the number of

neighbors segments from r, be r

a neighbor segment

and N(r) the set of r’s neighbor segments, the feature

can be computed by equation 2.

(r) =

∑

∈ N(r)

) (2)

2.3.2 Gabor Features

The Gabor Features (Manjunath and Ma, 1996) are

widely used as texture descriptor in processing of di-

gital images, it has a special characteristic that it can

analyze texture information in both space and fre-

quency domain, also it was based in the behavior of

the visual cortex neurons(Yang et al., 2003). The ex-

traction occurs through the creation of ﬁlters that are

applied in a convolution process in the image; the re-

sult of the process is the Gabor Feature Bank. We

use 40 different ﬁlter composed of eight orientati-

ons, varying from 0 to 7π/8 and ﬁve exponential sca-

les exp(i ∗ π), i=[0,1,2,3,4], then the feature value for

each dimension of a segment is computed as the sim-

ple average of Gabor feature value for all pixel in the

segment.

Let be G the set of all Gabor features for the whole

segmented image S

, let G

be a dimension of Gabor

feature for the image, G

(x) the value of feature bank

for the point x. The Gabor Feature for a segment r and

the dimension d can be computed by equation 3, the

process is applied to all dimensions G

in G to form

the 40-dimension feature vector.

Colorization of Grayscale Image Sequences using Texture Descriptors

305

(r, G

) =

∑

x∈r

(x) (3)

2.3.3 Local Binary Pattern

Local Binary Pattern (LBP) is another texture des-

criptor widely used in image and signal proces-

sing, is highly descriptive and has a low processing

cost (Ahonen et al., 2006). Usually, it is used the his-

togram of LBP’s result as texture descriptor. In our

case, to compute a feature vector for a segment S

we compute the histogram of LBP’s result but only

for the values within the segment. As parameters, we

use a radius of 1 and 8 as the number of neighboring

points, we use the uniform calculation.

Because the uniform LBP can have N(N − 1) + 3

possible values, begin N the number of neighboring

points, we can have up to 59 values with our current

parameters, therefore, 59 positions in the histogram

with make our 59-dimension LBP vector for each seg-

ment.

2.4 Feature Matching

2.4.1 Search Area

The extracted features are used to ﬁnd the best match

between the segments of the reference frame and the

segments of frame to be colorized. The color from

the best matching segment is used in the colorization

process.

To reduce the amount of processing time, as well

as give a better spatial coherence, we narrow the com-

parison area within a predetermined radius from the

borders of the region to be colorized.

Given a segment to be colorized r and U(i, r, rad)

the set of candidate segments from the reference

frame S

i−1

to use in the matching process with r. We

must ﬁnd a x ∈ r point that is in the center of segment

area, then we ﬁnd U(i, r, rad) segments by choosing

only the segments in S

i−1

that has pixel inside an area

formed by a radius rad from the center point x in S

i−1

we use the euclidean distance to compute the distance

between two points. We summarize this process in

equation 4 where DE(x, y) stands for the euclidean

distance between two points and CP(r) for the center

point of segment r.

U(i, r, rad) = {r

: ∃x ∈ r

: DE(x, CP(r)) ≤ rad}

(4)

With this, we narrow down the search area for

only the segments in U(i, r, rad) which will not only

reduce the number of comparisons but will also main-

tain a spatial coherence avoiding computations with

far segments.

2.4.2 Matching

With the candidates segments found in the previous

subsection for a segment S

to be colorized, we must

ﬁnd the best match among these segments to extract

the color from it. To ﬁnd the best match, we calcu-

late the shortest distance between features vectors, for

each feature.

We use Cityblock distance to calculate the distance

between two features vector, this distance has a lower

computational cost compared to others, like euclidean

distance. The distance is calculated by the equation 5

where a and b are two feature vector with n dimension

each.

D(a, b) =

∑

j=1



− b



(5)

As we use three different features to classify, we

must set weights to each one, once texture features

is more descriptive for us than intensity feature. For

each type of feature, is calculated the distance bet-

ween features of the segment to be colorized and from

the candidates segments. These distances are nor-

malized, multiplied by a weight and summed giving

a unique distance value for each candidate segment.

The segment with the lowest value will be the match.

In ours experiments, we use the following weights:

0.20 for intensity, 0.45 for LBP and 0.35 for Gabor

features.

Let r denote the segment to be colorized from

frame i and u one of the candidates segment from the

set U(i, r, rad) of the already colored reference frame

i−1

, we want to ﬁnd the segment u with the lowest

(u) value, that is, the lowest sum of the weighted

distances between the features of segments t and r.

The normalization and weighting is expressed in

equations 6 and 7 where W

is the weight value for

feature k and D

(r, u) the distance between the seg-

ments r and u for a feature k. The ﬁnal FD

(u) value

for a segment is computed by equation 8.

(r) =

∑

z∈U (i,r,rad)

(r, z) (6)

r,k

(u) =



(r, u)

(r)



(7)

(u) =

∑

r,k

(u) (8)

2.5 Color Transfer and Propagation

Once it is found matches for all segments, the co-

lor transfer starts, we work with CIE L*a*b* color

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

306

Figure 1: Micro-scribbles for the color propagation.

space, where L* stands for lightness or intensity, a*

for the green to red and b* blue to yellow color lights.

As a grayscale image only have the intensity chan-

nel we only have to transfer the a* and b* to fulﬁll the

color information. However a direct transfer maybe

not produce a good result, once that gradual chan-

ges in luminance often indicates a gradual transition

in chrominance in natural images (Yatziv and Sapiro,

2006; Kimmel, 1998).

To produce a more realistic result, instead of ﬁll

the entire segment with chrominance value from the

best match, we create micro-scribbles of only one

pixel in the center of to be colorized segment, these

micro-scribbles are shown in ﬁgure 1.

The micro-scribbles are then propagate to all ot-

her pixel; to do a smooth propagation we use an op-

timization algorithm. The algorithm is based on the

principle that neighbor pixels with similar luminance

must also have similar color, more details about algo-

rithm is presented in Levin’s et al work (Levin et al.,

2004).

2.6 User Evaluation and Interference

After each segment has an assigned color, we give to

the user the option to analyze and, if he wants, inter-

vene in the result, changing the color of some regions.

For that, we create a simple tool where a preview of

the results it is showed to the user, he can select a co-

lor, or use one already present in the image, and apply

this color to the segments of the frame. Once the user

is satisﬁed with the result, the ﬁnal frame is generated

and the user can analyze the next one.

3 EXPERIMENTS

All experiments were performed in an Intel i7-6700

3.40GHz CPU PC with 8GB of ram memory, the met-

hod was implemented in Python 2.7 language with

OpenCV, Numpy and SciPy packages. The image

sequence that are originally colored had it color in-

formation removed before the experiments. For the

algorithms used in comparison (Larsson et al., 2016;

Zhang et al., 2017; Gupta et al., 2017) we use the aut-

hors provided implementation.

We created a Graphical User Interface (GUI) for

each tested method. These GUIs are also used to col-

lect data regarding the time and interference.

3.1 Evaluation

For our work, we used three metrics to evaluate, there

are: (a) processing time and user’s interference per

frame, (b) segmentation error and (e) Color Peak Sig-

nal to Noise Ratio (CPSRN) the details of each one

will be described in the following subsection.

3.1.1 Processing Time and User’s Interference

per Frame

Once the goal of our method is to reduce time and

work in the colorization process, one evaluation is to

measure how less work and time it consumes in com-

parison with other methods.

For our method, we compute the total time per

frame as the time that the method takes to segment,

extract the features, and perform the comparisons and

the designation of the colors. Plus the time that the

user takes to analyze, apply their modiﬁcation and re-

quest the next frame, the interference per frame num-

ber is computed as the total of times that user changes

the color of a segment.

For the manual method, the total time is computed

as the time that user takes to segment, assign color to

each region and request the next frame. For interfe-

rence, is computed as the total of times that user add

or remove a segment and assign a color to a region.

For the other methods, the total time is calculated

as the time the user takes to add, modify and remove

scribbles (when necessary) and process each frame.

For the interference, the total of operations to add, re-

move or modify scribbles.

3.1.2 Segmentation Error

As the colorization can be deﬁned as a sub-problem

of segmentation, a measure for the segmentation can

be used as an indication of the quality of the result.

Colorization of Grayscale Image Sequences using Texture Descriptors

307

For compute the segmentation error, we used a

modiﬁed version of method proposed in (Flores and

de Alencar Lotufo, 2010) because instead of have

only foreground and background object we have se-

veral objects as the image has one region for each area

with different color.

As we use a super-segmented image, to be possi-

ble to compare with a ground truth, we have to group

adjacently segments that have the same chrominance

information creating big single-colored regions.

Let Z

be the set of z

regions, such that z

is a

union of r ∈ S

segments. A region r ∈ S

belongs

to z

∈ Z

if exists a r

∈ Z

such that r and r

are

adjacent and C

(x) = C

(y), x ∈ r, y ∈ r

Let m

be the binary segmentation mask for a re-

gion v from the segmentation Z

, where 1 indicates

that the pixel belongs to the region and 0 otherwise.

And let g

be the ground truth segmentation mask for

the same region. Being ψ the symmetrical difference

between m

and g

, given by

ψ(m

, g

) =

(

1 if |m

− g

| = 1,

0 otherwise

(9)

We compute the segmentation error SE(Z

) for a

segmentation Z

as the average of all regions errors

by equations 10 and 11 where #(m

) stands for the

number of pixels valued 1 in a binary mask m

. We

divide the error of each region by 2 to avoid duplicate

computation of the same error, as an error in a region

will be also an error in the adjacent region.

ER(m

) =

#(ψ(m

, g

))

#(m

) + #(g

)

(10)

SE(Z

) =

∑

v=1

ER(m

)

(11)

3.1.3 Color Peak Signal to Noise Ratio

CPSNR provide a relative evaluation of colorization

techniques, CPSNR is evaluated as the average mean

square error of R, G and B color channels to measure

the distortions in the color channels from a ground-

truth (Pang et al., 2014; Paul et al., 2017). Given two

8-bit color images I

and I

of the same dimensions

H ×W the CPSNR can be computed as equations 12

and 13, the result is measured in Decibels (dB) where

the higher the value the better the result.

MSE =

3HW

∑

Ω∈(R,G,B)

∑

i=1

∑

j=1

(Ω)

(i, j) − I

(Ω)

(i, j))

(12)

CPSNR = 10 log

255

MSE

(13)

Table 1: Average Colorization Time per Frame.

Sequence

Time-per frame (s)

Larsson

et al.,

2016

Zhang

et al.,

2017

Gupta

et al.,

2017

Manual Proposed

Foreman 7.50 291 195 333.05 34.02

Akiyo 7.3 275 183 310.52 33.43

Carphone 7.5 254 180 319.79 26.16

Table 2: Average CPSNR values per frame.

Sequence

Average CPSNR per frame frame (dB)

Larsson

et al.,

2016

Zhang

et al.,

2017

Gupta

et al.,

2017

Manual Proposed

Foreman 30.41 31.51 31.63 32.87 32.93

Akiyo 29.28 31.78 32.46 33.11 33.17

Carphone 29.58 31.03 31.71 32.51 32.69

3.2 Results

In the experiments presented in this paper we utilize

three image sequences already known in the digital

image processing community they are Foreman Se-

quence, Akiyo Sequence and Carphone Sequence, we

utilize the ﬁrst 150 frames of each sequence.

Although these sequence are originally colored,

we removed the colors working purely on grayscale

version, was necessary to use sequence that already

had colors to be able to calculate the CPSNR, however

this method is intended to be used in native grayscale

sequences. We apply our method in all three sequence

using the evaluation described in previous subsecti-

ons.

For a comparison of our method, we made the co-

lorization of the same frames using a manual method,

we also compare with methods proposed in (Larsson

et al., 2016; Zhang et al., 2017), (Gupta et al., 2017)

and we made the adaptation for video colorization

proposed by the authors, using Lukas-Kanade opti-

cal ﬂow method to estimate scribbles motion between

frames.

The results are shown in tables 1, 2 and 3. We

also show the segmentation error for our method in

table 4, as the methods proposed in (Larsson et al.,

2016; Zhang et al., 2017), (Gupta et al., 2017) do not

threat the problem as a segmentation problem we was

unable to make a comparison, we do not calculated

the segmentation error for the manual method because

to colorize the user performs what he understands to

be optimal segmentation.

The results show that our method is faster than the

manual implementation and requires less interference

by the user. In addition, the CPSNR value for our met-

hod is a little better than the manual, this occurs be-

cause the manual method does not provide a smooth

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

308

Figure 2: Comparison of the proposed method results with the methods proposed in (Larsson et al., 2016; Zhang et al.,

2017; Gupta et al., 2017) and manual method, for frame 100 of Akiyo, Foreman and Carphone sequences. From the left, the

grayscale original image, (Larsson et al., 2016), (Zhang et al., 2017), (Gupta et al., 2017), manual and the proposed Method.

Table 3: Average User’s interference per frame.

Sequence

User’s Interference Per Frame

Zhang

et al.,

2017

Manual Proposed

Foreman 51.54 51.75 7.59

Akiyo 46.94 41.08 7.22

Carphone 37.14 70.01 10.77

obs: This metric cannot be apllied to Larsson et al., 2016 and

Gupta et al., 2018, once they are fully automated methods.

Table 4: Average Segmentation error compared to the

Ground-Thruth.

Sequence Segmentation Error

Foreman 3.34%

Akiyo 3.31%

Carphone 2.51%

color transition between regions.

In comparison with other methods in the literature,

the proposed method shown to be faster, this occurs

because these methods demands to previous manually

colorize several frames to achieve a good result, also

has an additional computation time to calculate opti-

cal ﬂow to each scribble.

For the CPSNR values the proposed method has

slightly better values for most of cases, again we be-

lieve that this occurs because of optical ﬂow, as the

quality deteriorates between frames until reach the

next already colorized frame, for the interference per

frame also has better values for our methods in most

of the cases.

The proposed method also achieve a low segmen-

tation error compared to the ground truth, it is impor-

tant to remember that sometimes there is subjectivity

about ideal segmentation, so achieving a perfect re-

sult is impractical. Thus, we consider the error value

acceptable for the problem, taking into consideration

that the method does not directly transfer the colors,

but rather does a propagation, which makes small seg-

mentation errors often imperceptible to the result.

The visual result for the frame number 100 of all

sequences is shown in ﬁgure 3, for all methods, the

actual frame had not user interference, begin the last

interference only in previous frame.

4 CONCLUSIONS

In this paper, we present a method for the colorization

of grayscale images sequences, using texture descrip-

tors to perform color transfer between frames. The

user only have to manually colorize one ﬁrst frame,

even though with the help of an assisted segmentation,

the user can intervene at any time to correct possible

errors. .

Experiments shows that our method signiﬁcantly

reduce the time and interventions needed to achieve

good results in comparison with others methods in the

literature. Although some methods presented smaller

times, the quality of the result was well inferior to the

proposed method. The segmentations errors compa-

red to a manually generated ground truth is very low

taking in account that the methods segmentation is ge-

nerated automatically and it uses a color propagation

algorithm.

We also compute the CPSNR between the real

color and color provided by the methods, our met-

hod had better values for state-of-the-art methods and

even for the manual colorization, since it make a color

Colorization of Grayscale Image Sequences using Texture Descriptors

309

blending providing a more realistic result. In future

work, we suggest the experiment of others descriptor

that may give an even more descriptive result, as well,

other methods of feature comparison.

ACKNOWLEDGEMENTS

We would like to thank the Instituto Federal do Pa-

rana - IFPR for releasing the ﬁrst author of his work

activities, allowing the development of this research.

REFERENCES

Ahonen, T., Hadid, A., and Pietikainen, M. (2006). Face

description with local binary patterns: Application to

face recognition. IEEE transactions on pattern analy-

sis and machine intelligence, 28(12):2037–2041.

Bugeau, A., Ta, V.-T., and Papadakis, N. (2014). Variational

exemplar-based image colorization. IEEE Transacti-

ons on Image Processing, 23(1):298–307.

Flores, F. C. and de Alencar Lotufo, R. (2010). Watershed

from propagated markers: An interactive method to

morphological object segmentation in image sequen-

ces. Image and Vision Computing, 28(11):1491–1514.

Gupta, R. K., Chia, A. Y.-S., Rajan, D., Ng, E. S., and

Zhiyong, H. (2012). Image colorization using similar

images. In Proceedings of the 20th ACM international

conference on Multimedia, pages 369–378. ACM.

Gupta, R. K., Chia, A. Y.-S., Rajan, D., and Zhiyong,

H. (2017). A learning-based approach for automa-

tic image and video colorization. arXiv preprint

arXiv:1704.04610.

Huang, Y.-C., Tung, Y.-S., Chen, J.-C., Wang, S.-W., and

Wu, J.-L. (2005). An adaptive edge detection based

colorization algorithm and its applications. In Pro-

ceedings of the 13th annual ACM international confe-

rence on Multimedia, pages 351–354. ACM.

Hyun, D.-Y., Heu, J.-H., Kim, C.-S., and Lee, S.-U. (2012).

Prioritized image and video colorization based on

gaussian pyramid of gradient images. Journal of Elec-

tronic Imaging, 21(2):023027.

Iizuka, S., Simo-Serra, E., and Ishikawa, H. (2016). Let

there be color!: joint end-to-end learning of global and

local image priors for automatic image colorization

with simultaneous classiﬁcation. ACM Transactions

on Graphics (TOG), 35(4):110.

Irony, R., Cohen-Or, D., and Lischinski, D. (2005). Co-

lorization by example. Proceedings of the Sixteenth

Eurographics conference on Rendering Techniques.

Kimmel, R. (1998). A natural norm for color processing. In

Asian Conference on Computer Vision, pages 88–95.

Springer.

Larsson, G., Maire, M., and Shakhnarovich, G. (2016).

Learning representations for automatic colorization.

In European Conference on Computer Vision, pages

577–593. Springer.

Levin, A., Lischinski, D., and Weiss, Y. (2004). Colori-

zation using optimization. In ACM Transactions on

Graphics (ToG), volume 23, pages 689–694. ACM.

Luan, Q., Wen, F., Cohen-Or, D., Liang, L., Xu, Y.-Q., and

Shum, H.-Y. (2007). Natural image colorization. In

Proceedings of the 18th Eurographics conference on

Rendering Techniques, pages 309–320. Eurographics

Association.

Manjunath, B. S. and Ma, W.-Y. (1996). Texture features

for browsing and retrieval of image data. IEEE Tran-

sactions on pattern analysis and machine intelligence,

18(8):837–842.

Pang, J., Au, O. C., Yamashita, Y., Ling, Y., Guo, Y., and

Zeng, J. (2014). Self-similarity-based image coloriza-

tion. In Image Processing (ICIP), 2014 IEEE Interna-

tional Conference on, pages 4687–4691. IEEE.

Paul, S., Bhattacharya, S., and Gupta, S. (2017). Spatio-

temporal colorization of video using 3d steerable py-

ramids. IEEE Transactions on Circuits and Systems

for Video Technology, 27(8):1605–1619.

Qu, Y., Wong, T.-T., and Heng, P.-A. (2006). Manga co-

lorization. In ACM Transactions on Graphics (TOG),

volume 25, pages 1214–1220. ACM.

Van den Bergh, M., Boix, X., Roig, G., de Capitani, B., and

Van Gool, L. (2012). Seeds: Superpixels extracted via

energy-driven sampling. In European conference on

computer vision, pages 13–26. Springer.

Vincent, L. (1992). Recent developments in morphological

algorithms. ACTA STEREOLOGICA, 11:521–521.

Vincent, L. and Soille, P. (1991). Watersheds in digital spa-

ces: an efﬁcient algorithm based on immersion simu-

lations. IEEE Transactions on Pattern Analysis & Ma-

chine Intelligence, (6):583–598.

Yang, J., Liu, L., Jiang, T., and Fan, Y. (2003). A

modiﬁed gabor ﬁlter design method for ﬁngerprint

image enhancement. Pattern Recognition Letters,

24(12):1805–1817.

Yatziv, L. and Sapiro, G. (2006). Fast image and video

colorization using chrominance blending. In IEEE

transactions on image processing, volume 15, pages

1120–1129. IEEE.

Zhang, R., Isola, P., and Efros, A. A. (2016). Colorful image

colorization. In European Conference on Computer

Vision, pages 649–666. Springer.

Zhang, R., Zhu, J.-Y., Isola, P., Geng, X., Lin, A. S., Yu, T.,

and Efros, A. A. (2017). Real-time user-guided image

colorization with learned deep priors. arXiv preprint

arXiv:1705.02999.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

310
