Improving Video Object Detection by Seq-Bbox Matching

Hatem Belhassen

1,2,3

, Heng Zhang

, Virginie Fresse

and El-Bay Bourennane

Beamtek SAS, 145 Rue Gustave Eiffel, 69330 Meyzieu, France

Hubert Curien Laboratory, Jean Monnet University, Saint Etienne, France

Univ of Burgundy - Franche-Comte, LE2I laboratory, France

Keywords:

Video Understanding, Real-time Video Object Detection, Online Object Detection.

Abstract:

Video object detection has drawn more and more attention in recent years. Compared with object detection

from image, object detection in video is more useful in many practical applications, e.g. self-driving cars,

smart video surveillance, etc. It is highly required to build a fast, reliable and low-cost video-based object

detection system for these applications. In this work, we propose a novel, simple and highly effective box-

level post-processing method to improve the accuracy of video object detection. The proposed method is

based on both online and an ofﬂine sett ings. Our experiments on ImageNet object detection from video (VID)

dataset show that our method brings important accuracy gains, especially t o more challenging fast-moving

object detection, with quite light computational overhead in both settings. Applied to YOLOv3, our system

achieves so far the best speed/accuracy trade-off for ofﬂine video object detection and competitive detection

improvements for online object detection.

1 INTRODUCTION

Despite the great success of object detec tion from

image, object detection in vid e o is still challenging

due to m otion blu r, rare pose, camera defocus, etc.

State-of-the-art works focus on utilizing contextual

and temporal information to overcome these effects.

(Zhu an d al., 2017) improved video object detection

accuracy on two levels: box level and feature le-

vel. Even though feature-level methods are gene-

rally considered to achieve a higher improvement than

box-level methods in terms of accuracy. But w e

have to consider that models optimized by feature le-

vel methods need to b e trained on vide o-based data-

sets, w hich a re more difﬁcult to create, less available,

and usually contain fewer object categories compa-

red with image-based dataset. So , box-level meth ods

are still important as they can be used as a comple-

mentary to feature-level methods, (e.g., Flow-Guided

Feature Aggregation (Zhu and al., 2017) (FGFA for

short) use box-level methods on the basis o f their pro-

posed feature-level method to improve video object

detection accura cy). Moreover, box-level methods

can be implemented on detectors trained on more

common image-based dataset (e.g. Microsoft-COCO,

Pascal VOC, etc), which makes them more universal

and practical for industrial applications.

Existing box-level metho ds mostly rely on optical

ﬂow, ob je ct trac king (Kang and al., 2016) or heavy

bounding box (bbox) across time sorting (Han and al.,

2016). However, op tical ﬂow is naturally expensive

in terms of computatio nal complexity and has no di-

rect relation with th e main task of object detection.

The use of object tracking adds a heavy computatio-

nal overhead which makes the detection system less

effective. As reported by (Han and al., 2 016), bbox

across time sorting (Han and al., 2016) is more ef-

fective than other box-level methods, while it still

adds a heavy computational overhead and can not be

applied to online video object detection.

Our work aims to desig n a novel, simple and

much more e ffective box-level post-processing met-

hod. It ca n be applied to online or ofﬂine video ob -

ject detection, to replace existing box-level methods.

The principle is rescoring b boxes and linking tubelets

(which are essentially sequ e nces of associated bboxes

across time) to avoid wrong or missed detectio ns cau-

sed by low-quality f rames in videos. Our proposed

method, name d Seq-Bbox Matching, is a sim ple and

effective method to matc h bboxes across time to ge-

nerate tubelets. The proposed following steps, na-

med Frame-level Bbox Rescoring and Tubelet-level

Bbox Linking, are applied to improve ofﬂine object

detection. Then we modiﬁed our Frame-level Bbox

Rescoring to adapt it to online object detection.

Experiments on ImageNet (Russakovsky and al.,

2014) VID dataset prove the effectiven e ss of our met-

hod. It brings important accuracy gains, especially

226

Belhassen, H., Zhang, H., Fresse, V. and Bourennane, E.

Improving Video Object Detection by Seq-Bbox Matching.

DOI: 10.5220/0007260002260233

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 226-233

ISBN: 978-989-758-354-4

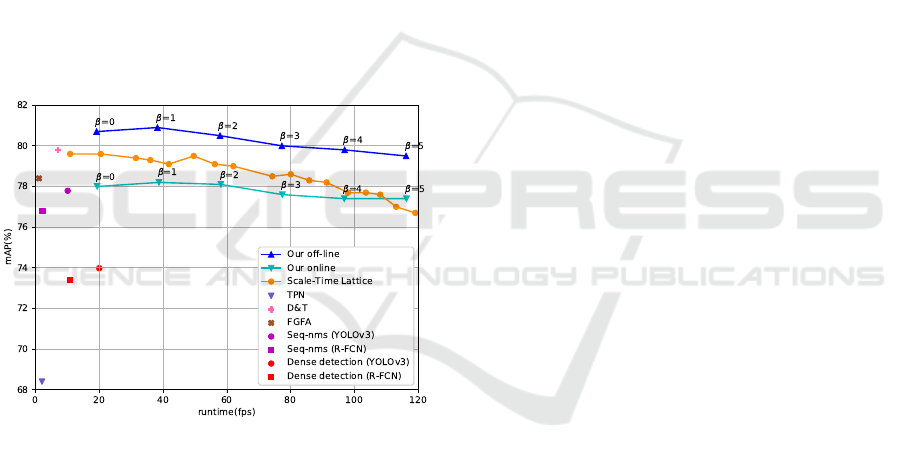

to more challenging fast-moving objec ts, with quite

light computational overhead in both settings. Ap-

plied to YOLOv3 (Redmon and Farhadi, 2018), our

system achieves so far the best speed/accuracy trade-

off for ofﬂine video object d e te ction and competitive

accuracy improvements f or online object detection,

e.g., 80.9% of mAP on our ofﬂine setting and 78.2%

of mAP on online setting both at 38 fps on a Titan X

GPU or at 51 fps on a GTX 1080Ti GPU.

Key contributions of this paper are:

• Our proposed box-level post-processing method

achieves important accuracy improvements to per-

frame detection baseline for both online and off-

line settings, e.g, applied to YOLOv3, our met-

hod brings 6 .9% of mAP gains (from 74% to

80.9%) for ofﬂine object detection and 4.2% of

mAP gains (fro m 74% to 78.2%) for online de-

tection on ImageNet VI D validation set;

• Quite light computational overhead in both set-

tings makes our method applicable in most practi-

cal vision applications, i.e., less than 2.5ms/frame

additional computation for both settings;

• Our proposed method could be applied to de-

tectors trained on video-based dataset or image-

based dataset, which makes it more universal and

practical for industrial app lica tions.

This paper is organized as follows. In Section

2, we sum up some representative related works on

image/video object detection. In Section 3, we ex-

plain the theoretical details of our proposed box-level

post-processing method. In Section 4 , we present our

experimental results on ImageNet VID dataset and

compare our results with other state-of-art methods.

Section 5 concludes the paper.

2 RELATED WORK

In this section we present related works for both

image and video detection and th en p osition our con-

tribution regarding the state-of-the-art works.

2.1 Object Detection from Image

Object detection fr om image is one of the most central

study areas in computer vision. Detector s based on

deep neural network greatly exceeds the accuracy of

classic object detectors based on h and-designed fea-

tures, e.g., Viola-Jones (Viola and Jones, 2004), DPM

(Felzenszwalb and al., 2010), etc. Modern convolu-

tional object de tectors can be divided into two para-

digms: Two-stage objec t detectors and Single-stage

object detectors. According to (Huang and al., 2016),

the former are generally more accurate while the latter

are usually faster.

The domina nt paradigm is b ased on a two-stage

approa c h, which ﬁrstly generates a spar se set of re-

gions of interest (RoIs) then classiﬁes these regions

and reﬁnes their bboxes. Faster R-CNN (Ren and al.,

2015) introduces the Region Pro posal Network (RPN)

that generates RoIs and shares full-image convolutio-

nal features with Fast R-CNN (Girshick, 2015). R-

FCN (Dai and al., 2016) proposes position-sensitive

score maps to share almost a ll computation on the en-

tire ima ge.

Single-stage detectors perform objec t classiﬁca-

tion and bounding box regression simu ltaneously on

feature maps. YOLO (Redmon and al., 2015) divides

the image in to regions and predicts bound ing boxes

and classiﬁcation scores for each region. SSD (Liu

and al., 2015) predicts classiﬁcation scores and bbox

adjustments of each default boxes of different aspect

ratios and scales per feature map location. RetinaNet

(Lin and al., 2017) proposes a novel loss function, Fo-

cal Loss, to address class imbalance pro blem.

While evaluating CNNs on Microsof t-COCO da-

taset, the r ecently proposed YOLOv3 (Red mon and

Farhadi, 2018) achieves competitive accur acy (60.6%

of AP

) with state-of-the-art more complicated ob-

ject detectors, e.g., R-FCN (51.9% of AP

) or Reti-

naNet (57.5% of AP

) and it detects at a much faster

detection sp eed (YOLOv3 at 20 fps, R-FCN at 12 fps

and RetinaNet at 5 fps on a Titan X GPU).

2.2 Object Detection in Video

Object detection in video has drawn more an d more

attention in recent years. The introduction of Ima-

geNet (Russakovsky a nd al., 2014) object detection

from video (VID) challenge made the evaluation of

CNN designed for video easier. Instead of simply

split the video into frames and perform per-frame ob-

ject detection, re cent works focus on utilizing contex-

tual and temporal information to accelerate de tection

speed or to improve detection accuracy.

In terms of improving accuracy, recent works are

designed on two levels: bo x level and feature level.

For box-level methods: T-CNN (Kang and

al., 2016) u ses pre-computed optical ﬂow and ob-

ject tracking to p ropagate high-conﬁdence bounding

boxes to nearby fra mes; Seq-NMS (Han and al.,

2016) uses high-scoring object detections from ne-

arby frames to boost scores of weaker detections

within the same video clip.

Feature-level methods are generally considered to

achieve a more impor tant impr ovemen t than box-level

methods. FGFA (Zhu and al., 2017) uses optical ﬂow

Improving Video Object Detection by Seq-Bbox Matching

227

and nearby frame feature maps to reinforce current fe-

ature map and imp rove object d etection per formanc e .

Detect to Track and Track to Detect (Feichtenhofer

and al., 2017) (D&T for short) introduces a Con-

vNet architectu re th at jointly performs detection and

tracking. Scale-Time Lattice (Chen and al., 2018)

proposes a novel architecture to re a llocate the com-

putation over a scale-time space.

2.3 Contribution Positioning Regarding

the State-of-Art Works

We chose YOLOv3 as our base ob je ct detector thanks

to its good speed / accuracy tr ade-off. Our proposed

method is different from all previous works in video:

Firstly, instead of utilizing object tracking (e.g ., T-

CNN a nd D&T) or heavy bbox across time sorting

(e.g., Seq -NMS), we intr oduce Seq-Bbox Matching,

which matches detected bboxes of the same appea-

red object to generate tu belets. Secondly, apart from

tubelet rescoring (implemented in T-CNN, Seq-NMS,

D&T and Sca le-Time Lattice), we added another step,

named Tubelet-level Bbox Linking, to infer missed de-

tections and improve detection recall.

3 IMPROVING VIDEO OBJECT

DETECTION BY SEQ-BBOX

MATCHING

3.1 Overview

So far, object detection from image has achieved great

success while object detection in video is still chal-

lenging. For one thing , motio n blur, rare pose, ca-

mera defocus and other effects in videos will lead to

wrong or missed detections. For another, temporal

and contextual information can be helpful to improve

detection a c curacy.

In principle, our method can be applied to any

kind of existing object detector (e.g., YOLOv3, SSD,

RetinaNet, R-FCN, Faster-RCNN, etc). It consists of

two m ain steps: Firstly, the Frame-level Bbox Res-

coring to correct wrong detections and secondly the

Tubelet-level Bbox Linking designed to infer bboxes

of missed detections. These two steps are based on

one basic operation: Seq-Bbox Matching.

Seq-Bbox Matching aims to match detected

bboxes of the same appeared object to generate tube-

lets. To accelerate the detection speed, we implement

object detection sparsely and apply Bbox Bilinear In-

terpolation to intermedia frames.

Section 3.2 explains how Seq-Bbox Matching

works. Section 3.3 and 3.4 describes how we apply

Frame-level Bbox Rescoring and Tubelet-level Bbox

Linking respectively. In section 3.5, we modiﬁed our

Frame-level Bbox Rescoring to ad a pt it to online vi-

deo object detection . Finally, in section 3.6, we intro-

duce the application of Bbox Bilinear Interpolation to

accelerate the detection speed.

3.2 Seq-Bbox Matching

We match current-frame detected bboxes with

previous-frame detected bboxes according to their ge-

ographical closeness and semantic similarity. M at-

ched bboxes are conside red as same objects detected

in different frames. Matching distance of two bboxes

is deﬁned as below:

distance =

similarity

IoU × (V ctr

·V ctr

)

(1)

Where the Intersection over Union (IoU ) b etween

two bboxes descr ibes the geographical closeness, and

the d ot product of two classiﬁcation score vectors

(V ctr

for bbox i and V ctr

for bbox j) represents th e

semantic similarity of any two bboxes. Obviously, if

IoU or th e do t product equals to zero, the returned

distance would be inﬁnity. But this hardly ever hap-

pens in videos since the IoU is g reater than 20% for

two successive images in 99.91% o f the cases, in Ima-

geNet V ID validation d ataset.

Algorithm 1: Matching algorithm for detected bboxes in

nearby frames.

Input: I bboxes detected in previous frame and

J bboxes detected in current frame

distance_matrix = create_matrix(I,J)

for i = 1 to I do

for j = 1 to J do

set distance_matrix(i,j) to distance between

i-th bbox of previous frame and j-th bbox of

current frame

end for

set pairs to empty list

repeat

set i,j to line, column of minimum value in

distance_matrix

add (i,j) to pairs

set i-th line of distance_matrix to infinity

set j-th column of distance_matrix to infinity

until minimum value of distance_matrix is infinity

Output: pairs

Algorithm 1 (pseudo code) summarizes our matching

algorithm : For I bboxes detected in the previous

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

228

frame and J bboxes detected in current frame, we ge-

nerate a distance matrix where each element of coor-

donate (i, j) represents the distance betwee n i − th

bbox of previous frame and j − th bbox of c urrent

frame; We simply match the bbox pair with mini-

mal distance then cut out their connections with other

bboxes by setting the line and the column of the se-

lected element in th e distance matrix to inﬁnity. We

repeat this step until there exists no more connections

between any two bboxes, i.e., the minimal distan ce in

the distance matrix becomes inﬁnity.

3.3 Frame-level Bbox Rescoring

Figure 1: Frame-level Bbox Rescoring.

As shown in Figure 1, we adopt a simple rescoring

method, named Frame-level Bbox Rescoring, to avoid

object classiﬁcation error c aused by motion blur, rare

pose or other reasons. As nearby frames are simi-

lar and usually contain a certain num ber of moving

objects, we consider detection results in multiple ne-

arby frames as multiple detection results of the same

objects. We match detected bboxes in previous and

current frame according to Algorithm 1 to generate

tubelets and then simply rescore all the bboxes of the

same tubelet by averaging their classiﬁcation scores.

Even if there exists several wro ng detectio ns (e.g., on

the central image of Figure 1, the bird is w rongly de-

tected as zebra due to motion blur), after averaging

along the whole tubelet, these error s can be corrected.

3.4 Tubelet-level Bbox Linking

As shown in Figure 2, we add a simple tubelet lin-

king method, named Tubelet-level Bbox Linking, to

infer missed detections and improve recall. Similar as

Algorithm 1, but instead of matching previous-frame

bboxes with current-frame bboxes, we try to match

the last bbox of one tubelet and the ﬁrst bbox of anot-

her. Note that we mark isolated bboxes, i.e., bbo xes

that are never matched af te r going through the whole

video, as ﬁrst and last bboxes of tube lets in the same

Figure 2: Tubelet-level Bbox Linking. Zoom for details.

time, because they are considered as tu belets of length

one.

We set a thresh κ to make sure that two tubelets

are not temporally too far. Tubelets with a temporal

interval longer than κ fram es are ignored to be mat-

ched.

If the last bbox of one tubelet and the ﬁrst bbox

of another match, their two tubelets are considered as

detection of a same object and there might be m issed

detections between these two tu belets. As shown in

equation (4), we infer the locations of th e intermedia

missed bboxes between matched tubelets by bilinear

interpolation of matched bboxes and the classiﬁcation

scores are calculated as the averaged scores of two

matched tubelets w.r.t the lengths of tubelets.

V ctr

add

Cnt

+Cnt

V ctr

Cnt

+Cnt

V ctr

(2)

We use ∗

for former tubelet and ∗

for later tube-

let.

Along these lines, Tubelet-level Bbox Linking

helps to infer m issed detections and improve de-

tection recall, e.g., the missed detections of lizard (b e -

cause o f rare pose) in the central two images of Figure

2 are refound by our Tubelet-level Bbox Linking. Sup-

pressing bboxes by utilizing contextual information or

tubelet information cou ld eventually further improve

the detection accuracy, but fo r simplicity, we leave it

for future work.

3.5 Online Frame-level Bbox Rescoring

It is meaningful to propose an online object detection

method as it is a common scenario in many real-time

computer vision applications, e.g., self-driving cars.

Online video object detection asks to perform objec t

detection in an image ﬂow witho ut access to future

frames or overall contextual information, which is not

the ca se of the previously presented two steps. So we

modiﬁed our Frame-level Bbox Rescoring to adapt it

to online video treatments.

Instead of rescoring bboxes of a tubelet after goin g

Improving Video Object Detection by Seq-Bbox Matching

229

through all th e vid eo, each time on e bbox is ma t-

ched, we update its classiﬁcation scores by averaging

all historical classiﬁcation scores of the same objec t.

This is realized by applying a dynamic averaging met-

hod: we add a count variable f or ea ch b box, and each

time a bbox is matched, its variable count increases.

The averaged historical classiﬁcation score vector of

current bbox becomes:

V ctr

cur

V ctr

cur

Cnt

pre

+ 1

Cnt

pre

Cnt

pre

+ 1

V ctr

pre

(3)

and then:

Cnt

cur

= Cnt

pre

+ 1 (4)

We use Cnt for Count, ∗

cur

for current an d ∗

pre

for

previous.

In this way, our Frame-level Bbox Rescoring

could be performed through an online manner and the

last bbox of one tubelet holds the averaged classiﬁca-

tion scores of the whole tubelet.

3.6 Bbox Bilinear Interpolation

If we divide the trajectory of a moving ob je ct into

many short pieces, these short pieces could be seen as

short-range nearly uniform movements. In this case,

we only need to perform detection in sparse keyfra-

mes. Object positions of interme dia frames could be

estimated by Bilinear Interpolation of positions of the

two nearby keyframes. We adopt bilinear interpola-

tion of matched bboxes for intermedia positions re-

construction to accelerate the detection. We introduce

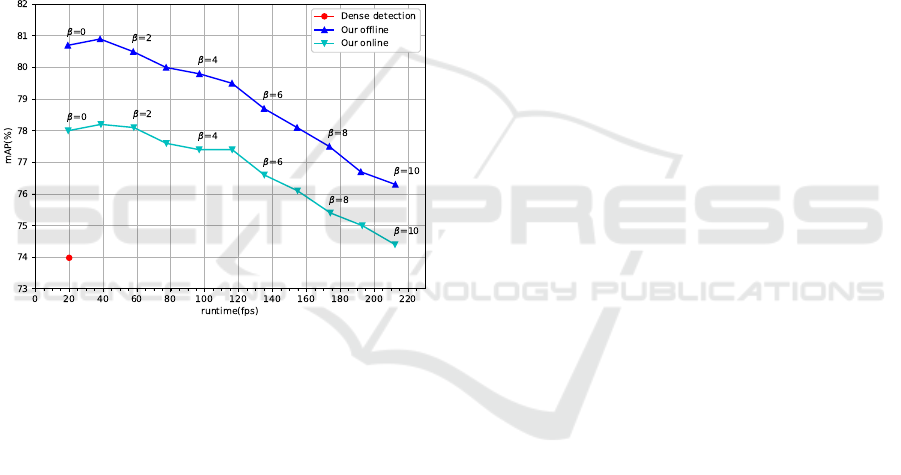

a hyperparameter β to control the length of interme-

dia frames for Bilinea r Interpolation. β is proporti-

onal to the detection speed (in f ps), e.g., β=1 repre-

sents that our detection speed is two times faster. Ho-

wever, if β becom e s too large, the movements bet-

ween sp a rse keyframes are too complicated to be seen

as nearly uniform movements which will lead to de -

tection accuracy drop.

Adaptive Bbox Bilinear Interpolation interval

could obviou sly further improve the speed/accuracy

trade-off, which is left for future work.

4 EXPERIMENTS

4.1 Experimental Setting

4.1.1 Dataset

All experiments are conducted on the ImageNet (Rus-

sakovsky and al., 201 4) object detection from video

(VID) dataset. It is a large scale video-based dataset,

that consists of 3862 video clip s for training, 555 for

validation and 93 7 for testing. Ea c h clip is fully anno-

tated with bounding boxes of 30 different object clas-

ses. Challenges of this data set include camera defo-

cus, partial occlusion, mo tion blur, crowded instance,

backgr ound confusion, rare pose, etc. Since the an-

notations of the test set are not publicly available, we

evaluate ou r method on the evaluation set using the

mean Average Precision (mAP) metric. For motion-

speciﬁc evaluation, we use the code provided by (Zhu

and al., 2017).

4.1.2 Implementation Details

Similar as (Kang and al., 2016), (Zhu and al., 2017),

(Feichtenhofer and al., 2017) and (Chen and al.,

2018), we combine the Imagenet DET train set and

VID train set to train our base object detection model.

As DET dataset has more object classes than VID da-

taset (200 for DET vs 3 0 for VID), we suppress ima-

ges without target classes and only preserve annotati-

ons for the 30 target classes in the DET dataset. The

VID set is presented in the fo rm of videos. We do not

use these videos directly because of the redundancy

between nearby frames. We sample the VID train set

by a certain percentage to maintain a r atio of 1:1 bet-

ween DET train set and VID train set in the ﬁnal train

set (55k images for each set).

Among all state-of-the-art convolutional object

detectors, we choose the recently proposed YOLOv3

(Redmon an d Farhadi, 2018) as our per-frame object

detector thanks to its good speed/accuracy trade-off.

Following (Redm on and Farhadi, 2018) and ( Redmon

and Farhadi, 20 16), we im plement k-means to deter-

mine the anchor scales and aspect ratios of each de-

tection layer. Our mode l is pre-trained on imagene t

classiﬁcation task, then we ﬁntune it on our training

set with the learning rate 0.001 for the ﬁrst 80k iterati-

ons and 0.00 01 for the last 30 k iterations. All training

are performed on two GTX 1080Ti GPUs with batch

size 64. After 110k iter ations, the tr aining loss con-

verged. Note that a s YOLOv3 has a fully convolu-

tional architecture and uses m ulti-scale training, our

trained model can be evaluated at different resoluti-

ons. It achieves 74% of mAP at resolution 608 × 608

and 71.2% at 416 × 416 on VID validation set.

For inference phase, after per-frame de nse de-

tection, we ﬁrst apply non-maximum suppression

(NMS) with a threshold 0.55 to select bboxes to be

matched on ea ch frame. Then we apply respecti-

vely the two settin gs of our box-level post-processing

method: For ofﬂine seting, we perform successively

Frame-level Bbox Rescoring and Tubelet-level Bbox

Linking as presented previously (Section 3 .3 an d 3.4);

For online setting, we simply apply Online Frame-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

230

level Bbox Rescoring (Section 3.5). We use different

input image resolution s, different temporal intervals β

for Bbox Bilinear Interpolation and different thresh κ

for Tubelet-level Bbox Linking to explore the ir impact

on detection speed and accuracy.

4.2 Results

4.2.1 Speed/Accuracy Curve

We summarize the speed/accuracy curve of our met-

hod applied to our trained model at two resolutions

(608 × 608 and 416 ×416) on two settings (ofﬂine and

online) in Figure 3. Runtimes are evaluated by frame

per second (fps) on a Titan X GPU and accuracy are

evaluated by the conventional metric mean Average

Precision (mAP) on the ImageNet VID evaluation set.

Figure 3: Speed/accuracy curves of our proposed method.

As shown in Figure 3, top left and right plots are

for the speed/accuracy trade-off of our ofﬂine and on-

line settings; bottom left and right are for the mAP im-

provements of our two settings. The speed/accuracy

trade-off was made under different Bbox Bilinear In-

terpolation intervals β and d ifferent input image reso-

lutions (416 × 416 and 608 × 608).

From Figur e 3 we observe that: Firstly, both set-

tings of our method highly improve the accuracy

of our per-frame detection baseline; Secondly, long

Bbox Bilinear Interpolation intervals will lead to tra-

gic accuracy drops, especially when β > 5; Thirdly,

for the choice of input image resolution, on both set-

tings, 608 ×60 8 achieves better accuracy when f ps <

175; Fourthly, our method achieves generally h igher

accuracy improvements for our model with the input

image resolution 416 × 416.

4.2.2 Ablation Study

For simplicity, all experiments were condu c te d o n our

trained model with input image resolution 608 × 608

with th e bilinear interpolation interval β = 1.

Step Validation. Ta ble 1 compares our proposed met-

hod with the per-frame dense detection baseline and

its variants.

Method (a) is the per-frame dense detection ba-

seline of our train ed model. We simply divide each

video in Image Net VID validation set in to f rames and

perform per-frame object detection. The only post-

processing is N MS with thresh 0.55. Without bells

and whistles, our base model achieves 74.0% of m A P

for per-frame de nse detection with 50ms of runtime

on a Titan X GPU. We ﬁnd our trained model much

faster in terms of speed and competitive in terms of

accuracy with other trained baseline models in recent

works, e.g., FGFA(Zhu and al., 2017), Scale-Time

Lattice(Chen and al., 2018) and D&T (Feichtenhofer

and al., 2017).

Following FGFA(Zhu and al., 2017), we c onti-

nued to evaluate our model on three motion groups:

slow, medium and fast. It turns o ut that our model is

good at detecting slow-moving objects with mAP of

81.5% but struggling a t detecting fast-moving objects,

where the mAP drops directly to 50.5%.

Method (b) is the implementation of Seq-NM S

(Han and al., 2016). Even though it boosts the

mAP from 74.0 % to 77.8%, it takes too much time

(71.5ms/frame) for sorting sequences of bboxes.

Method (c) implements our Frame-level Bbox

Rescoring in an ofﬂine way (Section 3.3). This met-

hod improves the detectio n accuracy by 5.4% for

slow-moving object, 7.6% for medium and 11.8% for

fast, which shows th at our bbox r escoring m e thods

can largely boost the detection accur acy for more

challengin g fast-moving obje cts. Compared with (b),

same as ofﬂine video object detection, our method

requires less p ost-processing time (1.7ms/frame for

ours vs 71.5ms/frame for Seq-NMS) while achieves

a h igher mAP gains (6.6% for ours vs 3.8% for Seq-

NMS), which proves that ours outperforms Seq-NMS.

Note that up until Method (c), we do not suppress

any detected bboxes or add any extra bboxes. All

mAP g ains c ome from rescoring methods that correct

potential wrong detections. Method (d) is the ofﬂine

setting of our method , which adds the Tubelet-level

Bbox Linking (Section 3.4) on the basis of (c). The ob-

jective of Tubelet-level Bbox Linking is to infer mis-

sed detections between near by tubeletes, and this step

boosts our ﬁnal mAP to 80.9%. We ﬁnd the add itional

computation overhea d for matching tubelets accepta-

ble (0.6ms/frame) and this step more helpful for more

Improving Video Object Detection by Seq-Bbox Matching

231

Table 1: Accuracy and runtime of different methods on ImageNet VID validation. All experiments are conducted at the

input image resolution 608 × 608, (c), (d) and (e) are results with the bilinear interpolation interval β = 1. The relative gains

compared to the single-frame baseline (a) are listed in the subscript.

method (a) (b) (c) (d) (e)

mAP(%) 74.0 77.8

↑ 3.8

80.6

↑ 6.6

80.9

↑ 6.9

78.2

↑ 4.2

mAP(%) (slow) 81.5 83.8

↑ 2.3

86.9

↑ 5.4

87.1

↑ 5.6

85.3

↑ 3.8

mAP(%) (medium) 71.7 76.6

↑ 4.9

79.3

↑ 7.6

79.6

↑ 7.9

76.3

↑ 4.6

mAP(%) (fast) 50.5 58.0

↑ 7.5

62.3

↑ 11.8

62.7

↑ 12.2

57.2

↑ 6.7

runtime(ms) (all) 50 121.5 51.7 52.3 51.7

runtime(ms) (post-processing) 0.01 71.5 1.7 2.3 1.7

Table 2: Performance comparison on the ImageNet VID validation set. All experiments are conducted at the input image

resolution 608 × 608 wit h the bilinear interpolation i nterval β = 1. The average precision (in %) for each class is shown.

Methods air plane antelope bear bicycle bird bus car cattle dog d.cat

Baseline 93.3 83.3 71.3 82.3 70.9 67.2 65.6 72.6 56.3 76.1

ofﬂine 93.2 86.4 81.5 85.2 75.3 71.2 66.7 82.4 70.1 92.3

Online

93.1 85.6 78.3 83.0 74.0 70.0 66.1 77.5 66.0 85.1

Methods elephant fox g.panda hamster horse lion lizard m onkey moto rabbit

Baseline 74.8 89.3 86.4 89.2 76.1 53.0 73.2 48.2 86.8 65.7

ofﬂine

79.3 97.0 88.0 95.8 82.7 72.8 83.6 53.7 91.7 80.0

Online 78.3 93.2 86.6 92.4 79.9 65.9 76.4 51.4 89.3 74.8

Methods r.panda sheep snake squirrel tiger train turtle watercraft whale zeb ra

Baseline 80.9 69.6 64.6 54.7 88.4 85.0 75.6 64.0 65.8 90.6

ofﬂine 96.0 78.8 70.7 64.5 90.4 86.5 78.7 67.5 68.4 95.3

Online

94.9 75.7 68.4 62.9 89.3 85.7 76.5 66.8 64.2 93.8

challengin g fast-movin g object detection.

Method (e) is the on line setting of our method.

It is realized b y our Online Frame-level Bbox Res-

coring (Section 3.5). We use dynamique averaging

method to rescore the bbox of one object according

to its historical classiﬁcation scores. Compared with

(b), which is implemented in a ofﬂine manner, our on-

line method achieves a higher impr ovemen t in terms

of accuracy (4.2% for ours vs 3.8% for Seq-NMS).

Compared with(c), (e) is relatively less effective due

to the lack of future inf ormation. Note that the com-

putational overhead of (e) is quite light (1.7ms/frame)

and affordable for most real-world applications.

As to runtime of (c), (d) and (e), o nly half of the

frames in the validation set are actually detected and

others are estimated by Bbox Bilinear Interpolation.

All mentioned runtimes are for one detected frame

instead of average runtimes of a whole video.

Per-class Analyse on the ImageNet VID Validation

Set. Due to movement blur or other reasons, our

per-frame ba seline has a very poor perfo rmance for

some classes (e.g., lion with 53% of AP) as a result

of wrong or missed detections. Both our online and

ofﬂine settin gs highly improve the detection accuracy.

Some class-AP scores are improved signiﬁcantly, e.g.,

for the class lion , 19.8% of gain on ofﬂine setting

and 12.8% on online setting; for the class red panda,

15.1% of gain on ofﬂine setting and 14.0% on online

setting. These AP gain s result from the rise of clas-

siﬁcation accuracy and object detection recall, which

are realized by ou r Frame-level Bbox Rescoring and

Tubelet-level Bbox Linking respectively. For the air-

plane class presenting heavy occlusions and fast mo-

vements, the matching of bboxes becam e more c hal-

lenging which leads to slight accuracy drop.

Thresh κ Analyze. In Figure 4, we show the accuracy

trends with thresh κ varying from 4 to 24.

Figure 4: Accuracy vs thresh κ on ImageNet VID dataset.

The plot shows that the accu racy rises quickly

from 80.6% to 80.9% as thresh κ rises from 4 to 12,

then the accuracy drop s slowly. This result can be

interpreted as: with the raise of κ, not only more m is-

sed detections are infered but also more false-positive

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

232

bboxes are ”made ”. Af te r exceeding a critical value,

i.e., 12 in our case, the latter becomes dominant, lea-

ding to accuracy drop.

4.3 Comparison with State-of-the-Art

Methods

According to FGFA (Zhu and al., 2017), Seq-NM S

(Han and al., 2016 ) obtains larger gain than T-CNN

(Kang and al., 2016), so we implement Seq -NMS

on our trained model with input image r esolution

608 × 608 for comp a rison. Our method achieves a

higher accuracy in bo th online and ofﬂine settings

and both re quire at least 30 times less computation

time (71.5ms for Seq-NMS vs 1.7ms and 2.3ms for

our method), which proves that our box -level post-

processing method is more effective. Moreover, Seq-

NMS can only be applied to ofﬂine video object de-

tection, while we also propose an online setting. We

further compare our results with several state of the

art video object detection methods. For fair co mpari-

son, we reported our detection speed on Titan X.

Figure 5: Speed/accuracy comparison of our proposed met-

hod applied to YOLOv3 with other state-of-the-art methods

on the ImageNet VID validation set.

As shown in Figure 5, our ofﬂine setting hits the

best speed/accuracy trade-off comp a red with other

box-level or f eature-level methods. In particular, it

achieves 80.9% of mA P at 38 fps and 79.5% of mAP

at 116 fps on a Titan X G PU. Our o nline setting

gets competitive speed/accuracy trade-off and is m ore

adaptive for m ore practical online object detection ap-

plications.

5 CONCLUSION

In this paper, we present a novel, simple an d highly

effective box-level post-processing method, na med

Seq-Bbox Matching, to improve video object de-

tection. Experiments show that, applied to YOLOv3,

our method is more effective than all existing box-

level methods and hits the best speed/accuracy trade-

off compared w ith other state-of-the-art methods. The

online setting of our method p erforms video object

detection without access to future frames and achieves

competitive accuracy improvement. Despite the large

detection accuracy improvement, the most important

advantage of o ur method is its quite light computatio-

nal overhead which makes it applicable in most real-

world computer vision applications.

REFERENCES

Chen, K. and al. (2018). Optimizing video object detection

via a scale-time lattice. CoRR, abs/1804.05472.

Dai, J. and al. (2016). R-FCN: object detection via re-

gion based fully convolutional networks. CoRR,

abs/1605.06409.

Feichtenhofer, C. and al. (2017). Detect to track and track

to detect. CoRR, abs/1710.03958.

Felzenszwalb, P. F. and al. (2010). Object detection with

discriminatively trained part-based models. IEEE

Trans. Pattern Anal. Mach. Intell., 32(9):1627–1645.

Girshick, R. (2015). Fast R-CNN. CoRR, abs/1504.08083.

Han, W. and al. (2016). Seq-nms for video object detection.

CoRR, abs/1602.08465.

Huang, J. and al. (2016). Speed/accuracy trade-offs

for modern convolutional object detectors. CoRR,

abs/1611.10012.

Kang, K. and al. (2016). T-CNN: tubelets with convolutio-

nal neural networks for object detection from videos.

CoRR, abs/1604.02532.

Lin, T. and al. (2017). Focal loss for dense object detection.

CoRR, abs/1708.02002.

Liu, W. and al. (2015). SSD: single shot multibox detector.

CoRR, abs/1512.02325.

Redmon, J. and al. (2015). You only look once: Uniﬁed,

real-time object detection. CoRR, abs/1506.02640.

Redmon, J. and Farhadi, A. (2016). YOLO9000: better,

faster, st ronger. CoRR, abs/1612.08242.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. CoRR, abs/1804.02767.

Ren, S. and al. (2015). Faster R-CNN: towards real-time ob-

ject detection with region proposal networks. CoRR,

abs/1506.01497.

Russakovsky, O. and al. (2014). Imagenet large scale visual

recognition challenge. CoRR, abs/1409.0575.

Viola, P. and Jones, M. J. (2004). Robust real-time face

detection. Int. J. Comput. Vision, 57(2):137–154.

Zhu, X. and al. (2017). Flow- guided feature aggregation for

video object detection. CoRR, abs/1703.10025.

Improving Video Object Detection by Seq-Bbox Matching

233
