Top-Down Human Pose Estimation with

Depth Images and Domain Adaptation

Nelson Rodrigues

1,∗

, Helena Torres

, Bruno Oliveira

, Jo

ao Borges

, Sandro Queir

1,2

Jos

e Mendes

, Jaime Fonseca

, Victor Coelho

and Jos

e Henrique Brito

Algoritmi Center, University of Minho, Guimar

aes, Portugal

2Ai - Polytechnic Institute of C

avado and Ave, Barcelos, Portugal

Bosch, Braga, Portugal

Keywords:

Human Pose, Depth Images.

Abstract:

In this paper, a method for estimation of human pose is proposed, making use of ToF (Time of Flight) cameras.

For this, a YOLO based object detection method was used, to develop a top-down method. In the ﬁrst stage, a

network was developed to detect people in the image. In the second stage, a network was developed to estimate

the joints of each person, using the image result from the ﬁrst stage. We show that a deep learning network

trained from scratch with ToF images yields better results than taking a deep neural network pretrained on

RGB data and retraining it with ToF data. We also show that a top-down detector, with a person detector and

a joint detector works better than detecting the body joints over the entire image.

1 INTRODUCTION

The main motivation for this project was to develop

a system capable of monitoring passengers inside a

vehicle. With the evolution of autonomous vehicles,

the interaction that the humans will have in the car

will have a paradigm completely different from the

current one. With autonomous vehicles, the time that

was previously spent driving will be used for other

activities. Consequently, there is a need to monitor

and predict the actions of all passengers inside the

vehicle. For this purpose, it is necessary to detect hu-

mans and their respective body posture, namely the

spatial location of the skeletal joints. To capture qua-

lity images of the interior of the vehicle, ToF came-

ras can be used, as these have a great advantage over

RGB cameras, namely their immunity to light condi-

tions. With this type of images, it is possible, through

algorithms based on Deep Learning (DL), to estimate

the body posture of individuals. There are already

methods able to determine the human pose in both

RGB and depth images. In this article, a YOLO object

detection method was used, to develop a top-down

method.

In the ﬁrst stage, a DL network was developed to

detect people in the image. In the second stage, a net-

work was developed to estimate the joints of each per-

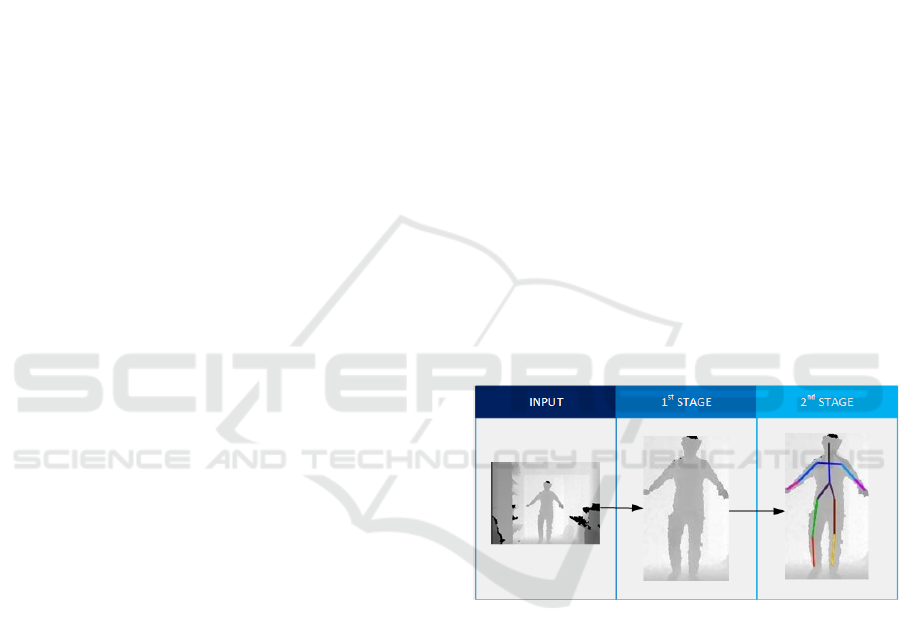

Figure 1: Overview of the proposed top-down YOLO met-

hod. The ﬁrst stage uses a person detector to produce a

bounding box around each candidate person. In the second

stage, a pose estimator is applied to the image cropped ar-

round each candidate person in order to localize their skele-

ton’s joints.

son, using the image region of interest (RoI) detected

in the ﬁrst stage. The rest of the paper is organized as

follows. Section 2 gives an introduction to the diffe-

rent existing human pose detection methods, as well

as some methods used in this article. The modiﬁcati-

ons made to the object detection method are described

in section 3. The results of these same detections are

shown in section 4. And ﬁnally, section 5 provides

the overall conclusions.

Rodrigues, N., Torres, H., Oliveira, B., Borges, J., Queirós, S., Mendes, J., Fonseca, J., Coelho, V. and Brito, J.

Top-Down Human Pose Estimation with Depth Images and Domain Adaptation.

DOI: 10.5220/0007344602810288

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 281-288

ISBN: 978-989-758-354-4

281

2 PREVIOUS WORK

Human pose estimation in 2D images is usually tre-

ated as an object detection task, where the objects to

be detected are the skeleton joints of the people ap-

pearing in the images.

Felzenszwalb et al. (2010) proposed an object de-

tection system that uses local appearances and spatial

relations to recognize generic objects of an image.

Generally, this method consists of deﬁning a model

that represents the object. The model is constructed

by deﬁning a root ﬁlter (for the object) and a set of

ﬁlters (for the parts of the object). These ﬁlters are

used to study the features of the image. More speciﬁ-

cally, the characteristics of the oriented gradient his-

togram (HoG) are analyzed within each ﬁlter to repre-

sent an object category. The descriptor calculates the

gradients of a region of the image HoG, assuming the

object within the image can be described by its inten-

sity transitions. This method uses a sliding window

approach, where the ﬁlters are applied to all image

positions. For the creation of the ﬁnal model, a dis-

criminative approach is used, where the model learns

from annotated data, using bounding boxes around

the object. This part is usually performed by an sup-

port vector machine (SVM). After the training phase,

the model is used to detect the objects in test images.

Detection is performed by computing the convolution

of the trained part models with the feature map of the

test image and selecting the regions of the image with

the highest convolution score. One can notice that this

method, despite having a discriminative basis, can be

interpreted as an adjustment of the image to a model,

which involves generative concepts. For this reason,

it can be considered a hybrid methodology, and may

thus not be trivial to adapt this method to depth ima-

ges.

The random tree walk (RTW) method presented

by Jung et al. (2015) estimates 3D joints from depth

images. This work is an evolution of an earlier met-

hod proposed by Shotton et al. (2013). The main dif-

ference is in the fact that it does not apply a pixel re-

gression for all the pixels in the image and trains a

tree to estimate the direction to a speciﬁc joint from a

random point instead of the distance. RTW only eva-

luates one pixel at each iteration. When it reaches a

leaf in the tree, it will choose a direction. The RTW

method will then iteratively converge to the desired

joint. This method is executed hierarchically, which

means the position resulting from a joint search will

be used as the starting point for the next joint to be

calculated.

Regarding DL approaches, Cao et al. (2017) pro-

posed a method that uses a VGG (Simonyan and Zis-

serman, 2015) network to extract features from the

image and these features are used as inputs for a CNN

with two branches. The ﬁrst branch is trained and

used for joint detection and the second branch is trai-

ned with the segments between them, so it is able to

detect limbs connecting joints. In the ﬁrst branch, a

feed-forward network is used to provides the conﬁ-

dence maps of the different parts of the body corre-

sponding to their probability maps. These probability

maps are a representation of the conﬁdence in each

position of the joint that occurs in each pixel and is ex-

pressed in a Gaussian function. In the second branch,

the part afﬁnity vector ﬁelds are constructed, enco-

ding the association between the parts. The part afﬁ-

nity ﬁelds allow joint’s positions to be assembled into

a body posture. A part afﬁnity ﬁeld is constructed

for each member of the body and encodes location

and orientation information. The predictions for joint

and limb detections produced by the two branches of

the network are reﬁned over several stages through an

iterative process. The predictions of each branch are

used as the input of the next stage. This method is

designed to better handle images with more than one

person. For this reason, it is unnecessary to imple-

ment a method for detecting people, to later detect the

joints of each person, which allows to avoid bad de-

tections on the people detector and increases the com-

putation time. As major disadvantages, it requires sig-

niﬁcant training data and requires the analysis of the

entire image.

The method presented by Papandreou et al. (2017)

consists of a two-stage approach. The ﬁrst stage pre-

dicts the location and scale of bounding boxes contai-

ning people using a Faster R-CNN (Ren et al., 2017)

detector. Both the region proposal components and

the bounding box classiﬁcation used in the Faster R-

CNN detector were trained using only the person ca-

tegory of the MS COCO (Lin et al., 2014) dataset,

with all other categories being ignored. In the se-

cond step, for each bounding box proposed in the ﬁrst

step, the 17 key points of the person potentially con-

tained in the box are estimated. For better computa-

tional efﬁciency, the bounding box proposals of pe-

ople are only sent to the second stage if their score

is higher than a threshold (0.3). Using a fully convo-

lutional ResNet, the system predicts two targets, (1)

disk-shaped heatmaps around the key points and (2)

magnitude of the offset ﬁelds toward the precise posi-

tion within the disk. The system then aggregates these

results, producing the activation maps aggregating the

results in a weighted voting process, on highly locali-

zed activation maps.

The method presented by He et al. (2017), na-

med Mask R-CNN, is an extension of Faster R-CNN

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

282

that also outputs a segmentation mask, in addition to

the bounding box and class probabilities. Faster R-

CNN adopts a two-stage methodology: ﬁrst, a region

proposal network (RPN) produces candidates regions,

and then a second stage extracts features for each can-

didate and outputs its class and bounding box offsets.

Mask R-CNN adds an additional branch to estimate

segmentation masks for each candidate region, in pa-

rallel to the branch that predicts the class and boun-

ding box offsets.

Like Faster-RCNN, the You Only Look Once

(YOLO) method presented by Redmon et al. (2016)

is an object detector. YOLO is faster because it re-

formulated the detection of objects as a single regres-

sion problem, directly from the pixels of the image to

the bounding box coordinates and the class probabi-

lities. A single convolution network simultaneously

provides several bounding boxes and their respective

classiﬁcation probabilities. YOLO trains directly with

full images. This method can be adapted to follow the

same procedure as the Papandreou et al. (2017) met-

hod, but just using the object detections in both stages.

In general, DL-based systems for human pose de-

tection take in RBG images and are structured around

a DNN trained on a large RGB dataset with joint an-

notations, such as PASCAL VOC (Everingham et al.,

2005) or MS COCO. The most popular human pose

detection systems that use ToF images are usually

adaptations of the method from Shotton et al. (2013)

trained on ToF images also with joint annotations. In

our work, the challenge was to leverage DL-based sy-

stems, usually designed for RGB images, and to ﬁnd

the best way to adapt them to the new domain provi-

ded by ToF cameras. We therefore used a deep lear-

ning based detector as a starting point and repurposed

it for human joint detection with ToF images, using

different strategies, to see what strategies produced

the best results. We evaluate our experiments on the

iTop dataset Haque et al. (2016), which includes ToF

frames and ground truth 2D locations of a 15 joint

skeleton.

3 IMPLEMENTATION

This work aims to estimate human pose (joint posi-

tions) from depth images. All implementations of

CNN-based detectors used the YOLOv3 (Redmon

and Farhadi, 2018) as a starting point. YOLO is a

DL object detector that outputs bounding box coor-

dinates. YOLOv3 has a hybrid architecture between

the YOLOv2 (Redmon and Farhadi, 2017) version

(darknet-19) and residual networks with several small

improvements. YOLOv3 is available with pre-trained

networks for different datasets, like PASCAL VOC

and MS COCO, which allows detecting people easily.

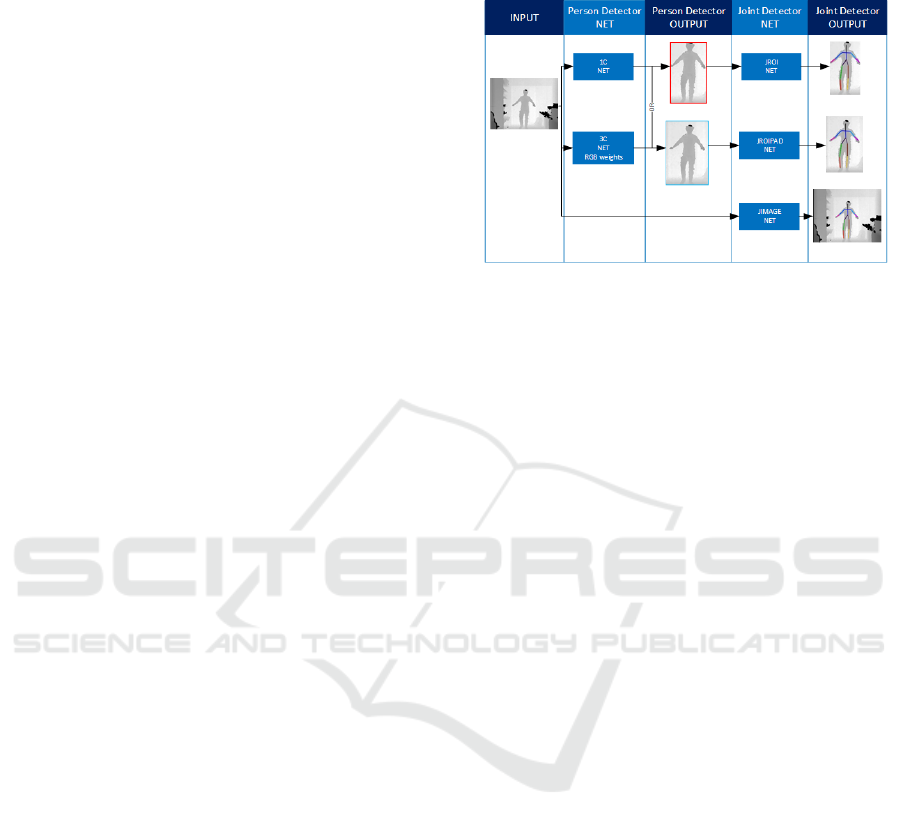

Figure 2: Implementations of all different networks for per-

son detector and joints detector.

All implemented detectors take 416x416 pixel in-

puts, as in the original implementation. Some of the

implemented networks were trained from pre-trained

weights for the convolutional layers (using the dar-

knet53.conv.74 weights as a starting point), while

some were trained from scratch: for detectors that use

3-channel inputs, training was initialized with the pre-

trained weights, while for detectors that use 1-channel

inputs, training was initialized with random weights.

We tried both approaches to verify if it would make

sense to leverage knowledge transfer across domains

(RGB to ToF) or if training from scratch in the new

domain worked better.

The person detector was implemented using the

original YOLOv3 implementation, simply by chan-

ging the number of classes to 1, the person class. For

the detection of joints, the network was adjusted for

the number of classes, so that it would detect the 15

classes corresponding to the 15-joint skeleton provi-

ded for each frame in the dataset. For the development

of the top-down human pose estimation detectors, as

shown in Figure 1, we simply concatenated a person

detector with a joint detector, to compose a two-stage

system. The ﬁrst network was trained only to detect

people in the image, and the second network was trai-

ned with RoIs for joint detection. For the joint detec-

tors, we tried 3 different versions: joint detectors trai-

ned on person bounding boxes, trained on padded per-

son bounding boxes, and trained on the whole image

(without person detection).

3.1 Person Detector

These networks were trained only to detect persons in

the images, so there is only one class, person. We

tried using pre-trained weights (darknet53.conv.74)

with 3 channel images (simply feeding 3 channels

with the same depth information into the network)

Top-Down Human Pose Estimation with Depth Images and Domain Adaptation

283

Table 1: Parameters values for the person detector network.

Parameter Value

Classes 1

Coords 4

Number of Masks 3

Filters 18

and training the network from scratch for 1 channel

(depth). The RoIs deﬁned by the bounding boxes pro-

duced by the person detector are then fed as input to

the second stage of the hierarchical pose detector. The

RoI can be used as is (red bounding box in Figure 2)

or with a 20-pixel padding (blue bounding box in Fi-

gure 2).

3.2 Person Pose Estimation

Table 2: Parameters values for the pose estimation network.

Parameter Value

Classes 15

Coords 4

Number of Masks 3

Filters 60

A separate network detects the position of the joints

inside a region. The input region may be the whole

image or a RoI provided by the person detector. We

use the joint structure provided by the iTOP dataset,

a skeleton with 15 joints. The 15 joints are the ob-

ject classes detected by the joint detectors. Joint de-

tection is formulated as an object detection problem

by deﬁning bounding boxes around the ground truth

coordinates of each joint provided in the dataset. The

bounding boxes are all square in shape, but their size

depends on the type of joint. The bounding box sizes

for each joint class are presented in Table 3.

Table 3: Bounding box sizes for each joint.

Joint Size

head 35

neck 35

rShoulder 25

lShoulder 25

rElbow 25

lElbow 25

rHand 30

lHand 30

torso 15

rHip 30

lHip 30

rKnee 25

lKnee 25

rFoot 25

lFoot 25

Figure 3: A) Frame with zero padding arround the pose de-

tection, B) Frame with twenty pixels of padding arround the

pose detection.

At inference time, the detector outputs the center

of the bounding box as the estimated coordinates of

the joint.

Since the bounding box boundaries provided by

the person detector may be very close to the bounda-

ries of the silhouette, namely close to the hands, it is

difﬁcult to train a method with good results for the

bounding boxes of the joints, since important context

information might be missed (Figure 3 left). If a 20-

pixel padding is added to the person bounding box,

the joint bounding boxes will contain more context

information, which will be extremely useful for trai-

ning the joint detector. On the other hand, training the

joint detector in the whole image will use all availa-

ble context information, but might be an unnecessary

waste of computational resources. For this reason, as

mentioned before, we trained 3 variants for the joint

detector: detecting the joints inside the person boun-

ding box, inside a padded person bounding box, and

in the whole image. As for the person detectors, the

3-channel version were trained from pretrained weig-

hts and 1-channel version were trained from random

initializations.

Figure 4: Position of each joint in the silhouette.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

284

4 EXPERIMENTAL EVALUATION

4.1 Experimental Setup

For the training of the method, a server with a NVI-

DIA Tesla V100 GPU with 16GB was used. All ex-

periments used a momentum of 0.9, a learning rate of

0.001, a batch size of 64 with 4 subdivisions which

means that in every step the network reads 16 images.

The methods for person detectors were trained for 5

000 iterations and the joints detection were trained for

10 000 iterations.

The iTOP dataset was used both for training and

testing. The dataset includes 22660 front view depth

images with joint annotations, which was split into

a training set with 17991 images and a test set with

4669 images. The original ground truth annotations

had to be corrected, as some joints were placed out-

side the human silhouette. In those situations, the

joint coordinates were moved so that they would be

placed on the edge of the silhouette. For this proce-

dure, a region growing method was used in order to

obtain the RoIs. The human silhouette was then iso-

lated by selecting the object that included the torso

joint. After having a segmented human silhouette, a

k nearest neighbours (KNN) algorithm was applied in

order to move the joints outside the silhouette onto the

edges of the silhouette (Figure 5).

4.2 Person Detections

To evaluate person detection, the classic metrics were

used, namely Intersection over Union (IoU) above

Figure 5: A) Annotations outsite the human silhouette, B)

Result of the region growing algorithm, C) Human silhou-

ette object selected, D) Applied KNN algorithm in order to

move the joints to the edge of the human silhouette.

some thresholds, Average Precision and Average Re-

call, Precision and Recall at 0.5, Precision and Re-

call at 0.75, following standard practice in object

detection challenges such as COCO. As mentioned

above, different person detectors were trained for

3-channel images and 1-channel images, using pre-

trained weights and from random initializations re-

spectively.

Results are shown in Figure 6 for AP, Figure 7

for AR and in supplemental material for P0.5, R0.5,

P0.75 and R0.75.

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

1.00

AP (%)

Iterations (hundreds)

1C 3C

Figure 6: Average precision results over training iterations.

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

1.00

1 5 10 20 30 40 50

AR (%)

Iterations (hundreds)

1C 3C

Figure 7: Average recall results over training iterations.

In the ﬁrst few iterations, the pretrained RGB

weights seem to be able to encapsulate some infor-

mation about the behavior of depth images, and re-

training them on 3-channel ToF images yields better

results than random weights with trained on very little

1-channel ToF data. However, after a few hundred

training iterations, the more compact 1-channel repre-

sentation allows the 1-channel network to learn better

and faster from ToF images, although the difference

in performance is not very large, if enough training

iterations are allowed to be executed. We therefore

conclude that training a 1-channel detector from scra-

tch is better than retraining RGB weights, as the 1-

channel representation is a more compact represen-

Top-Down Human Pose Estimation with Depth Images and Domain Adaptation

285

Figure 8: A) Person detection for one channel without pre-

trained weights, B) Person detection for three channels net-

work with pre-trained weights.

tation, from which a detector learns more efﬁciently

than from a 3-channel representation, where the same

information is repeated in the 3 channels.

4.3 Person Pose Estimations

Having determined that training with 1-channel ToF

images is more efﬁcient for person detection, all pose

estimation detectors took 1-channel ToF images with

random initial weights for joint detection.

To evaluate pose estimation, the considered me-

trics were not based on IoU. Instead, we compute

Average (Euclidian) Distance (in cm) between the de-

tected joint coordinates and ground truth coordinates

(AvD), mean Precision and mean Recall of joint de-

tections considering detections within some threshold

distance (5 cm and 10 cm) as true positives (mP5cm,

mP10cm, mR5cm, mR10cm), and again Average Dis-

tance but considering only joints that were detected

within some threshold distance (5 cm and 10 cm)

(AvDT5cm, AvDT10cm). These metrics make more

sense than classic region-based object detection me-

trics, as the system is truly estimating point positions,

rather than object positions.

Figure 9 and Figure 10 show the results for

AP5cm and AR5cm respectively, and AP10cm,

AR10cm, AD, AD5cm, AD10cm are included in sup-

plemental materials. The results are shown for dif-

ferent topologies, considering joint detection on the

whole image, joint detection in padded RoIs and joint

detection for standard RoI, for different numbers of

training iterations, and using 3-channel data.

Overall, the topology that yielded the best results

was the one where the joint detector uses standard

padded ROI as input. The results using the whole

image are also similar but not quite as good as using

just the padded ROI. Results for joint detection using

the standard ROI are signiﬁcantly worse. When the

whole image is used for joint detection, the network is

more prone to make mistakes in joint detection. If the

network is progressively fed with inputs that are more

constrained to the true position of the joints, the per-

formance also progressively increases, so feeding the

0.00

2.00

4.00

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

1 5 10 20 30 40 50 60 70 80 90 100

AP5cm (%)

Iterations (hundreds)

JIMAGE JROI JROIPAD

Figure 9: Average precision for a threshold of 5 cm over

training iterations.

0.00

2.00

4.00

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

1 5 10 20 30 40 50 60 70 80 90 100

AR5cm (%)

Iterations (hundreds)

JIMAGE JROI JROIPAD

Figure 10: Average recall for a threshold of 5 cm over trai-

ning iterations.

standard padded ROI gives the best result. We origi-

nally anticipated that using padded ROIs would yield

better results than using standard ROIs, as the de-

tection of joints that are closer to the edge of the ROI

would beneﬁt from having more visual context availa-

ble for those detections. Indeed, the results achieved

with padded ROI were much higher than the standard.

5 CONCLUSION

In this work, we have shown how to repurpose a deep

learning object detector, originally trained with RGB

images, for a different task using ToF images. We

have shown that it is preferable to train the whole

network from scratch with ToF images, rather than

take trained RGB weights and retrain them with ToF

images. We have also shown that a top-down hierar-

chical detector works better than just using the joint

detector on the entire image, as the person detector

constrains the search for the joint detector, enabling

it to make less mistakes during joint detection. Ho-

wever, constraining the search to ROIs hampers the

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

286

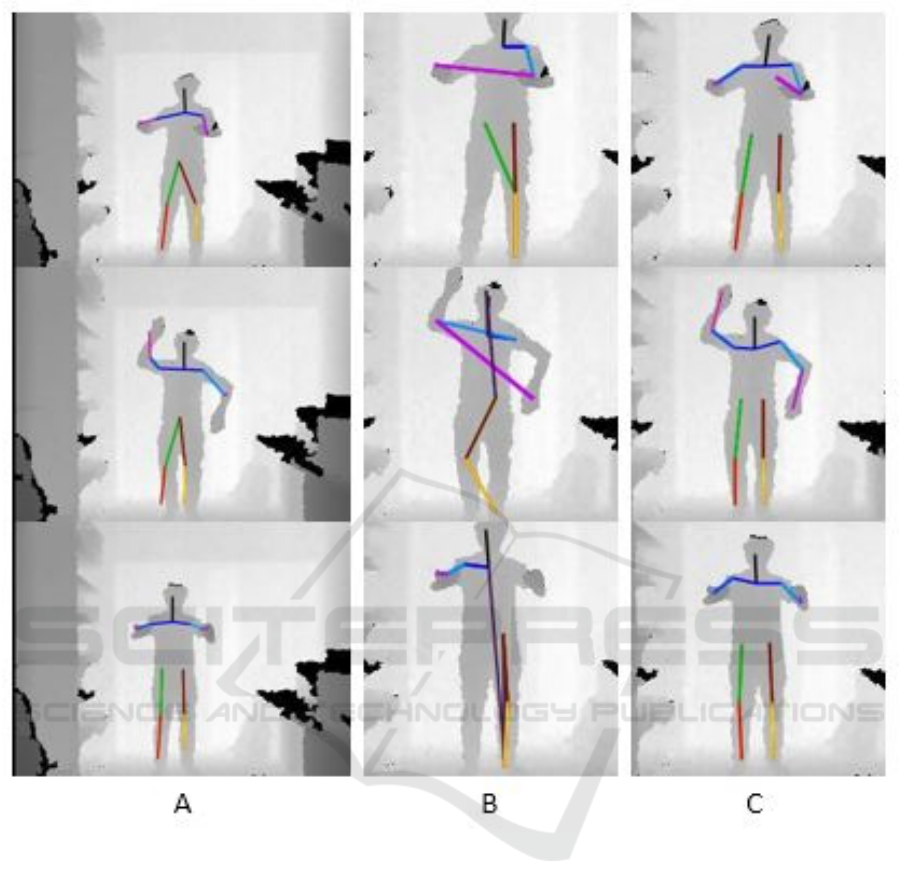

Figure 11: Pose estimations results for the differents networks: A) JImage, B) JRoI, C) JRoIPad.

body joint detector for joints that are close to the ROI

boundary, as less visual context information is availa-

ble for those joints. Detecting joints on padded ROIs

did in fact signiﬁcantly change the results, and ena-

bled the system to be more effective for joints near

the ROI boundary.

For future work, we plan to try the same appro-

ach using other deep learning based detectors, pos-

sibly combining the YOLO based ToF person detec-

tor with a different joint detector, such as Cao et al.

(2017) also trained from scratch with random weig-

hts with ToF images. To be able to address the in-car

scenario, which is our ultimate goal, we are currently

developing a dataset with in-car images in order to

apply this solution in this type of images.

ACKNOWLEDGEMENTS

This work is supported by: European Structural

and Investment Funds in the FEDER component,

through the Operational Competitiveness and Inter-

nationalization Programme (COMPETE 2020) [Pro-

ject no 002797; Funding Reference: POCI-01-0247-

FEDER-002797].

REFERENCES

Cao, Z., Simon, T., Wei, S. E., and Sheikh, Y. (2017). Real-

time multi-person 2D pose estimation using part af-

ﬁnity ﬁelds. Proceedings - 30th IEEE Conference

Top-Down Human Pose Estimation with Depth Images and Domain Adaptation

287

on Computer Vision and Pattern Recognition, CVPR

2017, 2017-Janua:1302–1310.

Everingham, M., Zisserman, A., Williams, C. K. I., Van

Gool, L., and Al., A. (2005). The 2005 PASCAL

Visual Object Classes Challenge. First PASCAL Ma-

chine Learning Challenges Workshop, MLCW 2005,

3944:117–176.

Felzenszwalb, P. F., Girshick, R. B., McAllester, D., and

Ramanan, D. (2010). Object Detection with Discrimi-

native Trained Part Based Models. IEEE Transacti-

ons on Pattern Analysis and Machine Intelligence,

32(9):1627–1645.

Haque, A., Peng, B., Luo, Z., Alahi, A., Yeung, S., and

Fei-Fei, L. (2016). Towards Viewpoint Invariant 3D

Human Pose Estimation. In ECCV, pages 160–177.

He, K., Gkioxari, G., Dollar, P., and Girshick, R. (2017).

Mask R-CNN. Proceedings of the IEEE International

Conference on Computer Vision, 2017-Octob:2980–

2988.

Jung, H. Y., Lee, S., Heo, Y. S., and Yun, I. D. (2015).

Random tree walk toward instantaneous 3D human

pose estimation. In Proceedings of the IEEE Compu-

ter Society Conference on Computer Vision and Pat-

tern Recognition, volume 07-12-June, pages 2467–

2474.

Lin, T. Y., Maire, M., Belongie, S., Hays, J., Perona, P., Ra-

manan, D., Doll

ar, P., and Zitnick, C. L. (2014). Mi-

crosoft COCO: Common objects in context. Lecture

Notes in Computer Science (including subseries Lec-

ture Notes in Artiﬁcial Intelligence and Lecture Notes

in Bioinformatics), 8693 LNCS(PART 5):740–755.

Papandreou, G., Zhu, T., Kanazawa, N., Toshev, A., Tomp-

son, J., Bregler, C., and Murphy, K. (2017). To-

wards accurate multi-person pose estimation in the

wild. Proceedings - 30th IEEE Conference on Com-

puter Vision and Pattern Recognition, CVPR 2017,

2017-Janua:3711–3719.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). YOLO You Only Look Once: Uniﬁed, Real-

Time Object Detection. Cvpr 2016, pages 779–788.

Redmon, J. and Farhadi, A. (2017). YOLO9000: Better,

faster, stronger. Proceedings - 30th IEEE Conference

on Computer Vision and Pattern Recognition, CVPR

2017, 2017-Janua:6517–6525.

Redmon, J. and Farhadi, A. (2018). YOLOv3: An Incre-

mental Improvement.

Ren, S., He, K., Girshick, R., and Sun, J. (2017). Faster R-

CNN: Towards Real-Time Object Detection with Re-

gion Proposal Networks. IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, 39(6):1137–

1149.

Shotton, J., Fitzgibbon, A., Cook, M., Sharp, T., Finocchio,

M., Moore, R., Kipman, A., and Blake, A. (2013).

Real-time human pose recognition in parts from single

depth images. Studies in Computational Intelligence,

411:119–135.

Simonyan, K. and Zisserman, A. (2015). VGG : Very Deep

Convolutional Networks for Large-Scale Image Re-

cognition. International Conference on Learning Re-

presentations (ICRL), pages 1–14.

APPENDIX

15.00

25.00

35.00

45.00

55.00

65.00

1 5 10 20 30 40 50 60 70 80 90 100

AD (cm)

Iterations (hundreds)

JIMAGE JROI JROIPAD

Figure 12: Average distance over the training iterations.

3.00

3.10

3.20

3.30

3.40

3.50

3.60

3.70

3.80

3.90

4.00

1 5 10 20 30 40 50 60 70 80 90 100

ADT5cm (cm)

Iterations (hundreds)

JIMAGE JROI JROIPAD

Figure 13: Average distance for a threshold of 5 cm for the

joints correctly detected over the training iterations.

5.00

5.50

6.00

6.50

7.00

7.50

8.00

1 5 10 20 30 40 50 60 70 80 90 100

ADT10cm (cm)

Iterations (hundreds)

JIMAGE JROI JROIPAD

Figure 14: Average distance for a threshold of 10 cm for the

joints correctly detected over the training iterations.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

288
