Multitree-like Graph Layering Crossing Optimization

Radek Ma

ık

Faculty of Electrical Engineering, Czech Technical University, Technicka 2, Prague, Czech Republic

Keywords:

Crossing Optimization, Layered Graph, Multitree, Spanning Tree, Phylogenetic Network, Genealogical

Network.

Abstract:

We improve a method of multitree-like graph visualization using a spanning tree-driven layout technique

with constraints speciﬁed by layers and the ordering of groups of nodes within layers. We propose a new

method of how the order of subtrees selected by the driving spanning tree can be derived from the actual

edge crossings. Such a subtree order leads to additional decreasing of total edge crossings from 1% to 50%.

This depends on the shape of the processed graph, ranging from a pure tree to a general acyclic graph. Our

achievements are demonstrated using several datasets containing up to millions of people, species, or services.

The proposed subtree ordering method of layered graphs that are similar to acyclic multitrees retains the

generating of acceptable layouts in almost linear time.

1 INTRODUCTION

Some applications lead to causality driven networks

represented as acyclic graphs. If a kind of inheri-

tance is involved, then we often deal with so-called

multitrees. We use a genealogical graph as an ex-

ample of general multitree-like networks. However,

similar results can be demonstrated in other domains,

such as telecommunications services and phyloge-

netic graphs. In this paper, we focus on methods that

are capable of visualizing whole societies with mil-

lions of nodes in which the layouts enable an assess-

ment of general global trends and related features.

Graph visualization technique research remains a

highly popular ﬁeld, having attracted much attention

for decades (Tutte, 1963; Gibson et al., 2013). Tree

based drawing methods of phylogenetic/genealogical

graphs have been among the standard techniques for

centuries. Present software implementations often

layer nodes as proposed by various authors 20 years

ago (Sugiyama et al., 1981; Gansner et al., 1993;

Gansner and North, 2000; Graphviz, 2016). In some

cases, it is necessary to assess top-level structures of

the entire network in order to select the appropriate

subsequent processing steps. These cases lead to a re-

quirement to display the entire network of families, or

at least a signiﬁcant part, in one layout. However, a

majority of algorithms contain processing steps with

an asymptotic complexity higher than the linear one.

Such implementations are often not capable of cop-

ing with graphs over 100,000 nodes. We also face

other issues with challenges linked with edge cross-

ing and preferences on node clustering (Warﬁeld,

1977; Sugiyama et al., 1981; Sugiyama and Misue,

1991). Therefore, the standard techniques for pla-

nar graph layouts (an ideal layout example with no

edge crossings) (Lempel et al., 1967; Hopcroft and

Tarjan, 1974; Booth and Lueker, 1976; Shih and Hsu,

1999; Hsu and McConnell, 2004; Reingold and Til-

ford, 1981) including planarization techniques (Re-

sende and Ribeiro, 2001; Chimani et al., 2008; Chi-

mani et al., 2011; Mathews and Frey, 2012) are not

suitable in all instances.

As we adopt multitree-like networks, we stress the

signiﬁcance of layers, so we consider a layout de-

sign targeting layered drawing (Healy and Nikolov,

2013). The majority of algorithms that compute lay-

ers are derived from topological order computation,

O(|V | + |E|) time complexity (Cormen et al., 2009).

The algorithms choose one of many possible solutions

that satisfy layer intervals of node placements. In this

paper, we also focus on techniques with linear asymp-

totic complexity. Furthermore, our approach enables

the possibility to group nodes assigned to the same

layer while keeping edge crossing minimized. The

underlying assumption relies on the proximity of the

processed graph to the multi-tree form.

Our approach follows the general frame-

work consisting of four steps proposed by

Sugiyama (Sugiyama et al., 1981). However,

rík, R.

Multitree-like Graph Layering Crossing Optimization.

DOI: 10.5220/0007345302330240

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 233-240

ISBN: 978-989-758-354-4

233

each step could be accomplished using different

techniques. In (Marik, 2016) and (Marik, 2017a), a

new method targeting multitree-like networks that

allows the determination of node order constraints

within layers using an undirected spanning tree-

driven layout of subtrees is proposed. The spanning

tree controls a selection of subtrees and their ordering

during the layout process. In (Marik, 2017a), the

order is determined based on subtree order (the

number of nodes) that could be a too rough estimate

of real edge crossings.

In this paper, we focus on the optimization of sub-

tree selection to further reduce edge crossings. The

rest of the steps, e.g. spanning tree selection, node or-

dering and node positioning, follow the methods pro-

posed in (Marik, 2017a; Marik, 2017b; Marik, 2018).

In summary, we improve the fourth step of the

method proposed in (Marik, 2017a), Section 3, node

ordering within layers using a different subtree selec-

tion criterion. Thus, we treat the most critical aspect

discussed in (Sugiyama et al., 1981), and particularly

address the second step of the main algorithm pro-

posed in (Gansner et al., 1993):

1. determination of generations (layers),

2. enforcing node orders within the layers,

3. setting the actual layout coordinates of nodes,

4. design of edges.

The remainder of the paper is organized as fol-

lows: Section 2 provides an overview of methods re-

lated to the layering step. To create the appropriate

context for the proposed algorithms, we also summa-

rize the steps of approaches described in several other

papers (Marik, 2017a; Marik, 2017b; Marik, 2018).

All steps can be accomplished using an almost linear

algorithm within the framework that relies on multi-

tree properties. In Section 3, we provide two algo-

rithms that achieve improved total edge crossings us-

ing actual edge crossings computed for every subtree

of the driving spanning tree. Finally in Section 4, we

discuss achieved results tested on datasets with up to

nodes.

2 RELATED METHODS

In this section, we provide a brief overview of the

methods related to those proposed in this article. In

fact, we provide a brief overview of the steps of

Sugiyama’s framework. We describe related methods

for each step and also the technique we currently use

in the approach focused on multitree-like networks.

We follow the usual graph theory terminol-

ogy (Diestel, 2005; Bondy and Murty, 2008; Wilson,

1998). In the case of family trees, we assume that

children are not linked directly to their parents, but

through so-called marriage nodes (V

). Each mar-

riage node represents a marriage in which children

were born. Further, we aim for a layout in which chil-

dren linked to the same marriage node are assigned to

the same layer and grouped.

We use the following terms. A layering L =

,...,L

) of a graph, G = (V,E) is an ordered

partition of V into non-empty layers L

such that ad-

jacent nodes are in different layers, i.e. if (u, v) ∈ E,

where u ∈ L

and v ∈ L

, then i 6= j (Brandes and K

opf,

2002; Healy and Nikolov, 2003; Nikolov et al., 2005;

Lutteropp, 2014). Let L(v) = i if v ∈ L

. The index

i is called node layer (rank). Regardless whether G

is directed or undirected, an edge incident to u, v ∈ V

is denoted by (u, v) if L(u) < L(v). An edge (u, v) is

short if L(v)−L(u) = 1, otherwise it is long and spans

layers L

L(u)+1

,...,L

L(v)−1

. Let N

−

= {u : (u,v) ∈ E}

= {w : (v, w) ∈ E}) denote the upper (lower)

neighbors and d

−

= |N

−

| (d

= |N

|) the upper

(lower) degree of v ∈ V . The height h is the num-

ber of layers, and the width is the number of nodes in

the largest layer. The span of an edge is the difference

between the layers of the nodes to which it is incident.

A digraph is proper if no edge has a span greater than

1. A layered graph G = (V,E; L) is a graph G together

with a layering L.

The ordering of a layered graph is a partial order

≺ of V such that either u ≺ v or v ≺ u if and only if

L(u) = L(v) (Brandes and K

opf, 2002). We denote

(i)

∈ L

where L

= {v

(i)

,...,v

(i)

} with v

(i)

≺ ··· ≺

(i)

. The position pos[v

(i)

] = j and the predecessor of

(i)

with j > 1 is pred[v

(i)

] = v

(i)

j−1

. An edge segment

(u,v) is said to cross an edge segment (u

), if u, u

∈

, v, v

∈ L

i+1

, and either u ≺ u

and v

≺ v, or u

≺ u

and v ≺ v

2.1 Network Components

The majority of real-life datasets consist of several or

many disjoint connected components. It depends on

the given task whether one requires the processing of

all components or a speciﬁc one. For the purposes of

this paper, we always selected a connected component

that has a maximum number of nodes.

2.2 Treatment of Strongly Connected

Components

An input dataset might capture a network with cycles.

A number of efﬁcient algorithms are based on proper-

ties of DFS. If a processed graph contains cycles, then

IVAPP 2019 - 10th International Conference on Information Visualization Theory and Applications

234

some algorithms might fail, such as a topological or-

der computation, or they might generate unnaturally

long paths. Therefore we need to break the cycles in

each strongly connected component (SCC).

In this paper, we only conﬁrm that the network

is acyclic and we perform a simple non-optimal al-

gorithm to remove cycles in the unlikely event that

some are found. We remove all loops and back edges

of a randomly selected DFS-tree from the given SCC

in the dataset experiments performed in this paper if

such an SCC was detected. For the remainder of the

paper, we assume that the processed network is an

acyclic graph.

2.3 Node Layering

Assuming that the processed network is acyclic, the

layout design continues with node layering in the next

step as proposed in (Sugiyama et al., 1981; Gansner

et al., 1993; Gansner and North, 2000). In this pa-

per, we utilized a solution to the layering problem

that guarantees additional domain layer constraints,

such as the layering of siblings in family trees, as pro-

posed in (Marik, 2017a; Marik, 2017b). The solu-

tion relies on a driving spanning tree that controls the

node ordering design (Marik, 2017a), i.e. the nodes

are processed in the order resulting from the search-

ing of the spanning tree when the next node is chosen

based on an edge crossings estimation criterion. The

spanning tree selection using a graph block analysis

in which cases of non-trivial blocks are resolved us-

ing integer linear programming (ILP) was presented

in (Marik, 2017b). It identiﬁes a spanning tree that

minimizes the span over all layers of the given block.

The blocks can be identiﬁed in linear time (Paton,

1971; Hopcroft and Tarjan, 1973). A proper mini-

mum spanning tree for each block consists only of its

short edges. As blocks with a structure more complex

than a single undirected cycle are very rare in real net-

works or they are very small, the time complexity of

the driving spanning tree selection still remains prac-

tically linear.

2.4 Design of Node Order within Layers

Node ordering on each layer is often designed as per-

mutations of the vertices within a given layer, leading

to the minimum number of edge crossings (Warﬁeld,

1977; Sugiyama et al., 1981; Gansner et al., 1993).

However, these traditional methods do not treat apri-

ori node order constraints such as node grouping.

When dealing with genealogical graphs, the order of

node subgroups needs to be satisﬁed. For example,

the order of siblings is often deﬁned by their birth

dates and the sibling sequences should not be inter-

rupted by other nodes. Then, we deal with a con-

strained crossing reduction problem. Early formu-

las for the computation of the number of crossings

can be tracked to (Warﬁeld, 1977). The problem is

known to be NP-hard (Eades et al., 1986). There are

many heuristics for edge crossings reduction. A sim-

ple heuristic for the one-sided two-level crossing re-

duction can be based on barycenter values (Forster,

2005), but the algorithm implementing the crossing

reduction problem given constraints on nodes still

runs in quadratic time.

Having a driving spanning tree, node layering can

be performed as proposed in (Marik, 2017a). In fact,

we use the same algorithm in this paper, but the crite-

rion sorting the subtrees of a current given root node

based on edge crossings is evaluated differently.

Let us outline the critical steps of the algorithm.

Starting from the node with the lowest layer we assign

nodes of subtrees into layer arrays (initially empty for

each layer), see Fig. 1 for more details. First, sub-

trees with a minimum layer higher than the layer of

the current node v

are processed because their edges

do not cross any other edges in the rest of the graph.

Then the remaining subtrees are processed according

to their increasing edge crossings of edges between

nodes at the current node layer and the successor node

layer. This processing order can be justiﬁed as fol-

lows (Marik, 2017a). Let us assume we process the

current node v

where some children’s nodes link K

subtrees with a minimum layer lower than the current

node layer. A sequence [cr

,...cr

] is obtained if the

subtrees are sorted according to their edge crossing

counts cr

between the children’s node and its sub-

tree. If these subtrees are layered side by side and

each child is linked with them, then the total number

of injected edge crossings is CR

∑

j=2

∑

j−1

k=1

∑

K−1

`=1

(K − `)cr

that is the minimum if the sequence

[cr

,...cr

] is not decreasing.

In (Marik, 2017a) the edge crossings for each sub-

tree was estimated using subtree orders (the number

of nodes) because they can be computed in linear time

for all subtrees of the spanning tree.

Indeed, we focus on this step of node ordering

within layers in this paper. We show that the number

of edge crossings itself for each subtree does not need

to be estimated because it can be determined directly

and in a still efﬁcient, almost linear way.

2.5 Node Positioning

Node positioning is completed in the ﬁnal step of the

entire layout process. Node ordering within layers,

which we cover in this paper, does not depend on this

Multitree-like Graph Layering Crossing Optimization

235

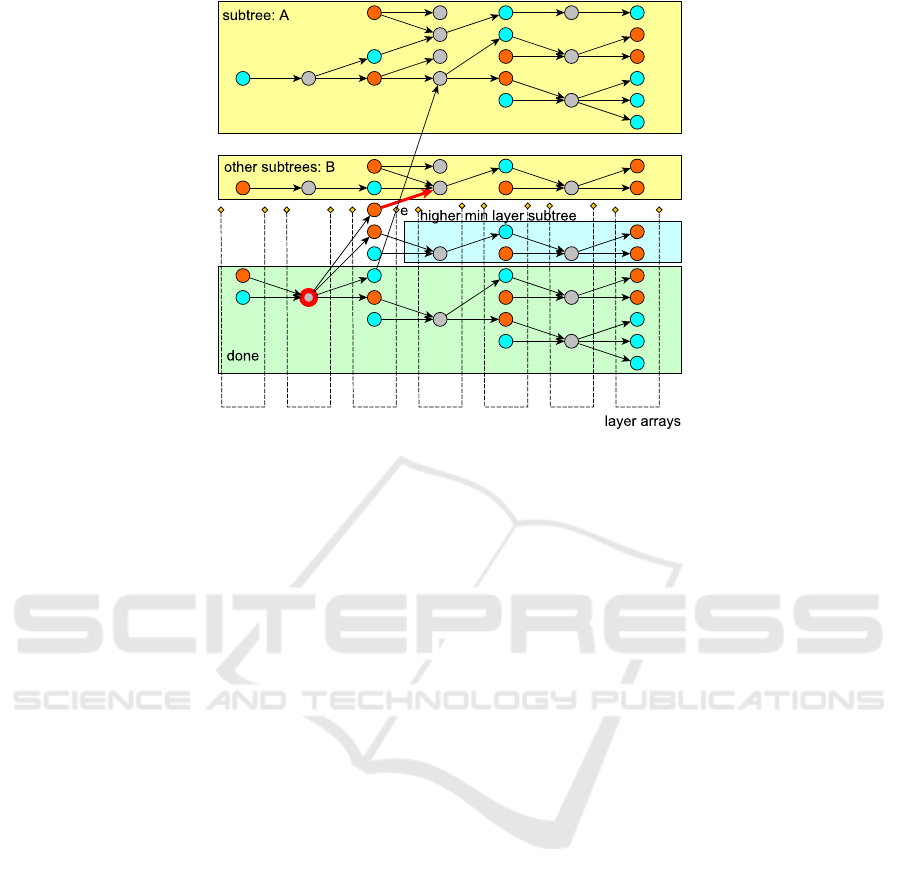

Figure 1: A symbolical snapshot of the layout method proposed in (Marik, 2017a). The current node is identiﬁed by its thick

red border. Blue nodes represent men, orange nodes represent women, gray nodes represent marriages. The greenish zone is

an already processed part of the graph with all nodes registered in the layer arrays that keep their order of registration. The

blue zone contains just one subtree with the minimum layer higher than the layer of the current node. Two yellow zones

represent two other subtrees layered in the order based on the used criterion estimating the number of edge crossings.

step. In (Marik, 2018) the node positioning method

based on the force-driven approach with barrier-like

repulsive forces that keeps the order of nodes within

layers and avoids the quadratic complexity of tra-

ditional methods was proposed. The force-directed

based method positions the ordered nodes in layers in

almost linear time. This method was also used in the

experiments discussed in this paper.

3 SUBTREE EDGE CROSSINGS

In this section, we propose a new method that can be

used to calculate the number of edge crossings of any

subtree at its root layer given an acyclic layered graph

and its undirected driving spanning tree minimizing

the number of graph layers. As we mentioned in Sec-

tion 2.3, such numbers of edge crossings should be

used in the subtree ordering criterion that inﬂuences

the total edge crossings in the resulting graph layout.

Let us summarize some constraints dealing with

the driving spanning tree and its subtrees in the pro-

cess of node ordering within layers. In this usage

we assume that the inputed acyclic layered graph is

proper, i.e. long edges are replaced by a simple se-

quence of short edges spanning the same layers. The

spanning tree is searched through from its leaf node.

At every step r, an edge e

∈ {e

}

i=1

from all edges

incident with the current node is selected and the

subtree determined by the edge is recursively added.

Thus, nodes of subtrees are added one by one to

the layer arrays representing the sequences of nodes

within layers. Although we refer to a subtree T

, the

algorithm operates only with its root node n

To ensure a low number of edge crossings an edge

incident with the subtree T

having the least num-

ber of edge crossings K

is selected. See Fig. 1, where

the edge e

is highlighted as the red edge e incident

with the subtree B while another edge incident with

the subtree A generates three edge crossings inside

the subtree B. The number of edge crossings cr

computed as the number of all edges of the subtree T

spanning the same layers as the edge e

, i.e. this num-

ber of edges must be crossed by edges leading to other

subtrees if the subtree T

is processed before than the

other subtrees.

The basic variant of an algorithm that computes

edge crossing cr

for all possible subtrees of the se-

lected driving undirected spanning tree is rather sim-

ple. Initially, one notices that any such subtree is de-

termined by its root node and one of the edges inci-

dent with the root. In other words, each edge of the

spanning tree determines two subtrees of the spanning

tree with the edge end nodes as their root nodes. Then,

the number of edge crossings cr

can be counted in the

following way:

1. for all edges e

of the spanning tree

(a) remove the edge e

from the spanning tree

IVAPP 2019 - 10th International Conference on Information Visualization Theory and Applications

236

(b) for both the resulting subtrees T

i. count the number cr

of edges of the subtree

spanning the same layers as the edge e

The algorithm repeats the inner tree search for

each edge of the spanning tree, i.e. with the com-

plexity O(N), where N is the number of nodes. The

inner tree search can also be performed in linear time

O(N). Therefore, the resulting asymptotic complexity

is O(N

). As this is the only step in the proposed lay-

out design with the quadratic asymptotic complexity,

it signiﬁcantly constrains volumes of networks that

might be processed up to 10

nodes using the current

experimental Python implementation.

However, assuming a number of layers signiﬁ-

cantly lower than the number of network nodes, e.g.

layers for networks with 10

nodes, it is possible

to use the following almost linear algorithm. Its idea

is based on two facts. Initially, the sum of counts of

edges spanning any pair of layers of two subtrees inci-

dent to any given edge including the edge itself is con-

stant and equal to the edge count spanning the same

pairs of layers calculated for the entire graph. Sec-

ondly, a similar property is held for any node. That

means the sum of counts of edges spanning any pair

of layers of all subtrees incident to edges incident with

the given node including also these edges is constant

and equal to the edge count spanning the same pairs

of layers calculated for the entire graph. Thus, if sub-

trees (i.e. their root nodes) are processed in a pos-

torder sequence, the edge counts for all layers can be

propagated from leaves of the driving spanning tree.

If a node is not a leaf then counts of edges spanning

two layers of its already processed subtrees can be

combined and edge counts related to the only uncov-

ered edge calculated. Thus, this algorithm uses only

a single DFS scan through the driving spanning tree

with linear complexity O(N).

A linear array storing edges spanning any two

consecutive layers is needed to preserve active edges

in the scanning stack. The size of the array is lim-

ited by the height h of layers. Although in the worst

case for the driving spanning tree with the shape of

a linear sequence the number of arrays might reach

the number of nodes in the entire network, practical

cases operate with about b · h arrays, where b is the

maximum branching factor (degree) of nodes and h is

the height of layers. In real cases, both the branching

factor and the height of layers are often limited. The

processing of each node consists of the summation of

at most b arrays. Therefore, if the order of the net-

work is independent of the branching factor and the

number of layers, then the number of possible edge

crossings for each subtree can be computed in linear

time O(N).

4 IMPLEMENTATION,

EXPERIMENTS, AND

DISCUSSION

The algorithm was implemented as an experimen-

tal non-optimized Python script with some additional

procedures evaluating the design process. It was used

on an ultrabook DELL XPS 13 with 16GB of RAM

using an Intel i7 2.7GHz processor. The layout and

ordering are very fast, taking from seconds to hours

for networks with a million nodes if all steps of the

layout algorithms are performed in linear time. If

the variant for the number of edge crossings with

the quadratic asymptotic complexity is used, then the

script can only be used for networks with up to 10

nodes. The linear variant for the number of edge

crossings lasts roughly the same amount of time as the

other steps of the layout algorithm. The processing

of a large number of blocks, if the network contains

blocks, during the undirected spanning tree selection

remains the most difﬁcult part of the processing chain.

We selected 20 datasets to evaluate the proposed

methods (Pruitt, 2017; Leskovec and Krevl, 2017;

GoogleFFT, 2017). Example datasets and their net-

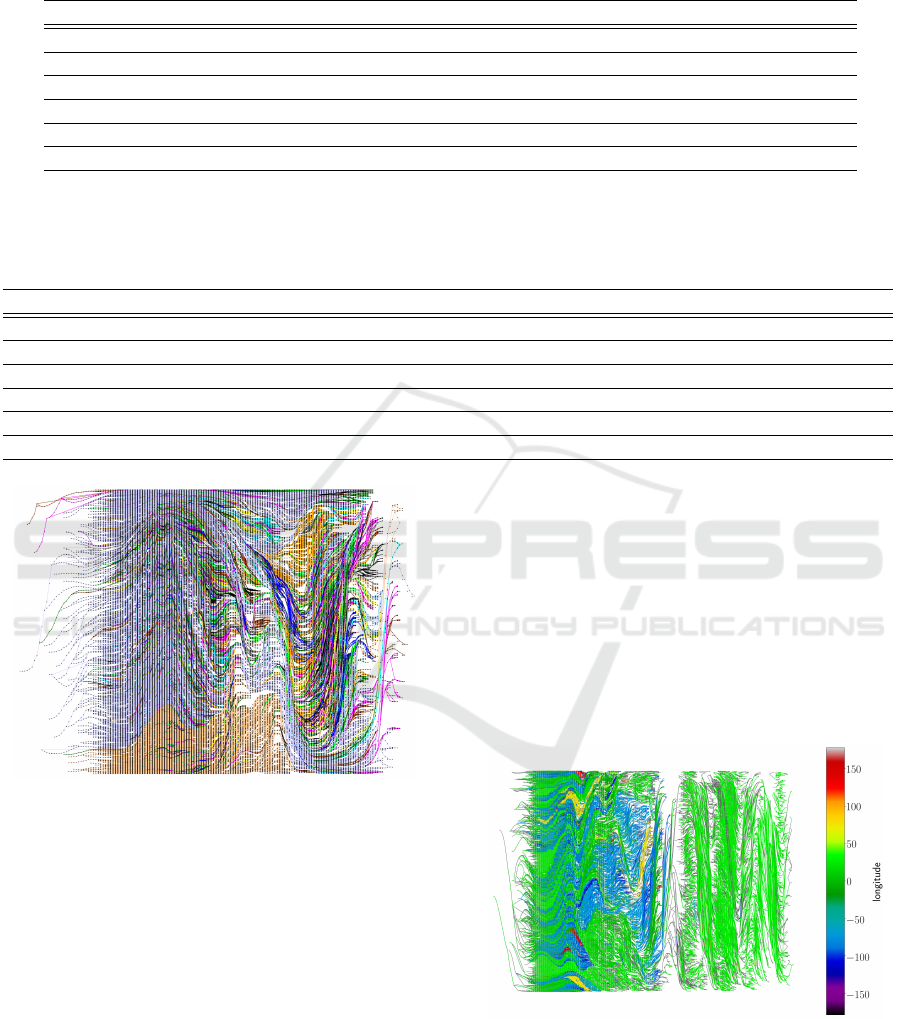

work statistics are shown in Table 1. Some datasets

represent genealogical networks; the ITIS dataset is

a snapshot of the Catalog of Life in the GEDCOM

format (ITIS, 2017).

We provide additional dataset network properties

related to edge crossings computation in Table 2.

There were only two cases in which the processing

needed to address strongly connected components.

Stobie’s dataset is the only one that contains 2 small

strongly connected components. A deviation of a

given network from a tree-like graph is characterized

by the number of blocks with an order higher than

2. Also, the simplex based method of edge selection

in blocks was rarely used (the column |B

|) because

blocks often only form a single undirected cycle that

can be solved directly without the ILP.

The improvement produced by the different crite-

rion of subtree ordering based on the actual number

of edge crossings can be observed in Table 2. The

columns cr

and cr

represent the total numbers of

edge crossings based on the original criterion using

the graph order as the edge crossings estimate and the

newly proposed criterion using the actual edge cross-

ings spanning two consecutive layers, respectively.

The improvement can be from 1% to 50% depending

on the data form. If a given network is close to a tree,

such as the ITIS network representing an overview of

taxonomic information on plants, animals, fungi, and

microbes as developed in the Integrated Taxonomic

Information System (ITIS), then the improvement is

Multitree-like Graph Layering Crossing Optimization

237

Table 1: Sample datasets and their statistics: a node number |V | of the complete network , people number |V

| of the complete

network, marriage number |V

| of the complete network, node number |V

max

| of the maximum component, edge number

max

| of the maximum component, number of layers |L|, number of source nodes |V

src

Dataset |V | |V

| |V

max

| |E

max

| |L| |V

src

Mykiska’s network 2952 2192 765 2913 2917 27 609

USA presidents 3186 2145 1042 1589 1602 73 480

WeMightBeKin 52783 38486 14297 52672 54210 46 12716

ITIS 945352 472676 65799 615342 615341 36 1

Stobie’s network 996055 706794 289268 995522 1038192 225 218593

FamiLinx 96693037 86124644 10568393 2276199 2480988 293 269637

Table 2: Layout processing statistics: number of strongly connected components |SCC| of a size larger than 1, number of

blocks |B|, number of blocks with more than 2 nodes ||B

| > 2|, number of blocks processed by the simplex method |B

number of back edges |E

back

|, number of nodes |L

max

| in the maximum layer, total number of edge crossings cr

if subtree

order is used, total number of edge crossings cr

if subtree edges spanning pairs of layers are used.

Dataset |SCC| |B| ||B

| > 2| |B

| |E

back

| |L

max

| |cr

Mykiska’s network 0 2848 4 1 5 317 760 658

USA presidents 0 1132 3 1 14 97 223 110

WeMightBeKin 0 43848 19 2 1539 3374 16665 16283

ITIS 0 615341 0 0 0 58407 72 72

Stobie’s network 2 768708 733 12 42671 42695 367278 355152

FamiLinx 0 884240 2125 188 204790 88299 2375287459 1584691327

Figure 2: Thomas Stobie’s network with almost one mil-

lion nodes (people and their marriages). Each node is repre-

sented by a small dot. Ancestors are on the left, descendants

on the right. Family clans (larger multitrees) are colored.

almost negligible. However, if the network has a mul-

titree form with a minimum number of blocks with a

size higher than 2, i.e. with minimum objects inherit-

ing from other objects multiple times, then the num-

ber of edge crossings can be reduced signiﬁcantly.

The volume performance of the method can

also be demonstrated using the Stobie family net-

work (Stobie, 2017) consisting of 995,522 nodes that

is depicted in Fig. 2. Larger subtrees were highlighted

using different colors. A node joining two such sub-

trees inherits the color of the larger subtree. Thus,

one can observe ﬂows of inheritance clans as colored

lines. One such clan ﬂow starts in the top left part of

the diagram, it continues downward to the right bot-

tom corner and then it creates a contemporary gener-

ation of people on the right side. Thus, from Fig. 2 it

is easy to recognize that the network can be divided

into two tree-like halves separated by this ﬂow, one

multitree covers the upper-right part with some col-

ored lines visible, while the other multitree covers the

bottom-left segment. A similar case study was ap-

plied to a society of the Old Kingdom of Egypt and

an inﬂuence of spreading nepotism (inheritance of ad-

ministration ofﬁces) was evaluated.

Figure 3: A fragment of the largest known family multi-

tree (FamiLinx, 2018). The edges are colored according to

the known locations (longitude) of people. If the location of

a person is not available, then the color of the closest node

is used.

We applied the layout method to a fragment of the

largest known family multi-tree with over 13,588,042

IVAPP 2019 - 10th International Conference on Information Visualization Theory and Applications

238

nodes. This is the largest connected component in

the dataset with 86,124,644 people and 51,807,142

edges (FamiLinx, 2018). A fragment with only

2,276,199 nodes was selected because it is currently

the largest network that can be processed with the

Python script in 16 GB of RAM. We removed all

nodes with a degree 1 and selected branches of

the largest component. The dataset was parsed in

123 minutes, the selection of the fragment ran for

108 minutes, strongly connected components were

checked in 19 seconds, the driving spanning tree

deﬁning the node layers was computed in 208 sec-

onds (including the processing of 2,125 blocks hav-

ing more than 2 nodes and with one block having the

order 1,364,449), the node order within layers was de-

signed in 5 minutes, the position of nodes were calcu-

lated in 14 minutes and the picture was rendered in 3

hours. The nodes and edges are colored according to

the locations of different people. Thus, one can ob-

serve how generations of people migrated across the

Earth.

We do not compare our results to other methods as

they use different layout criteria and different types

of much smaller networks, often up to only 10,000

nodes. In fact, it would be unfair to compare methods

that do impose node ordering or node grouping (e.g.

siblings) with those which do not set such constraints,

or methods that can process general acyclic graphs us-

ing higher complexity techniques with our restricted

approach only focused on multitree structures. We are

not aware of any implementation that tries to solve a

problem similar to ours.

5 CONCLUSION

In this work, we proposed the modiﬁcation of crite-

rion controlling subtree ordering during multitree-like

network layout design using driving spanning tree.

The proposed criterion is based on the actual number

of edge crossings injected by a given subtree order-

ing. It was shown that the possible number of edge

crossing injected by any subtree of the driving span-

ning tree can be computed efﬁciently in linear time

for practical cases. Thus, the complete layout design

could be performed in almost linear time. The opti-

mum spanning subtree selections based on the pro-

cessing of blocks, although they are very rare, re-

mains the most critical step in spanning tree selec-

tion. The new proposed feasible criterion decreases

the number of edge crossings from 1% to 50% as

the network departs from the pure tree form towards

multitree-like forms.

The method is very efﬁcient for layered multitree-

like network layouts with constraints on node order

concering their layers and their order in layers. The

produced graph layouts are more acceptable for the

user if they deal with large networks combining many

trees into a single acyclic graph. As the driving span-

ning tree and all other processing steps can be com-

puted very efﬁciently for multitree-like networks, it is

possible to process networks with millions of nodes.

The current memory based unoptimized implementa-

tion written in Python limits the use of the proposed

method to networks with up to 4 million nodes on a

computer with 16GB of RAM. Such network layouts

contribute signiﬁcantly to the comprehension of vast

networks and their basic structural top-level patterns,

e.g. this enables making decisions on their process-

ing. The implementation of a special tool allowing

panning and zooming above such layouts is beyond

the scope of this paper.

ACKNOWLEDGEMENTS
