Detection of Gene-gene Interactions: Methodological Comparison on

Real-World Data and Insights on Synergy between Methods

Hugo Boisaube rt and Christine Sinoquet

LS2N, UMR CNRS 6004, University of Nantes, France

Keywords:

Gene-gene Interaction, Machine Learning, Markov Blanket, High-dimensional Data, Comparative Analysis.

Abstract:

In this paper, we report three contributions in the ﬁeld of gene-gene interaction (epistasis) detection. Our ﬁrst

contribution is the comparative analysis of ﬁve approaches designed to tackle epistasis detection, on real-world

datasets. The aim is to help ﬁll the lack of feedback on the behaviors of published methods in real-life epistasis

detection. We focus on four state-of-the-art approaches encompassing random forests, Bayesian i nference,

optimization techniques and Markov blanket learning. B esides, a recently developed approach, SMMB-ACO

(Stochastic Multiple Markov Blankets with Ant Colony Opti mi zati on) is included in the comparison. Thus, our

second contribution addresses assessing the behavior of SMMB-ACO on real-world data, while SMMB-ACO

was mainly evaluated so far through small-scale simulations. We used a published case control dataset related

to Crohn’s disease. Focusing on pairwise interactions, we report a great heterogeneity across the methods

in running times, memory occupancies, numbers of interactions output, distributions of p-values and odds

ratios characterizing the interactions. Then, our third contribution is a proof-of-concept study in t he context of

genetic association interaction studies, to foster alternatives to analyses driven by prior biological knowledge.

The principle is to cross the results of several machine learning methods whose intrinsic mechanisms greatly

differ, to provide a priorized list of interactions to be validated experimentally. Focusing on the interactions

identiﬁed in common by two methods at least, we obtained a priorized list of 56 interactions, fr om which we

could infer one interaction network of size 7, four networks of size 4 and six of size 3.

1 INTRODUCTION

Over the pa st twenty years, automated high-

throughput gen otyping technologie s have allowed a

shift from candidate-ge ne analyses to g enome-wide

association studies (GWASs). The pr imary objective

of GWASs is to detect associations (i.e., statistical de-

pendences) between genetic variants and a phenotype

of interest, in a population under study. Aiming to

better understand the biolog y of diseases, GWASs are

expected to foster prevention and improve drug treat-

ment, to usher the era of personalized medicine. In

the latter, prevention and drug treatment are designed

depending on the genetic p roﬁle of the patient.

Typically, in GWASs, between a few thousand

to ten thousand subjects are ge notyped, which pro-

vides the measure of DNA variation at characterized

loci called genetic ma rkers, spread over the genome.

Single nucleotide polymorphisms (SNPs) are widely-

used genetic markers. Depending on the microarray

used, the number of SNPs ranges from a few hundred

thousands to a few millions. From now on, we will

consider SNP-based association studies.

New biological insights were g le aned by explo-

ring GWAS hits for diseases such as inﬂammatory bo-

wel disease, type 2 diabetes, cardiovascular diseases,

bipolar disorder, as well as some cancers, to cite a few.

However, most of the inherited risk remains to be ex-

plained for most phenotypes investigated so far, a situ-

ation named missing heritability. Therefore, comple-

mentary lines of investigation have started to explore

alternative heritable components of complex phenoty-

pes, encompassing rare variants, structural variants,

epigenetics, and genetic interactions. This paper fo-

cuses on computational approaches designed to iden-

tify genetic interactions, also named epistatic interac-

tions. From a statistical point of view, epistasis deﬁ-

nes the deviation from the model in which the cumu-

lative effects of multiple SNPs linearly determine the

pheno type. A persuasive piece of evidence supports

the ro le of genetic interactions to explain where pa rt

of the missing heritability hides: biomo lecular inter-

actions are ubiquitous in gene regulation and bioche-

mical and metabolic systems (Furlong, 2013; Gilber t-

Diamond and Moore, 2011). Biological evidence of

epistasis has been put forward in several publicati-

Boisaubert, H. and Sinoquet, C.

Detection of Gene-gene Interactions: Methodological Comparison on Real-World Data and Insights on Synergy between Methods.

DOI: 10.5220/0007374400300042

In Proceedings of the 12th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2019), pages 30-42

ISBN: 978-989-758-353-7

ons (Gao et a l., 2010; Nicodemus et al., 2013; Gi-

bert et al., 2017 ). The gap between the plausible high

number of ep istatic interactions existing in genomes

and the limited numbe r of results published may be

explained by the computational challenge posed by

epistasis detection. Moreover, loss-of-function muta-

tions that occur de novo or persist within popula tions

at low frequencies are known to signiﬁcantly a lter epi-

static interactions (Mu llis et al., 2018).

In the r emainder of this article, a c ombination of

SNPs that interact to determine a phenotype is called

an interaction. A k-way interaction is a combina tion

of k interacting SNPs. A 2-way interaction will a lso

be called a gene -gene interaction (with SNPs either in

exons or introns).

A key motivation for the large-scale compa rative

study reported in this paper lies in the following ob-

servation: we miss feedback about the respective be-

haviors of methods designed to implement GWASs

on real-world data. This observation extends to Ge-

netic Association Interaction Studies (GAISs), and a

fortiori to genome-wide AIS (GWAISs). This paper

contributes to ﬁll this lack. Another strong m otiva-

tion for our work was to analyze how SMMB-ACO

(Sinoquet and Niel, 2018), a method proposed most

recently, comp ares with other approaches, on real

GWAIS data. The remainder o f the paper is organized

as follows. Section 2 presents a succinct overwiew of

the rece nt state-of-the-art. Section 3 provides the mo-

tivations for our study. Section 4 depicts the ﬁve me-

thods involved in our study, in a bro ad-brush way for

the four reference meth ods chosen, and in more de-

tails for the recently developed SMMB-ACO. Section

5 focuses on the experimental protocol, the real-world

datasets analyzed, the implementation and p a rameter

adjustement of the ﬁve methods. The experimental

results, discussion and feedback gained are presented

in the last section.

2 RELATED WORK

Performing a G AIS is challenging. In th e category

of statistical approaches, multivariable multiplica-

tive linear regression (MMLR) offers a fr a mework to

model the relationship between a continuous variable

of interest (outcome) y and multiple interacting pre-

dictors x

, x

, ..., x

(continuous or categorical), such

as in y ∼β

+ β

, with q = 2. In

MMLR, interaction terms allow to escape from the

pure linear scheme (y ∼ β

+ β

). One

step further, linear generalized regression (LGR)

provides a way to model an outcome that is not li-

nearly determined by predictors: for th is purpose, a

link function f is used to transform the outcome y,

to match the real distribution of y. Besides, simi-

larly as for MMLR, interaction coefﬁcients may be

speciﬁed for LGR. For example, the LGR model to

adjust in the case of two interacting predictors wri-

tes: f (y) ∼ β

+ β

. Obviously,

MMLR and LGR cannot be used to analyze data on

a genome scale, because of the combina torial issue

posed by the enumeration of combinations of q pre-

dictors, with 2 ≤ q ≤ r, and upper bound r ar bitra-

rily set by the user. Moreover, ide ntifying an appro-

priate link function f in LG R may not b e trivial. To

note, logistic regression (LR) is a speciﬁc case of

LGR where the link function is known, and allows

to model a binary outcome. Typically, in case con-

trol association studies, with p representing the pro-

bability to be affected by the pathology of interest,

a LR m odel with two inte racting predictors writes:

logit(p) = ln(

1−p

) = β

+ β

We will further specif y to which aim and how LR is

used in the c omparative study repo rted h e re. Appro-

aches in the line of multifactor-dimensionality re-

duction (MDR) are also compelled to test all combi-

nations of q SNPs, and also fail to handle GWAS data

unless GPU calculation is used (Gola et al., 2016).

The high dimensionality of GWAS data ad vocates

the de sig n of (supervised) machine learning and data

mining approaches to tackle the p roblem of epistasis

detection. A direct way to reduce the search space is

to decrease the da ta dimensionality. Relief-based ap-

proaches (RBAs), random forests a nd penalized re-

gression are three major feature selection techniques

used in epistasis detection.

Algorithms in the line of Relief ﬁrst compute (ge-

netical) similarities between individuals; a nearest

neighbor-based technique then allows to assess im-

portance s for SNPs with regard to the phenotype of

interest (see (Urbanowicz et al., 2018) for a recent

review). Not to speak of the bias induced by the

pre-selection of SNPs marginally associated with the

pheno type, the computation of pairwise similarities is

prohibitively expensive.

A random forest (RF) is a set of decision tr e es

grown from bootstrap samples of observations. At

each node, a ra ndom subset of K predictors is used

to determine the optimal split. The optimal split is the

one that decreases the most node impurity for a clas-

siﬁcation tree (respe ctively the sum of squared errors

for a regression tree) af te r the split. RFs applied to

GWAS data produce a ranking of the markers, by de-

creasing importance measu res (Schwarz et al., 20 10;

Yoshida a nd Koike, 2011). Until the 2010s, RF lear-

ning was computationally and memory inefﬁcient in

high-dimensional settings. The fast implemen ta tion

Detection of Gene-gene Interactions: Methodological Comparison on Real-World Data and Insights on Synergy between Methods

of ra ndom forests for high-dimension al data provided

via ranger is one of the software programs included in

our comparative study.

RBAs and RFs both allow to rank an d select top

scoring SNPs. In the epistasis detection context, a

proced ure is require d downstream RBAs and RFs, to

generate gene-gene interactions. This procedure may

consist in statistical tests such as regression, or may

be a speciﬁc ap proach dedicated to epistasis detection

(e.g., (Lin et al., 2012)).

In contra st, p enalized regression (PR) such as re-

gularized feature selection through Lasso, Ridge or

Elastic Net regression can be used to directly outpu t

gene-g e ne interactions (Ayers and Co rdell, 2010). A

promin ent downfall of these methods is the prohibi-

tive runnin g time. The meth od reported in (Chang

et al., 2018) copes with high data dimensionality

through a two-stage procedure: 2-way interactions

are ﬁrst d etected within genes using Randomized

Lasso and penalized Logistic Regression (RLLR);

then, considering the list of SNPs obtained from the

latter 2-way interactions, any combination of such

two SNPs is tested using again RLLR, to identify

cross-gene epistasis. The biological motivation for

this kind of dimensionality reductio n is questionable

since the 2-way interactions within the genes are not

kept.

In the pan e l of standard su pervised mac hine lear-

ning and data m ining techniques, support vector

machines (SVMs) an d artiﬁcial neural networks

(ANNs) can b e used directly for epistasis detection.

To this aim, SVMs separate interacting and non-

interacting combinations of SNPs using a hyper plane

in multi-dimensional space (e.g., (Shen et al., 2012)).

ANNs allow to model non-linear feature interac tions

through network connections. The recent revolution

in training feedfo rward networks with many hidden

layers through advanced stocha stic gradient descent

open a path for deep neural networks (DNNs). Ho-

wever, the DNN used in (Uppu et al., 2016) was le-

arned from small datasets (no more than 1,600 indi-

viduals, a few tens of SNPs). In the still more recent

work rep orted in (Fergus e t al., 2018), logistic regres-

sion was employed to pre-select around 5,000 SNPs

to ﬁt a deep learning model (1,500 sub je cts). Baye-

sian neural networks (BNNs) merge an ANN with a

probabilistic model. Notably, this allows the quantiﬁ-

cation of variable inﬂuence with incertainty measures.

In (Beam et al., 2014), BNNS were used to detect epi-

static interactions on a relatively limited scale (around

a hundred individuals described by 60,000 SNPs).

Bayesian networks (BNs) allow to model de-

pendences be twe en variables in an uncertain con-

text. Therefore BNs offer an appealing framework for

gene-g e ne intera ction dete c tion, to discover the best

scoring graph structure connecting SNPs to the varia-

ble of interest. The b ranch and bound heuristic used

in (Han and Chen, 2011) allowed to p rocess a relati-

vely limited dataset, a published AMD (Age Macular

Degenerated) dataset, which describes around 150 in-

dividuals for about 110,000 SNPs. In (Jiang et al. ,

2010), a greedy search performing a forward phase

(edge addition) followed by a backward ph a se (e dge

removal) is applied. However, for tractability reasons,

the process starts including one pair of interacting

SNPs exerting a marginal effect on the phen otype,

thus addressing a speciﬁc case of epistasis called em-

bedded epistasis. In the BN framework, feature sub-

set selection stated as Markov bla nket learning is

another line of investigation. In a BN built over the

variables of a dataset V , the Markov Blanket (MB)

of a target variable T , MB(T ), is deﬁned as a mini-

mal set of variables that renders any variable outside

MB(T ) probabistically independent of T , conditional

on MB(T ). Typically, a MB of the phenotype is a set

of interacting SNPs able to d etermine the phenotype.

Thus, instead of learning a whole BN as abovementi-

oned, algorithms were designed to learn the Markov

blanket of a given ph e notype of interest. However,

in high-dimensional settings, the complexity of MB

learning remains challenging. FEPI- MB (Fast epista-

tic interactions detection using Markov blanket) (Han

et al., 2011) and DASSO-MB (Detection of ASSOci-

ations using Mar kov Blanket) (Han et al., 2010) were

able to process the AMD dataset previously me ntio-

ned.

Bayesian inference is employed by the popu-

lar BEAM algorithm (Bayesian Epistasis Association

Mapping) (Zhang and Liu, 2007). BEAM partitions

SNPs into three groups: SNPs with a marginal effect

on the phenotype, SNPs that jointly contribute to the

pheno type, and background SNPs. A Markov chain

Monte Carlo (MCMC) process exploits Bayes theory

to partition the SNPs into these three groups. Data-

sets with half a million of SNPs could be processed

by BEAM, at the c ost of high running times (up to a

week and even more).

Other approaches, derived from the optimization

ﬁeld, have been proposed to search the space of com-

binations of SNPs. The method reported in (Aﬂakpa-

rast et al., 2014) combines Bayesian scoring with an

evolutionary-based heuristic approach; it allowed to

process around 1,400 sub je ts and 300,000 SNPs. Ant

colony optimiza tion (ACO) was exploited by several

proposals. AntEpiSeeker, a w idely cited reference,

relies on the straightforward adapta tion of classical

ACO to epistasis detection (Wang et al., 2010), and is

tractable on the genome scale. The objective to max-

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

imize in AntEpiSeeker is the χ

statistics o f the test

of d ependen ce between a group of SNPs and the phe-

notype. The method d escribed in (Sun et al., 201 7)

seeks to optimize an objective combining the mutual

informa tion measure with a BN-based score, and was

able to process the AMD dataset abovecited. Multi-

objective ACO optimization was also prop osed, in

which the Akaike informatio n criterion (AIC) score

and a BN-derived score must be optimized (Jing and

Shen, 2015). The computational burden limited the

analysis to sepa rate chromosome datasets.

3 MOTIVATIONS FOR THE

STUDY

In light of the literatur e published on the subject, we

can draw a number of remarks about the evaluation

and comparison of methods developed to cope with

epistasis detection. First, to evaluate the performance

of a method, multiple datasets (for instance 100) must

be generated under some c ontrolled (i. e., simulated)

condition. To generate statistics for this condition,

a performance measure (e.g., power, F-measure, f or

example) must be computed for each dataset. As this

performance measure is a fun ction of true positives,

false positives and false negatives, its computation re-

quires that multiple executions (for instance, 100) of

the same stochastic method be achieved for each si-

mulated data set. Thus, for tractability re asons, simu-

lations on the genome scale are only accessible to cen-

tres with outstanding intensive computing and storage

resources (e.g., (Chatelain et al., 2018)), and the over-

whelming ma jority of stu dies still compare me thods

on simulated datasets describing 100 SNPs (and a few

thousand observations). It fo llows that the methods

are compared, and subsequent conclusions drawn, in

conditions tha t in no way reﬂect the real-world situa-

tion of GWAS analyses.

Second, for the same tractability re asons, publi-

cations analyze the method they propo se o n a single

GWAS dataset but never perform comparisons with

other meth ods on G WAS datasets. On the one hand,

comparing several me thods requires auth ors to ad-

just parameters for methods they did not develop and

do not always know well. For tho se approaches that

rely on supervised machine learning, parameter ad-

justment means running 10 time s the meth od (in a

10-fold cross-validation scheme) under each instanti-

ation (from a grid of instantiations) of the set of para-

meters. The computational burden is therefore prohi-

bitive. On the other hand, the same parameter ad jus-

tment issue arises fo r optimization-based approach e s.

Besides, the latter methods generally output several

solutions and this number of such solutions may vary

across the grid of instantiations. Thus, it is not straig-

htforward to assign a score to su ch outputs, which im-

pedes the ability to rank instantiations.

Third, in publications focused on a novel method,

running times are but exceptionally reported for exe-

cutions on simulated datasets, as well as for execu-

tions on real GWAS datasets. Moreover, when a pu-

blication compares a novel method with other me-

thods, the comparison of running times across me-

thods is practically always missing.

Fourth, so far, no extensive AIS analysis was de-

signed to provide interactions jointly ide ntiﬁed by se-

veral approaches, with the aim of gener ating a short

list for further biological validation.

The works reported in this paper were designed

with th e previous four points in mind. Fina lly, another

strong motivation for our work was to analyz e how

SMMB-ACO (Sinoquet a nd Niel, 2018), a method

proposed most recently, compares with state-of-the-

art approaches, on real data.

4 THE FIVE APPROACHES

COMPARED

The four state-of-the-art appr oaches selected fall into

various categories: rando m forest, Bayesian infe-

rence, ant colony optimization, Markov blanket lear-

ning. The newly developed SMMB-ACO method

combines Markov blanket learning with ant colony

optimization.

So far, any novel method proposed was gene-

rally compared to Random Jungle (Schwarz e t al.,

2010). We there fore selected ranger, the successor

of Random Jungle, which is a fast implementation

of random forests to handle high-dimensiona l data

(Wright and Ziegler, 2017).

Also a reference for epistasis detection, BEAM3

(Zhang, 2012), the successor of BEAM (Zhang and

Liu, 2007), was incorporated in our study. Simi-

larly as BEAM, BEAM3 employs a MCMC search

technique to probabilistically assign SNPs to three

groups (backgro und, marginal dependence with the

pheno type, involvment in an interaction). Moreo-

ver, the MCMC simulation allows to assign a sta-

tistical signiﬁcance to each SNP, thus avoiding cos-

tly permutation-based tests. A major difference with

BEAM is that BEAM3 detects ﬂexible interac tion

structures using disea se grap hs. Besides, BEAM3 dy-

namically accounts for the unknown linkage disequi-

librium (LD ) among SNPs. LD is deﬁned as the net-

work of dependences that exists among gene tic data,

as the result of evolutionary events. The aim is to ﬁl-

Detection of Gene-gene Interactions: Methodological Comparison on Real-World Data and Insights on Synergy between Methods

ter ou t the secondary associations due to LD: secon -

dary associations will not be admitted in the disease

graph when better candidates are already present. On

the one hand, the comp lexity of the disease graph is

reduced. On the other han d, it is expected that the pri-

mary disease associations are reported with improved

resolution. BEAM3 was able to process around 4,700

subjects described by about 400,000 SNPs.

AntEpiSeeker (Wang et al., 2010), a r e ference in

epistatis detection , is the third meth od considered in

our study. In each iteration of AntEpiSeeker, ants

each select a SNP set o f user-deﬁned size from the

initial dataset, according to a probability distribution

P, and calculate a χ

statistics to assess the depen-

dence strength with the phenotype. Feedback on the

learning process is memorized through the so-called

pheromone levels, based on the χ

statistics. The

SNP sets with the highest χ

statistics ar e recorded.

The probability distribution P is updated based on

the pheromone levels following the standard ACO

scheme. At the end of the iter ations, a user-speciﬁed

number of best SNP sets is ava ilable, together with a

list L of top SNPs ranked by decr easing pheromone

levels. Finally, in a post-processing p hase, each best

set S is examined: if the size of the interac tions to be

uncovered is q, the subsets of S of size q whose SNPs

are all in L are kept as solutions. To note, the false po-

sitive issue is addressed as fo llows: if two interactions

overlap, the one with the smaller p-value is kept.

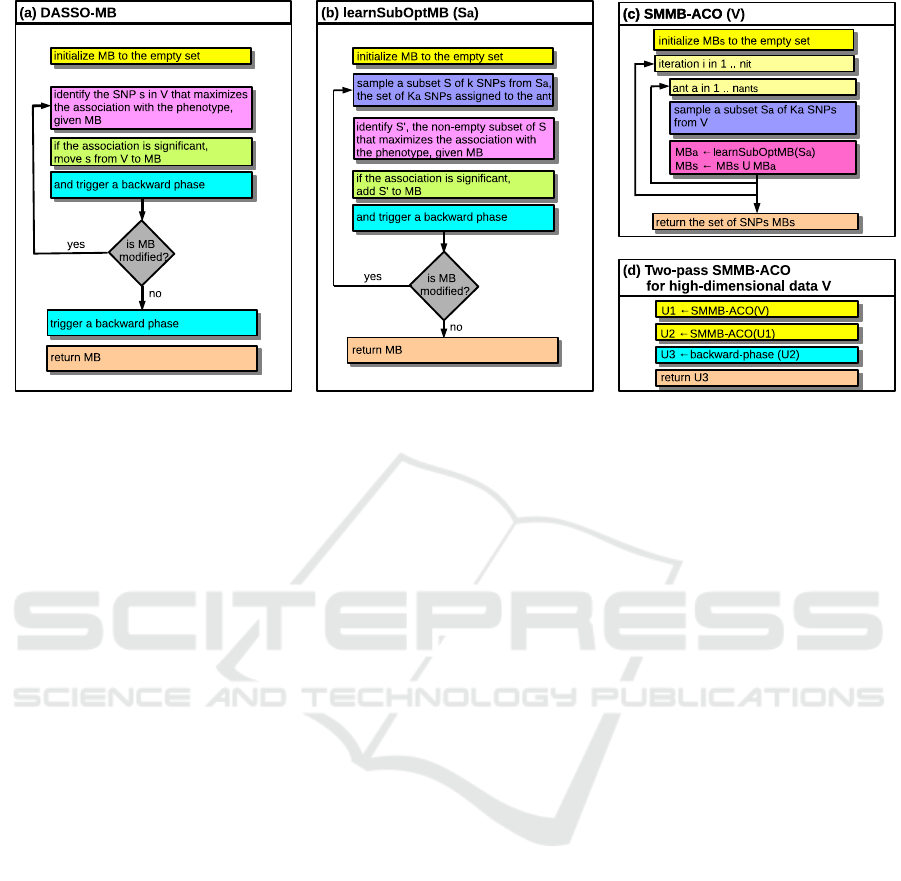

FEPI-MB ( Han et al., 2011) and DA SSO- MB

(Han et al., 2010) are two determin istic algorithms

that tackle epistasis detection thro ugh feature subset

selection based on Markov blanket lear ning. The key

ingredients in these two algorithms are the forward

and backward ph a ses. In a forward step, a SNP is ad-

ded to the growing MB provided it is the candidate

SNP most dependent with the phenotype, conditiona l

on the MB, and tha t this dependence is statistically

signiﬁcant. Co nversely, a b ackward phase successi-

vely examines a ll SNPs belonging to the current MB;

each such SNP is r emoved fro m the MB based on (sta-

tistically signiﬁcant) conditional independence. We

chose DASSO-MB, whose backward p hase is more

elaborate than in FEPI-MB: FEPI-MB removes a SNP

if it is shown signiﬁcantly independent conditional on

the current MB; in contrast, DASSO-MB discards a

SNP as soon as it shown independent with the phe-

notype, conditional of a subset of the current MB. In-

deed, such a subset cou ld be the MB to be discovered.

Finally, at the crossroads of machine learning and

optimization, the ﬁfth metho d retained in our study

is SMM B-ACO (Stochastic Multiple Markov Blan-

kets with Ant Colony Optimization) (Sinoqu et and

Niel, 2018). SMMB-ACO is an hybrid approach

that combines Markov blanket construction with sto-

chastic and ensemble features. To address the issue

of scalability in high-dime nsional settings, SMMB-

ACO re lies on a heuristic desig ned to search prom i-

sing areas of the search space.

In each iteration of SMMB-ACO, several ants

each learn a subo ptimal Markov blanket fro m a subset

of SNPs sampled from the in itial set. The MB lear-

ning performed by each ant r uns a forward phase in-

tertwined with b ackward phases. In this respect, MB

learning in SMMB-ACO is similar to that in DASSO-

MB. However, a genuine difference in the SMMB-

ACO and DASSO-MB forward steps is the following:

SMMB-ACO stochastically adds a group of SNPs as-

sociated with the phenotype, whereas DASSO-MB

incorporates the SNP most associated with the phe-

notype. The two MB learning algorithms are de scri-

bed and co mmented in Figures 1 (a) and (b). The sto-

chastic featu re of SMMB-ACO relies on SNP sam-

pling, following a probability distribution P updated

based on pheromone levels. It is possible to spe-

cify a speciﬁc operatin g mod e for SMMB-ACO, to

cope with high-dimensional data: a two-pa ss process

is then triggered. Figu res 1 ( c) and (d) ou tline this

process.

5 EXPERIMENTAL SETTING

We ﬁrst present the experimental protocol. Then, the

real-world datasets used are brieﬂy described. Third,

we focu s on implementation aspects. This section

ends with co nsiderations about the parameter adjus-

tment of the approac hes compared.

5.1 Experimental Protocol

We consider SNPs coded on 0, 1 and 2 to respecti-

vely denote major homoz ygous, heterozygous and

minor homozyg ous, where the allele with minor fre-

quency is the disease susceptibility a llele. We call in-

teraction of interest (IoI) any 2-way interaction for

which logistic regression (y ∼ β

+ β

) provides a signiﬁcant p-value for the inte-

raction coefﬁcient β

, given some speciﬁc signiﬁ-

cance th reshold. As highlighted previously, the RF-

based ap proach ranger can only tackle feature se-

lection. Downstream ranger’s execution, we thus

generated C

2-way interaction s fr om the selection

of 20 SNPs with the highest importance measures.

Then we selected the IoIs at signiﬁcance threshold

5 ×10

−4

. To put all approaches on the same foot-

ing for the compar ison, we ﬁltered out the outputs of

BEAM3, AntEpiSeeker and DASSO-MB a nd adap-

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

Figure 1: Sketches of the DASSO-MB and SMMB-ACO algorithms. (a) DASSO-MB. (b) SMMB-ACO stochastic procedure

to learn a suboptimal Markov blanket. (c) and (d) Two-pass SMMB-ACO algorithm adapted to high-dimensional data. MB:

Markov blanket. V is the initial set of SN Ps. (a) Incorporating SNPs one at a time as in DASSO-MB hampers the epistasis

detection process: since the independence test achieved at ﬁrst iteration is conditioned on the empty Markov blanket (MB),

a SNP marginally dependent with the phenotype is incorporated from the outset, which biases the whole MB learning. (b)

Instead, SMMB-ACO addresses this issue by including groups of SNPs. To this aim, each forward step starts with the

sampling of a set S of k SNPs, from the subset S

of size K

that is assigned to the ant that is driving the learning of the

suboptimal MB. For each non-empty subset S

′

of S, a score is computed, that assesses the association strength between S

′

and the phenotype, conditional on the growing Markov blanket MB. The subset S

′

with the highest association score is

incorporated into MB i f the association is statistically signiﬁcant. (c) A f ter all iterations are completed, the set of SNPs

obtained as the union of all suboptimal MBs is returned. This set of SNPs is the set U

returned by the ﬁrst pass of SMMB-

ACO (see (d)). (d) A second pass of SMMB-ACO is performed with U

as the input. This time, the resulting set U

submitted to a backward phase, to yield U

, a set of SNP s. To include SMMB-AC O in our experimental protocol, we

suppressed the post-processing phase of the native algorithm (Sinoquet and Niel, 2018), which outputs as an interaction any

suboptimal MB generated in (b) provided it is contained in the set U

obtained in (d). In our protocol, for reasons detailed in

subsections 5.1 and 5.4 (last paragraph), the post-processing phase of SMMB-ACO consisted in the generation of interactions

of interest (IoIs), as deﬁned in subsection 5.1, from set U

ted the post-processing in SMMB-ACO to keep only

IoIs at signiﬁcance threshold 5 ×10

−2

. The thorough

justiﬁcation for the use of two signiﬁcance thresholds

will be provided in subsection 5.4.

In this comparative analysis, DASSO-MB is the

only deterministic appro ach. Each other (stochastic)

method was run 10 times on each dataset.

To no te , generating all 2-way interactions from a

set of t SNPs and assessing their dependence with the

pheno type through logistic regression may be compu-

tationally expensive (e.g., 30 h ours if t = 20 SNPs).

This result shows the n e cessity to u se ad vanced m e-

thods for datasets scaling in tens of thousands of

SNPs, as is the case in this study.

5.2 Real-World Datasets

We used the genome-wide data related to Crohn’s

disease (CD) provided by the Wellcome Trust

Case Control Consortium (WTCCC, https://www.

wtccc.org.uk/). Major pathways involved in Crohn’s

disease have emerged from standard single -SNP

GWASs (Graham and Xavier, 2013). This back-

ground motivated our ch oice to analyze the WTCCC

dataset related to Crohn’s disease. Using the cohort

of cases affected by CD and two cohorts o f unaffected

(controls) provide d by the WTCCC, we generated 23

datasets r elated to the 23 hu man chromosomes. We

applied the quality control procedure speciﬁed by the

WTCCC to ea ch dataset. In particular, this procedu re

dismisses SNPs having more than 1% of missing data

and subjects having more than 5% of missing data ,

and checks for the so-called Hardy-Weinberg equi-

librium at 5.7 ×10

−7

threshold. After quality cont-

rol, the size of the population of cases and contro ls is

4, 686 (1,748 affected; 2,938 unaffected). The statis-

tics about the numbe r of SNPs per dataset are as fol-

lows: the average is 20, 236; the minimum and maxi-

mum are 5, 707 and 38, 730, respectively. Finally, we

imputed data using a k-nearest neighbor proced ure, in

which the missing variant of subject s is assigned the

variant most frequent in the nearest neighbors of s.

Detection of Gene-gene Interactions: Methodological Comparison on Real-World Data and Insights on Synergy between Methods

Table 1: Implementations for the ﬁve software programs used in the comparative study.

ranger http://dx.doi.org/10.18637/jss.v077.i01

BEAM3 http://www.mybiosoftware.com/beam-3-disease-association-mapping.html

AntEpiSeeker http://nce.ads.uga.edu/ romdhane/AntEpiSeeker/index.html

DASSO-MB not distributed by its authors, reimplemented

SMMB-ACO https://ls2n.fr/listelogicielsequipe/DUKe/130/SMMB-ACO

5.3 Implementation of the Comparative

Study

Except for DASSO-MB, all approaches are available

on the Internet (Table 1) ; they are coded in C++. We

recoded DASSO-MB in C++. The extensiveness of

our compara tive study required intensive computing

resources from the Tier 2 CCIPL data centre (Inten-

sive Comp uting Centre of the Pays de la Loire Re-

gion) (Intel 2630v4, 2 ×10 co res 2,2 Ghz, 20×6 GB).

We exploited the OpenMP intrinsical parallelization

of the C++ implementation s of ranger, BEAM3 and

SMMB-ACO. We also exploited data-driven paralle-

lization to run each stochastic method 1 0 times on

each dataset. Because of the heterogeneity of the run-

ning times across the methods and of memory shor-

tage events, we had to balance the workload distri-

bution be twe en (i) sequentially processing 23 chro-

mosome datasets for one method on one node (pro-

cess

23Chrs 1) and repeating this job 9 times (on ot-

her nodes), and (ii) processing a single chromosome

dataset 10 times for one method on one node (pro-

cess

1Chr 10) and repeating this job for the remai-

ning chromosomes (on other nodes). In the case of the

parallelized software progra ms ranger, BEAM3 and

SMMB-ACO, the 20 cores of a given node were em-

ployed in parallel. We managed th e workload using

the three following modalities: short, me dium and

long, for expected ca lc ulation dur a tions respectively

below 1, 5 and 30 days. When a timeout occur red

in a node, depending on the degree of com pletion of

the job, we either switched to a modality with higher

time limit (proce ss

23Chrs 1) or to a chromosome by

chromosome management (process 1 Ch r 10). In to-

tal, we per formed 1,035 ch romosom e-wide analyses.

5.4 Parameter Adjustment

Most machine learning me thods re quire the tuning of

a number of parameters. Table 6 in Appendix recapi-

tulates the main parameters of the software programs

used in our study.

The software program ranger was speciﬁcally d e -

signed by its authors to handle high-dimensional data.

Throu gh a complementary study (results not shown),

we tried various values of m try between

√

n and n, the

total number of SNPs. On the d atasets concerned, the

optimal value is shown to be

To set th e value of the product number of iterati-

ons × number of ants in AntEpiSeeker while attemp-

ting to diminish the large number of interactions out-

put by this method, we conducted a preliminary study.

In this preliminary study, the number of iter ations was

kept to AntEpiSeeker default value (450). We varied

the number of ants between 500 and 5,0 00 (step 500).

We observed that using 1,000 ants, we could control

the total number of interactions reported to less than

15,000. while still guaranteeing a coverage of 10 for

each SNP in the largest chromoso me-wide dataset.

We set the numbers of iterations of the burn-in and

stationary phases of BEAM3, following the r e com-

mendation of its author.

DASSO-MB’s unique parameter is a type I error

threshold, a nd its adjustm e nt is straightforward.

For a fair comparison, in theory, one would set the

product n

×n

ants

(number of ACO iterations × num-

ber o f ants) in SMMB-ACO to the value chosen for

AntEpiSeeker. However, two points must be taken

into account. First, AntEpiSeeker software program

is not parallelized, whereas SMMB-ACO is: during

each of the n

SMMB-ACO iterations, n

ants

Markov

blankets are learned in parallel. Second, the comple-

xities of an iteration in AntEpiSeeker and of an ite-

ration in SMMB-ACO are not comparable: in Ant-

EpiSeeker, each ant draws a set of SNPs and com-

putes the c orresponding χ

statistic; in SMMB-ACO,

each ant grows a Markov blanket via a forward phase

intertwined with full bac kward phases. We adju s-

ted SMMB-ACO parameters n

, n

ants

and K

(num-

ber of SNPs drawn by ea c h ant), in order to gua-

rantee in theory that each SNP of the initial dataset

would be drawn a sufﬁcient numb e r of times in the

scope of a single run. With the parameter setting

, n

ants

, K

) = (360, 20, 160), we expect a coverage

of 30 for the largest datasets, in a single run. We recall

that 10 runs are perform ed for each stoc hastic method.

A type I error threshold is used for the indepen-

dence tests in AntEpiSeeker, and for the conditio-

nal independence tests in DASSO-MB and SMMB-

ACO. The common value choosen was 5 ×10

−4

. It

is common to the thr eshold ﬁxed for the logistic re -

gression used downstream ranger execution. A less

stringent threshold of 5 ×10

−2

was used for the lo-

gistic regressions performed in the ﬁltering stages do-

wnstream BEAM3 , AntEpiSeeker and DASSO-MB

executions as well as in the post-pro c essing stage in

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

Table 2: Orders of magnitude of the running times and memory occupancies for the ﬁve software programs used. Otherwise

stated, the average running time indicated is computed from t he 23 chromosome datasets (ten executions for each dataset).

Method Average running time Memory occupancy

ranger

feature selection: 14 ± 7 mn 2 ± 0.6 GB

post-processing: 60 ± 20 mn

BEAM3

extremely volatile across the chromosome datasets 79 ± 46 GB

Chr7 to C hr23: 54 ± 66 s

Chr6: 22.4 ± 1.5 h

Chr1 to C hr5: above 8 days

AntEpiSeeker 16 ± 3 mn 0.5 ± 0.2 GB

DASSO-MB 82 ± 22 s 1.5 ± 0.7 GB

SMMB-ACO

extremely volatile across the chromosome datasets 43 ± 17 GB, extremely volatile even across

30 ± 17 mn (average on shortest executions) the 10 executions on a given chromosome

otherwise, up to 3 days, with large variations dataset; many execution abortions due

to memory limitation (120 G B)

SMMB-ACO. A recapitulation is provided in Figure

Figure 2: Flow diagram for the comparative analysis.

6 RESULTS AND DISCUSSION

We ﬁrst com pare running times and memory occu-

pancies across the ﬁve approaches. Then we compare

the numbers of intera ctions of inte rest (IoIs) identi-

ﬁed by the ﬁve methods and analyze the distributions

of p-values and odds ratios obtain ed. Third, we focus

on the IoIs jointly identiﬁed by several methods. This

section ends with a discussion.

6.1 Running Times and Memory

Occupancies

There are salient features to draw from Table 2.

DASSO-MB is the software program both much

faster and far less greedy in memory than its com-

petitors. AntEpiSeeker is remarka ble in that it

shows a low run ning tim e across all chromosomes.

The quickness of ranger is further impeded by the

exhaustive test of 2-way interactions performed do-

wnstream. The behaviors of BEAM3 and SMMB-

ACO are both extremely volatile across the d atasets,

for various reasons. In SMMB-ACO, the stochastic

feature translates in th e g reat heterogeneity of me-

mory occupancy, possibly up to memory shortage,

even for short chromosomes. In around the third of

the datasets, it was nec essary to launch additional runs

(up to 5), to obtain the 10 runs required by our pro-

tocol. Nevertheless, the processing of all chromoso-

mes remains feasible within 5 days, on 10 nodes. In

contrast, we experienced timeouts with BEAM3, for

the 5 largest chromosomes. In these cases, we were

compelled to specify large timeouts (30 days), with

the consequence of longer waiting times, to guarantee

that executions demanding more tha n 8 days cou ld

be completed. Despite these prohibitive running ti-

mes, BEAM3, the program most greedy in memory

on average for the datasets considered, never ran out

of memory.

6.2 Interactions of Interest Identiﬁed

Numbers of Interactions of Interest. Table 3 high-

lights contrasts between th e methods. First, with only

18 in te ractions, it was nearly expected that DASSO-

MB would not de te c t I oIs. In the remainder of this ar-

ticle, we will not mention DASSO-MB anymore. Se-

cond, a salient feature is the great heterogeneity in the

numbers of IoIs dete cted by the fou r other methods.

These numbers scale in a ten thousands, a thousand,

a hundr e d an d a few tens for AntE piSeeker, SMMB-

ACO, BEAM3 and ranger respe ctively.

Figure 3 focuses on the distribution of IoIs across

the chromosomes. A ﬁrst conclusion is that a sharp

contrast exists between AntEpiSee ker and SMMB-

ACO, whose IoIs are abundantly present in nearly all

chromosomes, and BEAM3 and ranger, whose IoIs

are conﬁned to 10 and 5 chromosomes respectively.

Besides, th e number of IoIs in BEAM 3, aroun d four

times higher than in range r, is c ircumbscribed to a

number of chromosomes th at is two times less than

for ranger.

Detection of Gene-gene Interactions: Methodological Comparison on Real-World Data and Insights on Synergy between Methods

Figure 3: Comparison of the distributions of interactions of interest detected wit h ranger, BEAM3, AntEpiSeeker and SMMB-

ACO. AntEpiSeeker detected 13,062 IoIs which are spread over the 23 chromosomes ( small est number of IoIs for a chromo-

some: 202; median number: 380). Moreover, IoIs are overly abundant in chromosome X, whose presence is not known to bias

Crohn’s disease onset (4,427 IoIs representing 34.9% of AntEpiSeeker’s IoIs; the corresponding bar is truncated in subﬁgure

(a)). These observations comfort the hypothesis of a high rate of false positives. SMMB-ACO identiﬁed 1,142 IoIs distributed

across all chromosomes except chromosome X (smallest number of IoIs for a chromosome: 8; median number 38; largest

number: 251; the corresponding bar (Chr10) is truncated in subﬁgure (b)). In constrast, the 131 IoIs detected by BEAM3

are located within 5 chromosomes only, whereas the 34 IoIs identiﬁed by ranger are distributed across 10 chromosomes. As

regards BEAM3, Chr1, Chr6, Chr7, Chr8 and Chr14 respectively harbour 13, 83, 2, 18 and 15 IoIs. The IoIs detected by

ranger are located on Chr2 to Chr7, Chr9, Chr19, Chr22 and Chr23 (minimum number of IoIs for these 10 chromosomes: 1;

maximum number: 6).

R B A S

100

(a1) −log(p−val) >= 20

R B A S

(b1) 10 <= −log(p−val) < 20

R B A S

(c1) 5 <= −log(p−val) < 10

R B A S

(d1) 1.5 <= −log(p−val) < 5

R B A S

(a2) odds ratio

R B A S

100

150

(b2) odds ratio

R B A S

100

150

200

250

(c2) odds ratio

R B A S

(d2) odds ratio

Figure 4: Distributions of p-values and odds ratios for the interactions of interest detected with ranger, BEAM3, AntEpiSeeker

and SMMB-ACO. IoIs: interactions of interest. R: ranger. B: BEAM3. A: AntEpiSeeker. S: SMMB-ACO. Each subﬁgure

(x2) shows the distr ibution of odds ratios for the IoIs whose p-values fall into subﬁgure (x1). −log

(5 ×10

−2

) = 1.5.

Table 3: Comparison of the numbers of interactions de-

tected with the ﬁve approaches.

Number of Number of

interactions interactions of

identiﬁed interest (IoIs)

ranger 34 (34) (100%)

BEAM3 1,082 131 (12.1%)

AntEpiSeeker 14,670 13,062 (89.0%)

DASSO-MB 18 0

SMMB-ACO 6,346 1,142 (18.0%)

Distributions of P-values and Odds Ratios. The

subﬁgures 4 (a1) to (d1) and Table 4 allow to compare

the distributions of p-values observed for the IoIs. We

consider four intervals for the p-values. Again, a great

heteroge neity is observed across the methods. A ﬁrst

remark is that AntEpiSeeker and ranger are the only

two methods to show p -values within the two ﬁrst in-

tervals (i.e., below 10

−10

) (even down to 10

−50

for

some outliers in both methods). A second observation

is that ranger and AnEpiSeeker’s p-values spread over

whole third interval ]10

−10

, 10

−5

], whereas SMMB-

ACO’s lowest p-values ra nge in [10

−5.5

, 10

−5

]. In

contrast, BEAM3 is the only method whose 131 p-

values are all contained in the fou rth interval (a nd

are even conﬁned to [10

−3.5

, 5 × 10

−2

]). Besides,

another discrepancy is evidenced: we have seen that

ranger and AntE piSeeker’s Io Is are distributed in all

four intervals; however, a sharp con trast exists bet-

ween these methods. Two thirds of the 34 ranger p-

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

Table 4: Distributions of p-values for the interactions of

interest detected with ranger, BEAM3, AntEpiSeeker and

SMMB-ACO. Four signiﬁcance intervals are shown for

−log

(p-value). −log

(5 ×10

−2

) = 1.5.

≥ 20 [ 10, 20[ [5, 10[ [1.5, 5[

ranger 10 12 6 6

BEAM3 0 0 0 131

AntEpiSeeker 13 13 458 12,578

SMMB-ACO 0 0 6 1,136

values are concentrated in the two ﬁrst intervals, whe-

reas an overwhelming majority of the 13,062 AntEpi-

Seeker p-values are distributed in the third and fo urth

intervals, with a balance of 3.6% / 94.4% between

these intervals, respectively. In addition, it is now

clear that the statistical th reshold of 5 ×10

−4

in the

post-processing downstream ran ger is not a functio-

nal equivalent for the same statistical threshold used

by AntEpiSeeker, DASSO-MB and SMMB-ACO du-

ring their learning processes.

In parallel, subﬁgures 4 (a2) to ( d2) show the

distributions of odds ratios for the interaction coef-

ﬁcients. In standard GWASs, SNPs with f requen-

cies between 1% and 5% exert effects of moderate

size, with odds ratios below 1.5, most often in range

[1.1,1.3], and up to 2.1 (Stadler et al., 2010). A few

publications document odds ratios for GWIASs. For

example, odds ratios in range [1.3,1.4] are reported in

(Li et al., 2018). Nevertheless, much higher odds r a-

tios may be reported, such as values betwee n 2 and 7,

and even up to around 12 in (Grange et al., 2015). If

we consider odds ra tios above 20 as outliers, ra nger

and AntEpiSeeker are the two only methods that pro-

vide such outliers. The higher number of outliers ob-

served for AntEpiSeeker can be explained by a much

higher nu mber of IoIs. In contr ast, the odds ratios

observed for BEAM3 and SMMB-ACO are all below

9 ( see Figure 5). Consistently with (Grange e t al.,

2015), we observe that outliers for odds ratios do not

necessarily coincide with outliers for p-values.

Interactions of Interest Jointly Identiﬁed by at Le-

ast Two Approaches. Beyond the methodological

compariso n on a real dataset, we wish to examine

whether IoIs were jointly outp ut by at least two appro-

aches. The fact that two methods whose core mecha-

nisms greatly differ identify common IoIs suggests

that the corresponding short list of IoIs could be tested

in priority by the biologists (Ritchie and Van Steen,

2018). None of the 131 IoIs id entiﬁed by BEAM3

is detected by another method. On the contrar y, 32

of the 34 IoIs dete cted by ranger were also detected

by AntEpiSeeker. AntEpiSeeker and SMMB-ACO

detected 16 common IoIs. SMMB-ACO and ranger

have only 3 IoIs in common. One IoI was jointly

BEAM3 SMMB−ACO

(c2) odds ratio

BEAM3 SMMB−ACO

(d2) odds ratio

Figure 5: Focus on subﬁgures 4 (c2) and (d2) showing the

distributions of odds ratios for BEAM3 and SMMB-ACO.

identiﬁed by AntEpiSeeker, ranger and SMMB-ACO.

Given the numbe r of interactions output by AntEpi-

Seeker, an overlap was expected between AntEpi-

Seeker and some other method. On the other hand,

our study indicates that the mechanisms behind Ant-

EpiSeeker and SMMB-ACO, which both use ACO,

explore different sets of solutions.

Biological Insights. Th e 56 IoIs jointly selected by

two or three methods are re la te d to 25 known ge-

nes. From these 56 I oIs, we could infer 11 inte-

raction networks: six of size 3 in Chr2, Chr5, Chr6,

Chr7 and Chr 19; four of size 4 in Chr3, Chr14, Chr16

and Chr17; and one of size 7 within Chr10. Besides

a number of standard single-SNP GWASs, the few

AISs devoted to CD focus on genes or pathways al-

ready known to contribute to the disease onset. It is

not a surprise that our stu dy highlig hts six genes al-

ready known to impact CD onset: NOD on Chr16,

CCNY and NKX2-3 on Chr10, LGALS9 and STAT3

on Chr17 , and SBNO2 on Chr19 (McGovern et al.,

2015; Khor et al., 2011). It was also expected that our

protocol designed for AIS investigation without prior

biological knowledge would detect novel interaction

candidates, which it does.

The network of size 7 is presented in Table 5. It

is related to 5 kn own genes. It is beyond the scope of

this study focused on methodolo gical and computati-

onal aspects, to bring deep e r biological insights on the

potential mechanisms involved in the networks a nd

IoIs.

6.3 Discussion

The presence of p-value and odds ra tio outliers is not

an issue in AntEpiSeeker, in regard to the large num-

ber of AntEpiSeeker IoIs. However, this presence in

the few ten IoIs output by ranger comforts the ne-

cessity to lower th e signiﬁcance threshold used for

ranger down to the threshold used in ﬁltering and

post-processing, for the other methods (in our case

Detection of Gene-gene Interactions: Methodological Comparison on Real-World Data and Insights on Synergy between Methods

Table 5: Network of 7 SNPs identiﬁed in chromosome

10. iv: intron variant; nctv: nc transcript variant; uv: up-

stream variant. LINC01475 (long intergenic non-protein

coding RNA 1475), related to nodes D, E and F in the in-

teraction network, is expressed in 7 tissues including colon,

small intestine, duodenum and appendix. NKX2-3, the ot-

her gene related to node F, is a member of the NKX family

of homeodomain-containing transcription factors; the lat-

ter are involved in many aspects of cell type speciﬁcation

and maintenance of differentiated tissue f unctions. Node

A is related to CREM which encodes a transcription fac-

tor that binds to the cAMP responsive element found in

many cellular promoters. Alternative promoter and transla-

tion initiation site usage enables CREM to exert spatial and

temporal speciﬁcity in cAMP-mediated signal transduction.

This gene is broadly expressed (36 tissues including colon,

small intestine and appendix). Node B is related to CCNY.

As all cyclins, CCNY controls cell division cycles, regu-

lates cyclin-dependent kinases; it is ubiquitous (27 tissues).

Node G, CPXM2, a protein of the carboxypeptidase X, M14

family member 2, is broadly expressed in 21 ti ssues.

SNP location related gene function

identiﬁer (bp)

A rs2505639 35185493 CREM iv

rs16935948 35260820 CCNY iv

rs3936503 35260329 CCNY iv

rs10761659 62685804 — —

rs10995271 62678726 — —

rs10883365 99528007 LINC01475 nctv

rs10883367 99528233 LINC01475 iv

rs1548964 99529896 LINC01475 iv

rs1548962 99529978 LINC01475 iv

rs6584283 99530544 LINC01475 iv

rs10883371 99532698 LINC01475 uv 2kb

NKX2-3

rs7067790 123917521 CPXM2 iv

rs17680424 123917559 CPXM2 iv

IoI p-val ue IoI p-val ue

AE 0.00358 CD 0.04767

BD 0.00112 CF 0.04386

BE 0.00115 CG 0.00624

CE 0.04267

5 ×10

−2

). We would expect a larger number o f IoIs

for ranger, and thus a lower proportion of IoIs with

extreme odds ratios or p-values.

On the CD dataset, DASSO-MB is of no help. The

verbose An tEpiSeeker pr ovided a wealth of results in

both a wide spectr um of p-values and of odds ratios.

SMMB-ACO neither provided outliers f or p-values or

odds ratios, but generated pla usible od ds r atios ( up to

9) and showed lowest p-values in the order of 10

−5.5

The widely c ited software BEAM3 could not pinpoint

IoIs with p-values lower than 10

−3.5

. In this respect,

SMMB-ACO seems more prom ising than the renow-

ned BEAM3, on the CD da ta set.

On the CD dataset, 56 IoIs were detected by two

methods at least. A ﬁrst experimental conﬁrmation

is that SMMB-ACO and AntEpiSeeker, which both

use ACO, are nevertheless intrinsically different since

their overlap is only 16. Seco nd, the IoI overlaps bet-

ween ranger and AntEp iSeeker, and between ranger

and SMMB-ACO, tend to feature ranger as a revela-

tory tool of duplicate IoIs. This remark advocates the

relaxation of the signiﬁcance threshold used for ran-

ger in this feasibility study, to emphasize the potential

revelatory role of ranger.

7 CONCLUSION AND FUTURE

WORK

In the GWAS ﬁeld, small-scale simulations reveal no-

thing about the effectiven ess of methods on large da-

tasets. In particular, the ratio between the number of

SNPs and number of subjects observed is not compa-

rable between simulated and real datasets.

This p aper focuses on four state-of-the-art ap-

proach e s designed to detect e pistasis, together with

the recent propo sal SMMB-ACO. Our work departs

from the standard fram ework as it repor ts the exten-

sive comparative analysis of these ﬁve approaches on

large-scale real data. We described an experimental

protocol conceived to output c omparable sets of (2-

way) interactions across the approaches. We conside-

red 23 chromosome-wide ca se control datasets related

to Crohn’s disease. We achieved 1,035 genetic ana-

lyses and ob served a great heterogeneity across me-

thods in all aspects: run ning tim e s and memory re-

quirements, numbers of interactions of interest (IoIs)

output, p-value and o dds ratio ranges.

This work served as a feasibility study to furt-

her extend the c omparative analysis to six other real-

world datasets. At this scale (10,441 chro mosome-

wide analyses on 161 datasets), we will be able to

conﬁrm or inﬁrm the trends observed for the CD d a-

taset. A still more comprehensive study would a lso

extend the analysis to various genetic models.

Beyond the enlighte ning methodological comp a-

rison on real datasets, the present work allowed to

cross the IoIs of several machine learning methods

whose intrinsic mechanisms greatly differ. Priorizing

the interactions jointly identiﬁed by at least two such

methods is a defensib le option to obta in a short list,

when it is not affordable to test experimentally all the

interactions generated. Indeed, the 56 IoIs obtained

from the CD dataset allowed to infer six, four and one

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms

networks of respec tive sizes 3, 4 and 7, and six of the

genes invo lved in these networks are already kn own

to contribute to the disease onset. Applying the revi-

sed protocol to six other genome-wide d atasets will

allow us to conﬁrm whether ranger can be considered

as a revelatory tool of duplicate IoIs.

REFERENCES

Aﬂakparast, M., Salimi, H., Gerami, A., Dub´e, M.-P., Vis-

weswaran, S., et al. (2014). Cuckoo search epistasis:

a new method for exploring signiﬁcant genetic inter-

actions. Heredity, 112:666–764.

Ayers, K. and Cordell, H. (2010). SNP selection in genome-

wide and candidate gene studies via penalized logistic

regression. G enetic Epidemiology, 34(8):879–891.

Beam, A. , Motsinger-Reif, A., and Doyle, J. (2014). Baye-

sian neural networks for detecting epistasis i n genetic

association studies. BMC Bioinformatics, 15(1):368.

Chang, Y.-C., Wu, J.-T., Hong, M.-Y., Tung, Y.-A., Hsieh,

P.-H., et al. (2018). GenEpi: gene-based epista-

sis discovery using machine learning. bioRXiv, doi:

https://doi.org/10.1101/421719.

Chatelain, C., Durand, G., Thuillier, V., and Aug´e, F.

(2018). Perf ormance of epistasis detection methods

in semi-simulated GWA S. BMC bioinformatics,

19(1):231.

Fergus, P., Montanez, C., Abdulaimma, B., Lisboa, P., and

Chalmers, C. (2018). Utilising deep learning and ge-

nome wide association studies for epistatic-driven pre-

term birth classiﬁcation in African-American women.

arXiv preprint, arXiv:1801.02977.

Furlong, L. (2013). Human diseases through the lens of

network biology. Trends in Genetics, 29:150–159.

Gao, H., Granka, J., and Feldman, M. (2010). On

the classiﬁcation of epistatic interactions. Genetics,

184(3):827–837.

Gibert, J.-M., Blanco, J., Dolezal, M., Nolte, V., Peronnet,

F., and S chl¨otterer, C. (2017). Strong epistatic and

additive effects of linked candidate SNPs for D r oso-

phila pigmentation have implications for analysis of

genome-wide association studies results. G enome Bi-

ology, 18:126.

Gilbert-Diamond, D. and Moore, J. (2011). Analysis of

gene-gene interactions. Current Protocols in Human

Genetics, 0 1: Unit1.14.

Gola, D., Mahachie John, J., van Steen, K., and K¨onig,

I. (2016). A roadmap to multifactor dimensiona-

lity reduction methods. Brieﬁngs in Bioinformatics,

17(2):293–308.

Graham, D. and Xavier, R. (2013). From genetics of in-

ﬂammatory bowel disease towards mechanistic insig-

hts. Trends in I mm unology, 34:371–378.

Grange, L., Bureau, J.-F., Nikolayeva, I., Paul, R., Van

Steen, K., et al. (2015). Filter-free exhaustive odds

ratio-based genome-wide interaction approach pin-

points evidence for interaction in the HLA region in

psoriasis. BMC Genetics, 16:11.

Han, B. and Chen, X.-W. (2011). bNEAT: a Bayesian

network method for detecting epistatic interactions in

genome-wide association studies. BMC Genomics,

12(Suppl.2):S9.

Han, B., Chen, X.-W., and Talebizadeh, Z . (2011). FEPI-

MB: identifying SNPs-disease association using a

Markov blanket-based approach. BMC Bioinforma-

tics, 12(Suppl.12):S3.

Han, B., Park, M., and Chen, X.-W. (2010). A Markov

blanket-based method for detecting causal SNPs in

GWAS. BMC Bioinformatics, 11(Suppl.3):S5.

Jiang, X., Neapolitan, R., Barmada, M., Visweswaran, S.,

and Cooper, G. (2010). A fast algorithm for lear-

ning epistatic genomic relationships. In Proceedings

of the Annual American Medical Informatics Associa-

tion Symposium (AMIA2010), pages 341–345.

Jing, P. and Shen, H. (2015). MACOED : a multi-objective

ant colony optimization algorithm for SNP epistasis

detection in genome-wide association studies. Bioin-

formatics, 31(5):634–641.

Khor, B., Gardet, A., and R amnik, J. (2011). Genetics and

pathogenesis of inﬂammatory bowel disease. Nature,

474(7351):307–317.

Li, Y., Xiao, X., Han, Y., Gorlova, O., Qian, D., et al.

(2018). Genome-wide interaction study of smoking

behavior and non-small cell lung cancer risk in Cau-

casian population. Carcinogenesis, 39(3):336–346.

Lin, H., Chen, Y., Tsai, Y., Qu, X., Tseng, T., and Park,

J. (2012). TRM: a powerful two-stage machine l ear-

ning approach for identifying SNP-SNP interactions.

Annals of Human Genetics, 76(1):53–62.

McGovern, D., Kugathasan, S., and Cho, J. (2015). Ge-

netics of inﬂammatory bowel diseases. Gastroentero-

logy, 149(5):1163–1176.

Mullis, M., Matsui, T., Schell, R., Foree, R., and Ehren-

reich, I. (2018). The complex underpinnings of ge-

netic background effects. Nature communications,

9(1):3548.

Nicodemus, K., Law, A., Radulescu, E., Luna, A., Ko-

lachana, B., et al. ( 2013). Biological validation of

increased schizophrenia risk with NRG1, ERBB4,

and AKT1 epistasis via functional neuroimaging in

healthy controls. Archives of General P sychiatry,

67(10):991–1001.

Ritchie, M. and Van Steen, K. (2018). The search for gene-

gene interactions in genome-wide association studies:

challenges in abundance of methods, practical con-

siderations, and biological interpretation. Annals of

Translational Medicine, 6(8):157.

Schwarz, D., K¨onig, I., and Ziegler, A. (2010). On safari

to random jungle: a fast implementation of random

forests for high-dimensional data. Bioinformatics,

26(14):1752–1758.

Shen, Y., Liu, Z., and Ott, J. (2012). Support vector ma-

chines with L1 penalty for detecting genegene inter-

actions. International Journal of Data Mining and Bi-

oinformatics, 6:463–470.

Sinoquet, C. and Niel, C. (2018). Enhancement of a

stochastic Markov blanket framework with ant co-

lony optimization, to uncover epistasis in genetic as-

Detection of Gene-gene Interactions: Methodological Comparison on Real-World Data and Insights on Synergy between Methods

sociation studies. In Proceedings of the 26th Eu-

ropean Symposium on A rtiﬁcial Neural Networks,

Computational Intelligence and Machine Learning

(ESANN2018), pages 673–678.

Stadler, Z., Thom, P. , Robson, M., Weitzel, J., Kauff, N.,

et al. (2010). Genome-wide association studies of can-

cer. Journal of Clinical Oncology, 28(27):4255–4267.

Sun, Y., Shang, J., Liu, J.- X ., Li, S., and Zheng, C .-H.

(2017). epiACO - a method for identifying epistasis

based on ant colony optimization algorithm. BioData

Mining, 10:23.

Uppu, S., Krishna, A., and Gopalan, R. ( 2016). Towards

deep learning in genome-wide association interaction

studies. In Proceedings of the 20th Paciﬁc Asia Confe-

rence on Information Systems (PACIS2016), page 20.

Urbanow icz, R. , Meeker, M., LaCava, W., Olson, R., and

Moore, J. (2018). Relief-based feature selection: in-

troduction and review. Journal of Biomedical Infor-

matics, 85:189–203.

Wang, Y., L iu, X., Robbins, K., and Rekaya, R. (2010). Ant-

EpiSeeker: detecting epistatic interactions for case-

control studies using a two-stage ant colony optimi-

zation algorithm. BMC Research Notes, 3:117.

Wright, M. and Ziegler, A. (2017). ranger: a fast implemen-

tation of random forests for high dimensional data in

C++ and R. Journal of Statistical Software, 77(1):1–

17.

Yoshida, M. and Koike, A. (2011). S NPInterForest: a new

method for detecting epistatic interactions. BMC Bi-

oinformatics, 12:469.

Zhang, Y. (2012). A novel Bayesian graphical model for

genome-wide multi-SNP association mapping. Gene-

tic Epidemiology, 36(1):36–47.

Zhang, Y. and Liu, J. (2007). Bayesian inference of epistatic

interactions in case-control studies. Nature Genetics,

39:1167–1173.

APPENDIX

Table 6: Parameter adjustment for the ﬁve methods.

Software Parameter description Value

ranger

num.trees 500

number of trees

mtry 5/8 n

number of variables to possibly split at

in each node, with n, the total number

of variables

impmeasure Gini

type of importance measure index

BEAM3

itburn 50

number of iterations in burn-in phase

itstat 50

number of iterations in stationary phase

iAntCount 1000

number of ants

iItCountLarge 150

number of iterations for the large

haplotypes

iItCountSmall 300

number of iterations for the small

haplotypes

Ant- iEpiModel 2

-EpiSeeker number of SNPs in an epistatic

interaction

pvalue 5 ×10

−4

p-value threshold

(after Bonferroni correction)

alpha 1

weight given to pheromone deposited

by ants

phe 100

initial pheromone rate for each variable

rou 0.05

evaporation rate in ant colony

optimization

DASSO-MB

alpha 5 ×10

−4

global type I error threshold

360

number of ACO iterations

ants

number of ants

160

size of the subset of variables

sampled by each ant

k 3

size of a combination of variables

sampled amongst the K above

variables (k < K)

SMMB-ACO α

′

5 ×10

−4

global type I error threshold

100

constant to initiate pheromone rates

ρ and 0.05

λ 0.1

two constants used to update

pheromone rates

η 1

vector of weights, to account for prior

knowledge on the variables

α and 1

β 1

two constants used to adjust the

relative importance between

pheromone rate and prior

knowledge on the variables

BIOINFORMATICS 2019 - 10th International Conference on Bioinformatics Models, Methods and Algorithms
