Rendering Procedural Textures for Visualization of Thematic Data in 3D

Geovirtual Environments

Matthias Trapp, Frank Schlegel, Sebastian Pasewaldt and J

urgen D

ollner

Hasso Plattner Institute, University of Potsdam, Germany

Keywords:

3D Geovirtual Environments, Procedural Texturing, Thematic Data, Real-time Rendering.

Abstract:

3D geovirtual environments, such as virtual 3D city and landscape models, can be used as scenery for vi-

sualizing thematic data. which can be communicated using suitable color mappings or hatch patterns. For

rendering purposes, these hatches patterns can be represented as image-based or procedural textures. The re-

sulting quality of image-based textures, and thus the effective communication of the respective thematic data,

is subject to resolution and ﬁltering artifacts. In contrast to thereto, procedural textures are not limited with

respect to resolution and can be ﬁltered adaptively to achieve high visual quality. However, challenges in para-

metrization and design often hinders their application. To counterbalance these drawbacks, this paper presents

an interactive rendering technique that facilitates the application and design of procedural hatch patterns for

the mapping of thematic data to 3D geovirtual environments.

1 INTRODUCTION

In 1983, Bertin described the idea of disassembling

visual information into seven basic components he

denoted as visual variables, such as position, size,

and color (Bertin, 1983). These visual variables can

be combined to form speciﬁc patterns. A pattern can

be deﬁned as a repetitive surface appearance that is

characterized by one or more visual variables.

A hatch pattern is a special kind of pattern that is

composed of regular strokes. The signiﬁcant distin-

guishing features of hatch patterns are size, orienta-

tion, and texture. Most of these hatch pattern (also

known as hatches or hachures) have evolved histori-

cally due to restrictions of the paper medium. Ne-

vertheless, they can provide a sufﬁcient distinction of

nominal data and enable a non-ambiguous mapping.

For example, thematic maps make use of hatch pat-

terns that represent certain feature types. In speciﬁc

application domains, these pattern are often standar-

dized (e.g., DIN ISO 128-50).

Despite its application in 2D cartography, hat-

ching is sparsely used in 3D geovirtual environments

(3D GeoVEs), which can serve as scenery for com-

munication and visualization of geo-referenced data,

because of distortion effects caused by perspective

projections. Since the application of perspective pro-

jections implicitly deﬁne other visual variables (e.g.,

size and order), hatch patterns can be considered chal-

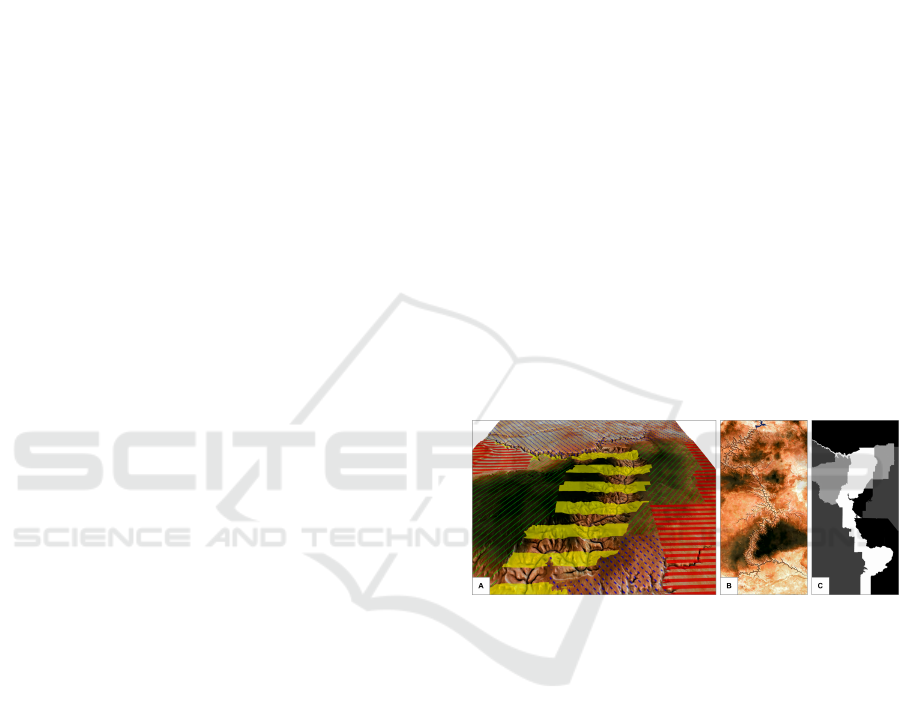

Figure 1: Examples for procedural hatch patterns applied

the a virtual 3D landscape model of the Grand Canyon (A).

Different colored hatch patterns are synthesized for diffe-

rent parts of the model (C) and blended with an aerial image

of the regions (B).

lenging in 3D GeoVE speciﬁcally. Further, they are

useful in cases where, for example, color-only map-

pings are not sufﬁcient enough or not possible (e.g.,

monochromatic displays). Many 3D GeoVEs, such

as landscapes and their generalized variants (Glander

and D

ollner, 2007) feature a number of planar surfa-

ces that are suitable to display hatch patterns. There-

fore, they are potentially suited for using hatch textu-

res for data visualizing data as shown in Figure 1. It

displays a virtual 3D model of the Grand Canyon with

hatch textures that provide information about the land

usage.

There are basically two approaches to represent

hatches for rendering in 3D GeoVE: image-based tex-

tures or procedural-based textures. While image-

based or textures are easy to create, manipulate, and

282

Trapp, M., Schlegel, F., Pasewaldt, S. and Döllner, J.

Rendering Procedural Textures for Visualization of Thematic Data in 3D Geovirtual Environments.

DOI: 10.5220/0007384302820288

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 282-288

ISBN: 978-989-758-354-4

render, they also exhibit the major disadvantage of

having ﬁxed spatial resolution, which can yield sam-

pling artifacts. To counterbalance this, three approa-

ches can be applied: ﬁrst, one can use image-based

distance maps (Green, 2007) to improve sampling.

This approach requires a single texture per hatch and

impacts memory consumptions for a high number of

different patterns. Second, one can convert an image-

based hatch texture to a vector texture representation

encoded in raster-buffers. However, its preprocessing

and implementation is complex. Third, procedural

textures can be applied. In contrast to image-based

textures, procedural-based textures are computed at

runtime and not restricted in terms of resolution and

sampling. These properties qualiﬁes them for imple-

menting hatch patterns in interactive 3D visualizati-

ons. Nevertheless, procedural texturing suffers from a

trade-off between its visual complexity and complex-

ity required for its description, i.e. the more complex

a procedural should appear the longer is its code to

describe. In terms of performance, this results in hig-

her runtime-complexity, thus slower rendering. Ho-

wever, complex hatch patterns are hard to describe

procedurally.

This paper describes a method for composing and

rendering of hatch patterns in 3D GeoVE using pro-

cedural texturing. It introduces a layering concept for

creating complex hatch patterns by combining layers

of simpler ones. This also reduces code complexity

and facilitates reuse. However, using hatch patterns

in 3D GeoVE become a challenging task because mo-

diﬁcation of position and viewing angle of the virtual

camera affect the on-screen appearance of patterns.

This may result in distracting, unpleasant effects, e.g.,

Moir

e Patterns (Amidror, 2009). With respect to this,

the paper describes different techniques for counter-

balancing such effects.

2 RELATED WORK

This section focus on recent research on and applica-

tion of procedural textures in 3D GeoVE. Rost deﬁ-

nes procedural texturing as ”the process of computing

a texture primarily by synthesizing rather than by re-

lying heavily on precomputed values” (Rost, 2006).

In contrast to image textures, procedural textures are

computed at runtime using vertex and/or fragment

coordinates.

Hatch pattern are of manifold applications in the

domain of geovisualization and information visuali-

zation in general. In cartography for example, hat-

ches are used for representing 3D topography on a

2D map by displaying quantitative measures of the

topographys slope and aspect (Kennelly and Kimer-

ling, 2000). Here, lines are drawn in the direction of

the steepest topographic gradient. This creates tonal

variations throughout the map, which are a form of

analytical hill-shading, creating a 3D impression of

the topography. Also geological illustrations in text

books make use of hatches to illustrate seismic data.

In (Patel et al., 2007; Patel et al., 2008) an approach

is presented for rendering such illustrations. There

are various techniques that can be used and combined

to generate procedural textures. This paper’s concept

is based on propagating a 2D pattern to a 3D space,

and thus generates a so called solid texture (Peachey,

1985). Prominent representatives of solid textures are

wood, granite, or marble textures, that often use noise

to create a natural look (Perlin, 1985; Lewis, 1989).

For mapping a texture to a 3D object, the surface of

that object must be parameterized with 2D texture

coordinates. During the mapping process the color

of a fragment is determined by mapping the fragment

to a texel in the image texture using these coordinates.

In contrast, solid textures use 3D (world) coordinates

of a fragment as input for their color computation.

3 PROCEDURAL PATTERNS

Based on preliminaries and requirements, this section

introduces a basic concept for hatching 3D objects in

3D GeoVEs.

3.1 Preliminaries

Assumptions & Requirements. To apply hatch

patterns to features of a 3D GeoVE, it is necessary

to enrich its geometry with additional per-vertex attri-

butes. In a preprocessing step, an unique object iden-

tiﬁer ID is computed, which enables the identiﬁcation

of a polygon in the programmable rendering pipeline

during runtime. For mappings independent of geome-

tric representation of features, e.g., per-pixel mapping

of a virtual 3D landscape model, an image-based id-

texture is used (Fig. 1.B). In addition, an axis-aligned

bounding box (AABB) for each feature geometry is

computed and stored as a per-vertex attribute. The

AABB enables the computation of texture coordina-

tes during rendering (Sec. 3.3).

Standard texture mapping (Akenine-M

oller et al.,

2008) that relies on per-vertex texture coordinates is

not always suited for creating consistent hatch pat-

terns. The results depend on a consistent texture pa-

rametrization of the objects surfaces. Such parametri-

zation must be provided in advance and can be hard

to compute. Texture coordinates that are not evenly

Rendering Procedural Textures for Visualization of Thematic Data in 3D Geovirtual Environments

283

spaced or discontinuous on object edges yield incon-

sistencies in the rendered pattern. Further, a hatch pat-

tern should appear identically on each object it is ap-

plied to preserve a distinctive mapping between pat-

tern and data, i.e., the pattern is not allowed to vary

in scale or orientation between different objects. The

presented approach uses a variant of projective textu-

ring to address these two requirements. Furthermore,

the patterns should be applicable on objects in inte-

ractive applications dynamically. Hence, the imple-

mentation must support real-time rendering as well

as a ﬂexible mapping between feature identiﬁers and

hatch patterns. To achieve the latter, the approach

enables the binding of a hatch pattern P to a number

of speciﬁc identiﬁers (ID). This mapping is resolved

during texturing using the programmable graphics pi-

peline (Segal et al., 2010).

Terminology. A procedural texture or hatch pattern

P ∈ P of a feature or object instance with the unique

identiﬁer id is deﬁned as a polymorphic list of pattern

layer instances L

type

= L

type

,.. .,L

type

∈ L L

type

= {p

type

}

The deﬁnition of layer instances can be shared bet-

ween different hatch pattern. The set of all hatch deﬁ-

nitions is denoted as P and the set of all layer instan-

ces as L . The respective layer type can be one of the

following: type ∈ {hatch,glyph,noise}. A procedu-

ral texture layer is deﬁned using a set of type speci-

ﬁc parameters p

type

, which are discussed in the next

section. To synthesize complex patterns, different in-

stances of layer types can be combined to a single

pattern. Therefore each layer is attributed by a spe-

ciﬁc Boolean combination functions (e.g., OR, AND,

XOR), which enable arbitrary layer combinations.

3.2 Components of Procedural Patterns

We identiﬁed three main components, denoted as

layer types, as the major building blocks of complex

hatch patterns: linear hatch layer, glyph layer, and

noise layer. Their respective parametrization are pre-

sented in the remainder of this section. Each layer

type shares a common parameter set that comprises

(1) two orthogonal vectors ~u,~v ∈ R

which deﬁne

orientation of a reference plane for the 2D hatch pat-

tern, (2) a combination operator (logical OR, XOR,

AND), and (3) a color.

Linear Hatch Layer. A linear hatch layer denotes

variants of linear hatch features such as solid or stip-

pled lines. It is one of the most used primitive for

representing hatches. Its parametrization comprises

the following aspects L

hatch

= (s, w, p,t): a hatch scale

factor s deﬁnes how many lines should occur within

an interval, the hatch width w deﬁnes the line width in

relation to the space between, a stipple pattern p re-

presents a bit mask describing the pattern of the stip-

ples, and a stipple scale factor t deﬁnes how often the

stipple pattern should occur.

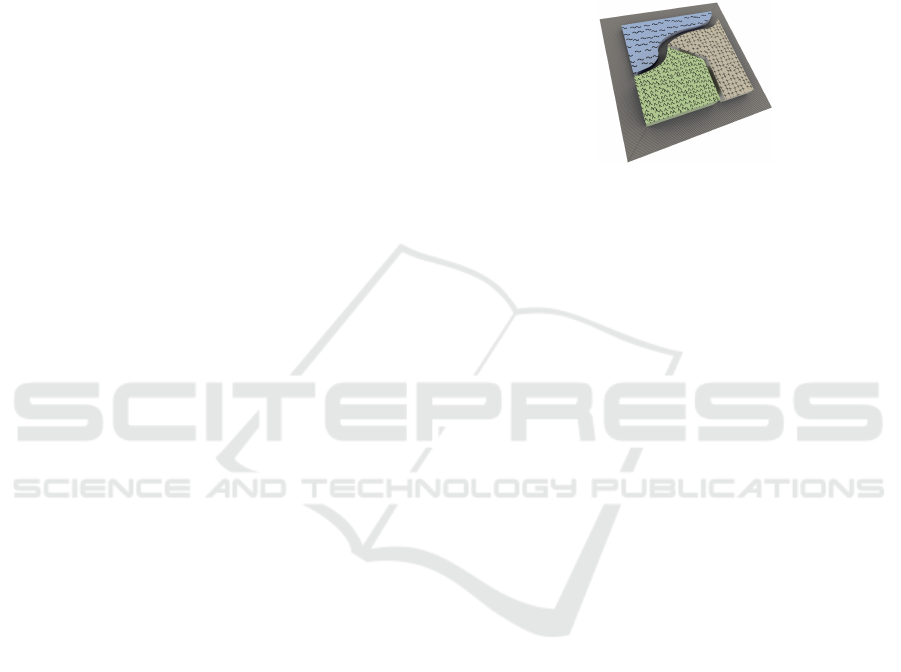

Figure 2: Examples of different glyphs layers applied to

feature types.

Glyph Layer. A glyph layer L

glyph

supports the

creation of complex patterns that can be hardly

represented by linear hatch layers, e.g., rounded

shapes or symbols. Glyph layers can be repre-

sented directly using image-based textures or by

distance-ﬁelds (Green, 2007) organized by texture at-

lases (Wloka, 2003). In contrast to image-based tex-

tures, distance ﬁelds provide signiﬁcant visual impro-

vements due to the lack of aliasing artifacts during

up-sampling and reduces texture memory consump-

tion. Glyph layers organized in textures atlases can

be efﬁciently rendered using texture bombing or glyph

bombing rendering techniques (Glanville, 2004).

Noise Layer. To add irregularity to a hatch pattern,

a noise layer L

noise

can be applied. Conceptually si-

milar to a distance map, its represents gray-scale va-

lues g ∈ [0, 1] that can be thresholded using a para-

meter ε ∈ [0,1] to convert it into a binary representa-

tion. Noise layer can be represented using (hardware-

accelerated) noise functions (Lagae et al., 2010) or ti-

leable noise textures (Perlin, 2002; Lewis, 1989). The

design space comprises varying noise frequencies, a

threshold, and a scale factor s for the generated tex-

ture coordinates. For in 3D virtual environments, ani-

sotropic noise (Goldberg et al., 2008) can be used to

minimize perspective artefacts (Sec. 3.4).

3.3 Texture-Coordinate Generation

To support changes in the mapping of object geome-

try to hatch patterns, the coordinates for texturing and

evaluation are computed procedurally based on the

AABB of each object. Here, a respective vertex posi-

tion V

is ﬁrst normalized according to its axis-aligned

IVAPP 2019 - 10th International Conference on Information Visualization Theory and Applications

284

bounding box AABB

= (LRF,URB), which is deﬁ-

ned using the coordinates of its lower left front (LLF)

and upper right back (URB) vectors:

− LLF

2 · LLF + URB

The resulting normalized coordinates are interpolated

during rasterization and yield a texture coordinate for

each fragment, which is then used to compute the in-

dividual hatches and their combination.

3.4 Counterbalance 3D Projections

A major issue of applying hatching to interactive 3D

GeoVE is to ensure the perception of patterns – re-

gardless of a 3D perspective projection transforma-

tion. For example, by zooming in and out, the line

width and in-between line distances vary with an

increasing distance to the virtual camera. This is

due to the single continuous scale encountered in 3D

GeoVE, instead of discrete scales in 2D visualizati-

ons (Jobst and D

ollner, 2008). Further, by rotating

the virtual camera, the hatch orientation can change.

When tilting the virtual camera, the pattern will be

distorted due to perspective compression. An impro-

per aspect ratio can also distort the slope of a line so

that the strokes look curved instead of straight.

All of the above may lead to ambiguity and an

inaccurate mapping of patterns to data. On the one

hand, it is naturally caused by perspective compres-

sion, on the other hand it hinders the correct and non-

ambiguous communication of the information enco-

ded in the patterns, i.e., distinguishing and comparing

patterns at different scene depth becomes hard, espe-

cially for almost similar patterns. Further, if the in-

between line distances of a hatch pattern becomes too

small, it interferes with the screen raster. That cau-

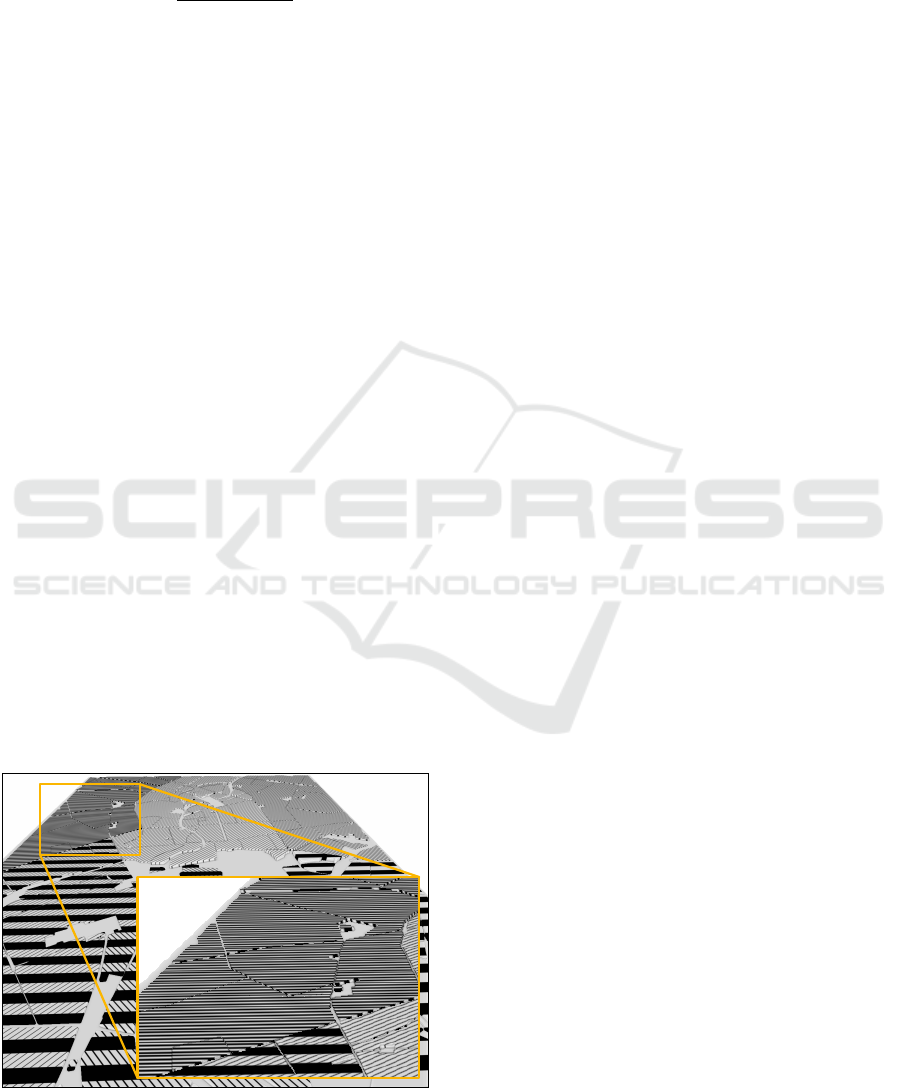

Figure 3: Decreasing distances between between linear ha-

tches can result in Moir

e patterns.

ses a vibrant effect known as Moir

e Pattern (Amidror,

2009) as shown in Figure 3. This effect is unplea-

sant, yields temporal incoherency, and makes it hard

to identify the original pattern. The remainder of the

section describes approaches for minimizing, coun-

terbalancing, or avoiding these effects.

Fading Distant Hatch-Patterns. One approach for

counterbalancing Moir

e effects is to omit the rende-

ring of hatch patterns in distant regions (Fig. 4(a).

Here, the distance to the virtual camera can be thres-

holded (fading distance), and hatch patterns are faded

by smoothing the hatch density. This approach is si-

milar to the rendering of fog (Akenine-M

oller et al.,

2008). However, this approach has a number of li-

mitations which prevents its application. Since the

Moir

e effect appears stronger for patterns with higher

hatch frequency and larger hatch width, the effective

fading distance depends on the respective hatch con-

ﬁguration used. This causes patterns of different fre-

quency to have different fading distances, which cre-

ate an inconsistent look-and-feel in the ﬁnal visualiza-

tion. Using a suitable threshold, this approach avoids

the Moir

e effect, but it will also provide more ambi-

tiousness to the hatch mapping. Further, it is challen-

ging to ﬁnd an adequate threshold that avoids the cre-

ation of an Moir

e effects but does not fade the pattern

too early.

Depth-dependent Hatching. Another approach

against the Moir

e Effect is to avoid thick lines by

scaling the hatch distance depending on the particular

depth of the fragment. This can be achieved by com-

puting the normalized depth value of the fragment

and scale the pattern respectively. A result of that

method is depicted in Figure 4(b). The pattern in the

foreground remains the same as in Figure 4(a), but

in the background the distance between the hatches

is increased. By this means, the Moir

e effect only

occurs for low viewing angles. Another advantage

of this technique is shown in Figure 5. While zoo-

ming, the distance between the lines in screen space

remains the same, i.e, independent of the zoom level.

It facilitates pattern recognition on every zoom level,

which is otherwise not possible because the hatches

become too small to be recognizable on a high zoom

level. However, this method also has a disadvantage:

The pattern is moving with the virtual camera, i.e.,

when the camera moves toward a fragment, the

relative depth value of that fragment changes. Hence

that fragment is either hatched or not, depending on

the camera position.

Rendering Procedural Textures for Visualization of Thematic Data in 3D Geovirtual Environments

285

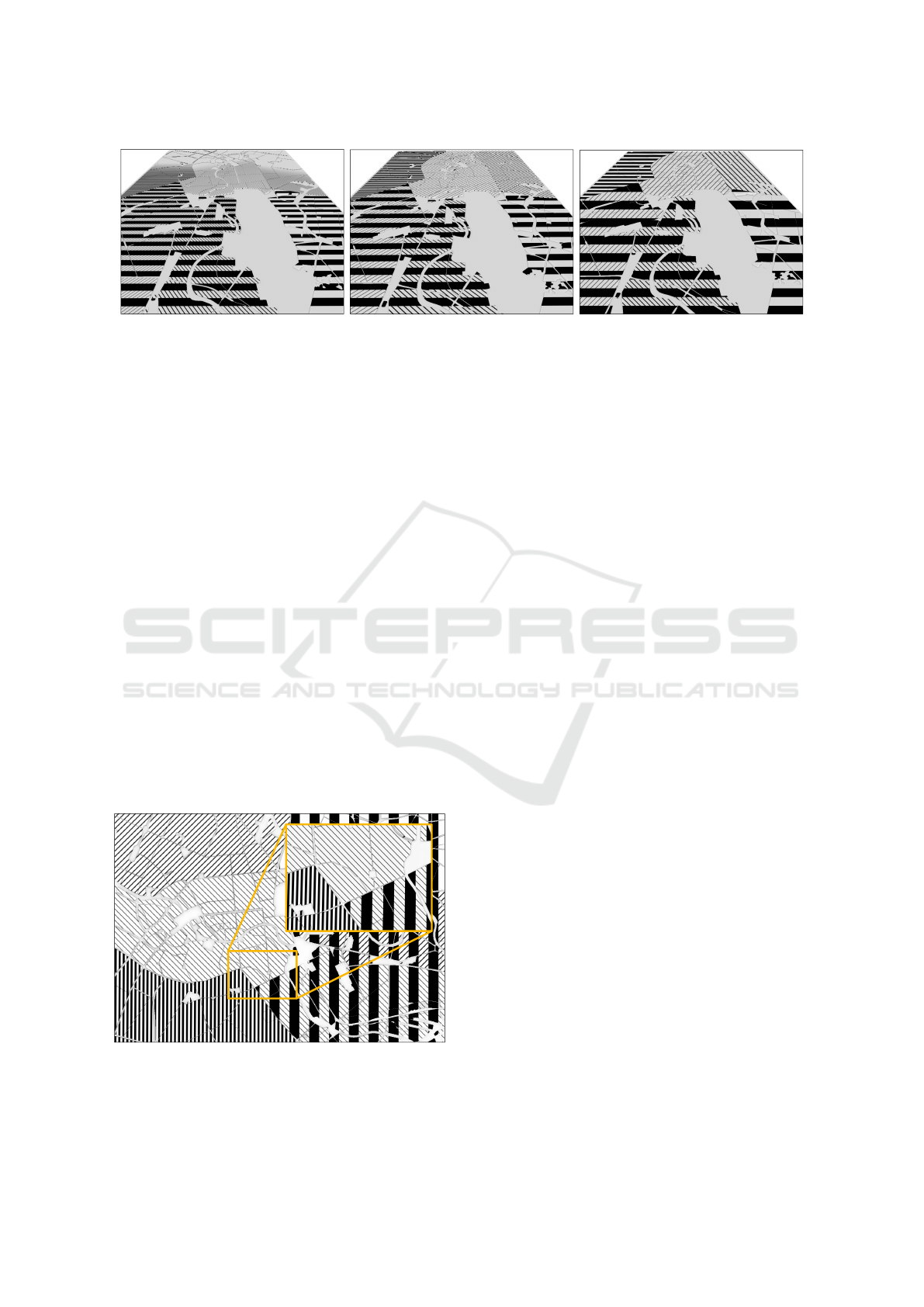

(a) Distance-based fading. (b) Depth-dependent hatching. (c) Screen-space hatches.

Figure 4: Three different approaches for compensating perspective distortion: distance-based fading (a), depth-dependent

hatching (b) and based on screen-space coordinates (c).

Screen as Frame-of-Reference. An other approach

represents the utilization of alternative texture coor-

dinates: instead of generating 3D textures coordi-

nates of the world space prior to geometry rasteri-

zation, the actual screen-space fragment coordinates

can be used to generate the hatch pattern. A visua-

lization using this approach is shown in Figure 4(c).

The patterns on the surfaces always look identical–

independent of zoom level, view angle or distance of

the fragment. This technique provides sufﬁcient per-

ception and comparability of patterns and enables an

unambiguous mapping of patterns to data. However,

it also introduces the following texturing artifact: the

hatches do not move consistently with the objects they

are applied on during camera position changes. This

causes the same effect as using the depth-dependent

hatching. Further, a lack of perspective compression

makes it hard to create an impression of depth in the

scene. Furthermore, an additional shading model is

required to visualize the edges and surface charac-

teristics of 3D objects, because the pattern does not

adapt to the objects’ surfaces.

Figure 5: By scaling the hatch distance depending on the

depth the pattern stays almost consistent during zooming.

4 RESULTS & DISCUSSION

This section presents application examples and evalu-

ates their rendering performance.

Application Examples. The presented concept and

rendering technique can be used in various appli-

cations Despite texturing of virtual 3D landscapes

(Fig. 1), it is suitable for cell-based generalization va-

riants of virtual 3D city models (Glander and D

ollner,

2007). The abstraction of complex city geometry by

creating generalized shapes yield a number of ﬂat sur-

faces that are qualiﬁed for applying hatches to visua-

lize data (Fig. 6). Another application of procedural

hatches are 3D architectural models. Here, hatch pat-

tern can be used to display building material accor-

ding to a speciﬁc standard to match 2D construction

plans. Figure 7(a) shows an explosion view of virtual

3D model of a reservoir dam with different linear ha-

tch pattern to visualize different materials. It demon-

strate the ability of the presented rendering technique

to synthesis of solid textures (Peachey, 1985), i.e., ha-

tch pattern that spread out consistently over a 3D ob-

ject’s surface. Figure 7(a) shows a geological proﬁle

with colored linear hatch pattern for the visualization

of soil types.

Performance Evaluation. We evaluated a pro-

totypical implementation based on OpenGL and

the OpenGL Shading Language (GLSL) (Kessenich

et al., 2010) using test data sets of different geometric

complexity (Table 1), i.e., a varying number of scene

objects and different numbers of hatch layers. The

rendering and compositing of hatch layers is perfor-

med using a single fragment shader program.

The performance tests are conducted using an In-

tel Core i7 620M processor with 2,66 GHz clock rate

and 8 GB of DDR3-1066 RAM using a NVIDIA GT

330M graphics card with 512 MB of video memory.

The test application runs in windowed mode at two

IVAPP 2019 - 10th International Conference on Information Visualization Theory and Applications

286

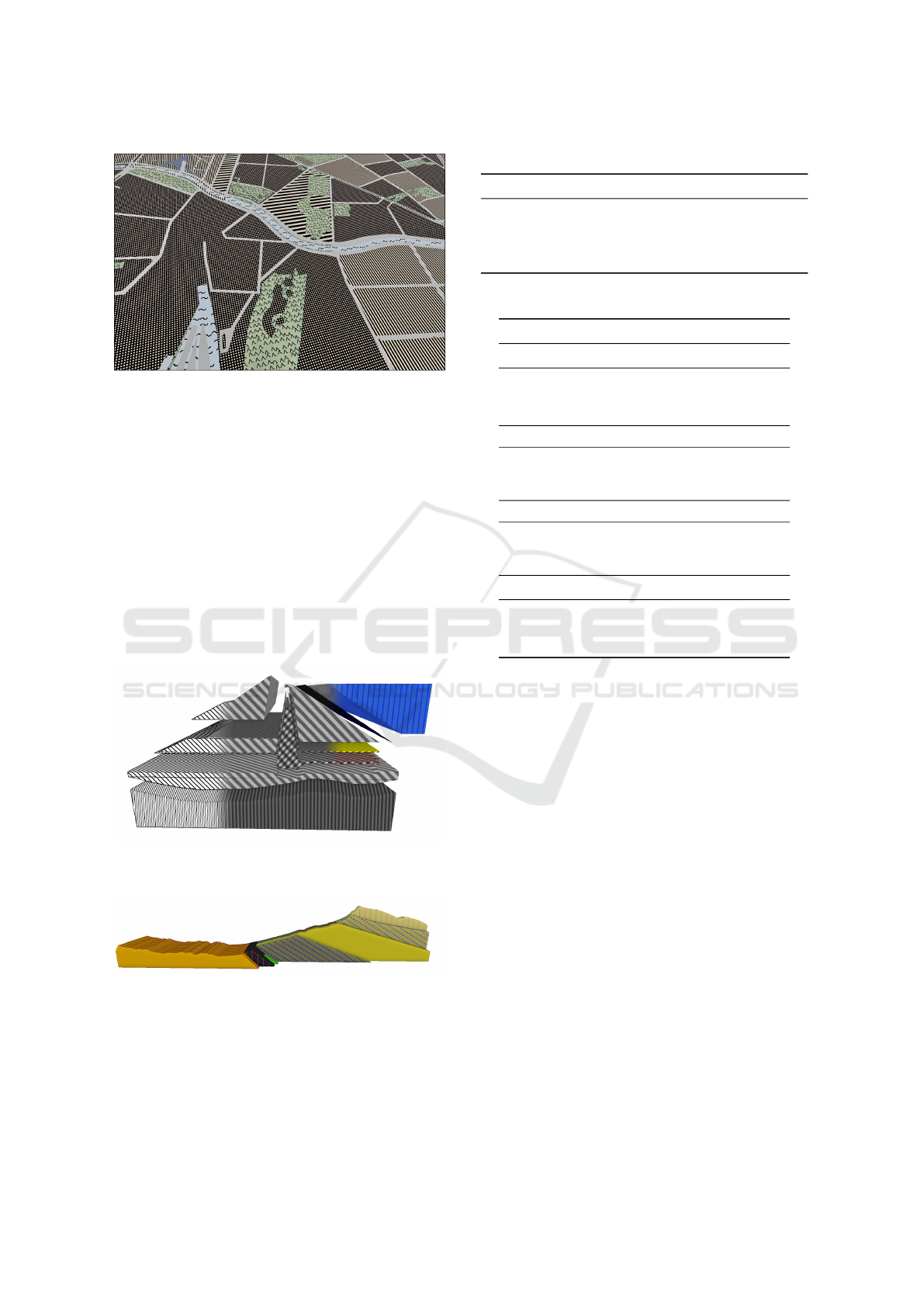

Figure 6: Applications of linear hatch patterns to a genera-

lized virtual 3D city model.

different screen resolutions. The complete scene is

visible in the view frustum, and back-face culling is

activated. For each test, a total of 100 consecutive

frames are rendered and the average rendering per-

formance in frames-per-seconds is tracked. Table 2

shows the results of the performance evaluation.

The performance of the rendering technique de-

pends on the number of hatch layers deﬁned per ob-

ject. With up to 10 layers for each object, the re-

sponse time remains within the bounds of real-time

interaction. With more layers deﬁned, the response

time highly depends on the number of fragments that

are processed by the shader.

(a) Three different styles (left to right) for an exploded-view

visualization of a virtual 3D dam model that uses grey-scale,

linear hatch patterns.

(b) A geologival proﬁle with colored linear hatches visuali-

zing different layers of soil.

Figure 7: Applications of complex linear hatch patterns to

virtual 3D architectural and geological models.

Table 1: Geometric complexity of examplary 3D models.

Model #Obj #Vertices #Primitives

City Model 191 14,500 21,366

Dam 10 441 828

Grand Canyon 9 265,726 524,288

Proﬁle 8 3,114 6,194

Table 2: Performance measurements in frames-per-second.

800×600 1280×960

City Model

5 layers 52.10 21.85

10 layers 41.69 17.66

40 layers 20.03 9.07

Geological Proﬁle

5 layers 61.44 31.68

10 layers 60.59 24.64

40 layers 25.59 14.89

Dam

5 layers 61.06 24.84

10 layers 51.76 19.75

40 layers 22.42 9.11

Grand Canyon

5 layers 40.22 19.75

10 layers 27.96 12.66

40 layers 8.67 4.12

5 CONCLUSIONS

This paper presents a concept and interactive rende-

ring technique for creating procedural texture pattern

for the visualization of 2D and 3D geovirtual envi-

ronments. It is based on a extensible layer concept

that can be easily edited and rendered using consu-

mer graphics hardware. We further analyzed shor-

tcomings and visual artifacts of hatches applied in

3D geovirtual environments and presented three dif-

ferent approaches for counterbalancing these effects.

Finally, a variety of application examples are presen-

ted, followed by a discussion on performance and li-

mitations of the rendering technique.

ACKNOWLEDGMENTS

This work was funded by the Federal Ministry of Edu-

cation and Research (BMBF), Germany, within the

InnoProﬁle Transfer research group ”4DnDVis”.

Rendering Procedural Textures for Visualization of Thematic Data in 3D Geovirtual Environments

287

REFERENCES

Akenine-M

oller, T., Haines, E., and Hoffman, N. (2008).

Real-Time Rendering. A. K. Peters, Ltd., Natick, MA,

USA, 3rd edition edition.

Amidror, I. (2009). The Theory of the Moir

e Phenomenon:

Periodic layers. Springer.

Bertin, J. (1983). Semiology of graphics. University of Wis-

consin Press.

Glander, T. and D

ollner, J. (2007). Cell-based generaliza-

tion of 3d building groups with outlier management.

In Proceedings of the 15th annual ACM internatio-

nal symposium on Advances in geographic informa-

tion systems, GIS ’07, pages 54:1–54:4, New York,

NY, USA. ACM.

Glanville, R. S. (2004). GPU Gems: Programming Techni-

ques, Tips and Tricks for Real-Time Graphics, chapter

20 – Texture Bombing. Addison-Wesley Longman.

Goldberg, A., Zwicker, M., and Durand, F. (2008). Aniso-

tropic noise. ACM Trans. Graph., 27(3):54:1–54:8.

Green, C. (2007). Improved alpha-tested magniﬁcation

for vector textures and special effects. In ACM SIG-

GRAPH 2007 courses, SIGGRAPH ’07, pages 9–18,

New York, NY, USA. ACM.

Jobst, M. and D

ollner, J. (2008). 3d city model visuali-

zation with cartography-oriented design. In Schrenk,

M., Popovich, V. V., Engelke, D., and Elisei, P., edi-

tors, 13th International Conference on Urban Plan-

ning, Regional Development and Information Society

(REAL CORP), pages 507–516. CORP - Competence

Center of Urban and Regional Planning.

Kennelly, P. J. and Kimerling, A. J. (2000). Desktop ha-

chure maps from digital elevation models. Carto-

graphic Perspectives, (37):78–81.

Kessenich, J., Baldwin, D., and Rost, R. (2010). The

OpenGL Shading Language (Version 4.10).

Lagae, A., Lefebvre, S., Cook, R., DeRose, T., Drettakis,

G., Ebert, D., Lewis, J., Perlin, K., and Zwicker, M.

(2010). State of the art in procedural noise functions.

In Hauser, H. and Reinhard, E., editors, EG 2010 -

State of the Art Reports. Eurographics, Eurographics

Association.

Lewis, J. P. (1989). Algorithms for solid noise synthesis,

volume 23. ACM Press, New York, New York, USA.

Patel, D., Giertsen, C., Thurmond, J., Gjelberg, J., and

oller, M. E. (2008). The seismic analyzer: in-

terpreting and illustrating 2D seismic data. IEEE

transactions on visualization and computer graphics,

14(6):1571–8.

Patel, D., Giertsen, C., Thurmond, J., and Gr

oller, M.

(2007). Illustrative rendering of seismic data. In Pro-

ceeding of vision modeling and visualization, pages

13–22. Citeseer.

Peachey, D. R. (1985). Solid texturing of complex surfaces.

ACM SIGGRAPH Computer Graphics, 19(3):279–

286.

Perlin, K. (1985). An image synthesizer. ACM SIGGRAPH

Computer Graphics, 19(3):287–296.

Perlin, K. (2002). Improving noise. ACM Trans. Graph.,

21(3):681–682.

Rost, R. J. (2006). OpenGL Shading Language. Addison-

Wesley Longman, 2nd ed. edition.

Segal, M., Akeley, K., and Brown, P. (2010). The OpenGL

Graphics System: A Speciﬁcation (Version 4.1).

Wloka, M. (2003). “Batch, Batch, Batch:” What Does It

Really Mean? In Game Developers Conference.

IVAPP 2019 - 10th International Conference on Information Visualization Theory and Applications

288
