Evaluation of Transfer Learning Techniques for Classiﬁcation and

Localization of Marine Animals

Parmeet Singh

and Mae Seto

Faculty of Computer Science, Dalhousie University, Halifax, Nova Scotia, Canada

Department of Mechanical Engineering, Dalhousie University, Halifax, Nova Scotia, Canada

Keywords:

Convolution Neural Networks, Ensemble Learning, Marine Animals, VGG, Inception, Computer Vision,

Bounding Boxes.

Abstract:

The objective is to evaluate methods for simultaneous classiﬁcation and localization towards a better size

estimate of marine animals in still images. Marine animals in such images vary in orientations and size. It

is challenging to create a bounding box that predicts the shape of the object. We compare axis-aligned and

rotatable bounding box techniques for size estimation.

1 INTRODUCTION

1.1 Motivation

This paper reports on research and development to

improve sustainability and traceability for the marine

stewardship that keeps the oceans healthy and ensures

the ﬁsh or lobster consumed is traceable to a sustaina-

ble source. There are ecological and economic sus-

tainability reasons to assess and monitor stocks and

stock sizes. Traceability aims to uniquely identify

each animal for consumer quality purposes. The met-

hods developed here target the Canadian ﬁshery due

to the small number of species involved. The aim of

the project is to determine the count and species of a

catch as well as each species’ length and color (me-

asure of quality) for economic sustainability reasons.

Another objective is to determine the gender and cha-

racteristic dimensions, and their ratios, for ecological

sustainability. For traceability, imagery is collected to

assess whether say the carapace on a lobster can be

uniquely identiﬁed.

The Canadian Department of Fisheries and Oce-

ans is interested in such technology for in-shore wa-

ters. The present use of trained human Observers can

only monitor 1.5-2.0% of the lobster ﬂeet activity not

the 20% to manage non-endangered species (lobster)

or the 50% for endangered species (cod, cusk, jonah

crab). Lastly, value chain stakeholders have articu-

lated their requirement for primary grading (size and

quality) while at-sea to guarantee lobster quality and

value.

A catch from a ﬁshing trawler can contain multi-

ple marine animal species. They are usually manually

sorted, by species, then shipped to different factories

for further classiﬁcation and processing. As part of

this, there is a requirement to sort these animals ba-

sed on their physical maturity and size.

Sorting and classifying marine catch (ﬁsh, in

this case) on the basis of their dimensions and spe-

cies using pattern recognition algorithms is proposed.

Consequently, it is possible to automate the sort and

classiﬁcation steps of the ﬁsh processing with compu-

ter vision to improve traceability, proﬁt margins and

product quality. The collateral beneﬁt is that the size

distribution by species, of a catch, also has ecologi-

cal signiﬁcance towards characterizing the ﬁsh popu-

lation and its evolution. There are earlier efforts in

ﬁsh classiﬁcation (Rathi et al., 2018)(Larsen et al.,

2009)(Ogunlana et al., 2015) however, there is much

less on estimation of the ﬁsh dimensions. This paper

explores methods to simultaneously localize the ﬁsh

in a static image, from amongst other objects, through

a bounding box that contains the ﬁsh. Then, it deter-

mines its dimensions and classiﬁes the ﬁsh by species.

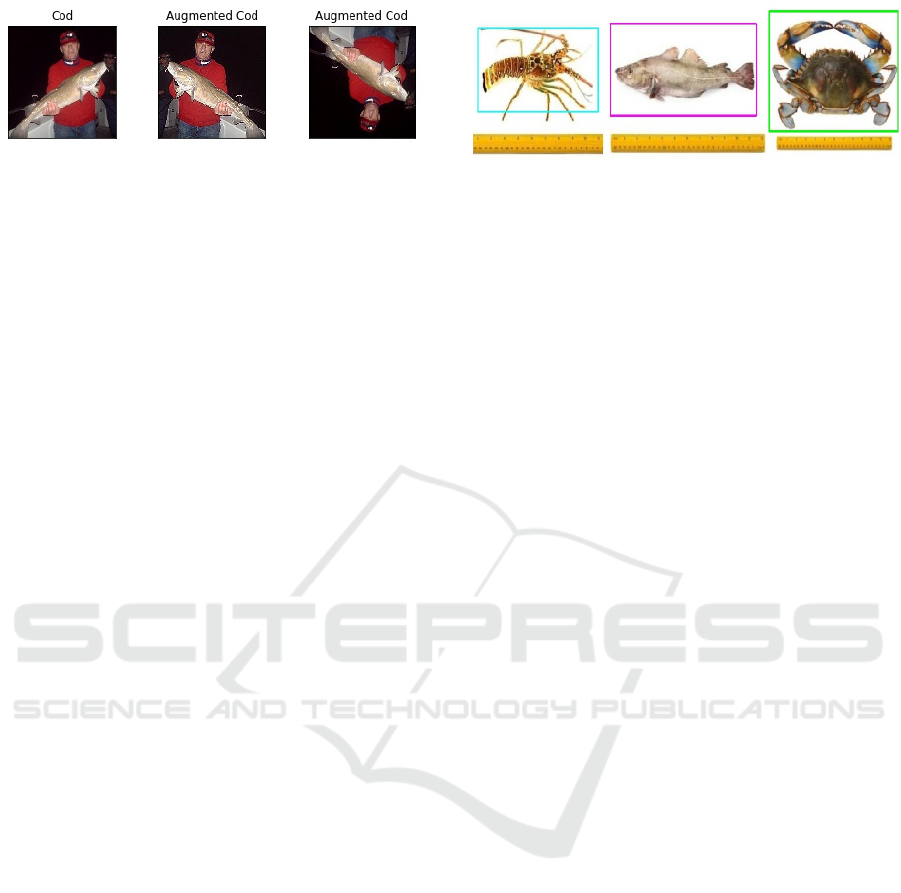

The data was gathered from static images that

were culled from publicly available on-line, and ot-

her, sources. The training dataset was created by ma-

nually cropping these images around the object (ﬁsh)

with two-dimensional bounding boxes using software

tools. Therefore, the features in this learning pro-

blem are the marine animal dimensions and species

where the species itself implicitly contains many sub-

features which are learned.

Singh, P. and Seto, M.

Evaluation of Transfer Learning Techniques for Classiﬁcation and Localization of Marine Animals.

DOI: 10.5220/0007390201690176

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 169-176

ISBN: 978-989-758-354-4

169

When the model is applied to prediction, this ob-

ject localization using bounding boxes also automates

determining the dimensions of the ﬁsh. The CNN ar-

chitectures used in the prediction are discussed next.

1.2 Convolution Neural Networks

The neurons in a neural network provide an output va-

lue from applying a function to the input values from

the receptive ﬁeld in the prior layer. This function,

also referred to as a ﬁlter, is in the form of a vector

of weights and a bias. Learning is achieved through

incremental changes to these weights and bias.

The weight parameters of CNN architectures like

VGG16 and Resnet were trained on the ImageNet da-

taset. This is a database of 14 million images that

contain 20,000 categories of objects which have been

manually annotated. The ImageNet objects include

crabs, lobsters and ﬁsh though not hallibut, cusk or

cod - all objects of interest. Over one million of

these images have bounding boxes drawn around the

object. The computation effort to train the Image-

Net data set was leveraged to initialize our learning

models by using the weights / ﬁlters from the same

CNN architectures. In this way, the knowledge le-

arned from the pre-trained models was transferred to

our learning models.

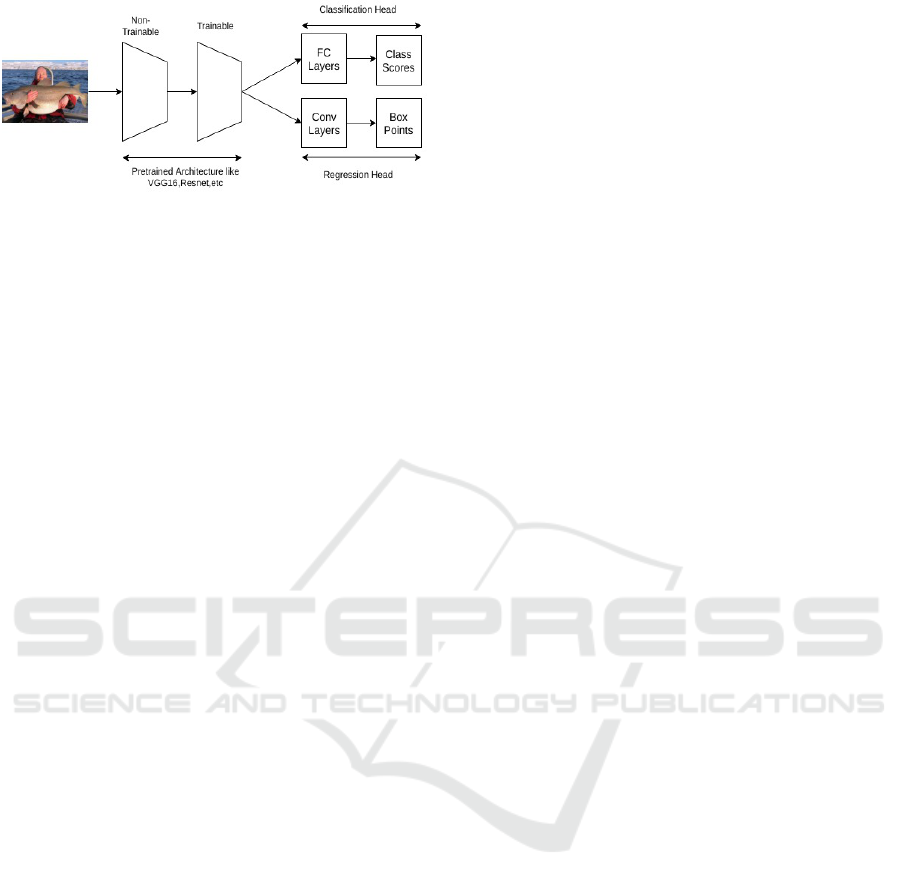

Our CNN architectures were initialized with the

ImageNet weights. Next, more convolution and fully

connected layers were added then it was re-trained

using our ﬁsh data set. This transfer learning process

to initialize the CNN architecture with pre-trained

weights provides a good initial point for the learning

model and reduces the overall computation time.

Then, the prediction phase uses the transferred le-

arning to ‘measure’ the ﬁsh dimensions and classify

its species. Therefore, there is value in creating a

good training set.

Convolution neural networks (CNN) learn the fe-

atures of an object in order to classify it. CNNs such

as VGG16 (Simonyan and Zisserman, 2014), VGG19

(Simonyan and Zisserman, 2014), Resnet (He et al.,

2016), etc. are trained with many images for that re-

ason. The pre-trained weights of these networks can

be used to classify a smaller set of images and conse-

quently leverage the training effort from previous net-

works. This is transfer learning. This paper (1) evalu-

ates an ensemble of the pre-trained CNNs to classify

images of marine animals and (2) creates a bounding

box area around the object to estimate its width and

height.

1.3 Contributions

The contributions of this paper are as follows: (1)

consider and prove viable the use of deep learning

towards automating the classiﬁcation and sizing of

marine animals; (2) the implementation of bounding

boxes to yield an automatic measure of an object’s di-

mensions for sorting purposes, and (3) a classiﬁcation

that does a fair job of distinguishing between 5 marine

animal species

The rest of this paper is organized as follows. Re-

lated work in the literature is reviewed to provide con-

text for the authors’ contributions. Then, the proposed

methodology is described in detail with sub-sections

on the training data, model, training and then evalua-

tion.

2 RELATED WORK

Rathi et. al. (Rathi et al., 2018) performed classiﬁ-

cation of ﬁsh species. They perform pre-processing

steps of Otsu’s binarization, dilation and erosion to

improve the quality of the image. They add the pre-

processed image as the fourth channel to an already

existing RGB image and use CNN for classiﬁcation

of ﬁsh images. Rathi et al. have used a custom CNN

architecture which they trained from scratch. We have

used pretrained CNN architectures which uses trans-

fer learning to leverage the large amount of training

time.

White et. al. (White et al., 2006) determines the

orientation of the ﬁsh based on the moments of the po-

lygon spanned by the ﬁsh silhouette. They determine

the ﬁsh species based on colour and shape. White et

al determine the length of the ﬁsh by mapping eight

points on the detected outline of the ﬁsh. Contrary to

White et al,we plan to determine the width and height

of the ﬁsh by creating a bounding box around the ﬁsh.

The bounding box technique is robust to various types

of ﬁshes.

Larsen et. al. (Larsen et al., 2009) perform classi-

ﬁcation of ﬁsh species based on shape and texture fe-

atures. They estimate the parameters of an active ap-

pearance model using geometric and texture-based fe-

atures. Subsequently, they apply principal component

analysis (PCA) to these model parameters which yield

features that they apply Linear Discriminant Analysis

to for an accuracy of 76 percent. Their method is de-

pendant of building a separate model apart from the

learned one for each species of a ﬁsh. Our CNN archi-

tecture creates an intrinsic model of the ﬁsh species

for classiﬁcation and does not need a separate model.

Hsieh et al. (Hsieh et al., 2011) proposed a techni-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

170

que to measure a tuna ﬁsh’s snork to fork length

using Hough transform. The longest line measured by

Hough transform in the image can indicate the length

of the ﬁsh. They transform every point in image space

to Hough space. The collinear points in the image

space are presented in the Hough space. Therefore,

the weight of the largest peak is the ﬁsh length in the

image. In other words, this technique measures the

longest length of an object in the image. However,

the technique might not work if there are other ob-

jects longer than the ﬁsh in the image whereas our

technique does not have that limitation.

Costa et. al. (Costa et al., 2013) were able to

sort ﬁsh based upon size, gender and skeletal anoma-

lies using external shape analysis. First,they used the

Canny Operator in MATLAB (Canny, 1986)to cre-

ate a binary image. The Canny operator smooths the

image through Gaussian convolution and applies a 2D

ﬁrst derivative operator to highlight regions with ed-

ges. The next step was to create 200 equally spaced

points along the outline of the marine animal. The

shape of each ﬁsh was then analyzed by elliptic Fou-

rier analysis (EFA) on the coordinates of each outline

point. EFA is based on Fourier decompositions of the

incremental changes in each of the x and y coordina-

tes (Costa et al., 2011). The limitation of this is that

this binary image is speciﬁc to a species and sensitive

to variations within a species.

Ogunlana et. al. (Ogunlana et al., 2015) extrac-

ted ﬁsh sizes like the body length and width and the

ﬁve ﬁn lengths; namely anal, caudal, dorsal, pelvic

and pectoral. Then, used support vector machines for

species classiﬁcation with a 78.59% accuracy, which

was signiﬁcantly higher than what was obtained for

artiﬁcial neural networks, k-nearest neighbour and k-

means clustering-based algorithms for the same da-

taset. This approach does not take into account the

color and texture features of the marine animal.

Hasija et. al. (Hasija et al., 2017) use image sets

to classify ﬁsh species using graph embedding discri-

minant analysis unlike state-of-the-art methods which

operate on single images. Multiple views of the ﬁsh,

as in our approach, might help in a better classiﬁca-

tion of the ﬁsh’s species. However, their algorithm

is not immune to distortion caused by noisy images

which have a classiﬁcation accuracy of 76 %.

3 PROPOSED METHODOLOGY

3.1 Training Data Collection

Static images of marine animals for ﬁve species

namely Jonah crab, lobster, halibut, cod and cusk

Table 1: Distribution of collected images.

label cod crab halibut cusk lobster

count 724 503 913 459 631

Figure 1: Axis-aligned bounding boxes.

were culled from the internet (Table 1). The ﬁrst

stage was to manually draw axis-aligned bounding

boxes around the target object (its region of inte-

rest or ROI) with the labelImg software annotation

tool(Tzutalin, 2015) in the images (Figure 1). Then,

the second stage was to manually draw rotatable-

bounding boxes(Liu et al., 2017) around the ob-

ject’s ROI with the roLabelImg software annotation

tool.(Cgvict, 2017) (Figure 2).

3.1.1 Image Augmentation

This culled dataset was augmented using the imgaug

(Aleju, 2015) software image augmentation library.

The following image augmentations were performed:

randomly rotated horizontally and vertically; afﬁne

transformations like image translation from -10% to

10%; rotations from -45

◦

to 45

◦

; images sharpened

with pixel intensity multiplicative ratios from 0.75 to

1.5; image brightness changed for each RGB channel

by adding pixel intensity from -10 to 10 and contrast

normalization ratios ranging from 0.9 to 1.10.

As part of the data preparation for the training, the

images were re-sized to 224× 224 pixels for input into

the CNN. (Figure 3).

3.2 MODEL

3.2.1 Architectures

Acquiring enough labelled data for image classiﬁca-

tion using supervised CNN can be a challenge. This

can be mitigated by re-using models trained on dif-

ferent image sets (Yosinski et al., 2014). The CNN

model architectures used are described next.

Figure 2: Rotated bounding boxes.

Evaluation of Transfer Learning Techniques for Classiﬁcation and Localization of Marine Animals

171

Figure 3: Example images generated for each Cod from

image augmentation. Augmentation such as random image

ﬂipping,rotation and translation were applied to the original

image.

VGG16 and VGG19: These are deep convoluti-

onal networks trained by the Visual Geometry Group

proposed by Simonyan and Zisserman (Simonyan and

Zisserman, 2014). Their network uses 3 × 3 convolu-

tional layers stacked on top of each other. The ﬁrst

step is a convolution of the image. Then, the image

size is reduced through down sampling (max pool-

ing). This alternates until the two layers become fully

connected. The 16 and 19 in VGG16 and VGG19 re-

fer to the number of convolutional layers in each of

the networks, respectively.

Residual Network: Resnet(He et al., 2016) allows

the addition of hundreds of layers to a network and

is still able to achieve good performance compared

to VGG. Residual networks use residual mapping or

skip connections to a deeper version of the network.

At each layer, Resnet is implemented as shown in eq.1

y = f (x) + x (1)

such that f(x) is the convolution or batch normaliza-

tion layers and x is the skip connection that allows the

gradient to pass backwards, directly. Theoretically,

the gradient could skip over all the intermediate lay-

ers and reach the bottom one without being diminis-

hed. Residual mappings therefore assist in avoiding

the vanishing gradient problem that occurs in deep

CNNs. Residual networks also use batch normaliza-

tion layers which are intermediate normalization lay-

ers. Theses layers address the problem of vanishing

and exploding gradients.(Bengio et al., 1994)(Glorot

and Bengio, 2010).

MobileNet: MobileNet (Howard et al., 2017) uses

a 3 × 3 depth-wise separable convolution which uses

less computations than standard convolutions with

only a small reduction in accuracy. Depth-wise sepa-

rable convolutions are made up of two layers: depth-

wise convolutions and point-wise convolutions. In

depth-wise convolutions, ﬁlters are applied to each in-

put channel. Point-wise convolution is a 1 × 1 convo-

lution used to create linear combinations of the output

of the depth-wise layer. This two-step method reduces

the computation effort and learning model size. The

depth-wise convolutions ﬁlter the input channels but

do not combine them to create new features whereas

Figure 4: Automatic Size estimation using localization and

ruler detection. Ruler detection gives the unit length in

pixels.

the point-wise convolutions generate new features.

3.2.2 Feature Extraction

For feature extraction pre-trained networks of VGG16

(Simonyan and Zisserman, 2014), VGG19 (Simonyan

and Zisserman, 2014), Resnet (He et al., 2016) and

MobileNet (Howard et al., 2017) were used. The

weights used for the pre-trained networks are those

from the ImageNet dataset. The deeper layers of the

pre-trained networks were trainable to improve the

accuracy. The pre-trained networks branch out into

a regression head and a classiﬁcation head.

3.2.3 Size Estimation

The width and height of the bounding box is a mea-

sure of the marine animal size but it still needs to be

scaled to its actual size. To achieve this, a ruler is in-

serted in the image ﬁeld of view. We detect the ruler

(Figure 4)(Konovalov et al., 2017) in the image back-

ground and determine the length of a pixel and scale

the width and height of the bounding box to this.

3.2.4 Model Implementation

Figure 5 shows the architecture of our learning mo-

del. The classiﬁcation head contains a fully connected

layer of 2048 neural network units followed by anot-

her fully connected layer of 5 units. The output of the

classiﬁcation head are neural network units equal in

number to the number of distinct marine animal spe-

cies considered where each neural network unit gives

the probability that the image belongs to that species.

The regression head contains a convolution layer

with 1024 3 × 3 ﬁlters followed by a 4 × 4 max pool-

ing layer. The ﬁnal layer of the regression head is a

1 × 1 convolution layer. The output of the regression

head are localization coordinates for the object. In the

case of axis-aligned bounding boxes, the coordinates

are (x

, y

, x

, y

) where (x

, y

) is the lower left cor-

ner and (x

, y

) the upper right corner of the bounding

box.

The size of the marine animal can also be estima-

ted by creating a rotatable bounding box around it. A

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

172

Figure 5: Convolutional layered architecture with the re-

gression and classiﬁcation heads for simultaneous localiza-

tion and classiﬁcation of images.

rotatable bounding box ﬁts an object oriented at an

arbitrary angle to the horizontal, better, than an axis-

aligned one. The regression coordinates for a rotata-

ble bounding box are (x

, y

, h, w, θ) where x

, y

are

the coordinates for the center of the bounding box,

h, w are its height and width, respectively, and θ is its

orientation relative to the horizontal.

3.2.5 Ensemble Architecture

Ensemble learning uses multiple models to attain bet-

ter predictive performance than that obtained by any

one model.(Zhou, 2009). The classiﬁcation perfor-

mance can be increased by combining the predictions

of multiple weak models instead of training a single

strong one.

Different ensemble architectures were used to pro-

cess the outputs from the regression and classiﬁcation

heads.

The results from the classiﬁcation heads of each of

the CNN architectures (VGG16, VGG19, Mobilenet

and Resnet) were concatenatated. Then, the resulting

20-dimensional vector was sent to the ensemble CNN

for classiﬁcation. The ensemble CNN has a fully con-

nected layer of 50 neural network units followed by

another fully connected layer of 5 units (equal to the

number of species).

Similarly, the output from the image localization

heads of each of the CNN architectures (VGG16,

VGG19, Mobilenet and Resnet) were concatenated.

The resulting vector (20-dimensional for the axis-

aligned and 25-dimensional for the rotatable boxes)

was sent to the ensemble CNN for object localiza-

tion. The ensemble CNN has a fully connected layer

of 50 neural network units followed by another fully

connected layer containing neural network units equal

to the number of localization parameters (4 for axis-

aligned and 5 for rotatable boxes).

3.3 Training

3.3.1 Losses

Loss is used in the training to obtain the best weig-

hts for a model. Loss is optimized (minimized) in the

training by adjusting the CNN weights. The cross-

entropy loss (eq.2) was used for the classiﬁcation

head and the mean squared error loss (eq.3, 4) for the

regression head. With the cross-entropy loss:

ce(y, ˆy) = −

∑

i=1

log( ˆy

) (2)

is the ground truth label of the image and ˆy

is the

predicted species score.

For the mean square error loss for the axis-aligned

bounding boxes:

mse

= −

∑

i=1

(( ˆx

− x

)

+ (ˆx

− x

)

( ˆy

− y

)

+ (ˆy

− y

)

(3)

, y

) and (x

, y

) are the ground truth coordinates

of the lower left and upper right corners of the ith

axis-aligned box and ( ˆx

, ˆy

) and ( ˆx

, ˆy

) are the pre-

dicted coordinates of the lower left and upper right

corners of ith bounding box.

Eq. 4 is the mean square error loss for the rotatable

bounding boxes.

mse

= −

∑

i=1

(( ˆx

− x

)

+ (ˆy

− x

)

(

− h

)

+ ( ˆw

− w

)

+ (

−

)

(4)

, y

) are the coordinates of the center of the ith box.

(h,w,θ) are the height,width and angle of the box re-

lative to the horizontal. ( ˆx

, ˆy

) are the predicted coor-

dinates of the center of the ith box.(

h, ˆw,

θ) are the pre-

dicted height,width and angle of the box relative to

the horizontal.

The loss function used for training is the sum of

the mean squared error from the regression head and

the entropy loss error from the classiﬁcation head.

Forty epochs were trained. The evaluation of the re-

sulting model is discussed in the next section.

4 MODEL EVALUATION

4.1 Methodology

The intersection over union (IoU) was used to evalu-

ate the accuracy of the axis-aligned bounding boxes.

The IoU is deﬁned as the ratio of the intersection

Evaluation of Transfer Learning Techniques for Classiﬁcation and Localization of Marine Animals

173

Figure 6: IoC metric change for Resnet architecture. IoC is

intersection over union. The IoC increases during training

time and converges to 0.7. A higher IoC score indicates

better localization accuracy.

(overlap) area between two bounding boxes and the

area of union of the two bounding boxes.

Figure 6 shows the increase in IoU value while

training. Both these trends are indicative of a good

model.

Five-fold cross validation (Kohavi et al., 1995)

was used for model evaluation. The original training

dataset was divided into ﬁve folds. At each iteration,

four folds were used for training and the ﬁfth for tes-

ting/evaluation. The data augmentation described ear-

lier was performed on the training set but not on the

test/evaluation set.

4.2 Results

The height and width of the object in pixel lengths

were annotated in the images. To compare the perfor-

mance between axis-aligned (Table 2) and rotatable

(Table 3) bounding boxes, the mean absolute error in

pixels of the annotated height and width and the pre-

dicted height and width was calculated (Table 4)

Table 4 compares mean absolute error in pre-

dicted height and width (in pixels) between the two

types of bounding boxes. The rotatable bounding

boxes have notably lower mean absolute errors than

the axis-aligned ones. This suggests rotatable boun-

ding boxes are a better measure of the target height

and width.

Figure 7 illustrates the confusion matrix for spe-

cies classiﬁcation. The classiﬁer misinterprets some

cusk images as cod. However, that is not unexpected

as cusk are a type of cod.

Figure 8 shows the weights learned by the ensem-

bling architectures for classiﬁcation of ﬁsh species.

Darker colors depict higher weights for the output of

a particular ensembling architecture. Note, the conﬁ-

dence in prediction of cusk and halibut is high for the

Figure 7: Confusion matrix for the Resnet classiﬁcation.

The diagonal cells show greater values indicating better

classiﬁcation accuracy for each label.

Figure 8: Weights assigned to the CNN architectures for

prediction of each label in the species classiﬁcation.

Figure 9: Weights assigned to CNN architectures for pre-

diction of the corners of bounding boxes in localization.

xmin and ymin are left bottom coordinates and xmax and

ymax are top right coordinates.

VGG16 ensembling architecture prediction.

Figure 9 shows the weights learned by the ensem-

bling architecture for localization species. Again, dar-

ker colors depict a higher weight for the output of a

particular method. The ensemble architecture gives

a higher weight to MobileNetV2 because it shows a

better localization accuracy compared to VGG19 and

Resnet.

The ensemble classiﬁcation accuracies and locali-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

174

Table 2: Mean localization accuracy, intersection over union and classiﬁcation accuracy of CNN architectures using axis-

aligned bounding boxes. The classiﬁcation accuracy of the ensembled architecture is 81% which is better than classiﬁcation

accuracy of the individual CNNs. The ensembled CNN gives a test IoU score of 0.57 which is marginally better than the

individual CNN IoU scores.

Model Localization IoU Classiﬁcation

Train Test Train Test Train Test

VGG16 0.92 0.78 0.79 0.56 0.98 0.76

VGG19 0.93 0.79 0.79 0.56 0.98 0.75

Resnet 0.80 0.77 0.58 0.54 0.73 0.76

MobileNet 0.85 0.80 0.65 0.57 0.59 0.59

Ensembled 0.93 0.81 0.78 0.57 0.99 0.81

Table 3: Mean localization accuracy and classiﬁcation accu-

racy of CNN architectures using rotatable bounding boxes.

The classiﬁcation accuracy of the ensembled architecture is

83% which is better than classiﬁcation accuracy of the in-

dividual CNNs. The ensembled CNN gives a localization

accuracy of 0.80 which is marginally better than the indivi-

dual CNN localization accuracy scores.

Model Localization Classiﬁcation

Train Test Train Test

VGG16 0.93 0.76 0.94 0.76

VGG19 0.94 0.79 0.90 0.73

Resnet 0.67 0.6 0.70 0.73

MobileNet 0.87 0.76 0.58 0.56

Ensembled 0.95 0.80 0.99 0.836

Table 4: The mean absolute error (in pixels) for width

and height using axis-aligned and rotatable bounding boxes.

The rotatable bounding boxes show lower mean absolute er-

ror in the predicted height and width.

Model Axis-Aligned Rotatable Boxes

height width height width

VGG16 39.72 59.72 20.99 16.01

VGG19 39.98 61.04 18.94 16.69

Resnet 40.04 65.61 27.96 22.03

MobileNet 40.58 50.58 20.64 16.78

Ensembled 40.57 56.95 17.19 13.00

zation metrics are better than individual CNN archi-

tectures for both axis-aligned and rotatable bounding

boxes. The ensemble classiﬁcation had some value.

4.2.1 Visualization

Figure 10 shows heat map images that portray the

activation of the convolutional layers. The ﬁnal layer

shows higher ’temperatures’ around the ﬁsh outline

Figure 10: Activation of convolutional layers. Upper left:

The original image, Upper right: activation from layer 5,

Lower left: activations from layer 10, lower right: activa-

tions from layer 20. Activations from layer 2 show higher

temperatures around the object area indicating the regions

that contribute more to the prediction.

indicating the regions that contribute more to the clas-

siﬁcation.

5 CONCLUDING REMARKS

This paper reports on work that considers and proves

the viability of using pattern recognition towards au-

tomating the species classiﬁcation and sizing of ma-

rine animals. The pre-trained weights used in the con-

volution neural network were based on those used in

ImageNet which contained lobster, crab, and several

types of ﬁsh though not the cod, cusk and halibut that

were of interest.

The work evaluates axis-aligned and rotatable

bounding boxes for marine animal classiﬁcation and

localization aimed at their size estimation in static

images. Based on an analysis of the mean absolute

error in bounding box heights and widths, it was ob-

served that rotatable bounding boxes perform notably

better. Therefore, rotatable bounding boxes yield a

Evaluation of Transfer Learning Techniques for Classiﬁcation and Localization of Marine Animals

175

better estimate of the marine animal height and width.

Future work builds on the achievements to date to

collect and prepare more training data for the speciﬁc

species of interest to increase the model accuracy. As

well, work is underway to build a marine animal pre-

sentation system for an image capture system that is

integrated with the learning tools developed to date.

This will be integrated into a marine animal proces-

sing plant for testing in an operationally relevant en-

vironment.

REFERENCES

Aleju (2015). aleju/imgaug.

Bengio, Y., Simard, P., and Frasconi, P. (1994). Learning

long-term dependencies with gradient descent is difﬁ-

cult. IEEE transactions on neural networks, 5(2):157–

166.

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Transactions on pattern analysis and

machine intelligence, (6):679–698.

Cgvict (2017). cgvict/rolabelimg.

Costa, C., Antonucci, F., Boglione, C., Menesatti, P., Van-

deputte, M., and Chatain, B. (2013). Automated sor-

ting for size, sex and skeletal anomalies of cultured

seabass using external shape analysis. Aquacultural

engineering, 52:58–64.

Costa, C., Antonucci, F., Pallottino, F., Aguzzi, J., Sun, D.-

W., and Menesatti, P. (2011). Shape analysis of agri-

cultural products: a review of recent research advan-

ces and potential application to computer vision. Food

and Bioprocess Technology, 4(5):673–692.

Glorot, X. and Bengio, Y. (2010). Understanding the dif-

ﬁculty of training deep feedforward neural networks.

In Proceedings of the thirteenth international confe-

rence on artiﬁcial intelligence and statistics, pages

249–256.

Hasija, S., Buragohain, M. J., and Indu, S. (2017). Fish

species classiﬁcation using graph embedding discri-

minant analysis. In Machine Vision and Informa-

tion Technology (CMVIT), International Conference

on, pages 81–86. IEEE.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resi-

dual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Howard, A. G., Zhu, M., Chen, B., Kalenichenko, D.,

Wang, W., Weyand, T., Andreetto, M., and Adam,

H. (2017). Mobilenets: Efﬁcient convolutional neural

networks for mobile vision applications. arXiv pre-

print arXiv:1704.04861.

Hsieh, C.-L., Chang, H.-Y., Chen, F.-H., Liou, J.-H., Chang,

S.-K., and Lin, T.-T. (2011). A simple and effective di-

gital imaging approach for tuna ﬁsh length measure-

ment compatible with ﬁshing operations. Computers

and Electronics in Agriculture, 75(1):44–51.

Kohavi, R. et al. (1995). A study of cross-validation and

bootstrap for accuracy estimation and model selection.

In Ijcai, volume 14, pages 1137–1145. Montreal, Ca-

nada.

Konovalov, D., Domingos, J., Bajema, C., White, R., and

Jerry, D. (2017). Ruler detection for automatic scaling

of ﬁsh images. In Proceedings of the International

Conference on Advances in Image Processing, pages

90–95. ACM.

Larsen, R., Olafsdottir, H., and Ersbøll, B. K. (2009). Shape

and texture based classiﬁcation of ﬁsh species. In

Scandinavian Conference on Image Analysis, pages

745–749. Springer.

Liu, L., Pan, Z., and Lei, B. (2017). Learning a rotation

invariant detector with rotatable bounding box. arXiv

preprint arXiv:1711.09405.

Ogunlana, S., Olabode, O., Oluwadare, S., and Iwasokun,

G. (2015). Fish classiﬁcation using support vector ma-

chine. African Journal of Computing & ICT, 8(2):75–

82.

Rathi, D., Jain, S., and Indu, D. S. (2018). Under-

water ﬁsh species classiﬁcation using convolutional

neural network and deep learning. arXiv preprint

arXiv:1805.10106.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Tzutalin (2015). tzutalin/labelimg.

White, D., Svellingen, C., and Strachan, N. (2006). Auto-

mated measurement of species and length of ﬁsh by

computer vision. Fisheries Research, 80(2-3):203–

210.

Yosinski, J., Clune, J., Bengio, Y., and Lipson, H. (2014).

How transferable are features in deep neural net-

works? In Advances in neural information processing

systems, pages 3320–3328.

Zhou, Z.-H. (2009). When semi-supervised learning meets

ensemble learning. In International Workshop on

Multiple Classiﬁer Systems, pages 529–538. Springer.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

176
