Understanding How Video Quality Affects Object Detection Algorithms

Miloud Aqqa, Pranav Mantini and Shishir K. Shah

Quantitative Imaging Laboratory, Department of Computer Science, University of Houston,

4800 Calhoun Road, Houston, TX 77021, U.S.A.

Keywords:

Object Detection, Deep Learning, Video Quality, Visual Surveillance, Public Safety and Security (PSS).

Abstract:

Video quality is an important practical challenge that is often overlooked in the design of automated video

surveillance systems. Commonly, visual intelligent systems are trained and tested on high quality image

datasets, yet in practical video surveillance applications the video frames can not be assumed to be of high

quality due to video encoding, transmission and decoding. Recently, deep neural networks have obtained

state-of-the-art performance on many machine vision tasks. In this paper we provide an evaluation of 4 state-

of-the-art deep neural network models for object detection under various levels of video compression. We

show that the existing detectors are susceptible to quality distortions stemming from compression artifacts

during video acquisition. These results enable future work in developing object detectors that are more robust

to video quality.

1 INTRODUCTION

The increasing diversity and sophistication of threats

to public security have increased the demand for de-

veloping and deploying reliable, secure, and efﬁcient

machine vision systems. Examples include automa-

ted video surveillance platforms and smart camera

networked systems that are monitoring the behavior,

activities, or other changing information for the pur-

pose of protecting people and infrastructure. Howe-

ver, some core applications such as object detection

in intelligent surveillance are still affected by a num-

ber of practical problems. In particular, quality dis-

tortions originated from spatial and temporal artifacts

during video compression.

Recent progress in computer vision techniques ba-

sed on deep neural networks (DNN) and related vi-

sual analytics offers new research directions to under-

stand visual content. For example, recurrent neural

networks have shown promise in modeling temporal

dynamics in videos (Donahue et al., 2015), while con-

volutional neural networks have demonstrated superi-

ority on modeling high-level visual concepts (Krizhe-

vsky et al., 2012).

Regardless of their breathtaking performance,

deep networks have been shown to be susceptible to

adversarial perturbations (Goodfellow et al., 2015).

Adversarial samples are generated with high percep-

tual quality by adding small-magnitude noise to in-

puts and can mislead the learning system (Goodfellow

et al., 2015). They present an interesting problem, ho-

wever in automated video surveillance systems such

carefully chosen noise is unlikely to be encountered.

It is much more likely to encounter quality distortions

stemming from spatial artifacts (i.e., blocking, blur-

ring, color bleeding, and ringing) during video acqui-

sition and transmission.

In this paper, we examine the impact of these dis-

tortions on detection performance of 4 state-of-the-art

object detectors and at which levels of video compres-

sion they can provide reliable results. This provides

guidance on their detection ability in automated video

surveillance platforms.

In order to evaluate the performance of object de-

tection algorithms, many valuable benchmarks have

been proposed in the literature. Among these are

COCO (Lin et al., 2014), PASCAL VOC 2007 and

2012 (Everingham et al., 2010). However, they all

contains still images that have distinctly different cha-

racteristics as compared to video frames encountered

in video surveillance systems. Therefore, we believe

that creating a dataset designed with this purpose in

mind is necessary and it was one of our motivations

in this work.

Our contributions are listed as follows.

• We introduce a novel benchmark dataset that will

be made publicly available with uncompressed vi-

deos and their compressed counterparts under dif-

ferent levels of compression.

Aqqa, M., Mantini, P. and Shah, S.

Understanding How Video Quality Affects Object Detection Algorithms.

DOI: 10.5220/0007401600960104

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 96-104

ISBN: 978-989-758-354-4

• We evaluate 4 state-of-the-art object detectors on

this novel dataset.

• We provide a detailed analysis of the common fai-

lure cases with respect to object characteristics to

help future work in developing detectors that are

more robust to compression artifacts.

In section 2, we review some of the related stu-

dies. In section 3, we describe the dataset, the algo-

rithms and the experimental methodology used in this

work. Section 4 reports the results obtained from our

experiments. In section 5, we conclude our work.

2 RELATED WORK &

BACKGROUND

Since recognition benchmarks perform their evalua-

tion on held-out sets of the same dataset, the reported

performance of state-of-the-art algorithms can at

best be interpreted to accurately characterize their

expected accuracy on similar high-quality image

data. Therefore, it is interesting to investigate their

performance on input images with quality distortions.

Effects of Noise on Deep Neural Networks:

Szegedy et al. found that carefully optimized

small-magnitude perturbations could cause network

models to produce erroneous estimates (Szegedy

et al., 2014). Dodge and Karam evaluated a variety

of state-of-the-art classiﬁcation networks under noise

and blur and found a substantial drop in performance

(Dodge and Karam, 2016). Zhou et al. also discuss

loss in accuracy caused by various image degra-

dations, and include preliminary experiments that

suggest that this can be overcome to some extent by

ﬁne-tuning the initial layers of Alexnet (Krizhevsky

et al., 2012) on degraded data (Zhou et al., 2017).

Similarly Vasiljevic et al. showed that blur decreased

classiﬁcation and segmentation performance for deep

networks, though much of the lost performance was

regained by ﬁne-tuning on blurry images (Vasiljevic

et al., 2016). Recent work has also considered the

effect of image degradations on networks trained for

face recognition (Karahan et al., 2016). Karam and

Zhu present a face recognition dataset that considers

ﬁve different types of quality distortions. They

however do not evaluate the performance of any

models on this new dataset (Karam and Zhu, 2015).

Video Compression in Surveillance Systems: In au-

tomated video surveillance platforms, two key aspects

have an initial impact on video analytics algorithms,

namely, the encoding parameters that facilitate acqui-

Quality Encoding

(H.264)

Video Management

System (VMS)

Wireless

Backhaul

Video Analytics

Algorithms

Physical Security

Info. Management

(PSIM)

Figure 1: Data/Information ﬂow in a typical automated vi-

deo surveillance system.

sition of video stream, and the network characteris-

tics that facilitate data transmission. In real deploy-

ments of public safety video systems, cameras are of-

ten backhauled via wireless links, where packet loss

and signal jitter impact video quality. In addition,

due to bandwidth constraints, video is generally enco-

ded at the camera prior to transmission, thereby pos-

sibly reducing the quality of video available for video

analytics. A high-level schematic of data/information

ﬂow is characterized in Figure 1.

Video transportation from the camera to the

VMS/video analytics compute engine is performed

over an IP network infrastructure. Often times these

transmission channels have limited bandwidth and are

allowed a certain quota per camera. Video is compres-

sed allowing for its transmission over the bandwidth

limited channels. Most video surveillance cameras

adopt the H.264 standard (Wiegand et al., 2003) for

video encoding, which is a lossy compression techni-

que. H.264 exploits spatial redundancy within images

and temporal redundancy in videos to achieve appea-

ling compression ratios, making it a widely accepted

standard for video transmission for a myriad of ap-

plications. A video consists of images; an image is

divided into slices and blocks. A block is a square

part (16×16, 8×8 and 4×4) of the images. H.264

is a block based coder/decoder, meaning that a se-

ries of mathematical functions are applied on indivi-

dual blocks to achieve compression and decompres-

sion (Juurlink et al., 2012). We study the effect of this

degradation in quality on object detection algorithms.

To the best of our knowledge we are the ﬁrst to

conduct evaluation of object detection algorithms on

surveillance videos under different levels of compres-

sion artifacts. We use a new dataset that consists of

thirty uncompressed videos recorded in different sur-

veillance scenarios (indoor and outdoor). The video

frames from these videos are considered to be of high-

quality. We augment this dataset by introducing arti-

facts under different levels of video compression and

then evaluate the detection performance of state-of-

the-art object detectors on these compressed videos.

Understanding How Video Quality Affects Object Detection Algorithms

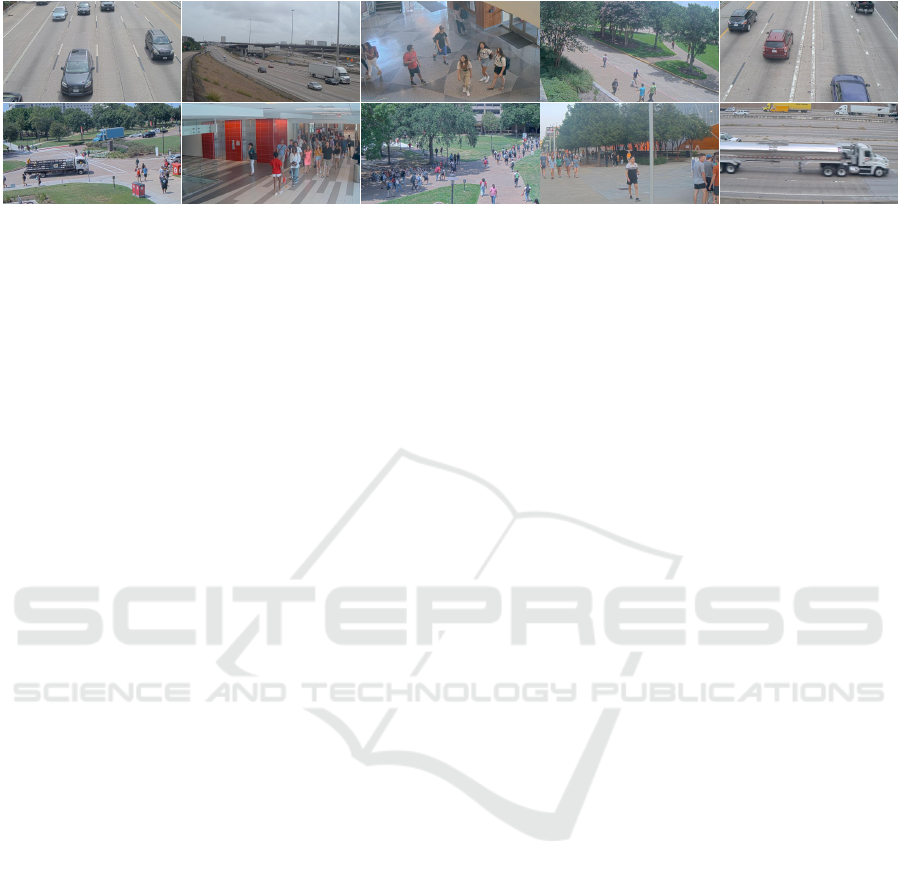

Figure 2: Samples of video frames from uncompressed videos recorded in indoor and outdoor surveillance scenarios.

3 EXPERIMENTAL SETUP

3.1 Dataset

We have collected thirty uncompressed videos that re-

present common scenarios where video surveillance

cameras are deployed with the goal of advancing the

state-of-the-art in object detection by placing the que-

stion of object recognition in the context of public sa-

fety systems. The dataset contains 7 object categories

(person, car, bicycle, truck, bus, handbag, and back-

pack) spread over 240,000 video frames. The videos

are 5 minutes long movie clips and were recorded

with different viewpoints and distance with respect to

the objects of interest. Samples of video frames are

shown in Figure 2.

The videos were acquired using AXIS P3227-

LVE network camera, which is a streamlined,

outdoor-ready 5 MP ﬁxed dome camera that featu-

res a varifocal lens with remote zoom and focus. The

AXIS camera can acquire a video with different reso-

lutions. We have opted to record the videos in 1080p

high deﬁnition (1920×1080) at 30fps.

To simulate video compression in surveillance ca-

meras, we have used the FFmpeg tool, which is a

multimedia software that allows for H.264 encoding

in Constant Rate Factor (CRF) mode. CRF achieves

constant quality by compressing different frames by

different amounts, thus varying the Quantization Pa-

rameter (QP) as necessary to maintain a certain level

of perceived quality. It does this by taking motion

into account similar to the encoder on a surveillance

camera. CRF ranges between 0 and 51, where lower

values would result in better quality and higher values

lead to more compression. With different videos, dif-

ferent CRF values result in different bitrates. We have

used CRF in conjunction with Video Buffer Veriﬁer

(VBV) mode to ensure that the bitrate is constrained

to a certain maximum as in real-world settings. This

is crucial in determining the trade-off between qua-

lity and bitrate. An exhaustive combination of CRF

values (29, 35, 41, 47) and maximum bitrate values

(2Mb/s, 1.5Mb/s, 1Mb/s) are selected to create a to-

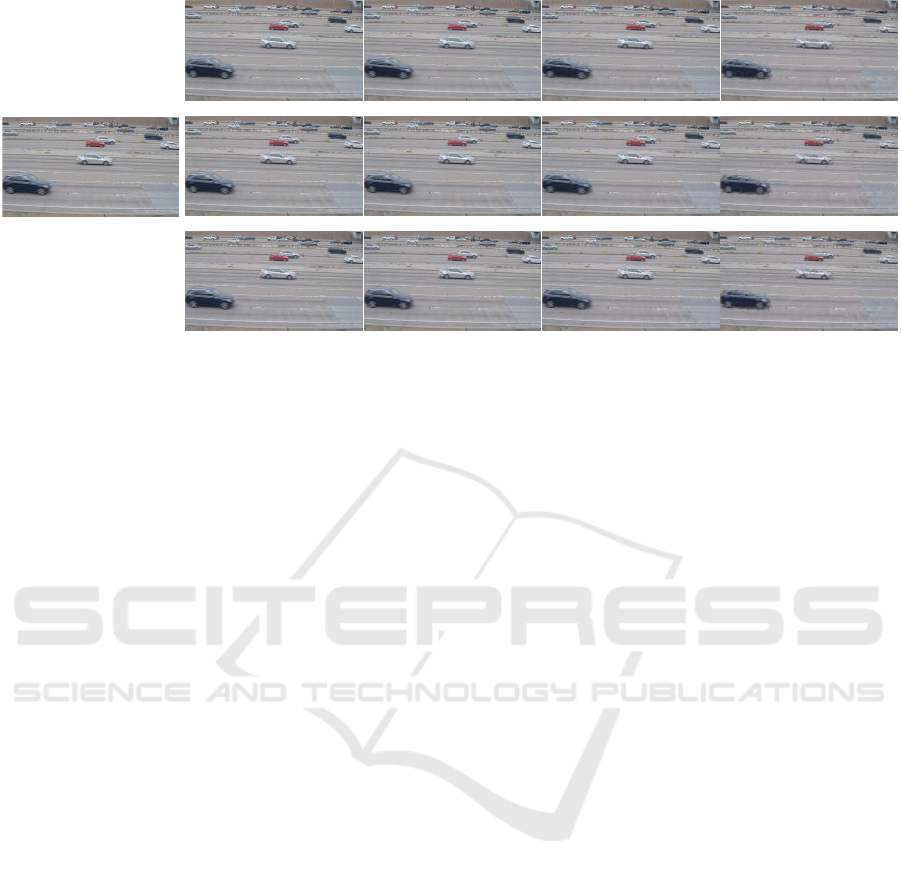

tal of 12 data variants. An uncompressed video frame

and its compressed variants are depicted in Figure 3.

3.2 Object Detectors

CNN-based detectors have been the mainstream in

current academia and industry. We can divide existing

CNN-based detectors into two categories: two-stage

detectors such as Faster R-CNN (Ren et al., 2015),

R-FCN (Dai et al., 2016) or Mask R-CNN (He et al.,

2017), and singe-stage detectors like SSD (Liu et al.,

2016), YOLO (Redmon and Farhadi, 2018) or Retina-

Net (Lin et al., 2017b). These models are usually fas-

ter than two-stage object detectors. In this paper we

study the impact of video quality on four representa-

tive object detectors: Faster R-CNN, SSD, YOLO and

RetinaNet.

Faster R-CNN is a region-based deep detection mo-

del that improves Fast R-CNN (Girshick, 2015) by

introducing the Region Proposal Network (RPN). It

uses a fully convolutional network to predict object

bounds at every location to generate regions of in-

terest. In the second stage, the region proposals by

the RPN are sent down the pipeline as an input for

the Fast R-CNN model to provide the ﬁnal object de-

tection results.

SSD is a single-stage detector that uses a set of pre-

deﬁned boxes of different aspect ratios and scales in

order to predict the presence of an object in a certain

image. SSD does not include the traditional proposal

generation and resampling stages, common for two-

stage detectors, but it encapsulates all computations

in a single network, thus being faster than the two-

stage models.

YOLO is a single-stage model that treats the de-

tection task as a regression problem. It uses a single

neural network to predict the bounding boxes and the

corresponding classes, taking the full image as an in-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

Uncompressed frame

CRF=29, bitrate=2Mb/s

CRF=29, bitrate=1Mb/s

CRF=29, bitrate=1.5Mb/s

CRF=35, bitrate=2Mb/s CRF=41, bitrate=2Mb/s CRF=47, bitrate=2Mb/s

CRF=35, bitrate=1.5Mb/s

CRF=41, bitrate=1.5Mb/s

CRF=47, bitrate=1.5Mb/s

CRF=35, bitrate=1Mb/s CRF=41, bitrate=1Mb/s CRF=47, bitrate=1Mb/s

Figure 3: An uncompressed video frame and its 12 compressed versions. The compression artifacts can be visually perceived

as CRF value increases and bitrate decreases. The combination CRF=29 and maximum bitrate of 2Mb/s results in lower com-

pression, thus better video quality. The combination CRF=47 and maximum bitrate of 1Mb/s results in higher compression,

thus worst video quality.

put. The fact that it does not use sliding window or

region proposal techniques provides more contextual

information about classes. YOLO works by dividing

each image into a ﬁxed grid, and for each grid loca-

tion, it predicts a number of bounding boxes and a

conﬁdence for each bounding box. The conﬁdence

reﬂects the accuracy of the bounding box and whet-

her the bounding box actually contains an object.

RetinaNet is a single-stage detector based on the fo-

cal loss, which can signiﬁcantly reduce false positives

in one-stage detectors. It uses a Feature Pyramid Net-

work (FPN) (Lin et al., 2017a) backbone on top of

a feedforward ResNet architecture (He et al., 2015)

to generate a rich, multi-scale convolutional feature

pyramid. To this backbone RetinaNet attaches two

subnetworks, one for classifying anchor boxes and

one for regressing from anchor boxes to ground-truth

object boxes.

These networks have all been trained on the

COCO dataset (Lin et al., 2014) which contains 80

object categories. We use the pre-trained model of

each one of the selected detectors and we limit to a

subset of 7 object categories in our experiments.

3.3 Evaluation Measure and Settings

According to the common practice in object detection

community, we adopt the mean Average Precision

(mAP) over classes, which is based on the ranking

of detection scores for each class (Everingham et al.,

2010). For each object class, the Average Precision

is given by the area under the precision-recall (PR)

curve for the detected objects. The PR curve is con-

structed by ﬁrst mapping each detected bounding box

to the most-overlapping ground-truth bounding box,

according to the Intersection over Union (IoU) mea-

sure, but only if the IoU is higher than 50% (Evering-

ham et al., 2015). Then, the detections are sorted in

decreasing order of their scores. Precision and recall

values are computed each time a new positive sample

is recalled. The PR curve is given by plotting the pre-

cision and recall pairs as lower scored detections are

progressively included.

For the following experiments, we consider the

detections of a detector i on uncompressed videos as

ground-truth bounding boxes and we compare them

against the detections of the same detector on the

12 compressed variants to assess the impact of video

compression on the detection performance.

All detectors were executed using the default pa-

rameters and run on a Linux machine with Intel

Xeon E5-2680v4 CPU, NVIDIA Tesla V100 GPU

and 16GB RAM.

4 RESULTS

The evaluation results of our experiments are shown

in Table 1. All of the detectors are very sensitive to

compression artifacts. Even for moderate compres-

sion levels (i.e, CRF value of 29), the performance of

the detectors decreases by at least 16.9%. This de-

gradation in performance can be explained because

compression artifacts (e.g, blocking, blurring) remo-

ves textures and details in these video frames. These

high-frequency features represent edges and shapes of

objects that the detector may be looking for to classify

Understanding How Video Quality Affects Object Detection Algorithms

Table 1: Percentage decrease in the mean average precision (mAP) for the four detectors that were trained on high quality

images.

Bitrate 2Mb/s Bitrate 1.5 Mb/s Bitrate 1Mb/s

CRF-29 CRF-35 CRF-41 CRF-47 CRF-29 CRF-35 CRF-41 CRF-47 CRF-29 CRF-35 CRF-41 CRF-47

Faster R-CNN 31.5% 38.2% 54.0% 78.2% 33.3% 38.3% 54.2% 78.2% 38.7% 41.3% 54.2% 78.4%

SSD512 16.8% 25.5% 42.2% 69.3% 19.7% 25.4% 42.4% 69.5% 23.7% 27.4% 43.0% 70.2%

YOLOv3 17.9% 22.6% 33.9% 55.4% 19.5% 23.0% 34.0% 55.4% 23.0% 24.6% 33.9% 55.6%

RetinaNet 21.8% 29.1% 49.0% 77.7% 24.2% 29.7% 49.1% 77.8% 29.3% 32.8% 48.9% 78.1%

an object. Compression artifacts cause the ﬁlter re-

sponses in the ﬁrst convolutional layer to change slig-

htly. These changes in the ﬁrst layer response are pro-

pagating to create larger changes at the higher layer

which explains why these detectors could not learn

features invariant to quality distortions even though

they have a deeper structure.

Interestingly, the drop is steeper for Faster R-CNN

that has a separate stage for region proposals compa-

red to other detectors. YOLO appears more robust

particularly at higher compression levels beneﬁting

probably from the fact that it does not use sliding win-

dow or region proposal techniques, which provides

more contextual information about object categories.

In order to understand the reasons behind the drop

in performance, we examine false positive errors si-

milar to (Hoiem et al., 2012). False positives are de-

tections that do not correspond to the target category.

For the rest of the experiments, we selected YOLO

as the object detector, which is the top performer and

more resilient to compression artifacts compared to

other detectors.

4.1 Analysis of False Positives

We investigate how much of the performance degra-

dation seen in the previous section is due compres-

sion artifacts. There are different types of false posi-

tives (Hoiem et al., 2012). Localization error occurs

when an object from the target category is detected

with a misaligned bounding box (0.1 ≤ IoU < 0.5).

Duplicate detections are also counted as localization

error because they are avoidable with good localiza-

tion. Remaining false positives that have at least 0.1

overlap with an object from a similar category are

counted as confusion with similar objects. We consi-

der two categories to be semantically similar if they

are both within one of these sets: {person}, {car,

truck, bus, bicycle}, {backpack, handbag}. Confu-

sion with other objects describes remaining false po-

sitives that have at least 0.1 overlap with another la-

beled object. All other false positives are conside-

red to be confusion with background. These could be

detections within highly textured areas or confusions

with unlabeled objects.

In Figure 4, we show a breakdown of errors of

YOLO averaged over all object categories. In the

case of the highest compression (i.e., CRF=29 and

Bitrate=1Mb/s), overall mAP at IoU=.50 is .444 and

perfect localization would only increase mAP by 1%

to .454. Interesting, removing all class confusions

(both within supercategory and across supercatego-

ries) would only raise mAP slightly by 3.8% to .492.

Removing background false positives would bump

performance to .511 mAP. The rest of the errors are

detections with lower conﬁdence score or missing de-

tections due to quality degradations stemming from

compression artifacts. In other words, YOLO’s errors

are dominated by missing detections and its detection

performance is reduced roughly by 50% due to higher

compression.

4.2 Per-category Analysis of Object

Characteristics

An object may be difﬁcult to detect due to occlusion,

truncation, small size, or unusual viewpoint. In this

section, we measure the sensitivity of YOLO to ob-

ject size and aspect ratio at the lowest compression

(CRF=29, Bitrate=2Mb/s) and the highest compres-

sion (CRF=47, Bitrate=1Mb/s).

Similar to (Hoiem et al., 2012), object size is me-

asured as the pixel area of the bounding box. We

assign each object to a size category, depending on

the objects percentile size within its object category:

extra-small (XS: bottom 10%); small (S: next 20%);

medium (M: next 40%); large (L: next 20%); extra-

large (XL: next 10%). Aspect ratio is deﬁned as ob-

ject width divided by object height, computed from

the ground-truth bounding box. Similarly to object

size, objects are categorized into extra-tall (XT), tall

(T), medium (M), wide (W), and extra-wide (XW),

using the same percentiles.

Upon careful inspection of Figure 5, we can le-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

100

CRF=29, Bitrate=2Mb/s CRF=29, Bitrate=1.5Mb/s CRF=29, Bitrate=1Mb/s

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.789] C75

[.821] C50

[.824] Loc

[.826] Sim

[.838] Oth

[.847] BG

[1.00] FN

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.772] C75

[.805] C50

[.813] Loc

[.816] Sim

[.828] Oth

[.839] BG

[1.00] FN

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.732] C75

[.770] C50

[.777] Loc

[.781] Sim

[.795] Oth

[.808] BG

[1.00] FN

CRF=35, Bitrate=2Mb/s CRF=35, Bitrate=1.5Mb/s CRF=35, Bitrate=1Mb/s

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.733] C75

[.774] C50

[.780] Loc

[.785] Sim

[.798] Oth

[.809] BG

[1.00] FN

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.729] C75

[.770] C50

[.776] Loc

[.781] Sim

[.794] Oth

[.806] BG

[1.00] FN

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.708] C75

[.754] C50

[.759] Loc

[.765] Sim

[.779] Oth

[.792] BG

[1.00] FN

CRF=41, Bitrate=2Mb/s CRF=41, Bitrate=1.5Mb/s CRF=41, Bitrate=1Mb/s

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.598] C75

[.661] C50

[.671] Loc

[.682] Sim

[.698] Oth

[.716] BG

[1.00] FN

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.598] C75

[.660] C50

[.669] Loc

[.680] Sim

[.696] Oth

[.713] BG

[1.00] FN

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.597] C75

[.661] C50

[.668] Loc

[.678] Sim

[.694] Oth

[.711] BG

[1.00] FN

CRF=47, Bitrate=2Mb/s CRF=47, Bitrate=1.5Mb/s CRF=47, Bitrate=1Mb/s

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.359] C75

[.446] C50

[.456] Loc

[.483] Sim

[.494] Oth

[.511] BG

[1.00] FN

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.359] C75

[.446] C50

[.455] Loc

[.482] Sim

[.494] Oth

[.511] BG

[1.00] FN

overall-all-all

0 0.2 0.4 0.6 0.8 1

recall

0.2

0.4

0.6

0.8

precision

[.357] C75

[.444] C50

[.454] Loc

[.481] Sim

[.492] Oth

[.511] BG

[1.00] FN

Figure 4: An overall analysis of errors of YOLO averaged over all object categories. Each plot is a series of precision recall

curves (PR) where each PR curve is guaranteed to be strictly higher than the previous as the evaluation setting becomes

more permissive. The area under each curve is shown in brackets in the legend. The curves are as follows: C75: PR at

IoU=.75. C50: PR at IoU=.50. Loc: PR at IoU=.10 (localization errors ignored, but not duplicate detections). All remaining

settings use IoU=.10. Sim: PR after supercategory false positives (fps) are removed. Oth: PR after all class confusions are

removed. BG: PR after all background (and class confusion) fps are removed. FN: PR after all remaining errors are removed.

Interesting, removing all BG and class confusion (both within supercategory and across supercategories) would only raise

mAP from 0.444 to 0.511 at the highest compression (CRF=47, Bitrate= 1Mb/s). In summary, YOLO’s errors are dominated

by FN (Detections with lower conﬁdence score or missing detections).

Understanding How Video Quality Affects Object Detection Algorithms

101

XS S M L XL XS S M L XL XS S M L XL XS S M L XL XS S M L XL XS S M L XL XS S M L XL

0.2

0.4

0.6

0.8

Average Precision (AP)

0.85

0.89

0.95

0.98

Person

0.87

0.93

0.96

0.97

0.96

Car

0.74

0.82

0.90

0.92

Truck

0.55

0.63

0.51

0.76

0.84

Bicycle

0.59

0.65

0.79

0.82

0.77

Backpack

0.65

0.74

0.80

0.78

0.75

Handbag

0.70

0.85

0.91

0.87

0.84

Bus

0.50

0.64

0.79

0.87

0.90

0.47

0.60

0.66

0.75

0.74

0.15

0.32

0.44

0.61

0.72

0.12

0.10

0.12

0.40

0.47

0.11

0.12

0.28

0.43

0.28

0.08

0.15

0.16

0.27

0.28

0.34

0.50

0.72

0.58

0.44

Figure 5: Per-Category Analysis of Object Size: Blue AP (’+’) for the lowest compression (CRF=29, Bitrate=2Mb/s). Red

AP (’+’) for the highest compression (CRF=47, Bitrate=1Mb/s). Green dashed lines indicate overall AP. Key: XS=extra-

small; S=small; M=medium; L=large; XL =extra-large.

XT T M W XW XT T M W XW XT T M W XW XT T M W XW XT T M W XW XT T M W XW XT T M W XW

0.2

0.4

0.6

0.8

Average Precision (AP)

0.94

0.95

0.93

Person

0.95

0.94

0.95

0.96

0.94

Car

0.86

0.87

0.89

0.88

0.85

Truck

0.49

0.66

0.69

0.74

0.58

Bicycle

0.70

0.80

0.77

0.73

0.67

Backpack

0.73

0.78

0.76

0.77

Handbag

0.83

0.77

0.87

0.93

0.87

Bus

0.75

0.80

0.79

0.74

0.66

0.69

0.68

0.65

0.61

0.41

0.44

0.52

0.50

0.39

0.12

0.10

0.30 0.30

0.18

0.24

0.35

0.29

0.21

0.17

0.20

0.21

0.18

0.14

0.22

0.33

0.34

0.69

0.75

0.58

Figure 6: Per-Category Analysis of Aspect Ratio: Blue AP (’+’) for the lowest compression (CRF=29, Bitrate=2Mb/s). Red

AP (’+’) for the highest compression (CRF=47, Bitrate=1Mb/s). Green dashed lines indicate overall AP. Key: XT=extra-tall;

T=tall; M=medium; W=wide; XW =extra-wide.

arn the following about the truck detector: prefer me-

dium to extra-large trucks at both compression levels

(the top 70th percentile in area). The performance

for very small trucks is poor due to higher compres-

sion as mAP drops by 59% from 0.74 at (CRF=29,

Bitrate=2Mb/s) to 0.15 at (CRF=47, Bitrate=1Mb/s).

This can be due to block-artifacts that are introdu-

ced to a pixel block during block transform coding

to achieve lossy compression, which results in blurry,

low-resolution blocks. These blocks might hide ma-

jor parts of small objects, which make them difﬁcult

to be detected. We can learn similar things about the

other categories. For example, YOLO works best for

large people and cars. The difﬁculty with extra-large

objects may initially surprise, but they are usually

highly truncated or have unusual viewpoints. Note

that YOLO seems to vary in similar ways at both com-

pression levels, indicating that its sensitivity may be

due to some objects being intrinsically more difﬁcult

to recognize like handbags and backpacks.

In Figure 6, we show a per-category analysis of

aspect ratio. YOLO is less sensitive to aspect ratio at

both compression levels and tends to recognize better

objects at their more natural properties. For example,

the backpack detector tends to prefer taller backpacks

than wide ones as expected.

5 DISCUSSION AND

CONCLUSION

Our results show that of the CNN-based object de-

tectors tested, all are susceptible to compression arti-

facts. This is an interesting result because it shows

that the reduced performance under quality distor-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

102

tions is not limited to a particular network, but is

common to the considered detectors. These state-

of-the-art models trained on high-quality image data-

sets make unreliable predictions when they encounter

compression artifacts in their inputs due to an inabi-

lity to generalize from their sharp training sets. To

create object detectors that are more robust to these

degradations, new designs may need to be introdu-

ced. One obvious solution to this problem is to ﬁne-

tune/train these detectors on images with artifacts,

which may boost their performance when applied on

video frames, but perhaps this may decrease their per-

formance on high-quality images. An investigation of

the beneﬁts of ﬁne-tunning with video frames is left

for future work.

Our analysis provides guidance for developing

machine vision systems in practical, non-idealized,

applications where quality distortions may be present.

We expect our ﬁndings to be relevant in make decisi-

ons on video compression in the design of automated

video surveillance systems.

ACKNOWLEDGEMENTS

This work was performed in part through the ﬁnan-

cial assistance award, Multi-tiered Video Analytics

for Abnormality Detection and Alerting to Improve

Response Time for First Responder Communications

and Operations (Grant No. 60NANB17D178), from

U.S. All statements of fact, opinion or conclusions

contained herein are those of the authors and should

not be construed as representing the ofﬁcial views or

policies of the sponsors Department of Commerce,

National Institute of Standards and Technology.

REFERENCES

Dai, J., Li, Y., He, K., and Sun, J. (2016). R-fcn: Object de-

tection via region-based fully convolutional networks.

In Neural Information Processing Systems (NIPS).

Dodge, S. and Karam, L. (2016). Understanding how image

quality affects deep neural networks. arXiv preprint

arXiv:1604.04004.

Donahue, J., Hendricks, L. A., Guadarrama, S., Rohrbach,

M., Venugopalan, S., Saenko, K., and Darrell, T.

(2015). Long-term recurrent convolutional networks

for visual recognition and description. In CVPR.

Everingham, M., Eslami, S. M. A., Gool, L. V., Williams, C.

K. I., Winn, J., and Zisserman, A. (2015). The pascal

visual object classes challenge: A retrospective. In-

ternational Journal of Computer Vision, 111:98136.

Everingham, M., Gool, L. V., Williams, C. K. I., Winn,

J., and Zisserman, A. (2010). The pascal visual ob-

ject classes (voc) challenge. International Journal of

Computer Vision, 88:303–338.

Girshick, R. (2015). Fast r-cnn. In International Conference

on Computer Vision (ICCV).

Goodfellow, I. J., Shlens, J., and Szegedy, C. (2015). Ex-

plaining and harnessing adversarial examples. In In-

ternational Conference on Learning Representations

(ICLR).

He, K., Gkioxari, G., Dollar, P., and Girshick, R. (2017).

Mask r-cnn. In International Conference on Computer

Vision (ICCV).

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep re-

sidual learning for image recognition. arXiv preprint

arXiv:1512.03385.

Hoiem, D., Chodpathumwan, Y., and Dai, Q. (2012). Diag-

nosing error in object detectors. In European Confe-

rence on Computer Vision (ECCV).

Juurlink, B., Alvarez-Mesa, M., Chi, C. C., Azevedo, A.,

Meenderinck, C., and Ramirez, A. (2012). Under-

standing the application: An overview of the h.264

standard. Scalable Parallel Programming Applied to

H.264/AVC Decoding, pages 5–15.

Karahan, S., Yldrm, M. K., Krtac, K., Rende, F. S., Butun,

G., and Ekenel, H. K. (2016). How image degrada-

tions affect deep cnn-based face recognition? arXiv

preprint arXiv:1608.05246.

Karam, L. J. and Zhu, T. (2015). Quality labeled faces in the

wild (qlfw): a database for studying face recognition

in real-world environments. In International Society

for Optics and Photonics, volume 9394.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Advances in neural information pro-

cessing systems, pages 1097–1105.

Lin, T.-Y., Dollar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017a). Feature pyramid networks

for object detection. In CVPR.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Dollar, P.

(2017b). Focal loss for dense object detection. In

International Conference on Computer Vision (ICCV).

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Dollar, P., and Zitnick, C. L. (2014).

Microsoft coco: Common objects in context. In Euro-

pean Conference on Computer Vision (ECCV), pages

740–755.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S., Fu,

C.-Y., and Berg, A. C. (2016). Ssd: Single shot mul-

tibox detector. In European Conference on Computer

Vision (ECCV).

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. In Neural Information Processing

Systems (NIPS).

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Erhan,

D., Goodfellow, I., and Fergus, R. (2014). Intriguing

properties of neural networks. In CVPR.

Understanding How Video Quality Affects Object Detection Algorithms

103

Vasiljevic, I., Chakrabarti, A., and Shakhnarovich, G.

(2016). Examining the impact of blur on recog-

nition by convolutional networks. arXiv preprint

arXiv:1611.05760.

Wiegand, T., Sullivan, G. J., Bjntegaard, G., , and Luthra,

A. (2003). Overview of the h.264/avc video coding

standard. IEEE Transactions on Circuits and Systems

for Video Technology, 13:560–576.

Zhou, Y., Song, S., and Cheung, N.-M. (2017). On clas-

siﬁcation of distorted images with deep convolutional

neural networks. arXiv preprint arXiv:1701.01924.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

104
