Real-time Automatic Tongue Contour Tracking in Ultrasound Video

for Guided Pronunciation Training

M. Hamed Mozaffari, Shuangyue Wen, Nan Wang and WonSook Lee

School of Electrical Engineering and Computer Science, University of Ottawa, Ottawa, Ontario, Canada

Keywords: Image Processing with Deep Learning, Ultrasound for Second Language Training, Ultrasound Video

Tongue Contour Extraction and Tracking, Convolutional Neural Network, Augmented Reality for

Pronunciation Training.

Abstract: Ultrasound technology is safe, relatively affordable, and capable of real-time performance. Recently, it has

been employed to visualize tongue function for second language education, where visual feedback of tongue

motion complements conventional audio feedback. It requires expertise for non-expert users to recognize

tongue shape in noisy and low-contrast ultrasound images. To alleviate this problem, tongue dorsum can be

tracked and visualized automatically. However, the rapidity and complexity of tongue gestures as well as

ultrasound low-quality images have made it a challenging task for real-time applications. The progress of

deep convolutional neural networks has been successfully exploited in various computer vision applications

such that it provides a promising alternative for real-time automatic tongue contour tracking in ultrasound

video. In this paper, a guided language training system is proposed which benefits from our automatic

segmentation approach to highlight tongue contour region on ultrasound images and superimposing them on

face profile of a language learner for better tongue localization. Assessments of the system revealed its

flexibility and efficiency for training pronunciation of difficult words via tongue function visualization.

Moreover, our tongue tracking technique demonstrates that it exceeds other methods in terms of

performance and accuracy.

1 INTRODUCTION

Communicative performance, self-confidence, and

social interaction of a speaker during a speech

depends on many elements. Correct pronunciation

and articulation of phonemes, words, and sentences

are two of those factors. Importance and challenging

part of this communication skill is even more

obvious for many language learners especially when

they cannot pronounce words difficult and rapid

tongue movements.

During articulation of words and sentences,

tongue gestures are of great interest as an aid in

Second language (L2) pronunciation learning and

rehabilitation (Chen et al., 2018). When at rest, the

tongue displays an unremarkable gross morphology,

but dynamically it is a highly mobile, deformable,

and precise organ, with rapid movements especially

over its tip. Automatic tracking of tongue

movements in recording ultrasound video of a long

speech is considered to be very difficult due to the

speckle noise in each frame, acoustic artifacts such

as shadowing and mirroring, and low signal-to-noise

ratio (Stone, 2005). Interpretation of ultrasound

tongue frames might become even harder when

tongue movements are fast, and the ultrasound frame

rate is relatively low. This often results in missing

parts in the observed contour (Loosvelt et al., 2014).

Recent studies have revealed that visual

feedback techniques such as ultrasound imaging can

assist individuals to acquire new language

pronunciation skills with higher efficiency

(Bernhardt et al., 2005; Wilson et al., 2006; Gick et

al., 2008; Abel et al., 2015). Ultrasound systems are

fast, safe, portable, relatively inexpensive, and

capable of real-time imaging. These capabilities

allow researchers to indirectly study subtle and swift

movements of the tongue during speech production

in different applications (Denby et al., 2010; Preston

et al., 2014; Geddes and Sakalidis, 2016).

Mid-sagittal view of ultrasound imaging is

usually adopted for illustration of tongue, as it

displays relative back, height, and the slope of the

tongue (Bernhardt et al., 2008). However,

302

Mozaffari, M., Wen, S., Wang, N. and Lee, W.

Real-time Automatic Tongue Contour Tracking in Ultrasound Video for Guided Pronunciation Training.

DOI: 10.5220/0007523503020309

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 302-309

ISBN: 978-989-758-354-4

localization and interpretation of tongue gestures in

ultrasound images is not an easy task for non-expert

users (see Figure 1, for the first time, one cannot

recognize exact location of the tongue in ultrasound

images). Therefore, highlighting tongue dorsum on

ultrasound data, in form of a curved contour which

is usually defined under the brightest and longest

continues region (Zharkova, 2013; Lee et al., 2015),

can significantly assist language learners to

recognize the tongue shapes.

Figure 1: The approximate position of the tongue when

producing a vowel. Sounds vary depending on tongue’s

position and shape which are not visible from outside.

Tongue surface can be seen as a bright region on

ultrasound image on the left.

So far, few language training systems have been

implemented utilizing ultrasound imaging

(Hoopingarner, 2005; Gick et al., 2008). Language

learners should first be involved in a pre-training

stage which helps them to comprehend the location

of the tongue in ultrasound videos data.

Our study aim is to provide a system to facilitate

second language pronunciation training by depicting

tongue function in real-time and recorded videos. A

face tracking method is utilized to find optimum

position of the tongue on face profile then they are

registered to create overplayed videos. Our language

training system attempts to alleviate the problem of

tongue localization in ultrasound data for non-expert

users utilizing our tongue tracking approach that

visualizes contour of the tongue, superimposed on

ultrasound video frames.

2 LITERATURE REVIEW

A variety of techniques have been tested for tongue

contour tracking in ultrasound images such as active

contour models (Ghrenassia et al., 2014; Laporte and

Ménard, 2015; Xu et al., 2016), graph-based

technique (Tang and Hamarneh, 2010), machine

learning-based methods (Tang et al., 2012; Fabre et

al., 2015), and many more (Laporte and Ménard,

2018). Manual labeling is essential for at least

initialization in those researches (Laporte and

Ménard, 2018) such that tongue tracking in real-time

is impossible also with using famous software

packages like EdgeTrak.

Up to now, research on deep learning methods

has stirred a great deal of attention, and It shows that

deep learning algorithms, particularly convolutional

neural network (CNN) (Xu et al., 2017), are

powerful enough for solving many problems in

pattern recognition and data mining, including

ultrasound tongue contour tracking (Laporte and

Ménard, 2018). In similar studies (Fasel and Berry,

2010; Berry and Fasel, 2011; Berry, 2012; Csapo

and Lulich, 2015; Jaumard-Hakoun et al., 2016),

tongue contour was extracted automatically using

deep belief networks (DBNs) and deep auto-encoder

(Ji et al., 2017).

The accuracy of deep learning methods is highly

related to the size of training dataset and the

complexity of the deep network model. Hence, there

is always a trade-off between the number of training

samples, which is a big issue in many applications

such as in medicine (Ronneberger et al., 2015;

Litjens et al., 2017), and the number of parameters

in the network, which it requires more computing

and memory units. Results of deep learning

techniques like U-net for medical image

segmentation illustrate acceptable accuracy.

However, due to the deep architecture with many

layers, computational resources should be highly

powerful in training and testing stages. For real-time

applications such as ultrasound tongue contour

tracking this performance, the issue is also more

fundamental.

In this paper, by inspiration from a famous

architecture, so-called "fully convolutional network"

(Badrinarayanan et al., 2015; Long et al., 2015;

Ronneberger et al., 2015), we propose a new simpler

architecture for real-time video tongue contour

tracking for using in our designed language training

system. The efficiency of our language training

system was tested by conducting experiments to

teach pronunciation of some difficult words.

3 SYSTEM ARCHITECTURE

AND METHODOLOGY

Main modules of our language pronunciation

training system are illustrated in Figure 2. In both

modules, the ultrasound data, contain tongue contour

information extracted by our proposed tracking

Real-time Automatic Tongue Contour Tracking in Ultrasound Video for Guided Pronunciation Training

303

method, are overlaid automatically on a video

recorded from face profile. In general, two

superimposed videos are played on a computer's

screen for a language learner, one from real-time

recording of him/his tongue and the other from an

instructor's tongue during speech.

Figure 2: Schematic of our language training system.

Language learner can see both off-line and real-time data

on a computer screen. The off-line video is played with a

small delay and language learner imitate that word. The

learner comprehends the differences between two videos

and tries to duplicate instructor's video.

3.1 Tongue Tracking and Extraction

Module

Tongue contour tracking in ultrasound video is a

unique problem such that according to our

experiments, the diversity of tongue data is restricted

to the flexibility and deformation states of the

tongue muscle. We proposed a deep learning

approach, employing CNN layers, capable to

address the real-time performance issue due to its

small architecture and training dataset (see Table 1).

In SegNet architecture (Badrinarayanan et al.,

2015), two consecutive convolutional layers are for

having a better receptive field, however, these extra

layers in each stage of encoding and decoding apply

a huge number of parameters to the network in

inference stage. We found that omitting one

convolutional layer in each stage of encoding and

decoding, improves architecture performance in

terms of speed though its accuracy is still

comparable with the original model. In our

architecture, we decreased many repeating

convolutional and deconvolutional layers of SegNet

as well as many activation functions by try and error

experiments. We also added concatenation strategy

from the U-net model (Ronneberger et al., 2015) for

increasing accuracy of the predictions.

Table 1: Our deep learning architecture (Conv:

convolution, Concate: concatenation).

etwork Architecture

Layers Specification (Down-sampling)

Conv 1

32 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Pool 1 Max-pooling with stride: 2×2

Conv 2

64 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Pool 2 Max-pooling with stride: 2×2

Conv 3

128 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Pool 3 Max-pooling with stride: 2×2

Conv 4

256 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Pool 4 Max-pooling with stride: 2×2

Conv 5

512 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Layers Specification (Up-sampling)

Un-pool 1

Max-un-pooling repeats the rows and columns by

size 2

Concate 1 Concatenate conv 4 outputs and un-pool 1

Conv 6

256 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Un-pool 2

Max-un-pooling repeats the rows and columns by

size 2

Concate 2 Concatenate conv 3 outputs and un-pool 2

Conv 7

128 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Un-pool 3

Max-un-pooling repeats the rows and columns by

size 2

Concate 3 Concatenate conv 2 outputs and un-pool 3

Conv 8

64 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Un-pool 4

Max-un-pooling repeats the rows and columns by

size 2

Concate 4 Concatenate conv 1 outputs and un-pool 4

Conv 9

32 (filters: 3×3, stride: 1×1, activation: ReLU,

addin

: “Valid”

)

Conv 10

1 (filters: 1×1, stride: 1×1, activation: Sigmoid,

addin

: “Valid”

)

The popular tongue tracking software, EdgeTrak,

is capable of providing tongue contours for a limited

number of frames with the requirement of manual

initialization near to the tongue region and tuning it

during the extraction process. In contrast, our

proposed model is significantly fast, needs a small

dataset for training, and it can automatically

delineate tongue contours in real-time from long

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

304

ultrasound videos without any manual initialization

or tuning.

As can be seen from Table 1, our proposed

network consists of repeated 3×3 convolutions with

no zero padding, each followed by a rectified linear

unit (ReLU). A 2×2 max pooling operation with a

stride of 2 is applied in each down-sampling step. In

decoding path, from the lowest contracted layer to

the output feature map, each layer consists of an up-

sampling of the feature map followed by a 2×2

convolution that halves the number of feature

channels, a concatenation with the correspondingly

cropped feature map from the corresponding

contracting path, and a 3×3 convolutions followed

by a ReLU. Our model has only 10 convolutional

layers (in contrast to 23 layers in U-net and 26 in

SegNet). For the sake of fair comparison, we did not

add data augmentation, a powerful strategy for

increasing the size of training data, and batch

normalization layers, a method for increasing the

performance and stability.

The result of the proposed method is a

segmented region on the ultrasound image, so we

need to extract contours for comparison with other

tongue contour tracking techniques. First, we

binarize the segmented tongue contour image with a

threshold value and then invoke the skeleton

extraction method to create thin curves out of the

binary image (see Figure 3).

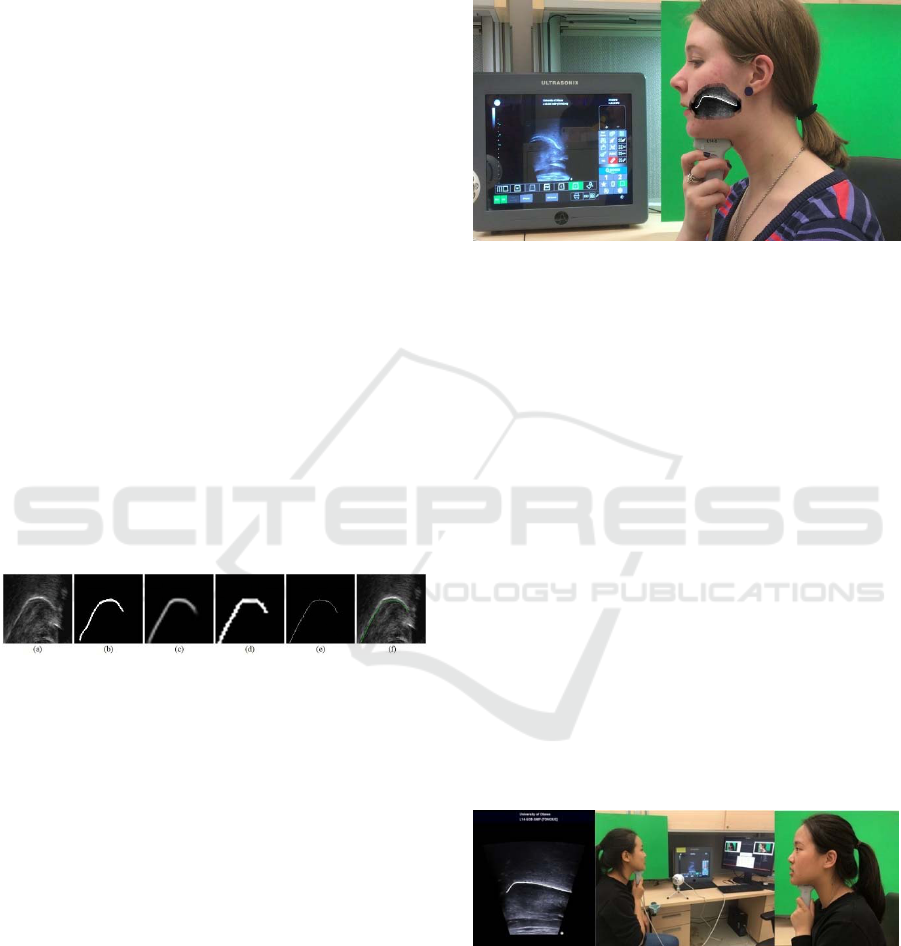

Figure 3: samples of images in segmentation and

extraction process: (a) one original image (b) true label or

mask (c) predicted area (d) converted binary image (e)

contour skeleton of the white region of (d), (f)

superimposed image of original and extracted contour

(green curve).

3.2 Ultrasound Pronunciation Training

System Module

In order to test the potential utility of our language

training system in second language, a preliminary

investigation was conducted with two Chinese

students as participants. Three English native

speakers were considered as instructors and trained

to read predefined words. As Figure 2 shows,

recording procedures is a two-fold process. Off-line

recording module (see Figure 4) which a native

instructor sits in front of the system who reads a list

of predefined difficult words. In our experiment, list

of difficult words (see Table 2) was produced by

conducting a survey using questionnaires, among 20

Chinese students in University of Ottawa, asking

about the words which they have more difficulties to

pronounce in English.

Figure 4: An instructor is pronouncing a list of words and

her face and voice are recorded by the camera as well as

ultrasound video. Manually, cropped ultrasound video and

the tongue contour extracted (green line) from that video

are superimposed with the video from the camera.

In the second module, similarly, one student

keeps an ultrasound probe under his/her chin and

reads the list of predefined words to learn their

pronunciations (see Figure 5). Ultrasound video of

the tongue, RGB video from speaker's face profile,

and speech sound are captured in both modules.

During the training process, the learner observes

instructor video for each word and try to imitate the

instructor's tongue in ultrasound video which is

shown at the same time on screen with a sort of

delay. While the learner is reading the words, tongue

contour is superimposed and illustrated

automatically in real-time on ultrasound image

sequences. For overlaying videos, Haar feature

detection algorithm is applied to the RGB video to

find the area around the lips of the speaker. Then,

segmented ultrasound image sequences are

registered on the face profile.

Figure 5: A learner is pronouncing a list of words after

hearing the voice and watching the video from the

instructor. The white color line is extracted from

ultrasound data automatically.

Real-time Automatic Tongue Contour Tracking in Ultrasound Video for Guided Pronunciation Training

305

Table 2: A set of English words and pairs with difficulty

to pronounce for the Chinese language learner.

Pairs

Korea Stuff Tone Girl Pool

Career Staff Tune Grow Pull

Single word Little Studio Sugar

4 EXPERIMENTAL RESULTS

Due to the lack of similar language training system

in the literature, we qualitatively compared our

system with similar ideas (Hueber, 2013; Ouni,

2014; Abel et al., 2015). From our experimental

results, our language training system is highly user-

friendly due to the illustration of tongue contour

instead of just depicting raw ultrasound image

sequences. Real-time and automatic performance of

our system allows linguistics to focus on training

process instead of manual editing and interpretation

of ultrasound images.

Our tracking method can recognize tongue

dorsum in different positions and orientations due to

translation invariant characteristic of CNN's. In

order to register ultrasound video on face profile

video automatically, a face detection algorithm from

OpenCV library (Haar cascade) is employed which

can find the approximate place of the tongue on the

face. Thus, students could use the system with more

flexibility than previous studies without using any

fixtures for fixing their head and ultrasound probe

position. Our system does not require any

initialization steps, and due to the simplicity of our

deep network architecture, GPU facility is not

necessary.

We assessed the proposed deep learning model

on a database comprises of 2190 images captured by

our ultrasound machine (Tablet Ultrasonix with

L14-5 linear probe) and 6631 images from the

internet (Lawson et al., 2015). Each image has a size

of (128 ×128), each of which comes with the same

size corresponding annotated mask created by our

annotation software package. The output segmented

image has size (34×34). Output results are illustrated

in the last row of Figure 6 where we randomly

selected some frames for the sake of presentation.

The database was divided into a training set and

a validation set with an 80/20 percentage split ratio,

respectively. We deployed our method by using the

Keras library (Chollet and others, 2015) and

TensorFlow backend (Abadi et al., 2016). Adam, an

algorithm for first-order gradient-based optimization

of stochastic objective functions was used with its

default parameters (Kingma and Ba, 2014), in which

a learning rate of 0.001, β

of 0.9, and β

of 0.999, as

well as schedule decay of 0.05 after each epoch,

were adopted to achieve a better convergence.

Default parameter values from relevant publications

(Badrinarayanan et al., 2015; Long et al., 2015;

Ronneberger et al., 2015) have been used for other

parameters such as the number of encoding and

decoding layers, number of iterations, and batch

sizes.

Figure 6: Results of applying the proposed image

segmentation and extraction method on video data. First

row: Some randomly selected raw ultrasound frames

(128×128), Second row: Corresponding masks for each

frame in the first row (128×128), Third row: Predicted

masks (34×34), Fourth row: Extracted contours using

skeleton method on a resized version of third raw images

(128×128) and then moved to lower part of the contour

region to superimpose with the original frame.

We used binary cross-entropy as the loss

function. To evaluate the performance of the

proposed method, we also calculated the dice

coefficient. Prediction and the labeled data are

compared in terms of MSD as defined in (Jaumard-

Hakoun et al., 2016). Our experimental results are

compared with the results of deep belief network

(DBN) (Jaumard-Hakoun et al., 2016) which is the

only previous method known to use deep learning in

tongue image analysis. Table 3 shows the

comparison for the Dice-coefficient validation error

related to the number of epochs. In our system, the

error declines to around 0.2 when the number of

epochs is around 100 and then levels out. The DBN

error remains around 0.4 even though the number of

epochs increases. Results of our proposed model are

shown in Figure 6 such that, for the sake of

illustration, frames were selected randomly during

the training stage. Images in the third row are

predicted maps from our proposed model which are

like the true labels in the second row.

Our proposed method outperformed other

methods regarding MSD criteria as shown in Table

4. The MSD value in terms of pixels was 1.43 pixels

for our proposed method, with a conversion of 1 px

= 0.638 mm, giving an average MSD of 0.91 mm,

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

306

while the DBN model achieved 1.0 mm (1 px =

0.295 mm). For the active contour tracking method

mentioned in (Li et al., 2005), the average MSD is

1.05 mm. It is important to mention that the two

human experts participating in active contour

tracking experiment produced two different

annotation results having an average MSD of 0.73

mm (Li et al., 2005), which may thus be reasonably

considered the ultimate minimum MSD of training

based automated methods.

We ran our model on a Windows PC with a 7-

Core CPU at 3.4GHz and 16GB of memory. In the

testing stage, our approach provided the

segmentation results of 175 frames in 2.343 seconds,

which equals 74.7 fps. The testing performance goes

down to 29.8 fps when we add tongue contour

extraction. Previous publications have not discussed

speed, possibly due to the nature of semi-automatic

or manual work. Alternatively, they may have not

achieved a high speed.

Table 3: Comparison of our method and previous work in

Dice-coefficient validation error. Our method out-

performs DBN when the number of epochs reaches 50 and

levels off at 100 epochs at around half the error of the

DBN system.

Number of epochs 5 50 100 250

Proposed method 0.446 0.243 0.212 0.212

DBN (Jaumard-Hakoun et al., 2016) 0.41 0.38 N/A 0.4

Table 4: The comparison of our model with others in term

of average MSD. Our proposed model shows better

accuracy than other state-of-the-art methods on tongue

dorsum extraction.

Methods Ours DBN Active Contour

Average MSD (mm) 0.91 1.0 1.05

5 CONCLUSION

While the potential benefits of articulatory feedback

using ultrasound data for language pronunciation

have long been acknowledged, until recently, with

the advancement of deep learning techniques, real-

time applications are feasible for easier guided

language training. The pilot experiment of language

learning system using ultrasound imaging outlined

in the present paper shows that it is so much

promising to add different facilities to ultrasound

video in order to enhance the learning process.

In automatic tongue tracking section of our

system, a trained deep convolutional neural network

architecture has been applied to extract and illustrate

tongue contours on real-time ultrasound videos.

Automatic registration of ultrasound and RGB

videos using Haar feature extraction algorithm,

added flexibility to the language training system by

omitting fixtures for the head and probe. The choice

of network structure was selected and modified in

the course of several experiments, decreasing the

number of network layers and removing unnecessary

steps for this application to speed up the process

while keeping the high accuracy.

Extraction of tongue contours from delineated

frames was successfully exploited using the skeleton

technique. The proposed system does not need

initialization or re-initialization (unlike EdgeTrak)

for each frame and it is an end-to-end approach. The

experimental results displayed the accuracy and

speed of the proposed method for real-time

automatic tongue tracking and we can assert that

convolutional neural networks are superior to their

counterparts such as deep belief networks. This kind

of system shows its potential abilities for solving

other ultrasound problems and being applied to other

organs.

REFERENCES

Abadi, M. et al. (2016) ‘TensorFlow: A System for Large-

Scale Machine Learning.’, in OSDI, pp. 265–283.

Abel, J. et al. (2015) ‘Ultrasound-enhanced multimodal

approaches to pronunciation teaching and learning.’,

Canadian Acoustics, 43(3).

Badrinarayanan, V., Kendall, A. and Cipolla, R. (2015)

‘SegNet: A Deep Convolutional Encoder-Decoder

Architecture for Image Segmentation’, pp. 1–14. doi:

10.1109/TPAMI.2016.2644615.

Bernhardt, B. et al. (2005) ‘Ultrasound in speech therapy

with adolescents and adults’, Clinical Linguistics and

Phonetics, 19(6–7), pp. 605–617. doi:

10.1080/02699200500114028.

Bernhardt, M. B. et al. (2008) ‘Ultrasound as visual

feedback in speech habilitation: Exploring consultative

use in rural British Columbia, Canada’, Clinical

Linguistics & Phonetics. Taylor & Francis, 22(2), pp.

149–162. doi: 10.1080/02699200701801225.

Berry, J. and Fasel, I. (2011) ‘Dynamics of tongue

gestures extracted automatically from ultrasound’, in

Acoustics, Speech and Signal Processing (ICASSP),

2011 IEEE International Conference on, pp. 557–560.

Berry, J. J. (2012) Machine learning methods for

articulatory data. The University of Arizona.

Chen, S. et al. (2018) ‘Direct, Near Real Time Animation

of a 3D Tongue Model Using Non-Invasive

Ultrasound Images’, in 2018 IEEE International

Conference on Acoustics, Speech and Signal

Processing (ICASSP). IEEE, pp. 4994–4998. doi:

10.1109/ICASSP.2018.8462096.

Real-time Automatic Tongue Contour Tracking in Ultrasound Video for Guided Pronunciation Training

307

Chollet, F. and others (2015) ‘Keras: Deep learning library

for theano and tensorflow’, URL: https://keras. io/k, 7,

p. 8.

Csapo, T. G. and Lulich, S. M. (2015) ‘Error analysis of

extracted tongue contours from 2D ultrasound

images’, Proceedings of the Annual Conference of the

International Speech Communication Association,

INTERSPEECH, 2015–Janua, pp. 2157–2161. doi:

10.1111/j.0956-7976.2004.00672.x.

Denby, B. et al. (2010) ‘Silent speech interfaces’, Speech

Communication. Elsevier, 52(4), pp. 270–287.

Fabre, D. et al. (2015) ‘Tongue tracking in ultrasound

images using eigentongue decomposition and artificial

neural networks’, Proceedings of the Annual

Conference of the International Speech

Communication Association, INTERSPEECH, 2015–

Janua(2), pp. 2410–2414.

Fasel, I. and Berry, J. (2010) ‘Deep belief networks for

real-time extraction of tongue contours from

ultrasound during speech’, in Pattern Recognition

(ICPR), 2010 20th International Conference on, pp.

1493–1496. doi: 10.1109/ICPR.2010.369.

Geddes, D. T. and Sakalidis, V. S. (2016) ‘Ultrasound

imaging of breastfeeding—a window to the inside:

Methodology, normal appearances, and application’,

Journal of Human Lactation. SAGE Publications Sage

CA: Los Angeles, CA, 32(2), pp. 340–349.

Ghrenassia, S., Ménard, L. and Laporte, C. (2014)

‘Interactive segmentation of tongue contours in

ultrasound video sequences using quality maps’, in

Medical Imaging 2014: Image Processing, p. 903440.

Gick, B., Bernhardt, B., et al. (2008) ‘Ultrasound imaging

applications in second language acquisition’,

Phonology and second language acquisition. John

Benjamins Amsterdam, 36, pp. 315–328.

Gick, B., Bernhardt, B. M., et al. (2008) ‘Ultrasound

imging applications in second language acquisition’,

Phonology and Second Language Acquisition, (June),

pp. 309–322. doi: 10.1684/abc.2012.0768.

Hoopingarner, D. (2005) ‘SECOND LANGUAGE

SPEECH PERCEPTION AND PRODUCTION:

ACQUISITION OF PHONOLOGICAL

CONTRASTS IN JAPANESE’, Studies in Second

Language Acquisition. Cambridge University Press,

27(3), p. 494.

Hueber, T. (2013) ‘Ultraspeech-player: intuitive

visualization of ultrasound articulatory data for speech

therapy and pronunciation training.’, in

INTERSPEECH, pp. 752–753.

Jaumard-Hakoun, A., Xu, K., Leboullenger, C., et al.

(2016) ‘An articulatory-based singing voice synthesis

using tongue and lips imaging’, in ISCA Interspeech

2016, pp. 1467–1471.

Jaumard-Hakoun, A., Xu, K., Roussel-Ragot, P., et al.

(2016) ‘Tongue contour extraction from ultrasound

images based on deep neural network’, Proceedings of

the 18th International Congress of Phonetic Sciences

(ICPhS 2015). Available at:

http://arxiv.org/abs/1605.05912.

Ji, Y. et al. (2017) ‘Updating the silent speech challenge

benchmark with deep learning’, arXiv preprint

arXiv:1709.06818.

Kingma, D. P. and Ba, J. (2014) ‘Adam: A method for

stochastic optimization’, arXiv preprint

arXiv:1412.6980.

Laporte, C. and Ménard, L. (2015) ‘Robust tongue

tracking in ultrasound images: a multi-hypothesis

approach’, in Sixteenth Annual Conference of the

International Speech Communication Association.

Laporte, C. and Ménard, L. (2018) ‘Multi-hypothesis

tracking of the tongue surface in ultrasound video

recordings of normal and impaired speech’, Medical

image analysis. Elsevier, 44, pp. 98–114. doi:

10.1016/j.media.2017.12.003.

Lawson, E. et al. (2015) ‘Seeing Speech: an articulatory

web resource for the study of phonetics [website]’.

University of Glasgow.

Lee, S. A. S., Wrench, A. and Sancibrian, S. (2015) ‘How

To Get Started With Ultrasound Technology for

Treatment of Speech Sound Disorders’, SIG 5

Perspectives on Speech Science and Orofacial

Disorders. ASHA, 25(2), pp. 66–80.

Li, M., Kambhamettu, C. and Stone, M. (2005)

‘Automatic contour tracking in ultrasound images’,

Clinical Linguistics and Phonetics, 19(6–7), pp. 545–

554. doi: 10.1080/02699200500113616.

Litjens, G. et al. (2017) ‘A survey on deep learning in

medical image analysis’, Medical Image Analysis,

42(1995), pp. 60–88. doi:

10.1016/j.media.2017.07.005.

Long, J., Shelhamer, E. and Darrell, T. (2015) ‘Fully

convolutional networks for semantic segmentation’, in

Proceedings of the IEEE conference on computer

vision and pattern recognition, pp. 3431–3440.

Loosvelt, M., Villard, P.-F. and Berger, M.-O. (2014)

‘Using a biomechanical model for tongue tracking in

ultrasound images’, Biomedical Simulation, 8789, pp.

67–75. Available at:

http://link.springer.com/chapter/10.1007/978-3-319-

12057-7_8.

Ouni, S. (2014) ‘Tongue control and its implication in

pronunciation training’, Computer Assisted Language

Learning. Taylor & Francis, 27(5), pp. 439–453.

Preston, J. L. et al. (2014) ‘Ultrasound visual feedback

treatment and practice variability for residual speech

sound errors’, Journal of Speech, Language, and

Hearing Research. ASHA, 57(6), pp. 2102–2115.

Ronneberger, O., Fischer, P. and Brox, T. (2015) ‘U-net:

Convolutional networks for biomedical image

segmentation’, in International Conference on

Medical image computing and computer-assisted

intervention, pp. 234–241.

Stone, M. (2005) ‘A guide to analysing tongue motion

from ultrasound images’, Clinical Linguistics and

Phonetics, 19(6–7), pp. 455–501. doi:

10.1080/02699200500113558.

Tang, L., Bressmann, T. and Hamarneh, G. (2012)

‘Tongue contour tracking in dynamic ultrasound via

higher-order MRFs and efficient fusion moves’,

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

308

Medical Image Analysis. Elsevier B.V., 16(8), pp.

1503–1520. doi: 10.1016/j.media.2012.07.001.

Tang, L. and Hamarneh, G. (2010) ‘Graph-based tracking

of the tongue contour in ultrasound sequences with

adaptive temporal regularization’, 2010 IEEE

Computer Society Conference on Computer Vision

and Pattern Recognition - Workshops, CVPRW 2010,

pp. 154–161. doi: 10.1109/CVPRW.2010.5543597.

Wilson, I. et al. (2006) ‘Ultrasound technology and second

language acquisition research’, in Proceedings of the

8th Generative Approaches to Second Language

Acquisition Conference (GASLA 2006), pp. 148–152.

doi: doi.org/10.1002/hed.20772.

Xu, K. et al. (2016) ‘Robust contour tracking in ultrasound

tongue image sequences’, Clinical linguistics &

phonetics. Taylor & Francis, 30(3–5), pp. 313–327.

doi: 10.3109/02699206.2015.1110714.

Xu, K. et al. (2017) ‘Convolutional neural network-based

automatic classification of midsagittal tongue gestural

targets using B-mode ultrasound images’, The Journal

of the Acoustical Society of America. ASA, 141(6), pp.

EL531--EL537.

Zharkova, N. (2013) ‘Using ultrasound to quantify tongue

shape and movement characteristics’, The cleft palate-

craniofacial journal. SAGE Publications Sage CA:

Los Angeles, CA, 50(1), pp. 76–81.

Real-time Automatic Tongue Contour Tracking in Ultrasound Video for Guided Pronunciation Training

309
