Bi-Directional Attention Flow for Video Alignment

Reham Abobeah

1,2

, Marwan Torki

, Amin Shoukry

1,3

and Jiro Katto

CSE Department, Egypt-Japan University of Science and Technology, Alexandria, Egypt

CSE Department, Al-Azhar University, Cairo, Egypt

CSE Department, Alexandria University, Alexandria, Egypt

Computer Science and Communication Engineering Department, Waseda University, Tokyo 169-8555, Japan

Keywords:

Temporal Alignment, Synchronization, Attention Mechanisms, Bi-directional Attention.

Abstract:

In this paper, a novel technique is introduced to address the video alignment task which is one of the hot

topics in computer vision. Speciﬁcally, we aim at ﬁnding the best possible correspondences between two

overlapping videos without the restrictions imposed by previous techniques. The novelty of this work is that

the video alignment problem is solved by drawing an analogy between it and the machine comprehension

(MC) task in natural language processing (NLP). Simply, MC seeks to give the best answer to a question

about a given paragraph. In our work, one of the two videos is considered as a query, while the other as a

context. First, a pre-trained CNN is used to obtain high-level features from the frames of both the query and

context videos. Then, the bidirectional attention ﬂow mechanism; that has achieved considerable success in

MC; is used to compute the query-context interactions in order to ﬁnd the best mapping between the two input

videos. The proposed model has been trained using 10k of collected video pairs from ”YouTube”. The initial

experimental results show that it is a promising solution for the video alignment task when compared to the

state of the art techniques.

1 INTRODUCTION

Video Alignment aims at ﬁnding, in time and space,

the best correspondences between two videos. More

speciﬁcally, temporal alignment or synchronization

refers to mapping each frame in a reference sequence

to the most similar one in an input sequence, taking

into consideration the sequence information (Diego

et al., 2011). Along the last years, video alignment

has played a signiﬁcant role in many computer vision

applications including video matting (Sand and Teller,

2004), action recognition (Ukrainitz and Irani, 2006),

object detection (Kong et al., 2010), change detection

(Diego et al., 2011), and video editing (Wang et al.,

2014).

Most of the previous video alignment techniques

have some restrictions on the captured videos such as

constraining the used cameras to be either still or ste-

reo or independently moving. Other difﬁcult assump-

tions include knowing the trajectories of some feature

points along the whole video (Singh et al., 2008) or

supposing the existence of some linear relationship

among the two videos (Padua et al., 2010). We think

that these restrictions are among the reasons behind

the limited applicability of these techniques in real

applications. So, in this paper, we aim to overcome

most of these limitations and open the way to new ap-

plications through our new proposed technique.

Recently, attention mechanisms have achieved

great success in many applications in both NLP and

computer vision areas (Weston et al., 2015; Agrawal

et al., 2017; Xiong et al., 2016). Speciﬁcally, they

improved in a signiﬁcant way the performance of Re-

current Neural Network (RNN), through guiding it

to ”where to look” during the task. The most com-

mon characteristics of these attention-based works

can be summarized in the following points. First, they

extract the information related to the query through

summarizing the context into a ﬁxed length vector ba-

sed on the attention weights. Second, the attention

weights at any time step depend mainly on the atten-

ded vector from the previous step. Third, the attention

direction is always from the query to the image, in

captioning task or the context paragraph in NLP task.

Unlike these mechanisms, we depend, mainly in

our work, on the bidirectional attention ﬂow (BIDAF)

technique introduced recently in (Seo et al., 2016).

BIDAF outperforms the previous techniques by the

Abobeah, R., Torki, M., Shoukry, A. and Katto, J.

Bi-Directional Attention Flow for Video Alignment.

DOI: 10.5220/0007524505830589

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 583-589

ISBN: 978-989-758-354-4

583

following features which make it the best choice for

our task. First, instead of context summarization, the

attention is estimated at each time step and the out-

put vector together with the previous layer represen-

tation are passed to the modeling layer. Second, the

attention at each time step depends only on the query

and the context at the current time step regardless of

the attention at the previous step. Consequently, this

prevents inaccurate attention at previous steps from

affecting the current time attention. Finally, BIDAF

technique applies the attention in both directions from

the query to the context and vice versa. This, in turn,

leads to a signiﬁcant improvement in the overall accu-

racy through feeding more useful information to the

model.

In this paper, we propose a new solution for the

video alignment task. Speciﬁcally, we deal with the

task as MC by letting one of the two input videos acts

as a query and the other as the context, allowing the

technique to ﬁnd the best match for the given query.

Nothing more than the existence of an overlapping

among these two videos is required. We exploit all

the previously mentioned features of the BIDAF me-

chanism and apply it to our task.

Through testing the proposed approach on a small

challenging dataset, we conclude that it can be

successfully applied to the state of the art video alig-

nment datasets.

2 RELATED WORK

2.1 Video Alignment

There are many available solutions for the video sy-

nchronization task. They differ according to the re-

strictions and assumptions imposed by each method.

We brieﬂy introduce some of these previous works in

this section.

Regarding the temporal correspondence, some

works assume a constant offset time between each

two corresponding frames t

= t

+β , (Tuytelaars and

Van Gool, 2004; Ushizaki et al., 2006; Wolf and Zo-

met, 2006). Others, assume a linear relationship in or-

der to consider the frame rate difference t

= α t

+ β

, (Wedge et al., 2007; Tresadern and Reid, 2009; Ra-

vichandran and Vidal, 2011). In both cases, the alig-

nment models need to only estimate one or two para-

meters whereas in non-parametric curve assumption

based models, the problem turns to be much harder

(Sand and Teller, 2004; Fraundorfer et al., 2007; Ho

and Newman, 2007; Singh et al., 2008; Cao et al.,

2010).

By considering the relation between the used ca-

meras, the existing solutions depend on using either

two rigidly connected or independently moving ca-

meras. The problem is easier to solve in the ﬁrst case

as the geometric transformation among the coordinate

systems of both cameras is assumed to be constant

(Wolf and Zomet, 2006; Wedge et al., 2007; Ravi-

chandran and Vidal, 2011). On the contrary, no geo-

metric relationship can be assumed in case of the two

moving cameras. Consequently, the proposed soluti-

ons have to assume the existence of an overlapping

ﬁeld of view between the two cameras in order to

solve the problem (Sand and Teller, 2004; Dai et al.,

2006; Fraundorfer et al., 2007; Singh et al., 2008;

Tresadern and Reid, 2009; Padua et al., 2010).

Also, the existing alignment models can be clas-

siﬁed, according to their inputs, into two types, direct

methods and feature based methods. In the ﬁrst type,

the model deals directly with the frame intensity va-

lues (Caspi and Irani, 2002; Ushizaki et al., 2006), its

Fourier transform (Dai et al., 2006), or its dynamic

texture (Ravichandran and Vidal, 2011). On the ot-

her hand, feature based methods require tracking the

feature points along the whole two sequences (Tuy-

telaars and Van Gool, 2004; Wolf and Zomet, 2006;

Singh et al., 2008), or both the feature points and li-

nes along three sequences (Lei and Yang, 2006) or

identifying the interest points in space or in space and

time (Sand and Teller, 2004; Fraundorfer et al., 2007;

Tresadern and Reid, 2009; Cao et al., 2010; Padua

et al., 2010). It is worthy to note that some of the

previous works can align the two videos even if they

are captured at different points in time like (Ukrai-

nitz and Irani, 2006; Ho and Newman, 2007; Singh

et al., 2008; Cao et al., 2010), while other works deal

only with simultaneously captured videos like (Caspi

and Irani, 2002; Dai et al., 2006; Lei and Yang, 2006;

Tresadern and Reid, 2009; Padua et al., 2010; Ravi-

chandran and Vidal, 2011). Recently, (Douze et al.,

2016) has introduced an alignment method that can

accurately ﬁnd the best correspondences among two

overlapped videos even with a signiﬁcant change in

the view point. However, this method assumes a con-

stant offset time among the two input videos.

Unlike the previous solutions, we aim to present

a new alignment technique that works smoothly with

no restrictions, other than the existence of an overlap

among the two given videos.

2.2 Visual Question Answering (VQA)

Recently, the VQA task or answering a question about

an image has been solved by representing both the

question and the image through RNN and CNN, re-

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

584

spectively. Then, they are combined together to give

a suitable answer for the question (Malinowski et al.,

2015; Agrawal et al., 2017).

Also, some researches have exploited the atten-

tion mechanisms to solve the VQA task. They can be

classied according to the granularity level of their at-

tention mechanism and the attention matrix computa-

tion method. A coarse granularity level causes mul-

tiple image patches to gain attention from the que-

stion (Xiong et al., 2016; Zhu et al., 2016). While

a ﬁner level causes each question word to pay atten-

tion to all image patches and, at the end, the patch

with the highest attention value is selected (Xu and

Saenko, 2016). Also, (Yang et al., 2016) introdu-

ced the idea of combining the question representa-

tion at different levels of granularity (uni/bi/trigrams).

On the other hand, there are various approaches to

construct the attention matrix including concatena-

tion, element-wise (sum/product) and Bilinear Pool-

ing (Fukui et al., 2016).

Besides the work introduced by (Seo et al., 2016)

in MC, that applied the bidirectional attention mecha-

nism to their work, (Lu et al., 2016) also adopted the

same idea. They proved that estimating the attention

from the question words to the image patches and vice

versa, has a great effect on the efﬁciency of the VQA

task. Consequently, we expect the same success in

solving the video alignment task using the same me-

chanism.

3 THE PROPOSED MODEL

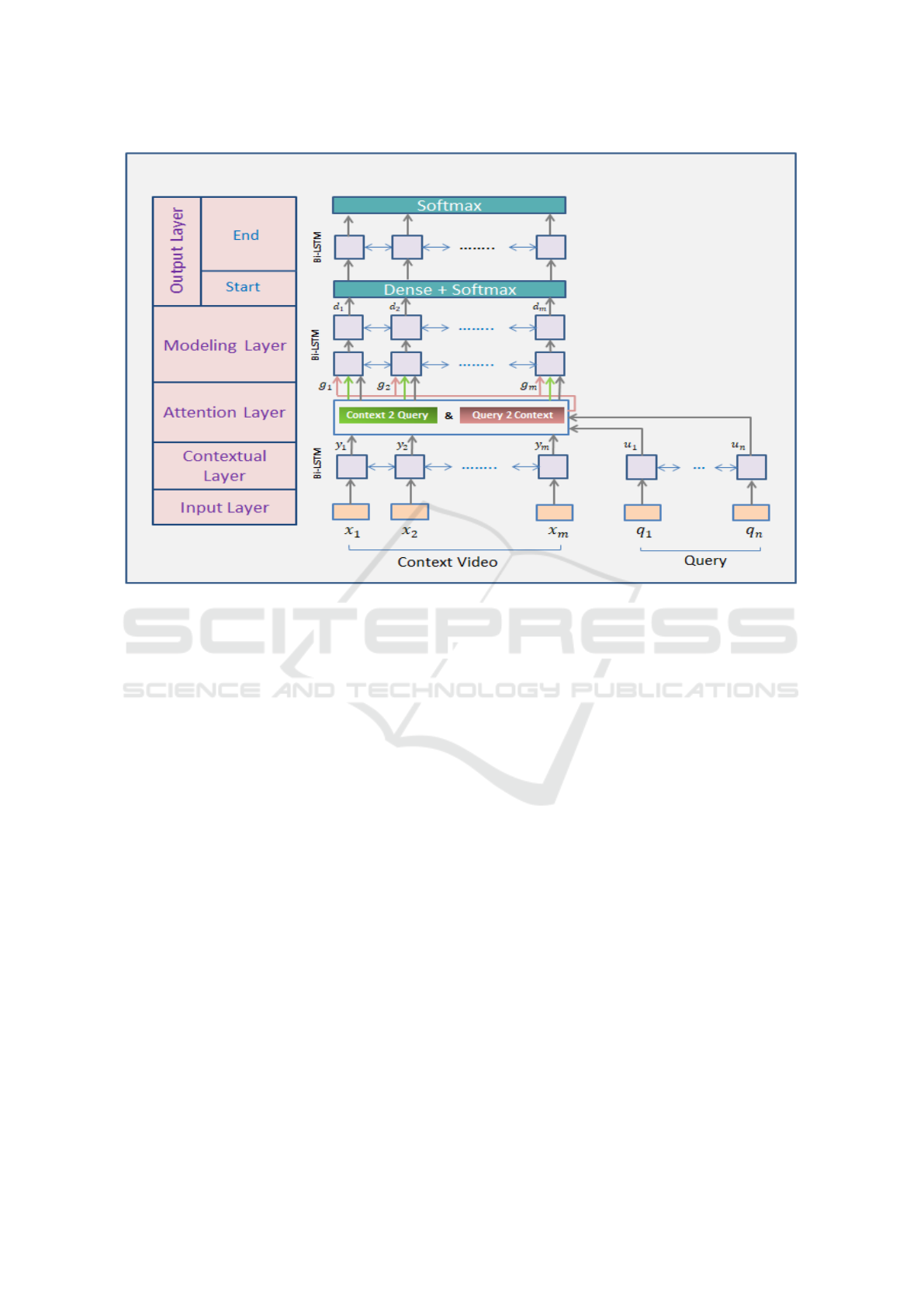

Our alignment technique, as shown in Figure 1, con-

sists of ﬁve layers that can be described as follows:

1. Input Layer: maps each frame from both query

and context videos to a ﬁxed length descriptor

using a pre-trained CNN.

2. Contextual Layer: considers the relations bet-

ween all the sequence frames in order to improve

the feature extraction layer.

3. Attention Layer: ties the query and the context

video vectors such that it generates a set of feature

vectors representing the query-awareness degree

for each frame in the context video.

4. Modeling Layer: is responsible for scanning the

context video through applying the RNN.

5. Output Layer: gives the start and end indices for

the best aligned part from the context video to the

input query.

1. Input Layer: It is considered a frame level

feature extraction layer. Let {x

, ..., x

} and

, ..., q

} be frames of a context and query

videos, respectively. Each frame in the input is

fully described by a ﬁxed length vector through

using a pre-trained VGG-16. VGG-16 is a

convolutional neural network of 16 layers depth

that is pre-trained on ImageNet dataset (Deng

et al., 2009) which contains millions of static

labeled images.

2. Contextual Layer: In this layer, a Long Short

Term Memory Network (LSTM) (Hochreiter and

Schmidhuber, 1997) is used in both forward and

backward directions in order to consider the tem-

poral interactions among input frames. The input

to the contextual layer is the descriptors obtained

from the ﬁrst layer. Each LSTM output is of d-

dimension and the ﬁnal layer output is a concate-

nation of both LSTMs outputs to yield Y ∈ R

2d×M

from the context video and U ∈ R

2d×N

from the

query video. Therefore, the dimension of each

component of Y and U is 2d.

It is worthy to mention that the ﬁrst two layers of

the model are computed for both the query and

context and they represent two levels of feature

extraction.

3. Attention Layer: This layer is in charge of fu-

sing and linking the information from both the

query and the context video frames. As mentio-

ned earlier, it adopts a different way in compu-

ting the attention, other than those in the previous

mechanisms. Instead of summarizing in a single

representative vector both the query and the con-

text, the attention of the query to each frame in the

context video is estimated at each time step. This

layer takes as input the contextual representation

vectors of both the query and the context videos

and outputs the query-aware representation vec-

tors G of the context video. In addition, the con-

text layer output is passed to the Modeling layer.

One of the main pros of this layer is computing the

attention in both directions to obtain, at the end,

a set of highly representative attended vectors in

each direction.

The shared step in computing the bidirectional at-

tention is to calculate a similarity matrix between

both the context and the query frames as follows:

Similarity Matrix: It is constructed by compu-

ting the cosine similarity between the m-th con-

text frame and the n-th query frame to obtain, at

the end, S ∈ R

M×N

Bi-Directional Attention Flow for Video Alignment

585

Figure 1: The BIDAF-based Video Alignment Model.

Context to Query Attention: This step determi-

nes the most relevant query frames to each frame

in the context video. Given the similarity matrix

S, the attention weights of the query frames to the

m-th frame in the context video, are calculated ac-

cording to the following formula:

= so f tmax( S

) ∈ R

(1)

where S

is the m-th column vector in S and

∑

= 1, for all m. Consequently, we obtain the

Umatrix of size 2d by M, such that each column

represents the attended query vector to a speciﬁc

frame in the context video:

∑

(2)

Query to Context Attention: This step is very

critical for reaching the best answer to the input

query. It determines the context video frame that

has the best similarity to one of the query frames.

First, the attention weights of each context frame

are calculated using the following formula:

b = so f tmax(max( S)) ∈ R

(3)

where max function is applied to each column in

the S matrix. Then, the weighted context vectors

are obtained using

= b

∈ R

2d×M

(4)

Finally, the targeted attended vector is the weigh-

ted sum of these vectors which represent the most

important context frames w.r.t. the query frames

as follows:

¯y =

∑

∈ R

(5)

The ﬁnal output of this layer is obtained by com-

bining the output of both the contextual and the

attention layers. Semantically, each column in the

output matrix is aware of each context frame re-

presentation and is calculated through

= [ Y

;

◦

] ∈ R

8d×M

(6)

where ◦ is an element-wise multiplication and [ ;]

is a concatenation of vector across row.

4. Modeling Layer: Unlike the contextual layer

that computes the interactions among the context

frames with no regard to the query frames, this

layer captures these interactions by considering

the query frames. It takes as input the output

of the previous layer, G matrix, which reﬂects

the query-awareness of each context frame. The

modeling layer processes the input through two

bi-directional LSTM layers, each direction output

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

586

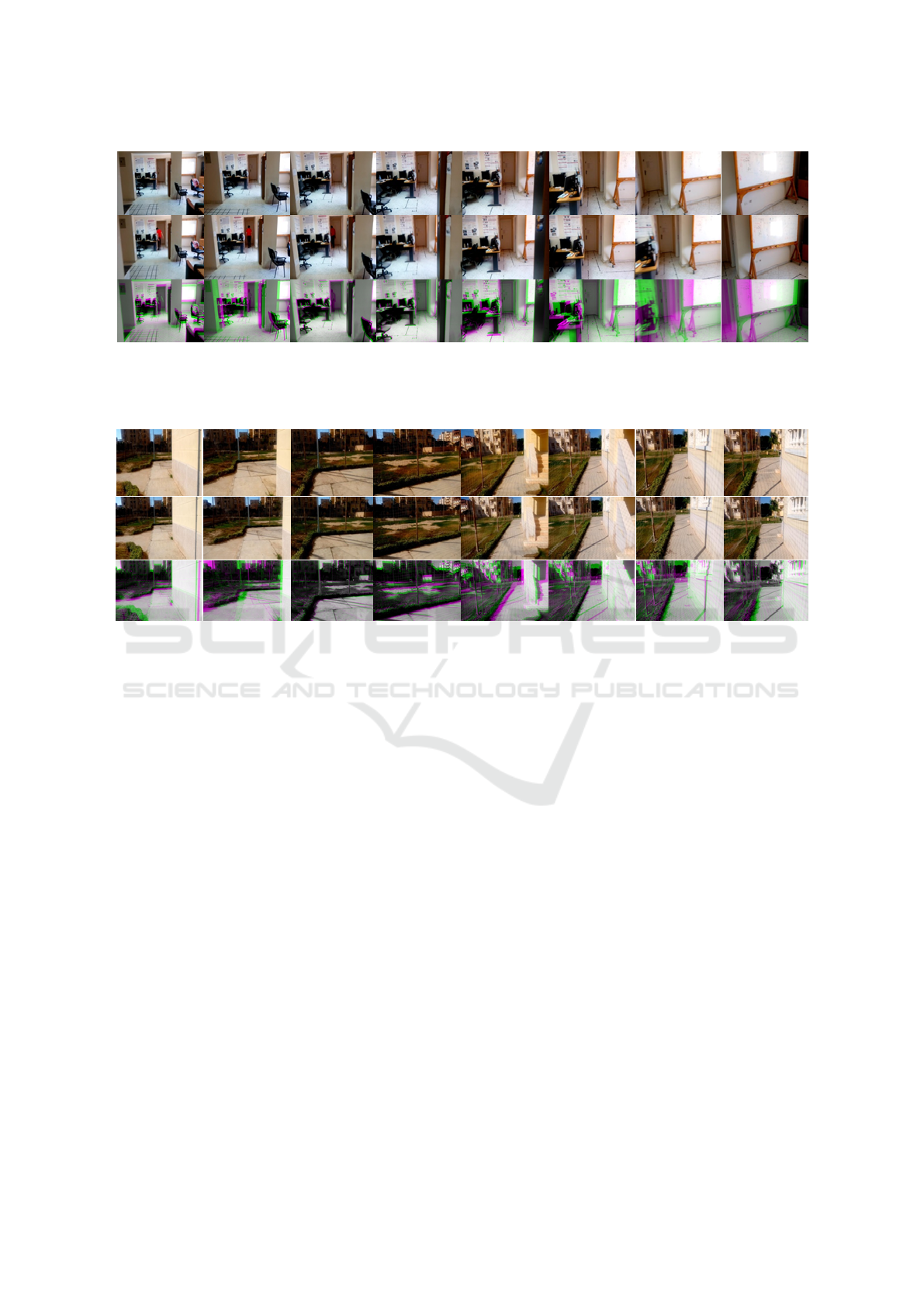

Figure 2: Example of BIDAF-based Indoor Alignment. The top and the middle rows represent some selected frames from the

query sequence and their corresponding frames in the original one, respectively. The bottom row represents the fusion image

where the Red & Blue channels in the RGB image are assigned to the query frame, while the Green channel is assigned to its

corresponding frame.

Figure 3: Example of BIDAF-based Outdoor Alignment. The top and the middle rows represent some selected frames from

the query sequence and their corresponding frames in the original one, respectively. The bottom row represents the fusion

image where the Red & Blue channels in the RGB image are assigned to the query frame, while the Green channel is assigned

to its corresponding frame.

is of size ”d”, hence the ﬁnal output is a matrix

D ∈ R

2d×M

. Each column in the output matrix

captures the contextual information of the m-th

frame w.r.t the whole context and the query

videos.

5. Output Layer: This layer aims at ﬁnding the best

part in the context video corresponding to the in-

put query. Speciﬁcally, it responds by the start and

end of the frame indices of the best sub-sequence

in the context video. Firstly, the probability distri-

bution of the start index w.r.t. the whole video can

be obtained through:

Start

= so f tmax( w

start

[ G; D] )

(7)

Where w

start

∈ R

10d

represents a trainable weight

vector. For obtaining the end frame index, the D

matrix is pushed to one bi-directional LSTM layer

in order to get D

∈ R

2d×M

. Then, the probability

distribution of the end index is estimated through:

End

= so f tmax( w

end

[ G; D

] )

(8)

4 THE PROPOSED APPROACH

EVALUATION

We train our model on 10k of YouTube videos that are

aligned manually in an accurate way. For each query

video, its corresponding part in the context video is

identiﬁed by the start and end of frames indices.

As an initial evaluation, the proposed model is

tested by the blind navigation dataset introduced

in our recently published work (Abobeah et al.,

2018). Although this dataset has been collected in the

context of a navigation technique for blind people, it

has a tight relation to our present task. The navigation

technique depends mainly on identifying the current

location of the blind user w.r.t. a reference video

through using an on-line alignment technique. This

dataset consists of 12 video pairs of 22 minutes total

length, half of them are captured at outdoor and the

rest at indoor. All videos are captured using a chest

mounted mobile phone camera carried by a blind

person along some indoor/outdoor routine paths and

Bi-Directional Attention Flow for Video Alignment

587

are manually annotated for the instruction generation

task in the navigation work. For our task, all videos

are re-annotated such that each query, which is

randomly chosen with various lengths from 5 to 120

seconds from each video, is aligned to its original

video. Speciﬁcally, we assign the interval [ l

, u

]

in the original video to represent the start and end

indices of the query input, and given the predicted

interval from the proposed model, we can estimate

the alignment error for each pair.

We can qualitatively observe the performance of

our proposed approach on two video pairs from the

navigation dataset, one is captured at indoor as shown

in ﬁgure 2, and the other at outdoor as shown in ﬁ-

gure 3. Clearly, We can observe the well deﬁned cor-

respondences among each of the two videos, which

support our idea of considering our approach a pro-

mising solution for the video alignment task.

5 CONCLUSIONS

In this work, we present a new technique to solve the

temporal alignment task between two overlapped vi-

deos with no restrictions imposed on the capturing

process. The proposed technique uses the pretrained

CNN network,”VGG-16”, to obtain highly descriptive

features of the video frames. Also, it exploits the bi-

directional attention ﬂow mechanism that has already

proved its efﬁciency in MC in order to consider the

existing interactions between the two input videos in

both directions. Initial results obtained using a trai-

ning dataset including around 10k of video pairs from

”YouTube” show that this approach is highly effective

in mapping the input query video to its corresponding

part in the context video. We plan to test our model

using the state of the art datasets for video alignment

to be able to assess its accuracy thoroughly.

ACKNOWLEDGEMENTS

This work has been supported by the Ministry of Hig-

her Education (MoHE) of Egypt and Waseda Univer-

sity at Japan through a PhD scholarship.

REFERENCES

Abobeah, R., Hussein, M., Abdelwahab, M., and Shoukry,

A. (2018). Wearable rgb camera-based navigation sy-

stem for the visually impaired. In Advanced Concepts

for Intelligent Vision Systems, volume 5, pages 555–

562.

Agrawal, A., Lu, J., Antol, S., Mitchell, M., Zitnick, C. L.,

Parikh, D., and Batra, D. (2017). Vqa: Visual question

answering. International Journal of Computer Vision,

123(1):4–31.

Cao, X., Wu, L., Xiao, J., Foroosh, H., Zhu, J., and Li,

X. (2010). Video synchronization and its applica-

tion to object transfer. Image and Vision Computing,

28(1):92–100.

Caspi, Y. and Irani, M. (2002). Spatio-temporal alignment

of sequences. IEEE Transactions on Pattern Analysis

& Machine Intelligence, (11):1409–1424.

Dai, C., Zheng, Y., and Li, X. (2006). Accurate video align-

ment using phase correlation. IEEE Signal Processing

Letters, 13(12):737–740.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-Fei,

L. (2009). Imagenet: A large-scale hierarchical image

database. In Computer Vision and Pattern Recogni-

tion, 2009. CVPR 2009. IEEE Conference on, pages

248–255. Ieee.

Diego, F., Ponsa, D., Serrat, J., and L

opez, A. M. (2011).

Video alignment for change detection. IEEE Tran-

sactions on Image Processing, 20(7):1858–1869.

Douze, M., Revaud, J., Verbeek, J., J

egou, H., and Schmid,

C. (2016). Circulant temporal encoding for video re-

trieval and temporal alignment. International Journal

of Computer Vision, 119(3):291–306.

Fraundorfer, F., Engels, C., and Nist

er, D. (2007). Topologi-

cal mapping, localization and navigation using image

collections. In Intelligent Robots and Systems, 2007.

IROS 2007. IEEE/RSJ International Conference on,

pages 3872–3877. IEEE.

Fukui, A., Park, D. H., Yang, D., Rohrbach, A., Darrell, T.,

and Rohrbach, M. (2016). Multimodal compact bili-

near pooling for visual question answering and visual

grounding. arXiv preprint arXiv:1606.01847.

Ho, K. L. and Newman, P. (2007). Detecting loop closure

with scene sequences. International Journal of Com-

puter Vision, 74(3):261–286.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9(8):1735–1780.

Kong, H., Audibert, J.-Y., and Ponce, J. (2010). Detecting

abandoned objects with a moving camera. IEEE Tran-

sactions on Image Processing, 19(8):2201–2210.

Lei, C. and Yang, Y.-H. (2006). Tri-focal tensor-based

multiple video synchronization with subframe opti-

mization. IEEE Transactions on Image Processing,

15(9):2473–2480.

Lu, J., Yang, J., Batra, D., and Parikh, D. (2016). Hierar-

chical question-image co-attention for visual question

answering. In Advances In Neural Information Pro-

cessing Systems, pages 289–297.

Malinowski, M., Rohrbach, M., and Fritz, M. (2015). Ask

your neurons: A neural-based approach to answering

questions about images. In Proceedings of the IEEE

international conference on computer vision, pages 1–

Padua, F., Carceroni, R., Santos, G., and Kutulakos,

K. (2010). Linear sequence-to-sequence alignment.

VISAPP 2019 - 14th International Conference on Computer Vision Theory and Applications

588

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 32(2):304–320.

Ravichandran, A. and Vidal, R. (2011). Video registration

using dynamic textures. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 33(1):158–171.

Sand, P. and Teller, S. (2004). Video matching. In ACM

Transactions on Graphics (TOG), volume 23, pages

592–599. ACM.

Seo, M., Kembhavi, A., Farhadi, A., and Hajishirzi, H.

(2016). Bidirectional attention ﬂow for machine com-

prehension. arXiv preprint arXiv:1611.01603.

Singh, M., Cheng, I., Mandal, M., and Basu, A. (2008). Op-

timization of symmetric transfer error for sub-frame

video synchronization. In European Conference on

Computer Vision, pages 554–567. Springer.

Tresadern, P. A. and Reid, I. D. (2009). Video synchroniza-

tion from human motion using rank constraints. Com-

puter Vision and Image Understanding, 113(8):891–

906.

Tuytelaars, T. and Van Gool, L. (2004). Synchronizing vi-

deo sequences. In Computer Vision and Pattern Re-

cognition, 2004. CVPR 2004. Proceedings of the 2004

IEEE Computer Society Conference on, volume 1, pa-

ges I–I. IEEE.

Ukrainitz, Y. and Irani, M. (2006). Aligning sequences and

actions by maximizing space-time correlations. Com-

puter Vision–ECCV 2006, pages 538–550.

Ushizaki, M., Okatani, T., and Deguchi, K. (2006). Vi-

deo synchronization based on co-occurrence of appea-

rance changes in video sequences. In Pattern Recogni-

tion, 2006. ICPR 2006. 18th International Conference

on, volume 3, pages 71–74. IEEE.

Wang, O., Schroers, C., Zimmer, H., Gross, M., and

Sorkine-Hornung, A. (2014). Videosnapping: In-

teractive synchronization of multiple videos. ACM

Transactions on Graphics (TOG), 33(4):77.

Wedge, D., Huynh, D., and Kovesi, P. (2007). Using space-

time interest points for video sequence synchroniza-

tion.

Weston, J., Chopra, S., and Bordes, A. (2015). Memory

networks. arXiv preprint arXiv:1410.3916.

Wolf, L. and Zomet, A. (2006). Wide baseline matching be-

tween unsynchronized video sequences. International

Journal of Computer Vision, 68(1):43–52.

Xiong, C., Merity, S., and Socher, R. (2016). Dynamic

memory networks for visual and textual question ans-

wering. In International conference on machine lear-

ning, pages 2397–2406.

Xu, H. and Saenko, K. (2016). Ask, attend and answer:

Exploring question-guided spatial attention for visual

question answering. In European Conference on Com-

puter Vision, pages 451–466. Springer.

Yang, Z., He, X., Gao, J., Deng, L., and Smola, A. (2016).

Stacked attention networks for image question answe-

ring. In Proceedings of the IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 21–29.

Zhu, Y., Groth, O., Bernstein, M., and Fei-Fei, L. (2016).

Visual7w: Grounded question answering in images.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 4995–5004.

Bi-Directional Attention Flow for Video Alignment

589
