Hypervisor-assisted Atomic Memory Acquisition in Modern Systems

Michael Kiperberg

, Roee Leon

, Amit Resh

, Asaf Algawi

and Nezer Zaidenberg

Faculty of Sciences, Holon Institute of Technology, Israel

Department of Mathematical IT, University of Jyv

askyl

a, Finland

School of Computer Engineering, Shenkar College of Engineering, Design and Art, Israel

School of Computer Sciences, The College of Management, Academic Studies, Israel

Keywords:

Live Forensics, Memory Forensics, Memory Acquisition, Virtualization, Reliability, Atomicity, Integrity of a

Memory Snapshot, Forensic Soundness.

Abstract:

Reliable memory acquisition is essential to forensic analysis of a cyber-crime. Various methods of memory

acquisition have been proposed, ranging from tools based on a dedicated hardware to software only solutions.

Recently, a hypervisor-based method for memory acquisition was proposed (Qi et al., 2017; Martignoni et al.,

2010). This method obtains a reliable (atomic) memory image of a running system. The method achieves

this by making all memory pages non-writable until they are copied to the memory image, thus preventing

uncontrolled modiﬁcation of these pages. Unfortunately, the proposed method has two deﬁciencies: (1) the

method does not support multiprocessing and (2) the method does not support modern operating systems

featuring address space layout randomization (ASLR). We describe a hypervisor-based memory acquisition

method that solves the two aforementioned deﬁciencies. We analyze the memory usage and performance of

the proposed method.

1 INTRODUCTION

Nowadays, the sophistication level of cyber-attacks

makes it almost impossible to analyze them statically.

Many of the attacks are designed to detect debuggers

and other tools of dynamic analysis. Upon detection

of such tool, the malicious software deviates from its

normal behavior, thus rendering the analysis useless.

Therefore, usually the analysis of an attack is divided

into two steps: memory acquisition and static analy-

sis. In the ﬁrst step, a software (Qi et al., 2017; Mar-

tignoni et al., 2010; Reina et al., 2012) or a hardware

tool (Zhang et al., 2010) acquires the memory con-

tents of a running system and stores it for later anal-

ysis. In the second step, a static analysis tool, e.g.,

Rekall (Cohen, 2014), is applied to the acquired im-

age of memory to analyze the malicious software.

The memory acquisition is performed while the

system is running and updating its data structures and

pointers. Consider the following example. The op-

erating system creates a new Process Environment

Block at page 1,000 and adds it to the list of running

processes at page 2,000. Assume that the process cre-

ating occurs when the ﬁrst 1,500 pages were already

acquired. In the resulting memory image, we will

have a list of processes that point to an invalid Pro-

cess Environment Block because page 1,000 was ac-

quired before the creation of the Process Environment

Block. Therefore, special measures must be taken to

avoid inconsistencies in the acquired memory image.

This paper presents a software hypervisor-based

tool for consistent memory acquisition. Hypervisor’s

ability to conﬁgure access rights of memory pages can

be used to solve the problem of inconsistencies as fol-

lows:

1. When the hypervisor is requested to start memory

acquisition, it conﬁgures all memory pages to be

non-writable.

2. When an attempt is made to write to a memory

page P, the hypervisor is notiﬁed.

3. The hypervisor copies the contents of P to its

inner buffer and conﬁgures the page P to be

writable.

4. The hypervisor periodically sends the data in its

inner buffer. If more data can be sent than is avail-

able in the inner buffer, then the hypervisor sends

other pages and conﬁgures them to be writable.

This method is described in multiple previous works

(Qi et al., 2017; Martignoni et al., 2010).

Kiperberg, M., Leon, R., Resh, A., Algawi, A. and Zaidenberg, N.

Hypervisor-assisted Atomic Memory Acquisition in Modern Systems.

DOI: 10.5220/0007566101550162

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 155-162

ISBN: 978-989-758-359-9

155

Unfortunately, two problems arise with the de-

scribed method in modern systems. The ﬁrst problem

is the availability of multiple processors. Each pro-

cessor has direct access to the main memory and can

freely modify any page. Therefore, when the hyper-

visor is requested to start memory acquisition, it must

conﬁgure all memory pages on all processors to be

non-writable.

Another problem is delay sensitivity of some

memory pages. Generally, interrupt service routines

react to interrupts in two steps: they register the oc-

currence of an interrupt and acknowledge the device

that the interrupt was serviced. The acknowledgement

must be received in a timely manner; therefore, the

registration of an interrupt occurrence, which involves

writing to a memory page, must not be intercepted by

a hypervisor, i.e., these pages must remain writable.

Address space layout randomization, a security

feature employed by modern operating systems, e.g.,

Windows 10, complicates the delay sensitivity prob-

lem even more. When ASLR is enabled, the oper-

ating system splits its virtual address space into re-

gions. Then, during the initialization of the operating

system, each region is assigned a random virtual ad-

dress. With ASLR, the location of the delay-sensitive

pages is not known in advance.

We propose the following solution to the problems

mentioned above. Our hypervisor invokes an operat-

ing system’s mechanism to perform an atomic access

rights conﬁguration on all the processors. Section 4.3

describes the invocation process, which allows our

hypervisor to call an operating system’s function in

a safe and predictable manner.

We solve the delay sensitivity problem by copy-

ing the delay-sensitive pages to the hypervisor’s in-

ner buffer in advance, i.e., when the hypervisor is re-

quested to start memory acquisition. The ASLR com-

plication is addressed by inspecting the operating sys-

tem’s dynamic map of memory regions and obtaining

the dynamic locations of the delay-sensitive pages.

Section 4.2 contains a detailed description of ASLR

as it is implemented in Windows 10 and our solution

of the delay sensitivity problem.

The contribution of our work is:

1. We show how memory can be acquired on sys-

tems with multiple processors.

2. We present a solution to the delay sensitivity prob-

lem.

3. We explain how the locations of sensitive pages

can be obtained dynamically on Windows 10. We

believe that similar methods will be applicable to

future versions of Windows.

2 RELATED WORK

Previous versions of the Windows oper-

ating system contained a special device,

\\Device\PhysicalMemory, that mapped the

entire physical memory. This device could be used

to acquire the physical memory without any special

tools. Unfortunately, because this method of memory

acquisition relies on the operating system, a skilled

attacker can disable or corrupt this feature (Carrier

and Grand, 2004). Moreover, this method is not

available in Windows 2003 SP1 and later versions of

Windows (Microsoft Corporation, 2009).

Another method of memory acquisition is based

on generic or dedicated hardware. Several previous

works show how a generic FireWire card can be used

to acquire memory remotely (Zhang et al., 2010). A

dedicated PCI card, named Tribble, works in a similar

manner (Carrier and Grand, 2004). The main advan-

tage of a hardware solution is the ability of a PCI card

to communicate with the memory controller directly,

thus providing a reliable result even if the operating

system itself was compromised. However, hardware

solutions have three deﬁciencies:

1. They are expensive.

2. The produced memory image is not atomic.

3. These tools fail when Device Guard (Durve and

Bouridane, 2017), a security feature introduced in

Windows 10, is enabled.

Device Guard is a security feature that utilizes

IOMMU (Ben-Yehuda et al., 2007; Zaidenberg,

2018) to prevent malicious access to memory from

physical devices (Brendmo, 2017). When Device

Guard is enabled, the operating system assigns each

device a memory region that it is allowed to access.

Any attempt to access memory outside this region is

prevented by the DMA controller.

Recently, several hypervisor-based methods of

memory acquisition have been proposed. Hyper-

Sleuth (Martignoni et al., 2010) is a driver with an

embedded hypervisor. Its hypervisor is capable of

performing atomic and lazy memory acquisition. The

laziness is expressed in the ability of the hypervisor

to continue the normal execution while the memory

is acquired. ForenVisor (Qi et al., 2017) is a similar

hypervisor with additional features that allow it to log

keyboard strokes and hard-drive activity. Both hyper-

visors were tested on Windows XP SP3 with only one

processor enabled.

We show how the idea of HyperSleuth and Foren-

Visor can be adapted to multi-processor systems exe-

cuting Windows 10.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

156

3 BACKGROUND

3.1 Hypervisors

The main component of the described system is a hy-

pervisor, which utilizes the VMX instruction set ex-

tension. This section provides a short overview of this

component. Section 4 contains a detailed description

of the hypervisor’s design There are two types of hy-

pervisors: full hypervisors and thin hypervisors. Full

hypervisors like Xen (Barham et al., 2003), VMware

Workstation (VMware, 2018), and Oracle VirtualBox

(Oracle, 2018) can execute several operating systems

concurrently. The main goal of VMX was to provide

software developers with means to construct efﬁcient

full hypervisors.

Thin hypervisors, in contrast, can execute only

a single operating system. Their main purpose is

to enrich the functionality of an operating system.

The main beneﬁt of a hypervisor over kernel mod-

ules (device drivers) is the hypervisor’s ability to cre-

ate an isolated environment, which is important in

some cases. Thin hypervisors are used for operating

system’s integrity validation (Seshadri et al., 2007),

remote attestation (Kiperberg et al., 2015; Kiperberg

and Zaidenberg, 2013), malicious code execution pre-

vention (Resh et al., 2017), in-memory secret protec-

tion (Resh and Zaidenberg, 2013), hard drive encryp-

tion (Shinagawa et al., 2009), and memory acquisition

(Qi et al., 2017),

In general, because thin hypervisors are much

smaller than full hypervisors, they are superior in their

performance, security, and reliability. The hypervisor

described in this paper is a thin hypervisor that is ca-

pable of acquiring a memory image of an executing

system atomically. The hypervisor was written from

scratch to achieve an optimal performance.

Similarly to an operating system, a hypervisor

does not execute voluntarily but responds to events,

e.g., execution of special instructions, generation of

exceptions, access to memory locations, etc. The hy-

pervisor can conﬁgure interception of (almost) each

event. Interception of an event (a VM-exit) is similar

to handling of an interrupt, i.e., a predeﬁned function

is executed by the processor. Another similarity with

an operating system is the hypervisor’s ability to con-

ﬁgure the access rights to each memory page through

a data structure, named EPT, which resembles the vir-

tual page table. An attempt to write to a non-writable

(according to EPT) page induces a VM-exit and al-

lows the hypervisor to act.

3.2 Lazy Hypervisor-based Memory

Acquisition

The solutions proposed by HyperSleuth and ForenVi-

sor for memory acquisition are based on a thin hyper-

visor and can be summarized as follows. The hyper-

visor remains idle (or deactivated) until it receives a

memory acquisition request. When the request is re-

ceived, the hypervisor conﬁgures the EPT to make all

memory pages non-writable. An attempt to write to a

page P will trigger a VM-exit, thus allowing the hy-

pervisor to react. The hypervisor reacts by copying P

to an inner queue, and making P writable again. Fu-

ture attempts to write to P will not trigger a VM-exit.

The queued pages are transmitted to a remote

machine via a communication channel. This chan-

nel may be secure or not, depending on the secu-

rity assumptions about the underlying environment.

The size of the queue is dictated by the communica-

tion channel bandwidth and the volume of pages that

are modiﬁed by the system. Obviously, if the com-

munication channel allows sending more data than

is available in the queue, then the hypervisor sends

other non-writable pages and conﬁgures them to be

writable. This process continues until all pages be-

come writable.

3.3 Delay-sensitive Pages and ASLR

Generally, interrupt service routines react to inter-

rupts in two steps: they register the occurrence of an

interrupt and acknowledge the device that the inter-

rupt was serviced. The acknowledgement must be re-

ceived in a timely manner; therefore, the registration

of an interrupt occurrence, which involves writing to

a memory page, must not be intercepted by a hyper-

visor, i.e., these pages must remain writable. This is-

sue was not addressed by the authors of HyperSleuth

and ForenVisor. We assume that this problem did not

occur on Windows XP SP3, which was tested in pre-

vious works.

Address space layout randomization, a security

feature employed by modern operating system, e.g.,

Windows 10, complicates the delay sensitivity prob-

lem even more. When ASLR is enabled, the oper-

ating system splits its virtual address space into re-

gions. Then, during the initialization of the operating

system, each region is assigned a random virtual ad-

dress. This behavior is useful against a wide range of

attacks (Evtyushkin et al., 2016) because the location

of potentially vulnerable modules is not known in ad-

vance. However, for the exact same reason, the loca-

tion of the delay-sensitive pages is also unpredictable.

Hypervisor-assisted Atomic Memory Acquisition in Modern Systems

157

Guest Memory Physical Memory

1–1

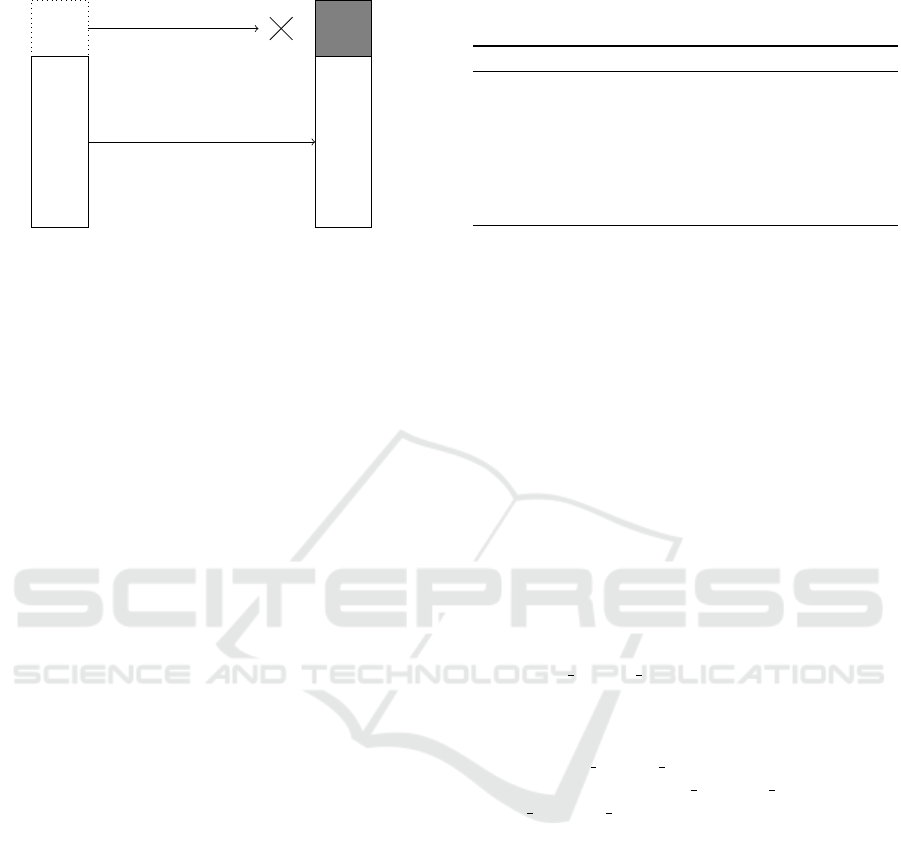

Figure 1: Mapping between the physical address space as

observed by the operating system (left) and the actual phys-

ical address space. The mapping is an identity mapping

with the exception of the hypervisor’s pages, which are not

mapped at all.

4 SYSTEM DESIGN

4.1 Initialization

Our hypervisor is implemented as a UEFI application

(Uniﬁed EFI, Inc., 2006). The UEFI application loads

before the operating system, allocates all the required

memory, and initializes the hypervisor. After initial-

ization, the UEFI application terminates, thus allow-

ing the operating system boot loader to initialize the

operating system. We note that while the application

terminates, the hypervisor remains active.

In order to protect itself from a potentially mali-

cious environment, the hypervisor conﬁgures the EPT

such that any access to the code and the data of the hy-

pervisor is prohibited. With this exception, the EPT is

conﬁgured to be an identity mapping that allows full

access to all the memory pages (Figure 1).

The hypervisor remains idle until an external

event triggers its memory imaging functionality. The

external event might be the reception of a network

packet, insertion of a USB device, invocation of a

system call, etc. In our prototype implementation,

we used a special CPUID instruction, which we call

FREEZE, as a trigger.

In response to FREEZE, the hypervisor performs

two actions:

1. Locates and copies the delay-sensitive pages.

2. Requests all processors to conﬁgure the access

rights of all memory pages to be non-writable.

When the conﬁguration is complete, the hypervisor

reacts to page modiﬁcation attempts by making the

page writable and copying it to an inner queue. The

hypervisor exports the pages stored in the inner queue

in response to another special CPUID instructions,

which we call DUMP. If the queue is not full, then

the hypervisor exports other non-writable pages and

makes the exported pages writable.

Algorithm 1: Memory Acquisition.

1: ﬁle ← Open(. . . )

2: FREEZE()

3: while DUMP(addr, page) do

4: Seek(ﬁle, addr)

5: Write(ﬁle, page)

6: Close(ﬁle)

Algorithm 1 shows how FREEZE and DUMP can be

used to acquire an atomic image of the memory. First,

the algorithm opens a ﬁle that will contain the result-

ing memory image. Then, FREEZE is invoked, fol-

lowed by a series of DUMPs. When the DUMP request

returns false, the ﬁle is closed and the algorithm ter-

minates.

4.2 Delay-sensitive Pages

Section 3.3 explains that certain pages must not be

conﬁgured as non-writable. Moreover, due to ASLR,

the hypervisor has to discover the location of these

pages at run time based on the operating system data

structures. This section presents the data structures

of Windows 10 that can be used to locate the delay-

sensitive pages.

Windows 10 deﬁnes a global variable MiState

of type MI SYSTEM INFORMATION. The hypervisor

can easily locate this variable as it has a con-

stant offset from the system call service routine,

whose address is stored in the LSTAR register (Ta-

ble 1). The MI SYSTEM INFORMATION structure has a

ﬁeld named Vs of type MI VISIBLE STATE. Finally,

the MI VISIBLE STATE structure has a ﬁeld named

SystemVaRegions, which is an array of 15 pairs.

Each pair corresponds to a memory region whose ad-

dress was chosen at random during the operating sys-

tem’s initialization. The ﬁrst element of the pair is the

random address and the second element is the region’s

size. A description of each memory region is given

in Table 2. A more detailed discussion of the mem-

ory regions appears in (Russinovich et al., 2012). Our

empirical study shows that that the following regions

contain delay-sensitive pages:

1. MiVaProcessSpace

2. MiVaPagedPool

3. MiVaSpecialPoolPaged

4. MiVaSystemCache

5. MiVaSystemPtes

6. MiVaSessionGlobalSpace

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

158

Table 1: Windows ASLR-related Data Structures.

Offset Field/Variable Name Type

X System Call Service Routine Code

... ... ...

+0xFB100 MiState MI SYSTEM INFORMATION

+0x1440 Vs MI VISIBLE STATE

+0x0B50 SystemVaRegions MI SYSTEM VA ASSIGNMENT[14]

+0x0000 [0] MI SYSTEM VA ASSIGNMENT

+0x0000 BaseAddress uint64 t

+0x0008 NumberOfBytes uint64 t

Table 2: Memory Regions.

Index Name

0 MiVaUnused

1 MiVaSessionSpace

2 MiVaProcessSpace

3 MiVaBootLoaded

4 MiVaPfnDatabase

5 MiVaNonPagedPool

6 MiVaPagedPool

7 MiVaSpecialPoolPaged

8 MiVaSystemCache

9 MiVaSystemPtes

10 MiVaHal

11 MiVaSessionGlobalSpace

12 MiVaDriverImages

13 MiVaSystemPtesLarge

Therefore, the hypervisor never makes these re-

gions non-writable.

4.3 Multiprocessing

The hypervisor responds to FREEZE, a memory acqui-

sition request, by copying the delay-sensitive pages

to an inner queue and conﬁguring all other pages to

be non-writable. However, when multiple processors

are active, the access rights conﬁguration must be per-

formed atomically on all processors.

Operating systems usually use inter-processor in-

terrupts (IPIs) (Intel Corporation, 2018) for synchro-

nization between processors. It seems tempting to use

IPIs also in the hypervisor, i.e., the processor that re-

ceived FREEZE can send IPIs to other processors, thus

requesting them to conﬁgure the access rights appro-

priately. Unfortunately, this method requires the hy-

pervisor to replace the operating system’s interrupt-

descriptors table (IDT) with the hypervisor’s IDT.

This approach has two deﬁciencies:

1. Kernel Patch Protection (KPP) (Field, 2006), a

security feature introduced by Microsoft in Win-

dows 2003, performs a periodic validation of crit-

ical kernel structures in order to prevent their il-

legal modiﬁcation. Therefore, replacing the IDT

requires also intercepting KPP’s validation at-

tempts, which can degrade the overall system per-

formance.

2. Intel processors assign priorities to interrupt vec-

tors. Interrupts of lower priority are blocked

while an interrupt of a higher priority is delivered.

Therefore, the hypervisor cannot guarantee that a

sent IPI will be handled within a predeﬁned time.

Suspending the operating system for long periods

can cause the operating system’s watchdog timer

to trigger a stop error (BSoD).

We present a different method to solve the inter-

processor synchronization problem that is based on

a documented functionality of the operating sys-

tem itself. The KeIpiGenericCall function (Mi-

crosoft Corporation, 2018) receives a callback func-

tion as a parameter and executes it on all the active

processors simultaneously. We propose to use the

KeIpiGenericCall function to conﬁgure the access

rights simultaneously on all the processors.

Because it is impossible to call an operating sys-

tem function from within the context of the hyper-

visor, the hypervisor calls the KeIpiGenericCall

function from the context of the (guest) operating sys-

tem. In order to achieve this, the hypervisor performs

several preparations and then resumes the execution

of the operating system.

Algorithm 2 presents three functions that together

perform simultaneous access rights conﬁguration on

all the active processors. The ﬁrst function, HAN-

DLECPUID, is part of the hypervisor. This function is

called whenever the operating system invokes a spe-

cial CPUID instruction. Two other functions, GUES-

TENTRY and CALLBACK, are mapped by the hyper-

visor to a non-occupied region of the operating sys-

tem’s memory.

Algorithm 1 begins with a special CPUID instruc-

tion, called FREEZE. This instruction is handled by

lines 2–5 in Algorithm 2: the hypervisor maps GUES-

TENTRY and CALLBACK, saves the current regis-

ters’ values and sets the instruction pointer to the ad-

Hypervisor-assisted Atomic Memory Acquisition in Modern Systems

159

dress of GUESTENTRY. The GUESTENTRY function

calls the operating system’s KEIPIGENERICCALL,

which will execute CALLBACK on all the active pro-

cessors. The CALLBACK function performs another

special CPUID instruction, called CONFIGURE, which

causes the hypervisor to conﬁgure the access rights

of all (but the delay-sensitive) memory pages on all

the processors. This is handled by lines 6–7 of the

algorithm, where we omitted the conﬁguration pro-

cedure itself. After the termination of the CALL-

BACK function, the control returns to the GUESTEN-

TRY function, which executes a special CPUID instruc-

tion, named RESUME OS. In response, the hypervisor

restores the registers’ values, which were previously

saved in line 4. The operation continues from the in-

struction following FREEZE, which triggered this se-

quence of events.

Algorithm 2: Simultaneous access rights conﬁguration on

all the active processors.

1: function HANDLECPUID(reason)

2: if reason=FREEZE then

3: Map GUESTENTRY and CALLBACK

4: Save registers

5: RIP ← GUESTENTRY

6: else if reason=CONFIGURE then

7: ...

8: else if reason=RESUME OS then

9: Restore registers

10: else if reason=DUMP then

11: ...

12: ...

13: function GUESTENTRY

14: KEIPIGENERICCALL(CALLBACK)

15: CPUID(RESUME OS)

16: function CALLBACK

17: CPUID(CONFIGURE)

5 EVALUATION

This section evaluates the performance of the HV and

its memory usage. First, we demonstrate the overall

performance impact of the HV. Next, we analyze the

memory usage of the HV. Finally, we evaluate the per-

formance of the memory acquisition process.

All the experiments were performed in the follow-

ing environment:

• CPU: Intel Core i5-6500 CPU 3.20GHz (4 physi-

cal cores)

• RAM: 16.00 GB

• OS: Windows 10 Pro x86-64 Version 1803 (OS

Build 17134.407)

Total

Essential

Productivity

Digital

3,487

7,799

5,402

2,732

3,390

7,543

5,232

2,680

Without HV

With HV

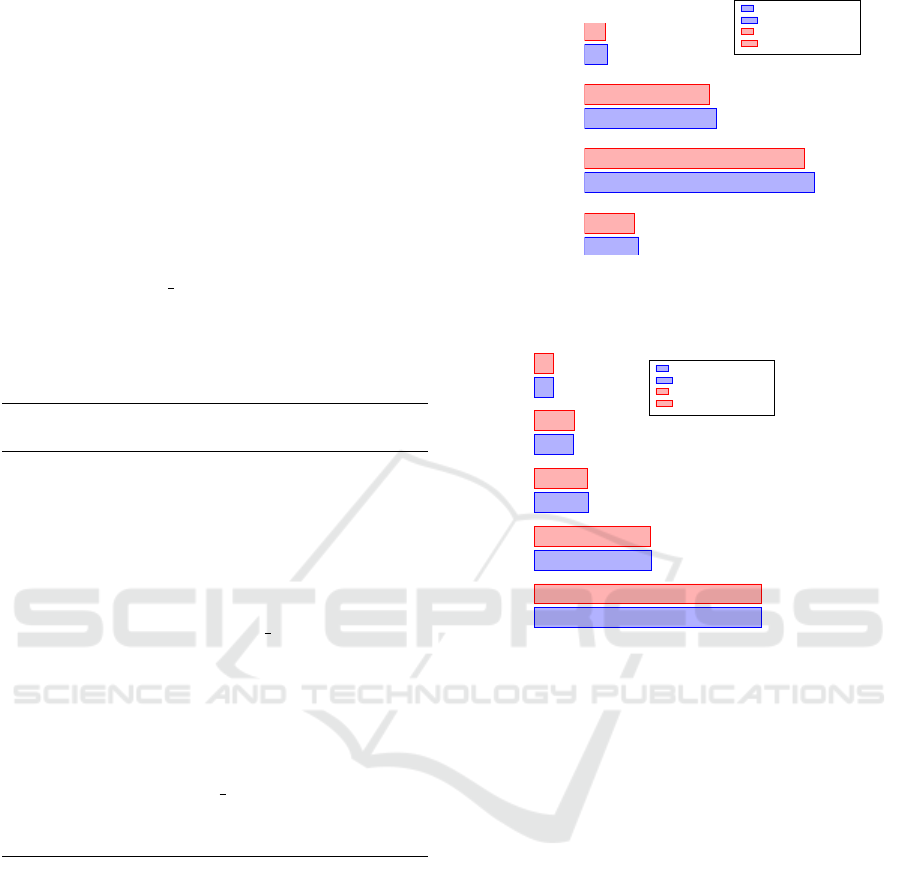

Figure 2: Scores (larger is better) reported by PCMark in

four categories: Digital Content Creation, Productivity, Es-

sential, and Total.

Total

CPU

RAM

GPU

Disk

1,062

546

250

180

1,062

542

248

187

Without HV

With HV

Figure 3: Scores (larger is better) reported by Novabench in

ﬁve categories: Disk, GPU, RAM, CPU, and Total.

• C/C++ Compiler: Microsoft C/C++ Optimizing

Compiler Version 19.00.23026 for x86

5.1 Hypervisor Performance Impact

We start by demonstrating the performance impact of

the hypervisor on the operating system. We picked

two benchmarking tools for Windows:

1. PCMark 10 – Basic Edition. Version Info: PC-

Mark 10 GUI – 1.0.1457 64 , SystemInfo –

5.4.642, PCMark 10 System 1.0.1457,

2. Novabench. Version Info: 4.0.3 – November

2017.

Each tool performs several tests and displays a score

for each test. We invoked each tool twice: with and

without the hypervisor. The results of PCMark, and

Novabench are depicted in Figures 2–3, respectively.

We can see that the performance penalty of the hyper-

visor is approximately 5% on average.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

160

Table 3: Memory Regions’ Sizes.

Index Name Size (MB)

0 MiVaUnused 6

1 MiVaSessionSpace 100

2 MiVaProcessSpace 0

3 MiVaBootLoaded 0

4 MiVaPfnDatabase 0

5 MiVaNonPagedPool 6

6 MiVaPagedPool 0

7 MiVaSpecialPoolPaged 5

8 MiVaSystemCache 52

9 MiVaSystemPtes 0

10 MiVaHal 0

11 MiVaSessionGlobalSpace 0

12 MiVaDriverImages 8

EPT

256

Code and Data

Queue

120

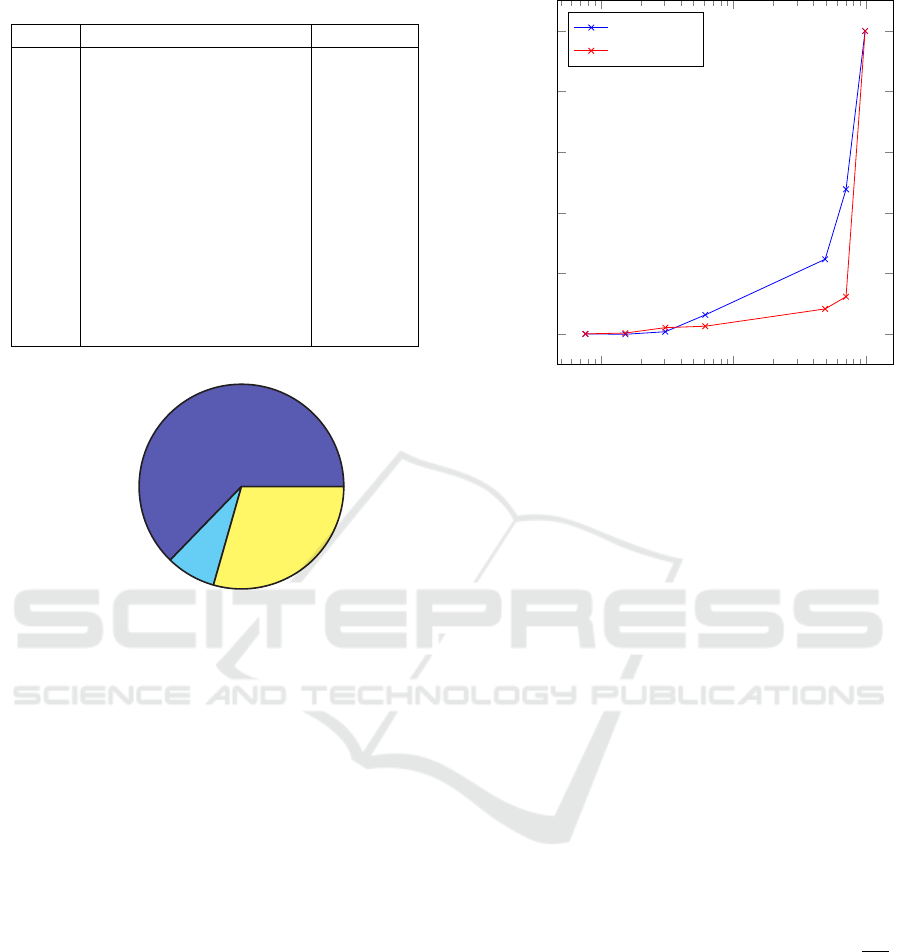

Figure 4: Hypervisor’s Memory Usage [MB].

5.2 Memory Usage

The memory used by the hypervisor can be divided

into three main parts:

1. the code and the data structures of the hypervisor,

2. the EPT tables used to conﬁgure the access rights

to the memory pages, and

3. the queue used to accumulate the modiﬁed pages.

Figure 4 presents the memory usage of the hypervisor

including its division.

The size of the queue is mainly dictated by the

number of delay-sensitive pages. Table 3 presents the

typical size of each memory region. Pages belonging

to the following regions are copied by the hypervisor:

1. MiVaProcessSpace

2. MiVaPagedPool

3. MiVaSpecialPoolPaged

4. MiVaSystemCache

5. MiVaSystemPtes

6. MiVaSessionGlobalSpace

Their total size is ≈ 60MB. The size of the queue

should be slightly larger than the total size of the

0.2

0.4

0.6

0.8

Acquisition Speed [KB/s]

Performance Degradaton Compared to Original [%]

PCMark

Novabench

Figure 5: Performance degradation due to memory acquisi-

tion.

delay-sensitive pages because regular pages can be

modiﬁed by the operating system before the content

of the queue is exported. Our empirical study shows

that it is sufﬁcient to enlarge the queue by 60MB.

5.3 Memory Acquisition Performance

In this section we study the correlation between the

speed of memory acquisition and the overall sys-

tem performance. Figure 5 shows the results. The

horizontal axis represents the memory acquisition

speed. The maximal speed we could achieve was

97920KB/s. At this speed, the system became unre-

sponsive and the benchmarking tools failed. The ver-

tical axis represents the performance degradation (in

percent) measured by PCMark and Novabench. More

precisely, denote by t

(x) the Total result of bench-

mark i = 1, 2 (for PCMark and Novabench, respec-

tively) with acquisition speed of x; then, the perfor-

mance degradation d

(x) is given by d

(x) = 1 −

(x)

(0)

6 CONCLUSIONS

The method presented in this work should be seen

as an incremental improvement over previously de-

scribed methods, which have similar purpose and de-

sign. We describe two improvements over the cur-

rently available methods:

1. Our hypervisor supports multiple processors by

utilizing an operating system’s function for pro-

cessor synchronization.

Hypervisor-assisted Atomic Memory Acquisition in Modern Systems

161

2. Our hypervisor supports modern operating sys-

tems, e.g., Windows 10, by locating and copying

the delay-sensitive pages.

Section 5 presents the memory usage of the hypervi-

sor. We believe that this memory usage can be im-

proved by reducing the number of pages that the hy-

pervisor considers to be delay-sensitive.

REFERENCES

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris, T.,

Ho, A., Neugebauer, R., Pratt, I., and Warﬁeld, A.

(2003). Xen and the art of virtualization. In ACM

SIGOPS operating systems review, volume 37, pages

164–177. ACM.

Ben-Yehuda, M., Xenidis, J., Ostrowski, M., Rister, K.,

Bruemmer, A., and Van Doorn, L. (2007). The price

of safety: Evaluating iommu performance. In The Ot-

tawa Linux Symposium, pages 9–20.

Brendmo, H. K. (2017). Live forensics on the windows 10

secure kernel. Master’s thesis, NTNU.

Carrier, B. D. and Grand, J. (2004). A hardware-based

memory acquisition procedure for digital investiga-

tions. Digital Investigation, 1(1):50–60.

Cohen, M. (2014). Rekall memory forensics framework.

DFIR Prague.

Durve, R. and Bouridane, A. (2017). Windows 10 secu-

rity hardening using device guard whitelisting and ap-

plocker blacklisting. In Emerging Security Technolo-

gies (EST), 2017 Seventh International Conference

on, pages 56–61. IEEE.

Evtyushkin, D., Ponomarev, D., and Abu-Ghazaleh, N.

(2016). Jump over aslr: Attacking branch predictors

to bypass aslr. In The 49th Annual IEEE/ACM Inter-

national Symposium on Microarchitecture, page 40.

IEEE Press.

Field, S. (2006). An introduction to kernel patch protec-

tion. http://blogs.msdn.com/b/windowsvistasecurity/

archive/2006/08/11/695993.aspx.

Intel Corporation (2018). Intel

 64 and IA-32 Architec-

tures Software Developer’s Manual. Intel Corpora-

tion.

Kiperberg, M., Resh, A., and Zaidenberg, N. J.

(2015). Remote attestation of software and execution-

environment in modern machines. In Cyber Security

and Cloud Computing (CSCloud), 2015 IEEE 2nd In-

ternational Conference on, pages 335–341. IEEE.

Kiperberg, M. and Zaidenberg, N. (2013). Efﬁcient re-

mote authentication. In Proceedings of the 12th Eu-

ropean Conference on Information Warfare and Secu-

rity: ECIW 2013, page 144. Academic Conferences

Limited.

Martignoni, L., Fattori, A., Paleari, R., and Cavallaro,

L. (2010). Live and trustworthy forensic analysis

of commodity production systems. In International

Workshop on Recent Advances in Intrusion Detection,

pages 297–316. Springer.

Microsoft Corporation (2009). Device\PhysicalMemory

Object. https://docs.microsoft.com/

en-us/previous-versions/windows/it-pro/

windows-server-2003/cc787565(v=ws.10). [On-

line; accessed 02-Nov-2018].

Microsoft Corporation (2018). KeIpiGenericCall function.

https://docs.microsoft.com/en-us/windows-hardware/

drivers/ddi/content/wdm/nf-wdm-keipigenericcall.

Oracle (2018). VirtualBox. https://www.virtualbox.org/.

Qi, Z., Xiang, C., Ma, R., Li, J., Guan, H., and Wei, D. S.

(2017). Forenvisor: A tool for acquiring and preserv-

ing reliable data in cloud live forensics. IEEE Trans-

actions on Cloud Computing, 5(3):443–456.

Reina, A., Fattori, A., Pagani, F., Cavallaro, L., and Br-

uschi, D. (2012). When hardware meets software: a

bulletproof solution to forensic memory acquisition.

In Proceedings of the 28th annual computer security

applications conference, pages 79–88. ACM.

Resh, A., Kiperberg, M., Leon, R., and Zaidenberg, N. J.

(2017). Preventing execution of unauthorized native-

code software. International Journal of Digital Con-

tent Technology and its Applications, 11.

Resh, A. and Zaidenberg, N. (2013). Can keys be hidden in-

side the cpu on modern windows host. In Proceedings

of the 12th European Conference on Information War-

fare and Security: ECIW 2013, page 231. Academic

Conferences Limited.

Russinovich, M. E., Solomon, D. A., and Ionescu, A.

(2012). Windows internals. Pearson Education.

Seshadri, A., Luk, M., Qu, N., and Perrig, A. (2007). Secvi-

sor: A tiny hypervisor to provide lifetime kernel code

integrity for commodity oses. In ACM SIGOPS Op-

erating Systems Review, volume 41, pages 335–350.

ACM.

Shinagawa, T., Eiraku, H., Tanimoto, K., Omote, K.,

Hasegawa, S., Horie, T., Hirano, M., Kourai, K.,

Oyama, Y., Kawai, E., Kono, K., Chiba, S., Shinjo,

Y., and Kato, K. (2009). Bitvisor: A thin hypervisor

for enforcing i/o device security. In Proceedings of

the 2009 ACM SIGPLAN/SIGOPS International Con-

ference on Virtual Execution Environments, VEE ’09,

pages 121–130, New York, NY, USA. ACM.

Uniﬁed EFI, Inc. (2006). Uniﬁed Extensible Firmware In-

terface Speciﬁcation, Version 2.6.

VMware (2018). VMware Workstation Pro. https://www.

vmware.com/il/products/workstation-pro.html.

Zaidenberg, N. J. (2018). Hardware rooted security in in-

dustry 4.0 systems. In Dimitrov, K., editor, Cyber de-

fence in Industry 4.0 and Related Logistic and IT In-

frastructures, chapter 10, pages 135–151. IOS Press.

Zhang, L., Wang, L., Zhang, R., Zhang, S., and Zhou, Y.

(2010). Live memory acquisition through ﬁrewire. In

International Conference on Forensics in Telecommu-

nications, Information, and Multimedia, pages 159–

167. Springer.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

162
