Making Clinical Simulation Mannequins Talk

Isac Cossa

, Guilherme Campos

, Pedro Sá Couto

3,4

and João Lindo

4,5

Higher School of Nautical Sciences, Avenida 10 de Novembro, Maputo, Mozambique

Dept. of Electronics, Telecom. and Informatics (DETI) / IEETA, University of Aveiro, 3810-193 Aveiro, Portugal

Dept. of Mathematics (DMAT) / CIDMA, University of Aveiro, 3810-193 Aveiro, Portugal

School of Health Sciences (ESSUA) / Clinical Simul. Centre (SIMULA), University of Aveiro, 3810-193 Aveiro, Portugal

Centre for Health Technology and Services Research (CINTESIS), 4200-450 Porto, Portugal

Keywords: Speech Synthesis, Pre-recording, Case Study, Glasgow Coma Scale, Consciousness, Model, Markov Chain,

Training, Instructor, Usability, Evaluation.

Abstract: This paper advocates the interest of applying speech synthesis to clinical simulation mannequins, by focussing

on a particular case study of recognised practical interest (evaluation of consciousness level based on the

Glasgow Coma Scale), chosen as a proof of concept. A response repository comprising 109 sentences was

recorded and an application was developed in Microsoft® Visual Basic® to allow configuration of the

simulation scenario, control of response generation on a low-fidelity mannequin equipped with a loudspeaker

and assessment of trainee performance. The system received very positive assessment in initial user tests on

a typical training setting.

1 INTRODUCTION

The work presented here corresponds to the first

author’s MEng dissertation project. Its main

motivation was the rapid development observed in the

fields of clinical simulation and speech synthesis.

Because of its multiple advantages from the

standpoint of training procedure flexibility and safety,

clinical simulation based on mannequins has grown

and evolved very rapidly in recent decades. It now

plays an essential role in health care professional

training programmes in virtually every field of

specialisation (Brazão et al., 2015). Commercial

mannequin models range from low-fidelity (relatively

robust and inexpensive but with hardly any automated

features – mostly used at initial training stages) to

high-fidelity (featuring complex automation but very

expensive and relatively fragile – normally reserved

for advanced courses). In any case, their

sophistication level tends to increase, as realistic

interaction with trainees is obviously the main goal.

The ability to simulate verbal communication can be

a very valuable contribution towards this goal.

According to instructors working in medical school

laboratories, trainees tend to develop a kind of

emotional attachment to clinical simulation

mannequins. Almost invariably, they name them and

engage in pretend conversations during training

sessions, as if the mannequins could follow the

procedures and chat back. Furthermore, some

crucially important clinical evaluation and diagnosis

skills are directly dependent upon verbal

communication with patients. The training settings

should help practitioners develop those skills.

Speech and language processing technologies

have also been the object of increasing research and

development interest in the past 50 years. Speech

synthesis is one of the most active fronts. Algorithms

and applications are being constantly refined in terms

of audio output quality (realism), computation time

(to afford real-time operation) and application range

(availability in multiple languages). Practical usage is

growing in every field involving human-machine

interaction, including simulation (Taylor, 2009).

The potential for integration of sound synthesis in

clinical simulation settings is largely underexplored.

Simulation mannequins incorporating speech and

other vocal sound generation systems should be more

widespread, even because upgrading low-fidelity

mannequins for this purpose is relatively easy. In

support of this position, this paper presents a pilot

study on a particular health care training application

of widely recognised usefulness.

450

Cossa, I., Campos, G., Couto, P. and Lindo, J.

Making Clinical Simulation Mannequins Talk.

DOI: 10.5220/0007571404500455

In Proceedings of the 12th Inter national Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2019), pages 450-455

ISBN: 978-989-758-353-7

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

Following introductory sections devoted to

describing a typical clinical simulation scenario and

very briefly reviewing available speech synthesis

software, section 4 justifies and presents the chosen

case study. Section 5 describes the software

application developed to implement it and section 6

reports initial user evaluation tests. The final section

discusses the results and considers some future work

possibilities.

2 CLINICAL SIMULATION

Health care training based on clinical simulation

typically involves the use of two rooms. Trainees (e.g.

nursing students) take their place in one of them,

normally referred to as simulation or training room,

which contains the simulation equipment proper (e.g.

mannequin ‘patient’ lying on a hospital stretcher).

The instructor (e.g. nursing teacher) normally sits at

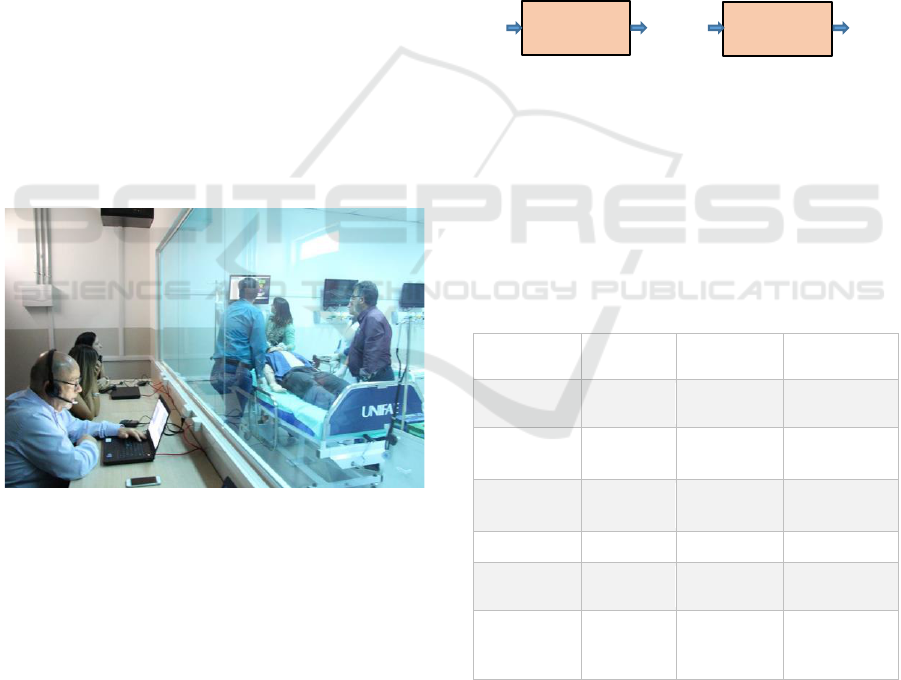

the control or observation room. Figure 1 shows a

typical example, with adjacent training and control

rooms, separated by a glass window. Special

‘intelligent’ glass can be used to make visual contact

unidirectional (from control room to training room

only).

Figure 1: Clinical simulation setting (UNIFAE, 2017).

Normally, training rooms are fitted with audio-

visual equipment (lighting, video cameras,

microphones…), making it possible to record the

sessions and so document trainee performance for

analysis, evaluation and debriefing – a crucial

element in the training process. Also, so long as the

equipment is controllable remotely, multiple training

rooms can be assigned to a single, non-adjacent

control room.

In addition to observing and evaluating trainee

performance, it is desirable that the instructor be able

to control the training sequence, by specifying the

condition of the ‘patient’ and her reactions to each

possible trainee action. For this purpose, simulation

mannequins tend to incorporate increasingly

sophisticated hardware and software.

3 SPEECH SYNTHESIS

Speech synthesis systems generate human vocal

sound in a given language from content specified in

written form (text file). For this reason, they are also

called Text-to-Speech (TTS) systems. As Figure 2

illustrates, they comprise two main blocks: the front-

end translates the original text into phonetic symbols;

the back-end applies digital signal processing

algorithms to generate the corresponding audio files

(Barros, 2012).

Figure 2: Block diagram of a TTS system.

TTS systems are useful in an increasing number

of applications, such as presentation and digital book

readers, disability aids and automatic messaging.

Table 1 lists some of the most popular software

packages which have been developed for speech

synthesis (Freewarenee, n.d.); (Freewareneesite,

n.d.); (Manfio, 2012); (Araújo and Silva, 2013).

Table 1: Popular TTS software.

Synthesis

method

Operating

System

Portuguese

Language

Balabolka

Phonemes

Win, Linux,

MacOS

Yes

Voice Dream

Reader

Win, MacOS

Yes

Word Flash

Reader

Win, Linux

Espeak

Formants

Win, Linux

Yes

Loquendo

Win, Linux,

MacOS

Yes

Festvox

UniSyn /

diphones

Linux,

FreeBSD,

Solaris

Develop.

possible

An exploratory study on the usage of these

software packages indicated that Festvox would

probably be the best option in this context, due to its

open architecture. It is designed to support

independent development, making it possible to build

new voices and libraries for different languages

Language and

text analysis

Voice

generation

Text

file

Audio

file

Phonemes

Making Clinical Simulation Mannequins Talk

451

(Black and Lenzo, 2014). Unfortunately, no libraries

were yet available for Portuguese (the target language

in this case). Developing a new library is a lengthy

process, deemed unfeasible in the available period.

The software packages for which Portuguese

language libraries were available are characterised by

a closed architecture, which makes them unsuitable

for research purposes. They seemed to be designed

for relatively undemanding end-user applications: by

and large, the available voices sounded quite artificial

and prosody could not be altered.

In spite of their more convincing voices, even the

top commercial packages lack prosody control to

model emotion and excitation in the patient’s speech.

Moreover, libraries for different languages are sold

separately, adding to their (already high) cost.

4 CASE STUDY

4.1 Selection Criteria

The development of a speech generation tool for

Portuguese based on true synthesis would not fit the

time frame of an MEng dissertation. The chosen

alternative was the development of a proof of concept

based on pre-recorded sentences. This required

finding a particular case for which reasonably

realistic ‘dialogues’ could be built from a small

repository (otherwise, it too would be unfeasible) and,

in spite of this limitation, retained relevance from the

point of view of health care training. The choice fell

on the evaluation of consciousness based on the

Glasgow Coma Scale (GCS) – more specifically, its

‘verbal response’ parameter.

4.2 Glasgow Coma Scale

The GCS (Teasdale and Jennett, 2013) is widely used

in the diagnosis and monitoring of neurologic

dysfunction. It allows quantitative evaluation of

consciousness levels (in a 3-15 point range) based on

simple criteria (Santos et al., 2013), thus providing

health care practitioners an efficient and objective

means of reporting neurological status. The score is

obtained by observation of the patient’s behaviour,

either spontaneous or in response to verbal and/or

pain stimuli. Three evaluation parameters are

considered: eye opening response (1-4 points), motor

response (1-6 points) and verbal response (1-5

points). The focus was on this last one, as it involves

dialogue with the patient. The following criteria

apply:

 Oriented Response (consciousness level S5):

patients oriented in space and time, who

coherently answer questions like “What’s your

name?” or “What day is it today?”, get top marks

i.e. 5 points.

 Confused Response (consciousness level S4):

patients who are able to answer the same kind of

questions, but do it in a confused way, get 4

points.

 Incoherent Response (consciousness level S3):

patients whose responses are not related to the

questions (taking the previous example, that

would be the case of answers like “I’m hungry” or

“I want to go home”) get 3 points.

 Incomprehensible Response (consciousness

level S2): patients who respond with moans or

sounds not forming words, get 2 points.

 No Response (consciousness level S1): patients

who do not respond verbally to any stimuli get the

lowest marks i.e. 1 point.

4.3 Response Repository

Normally, evaluation of a patient takes only five or

six questions. However, taking into account all the

relevant variables regarding the patient

(consciousness state, gender, age, emotional state…),

the evaluator (trainee) and the circumstances of the

interview (date, time…), an extremely large number

of responses would be required.

Based on the long GCS training experience of one

of the authors, a core set of questions was defined,

along with a selection of responses covering the five

consciousness levels, but considering a single type of

patient (adult male) and allowing only a limited

degree of variability for each level. This selection of

responses (109 sentences in total) were recorded in a

studio and post-processed for noise filtering and

amplitude normalisation.

5 APPLICATION

DEVELOPMENT

5.1 Requirements

The envisaged training setting is as described in

section 2. There are no particular requirements

regarding the mannequin other than being equipped

HEALTHINF 2019 - 12th International Conference on Health Informatics

452

with a loudspeaker to simulate vocal communication.

A low-fidelity model is perfectly suitable. The

‘dialogue’ with the trainee should be supported by a

computer application managed at the control room.

This should allow the instructor to pre-define training

scenarios, namely by specifying the desired

behaviour of the ‘patient’. For flexibility, immediate

intervention options should also be available to

bypass pre-defined scenarios in response to

unforeseen situations. The user interface should be

graphical (GUI) and intuitive.

The trainee is expected to approach the

mannequin (following all the protocols applicable to

interaction with hospital patients) and carry out the

questioning. For the reasons presented in 4.3, the set

of questions must be strictly defined.

Response playback will be triggered upon

question identification by the instructor. This should

convey to the trainee the impression of being in

conversation with a real patient. The responses,

played back through the mannequin’s loudspeaker,

should be consistent with the scenario defined by the

instructor and the corresponding questions.

The trainee is supposed to evaluate the responses

obtained, record the corresponding GCS score and

submit a diagnosis to the instructor. The application

should assess the trainee’s performance, provide

feedback on it and assign a classification.

5.2 Response Generation Algorithm

In real situations, it is common to observe fluctuation

in the apparent level of consciousness (normally

between close GCS levels). Integrating that effect

into the simulation, in addition to increasing its

realism, is welcome from a training perspective, as

the correct evaluation becomes variable from

question to question. For that purpose, the response

generation algorithm developed for the mannequin

employed a probabilistic model based on Markov

chains (Childers, 1997), as illustrated in Figure 3. The

consciousness level fluctuation exhibited in the

responses is governed by transition probability

matrices, one per GCS level. These are configurable,

allowing the instructor to define any pattern of

response consciousness level, from strictly constant

to completely random.

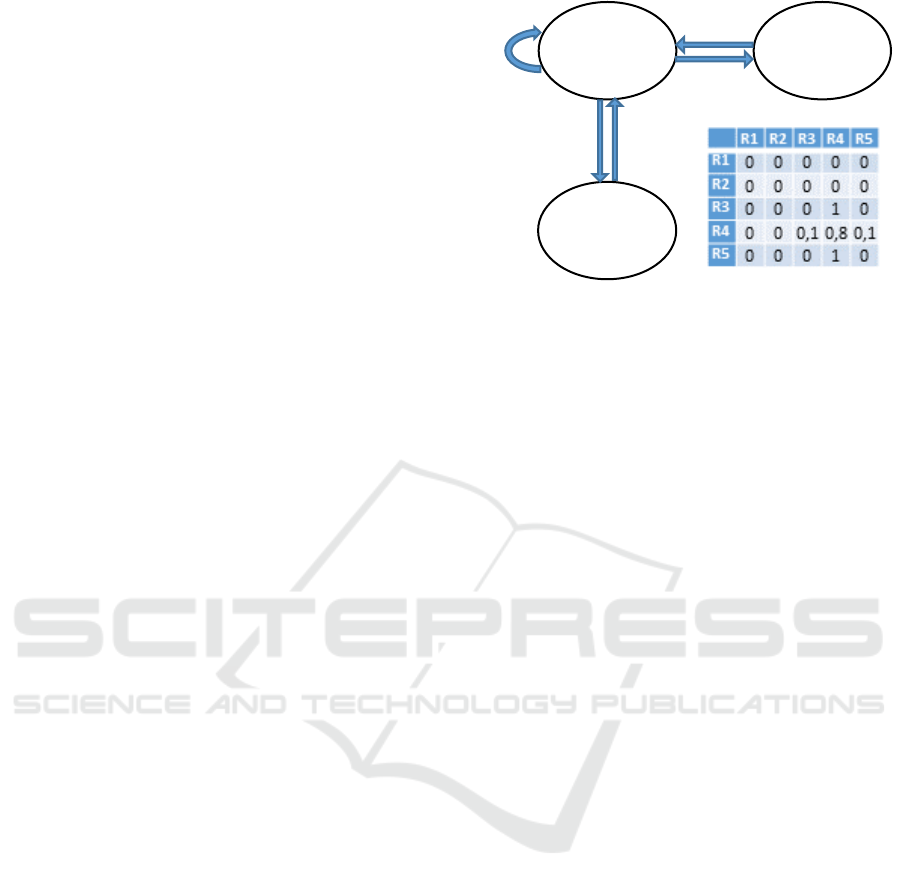

Figure 3: Example of Markov chain response model for

consciousness level S4 allowing sporadic responses at the

levels immediately above and below, as defined by the

transition probability matrix shown.

Note it would be relatively easy to build appropriate

Markov chains to model more complex situations,

such as recovery or slow loss of consciousness.

5.3 User Interface

The application was developed in Visual Basic®. As

shown in Figure 4, its main window comprises three

panels:

 Definitions: allows the instructor to enter the

configurations regarding the trainee and the

response generation mode, including the settings

of the Markov chain models described in the

previous point.

 Interaction: is used to manage mannequin

responses through the identification of the

questions posed by the trainee. In automatic

mode, the algorithm chooses the response

according to the consciousness level determined

by the Markov chain model.

 Evaluation: supports the analysis of the diagnosis

made by the trainee and works out her final marks

as a percentage.

6 TESTING

Initial user tests took place at one of the laboratories

of the University of Aveiro’s clinical simulation

centre (SIMULA), where a low-fidelity mannequin

was equipped with a miniature amplifier-loudspeaker

set. This was connected by bluetooth to the control

room computer, in which the application presented in

the previous section had been installed.

The tests involved seven nursing students acting

as trainees and their teacher in the instructor role. The

Confused

response

Oriented

response

Inappropriate

response

0.1

0.8

Making Clinical Simulation Mannequins Talk

453

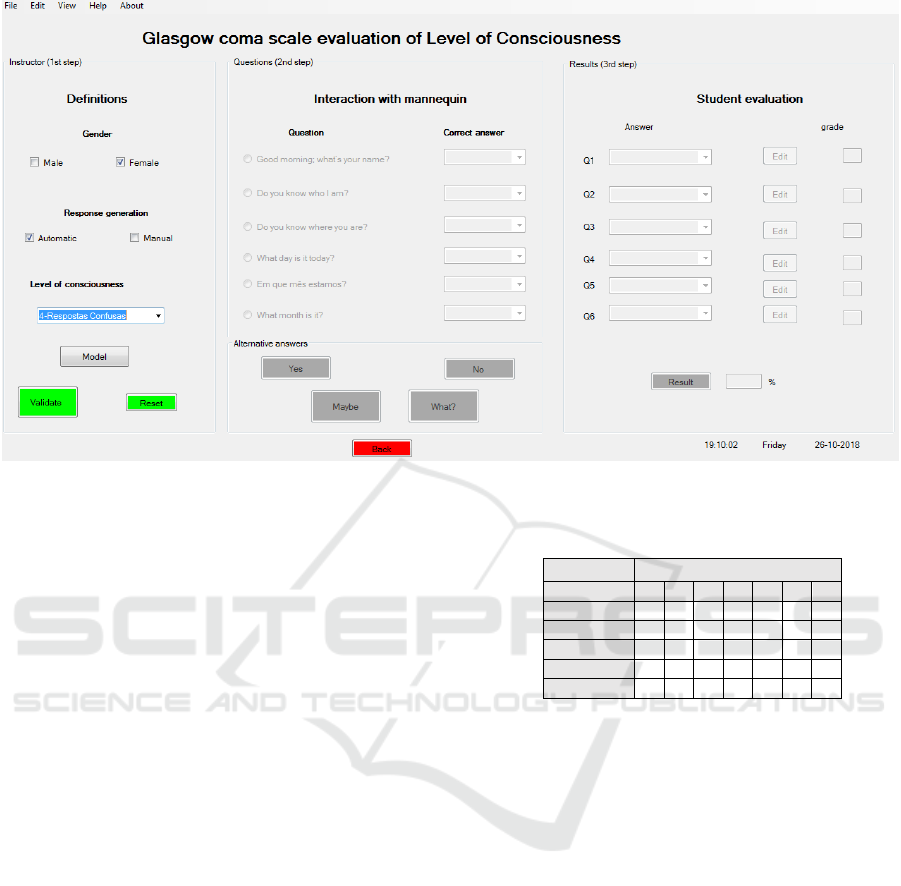

Figure 4: Application main page.

students carried out, and handed to the instructor,

their GCS consciousness level evaluations based on

a questionnaire for which a response repository had

been previously recorded, as explained in section

4.3.

At the end of the test session, the students

provided feedback by filling an evaluation form

based on the System Usability Scale (SUS)

proposed by John Brooke. They were asked to

indicate, on a range from 1 (“I totally disagree”) to

5 (“I totally agree”), to what extent they agreed with

the following statements:

1. This experience has stimulated my interest for

clinical simulation.

2. The simulation made it easier to learn the

Glasgow Coma Scale.

3. The simulation helped me develop my ability to

assess consciousness level using the GCS.

4. It was a pleasant and valuable experience.

5. Simulation mannequins equipped with speech

synthesis would be useful in several other

situations in our training course.

The resulting scores, shown in Table 2, are close

(low standard deviation) and high (total agreement

in most cases – averages between 4.57 and 5). It

should be mentioned that the lowest scores came

from a student who had missed the initial part of the

session (all the others attended the whole session).

Table 2: Assessment of the application by the trainees.

Trainee

Statement

7 DISCUSSION. FUTURE WORK

Although only small-scale initial tests could be

carried out, their results support the position that

incorporating vocal capabilities in simulation

mannequins can bring significant benefits in health

care training. The opinions and suggestions put

forward by the trainees in the evaluation form (an

area was reserved for that purpose) showed

enthusiasm with the experience, and interest in

repeating it with more time and a larger number of

questions. One of the suggestions was to generate

increasingly elaborate mannequin answers in the

course of the questioning. Since the GCS evaluation

protocol does not provide an opportunity for

simulating longer, more demanding dialogues, this

line of suggestions (which confirm the score

obtained for statement 5) encourage the exploration

of other application case studies. The instructor who

took part in the tests specifically suggested the area

of primary health care.

HEALTHINF 2019 - 12th International Conference on Health Informatics

454

Speech synthesis would bring obvious

advantages, since a virtually infinite set of dialogue

simulation scenarios could be programmed. That is

the main goal. However, given that prosody

manipulation is the main difficulty of speech

synthesis systems and clinical simulation

applications are especially demanding from that

point of view, this work suggests that, in some

application niches, systems based on pre-recorded

repositories may be interesting in their own right, to

the extent that they provide more realistic audio (at

least as regards prosody). This hypothetical interest

of pre-recorded speech does not hinder the

evolution to true synthesis – on the contrary, it may

constitute additional motivation for it.

In the current operation mode, the instructor

must identify the question, which demands constant

attention to the dialogue between trainee and

mannequin. It would be interesting to automate this

process and dispense (at least to a certain extent)

with instructor intervention. This would involve

equipping the mannequin with a microphone and

simulating hearing capability through the

incorporation of a question identification system

based on speech recognition.

ACKNOWLEDGMENTS

The authors wish to express their gratitude to

António Veiga, from the Dept. of Communication

and Arts (DeCA) of the University of Aveiro, for

his kind assistance with the use of DeCA’s

recording studio to build the response repository

and also to the ESSUA nursing students who agreed

to take part in the user evaluation tests.

This publication was supported by National Funds

assigned through the Foundation for Science and

Technology (FCT) to IEETA, a research unit of the

University of Aveiro, in the context of the project

UID/CEC/00127/2019.

REFERENCES

Brazão, M. L. Nóbrega, S. Correia, J. P., Silva, A., S.,

Santos, D. and Monteiro, M. H. (2015). ‘Simulação

Clínica: Uma Forma de Inovar em Saúde (Clinical

Simulation: A Way to Innovate in Health)’, Medicina

Interna, vol. 22/3 Jul-Sept: 146-155.

Taylor, P. (2009). Text-to-Speech Synthesis. Cambridge

University Press.

UNIFAE - Centro Universitário das Faculdades

Associadas de Ensino (n.d.). Laboratório de

Simulação Avançada. Retrieved November 2017

from http://www.fae.br/portal/laboratorio-de-simulac

ao-avancada/

Barros, M.J.A.S. (2012). Estudo Comparativo e Técnicas

de Geração de Sinal para a Síntese da Fala. MSc

dissertation. Faculty of Engineering of the U. of

Porto.

Freewarenee (n.d.). Sintetizadores de Fala Reconheci-

mento de Voz – Leitor de Texto. Retrieved August

2017 from http://freewarenee.weebly.com/sintetiza

dores-de-fala.html

Freewareneesite (n.d.). Software e Recursos Livres

Necessidades Especiais – Sintetizador. Retrieved

August 2017 from https:// freewareneesite.wordpress.

com/sintetizador/

Manfio, E.R. (2012). ‘Como funcionam alguns fonemas

no aplicativo Balabolka (How some phonemes in

application Balabolka works)’, Via Litterae, vol 4/2

Jul/Dec: 191-204.

Araújo, A.L.S.O. and Silva, J.S.O. (2013). ‘Educação e

tecnologia: alternativas de aplicativos facilitadores à

expressão oral para portadores de necessidades

especiais’, in 5º Simpósio Hipertexto e Tecnologias

na Educação. Retrieved November 2018 from

http://www.nehte.com.br/simposio/anais/Anais-Hipe

rtexto-2013

Black, A. W. and Lenzo, K. A. (2014). Building Synthetic

Voices (For FestVox 2.7 Edition). Retrieved

November 2018 from http://www.festvox.org/bsv/

bsv.pdf

Teasdale, G. and Jennett, B. (1974). ‘Assessment of coma

and impaired consciousness. A practical scale’.

Lancet, Jul 13;2(7872):81-4

Santos, W. C., Vancini-Campanharo, C. R., Lopes,

M.C.B.T., Okuno, M.F.P. and Batista, R.E.A. (2016).

‘Assessment of nurse’s knowledge about Glasgow

coma scale at a university hospital’. Einstein (São

Paulo), vol 14/2, Apr-Jun: 213–218.

Childers, D. G. (1997). Probability and Random

Processes: Using Matlab with Applications to

Continuous and Discrete Time Systems. Florida:

Richard D Irwin.

Making Clinical Simulation Mannequins Talk

455
