Using a Depth Heuristic for Light Field Volume Rendering

an Martin, Se

an Bruton, David Ganter and Michael Manzke

School of Computer Science and Statistics, Trinity College Dublin, College Green, Dublin 2, Ireland

Keywords:

Light Fields, View Synthesis, Convolutional Neural Networks, Volume Rendering, Depth Estimation, Image

Warping, Angular Resolution Enhancement.

Abstract:

Existing approaches to light ﬁeld view synthesis assume a unique depth in the scene. This assumption does not

hold for an alpha-blended volume rendering. We propose to use a depth heuristic to overcome this limitation

and synthesise views from one volume rendered sample view, which we demonstrate for an 8 × 8 grid. Our

approach is comprised of a number of stages. Firstly, during direct volume rendering of the sample view, a

depth heuristic is applied to estimate a per-pixel depth map. Secondly, this depth map is converted to a disparity

map using the known virtual camera parameters. Then, image warping is performed using this disparity map

to shift information from the reference view to novel views. Finally, these warped images are passed into a

Convolutional Neural Network to improve visual consistency of the synthesised views. We evaluate multiple

existing Convolutional Neural Network architectures for this purpose. Our application of depth heuristics is

a novel contribution to light ﬁeld volume rendering, leading to high quality view synthesis which is further

improved by a Convolutional Neural Network.

1 INTRODUCTION

Light ﬁeld technology is an exciting emergent subject,

allowing for extremely rich capture and display of vi-

sual information. Generating a light ﬁeld from volu-

metric data produces signiﬁcant perceptual enhance-

ments over directly volume rendering an image. For

example, medical practitioners could view the result

of Magnetic Resonance Imaging (MRI) scans in real-

time using a near-eye light ﬁeld virtual reality device

(Lanman and Luebke, 2013) or The Looking Glass

(Frayne, 2018) without the drawback of current dis-

play devices, such as a single focal plane. These vi-

sualisations would allow for deeper understanding of

a patient’s anatomy before surgery and open new av-

enues for medical training. Although direct volume

rendering is possible in real-time for a single view-

point, this is infeasible with current technology for a

full light ﬁeld due to the necessary increase in pixel

count. To bring the performance closer to interactive

rates, we propose a view synthesis method for light

ﬁeld volume rendering by inferring pixel values using

a single sample image.

Recently, Convolutional Neural Networks

(CNNs) have been applied to view synthesis for

light ﬁelds of natural images, with the deep learning

approaches of (Wu et al., 2017) and (Kalantari

et al., 2016) constituting state of the art. (Srinivasan

et al., 2017) showed notable results using only one

image from a camera to synthesise an entire light

ﬁeld. However, these methods are designed for

natural images which can reasonably be assumed

to have a well-deﬁned depth. This is not the case

for volume rendering due to alpha compositing not

always resulting in an opaque surface. To increase

the suitability of these methods for volume rendering,

we present novel modiﬁcations.

Our proposed method synthesises a light ﬁeld

from a single volume rendered sample image, which

we demonstrate for an 8 × 8 angular resolution light

ﬁeld. We represent the light ﬁeld as a structured grid

of images captured by a camera moving on a plane,

with the number of images referred to as the angu-

lar resolution. A depth heuristic is used to estimate

a depth map during volume ray casting, inspired by

the work of (Zellmann et al., 2012). This depth map

is converted to a disparity map using the known vir-

tual camera parameters. Image warping is performed

using the disparity map to shift information from the

single reference view to all novel view locations. Fi-

nally, the disparity map and warped images are passed

into a CNN to improve the visual consistency of the

synthesised views.

The results of this research show that the depth

heuristic applied during volume rendering produces

high quality image warping. Moreover, the CNN in-

134

Martin, S., Bruton, S., Ganter, D. and Manzke, M.

Using a Depth Heur istic for Light Field Volume Rendering.

DOI: 10.5220/0007574501340144

In Proceedings of the 14th Inter national Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 134-144

ISBN: 978-989-758-354-4

creases the visual consistency of synthesised views,

especially for those views at a large distance from the

sample reference view, but the CNN must be retrained

for new volumes and transfer functions. Although

the presented method is not faster than directly vol-

ume rendering a light ﬁeld, it is fast compared to ex-

isting light ﬁeld angular resolution enhancement ap-

proaches. The bottleneck is the image warping proce-

dure, which takes 90% of the total time to synthesise

a light ﬁeld, as opposed to our depth heuristic calcu-

lation or CNN. Our method is beneﬁcial for complex

volumes because the time to synthesise a light ﬁeld is

independent of the size and complexity of the volume

and rendering techniques.

2 RELATED WORK

Light Field View Synthesis. There are two pri-

mary paradigms for synthesising views for light ﬁelds

of natural images. One paradigm is to estimate some

form of geometry in the scene, commonly depth, and

base the view synthesis on this geometry. The other

paradigm focuses on the structure of light ﬁelds, using

expected properties of Epipolar-Plane Images (EPIs)

for view synthesis (Wu et al., 2017), or transforming

the problem to other domains with well-deﬁned be-

haviour (Shi et al., 2014; Vagharshakyan et al., 2018).

These structure based approaches are slower than di-

rectly rendering the light ﬁeld and are not applica-

ble to this problem. For instance, testing the state of

the art method by (Wu et al., 2017) was prohibitively

slow, taking 16 minutes to synthesise a full light ﬁeld.

(Yoon et al., 2015) interpolated sets of light ﬁeld

sub-aperture images with CNNs to produce a ×2 an-

gular resolution enhancement. This approach does

not take advantage of the light ﬁeld structure and the

resulting resolution enhancement is too low to be use-

ful for volume rendering. Using a soft three dimen-

sional (3D) reconstruction (Penner and Zhang, 2017)

produces high quality view synthesis, but as we have

a 3D volume available, this route is not useful for us.

(Wanner and Goldluecke, 2014) formulate the view

synthesis problem as a continuous inverse problem,

but optimising the associated energy is too slow for

our needs.

Depth-based approaches are particularly relevant

to our problem, since we can estimate depth using vol-

umetric information. One such approach by (Kalan-

tari et al., 2016) uses deep learning to estimate depth

and colour, but they synthesise the light ﬁeld view by

view. This leads to slow performance, taking roughly

12.3 seconds to generate a single novel view from

four input images of 541 × 376 resolution.

(Srinivasan et al., 2017) tackled the problem of

synthesising a four dimensional (4D) light ﬁeld from

a single image. This problem is ill-posed because a

single image of a light ﬁeld contains inadequate infor-

mation to reconstruct the full light ﬁeld. The authors

alleviate this by using data-driven techniques trained

on images of objects from speciﬁc categories (e.g.

ﬂowers) and by taking advantage of redundancies in

the light ﬁeld structure. Their method accounts for

specular highlights, rather than assuming that all sur-

faces exhibit diffuse reﬂection. This is very relevant

for volume rendering, as surfaces are often anisotrop-

ically shaded. In contrast to most approaches, they

produce all novel views at once instead of synthesis-

ing each view separately. This is fast, synthesising a

187 × 270 × 8 × 8 light ﬁeld in under one second on

a NVIDIA Titan X Graphics Processing Unit (GPU).

Because of the speed of this approach, the single in-

put view required, and the high quality results, our

approach follows a similar formulation.

To make the method of (Srinivasan et al., 2017)

more suitable for volume rendering, we propose to

use a depth heuristic during volume rendering as op-

posed to estimating depth for each ray in the light ﬁeld

with a CNN. This will increase speed and account for

the transparent surfaces in volume rendering. Addi-

tionally, we propose to apply a two dimensional (2D)

CNN to improve the quality of the novel views instead

of their slower and potentially unnecessary 3D CNN.

CNN Architectures for 4D Light Fields. Al-

though we have volumetric information available,

CNNs using images from multiple views usually per-

form better than 3D CNNs on volumetric data because

current deep learning architectures are often unable

to fully exploit the power of 3D representations (Qi

et al., 2016). Due to limitations of 3D CNNs, (Wang

et al., 2016) demonstrate how to map a 4D light ﬁeld

into a 2D VGG network (Simonyan and Zisserman,

2014) instead of using a 3D CNN. This is beneﬁcial as

the weights of a pre-trained 2D model can be updated.

Additionally, although the 4D ﬁlters in 3D CNNs are

intuitive to use on a 4D light ﬁeld, the number of pa-

rameters quickly explode. Since their paper is aimed

towards material recognition, we experiment with the

two most relevant methods for view synthesis to map

a 4D light ﬁeld into a 2D CNN.

View Synthesis for Volume Rendering. Acceler-

ating volume rendering has long been an active re-

search area. Warping information from sample views

to synthesise new views (Mark et al., 1997; Mueller

et al., 1999; Lochmann et al., 2016) is feasible be-

cause rendered images do not tend to change dramat-

ically between viewpoints. Warping images is partic-

Using a Depth Heuristic for Light Field Volume Rendering

135

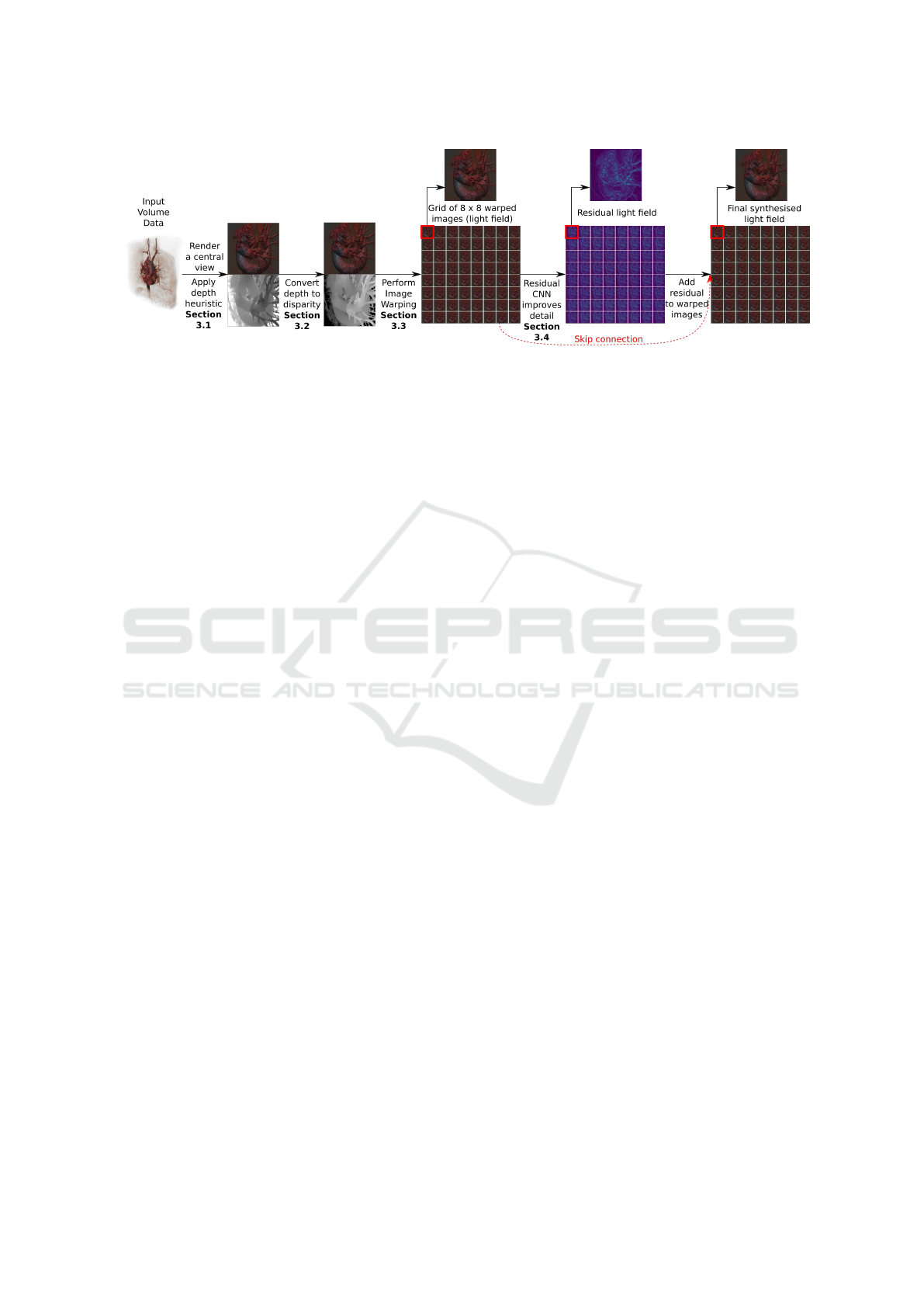

Figure 1: Our proposed light ﬁeld synthesis method can be broken down into distinct stages, including an initial depth heuristic

calculation stage and a ﬁnal CNN stage acting as a residual function to improve ﬁne-grained detail.

ularly prevalent in remote rendering because a remote

machine with no GPU can warp an image produced

by a server until a new image is received. (Zellmann

et al., 2012) proposed to warp images received from

a remote server based on an additional depth chan-

nel. Due to alpha compositing resulting in transparent

surfaces with ill-deﬁned depths, the authors present

multiple depth heuristics for image warping. They

found that modifying the ray tracer to return depth

at the voxel where the accumulated opacity along the

ray reaches 80% was the best balance between speed

and accuracy. We propose to apply an improved depth

heuristic to light ﬁeld view synthesis for volume ren-

dering.

3 METHODOLOGY

Our goal is to synthesise a volume rendered light ﬁeld

as a structured set of 8×8 novel views. The following

steps are involved in our light ﬁeld synthesis (Figure

1).

1. Render a reference view by direct volume render-

ing and use a depth heuristic to estimate a depth

map during ray casting.

2. Convert the depth map to a disparity map using

the camera parameters.

3. Applying backward image warping to the refer-

ence view using the disparity map to approximate

a light ﬁeld with an 8 × 8 angular resolution.

4. Apply a CNN to the warped images to improve

visual consistency. This is modelled as a residual

function which is added to the approximate light

ﬁeld from the previous step.

We apply a CNN to help account for inaccuracies in

the depth map, specular highlights, and occlusions to

improve the visual coherency of synthesised views

over depth-based image warping.

3.1 Volume Depth Heuristics

Part of our contribution is applying depth heuristics

in volume rendering for light ﬁeld angular resolu-

tion enhancement. Depth maps are useful for image

warping, but there is no unique depth for an alpha-

blended volume, so we apply a heuristic to determine

a per-pixel depth map. The depth of the ﬁrst non-

transparent voxel along the ray is inaccurate as it tends

to be corrupted by highly transparent volume infor-

mation close to the camera. Using isosurfaces gives

a good view of depth, but these must be recalculated

during runtime if the volume changes. To produce a

more accurate depth map, we estimate a depth during

ray casting.

To produce a depth estimate, we improve upon

the best performing single pass depth heuristic from

(Zellmann et al., 2012). In their work, when a ray ac-

cumulates a ﬁxed amount of opacity, the depth of the

current voxel is saved. However, this depth map is of-

ten missing information when a ray does not accumu-

late the desired opacity. To counteract this limitation,

we save a depth value when a ray accumulates a low

threshold opacity and overwrite that depth if the ray

later accumulates the high threshold opacity. This im-

proved the quality of the depth map and a comparison

of different depth heuristics is presented in Section

5.2.

3.2 Converting Depth to Disparity

We convert depth to disparity for image warping.

During rendering, a depth value from the Z-buffer

∈ [0, 1] is converted to a pixel disparity value using

the intrinsic camera parameters as follows. The depth

buffer value Z

is converted into normalised device

co-ordinates, in the range [−1, 1], as Z

= 2 · Z

− 1.

Then, perspective projection is inverted to give depth

in eye space as

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

136

2 · Z

· Z

+ Z

− Z

· (Z

− Z

)

(1)

Where Z

and Z

are the depths of the camera’s near

and far clipping planes in eye space, respectively.

Note that Z

should be set as close to the visualised

object as possible to improve depth buffer accuracy,

while Z

has negligible effect on the accuracy. Given

eye depth Z

, it is converted to a disparity value d

real units using similar triangles (Wanner et al., 2013)

B · f

− ∆x (2)

Where B is the camera baseline, or distance between

two neighbouring cameras in the grid, f is the focal

length of the camera, and ∆x is the distance between

two neighbouring cameras’ principle points. Again,

using similar triangles, the disparity in real units is

converted to a disparity in pixels as

(3)

Where d

and d

denote the disparity in pixels and

real world units respectively, W

is the image width in

pixels, and W

is the image sensor width in real units.

If the image sensor width in real units is unknown, W

can be computed from the camera ﬁeld of view θ and

focal length f as W

= 2 · f · tan(

3.3 Disparity based Image Warping

Using the volume rendered reference view and esti-

mated disparity map, we warp the reference view to

63 novel positions in a grid. To synthesise a novel

view, a disparity map D : R

7→ R is used to relate

pixel locations in a novel view to those in the ref-

erence view. Let I : R

7→ R

denote a reference

Red Green Blue (RGB) colour image at grid position

, v

) with an associated pixel valued disparity map

D. Then a synthesised novel view I

at grid position

, v

) can be formulated as:

(x + d · (u

− u

), y + d · (v

− v

)) = I(x, y)

where d = D(x, y)

(4)

There are two paradigms for image warping with a

disparity map; forward mapping and backward map-

ping. Forward mapping is not surjective and maps

pixels from the reference view into the novel view,

which results in holes in the image, for example, in

occluded areas. Backward mapping works in the in-

verse direction. For each pixel in the novel view, the

most relevant information from the reference view is

assigned to that pixel. Therefore, it is surjective and

no holes are formed, but the reference view is usu-

ally oversampled. A comparison between backwards

mapping and forward mapping in terms of Peak Sig-

nal to Noise Ratio (PSNR) and Structural Similarity

(SSIM) is presented in Figure 2.

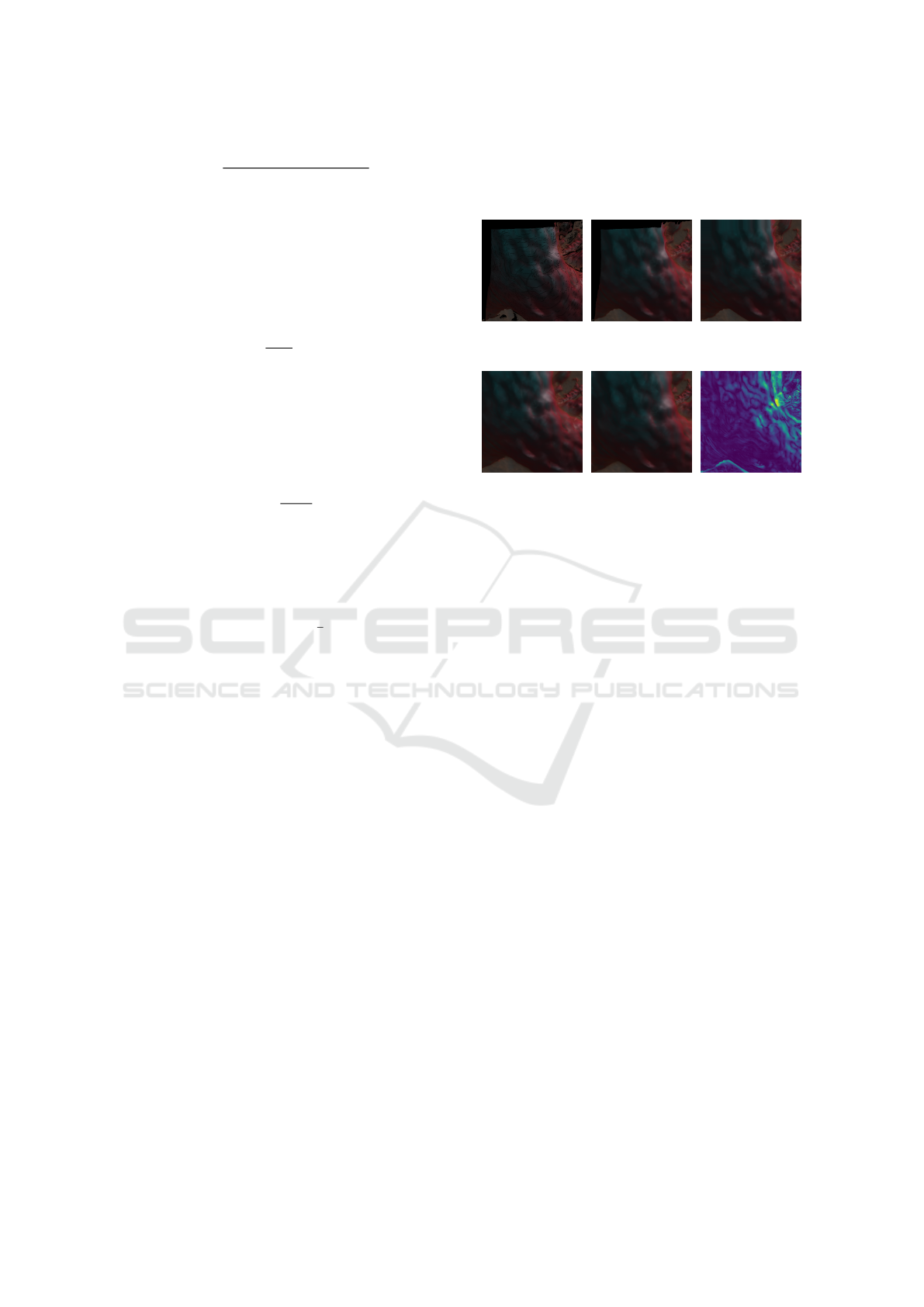

(a) Forward warp

PSNR 22.81

SSIM 0.58

(b) Backward warp

PSNR 24.36

SSIM 0.79

PSNR 27.92

SSIM 0.91

(d) Central

reference

(e) Ground truth


(f) Difference

between (c) and (e)

Figure 2: Demonstrating different warping methods to syn-

thesise the top left novel view at grid position (0, 0) from

the central reference view at position (4, 4) shown in Figure

(d). The forward warping in (a) has many cracks and holes.

Backward warping in (b) is smooth but is missing informa-

tion at the borders. As such, the border is stretched in (c),

which represents the ﬁnal backward warping used.

For backward warping, pixels in the novel view

that should read data from a location that falls out-

side the border of the reference view were set to read

the closest border pixel in the reference view instead.

This would stretch the border of the reference view

in the novel view, rather than produce holes (Figure

2(c)).

3.4 Convolutional Neural Network

We apply a CNN to the grid of 64 images from the

previous step to improve the visual quality of the syn-

thesised light ﬁeld. Giving the CNN access to all

warped images and the estimated disparity map al-

lows the network to learn to correct for errors at ob-

ject borders, modify the effect of specular highlights,

and predict information which is occluded in the ref-

erence view. This is achieved by framing the network

as a residual function that predicts only the correc-

tions needed to be made to the warped images to re-

duce the synthesis loss. The residual light ﬁeld has

full range over the colour information, with values in

[−1, 1], to allow for removal of erroneous pixels and

addition of predicted data.

Because the light ﬁeld is 4D, 3D CNNs which use

4D ﬁlters are intuitive to apply to this problem, but

using 2D convolutions leads to faster performance.

Using a Depth Heuristic for Light Field Volume Rendering

137

(Wang et al., 2016) demonstrated strong evidence that

3D CNNs can be effectively mapped into 2D archi-

tectures. To experiment with this, four primary net-

work architectures were implemented. Note that any

network’s Rectiﬁed Linear Unit activations have been

replaced by Exponential Linear Unit activations to be

consistent with the network from (Srinivasan et al.,

2017).

The ﬁrst network tested was the 3D occlusion pre-

diction network from (Srinivasan et al., 2017), which

we will label Srinivasan3D. This network is struc-

tured as a residual network with 3 × 3 × 3 ﬁlters that

have access to every view. The input to Srinivasan3D

is all 64 warped images, and a colour mapped dispar-

ity map.

(He et al., 2016) introduced the concept of resid-

ual networks, which perform a series of residual func-

tions. The second network tested was a modiﬁed ver-

sion of ResNet18 (He et al., 2016), which we will call

StackedResNet. The input to StackedResNet is all

warped images and a colour mapped disparity map

which are stacked over the colour channels, a 195

channel input. To keep the spatial input dimensions

ﬁxed, all spatial pooling is removed from ResNet18.

The ﬁrst layer of ResNet18 is also replaced, as it is

intended to gather spatial information, and the input

is instead convolved into 64 features to gather angu-

lar information. The ﬁnal fully connected layer of

ResNet18 is replaced by a convolutional layer with a

tanh activation function. Due to the removal of pool-

ing, pre-trained weights were not used for Stacke-

dResNet.

The third network, labelled StackedEDSR, was

based on the Enhanced Deep Super-Resolution

(EDSR) network of (Lim et al., 2017). EDSR is mod-

elled as a series of residual blocks which act upon a

single RGB image to learn relevant features before

performing spatial upsampling. The input to Stacked-

EDSR is the same as StackedResNet. As such, we

modify the ﬁrst convolutional layer of EDSR to map

195 colour channels, instead of 3 colour channels,

to 256 features. StackedEDSR also removes the ﬁ-

nal spatial upscaling performed by EDSR and applies

tanh activation after the last layer.

The ﬁnal network, denoted AngularEDSR, is the

same network as EDSR, except for removal of spatial

upscaling at the last layer and application of tanh ac-

tivation at the ﬁnal layer. To map the input into the

three colour channel input required for EDSR, angu-

lar remapping from (Wang et al., 2016) is applied to

create an RGB colour image. Consider a light ﬁeld

sample with 8×8 images having 512×512 pixels and

three colour channels. This would be remapped into

an image having (8 · 512) × (8 · 512) pixels and three

colour channels. In this remapped image, the upper-

most 8 × 8 pixels would contain the upper-left pixel

from each of the original 8×8 views. The 3×3 ﬁlters

used in this architecture look at the nearest neighbours

to a view as opposed to all views as is the case for

the other networks tested. Pre-trained weights were

tested for both EDSR based networks, but they per-

formed poorly.

4 IMPLEMENTATION

Every experiment was performed on a computer with

16GB memory, an Intel i7-7700K @ 4.20GHz Cen-

tral Processing Unit (CPU), and a NVIDIA GeForce

GTX 1080 GPU running on Ubuntu 16.04. For deep

learning, the PyTorch library (Paszke et al., 2017),

version 0.40 was used with Cuda 9.1, cuDNN 7.1.2,

and NVIDIA driver version 390.30.

4.1 Data Collection

To demonstrate validity of the proposed method, an

MRI of a heart with visible aorta and arteries would

be used for training and validation. The heart volume

dataset has a resolution of 512×512×96 and is avail-

able online (Roettger, 2018b). See Figure 3 for exam-

ples of this dataset rendered. This volume was chosen

because the heart has a rough surface, and the aorta

and arteries create intricate structures which are dif-

ﬁcult to reconstruct. See Figure 3(c) for an example

of a translucent structure in this dataset. The applied

transfer function does not contain high frequencies

which tend to reveal isosurfaces or geometry which

is static in texture because inaccurate depth maps can

still produce correct warping on large regions with a

static texture. Consequently, the depth map genera-

tion is well tested.

(a) Training

transfer function

(b) Simple

transfer function

structure

Figure 3: Demonstrating the training volume and transfer

function with images rendered in Inviwo.

Using Inviwo (Sund

en et al., 2015), a synthetic

light ﬁeld dataset is captured. The light ﬁeld captur-

ing geometry used is a “2D array of outward look-

ing (non-sheared) perspective views with ﬁxed ﬁeld

of view” (Levoy and Hanrahan, 1996). To capture the

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

138

Figure 4: Sample training light ﬁeld central sub-aperture views.

synthetic dataset, a Python script is created to move

the camera in Inviwo along a regular equidistant grid.

The cameras are shifted along the grid rather than ro-

tated to keep their optical axes parallel, removing the

need to rectify the images to a common plane. Each

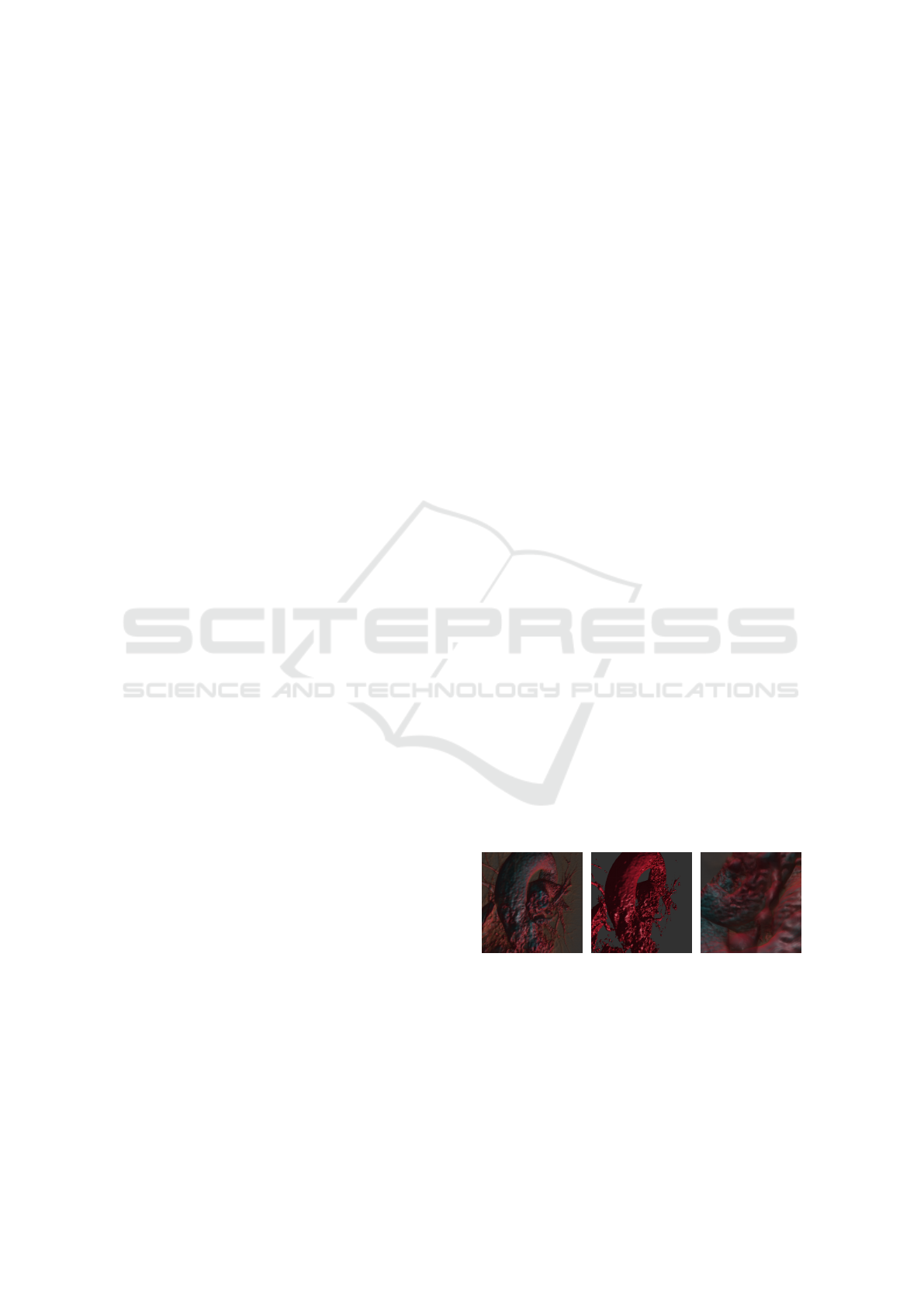

light ﬁeld sample has an angular resolution of 8 × 8,

with 512 × 512 spatial resolution. 2000 training light

ﬁelds are captured, and 100 separate validation light

ﬁelds. See Figure 4 for the central sub-aperture image

of ﬁve captured light ﬁelds.

Sampling was performed uniformly, rather than

focusing on particular sections of the heart. To in-

crease the diversity of the data captured, a plane with

a normal aligned with the camera view direction is

used to clip the volume for half the captured exam-

ples. This plane clipping can reveal detailed struc-

tures inside the volume and demonstrates the accu-

racy of the depth heuristic when the volume changes.

4.2 Training Procedure

To increase training speeds and the amount of avail-

able data, four random spatial patches of size 128 ×

128 are extracted from each light ﬁeld at every train-

ing epoch. Additionally, training colour images have

a random gamma applied as data augmentation.

The CNNs are trained by minimising the per-pixel

mean squared error between the ground truth views

and the synthesised views. Network optimisation

was performed with Stochastic gradient descent and

Nesterov momentum. An initial learning rate of 0.1

was updated during learning by cosine annealing the

learning rate with warm restarts (Loshchilov and Hut-

ter, 2017). Gradients were clipped based on the norm

at a value of 0.4 and an L2 regularisation factor of

0.0001 was applied. Training takes about 14 hours us-

ing 2D CNN architectures with eight CPU cores used

for data loading and image warping.

5 EXPERIMENTS

5.1 Network Comparison for View

Synthesis

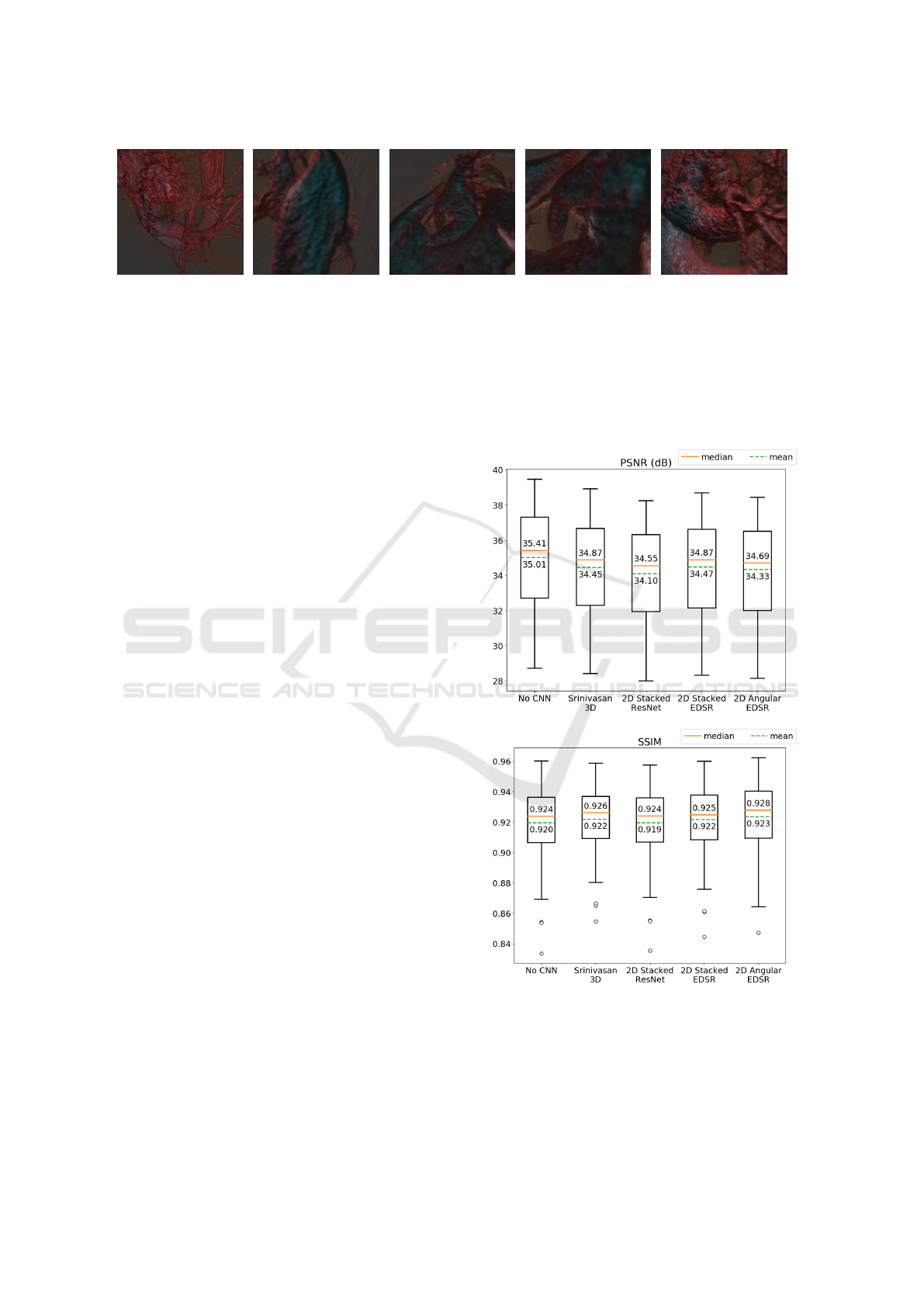

Figure 5: Comparing CNN architectures for view synthesis.

The box plots show PSNR and SSIM values averaged over

the 64 grid images for one hundred validation light ﬁelds.

The whiskers in the box plot indicate the data variability

and show the lowest datum and highest datum within 1.5 of

the interquartile range. The small circlular points outside of

the whiskers are outliers. The CNNs incur large loss at the

reference view position, especially for PSNR.

Using a Depth Heuristic for Light Field Volume Rendering

139

In Figure 5, the PSNR and SSIM metrics for each net-

work averaged over all light ﬁeld sub-aperture images

are presented for the full validation set of one hun-

dred light ﬁelds. These experiments demonstrate that

the 3D convolutions performed in (Srinivasan et al.,

2017) can be effectively mapped into 2D CNNs as the

EDSR (Lim et al., 2017) based 2D networks outper-

form the slower 3D convolutions.

From Figure 5, it appears that none of the resid-

ual CNNs exhibit much performance difference from

geometrical warping. Investigating the results for

each synthesised sub-aperture view reveals further in-

sights. This is emphasised by the large loss in PSNR

and SSIM for the reference view position when using

a CNN. Warping does not change the reference view,

maintaining perfect PSNR of 100 and SSIM of 1.0.

However, when a residual CNN is applied it modi-

ﬁes the reference view and this decreases to approxi-

mately 40 and 0.92 respectively. The reference view

could be used without adding the residual to it, but

this lessens the consistency of the resulting light ﬁeld.

Figure 6 presents the difference in quality be-

tween image warping and the AngularEDSR CNN

per sub-aperture image location for one sample val-

idation light ﬁeld. To summarise the results, images

far away from the central view exhibited lower loss

when a residual CNN was applied on top of image

warping. However, the CNN caused a degradation

in quality for central images. Additional evaluation

performed with the Learned Perceptual Image Patch

Similarity (LPIPS) metric (Zhang et al., 2018) using

the deep features of AlexNet (Krizhevsky et al., 2012)

to form a perceptual loss function agrees with the per

image values for SSIM and PSNR. See Figure 8 for

the bottom right sub-aperture view of this light ﬁeld

from the validation set along with difference images

to visualise the effect of the CNN.

5.2 Depth Heuristic Comparison

To compare depth heuristics, ten light ﬁelds were cap-

tured without volume clipping. Five depth maps are

recorded:

1. OneDepth: The depth at 0.8 opacity during ray

casting.

2. TwoDepthFar: The depth at 0.8 opacity, and if

that is not reached, the depth at 0.3 opacity during

ray casting.

3. TwoDepthClose: The depth at 0.7 opacity, and

if that is not reached, the depth at 0.35 opacity

during ray casting.

4. IsoDepth: The depth of an isosurface at a value

of 80 which is precomputed on the CPU.

PSNR Diﬀerence

0.7 0.9 0.9 0.9 0.9 0.9 0.8 0.6

0.5 0.7 0.8 0.8 0.8 0.7 0.7 0.5

0.2 0.3 0.4 0.3 0.4 0.3 0.3 0.3

-0.0 0.0 -0.1 -0.2 -0.1 -0.1 -0.1 0.0

-0.1 -0.1 -0.3 -1.0 -1.2 -1.0 -0.3 -0.2

-0.0 0.0 -0.1 -0.2 -0.2 -0.3 -0.2 -0.1

0.3 0.4 0.4 0.4 0.5 0.4 0.4 0.3

0.4 0.6 0.6 0.6 0.7 0.6 0.6 0.5

1 2 3 4 5 6 7 8

Sub-Aperture Image x-index

Sub-Aperture Image y-index

-1

-0.5

0.5

SSIM Diﬀerence

0.012 0.013 0.013 0.013 0.014 0.013 0.013 0.012

0.008 0.009 0.008 0.008 0.009 0.008 0.008 0.008

0.004 0.004 0.003 0.003 0.004 0.003 0.003 0.004

0.000 -0.000 -0.001 -0.001 -0.000 -0.001 -0.001 0.001

0.000 -0.001 -0.001 -0.002 -0.003 -0.002 -0.001 -0.001

0.000 -0.000 -0.001 -0.001 -0.001 -0.002 -0.002 -0.001

0.003 0.003 0.003 0.002 0.003 0.002 0.003 0.003

0.007 0.008 0.007 0.007 0.008 0.007 0.007 0.007

1 2 3 4 5 6 7 8

Sub-Aperture Image x-index

Sub-Aperture Image y-index

-0.015

-0.01

-0.005

0.005

0.01

0.015

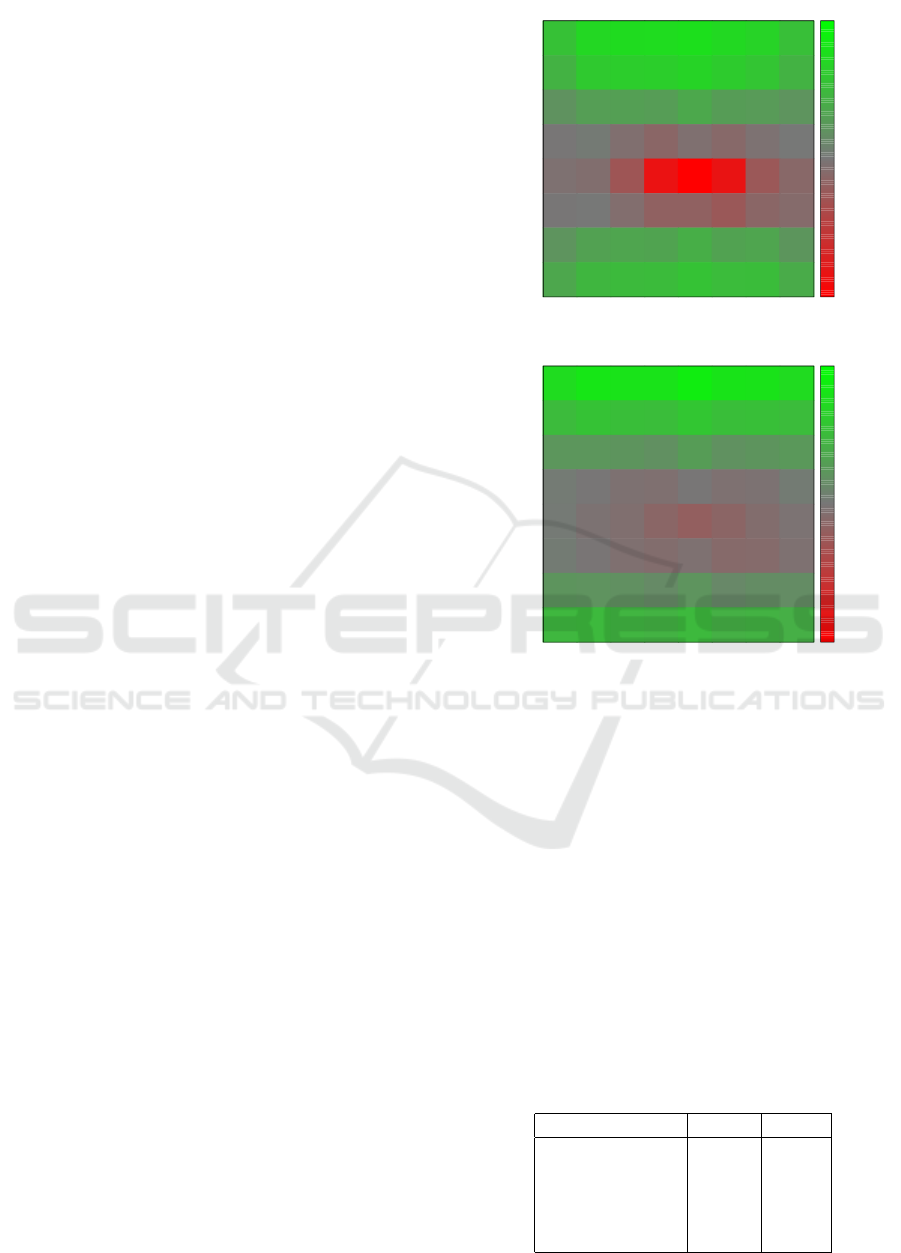

Figure 6: SSIM and PSNR difference after applying An-

gularEDSR to the warped images. Results are shown per

sub-aperture image location in an 8 ×8 grid. Position (5, 5)

is the location of the reference view and the loss in PSNR

at that position is scaled to make the graph more readable.

5. FirstDepth: The depth of the ﬁrst non-transparent

voxel hit during ray casting.

Each of these depth maps is used to warp the cen-

tral light ﬁeld sample image to all 64 grid locations.

The average PSNR and SSIM over the ten synthesised

light ﬁelds for each different depth map is presented

in Table 1. TwoDepthFar is the depth heuristic that

was selected for use in the training set, as it achieved

the highest SSIM in this experiment.

Table 1: Comparing quantitative results of image warping

with different depth maps averaged over 10 light ﬁelds.

Depth map type PSNR SSIM

OneDepth 34.63 0.907

TwoDepthFar 35.95 0.923

TwoDepthClose 35.97 0.922

IsoDepth 35.01 0.909

FirstDepth 27.96 0.802

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

140

(a) Reference (b) Synthesised (c) Ground truth

(d) Disparity at (a)

(e) Reference (f) Synthesised (g) Ground truth

(h) Disparity at (e)

(i) Reference (j) Synthesised (k) Ground truth

(l) Disparity at (i)

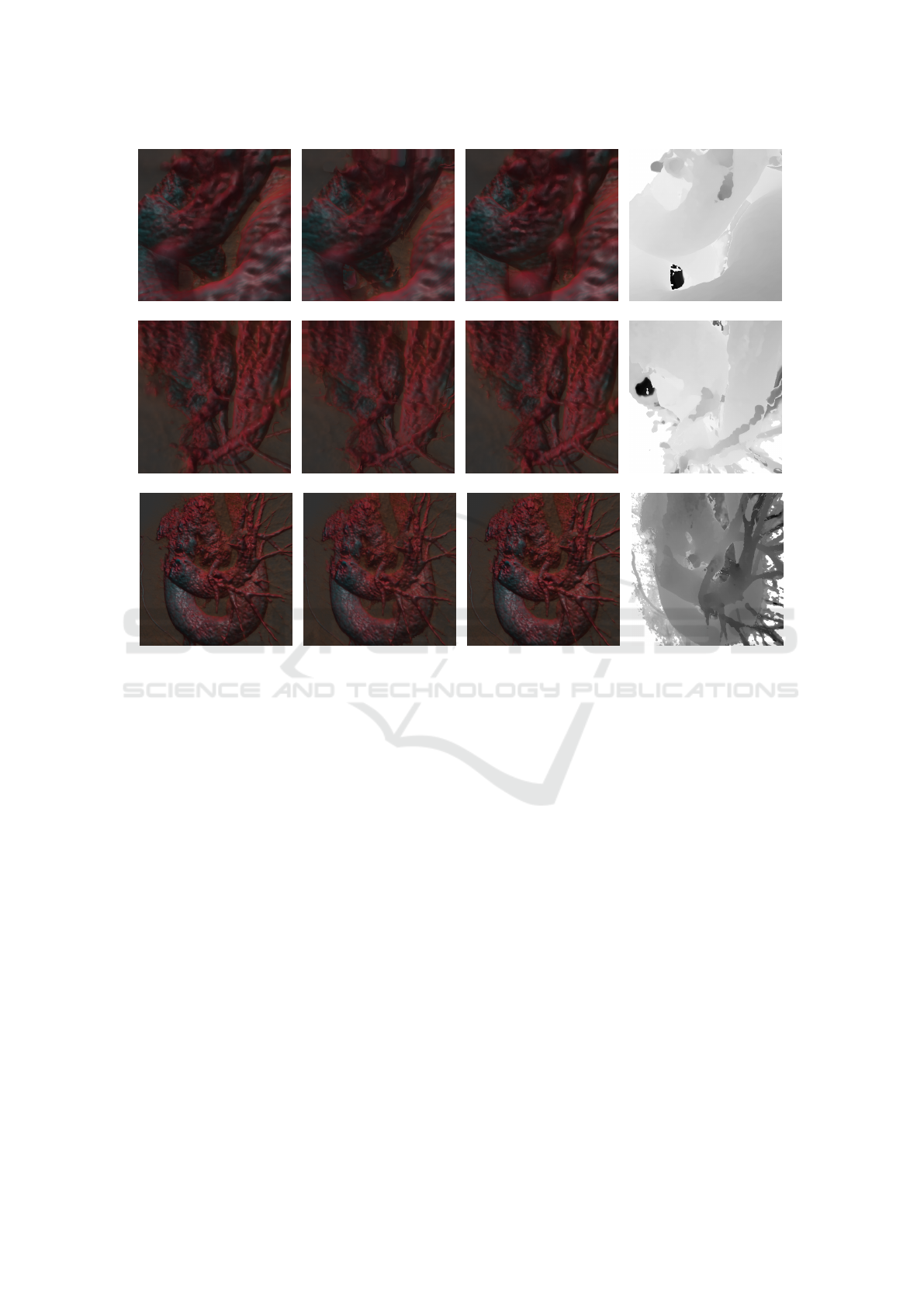

Figure 7: Example synthesised upper-left images from the validation set. The ﬁrst row has low performance due to the

translucent structure at the centre of the view. The second row has middling performance since the arteries are not perfectly

distinguished from the aorta. The third row has high performance with small inaccuracies, such as on the lower right edge of

the aorta. Disparity maps for the central reference views are presented in the ﬁnal column.

5.3 Example Synthesised Light Fields

To investigate the method performance, an example

of a low, middling, and high quality synthesised light

ﬁeld from the validation set is presented in Figure 7.

Figure 7(b) is a poor reconstruction due to the opaque

structure that should be present in the centre of the

view. This structure is not picked up by the dispar-

ity map, resulting in a large crack appearing in the

synthesised image. Figure 7(f) is a reasonably well

synthesised view. Most of the information is accu-

rately shifted from the reference view, but some arter-

ies lose their desired thickness and the image is not

very sharp. Figure 7(j) is an accurate synthesis. Some

errors are seen around object borders, such as on the

arch of the aorta, but overall it is hard to distinguish

from the ground truth information. Additional results

are presented in a supplementary video.

5.4 Time Performance in Inviwo

The presented method is currently not fast enough

for light ﬁeld volume rendering at interactive rates.

On average, synthesising and displaying a light ﬁeld

of 64 images with 512 × 512 pixels from the heart

MRI discussed in Section 4.1 takes 3.73 seconds in

Inviwo (Sund

en et al., 2015) if bilinear interpolation

is used for backward warping with the AngularEDSR

network. If nearest neighbours is used for warping in-

stead of bilinear interpolation the whole process takes

1.28 seconds, disregarding the time to pass informa-

tion through Inviwo. This is similar to the time taken

to directly render a light ﬁeld in Inviwo, which takes

1.18 seconds.

The time for CNN view synthesis has far less de-

viation than directly volume rendering a light ﬁeld,

because the latter depends heavily on the complex-

ity of the scene. A CNN performs the same oper-

ations regardless of input complexity, which results

Using a Depth Heuristic for Light Field Volume Rendering

141

(a) AngularEDSR

PSNR 36.05

SSIM 0.909

(b) Warping alone

PSNR 35.59

SSIM 0.903

PSNR 100.0

SSIM 1.000

(d) Difference

of (a) and (b)

(e) Difference

of (a) and (c)

(f) Difference

of (b) and (c)

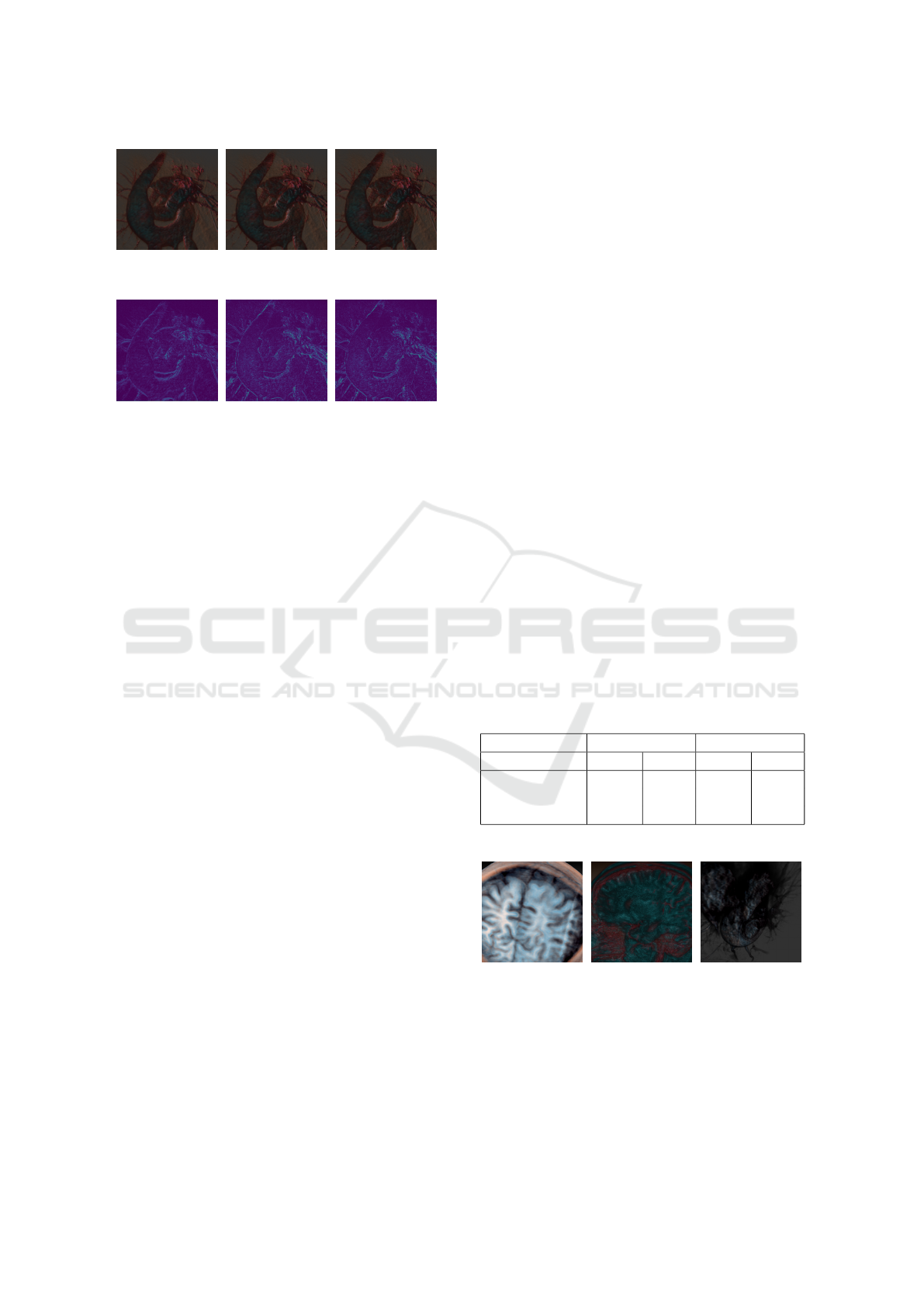

Figure 8: The bottom right view in the light ﬁeld which Fig-

ure 6 presents results for. Figure (d) visualises the residual

applied by the CNN to the warped images to improve visual

quality. The CNN detects broad edges to improve, such as

the central arch of the aorta, but fails to improve ﬁner details

such as the arteries in the top right of the image.

in steady performance. Additionally, the CNN per-

formance is agnostic to the resolution of the volume

data and only depends on the spatial resolution of the

reference image. Accordingly, for very large com-

plex volumes with expensive rendering techniques,

this method could be applicable.

To understand the bottlenecks, we analyse the

breakdown of the 3.73 seconds to synthesise and dis-

play a light ﬁeld in Inviwo with bilinear interpola-

tion. Rendering the reference view and passing in-

put and output information through Inviwo takes 0.91

seconds on average. Only 0.003 seconds is spent on

applying the depth heuristic, which is implemented

in the fragment shader. All CNNs tested complete

a forward pass in less than 0.2 seconds, with Angu-

larEDSR taking 0.047 seconds and Srinivasan3D tak-

ing 0.19 seconds. The time performance bottleneck is

image warping, which takes approximately 2.77 sec-

onds to warp a 512 × 512 image to a grid of 8 × 8

locations on the CPU. This is performed with bilin-

ear interpolation of pixel values. Using nearest neigh-

bours does not signiﬁcantly jeopardise quality, and

takes 1.17 seconds. Although our image warping is

performed on the CPU due to GPU memory limita-

tions, the GPU based warping from (Srinivasan et al.,

2017) is also a performance bottleneck. For images of

size 192 × 192, their GPU accelerated warping takes

0.13 seconds, while our CPU warping with bilinear

interpolation takes 0.17 seconds.

Because of the time drawback, a 3D CNN which

directly took a reference view and associated depth

map to perform view synthesis was tested. This took

only 0.49 seconds on average, which is faster than di-

rect volume rendering. Despite this, the results were

low quality, averaging 26.1 PSNR and 0.83 SSIM.

The CNN learnt how to move information to new

views, but the colour consistency between views was

low. This method could be improved by a loss which

penalises a lack of colour consistency between views.

5.5 Performance on Unseen Data

Although the depth heuristic used during volume ren-

dering seems reasonable, there is no guarantee it

would perform well with different volumes and trans-

fer functions (TFs). Three experiments were per-

formed with the AngularEDSR architecture on ten

sample light ﬁelds in each case to test generalisation

of the depth heuristic. A new volume set of a head

MRI was used, available online (Roettger, 2018a)

with a different TF from the training set. Results are

presented in Table 2, and a central reference view for

each volume TF combination in Figure 9. The re-

sults show that the depth heuristic used and the im-

age warping applied using this generalise well. The

AngularEDSR network fails to generalise to unseen

volumes and transfer functions. This is hardly sur-

prisingly since the network has only ever seen one

volume and transfer function. As such, the CNN cur-

rently has to be retrained for new volumes or TFs, but

in future experiments we could attempt to generalise

this learning.

Table 2: Average results on transfer function and volume

combinations that are different from training.

Warping CNN

TF, volume PSNR SSIM PSNR SSIM

New TF, head 36.50 0.956 34.46 0.955

Seen TF, head 41.43 0.949 40.18 0.949

New TF, heart 37.78 0.932 36.89 0.927

(a) New volume

New TF

(b) New volume

Training TF

New TF

Figure 9: Sample reference views used for synthesis of light

ﬁelds on unseen data.

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

142

6 CONCLUSIONS AND FUTURE

WORK

Applying depth heuristics for the purposes of image

warping to synthesise views in light ﬁeld volume ren-

dering produces good results and we recommend this

as a ﬁrst step for this problem. Additionally, learning

a residual light ﬁeld improves the visual consistency

of the geometrically based warping function, and is

useful for views far away from the reference view.

Our light ﬁeld synthesis is fast compared to existing

methods but is still too slow to compete with direct

volume rendering in many cases. However, in con-

trast to light ﬁeld volume rendering, the time for our

synthesis is independent of the volume resolution and

rendering effects and only depends on the resolution

of the sample volume rendered image.

Our view synthesis results for light ﬁeld volume

rendering are of high quality and deep learning can

be effectively be applied to this problem, but the geo-

metrical image warping bottleneck prevents synthesis

at interactive rates.

In future work, we would be keen to consider

more datasets and transfer functions with various lev-

els of transparency to help generalise this approach.

We would also be interested in investigating further

image warping procedures to identify potential opti-

misations. A possible technique for effective synthe-

sis may be to use multiple depth heuristics and a CNN

to combine them into one depth map. Moreover, in-

corporating additional volume information alongside

a depth map and a volume rendered view could be

beneﬁcial. Given the expense of 3D CNNs learning

over volumes, we expect that 2D CNNs learning from

multiple images are likely to dominate in future years

on volumetric data.

ACKNOWLEDGEMENTS

This research has been conducted with the ﬁnancial

support of Science Foundation Ireland (SFI) under

Grant Number 13/IA/1895.

REFERENCES

Frayne, S. (2018). The looking glass. https:

//lookingglassfactory.com/. Accessed:

22/11/2018.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Kalantari, N. K., Wang, T.-C., and Ramamoorthi, R. (2016).

Learning-based view synthesis for light ﬁeld cameras.

ACM Transactions on Graphics, 35(6):193:1–193:10.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in neural information process-

ing systems, pages 1097–1105.

Lanman, D. and Luebke, D. (2013). Near-eye light ﬁeld

displays. ACM Transactions on Graphics (TOG),

32(6):220.

Levoy, M. and Hanrahan, P. (1996). Light Field Render-

ing. In Proceedings of the 23rd annual conference on

Computer graphics and interactive techniques, SIG-

GRAPH ’96, pages 31–42. ACM.

Lim, B., Son, S., Kim, H., Nah, S., and Lee, K. M. (2017).

Enhanced deep residual networks for single image

super-resolution. In The IEEE conference on com-

puter vision and pattern recognition (CVPR) work-

shops, volume 1, page 4.

Lochmann, G., Reinert, B., Buchacher, A., and Ritschel,

T. (2016). Real-time Novel-view Synthesis for Vol-

ume Rendering Using a Piecewise-analytic Represen-

tation. In Vision, Modeling and Visualization. The Eu-

rographics Association.

Loshchilov, I. and Hutter, F. (2017). SGDR: Stochastic

gradient descent with warm restarts. In International

Conference on Learning Representations.

Mark, W. R., McMillan, L., and Bishop, G. (1997). Post-

rendering 3d warping. In Proceedings of the 1997

symposium on Interactive 3D graphics, pages 7–16.

ACM.

Mueller, K., Shareef, N., Huang, J., and Crawﬁs, R. (1999).

Ibr-assisted volume rendering. In Proceedings of

IEEE Visualization, volume 99, pages 5–8. Citeseer.

Paszke, A., Gross, S., Chintala, S., Chanan, G., Yang, E.,

DeVito, Z., Lin, Z., Desmaison, A., Antiga, L., and

Lerer, A. (2017). Automatic differentiation in pytorch.

Penner, E. and Zhang, L. (2017). Soft 3d reconstruction

for view synthesis. ACM Transactions on Graphics,

36(6):235:1–235:11.

Qi, C. R., Su, H., Nießner, M., Dai, A., Yan, M., and

Guibas, L. J. (2016). Volumetric and multi-view cnns

for object classiﬁcation on 3d data. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 5648–5656.

Roettger, S. (2018a). Head volume dataset.

http://schorsch.efi.fh-nuernberg.de/data/

volume/MRI-Head.pvm.sav. Accessed: 24/08/2018.

Roettger, S. (2018b). Heart volume dataset.

http://schorsch.efi.fh-nuernberg.de/

data/volume/Subclavia.pvm.sav. Accessed:

15/08/2018.

Shi, L., Hassanieh, H., Davis, A., Katabi, D., and Durand,

F. (2014). Light ﬁeld reconstruction using sparsity in

the continuous fourier domain. ACM Transactions on

Graphics, 34(1):1–13.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Srinivasan, P. P., Wang, T., Sreelal, A., Ramamoorthi, R.,

and Ng, R. (2017). Learning to sythesize a 4d rgbd

light ﬁeld from a single image. In IEEE International

Using a Depth Heuristic for Light Field Volume Rendering

143

Conference on Computer Vision (ICCV), pages 2262–

2270.

Sund

en, E., Steneteg, P., Kottravel, S., Jonsson, D., En-

glund, R., Falk, M., and Ropinski, T. (2015). Inviwo -

an extensible, multi-purpose visualization framework.

In IEEE Scientiﬁc Visualization Conference (SciVis),

pages 163–164.

Vagharshakyan, S., Bregovic, R., and Gotchev, A. (2018).

Light ﬁeld reconstruction using shearlet transform.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 40(1):133–147.

Wang, T.-C., Zhu, J.-Y., Hiroaki, E., Chandraker, M., Efros,

A. A., and Ramamoorthi, R. (2016). A 4d light-ﬁeld

dataset and cnn architectures for material recognition.

In European Conference on Computer Vision, pages

121–138. Springer.

Wanner, S. and Goldluecke, B. (2014). Variational light

ﬁeld analysis for disparity estimation and super-

resolution. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 36(3):606–619.

Wanner, S., Meister, S., and Goldluecke, B. (2013).

Datasets and benchmarks for densely sampled 4d light

ﬁelds. In Vision, Modeling, and Visualization.

Wu, G., Zhao, M., Wang, L., Dai, Q., Chai, T., and Liu, Y.

(2017). Light ﬁeld reconstruction using deep convo-

lutional network on epi. In IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

1638–1646.

Yoon, Y., Jeon, H.-G., Yoo, D., Lee, J.-Y., and So Kweon,

I. (2015). Learning a deep convolutional network for

light-ﬁeld image super-resolution. In Proceedings of

the IEEE International Conference on Computer Vi-

sion Workshops, pages 24–32.

Zellmann, S., Aum

uller, M., and Lang, U. (2012). Image-

based remote real-time volume rendering: Decoupling

rendering from view point updates. In ASME 2012

International Design Engineering Technical Confer-

ences and Computers and Information in Engineering

Conference, pages 1385–1394. ASME.

Zhang, R., Isola, P., Efros, A. A., Shechtman, E., and Wang,

O. (2018). The unreasonable effectiveness of deep

features as a perceptual metric. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition (CVPR).

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

144
