Model-based Network Fault Injection for IoT Protocols

Jun Yoneyama

, Cyrille Artho

, Yoshinori Tanabe

and Masami Hagiya

Dept. of Computer Science, The University of Tokyo, Tokyo, Japan

School of Electrical Engineering and Computer Science, KTH Royal Institute of Technology, Stockholm, Sweden

Dept. of Library, Archival and Information Studies, Tsurumi University, Yokohama, Japan

Keywords:

Software Testing, Model-based Testing, Model-based Simulation, Fault Injection, Internet of Things, MQTT.

Abstract:

IoT devices operate in environments where networks may be unstable. They rely on transport protocols to

deliver data with given quality-of-service settings. To test an implementation of the popular MQTT protocol

thoroughly, we extend the model-based test framework “Modbat” to simulate unstable networks by taking

into account delays and transmission failures. Our proxy-based technology requires no changes to the IoT

software, while the model allows the user to deﬁne stateless or stateful types or fault patterns. We evaluate our

methods on a client-server library for MQTT, a transport protocol designed for IoT.

1 INTRODUCTION

In this paper, we extend methods of model-based test-

ing for testing Internet of Things (IoT) protocols in an

unreliable network environment. Model-based test-

ing is suitable to generate many different test scenar-

ios, and may cover many execution paths. However,

while it is easy to describe the behavior of each de-

vice in model-based testing, it is difﬁcult to describe

the behavior of the whole system.

To this end, we use models to control a simulation

environment that injects network faults. Our work

is integrated in the open-source model-based testing

tool Modbat (Artho et al., 2013) and combines two

approaches:

1. We enhance Modbat with three extensions, which

add a notion of time, facilitate modeling variable

error rates, and simplify error handling.

2. We simulate unstable networks during test execu-

tion. Our mechanism simulates instability using a

software layer that enables easy fault injection.

Compared to existing work, we apply the simula-

tion directly to implementations of IoT protocols, and

inject faults entirely in a software environment, with-

out modifying the system under test. Our approach

thus allows us to evaluate the robustness of the MQTT

implementation.

This paper is structured as follows. Section 2 de-

scribes the background of this research and related

work. Section 3 describes the deﬁnitions and imple-

mentations of our extensions. The methods and the

results of the experiments are described in Section 4.

Section 5 concludes and discusses future work.

2 BACKGROUND AND RELATED

WORK

This section gives background and describes related

work on model-based testing and simulation, fault in-

jection, IoT, and the MQTT protocol.

2.1 Model-based Testing

Software testing is a method to ﬁnd defects in soft-

ware by executing parts of the software. The target

software for the test is called system under test (SUT).

A test case consists of an input and an expected out-

put, which is compared with the actual output.

Model-based testing uses abstract models to gen-

erate test cases automatically (Utting et al., 2012).

Typically, many concrete test cases can be derived

from a given test model. There exist many tools for

model-based testing, such as QuickCheck (Claessen

and Hughes, 2000), ScalaCheck (Nilsson, 2015),

SpecExplorer (Veanes et al., 2008), and Mod-

bat (Artho et al., 2013).

Yoneyama, J., Artho, C., Tanabe, Y. and Hagiya, M.

Model-based Network Fault Injection for IoT Protocols.

DOI: 10.5220/0007618102010209

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 201-209

ISBN: 978-989-758-375-9

201

2.2 Model-based Simulation

Model-based simulation derives a simulation from an

abstract model, typically using graph transformation

techniques (Kosiuczenko and Lajios, 2007; Torrini

et al., 2010). This technique has been applied to

simulate networks (Khan et al., 2009) or mobile sys-

tems (Heckel and Torrini, 2010), among many oth-

ers. The differences to model-based testing are that

the stimuli to the SUT are indirect, via a simulated

environment rather than a direct input, and that the

exact output is usually not known.

Models have also been used to directly analyze the

correctness or performance of IoT protocols, for ex-

ample MQTT (Houimli et al., 2017) and related pro-

tocols (Alvi et al., 2015; De Rubertis et al., 2013).

Our work differs in that we analyze the performance

of a running system rather than an abstract model.

2.3 Fault Injection

Fault injection introduces errors into the system ar-

tiﬁcially in order to test the robustness of the sys-

tem (Ziade et al., 2004), (Hsueh et al., 1997). Con-

ceptually, fault injection is related to mutation test-

ing (Jia and Harman, 2011) or fuzz testing (Oehlert,

2005) in that mutations or changes to inputs are ap-

plied at the protocol layer, to simulate faults in the

behavior of the network or some of the nodes send-

ing data on it (Dadeau et al., 2011; Jing et al., 2008;

Zhang et al., 2012).

Closely related to our work is an evaluation of

the effect of network errors on a Myrinet network

interface hardware by using simulated and software-

implemented fault injection (Stott et al., 1998). Both

methods modify the system under test (SUT) to inject

faults. Our work differs in that we inject faults in an

intermediary component, without modifying the SUT.

This is similar to jepsen (Kingsbury, 2018), which

injects faults at the level of system virtualization by

parametrizing various aspects of system reliability for

the duration of testing.

2.4 IoT and Testing

IoT devices are expected to operate in a potentially

unstable network environment; hence, much work ex-

ists on testing IoT-related transport protocols and their

impact on systems. Transport protocols designed for

IoT devices include MQTT (Banks and Gupta, 2014)

and CoAP (Bormann, 2016).

MQTT uses publish/subscribe protocol in which

multiple clients exchange messages via a server,

called “broker”. Each message has a payload, a topic

name and a value named Quality of Service (QoS).

Our work focuses on QoS. MQTT protocol can guar-

antee message arrival even if devices are working in

an unstable network environment where TCP connec-

tions may be lost.

MQTT deﬁnes three types of QoS, 0 to 2, as fol-

lows:

QoS 0. Each message is delivered at most once. The

message may be lost during delivery.

QoS 1. Each message is delivered at least once. The

message may be delivered multiple times.

QoS 2. Each message is delivered exactly once.

No message loss or redundant delivery is al-

lowed. (Banks and Gupta, 2014)

Past work has described the MQTT protocol for-

mally (Mladenov et al., 2017) in a test description

language, TTCN-3 (Grabowski et al., 2003). In this

study, and MQTT servers are tested according to a set

of ﬁxed test cases that are derived the speciﬁcation.

Existing work tested three MQTT server implemen-

tations and found that all of them produced responses

violating the protocol speciﬁcation. Other protocols

and features are covered by ongoing work (Testware,

2018). In contrast to this work, our models generate

variable test outcomes.

Model-based testing has also been applied to

MQTT (Tappler et al., 2017) and other protocols (Hsu

et al., 2008), with the result of uncovering incon-

sistencies between various implementations. Other

studies evaluate the correlation between message size,

network instability, and performance, by varying net-

work delay and packet loss rate (Thangavel et al.,

2014; Lee et al., 2013). Our approach differs in that

no extra equipment is required, as the network envi-

ronment is entirely controlled by software.

2.5 Extended Finite State Machines

An extended ﬁnite state machine (Cheng and Kr-

ishnakumar, 1993) is deﬁned as a 7-tuple M =

(I, O,S, D,F,U, T ), where S is a set of states, I is a set

of input symbols, O is a set of output symbols, D is an

n-dimensional vector space D

×. . .×D

, F is a set of

enabling functions f

s. t. f

: D → {0, 1}, U is a set of

update functions u

s. t. u

: D → D, and T is a transi-

tion relation s. t. T ⊆ (S×F ×I)×(S×U ×O) (Cheng

and Krishnakumar, 1993). Past work describes details

on EFSMs as used by the model-based tester Mod-

bat (Artho et al., 2013), which we use here.

We propose several extensions to EFSMs for

modeling an IoT simulation environment. The

time extension of EFSMs results in a notation that

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

202

is conceptually similar to probabilistic timed au-

tomata (Beauquier, 2003). The differences are that

with our notation, the time interval for a transi-

tion can be a random value between two boundaries

rather than a ﬁxed amount, and that our model al-

lows probabilities to change at run time. Further-

more, our modeling notation is optimized for testing

network software (Artho et al., 2013; Artho et al.,

2017), rather than model checking algorithms (Buly-

chev et al., 2012) or protocols (Kwiatkowska et al.,

2002; Kwiatkowska et al., 2011).

Compared to similar probabilistic extensions of

EFSMs proposed in the past (Park and Miller, 1997;

Paz, 1971), our notion includes changes of transition

probabilities at run-time and has a different notion of

parallelism, by interleaving multiple state machines

instead of having “fork” states in a single state ma-

chine. Our notation of parallelism is inspired by the

one used in parallel statecharts (Mikk et al., 1997),

which has inﬂuenced the current generation of model-

based testing tools (Veanes et al., 2008).

2.6 Modbat

We use Modbat (Artho et al., 2013; Artho and

Biere, 2018) in our work. Modbat models use ex-

tended ﬁnite state machines that are described in

embedded domain-speciﬁc language (DSL) based on

Scala (Odersky et al., 2008). This has the advantage

that the transition functions are seamlessly integrated

with the run-time environment, and that complex data

structures and callback functions can be directly em-

bedded in the model (Artho et al., 2015; Artho et al.,

2013). Furthermore, due to Modbat being based on

Scala, it is very easy to extend the platform with new

features or annotations, because embedded DSLs use

the parser of the host language, Scala.

Test generation in Modbat is done online, and

starts with the initial state of the initial model in-

stance, which implements an EFSM. From the cur-

rent state of that model instance, a transition is cho-

sen at random from all enabled outgoing transitions.

Transitions are enabled or disabled by their precon-

ditions. Whenever a transition is executed, the tran-

sition function may call the SUT, and also check the

result of the call. A transition may carry an optional

label, which allows the model to refer a transition

by name. Finally, transitions may create and launch

new model instances, which start at their own initial

state. If multiple model instances are active, one tran-

sition from all models is chosen at random at each

test step. Modbat therefore implements an interleav-

ing semantics when deriving tests from concurrently

active models (Artho et al., 2013; Artho et al., 2017).

In this work, we use Modbat both for model-based

testing (to execute MQTT implementations), and for

model based-simulation, to control fault injection in

the network simulation environment.

3 METHODS

This section describes our extensions for model-based

testing and simulation in Modbat. Section 3.1 gives

an informal description of our extensions and their

implementation, and Section 3.2 shows an example.

Section 3.3 describes a new way of injection faults

into the network environment.

3.1 Modbat Model Extensions

We introduce extensions to model transitions depen-

dent on time intervals, transitions whose probabilities

may change over time, and another extension to han-

dle callbacks more ﬂexibly.

3.1.1 Time

Standard EFSMs (Cheng and Krishnakumar, 1993)

are not affected by time. To model temporary faults

in a system, we want to be able to temporarily sus-

pend a transition, for a random amount of time within

a bounded interval.

We implement this feature with a new annotation

stay(x,y). The annotation applies to a given transi-

tion t and affects all future transitions of that model

instance. The annotation takes two arguments, which

specify the time interval within which the model in-

stance is suspended after t has been executed. If all

active model instances are suspended for a certain

amount of time, test execution resumes after the ﬁrst

timer has expired.

This extension facilitates modeling temporary

faults but also covers the case where all model in-

stances are temporarily suspended. In the original

version of Modbat (Artho et al., 2013), preconditions

can disable a transition temporarily. However, if no

precondition is satisﬁed, test execution terminates at

that point. This was because preconditions were as-

sumed to be state-based and not time-based (Artho

et al., 2013). Our new annotation prevents the prob-

lem of terminating tests prematurely in such cases.

3.1.2 Dynamic Weight Change

An EFSM in Modbat behaves probabilistically in ac-

tual test executions according to the weights of the

transitions. The probability of a transition being cho-

sen is proportional to its weight. Fixed transition

Model-based Network Fault Injection for IoT Protocols

203

weights are useful in generating the desired distribu-

tion of test cases, but only variable transition weights

can reﬂect temporary changes in the test setting.

In Modbat, weights are expressed by annotation

weight, which takes a double as an argument. Our

extension updates the weight of all functions with

matching labels. It is implemented by a method

setWeight(l,w), which takes a string l and a double

value w, and sets the weights of the transitions whose

labels correspond to l, to w.

In the original version of Modbat, this feature

would have to be expressed using extra preconditions

that use random choices to simulate the same effect.

Our extension allows the simulation of variable error

rates in a very clear way.

3.1.3 Transition Invocation

Extended ﬁnite-state machines can describe inputs

and expected (synchronous) outputs well, but call-

back functions have to be modeled outside the transi-

tion functions themselves (Artho et al., 2017). When

describing side effects of a callback, extra variables

have to be used to model its effect on the model state,

and some actions may even affect the global program

state (i. e., the state of another model). In order to

model callback functions in a more straightforward

way that does not require auxiliary variables to record

the mere occurrence of a callback, we introduce an

extension that invokes transition functions directly.

In this extension, we identify transitions by their

labels. As callbacks are typically asynchronous, their

effect on the EFSM is not immediate, but regis-

tered in a queue q of pending transitions. A method

invokeTransition(l) adds a label l to q. When

called from inside a callback function, that method

is typically executed in a separate (callback) thread,

while test case generation is controlled by Modbat in

the main thread (Artho et al., 2017). Pending transi-

tions in q have priority over regular transitions, so the

effect of a callback is processed as soon as the cur-

rently executing transition has ﬁnished. This priori-

tization would be difﬁcult to implement with multi-

ple model instances without our extension in Modbat.

Capturing this feature in the model itself would re-

quire an extra precondition in each transition, to check

whether any transition invocation is pending.

3.2 Example

Figure 1 shows an example of models of the environ-

ment and a device. Here, skip is deﬁned in Modbat

as a method doing nothing. At the time the device is

launched, it goes to state “running”. There is a small

chance of the device breaking, indicated by weight 0.1

class Environment extends Model {

var device: Device = _

"init" -> "stable" := {

device = new Device

launch(device)

}

"stable" -> "unstable" := {

device.setWeight("break", 1.0)

}

"unstable" -> "stable" := {

device.setWeight("break", 0.1)

}

class Device extends Model {

"running" -> "running" :=

skip label "run"

"running" -> "broken" := {

// some actions

} label "break" weight 0.1 stay 5000

"broken" -> "running" :=

skip label "fix" stay 0

def callbackOnReset(): Unit = {

invokeTransition("fix")

}

(a) Source code

init

stable

unstable

running run

broken

break fx

break

(b) Diagrams

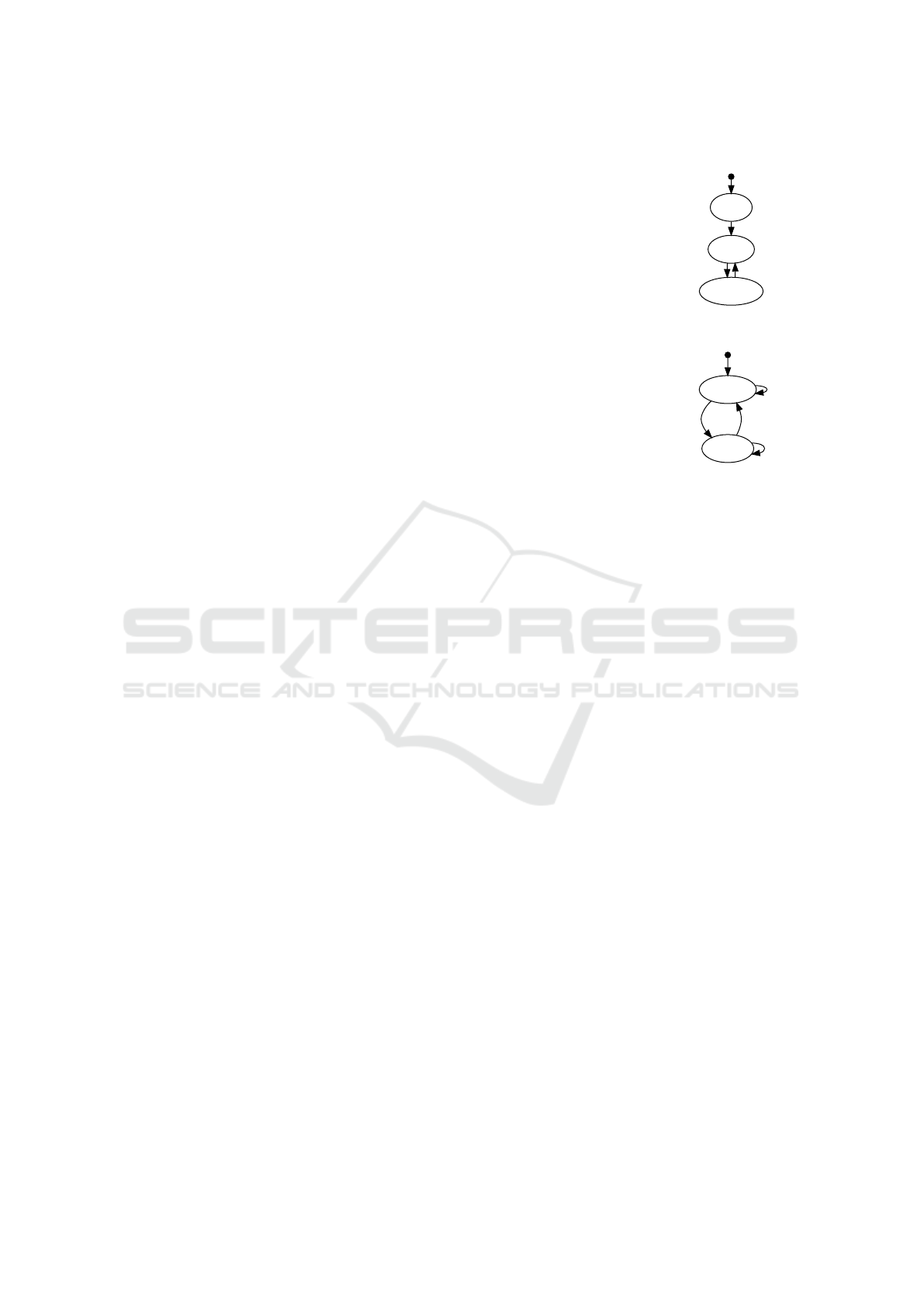

Figure 1: Example Modbat models of the environment and

a device.

in that transition (the default weight is 1.0). When the

model of the environment goes to state “unstable”, the

weights of the transitions in the device model are up-

dated, and the model stays in state “running” or goes

to state “broken” with equal probability.

Once the device is broken, it stays broken for 5000

milliseconds. In addition to recovering after some de-

lay, the device may also be reset, at which point call-

back function callbackOnReset is called. At this

point, the label “ﬁx” is pushed to the queue. When

that transition is executed, it resets the state to “run-

ning” and clears the pending timer.

3.3 Packet Forwarder

In order to test a program under unstable network

environments, we propose a fault injection (Hsueh

et al., 1997) method to simulate network errors and

delays. That method is applicable to software in

which servers and clients communicate one another

via TCP/IP, and requires no modiﬁcation of the soft-

ware under test.

We simulate an unstable network by inserting a

mechanism named packet forwarder between a server

and a client as shown in Figure 2a. The packet for-

warder forwards packets to both directions, from the

server to the client and the client from the server. Net-

work errors and delays can be injected by controlling

the forwarder. The order of the packets is not modi-

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

204

Client

Server

Client

ForwarderForwarder

(a) Usage of packet forwarders

Forwarder

TCP

Socket

ServerSocket

BufferBuffer

Server

Client

TCP

(b) Internals of a forwarder

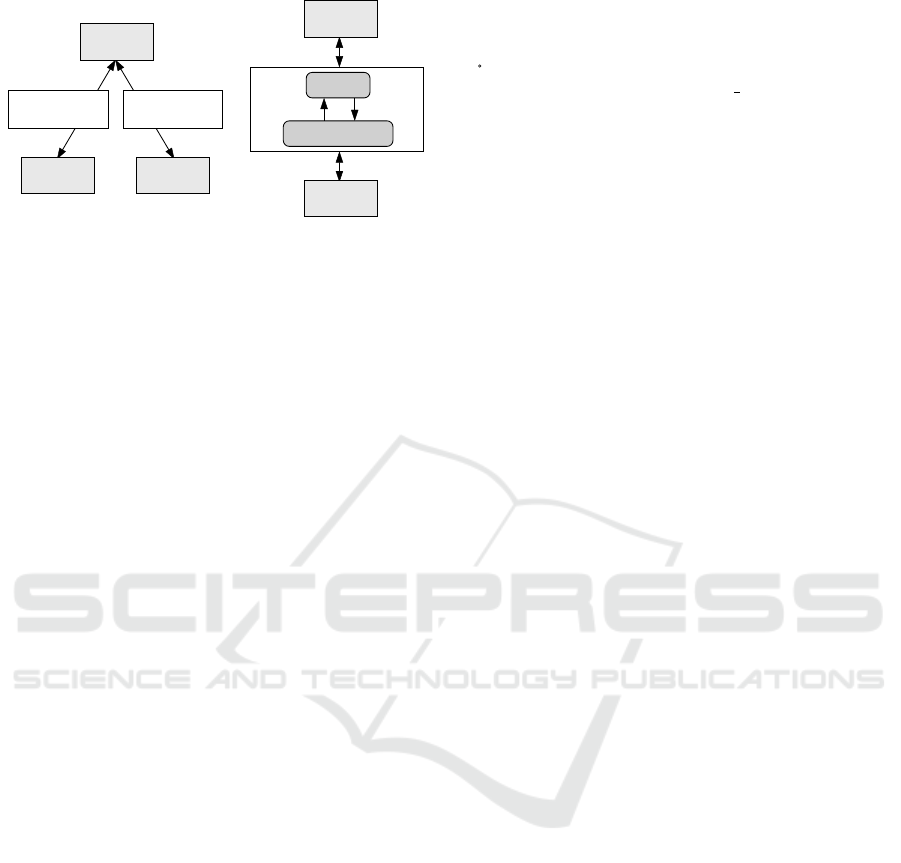

Figure 2: Packet forwarders.

ﬁed in this method, because packet ordering is guar-

anteed by TCP. Because the SUT is not modiﬁed, our

method preserves its original behavior: Each injected

network fault could also happen in a real environment.

Figure 2b shows the implementation of our

packet forwarder. Socket and ServerSocket

are instances of classes java.net.Socket and

java.net.ServerSocket, respectively. The

Socket acts like the client to the server, and the

ServerSocket acts like the server to the client.

The forwarder has two buffers, corresponding to

bidirectional communication. Each buffer stores the

contents of the packet from one socket and sends

them to the other socket.

When a connection loss is simulated, we close

each TCP connection and port by calling close on

Socket and ServerSocket. When a network delay

is simulated, the threads forwarding data between the

sockets sleep for a particular time duration. There-

fore, network delays in each direction can be con-

trolled independently.

We associate a model instance in Modbat with

each packet forwarder; the conﬁguration of the packet

forwarder is controlled by the model. Thus, in addi-

tion to providing inputs to the SUT, the models also

manage the state (conﬁguration) of the simulation.

They switch between modes where nominal behav-

ior is tested, and modes where faulty components and

network problems are simulated. A model can also

observe the state or output of the SUT, and abort a

test if a property violation is detected.

4 EVALUATION

In order to show the validity and effectiveness of

the methods described in Section 3, we test MQTT

client/server combinations under unstable network

environments. In particular, we evaluate the follow-

ing question: Can the packet forwarder uncover the

effects of missed packets in the SUT?

Experiments were done on a machine running

Ubuntu 16.04 with Intel Core i7-3770 and 16 GB

memory. We use Java 1.8.0 161, Scala 2.11.8,

Mosquitto 1.4.14 (Light, 2017), and Eclipse Paho

1.2.0 (Eclipse Paho Team, 2018), and an extended

version Modbat 3.2 as shown in Section 3.

4.1 Method

In each experiment in this section, the modeled sys-

tem has an MQTT server and two MQTT clients. The

two clients are named “sender” and “receiver” respec-

tively, and both of them are connected to the server via

packet forwarders.

A test case is executed in the following way.

1. The server is started.

2. The sender and the receiver connect to the server.

3. The receiver subscribes to particular topics.

4. The sender publishes several messages to the

server; the server forwards them to the receiver.

5. The sender and the receiver shut down.

6. The number of the published and received mes-

sages are compared.

To simulate unstable network environments in our

MQTT tests, packet forwarders are inserted between

each client and the server, so that all network con-

nections are virtualized. We conducted nine experi-

ments, combining three types of QoS and three types

of settings for the packet forwarders. In each experi-

ment, messages are published with QoS 0, 1 or 2. The

packet forwarder of the stable client is always alive,

while the forwarder of the unstable client sometimes

cuts the connection between the client and the server.

In these experiments, each of the sender and the

receiver runs an instance of class MqttAsyncClient

in Paho. The Mosquitto server executes outside the

test tool. Because we cannot easily determine which

of the server and the clients has bugs from the result,

we consider both Mosquitto and Paho as SUTs for

these experiments.

4.2 Models

Main Model. A model for this experiment consists

of four types of model instances. The main model

(see Figure 3a) creates model instances of sender and

receiver, and launches them.

Model-based Network Fault Injection for IoT Protocols

205

init

run

start

(a) Main

enabled skip_e

disabled

disable

end

endenable

skip_d

(b) Forwarder

connected publish

lost

(publish) lose

stop

stopreconnect

(reconnect)

end

connected

lost

lose

stop

stopreconnect

(reconnect)

end

(d) Receiver

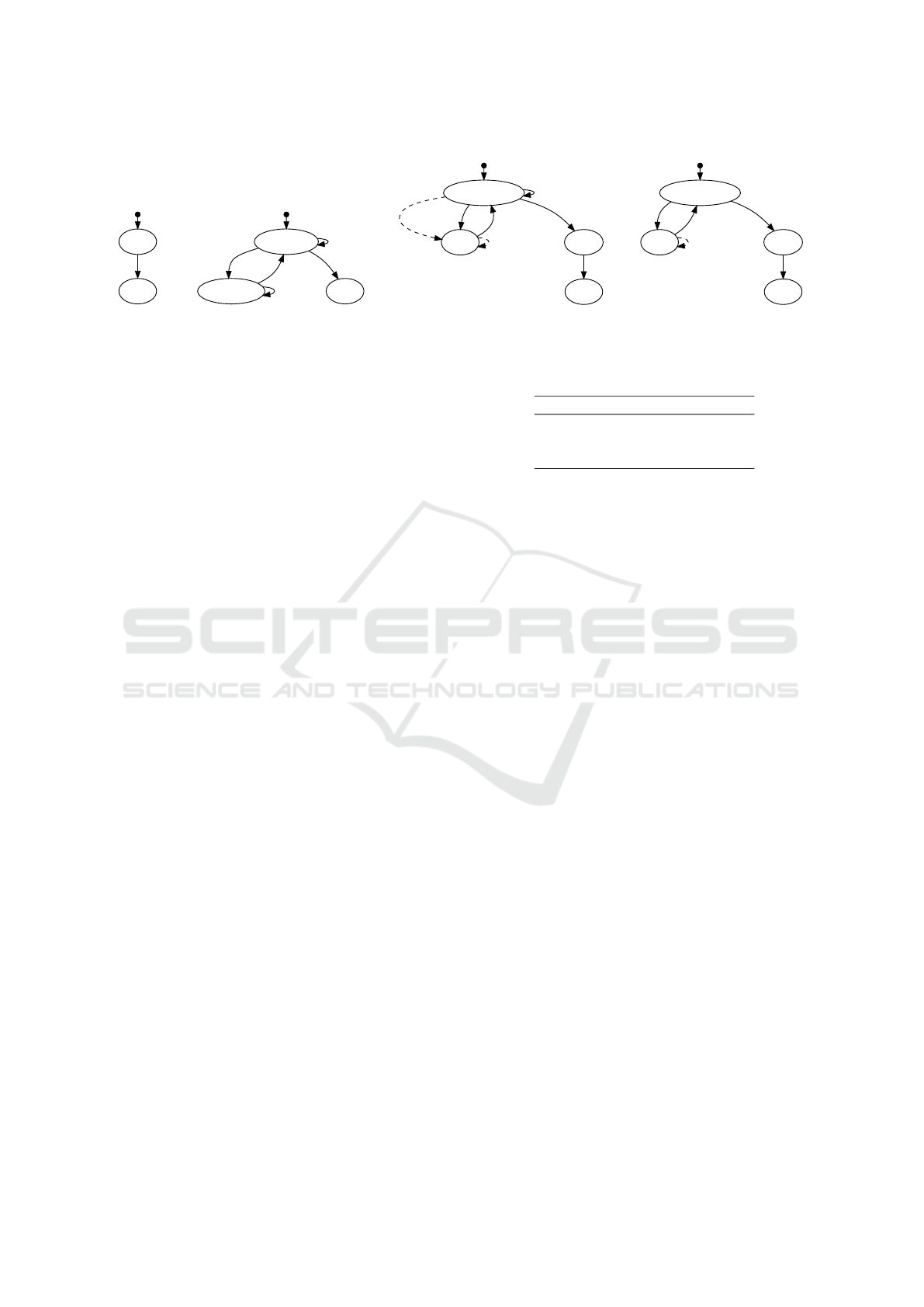

Figure 3: EFSMs in the model for testing MQTT implementations.

Forwarder. The packet forwarder model (see Fig-

ure 3b) has two main states, enabled and disabled.

These two states simulate network environments of

variable reliability. The two skip transitions have

no effect, while transition disable stops forwarding

packets and closes the connections between the server

and the forwarder, and the client and the forwarder.

Executing transition enable reconnects the forwarder

with the server, and the client and forwards data again.

The end transition terminates operations. Its weight is

set to 0.0; therefore, this transition is never executed

unless it is explicitly invoked by invokeTransition.

Sender. The sender model (see Figure 3c) creates

a forwarder instance and launches it. After that,

sender connects to the server via the forwarder. As

shown in the ﬁgure, the sender repeats publishing

messages when in state connected. Method publish

in MqttAsyncClient returns a token, which stores

the progress of the message delivery. The model

stores all the tokens in a list. If the sender tries to

publish a message while the forwarder is disabled,

publish in Paho throws an exception, and the model

goes to state lost. (The dashed arrow indicates a

non-deterministic outcome of an operation that usu-

ally but not always succeeds.) Transition lose with

weight 0.0 records a connection loss and is invoked by

a callback function in MqttAsyncClient. When the

model is in state lost, the sender tries to reconnect to

the server. If the reconnection succeeds, the receiver

is connected again, otherwise it stays in state lost.

The model also randomly goes from state

connected to state stop. In this transition, the

sender prepares to disconnect. Concretely, the tran-

sition weights of its forwarder are set to be remain

in state enabled, and transition enable is invoked.

After the forwarder is in state enabled, the end tran-

sition is executed, and the stored published tokens are

processed by method waitForCompletion in Paho.

That method blocks until the message delivery of the

corresponding token ﬁnishes, or a timeout occurs. Af-

Table 1: QoS of messages and message arrival.

Message QoS Message arrival

QoS 0 P ≥ R

QoS 1 P ≤ R

QoS 2 P = R

ter processing all the stored tokens, the sender discon-

nects from the server, and terminates the forwarder by

invoking transition end in it.

The retain ﬂag of each message is set to true so

that the message is delivered to the receiver even if the

server receives the message while the receiver is not

connected (Banks and Gupta, 2014). As an MQTT

server stores only one message for each topic, every

message in this experiment is assigned a unique topic.

Receiver. Similarly to the model of sender, the re-

ceiver model (see Figure 3d) creates and launches an

instance of forwarder. The receiver then subscribes to

the sender’s topics. In order not to miss any messages

after the receiver disconnects from the server, transi-

tion stop can be executed only after the sender has

disconnected. This dependency is managed by pre-

conditions. The remaining transitions work the same

as those of the sender, except that the receiver neither

publishes messages nor waits for their completion.

The test oracle is embedded at the end of the end

transition in the receiver, as an assert statement. The

actual condition of the assertion varies depending on

the QoS of the messages in the experiment as shown

in Table 1. In this table, P, R denote the number of the

messages published from the sender and the number

of the messages the receiver received, respectively. A

test case is regarded as failed if this condition is vio-

lated, or uncaught exceptions are raised.

4.3 Results

We performed 50 tests for each setting. Each test case

took about a hundred milliseconds.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

206

Table 2: Results of the experiments testing Paho.

Sender Receiver QoS 0 QoS 1 QoS 2

Stable Unstable Success Success Success

Unstable Stable Timeout Success Success

Unstable Unstable Timeout Success Success

Table 2 shows the summary of the results of these

experiments for three types of QoS and three types

of stability of the clients. In this table, “Success”

or “Timeout” shows the result of each experiment,

where “Success” means all the test cases ﬁnished sat-

isfying the assertion without uncaught exceptions and

“Timeout” means a timeout occurred when the sender

disconnected from the server in some test cases.

We describe the timeout in detail. The timeout

happens in the method waitForCompletion in Paho,

called in transition end of the sender. This timeout

means that the message delivery corresponding to the

token has not been completed. The timeout only hap-

pened with QoS 0 and an unstable sender. This seems

to the be correct behavior, because the message deliv-

ery is never completed if the message is lost because

of a network error. This result shows that network dis-

connection was correctly simulated, and it interrupted

message delivery.

Moreover, there were some test cases in which the

inequalities in Table 1 hold strictly. Namely, P > R

and P < R held in some test cases with messages

with QoS 0 and QoS 1, respectively. This result im-

plies message loss actually occurred in the experi-

ments with QoS 0, and message re-delivery was ac-

tually performed in the experiments with QoS 1.

5 CONCLUSIONS AND FUTURE

WORK

We show an approach that applies model-based test-

ing to model-based simulation, in the context of the

IoT protocol “MQTT”. This was achieved by extend-

ing Modbat, a model-based tester based on extended

ﬁnite-state machines, with capabilities to model fea-

tures needed in such scenarios succinctly: (1) Time, to

simulate physical time, (2) dynamic weight changes,

to simulate transient errors, (3) transition invocation,

to handle callbacks. We have also introduced packet

forwarders, in order to simulate unstable TCP net-

work environments during test execution entirely in

software, without modifying the SUT. With packet

forwarders, we are able to observe the effect of lost

packets in MQTT, and conﬁrm that under higher qual-

ity settings, the protocol repeats transmissions until

data is delivered.

In the future, we think our framework can serve as

a testbed for evaluating the robustness of controllers

under adverse conditions ,testing how delays and re-

transmissions affect real-time behavior.

ACKNOWLEDGMENTS

This work was supported by JSPS kakenhi grant

17H01719.

REFERENCES

Alvi, S. A., Shah, G. A., and Mahmood, W. (2015). En-

ergy efﬁcient green routing protocol for Internet of

Multimedia Things. In Intelligent Sensors, Sensor

Networks and Information Processing (ISSNIP), 2015

IEEE Tenth Int. Conf. on, pages 1–6. IEEE.

Artho, C. and Biere, A. (2018). Modbat. https://people.

kth.se/

artho/modbat/.

Artho, C., Gros, Q., Rousset, G., Banzai, K., Ma, L., Ki-

tamura, T., Hagiya, M., Tanabe, Y., and Yamamoto,

M. (2017). Model-based API testing of Apache

ZooKeeper. In 2017 IEEE Int. Conf. on Software Test-

ing, Veriﬁcation and Validation, pages 288–298. IEEE

Computer Society.

Artho, C., Havelund, K., Kumar, R., and Yamagata, Y.

(2015). Domain-speciﬁc languages with Scala. In

Proc. 17th Int. Conf. on Formal Engineering Methods

(ICFEM 2015), volume 9407 of LNCS, pages 1–16,

Paris, France. Springer.

Artho, C. V., Biere, A., Hagiya, M., Platon, E., Seidl, M.,

Tanabe, Y., and Yamamoto, M. (2013). Modbat: A

model-based API tester for event-driven systems. In

Proc. 9th Int. Haifa Veriﬁcation Conf., volume 8244

of LNCS, pages 112–128. Springer.

Banks, A. and Gupta, R. (2014). MQTT version

3.1.1. http://docs.oasis-open.org/mqtt/mqtt/

v3.1.1/os/mqtt-v3.1.1-os.html.

Beauquier, D. (2003). On probabilistic timed automata.

Theoretical Computer Science, 292(1):65–84.

Bormann, C. (2014–2016). CoAP — constrained ap-

plication protocol — overview. http://coap.

technology/.

Bulychev, P., David, A., Larsen, K. G., Miku

cionis, M.,

Poulsen, D. B., Legay, A., and Wang, Z. (2012).

UPPAAL-SMC: Statistical model checking for priced

timed automata. arXiv preprint arXiv:1207.1272.

Cheng, K. and Krishnakumar, A. S. (1993). Automatic

functional test generation using the extended ﬁnite

state machine model. In Proc. of the 30th Design

Automation Conf. . Dallas, Texas, USA, June 14-18,

1993., pages 86–91. ACM Press.

Claessen, K. and Hughes, J. (2000). QuickCheck: a

lightweight tool for random testing of Haskell pro-

grams. In Proc. 5th ACM SIGPLAN Int. Conf. on

Functional Programming, pages 268–279. ACM.

Model-based Network Fault Injection for IoT Protocols

207

Dadeau, F., H

eam, P.-C., and Kheddam, R. (2011).

Mutation-based test generation from security proto-

cols in HLPSL. In Software Testing, Veriﬁcation and

Validation, 2011 IEEE Fourth Int. Conf. on, pages

240–248. IEEE.

De Rubertis, A., Mainetti, L., Mighali, V., Patrono, L.,

Sergi, I., Stefanizzi, M. L., and Pascali, S. (2013). Per-

formance evaluation of end-to-end security protocols

in an Internet of Things. In Software, Telecommunica-

tions and Computer Networks (SoftCOM), 2013 21st

Int. Conf. on, pages 1–6. IEEE.

Eclipse Paho Team (2018). Eclipse Paho—MQTT and

MQTT-SN software. http://www.eclipse.org/

paho/.

Grabowski, J., Hogrefe, D., R

ethy, G., Schieferdecker, I.,

Wiles, A., and Willcock, C. (2003). An introduction to

the testing and test control notation (TTCN-3). Com-

puter Networks, 42(3):375–403.

Heckel, R. and Torrini, P. (2010). Stochastic modelling and

simulation of mobile systems. In Graph transforma-

tions and model-driven engineering, pages 87–101.

Springer.

Houimli, M., Kahloul, L., and Benaoun, S. (2017). Formal

speciﬁcation, veriﬁcation and evaluation of the MQTT

protocol in the internet of things. In Mathematics and

Information Technology (ICMIT), 2017 Int. Conf. on,

pages 214–221. IEEE.

Hsu, Y., Shu, G., and Lee, D. (2008). A model-based ap-

proach to security ﬂaw detection of network protocol

implementations. In Network Protocols, 2008. ICNP

2008. IEEE Int. Conf. on, pages 114–123. IEEE.

Hsueh, M., Tsai, T. K., and Iyer, R. K. (1997). Fault injec-

tion techniques and tools. IEEE Computer, 30(4):75–

82.

Jia, Y. and Harman, M. (2011). An analysis and survey of

the development of mutation testing. IEEE transac-

tions on software engineering, 37(5):649–678.

Jing, C., Wang, Z., Shi, X., Yin, X., and Wu, J. (2008).

Mutation testing of protocol messages based on ex-

tended TTCN-3. In Advanced Information Network-

ing and Applications, 22nd Int. Conf. on, pages 667–

674. IEEE.

Khan, A., Torrini, P., and Heckel, R. (2009). Model-

based simulation of voip network reconﬁgurations us-

ing graph transformation systems. Electronic Commu-

nications of the EASST, 16.

Kingsbury, K. (2018). Distributed systems safety research.

http://jepsen.io.

Kosiuczenko, P. and Lajios, G. (2007). Simulation of gen-

eralised semi-markov processes based on graph trans-

formation systems. Electronic Notes in Theoretical

Computer Science, 175(4):73–86.

Kwiatkowska, M., Norman, G., and Parker, D. (2011).

PRISM 4.0: Veriﬁcation of probabilistic real-time sys-

tems. In Int. Conf. on Computer Aided Veriﬁcation,

pages 585–591. Springer.

Kwiatkowska, M., Norman, G., and Sproston, J. (2002).

Probabilistic model checking of the IEEE 802.11

wireless local area network protocol. In Process Al-

gebra and Probabilistic Methods: Performance Mod-

eling and Veriﬁcation, pages 169–187. Springer.

Lee, S., Kim, H., Hong, D., and Ju, H. (2013). Correlation

analysis of MQTT loss and delay according to QoS

level. In The Int. Conf. on Information Networking,

pages 714–717. IEEE Computer Society.

Light, R. A. (2017). Mosquitto: server and client imple-

mentation of the MQTT protocol. Journal of Open

Source Software, 2(13).

Mikk, E., Lakhnech, Y., Petersohn, C., and Siegel, M.

(1997). On formal semantics of statecharts as sup-

ported by STATEMATE. In Workshop, Ilkley, vol-

ume 14, page 15.

Mladenov, K., van Winsen, S., and Mavrakis, C. (2017).

Formal veriﬁcation of the implementation of the

MQTT protocol in IoT devices. SNE Master Research

Projects 2016–2017.

Nilsson, R. (2015). ScalaCheck. https://www.

scalacheck.org/.

Odersky, M., Spoon, L., and Venners, B. (2008). Program-

ming in Scala. Artima Inc.

Oehlert, P. (2005). Violating assumptions with fuzzing.

IEEE Security & Privacy, 3(2):58–62.

Park, J.-C. and Miller, R. E. (1997). Synthesizing proto-

col speciﬁcations from service speciﬁcations in timed

extended ﬁnite state machines. In Distributed Com-

puting Systems, 1997., Proc. of the 17th Int. Conf. on,

pages 253–260. IEEE.

Paz, A. (1971). Introduction to Probabilistic automata.

Academic Press, 1 edition.

Stott, D. T., Ries, G. L., Hsueh, M., and Iyer, R. K. (1998).

Dependability analysis of a high-speed network using

software-implemented fault injection and simulated

fault injection. IEEE Trans. Computers, 47(1):108–

119.

Tappler, M., Aichernig, B., and Bloem, R. (2017). Model-

based testing IoT communication via active automata

learning. In 10th IEEE Int. Conf. on Software Testing,

Veriﬁcation and Validation, pages 276–287. IEEE.

Testware (2018). Project IoT. http://www.iot-t.de/en/

testware/.

Thangavel, D., Ma, X., Valera, A. C., Tan, H., and Tan,

C. K. (2014). Performance evaluation of MQTT and

coap via a common middleware. In 2014 IEEE Ninth

Int. Conf. on Intelligent Sensors, Sensor Networks and

Information Processing, pages 1–6. IEEE.

Torrini, P., Heckel, R., and R

ath, I. (2010). Stochastic sim-

ulation of graph transformation systems. In Int. Conf.

on Fundamental Approaches to Software Engineer-

ing, pages 154–157. Springer.

Utting, M., Pretschner, A., and Legeard, B. (2012). A

taxonomy of model-based testing approaches. Softw.

Test., Verif. Reliab., 22(5):297–312.

Veanes, M., Campbell, C., Grieskamp, W., Schulte, W.,

Tillmann, N., and Nachmanson, L. (2008). Model-

based testing of object-oriented reactive systems with

Spec Explorer. In Formal Methods and Testing 2008,

volume 4949 of LNCS, pages 39–76. Springer.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

208

Zhang, Z., Wen, Q.-Y., and Tang, W. (2012). An efﬁ-

cient mutation-based fuzz testing approach for detect-

ing ﬂaws of network protocol. In Computer Science

& Service System, 2012 Int. Conf. on, pages 814–817.

IEEE.

Ziade, H., Ayoubi, R. A., and Velazco, R. (2004). A survey

on fault injection techniques. Int. Arab J. Inf. Technol.,

1(2):171–186.

Model-based Network Fault Injection for IoT Protocols

209
