Towards a Roadmap for the Migration of Legacy Software Systems to a

Microservice based Architecture

Hugo H. O. S. da Silva

, Glauco de F. Carneiro

and Miguel P. Monteiro

Programa de Pós-Graduação em Sistemas e Computação (PPGCOMP), Universidade Salvador (UNIFACS),

Salvador 41770-235, Brazil

NOVA LINCS, Faculdade de Ciências e Tecnologia Universidade Nova de Lisboa (FCT/UNL),

Keywords:

Monolithic Legacy Systems, Exploratory Study, Microservices.

Abstract:

The migration of legacy software systems to a microservice based architecture is not a trivial task due to chal-

lenges and difﬁculties as reported in the literature. The concept of microservices mainly consists in software

organized as a suite of small, modular, and independently deployed services that run on their own processes

and communicate through well-deﬁned, lightweight mechanisms to serve a business goal. However, the litera-

ture is still incipient in relation to step-by-step guidelines supporting practitioners to accomplish the migration

from an existing, monolithic structure to a microservice based architecture. Goal: Discuss lessons learned

from the migration of legacy software systems to microservices-based architecture. Method: We conducted

two studies (a pilot and a case study) aiming at characterizing the relevants steps of such guidelines. Results:

We report the steps and challenges observed during the migration reported in this study. Conclusion: We

identify at least three main phases that drive the migration process.

1 INTRODUCTION

Microservices is an architectural style based on the

service-oriented computing approach (Dragoni et al.,

2017). Their main goal is to efﬁciently build and

manage complex software systems (Singleton, 2016).

Among the main promises for the adoption of a

microservices-based architecture, we can list the fol-

lowing: to yield cost reduction, quality improvement,

agility, and decreased time to market. Microservices

can be compared to the software equivalent of Lego

bricks: they are proven to work, ﬁt together appropri-

ately, and can be an option to build up complex so-

lutions in less time than with traditional architectural

solutions (Singleton, 2016).

In the past, a representative number of legacy soft-

ware systems moved to the cloud keeping the same ar-

chitecture in the new infrastructure. The practical out-

come of this fact is that most of these legacy software

systems have been originally placed in virtual machi-

nes and deployed in the cloud, assuming the charac-

teristics of resources and services of a traditional data

center (Silva et al., 2019). This approach fails to re-

duce costs, improve performance and maintainability

(Toffetti et al., 2017).

The issue remains, of which steps that should be

followed to migrate a monolithic legacy system to a

microservices-based architecture. To the best of our

knowledge, despite the relevance of this topic, it has

drawn the attention of just researchers (Kalske et al.,

2017) (Leymann et al., 2016) (Taibi et al., 2017). To

ﬁll this gap, we present the lessons learned of our ex-

perience in the migration of two legacy systems. The

lessons learned are the result of a two-phase study

to address the following Research Question (RQ):

Which steps should be performed to support the mi-

gration of legacy software systems to microservices-

based architecture? Availability of lessons learned

can help practitioners from industry and academia

in the migration of legacy systems to microservices.

They can also contribute to encourage practitioners to

embrace this challenge.

The rest of this paper is organized as follows. Sec-

tion 2 discusses the main shortcomings of a mono-

lithic legacy system and maps them to possible soluti-

ons provided by the microservice-based architecture.

Next, section 3 introduces a two-phase study. Section

4 describes the ﬁrst phase, which is a pilot study ai-

med at identifying key steps of the migration process

as well as improvement opportunities. Section 5 re-

ports on the second phase, which is a case study focu-

sed on applying a reviewed and improved version of

S. da Silva, H., Carneiro, G. and Monteiro, M.

Towards a Roadmap for the Migration of Legacy Software Systems to a Microservice based Architecture.

DOI: 10.5220/0007618400370047

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 37-47

ISBN: 978-989-758-365-0

the steps performed in the ﬁrst study. Section 6 pro-

poses a migration roadmap based on the insights gai-

ned from the pilot and case studies. Section 7 reports

lessons learned. Section 8 discusses opportunities for

future research and provides concluding remarks.

2 MONOLITHIC VS

MICROSERVICES

The adoption of single executable artefacts or mono-

liths with the corresponding modularization of their

abstractions is based on the sharing of resources of

a speciﬁc computer system (memory, databases, ﬁ-

les, among others) (Dragoni et al., 2017). Consi-

dering that components of a monolithic system de-

pend on shared resources, they are not indepen-

dently executable (Dragoni et al., 2017)(Richardson,

2014a)(Richardson, 2014b). In general, monolithic

systems of large size are not easily maintained and

evolved due to their inherent complexity (Dragoni

et al., 2017). In most cases, dealing with software

bugs in these scenarios requires a strong joint ef-

fort and is thus likely to have a negative impact on

team productivity (Dragoni et al., 2017). Add to this

the fact that to add or update libraries are likely to

produce inconsistent systems that either do not com-

pile/run or worse, misbehave (Dragoni et al., 2017).

Carrying out a change on a monolithic system en-

tails the re-building of the whole application. As

the system evolves, it becomes ever more difﬁcult

to maintain it and keep track of its original architec-

ture

. This can result in recurring downtimes, speci-

ally for large-sized projects, hindering development,

testing, and maintenance activities (Dragoni et al.,

2017). Monolithic systems under these conditions are

prone to stop working and become unable to provide

part or all of their functionality. They also suffer from

scalability issues.

In order to deal with the shortcomings of this type

of applications, and to handle an unbounded number

of requests, developers create new instances of them

and split the load among these instances. Unfortuna-

tely, this approach is not effective, since the increased

trafﬁc will be targeted only to a subset of the modules,

causing difﬁculties for the allocation of new resources

for other components (Dragoni et al., 2017).

Microservices should be small and indepen-

dent enough to allow the rapid development,

(un)pluggability, harmonious coexistence and inde-

pendent evolution. Microservices have been referred

https://www.thoughtworks.com/insights/blog/

microservices-nutshell

as a solution to most of the shortcomings of mono-

lithic architecture. They use small services to remove

and deploy parts of the system, enable the use of dif-

ferent frameworks and tookits and to increase scala-

bility and improve overall system resilience.

In the context of this paper, the "micro"preﬁx isn’t

really too important. Rather than being about size, it

relates to keeping the various services separate. This

becomes important when working with hundreds of

services. A microservice architecture can make use

of the ﬂexibility and better pricing model of cloud en-

vironments (Balalaie et al., 2016).

To illustrate the advantages that stand out when

using microservices, we next show a non-exhaustive

list: cohesive and loosely coupled services (Wolff,

2016); independent implementation of each microser-

vice and thus enhanced system adaptability (Millett,

2015); independence of multifunctional, autonomous

and organized teams that provide commercial value

in addition to improved technical characteristics (Mil-

lett, 2015); independence of domain concepts (Wolff,

2016); freedom from potential side effects (SPoF)

across services; encouragement of the DevOps cul-

ture (Balalaie et al., 2016), which basically repre-

sents the idea of decentralizing skills concentration

into multifunctional teams, emphasizing collabora-

tion between developers and teams, ensuring reduced

lead time and greater agility during software develop-

ment.

3 A TWO-PHASE STUDY

Exploratory studies like the two-phase explora-

tory study reported here are intended to lay the

groundwork for further empirical work (Seaman,

1999). In this case, the goal to identify the relevant

and effective steps for the migration of legacy sys-

tems to a microservices-based architecture. This sec-

tion describes its design and settings.

The present study aims to address the following

research question (RQ): What would be the set

of effective steps to migrate legacy systems to a

microservices-based architecture? The speciﬁc rese-

arch questions (SRQ’s) derived from the base RQ are

as follows: SRQ1: How to ﬁnd features in a legacy

application so that they can be subsequently modu-

larized and become a candidate to a microservice-

based architecture? SRQ2: How to migrate the best

candidate features to a microservice-based architec-

ture?

The study protocol followed for this study is as

follows. The ﬁrst author of this paper carried out

the tasks of the reported study, after discussing the

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

strategies, experiences and impressions with the other

two authors. To answer the research questions (pri-

mary and secondaries), all steps registered by the ﬁrst

author in manuscripts were analyzed.

To select suitable subject systems for the study, it

was decided that candidate applications should match

the following characteristics: (1) be a legacy applica-

tion, (2) have a monolithic architecture that does not

have its functionalities modularized, (3) show symp-

toms of scattering and tangling, and (4) correspond to

the symptoms described by the Big Ball of Mud anti-

pattern (Coplien and Schmidt, 1995).

We also outlined what was expected of the study’s

outcomes. The evolved version was expected to be

more coherent than before the migration, be more lo-

osely coupled and its modular decomposition should

more aligned to the services it provides (Newman,

2015). We also expected to observe an increase in

the autonomy of developing teams within the organi-

zation, as new functionalities can be localized within

speciﬁc services (Newman, 2015).

3.1 Key Concepts from Domain Driven

Design

We used key Domain-Driven Design (DDD) concepts

to accomplish the tasks of this study. DDD was used

to translate functionalities into domain and subdo-

main and thereby support the migration.

A Bounded Context is a subsystem in the solu-

tion space with clear boundaries distinguishing each

subsystem (Evans, 2004). Bounded Context aids in

the separation of contexts to understand and address

complexities based on business intentions.

In the broad sense, Domain comprises all relevant

knowledge relating to the problem that is intended to

be solved. It can refer to either the entire Business Do-

main, or just a basic or support area. In a Domain, we

try to turn a technical concept with a model (Domain

Model) into something understandable. The Domain

Model is the organized and structured knowledge of

the problem. It should represent the vocabulary and

main concepts of the problem domain and identify the

relationships between the various entities. It is expec-

ted to serve as a communication tool for all involved,

giving rise to a very important concept in DDD, which

is Ubiquitous Language. The model could be a dia-

gram, code examples or even written documentation

of the problem. The important thing is that the Do-

main Model must be understandable and easy to ap-

proach by all people involved in the project.

A Context Map is a high-level diagram showing a

collection of connected contexts and the relationships

between them (Evans, 2004). The goal of the ag-

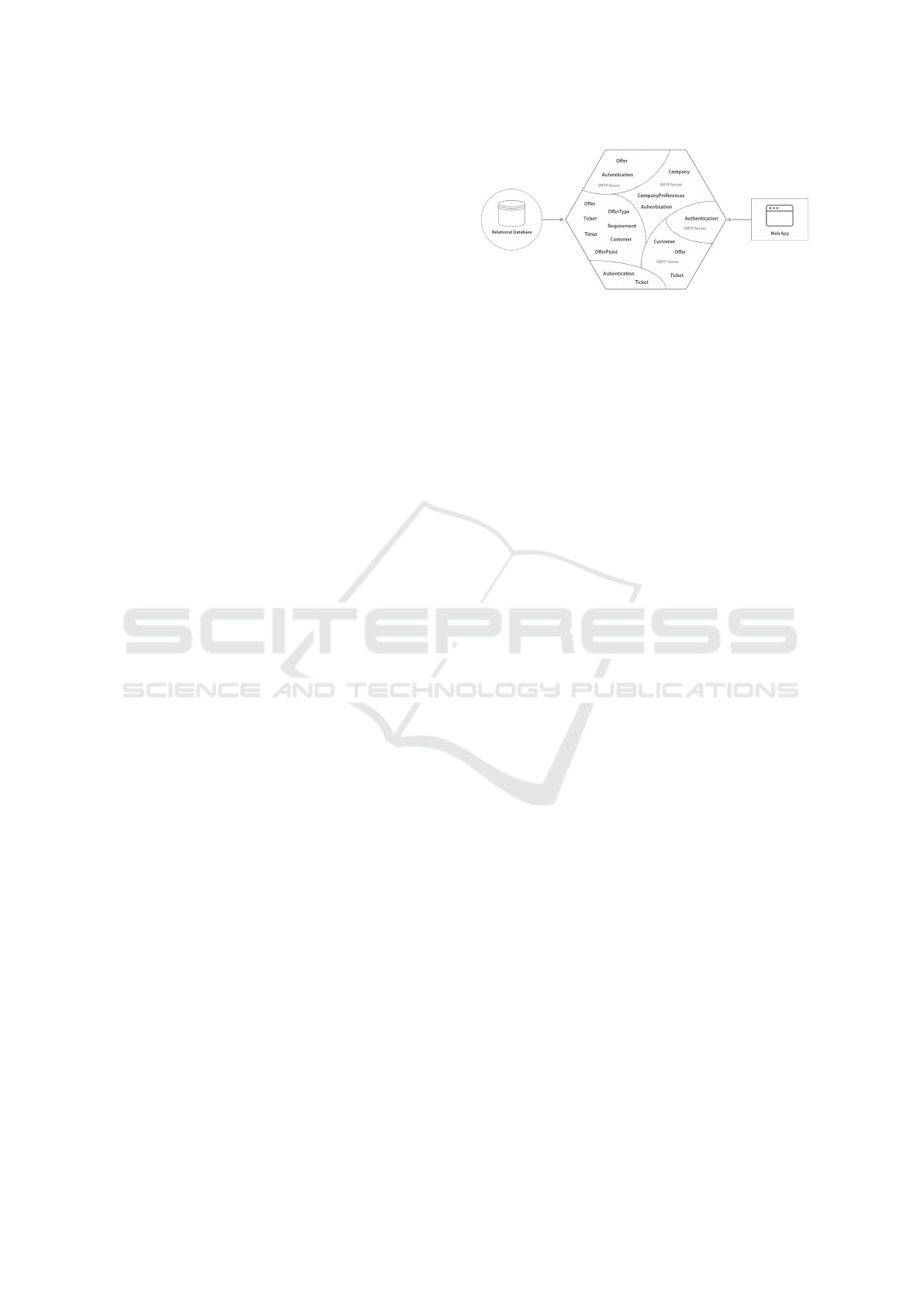

Figura 1: Entities and Associated Features Scattered and

Tangled in ePromo (Silva et al., 2019).

gregate root is to select the object that serves as the

"root"of a group of other objects, in a abstract manner

of a Façade (Gamma, 1995) to represent the whole

structure. On the other hand, the value object can

comprise simple or composite values with a business

meaning.

4 THE PILOT STUDY

The subject of the pilot study is ePromo, a system that

comprises a typical example of a corporate/business

coupon web system implemented in the PHP program-

ming language for the management of outreach cam-

paigns. The web server is Nginx, whose features in-

clude the creation of personalized offers and issuance

of tickets made by the customer. All functionalities

are implemented in a large artifact, connected to a sin-

gle relational database (MySQL), whereas Memcached

is used as a memory cache system, including data re-

lated to the sessions - signs of a monolithic applica-

tion. Due to the sudden growth of demand for cou-

pons, the application started to face problems in this

speciﬁc component, which led to interruptions in the

system operation.

The speciﬁc research question SRQ1 says: ﬁnd

features to be subsequently modularized and turned

into microservice candidates. To answer it, the par-

ticipant applied a manual identiﬁcation of candidate

features and their respective relationships, by na-

vigating among the directories and ﬁles and iden-

tifying the purposes of each class. Figure 1 illustra-

tes the identiﬁed entities, which in the beginning of

the pilot study were: Offer, OfferPoint, Ticket,

Requirement, Timer, User, Company. By analysing

the features associated to these entities, we acquired

an initial perception of how they are tangled and scat-

tered in the code. In fact, the functionalities are the

reference to build the Context Map. It is worth menti-

oning that it was possible to recognize the entities and

the candidates for value object’s and aggregate roots

during elaboration of the Context Map, on the basis

of the information retrieved from the source code. At

Towards a Roadmap for the Migration of Legacy Software Systems to a Microservice based Architecture

Figura 2: ePromo System Context Map in the Pilot Study

(Silva et al., 2019).

this time, we had the opportunity to spot code tigh-

tly coupled to the web framework, right at the initial

browsing stage.

The migration process was carried out one feature

at a time, based on the list of features. We started

with the functionality that would have lowest impact

when compared to the others. This process facilita-

tes the validation of boundaries set between features

with the least risk of side effects. Considering that

the business rules were scattered throughout the con-

trollers with signiﬁcant duplication, additional effort

was necessary to identify the various functionalities

involved. Note that this is a manifestation of tangling.

During analysis, we noticed that artifact

TicketsController had many responsibilities

and its business rules seemed scattered. It needed

extensive refactoring, including extraction of clear

layers for different levels of abstraction. Each layer

would be represented by a folder, which entailed

structural changes at that level, within the repository’s

source root. New directories were created for system:

Application, Domain and Infrastructure. Folder

Application is to be devoid of business logic and

made responsible for connecting the user interface to

the lower layers. In sum, the application layer will be

able to communicate with the domain layer, which

will act as a sort of public API for the application.

It will accept requests from the outside world and

return answers appropriately. Folder Domain is to

harbour all concepts, rules and business logic of

the application, such as the user entity or the user

repository. These ﬁles will be stored according

to the context identiﬁed in previous steps. Folder

Infrastructure is to host the implementations

concerning technical features, which provide sup-

port to the layers above, namely persistence, and

communication over networks.

The Command pattern (Gamma, 1995) encapsula-

tes a request as an object, thereby parametrizing cli-

Figura 3: ePromo Modularized Version (End of the Pilot

Study) (Silva et al., 2019).

ents with different requests, queue or log requests,

and support undoable operations (Gamma, 1995). We

applied Command to minimize coupling and deal

with the tangled code with scattered business rules

and identiﬁed in the controllers of the application. Ba-

sed on TicketController, Command was used to

uncouple the controller from the user interface logic.

When looking at the command objects, we should be

able to spot the goal of the code snippet they enclose.

The controller is intended to pass just the information

needed by the command - CreatingTicket in this

case - to forward to the handler, which is to handle

the acceptance of the command and complete its task.

Using Command brings several advantages. First,

the functionality can run in any part of the application.

Second, the controller will no longer have business

rules, doing just what is proposed above. Third, the

tests are easier to make, as a result of decoupling. The

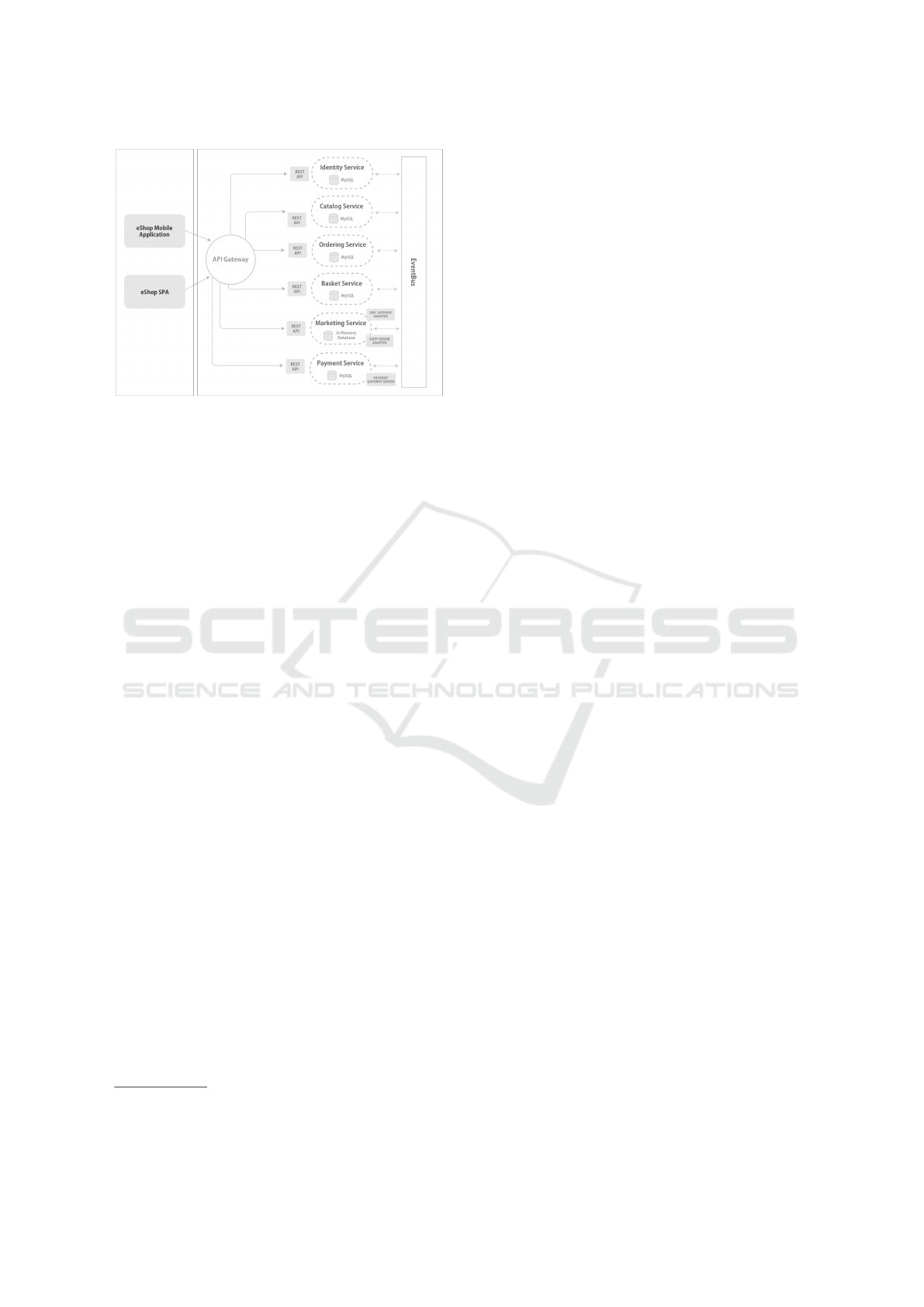

new version of the modularized system is presented in

Figure 3.

4.1 Lessons Learned from the Pilot

Study

The experience gained in the pilot study enabled us to

answer the speciﬁc research question SRQ1. In Sec-

tion 4, we point out the identiﬁcation of functiona-

lities faced difﬁculties due to lots of scattered clas-

ses and duplicated business rules. This situation is

typiﬁed as the Anemic Model anti-pattern

. There-

fore, identifying business resources requires much ef-

fort than otherwise would be the case.

During identiﬁcation and mapping of business

contexts, we noticed that despite the sudden growth

of demand for coupons, the number of features can-

didates for microservices is not necessarily indicative

of the use of a microservice architecture. There is not

a positive trade-off between the advantages of micro-

services and the corresponding costs and effort requi-

red to manage it (Singleton, 2016).

https://martinfowler.com/bliki/AnemicDomainModel.

html

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

Although microservice approaches offer substan-

tial beneﬁts, the corresponding architecture requires

extra machinery, which may also impose substantial

costs (Singleton, 2016). This also gives rise to gre-

ater complexity, which is incompatible with the rela-

tive simple scenario now perceived through the map

of contexts. Therefore, a decision to carry out a mi-

gration should consider the extra effort required to

work with issues such as automated deployment, mo-

nitoring, failure, eventual consistency, and other fac-

tors introduced by a microservice architecture. In the

case of ePromo, we decided not to opt for the migra-

tion, keeping it in its new modularized version, for the

above reasons.

The preliminary list of lessons learned reached at

this point comprises two main parts: part 1 is related

to the restructuring of the legacy system to a modu-

larized version and part 2 is related to the migration

of the modularized version, to microservices. Part 1

of the lessons learned are related to the (1a) identiﬁ-

cation of candidate functionalities that can be modu-

larized in legacy applications; (1b) analysis of rela-

tionships and organizational dependencies in the le-

gacy system; (1c) identiﬁcation of each domain and

sub-domain. Part 2 of the lessons learned relates to

the (2a) selection of the candidates according to their

importance to the domain and the application itself;

(2b) conversion of the candidate functionalities to mi-

croservices.

5 THE CASE STUDY

In this case study, we aim at analyzing an effective

manner to look for candidate features to be modula-

rized in legacy software systems to be later migrated

into microservices. The subject system is eShop, an

online store in which users can browse a product ca-

talog.

Figure 4 illustrates a typical scenario of eShop.

The system provides functionalites such as user

authentication, catalogue of products, special offers,

and payments. The features of the monolithic ap-

plication are implemented in the PHP programming

language in a single "big module", connected to a

(MySQL) relational database. The system runs as a

single artifact on a Nginx web server. The size of

the source code increased dramatically over the ye-

ars, as stakeholders asks for ever more changes and

new functionalities. To deal with such requests, de-

velopers struggled to deliver new releases, which de-

manded ever more effort.

Part I of the process consists of migrating the le-

gacy system to a modularized version. To carry it out,

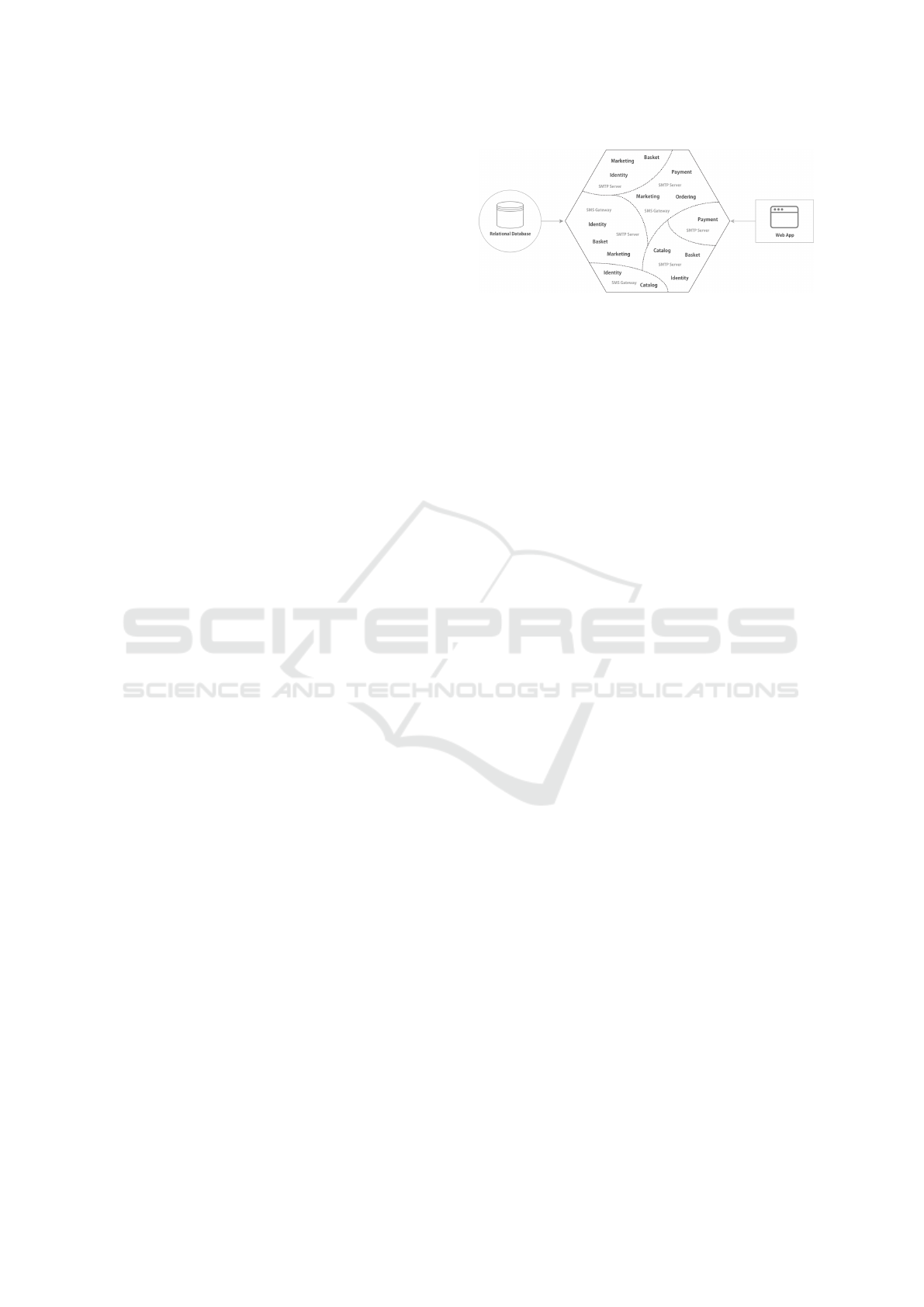

Figura 4: A Traditional Monolithic Legacy Software Sys-

tem (Case Study) (Silva et al., 2019).

we ﬁrst "manually"identiﬁed the candidate functiona-

lities by navigating among the directories and ﬁles to

ﬁnd out the goal of each artifact likewise the pilot

study. Figure 4 shows the entities Identity, Basket,

Marketing, Catalog, Ordering and Payment rela-

ted to the identiﬁed functionalities. This is the out-

come of the ﬁrst step aimed at identifying the main

functionalities and responsabilities in view of a tenta-

tive establishment of boundaries between them. Next,

we planned to break down the main module into units.

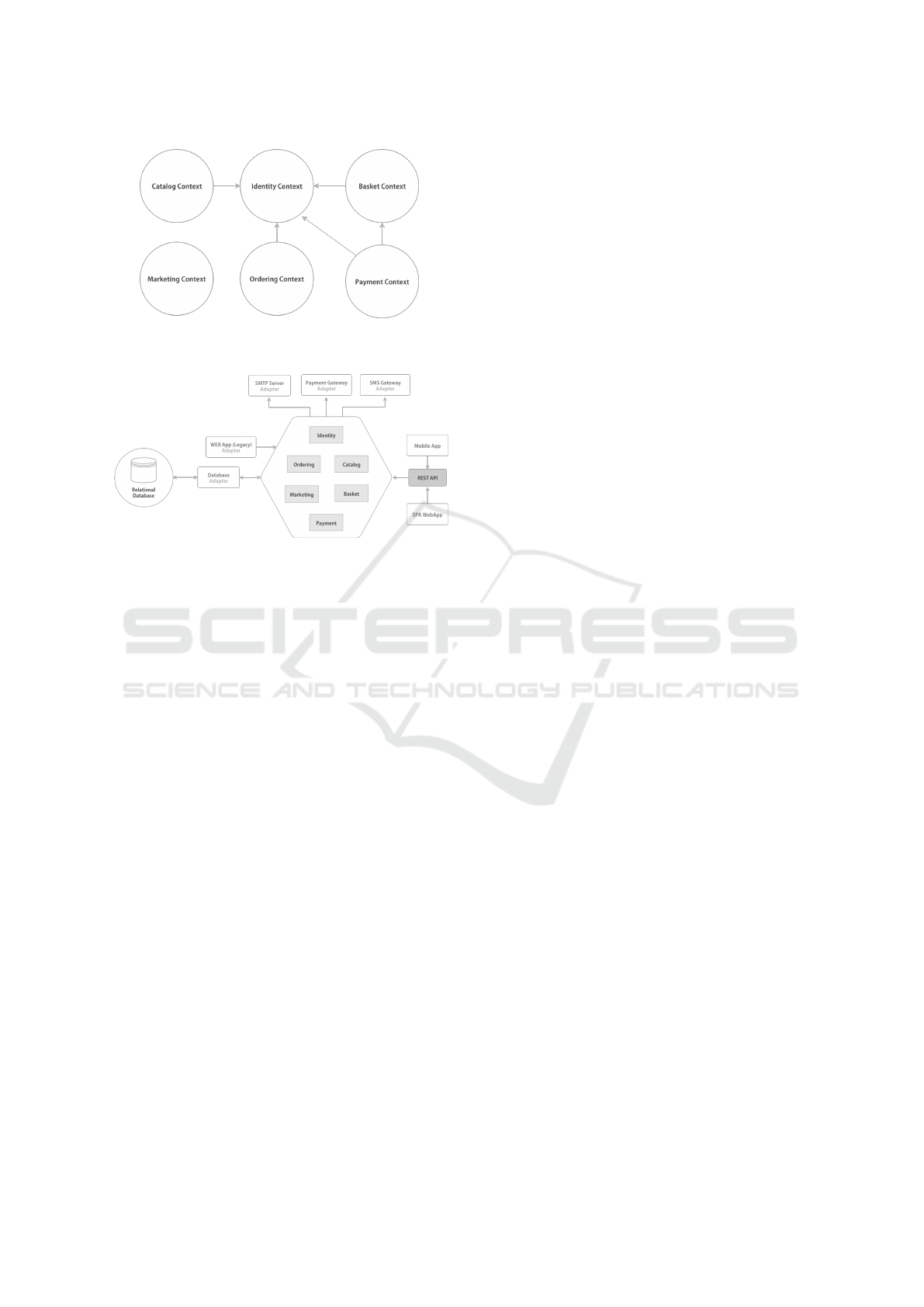

The key to this task was the use of Bounded Con-

texts ans their respective relationships, as represented

in Figure 5. We applied in each Bounded Context the

following DDD key concepts: aggregate root, value

objects and domain services. These concepts support

the challenge to deal with manage domain complexity

and ensures clarity of behavior within the domain mo-

del.

After the acknowledgement of contexts, we orded

them by level of complexity, starting with the low le-

vel ones to validate the context mapping. Moreover,

we positioned the contexts into well-deﬁned layers,

expressing the domain model and business logic, eli-

minating dependencies on infrastructure, user inter-

faces and application logic, which often get mixed

with it. We managed to set all the code related to

domain model in one layer, isolating it from the user

interface, application and infrastructure parts (Evans,

2004). In some situations, we can apply the Strangler

pattern (Taibi et al., 2017) to deal with the complexity

of the module to be refactored. Consiedering that fea-

tures are moved to new modules or a new system, the

legacy system will be totally "strangled"to the point

where it will no longer be useful.

A folder should be created for each of the Boun-

ded Contexts and within each folder, three new fol-

ders should be added, one for each layer: Domain,

Application, Infrastructure. They contain the

source code necessary for this Bounded Context to

work. It is crucial to consider the domain models

and their invariants and to recognize entities, value

objects and also aggregate roots. We should main-

tain the source code in these folders as described

Towards a Roadmap for the Migration of Legacy Software Systems to a Microservice based Architecture

Figura 5: A Context Map for the Monolithic Legacy Soft-

ware System (Case Study) (Silva et al., 2019).

Figura 6: An Evolved Monolithic Legacy System (Case

Study) (Silva et al., 2019).

in the sequence. Folder Application contains all

application services, command and command han-

dlers. Folder Domain contains the classes with exis-

ting tactical patterns in the DDD, such as: Entities,

Value Objects, Domain Events, Repositories,

Factories. Folder Infrastructure provides tech-

nical capabilities to other parts of the application, iso-

lating all domain logic from the details of the infras-

tructure layer. The latter contains, in more detail, the

code for sending emails, post messages, store infor-

mation in the database, process HTTP requests, make

requests to other servers. Any structure and library re-

lated to "the outside world", such as network and ﬁle

systems, should be used or called by the infrastructure

layer.

Part II of the process consists of migrating the mo-

dularized version to a microservices-based version.

At this point, the focus is on the analysis of the previ-

ously developed Context Map and the assessment of

the feasibility of decomposing each identiﬁed context

into microservice candidates. In this case, during the

analysis of the Context Map, it is required to unders-

tand and identify the organizational relationships and

dependencies. This is analogous to domain modeling,

which can start relatively superﬁcially and gradually

increase levels of detail.

At this point, we wanted to decompose an appli-

cation into smaller parts. The most common way to

do this is based on layered segmentation based on

user interface, business logic and database responsi-

bilities. However, this is prone to give rise to coupling

between modules, causing the replication of business

logic in the application layers (Dragoni et al., 2017)

- coupling deﬁnes the degree of dependency between

components or modules of an application. The micro-

service proposal to circumvent this problem entails

segmenting the system into smaller parts with fewer

responsibilities. In addition, it also considers domain,

focus and application contexts, yielding a set of auto-

nomous services, with reduced coupling.

To provide answers to the speciﬁc research ques-

tion SRQ2, the Bounded Contexts from DDD are used

to organize and identify microservices (Nadareishvili

et al., 2016). Many proponents of the microservice

architecture use Eric Evans’s DDD approach, as it of-

fers a set of concepts and techniques that support the

modularization in software systems. Among these to-

ols, Bounded Context is used to identify and organize

the microservices. Evans made the case for Boun-

ded Contexts as facilitating the creation of smaller,

more coherent and more cohesive components (mo-

dels), which should not be shared across contexts. In

the Context Map shown in Figure 5, the arrow is used

to facilitate identiﬁcation of upstream/downstream re-

lationships between contexts. When a limited context

has inﬂuence over another (due to factors of a less te-

chnical nature), provision of some service or informa-

tion this relationship is considered upstream. Howe-

ver, the limited contexts that consume it comprise a

downstream relationship (Evans, 2004).

An effective way of deﬁning microservice boun-

daries entails correctly identifying the Bounded Con-

texts, using DDD and breaking a large system across

them. Newman points out that Bounded Contexts re-

present autonomous business domains (i.e., distinct

business capabilities) and therefore are the appropri-

ate starting point for identifying boundaries for micro-

services. Using DDD and Bounded Contexts lowers

the chances of two microservices needing to share a

model and corresponding data space, risking a tight

coupling.

Avoiding data sharing facilitates treating each mi-

croservice as an independent deployment unit. Inde-

pendent deployment increases speed while still main-

taining security within the overall system. DDD and

Bounded Contexts seems to make a good process for

designing components (Newman, 2015). Note howe-

ver, that it is still possible to use DDD and still end

up with quite large components, which go against the

principles of the microservice architecture. In sum,

smaller is better.

The number of responsibilities is an important ser-

vice feature. This is reinforced by the Single Respon-

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

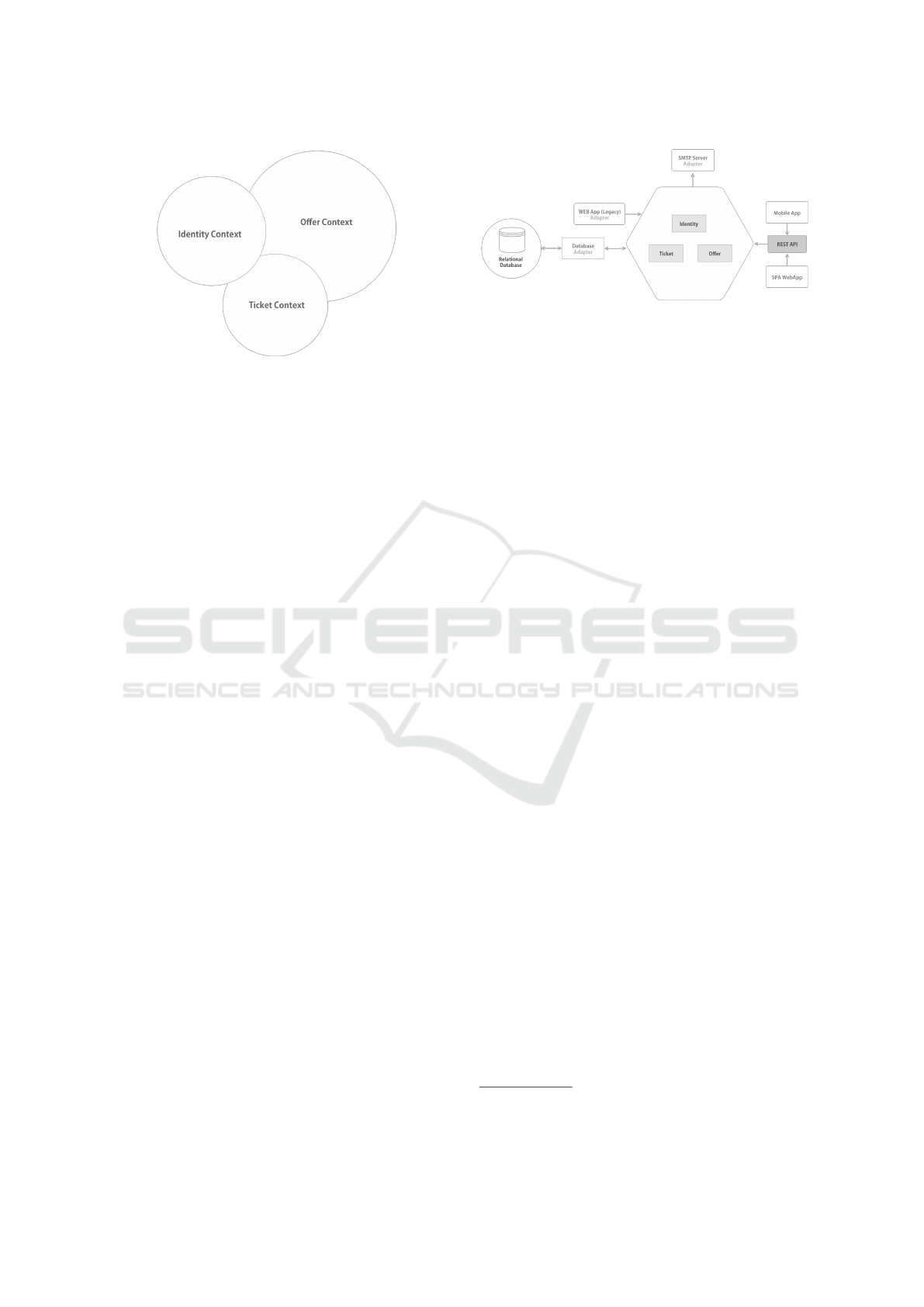

Figura 7: A New Based Microservices Software System

(Case Study) (Silva et al., 2019).

sibility Principle (SRP) (Martin, 2002). Each service

must have a well-deﬁned boundary between the mo-

dules, which should be independently created and pu-

blished, through an automated deployment process. A

team can work on one or several Bounded Contexts,

with each serving as a foundation for one or several

microservices. Changes and new features are suppo-

sed to related to just one Bounded Context and thus

just one team (Wolff, 2016).

The strategy is to move resources vertically by de-

coupling the primary feature along its data and redi-

rect all front-end applications to the new APIs. Ke-

eping all data on a single basis is contrary to the de-

centralized data management feature of microservi-

ces. Having multiple applications using the data from

a centralized database is the primary step to decouple

the data along with the service.

During the migration of the eShop database, we

decided to execute it in incrementar steps due to its

inherent complexity. Migrating data from a legacy

software system requires careful planning, depending

on each case. In the case of the aforementioned da-

tabase, we identiﬁed the tables corresponding to each

service and created a new database schema (MySQL)

for each of the corresponding services. We then mi-

grated one service at a time. The database did not

seem to be particularly large and this approach was

applied without side effects. However, this may not

be the best approach, depending on the size of the da-

tabase to be migrated. Each speciﬁc scenario must be

analyzed addressing their own speciﬁcities and com-

plexities scenarios. To perform the migration, we

adopted the Doctrine Migrations

tool. Figure 7 con-

veys the architecture of the new microservices based

architecture system.

https://www.doctrine-project.org/projects/migrations

.html

6 PROPOSED MIGRATION

ROADMAP

The purpose of the roadmap is to migrate a system

with monolithic legacy architecture to a microservice

architecture. A level of discipline and some skills are

necessary in the operational part, as described in the

next sections.

Traditional monolithic legacy software systems

usually show signs of deﬁcient modularity, resulting

in signiﬁcant levels of tangling and scattering. Most

of the time, a complete system rewrite from scratch is

infeasible. It is therefore recommended to migrate the

legacy system gradually, replacing speciﬁc parts of it

with new modules. This type of approach is already

discussed in the Strangler pattern (Taibi et al., 2017).

Upon completing the migrating process, the older

version of the legacy system is discarded. Therefore,

it is important to note that this approach helps mini-

mize risk during migration and distributes develop-

ment effort over time.

6.1 Roadmap Premises

A ﬁrst assumption or requirement to use the proposed

roadmap, is that the target system has a monolithic

architecture. At least three layers should be identiﬁed

on it: presentation layer, business layer and data layer.

It is also important that the developer or development

team have a minimum knowledge of the system’s bu-

siness rules, which will be critical during execution of

phases 1 and 2, which focus on the extraction of kno-

wledge from the domain and on establishing limits

consistent with the system’s business rules.

Fast Deployment. How the microservice archi-

tecture promotes the creation of independent services;

it is necessary to automate the deployment of these

services to save time for developing teams in different

environments, e.g., development, testing and produc-

tion environments.

Provisioning Environments. Given the need to

automate the deployment process, we also feel the

need of a fast provisioning environment, which ﬁts

nicely with Cloud Computing.

The structure of the roadmap is as follows. Phase

1 analyzes and identiﬁes of key functionalities and

their respective responsibilities. Phase 2 details the

pre-existing characteristics of the monolithic system,

using some of the key concepts of Domain-Drive De-

sign (DDD), such as: Delimited Context, Context

Map, Domains, Subdomains, Aggregator, Value Ob-

jects, and Services Domain. These concepts help to

build artifacts that support migration decisions to be

made, including granularity and cohesion of services

Towards a Roadmap for the Migration of Legacy Software Systems to a Microservice based Architecture

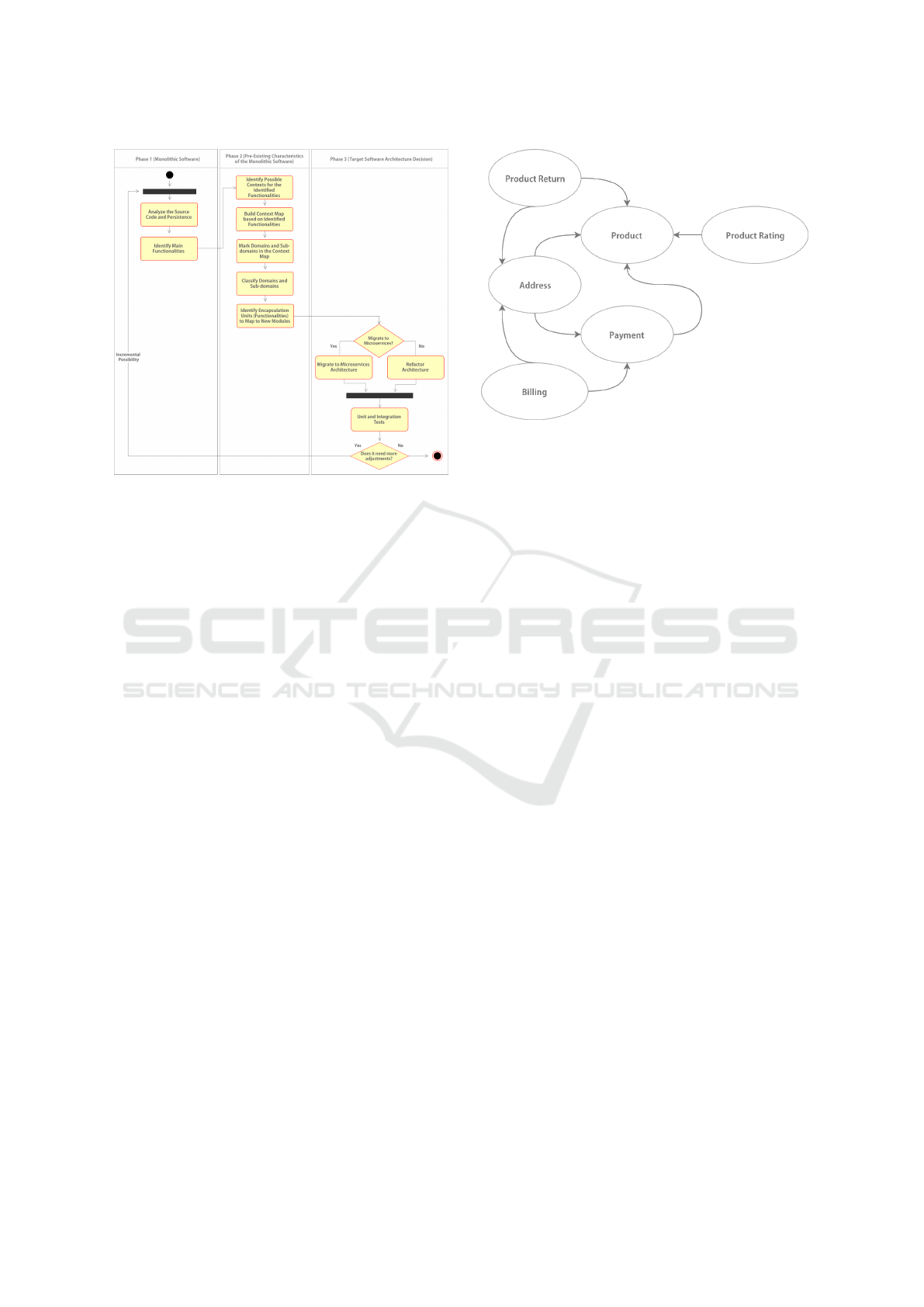

Figura 8: Roadmap Premises Workﬂow.

to be implemented. Phase 3 promotes the migration to

a microservice architecture of the Bounded Contexts

identiﬁed and mapped in the previous phase.

6.2 Phase 1: Monolithic Software

Step 1: Analyze Source Code and Database

Input Data: Source Code and Database

Output Data: Source Code and Database

Description of Step 1: The ﬁrst phase is initia-

ted by the process of identifying the artifacts in the

system. This step analyzes the source code and the

database legacy system. To perform this analysis it is

necessary to navigate between the ﬁles and directories

of the system, to obtain a clearer view of the domain

under analysis.

Step 2: Identify Main Functionalities

Input Data: Source Code and Database

Output Data: List of Identiﬁed Funcionalities

Description of Step 2: This step identiﬁes the

purposes, responsibilities and main functionalities of

the artifacts. It is important to emphasize that this

is an iterative and incremental process. At this ﬁrst

stage, it is essential to document it, even if it means

simply using a list to record what was identiﬁed while

browsing the system artifacts. The next step is to es-

tablish a temporary boundary between the various fe-

atures, where the goal is to ensure more clarity and

understanding of the system’s business rules.

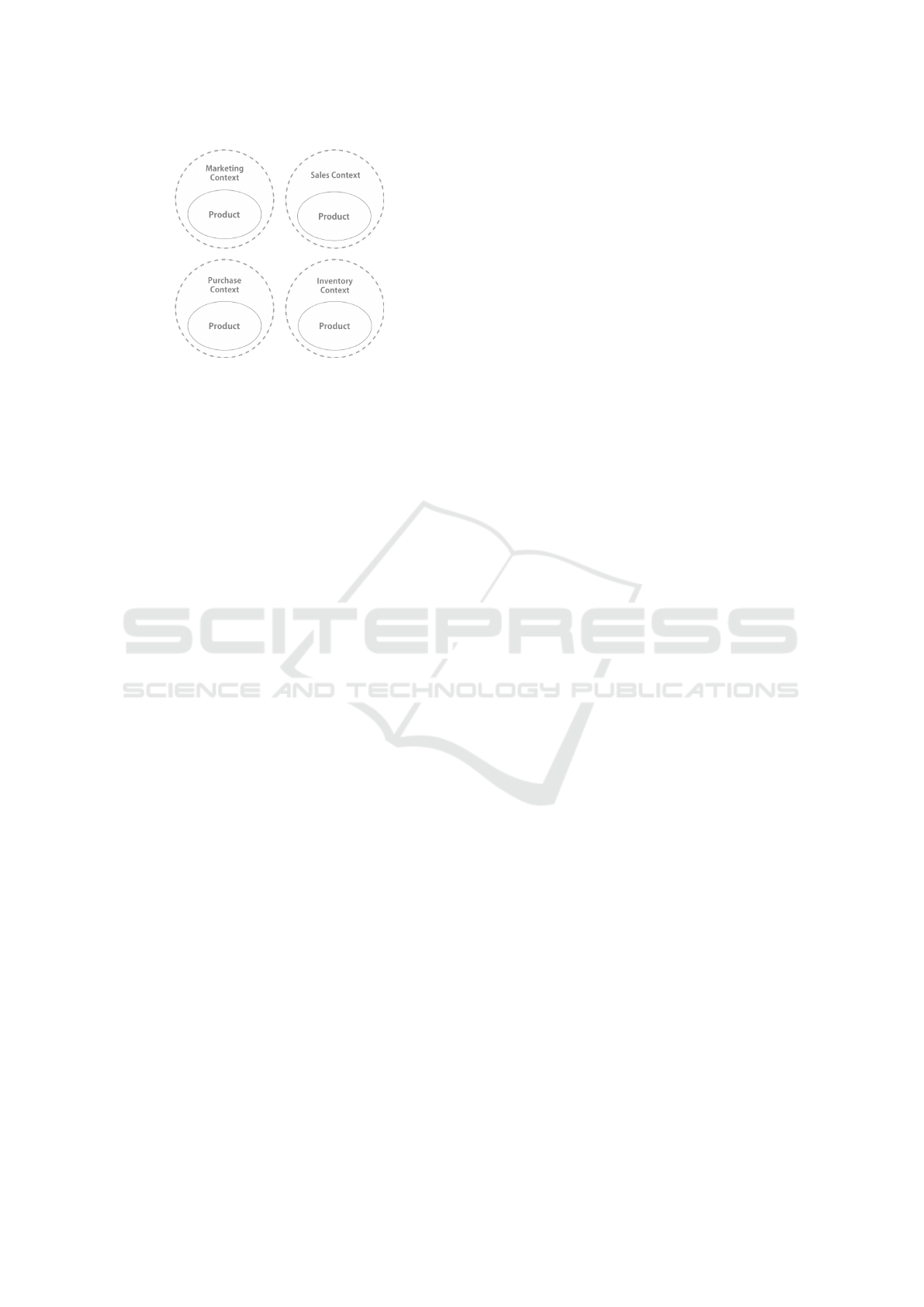

Figura 9: Simple Draft Diagram with Subdomains Identi-

ﬁed.

6.3 Phase 2: Pre-existing

Characteristics of Monolithic

Software

Step 3: Identify Domains and Subdomains of Mapped

Functionalities

Input Data: List of Identiﬁed Funcionalities

Output Data: Diagram with Identiﬁed Subdo-

mains

Description of Step 3: In this step, the goal is

to distill the domain to provide an ever deeper kno-

wledge. Therefore, it is important to create a domain

model, which is a high-level artifact that reveals and

organizes domain knowledge data with the intent of

providing clear language for developers and domain

experts. This effort can be collaborative, involving

the development team and domain specialists and sta-

keholders. It is important for this task to comprise the

outlining of a simple diagram, without formalities, as

its goal is to be clear and increase knowledge of the

business domain functions.

Often, the source code is coupled to the Web ap-

plication structure. Therefore the task of identifying

the functionalities needs to be reviewed a few times,

so that boundaries of domains and subdomains re-

ceive a proper validation.

The diagram of the domain model from Figure

9 includes real-world objects such as: Product

Return, Product, Address, Payment among others.

These objects can have different behaviors, so some

functionalities of the product and payment may

vary. For instance, upon payment of a product the

only important information for the operation to be

performed is identiﬁcation of the product. Therefore,

it may be more interesting to create distinct models

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

Figura 10: Example of a Split Domain into Four Bounded

Contexts.

that represent the same object in the real world. This

way, each model can meet the speciﬁc needs of its

context.

Step 4: Identify Bounded Contexts

Input Data: Diagram with Identiﬁed Subdomains

Output Data Identiﬁed Bounded Contexts

Description of Step 4: As illustrated in Figure 10

with the concept of Bounded Context, it is possible to

set limits to a speciﬁc domain according to business

intentions (Marketing, Sales, Purchase and Stock).

As domains and subdomains are identiﬁed and

ﬁlled in the diagram, it is important to classify the

essential functionalities from business and their

existing relationships. At this stage, no concern

should relate to implementation details. The focus is

still on the domain knowledge.

Step 5: Build a Context Map

Input Data: Identiﬁed Bounded Contexts

Output Data: Context Map

Description of Step 5: Once the Bounded Con-

texts Mapping is done, the next step is to build a Con-

text Map. The goals of this map is to make explicit the

understanding of contexts and relationships between

them. As well as the mapping of the Bounded Con-

texts, the Context Map also needs to have a continuous

process of improvement, so that the information of the

Bounded Contexts and consequently the Context Map

is improved.

In this stage of the migration it is possible to iden-

tify, based on the tactical modeling of DDD, possi-

ble candidates for entities, objects of value, services,

among others.

The main focus of the ﬁrst and second phases is

the extraction of knowledge from the domain, iden-

tifying the main functionalities and responsibilities in

view of establishing coherent and validated limits ba-

sed on the system’s business rules.

6.4 Phase 3: Target Software

Architecture

The focus of this phase is on the decision and imple-

mentation of the architecture. The ﬁrst step of this

phase is to decide whether the system architecture

will be migrated to a microservice architecture. This

is a decision that is up to the development team, who

from the deﬁned Context Map, can assess the comple-

xity of the system, and whether there really is a need

to migrate to a microservice-based architecture.

As described in the pilot study, it was noticed

during Context Map analysis that the system had

only three contexts: Identity Context, OfferContext

and TicketContext. Because it is a simple system

with a reduced number of contexts, it was decided to

maintain the monolithic architecture, in view of the

progress achieved in the modularization through the

application of DDD concepts. One of the reasons for

choosing not to migrate to a microservice architecture

was to avoid increasing the system’s complexity,

which would be a consequence of implementing to

this architecture. Therefore, the number of contexts is

a factor to be taken into account during this decision

making. However, we do not go as far as to set a

threshold value for a minimum number of contexts.

Step 6: Migrate for Microservices Architecture

Input Data: System with Evolved Monolithic Ar-

chitecture

Output Data: System with Microservices Archi-

tecture

Description: deciding to migrate to a microser-

vice architecture entails initiating a series of actions.

First, note that in a scenario of a large application in a

complex domain, it is very common to observe many

contexts. Deciding on which context to start carrying

out the migration is not a trivial task. An effective

strategy is to select contexts that have no or few re-

lationships. The number of bugs associated with a

particular context may also be a factor.

For each Bounded Context a directory must be cre-

ated, within each of the directories, three new direc-

tories must be added, one for each layer: Domain,

Application, Infrastructure. They must contain

the necessary source code for the Bounded Context to

work. It is essential to consider the domain models

and their invariants and recognize Entities, Value Ob-

ject’s and also Aggregates. The source code must be

maintained in these directories as described in the se-

quence. The Application directory should contain

all application services and command handlers.

Towards a Roadmap for the Migration of Legacy Software Systems to a Microservice based Architecture

The Domain directory contains classes with exis-

ting tactical patterns in DDD as: Entity, Value

Object, Domain Event, Repository and Factory.

The Infrastructure directory should provide the

technical resources for other parts of the application,

isolating all domain logic from the details of the in-

frastructure layer.

The infrastructure layer should contain in detail

the code for sending emails, sending messages, sto-

ring information in the database, processing HTTP re-

quests, and make requests to other servers. Any struc-

ture and library related to the external world, such as

network and ﬁle systems, must be used or called at

the infrastructure layer.

The directory structure of a Bounded Context

should be organized as follows:

+--src

| +-- LegacySystem

| +-- Context

| +-- Application

| +-- Domain

| +-- Infrastructure

+-- tests

In the scenario where the migration of architecture

to microservices must take place, the Bounded Con-

texts will play a key role in identifying and organizing

the microservices.

It is essential that each service has its own

structure allowing separate maintenance external

repositories. This facilitates the development and

implementation of adjustments that can be made

separately, avoiding possible side effects (SPOF)

other services. It is prudent to organize the contexts

in well-deﬁned layers, because this way allows us

to express the domain model and business logic,

eliminating dependencies on infrastructure, user

interface and application logic, concepts that often

are mixed. Everything that is related to the domain

model must be concentrated on a layer, isolating it

from the top layers, such as the user interface layer,

application layer, and infrastructure (Evans, 2004).

Step 7: Run Unit and Integration Tests

Input Data: Migrated Bounded Context

Output Data: Migrated Bounded Context with

Executed Tests

Description: As the Bounded Contexts are being

migrated, it is recommended that automated testing be

performed, initially unit testing. The intent is ensure

that the implemented parts are working as expected.

These three phases make up the core minimum set

to perform a migration. There is the possibility of in-

cluding new steps in one or more of the three phases,

depending on the speciﬁc characteristics of the soft-

ware system in question.

7 LESSONS LEARNED

As a result of the experience of the two-phase study

previously reported, we highlight four key challenges

faced during the migration. The ﬁrst challenge is the

identiﬁcation of functionalities. It is not a trivial task,

especially when considering large modules with scat-

tered and tangled functionalities. The literature has

already discussed this relevant issue in the migration

process (Ossher and Tarr, 2002). The second chal-

lenge comes from the need to deﬁne optimal bounda-

ries among candidate features for microservices. The

third challenge comes from the need to decide which

will befeatures should be converted to microservices.

The fourth challenge is related to the need to carefully

analyze these potential candidate microservices with

respect to their respective granularity and respective

cohesion.

Previous published work already addressed the

decomposition problem for identifying modules, pac-

kages, components, and "traditional"services, mainly

by means of clustering techniques upon design arti-

facts or source code. However, boundaries between

modules deﬁned using these approaches were ﬂexible

enough to allow the software to evolve into instan-

ces of Big Ball of Mud (Coplien and Schmidt, 1995).

Although the discussion in the literature regarding the

value of cohesive services and the power of Bounded

Contexts, it seems to a void in the guidance on how

to identify these in practice (McLarty, ). The main

issue is that those people trying to determine service

boundaries are technologists looking for a technolo-

gical solution. On the other hand, deﬁning cohesive,

capability-aligned service boundaries instead requires

domain expertise. To overcome this difﬁculty, a mo-

delling exercise should be carried out independently

of the speciﬁc technology used (Silva et al., 2019).

We managed to derive multiple autonomous mi-

croservices, each with its own database, by applying

the strategies reported above. For communication

between the microservices, we used HTTP communi-

cation mechanisms as API Restful and also asynchro-

nous communication with an EventBus implementa-

tion, running RabbitMQ

. As shown in ﬁgure 7, each

of the microservices now work with an independent

relational database, except the Marketing service be-

cause it is an auxiliary service. For this one, we chose

to use an in-memory database (Silva et al., 2019).

https://www.rabbitmq.com

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

8 CONCLUSIONS

It should be noted that migrating a legacy application

rarely can be performed without signiﬁcant effort. It

is often entails hard and complex work. To the best

of our knowledge, there are frameworks that can be

used to support practitioners during the development

(forward engineering) of microservice-based systems,

such as Spring Cloud

and Hystrix

, just to name a

few. However, none of them provides full support to

the three migration phases. To contribute to ﬁlling this

gap, this paper presents the lessons learned to support

this kind of migration. We believe that the availabi-

lity these lessons learned can support and encourage

practitioners from the industry and academia to per-

form them.

The lessons learned were based on our experience

on the two-phase study reported in this paper. We also

plan to conduct a survey with practitioners from the

industry. Among other things, we wish to collect opi-

nions their perceptions regarding the challenges that

are faced during this type of migration, learn about

the requirements and characteristics for suitable pro-

cesses.

REFERENCES

Balalaie, A., Heydarnoori, A., and Jamshidi, P. (2016). Mi-

croservices architecture enables devops: migration to

a cloud-native architecture. IEEE Software, 33(3):42–

52.

Coplien, J. O. and Schmidt, D. C. (1995). Pattern langua-

ges of program design. ACM Press/Addison-Wesley

Publishing Co.

Dragoni, N., Giallorenzo, S., Lafuente, A. L., Mazzara, M.,

Montesi, F., Mustaﬁn, R., and Saﬁna, L. (2017). Mi-

croservices: yesterday, today, and tomorrow. In Pre-

sent and Ulterior Software Engineering, pages 195–

216. Springer.

Evans, E. (2004). Domain-driven design: tackling comple-

xity in the heart of software. Addison-Wesley Profes-

sional.

Gamma, E. (1995). Design patterns: elements of reusable

object-oriented software. Pearson Education India.

Kalske, M., Mäkitalo, N., and Mikkonen, T. (2017). Chal-

lenges when moving from monolith to microservice

architecture. In Current Trends in Web Engineering,

pages 32–47. Springer, Cham.

Leymann, F., Breitenbücher, U., Wagner, S., and Wettinger,

J. (2016). Native cloud applications: Why monolithic

virtualization is not their foundation. In Cloud Com-

puting and Services Science, pages 16–40. Springer,

Cham.

http://projects.spring.io/spring-cloud/

https://github.com/Netﬂix/Hystrix

Martin, R. C. (2002). The single responsibility principle.

The principles, patterns, and practices of Agile Soft-

ware Development, 149:154.

McLarty, M. Designing a microservice system.

Millett, S. (2015). Patterns, Principles and Practices of

Domain-Driven Design. John Wiley & Sons.

Nadareishvili, I., Mitra, R., McLarty, M., and Amundsen,

M. (2016). Microservice Architecture: Aligning Prin-

ciples, Practices, and Culture. "O’Reilly Media, Inc.".

Newman, S. (2015). Building microservices: designing

ﬁne-grained systems. "O’Reilly Media, Inc.".

Ossher, H. and Tarr, P. (2002). Multi-dimensional separa-

tion of concerns and the hyperspace approach. In Soft-

ware Architectures and Component Technology, pages

293–323. Springer.

Richardson, C. (2014a). Microservices: Decomposing ap-

plications for deployability and scalability.

Richardson, C. (2014b). Pattern: Monolithic architecture.

Posje´ceno, 15:2016.

Seaman, C. B. (1999). Qualitative methods in empirical

studies of software engineering. IEEE Transactions

on software engineering, 25(4):557–572.

Silva, H., Carneiro, G., and Monteiro, M. (2019). An expe-

rience report from the migration of legacy software

systems to microservice based architecture. In In-

formation Technology-New Generations (ITNG 2019),

pages 159–165. Springer.

Singleton, A. (2016). The economics of microservices.

IEEE Cloud Computing, 3(5):16–20.

Taibi, D., Lenarduzzi, V., and Pahl, C. (2017). Processes,

motivations, and issues for migrating to microservices

architectures: An empirical investigation. IEEE Cloud

Computing, 4(5):22–32.

Toffetti, G., Brunner, S., Blöchlinger, M., Spillner, J., and

Bohnert, T. M. (2017). Self-managing cloud-native

applications: Design, implementation, and experi-

ence. Future Generation Computer Systems, 72:165–

179.

Wolff, E. (2016). Microservices: Flexible Software Archi-

tecture. Addison-Wesley Professional.

Towards a Roadmap for the Migration of Legacy Software Systems to a Microservice based Architecture
