Web-based Interactive Visualization of Medical Images in a Distributed

System

Thiago Moraes

, Paulo Amorim

, Jorge Silva

and Helio Pedrini

Division of 3D Technologies, Center for Information Technology Renato Archer, 13069-901, Campinas, SP, Brazil

Institute of Computing, University of Campinas, 13083-852, Campinas, SP, Brazil

Keywords:

Remote Medical System, Web-based Interactive Visualization, Medical Images, Data Rendering.

Abstract:

Medical images play a crucial role in the diagnosis and treatment of diseases, since they allow the visualization

of patient’s anatomy in a non-invasive way. With the advances of acquisition equipments, medical images

have become increasingly detailed. On the other hand, they have required more computational infrastructure

in terms of processing and memory capabilities, which may not be available in hospitals and clinics with

limited resources. Therefore, a convenient mechanism for providing a more effective health service is through

a remote access system. In this paper, we describe and analyze a distributed system for Web-based interactive

visualization of medical volumes.

1 INTRODUCTION

Data visualization (Pandey et al., 2014, Telea, 2014,

Murray, 2017) is an active research ﬁeld with appli-

cations in several domains of knowledge, for instance,

medicine, biology, remote sensing, meteorology, en-

tertainment, among others.

The increasing amount of acquired data has be-

come a challenge for the traditional visualization pro-

cess performed locally on a client machine, since it

relies on computationally expensive resources to ma-

nipulate and display data volumes. Thus, the client

machine must have sufﬁcient processing and storage

capacity.

On the other hand, remote data visualization (En-

gel et al., 2000, Evesque et al., 2002, Wessels et al.,

2011, Blazona and Mihajlovic, 2007, Marion and

Jomier, 2012) allows costly operations to be per-

formed on a server with high processing and storage

capacity, resources for providing multi-user collabo-

ration, security mechanisms, as well as efﬁcient ver-

sion control of applications.

The high amount of data produced in the med-

ical ﬁeld requires the use of efﬁcient image analy-

sis techniques (Amorim et al., 2018b, Amorim et al.,

2013,Moraes et al., 2018,Amorim et al., 2018a,Faza-

naro et al., 2016, Ward et al., 2015, Prince and Links,

2014), which usually involve the intervention of spe-

cialists to allow greater control of the application.

Examples of interactive medical applications include

image segmentation, surgery simulation, virtual and

augmented reality, telemedicine, computer-aided di-

agnosis, among others.

Advances in Web technologies have made it pos-

sible to develop collaborative visualization of med-

ical data on the Internet, improving healthcare ser-

vices. Despite the availability of hardware and soft-

ware support, there are still some challenges in Web-

based medical data visualization.

In this work, we present and analyze a remote sys-

tem for medical data visualization on the Web. From

requests sent to a server, users are able to manipu-

late and visualize large volumes of data quickly and

directly in the Web browsing environment. Several

beneﬁts are offered to users from the proposed sys-

tem. Web browser-based rendering requires no spe-

cial programs to be installed on the client machine.

As main contributions of the paper, the server is

responsible for performing the operations requested

by the users, which dispenses the client machine from

expensive requirements in terms of memory and pro-

cessing. In addition, viewing results become available

from any device with Internet access. The server ma-

chine is a distributed system in order to provide capa-

bilities of performance, expansibility and reliability.

The proposed solution uses only open and free pack-

ages.

This text is organized as follows. Section 2 brieﬂy

presents concepts and approaches related to the topic

under investigation. Section 3 describes the method-

346

Moraes, T., Amorim, P., Silva, J. and Pedrini, H.

Web-based Interactive Visualization of Medical Images in a Distributed System.

DOI: 10.5220/0007626103460353

In Proceedings of the 14th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2019), pages 346-353

ISBN: 978-989-758-354-4

ology proposed to develop a remote medical data vi-

sualization system on the Web. Experimental results

are presented and evaluated in Section 4. Concluding

remarks and directions for future work are outlined in

Section 5.

2 BACKGROUND

Medical volume rendering consists of a set of tech-

niques for displaying a two-dimensional (2D) of a

three-dimensional data set, acquired by a medical

scanner such as Magnetic Resonance Imaging (MRI)

and Computed Tomography (CT).

The advances and diffusion of the Internet have

leveraged the interest in developing tools for analy-

sis and processing of medical images in an Internet

browser.

Virtual Reality Modeling Language

(VRML) (VRML, 2012) was one of the ﬁrst

proposals for modeling virtual reality in Web envi-

ronments, allowing users connected to the Internet

to interactively view data volumes and transmit

ﬁles. However, VRML has not become a Web

standard supported by the majority of the browsers,

so it is necessary to install a plugin in the browser.

Current leading browsers have adopted two important

standards: WebGL and WebSocket.

WebGL (WebGL, 2017) is the OpenGL ES stan-

dard for browsers. It allows the creation of OpenGL

contexts in browser windows and programming with

the Javascript language to create three-dimensional

interactive environments.

WebSocket (Fette and Melnikov, 2011) is a net-

work protocol that allows two-way communication

between client and server. Unlike Hypertext Transfer

Protocol (HTTP), communication between both ma-

chines (client and server) remains active, which facil-

itates the transmission and development of content in

real time.

Distributed systems (Tanenbaum and Van Steen,

2007) refers to an architecture in which computing

nodes in a network communicate via messages to co-

ordinate themselves in order to achieve a common

goal. An interesting feature of this system is that fail-

ure of a node should not affect the entire system.

Visualization Toolkit (Schroeder et al., 2004,

VTK, 2018) and Three.js (Dirksen, 2013) are some

examples of libraries used to create and visualize data

in a Web browser.

Publisher-Subscribe (PubSub) (Ion et al., 2010) is

an asynchronous message passing model, where pub-

lishers and subscribers exchange messages without

knowledge of each other. Messages are called events.

In the PubSub model, subscribers signalize to the bro-

ker as interested in a particular event. The publisher

sends messages (events) to the broker, which is re-

sponsible for delivering the message to the subscriber

registered in the event. Redis (Carlson, 2013, Redis-

Lab, 2018) is an open source in-memory database that

can be used as broker, since it implements the Pub-

Sub model. Redis allows the broker to be distributed

across multiple nodes.

Some initiatives to develop data visualization sys-

tems on the Web have been made available in the liter-

ature (Kokelj et al., 2018, Rego and Koes, 2015, Kas-

par et al., 2013,Sherif et al., 2015,Marion and Jomier,

2012,Mahmoudi et al., 2010,Mwalongo et al., 2015).

3 REMOTE SYSTEM FOR

MEDICAL DATA

VISUALIZATION

In this section, we describe the developed remote

medical data visualization system on the Web. Fig-

ure 1 illustrates the main components of the proposed

remote system for medical data visualization. The

system is composed of three different modules:

• Web Server: where the HTTP (Hypertext Trans-

fer Protocol) (Fielding et al., 1999) and Web-

Socket (Fette and Melnikov, 2011) requests are

received from the clients. The Flask frame-

work (Ronacher, 2018) is used to generate

and send HTML (HyperText Markup Language)

pages to the client from HTTP requests. Flask-

SockeIO (Grinberg, 2018) is responsible for re-

ceiving and responding to WebSocket requests.

• Redis Server: Redis (Carlson, 2013, RedisLab,

2018) is an in-memory database that can be used

as broker since it implements the PubSub model.

Redis allows the broker to be distributed across

multiple nodes, that is, more than one Redis server

can be used.

• Processing Server: one or more processing nodes.

It was implemented in Python programming lan-

guage.

All these modules may reside either on the same

machine or on different machines interconnected by a

data network. Redis performs load balancing to avoid

processing overhead on only one of the processing

servers. The client is a Web browser implemented in

HTML and Javascript languages.

In this architecture, the processing servers sub-

scribe to the broker (Redis server) to receive events.

Web-based Interactive Visualization of Medical Images in a Distributed System

347

Web Server

HTTP and WebSocket

Flask-SocketIO

Flask

Client (browser)

HTML + Javascript + WebGL

Slices

3D Surface

3D Canvas

Redis Server

DICOM

ﬁles

NumPy

VTK

GDCM

MMAP

Processing Server 0

Redis

Client

...

Remote System

NumPy

VTK

GDCM

MMAP

Processing Server n

Redis

Client

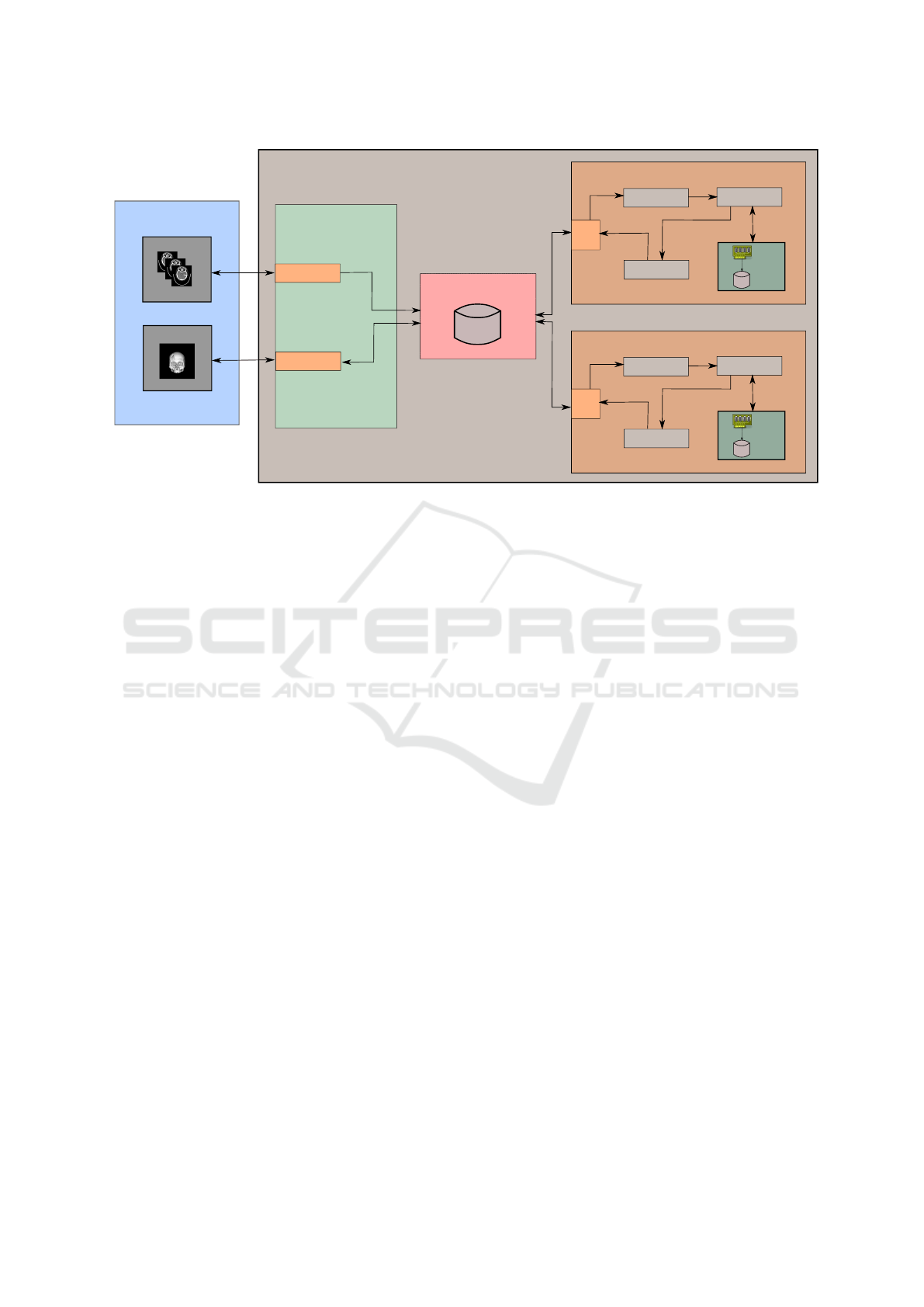

Figure 1: Diagram that illustrates the main stages of the proposed remote system for medical data visualization.

Examples of events include: 3D reconstruction, seg-

mentation, mesh generation, and mesh rendering. The

Web server receives client requests (via HTTP or

WebSocket) and then sends an event to Redis with the

data received from the client.

Redis stores the data in memory (or disk, if the

data is too large) and contacts one of the processing

servers registered in that event. The processing server

accesses event data and performs processing. Af-

ter performing the processing, the processing server

sends a Redis event with the resulting data. The Web

server subscribes to an event to receive these results.

After receiving the results of the processing, the Web

server sends them to the client.

Events in Redis are identiﬁed by a name (string).

In order for the processing server to receive events

related to the images in its possession, it subscribes

to dynamically generated events. The same occurs

with the Web server. This is necessary to not oc-

cur from the Web server sending the result to other

client than the one that requested the result. This

event name is generated by concatenating the oper-

ation to be performed with the image identiﬁer. For

instance, the segmentation operation for image 42

may have the event name segment_image_00042,

whereas the Web server expects the result with the

event result_segmentation_image_00042.

The workﬂow of the methodology starts when the

client sends medical images (for instance, Computed

Tomography, Magnetic Resonance Imaging, Micro-

tomography) in the format DICOM (ACR/NEMA,

2018) to the distributed system via HTTP.

In the distributed system, the images are received

by the Web server, which sends these images to one of

the processing servers through a Redis event. When

the event arrives at the processing server, it retrieves

the images from the Redis server and removes those

Redis images. From then on, all processing in these

images is performed on that same processing server.

This is done to avoid leaving the images stored on the

Redis server.

On the processing server, the GDCM li-

brary (GDCM, 2018) is used to rebuild the im-

ages on a volume. The resulting volume is con-

verted to a volumetric array using the numeric li-

brary Numpy (Oliphant, 2007) in conjunction with

the VTK (Visualization Toolkit) library (Schroeder

et al., 2004,VTK, 2018). The volumetric array is then

written to a disk ﬁle. The ﬁle is mapped to mem-

ory via MMAP (Memory Map) (MMAP, 2018) using

Numpy. Thus, only the portions of the data required

for processing are kept in main memory and not the

entire volume, which reduces the amount of memory

required in the processing server.

After the data preparation (both two-dimensional

and three-dimensional data) for visualization purpose,

all the processing of subsequent steps is performed in

the distributed system, where the client needs only to

request data from the system and interpret them. All

the available steps are listed as follows:

1. 3D Image Slice Visualization Tool: this stage aims

to allow the visualization of the slices in the ax-

ial, sagittal and coronal orientations. It starts with

the request, by the client, using the HTTP pro-

tocol, of a given slice and orientation of interest.

The Web server receives the request and sends an

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

348

event to Redis. The processing server with the

corresponding image receives the event with the

required data. The processing server retrieves the

slice of interest in the ﬁle containing the volumet-

ric array. Slice retrieval is done through ﬁle access

with Numpy and MMAP. The processing server

sends an event to Redis with the desired slice. The

Web server subscribes to the corresponding event

to receive the image. After receiving the image, it

sends the image to the client. In possession of the

image, the client renders it on the browser screen.

Rendering is done by mapping the image in a

plane as a texture. WebGL (WebGL, 2017) is used

for rendering through JavaScript three.js (Cabello,

2018) library.

2. Segmentation Tool: segmentation is done through

the double thresholding technique. In this ap-

proach, voxels are selected with gray levels be-

tween T

min

and T

max

. The values of T

min

and T

max

are parameters controlled by the user through a

graphical interface on the client. T

min

and T

max

are

sent to the distributed system via HTTP. The Web

server receives the request with the segmentation

data and sends an event. This event is received by

the processing server with the corresponding im-

age to be segmented. It segments the images and

sends the response through an event to the Web

server. It sends a representation of this segmenta-

tion to the client via HTTP, which is a mask (in

green color) superimposed on the voxels of the

slice that are within the range of the threshold.

3. Mesh Generation Tool: after segmentation, the

user can generate the three-dimensional surface,

which is produced by the processing server us-

ing the marching cubes algorithm (Lorensen and

Cline, 1987), implemented in the VTK library. A

simpliﬁed version, containing fewer polygons of

the three-dimensional surface, is also generated.

The simpliﬁed surface is created using the deci-

mation algorithm (Garland and Heckbert, 1997),

implemented in the VTK library. The process-

ing server sends the simpliﬁed surface to the Web

server, which sends it to the client using the Web-

Socket protocol.

4. 3D Triangle Meshes Visualization Tool: with the

simpliﬁed surface, the client renders it using We-

bGL. Rendering of the simpliﬁed version oc-

curs during user interaction with the visualiza-

tion. After the interaction, the client sends a mes-

sage requesting the rendering of the entire three-

dimensional surface. This request is made using

WebSocket and contains camera information (po-

sition, focus, and vector up that indicates the top

side of the camera). This request arrives at the

Web server, which sends the camera data to the

processing server, via an event. The processing

server renders the entire surface offscreen (Paul,

1997), according to the information sent by the

client. The result is an image, which is sent to the

Web server via an event. The Web server sends

the client via WebSocket. The client then renders

this image as plane texture with same dimensions

as the renderer.

4 RESULTS

This section presents the results obtained with the im-

plementation of the proposed methodology. Three

server-side machines were used: (i) 1 server with Re-

dis, (ii) 1 Web server with the proposed system and

one of the processing nodes, (iii) 1 processing node.

On the client side, browsers were Mozilla Fire-

fox (Desktop), Chrome (Android, Mobile) and Safari

(iOS, Mobile). The only requirements on the client

side are the availability of WebGL, WebSocket and

Javascript.

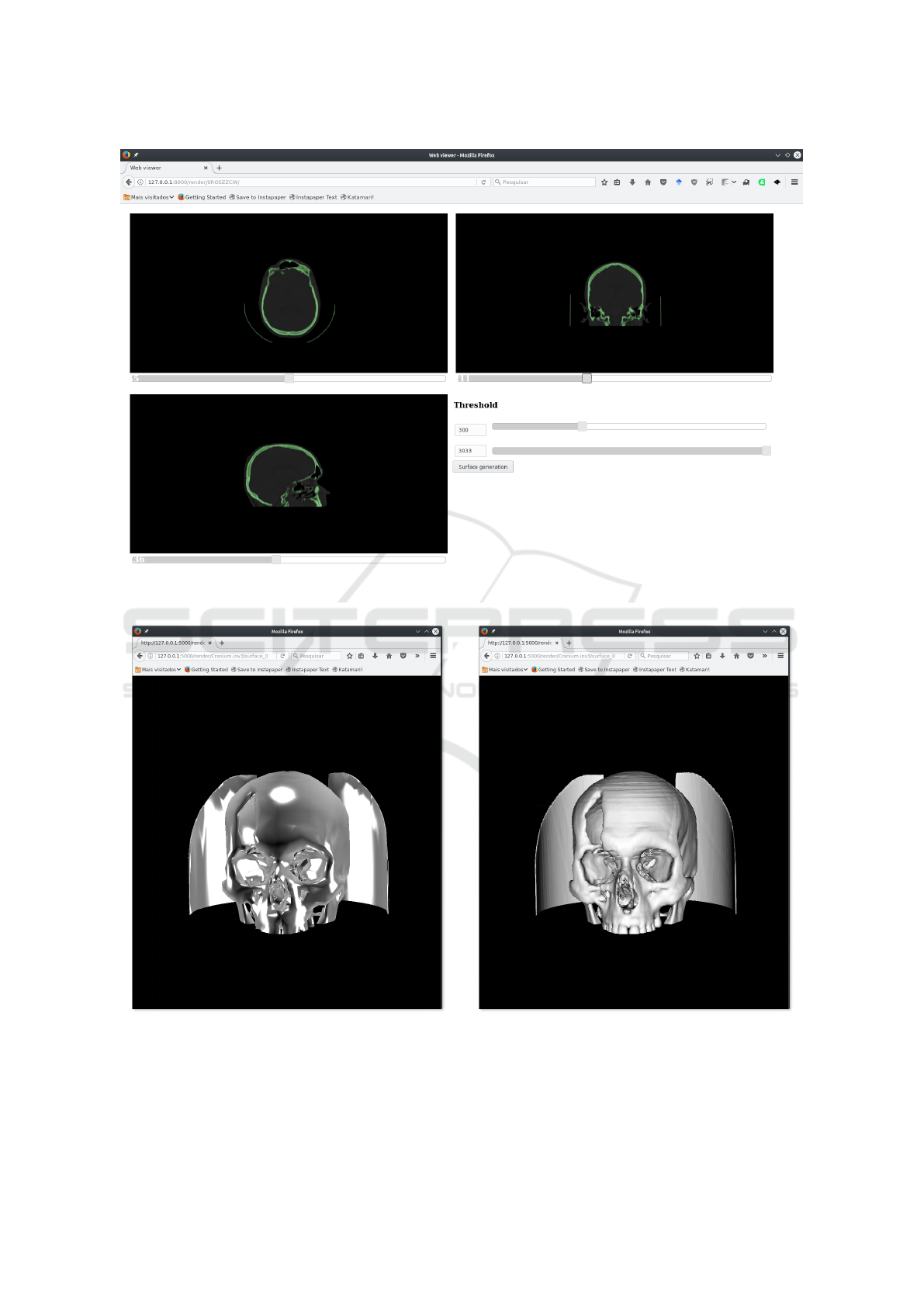

Figure 2 illustrates the view of slices in the axial,

coronal and sagittal orientations. Below each slice,

there are sliders to change the slice to be displayed.

In the lower right corner, it is possible to observe the

segmentation tool based on thresholding. The thresh-

old values are changed by dragging the sliders or typ-

ing the values directly. In the slices, it is possible to

notice the mask (in green) superimposed on the slice

indicating the segmentation.

Figure 3 shows the visualization of a three-

dimensional surface. The visualization is done in two

parts: the rendering of the simpliﬁed mesh, which is

performed on the client, and the complete rendering,

which is performed by the server. Simpliﬁed ren-

dering is performed while the user interacts with the

mesh. Figure 3a illustrates this rendering. Figure 3b

shows the result of rendering the complete surface,

which is performed after the user interaction.

The proposed architecture proved to be very ﬂex-

ible by allowing the tool to be used on different mo-

bile systems, such as Android and iOS. This makes

it possible to use the system in non-desktop environ-

ments, which could occur during a doctor’s visit to a

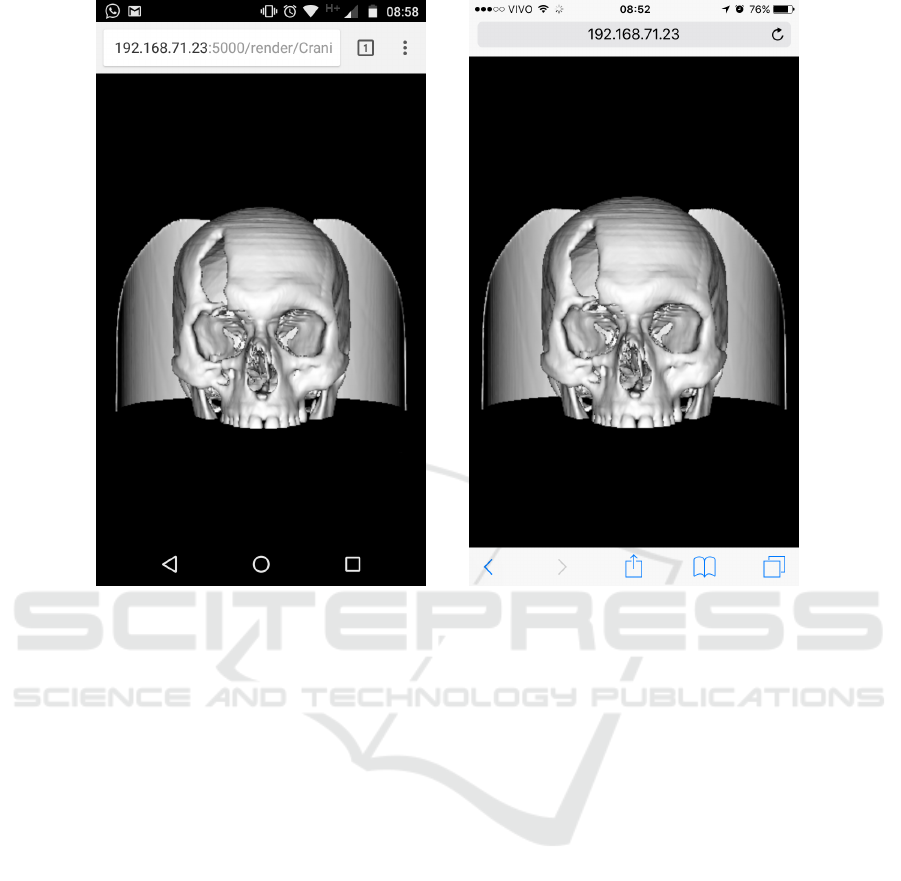

patient’s bed. Figure 4 illustrates the surface render-

ing interface on Android 6.0 and iOS 10.3 systems.

Web-based Interactive Visualization of Medical Images in a Distributed System

349

Figure 2: System interface used to visualize the slices in the axial, coronal and sagittal orientations.

(a) simpliﬁed surface (b) complete surface

Figure 3: Surface rendering on a Web browser.

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

350

(a) Android (b) iOS

Figure 4: Result of surface rendering on a smartphone Android version 6.0 and iOS 10.3.

5 CONCLUSIONS AND FUTURE

WORK

The distributed system for medical image visualiza-

tion via Web was implemented and proved to be very

useful. This makes it possible to centralize the pro-

cessing and offer such computing resources to hospi-

tals and clinics that do not have much computational

power.

The possibility of accessing the system via mobile

browser will allow access to the rendering system on

smartphones, which may be useful for physicians and

dentists when a desktop computer is not available.

Directions for future work include improvements

in triangle mesh generation, automated tools for cor-

recting mesh problems (such as holes and face normal

reversals), and other segmentation tools, for instance,

watershed and region growing. We also intend to in-

corporate the developed system into the open-source

InVesalius (InVesalius, 2018, Amorim et al., 2015).

ACKNOWLEDGMENTS

The authors thank FAPESP (grants #2014/12236-1

and #2017/12646-3), CNPq (grant #305169/2015-7)

and CAPES for the ﬁnancial support.

REFERENCES

ACR/NEMA, D. (2018). Digital Imaging and Communica-

tions in Medicine. http://dicom.nema.org/.

Amorim, P., Moraes, T., Silva, J., and Pedrini, H. (2013).

An Out-of-Core Volume Rendering Architecture. In

IV ECCOMAS Thematic Conference on Computa-

tional Vision and Medical Image Processing, pages

173–179, Funchal, Portugal. Taylor & Francis Group,

CRC Press/Balkema.

Amorim, P., Moraes, T., Silva, J., and Pedrini, H. (2015).

InVesalius: An Interactive Rendering Framework for

Health Care Support. In 11th International Sympo-

sium on Visual Computing, volume LNCS 9474, pages

45–54, Las Vegas, NV, USA. Springer-Verlag.

Amorim, P., Moraes, T., Silva, J., and Pedrini, H. (2018a).

3D Adaptive Histogram Equalization Method for

Medical Volumes. In 13th International Conference

Web-based Interactive Visualization of Medical Images in a Distributed System

351

on Computer Vision Theory and Applications, pages

363–370, Funchal, Madeira, Portugal.

Amorim, P., Moraes, T., Silva, J., and Pedrini, H. (2018b).

Out-of-Core Rendering of Large Volumetric Data Sets

at Multiple Levels of Detail. In Multi-Modality Imag-

ing, pages 191–215. Springer International Publish-

ing.

Blazona, B. and Mihajlovic, Z. (2007). Visualization Ser-

vice Based on Web Services. Journal of Commputing

and Information Technology, 4:339–345.

Cabello, R. (2018). three.js - JavaScript 3D Library.

http://mrdoob.github.com/three.js/.

Carlson, J. L. (2013). Redis in Action. Manning Publica-

tions Co., Greenwich, CT, USA.

Dirksen, J. (2013). Learning Three.js: The JavaScript 3D

Library for WebGL. Packt Publishing Ltd.

Engel, K., Ertl, T., Hastreiter, P., Tomandl, B., and Eber-

hardt, K. (2000). Combining Local and Remote Visu-

alization Techniques for Interactive Volume Render-

ing in Medical Applications. In Conference on Vi-

sualization, pages 449–452. IEEE Computer Society

Press.

Evesque, F., Gerlach, S., and Hersch, R. (2002). Building

3D Anatomical Scenes on the Web. Journal of Visu-

alization and Computer Animation, 13(1):43–52.

Fazanaro, D., Amorim, P., Moraes, T., Silva, J., and Pedrini,

H. (2016). NURBS Parameterization for Medical Sur-

face Reconstruction. Applied Mathematics, 7(2):137–

144.

Fette, I. and Melnikov, A. (2011). The WebSocket Protocol.

RFC 6455 (Proposed Standard).

Fielding, R., Gettys, J., Mogul, J., Frystyk, H., Masinter,

L., Leach, P., and Berners-Lee, T. (1999). Hypertext

Transfer Protocol – HTTP/1.1. RFC 2616 (Draft Stan-

dard). http://www.ietf.org/rfc/rfc2616.txt.

Garland, M. and Heckbert, P. S. (1997). Surface Simpli-

ﬁcation Using Quadric Error Metrics. In 24th An-

nual Conference on Computer Graphics and Interac-

tive Techniques, pages 209–216, Los Angeles, CA,

USA.

GDCM (2018). Grassroots DICOM Library.

http://sourceforge.net/projects/gdcm/.

Grinberg, M. (2018). Flask SocketIO. https://ﬂask-

socketio.readthedocs.io/en/latest/.

InVesalius (2018). Open Source Software for Reconstruc-

tion of Computed Tomography and Magnetic Reso-

nance Images. http://www.cti.gov.br/invesalius/.

Ion, M., Russello, G., and Crispo, B. (2010). Sup-

porting Publication and Subscription Conﬁdentiality

in Pub/Sub Networks. In International Conference

on Security and Privacy in Communication Systems,

pages 272–289, Singapore, Singapore. Springer.

Kaspar, M., Parsad, N., and Silverstein, J. (2013). An Opti-

mized Web-based Approach for Collaborative Stereo-

scopic Medical Visualization. Journal of the Ameri-

can Medical Informatics Association, 20(3):535–543.

Kokelj, Z., Bohaka, C., and Marolt, M. (2018). A web-

based virtual reality environment for medical visual-

ization. In 41st International Convention on Informa-

tion and Communication Technology, Electronics and

Microelectronics, pages 0299–0302.

Lorensen, W. E. and Cline, H. E. (1987). Marching

Cubes: A High Resolution 3D Surface Construction

Algorithm. In 14th Annual Conference on Computer

Graphics and Interactive Techniques, pages 163–169,

New York, NY, USA.

Mahmoudi, S. E., Akhondi-Asl, A., Rahmani, R., Faghih-

Roohi, S., Taimouri, V., Sabouri, A., and Soltanian-

Zadeh, H. (2010). Web-based Interactive 2D/3D Med-

ical Image Processing and Visualization Software.

Computer Methods and Programs in Biomedicine,

98(2):172–182.

Marion, C. and Jomier, J. (2012). Real-Time Collaborative

Scientiﬁc WebGL Visualization with WebSocket. In

17th International Conference on 3D Web Technology,

pages 47–50, Los Angeles, CA, USA.

MMAP (2018). Memory-Mapped

I/O. http://www.kernel.org/doc/man-

pages/online/pages/man2/mmap.2.html.

Moraes, T., Amorim, P., Silva, J., and Pedrini, H. (2018).

3D Lanczos Interpolation for Medical Volumes. In

15th International Symposium on Computer Methods

in Biomechanics and Biomedical Engineering, pages

1–10, Lisbon, Portugal.

Murray, S. (2017). Interactive Data Visualization for the

Web: An Introduction to Designing with. O’Reilly

Media, Inc.

Mwalongo, F., Krone, M., Becher, M., Reina, G., and Ertl,

T. (2015). Remote Visualization of Dynamic Molecu-

lar Data using WebGL. In 20th International Confer-

ence on 3D Web Technology, pages 115–122.

Oliphant, T. E. (2007). Python for Scientiﬁc Computing.

Computing in Science & Engineering, 9(3):10–20.

Pandey, A. V., Manivannan, A., Nov, O., Satterthwaite,

M., and Bertini, E. (2014). The Persuasive Power of

Data Visualization. IEEE Transactions on Visualiza-

tion and Computer Graphics, 20(12):2211–2220.

Paul, B. (1997). OpenGL/Mesa Off-Screen Rendering.

In ACM SIGGRAPH Conference, Los Angeles, CA,

USA.

Prince, J. and Links, J. (2014). Medical Imaging Signals

and Systems. Pearson Education.

RedisLab (2018). Redis. https://redis.io/.

Rego, N. and Koes, D. (2015). 3Dmol.js: Molecular Visu-

alization with WebGL. Bioinformatics, 31(8):1322–

1324.

Ronacher, A. (2018). Flask. http://ﬂask.pocoo.org/.

Schroeder, W., Martin, K., Martin, K. W., and Lorensen, B.

(2004). The Visualization Toolkit. Prentice Hall PTR.

Sherif, T., Kassis, N., Rousseau, M.-T., Adalat, R., and

Evans, A. (2015). Brainbrowser: Distributed, Web-

based Neurological Data Visualization. Frontiers in

Neuroinformatic, 8:1–10.

Tanenbaum, A. S. and Van Steen, M. (2007). Distributed

Systems: Principles and Paradigms. Prentice-Hall.

Telea, A. C. (2014). Data Visualization: Principles and

Practice. CRC Press.

VRML (2012). Virtual Reality Modeling Language.

http://www.vrml.org/.

VTK (2018). Visualization Toolkit. http://www.vtk.org/.

GRAPP 2019 - 14th International Conference on Computer Graphics Theory and Applications

352

Ward, M. O., Grinstein, G., and Keim, D. (2015). Interac-

tive Data Visualization: Foundations, Techniques, and

Applications. AK Peters/CRC Press.

WebGL (2017). OpenGL ES 2.0 for the Web.

http://www.khronos.org/webgl/.

Wessels, A., Purvis, M., Jackson, J., and Rahman, S. (2011).

Remote Data Visualization through WebSockets. In

Eighth International Conference on Information Tech-

nology: New Generations, pages 1050–1051.

Web-based Interactive Visualization of Medical Images in a Distributed System

353
